BFP60 — Parts Diagrams

Generation BFP60AK1  ·  3 submodels

Assemblies (76)

Diagram

AIR GUIDE

BFP60 BFP60AK1 air guide exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AE1510
Fits all 3 submodels of this generation.

Parts in this assembly

13 parts
1
12357-ZZ3-000Ships in 1 to 2 Days
$11.61$15.90
2
12359-ZZ3-000Ships in 1 to 2 Days
$16.34$22.38
3
16966-MR5-000Ships in 1 to 2 Days
$7.64$10.46
4
17201-ZZ3-000Ships in 1 to 2 Days
$18.15$24.86
5
17202-ZZ3-000Ships in 1 to 2 Days
$6.15$8.42
6
17315-ZZ5-M01Ships in 1 to 2 Days
$9.56$13.10
6
17315-ZZ5-000Ships in 1 to 2 Days
$8.22$11.60
7
17374-ZZ5-000Ships in 1 to 2 Days
$7.52$10.30
8
37880-PLC-004Ships in 1 to 2 Days
$68.21$93.44
8
37880-RE1-Z01Ships in 1 to 2 Days
$34.43$47.16
9
37881-P2A-000Ships in 1 to 2 Days
$5.20$7.12
10
90001-ZZ5-M01Ships in 1 to 2 Days
$3.77$5.16
11
93903-254G0Ships in 1 to 2 Daysqty 4 used
$3.49$4.78
Diagram

ALTERNATOR

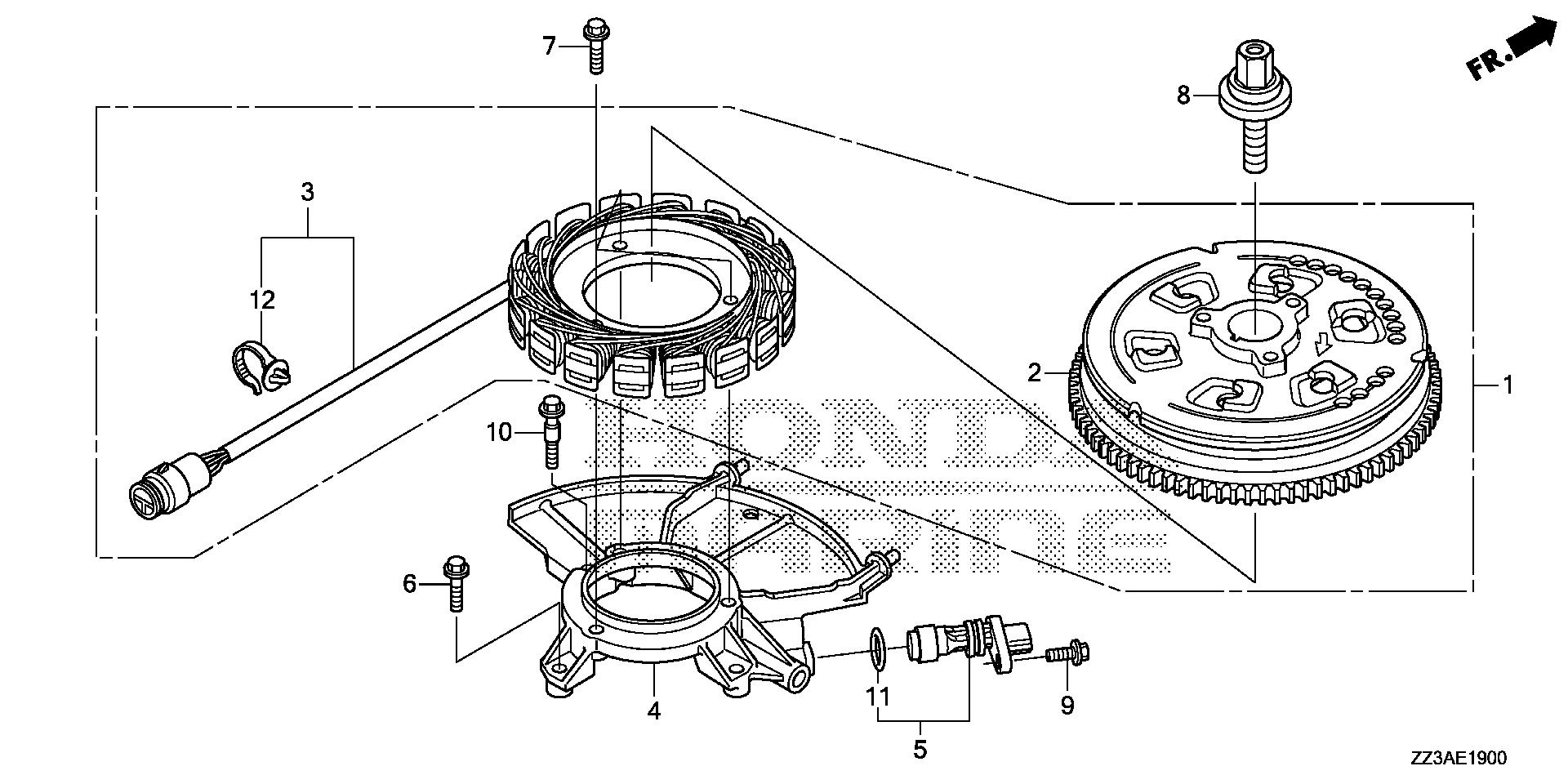

BFP60 BFP60AK1 alternator exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AE1900
Fits all 3 submodels of this generation.

Parts in this assembly

15 parts
1
31630-ZZ3-003Ships in 1 to 2 Days
$742.47$1,017.08
1
31630-ZZ3-A01Ships in 1 to 2 Days
$689.73$944.84
2
31631-ZZ3-003Ships in 1 to 2 Days
$285.97$285.98
3
31632-ZZ3-003Ships in 1 to 2 Days
$431.59
3
31632-ZZ3-A01Ships in 1 to 2 Days
$388.89
4
31636-ZZ3-000Ships in 1 to 2 Days
$85.12$116.60
5
37500-PNB-003Ships in 1 to 2 Days
$214.85$294.32
6
90014-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.87$2.56
6
90016-ZW9-000Ships in 1 to 2 Daysreplaced by 90014-ZZ5-M01
$1.87$2.56
7
90016-ZZ5-M01Ships in 1 to 2 Daysqty 3 used
$1.42$1.94
8
90017-RWC-A01Ships in 1 to 2 Days
$25.10$34.38
9
90017-ZZ5-M01Ships in 1 to 2 Days
$1.24$1.70
10
90023-ZY6-000Ships in 1 to 2 Daysqty 2 used
$3.02$4.14
11
91333-PNA-003Ships in 1 to 2 Days
$3.02$4.14
12
91540-S0A-003Ships in 1 to 2 Days
$4.15$5.68
Diagram

ALTERNATOR COVER

BFP60 BFP60AK1 alternator cover exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AF0730
Fits all 3 submodels of this generation.

Parts in this assembly

4 parts
1
31145-ZZ3-000Ships in 1 to 2 Days
$68.43$93.74
2
40102-ZV5-000Ships in 1 to 2 Daysqty 2 used
$2.64$3.62
3
50142-437-970Ships in 1 to 2 Daysqty 2 used
$2.50$3.42
4
91553-ZV5-010Ships in 1 to 2 Daysqty 2 used
$2.67$3.66
Diagram

BOLT KIT (HI-LEX)

BFP60 BFP60AK1 bolt kit (hi-lex) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AY0700
Fits all 3 submodels of this generation.

Parts in this assembly

4 parts
1
06900-ZW5-U00Ships in 1 to 2 Days
$82.88$113.54
2
90021-ZW5-U00Ships in 1 to 2 Daysqty 3 used
$13.11$17.96
3
90511-ZW5-U00Ships in 1 to 2 Daysqty 3 used
$3.97$5.44
4
90512-ZW5-U00Ships in 1 to 2 Daysqty 3 used
$6.63$9.08
Diagram

CABLE (DUAL) (HI-LEX)

BFP60 BFP60AK1 cable (dual) (hi-lex) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AY0501
Fits all 3 submodels of this generation.

Parts in this assembly

49 parts
1
24905-ZY3-003Ships in 1 to 2 Daysqty 4 used
$83.35$114.18
1
24906-ZY3-003Ships in 1 to 2 Daysqty 4 used
$86.32$118.24
1
24907-ZY3-003Ships in 1 to 2 Daysqty 4 used
$89.37$122.42
1
24907-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$121.63$166.62
1
24908-ZY3-003Ships in 1 to 2 Daysqty 4 used
$92.43$126.62
1
24909-ZY3-003Ships in 1 to 2 Daysqty 4 used
$99.76$136.66
1
24909-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$133.11$182.34
1
24910-ZY3-003Ships in 1 to 2 Daysqty 4 used
$60.42
1
24910-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$102.89$140.94
1
24911-ZY3-003Ships in 1 to 2 Daysqty 4 used
$58.54
1
24912-ZW7-U01Ships in 1 to 2 Daysqty 4 used
$122.73$168.12
1
24912-ZY3-003Ships in 1 to 2 Daysqty 4 used
$64.99
1
24913-ZY3-003Ships in 1 to 2 Daysqty 4 used
$64.06
1
24913-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$156.28$214.08
1
24914-ZY3-003Ships in 1 to 2 Daysqty 4 used
$66.26
1
24915-ZY3-003Ships in 1 to 2 Daysqty 4 used
$63.91
1
CABLE, REMOTE CONTROL (16') (LOW FRICTION) (NOT AVAILABLE)
24916-ZY3-003No Longer Available
—
1
24917-ZW7-U01Ships in 1 to 2 Daysqty 4 used
$145.49$199.30
1
24917-ZY3-003Ships in 1 to 2 Daysqty 4 used
$73.32
1
24917-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$131.44$180.06
1
CABLE, REMOTE CONTROL (18') (LOW FRICTION) (NOT AVAILABLE)
24918-ZY3-003No Longer Available
—
1
24918-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$136.19$186.56
1
24919-ZY3-003Ships in 1 to 2 Daysqty 4 used
$78.63
1
CABLE, REMOTE CONTROL (20') (LOW FRICTION) (NOT AVAILABLE)
24920-ZY3-003No Longer Available
—
1
24920-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$145.68$199.56
1
24921-ZY3-003Ships in 1 to 2 Daysqty 4 used
$85.70
1
24921-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$153.56$210.36
1
CABLE, REMOTE CONTROL (22') (LOW FRICTION) (NOT AVAILABLE)
24922-ZY3-003No Longer Available
—
1
24923-ZY3-003Ships in 1 to 2 Daysqty 4 used
$94.55
1
CABLE, REMOTE CONTROL (24') (LOW FRICTION) (NOT AVAILABLE)
24924-ZY3-003No Longer Available
—
1
24925-ZY3-003Ships in 1 to 2 Daysqty 4 used
$103.36
1
24926-ZY3-003Ships in 1 to 2 Daysqty 4 used
$109.53
1
24926-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$248.36$340.22
1
24927-ZY3-003Ships in 1 to 2 Daysqty 4 used
$115.72
1
CABLE, REMOTE CONTROL (28') (LOW FRICTION) (NOT AVAILABLE)
24928-ZY3-003No Longer Available
—
1
24929-ZW7-U01Ships in 1 to 2 Daysqty 4 used
$220.69$302.32
1
24929-ZY3-003Ships in 1 to 2 Daysqty 4 used
$128.09
1
24929-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$219.69$300.94
1
24930-ZW7-U01Ships in 1 to 2 Daysqty 4 used
$231.05$316.50
1
CABLE, REMOTE CONTROL (30') (LOW FRICTION) (NOT AVAILABLE)
24930-ZY3-003No Longer Available
—
1
24931-ZY3-003Ships in 1 to 2 Daysqty 4 used
$141.35
1
CABLE, REMOTE CONTROL (32') (LOW FRICTION) (NOT AVAILABLE)
24932-ZY3-003No Longer Available
—
1
24933-ZW7-U01Ships in 1 to 2 Daysqty 4 used
$282.33$386.76
1
CABLE, REMOTE CONTROL (33') (LOW FRICTION)
24933-ZY3-003No Longer Available
—
1
24934-ZW7-U01Ships in 1 to 2 Daysqty 4 used
$284.66$389.94
1
CABLE, REMOTE CONTROL (34') (LOW FRICTION) (NOT AVAILABLE)
24934-ZY3-003No Longer Available
—
1
24935-ZW7-U01Ships in 1 to 2 Daysreplaced by 24929-ZY6-A01
$219.69$300.94
1
24935-ZY3-003Ships in 1 to 2 Daysqty 4 used
$169.60
1
24938-ZW7-U01Ships in 1 to 2 Daysqty 4 used
$329.84$451.84
Diagram

CABLE (DUAL) (NHK MEC)

BFP60 BFP60AK1 cable (dual) (nhk mec) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AY0503
Fits all 3 submodels of this generation.

Parts in this assembly

47 parts
1
24905-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$83.35$114.18
1
24906-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$90.21$123.58
1
24907-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$121.63$166.62
1
24908-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$96.59$132.32
1
24909-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$133.11$182.34
1
24910-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$102.89$140.94
1
24911-ZW7-U01Ships in 1 to 2 Daysqty 4 used
$113.43$155.38
1
24911-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$145.49$199.30
1
24912-ZW7-U01Ships in 1 to 2 Daysqty 4 used
$122.73$168.12
1
24912-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$150.95$206.78
1
24913-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$156.28$214.08
1
24914-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$118.73$162.64
1
24915-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$122.65$168.02
1
24916-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$126.70$173.56
1
24917-ZW7-U01Ships in 1 to 2 Daysqty 4 used
$145.49$199.30
1
24917-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$131.44$180.06
1
24918-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$136.19$186.56
1
24919-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$140.89$193.00
1
24920-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$145.68$199.56
1
24921-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$153.56$210.36
1
24922-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$161.53$221.28
1
24923-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$162.10$222.06
1
24924-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$164.70$225.62
1
24925-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$185.22$253.72
1
24926-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$248.36$340.22
1
24927-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$282.33$386.76
1
24928-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$202.94$278.00
1
24929-ZW7-U01Ships in 1 to 2 Daysqty 4 used
$220.69$302.32
1
24929-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$219.69$300.94
1
24930-ZW7-U01Ships in 1 to 2 Daysqty 4 used
$231.05$316.50
1
24930-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$233.63$320.04
1
24931-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$242.46$332.14
1
24932-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$254.51$348.64
1
24933-ZW7-U01Ships in 1 to 2 Daysqty 4 used
$282.33$386.76
1
24933-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$258.84$354.58
1
24934-ZW7-U01Ships in 1 to 2 Daysqty 4 used
$284.66$389.94
1
24934-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$270.60$370.68
1
24935-ZW7-U01Ships in 1 to 2 Daysreplaced by 24929-ZY6-A01
$219.69$300.94
1
24935-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$282.39$386.84
1
24936-ZW7-U01Ships in 1 to 2 Daysreplaced by 24930-ZY6-A01
$233.63$320.04
1
24936-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$297.10$406.98
1
24937-ZW7-U01Ships in 1 to 2 Daysqty 4 used
$314.16$430.36
1
24937-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$321.17$439.96
1
24938-ZW7-U01Ships in 1 to 2 Daysqty 4 used
$329.84$451.84
1
24938-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$326.54$447.32
1
24939-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$351.47$481.46
1
24940-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$355.90$487.54
Diagram

CABLE (SINGLE) (HI-LEX)

BFP60 BFP60AK1 cable (single) (hi-lex) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AY0500
Fits all 3 submodels of this generation.

Parts in this assembly

49 parts
1
24905-ZY3-003Ships in 1 to 2 Daysqty 2 used
$83.35$114.18
1
24906-ZY3-003Ships in 1 to 2 Daysqty 2 used
$86.32$118.24
1
24907-ZY3-003Ships in 1 to 2 Daysqty 2 used
$89.37$122.42
1
24907-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$121.63$166.62
1
24908-ZY3-003Ships in 1 to 2 Daysqty 2 used
$92.43$126.62
1
24909-ZY3-003Ships in 1 to 2 Daysqty 2 used
$99.76$136.66
1
24909-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$133.11$182.34
1
24910-ZY3-003Ships in 1 to 2 Daysqty 2 used
$60.42
1
24910-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$102.89$140.94
1
24911-ZY3-003Ships in 1 to 2 Daysqty 2 used
$58.54
1
24912-ZW7-U01Ships in 1 to 2 Daysqty 2 used
$122.73$168.12
1
24912-ZY3-003Ships in 1 to 2 Daysqty 2 used
$64.99
1
24913-ZY3-003Ships in 1 to 2 Daysqty 2 used
$64.06
1
24913-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$156.28$214.08
1
24914-ZY3-003Ships in 1 to 2 Daysqty 2 used
$66.26
1
24915-ZY3-003Ships in 1 to 2 Daysqty 2 used
$63.91
1
CABLE, REMOTE CONTROL (16') (LOW FRICTION) (NOT AVAILABLE)
24916-ZY3-003No Longer Available
—
1
24917-ZW7-U01Ships in 1 to 2 Daysqty 2 used
$145.49$199.30
1
24917-ZY3-003Ships in 1 to 2 Daysqty 2 used
$73.32
1
24917-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$131.44$180.06
1
CABLE, REMOTE CONTROL (18') (LOW FRICTION) (NOT AVAILABLE)
24918-ZY3-003No Longer Available
—
1
24918-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$136.19$186.56
1
24919-ZY3-003Ships in 1 to 2 Daysqty 2 used
$78.63
1
CABLE, REMOTE CONTROL (20') (LOW FRICTION) (NOT AVAILABLE)
24920-ZY3-003No Longer Available
—
1
24920-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$145.68$199.56
1
24921-ZY3-003Ships in 1 to 2 Daysqty 2 used
$85.70
1
24921-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$153.56$210.36
1
CABLE, REMOTE CONTROL (22') (LOW FRICTION) (NOT AVAILABLE)
24922-ZY3-003No Longer Available
—
1
24923-ZY3-003Ships in 1 to 2 Daysqty 2 used
$94.55
1
CABLE, REMOTE CONTROL (24') (LOW FRICTION) (NOT AVAILABLE)
24924-ZY3-003No Longer Available
—
1
24925-ZY3-003Ships in 1 to 2 Daysqty 2 used
$103.36
1
24926-ZY3-003Ships in 1 to 2 Daysqty 2 used
$109.53
1
24926-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$248.36$340.22
1
24927-ZY3-003Ships in 1 to 2 Daysqty 2 used
$115.72
1
CABLE, REMOTE CONTROL (28') (LOW FRICTION) (NOT AVAILABLE)
24928-ZY3-003No Longer Available
—
1
24929-ZW7-U01Ships in 1 to 2 Daysqty 2 used
$220.69$302.32
1
24929-ZY3-003Ships in 1 to 2 Daysqty 2 used
$128.09
1
24929-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$219.69$300.94
1
24930-ZW7-U01Ships in 1 to 2 Daysqty 2 used
$231.05$316.50
1
CABLE, REMOTE CONTROL (30') (LOW FRICTION) (NOT AVAILABLE)
24930-ZY3-003No Longer Available
—
1
24931-ZY3-003Ships in 1 to 2 Daysqty 2 used
$141.35
1
CABLE, REMOTE CONTROL (32') (LOW FRICTION) (NOT AVAILABLE)
24932-ZY3-003No Longer Available
—
1
24933-ZW7-U01Ships in 1 to 2 Daysqty 2 used
$282.33$386.76
1
CABLE, REMOTE CONTROL (33') (LOW FRICTION)
24933-ZY3-003No Longer Available
—
1
24934-ZW7-U01Ships in 1 to 2 Daysqty 2 used
$284.66$389.94
1
CABLE, REMOTE CONTROL (34') (LOW FRICTION) (NOT AVAILABLE)
24934-ZY3-003No Longer Available
—
1
24935-ZW7-U01Ships in 1 to 2 Daysreplaced by 24929-ZY6-A01
$219.69$300.94
1
24935-ZY3-003Ships in 1 to 2 Daysqty 2 used
$169.60
1
24938-ZW7-U01Ships in 1 to 2 Daysqty 2 used
$329.84$451.84
Diagram

CABLE (SINGLE) (NHK MEC)

BFP60 BFP60AK1 cable (single) (nhk mec) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AY0502
Fits all 3 submodels of this generation.

Parts in this assembly

47 parts
1
24905-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$83.35$114.18
1
24906-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$90.21$123.58
1
24907-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$121.63$166.62
1
24908-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$96.59$132.32
1
24909-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$133.11$182.34
1
24910-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$102.89$140.94
1
24911-ZW7-U01Ships in 1 to 2 Daysqty 2 used
$113.43$155.38
1
24911-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$145.49$199.30
1
24912-ZW7-U01Ships in 1 to 2 Daysqty 2 used
$122.73$168.12
1
24912-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$150.95$206.78
1
24913-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$156.28$214.08
1
24914-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$118.73$162.64
1
24915-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$122.65$168.02
1
24916-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$126.70$173.56
1
24917-ZW7-U01Ships in 1 to 2 Daysqty 2 used
$145.49$199.30
1
24917-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$131.44$180.06
1
24918-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$136.19$186.56
1
24919-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$140.89$193.00
1
24920-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$145.68$199.56
1
24921-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$153.56$210.36
1
24922-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$161.53$221.28
1
24923-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$162.10$222.06
1
24924-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$164.70$225.62
1
24925-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$185.22$253.72
1
24926-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$248.36$340.22
1
24927-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$282.33$386.76
1
24928-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$202.94$278.00
1
24929-ZW7-U01Ships in 1 to 2 Daysqty 2 used
$220.69$302.32
1
24929-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$219.69$300.94
1
24930-ZW7-U01Ships in 1 to 2 Daysqty 2 used
$231.05$316.50
1
24930-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$233.63$320.04
1
24931-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$242.46$332.14
1
24932-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$254.51$348.64
1
24933-ZW7-U01Ships in 1 to 2 Daysqty 2 used
$282.33$386.76
1
24933-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$258.84$354.58
1
24934-ZW7-U01Ships in 1 to 2 Daysqty 2 used
$284.66$389.94
1
24934-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$270.60$370.68
1
24935-ZW7-U01Ships in 1 to 2 Daysreplaced by 24929-ZY6-A01
$219.69$300.94
1
24935-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$282.39$386.84
1
24936-ZW7-U01Ships in 1 to 2 Daysreplaced by 24930-ZY6-A01
$233.63$320.04
1
24936-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$297.10$406.98
1
24937-ZW7-U01Ships in 1 to 2 Daysqty 2 used
$314.16$430.36
1
24937-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$321.17$439.96
1
24938-ZW7-U01Ships in 1 to 2 Daysqty 2 used
$329.84$451.84
1
24938-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$326.54$447.32
1
24939-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$351.47$481.46
1
24940-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$355.90$487.54
Diagram

CABLE KIT

BFP60 BFP60AK1 cable kit exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AY1100
Fits only BFP60AK1-LRTA, BFP60AK1-XRTA — not every submodel of this generation.

Parts in this assembly

22 parts
1
06385-ZVL-900Ships in 1 to 2 Days
$725.37$993.66
2
32436-ZVL-900Ships in 1 to 2 Days
$112.61$154.26
3
32436-ZVL-910Ships in 1 to 2 Days
$83.57$114.48
4
32437-ZVL-900Ships in 1 to 2 Days
$48.41$66.32
5
32438-ZVL-900Ships in 1 to 2 Days
$68.56$93.92
6
32800-ZZ3-000Ships in 1 to 2 Days
$200.56$274.74
7
32805-ZZ3-000Ships in 1 to 2 Daysqty 2 used
$114.95
8
32806-ZVL-000Ships in 1 to 2 Days
$32.92$45.10
9
32807-ZVL-000Ships in 1 to 2 Days
$34.41$47.14
10
32815-ZVL-000Ships in 1 to 2 Days
$138.56
11
32823-ZV5-003Ships in 1 to 2 Daysqty 4 used
$2.95$4.04
12
32824-ZV5-003Ships in 1 to 2 Days
$3.11$4.26
13
38206-797-A01Ships in 1 to 2 Daysqty 6 used
$1.97$2.70
14
38216-ZVL-901Ships in 1 to 2 Daysqty 3 used
$5.23$7.16
15
38580-ZZ5-003Ships in 1 to 2 Days
$41.26$56.52
16
38582-ZVL-900Ships in 1 to 2 Days
$16.89$23.14
17
38585-MKE-A11Ships in 1 to 2 Days
$4.99$6.84
18
87117-Z2E-000Ships in 1 to 2 Daysqty 3 used
$1.66$2.28
19
90113-TA0-A00Ships in 1 to 2 Daysqty 3 used
$8.28$11.34
20
91531-SR3-003Ships in 1 to 2 Daysqty 3 used
$7.75$10.62
21
91540-STK-003Ships in 1 to 2 Days
$4.15$5.68
22
93901-446J0Ships in 1 to 2 Daysqty 4 used
$1.11$1.52
Diagram

CAMSHAFT

BFP60 BFP60AK1 camshaft exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AE0900
Fits all 3 submodels of this generation.

Parts in this assembly

22 parts
1
12210-PZ1-004Ships in 1 to 2 Days
$4.45$6.10
2
12211-PZ1-004Ships in 1 to 2 Days
$4.45$6.10
3
14110-ZZ3-000Ships in 1 to 2 Days
$292.89$401.22
4
14221-ZZ3-003Ships in 1 to 2 Days
$22.44$30.74
5
14222-PWA-004Ships in 1 to 2 Days
$10.18$13.94
6
14430-ZY9-000Ships in 1 to 2 Daysqty 3 used
$75.77$103.80
7
14441-ZY9-000Ships in 1 to 2 Daysqty 3 used
$27.00$36.98
8
14442-ZY9-000Ships in 1 to 2 Daysqty 3 used
$27.00$36.98
9
14631-ZZ3-000Ships in 1 to 2 Days
$64.09$87.80
10
14647-PWA-000Ships in 1 to 2 Daysqty 9 used
$4.64$6.36
11
14647-PY3-000Ships in 1 to 2 Daysqty 3 used
$4.60$6.30
12
14711-ZZ3-000Ships in 1 to 2 Daysqty 6 used
$17.74$24.30
13
14721-RB0-000Ships in 1 to 2 Daysqty 6 used
$76.83$105.24
14
14744-PM3-000Ships in 1 to 2 Daysqty 12 used
$8.92$12.22
15
14751-ZY9-003Ships in 1 to 2 Daysqty 6 used
$8.23$11.28
16
14752-ZY9-003Ships in 1 to 2 Daysqty 6 used
$8.23$11.28
17
14765-RGA-000Ships in 1 to 2 Daysqty 12 used
$7.68$10.52
18
14775-P08-000Ships in 1 to 2 Daysqty 12 used
$6.86$10.54
19
14781-RGM-A01Ships in 1 to 2 Daysqty 24 used
$5.68$7.78
20
90006-PWA-003Ships in 1 to 2 Daysqty 4 used
$10.66$14.60
21
90206-PM3-004Ships in 1 to 2 Daysqty 12 used
$4.98$6.82
22
96220-40080Ships in 1 to 2 Days
$0.47$0.64
Diagram

CRANKSHAFT - PISTON

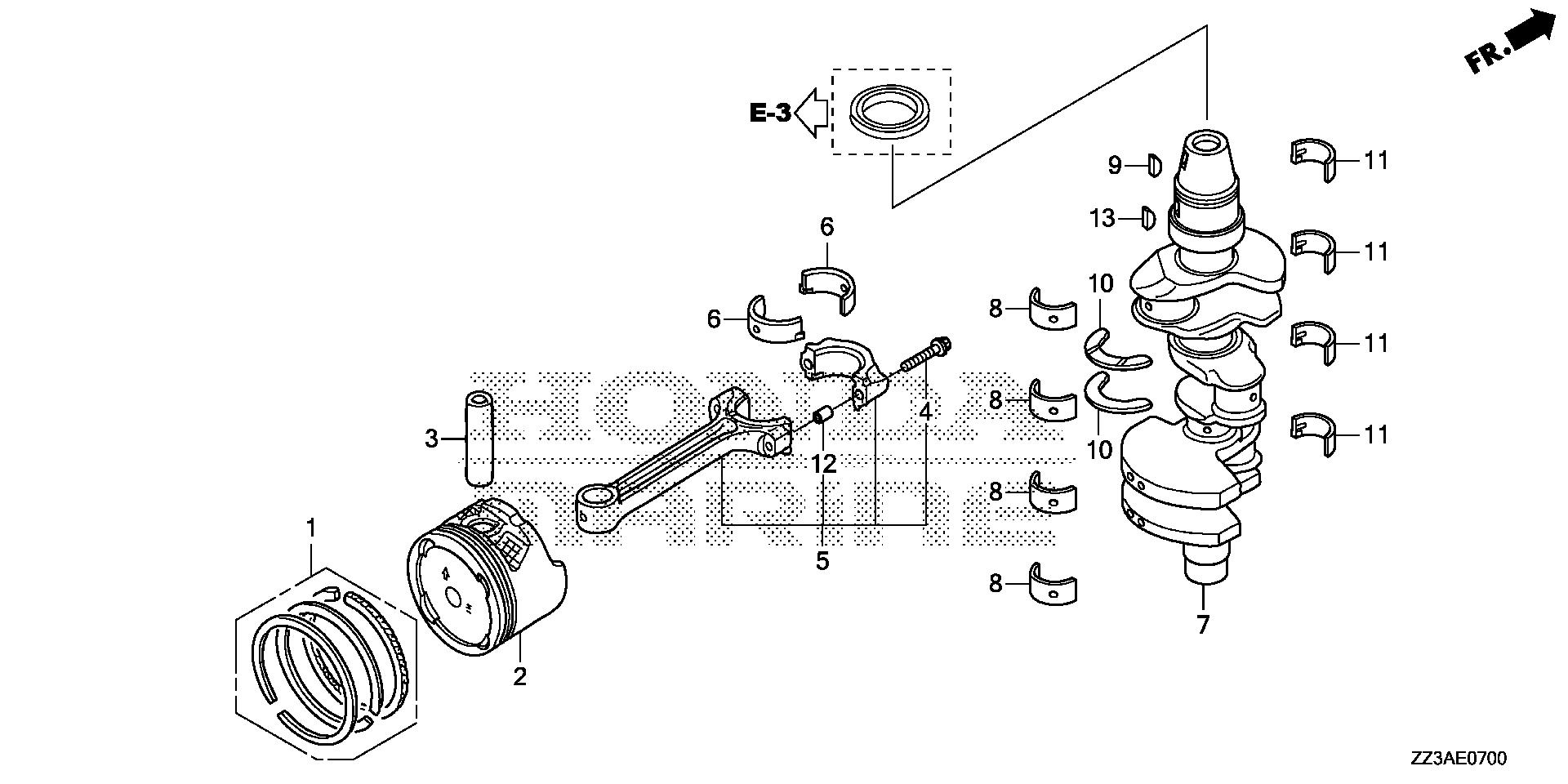

BFP60 BFP60AK1 crankshaft - piston exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AE0700
Fits all 3 submodels of this generation.

Parts in this assembly

31 parts
1
13010-ZZ3-010Ships in 1 to 2 Daysqty 3 used
$51.76$70.90
2
13101-ZZ3-010Ships in 1 to 2 Daysqty 3 used
$61.04$83.62
3
13111-PWA-000Ships in 1 to 2 Daysqty 3 used
$26.44$36.22
4
13204-PWA-003Ships in 1 to 2 Daysqty 6 used
$8.23$11.28
5
13210-ZZ3-000Ships in 1 to 2 Daysqty 3 used
$98.54$135.00
6
13211-PWA-003Ships in 1 to 2 Daysqty 6 used
$27.38$37.50
6
13212-PWA-003Ships in 1 to 2 Daysqty 6 used
$29.81$40.84
6
13213-PWA-003Ships in 1 to 2 Daysqty 6 used
$27.38$37.50
6
13214-PWA-003Ships in 1 to 2 Daysqty 6 used
$31.58$43.26
6
13215-PWA-003Ships in 1 to 2 Daysqty 6 used
$31.58$43.26
6
13216-PWA-003Ships in 1 to 2 Daysqty 6 used
$25.92$35.50
6
13217-PWA-003Ships in 1 to 2 Daysqty 6 used
$27.38$37.50
7
13311-ZZ3-000Ships in 1 to 2 Days
$704.57
8
13322-PWA-003Ships in 1 to 2 Daysqty 4 used
$25.96$35.56
8
13323-PWA-003Ships in 1 to 2 Daysqty 4 used
$28.12$38.52
8
13324-PWA-003Ships in 1 to 2 Daysqty 4 used
$28.12$38.52
8
13325-PWA-003Ships in 1 to 2 Daysqty 4 used
$28.12$38.52
8
13326-PWA-003Ships in 1 to 2 Daysqty 4 used
$21.51$29.46
8
13327-PWA-003Ships in 1 to 2 Daysqty 4 used
$20.18$27.64
8
13328-PWA-003Ships in 1 to 2 Daysqty 4 used
$27.67$37.90
9
13331-Z8B-900Ships in 1 to 2 Days
$4.44$6.08
10
13331-ZZ3-003Ships in 1 to 2 Daysqty 2 used
$8.02$10.98
11
13342-PWA-003Ships in 1 to 2 Daysqty 4 used
$25.96$35.56
11
13343-PWA-003Ships in 1 to 2 Daysqty 4 used
$28.12$38.52
11
13344-PWA-003Ships in 1 to 2 Daysqty 4 used
$28.12$38.52
11
13345-PWA-003Ships in 1 to 2 Daysqty 4 used
$28.12$38.52
11
13346-PWA-003Ships in 1 to 2 Daysqty 4 used
$21.51$29.46
11
13347-PWA-003Ships in 1 to 2 Daysqty 4 used
$20.18$27.64
11
13348-PWA-003Ships in 1 to 2 Daysqty 4 used
$21.24$29.10
12
94301-08100Ships in 1 to 2 Daysqty 6 used
$2.74$3.76
13
94401-25140Ships in 1 to 2 Days
$1.74$2.38
Diagram

CYLINDER & CRANKSHAFT ASSY.

Honda publishes no exploded diagram for this assembly. The parts list below is complete.
Ref numbers on the diagram match the badges belowZZ3AX0200
Fits all 3 submodels of this generation.

Parts in this assembly

1 parts
1
$2,169.04
Diagram

CYLINDER BLOCK

BFP60 BFP60AK1 cylinder block exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AE0300A
Fits all 3 submodels of this generation.

Parts in this assembly

39 parts
1
11106-ZZ3-300Ships in 1 to 2 Days
$8.79$12.04
1
11106-ZZ3-330Ships in 1 to 2 Days
$8.44$11.56
2
11107-PWA-300Ships in 1 to 2 Days
$3.58$4.90
3
11911-ZZ3-010Ships in 1 to 2 Daysqty 2 used
$9.42$12.90
4
12000-ZZ3-425ZAShips in 1 to 2 Days
$1,897.28$1,954.14
4
12000-ZZ3-445ZAShips in 1 to 2 Daysreplaced by 12000-ZZ3-455ZA
$1,807.15
4
12000-ZZ3-455ZAShips in 1 to 2 Days
$1,807.15
5
12109-ZZ3-000Ships in 1 to 2 Days
$11.18$15.32
6
12155-ZV5-000Ships in 1 to 2 Daysreplaced by 12155-ZV5-010
$9.53$13.06
6
12155-ZV5-010Ships in 1 to 2 Days
$9.53$13.06
7
15400-ZZ3-003In Stock
$16.47$22.56
↳
Sierra alternative ·
18-7913In Stock save $6.31
$10.16
8
31750-ZZ3-003Ships in 1 to 2 Days
$161.58$221.36
9
31752-ZZ3-000Ships in 1 to 2 Days
$4.67$6.60
9
31752-ZZ3-010Ships in 1 to 2 Days
$4.98$6.82
10
31754-ZZ3-000Ships in 1 to 2 Days
$5.52$7.56
11
31756-ZZ3-000Ships in 1 to 2 Days
$4.86$6.86
11
31756-ZZ3-010Ships in 1 to 2 Days
$5.11$7.00
12
35490-ZZ3-003Ships in 1 to 2 Days
$25.83$35.38
13
35673-ZY3-003Ships in 1 to 2 Days
$22.62$30.98
14
90001-ZZ3-003Ships in 1 to 2 Daysqty 8 used
$5.85$8.02
15
90011-ZW9-000Ships in 1 to 2 Days
$1.71$2.34
16
90012-ZZ5-M02Ships in 1 to 2 Days
$3.72$5.10
17
90013-ZW9-000Ships in 1 to 2 Days
$1.47$2.08
18
90015-590-000Ships in 1 to 2 Days
$14.53$19.90
19
90016-ZZ5-M01Ships in 1 to 2 Daysqty 8 used
$1.42$1.94
20
90017-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$1.24$1.70
21
90021-ZZ5-M01Ships in 1 to 2 Days
$1.14$1.56
22
90030-ZY3-000Ships in 1 to 2 Daysqty 3 used
$0.92$1.26
23
90035-ZY3-000Ships in 1 to 2 Daysqty 2 used
$1.02$1.44
24
90201-ZY9-M01Ships in 1 to 2 Daysqty 2 used
$1.71$2.34
25
90442-397-000Ships in 1 to 2 Days
$2.60$3.56
26
90701-PD2-000Ships in 1 to 2 Daysqty 4 used
$9.17$12.56
27
91204-PW5-005Ships in 1 to 2 Days
$16.12$22.08
28
91304-ME5-003Ships in 1 to 2 Days
$1.45$1.98
29
91307-PNA-003Ships in 1 to 2 Days
$2.01$2.76
30
91541-S0A-003Ships in 1 to 2 Days
$3.64$4.98
31
93500-06018-4JShips in 1 to 2 Days
$1.49$2.10
32
94301-14200Ships in 1 to 2 Daysqty 2 used
$3.01$4.12
33
90004-ZX2-000Ships in 1 to 2 Days
$1.88$2.58
Diagram

CYLINDER HEAD

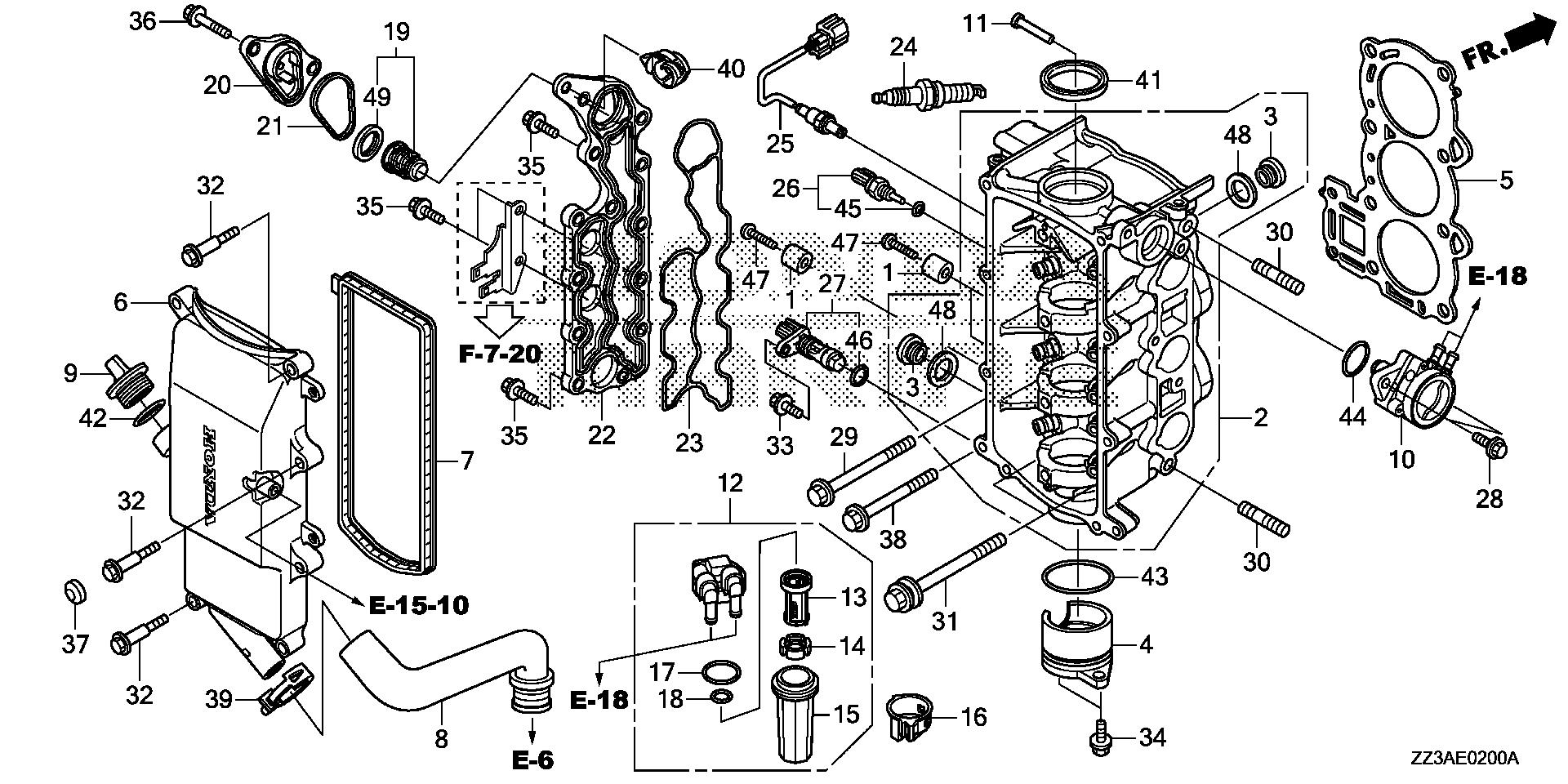

BFP60 BFP60AK1 cylinder head exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AE0200A
Fits all 3 submodels of this generation.

Parts in this assembly

51 parts
1
12155-ZV4-A00Ships in 1 to 2 Daysreplaced by 12155-ZV4-A01
$10.91$14.94
1
12155-ZV4-A01Ships in 1 to 2 Daysqty 3 used
$10.91$14.94
2
12210-ZZ3-030ZAShips in 1 to 2 Days
$1,039.77
3
12217-ZY9-M01Ships in 1 to 2 Daysqty 2 used
$3.02$4.14
4
12241-ZZ3-000Ships in 1 to 2 Days
$20.97$28.72
5
12251-ZZ3-003Ships in 1 to 2 Days
$69.50$95.20
6
12310-ZZ3-000Ships in 1 to 2 Days
$160.45$219.80
7
12312-ZZ3-000Ships in 1 to 2 Days
$18.50$25.34
8
15422-ZZ3-000Ships in 1 to 2 Days
$45.44$62.24
9
15611-921-000Ships in 1 to 2 Days
$10.13$13.88
10
16700-ZZ3-013Ships in 1 to 2 Days
$133.53$182.92
11
16717-ZZ3-000Ships in 1 to 2 Days
$9.99$13.68
12
16900-ZZ5-003Ships in 1 to 2 Days
$61.96$84.88
13
16901-ZZ5-003In Stock
$13.11$17.96
14
16906-ZZ5-003Ships in 1 to 2 Days
$3.69$5.06
15
16912-ZZ5-003Ships in 1 to 2 Days
$9.07$12.42
16
16915-ZZ3-000Ships in 1 to 2 Days
$12.76$17.48
17
16918-ZZ5-003Ships in 1 to 2 Days
$2.38$3.26
18
16919-ZZ5-003Ships in 1 to 2 Days
$2.91$3.98
19
19300-ZW9-003In Stock
$43.00$58.90
↳
Sierra alternative ·
18-3628-1In Stock save $0.08
$42.92
20
19315-ZW9-000Ships in 1 to 2 Days
$10.96$15.02
21
19317-ZW9-000Ships in 1 to 2 Days
$5.15$7.06
22
19361-ZZ3-000Ships in 1 to 2 Days
$43.81$60.02
23
19371-ZZ3-010Ships in 1 to 2 Days
$14.15$19.38
24
31908-ZZ3-003Ships in 1 to 2 Daysqty 3 used
$21.29$29.16
25
35655-ZZ3-003Ships in 1 to 2 Days
$300.70$411.92
26
35673-ZY3-003Ships in 1 to 2 Days
$22.62$30.98
27
35695-ZY9-003Ships in 1 to 2 Days
$90.21$123.58
28
90003-ZY9-M01Ships in 1 to 2 Daysqty 2 used
$1.93$2.64
29
90003-ZZ3-020Ships in 1 to 2 Days
$3.88$5.32
29
90003-ZZ3-030Ships in 1 to 2 Days
$3.88$5.32
30
90004-ZZ3-030Ships in 1 to 2 Daysqty 2 used
$2.61$3.58
31
90007-MEL-003Ships in 1 to 2 Daysqty 8 used
$4.79$6.56
32
90011-ZZ3-030Ships in 1 to 2 Daysqty 8 used
$2.47$3.38
33
90017-ZZ5-M01Ships in 1 to 2 Days
$1.24$1.70
34
90018-ZW5-000Ships in 1 to 2 Daysqty 2 used
$1.64$2.24
35
90030-ZY3-000Ships in 1 to 2 Daysqty 11 used
$0.92$1.26
36
90063-ZVL-010Ships in 1 to 2 Daysqty 2 used
$1.66$2.28
37
90082-ZW4-H01Ships in 1 to 2 Days
$3.39$4.64
38
90158-ZW4-030Ships in 1 to 2 Days
$1.99$2.72
39
90606-ZW5-030Ships in 1 to 2 Days
$3.33$4.56
40
90683-SA0-003Ships in 1 to 2 Days
$9.11$12.48
41
91201-ZE3-004Ships in 1 to 2 Days
$7.99$10.94
42
91301-805-000Ships in 1 to 2 Days
$3.65$5.00
43
91302-PX4-004Ships in 1 to 2 Days
$6.75$9.24
44
91303-ZW9-000In Stock
$2.88$3.94
45
91307-PNA-003Ships in 1 to 2 Days
$2.01$2.76
46
91333-PNA-003Ships in 1 to 2 Days
$3.02$4.14
47
93500-05020-4JShips in 1 to 2 Daysqty 3 used
$0.86$1.18
48
94109-20000Ships in 1 to 2 Daysqty 2 used
$1.28$1.76
49
19303-ZW9-003In Stock
$5.30$7.26
Diagram

CYLINDER HEAD & CAMSHAFT ASSY.

Honda publishes no exploded diagram for this assembly. The parts list below is complete.
Ref numbers on the diagram match the badges belowZZ3AX0300
Fits all 3 submodels of this generation.

Parts in this assembly

1 parts
1
$2,014.71
Diagram

DISPLAY KIT

BFP60 BFP60AK1 display kit exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AY1000A
Fits only BFP60AK1-LRTA, BFP60AK1-XRTA — not every submodel of this generation.

Parts in this assembly

5 parts
1
06371-ZVP-000Ships in 1 to 2 Daysreplaced by 06371-ZVP-010
$599.95
1
06371-ZVP-010Ships in 1 to 2 Days
$883.78$1,210.66
1
06371-ZY6-040Ships in 1 to 2 Daysreplaced by 06371-ZVP-010
$779.52$1,067.84
4
37106-ZY6-004Ships in 1 to 2 Days
$62.24$85.26
5
37107-ZY6-004Ships in 1 to 2 Days
$69.48$95.18
Diagram

ELECTRONIC CONTROL UNIT

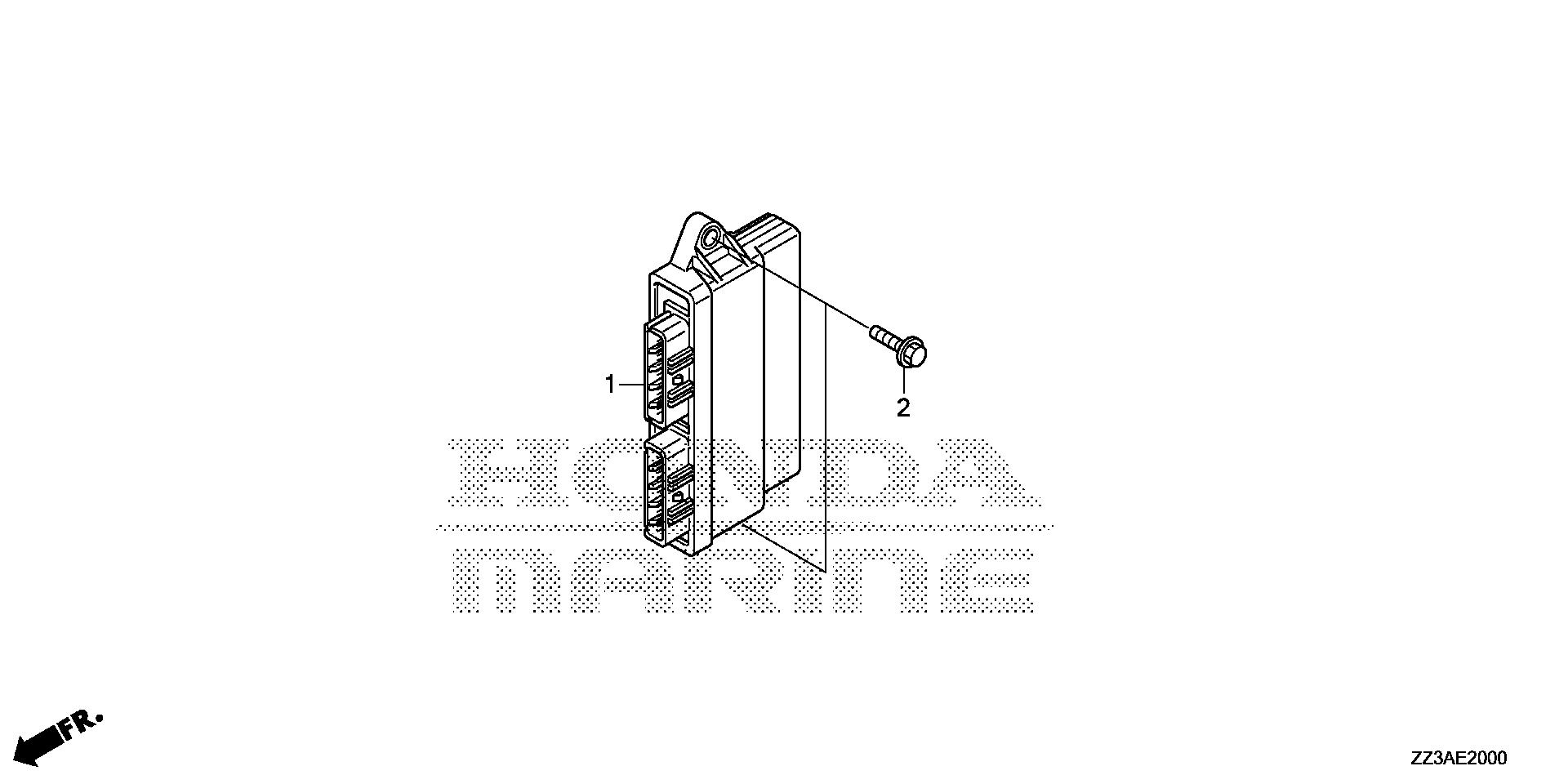

BFP60 BFP60AK1 electronic control unit exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AE2000
Fits all 3 submodels of this generation.

Parts in this assembly

3 parts
1
34750-ZZ3-A01Ships in 1 to 2 Days
$873.75$1,196.92
1
34750-ZZ3-043Ships in 1 to 2 Days
$1,049.67$1,437.90
2
90105-ZW9-000Ships in 1 to 2 Daysqty 2 used
$2.88$3.94
Diagram

ELECTRONIC PARTS CASE

BFP60 BFP60AK1 electronic parts case exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AF0720
Fits all 3 submodels of this generation.

Parts in this assembly

27 parts
1
16446-Z0G-003Ships in 1 to 2 Days
$1.27$1.74
2
16896-ZY9-003Ships in 1 to 2 Days
$2.80$3.84
3
30416-ZZ3-000Ships in 1 to 2 Days
$33.16
4
30419-ZY9-003Ships in 1 to 2 Daysqty 2 used
$4.26$5.84
5
30598-ZV5-000Ships in 1 to 2 Daysqty 2 used
$3.71$5.08
6
32101-ZZ3-010Ships in 1 to 2 Days
$5.05$6.92
7
32102-ZZ3-000Ships in 1 to 2 Days
$11.75$16.10
8
32901-952-770Ships in 1 to 2 Days
$2.19$3.00
9
35470-ZZ3-023Ships in 1 to 2 Days
$43.67$59.82
10
35475-ZZ3-010Ships in 1 to 2 Days
$10.37$14.20
11
35645-ZZ3-000Ships in 1 to 2 Days
$4.09$5.76
12
38216-ZY3-003Ships in 1 to 2 Days
$2.19$3.00
13
38550-ZZ3-003Ships in 1 to 2 Days
$175.90$240.96
14
38552-ZZ3-000Ships in 1 to 2 Days
$6.32$8.92
15
38553-ZY9-003Ships in 1 to 2 Daysqty 2 used
$4.23$5.80
16
38553-ZZ3-010Ships in 1 to 2 Days
$12.88$17.64
17
38582-ZZ3-000Ships in 1 to 2 Days
$22.12$31.20
18
90003-ZZ5-M01Ships in 1 to 2 Daysqty 6 used
$2.55$3.50
19
90011-ZW9-000Ships in 1 to 2 Daysqty 3 used
$1.71$2.34
19
90011-ZZ5-M01Ships in 1 to 2 Daysqty 3 used
$1.18$1.62
20
90013-ZW9-000Ships in 1 to 2 Days
$1.47$2.08
21
90103-ZZ0-M01Ships in 1 to 2 Daysqty 2 used
$1.31$1.80
22
90021-ZZ5-M01Ships in 1 to 2 Days
$1.14$1.56
23
90201-ZZ5-M01Ships in 1 to 2 Days
$1.04$1.42
24
90302-ZV5-003Ships in 1 to 2 Days
$5.27$7.22
25
91551-ZVL-010Ships in 1 to 2 Daysqty 6 used
$2.23$3.06
25
91553-ZV5-010Ships in 1 to 2 Daysqty 6 used
$2.67$3.66
Diagram

ENGINE COVER

BFP60 BFP60AK1 engine cover exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AF0810
Fits all 3 submodels of this generation.

Parts in this assembly

27 parts
1
32581-ZZ3-000Ships in 1 to 2 Days
$42.08$57.64
2
35701-MG9-950Ships in 1 to 2 Days
$1.83$2.50
3
40102-ZV5-000Ships in 1 to 2 Days
$2.64$3.62
4
40105-ZZ3-000Ships in 1 to 2 Days
$26.08$36.80
5
40107-ZW1-700Ships in 1 to 2 Days
$14.99$20.54
6
40119-ZY3-003Ships in 1 to 2 Days
$12.88$17.64
7
$112.74$154.44
8
$69.20$97.64
8
$50.74$69.50
9
61102-MB6-631Ships in 1 to 2 Daysqty 2 used
$2.06$2.82
10
$918.65$1,258.58
11
63102-ZZ3-000Ships in 1 to 2 Days
$46.25$63.36
12
63232-ZY9-010Ships in 1 to 2 Days
$12.13$16.62
13
63237-ZY9-000Ships in 1 to 2 Days
$7.97$10.92
14
63515-ZC0-700Ships in 1 to 2 Days
$5.80$7.94
15
90103-ZZ0-M01Ships in 1 to 2 Daysqty 2 used
$1.31$1.80
16
90104-ZY9-000Ships in 1 to 2 Days
$4.15$5.68
17
90106-ZZ3-000Ships in 1 to 2 Daysqty 2 used
$3.53$4.84
18
90111-ZY3-000In Stock
$2.12$2.90
19
90132-ZY3-000Ships in 1 to 2 Days
$3.20$4.38
20
90068-ZZ5-M01Ships in 1 to 2 Days
$1.31$1.80
21
90754-ZY9-000Ships in 1 to 2 Days
$3.21$4.40
22
91553-ZY6-000Ships in 1 to 2 Days
$4.07$5.58
23
91553-ZY9-000Ships in 1 to 2 Days
$8.03$11.00
24
91553-ZZ3-010Ships in 1 to 2 Days
$3.58$4.90
25
91554-ZY9-000Ships in 1 to 2 Daysqty 2 used
$2.85$3.90
26
94540-04029Ships in 1 to 2 Days
$5.23$7.16
Diagram

ENGINE UNDER COVER

BFP60 BFP60AK1 engine under cover exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AF0800
Fits all 3 submodels of this generation.

Parts in this assembly

32 parts
1
19289-ZY6-000Ships in 1 to 2 Days
$27.93$38.26
2
35640-ZZ3-003Ships in 1 to 2 Days
$51.60$70.68
3
35645-ZY9-000Ships in 1 to 2 Days
$7.75$10.62
4
40102-ZV5-000Ships in 1 to 2 Daysqty 2 used
$2.64$3.62
5
40155-ZZ3-000Ships in 1 to 2 Days
$50.40$69.04
6
61102-MB6-631Ships in 1 to 2 Daysqty 6 used
$2.06$2.82
7
63232-ZY9-010Ships in 1 to 2 Days
$12.13$16.62
8
63237-ZY9-000Ships in 1 to 2 Days
$7.97$10.92
9
$280.07$383.66
10
$280.07$383.66
11
63718-ZW9-000Ships in 1 to 2 Daysqty 2 used
$2.12$2.90
12
63724-ZZ3-000Ships in 1 to 2 Days
$4.34$5.94
13
$97.59$133.68
14
$97.59$133.68
15
82873-ZY9-000Ships in 1 to 2 Days
$4.38$6.00
16
82874-ZY9-000Ships in 1 to 2 Days
$3.74$5.12
17
90013-ZW1-000Ships in 1 to 2 Daysqty 2 used
$2.48$3.40
17
90013-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$2.45$3.36
18
90103-ZY9-000Ships in 1 to 2 Daysqty 2 used
$2.73$3.74
19
90106-ZZ3-000Ships in 1 to 2 Daysqty 4 used
$3.53$4.84
20
90111-ZY3-000In Stockqty 9 used
$2.12$2.90
21
90113-ZY9-003Ships in 1 to 2 Days
$9.52$13.04
22
90127-ZV5-003Ships in 1 to 2 Days
$1.94$2.66
23
90301-ZY6-000Ships in 1 to 2 Daysqty 2 used
$3.71$5.08
24
90302-921-000In Stock
$4.10$5.62
25
90602-SB0-003Ships in 1 to 2 Days
$4.04$5.54
26
90751-ZY9-000Ships in 1 to 2 Days
$2.28$3.12
27
90755-ZY9-000Ships in 1 to 2 Days
$11.96$16.38
28
91551-ZVL-010Ships in 1 to 2 Daysqty 2 used
$2.23$3.06
28
91553-ZV5-010Ships in 1 to 2 Daysqty 2 used
$2.67$3.66
29
91553-ZY6-000Ships in 1 to 2 Daysqty 4 used
$4.07$5.58
30
91554-ZY9-000Ships in 1 to 2 Daysqty 2 used
$2.85$3.90
Diagram

EXTENSION CASE

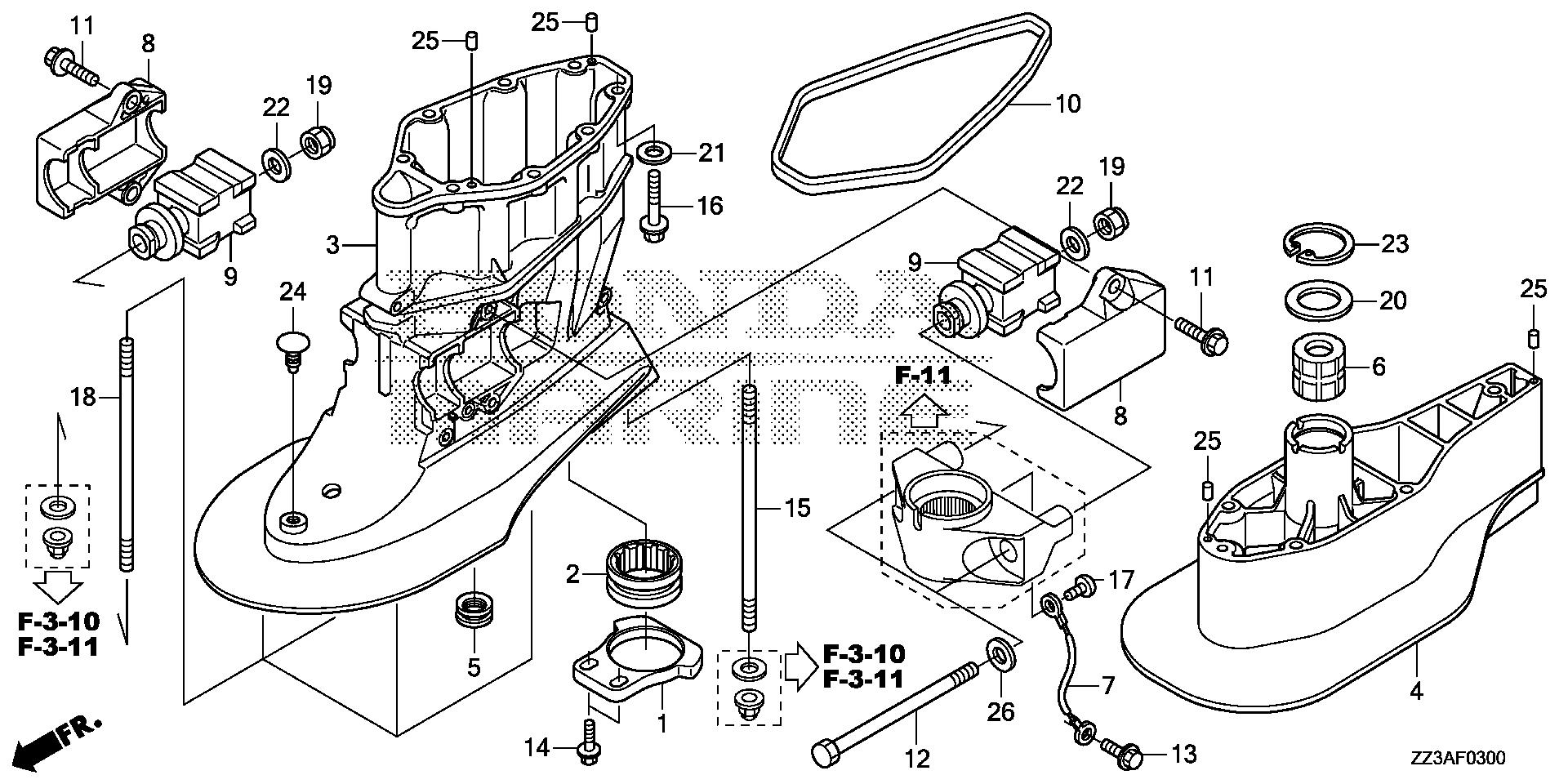

BFP60 BFP60AK1 extension case exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AF0300
Fits all 3 submodels of this generation.

Parts in this assembly

28 parts
1
18334-ZZ3-000Ships in 1 to 2 Days
$33.10$45.34
2
18337-ZZ3-000Ships in 1 to 2 Days
$10.02$13.72
3
$793.11
4
$1,237.03$1,694.56
5
40204-ZV5-000Ships in 1 to 2 Days
$3.15$4.32
6
40210-ZZ3-650Ships in 1 to 2 Days
$126.10$177.92
7
40219-ZY3-023Ships in 1 to 2 Days
$9.05$12.40
8
50111-ZZ3-000Ships in 1 to 2 Daysqty 2 used
$47.51$65.08
9
50155-ZZ3-000Ships in 1 to 2 Daysqty 2 used
$93.45$128.04
10
63719-ZZ3-000Ships in 1 to 2 Days
$6.99$9.58
11
90101-HW1-671Ships in 1 to 2 Daysqty 4 used
$3.68$5.04
12
90102-ZY9-000Ships in 1 to 2 Daysqty 2 used
$18.47$25.30
13
90103-ZW9-010Ships in 1 to 2 Days
$2.04$2.80
14
90105-ZW9-000Ships in 1 to 2 Daysqty 2 used
$2.88$3.94
15
90105-ZZ3-000Ships in 1 to 2 Days
$36.70$52.80
15
90124-ZW1-910Ships in 1 to 2 Days
$30.54$43.10
16
90114-HW1-671Ships in 1 to 2 Daysqty 8 used
$3.87$5.30
17
90119-ZV5-000Ships in 1 to 2 Days
$1.65$2.26
18
90125-ZZ3-650Ships in 1 to 2 Daysqty 4 used
$33.51$48.18
18
90125-ZW1-910Ships in 1 to 2 Daysqty 4 used
$27.54$38.84
19
90308-ZV5-003Ships in 1 to 2 Daysqty 2 used
$9.77$13.38
20
90501-ZW1-710Ships in 1 to 2 Days
$18.59$25.46
21
90507-ZV4-000Ships in 1 to 2 Daysqty 8 used
$2.20$3.02
22
90552-ZV5-000Ships in 1 to 2 Daysqty 2 used
$4.67$6.40
23
90651-ZW1-710Ships in 1 to 2 Days
$11.40$15.62
24
90651-ZZ3-003Ships in 1 to 2 Days
$1.62$2.22
25
90756-ZV5-000In Stockqty 2 used
$2.64$3.62
26
90559-ZW1-000Ships in 1 to 2 Daysqty 2 used
$5.65$7.74
Diagram

FUEL TANK

BFP60 BFP60AK1 fuel tank exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AF0600
Fits all 3 submodels of this generation.

Parts in this assembly

23 parts
1
16897-ZW9-003Ships in 1 to 2 Daysqty 3 used
$5.08$6.96
2
16966-MR5-000Ships in 1 to 2 Days
$7.64$10.46
3
16977-ZV5-A00Ships in 1 to 2 Days
$14.60$20.00
↳
Sierra alternative ·
18-80400In Stock save $3.72
$10.88
4
17500-ZZ5-711Ships in 1 to 2 Days
$177.42$243.04
5
17580-ZZ5-003Ships in 1 to 2 Days
$30.38$41.62
6
17620-ZZ5-003Ships in 1 to 2 Days
$31.59$43.28
7
17624-ZZ5-003Ships in 1 to 2 Days
$2.86$3.92
8
17625-ZZ5-003Ships in 1 to 2 Days
$1.39$1.90
9
17660-ZW9-003Ships in 1 to 2 Days
$32.18$44.08
10
17661-ZW9-900Ships in 1 to 2 Days
$46.82$64.14
11
17665-ZV5-000Ships in 1 to 2 Days
$12.13$16.62
12
17680-ZV4-000Ships in 1 to 2 Days
$12.13$16.62
13
17700-ZY9-E04Ships in 1 to 2 Daysreplaced by 17700-ZY9-E05
$153.49$216.58
13
17700-ZY9-E05Ships in 1 to 2 Days
$153.49$216.58
14
17701-ZX2-A00Ships in 1 to 2 Days
$77.85$106.64
14
17701-ZY9-E04Ships in 1 to 2 Days
$94.21$129.06
15
17702-ZY9-E04Ships in 1 to 2 Days
$22.63$31.92
15
17702-ZY9-E05Ships in 1 to 2 Days
$18.85$25.82
16
17703-921-010Ships in 1 to 2 Daysqty 2 used
$3.53$4.84
17
17704-ZV4-010Ships in 1 to 2 Daysqty 2 used
$2.18$2.98
18
17738-ZY3-000Ships in 1 to 2 Days
$9.91$13.58
19
17742-ZZ5-003Ships in 1 to 2 Days
$4.22$5.78
20
17743-ZZ5-003Ships in 1 to 2 Daysqty 4 used
$2.93$4.02
Diagram

GASKET KIT

BFP60 BFP60AK1 gasket kit exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AX0100A
Fits all 3 submodels of this generation.

Parts in this assembly

10 parts
1
06115-ZZ3-000Ships in 1 to 2 Days
$227.96$312.28
2
11381-ZZ3-003Ships in 1 to 2 Days
$56.69$77.66
3
12251-ZZ3-003Ships in 1 to 2 Days
$69.50$95.20
4
12312-ZZ3-000Ships in 1 to 2 Days
$18.50$25.34
5
17105-ZZ3-000Ships in 1 to 2 Daysqty 3 used
$10.64$14.58
6
18333-ZZ3-000Ships in 1 to 2 Days
$5.71$7.82
7
19317-ZW9-000Ships in 1 to 2 Days
$5.15$7.06
8
19371-ZZ3-010Ships in 1 to 2 Days
$14.15$19.38
9
23172-ZZ3-003Ships in 1 to 2 Days
$69.25$94.86
10
31754-ZZ3-000Ships in 1 to 2 Days
$5.52$7.56
Diagram

GEAR CASE (2)

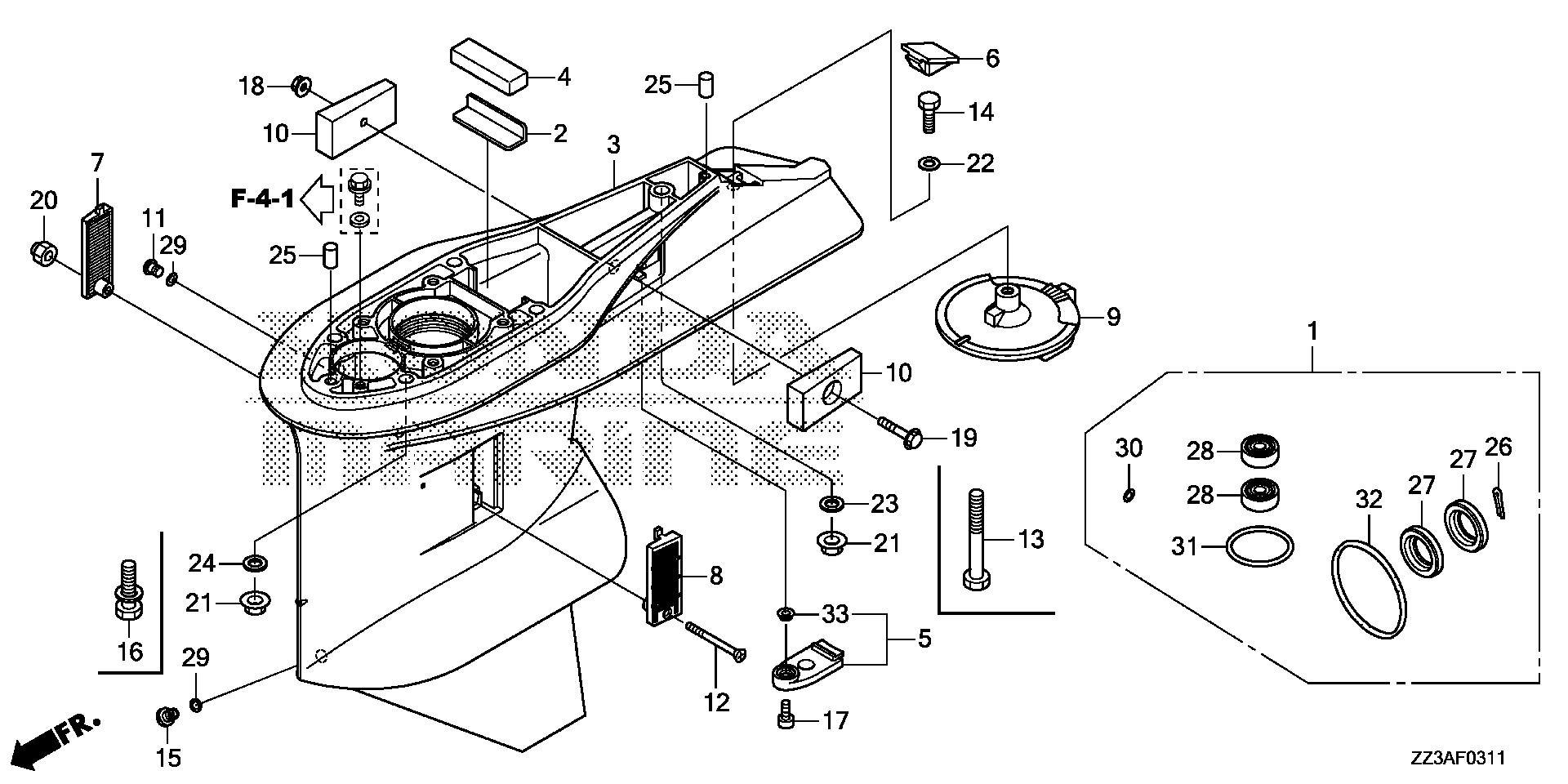

BFP60 BFP60AK1 gear case (2) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AF0311
Fits all 3 submodels of this generation.

Parts in this assembly

33 parts
1
06125-ZZ3-E00Ships in 1 to 2 Days
$26.92$27.73
2
19286-ZW1-B00Ships in 1 to 2 Days
$6.28$8.60
3
41101-ZY9-H00ZAShips in 1 to 2 Days
$1,014.03
4
41102-ZW1-B00Ships in 1 to 2 Days
$6.29$8.62
5
41102-ZZ0-000Ships in 1 to 2 Days
$9.42$13.28
6
41103-ZZ0-000Ships in 1 to 2 Days
$10.41$14.68
7
41104-ZZ0-010Ships in 1 to 2 Days
$7.45$10.50
8
41105-ZZ0-010Ships in 1 to 2 Days
$7.45$10.50
9
41107-ZZ0-000ZCShips in 1 to 2 Days
$67.21$69.24
10
41109-ZW1-B00In Stock
$18.12$24.82
11
90101-ZW9-003In Stock
$2.80$3.84
12
90101-ZZ0-000Ships in 1 to 2 Days
$2.44$3.34
13
90104-ZW1-900Ships in 1 to 2 Days
$12.98$18.32
14
90115-ZV5-000Ships in 1 to 2 Days
$3.83$5.40
15
90120-ZY3-000In Stock
$14.35$19.66
16
90123-ZY6-000Ships in 1 to 2 Daysqty 4 used
$6.45$8.84
17
90133-ZY3-000Ships in 1 to 2 Days
$2.80$3.84
18
90205-ZY1-000Ships in 1 to 2 Days
$4.76$6.52
19
90225-HW1-670Ships in 1 to 2 Days
$2.12$2.98
20
90302-ZV4-000Ships in 1 to 2 Days
$4.91$6.72
21
90306-ZV5-003In Stockqty 5 used
$3.40$4.66
22
90507-ZV4-000Ships in 1 to 2 Days
$2.20$3.02
23
90563-ZV5-000Ships in 1 to 2 Days
$2.44$3.34
24
90563-ZV5-000Ships in 1 to 2 Daysqty 4 used
$2.44$3.34
25
90756-ZV5-000In Stockqty 2 used
$2.64$3.62
26
90758-ZW1-B00In Stock
$1.87$2.56
27
91252-ZZ3-003In Stockqty 2 used
$6.63$9.08
28
91254-ZY3-003Ships in 1 to 2 Daysqty 2 used
$4.53$6.20
29
91301-ZW4-003In Stockqty 2 used
$0.99$1.36
30
91301-ZW4-003In Stockqty 2 used
$0.99$1.36
31
91308-MJ0-003Ships in 1 to 2 Days
$3.61$4.94
32
91351-ZW1-B02Ships in 1 to 2 Days
$6.47$9.12
33
91556-ZY3-000Ships in 1 to 2 Days
$2.48$3.40
Diagram

GEAR CASE ASSY.

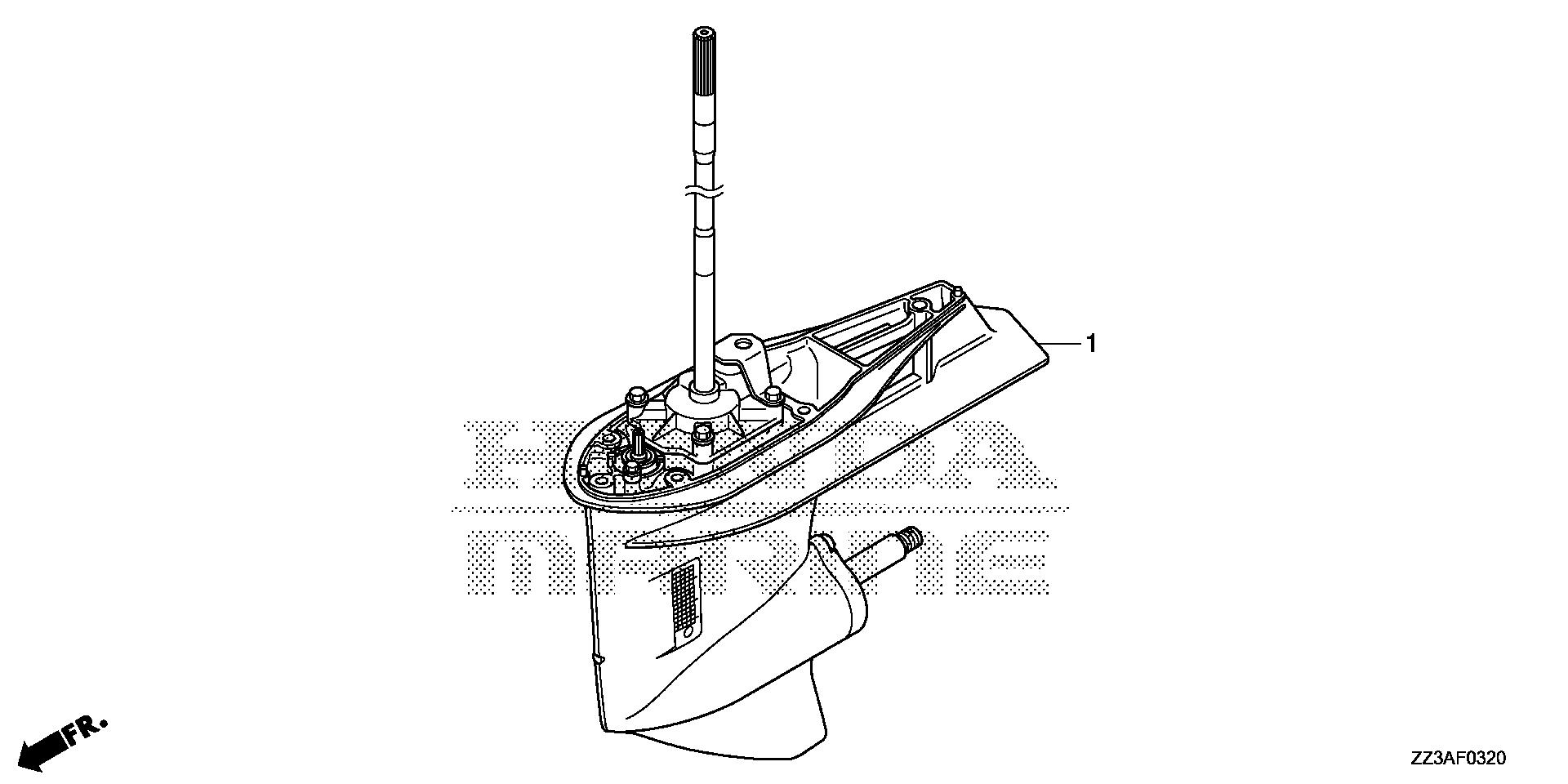

BFP60 BFP60AK1 gear case assy. exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AF0320
Fits all 3 submodels of this generation.

Parts in this assembly

5 parts
1
$1,818.57
1
$2,240.05
1
41100-ZZ3-E02ZCShips in 1 to 2 Daysreplaced by 41100-ZZ3-E03ZC
$2,816.31
1
$2,816.31
1
$1,784.03
Diagram

HANDLEBAR KIT

BFP60 BFP60AK1 handlebar kit exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AY0800A
Fits all 3 submodels of this generation.

Parts in this assembly

104 parts
1
06533-ZZ3-A04ZBShips in 1 to 2 Days
$547.74
2
36187-ZV4-652Ships in 1 to 2 Days
$4.18$5.72
3
40105-ZZ3-A00Ships in 1 to 2 Days
$24.95$34.18
4
50212-ZW9-003Ships in 1 to 2 Daysqty 2 used
$10.86$14.88
5
50218-ZZ3-000Ships in 1 to 2 Days
$59.93$82.10
6
50219-ZW9-010Ships in 1 to 2 Days
$7.84$10.74
7
53116-ZW4-H11Ships in 1 to 2 Daysqty 2 used
$6.58$9.02
8
53232-ZY9-A00Ships in 1 to 2 Days
$46.52$63.72
9
$181.77$249.00
10
87124-ZW6-U80Ships in 1 to 2 Days
$1.93$2.64
11
87125-ZZ3-000Ships in 1 to 2 Days
$6.86$9.40
12
87511-ZZ3-A00Ships in 1 to 2 Days
$29.05$40.98
13
90101-ZW4-H00Ships in 1 to 2 Days
$16.41$22.48
14
90102-ZW9-000Ships in 1 to 2 Daysqty 2 used
$2.12$2.90
15
90103-ZY3-000In Stockqty 2 used
$5.39$7.38
16
90118-HW1-671Ships in 1 to 2 Days
$4.53$6.20
17
90162-ZW9-000Ships in 1 to 2 Days
$4.80$6.58
18
90303-ZW4-H00Ships in 1 to 2 Days
$5.50$7.54
19
90305-ZW9-000Ships in 1 to 2 Days
$4.91$6.72
20
90506-ZV1-000In Stock
$2.44$3.34
21
90514-921-000Ships in 1 to 2 Days
$0.99$1.36
22
90514-ZV4-000Ships in 1 to 2 Daysqty 2 used
$1.69$2.32
23
90517-ZW9-000Ships in 1 to 2 Days
$1.42$1.94
24
90552-ZV5-000Ships in 1 to 2 Days
$4.67$6.40
25
90559-ZV5-000Ships in 1 to 2 Days
$2.95$4.04
26
91552-ZW4-H00Ships in 1 to 2 Days
$7.88$10.80
27
94002-12490-0SShips in 1 to 2 Days
$2.86$3.92
30
17910-ZZ3-A41Ships in 1 to 2 Days
$61.70$84.52
31
17931-ZZ3-A41Ships in 1 to 2 Days
$29.80$40.82
32
24590-ZZ3-A41Ships in 1 to 2 Days
$94.49$129.44
33
24614-ZZ3-A41Ships in 1 to 2 Days
$63.45$86.92
34
24615-ZZ3-A41Ships in 1 to 2 Days
$222.69$305.06
35
32538-ZZ3-A41Ships in 1 to 2 Days
$280.28$383.94
36
32543-ZW4-H01Ships in 1 to 2 Days
$1.66$2.28
37
32544-ZW4-H01Ships in 1 to 2 Daysqty 2 used
$1.66$2.28
38
32823-ZV5-003Ships in 1 to 2 Daysqty 13 used
$2.95$4.04
39
35100-ZW4-H02Ships in 1 to 2 Days
$87.70$120.14
41
35180-ZZ3-A42Ships in 1 to 2 Days
$62.50$85.62
42
35340-ZZ3-A42Ships in 1 to 2 Days
$49.52$67.84
43
35640-ZZ3-A41Ships in 1 to 2 Days
$51.60$70.68
44
35645-ZZ3-A41Ships in 1 to 2 Daysqty 2 used
$10.12$13.86
45
36182-ZV4-651In Stock
$18.45$25.28
46
37210-ZY9-A03Ships in 1 to 2 Days
$101.31$138.78
47
38400-ZY9-A00Ships in 1 to 2 Days
$70.36$96.40
48
38402-ZY9-A00Ships in 1 to 2 Days
$21.59$29.58
49
53101-ZZ3-A41ZBShips in 1 to 2 Days
$437.77$599.68
50
53102-ZZ3-A41Ships in 1 to 2 Days
$23.42$32.08
51
53103-ZZ3-A41Ships in 1 to 2 Days
$23.65$32.40
52
53104-ZZ3-A41Ships in 1 to 2 Days
$23.00$31.50
53
53105-ZZ3-A41Ships in 1 to 2 Days
$15.90$21.78
54
53106-ZZ3-A41Ships in 1 to 2 Days
$30.56$41.86
55
53108-ZZ3-A41Ships in 1 to 2 Days
$28.02$38.38
56
53109-ZZ3-A41Ships in 1 to 2 Daysqty 4 used
$7.12$9.76
57
53110-ZZ3-A41Ships in 1 to 2 Days
$162.72$222.90
58
53111-ZZ3-A41Ships in 1 to 2 Days
$124.26$170.24
59
53112-ZZ3-A41Ships in 1 to 2 Days
$29.05$39.80
60
53113-ZW4-H01Ships in 1 to 2 Days
$5.12$7.02
61
53113-ZZ3-A41Ships in 1 to 2 Days
$16.99$23.28
62
53114-ZZ3-A41Ships in 1 to 2 Days
$12.66$17.34
63
53115-ZW4-H02Ships in 1 to 2 Days
$4.99$6.84
64
53115-ZZ3-A41Ships in 1 to 2 Days
$14.63$20.04
65
53116-ZW4-H01Ships in 1 to 2 Days
$1.69$2.32
66
53117-ZZ3-A41Ships in 1 to 2 Days
$20.03$27.44
67
53118-ZZ3-A41Ships in 1 to 2 Days
$42.65$58.42
68
53119-ZZ3-A41Ships in 1 to 2 Days
$13.80$18.90
69
53120-ZZ3-A41Ships in 1 to 2 Days
$12.63$17.30
70
53121-ZZ3-A41Ships in 1 to 2 Days
$23.30$31.92
71
53122-ZZ3-A41Ships in 1 to 2 Daysqty 2 used
$7.50$10.28
72
53123-ZZ3-A41Ships in 1 to 2 Days
$9.97$13.66
73
53124-ZZ3-A41Ships in 1 to 2 Days
$24.64$33.76
74
53125-ZZ3-A41Ships in 1 to 2 Daysqty 2 used
$8.89$12.18
75
53126-ZZ3-A41Ships in 1 to 2 Days
$17.17$23.52
76
53127-ZZ3-A41Ships in 1 to 2 Days
$19.55$26.78
77
53128-ZZ3-A41Ships in 1 to 2 Days
$18.59$25.46
78
53129-ZZ3-A41Ships in 1 to 2 Days
$18.59$25.46
79
53130-ZW9-000Ships in 1 to 2 Days
$21.70$29.72
80
53130-ZZ3-A41Ships in 1 to 2 Days
$7.96$10.90
81
53131-ZZ3-A41Ships in 1 to 2 Days
$22.06$30.22
82
53132-ZZ3-A41Ships in 1 to 2 Days
$22.44$30.74
83
53133-ZW9-000Ships in 1 to 2 Days
$6.39$8.76
84
53141-ZZ3-A41Ships in 1 to 2 Days
$26.08$35.72
85
53142-ZZ3-A41Ships in 1 to 2 Days
$9.15$12.54
86
53165-ZZ3-000Ships in 1 to 2 Days
$9.05$12.40
87
90103-ZZ3-A41Ships in 1 to 2 Days
$4.85$6.64
88
90104-ZW4-H01Ships in 1 to 2 Daysqty 8 used
$1.62$2.22
89
90111-ZZ3-A41Ships in 1 to 2 Daysqty 7 used
$1.66$2.28
90
90112-ZZ3-A41Ships in 1 to 2 Daysqty 11 used
$1.59$2.18
91
90113-ZZ3-A41Ships in 1 to 2 Daysqty 2 used
$1.59$2.18
92
90114-ZZ3-A41Ships in 1 to 2 Daysqty 7 used
$1.66$2.28
93
90302-921-000In Stock
$4.10$5.62
94
90305-ZZ3-A41Ships in 1 to 2 Days
$1.02$1.40
95
90501-ZZ3-A41Ships in 1 to 2 Daysqty 2 used
$1.56$2.14
96
90502-ZW4-H02Ships in 1 to 2 Daysqty 2 used
$1.66$2.28
97
90502-ZZ3-A41Ships in 1 to 2 Daysqty 3 used
$1.56$2.14
98
90503-ZZ3-A41Ships in 1 to 2 Days
$2.28$3.12
99
90504-ZW4-H01Ships in 1 to 2 Days
$1.64$2.24
100
90951-ZY9-A01Ships in 1 to 2 Days
$3.36$4.60
101
91051-ZW4-H02Ships in 1 to 2 Daysqty 2 used
$2.83$3.88
102
91052-ZW4-H01Ships in 1 to 2 Days
$4.06$5.56
103
91304-HP5-601Ships in 1 to 2 Days
$2.98$4.08
104
91408-ZJ1-810Ships in 1 to 2 Days
$7.23$9.90
105
93500-05014-4JShips in 1 to 2 Daysqty 3 used
$1.17$1.60
106
94540-04029Ships in 1 to 2 Daysqty 2 used
$5.23$7.16
107
94540-07029Ships in 1 to 2 Days
$4.38$6.00
Diagram

IGNITION COIL

BFP60 BFP60AK1 ignition coil exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AE2010
Fits all 3 submodels of this generation.

Parts in this assembly

11 parts
1
30419-ZY9-003Ships in 1 to 2 Daysqty 3 used
$4.26$5.84
2
30511-ZZ3-003Ships in 1 to 2 Days
$82.47$82.48
3
30512-ZZ3-003Ships in 1 to 2 Days
$82.47$82.48
4
30513-ZZ3-003Ships in 1 to 2 Days
$82.47$82.48
5
30515-ZZ3-000Ships in 1 to 2 Days
$23.48
6
30516-ZZ3-000Ships in 1 to 2 Days
$80.06
7
30517-ZZ3-000Ships in 1 to 2 Days
$52.18$75.06
7
30517-ZZ3-010Ships in 1 to 2 Days
$55.52$76.06
8
32766-ZZ3-003Ships in 1 to 2 Days
$2.73$3.74
9
90003-ZZ5-M01Ships in 1 to 2 Daysqty 3 used
$2.55$3.50
10
91553-ZV5-010Ships in 1 to 2 Daysqty 3 used
$2.67$3.66
Diagram

IMPELLER PUMP KIT (1)

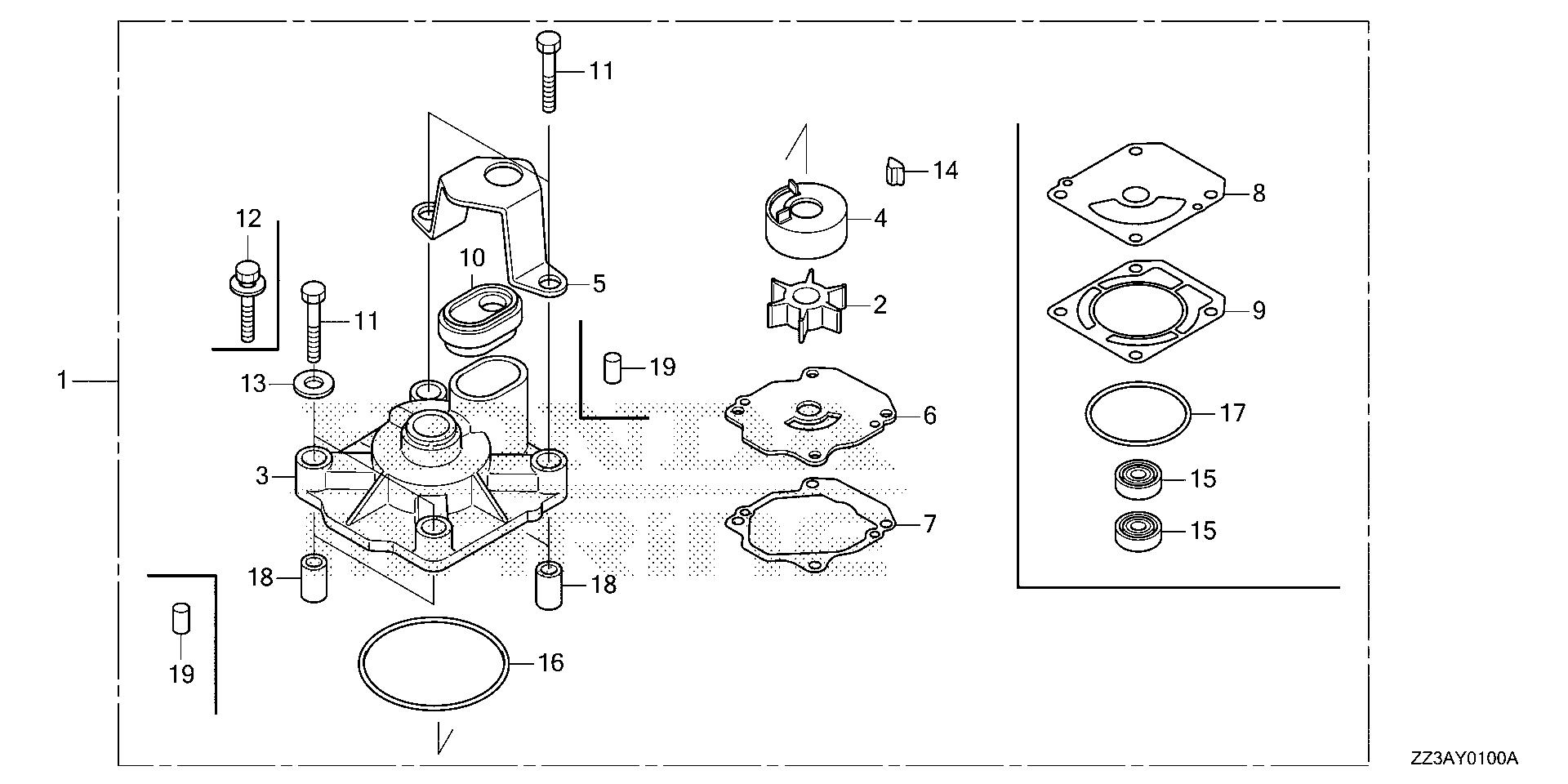

BFP60 BFP60AK1 impeller pump kit (1) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AY0100A
Fits all 3 submodels of this generation.

Parts in this assembly

23 parts
1
06193-ZZ3-020Ships in 1 to 2 Daysreplaced by 06193-ZZ3-030
$98.04$134.30
1
06193-ZZ3-030Ships in 1 to 2 Days
$98.04$134.30
1
06194-ZZ3-020Ships in 1 to 2 Days
$137.12$193.50
2
19210-ZV5-003Ships in 1 to 2 Days
$25.54$34.98
↳
Sierra alternative ·
18-3248In Stock
$30.59
3
19221-ZZ3-000Ships in 1 to 2 Days
$33.95$46.50
4
19223-ZZ3-000Ships in 1 to 2 Days
$17.86$24.46
5
19228-ZZ3-000Ships in 1 to 2 Days
$14.06$19.26
6
19231-ZZ3-000Ships in 1 to 2 Days
$22.10$30.28
7
19234-ZZ3-000Ships in 1 to 2 Days
$6.19$8.48
8
19234-ZZ3-E00Ships in 1 to 2 Days
$6.19$8.74
9
19242-ZW1-B00In Stock
$9.39$13.24
10
19253-ZZ3-000Ships in 1 to 2 Days
$10.25$14.04
11
90116-881-000Ships in 1 to 2 Daysqty 2 used
$4.09$5.60
11
90010-ZV5-000Ships in 1 to 2 Daysqty 4 used
$4.69$6.62
12
90116-ZY6-000Ships in 1 to 2 Daysqty 2 used
$5.90$8.08
13
90514-921-000Ships in 1 to 2 Daysqty 2 used
$0.99$1.36
14
90752-ZV5-003Ships in 1 to 2 Days
$7.55$10.34
↳
Sierra alternative ·
18-3270In Stock save $4.50
$3.05
15
91253-ZZ3-003Ships in 1 to 2 Daysqty 2 used
$5.53$7.58
16
91356-ZZ3-000Ships in 1 to 2 Days
$3.69$5.06
17
91359-MB0-000Ships in 1 to 2 Days
$5.30$7.26
18
91552-ZY6-000Ships in 1 to 2 Daysqty 4 used
$4.44$6.08
19
90756-ZVL-000Ships in 1 to 2 Daysqty 2 used
$1.20$1.64
19
90756-ZV5-000In Stockqty 2 used
$2.64$3.62
Diagram

IMPELLER PUMP KIT (2)

BFP60 BFP60AK1 impeller pump kit (2) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AY0101
Fits only BFP60AK1-LRTA, BFP60AK1-XRTA — not every submodel of this generation.

Parts in this assembly

12 parts
1
06191-ZZ3-010In Stock
$48.90$66.98
1
06191-ZZ3-020Ships in 1 to 2 Days
$48.90$66.98
1
06192-ZZ3-020Ships in 1 to 2 Days
$45.61$64.36
2
19210-ZV5-003Ships in 1 to 2 Days
$25.54$34.98
↳
Sierra alternative ·
18-3248In Stock
$30.59
3
19223-ZZ3-000Ships in 1 to 2 Days
$17.86$24.46
4
19231-ZZ3-000Ships in 1 to 2 Days
$22.10$30.28
5
19234-ZZ3-000Ships in 1 to 2 Days
$6.19$8.48
5
19234-ZZ3-E00Ships in 1 to 2 Days
$6.19$8.74
6
90752-ZV5-003Ships in 1 to 2 Days
$7.55$10.34
↳
Sierra alternative ·
18-3270In Stock save $4.50
$3.05
7
90756-ZVL-000Ships in 1 to 2 Daysqty 2 used
$1.20$1.64
7
90756-ZV5-000In Stockqty 2 used
$2.64$3.62
8
91356-ZZ3-000Ships in 1 to 2 Days
$3.69$5.06
Diagram

INLET MANIFOLD - INJECTOR

BFP60 BFP60AK1 inlet manifold - injector exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AE1400
Fits all 3 submodels of this generation.

Parts in this assembly

25 parts
1
16450-ZZ3-003Ships in 1 to 2 Daysqty 3 used
$105.36
2
16472-KPC-D50Ships in 1 to 2 Days
$2.06$2.82
3
16620-ZZ5-010Ships in 1 to 2 Days
$120.27$164.76
4
16733-ZW5-000Ships in 1 to 2 Daysqty 2 used
$6.64$9.10
5
16752-ZY3-A00Ships in 1 to 2 Days
$7.34$10.06
6
16896-ZY9-003Ships in 1 to 2 Daysqty 2 used
$2.80$3.84
7
16914-ZZ3-000Ships in 1 to 2 Days
$8.66$12.22
7
16914-ZZ3-010Ships in 1 to 2 Days
$9.21$12.62
8
17105-ZZ3-000Ships in 1 to 2 Daysqty 3 used
$10.64$14.58
9
17107-ZZ5-003Ships in 1 to 2 Days
$12.98$17.78
10
17110-ZZ3-003Ships in 1 to 2 Days
$717.24$982.52
11
36550-ZZ5-003Ships in 1 to 2 Days
$179.32$245.64
12
36551-ZY6-003Ships in 1 to 2 Days
$10.86$14.88
13
37830-RNA-A01Ships in 1 to 2 Days
$93.56$128.16
14
37835-PGK-A01Ships in 1 to 2 Days
$8.60$11.78
15
90014-ZY9-M01Ships in 1 to 2 Daysqty 2 used
$2.73$3.74
16
90029-ZY3-000Ships in 1 to 2 Days
$0.61$0.86
17
90031-ZY3-000Ships in 1 to 2 Daysqty 2 used
$1.04$1.42
18
90036-ZY3-030Ships in 1 to 2 Daysqty 2 used
$0.95$1.30
19
90056-ZY9-M01Ships in 1 to 2 Daysqty 2 used
$1.10$1.50
20
90026-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.87$2.56
21
90205-ZY9-M01Ships in 1 to 2 Daysqty 2 used
$1.72$2.36
22
91301-KPH-701Ships in 1 to 2 Daysqty 3 used
$2.83$3.88
23
91301-MJ0-003In Stockqty 2 used
$2.09$2.86
24
91504-ZY9-M03Ships in 1 to 2 Daysqty 2 used
$5.65$7.74
Diagram

INTERFACE CABLE KIT

BFP60 BFP60AK1 interface cable kit exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AY0204A
Fits all 3 submodels of this generation.

Parts in this assembly

11 parts
1
06328-ZZ3-764Ships in 1 to 2 Days
$267.59$366.56
2
32186-ZZ3-000Ships in 1 to 2 Days
$144.07$197.36
3
32823-ZV5-003Ships in 1 to 2 Daysqty 2 used
$2.95$4.04
4
32824-ZV5-003Ships in 1 to 2 Days
$3.11$4.26
5
90650-ZY1-003Ships in 1 to 2 Daysqty 2 used
$3.40$4.66
6
91540-STK-003Ships in 1 to 2 Daysqty 2 used
$4.15$5.68
7
06328-ZZ3-764Ships in 1 to 2 Days
$267.59$366.56
7
06328-ZZ3-765Ships in 1 to 2 Days
$239.18$327.64
8
32805-ZZ3-000Ships in 1 to 2 Days
$114.95
9
93901-446J0Ships in 1 to 2 Daysqty 2 used
$1.11$1.52
10
32800-ZZ3-000Ships in 1 to 2 Days
$200.56$274.74
Diagram

LABEL

BFP60 BFP60AK1 label exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AF1200A
Fits all 3 submodels of this generation.

Parts in this assembly

11 parts
1
87102-ZZ3-C00Ships in 1 to 2 Days
$91.85$125.82
1
87102-ZZ3-H80Ships in 1 to 2 Days
$90.05$123.36
2
87117-ZY9-000Ships in 1 to 2 Days
$2.41$3.30
3
87121-ZZ3-010Ships in 1 to 2 Days
$27.30$37.40
6
87132-ZW4-H00Ships in 1 to 2 Daysqty 2 used
$20.16$27.62
7
87133-ZW9-S00Ships in 1 to 2 Days
$8.73$12.32
10
87531-ZZ3-000Ships in 1 to 2 Days
$2.35$3.32
11
87538-ZW1-740Ships in 1 to 2 Days
$9.34$13.18
12
87546-ZZ3-000Ships in 1 to 2 Days
$5.29$7.24
17
87121-ZZ4-010Ships in 1 to 2 Days
$28.11$39.66
18
87134-ZY9-J00Ships in 1 to 2 Days
$8.41$11.86
Diagram

MAINTENANCE KIT (200)

BFP60 BFP60AK1 maintenance kit (200) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AY1200
Fits only BFP60AK1-LRTA, BFP60AK1-XRTA — not every submodel of this generation.

Parts in this assembly

24 parts
1
06411-ZV5-020Ships in 1 to 2 Days
$35.05$48.02
2
06510-ZZ3-010Ships in 1 to 2 Days
$109.29
2
MAINTENANCE KIT (200) (PT) (NOT AVAILABLE)
06510-ZZ3-801No Longer Available
$155.11$212.48
3
15400-ZZ3-003In Stock
$16.47$22.56
↳
Sierra alternative ·
18-7913In Stock save $6.31
$10.16
4
19210-ZV5-003Ships in 1 to 2 Days
$25.54$34.98
↳
Sierra alternative ·
18-3248In Stock
$30.59
5
19223-ZZ3-000Ships in 1 to 2 Days
$17.86$24.46
6
19231-ZZ3-000Ships in 1 to 2 Days
$22.10$30.28
7
19234-ZZ3-000Ships in 1 to 2 Days
$6.19$8.48
8
19234-ZZ3-E00Ships in 1 to 2 Days
$6.19$8.74
9
19300-ZW9-003In Stock
$43.00$58.90
↳
Sierra alternative ·
18-3628-1In Stock save $0.08
$42.92
10
19317-ZW9-000Ships in 1 to 2 Days
$5.15$7.06
11
41109-ZW1-B00In Stock
$18.12$24.82
12
90101-ZW9-003In Stock
$2.80$3.84
13
90120-ZY3-000In Stock
$14.35$19.66
14
90205-ZY1-000Ships in 1 to 2 Days
$4.76$6.52
15
90206-HW1-671Ships in 1 to 2 Days
$2.92$4.00
16
90601-ZE2-000In Stock
$2.38$3.26
17
90752-ZV5-003Ships in 1 to 2 Days
$7.55$10.34
↳
Sierra alternative ·
18-3270In Stock save $4.50
$3.05
18
90756-ZVL-000Ships in 1 to 2 Daysqty 2 used
$1.20$1.64
18
90756-ZV5-000In Stockqty 2 used
$2.64$3.62
19
90758-ZV5-000Ships in 1 to 2 Days
$2.26$3.10
19
90758-ZW1-B00In Stock
$1.87$2.56
20
91301-ZW4-003In Stockqty 2 used
$0.99$1.36
21
91356-ZZ3-000Ships in 1 to 2 Days
$3.69$5.06
Diagram

MAINTENANCE KIT (400)

BFP60 BFP60AK1 maintenance kit (400) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AY1201
Fits only BFP60AK1-LRTA, BFP60AK1-XRTA — not every submodel of this generation.

Parts in this assembly

14 parts
1
MAINTENANCE KIT (400)
06161-ZZ3-000Ships in 1 to 2 Daysreplaced by 06161-ZZ3-010
$72.00
1
MAINTENANCE KIT (400) (NOT AVAILABLE)
06161-ZZ3-010No Longer Available
$72.00
2
12155-ZV4-A00Ships in 1 to 2 Daysreplaced by 12155-ZV4-A01
$10.91$14.94
2
12155-ZV4-A01Ships in 1 to 2 Daysqty 3 used
$10.91$14.94
3
12155-ZV5-000Ships in 1 to 2 Daysreplaced by 12155-ZV5-010
$9.53$13.06
3
12155-ZV5-010Ships in 1 to 2 Days
$9.53$13.06
4
16073-ZZ5-003Ships in 1 to 2 Days
$8.07$11.06
5
16074-ZZ5-003Ships in 1 to 2 Days
$20.64$28.28
6
16901-ZZ5-003In Stock
$13.11$17.96
7
16911-ZZ5-003Ships in 1 to 2 Days
$51.95$71.16
8
16918-ZZ5-003Ships in 1 to 2 Days
$2.38$3.26
9
16919-ZZ5-003Ships in 1 to 2 Days
$2.91$3.98
10
19371-ZZ3-010Ships in 1 to 2 Days
$14.15$19.38
11
31754-ZZ3-000Ships in 1 to 2 Days
$5.52$7.56
Diagram

METER

BFP60 BFP60AK1 meter exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AY0200A
Fits all 3 submodels of this generation.

Parts in this assembly

26 parts
1
32161-404-000Ships in 1 to 2 Days
$2.15$2.94
2
32540-ZZ3-010Ships in 1 to 2 Days
$97.12$133.04
3
32823-ZV5-003Ships in 1 to 2 Daysqty 8 used
$2.95$4.04
4
32824-ZV5-003Ships in 1 to 2 Daysqty 5 used
$3.11$4.26
5
34908-MB9-871Ships in 1 to 2 Days
$2.67$3.66
6
34908-MG9-951Ships in 1 to 2 Days
$2.23$3.06
7
37215-KM1-670Ships in 1 to 2 Days
$1.81$2.48
8
37250-ZV7-913Ships in 1 to 2 Days
$224.97$308.18
9
37253-ZV5-821Ships in 1 to 2 Days
$4.12$5.64
10
37256-ZV5-821Ships in 1 to 2 Days
$21.83$29.90
11
37258-ZV5-821Ships in 1 to 2 Days
$16.09$22.04
12
37260-ZV5-822Ships in 1 to 2 Days
$227.94$312.24
12
37260-ZV5-823Ships in 1 to 2 Days
$142.31$194.94
13
37263-ZV5-821Ships in 1 to 2 Days
$3.45$4.72
14
37266-ZV5-821Ships in 1 to 2 Days
$16.16$22.14
15
37268-ZV5-821Ships in 1 to 2 Days
$17.42$23.86
16
90309-ZV5-821Ships in 1 to 2 Daysqty 2 used
$1.42$1.94
17
90310-ZV5-821Ships in 1 to 2 Daysqty 3 used
$1.27$1.74
18
90550-ZV5-821Ships in 1 to 2 Daysqty 2 used
$1.18$1.62
19
90560-ZV5-821Ships in 1 to 2 Daysqty 2 used
$1.24$1.70
20
98200-11000Ships in 1 to 2 Days
$1.61$2.20
21
32540-ZZ3-010Ships in 1 to 2 Days
$97.12$133.04
22
38216-Z2E-003Ships in 1 to 2 Days
$5.85$8.02
23
87116-ZZ3-000Ships in 1 to 2 Days
$1.37$1.88
24
91531-SR3-003Ships in 1 to 2 Days
$7.75$10.62
25
98200-41000Ships in 1 to 2 Days
$1.21$1.66
Diagram

METER KIT (ANALOG) (1)

BFP60 BFP60AK1 meter kit (analog) (1) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AY0201
Fits all 3 submodels of this generation.

Parts in this assembly

31 parts
1
06372-ZW5-U02Ships in 1 to 2 Days
$95.91
1
06372-ZW5-U12Ships in 1 to 2 Days
$185.23$253.74
2
06373-ZW5-U01Ships in 1 to 2 Days
$217.38$297.78
2
06373-ZW5-U11Ships in 1 to 2 Days
$207.98$284.90
3
06374-ZW5-U01Ships in 1 to 2 Days
$63.33
3
06374-ZW5-U10Ships in 1 to 2 Days
$57.08
3
06374-ZW5-U11Ships in 1 to 2 Days
$63.33
4
06375-ZW5-U01Ships in 1 to 2 Days
$185.48$254.08
4
06375-ZW5-U11Ships in 1 to 2 Days
$172.19$235.88
5
METER KIT, HOUR (NA USE ALT:39700-ZW5-000ZA)
06397-ZW5-U00No Longer Available
—
5
06397-ZW5-U01Ships in 1 to 2 Days
$116.91
5
METER KIT, HOUR (B) (NA USE ALT:39700-ZW5-000ZA)
06397-ZW5-U10No Longer Available
—
5
06397-ZW5-U11In Stock
$116.91
6
32550-ZW5-U00Ships in 1 to 2 Days
$33.11$45.36
7
32823-ZV5-003Ships in 1 to 2 Daysqty 5 used
$2.95$4.04
8
32824-ZV5-003Ships in 1 to 2 Daysqty 5 used
$3.11$4.26
9
34908-MB9-871Ships in 1 to 2 Days
$2.67$3.66
10
34908-MG9-951Ships in 1 to 2 Daysqty 2 used
$2.23$3.06
11
37202-ZW5-U01Ships in 1 to 2 Days
$30.97$42.42
12
37215-KM1-670Ships in 1 to 2 Days
$1.81$2.48
13
37226-MZ5-008Ships in 1 to 2 Days
$2.86$3.92
14
37258-ZV5-U01Ships in 1 to 2 Daysqty 2 used
$13.18$18.06
15
37258-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$13.18$18.06
16
37263-ZV5-821Ships in 1 to 2 Days
$3.45$4.72
17
37264-ZV5-821Ships in 1 to 2 Days
$2.77$3.80
18
37266-ZV5-821Ships in 1 to 2 Daysqty 2 used
$16.16$22.14
19
37305-KE5-008Ships in 1 to 2 Daysqty 2 used
$2.64$3.62
20
90309-ZV5-821Ships in 1 to 2 Daysqty 4 used
$1.42$1.94
21
90310-ZV5-821Ships in 1 to 2 Daysqty 5 used
$1.27$1.74
22
90550-ZV5-821Ships in 1 to 2 Daysqty 4 used
$1.18$1.62
23
90560-ZV5-821Ships in 1 to 2 Daysqty 4 used
$1.24$1.70
Diagram

METER KIT (ANALOG) (2)

BFP60 BFP60AK1 meter kit (analog) (2) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AY0205
Fits only BFP60AK1-LRTA, BFP60AK1-XRTA — not every submodel of this generation.

Parts in this assembly

6 parts
1
06375-ZY6-U10Ships in 1 to 2 Days
$138.73
1
06375-ZY6-U11Ships in 1 to 2 Days
$138.73
1
06375-ZY6-U91Ships in 1 to 2 Days
$138.73
2
37251-ZY6-U11Ships in 1 to 2 Days
$1.97$2.70
3
37252-ZY6-U11Ships in 1 to 2 Days
$6.32$8.66
4
37253-ZY6-U11Ships in 1 to 2 Days
$11.07$15.16
Diagram

OIL CASE

BFP60 BFP60AK1 oil case exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AE0600
Fits all 3 submodels of this generation.

Parts in this assembly

22 parts
1
11320-ZZ3-000ZAShips in 1 to 2 Days
$260.17$356.40
1
11320-ZZ3-010ZAShips in 1 to 2 Days
$288.29
2
11381-ZZ3-003Ships in 1 to 2 Days
$56.69$77.66
3
15220-ZZ3-003Ships in 1 to 2 Days
$58.93$80.72
4
15223-ZZ3-000Ships in 1 to 2 Days
$7.21$9.88
5
15655-ZZ3-000Ships in 1 to 2 Days
$15.10$20.68
6
18330-ZZ3-000Ships in 1 to 2 Days
$266.55$365.14
7
18333-ZZ3-000Ships in 1 to 2 Days
$5.71$7.82
8
19252-ZV5-000Ships in 1 to 2 Days
$6.23$8.54
9
23170-ZZ3-415ZAShips in 1 to 2 Days
$688.62$943.32
10
23172-ZZ3-003Ships in 1 to 2 Days
$69.25$94.86
11
90002-ZZ3-000Ships in 1 to 2 Daysqty 9 used
$4.41$6.22
12
90005-ZZ3-000Ships in 1 to 2 Daysqty 2 used
$1.62$2.22
13
90006-ZZ3-000Ships in 1 to 2 Daysqty 10 used
$3.55$5.00
14
90008-ZZ3-000Ships in 1 to 2 Daysqty 3 used
$3.39$4.64
15
90131-ZV5-000Ships in 1 to 2 Days
$7.43$10.18
16
90507-ZV4-000Ships in 1 to 2 Daysqty 3 used
$2.20$3.02
17
90601-ZE2-000In Stock
$2.38$3.26
18
90756-ZV5-000In Stockqty 2 used
$2.64$3.62
19
91302-MB6-830Ships in 1 to 2 Daysqty 2 used
$1.80$2.46
20
94301-06100In Stockqty 2 used
$2.74$3.76
21
96300-08060-09Ships in 1 to 2 Daysqty 4 used
$1.36$1.86
Diagram

OIL PUMP

BFP60 BFP60AK1 oil pump exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AE0500
Fits all 3 submodels of this generation.

Parts in this assembly

11 parts
1
15100-ZZ3-000Ships in 1 to 2 Days
$237.12$324.82
2
15121-ZZ3-000Ships in 1 to 2 Days
$19.02$26.06
3
15231-PFB-003Ships in 1 to 2 Days
$10.77$14.76
4
15232-KT8-000Ships in 1 to 2 Days
$3.78$5.18
5
15236-ZZ3-000Ships in 1 to 2 Days
$7.77$10.64
6
15301-PE0-300Ships in 1 to 2 Daysqty 2 used
$9.07$12.42
7
91212-P01-003Ships in 1 to 2 Days
$11.10$15.20
8
91331-PC9-003Ships in 1 to 2 Days
$3.45$4.72
9
96220-50080Ships in 1 to 2 Daysqty 2 used
$0.47$0.64
10
96300-06014-09Ships in 1 to 2 Daysqty 7 used
$1.07$1.46
11
96300-06025-09Ships in 1 to 2 Daysqty 5 used
$1.11$1.52
Diagram

POWER TRIM-TILT

BFP60 BFP60AK1 power trim-tilt exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AF1120C
Fits all 3 submodels of this generation.

Parts in this assembly

70 parts
1
30280-ZW4-H11Ships in 1 to 2 Days
$92.23$126.34
2
31106-ZY3-003Ships in 1 to 2 Days
$33.08$45.32
3
35701-MG9-950Ships in 1 to 2 Days
$1.83$2.50
4
36104-ZY9-003Ships in 1 to 2 Days
$4.70$6.44
5
36120-ZZ3-003Ships in 1 to 2 Days
$509.57$698.04
6
36122-ZZ3-003Ships in 1 to 2 Days
$330.60$452.88
7
36123-ZW4-H12Ships in 1 to 2 Days
$185.15
8
36125-ZW4-H11Ships in 1 to 2 Days
$7.26$9.94
9
36129-ZV5-822Ships in 1 to 2 Days
$194.71
10
36136-ZV5-821Ships in 1 to 2 Daysqty 2 used
$7.21$9.88
11
40219-ZY3-023Ships in 1 to 2 Days
$9.05$12.40
12
53549-ZY1-871Ships in 1 to 2 Days
$2.20$3.02
13
56000-ZZ3-043Ships in 1 to 2 Days
$1,345.77
14
56110-ZW4-H11Ships in 1 to 2 Days
$118.46$170.38
14
56110-ZZ3-003Ships in 1 to 2 Days
$98.20$134.52
14
56110-ZZ3-013Ships in 1 to 2 Days
$97.24$133.20
15
56113-ZW4-H11Ships in 1 to 2 Days
$54.95$77.54
15
56113-ZZ3-003Ships in 1 to 2 Days
$48.49$66.42
16
56113-766-801Ships in 1 to 2 Days
$14.63$20.04
17
56114-ZW4-H11Ships in 1 to 2 Days
$207.45$284.18
18
56115-ZW4-H11Ships in 1 to 2 Days
$99.97$136.94
19
56123-ZZ3-003Ships in 1 to 2 Days
$13.91
20
PISTON, FREE
56130-ZW4-H11No Longer Available
—
20
PISTON, FREE (NOT AVAILABLE)
56130-ZW4-H12No Longer Available
$52.31$71.66
21
56135-ZZ3-003Ships in 1 to 2 Days
$26.57$27.90
21
56135-ZZ3-013Ships in 1 to 2 Days
$19.61
22
56140-ZZ3-003Ships in 1 to 2 Daysqty 2 used
$67.71$92.76
23
56150-ZW4-H11Ships in 1 to 2 Days
$37.19$50.94
24
56161-ZY1-871Ships in 1 to 2 Days
$41.74$57.18
25
56163-ZZ3-003Ships in 1 to 2 Days
$22.28$30.52
26
56170-ZZ3-003Ships in 1 to 2 Days
$108.87$149.14
27
56180-ZZ3-003Ships in 1 to 2 Days
$64.79$88.76
28
56182-ZW4-H11Ships in 1 to 2 Days
$12.85$17.60
29
56190-ZZ3-003Ships in 1 to 2 Days
$27.77$38.04
30
56191-ZW4-H11Ships in 1 to 2 Days
$16.82$23.04
31
56192-ZW4-H11Ships in 1 to 2 Days
$2.95$4.04
32
56511-ZZ3-003Ships in 1 to 2 Days
$85.47$117.08
33
56512-ZV5-000Ships in 1 to 2 Daysqty 2 used
$3.07$4.20
34
56517-ZW4-H11Ships in 1 to 2 Days
$5.93$8.12
35
56532-ZZ5-C00Ships in 1 to 2 Days
$17.07$23.38
36
56851-ZZ3-003Ships in 1 to 2 Days
$34.12$46.74
37
56860-ZZ3-003Ships in 1 to 2 Days
$4.80$6.58
38
90001-ZV5-791Ships in 1 to 2 Daysqty 4 used
$3.81$5.22
39
90111-ZW4-H11Ships in 1 to 2 Daysqty 4 used
$9.53$13.06
40
90115-ZV5-821Ships in 1 to 2 Daysqty 3 used
$16.38$22.44
41
90119-ZV5-000Ships in 1 to 2 Days
$1.65$2.26
42
90134-ZV5-821Ships in 1 to 2 Daysqty 3 used
$3.64$4.98
43
90402-V15-003Ships in 1 to 2 Days
$4.37$5.98
44
90921-ZW4-H11Ships in 1 to 2 Days
$0.80$1.10
45
91203-ZV5-821Ships in 1 to 2 Days
$30.78$42.16
46
91254-ZZ3-013Ships in 1 to 2 Days
$3.43$4.70
47
91302-ZV5-821In Stock
$5.10$6.98
48
91304-ZV5-821Ships in 1 to 2 Daysqty 2 used
$3.43$4.70
49
91311-ZV5-822Ships in 1 to 2 Days
$2.41$3.30
50
91318-ZV5-822Ships in 1 to 2 Days
$5.45$7.46
51
91351-ZW4-H11Ships in 1 to 2 Days
$5.26$7.20
52
91352-ZW4-H11Ships in 1 to 2 Days
$5.12$7.02
53
91353-ZZ3-003Ships in 1 to 2 Days
$3.07$4.20
54
91354-ZZ3-003Ships in 1 to 2 Days
$3.26$4.46
55
91355-ZW4-H11Ships in 1 to 2 Days
$6.04$8.28
56
91355-ZZ3-003Ships in 1 to 2 Days
$3.26$4.46
57
91356-ZW4-H11Ships in 1 to 2 Days
$6.19$8.48
58
91357-ZW4-H11Ships in 1 to 2 Days
$6.19$8.48
59
91357-ZZ3-003Ships in 1 to 2 Days
$2.83$3.88
60
91359-ZW4-H11Ships in 1 to 2 Days
$3.12$4.28
61
91541-S0A-003Ships in 1 to 2 Daysqty 2 used
$3.64$4.98
62
94540-10029Ships in 1 to 2 Daysqty 2 used
$6.80$9.32
63
90302-ZZ3-003Ships in 1 to 2 Days
$3.29$4.50
64
91356-ZW4-H11Ships in 1 to 2 Days
$6.19$8.48
65
56850-ZZ3-003Ships in 1 to 2 Days
$33.70$46.16
Diagram

PROPELLER

BFP60 BFP60AK1 propeller exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AY0600
Fits all 3 submodels of this generation.

Parts in this assembly

13 parts
1
$212.83
1
$210.03
1
$206.92
1
58130-ZW4-H53ZAShips in 1 to 2 Days
$209.06
1
58130-ZZ3-W71ZAShips in 1 to 2 Days
$234.93
1
58130-ZZ3-W81ZAShips in 1 to 2 Days
$234.93
1
$181.62
1
$170.89
1
$284.70
1
$170.89
1
$259.43
1
$167.53
1
58130-ZZ3-W91ZAShips in 1 to 2 Days
$265.07$273.04
Diagram

PROPELLER SHAFT (2)

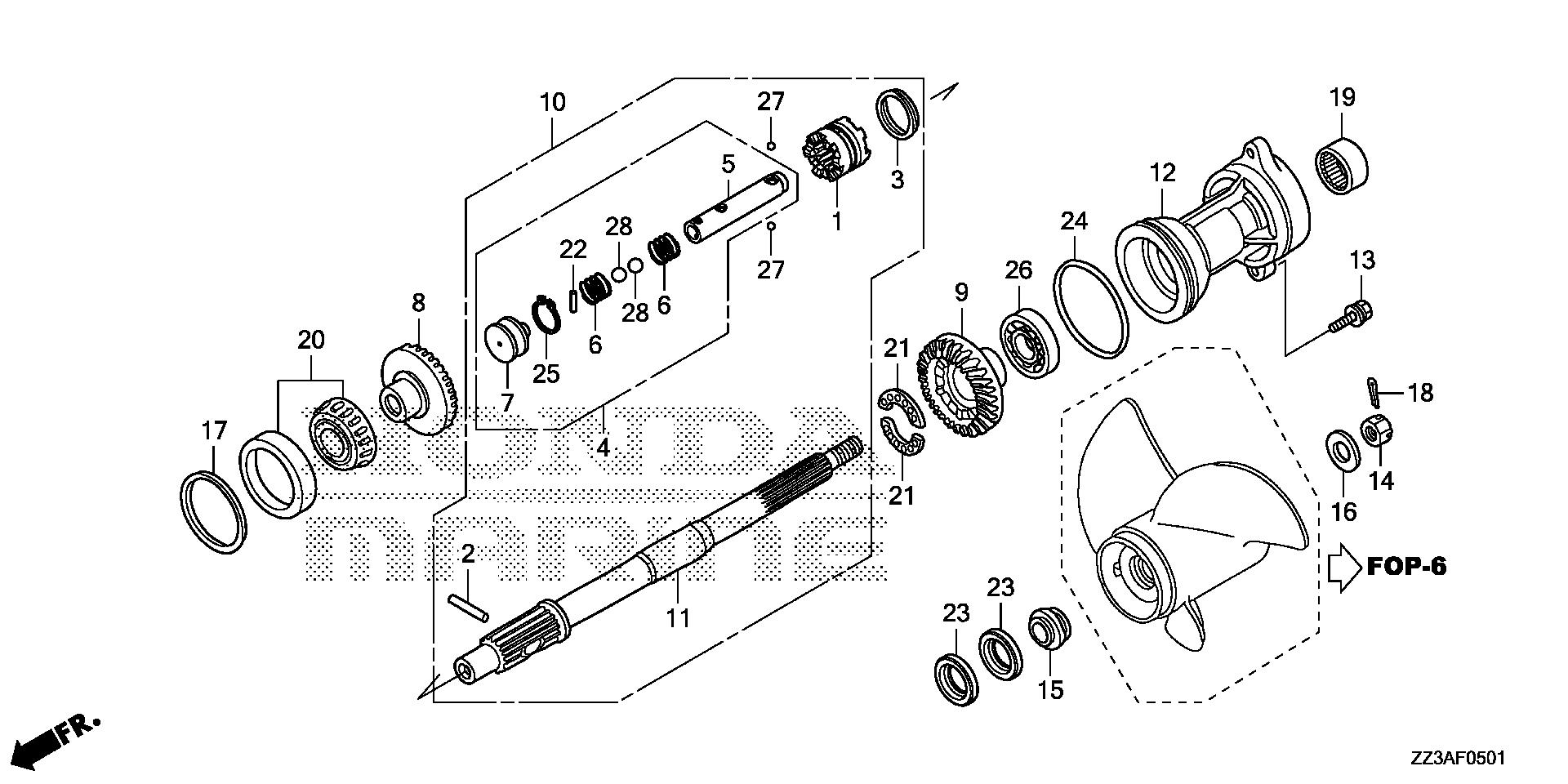

BFP60 BFP60AK1 propeller shaft (2) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AF0501
Fits all 3 submodels of this generation.

Parts in this assembly

31 parts
1
24101-ZZ3-E00Ships in 1 to 2 Days
$153.77$210.64
2
24102-ZW1-B00Ships in 1 to 2 Days
$3.40$4.66
3
24103-ZW1-B00Ships in 1 to 2 Days
$2.48$3.40
4
24113-ZZ3-E00Ships in 1 to 2 Days
$78.04$110.10
5
24122-ZZ3-E00Ships in 1 to 2 Days
$58.39$82.38
6
24123-ZZ3-E00Ships in 1 to 2 Daysqty 2 used
$4.89$6.90
7
24124-ZZ0-000Ships in 1 to 2 Days
$18.26$25.78
8
41140-ZZ3-E00Ships in 1 to 2 Days
$357.63$489.90
9
41151-ZZ3-E00Ships in 1 to 2 Days
$321.86$454.10
10
41160-ZZ3-E00Ships in 1 to 2 Days
$482.78$681.22
11
41161-ZZ3-E00Ships in 1 to 2 Days
$334.60$472.12
12
$136.76$192.96
13
90123-ZY6-000Ships in 1 to 2 Daysqty 2 used
$6.45$8.84
14
90301-ZW1-B00Ships in 1 to 2 Days
$11.32$15.50
15
90506-ZZ0-C00Ships in 1 to 2 Days
$51.83$73.14
16
90508-ZW1-B00Ships in 1 to 2 Days
$11.07$15.16
17
90528-ZW1-B00Ships in 1 to 2 Days
$15.05$21.24
17
90529-ZW1-B00Ships in 1 to 2 Days
$15.05$21.24
17
90530-ZW1-B00Ships in 1 to 2 Days
$16.18$22.82
17
90531-ZW1-B00Ships in 1 to 2 Days
$17.23$24.30
18
90758-ZW1-B00In Stock
$1.87$2.56
19
91053-ZY6-003Ships in 1 to 2 Days
$28.35$38.84
20
91051-ZW1-B02Ships in 1 to 2 Days
$72.24$101.92
21
91054-ZW5-003Ships in 1 to 2 Daysqty 2 used
$25.55$36.04
22
91101-ZW1-003Ships in 1 to 2 Days
$0.79$1.08
23
91252-ZZ3-003In Stockqty 2 used
$6.63$9.08
24
91351-ZW1-B02Ships in 1 to 2 Days
$6.47$9.12
25
94510-14000Ships in 1 to 2 Days
$0.99$1.36
26
96100-62080-00Ships in 1 to 2 Days
$28.43$38.94
27
96211-07000Ships in 1 to 2 Days
$1.17$1.60
28
96211-11000Ships in 1 to 2 Daysqty 2 used
$1.18$1.62
Diagram

REMOTE CONTROL BOX (HI-LEX) (HANDLE CAP = GRAY)

BFP60 BFP60AK1 remote control box (hi-lex) (handle cap = gray) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AF1500
Fits all 3 submodels of this generation.

Parts in this assembly

85 parts
1
17736-ZW1-000Ships in 1 to 2 Days
$3.94$5.40
2
24800-ZZ5-A22Ships in 1 to 2 Daysreplaced by 24800-ZZ5-D24
$333.68
2
24800-ZZ5-A23Ships in 1 to 2 Daysreplaced by 24800-ZZ5-D24
$333.68
2
24800-ZZ5-A24Ships in 1 to 2 Daysreplaced by 24800-ZZ5-D24
$453.45$621.16
2
$474.41$649.88
3
24811-ZV5-010Ships in 1 to 2 Days
$115.09$162.38
4
LEVER, HANDLE LOCK (NOT AVAILABLE)
24812-ZV5-000No Longer Available
—
5
24813-ZV5-000Ships in 1 to 2 Days
$39.73$56.04
6
24814-ZV5-010Ships in 1 to 2 Days
$8.23$11.62
7
24815-ZV5-010Ships in 1 to 2 Days
$8.04$11.36
8
24816-ZV5-000Ships in 1 to 2 Days
$4.07$5.74
9
24817-ZV5-000Ships in 1 to 2 Days
$3.81$5.38
10
24818-ZV5-003Ships in 1 to 2 Days
$1.33$1.88
11
24820-ZV5-010Ships in 1 to 2 Days
$102.08$144.04
12
24830-ZV5-010Ships in 1 to 2 Days
$54.08$76.32
13
24836-ZV5-000Ships in 1 to 2 Days
$33.64$47.46
14
24841-ZV5-000Ships in 1 to 2 Days
$57.93$81.74
15
24845-ZV5-000Ships in 1 to 2 Days
$39.52$55.76
16
24850-ZV5-000Ships in 1 to 2 Days
$46.76$65.98
17
24854-ZV5-000Ships in 1 to 2 Days
$8.10$11.44
18
24855-ZV5-000Ships in 1 to 2 Daysqty 2 used
$8.10$11.44
19
24860-ZV5-000Ships in 1 to 2 Days
$37.81$53.36
20
24865-ZV5-000Ships in 1 to 2 Days
$17.32$24.44
21
24875-ZV5-000Ships in 1 to 2 Days
$22.41$31.62
22
24876-ZV5-000Ships in 1 to 2 Days
$4.07$5.74
23
24878-ZV5-000Ships in 1 to 2 Days
$51.83$73.12
24
24881-ZV5-000Ships in 1 to 2 Daysqty 2 used
$3.81$5.38
25
24883-ZV5-000Ships in 1 to 2 Days
$3.90$5.50
26
24884-ZV5-000Ships in 1 to 2 Days
$3.90$5.50
27
24885-ZV5-000Ships in 1 to 2 Days
$69.85$98.54
28
24887-ZV5-000Ships in 1 to 2 Days
$4.63$6.52
29
24891-ZV5-000Ships in 1 to 2 Days
$7.84$11.06
30
24892-ZV5-000Ships in 1 to 2 Days
$15.26$21.52
31
24894-ZV5-000Ships in 1 to 2 Days
$6.31$8.90
32
24895-ZV5-000Ships in 1 to 2 Days
$6.32$8.92
33
24897-ZV5-000Ships in 1 to 2 Days
$4.96$7.00
34
24898-ZV5-000Ships in 1 to 2 Days
$4.85$6.84
35
32530-ZZ5-000Ships in 1 to 2 Days
$176.30$248.72
36
32823-ZV5-003Ships in 1 to 2 Daysqty 7 used
$2.95$4.04
37
32824-ZV5-003Ships in 1 to 2 Days
$3.11$4.26
38
32901-952-770Ships in 1 to 2 Days
$2.19$3.00
39
35100-ZV5-013Ships in 1 to 2 Days
$85.13$116.62
40
35370-ZV5-823Ships in 1 to 2 Days
$63.90$90.18
41
35701-MG9-950Ships in 1 to 2 Days
$1.83$2.50
42
36180-ZV5-033In Stock
$56.84$77.86
43
36182-ZV4-651In Stock
$18.45$25.28
44
36187-ZV4-652Ships in 1 to 2 Days
$4.18$5.72
45
LAMP ASSY., INDICATION (4-LED) (NOT AVAILABLE)
37210-ZZ5-013No Longer Available
—
46
38403-341-672Ships in 1 to 2 Days
$4.66$6.38
47
38410-ZV5-003Ships in 1 to 2 Days
$56.17$76.94
48
$50.03$70.60
49
87701-ZZ5-790Ships in 1 to 2 Days
$50.34$71.04
50
87702-ZW9-800Ships in 1 to 2 Days
$6.45$9.10
51
90008-ZW9-000Ships in 1 to 2 Days
$4.31$6.08
52
90105-MM4-000Ships in 1 to 2 Days
$2.03$2.78
53
90108-ZW4-000Ships in 1 to 2 Daysqty 2 used
$1.27$1.80
54
90125-ZV5-000Ships in 1 to 2 Daysqty 3 used
$6.91$9.74
55
90302-921-000In Stock
$4.10$5.62
56
90304-ZV4-000Ships in 1 to 2 Daysqty 3 used
$2.12$2.90
57
90401-ZW4-000Ships in 1 to 2 Daysqty 2 used
$1.24$1.70
58
90402-ZW4-000Ships in 1 to 2 Daysqty 2 used
$1.85$2.62
59
90502-ZV4-000Ships in 1 to 2 Days
$2.73$3.74
60
90504-921-010Ships in 1 to 2 Daysqty 5 used
$1.27$1.74
61
90512-921-010In Stockqty 6 used
$1.07$1.46
62
90518-921-000Ships in 1 to 2 Days
$1.20$1.64
63
90557-ZV5-000Ships in 1 to 2 Days
$2.99$4.22
64
90751-ZV5-000Ships in 1 to 2 Daysqty 2 used
$3.29$4.50
65
90772-ZV5-000Ships in 1 to 2 Days
$3.99$5.62
66
91058-MG9-681Ships in 1 to 2 Daysqty 2 used
$2.03$2.78
67
91151-ZV5-000Ships in 1 to 2 Days
$3.45$4.86
68
91475-SB6-000Ships in 1 to 2 Days
$7.72$10.58
69
91567-ZV5-000Ships in 1 to 2 Daysqty 2 used
$2.76$3.90
70
91570-ZV5-000Ships in 1 to 2 Daysqty 3 used
$8.10$11.44
71
92101-05016-4JShips in 1 to 2 Days
$1.21$1.66
72
93500-05010-4JShips in 1 to 2 Daysqty 2 used
$1.23$1.74
73
93901-250J0Ships in 1 to 2 Daysqty 2 used
$1.64$2.30
74
93901-251J0Ships in 1 to 2 Daysqty 3 used
$0.58$0.82
75
93901-252J0Ships in 1 to 2 Days
$1.53$2.16
76
93903-262J0Ships in 1 to 2 Daysqty 2 used
$2.37$3.34
77
93905-255J0Ships in 1 to 2 Daysqty 7 used
$2.37$3.34
78
94001-06490-0SShips in 1 to 2 Days
$2.15$2.94
79
94002-05490-0SShips in 1 to 2 Days
$0.96$1.36
80
94540-03029Ships in 1 to 2 Days
$1.34$1.90
81
94540-04029Ships in 1 to 2 Days
$5.23$7.16
82
94540-07029Ships in 1 to 2 Days
$4.38$6.00
Diagram

REMOTE CONTROL BOX (FLUSH MOUNT TYPE) (L.)

BFP60 BFP60AK1 remote control box (flush mount type) (l.) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AY0405
Fits all 3 submodels of this generation.

Parts in this assembly

28 parts
1
06240-ZW7-U10Ships in 1 to 2 Days
$300.05
2
24810-ZW7-U11Ships in 1 to 2 Days
$428.07$586.40
3
24811-ZW7-U01Ships in 1 to 2 Days
$114.23$156.50
4
24812-ZW7-U01Ships in 1 to 2 Days
$14.41$19.74
5
24813-ZW7-U01Ships in 1 to 2 Days
$15.93$21.82
6
24814-ZW7-U01Ships in 1 to 2 Days
$3.61$4.94
7
24815-ZW7-U01Ships in 1 to 2 Days
$8.85$12.12
8
24816-ZW5-U01Ships in 1 to 2 Days
$7.72$10.58
9
24817-ZW7-U01Ships in 1 to 2 Days
$6.69$9.16
10
24826-ZW5-U01Ships in 1 to 2 Days
$13.81$18.92
11
24830-ZW7-U01Ships in 1 to 2 Days
$24.35$33.36
12
24831-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$8.45$11.58
13
24832-ZW5-U01Ships in 1 to 2 Days
$3.74$5.12
14
24832-ZW7-U01Ships in 1 to 2 Days
$14.88$20.38
15
24833-ZW7-U01Ships in 1 to 2 Days
$30.98$42.44
16
32530-ZW7-U20Ships in 1 to 2 Days
$14.76$20.22
17
35370-ZW7-U02Ships in 1 to 2 Days
$52.93$72.50
18
87701-ZW7-U01Ships in 1 to 2 Days
$6.19$8.48
19
87703-ZW7-U00Ships in 1 to 2 Days
$4.58$6.28
20
90101-ZW5-U00Ships in 1 to 2 Days
$2.60$3.56
21
90101-ZW7-U01Ships in 1 to 2 Days
$2.31$3.16
22
90102-ZW7-U01Ships in 1 to 2 Daysqty 4 used
$2.98$4.08
23
90103-ZW7-U01Ships in 1 to 2 Daysqty 3 used
$1.24$1.70
24
90104-ZW7-U01Ships in 1 to 2 Daysqty 3 used
$1.24$1.70
25
90301-ZW7-U01Ships in 1 to 2 Daysqty 3 used
$1.17$1.60
26
90501-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.85$1.16
27
90502-ZW7-U00Ships in 1 to 2 Daysqty 3 used
$1.34$1.84
28
94540-06029Ships in 1 to 2 Daysqty 2 used
$3.50$4.80
Diagram

REMOTE CONTROL BOX (FLUSH MOUNT TYPE) (R.)

BFP60 BFP60AK1 remote control box (flush mount type) (r.) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AY0404
Fits all 3 submodels of this generation.

Parts in this assembly

28 parts
1
06240-ZW7-U00Ships in 1 to 2 Days
$300.05
2
24810-ZW7-U01Ships in 1 to 2 Days
$428.07$586.40
3
24811-ZW7-U01Ships in 1 to 2 Days
$114.23$156.50
4
24812-ZW7-U01Ships in 1 to 2 Days
$14.41$19.74
5
24813-ZW7-U01Ships in 1 to 2 Days
$15.93$21.82
6
24814-ZW7-U01Ships in 1 to 2 Days
$3.61$4.94
7
24815-ZW7-U01Ships in 1 to 2 Days
$8.85$12.12
8
24816-ZW5-U01Ships in 1 to 2 Days
$7.72$10.58
9
24817-ZW7-U01Ships in 1 to 2 Days
$6.69$9.16
10
24826-ZW5-U01Ships in 1 to 2 Days
$13.81$18.92
11
24830-ZW7-U01Ships in 1 to 2 Days
$24.35$33.36
12
24831-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$8.45$11.58
13
24832-ZW5-U01Ships in 1 to 2 Days
$3.74$5.12
14
24832-ZW7-U01Ships in 1 to 2 Days
$14.88$20.38
15
24833-ZW7-U01Ships in 1 to 2 Days
$30.98$42.44
16
32530-ZW7-U20Ships in 1 to 2 Days
$14.76$20.22
17
35370-ZW7-U02Ships in 1 to 2 Days
$52.93$72.50
18
87701-ZW7-U01Ships in 1 to 2 Days
$6.19$8.48
19
87703-ZW7-U00Ships in 1 to 2 Days
$4.58$6.28
20
90101-ZW5-U00Ships in 1 to 2 Days
$2.60$3.56
21
90101-ZW7-U01Ships in 1 to 2 Days
$2.31$3.16
22
90102-ZW7-U01Ships in 1 to 2 Daysqty 4 used
$2.98$4.08
23
90103-ZW7-U01Ships in 1 to 2 Daysqty 3 used
$1.24$1.70
24
90104-ZW7-U01Ships in 1 to 2 Daysqty 3 used
$1.24$1.70
25
90301-ZW7-U01Ships in 1 to 2 Daysqty 3 used
$1.17$1.60
26
90501-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.85$1.16
27
90502-ZW7-U00Ships in 1 to 2 Daysqty 3 used
$1.34$1.84
28
94540-06029Ships in 1 to 2 Daysqty 2 used
$3.50$4.80
Diagram

REMOTE CONTROL BOX (NHK MEC) (HANDLE CAP = CHROME)

BFP60 BFP60AK1 remote control box (nhk mec) (handle cap = chrome) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AF1502B
Fits all 3 submodels of this generation.

Parts in this assembly

83 parts
1
24800-ZZ5-A04Ships in 1 to 2 Days
$474.41$649.88
1
24800-ZZ5-A22Ships in 1 to 2 Daysreplaced by 24800-ZZ5-D24
$333.68
1
24800-ZZ5-A23Ships in 1 to 2 Daysreplaced by 24800-ZZ5-D24
$333.68
1
24800-ZZ5-A24Ships in 1 to 2 Daysreplaced by 24800-ZZ5-D24
$453.45$621.16
1
$474.41$649.88
2
24810-ZZ5-D01Ships in 1 to 2 Days
$48.17$65.98
3
24811-ZZ5-D01Ships in 1 to 2 Days
$102.07$139.84
4
24812-ZZ5-D01Ships in 1 to 2 Days
$9.34$12.80
5
24813-ZZ5-D01Ships in 1 to 2 Days
$25.13$34.42
6
24814-ZZ5-D01Ships in 1 to 2 Days
$56.34$77.18
7
24815-ZZ5-D01Ships in 1 to 2 Days
$15.87$21.74
8
24816-ZZ5-D01Ships in 1 to 2 Days
$2.07$2.84
9
24817-ZZ5-D01Ships in 1 to 2 Days
$2.10$2.88
10
24818-ZZ5-D01Ships in 1 to 2 Days
$2.82$3.86
11
24819-ZZ5-D01Ships in 1 to 2 Days
$2.01$2.76
12
24821-ZZ5-D01Ships in 1 to 2 Days
$131.39$179.98
13
24822-ZZ5-D01Ships in 1 to 2 Days
$47.76$65.42
14
24823-ZZ5-D01Ships in 1 to 2 Days
$34.50$47.26
15
24824-ZZ5-D01Ships in 1 to 2 Days
$2.28$3.12
16
24826-ZZ5-D01Ships in 1 to 2 Days
$4.89$6.70
17
24827-ZZ5-D01Ships in 1 to 2 Days
$14.73$20.18
18
24828-ZZ5-D01Ships in 1 to 2 Days
$3.31$4.54
19
24829-ZZ5-D01Ships in 1 to 2 Days
$7.23$9.90
20
24831-ZZ5-D01Ships in 1 to 2 Days
$6.39$8.76
21
24832-ZZ5-D01Ships in 1 to 2 Days
$5.02$6.88
22
24833-ZZ5-D01Ships in 1 to 2 Days
$5.24$7.18
23
24845-ZZ5-D01Ships in 1 to 2 Days
$26.12$35.78
24
24850-ZZ5-D01Ships in 1 to 2 Days
$38.08$52.16
25
24855-ZZ5-D01Ships in 1 to 2 Daysqty 2 used
$3.72$5.10
26
24875-ZZ5-D01Ships in 1 to 2 Days
$14.34$19.64
27
24876-ZZ5-D01Ships in 1 to 2 Days
$1.65$2.26
28
24878-ZZ5-D01Ships in 1 to 2 Days
$27.11$37.14
29
24883-ZZ5-D01Ships in 1 to 2 Daysqty 5 used
$2.07$2.84
30
32530-ZZ5-D01Ships in 1 to 2 Days
$184.53$252.78
30
32530-ZZ5-D21Ships in 1 to 2 Days
$188.38$258.06
31
32823-ZV5-003Ships in 1 to 2 Daysqty 6 used
$2.95$4.04
32
32824-ZV5-003Ships in 1 to 2 Days
$3.11$4.26
33
35100-ZV5-013Ships in 1 to 2 Days
$85.13$116.62
34
35340-ZZ5-D21Ships in 1 to 2 Days
$44.12$60.44
35
35370-ZZ5-D02Ships in 1 to 2 Days
$45.01$61.66
36
35645-ZZ3-A41Ships in 1 to 2 Days
$10.12$13.86
37
35701-ZZ5-D01Ships in 1 to 2 Days
$2.13$2.92
38
36180-ZV5-033In Stock
$56.84$77.86
39
36182-ZV4-651In Stock
$18.45$25.28
40
37210-ZZ5-D02Ships in 1 to 2 Days
$117.91$161.52
41
38403-341-672Ships in 1 to 2 Days
$4.66$6.38
42
38410-ZV5-003Ships in 1 to 2 Days
$56.17$76.94
43
87701-ZZ5-D00Ships in 1 to 2 Days
$4.34$5.94
44
87702-ZZ5-A00Ships in 1 to 2 Days
$5.05$6.92
45
87702-ZZ5-A00Ships in 1 to 2 Days
$5.05$6.92
47
87703-ZZ5-D00Ships in 1 to 2 Days
$15.90$21.78
48
87704-ZZ5-D01Ships in 1 to 2 Days
$5.69$7.80
49
90101-ZZ5-D01Ships in 1 to 2 Daysqty 5 used
$2.69$3.68
50
90102-ZZ5-D01Ships in 1 to 2 Daysqty 2 used
$1.58$2.16
51
90103-ZZ5-D01Ships in 1 to 2 Days
$2.01$2.76
52
90104-ZZ5-D01Ships in 1 to 2 Daysqty 2 used
$1.93$2.64
53
90106-ZZ5-D01Ships in 1 to 2 Daysqty 2 used
$2.07$2.84
54
90107-ZZ5-D01Ships in 1 to 2 Daysqty 3 used
$3.72$5.10
55
90108-ZZ5-D01Ships in 1 to 2 Days
$3.66$5.02
56
90109-ZZ5-D01Ships in 1 to 2 Days
$2.88$3.94
57
90301-ZZ5-D01Ships in 1 to 2 Daysqty 3 used
$1.37$1.88
58
90302-921-000In Stock
$4.10$5.62
59
90302-ZZ5-D01Ships in 1 to 2 Days
$0.92$1.26
60
90501-ZZ5-D01Ships in 1 to 2 Days
$3.34$4.58
61
90502-ZZ5-D01Ships in 1 to 2 Days
$2.04$2.80
62
90503-ZZ5-D01Ships in 1 to 2 Daysqty 2 used
$2.91$3.98
63
90504-ZZ5-D01Ships in 1 to 2 Days
$2.91$3.98
64
90506-ZZ5-D01Ships in 1 to 2 Days
$2.69$3.68
65
90507-ZZ5-D01Ships in 1 to 2 Daysqty 3 used
$3.84$5.26
66
90508-ZZ5-D01Ships in 1 to 2 Days
$3.20$4.38
67
90509-ZZ5-D01Ships in 1 to 2 Daysqty 3 used
$3.61$4.94
68
90651-ZZ5-D01Ships in 1 to 2 Daysqty 2 used
$2.98$4.08
69
91151-ZZ5-D01Ships in 1 to 2 Days
$2.19$3.00
70
91152-ZZ5-D01Ships in 1 to 2 Days
$1.99$2.72
71
91153-ZZ5-D01Ships in 1 to 2 Days
$2.61$3.58
72
91154-ZZ5-D01Ships in 1 to 2 Daysqty 2 used
$3.30$4.52
73
91156-ZZ5-D01Ships in 1 to 2 Days
$1.85$2.54
74
91157-ZZ5-D01Ships in 1 to 2 Days
$3.18$4.36
75
24828-ZZ5-D01Ships in 1 to 2 Days
$3.31$4.54
76
17736-ZW1-000Ships in 1 to 2 Days
$3.94$5.40
77
91058-MG9-681Ships in 1 to 2 Daysqty 2 used
$2.03$2.78
78
90101-ZZ5-D01Ships in 1 to 2 Daysqty 2 used
$2.69$3.68
78
90111-ZZ5-D01Ships in 1 to 2 Daysqty 2 used
$1.05$1.44
Diagram

REMOTE CONTROL BOX (PANEL MOUNT)

BFP60 BFP60AK1 remote control box (panel mount) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AF1501
Fits all 3 submodels of this generation.

Parts in this assembly

69 parts
1
BOX ASSY., REMOTE CONTROL (PANEL MOUNT) (NA USE ALT:06240-ZW7-U00)
24800-ZW1-V21No Longer Available
—
2
24811-ZW1-V21Ships in 1 to 2 Days
$74.27$101.74
3
24812-ZW1-V21Ships in 1 to 2 Days
$5.46$7.48
4
24813-ZW1-V21Ships in 1 to 2 Days
$19.13$26.20
5
24816-ZW1-V21Ships in 1 to 2 Days
$1.56$2.14
6
24819-ZW1-V21Ships in 1 to 2 Days
$2.93$4.02
7
24820-ZW1-V21Ships in 1 to 2 Days
$14.25$19.52
8
24821-ZW1-003Ships in 1 to 2 Days
$2.37$3.24
9
24822-ZW1-V21Ships in 1 to 2 Days
$13.26$18.16
10
24825-ZW1-V01Ships in 1 to 2 Days
$9.37$12.84
11
24829-ZW1-003Ships in 1 to 2 Days
$0.16$0.22
12
24830-ZW1-V21Ships in 1 to 2 Days
$7.43$10.18
13
24834-ZW1-003Ships in 1 to 2 Days
$2.51$3.44
14
24836-ZW1-V21Ships in 1 to 2 Days
$10.88$14.90
15
24839-ZW1-V01Ships in 1 to 2 Daysqty 2 used
$3.65$5.00
16
24841-ZW1-V01Ships in 1 to 2 Days
$30.46$41.72
17
SHAFT, HANDLE (NOT AVAILABLE)
24843-ZW1-V01No Longer Available
—
18
24845-ZW1-V01Ships in 1 to 2 Days
$37.43$51.28
19
SHAFT, GEARSHIFT (NOT AVAILABLE)
24847-ZW1-V01No Longer Available
—
20
24848-ZW1-V01Ships in 1 to 2 Days
$1.02$1.40
21
24865-ZW1-V01Ships in 1 to 2 Days
$10.69$14.64
22
24870-ZW1-V21Ships in 1 to 2 Days
$150.09$205.60
23
24873-ZW1-V01Ships in 1 to 2 Days
$4.56$6.24
24
24833-ZW1-V01Ships in 1 to 2 Daysqty 5 used
$1.93$2.64
25
CABLE, REMOTE CONTROL (10') (TELEFLEX)
24911-ZW1-V00No Longer Available
—
25
24911-ZW1-003Ships in 1 to 2 Daysqty 2 used
$22.24$30.46
25
CABLE, REMOTE CONTROL (11') (TELEFLEX)
24912-ZW1-V00No Longer Available
—
25
CABLE, REMOTE CONTROL (11') (BRUNSWICK) (NOT AVAILABLE)
24912-ZW1-003No Longer Available
—
25
CABLE, REMOTE CONTROL (12') (TELEFLEX)
24913-ZW1-V00No Longer Available
—
25
CABLE, REMOTE CONTROL (12') (BRUNSWICK) (NOT AVAILABLE)
24913-ZW1-003No Longer Available
—
25
CABLE, REMOTE CONTROL (13') (TELEFLEX)
24914-ZW1-V00No Longer Available
—
25
CABLE, REMOTE CONTROL (13') (BRUNSWICK) (NOT AVAILABLE)
24914-ZW1-003No Longer Available
—
25
CABLE, REMOTE CONTROL (14') (TELEFLEX)
24915-ZW1-V00No Longer Available
—
25
CABLE, REMOTE CONTROL (14') (BRUNSWICK) (NOT AVAILABLE)
24915-ZW1-003No Longer Available
—
25
CABLE, REMOTE CONTROL (15') (TELEFLEX)
24916-ZW1-V00No Longer Available
—
25
CABLE, REMOTE CONTROL (15') (BRUNSWICK) (NOT AVAILABLE)
24916-ZW1-003No Longer Available
—
25
CABLE, REMOTE CONTROL (16') (TELEFLEX)
24917-ZW1-V00No Longer Available
—
25
CABLE, REMOTE CONTROL (16') (BRUNSWICK) (NOT AVAILABLE)
24917-ZW1-003No Longer Available
—
25
CABLE, REMOTE CONTROL (17') (TELEFLEX)
24918-ZW1-V00No Longer Available
—
25
CABLE, REMOTE CONTROL (17') (BRUNSWICK) (NOT AVAILABLE)
24918-ZW1-003No Longer Available
—
25
CABLE, REMOTE CONTROL (18') (TELEFLEX)
24919-ZW1-V00No Longer Available
—
25
CABLE, REMOTE CONTROL (18') (BRUNSWICK) (NOT AVAILABLE)
24919-ZW1-003No Longer Available
—
25
CABLE, REMOTE CONTROL (19') (TELEFLEX)
24920-ZW1-V00No Longer Available
—
25
CABLE, REMOTE CONTROL (19') (BRUNSWICK) (NOT AVAILABLE)
24920-ZW1-003No Longer Available
—
25
CABLE, REMOTE CONTROL (20') (TELEFLEX)
24921-ZW1-V00No Longer Available
—
25
CABLE, REMOTE CONTROL (20') (BRUNSWICK) (NOT AVAILABLE) (ALT. PNO: 24920-ZW1-003AH)
24921-ZW1-003No Longer Available
—
26
ADAPTER, REMOCON CABLE (N/A: USE 24931-ZW1-000)
24931-ZW1-V00No Longer Available
—
27
32167-ZW5-650Ships in 1 to 2 Days
$22.13$30.32
28
SWITCH ASSY., EMERGENCY STOP (NOT AVAILABLE)
35180-ZW1-003No Longer Available
—
29
35182-ZW1-003Ships in 1 to 2 Days
$19.10$26.16
30
35370-ZW1-V01Ships in 1 to 2 Days
$93.60$128.22
31
87705-ZW1-003Ships in 1 to 2 Days
$4.41$6.04
32
87706-ZW1-003Ships in 1 to 2 Days
$6.41$8.78
32
87707-ZW1-003Ships in 1 to 2 Days
$7.24$9.92
33
SCREW A (NOT AVAILABLE)
90136-ZW1-003No Longer Available
—
34
90137-ZW1-003Ships in 1 to 2 Daysqty 3 used
$1.34$1.84
35
SCREW C (NOT AVAILABLE)
90138-ZW1-003No Longer Available
—
36
90131-ZW1-003Ships in 1 to 2 Days
$0.96$1.32
37
90140-ZW1-003Ships in 1 to 2 Days
$3.96$5.42
38
90142-ZW1-003Ships in 1 to 2 Daysqty 2 used
$1.23$1.68
39
90145-ZW1-003Ships in 1 to 2 Daysqty 4 used
$0.92$1.26
40
90145-ZW1-003Ships in 1 to 2 Daysqty 3 used
$0.92$1.26
41
NUT (1/4X20) (NOT AVAILABLE)
90314-ZW1-003No Longer Available
—
42
90551-ZW1-003Ships in 1 to 2 Daysqty 3 used
$1.08$1.48
43
90550-ZW1-003Ships in 1 to 2 Days
$0.93$1.28
44
90653-ZW1-003Ships in 1 to 2 Days
$0.79$1.08
45
90753-ZW1-003Ships in 1 to 2 Days
$1.34$1.84
46
90953-ZW1-003Ships in 1 to 2 Daysqty 2 used
$1.33$1.82
47
91553-ZW1-003Ships in 1 to 2 Days
$0.82$1.12
Diagram

REMOTE CONTROL BOX (TOP MOUNT DUAL TYPE) (L.)

BFP60 BFP60AK1 remote control box (top mount dual type) (l.) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AY0403
Fits all 3 submodels of this generation.

Parts in this assembly

41 parts
1
BOX KIT, REMOTE CONTROL (TOP MOUNT DUAL)(L) (NOT AVAILABLE)
06240-ZW5-U70No Longer Available
—
2
06241-ZW5-U10Ships in 1 to 2 Days
$33.81$46.32
3
24810-ZW5-U01Ships in 1 to 2 Days
$398.40$545.76
4
24810-ZW5-U11Ships in 1 to 2 Days
$398.40$545.76
5
24811-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$95.56$134.82
6
24812-ZW5-U11Ships in 1 to 2 Days
$13.83$19.50
7
24813-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$12.89$18.18
8
24813-ZW5-U21Ships in 1 to 2 Days
$5.45$7.68
9
24814-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$3.69$5.22
10
24816-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$7.72$10.58
11
24817-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$31.68$43.40
12
24818-ZW5-U01Ships in 1 to 2 Days
$7.11$9.74
13
24819-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$10.77$15.20
14
24820-ZW5-U21Ships in 1 to 2 Days
$30.50$43.04
15
24825-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$2.91$4.10
16
24826-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$13.81$18.92
17
24831-ZW5-U01Ships in 1 to 2 Daysqty 4 used
$8.45$11.58
18
24832-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$3.74$5.12
19
24834-ZW5-U21Ships in 1 to 2 Days
$8.82$12.08
20
32530-ZW7-U00Ships in 1 to 2 Days
$25.87$35.44
21
32530-ZW7-U10Ships in 1 to 2 Days
$26.46$36.24
22
35370-ZW5-U02Ships in 1 to 2 Days
$54.55$76.96
23
35370-ZW5-U12Ships in 1 to 2 Days
$54.55$76.96
24
87703-ZW5-U22Ships in 1 to 2 Days
$9.52$13.44
25
90101-ZW5-U00Ships in 1 to 2 Daysqty 3 used
$2.60$3.56
26
90102-ZW5-U00Ships in 1 to 2 Daysqty 2 used
$2.38$3.36
27
90103-ZW5-U01Ships in 1 to 2 Daysqty 4 used
$3.20$4.52
28
90104-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$1.14$1.56
29
90105-ZW5-U01Ships in 1 to 2 Daysqty 4 used
$2.38$3.36
30
90106-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$2.60$3.56
31
90107-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.93$1.28
32
90108-ZW5-U00Ships in 1 to 2 Daysqty 3 used
$1.31$1.80
33
90301-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$1.18$1.62
34
90302-ZW5-U21Ships in 1 to 2 Days
$1.18$1.62
35
90501-ZW5-U00Ships in 1 to 2 Daysqty 8 used
$0.85$1.16
36
90502-ZV4-000Ships in 1 to 2 Daysqty 4 used
$2.73$3.74
37
90502-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$1.69$2.32
38
90503-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.66$0.90
39
93500-05065-4JShips in 1 to 2 Daysqty 4 used
$2.50$3.42
40
94001-05490-0SShips in 1 to 2 Daysqty 4 used
$0.92$1.26
41
94540-06029Ships in 1 to 2 Daysqty 4 used
$3.50$4.80
Diagram

REMOTE CONTROL BOX (TOP MOUNT DUAL TYPE) (NHK

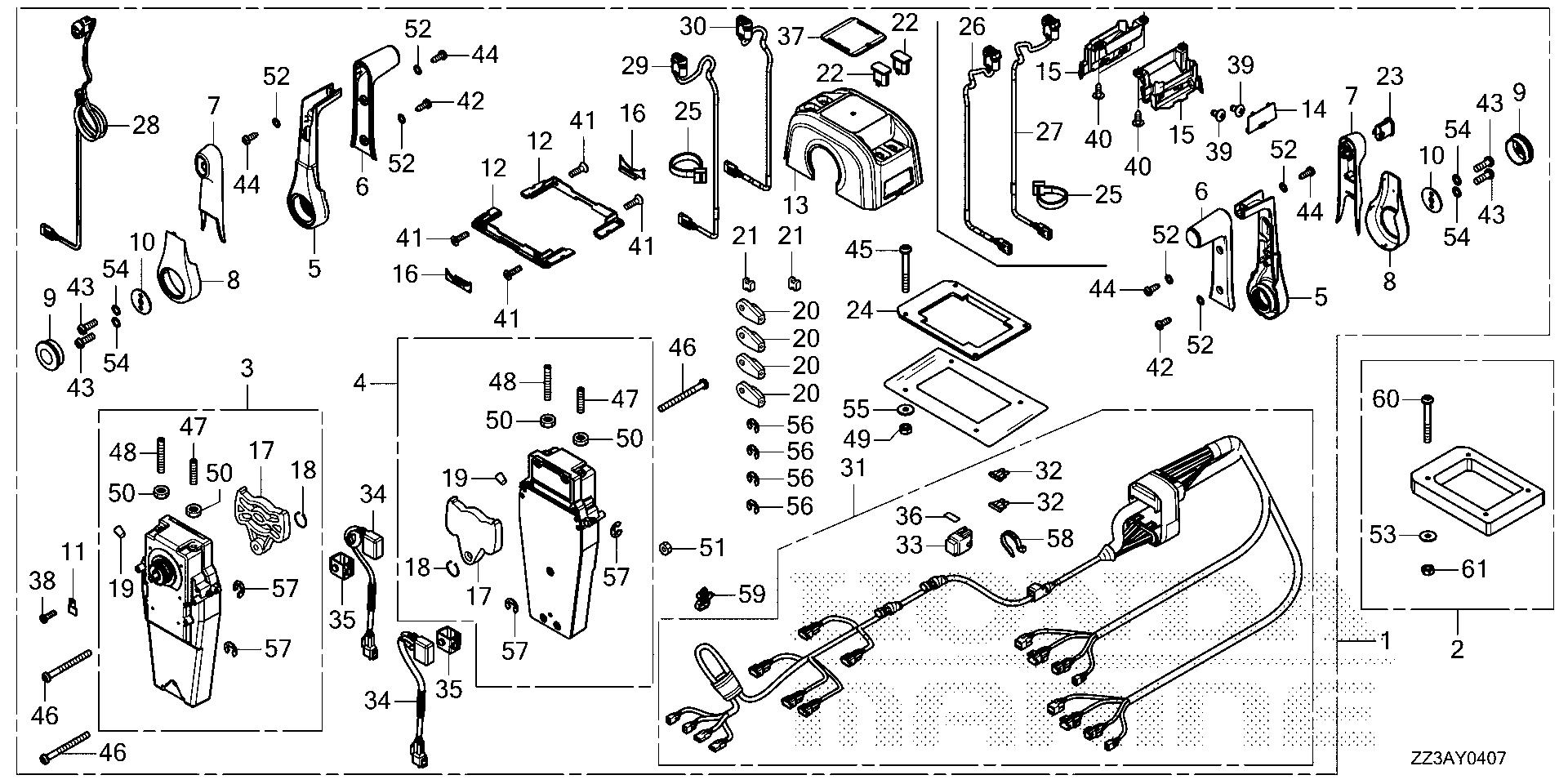

BFP60 BFP60AK1 remote control box (top mount dual type) (nhk exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AY0407
Fits only BFP60AK1-LRTA, BFP60AK1-XRTA — not every submodel of this generation.

Parts in this assembly

66 parts
1
06240-ZY6-V10Ships in 1 to 2 Daysreplaced by 06240-ZY6-V12
$605.70
1
$665.73
1
06240-ZY6-V92Ships in 1 to 2 Days
$629.99
2
06241-ZY6-V10Ships in 1 to 2 Days
$35.16$48.16
3
24810-ZY6-U11Ships in 1 to 2 Days
$298.02$408.24
4
24810-ZY6-V11Ships in 1 to 2 Days
$298.02$408.24
5
24811-ZY6-U11Ships in 1 to 2 Daysqty 2 used
$101.27$138.72
6
24812-ZY6-U12Ships in 1 to 2 Daysqty 2 used
$11.33$15.52
7
24813-ZY6-U12Ships in 1 to 2 Daysqty 2 used
$9.80$13.42
8
24814-ZY6-U11Ships in 1 to 2 Daysqty 2 used
$48.75$66.78
9
24816-ZY6-U11Ships in 1 to 2 Daysqty 2 used
$5.93$8.12
10
24817-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$31.68$43.40
11
24818-ZW5-U01Ships in 1 to 2 Days
$7.11$9.74
12
24819-ZY6-V11Ships in 1 to 2 Daysqty 2 used
$8.09$11.08
13
24820-ZY6-V11Ships in 1 to 2 Days
$40.75$55.82
14
24821-ZY6-V11Ships in 1 to 2 Days
$4.75$6.50
15
24824-ZY6-V11Ships in 1 to 2 Daysqty 2 used
$2.48$3.40
16
24825-ZY6-U11Ships in 1 to 2 Daysqty 2 used
$2.04$2.80
17
24826-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$13.81$18.92
18
24827-ZY6-U11Ships in 1 to 2 Daysqty 2 used
$0.93$1.28
19
24828-ZY6-U11Ships in 1 to 2 Daysqty 2 used
$1.59$2.18
20
24831-ZW5-U01Ships in 1 to 2 Daysqty 4 used
$8.45$11.58
21
24832-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$3.74$5.12
22
24832-ZY6-U91Ships in 1 to 2 Daysqty 2 used
$4.79
23
24832-ZY6-V11Ships in 1 to 2 Days
$4.38$6.00
24
24834-ZY6-V11Ships in 1 to 2 Days
$6.18$8.46
25
24835-ZY6-U11Ships in 1 to 2 Days
$2.07$2.84
26
35340-ZY6-V11Ships in 1 to 2 Days
$36.05$49.38
27
35340-ZY6-V21Ships in 1 to 2 Days
$36.05$49.38
28
35370-ZY6-U11Ships in 1 to 2 Days
$37.67$51.60
29
35370-ZY6-V11Ships in 1 to 2 Days
$37.67$51.60
30
35370-ZY6-V21Ships in 1 to 2 Days
$37.67$51.60
31
35375-ZY6-V10Ships in 1 to 2 Days
$330.62$452.90
31
35375-ZY6-V11Ships in 1 to 2 Days
$327.14$448.14
31
35375-ZY6-V90Ships in 1 to 2 Days
$267.92$367.02
31
35375-ZY6-V91Ships in 1 to 2 Days
$277.09$379.58
32
38206-797-A01Ships in 1 to 2 Daysqty 2 used
$1.97$2.70
33
38216-ZVL-901Ships in 1 to 2 Days
$5.23$7.16
34
38580-ZY6-V11Ships in 1 to 2 Daysqty 2 used
$53.55$73.36
35
38581-ZY6-V11Ships in 1 to 2 Daysqty 2 used
$3.77$5.16
36
87117-Z2E-000Ships in 1 to 2 Days
$1.66$2.28
37
87703-ZY6-V11Ships in 1 to 2 Days
$6.80$9.32
38
90101-ZW5-U00Ships in 1 to 2 Days
$2.60$3.56
39
90102-ZY6-U11Ships in 1 to 2 Daysqty 2 used
$1.90$2.60
40
90103-ZY6-U11Ships in 1 to 2 Daysqty 4 used
$1.97$2.70
41
90104-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$1.14$1.56
42
90104-ZY6-U11Ships in 1 to 2 Daysqty 2 used
$1.97$2.70
43
90106-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$2.60$3.56
44
90106-ZY6-U11Ships in 1 to 2 Daysqty 4 used
$2.04$2.80
45
90107-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.93$1.28
46
90108-ZW5-U00Ships in 1 to 2 Daysqty 3 used
$1.31$1.80
47
90111-ZY6-U11Ships in 1 to 2 Daysqty 2 used
$2.51$3.44
48
90112-ZY6-U11Ships in 1 to 2 Daysqty 2 used
$3.80$5.20
49
90301-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$1.18$1.62
50
90301-ZZ5-D01Ships in 1 to 2 Daysqty 4 used
$1.37$1.88
51
90302-ZW5-U21Ships in 1 to 2 Days
$1.18$1.62
52
90501-ZW5-U00Ships in 1 to 2 Daysqty 6 used
$0.85$1.16
53
90502-ZV4-000Ships in 1 to 2 Daysqty 4 used
$2.73$3.74
54
90502-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$1.69$2.32
55
90503-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.66$0.90
56
90651-ZZ5-D01Ships in 1 to 2 Daysqty 4 used
$2.98$4.08
57
90651-ZZ5-D01Ships in 1 to 2 Daysqty 4 used
$2.98$4.08
58
91531-SR3-003Ships in 1 to 2 Days
$7.75$10.62
59
91541-ZY6-V11Ships in 1 to 2 Days
$1.87$2.56
60
93500-05065-4JShips in 1 to 2 Daysqty 4 used
$2.50$3.42
61
94001-05490-0SShips in 1 to 2 Daysqty 4 used
$0.92$1.26
Diagram

REMOTE CONTROL BOX (TOP MOUNT DUAL TYPE) (R.)

BFP60 BFP60AK1 remote control box (top mount dual type) (r.) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AY0402
Fits all 3 submodels of this generation.

Parts in this assembly

41 parts
1
06240-ZY6-V92Ships in 1 to 2 Days
$629.99
2
06241-ZW5-U10Ships in 1 to 2 Days
$33.81$46.32
3
24810-ZW5-U01Ships in 1 to 2 Days
$398.40$545.76
4
24810-ZW5-U11Ships in 1 to 2 Days
$398.40$545.76
5
24811-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$95.56$134.82
6
24812-ZW5-U01Ships in 1 to 2 Days
$12.56$17.72
7
24813-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$12.89$18.18
8
24813-ZW5-U21Ships in 1 to 2 Days
$5.45$7.68
9
24814-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$3.69$5.22
10
24816-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$7.72$10.58
11
24817-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$31.68$43.40
12
24818-ZW5-U01Ships in 1 to 2 Days
$7.11$9.74
13
24819-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$10.77$15.20
14
24820-ZW5-U21Ships in 1 to 2 Days
$30.50$43.04
15
24825-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$2.91$4.10
16
24826-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$13.81$18.92
17
24831-ZW5-U01Ships in 1 to 2 Daysqty 4 used
$8.45$11.58
18
24832-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$3.74$5.12
19
24834-ZW5-U21Ships in 1 to 2 Days
$8.82$12.08
20
32530-ZW7-U00Ships in 1 to 2 Days
$25.87$35.44
21
32530-ZW7-U10Ships in 1 to 2 Days
$26.46$36.24
22
35370-ZW5-U02Ships in 1 to 2 Days
$54.55$76.96
23
35370-ZW5-U12Ships in 1 to 2 Days
$54.55$76.96
24
87703-ZW5-U22Ships in 1 to 2 Days
$9.52$13.44
25
90101-ZW5-U00Ships in 1 to 2 Daysqty 3 used
$2.60$3.56
26
90102-ZW5-U00Ships in 1 to 2 Daysqty 2 used
$2.38$3.36
27
90103-ZW5-U01Ships in 1 to 2 Daysqty 4 used
$3.20$4.52
28
90104-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$1.14$1.56
29
90105-ZW5-U01Ships in 1 to 2 Daysqty 4 used
$2.38$3.36
30
90106-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$2.60$3.56
31
90107-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.93$1.28
32
90108-ZW5-U00Ships in 1 to 2 Daysqty 3 used
$1.31$1.80
33
90301-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$1.18$1.62
34
90302-ZW5-U21Ships in 1 to 2 Days
$1.18$1.62
35
90501-ZW5-U00Ships in 1 to 2 Daysqty 8 used
$0.85$1.16
36
90502-ZV4-000Ships in 1 to 2 Daysqty 4 used
$2.73$3.74
37
90502-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$1.69$2.32
38
90503-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.66$0.90
39
93500-05065-4JShips in 1 to 2 Daysqty 4 used
$2.50$3.42
40
94001-05490-0SShips in 1 to 2 Daysqty 4 used
$0.92$1.26
41
94540-06029Ships in 1 to 2 Daysqty 4 used
$3.50$4.80
Diagram

REMOTE CONTROL BOX (TOP MOUNT SINGLE TYPE) (L.)

BFP60 BFP60AK1 remote control box (top mount single type) (l.) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AY0401
Fits all 3 submodels of this generation.

Parts in this assembly

36 parts
1
BOX KIT, REMOTE CONTROL (TOP MOUNT SINGLE)(L) (NOT AVAILABLE)
06240-ZW5-U50No Longer Available
—
2
06241-ZW5-U00Ships in 1 to 2 Days
$31.45$43.08
3
24810-ZW5-U11Ships in 1 to 2 Days
$398.40$545.76
4
24811-ZW5-U01Ships in 1 to 2 Days
$95.56$134.82
5
24812-ZW5-U11Ships in 1 to 2 Days
$13.83$19.50
6
24813-ZW5-U01Ships in 1 to 2 Days
$12.89$18.18
7
24814-ZW5-U01Ships in 1 to 2 Days
$3.69$5.22
8
24815-ZW5-U01Ships in 1 to 2 Days
$5.66$8.00
9
24816-ZW5-U01Ships in 1 to 2 Days
$7.72$10.58
10
24817-ZW5-U01Ships in 1 to 2 Days
$31.68$43.40
11
24818-ZW5-U01Ships in 1 to 2 Days
$7.11$9.74
12
24819-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$10.77$15.20
13
24820-ZW5-U01Ships in 1 to 2 Days
$27.23$38.42
14
24825-ZW5-U01Ships in 1 to 2 Days
$2.91$4.10
15
24826-ZW5-U01Ships in 1 to 2 Days
$13.81$18.92
16
24831-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$8.45$11.58
17
24832-ZW5-U01Ships in 1 to 2 Days
$3.74$5.12
18
24834-ZW5-U01Ships in 1 to 2 Days
$4.42$6.06
19
32530-ZW7-U10Ships in 1 to 2 Days
$26.46$36.24
20
35370-ZW5-U12Ships in 1 to 2 Days
$54.55$76.96
21
87703-ZW5-U02Ships in 1 to 2 Days
$7.08$10.00
22
90101-ZW5-U00Ships in 1 to 2 Daysqty 2 used
$2.60$3.56
23
90102-ZW5-U00Ships in 1 to 2 Days
$2.38$3.36
24
90103-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$3.20$4.52
25
90104-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$1.14$1.56
26
90105-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$2.38$3.36
27
90106-ZW5-U00Ships in 1 to 2 Daysqty 2 used
$2.60$3.56
28
90107-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.93$1.28
29
90301-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$1.18$1.62
30
90501-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.85$1.16
31
90502-ZV4-000Ships in 1 to 2 Daysqty 4 used
$2.73$3.74
32
90502-ZW5-U00Ships in 1 to 2 Daysqty 2 used
$1.69$2.32
33
90503-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.66$0.90
34
93500-05065-4JShips in 1 to 2 Daysqty 4 used
$2.50$3.42
35
94001-05490-0SShips in 1 to 2 Daysqty 4 used
$0.92$1.26
36
94540-06029Ships in 1 to 2 Daysqty 2 used
$3.50$4.80
Diagram

REMOTE CONTROL BOX (TOP MOUNT SINGLE TYPE) (N

BFP60 BFP60AK1 remote control box (top mount single type) (n exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AY0406A
Fits only BFP60AK1-LRTA, BFP60AK1-XRTA — not every submodel of this generation.

Parts in this assembly

50 parts
1
$296.98
1
06240-ZY6-U91Ships in 1 to 2 Days
$280.72
2
06241-ZY6-U10Ships in 1 to 2 Days
$32.82$44.96
3
24810-ZY6-U11Ships in 1 to 2 Days
$298.02$408.24
4
24811-ZY6-U11Ships in 1 to 2 Days
$101.27$138.72
5
24812-ZY6-U12Ships in 1 to 2 Days
$11.33$15.52
6
24813-ZY6-U12Ships in 1 to 2 Days
$9.80$13.42
7
24814-ZY6-U11Ships in 1 to 2 Days
$48.75$66.78
8
24816-ZY6-U11Ships in 1 to 2 Days
$5.93$8.12
9
24817-ZW5-U01Ships in 1 to 2 Days
$31.68$43.40
10
24818-ZW5-U01Ships in 1 to 2 Days
$7.11$9.74
11
24819-ZY6-U11Ships in 1 to 2 Daysqty 2 used
$8.09$11.08
12
24820-ZY6-U11Ships in 1 to 2 Days
$20.43$27.98
13
24821-ZY6-U11Ships in 1 to 2 Days
$4.96$6.80
14
24824-ZY6-U11Ships in 1 to 2 Days
$2.48$3.40
15
24825-ZY6-U11Ships in 1 to 2 Days
$2.04$2.80
16
24826-ZW5-U01Ships in 1 to 2 Days
$13.81$18.92
17
24826-ZY6-U11Ships in 1 to 2 Days
$8.85$12.12
18
24827-ZY6-U11Ships in 1 to 2 Days
$0.93$1.28
19
24828-ZY6-U11Ships in 1 to 2 Days
$1.59$2.18
20
24831-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$8.45$11.58
21
24832-ZW5-U01Ships in 1 to 2 Days
$3.74$5.12
22
24832-ZY6-U91Ships in 1 to 2 Days
$4.79
23
24834-ZW5-U01Ships in 1 to 2 Days
$4.42$6.06
23
24834-ZY6-U11Ships in 1 to 2 Days
$3.17$4.34
24
24835-ZY6-U11Ships in 1 to 2 Daysqty 2 used
$2.07$2.84
25
32186-ZY6-U10Ships in 1 to 2 Days
$123.59$169.32
26
35340-ZY6-U11Ships in 1 to 2 Days
$37.67$51.60
27
35370-ZY6-U11Ships in 1 to 2 Days
$37.67$51.60
28
87703-ZY6-U11Ships in 1 to 2 Days
$5.08$6.96
29
90101-ZW5-U00Ships in 1 to 2 Days
$2.60$3.56
30
90102-ZY6-U11Ships in 1 to 2 Days
$1.90$2.60
31
90103-ZY6-U11Ships in 1 to 2 Daysqty 2 used
$1.97$2.70
32
90104-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$1.14$1.56
33
90104-ZY6-U11Ships in 1 to 2 Days
$1.97$2.70
34
90106-ZW5-U00Ships in 1 to 2 Daysqty 2 used
$2.60$3.56
35
90106-ZY6-U11Ships in 1 to 2 Daysqty 2 used
$2.04$2.80
36
90107-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.93$1.28
37
90111-ZY6-U11Ships in 1 to 2 Days
$2.51$3.44
38
90112-ZY6-U11Ships in 1 to 2 Days
$3.80$5.20
39
90301-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$1.18$1.62
40
90301-ZZ5-D01Ships in 1 to 2 Daysqty 2 used
$1.37$1.88
41
90501-ZW5-U00Ships in 1 to 2 Daysqty 3 used
$0.85$1.16
42
90502-ZV4-000Ships in 1 to 2 Daysqty 4 used
$2.73$3.74
43
90502-ZW5-U00Ships in 1 to 2 Daysqty 2 used
$1.69$2.32
44
90503-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.66$0.90
45
90651-ZZ5-D01Ships in 1 to 2 Daysqty 2 used
$2.98$4.08
46
90651-ZZ5-D01Ships in 1 to 2 Daysqty 2 used
$2.98$4.08
47
93500-05065-4JShips in 1 to 2 Daysqty 4 used
$2.50$3.42
48
94001-05490-0SShips in 1 to 2 Daysqty 4 used
$0.92$1.26
Diagram

REMOTE CONTROL BOX (TOP MOUNT SINGLE TYPE) (R.)

BFP60 BFP60AK1 remote control box (top mount single type) (r.) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AY0400
Fits all 3 submodels of this generation.

Parts in this assembly

36 parts
1
BOX KIT, REMOTE CONTROL (TOP MOUNT SINGLE)(R) (NOT AVAILABLE)
06240-ZW5-U40No Longer Available
$261.37
2
06241-ZW5-U00Ships in 1 to 2 Days
$31.45$43.08
3
24810-ZW5-U01Ships in 1 to 2 Days
$398.40$545.76
4
24811-ZW5-U01Ships in 1 to 2 Days
$95.56$134.82
5
24812-ZW5-U01Ships in 1 to 2 Days
$12.56$17.72
6
24813-ZW5-U01Ships in 1 to 2 Days
$12.89$18.18
7
24814-ZW5-U01Ships in 1 to 2 Days
$3.69$5.22
8
24815-ZW5-U01Ships in 1 to 2 Days
$5.66$8.00
9
24816-ZW5-U01Ships in 1 to 2 Days
$7.72$10.58
10
24817-ZW5-U01Ships in 1 to 2 Days
$31.68$43.40
11
24818-ZW5-U01Ships in 1 to 2 Days
$7.11$9.74
12
24819-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$10.77$15.20
13
24820-ZW5-U01Ships in 1 to 2 Days
$27.23$38.42
14
24825-ZW5-U01Ships in 1 to 2 Days
$2.91$4.10
15
24826-ZW5-U01Ships in 1 to 2 Days
$13.81$18.92
16
24831-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$8.45$11.58
17
24832-ZW5-U01Ships in 1 to 2 Days
$3.74$5.12
18
24834-ZW5-U01Ships in 1 to 2 Days
$4.42$6.06
19
32530-ZW7-U00Ships in 1 to 2 Days
$25.87$35.44
20
35370-ZW5-U02Ships in 1 to 2 Days
$54.55$76.96
21
87703-ZW5-U02Ships in 1 to 2 Days
$7.08$10.00
22
90101-ZW5-U00Ships in 1 to 2 Daysqty 2 used
$2.60$3.56
23
90102-ZW5-U00Ships in 1 to 2 Days
$2.38$3.36
24
90103-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$3.20$4.52
25
90104-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$1.14$1.56
26
90105-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$2.38$3.36
27
90106-ZW5-U00Ships in 1 to 2 Daysqty 2 used
$2.60$3.56
28
90107-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.93$1.28
29
90301-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$1.18$1.62
30
90501-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.85$1.16
31
90502-ZV4-000Ships in 1 to 2 Daysqty 4 used
$2.73$3.74
32
90502-ZW5-U00Ships in 1 to 2 Daysqty 2 used
$1.69$2.32
33
90503-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.66$0.90
34
93500-05065-4JShips in 1 to 2 Daysqty 4 used
$2.50$3.42
35
94001-05490-0SShips in 1 to 2 Daysqty 4 used
$0.92$1.26
36
94540-06029Ships in 1 to 2 Daysqty 2 used
$3.50$4.80
Diagram

RUDDER METER KIT

BFP60 BFP60AK1 rudder meter kit exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AY0203
Fits all 3 submodels of this generation.

Parts in this assembly

24 parts
1
06373-ZZ3-000Ships in 1 to 2 Days
$302.04$413.76
1
06373-ZZ3-010Ships in 1 to 2 Days
$191.03
1
06373-ZZ3-610Ships in 1 to 2 Days
$302.04$413.76
1
06373-ZZ3-611Ships in 1 to 2 Days
$191.03
2
34908-MG9-951Ships in 1 to 2 Days
$2.23$3.06
3
35720-ZZ3-741Ships in 1 to 2 Days
$104.13$146.92
4
36104-ZV5-821Ships in 1 to 2 Days
$6.04$8.28
5
37215-KM1-670Ships in 1 to 2 Days
$1.81$2.48
6
37263-ZV5-821Ships in 1 to 2 Days
$3.45$4.72
7
37266-ZV5-821Ships in 1 to 2 Days
$16.16$22.14
8
37268-ZV5-821Ships in 1 to 2 Days
$17.42$23.86
9
37270-ZZ3-741Ships in 1 to 2 Days
$175.77$240.78
9
37270-ZZ3-742Ships in 1 to 2 Days
$142.31$194.94
10
50209-ZY3-A00Ships in 1 to 2 Daysqty 2 used
$6.15$8.42
11
50221-ZZ3-000Ships in 1 to 2 Days
$47.35$66.80
12
90102-ZW9-000Ships in 1 to 2 Days
$2.12$2.90
13
90105-ZW9-000Ships in 1 to 2 Daysqty 2 used
$2.88$3.94
14
90113-ZV0-000Ships in 1 to 2 Days
$3.81$5.22
15
90119-ZV5-000Ships in 1 to 2 Daysqty 2 used
$1.65$2.26
16
90310-ZV5-821Ships in 1 to 2 Daysqty 3 used
$1.27$1.74
17
90506-ZV4-000Ships in 1 to 2 Days
$2.45$3.36
18
90560-ZV5-821Ships in 1 to 2 Daysqty 2 used
$1.24$1.70
19
90628-750-000Ships in 1 to 2 Days
$2.12$2.90
20
91555-ZZ3-000Ships in 1 to 2 Days
$9.56$13.50
Diagram

RUDDER SENSOR - TILT LIMIT SWITCH

BFP60 BFP60AK1 rudder sensor - tilt limit switch exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AF1110
Fits only BFP60AK1-LRTB — not every submodel of this generation.

Parts in this assembly

18 parts
1
35720-ZZ3-741Ships in 1 to 2 Days
$104.13$146.92
2
35745-ZZ3-741Ships in 1 to 2 Daysreplaced by 35745-ZZ3-743
$36.54$50.06
2
35745-ZZ3-743Ships in 1 to 2 Days
$36.54$50.06
3
36104-ZV5-821Ships in 1 to 2 Days
$6.04$8.28
4
50209-ZY3-A00Ships in 1 to 2 Daysqty 2 used
$6.15$8.42
5
50221-ZZ3-000Ships in 1 to 2 Days
$47.35$66.80
6
50222-ZZ3-000Ships in 1 to 2 Days
$11.56$16.32
7
50223-ZZ3-000Ships in 1 to 2 Days
$6.79$9.30
8
50224-ZZ3-000Ships in 1 to 2 Days
$9.30$12.74
9
90102-ZW9-000Ships in 1 to 2 Daysqty 2 used
$2.12$2.90
10
90105-ZW9-000Ships in 1 to 2 Daysqty 2 used
$2.88$3.94
11
90119-ZV5-000Ships in 1 to 2 Daysqty 2 used
$1.65$2.26
12
90401-ZW4-000Ships in 1 to 2 Days
$1.24$1.70
13
90628-750-000Ships in 1 to 2 Days
$2.12$2.90
14
93500-04014-4JShips in 1 to 2 Days
$0.93$1.28
15
93500-05020-4JShips in 1 to 2 Daysqty 2 used
$0.86$1.18
16
94001-05490-0SShips in 1 to 2 Daysqty 2 used
$0.92$1.26
17
94002-04490-0SShips in 1 to 2 Days
$1.02$1.40
Diagram

SHIFT SHAFT

BFP60 BFP60AK1 shift shaft exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AF0200
Fits all 3 submodels of this generation.

Parts in this assembly

45 parts
1
17838-ZV5-000Ships in 1 to 2 Days
$7.65$10.48
2
17840-ZZ3-000Ships in 1 to 2 Days
$19.39$26.56
3
17845-ZY6-000Ships in 1 to 2 Days
$16.19$22.18
4
17860-ZZ3-000Ships in 1 to 2 Days
$23.49$32.18
5
17877-ZY9-000Ships in 1 to 2 Days
$21.29$29.16
6
17878-ZY9-000Ships in 1 to 2 Days
$8.19$11.22
7
17931-ZY6-000Ships in 1 to 2 Days
$16.19$22.18
8
17936-921-000Ships in 1 to 2 Days
$1.20$1.64
9
24210-ZW1-010Ships in 1 to 2 Days
$10.02$13.72
10
24221-ZY9-000Ships in 1 to 2 Days
$14.45$19.80
11
24612-ZY9-000Ships in 1 to 2 Days
$165.14$226.22
12
24614-ZY9-000Ships in 1 to 2 Days
$4.38$6.00
13
24618-ZY3-000Ships in 1 to 2 Daysqty 2 used
$5.90$8.08
14
24618-ZY9-000Ships in 1 to 2 Days
$10.77$14.76
15
24619-ZY3-000Ships in 1 to 2 Daysqty 2 used
$5.56$7.62
16
24628-ZY9-000Ships in 1 to 2 Days
$95.95$131.46
17
24629-ZW1-000Ships in 1 to 2 Days
$21.39$29.30
18
24630-ZZ3-000Ships in 1 to 2 Days
$188.81$258.64
19
63205-ZY3-000Ships in 1 to 2 Daysqty 2 used
$4.20$5.76
20
90104-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.85$2.54
21
90017-ZZ5-M01Ships in 1 to 2 Daysqty 3 used
$1.24$1.70
22
90101-ZZ0-M01Ships in 1 to 2 Daysqty 2 used
$1.77$2.42
23
90056-ZY9-M01Ships in 1 to 2 Days
$1.10$1.50
24
90429-GET-000Ships in 1 to 2 Days
$2.03$2.78
25
90501-ZW5-000Ships in 1 to 2 Days
$7.33$10.04
26
90508-ZY3-000Ships in 1 to 2 Daysreplaced by 90508-ZZ5-M01
$2.00$2.74
26
90508-ZZ5-M01Ships in 1 to 2 Days
$2.00$2.74
27
90508-ZY9-000Ships in 1 to 2 Days
$4.09$5.60
28
90509-ZY9-000Ships in 1 to 2 Days
$4.09$5.60
29
90517-ZW9-000Ships in 1 to 2 Daysqty 3 used
$1.42$1.94
30
90518-921-000Ships in 1 to 2 Days
$1.20$1.64
31
90651-ZY9-000Ships in 1 to 2 Days
$2.29$3.14
32
90705-SD2-931Ships in 1 to 2 Daysqty 2 used
$5.33$7.30
33
90751-ZY3-000Ships in 1 to 2 Days
$12.18$16.68
34
90752-ZZ3-000Ships in 1 to 2 Days
$4.89$6.70
35
90753-ZZ3-000Ships in 1 to 2 Days
$3.81$5.22
36
91251-ZW5-003Ships in 1 to 2 Days
$3.85$5.28
37
91255-ZY3-003Ships in 1 to 2 Days
$7.24$9.92
38
91302-PF0-003Ships in 1 to 2 Days
$3.14$4.30
39
91540-STK-003Ships in 1 to 2 Days
$4.15$5.68
40
91552-ZZ3-000Ships in 1 to 2 Days
$4.83$6.62
41
94001-05490-0SShips in 1 to 2 Days
$0.92$1.26
42
94540-04029Ships in 1 to 2 Daysqty 2 used
$5.23$7.16
43
94540-06029Ships in 1 to 2 Days
$3.50$4.80
44
94540-12029In Stock
$8.02$10.98
Diagram

STARTER CABLE

BFP60 BFP60AK1 starter cable exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AF0710C
Fits all 3 submodels of this generation.

Parts in this assembly

21 parts
1
32121-HA0-003No Longer Available
$7.81$10.70
1
90651-KV6-003Ships in 1 to 2 Days
$4.12$5.64
2
32161-404-000Ships in 1 to 2 Days
$2.15$2.94
3
32410-ZZ3-000Ships in 1 to 2 Days
$245.85$336.78
4
32411-ZZ3-000Ships in 1 to 2 Days
$5.64$7.72
5
32540-ZZ3-010Ships in 1 to 2 Days
$97.12$133.04
6
32823-ZV5-003Ships in 1 to 2 Daysqty 8 used
$2.95$4.04
7
32824-ZV5-003Ships in 1 to 2 Daysqty 5 used
$3.11$4.26
8
34908-MG9-951Ships in 1 to 2 Days
$2.23$3.06
9
37215-KM1-670Ships in 1 to 2 Days
$1.81$2.48
10
37263-ZV5-821Ships in 1 to 2 Days
$3.45$4.72
11
37266-ZV5-821Ships in 1 to 2 Days
$16.16$22.14
12
37268-ZV5-821Ships in 1 to 2 Days
$17.42$23.86
13
37270-ZZ3-741Ships in 1 to 2 Days
$175.77$240.78
14
90107-ZY3-000Ships in 1 to 2 Days
$0.60$0.82
15
90203-ZW1-000Ships in 1 to 2 Days
$2.31$3.16
16
90310-ZV5-821Ships in 1 to 2 Daysqty 3 used
$1.27$1.74
17
90405-ZY3-000Ships in 1 to 2 Days
$0.66$0.90
18
90560-ZV5-821Ships in 1 to 2 Daysqty 2 used
$1.24$1.70
19
91541-S0A-003Ships in 1 to 2 Daysqty 2 used
$3.64$4.98
20
98200-11000Ships in 1 to 2 Days
$1.61$2.20
Diagram

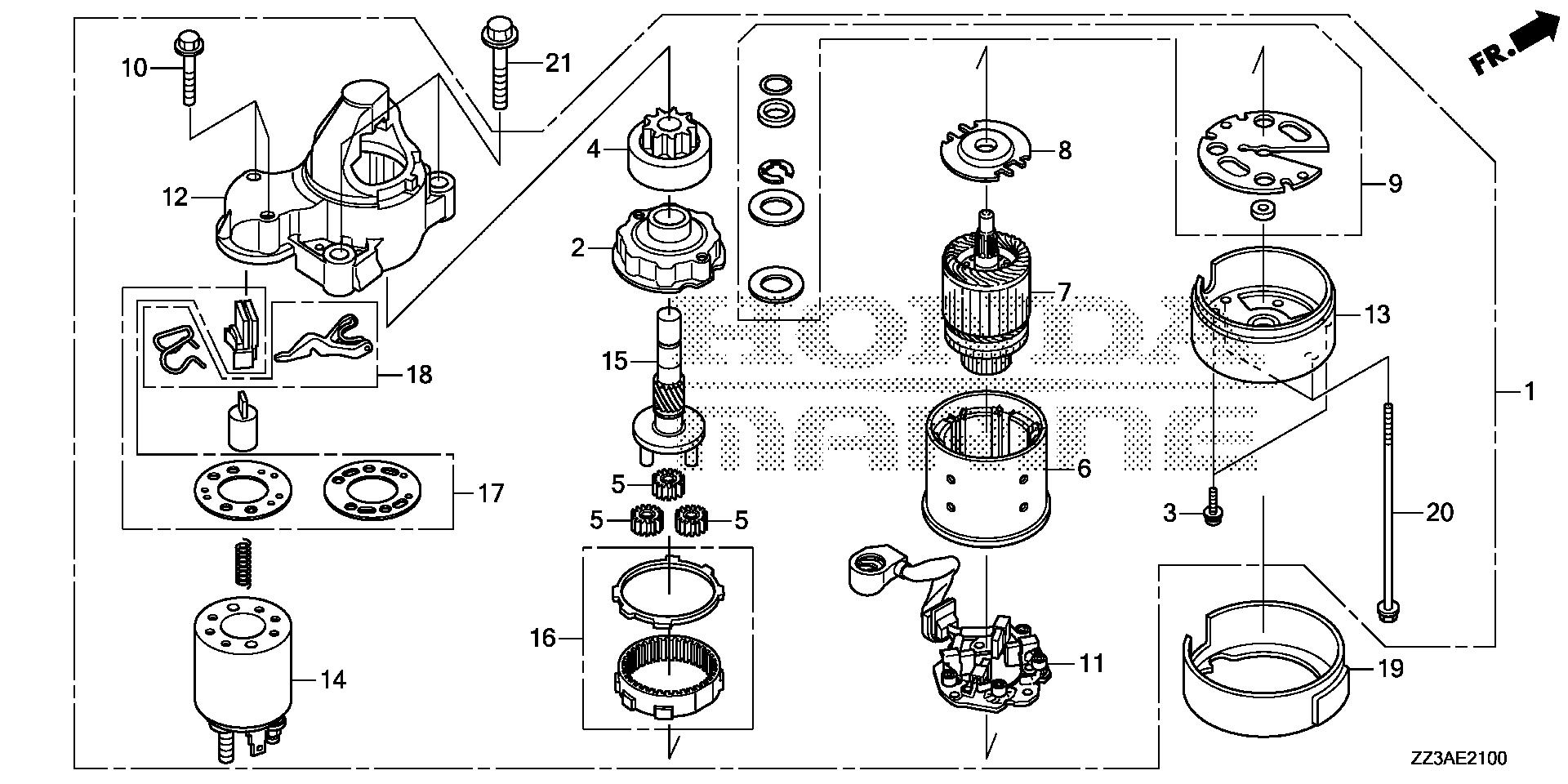

STARTER MOTOR

BFP60 BFP60AK1 starter motor exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AE2100
Fits all 3 submodels of this generation.

Parts in this assembly

21 parts
1
31200-ZZ3-003Ships in 1 to 2 Days
$678.74
2
31212-ZZ3-003Ships in 1 to 2 Days
$93.62$132.10
3
31213-ZZ3-003Ships in 1 to 2 Daysqty 2 used
$1.07$1.46
4
31214-ZZ3-003Ships in 1 to 2 Days
$17.23$23.60
5
31215-ZZ3-003Ships in 1 to 2 Daysqty 3 used
$7.88
6
31216-ZZ3-003Ships in 1 to 2 Days
$183.24$251.02
7
31217-ZZ3-003Ships in 1 to 2 Days
$188.07
8
31224-ZZ3-003Ships in 1 to 2 Days
$59.60$81.64
9
31225-ZZ3-003Ships in 1 to 2 Days
$7.46$10.52
10
31226-ZZ3-003Ships in 1 to 2 Daysqty 2 used
$1.49$2.04
11
31231-ZZ3-003Ships in 1 to 2 Days
$55.82$78.76
12
31235-ZZ3-003Ships in 1 to 2 Days
$132.48$136.47
13
31236-ZZ3-003Ships in 1 to 2 Days
$90.01$126.98
14
31240-ZZ3-003Ships in 1 to 2 Days
$250.40$343.02
15
31246-ZZ3-003Ships in 1 to 2 Days
$33.13$45.38
16
31247-ZZ3-003Ships in 1 to 2 Days
$41.72$42.98
17
31249-ZZ3-003Ships in 1 to 2 Days
$18.00$25.40
18
31250-ZZ3-003Ships in 1 to 2 Days
$11.62$16.40
19
31258-ZZ3-000Ships in 1 to 2 Days
$6.47
20
31261-ZZ3-003Ships in 1 to 2 Daysqty 2 used
$4.60$6.30
21
90026-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.87$2.56
Diagram

STEERING ROD KIT

BFP60 BFP60AK1 steering rod kit exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AY0810
Fits all 3 submodels of this generation.

Parts in this assembly

5 parts
1
06531-ZZ3-000Ships in 1 to 2 Days
$167.62$229.62
2
53238-ZZ3-000Ships in 1 to 2 Days
$166.64$235.12
3
90113-ZV0-000Ships in 1 to 2 Days
$3.81$5.22
4
90506-ZV4-000Ships in 1 to 2 Days
$2.45$3.36
5
91554-ZZ3-000Ships in 1 to 2 Days
$5.14$7.26
Diagram

STERN BRACKET

BFP60 BFP60AK1 stern bracket exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AF1000
Fits all 3 submodels of this generation.

Parts in this assembly

27 parts
1
06411-ZV5-020Ships in 1 to 2 Days
$35.05$48.02
2
35660-ZZ3-003Ships in 1 to 2 Days
$143.99$197.24
3
$343.35$470.34
3
$327.77$449.00
4
$343.35$470.34
6
50335-ZV5-000Ships in 1 to 2 Days
$8.73$12.32
7
50340-ZZ5-000Ships in 1 to 2 Days
$59.74$81.84
8
50342-ZV5-300Ships in 1 to 2 Days
$5.17$7.08
9
50343-921-300Ships in 1 to 2 Days
$3.21$4.40
10
50380-ZZ3-000Ships in 1 to 2 Days
$93.92$128.66
11
56118-ZV5-820Ships in 1 to 2 Days
$8.56$11.72
12
56513-ZV5-000Ships in 1 to 2 Daysqty 2 used
$3.77$5.16
13
90009-ZW9-000Ships in 1 to 2 Daysqty 2 used
$2.88$3.94
14
90108-ZV5-000Ships in 1 to 2 Days
$24.53$33.60
15
90129-ZZ3-000Ships in 1 to 2 Daysqty 4 used
$13.15$18.02
16
90215-HW1-671Ships in 1 to 2 Daysqty 2 used
$1.04$1.42
17
90304-ZV5-013Ships in 1 to 2 Days
$17.70$24.24
18
90306-ZW4-003Ships in 1 to 2 Days
$4.34$5.94
19
90502-ZV5-000Ships in 1 to 2 Daysqty 2 used
$8.72$11.94
20
90511-921-000Ships in 1 to 2 Days
$0.86$1.18
21
90552-ZV5-000Ships in 1 to 2 Daysqty 4 used
$4.67$6.40
22
90559-ZV5-000Ships in 1 to 2 Daysqty 8 used
$2.95$4.04
23
90681-763-A01Ships in 1 to 2 Days
$8.06$11.04
24
90751-ZW6-000Ships in 1 to 2 Days
$1.33$1.82
25
91352-ZV5-000Ships in 1 to 2 Days
$1.74$2.46
26
91556-ZZ5-C00Ships in 1 to 2 Days
$27.52$37.70
27
94001-12490-0SShips in 1 to 2 Daysqty 8 used
$1.90$2.60
Diagram

SWITCH PANEL KIT (1)

BFP60 BFP60AK1 switch panel kit (1) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AY0300
Fits all 3 submodels of this generation.

Parts in this assembly

36 parts
1
06323-ZZ5-M22Ships in 1 to 2 Days
$252.26$345.56
2
06325-ZZ5-600Ships in 1 to 2 Days
$278.07$380.92
2
06325-ZZ5-700Ships in 1 to 2 Days
$337.45$462.26
2
06325-ZZ5-800Ships in 1 to 2 Days
$404.99$554.78
3
18334-MT8-770Ships in 1 to 2 Daysqty 8 used
$1.53$2.16
3
90301-ZZ5-M01Ships in 1 to 2 Daysqty 8 used
$0.91$1.24
4
32185-ZZ5-600Ships in 1 to 2 Days
$43.08$59.02
4
32185-ZZ5-700Ships in 1 to 2 Days
$53.14$72.80
4
32185-ZZ5-800Ships in 1 to 2 Days
$63.85$87.46
5
32341-ZZ5-763Ships in 1 to 2 Days
$308.78$422.98
6
32346-ZZ5-761Ships in 1 to 2 Daysreplaced by 32346-ZZ5-791
$17.91$24.54
6
32346-ZZ5-791Ships in 1 to 2 Days
$17.91$24.54
7
32347-ZZ5-761Ships in 1 to 2 Days
$11.20$15.34
8
32545-ZZ5-000Ships in 1 to 2 Days
$87.72$120.16
9
$198.44$271.84
9
32580-ZZ5-D11Ships in 1 to 2 Days
$240.84$329.92
9
32580-ZZ5-D21Ships in 1 to 2 Days
$290.89$398.48
10
32823-ZV5-003Ships in 1 to 2 Daysqty 7 used
$2.95$4.04
11
32824-ZV5-003Ships in 1 to 2 Daysqty 2 used
$3.11$4.26
12
32901-952-770Ships in 1 to 2 Daysqty 6 used
$2.19$3.00
13
35100-ZV5-013Ships in 1 to 2 Days
$85.13$116.62
14
36180-ZV5-033In Stock
$56.84$77.86
15
36182-ZV4-651In Stock
$18.45$25.28
16
36187-ZV4-652Ships in 1 to 2 Days
$4.18$5.72
17
37205-ZZ5-763Ships in 1 to 2 Days
$149.96$205.42
18
37210-ZZ5-763Ships in 1 to 2 Days
$112.32$153.88
19
38403-341-672Ships in 1 to 2 Days
$4.66$6.38
20
38410-ZV5-003Ships in 1 to 2 Days
$56.17$76.94
21
38414-ZZ5-003Ships in 1 to 2 Days
$14.24$19.50
22
90109-ZW5-000Ships in 1 to 2 Daysqty 8 used
$1.20$1.64
23
90302-921-000In Stock
$4.10$5.62
24
90649-SC2-003Ships in 1 to 2 Days
$8.29$11.36
25
90501-ZZ5-M01Ships in 1 to 2 Daysqty 8 used
$1.59$2.18
25
94103-05400Ships in 1 to 2 Daysqty 8 used
$0.92$1.26
26
90502-ZZ5-M01Ships in 1 to 2 Daysqty 8 used
$1.49$2.04
26
94111-05400Ships in 1 to 2 Daysqty 8 used
$0.86$1.22
Diagram

SWITCH PANEL KIT (2)

BFP60 BFP60AK1 switch panel kit (2) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AY0301
Fits all 3 submodels of this generation.

Parts in this assembly

22 parts
1
06323-ZZ5-M02Ships in 1 to 2 Days
$252.26$345.56
2
18334-MT8-770Ships in 1 to 2 Daysqty 4 used
$1.53$2.16
2
90301-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$0.91$1.24
3
32346-ZZ5-003Ships in 1 to 2 Days
$20.12$27.56
4
32545-ZZ5-000Ships in 1 to 2 Days
$87.72$120.16
5
32823-ZV5-003Ships in 1 to 2 Daysqty 8 used
$2.95$4.04
6
32824-ZV5-003Ships in 1 to 2 Daysqty 3 used
$3.11$4.26
7
35100-ZV5-013Ships in 1 to 2 Days
$85.13$116.62
8
36180-ZV5-033In Stock
$56.84$77.86
9
36182-ZV4-651In Stock
$18.45$25.28
10
36187-ZV4-652Ships in 1 to 2 Days
$4.18$5.72
11
37210-ZZ5-713Ships in 1 to 2 Days
$112.32$153.88
12
38403-341-672Ships in 1 to 2 Days
$4.66$6.38
13
38410-ZV5-003Ships in 1 to 2 Days
$56.17$76.94
14
38414-ZZ5-003Ships in 1 to 2 Days
$14.24$19.50
15
90109-ZW5-000Ships in 1 to 2 Daysqty 4 used
$1.20$1.64
16
90302-921-000In Stock
$4.10$5.62
17
90649-SC2-003Ships in 1 to 2 Days
$8.29$11.36
18
90501-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$1.59$2.18
18
94103-05400Ships in 1 to 2 Daysqty 4 used
$0.92$1.26
19
90502-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$1.49$2.04
19
94111-05400Ships in 1 to 2 Daysqty 4 used
$0.86$1.22
Diagram

SWITCH PANEL KIT (3)

BFP60 BFP60AK1 switch panel kit (3) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AY0302
Fits only BFP60AK1-LRTA, BFP60AK1-XRTA — not every submodel of this generation.

Parts in this assembly

22 parts
1
06323-ZY6-000Ships in 1 to 2 Daysreplaced by 06323-ZY6-020
$164.78$225.72
1
06323-ZY6-020Ships in 1 to 2 Days
$164.78$225.72
2
32346-ZY6-003Ships in 1 to 2 Days
$28.69$39.30
3
32545-ZY6-003Ships in 1 to 2 Days
$83.10$113.84
4
32606-ZY6-000Ships in 1 to 2 Days
$6.69$9.16
5
32823-ZV5-003Ships in 1 to 2 Daysqty 9 used
$2.95$4.04
6
32824-ZV5-003Ships in 1 to 2 Daysqty 7 used
$3.11$4.26
7
35100-ZY6-013Ships in 1 to 2 Days
$82.90$113.56
8
36180-ZY6-003Ships in 1 to 2 Days
$50.08$68.60
9
36182-ZY6-003Ships in 1 to 2 Days
$17.53$24.02
10
36187-ZY6-003Ships in 1 to 2 Days
$4.22$5.78
11
38402-GC1-000Ships in 1 to 2 Days
$6.23$8.54
12
38410-ZY9-A01Ships in 1 to 2 Days
$43.30$59.32
13
38414-ZY6-003Ships in 1 to 2 Days
$14.76$20.22
14
90109-ZW5-000Ships in 1 to 2 Daysqty 4 used
$1.20$1.64
15
90301-ZZ5-M00Ships in 1 to 2 Daysqty 4 used
$0.98$1.38
15
90301-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$0.91$1.24
16
90302-ZY6-003Ships in 1 to 2 Days
$2.69$3.68
17
90501-ZZ5-M00Ships in 1 to 2 Daysqty 4 used
$1.72$2.44
17
90501-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$1.59$2.18
18
90502-ZZ5-M00Ships in 1 to 2 Daysqty 4 used
$1.66$2.34
18
90502-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$1.49$2.04
Diagram

SWITCH PANEL KIT (4)

BFP60 BFP60AK1 switch panel kit (4) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AY0303
Fits only BFP60AK1-LRTA, BFP60AK1-XRTA — not every submodel of this generation.

Parts in this assembly

21 parts
1
06323-ZY6-712Ships in 1 to 2 Days
$469.00$642.46
2
32346-ZY6-711Ships in 1 to 2 Days
$64.81$88.78
3
32545-ZY6-003Ships in 1 to 2 Daysqty 2 used
$83.10$113.84
4
32606-ZY6-000Ships in 1 to 2 Daysqty 2 used
$6.69$9.16
5
32823-ZV5-003Ships in 1 to 2 Daysqty 18 used
$2.95$4.04
6
32824-ZV5-003Ships in 1 to 2 Daysqty 14 used
$3.11$4.26
7
35100-ZY6-013Ships in 1 to 2 Daysqty 2 used
$82.90$113.56
8
36180-ZY6-712Ships in 1 to 2 Days
$86.29$118.20
9
36182-ZY6-003Ships in 1 to 2 Days
$17.53$24.02
10
36187-ZY6-003Ships in 1 to 2 Days
$4.22$5.78
11
38402-GC1-000Ships in 1 to 2 Daysqty 2 used
$6.23$8.54
12
38410-ZY9-A01Ships in 1 to 2 Daysqty 2 used
$43.30$59.32
13
38414-ZY6-003Ships in 1 to 2 Daysqty 2 used
$14.76$20.22
14
90109-ZW5-000Ships in 1 to 2 Daysqty 4 used
$1.20$1.64
15
90301-ZZ5-M00Ships in 1 to 2 Daysqty 4 used
$0.98$1.38
15
90301-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$0.91$1.24
16
90302-ZY6-003Ships in 1 to 2 Days
$2.69$3.68
17
90501-ZZ5-M00Ships in 1 to 2 Daysqty 4 used
$1.72$2.44
17
90501-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$1.59$2.18
18
90502-ZZ5-M00Ships in 1 to 2 Daysqty 4 used
$1.66$2.34
18
90502-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$1.49$2.04
Diagram

SWITCH PANEL KIT (5)

BFP60 BFP60AK1 switch panel kit (5) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AY0304
Fits only BFP60AK1-LRTA, BFP60AK1-XRTA — not every submodel of this generation.

Parts in this assembly

22 parts
1
06323-ZY6-610Ships in 1 to 2 Days
$411.42
1
06323-ZY6-612Ships in 1 to 2 Days
$653.58$895.32
2
32346-ZY6-611Ships in 1 to 2 Days
$62.02$84.96
3
32545-ZY6-003Ships in 1 to 2 Daysqty 3 used
$83.10$113.84
4
32606-ZY6-000Ships in 1 to 2 Daysqty 3 used
$6.69$9.16
5
32823-ZV5-003Ships in 1 to 2 Daysqty 27 used
$2.95$4.04
6
32824-ZV5-003Ships in 1 to 2 Daysqty 21 used
$3.11$4.26
7
35100-ZY6-013Ships in 1 to 2 Daysqty 3 used
$82.90$113.56
8
36180-ZY6-612Ships in 1 to 2 Days
$86.29$118.20
9
36182-ZY6-003Ships in 1 to 2 Days
$17.53$24.02
10
36187-ZY6-003Ships in 1 to 2 Days
$4.22$5.78
11
38402-GC1-000Ships in 1 to 2 Daysqty 3 used
$6.23$8.54
12
38410-ZY9-A01Ships in 1 to 2 Daysqty 3 used
$43.30$59.32
13
38414-ZY6-003Ships in 1 to 2 Daysqty 3 used
$14.76$20.22
14
90109-ZW5-000Ships in 1 to 2 Daysqty 4 used
$1.20$1.64
15
90301-ZZ5-M00Ships in 1 to 2 Daysqty 4 used
$0.98$1.38
15
90301-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$0.91$1.24
16
90302-ZY6-003Ships in 1 to 2 Days
$2.69$3.68
17
90501-ZZ5-M00Ships in 1 to 2 Daysqty 4 used
$1.72$2.44
17
90501-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$1.59$2.18
18
90502-ZZ5-M00Ships in 1 to 2 Daysqty 4 used
$1.66$2.34
18
90502-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$1.49$2.04
Diagram

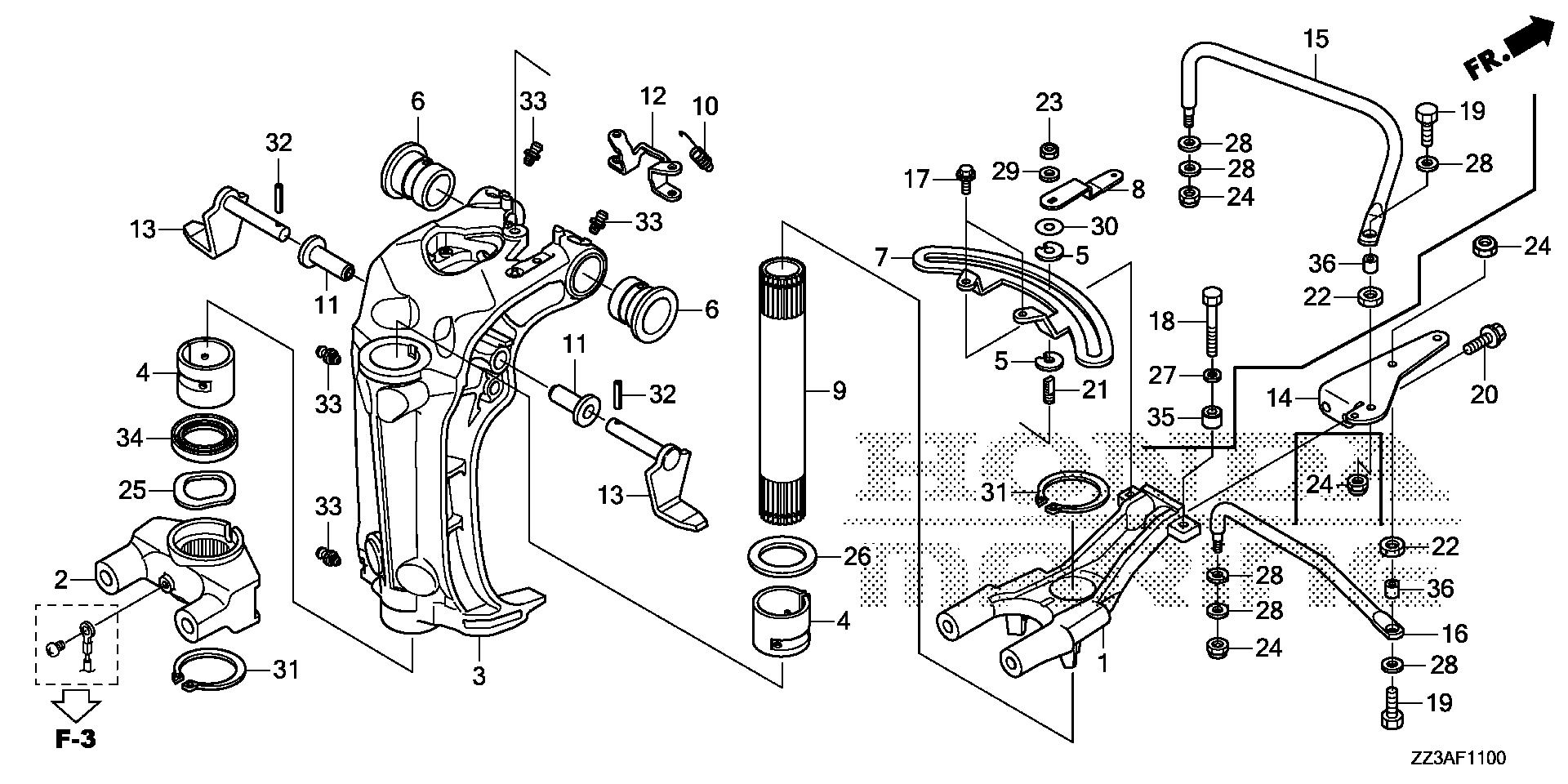

SWIVEL CASE

BFP60 BFP60AK1 swivel case exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AF1100
Fits all 3 submodels of this generation.

Parts in this assembly

28 parts
1
50101-ZZ3-000Ships in 1 to 2 Days
$187.83$257.34
2
$125.97$172.58
3
50201-ZZ3-000ZAShips in 1 to 2 Days
$435.01
4
50211-ZZ5-000Ships in 1 to 2 Daysqty 2 used
$8.21
6
50214-ZW1-000Ships in 1 to 2 Daysqty 2 used
$13.17
9
50417-ZZ3-000Ships in 1 to 2 Days
$138.61$189.88
10
50515-ZV5-000Ships in 1 to 2 Days
$3.23$4.42
11
50522-ZV5-000Ships in 1 to 2 Daysqty 2 used
$5.71$7.82
12
50527-ZV5-000Ships in 1 to 2 Days
$10.59$14.50
13
50529-ZZ3-000Ships in 1 to 2 Daysqty 2 used
$43.62$59.76
14
53234-ZZ3-000Ships in 1 to 2 Days
$62.34$87.96
15
53238-ZZ3-000Ships in 1 to 2 Days
$166.64$235.12
16
53238-ZZ3-610Ships in 1 to 2 Days
$74.21$104.72
18
90113-ZV0-000Ships in 1 to 2 Days
$3.81$5.22
19
90117-ZY3-000Ships in 1 to 2 Days
$3.80$5.20
20
90154-ZW9-000Ships in 1 to 2 Daysqty 2 used
$3.07$4.32
22
90302-ZV5-000Ships in 1 to 2 Days
$8.66$12.22
24
90307-ZV5-003Ships in 1 to 2 Daysqty 2 used
$6.47$8.86
25
90501-ZV5-000Ships in 1 to 2 Days
$7.30$10.00
26
90504-ZV5-000Ships in 1 to 2 Days
$7.30$10.00
27
90506-ZV4-000Ships in 1 to 2 Days
$2.45$3.36
28
90514-ZV4-000Ships in 1 to 2 Daysqty 3 used
$1.69$2.32
31
90651-ZW4-000Ships in 1 to 2 Daysqty 2 used
$5.30$7.26
32
90752-ZW6-000Ships in 1 to 2 Daysqty 2 used
$2.31$3.16
33
90951-ZV7-010Ships in 1 to 2 Daysqty 4 used
$1.90$2.60
34
91256-ZV5-003Ships in 1 to 2 Days
$7.80$10.68
35
91555-ZZ3-000Ships in 1 to 2 Days
$9.56$13.50
36
91560-ZV5-000Ships in 1 to 2 Days
$3.07$4.20
Diagram

THROTTLE BODY

BFP60 BFP60AK1 throttle body exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AE1500
Fits all 3 submodels of this generation.

Parts in this assembly

3 parts
1
16016-ZY6-003Ships in 1 to 2 Days
$6.04$8.28
2
16400-ZZ3-003Ships in 1 to 2 Days
$500.71$685.90
3
90146-ZW4-000Ships in 1 to 2 Daysqty 4 used
$1.90$2.60
Diagram

TILT LIMIT KIT - SPEED SENSOR TUBE KIT

BFP60 BFP60AK1 tilt limit kit - speed sensor tube kit exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AY0900
Fits all 3 submodels of this generation.

Parts in this assembly

24 parts
1
06357-ZZ3-000Ships in 1 to 2 Days
$56.75$77.74
2
06411-ZZ3-000Ships in 1 to 2 Days
$44.50$60.96
3
17357-GE1-670Ships in 1 to 2 Days
$5.20$7.12
4
32161-KM3-003Ships in 1 to 2 Daysqty 4 used
$3.34$4.58
5
35745-ZZ3-741Ships in 1 to 2 Daysreplaced by 35745-ZZ3-743
$36.54$50.06
5
35745-ZZ3-743Ships in 1 to 2 Days
$36.54$50.06
6
36104-ZV5-821Ships in 1 to 2 Days
$6.04$8.28
7
41172-ZV5-000Ships in 1 to 2 Days
$7.65$10.48
8
50209-ZY3-A00Ships in 1 to 2 Daysqty 4 used
$6.15$8.42
9
50222-ZZ3-000Ships in 1 to 2 Days
$11.56$16.32
10
50223-ZZ3-000Ships in 1 to 2 Days
$6.79$9.30
11
50224-ZZ3-000Ships in 1 to 2 Days
$9.30$12.74
12
56118-ZY6-000Ships in 1 to 2 Days
$5.17$7.08
13
90102-ZW9-000Ships in 1 to 2 Days
$2.12$2.90
14
90119-ZV5-000Ships in 1 to 2 Daysqty 4 used
$1.65$2.26
15
90127-ZV5-003Ships in 1 to 2 Days
$1.94$2.66
16
90401-ZW4-000Ships in 1 to 2 Days
$1.24$1.70
17
90628-750-000Ships in 1 to 2 Daysqty 2 used
$2.12$2.90
18
93500-04014-4JShips in 1 to 2 Days
$0.93$1.28
19
93500-05020-4JShips in 1 to 2 Daysqty 2 used
$0.86$1.18
20
94001-05490-0SShips in 1 to 2 Daysqty 2 used
$0.92$1.26
21
94002-04490-0SShips in 1 to 2 Days
$1.02$1.40
22
95005-50003-30MNo Longer Available
$26.56$36.38
23
95005-50003-30MNo Longer Available
$26.56$36.38
Diagram

TIMING BELT

BFP60 BFP60AK1 timing belt exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AE1300
Fits all 3 submodels of this generation.

Parts in this assembly

15 parts
1
13621-ZZ3-000Ships in 1 to 2 Days
$52.76$72.28
2
13622-ZZ3-000Ships in 1 to 2 Days
$7.21$9.88
3
13623-ZZ3-000Ships in 1 to 2 Days
$41.57$56.94
4
14261-ZZ3-000Ships in 1 to 2 Days
$84.75$116.10
5
14400-ZZ3-004Ships in 1 to 2 Days
$84.77$116.12
6
14510-ZZ3-013Ships in 1 to 2 Days
$70.62$96.74
7
14515-ZY3-000In Stock
$3.93$5.38
8
14520-ZV5-020Ships in 1 to 2 Days
$4.53$6.20
9
14522-ZV5-000Ships in 1 to 2 Days
$2.26$3.10
10
90013-ZW1-000Ships in 1 to 2 Daysqty 2 used
$2.48$3.40
11
90190-S04-000Ships in 1 to 2 Days
$2.53$3.46
12
90202-ZZ3-000Ships in 1 to 2 Days
$16.61$22.76
13
90402-PC6-000Ships in 1 to 2 Days
$20.40$27.94
14
94101-10800Ships in 1 to 2 Days
$1.72$2.36
15
95701-10040-08Ships in 1 to 2 Days
$2.88$3.94
Diagram

TOOL - OTHER PARTS

BFP60 BFP60AK1 tool - other parts exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AF1300C
Fits all 3 submodels of this generation.

Parts in this assembly

17 parts
1
28461-ZH8-013Ships in 1 to 2 Days
$1.69$2.32
2
28462-ZW9-003Ships in 1 to 2 Days
$9.75$13.36
4
38235-S04-003Ships in 1 to 2 Days
$0.93$1.28
5
41172-ZV5-000Ships in 1 to 2 Days
$7.65$10.48
6
89102-538-000Ships in 1 to 2 Days
$8.32$11.40
7
89103-538-000Ships in 1 to 2 Days
$4.37$5.98
8
89210-GBJ-J00Ships in 1 to 2 Days
$8.60$11.78
9
89216-ZZ3-000Ships in 1 to 2 Days
$12.37$16.94
10
89217-355-000Ships in 1 to 2 Days
$9.83$13.46
11
89301-921-010Ships in 1 to 2 Days
$5.87$8.28
12
99001-08120Ships in 1 to 2 Days
$2.64$3.62
13
99001-10140Ships in 1 to 2 Days
$2.96$4.06
14
BAG, TOOL (200MM)
99008-02000No Longer Available
—
15
99003-30000Ships in 1 to 2 Days
$3.81$5.22
16
99003-50000Ships in 1 to 2 Days
$4.96$6.80
17
99008-01600Ships in 1 to 2 Days
$2.13$2.92
19
89211-170-000Ships in 1 to 2 Days
$2.38$3.26
Diagram

TROLLING CONTROL SWITCH

BFP60 BFP60AK1 trolling control switch exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AF0740
Fits all 3 submodels of this generation.

Parts in this assembly

9 parts
1
35340-ZZ3-741Ships in 1 to 2 Days
$49.30$67.54
2
35341-ZZ3-740Ships in 1 to 2 Days
$8.73$11.96
3
35342-ZZ3-740Ships in 1 to 2 Days
$5.99$8.20
4
35343-ZZ3-740Ships in 1 to 2 Days
$5.12$7.02
5
35344-ZZ3-740Ships in 1 to 2 Days
$23.65$32.40
6
35345-ZZ3-741Ships in 1 to 2 Days
$71.50$97.94
7
92101-04020-4JShips in 1 to 2 Daysqty 2 used
$1.08$1.48
8
NUT, HEX. (4MM) (NOT AVAILABLE)
94001-04490-0SNo Longer Available
—
9
94111-04500Ships in 1 to 2 Daysqty 4 used
$0.58$0.80
Diagram

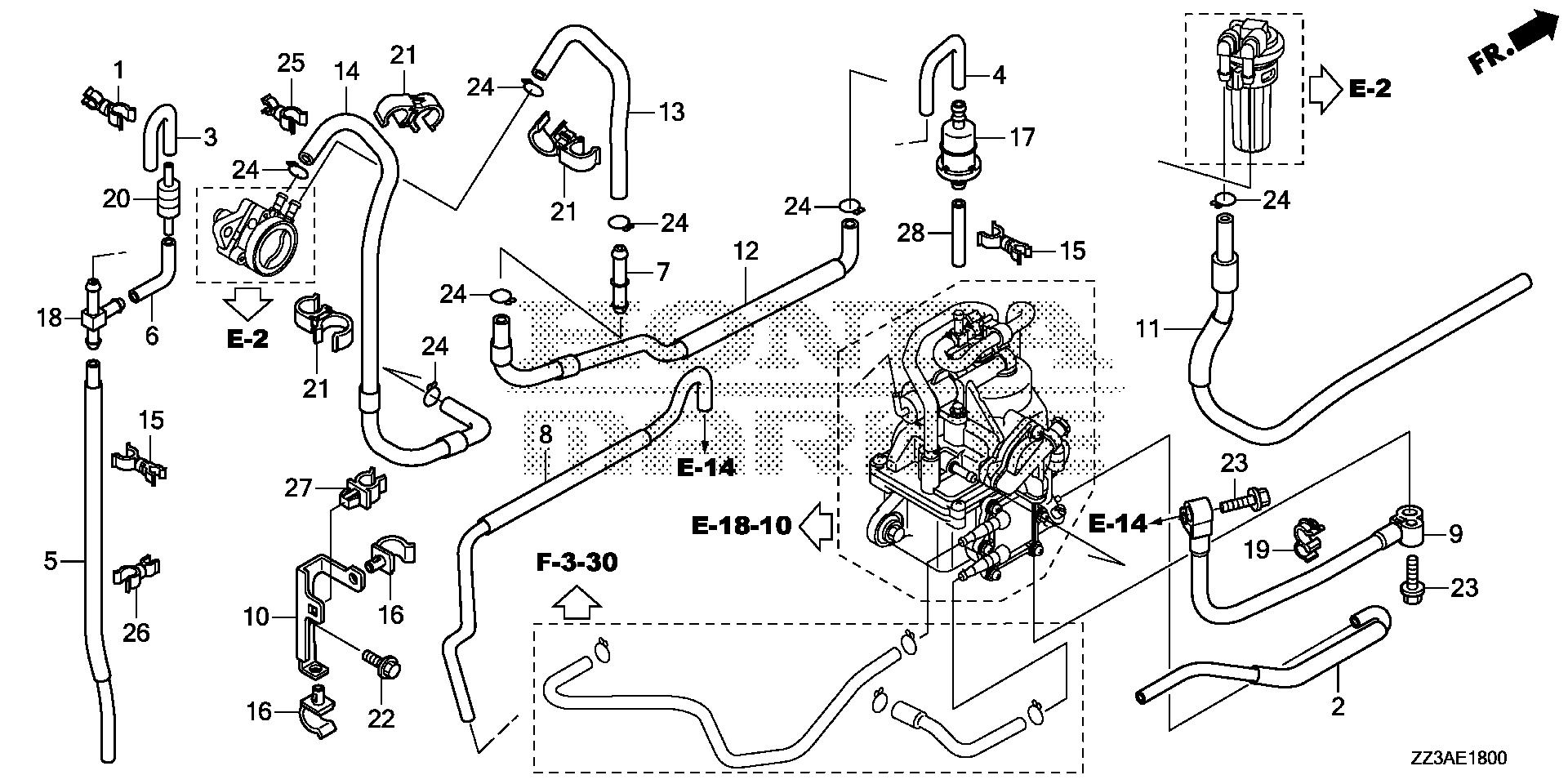

TUBING

BFP60 BFP60AK1 tubing exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AE1800
Fits all 3 submodels of this generation.

Parts in this assembly

29 parts
1
15562-MCG-000Ships in 1 to 2 Days
$6.06$8.30
2
16192-ZZ3-000Ships in 1 to 2 Days
$7.42$10.16
3
16196-ZY9-000Ships in 1 to 2 Days
$1.42$1.94
4
16197-ZZ3-000Ships in 1 to 2 Days
$5.61$7.68
5
16198-ZZ3-000Ships in 1 to 2 Days
$7.42$10.16
6
16199-ZZ3-000Ships in 1 to 2 Days
$3.66$5.02
7
16723-RMA-E00Ships in 1 to 2 Days
$7.81$10.70
8
16748-ZZ3-000Ships in 1 to 2 Days
$10.00$13.70
9
16755-ZZ3-003Ships in 1 to 2 Days
$106.38$145.72
10
16816-ZZ3-000Ships in 1 to 2 Days
$5.61$7.92
10
16816-ZZ3-010Ships in 1 to 2 Days
$5.97$8.18
11
16850-ZZ3-A01Ships in 1 to 2 Days
$20.47$28.88
12
16865-ZZ3-A00Ships in 1 to 2 Days
$37.30$52.64
13
16866-ZZ3-A00Ships in 1 to 2 Days
$14.34$20.24
14
16871-ZZ3-A00Ships in 1 to 2 Days
$28.40$40.06
15
16895-ZZ3-003Ships in 1 to 2 Daysqty 2 used
$4.82$6.60
16
16896-ZY9-003Ships in 1 to 2 Daysqty 2 used
$2.80$3.84
17
16910-ZV4-015In Stock
$13.99$19.16
18
16961-MCT-010Ships in 1 to 2 Days
$11.29$15.46
19
17439-PY3-A01Ships in 1 to 2 Days
$5.42$7.42
20
36135-ZY6-003Ships in 1 to 2 Days
$26.35$36.10
21
53740-SE0-953Ships in 1 to 2 Daysqty 3 used
$3.01$4.12
22
90011-ZW9-000Ships in 1 to 2 Days
$1.71$2.34
23
90205-HW1-670Ships in 1 to 2 Daysqty 2 used
$2.19$3.00
24
90604-ZV0-000Ships in 1 to 2 Daysqty 7 used
$1.37$1.88
25
90652-ZW5-003Ships in 1 to 2 Days
$1.96$2.68
26
90655-MB1-921Ships in 1 to 2 Days
$2.83$3.88
27
91531-SZ5-003Ships in 1 to 2 Days
$4.23$5.80
28
95001-55003-60MShips in 1 to 2 Days
$65.33$93.98
Diagram

UPPER RUBBER MOUNT

BFP60 BFP60AK1 upper rubber mount exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AF0330A
Fits all 3 submodels of this generation.

Parts in this assembly

34 parts
1
12166-ZZ3-000Ships in 1 to 2 Daysqty 2 used
$8.89$12.18
1
12166-ZZ3-030Ships in 1 to 2 Daysqty 2 used
$8.89$12.18
2
15113-ZY3-000Ships in 1 to 2 Days
$7.52$10.30
3
17202-ZV5-310Ships in 1 to 2 Days
$2.20$3.02
3
17202-ZY9-M01Ships in 1 to 2 Days
$2.28$3.12
4
18211-ZZ3-000Ships in 1 to 2 Days
$33.93$46.48
5
19255-ZZ3-000Ships in 1 to 2 Days
$8.02$10.98
6
19256-ZZ3-000Ships in 1 to 2 Days
$12.76$17.48
7
19257-ZZ3-000Ships in 1 to 2 Days
$4.56$6.24
8
19270-ZY3-000Ships in 1 to 2 Days
$13.02$17.84
9
19271-ZY3-000Ships in 1 to 2 Days
$8.85$12.12
10
19272-ZY3-000In Stock
$4.04$5.54
11
19277-ZZ3-030Ships in 1 to 2 Days
$10.77$14.76
12
19279-ZW9-010Ships in 1 to 2 Days
$1.58$2.16
13
19291-ZW9-000Ships in 1 to 2 Days
$5.90$8.08
14
19297-ZW9-000Ships in 1 to 2 Daysreplaced by 19297-ZW9-010
$1.53$2.10
14
19297-ZW9-010Ships in 1 to 2 Days
$1.53$2.10
15
23173-ZY3-010Ships in 1 to 2 Days
$8.32$11.40
16
50151-ZZ3-000Ships in 1 to 2 Days
$93.45$128.04
17
50166-ZZ3-000Ships in 1 to 2 Days
$35.19$48.20
18
63718-ZZ3-000Ships in 1 to 2 Days
$16.25$22.26
19
90043-ZY6-030Ships in 1 to 2 Daysqty 2 used
$1.68$2.30
20
90101-ZZ3-000Ships in 1 to 2 Daysqty 2 used
$29.96$41.04
21
90105-ZW9-000Ships in 1 to 2 Days
$2.88$3.94
22
90306-ZW4-003Ships in 1 to 2 Daysqty 2 used
$4.34$5.94
23
90501-ZW4-000Ships in 1 to 2 Daysqty 2 used
$2.38$3.26
24
90603-ZV4-000Ships in 1 to 2 Days
$1.42$1.94
25
90604-ZV0-000Ships in 1 to 2 Daysqty 2 used
$1.37$1.88
26
90605-ZV4-000Ships in 1 to 2 Daysqty 2 used
$1.37$1.88
28
91251-ZW2-F01Ships in 1 to 2 Daysqty 2 used
$6.25$8.56
29
91303-800-000Ships in 1 to 2 Days
$2.04$2.80
30
91405-ZZ3-000Ships in 1 to 2 Days
$4.18$5.72
31
93401-06020-08Ships in 1 to 2 Daysqty 6 used
$1.88$2.58
32
BULK HOSE, FUEL (8X1000) (8X130)
95001-80001-60MNo Longer Available
$25.39$34.78
Diagram

VAPOR SEPARATOR

BFP60 BFP60AK1 vapor separator exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AE1810
Fits all 3 submodels of this generation.

Parts in this assembly

48 parts
1
16011-ZY3-A01Ships in 1 to 2 Days
$42.79$58.62
2
16013-ZZ5-003Ships in 1 to 2 Days
$29.45$40.34
3
16019-ZZ3-003Ships in 1 to 2 Days
$171.67$235.16
4
16020-ZZ3-003Ships in 1 to 2 Days
$242.46$332.14
5
16024-ZY3-000Ships in 1 to 2 Days
$12.18$16.68
6
16026-ZY3-000Ships in 1 to 2 Days
$9.49$13.00
7
16041-ZZ5-003Ships in 1 to 2 Days
$7.69$10.54
8
16042-ZZ5-003Ships in 1 to 2 Days
$9.04$12.38
9
16061-ZZ5-003Ships in 1 to 2 Days
$26.67$36.54
10
16063-ZZ5-003Ships in 1 to 2 Days
$10.66$14.60
11
16064-ZZ5-003Ships in 1 to 2 Days
$7.05$9.66
12
16066-ZZ5-003Ships in 1 to 2 Days
$7.99$10.94
13
16072-ZZ5-003Ships in 1 to 2 Days
$8.58$11.76
14
16073-ZZ5-003Ships in 1 to 2 Days
$8.07$11.06
15
16074-ZZ5-003Ships in 1 to 2 Days
$20.64$28.28
16
16075-ZZ5-003Ships in 1 to 2 Days
$9.78$13.40
17
16076-ZZ5-003Ships in 1 to 2 Days
$3.27$4.48
18
16077-ZZ5-003Ships in 1 to 2 Days
$4.16$5.70
19
16081-ZW5-010In Stockqty 11 used
$4.18$5.72
20
16081-ZY9-003Ships in 1 to 2 Daysqty 6 used
$6.42$8.80
21
16082-ZY3-000Ships in 1 to 2 Daysqty 2 used
$3.80$5.20
22
16083-ZY3-000Ships in 1 to 2 Days
$3.11$4.26
23
16195-ZZ3-000Ships in 1 to 2 Days
$7.97$10.92
24
16196-ZZ3-000Ships in 1 to 2 Days
$7.59$10.40
25
16708-ZZ3-003Ships in 1 to 2 Days
$121.44$166.36
26
16709-ZZ5-003Ships in 1 to 2 Days
$2.80$3.84
27
16718-ZZ5-003Ships in 1 to 2 Days
$22.47$30.78
28
16721-ZZ5-003Ships in 1 to 2 Days
$17.32$23.72
29
16723-ZY6-003Ships in 1 to 2 Days
$9.86$13.50
30
16730-ZZ3-043Ships in 1 to 2 Days
$1,142.95$1,565.68
31
16735-ZZ5-003Ships in 1 to 2 Days
$285.93$391.72
32
16740-ZZ5-003Ships in 1 to 2 Days
$76.72$105.12
33
16741-PG7-005Ships in 1 to 2 Days
$3.83$5.24
34
16752-ZY3-000Ships in 1 to 2 Days
$7.36$10.08
35
16911-ZZ5-003Ships in 1 to 2 Days
$51.95$71.16
36
16913-ZZ5-003Ships in 1 to 2 Days
$59.50$81.60
37
16960-ME9-000Ships in 1 to 2 Days
$16.05$21.98
38
32166-ZZ5-003Ships in 1 to 2 Days
$9.04$12.38
39
32167-ZZ5-003Ships in 1 to 2 Days
$95.78$131.20
40
40102-ZV5-000Ships in 1 to 2 Daysqty 2 used
$2.64$3.62
41
47585-SJ6-003Ships in 1 to 2 Days
$6.19$8.48
42
90009-PP4-E01In Stock
$7.65$10.48
43
90013-ZW1-000Ships in 1 to 2 Daysqty 2 used
$2.48$3.40
44
90021-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.14$1.56
45
90430-PD6-003In Stock
$4.41$6.04
46
90603-ZV4-000Ships in 1 to 2 Daysqty 2 used
$1.42$1.94
47
91301-MJ0-003In Stockqty 2 used
$2.09$2.86
48
91553-ZV5-010Ships in 1 to 2 Daysqty 2 used
$2.67$3.66
Diagram

WATER PUMP (2)

BFP60 BFP60AK1 water pump (2) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AF0401
Fits all 3 submodels of this generation.

Parts in this assembly

44 parts
1
19210-ZV5-003Ships in 1 to 2 Days
$25.54$34.98
↳
Sierra alternative ·
18-3248In Stock
$30.59
2
19221-ZZ3-000Ships in 1 to 2 Days
$33.95$46.50
3
19223-ZZ3-000Ships in 1 to 2 Days
$17.86$24.46
4
19228-ZZ3-000Ships in 1 to 2 Days
$14.06$19.26
5
19231-ZZ3-000Ships in 1 to 2 Days
$22.10$30.28
6
19234-ZZ3-E00Ships in 1 to 2 Days
$6.19$8.74
7
19241-ZZ0-000Ships in 1 to 2 Days
$43.36$61.18
8
19242-ZW1-B00In Stock
$9.39$13.24
9
19251-ZZ3-E00Ships in 1 to 2 Days
$30.00$42.34
9
19251-ZZ3-E10Ships in 1 to 2 Days
$40.08$56.54
10
19253-ZZ3-000Ships in 1 to 2 Days
$10.25$14.04
11
24310-ZZ0-000Ships in 1 to 2 Days
$144.42$197.84
12
24318-ZY3-000Ships in 1 to 2 Days
$2.73$3.74
13
24320-ZW1-B00Ships in 1 to 2 Days
$70.17$96.12
13
24320-ZY9-610Ships in 1 to 2 Days
$72.20$101.86
14
24327-ZW1-000In Stock
$1.69$2.32
15
24343-ZW1-B02Ships in 1 to 2 Days
$16.06$22.00
16
41112-ZZ3-E00Ships in 1 to 2 Days
$696.51$954.12
16
41112-ZZ3-E10Ships in 1 to 2 Days
$790.87$1,083.38
17
41116-ZW1-B00Ships in 1 to 2 Days
$13.61$18.64
18
41131-ZW1-B01Ships in 1 to 2 Days
$87.99$124.14
19
90010-ZV5-000Ships in 1 to 2 Daysqty 4 used
$4.69$6.62
20
90102-ZW9-000Ships in 1 to 2 Days
$2.12$2.90
21
90242-ZW1-000Ships in 1 to 2 Days
$26.24$35.94
22
90303-ZW1-B03Ships in 1 to 2 Days
$18.82$26.56
23
90472-723-000Ships in 1 to 2 Days
$1.43$1.96
24
90511-ZV4-000Ships in 1 to 2 Days
$2.20$3.02
25
90514-921-000Ships in 1 to 2 Daysqty 2 used
$0.99$1.36
26
90518-ZW1-B00Ships in 1 to 2 Days
$7.34$10.06
26
90519-ZW1-B00Ships in 1 to 2 Days
$7.34$10.06
26
90520-ZW1-B00Ships in 1 to 2 Days
$7.34$10.06
26
90521-ZW1-B00Ships in 1 to 2 Days
$7.34$10.06
27
90752-ZV5-003Ships in 1 to 2 Days
$7.55$10.34
↳
Sierra alternative ·
18-3270In Stock save $4.50
$3.05
28
90756-ZVL-000Ships in 1 to 2 Daysqty 2 used
$1.20$1.64
28
90756-ZV5-000In Stockqty 2 used
$2.64$3.62
29
91052-ZW1-B02Ships in 1 to 2 Days
$56.79$80.14
30
91054-ZW1-B31Ships in 1 to 2 Days
$75.60$103.56
31
91253-ZZ3-003Ships in 1 to 2 Daysqty 2 used
$5.53$7.58
32
91254-ZY3-003Ships in 1 to 2 Daysqty 2 used
$4.53$6.20
33
91308-MJ0-003Ships in 1 to 2 Days
$3.61$4.94
34
91356-ZZ3-000Ships in 1 to 2 Days
$3.69$5.06
35
91359-MB0-000Ships in 1 to 2 Days
$5.30$7.26
36
91552-ZY6-000Ships in 1 to 2 Daysqty 4 used
$4.44$6.08
37
94540-10019Ships in 1 to 2 Days
$2.83$3.88
Diagram

WIRE HARNESS

BFP60 BFP60AK1 wire harness exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ3AF0700
Fits all 3 submodels of this generation.

Parts in this assembly

14 parts
1
32100-ZZ3-000Ships in 1 to 2 Days
$753.91$1,032.76
1
32100-ZZ3-020Ships in 1 to 2 Days
$701.81$961.38
2
32127-ZZ3-000Ships in 1 to 2 Days
$4.04$5.54
3
32501-KSV-J00Ships in 1 to 2 Daysqty 2 used
$1.12$1.54
4
38216-ZZ3-003Ships in 1 to 2 Days
$5.42$7.42
5
38580-ZZ3-003Ships in 1 to 2 Days
$42.33$57.98
6
38586-ZZ5-003Ships in 1 to 2 Days
$3.61$4.94
7
90013-ZW9-000Ships in 1 to 2 Daysqty 2 used
$1.47$2.08
8
90203-ZW1-000Ships in 1 to 2 Days
$2.31$3.16
9
91507-SL9-003Ships in 1 to 2 Days
$6.42$8.80
10
91541-S0A-003Ships in 1 to 2 Daysqty 7 used
$3.64$4.98
11
98200-41000Ships in 1 to 2 Daysqty 4 used
$1.21$1.66
12
98200-41500Ships in 1 to 2 Daysqty 3 used
$1.11$1.52
13
98200-43000Ships in 1 to 2 Daysqty 2 used
$1.61$2.20
Diagrams are Honda's official OEM illustrations, served from Honda's asset host. Prices are our own; where a struck-through figure appears beside one it is Honda's suggested retail. “In Stock” means the part is on our shelf here at Boe Marine. “Ships in 1 to 2 Days” means we order it in from Honda, who still supply it. Parts marked “No Longer Available” are shown so the drawing stays complete, but Honda has discontinued them. Where a Sierra replacement is listed beneath a Honda part, Sierra ships it direct to you; “Backorder Now” on one of those means Sierra has none at the moment and will ship it once restocked.
