BF90 — Parts Diagrams

Generation BF90AW  ·  5 submodels

Assemblies (40)

Diagram

ALTERNATOR

BF90 BF90AW alternator exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW04E1900
Fits all 5 submodels of this generation.

Parts in this assembly

17 parts
1
PULLEY, STARTER (NOT AVAILABLE)
28451-ZW1-000No Longer Available
$104.55$143.22
2
COIL ASSY., PULSER (NOT AVAILABLE)
30310-ZW1-003No Longer Available
—
3
STATOR (NOT AVAILABLE)
31120-ZW1-003No Longer Available
—
4
ALTERNATOR ASSY. (NOT AVAILABLE)
31630-ZW1-003No Longer Available
—
5
31631-ZW1-003Ships in 1 to 2 Days
$372.11$390.73
6
STATOR ASSY. (NOT AVAILABLE)
31632-ZW1-003No Longer Available
—
7
31633-ZW1-003Ships in 1 to 2 Daysqty 3 used
$5.02$7.22
8
31634-ZW1-003Ships in 1 to 2 Days
$3.23$4.64
9
BASE, COIL SETTING (NOT AVAILABLE)
31635-ZW1-003No Longer Available
$103.76$142.14
10
90004-ZW1-003Ships in 1 to 2 Daysqty 4 used
$3.46$4.98
11
90005-ZW1-003Ships in 1 to 2 Daysqty 3 used
$2.55$3.68
12
90007-ZW1-003Ships in 1 to 2 Daysqty 3 used
$4.12$5.92
13
04133-P01-305Ships in 1 to 2 Days
$19.65$28.26
14
90125-ZV1-010Ships in 1 to 2 Daysqty 4 used
$1.87$2.64
15
90704-634-000Ships in 1 to 2 Days
$6.07$8.58
16
94301-08100Ships in 1 to 2 Daysqty 2 used
$2.74$3.76
17
95701-06018-02Ships in 1 to 2 Daysqty 6 used
$2.28$3.28
Diagram

CAMSHAFT

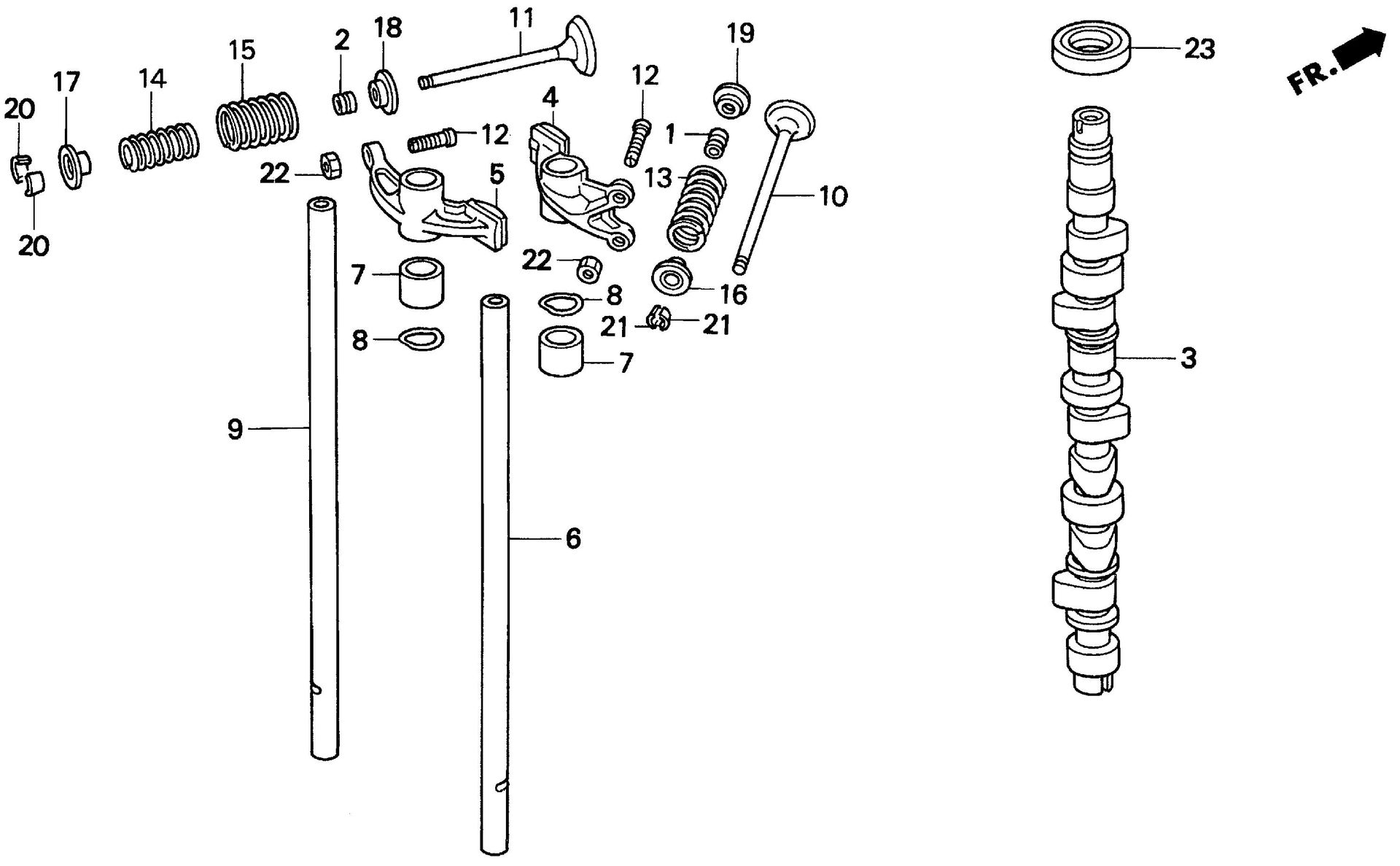

BF90 BF90AW camshaft exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW04E0900
Fits all 5 submodels of this generation.

Parts in this assembly

23 parts
1
12209-KL4-005Ships in 1 to 2 Daysqty 8 used
$7.88$10.80
2
12209-MB9-003Ships in 1 to 2 Daysqty 4 used
$12.56$18.06
3
CAMSHAFT (NOT AVAILABLE)
14111-ZW1-000No Longer Available
—
4
14620-ZW1-000Ships in 1 to 2 Daysqty 4 used
$47.17$67.86
5
14625-ZW1-000Ships in 1 to 2 Daysqty 4 used
$44.14$63.50
6
SHAFT, IN. ROCKER ARM (NOT AVAILABLE)
14631-ZW1-000No Longer Available
$65.25$89.38
7
14636-ZW1-000Ships in 1 to 2 Daysqty 8 used
$4.48$6.44
8
WASHER, WAVE (NOT AVAILABLE)
14637-ZW1-000No Longer Available
—
9
SHAFT, EX. ROCKER ARM (NOT AVAILABLE)
14641-ZW1-000No Longer Available
$65.88$90.24
10
VALVE, IN. (NOT AVAILABLE)
14711-ZW1-000No Longer Available
—
11
VALVE, EX. (NOT AVAILABLE)
14721-ZW1-000No Longer Available
—
12
14744-PT0-004Ships in 1 to 2 Daysqty 12 used
$8.92$12.22
13
SPRING, IN. VALVE (NOT AVAILABLE)
14751-ZW1-000No Longer Available
$11.42$15.64
14
SPRING, EX. VALVE (INNER)
14752-ZW1-000No Longer Available
$9.91$13.58
15
SPRING, EX. VALVE (OUTER)
14753-ZW1-000No Longer Available
$13.02$17.84
16
14765-P08-000Ships in 1 to 2 Daysqty 8 used
$7.07$9.96
17
14771-410-010Ships in 1 to 2 Daysqty 4 used
$8.42$11.54
18
14775-ME9-000Ships in 1 to 2 Daysqty 4 used
$13.20$18.08
19
14775-P08-000Ships in 1 to 2 Daysqty 8 used
$6.86$10.54
20
14781-MB9-000Ships in 1 to 2 Daysqty 8 used
$5.71$7.82
21
14781-PJ7-003Ships in 1 to 2 Daysqty 16 used
$5.91$8.34
22
90206-ML7-000Ships in 1 to 2 Daysqty 12 used
$2.10$2.96
23
91212-ZW1-005Ships in 1 to 2 Days
$12.02$17.28
Diagram

CARBURETOR

BF90 BF90AW carburetor exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW04E1400
Fits all 5 submodels of this generation.

Parts in this assembly

65 parts
1
12155-ZV5-000Ships in 1 to 2 Daysreplaced by 12155-ZV5-010
$9.53$13.06
2
16010-ZV4-005In Stock
$14.89$21.00
3
16011-ZV4-005Ships in 1 to 2 Daysqty 4 used
$29.68$41.88
↳
Sierra alternative ·
18-7047In Stock
$37.88
4
16013-ZV4-005Ships in 1 to 2 Daysqty 4 used
$31.01$44.60
4
16013-ZW4-H01In Stockqty 4 used
$30.06$42.42
5
16016-ZV3-000Ships in 1 to 2 Daysqty 4 used
$10.16$14.62
5
16016-ZV7-B51Ships in 1 to 2 Daysqty 4 used
$8.58$12.34
6
CHAMBER SET, FLOAT (NOT AVAILABLE)
16023-ZW1-000No Longer Available
—
7
16024-ZY3-000Ships in 1 to 2 Daysqty 4 used
$12.18$16.68
8
16028-ZV3-000Ships in 1 to 2 Days
$9.18$12.96
9
16029-ZV3-000Ships in 1 to 2 Daysqty 3 used
$9.61$13.56
10
16052-KG4-003Ships in 1 to 2 Daysqty 3 used
$5.87$8.28
11
16071-ZV4-005Ships in 1 to 2 Daysqty 4 used
$6.26$8.84
12
16081-ZV4-650Ships in 1 to 2 Daysqty 16 used
$3.21$4.54
13
CARBURETOR ASSY. (BG35A A) *NH8* (DARK GRAY)
16100-ZW0-003ZAShips in 1 to 2 Days
$1,388.17
13
CARBURETOR ASSY. (BG35C A) *NH8* (DARK GRAY)
16100-ZW0-G01ZAShips in 1 to 2 Days
$1,388.17
13
CARBURETOR ASSY. (BG35C B) *NH8* (DARK GRAY) (NOT AVAILABLE)
16100-ZW0-G02ZANo Longer Available
—
13
CARBURETOR ASSY. (BG40A A) *NH8* (DARK GRAY)
16100-ZW1-003ZAShips in 1 to 2 Days
$1,400.24
13
CARBURETOR ASSY. (BG40B A) *NH8* (DARK GRAY)
16100-ZW1-G01ZANo Longer Available
—
13
CARBURETOR ASSY. (BG40B B) *NH8* (DARK GRAY) (NOT AVAILABLE)
16100-ZW1-G02ZANo Longer Available
—
14
CARBURETOR ASSY. (#1 #2 #3)
16101-ZW0-000Ships in 1 to 2 Daysqty 3 used
$277.71
14
CARBURETOR ASSY.
16101-ZW0-G01Ships in 1 to 2 Daysqty 3 used
$277.71
14
CARBURETOR ASSY. (#1 #2 #3) (NOT AVAILABLE)
16101-ZW0-G02No Longer Available
—
14
CARBURETOR ASSY. (#1 #2 #3) (NOT AVAILABLE)
16101-ZW1-000No Longer Available
—
14
CARBURETOR ASSY.
16101-ZW1-G01No Longer Available
—
14
CARBURETOR ASSY. (#1 #2 #3) (NOT AVAILABLE)
16101-ZW1-G02No Longer Available
—
15
CARBURETOR ASSY. (#4)
16102-ZW0-000Ships in 1 to 2 Days
$272.16
15
CARBURETOR ASSY.
16102-ZW0-G01No Longer Available
—
15
CARBURETOR ASSY. (#4) (NOT AVAILABLE)
16102-ZW0-G02No Longer Available
—
15
CARBURETOR ASSY. (#4)
16102-ZW1-000Ships in 1 to 2 Days
$279.67
15
CARBURETOR ASSY.
16102-ZW1-G01Ships in 1 to 2 Days
$279.67
15
CARBURETOR ASSY. (#4) (NOT AVAILABLE)
16102-ZW1-G02No Longer Available
—
16
LEVER, LINK (NOT AVAILABLE)
16142-ZW1-000No Longer Available
—
17
LINK, CHOKE (NOT AVAILABLE)
16144-ZW1-000No Longer Available
—
18
16150-ZW0-000Ships in 1 to 2 Daysqty 4 used
$23.35$33.58
18
16150-ZW1-000Ships in 1 to 2 Daysqty 4 used
$23.35$33.58
19
BOLT, HOLDING (NOT AVAILABLE)
16162-ZW1-000No Longer Available
—
20
NOZZLE, MAIN (NOT AVAILABLE)
16166-ZW0-000No Longer Available
—
20
16166-ZW1-000Ships in 1 to 2 Daysqty 4 used
$26.65$38.32
21
16211-ZW1-000In Stockqty 4 used
$14.19$20.42
22
16221-ZW1-000Ships in 1 to 2 Days
$6.57$9.46
↳
Sierra alternative ·
18-2472In Stock
$7.55
23
TUBE A, FUEL (NOT AVAILABLE)
16851-ZW1-000No Longer Available
$5.42$7.42
24
MANIFOLD ASSY., IN. *NH8* (DARK GRAY) (NOT AVAILABLE)
17100-ZW1-000ZANo Longer Available
—
25
17202-ZV5-310Ships in 1 to 2 Daysqty 9 used
$2.20$3.02
26
PLATE, MUFFLER
17380-ZW1-000No Longer Available
—
27
17384-ZW1-000Ships in 1 to 2 Days
$18.59$26.74
28
90021-ZW1-000Ships in 1 to 2 Daysqty 8 used
$5.83$8.38
29
90403-ZW1-000Ships in 1 to 2 Days
$1.71$2.34
30
90452-323-000Ships in 1 to 2 Days
$1.53$2.16
31
90603-ZV4-000Ships in 1 to 2 Daysqty 8 used
$1.42$1.94
32
93500-05010-0BShips in 1 to 2 Daysqty 4 used
$0.98$1.34
33
93500-06018-4JShips in 1 to 2 Daysqty 2 used
$1.49$2.10
34
95001-55003-60MShips in 1 to 2 Daysqty 2 used
$65.33$93.98
35
95003-05008-60MShips in 1 to 2 Days
$26.65$38.34
36
95003-05008-60MShips in 1 to 2 Days
$26.65$38.34
37
95701-06020-02In Stock
$1.07$1.46
38
96220-60150Ships in 1 to 2 Daysqty 8 used
$0.85$1.16
39
99103-MA1-0380Ships in 1 to 2 Daysreplaced by 99104-MAZ-0380
$17.53$24.74
39
99104-MAZ-0380Ships in 1 to 2 Daysqty 4 used
$17.53$24.74
39
99103-MA1-0520Ships in 1 to 2 Daysqty 4 used
$20.21$29.06
40
99101-ZV5-1220Ships in 1 to 2 Daysqty 4 used
$7.01$10.08
40
99101-ZV5-1250Ships in 1 to 2 Daysqty 4 used
$5.65$8.12
40
99101-ZV5-1280Ships in 1 to 2 Daysqty 4 used
$5.65$8.12
40
99101-ZV5-1300Ships in 1 to 2 Daysqty 4 used
$5.65$8.12
40
99101-ZV5-1320Ships in 1 to 2 Daysqty 4 used
$7.01$10.08
Diagram

CONTROL PANEL

BF90 BF90AW control panel exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW04F1400B
Fits only BF90AW-JRTA, BF90AW-LRTA, BF90AW-XRTA — not every submodel of this generation.

Parts in this assembly

30 parts
1
PANEL ASSY., CONTROL (NOT AVAILABLE)
32340-ZW1-V01No Longer Available
—
1
PANEL ASSY., CONTROL
32340-ZW1-V02No Longer Available
—
2
32346-ZW1-505No Longer Available
$23.81$32.62
3
32545-ZW1-V03Ships in 1 to 2 Days
$104.29$147.12
4
CABLE ASSY., SWITCH PANEL
32580-ZW1-V00No Longer Available
—
4
CABLE ASSY., SWITCH PANEL (NOT AVAILABLE)
32580-ZW1-V01No Longer Available
—
5
32600-ZW1-900Ships in 1 to 2 Days
$30.12$43.32
6
32901-952-770Ships in 1 to 2 Daysqty 2 used
$2.19$3.00
7
35100-ZV5-003Ships in 1 to 2 Days
$137.02$187.70
8
35110-ZV5-003Ships in 1 to 2 Daysqty 2 used
$7.99$11.48
9
35630-ZW1-V01Ships in 1 to 2 Days
$45.61$65.60
10
36180-ZV5-033In Stock
$56.84$77.86
11
36182-ZV4-651In Stock
$18.45$25.28
12
36187-ZV4-652Ships in 1 to 2 Days
$4.18$5.72
13
37210-ZW1-702Ships in 1 to 2 Days
$119.31$163.44
14
38403-341-672Ships in 1 to 2 Days
$4.66$6.38
15
38410-ZV5-003Ships in 1 to 2 Days
$56.17$76.94
16
38414-ZW1-V01Ships in 1 to 2 Days
$43.83$63.06
16
38414-ZW1-V02Ships in 1 to 2 Days
$30.70$44.16
17
90302-921-000In Stock
$4.10$5.62
18
90305-ZW1-V01Ships in 1 to 2 Days
$4.01$5.66
19
90649-SC2-003Ships in 1 to 2 Days
$8.29$11.36
20
SCREW, PAN (5X40)
93500-05040-1BShips in 1 to 2 Daysqty 4 used
$1.34$1.84
21
NUT, FLANGE (5MM)
94050-05020Ships in 1 to 2 Daysqty 4 used
$1.61$2.20
22
WASHER, PLAIN (5MM)
94103-05200Ships in 1 to 2 Daysqty 4 used
$0.70$0.96
23
94111-05400Ships in 1 to 2 Daysqty 4 used
$0.86$1.22
24
PANEL KIT, SWITCH (SINGLE)
06323-ZW1-V00No Longer Available
—
24
PANEL KIT, SWITCH (SINGLE)
06323-ZW1-V01No Longer Available
—
25
PANEL KIT, SWITCH (DUAL)
06323-ZW1-V10No Longer Available
—
25
PANEL KIT, SWITCH (DUAL)
06323-ZW1-V11No Longer Available
—
Diagram

CRANKSHAFT

BF90 BF90AW crankshaft exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW04E0700
Fits all 5 submodels of this generation.

Parts in this assembly

27 parts
1
13010-ZW1-000Ships in 1 to 2 Daysqty 4 used
$78.33$112.64
1
RING SET, PISTON (0.25) (NOT AVAILABLE)
13011-ZW1-000No Longer Available
—
2
PISTON (STD) (NOT AVAILABLE)
13101-ZW1-000No Longer Available
—
2
PISTON (0.25) (NOT AVAILABLE)
13102-ZW1-000No Longer Available
—
3
PIN, PISTON (NOT AVAILABLE)
13112-PE0-000No Longer Available
—
4
13204-PE1-003Ships in 1 to 2 Daysqty 8 used
$8.58$12.12
5
13205-634-010Ships in 1 to 2 Daysqty 8 used
$7.21$10.18
6
13210-PM6-000Ships in 1 to 2 Daysqty 4 used
$256.36$368.80
7
13211-PG6-003Ships in 1 to 2 Daysqty 8 used
$28.03$40.32
7
BEARING B, CONNECTING ROD (BLACK) (DAIDO)
13212-PG6-003No Longer Available
$22.79$31.22
7
13213-PG6-003Ships in 1 to 2 Daysqty 8 used
$28.03$40.32
7
13214-PG6-003Ships in 1 to 2 Daysqty 8 used
$28.03$40.32
7
13215-PG6-003Ships in 1 to 2 Daysqty 8 used
$28.03$40.32
7
13216-PG6-003Ships in 1 to 2 Daysqty 8 used
$28.03$40.32
7
13217-PG6-003Ships in 1 to 2 Daysqty 8 used
$26.57$38.22
8
CRANKSHAFT (24MM)
13310-PM6-G01No Longer Available
—
8
CRANKSHAFT (NOT AVAILABLE)
13310-ZW1-000No Longer Available
—
9
BEARING A, MAIN (BLUE) (DAIDO) (NOT AVAILABLE)
13321-PH3-003No Longer Available
—
9
13322-PH3-004Ships in 1 to 2 Daysqty 10 used
$23.59$33.94
9
BEARING C, MAIN (BROWN) (DAIDO) (NOT AVAILABLE)
13323-PH3-003No Longer Available
—
9
BEARING D, MAIN (GREEN) (DAIDO) (NOT AVAILABLE)
13324-PH3-003No Longer Available
—
9
BEARING E, MAIN (YELLOW) (DAIDO) (NOT AVAILABLE)
13325-PH3-003No Longer Available
—
9
BEARING F, MAIN (PINK) (DAIDO) (NOT AVAILABLE)
13326-PH3-003No Longer Available
—
9
BEARING G, MAIN (RED) (DAIDO) (NOT AVAILABLE)
13327-PH3-003No Longer Available
—
10
13331-PG6-004Ships in 1 to 2 Daysqty 2 used
$19.42$27.94
11
91212-ZW1-005Ships in 1 to 2 Days
$12.02$17.28
12
91214-PL2-003Ships in 1 to 2 Days
$35.74$51.42
Diagram

CYLINDER BLOCK

BF90 BF90AW cylinder block exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW04E0300
Fits all 5 submodels of this generation.

Parts in this assembly

28 parts
1
12000-ZW1-000ZAShips in 1 to 2 Days
$2,119.36
2
12155-ZV5-000Ships in 1 to 2 Daysreplaced by 12155-ZV5-010
$9.53$13.06
3
15142-PH3-003Ships in 1 to 2 Days
$2.83$4.00
4
ORIFICE ASSY., OIL PASSAGE (NOT AVAILABLE)
15150-ZW1-000No Longer Available
—
5
15400-PLM-A02PEIn Stock
$9.07$12.42
5
15400-ZJ1-004Ships in 1 to 2 Daysreplaced by 15400-PLM-A02PE
$9.07$12.42
↳
Sierra alternative ·
18-7909In Stock
$9.53
6
15611-921-000Ships in 1 to 2 Days
$10.13$13.88
7
15631-ZW1-000Ships in 1 to 2 Days
$30.37$42.84
8
15635-ZG3-800Ships in 1 to 2 Days
$1.69$2.38
9
32119-ZW1-000Ships in 1 to 2 Days
$3.59$5.16
9
32119-ZW1-010Ships in 1 to 2 Days
$3.59$5.16
10
32743-PJ7-010Ships in 1 to 2 Days
$10.09$14.52
11
37240-ZG3-E01Ships in 1 to 2 Days
$33.65$47.48
12
90001-ZW1-000No Longer Availableqty 2 used
$7.81$10.70
13
90002-ZG5-004Ships in 1 to 2 Days
$8.95$12.26
14
BOLT-WASHER (10X112)
90008-ZW1-000No Longer Available
—
15
90012-ZZ5-M02Ships in 1 to 2 Days
$3.72$5.10
16
90011-ZW9-000Ships in 1 to 2 Days
$1.71$2.34
17
90015-PH1-013Ships in 1 to 2 Days
$9.97$13.66
18
90702-PE0-000Ships in 1 to 2 Daysqty 10 used
$6.82$9.34
19
90703-PE0-000Ships in 1 to 2 Days
$12.75$17.46
20
91301-805-000Ships in 1 to 2 Days
$3.65$5.00
21
91558-SD5-003Ships in 1 to 2 Daysqty 2 used
$8.32$11.40
22
93500-06018-4JShips in 1 to 2 Daysqty 2 used
$1.49$2.10
23
95701-06022-02Ships in 1 to 2 Daysqty 2 used
$1.18$1.70
24
95701-08035-02In Stockqty 2 used
$1.90$2.60
25
95701-08040-02Ships in 1 to 2 Daysqty 2 used
$1.33$1.88
26
95701-08050-02Ships in 1 to 2 Daysqty 10 used
$2.03$2.78
Diagram

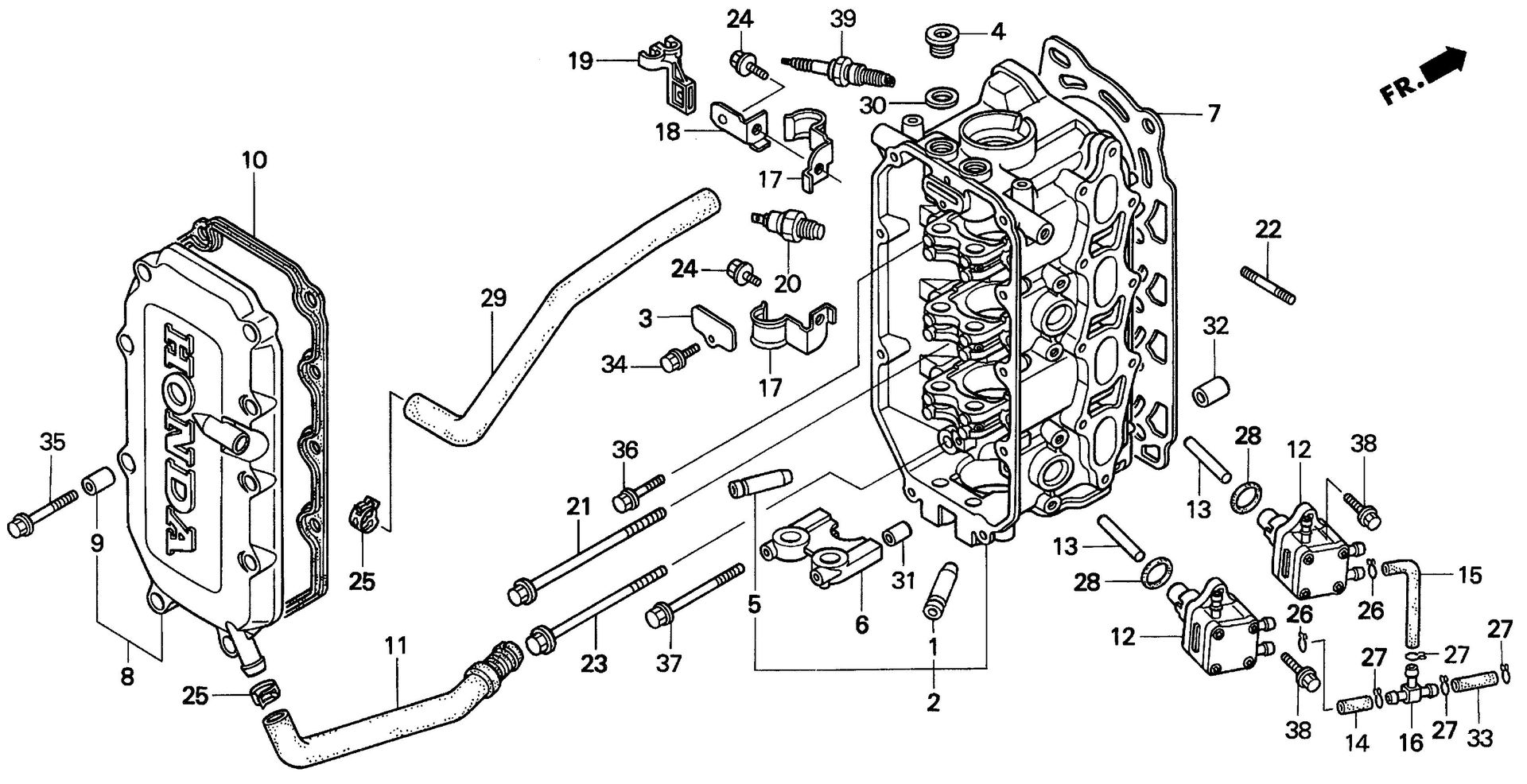

CYLINDER HEAD

BF90 BF90AW cylinder head exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW04E0200
Fits all 5 submodels of this generation.

Parts in this assembly

43 parts
1
12204-ZW1-305Ships in 1 to 2 Daysqty 8 used
$11.56$16.64
2
CYLINDER HEAD *NH8* (DARK GRAY)
12210-ZW1-000ZANo Longer Available
—
3
PLATE, OIL CHAMBER (NOT AVAILABLE)
12212-ZW1-000No Longer Available
$8.88$12.16
4
12217-ZY9-M01Ships in 1 to 2 Daysqty 2 used
$3.02$4.14
5
GUIDE, EX. VALVE (OVER SIZE)
12233-MG8-305No Longer Available
—
6
HOLDER, CAM THRUST (NOT AVAILABLE)
12237-ZW1-000No Longer Available
$66.62$91.26
7
GASKET, CYLINDER HEAD
12251-ZW1-004Ships in 1 to 2 Days
$102.05$139.80
7
12251-ZW1-014Ships in 1 to 2 Days
$97.19$139.80
8
COVER, CYLINDER HEAD
12310-ZW1-000No Longer Available
—
9
12314-ZV5-300Ships in 1 to 2 Daysqty 9 used
$4.83$6.82
10
12391-ZW1-010Ships in 1 to 2 Days
$44.28$63.68
11
TUBE, OIL (NOT AVAILABLE)
15422-ZW1-000No Longer Available
—
12
PUMP ASSY., FUEL (MSDS)
16700-ZV5-003Ships in 1 to 2 Daysqty 2 used
$116.64$159.78
12
16700-ZW1-004Ships in 1 to 2 Daysqty 2 used
$113.24$159.78
13
LIFTER, FUEL PUMP
16717-ZW1-000No Longer Available
$8.69$11.90
14
TUBE B, FUEL (NOT AVAILABLE)
16861-ZW1-000No Longer Available
—
15
TUBE C, FUEL (NOT AVAILABLE)
16871-ZW1-000No Longer Available
—
16
17195-MN5-000Ships in 1 to 2 Days
$9.27$12.70
17
19416-ZW1-000Ships in 1 to 2 Daysqty 2 used
$10.18$14.36
18
STAY A, IGNITION WIRE CLAMP (NOT AVAILABLE)
32761-PM3-000No Longer Available
—
19
CLAMP A, IGNITION WIRE (NOT AVAILABLE)
32765-PM3-000No Longer Available
—
20
SWITCH ASSY., THERMOSTAT (NOT AVAILABLE)
35670-ZW1-013No Longer Available
$39.01$53.44
20
SWITCH ASSY., THERMOSTAT
35670-ZW1-003No Longer Available
—
21
90005-PM3-003Ships in 1 to 2 Daysqty 8 used
$9.77$13.38
22
90006-ZW1-000Ships in 1 to 2 Daysqty 2 used
$3.31$4.76
23
90008-PZ1-003Ships in 1 to 2 Daysqty 2 used
$5.12$7.02
24
90013-ZV0-010Ships in 1 to 2 Daysqty 2 used
$1.80$2.46
25
90602-ZV5-013Ships in 1 to 2 Daysqty 2 used
$2.19$3.10
26
90603-ZV4-000Ships in 1 to 2 Daysqty 2 used
$1.42$1.94
27
90604-ZV0-000Ships in 1 to 2 Daysqty 4 used
$1.37$1.88
28
91351-MG7-003Ships in 1 to 2 Days
$2.50$3.52
29
TUBE, BREATHER (NOT AVAILABLE)
91401-ZW1-000No Longer Available
—
30
94109-20000Ships in 1 to 2 Daysqty 2 used
$1.28$1.76
31
94301-08140Ships in 1 to 2 Daysqty 2 used
$2.74$3.76
32
94301-12160Ships in 1 to 2 Daysqty 2 used
$3.01$4.12
33
95001-75008-60MShips in 1 to 2 Days
$131.68$189.42
34
95701-06012-00Ships in 1 to 2 Days
$2.01$2.76
35
95701-06035-02Ships in 1 to 2 Daysqty 9 used
$0.99$1.42
36
95701-08040-02Ships in 1 to 2 Daysqty 4 used
$1.33$1.88
37
95801-06080-09Ships in 1 to 2 Daysqty 2 used
$1.64$2.24
38
96001-06020-02In Stockqty 4 used
$1.20$1.64
39
98069-5771PIn Stock
$2.98
39
98069-57726Ships in 1 to 2 Daysqty 4 used
$2.18$2.98
Diagram

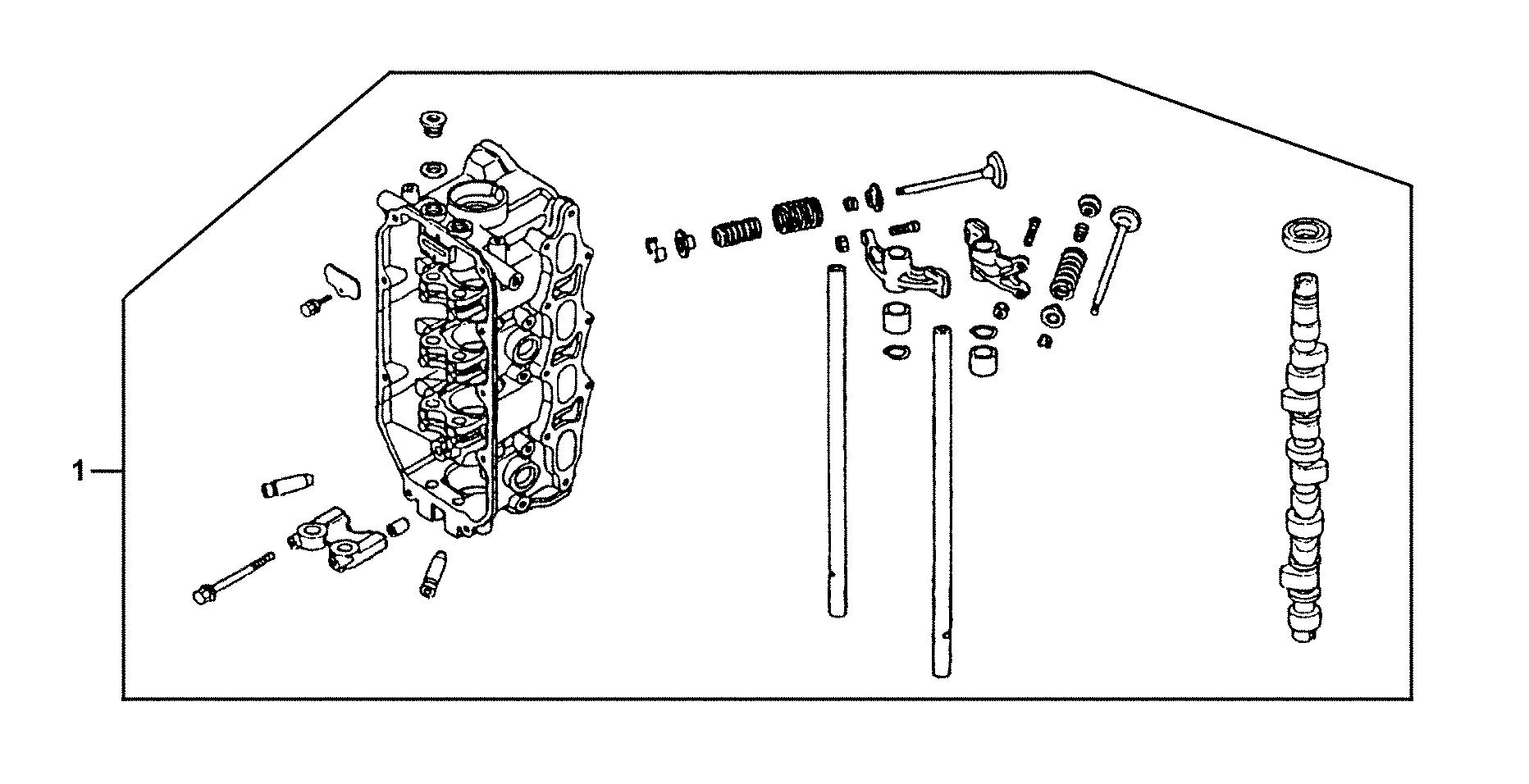

CYLINDER HEAD ASSEMBLY

BF90 BF90AW cylinder head assembly exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW04E02A1Z
Fits all 5 submodels of this generation.

Parts in this assembly

1 parts
1
CYLINDER HEAD ASSY. BARE *NH8* (DARK GRAY)
12215-ZW1-000ZANo Longer Available
—
Diagram

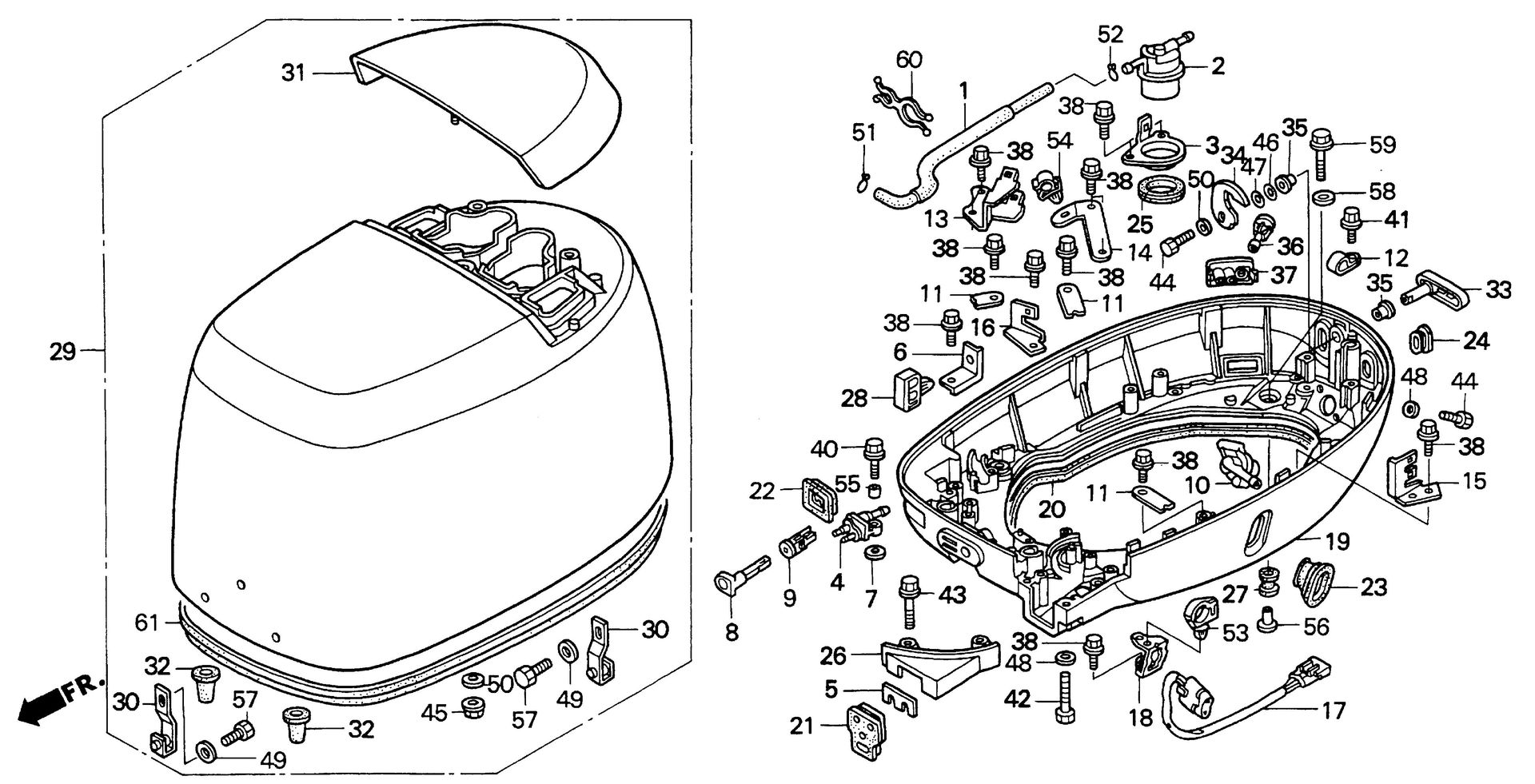

ENGINE LOWER CASE - ENGINE COVER

BF90 BF90AW engine lower case - engine cover exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW04F0800B
Fits all 5 submodels of this generation.

Parts in this assembly

64 parts
1
TUBE, FUEL (NOT AVAILABLE)
16850-ZW1-000No Longer Available
—
2
16900-SA5-004In Stock
$11.42$15.64
↳
Sierra alternative ·
18-7786In Stock save $1.08
$10.34
3
STAY, FUEL STRAINER (NOT AVAILABLE)
16914-ZW1-000No Longer Available
$18.26$25.02
4
04104-ZW9-010Ships in 1 to 2 Days
$52.46$75.46
4
17710-ZV4-005Ships in 1 to 2 Days
$52.46$75.46
5
17877-ZW1-000Ships in 1 to 2 Days
$9.87$14.20
6
HOLDER, THROTTLE CABLE
17922-ZW1-000Ships in 1 to 2 Days
$4.91$6.72
7
17936-921-000Ships in 1 to 2 Days
$1.20$1.64
8
KNOB, CHOKE (NOT AVAILABLE)
17951-ZV5-000No Longer Available
—
9
GUIDE, CHOKE KNOB (NOT AVAILABLE)
17953-ZW1-000No Longer Available
—
10
JOINT, WATER INLET (NOT AVAILABLE)
19266-ZW1-010No Longer Available
$50.52$69.20
11
24626-ZV5-000Ships in 1 to 2 Daysqty 3 used
$2.25$3.18
11
24626-ZV5-010In Stockqty 3 used
$2.25$3.18
12
30564-ZE8-003Ships in 1 to 2 Daysqty 2 used
$2.60$3.66
13
BRACKET, CONNECTOR
32109-ZV5-000Ships in 1 to 2 Days
$4.79$6.56
14
BRACKET, CLIP A
32112-ZW1-000Ships in 1 to 2 Days
$4.10$5.62
15
BRACKET, CLIP B
32113-ZW1-000No Longer Available
—
16
BRACKET, HARNESS CLIP
32114-ZV5-820No Longer Available
—
17
SWITCH ASSY., POWER TRIM-TILT
35640-ZW1-023No Longer Available
$61.26$83.92
18
35645-ZW1-000Ships in 1 to 2 Days
$13.65$19.64
19
CASE, ENGINE (LOWER) *NH282MU* (OYSTER SILVER METALLIC-U) (NOT AVAILABLE)
40101-ZW1-405ZANo Longer Available
—
20
SEAL, CASE (LOWER) (NOT AVAILABLE)
40103-ZW1-000No Longer Available
—
21
GROMMET, CASE (LOWER) (A) (NOT AVAILABLE)
40105-ZW1-000No Longer Available
—
22
40106-ZV5-000Ships in 1 to 2 Days
$7.88$11.12
23
40114-ZV5-821Ships in 1 to 2 Days
$10.23$14.44
24
GROMMET, CASE (LOWER) (NOT AVAILABLE)
40116-ZW1-000No Longer Available
$14.21$19.46
25
GROMMET, FUEL STRAINER (NOT AVAILABLE)
40146-ZV5-000No Longer Available
$8.07$11.06
26
CASE, SEPARATE *NH282MU* (OYSTER SILVER METALLIC-U) (NOT AVAILABLE)
40151-ZW1-000ZANo Longer Available
$42.21$57.82
27
51640-121-730Ships in 1 to 2 Daysqty 4 used
$3.68$5.04
28
CLIP, RETURN PIPE (6MM) (NOT AVAILABLE)
53728-SF1-A51No Longer Available
—
29
COVER ASSY., ENGINE *NH282MU* (OYSTER SILVER METALLIC-U)
63100-ZW1-000ZANo Longer Available
—
30
HOOK, ENGINE COVER
63103-ZW1-000No Longer Available
—
31
HANDLE, TILT *NH282MU* (OYSTER SILVER METALLIC-U)
63105-ZW1-000ZANo Longer Available
—
32
63108-ZW1-000Ships in 1 to 2 Daysqty 3 used
$6.56$9.42
33
63201-ZW1-000ZAShips in 1 to 2 Daysqty 2 used
$59.29$85.28
34
63202-ZW1-000Ships in 1 to 2 Daysqty 2 used
$12.25$17.62
35
63205-920-000Ships in 1 to 2 Daysqty 4 used
$4.53$6.20
36
82873-ZV5-003Ships in 1 to 2 Days
$5.71$8.06
37
GROMMET, WATER CHECK (NOT AVAILABLE)
82873-ZW1-000No Longer Available
—
38
90013-ZV0-010Ships in 1 to 2 Daysqty 13 used
$1.80$2.46
40
90013-ZV4-010Ships in 1 to 2 Days
$1.36$1.92
41
90019-ZV1-010Ships in 1 to 2 Daysqty 2 used
$1.36$1.86
42
90113-ZV0-000Ships in 1 to 2 Days
$3.81$5.22
43
90015-ZV0-000Ships in 1 to 2 Daysqty 2 used
$2.64$3.62
44
90127-ZV4-000In Stockqty 4 used
$2.12$2.90
45
90301-473-003Ships in 1 to 2 Daysqty 3 used
$4.10$5.62
46
90505-ZV1-000In Stockqty 2 used
$2.44$3.34
47
90506-ZV1-000In Stockqty 2 used
$2.44$3.34
48
90506-ZV4-000Ships in 1 to 2 Daysqty 3 used
$2.45$3.36
49
90507-ZV4-000Ships in 1 to 2 Daysqty 2 used
$2.20$3.02
50
90512-921-010In Stockqty 5 used
$1.07$1.46
51
90603-ZV4-000Ships in 1 to 2 Days
$1.42$1.94
52
90604-ZV0-000Ships in 1 to 2 Days
$1.37$1.88
53
90652-HC4-003Ships in 1 to 2 Days
$6.54$8.96
54
90679-679-004Ships in 1 to 2 Days
$8.82$12.44
55
COLLAR, DISTANCE (6MM) (NOT AVAILABLE)
91551-ZV4-000No Longer Available
$2.95$4.04
56
91504-ZY9-M03Ships in 1 to 2 Daysqty 4 used
$5.65$7.74
56
91551-ZW1-010Ships in 1 to 2 Daysreplaced by 91504-ZY9-M03
$5.65$7.74
56
91554-ZW1-000Ships in 1 to 2 Daysreplaced by 91504-ZY9-M03
$5.65$7.74
57
BOLT, HEX. (8X16)
92101-08016-4JShips in 1 to 2 Daysqty 2 used
$3.11$4.26
58
94103-08200Ships in 1 to 2 Daysqty 4 used
$0.61$0.84
59
95701-08035-02In Stockqty 4 used
$1.90$2.60
60
90630-ZW1-003Ships in 1 to 2 Days
$2.55$3.68
61
63102-ZW1-300Ships in 1 to 2 Days
$61.13$87.94
Diagram

EXTENSION CASE - GEAR CASE

BF90 BF90AW extension case - gear case exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW04F0300B
Fits all 5 submodels of this generation.

Parts in this assembly

69 parts
1
17738-SP0-003No Longer Availableqty 2 used
$8.15$11.16
2
32161-KM3-003Ships in 1 to 2 Daysqty 2 used
$3.34$4.58
3
$1,171.40
3
$1,171.40
4
40209-ZW1-000Ships in 1 to 2 Days
$14.94$21.08
5
COVER, DRAIN PLUG *NH282MU* (OYSTER SILVER METALLIC-U)
40212-ZW1-000ZANo Longer Available
—
6
40219-ZY3-013Ships in 1 to 2 Daysreplaced by 40219-ZY3-023
$9.05$12.40
6
40219-ZY3-023Ships in 1 to 2 Days
$9.05$12.40
7
CASE, GEAR (NA USE ALT:41100-ZW1-013ZA)
41101-ZW1-003No Longer Available
—
7
CASE, GEAR (20") *NH282MU* (OYSTER SILVER METALLIC-U)
41101-ZW1-013No Longer Available
—
7
CASE, GEAR *NH282MU* (OYSTER SILVER METALLIC-U)
41101-ZW1-B01ZAShips in 1 to 2 Days
$916.18
7
CASE, GEAR *NH282MU* (OYSTER SILVER METALLIC-U) (NOT AVAILABLE)
41101-ZW1-B02ZANo Longer Available
—
8
41104-ZW1-003Ships in 1 to 2 Days
$19.74$27.04
9
TAB, TRIM *NH282MU* (OYSTER SILVER METALLIC-U) (NOT AVAILABLE)
41107-ZW1-003ZANo Longer Available
$19.90
↳
Sierra alternative ·
18-6011AIn Stock save $2.09
$17.81
9
TAB, TRIM *NH282MU* (OYSTER SILVER METALLIC-U)
41107-ZW1-B00ZANo Longer Available
—
10
41109-ZW1-003In Stockqty 2 used
$12.31$16.86
10
41109-ZW1-B00In Stock
$18.12$24.82
11
41171-ZV5-000Ships in 1 to 2 Days
$6.04$8.28
12
41172-ZV5-000Ships in 1 to 2 Days
$7.65$10.48
13
50111-ZW1-010ZAShips in 1 to 2 Daysqty 2 used
$73.31$76.98
14
RUBBER, MOUNT (LOWER) (NOT AVAILABLE)
50155-ZW1-000No Longer Available
—
15
50156-ZW1-000Ships in 1 to 2 Daysqty 2 used
$17.51$23.98
15
50156-ZW1-010Ships in 1 to 2 Daysqty 2 used
$17.51$23.98
16
$154.38$162.09
17
63702-ZW1-000Ships in 1 to 2 Daysreplaced by 63719-ZW5-000
$9.52$13.70
17
63719-ZW5-000Ships in 1 to 2 Days
$9.52$13.70
18
COVER (LOWER) *NH282MU* (OYSTER SILVER METALLIC-U)
63710-ZW1-000ZANo Longer Available
—
19
63719-ZW1-000Ships in 1 to 2 Days
$13.23$19.02
20
BOLT, HEX. (8X30) (NOT AVAILABLE)
90102-ZV4-000No Longer Available
—
21
90104-ZW1-900Ships in 1 to 2 Days
$12.98$18.32
22
90106-ZW1-003Ships in 1 to 2 Daysqty 2 used
$7.11$9.74
23
90107-ZW1-003Ships in 1 to 2 Days
$5.59$7.66
24
90110-ZV5-000Ships in 1 to 2 Days
$3.36$4.74
25
90112-ZW1-003Ships in 1 to 2 Days
$3.20$4.38
25
90111-881-000Ships in 1 to 2 Days
$2.91$4.10
26
90118-ZY6-000Ships in 1 to 2 Daysqty 2 used
$38.97$53.38
27
90119-ZV5-000Ships in 1 to 2 Daysqty 2 used
$1.65$2.26
28
90120-ZW1-003Ships in 1 to 2 Days
$9.50$13.02
29
90123-ZV5-010Ships in 1 to 2 Daysqty 14 used
$6.51$9.36
30
90308-ZW1-003Ships in 1 to 2 Daysqty 2 used
$10.16$13.92
31
90309-ZW1-003Ships in 1 to 2 Days
$5.93$8.12
31
90205-PP9-020Ships in 1 to 2 Days
$8.86$12.74
32
90311-ZV5-000Ships in 1 to 2 Daysqty 2 used
$7.65$10.80
34
90401-ZW1-000Ships in 1 to 2 Daysqty 6 used
$2.23$3.06
35
90452-GK4-600In Stockqty 2 used
$1.28$1.82
36
90507-ZW1-003Ships in 1 to 2 Days
$1.26$1.72
37
90512-ZW1-003In Stockqty 3 used
$1.99$2.72
38
90559-ZW1-000Ships in 1 to 2 Daysqty 4 used
$5.65$7.74
39
90563-ZV5-000Ships in 1 to 2 Daysqty 15 used
$2.44$3.34
40
90751-ZW1-003Ships in 1 to 2 Days
$2.28$3.12
41
90756-ZV5-000In Stockqty 2 used
$2.64$3.62
42
90756-ZW1-003Ships in 1 to 2 Days
$2.28$3.12
43
91563-ZV5-000Ships in 1 to 2 Days
$6.23$8.80
44
91568-ZV5-000In Stock
$3.88$5.48
45
91569-ZV5-000In Stock
$4.83$6.82
46
93500-05030-4JShips in 1 to 2 Days
$2.18$3.06
47
93500-05045-4JShips in 1 to 2 Days
$2.50$3.52
48
95005-50003-30MNo Longer Available
$26.56$36.38
49
95701-06012-02Ships in 1 to 2 Daysqty 3 used
$2.10$2.96
50
19286-ZW1-B00Ships in 1 to 2 Days
$6.28$8.60
51
41102-ZW1-B00Ships in 1 to 2 Days
$6.29$8.62
52
41104-ZV5-000Ships in 1 to 2 Days
$7.65$11.00
53
41105-ZV5-000Ships in 1 to 2 Days
$7.65$11.00
54
90105-ZVA-000In Stockqty 2 used
$4.20$5.76
55
90115-ZV5-000Ships in 1 to 2 Days
$3.83$5.40
56
90120-ZV5-003In Stock
$5.97$8.58
57
90302-ZV4-000Ships in 1 to 2 Days
$4.91$6.72
58
90507-921-000Ships in 1 to 2 Days
$0.89$1.22
59
SCREW, OVAL (5X45)
93700-05045-4JShips in 1 to 2 Days
$1.96$2.68
Diagram

FUEL TANK

BF90 BF90AW fuel tank exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW04F0600ZA
Fits all 5 submodels of this generation.

Parts in this assembly

20 parts
1
16900-ZV5-902Ships in 1 to 2 Days
$27.02$37.02
2
16977-ZV5-A00Ships in 1 to 2 Days
$14.60$20.00
↳
Sierra alternative ·
18-80400In Stock save $3.72
$10.88
3
16979-ZV5-900Ships in 1 to 2 Days
$0.60$0.82
4
17500-ZV5-904Ships in 1 to 2 Daysreplaced by 17500-ZZ5-711
$177.42$243.04
4
17500-ZZ5-711Ships in 1 to 2 Days
$177.42$243.04
5
17583-ZV5-901In Stock
$1.90$2.60
6
CAP, FUEL FILLER
17620-ZV5-900No Longer Available
—
7
04104-ZW9-010Ships in 1 to 2 Days
$52.46$75.46
7
17650-ZV4-005Ships in 1 to 2 Days
$52.46$75.46
8
17660-ZW9-003Ships in 1 to 2 Days
$32.18$44.08
9
17661-921-010Ships in 1 to 2 Days
$12.99$17.80
10
17665-ZV5-000Ships in 1 to 2 Days
$12.13$16.62
11
17680-ZV4-000Ships in 1 to 2 Days
$12.13$16.62
12
04101-ZW9-010Ships in 1 to 2 Days
$95.37$137.18
12
17700-ZV5-010Ships in 1 to 2 Days
$95.37$137.18
13
17701-ZV5-000Ships in 1 to 2 Days
$46.09$63.14
14
TUBE, FUEL SHORT (6.3X500) (NOT AVAILABLE)
17702-ZV4-000No Longer Available
$9.75$13.36
15
17703-921-000Ships in 1 to 2 Daysqty 2 used
$3.53$4.84
16
17704-ZV4-010Ships in 1 to 2 Daysqty 4 used
$2.18$2.98
17
GASKET, FUEL CAP (NOT AVAILABLE)
17624-ZV5-900No Longer Available
—
Diagram

GASKET KIT

Honda publishes no exploded diagram for this assembly. The parts list below is complete.
Ref numbers on the diagram match the badges belowNOILL
Fits all 5 submodels of this generation.

Parts in this assembly

27 parts
0
GASKET KIT
06111-ZW1-000Ships in 1 to 2 Days
$302.56$414.46
1
11381-ZW1-000Ships in 1 to 2 Days
$82.30$118.38
2
12209-KL4-005Ships in 1 to 2 Daysqty 8 used
$7.88$10.80
3
12209-MB9-003Ships in 1 to 2 Daysqty 4 used
$12.56$18.06
4
12251-ZW1-014Ships in 1 to 2 Days
$97.19$139.80
5
12391-ZW1-010Ships in 1 to 2 Days
$44.28$63.68
6
15142-PH3-003Ships in 1 to 2 Days
$2.83$4.00
7
15635-ZG3-800Ships in 1 to 2 Days
$1.69$2.38
8
16221-ZW1-000Ships in 1 to 2 Days
$6.57$9.46
↳
Sierra alternative ·
18-2472In Stock
$7.55
9
17151-ZW1-000Ships in 1 to 2 Days
$13.24$19.04
10
17384-ZW1-000Ships in 1 to 2 Days
$18.59$26.74
11
17394-ZV5-000Ships in 1 to 2 Days
$4.31$6.08
12
18333-ZW1-000Ships in 1 to 2 Days
$9.87$14.20
13
19296-ZW1-000Ships in 1 to 2 Daysqty 2 used
$7.42$10.68
14
19297-ZW1-000In Stockqty 2 used
$7.68$11.04
15
19351-ZV5-000In Stock
$2.98$4.20
16
19371-ZW1-000Ships in 1 to 2 Days
$40.56$58.34
17
23172-ZW1-003Ships in 1 to 2 Days
$115.78$158.60
17
23172-ZW1-013Ships in 1 to 2 Days
$115.78$158.60
18
90601-ZE2-000In Stock
$2.38$3.26
19
91301-ZW1-000Ships in 1 to 2 Days
$10.70$15.40
20
91301-805-000Ships in 1 to 2 Days
$3.65$5.00
21
91302-ZW1-000Ships in 1 to 2 Days
$7.85$11.08
22
O-RING (54.4X3.1) (NOT AVAILABLE)
91303-ZW1-003No Longer Available
$10.56$14.46
23
91351-MG7-003Ships in 1 to 2 Days
$2.50$3.52
24
91309-PJ7-010Ships in 1 to 2 Days
$3.05$4.30
25
91356-SD4-953In Stockqty 2 used
$3.88$5.58
Diagram

GASKET KIT (SHORT BLOCK & HEAD ASSY.)

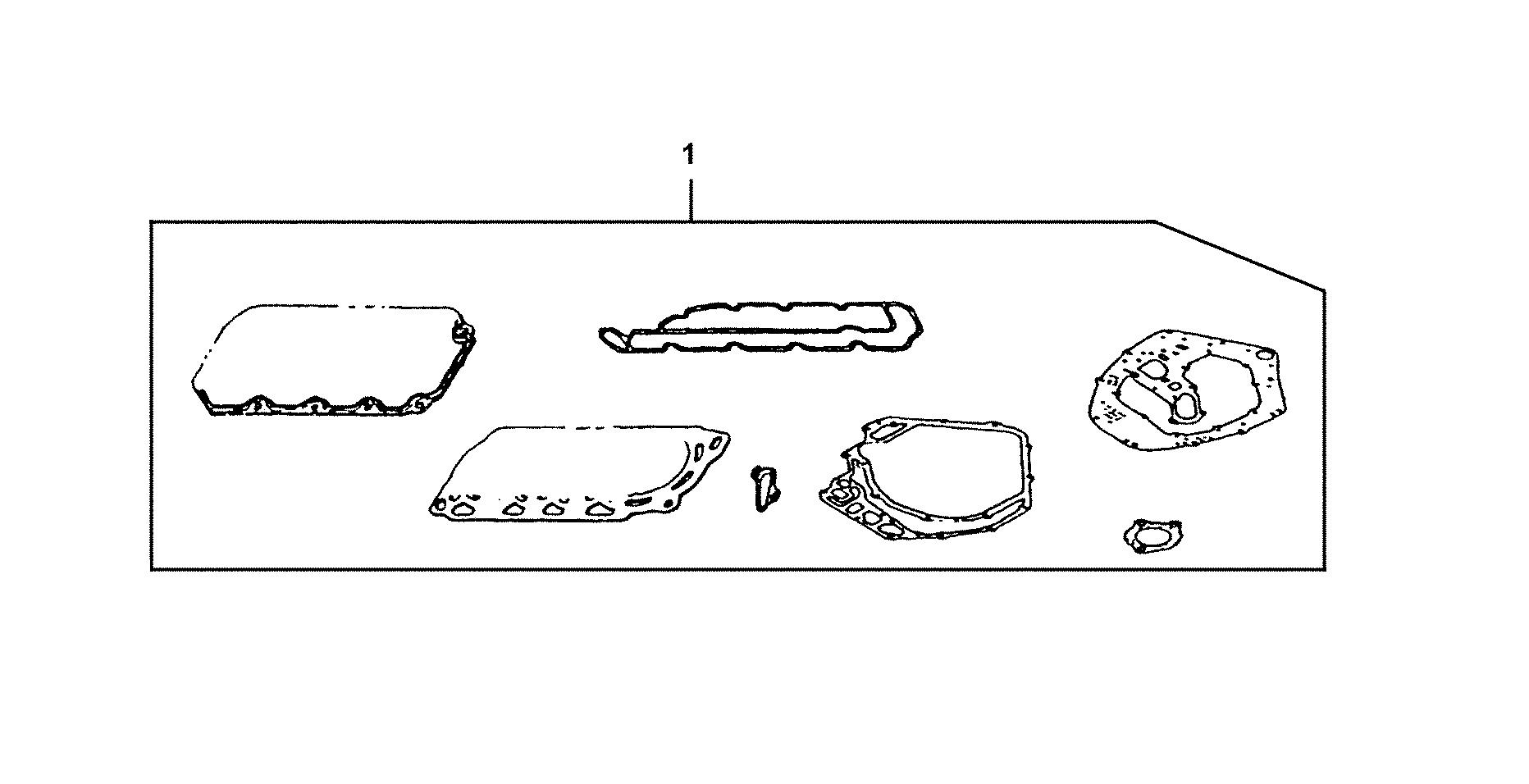

BF90 BF90AW gasket kit (short block & head assy.) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW04E03A5Z
Fits all 5 submodels of this generation.

Parts in this assembly

1 parts
1
GASKET KIT (SHORT BLOCK, HEAD ASSY.)
06115-ZW1-010No Longer Available
—
Diagram

GEAR CASE ASSY.

BF90 BF90AW gear case assy. exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW04F0150BA
Fits all 5 submodels of this generation.

Parts in this assembly

22 parts
1
SEPARATOR, EXTENSION *NH282MU* (OYSTER SILVER METALLIC-U)
40202-ZW1-710ZANo Longer Available
$1,337.02$1,831.54
2
40210-ZW1-710Ships in 1 to 2 Days
$27.89$38.20
3
CASE ASSY., GEAR *NH282MU* (OYSTER SILVER METALLIC-U)
41100-ZW1-003ZANo Longer Available
—
3
CASE ASSY., GEAR *NH282MU* (OYSTER SILVER METALLIC-U)
41100-ZW1-711ZAShips in 1 to 2 Daysreplaced by 41100-ZW1-712ZA
$1,843.29
3
CASE ASSY., GEAR (20") *NH282MU* (L-TYPE) (OYSTER SILVER METALLIC-U) (NOT AVAILABLE: REPLACE WITH PARTS LISTED IN PIB #M06-03.)
41100-ZW1-013ZANo Longer Available
—
3
CASE ASSY., GEAR (25") *NH282MU* (UL-TYPE) (OYSTER SILVER METALLIC-U) (NOT AVAILABLE)
41100-ZW1-712ZANo Longer Available
—
4
90124-ZW1-910Ships in 1 to 2 Days
$30.54$43.10
5
90125-ZW1-910Ships in 1 to 2 Daysqty 4 used
$27.54$38.84
6
90306-ZV5-003In Stockqty 5 used
$3.40$4.66
7
90501-ZW1-710Ships in 1 to 2 Days
$18.59$25.46
8
90563-ZV5-000Ships in 1 to 2 Daysqty 5 used
$2.44$3.34
9
90651-ZW1-710Ships in 1 to 2 Days
$11.40$15.62
10
90756-ZV5-000In Stockqty 2 used
$2.64$3.62
11
SEAL (NOT AVAILABLE)
19253-ZW1-003No Longer Available
$8.18$11.20
12
90301-ZW1-003Ships in 1 to 2 Days
$21.84$29.92
↳
Sierra alternative ·
18-3700In Stock save $6.73
$15.11
13
WASHER, PROPELLER THRUST (NOT AVAILABLE)
90506-ZW1-003No Longer Available
$30.48$41.76
14
90508-ZW1-003Ships in 1 to 2 Days
$4.92$6.74
↳
Sierra alternative ·
18-3200-9In Stock
$82.79
15
19253-ZW1-B01Ships in 1 to 2 Days
$5.83$7.98
16
CASE ASSY., GEAR *NH282MU* (OYSTER SILVER METALLIC-U)
41100-ZW1-B03ZAShips in 1 to 2 Days
$2,657.76
16
CASE ASSY., GEAR *NH282MU* (OYSTER SILVER METALLIC-U)
41100-ZW1-B06ZAShips in 1 to 2 Days
$2,657.76
16
CASE ASSY., GEAR *NH282MU* (OYSTER SILVER METALLIC-U)
41100-ZW1-B32ZAShips in 1 to 2 Days
$2,186.73
16
CASE ASSY., GEAR *NH282MU* (OYSTER SILVER METALLIC-U)
41100-ZW1-B36ZAShips in 1 to 2 Days
$2,186.73
Diagram

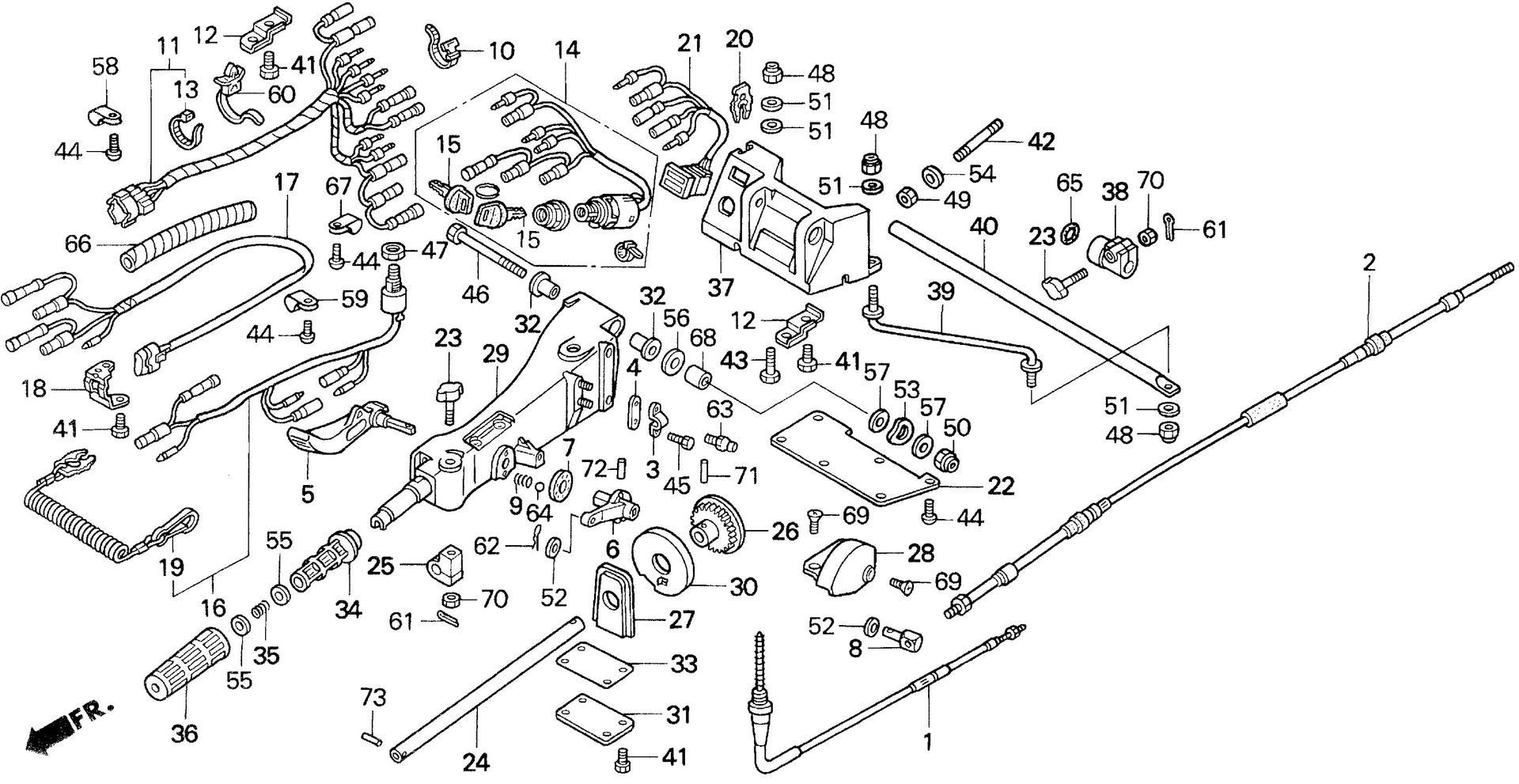

HANDLEBAR

BF90 BF90AW handlebar exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW04F0100A
Fits only BF90AW-JHTA, BF90AW-LHTA — not every submodel of this generation.

Parts in this assembly

73 parts
1
CABLE, THROTTLE
17910-ZW1-701No Longer Available
—
2
CABLE, SHIFT (NOT AVAILABLE)
24590-ZW1-701No Longer Available
—
3
HOLDER, SHIFT CABLE (NOT AVAILABLE)
24591-ZW1-700No Longer Available
$17.59$24.10
4
24592-ZW1-700Ships in 1 to 2 Days
$12.66$18.20
5
24614-ZW1-700Ships in 1 to 2 Days
$91.78$125.72
6
LINK, SHIFT (A) (NOT AVAILABLE)
24615-ZW1-700No Longer Available
$83.29$114.10
7
24617-ZW1-700Ships in 1 to 2 Days
$28.32$40.74
8
24618-ZV5-000Ships in 1 to 2 Days
$14.05$19.82
9
24619-ZW1-700Ships in 1 to 2 Daysqty 2 used
$3.31$4.76
10
32161-404-000Ships in 1 to 2 Days
$2.15$2.94
11
HARNESS ASSY., CONTROL PANEL (NOT AVAILABLE)
32535-ZW1-700No Longer Available
—
12
32748-PR3-000Ships in 1 to 2 Daysqty 2 used
$10.63$15.00
13
32901-952-770Ships in 1 to 2 Daysqty 2 used
$2.19$3.00
14
SWITCH ASSY., COMBINATION (NOT AVAILABLE)
35100-ZW1-701No Longer Available
—
15
35110-ZV5-003Ships in 1 to 2 Daysqty 2 used
$7.99$11.48
16
SWITCH ASSY., EMERGENCY STOP
35180-ZW1-702No Longer Available
—
17
SWITCH ASSY., POWER TRIM-TILT
35370-ZW1-703No Longer Available
$77.88$106.68
18
35645-ZW1-000Ships in 1 to 2 Days
$13.65$19.64
19
36182-ZV4-651In Stock
$18.45$25.28
20
36187-ZV4-652Ships in 1 to 2 Days
$4.18$5.72
21
37210-ZW1-702Ships in 1 to 2 Days
$119.31$163.44
22
COVER, STEERING BRACKET (NOT AVAILABLE)
50282-ZW1-700No Longer Available
$30.66$42.00
23
53104-ZV3-000Ships in 1 to 2 Daysqty 2 used
$16.76$23.66
24
PIPE, THROTTLE (NOT AVAILABLE)
53105-ZW1-700No Longer Available
—
25
BLOCK, THROTTLE FRICTION (NOT AVAILABLE)
53106-ZV3-000No Longer Available
$6.58$9.02
26
GEAR, THROTTLE REEL (NOT AVAILABLE)
53107-ZW1-701No Longer Available
—
27
53108-ZW1-700Ships in 1 to 2 Days
$52.57$75.62
28
COVER, SHIFT LINK (NOT AVAILABLE)
53109-ZW1-700No Longer Available
$102.39$140.26
29
HANDLEBAR *NH282MU* (OYSTER SILVER METALLIC-U) (NOT AVAILABLE)
53111-ZW1-700ZANo Longer Available
—
30
CAP, CABLE HOLDER
53112-ZW1-701Ships in 1 to 2 Days
$29.65$40.62
31
53114-ZW1-700Ships in 1 to 2 Days
$18.97$27.28
32
53116-ZW1-700Ships in 1 to 2 Daysqty 2 used
$13.23$19.02
33
GASKET, REEL GEAR (NOT AVAILABLE)
53117-ZW1-700No Longer Available
—
34
PIPE, GRIP (NOT AVAILABLE)
53141-ZV3-000No Longer Available
$38.82$53.18
35
53148-ZV3-000Ships in 1 to 2 Days
$2.98$4.28
36
RUBBER, GRIP
53165-ZV4-000No Longer Available
$12.66$17.34
37
BRACKET, STEERING *NH282MU* (OYSTER SILVER METALLIC-U) (NOT AVAILABLE)
53233-ZW1-700ZANo Longer Available
$705.57$966.54
38
53236-ZW1-700Ships in 1 to 2 Days
$61.95$87.40
39
53238-ZW1-700Ships in 1 to 2 Days
$68.20$96.22
40
53239-ZW1-701Ships in 1 to 2 Days
$63.29$89.30
41
90105-881-000Ships in 1 to 2 Daysqty 7 used
$2.12$2.90
42
90109-ZV5-000Ships in 1 to 2 Daysqty 2 used
$6.39$9.20
43
90115-881-000Ships in 1 to 2 Days
$4.01$5.78
44
90123-ZV3-000Ships in 1 to 2 Daysqty 13 used
$1.83$2.62
45
90127-ZV4-000In Stockqty 2 used
$2.12$2.90
46
BOLT, HEX. (12X100) (NOT AVAILABLE)
90129-ZV5-850No Longer Available
$20.69$28.34
47
90302-921-000In Stock
$4.10$5.62
48
90305-ZV4-000Ships in 1 to 2 Daysqty 3 used
$6.02$8.24
49
90306-ZV5-003In Stockqty 2 used
$3.40$4.66
50
90308-ZV5-003Ships in 1 to 2 Days
$9.77$13.38
51
90401-ZW1-000Ships in 1 to 2 Daysqty 4 used
$2.23$3.06
52
90504-921-010Ships in 1 to 2 Daysqty 2 used
$1.27$1.74
53
90506-ZV1-000In Stock
$2.44$3.34
54
90514-ZV4-000Ships in 1 to 2 Daysqty 2 used
$1.69$2.32
55
90543-ZV3-000Ships in 1 to 2 Daysqty 2 used
$2.45$3.52
56
90552-ZV5-000Ships in 1 to 2 Days
$4.67$6.40
57
90559-ZV5-000Ships in 1 to 2 Daysqty 2 used
$2.95$4.04
58
90602-SB0-003Ships in 1 to 2 Daysqty 2 used
$4.04$5.54
59
90627-ZA8-E50Ships in 1 to 2 Daysqty 2 used
$2.01$2.76
60
90672-SB2-003Ships in 1 to 2 Daysqty 2 used
$5.53$7.58
61
90759-ZV1-000In Stockqty 2 used
$1.42$1.94
62
90765-ZW1-000Ships in 1 to 2 Days
$2.10$2.96
63
90951-ZV7-010Ships in 1 to 2 Days
$1.90$2.60
64
BALL, CLICK (NOT AVAILABLE)
90951-ZW1-700No Longer Available
—
65
91352-ZV5-000Ships in 1 to 2 Days
$1.74$2.46
66
91451-ZW1-701Ships in 1 to 2 Days
$6.25$8.98
67
91475-SB6-000Ships in 1 to 2 Daysqty 3 used
$7.72$10.58
68
91552-ZW1-700Ships in 1 to 2 Days
$15.26$21.94
69
SCREW, OVAL (6X16)
93700-06016-4JShips in 1 to 2 Daysqty 3 used
$2.57$3.52
70
94002-06490-0SShips in 1 to 2 Daysqty 2 used
$2.58$3.54
71
94305-30203Ships in 1 to 2 Days
$1.18$1.62
72
94305-40203Ships in 1 to 2 Days
$1.42$1.94
73
94305-40283Ships in 1 to 2 Days
$1.81$2.60
Diagram

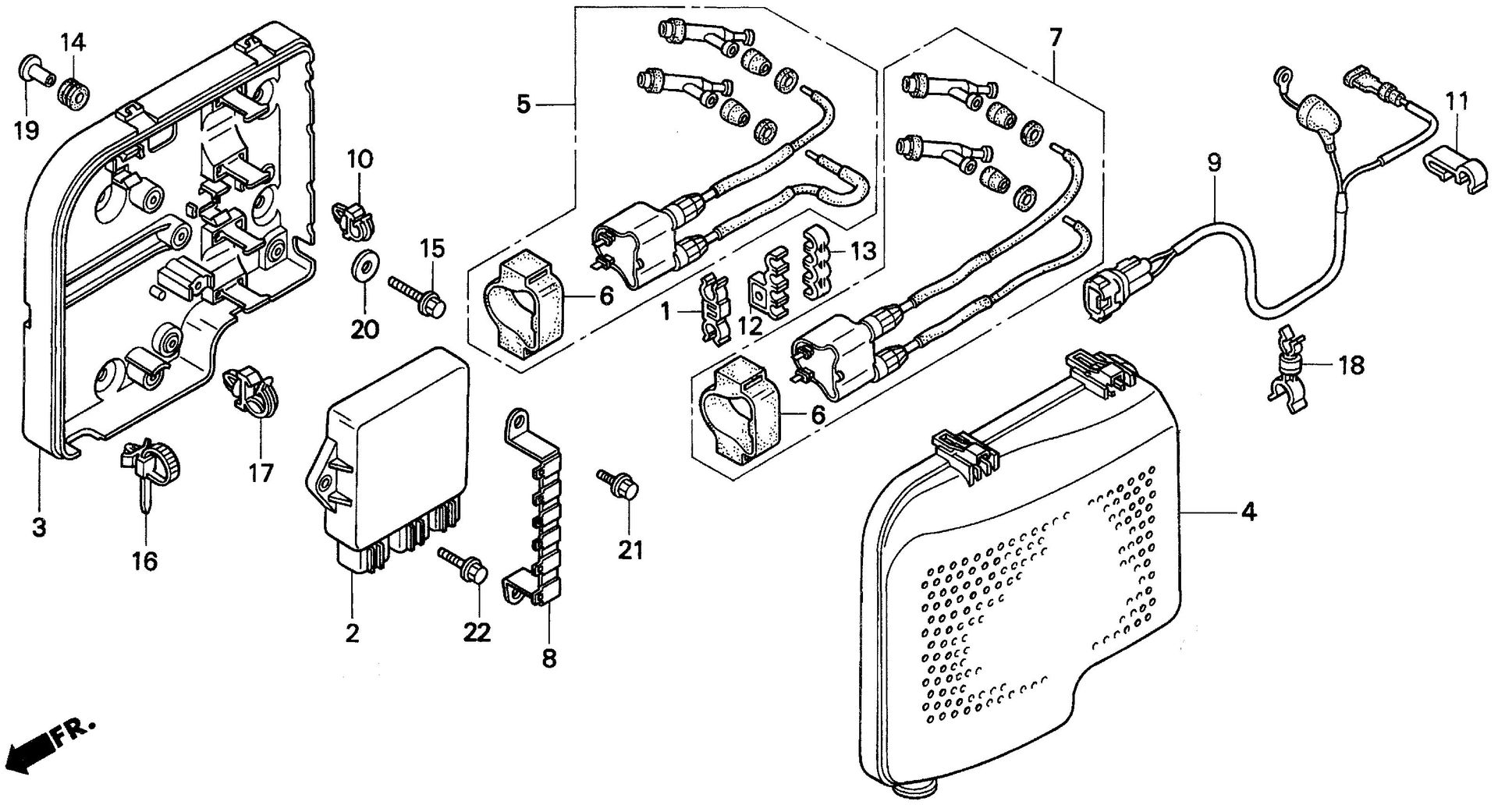

IGNITION COIL (1)

BF90 BF90AW ignition coil (1) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW04E2000
Fits all 5 submodels of this generation.

Parts in this assembly

24 parts
1
CLAMP, INTERCOOLER RESERVE TANK TUBE
19786-PP8-003No Longer Available
—
2
MODULE, IGNITION CONTROL (CDI)
30400-ZW1-003No Longer Available
—
2
MODULE, IGNITION CONTROL (CDI) (NOT AVAILABLE)
30400-ZW1-013No Longer Available
—
3
30416-ZW1-000Ships in 1 to 2 Days
$69.26$99.64
4
COVER, IGNITION CONTROL MODULE (CDI) (NOT AVAILABLE)
30421-ZW1-000No Longer Available
—
5
COIL ASSY., IGNITION (1)
30500-ZW1-004No Longer Available
—
6
30506-ML4-003Ships in 1 to 2 Daysqty 2 used
$5.62$8.08
7
COIL ASSY., IGNITION (2)
30550-ZW1-004No Longer Available
—
8
BRACKET, CONNECTOR
32108-ZW1-000Ships in 1 to 2 Days
$12.29$16.84
9
WIRE, SWITCH (NOT AVAILABLE)
32193-ZW1-000No Longer Available
—
10
32660-MJ6-710Ships in 1 to 2 Daysqty 3 used
$3.43$4.70
11
32763-PA0-000Ships in 1 to 2 Days
$10.34$14.16
12
CLAMP B, IGNITION WIRE (NOT AVAILABLE)
32766-PM3-000No Longer Available
$9.97$13.66
13
CLAMP, IGNITION WIRE
32777-695-000No Longer Available
—
14
40102-ZV5-000Ships in 1 to 2 Daysqty 4 used
$2.64$3.62
15
90121-ZV0-010Ships in 1 to 2 Daysqty 4 used
$2.29$3.30
16
90672-SA0-003Ships in 1 to 2 Days
$7.17$9.82
17
90682-ZV5-003Ships in 1 to 2 Daysqty 3 used
$1.66$2.34
18
91402-ZW1-003Ships in 1 to 2 Days
$3.08$4.44
19
91553-ZV5-000Ships in 1 to 2 Daysqty 4 used
$2.67$3.66
19
91553-ZV5-010Ships in 1 to 2 Daysqty 4 used
$2.67$3.66
20
94103-06200Ships in 1 to 2 Daysqty 4 used
$1.04$1.46
21
95701-06012-02Ships in 1 to 2 Daysqty 2 used
$2.10$2.96
22
95701-06016-02Ships in 1 to 2 Daysqty 2 used
$0.98$1.34
Diagram

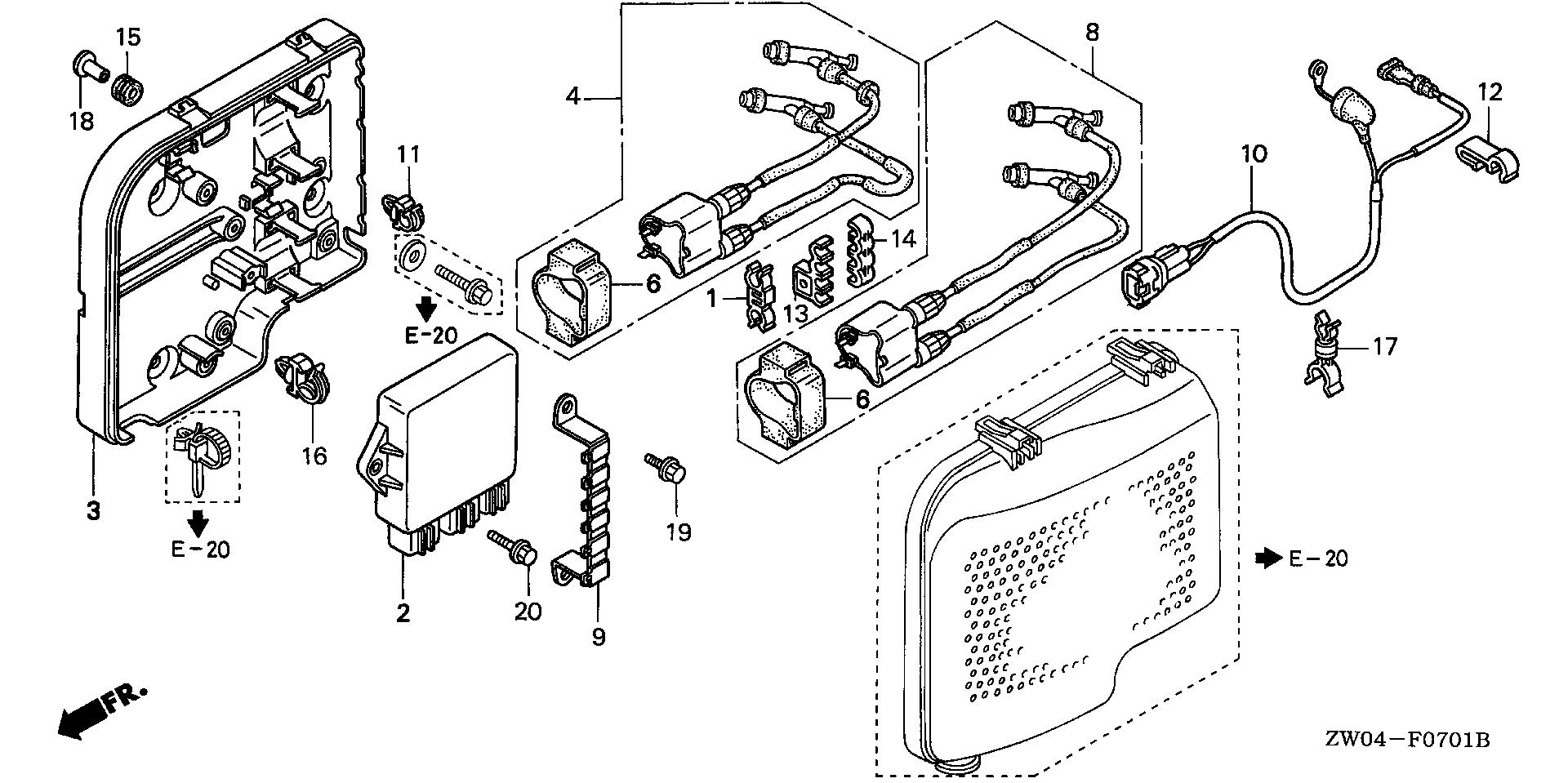

IGNITION COIL (2)

BF90 BF90AW ignition coil (2) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW04F0701B
Fits all 5 submodels of this generation.

Parts in this assembly

19 parts
1
CLAMP, INTERCOOLER RESERVE TANK TUBE
19786-PP8-003No Longer Available
—
2
MODULE, IGNITION CONTROL (CDI) (NOT AVAILABLE)
30400-ZW1-013No Longer Available
—
3
30416-ZW1-000Ships in 1 to 2 Days
$69.26$99.64
4
COIL ASSY., IGNITION (1)
30500-ZW1-004No Longer Available
—
6
30506-ML4-003Ships in 1 to 2 Daysqty 2 used
$5.62$8.08
8
COIL ASSY., IGNITION (2)
30550-ZW1-004No Longer Available
—
9
BRACKET, CONNECTOR
32108-ZW1-000Ships in 1 to 2 Days
$12.29$16.84
10
WIRE, SWITCH (NOT AVAILABLE)
32193-ZW1-000No Longer Available
—
11
32660-MJ6-710Ships in 1 to 2 Daysqty 3 used
$3.43$4.70
12
32763-PA0-000Ships in 1 to 2 Days
$10.34$14.16
13
CLAMP B, IGNITION WIRE (NOT AVAILABLE)
32766-PM3-000No Longer Available
$9.97$13.66
14
CLAMP, IGNITION WIRE
32777-695-000No Longer Available
—
15
40102-ZV5-000Ships in 1 to 2 Daysqty 4 used
$2.64$3.62
16
90682-ZV5-003Ships in 1 to 2 Daysqty 3 used
$1.66$2.34
17
91402-ZW1-003Ships in 1 to 2 Days
$3.08$4.44
18
91553-ZV5-000Ships in 1 to 2 Daysqty 4 used
$2.67$3.66
18
91553-ZV5-010Ships in 1 to 2 Daysqty 4 used
$2.67$3.66
19
95701-06012-02Ships in 1 to 2 Daysqty 2 used
$2.10$2.96
20
95701-06016-02Ships in 1 to 2 Daysqty 2 used
$0.98$1.34
Diagram

INNER HOUSING

BF90 BF90AW inner housing exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW04F1504B
Fits only BF90AW-JRTA, BF90AW-LRTA, BF90AW-XRTA — not every submodel of this generation.

Parts in this assembly

42 parts
1
24825-ZW1-V01Ships in 1 to 2 Days
$9.37$12.84
2
24839-ZW1-V01Ships in 1 to 2 Daysqty 2 used
$3.65$5.00
3
24841-ZW1-V01Ships in 1 to 2 Days
$30.46$41.72
4
SHAFT, HANDLE (NOT AVAILABLE)
24843-ZW1-V01No Longer Available
—
5
24845-ZW1-V01Ships in 1 to 2 Days
$37.43$51.28
6
SHAFT, GEARSHIFT (NOT AVAILABLE)
24847-ZW1-V01No Longer Available
—
7
24848-ZW1-V01Ships in 1 to 2 Days
$1.02$1.40
8
24865-ZW1-V01Ships in 1 to 2 Days
$10.69$14.64
9
24873-ZW1-V01Ships in 1 to 2 Days
$4.56$6.24
10
24833-ZW1-V01Ships in 1 to 2 Daysqty 5 used
$1.93$2.64
11
CABLE, REMOTE CONTROL (10') (TELEFLEX)
24911-ZW1-V00No Longer Available
—
11
24911-ZW1-003Ships in 1 to 2 Daysqty 2 used
$22.24$30.46
11
CABLE, REMOTE CONTROL (11') (TELEFLEX)
24912-ZW1-V00No Longer Available
—
11
CABLE, REMOTE CONTROL (11') (BRUNSWICK) (NOT AVAILABLE)
24912-ZW1-003No Longer Available
—
11
CABLE, REMOTE CONTROL (12') (TELEFLEX)
24913-ZW1-V00No Longer Available
—
11
CABLE, REMOTE CONTROL (12') (BRUNSWICK) (NOT AVAILABLE)
24913-ZW1-003No Longer Available
—
11
CABLE, REMOTE CONTROL (13') (TELEFLEX)
24914-ZW1-V00No Longer Available
—
11
CABLE, REMOTE CONTROL (13') (BRUNSWICK) (NOT AVAILABLE)
24914-ZW1-003No Longer Available
—
11
CABLE, REMOTE CONTROL (14') (TELEFLEX)
24915-ZW1-V00No Longer Available
—
11
CABLE, REMOTE CONTROL (14') (BRUNSWICK) (NOT AVAILABLE)
24915-ZW1-003No Longer Available
—
11
CABLE, REMOTE CONTROL (15') (TELEFLEX)
24916-ZW1-V00No Longer Available
—
11
CABLE, REMOTE CONTROL (15') (BRUNSWICK) (NOT AVAILABLE)
24916-ZW1-003No Longer Available
—
11
CABLE, REMOTE CONTROL (16') (TELEFLEX)
24917-ZW1-V00No Longer Available
—
11
CABLE, REMOTE CONTROL (16') (BRUNSWICK) (NOT AVAILABLE)
24917-ZW1-003No Longer Available
—
11
CABLE, REMOTE CONTROL (17') (TELEFLEX)
24918-ZW1-V00No Longer Available
—
11
CABLE, REMOTE CONTROL (17') (BRUNSWICK) (NOT AVAILABLE)
24918-ZW1-003No Longer Available
—
11
CABLE, REMOTE CONTROL (18') (TELEFLEX)
24919-ZW1-V00No Longer Available
—
11
CABLE, REMOTE CONTROL (18') (BRUNSWICK) (NOT AVAILABLE)
24919-ZW1-003No Longer Available
—
11
CABLE, REMOTE CONTROL (19') (TELEFLEX)
24920-ZW1-V00No Longer Available
—
11
CABLE, REMOTE CONTROL (19') (BRUNSWICK) (NOT AVAILABLE)
24920-ZW1-003No Longer Available
—
11
CABLE, REMOTE CONTROL (20') (TELEFLEX)
24921-ZW1-V00No Longer Available
—
11
CABLE, REMOTE CONTROL (20') (BRUNSWICK) (NOT AVAILABLE) (ALT. PNO: 24920-ZW1-003AH)
24921-ZW1-003No Longer Available
—
12
90140-ZW1-003Ships in 1 to 2 Days
$3.96$5.42
13
90142-ZW1-003Ships in 1 to 2 Daysqty 2 used
$1.23$1.68
14
90145-ZW1-003Ships in 1 to 2 Daysqty 4 used
$0.92$1.26
15
90145-ZW1-003Ships in 1 to 2 Daysqty 3 used
$0.92$1.26
16
90550-ZW1-003Ships in 1 to 2 Days
$0.93$1.28
17
90653-ZW1-003Ships in 1 to 2 Days
$0.79$1.08
18
90753-ZW1-003Ships in 1 to 2 Days
$1.34$1.84
19
90953-ZW1-003Ships in 1 to 2 Daysqty 2 used
$1.33$1.82
20
91553-ZW1-003Ships in 1 to 2 Days
$0.82$1.12
21
ADAPTER, REMOCON CABLE (N/A: USE 24931-ZW1-000)
24931-ZW1-V00No Longer Available
—
Diagram

MARKS

BF90 BF90AW marks exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW04F1200A
Fits all 5 submodels of this generation.

Parts in this assembly

17 parts
1
87121-ZW0-000Ships in 1 to 2 Days
$28.92$41.60
2
MARK, RR. (BF90) (NOT AVAILABLE)
87121-ZW1-000No Longer Available
$34.18$46.82
3
MARK, EMERGENCY SWITCH INDICATION (ENGLISH) (NOT AVAILABLE)
87124-ZV3-620No Longer Available
—
4
87125-ZW1-700Ships in 1 to 2 Days
$10.53$14.86
5
87131-ZW1-000Ships in 1 to 2 Daysqty 2 used
$72.37$104.08
6
MARK, SIDE STRIPE (NOT AVAILABLE)
87132-ZW1-000No Longer Available
$56.90$77.94
7
87152-ZW0-740Ships in 1 to 2 Days
$6.39$9.20
7
87152-ZW1-740Ships in 1 to 2 Days
$6.69$9.62
8
87301-ZW0-000Ships in 1 to 2 Days
$25.68$36.94
9
87301-ZW1-000Ships in 1 to 2 Days
$33.68$48.44
10
87511-ZV1-C20Ships in 1 to 2 Days
$2.12$2.98
11
LABEL, OIL CAUTION (ENGLISH) (NOT AVAILABLE)
87531-ZW1-740No Longer Available
—
12
MARK, THROTTLE (ENGLISH) (NOT AVAILABLE)
87532-ZV3-620No Longer Available
—
13
87538-ZW1-740Ships in 1 to 2 Days
$9.34$13.18
14
MARK, EMERGENCY START (ENGLISH)
87546-ZW1-740No Longer Available
$12.12$16.60
15
MARK, RR. (BF65) (JET) (NOT AVAILABLE)
87121-ZW1-F40No Longer Available
—
16
MARK, ENVIRONMENT (EPA 2006) (NOT AVAILABLE)
87634-ZW1-H40No Longer Available
—
Diagram

MOUNT CASE - OIL PAN

BF90 BF90AW mount case - oil pan exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW04E0600A
Fits all 5 submodels of this generation.

Parts in this assembly

29 parts
1
PAN, OIL *TGRAY* (GRAY) (NOT AVAILABLE)
11311-ZW1-000ZANo Longer Available
—
2
11381-ZW1-000Ships in 1 to 2 Days
$82.30$118.38
3
DIPSTICK, OIL (NOT AVAILABLE)
15655-ZW1-000No Longer Available
—
4
15665-ZW1-030Ships in 1 to 2 Days
$12.61$17.80
5
19252-ZW1-000Ships in 1 to 2 Days
$7.43$10.18
6
RUBBER, SEAL (NOT AVAILABLE)
23161-ZV5-000No Longer Available
$2.60$3.56
7
CASE, MOUNT *NH8* (DARK GRAY)
23170-ZW1-000ZANo Longer Available
—
8
23172-ZW1-003Ships in 1 to 2 Days
$115.78$158.60
8
23172-ZW1-013Ships in 1 to 2 Days
$115.78$158.60
9
31110-ZW1-000ZAShips in 1 to 2 Days
$656.99
10
90002-ZW1-010Ships in 1 to 2 Daysqty 6 used
$5.12$7.24
11
90009-ZV5-000Ships in 1 to 2 Daysqty 10 used
$4.16$5.88
12
90010-ZV5-000Ships in 1 to 2 Daysqty 2 used
$4.69$6.62
13
90010-ZW1-020Ships in 1 to 2 Daysqty 2 used
$6.82$9.80
14
90011-ZW1-010Ships in 1 to 2 Daysqty 2 used
$11.72$16.86
15
90012-ZW1-010Ships in 1 to 2 Daysqty 3 used
$13.93$20.04
16
90115-ZV5-000Ships in 1 to 2 Daysqty 2 used
$3.83$5.40
17
90131-ZV5-000Ships in 1 to 2 Days
$7.43$10.18
18
90401-ZW1-000Ships in 1 to 2 Daysqty 14 used
$2.23$3.06
19
90563-ZV5-000Ships in 1 to 2 Daysqty 7 used
$2.44$3.34
20
90601-ZE2-000In Stock
$2.38$3.26
21
90602-921-000Ships in 1 to 2 Days
$1.39$1.96
22
SEAL, WATER (22X35X7) (NOT AVAILABLE)
91201-ZW1-003No Longer Available
—
23
91309-PJ7-010Ships in 1 to 2 Days
$3.05$4.30
24
94050-10000Ships in 1 to 2 Days
$1.65$2.26
25
94303-06100Ships in 1 to 2 Daysqty 2 used
$2.74$3.76
26
BULK HOSE, VACUUM (4.5X1000) (4.5X430)
95005-45001-30MNo Longer Available
$8.79$12.04
27
95701-06012-02Ships in 1 to 2 Days
$2.10$2.96
28
95701-10110-09Ships in 1 to 2 Daysqty 3 used
$2.89$3.96
Diagram

MUFFLER COVER

BF90 BF90AW muffler cover exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW04E1420
Fits all 5 submodels of this generation.

Parts in this assembly

22 parts
1
16675-ZV5-010Ships in 1 to 2 Days
$10.54$14.44
2
17202-ZV4-310Ships in 1 to 2 Daysqty 4 used
$2.09$2.86
3
COVER, MUFFLER
17390-ZW1-020No Longer Available
—
4
17393-ZW1-000Ships in 1 to 2 Days
$50.40$69.04
4
17393-ZW1-010Ships in 1 to 2 Days
$50.40$69.04
4
17393-ZW1-020Ships in 1 to 2 Days
$50.40$69.04
4
17393-ZW1-030Ships in 1 to 2 Days
$50.40$69.04
4
17393-ZW1-040Ships in 1 to 2 Days
$50.40$69.04
5
17394-ZV5-000Ships in 1 to 2 Days
$4.31$6.08
6
GROMMET, MUFFLER DUCT (NOT AVAILABLE)
17397-ZW1-000No Longer Available
—
7
SOLENOID ASSY., REMOTE CHOKE (NOT AVAILABLE)
36310-ZW1-003No Longer Available
—
8
40102-ZV5-000Ships in 1 to 2 Daysqty 2 used
$2.64$3.62
9
90011-ZW9-000Ships in 1 to 2 Daysqty 2 used
$1.71$2.34
10
90121-ZV0-010Ships in 1 to 2 Daysqty 2 used
$2.29$3.30
11
90136-SE0-A01Ships in 1 to 2 Days
$7.18$10.14
12
90403-ZW1-000Ships in 1 to 2 Daysqty 4 used
$1.71$2.34
13
90630-ZW1-003Ships in 1 to 2 Days
$2.55$3.68
14
91553-ZV5-000Ships in 1 to 2 Daysqty 2 used
$2.67$3.66
14
91553-ZV5-010Ships in 1 to 2 Daysqty 2 used
$2.67$3.66
15
94103-06200Ships in 1 to 2 Daysqty 2 used
$1.04$1.46
16
95701-06025-02Ships in 1 to 2 Daysqty 4 used
$1.33$1.88
17
96001-06012-02Ships in 1 to 2 Days
$1.14$1.56
Diagram

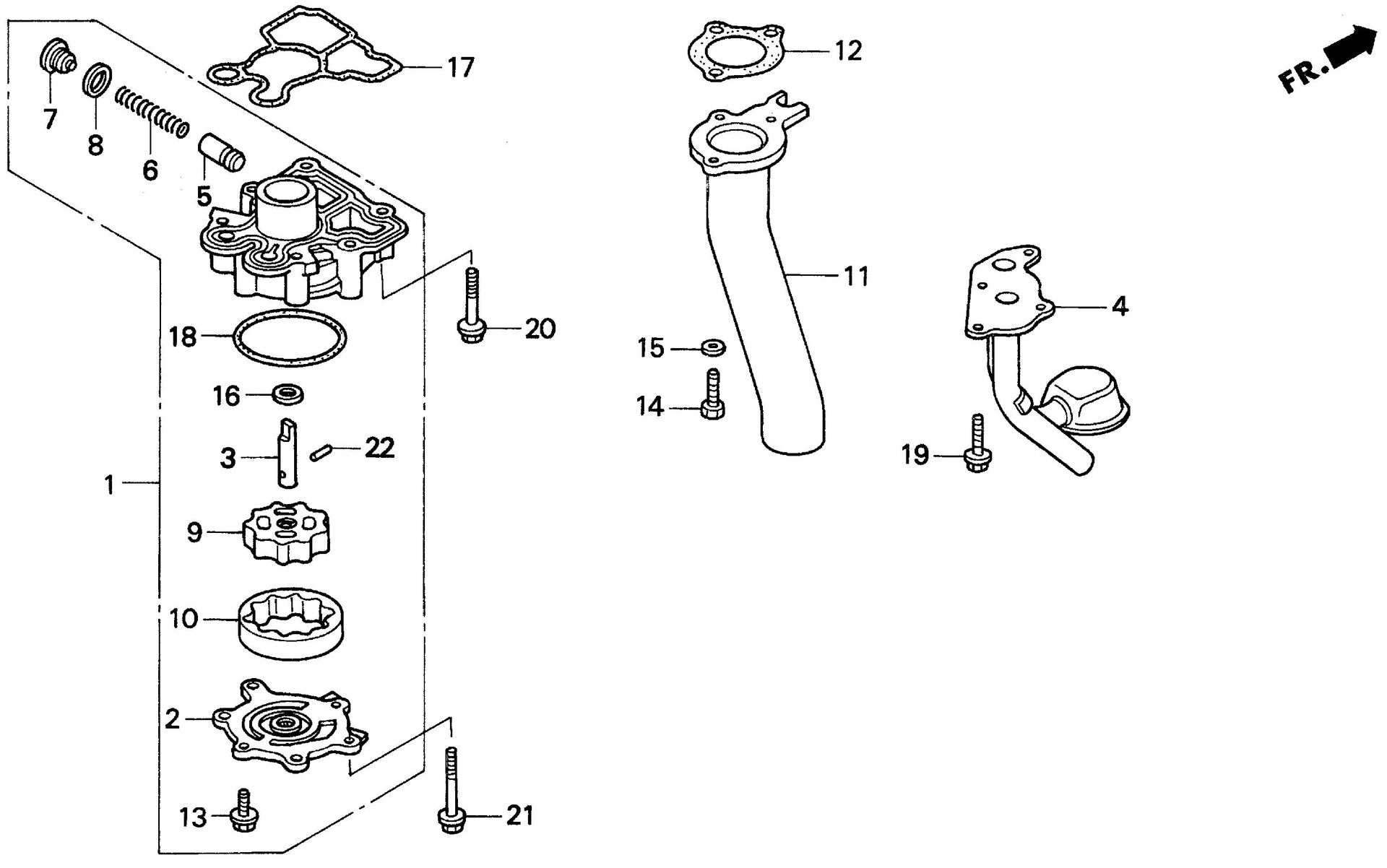

OIL PUMP - EXHAUST PIPE

BF90 BF90AW oil pump - exhaust pipe exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW04E0500
Fits all 5 submodels of this generation.

Parts in this assembly

22 parts
1
15100-ZW1-000No Longer Available
$318.95$436.92
2
COVER, OIL PUMP (NOT AVAILABLE)
15121-ZW1-000No Longer Available
$47.98$65.72
3
SHAFT, OIL PUMP (NOT AVAILABLE)
15136-ZW1-000No Longer Available
$19.58$26.82
4
STRAINER, OIL (NOT AVAILABLE)
15220-ZW1-000No Longer Available
—
5
15231-PE0-000Ships in 1 to 2 Days
$18.48$25.32
6
15232-PG6-000Ships in 1 to 2 Days
$7.74$10.60
7
15236-ZY9-M00Ships in 1 to 2 Days
$8.38$11.82
8
15237-PY3-000Ships in 1 to 2 Days
$8.41$12.10
9
15331-ZW1-000Ships in 1 to 2 Days
$42.89$60.52
10
15341-ZW1-000Ships in 1 to 2 Days
$47.68$67.28
11
PIPE, EX. (NOT AVAILABLE)
18330-ZW1-000No Longer Available
—
12
18333-ZW1-000Ships in 1 to 2 Days
$9.87$14.20
13
90017-ZV0-000Ships in 1 to 2 Daysqty 2 used
$1.74$2.38
14
90115-ZV5-000Ships in 1 to 2 Daysqty 3 used
$3.83$5.40
15
90401-ZW1-000Ships in 1 to 2 Daysqty 3 used
$2.23$3.06
16
90456-MC7-000Ships in 1 to 2 Days
$2.50$3.52
17
91301-ZW1-000Ships in 1 to 2 Days
$10.70$15.40
18
91302-ZW1-000Ships in 1 to 2 Days
$7.85$11.08
19
95701-08020-09Ships in 1 to 2 Daysqty 3 used
$1.12$1.54
20
95701-08040-02Ships in 1 to 2 Daysqty 2 used
$1.33$1.88
21
95701-08065-02Ships in 1 to 2 Daysqty 4 used
$2.06$2.96
22
96220-50178Ships in 1 to 2 Days
$0.82$1.12
Diagram

POWER TRIM-TILT

BF90 BF90AW power trim-tilt exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW04F1100BB
Fits all 5 submodels of this generation.

Parts in this assembly

52 parts
1
TUBE, CORRUGATE (10MM) (NOT AVAILABLE)
17735-ZW1-000No Longer Available
—
2
35701-MG9-950Ships in 1 to 2 Daysqty 2 used
$1.83$2.50
3
36104-ZW1-003Ships in 1 to 2 Days
$7.91$11.16
4
36120-ZW1-701Ships in 1 to 2 Days
$511.38$735.46
4
36120-ZW1-704Ships in 1 to 2 Days
$511.38$735.46
5
40107-ZW1-700Ships in 1 to 2 Days
$14.99$20.54
6
50214-ZV5-003Ships in 1 to 2 Daysqty 2 used
$7.65$10.48
7
56000-ZW1-702ZAShips in 1 to 2 Days
$2,845.83
7
56000-ZW1-713Ships in 1 to 2 Days
$2,845.83
8
PUMP ASSY. (NOT AVAILABLE)
56100-ZW1-701No Longer Available
—
8
PUMP ASSY.
56100-ZW1-702No Longer Available
—
9
56118-ZV5-820Ships in 1 to 2 Days
$8.56$11.72
10
56513-ZV5-000Ships in 1 to 2 Daysqty 2 used
$3.77$5.16
11
56532-ZZ0-C00Ships in 1 to 2 Days
$23.11$31.66
12
56851-ZW1-701Ships in 1 to 2 Days
$18.50$25.34
12
56851-ZW1-703Ships in 1 to 2 Days
$18.50$25.34
13
56860-ZW1-701Ships in 1 to 2 Days
$13.46$18.44
14
90113-ZW1-702Ships in 1 to 2 Daysqty 3 used
$3.11$4.26
15
90114-ZW1-702Ships in 1 to 2 Days
$14.00$19.18
16
90115-ZW1-702Ships in 1 to 2 Daysqty 2 used
$10.82$14.82
17
90116-ZW1-702Ships in 1 to 2 Daysqty 4 used
$5.90$8.08
18
90127-ZV5-003Ships in 1 to 2 Days
$1.94$2.66
19
90602-SB0-003Ships in 1 to 2 Days
$4.04$5.54
20
91352-ZW1-702Ships in 1 to 2 Daysreplaced by 91352-ZX2-003
$2.13$2.92
21
O-RING (NOT AVAILABLE)
91359-ZW1-701No Longer Available
—
21
91302-ZV5-821In Stock
$5.10$6.98
22
94540-15029Ships in 1 to 2 Daysqty 2 used
$8.02$10.98
23
56110-ZW1-701Ships in 1 to 2 Daysqty 2 used
$114.96$157.48
24
56113-ZW1-701Ships in 1 to 2 Days
$16.41$22.48
25
04602-ZY3-000Ships in 1 to 2 Daysqty 2 used
$112.64$162.00
26
56116-ZW1-701Ships in 1 to 2 Days
$14.56$19.94
27
56120-ZY9-013Ships in 1 to 2 Days
$426.01$583.58
28
PISTON, FREE (NOT AVAILABLE)
56130-ZW1-701No Longer Available
—
29
VALVE, MANUAL
56170-ZW1-701No Longer Available
—
29
VALVE, MANUAL (NOT AVAILABLE)
56170-ZW1-702No Longer Available
—
30
90652-ZW1-702Ships in 1 to 2 Days
$6.50$8.90
31
91357-ZW1-701Ships in 1 to 2 Daysqty 2 used
$11.71$16.04
32
91358-ZW1-701Ships in 1 to 2 Daysqty 2 used
$8.26$11.32
33
91557-ZW1-701Ships in 1 to 2 Days
$10.25$14.04
34
91353-ZW1-701Ships in 1 to 2 Days
$5.90$8.08
34
91353-ZW1-703Ships in 1 to 2 Days
$5.90$8.08
35
91354-ZW1-701Ships in 1 to 2 Daysqty 2 used
$8.25$11.30
36
91355-ZW1-701Ships in 1 to 2 Days
$13.01$17.82
37
91361-ZW1-701Ships in 1 to 2 Daysqty 2 used
$6.60$9.04
38
56117-ZV5-821Ships in 1 to 2 Days
$8.47$11.60
39
91316-ZV5-821Ships in 1 to 2 Daysqty 2 used
$3.34$4.58
40
56180-ZW1-701Ships in 1 to 2 Days
$80.62$110.44
41
36122-ZX2-023Ships in 1 to 2 Days
$338.02$463.04
42
36123-ZW1-013Ships in 1 to 2 Days
$172.01
43
36129-ZW1-023Ships in 1 to 2 Days
$219.44$300.60
44
91203-ZV5-821Ships in 1 to 2 Days
$30.78$42.16
45
91207-ZW1-013In Stock
$5.71$7.82
Diagram

PROPELLER (1)

BF90 BF90AW propeller (1) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW04F0500
Fits all 5 submodels of this generation.

Parts in this assembly

44 parts
1
SHIFTER, CLUTCH (NOT AVAILABLE)
24101-ZW1-003No Longer Available
—
1
24101-ZW1-013Ships in 1 to 2 Days
$260.25$356.50
2
24102-ZW1-003Ships in 1 to 2 Days
$3.71$5.08
3
24103-ZW1-003Ships in 1 to 2 Days
$2.44$3.34
4
SLIDER, SHIFT (NOT AVAILABLE)
24122-ZW1-003No Longer Available
—
4
24122-ZW1-013Ships in 1 to 2 Days
$60.49$82.86
5
24123-ZW1-003Ships in 1 to 2 Days
$5.05$6.92
5
24123-ZW1-013Ships in 1 to 2 Days
$4.22$5.78
6
41141-ZW1-003Ships in 1 to 2 Days
$450.67$617.36
6
41141-ZW1-013Ships in 1 to 2 Days
$515.13$705.66
7
GEAR, BEVEL (R) (NOT AVAILABLE)
41151-ZW1-003No Longer Available
—
7
41151-ZW1-013Ships in 1 to 2 Days
$636.31$871.66
8
41161-ZW1-003Ships in 1 to 2 Days
$646.72$885.92
8
41161-ZW1-013Ships in 1 to 2 Days
$631.84$865.54
9
41200-ZW1-003Ships in 1 to 2 Days
$208.08$285.04
10
PROPELLER, THREE-BLADE (13X18) (SUS) (NOT AVAILABLE)
58130-ZW1-V01No Longer Available
—
10
PROPELLER, THREE-BLADE (13-1/4X20) (SUS) (NOT AVAILABLE)
58130-ZW1-V11No Longer Available
—
10
PROPELLER, THREE-BLADE (13-1/2X22) (SUS) (NOT AVAILABLE)
58130-ZW1-V31No Longer Available
—
10
PROPELLER, THREE-BLADE (14X11) *NH105* (AL) (MAT BLACK) (NOT AVAILABLE)
58130-ZW1-W01ZANo Longer Available
—
10
58130-ZW1-W11ZAShips in 1 to 2 Daysreplaced by 58130-ZW1-013AH
$156.26
10
PROPELLER, THREE-BLADE (13-3/4X15) *NH105* (AL) (MAT BLACK) (NOT AVAILABLE)
58130-ZW1-W21ZANo Longer Available
—
10
PROPELLER, THREE-BLADE (12-3/4X21) *NH105* (AL) (MAT BLACK) (NOT AVAILABLE)
58130-ZW1-W41ZANo Longer Available
—
10
PROPELLER, THREE-BLADE (12-1/2X23) *NH105* (AL) (MAT BLACK) (NOT AVAILABLE)
58130-ZW1-W51ZANo Longer Available
—
10
PROPELLER, THREE-BLADE (13X19) *NH105* (AL) (MAT BLACK) (NOT AVAILABLE)
58130-ZW1-W61ZANo Longer Available
—
10
PROPELLER, THREE-BLADE (13-1/8X16) (SUS)
58130-ZW1-W91No Longer Available
—
10
$156.26
10
$156.26
11
BOLT, STUD (NOT AVAILABLE)
90126-ZW1-003No Longer Available
$8.32$11.40
12
90301-ZW1-003Ships in 1 to 2 Days
$21.84$29.92
↳
Sierra alternative ·
18-3700In Stock save $6.73
$15.11
13
NUT, SELF-LOCK (NOT AVAILABLE)
90311-ZW1-003No Longer Available
$14.42$19.76
14
WASHER, PROPELLER THRUST (NOT AVAILABLE)
90506-ZW1-003No Longer Available
$30.48$41.76
15
90508-ZW1-003Ships in 1 to 2 Days
$4.92$6.74
↳
Sierra alternative ·
18-3200-9In Stock
$82.79
16
90509-ZW1-003Ships in 1 to 2 Daysqty 2 used
$1.58$2.16
17
90511-ZW1-003Ships in 1 to 2 Days
$17.51$23.98
18
90528-ZW1-003Ships in 1 to 2 Days
$69.07$94.62
19
BALL, STEEL (NOT AVAILABLE)
90952-ZW1-003No Longer Available
—
20
$59.52$81.54
↳
Sierra alternative ·
18-1156In Stock save $5.98
$53.54
21
91053-ZW1-003Ships in 1 to 2 Days
$19.45$26.64
22
91055-ZW1-003Ships in 1 to 2 Days
$38.85$53.22
23
BEARING, THRUST (NOT AVAILABLE)
91056-ZW1-003No Longer Available
—
24
BEARING, ROLLER (NOT AVAILABLE)
91057-ZW1-003No Longer Available
$17.96$24.60
↳
Sierra alternative ·
18-1157In Stock
$18.53
25
91252-ZW1-003Ships in 1 to 2 Days
$16.56$22.68
↳
Sierra alternative ·
18-2002In Stock
$17.09
26
91255-ZW1-003Ships in 1 to 2 Days
$23.96$32.82
↳
Sierra alternative ·
18-2053In Stock save $3.63
$20.33
27
91351-ZW1-003Ships in 1 to 2 Days
$9.24$12.66
Diagram

REGULATOR - STARTER CABLE

BF90 BF90AW regulator - starter cable exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW04F0700C
Fits all 5 submodels of this generation.

Parts in this assembly

47 parts
1
RECTIFIER ASSY., REGULATOR (20A) (NOT AVAILABLE)
31750-ZW1-003No Longer Available
$174.54$239.10
2
32121-HA0-003No Longer Available
$7.81$10.70
3
BRACKET, FUSE
32126-ZW1-000No Longer Available
—
4
32161-404-000Ships in 1 to 2 Days
$2.15$2.94
5
CABLE ASSY., STARTER
32410-ZW1-000No Longer Available
$230.90$316.30
6
32411-ZW1-003Ships in 1 to 2 Days
$10.19$13.96
7
32412-ZV4-811Ships in 1 to 2 Days
$5.37$7.36
8
CABLE ASSY., REMOTE CONTROL (A) (NOT AVAILABLE)
32520-ZW1-000No Longer Available
—
8
CABLE ASSY., REMOTE CONTROL (A) (NOT AVAILABLE)
32520-ZW1-740No Longer Available
—
9
32540-ZV5-910Ships in 1 to 2 Days
$97.12$133.04
9
32540-ZV5-911Ships in 1 to 2 Daysreplaced by 32540-ZZ3-010
$97.12$133.04
9
32540-ZZ3-010Ships in 1 to 2 Days
$97.12$133.04
10
34908-MB9-871Ships in 1 to 2 Days
$2.67$3.66
11
34908-MG9-951Ships in 1 to 2 Days
$2.23$3.06
12
37215-KM1-670Ships in 1 to 2 Days
$1.81$2.48
13
37250-ZV5-950AHShips in 1 to 2 Days
$114.60
13
37250-ZV7-913Ships in 1 to 2 Days
$224.97$308.18
14
37253-ZV5-821Ships in 1 to 2 Days
$4.12$5.64
15
37256-ZV5-821Ships in 1 to 2 Days
$21.83$29.90
16
37258-ZV5-821Ships in 1 to 2 Days
$16.09$22.04
17
37260-ZV5-821Ships in 1 to 2 Days
$227.94$312.24
18
37263-ZV5-821Ships in 1 to 2 Days
$3.45$4.72
19
37266-ZV5-821Ships in 1 to 2 Days
$16.16$22.14
20
37268-ZV5-821Ships in 1 to 2 Days
$17.42$23.86
21
RELAY ASSY., POWER TILT (NOT AVAILABLE)
38550-ZW1-003No Longer Available
$285.85$391.58
22
38551-ZW1-000In Stockqty 2 used
$6.58$9.02
23
BRACKET, RELAY
38552-ZW1-000Ships in 1 to 2 Days
$18.67$25.58
24
90013-ZV0-010Ships in 1 to 2 Daysqty 3 used
$1.80$2.46
25
90011-ZW9-000Ships in 1 to 2 Daysqty 2 used
$1.71$2.34
26
90020-ZV5-000Ships in 1 to 2 Daysqty 2 used
$1.91$2.76
27
90203-ZV5-000Ships in 1 to 2 Days
$1.53$2.16
28
90203-ZW1-000Ships in 1 to 2 Days
$2.31$3.16
29
90309-ZV5-821Ships in 1 to 2 Daysqty 2 used
$1.42$1.94
30
90310-ZV5-821Ships in 1 to 2 Daysqty 3 used
$1.27$1.74
31
90550-ZV5-821Ships in 1 to 2 Daysqty 2 used
$1.18$1.62
32
90560-ZV5-821Ships in 1 to 2 Daysqty 2 used
$1.24$1.70
33
90683-KJ2-003Ships in 1 to 2 Days
$3.59$4.92
34
91553-ZV5-000Ships in 1 to 2 Daysqty 2 used
$2.67$3.66
34
91553-ZV5-010Ships in 1 to 2 Daysqty 2 used
$2.67$3.66
35
WASHER, PLAIN (6MM)
94101-06200Ships in 1 to 2 Daysqty 2 used
$0.63$0.86
36
95701-06014-02Ships in 1 to 2 Days
$1.04$1.42
37
95701-06025-02Ships in 1 to 2 Daysqty 2 used
$1.33$1.88
38
98200-11000Ships in 1 to 2 Days
$1.61$2.20
39
98200-31500Ships in 1 to 2 Daysqty 2 used
$1.20$1.64
40
98200-33000Ships in 1 to 2 Daysqty 2 used
$1.20$1.64
41
38216-ZV5-003Ships in 1 to 2 Days
$3.99$5.62
42
38216-ZW1-003Ships in 1 to 2 Days
$5.97$8.58
Diagram

REMOTE CONTROL (1)

BF90 BF90AW remote control (1) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW04F1500B
Fits only BF90AW-JRTA, BF90AW-LRTA, BF90AW-XRTA — not every submodel of this generation.

Parts in this assembly

88 parts
1
BOX ASSY., REMOTE CONTROL
24800-ZW5-620Ships in 1 to 2 Daysreplaced by 24800-ZW5-621
$483.42
2
24811-ZV5-010Ships in 1 to 2 Days
$115.09$162.38
3
LEVER, HANDLE LOCK (NOT AVAILABLE)
24812-ZV5-000No Longer Available
—
4
24813-ZV5-000Ships in 1 to 2 Days
$39.73$56.04
5
24814-ZV5-010Ships in 1 to 2 Days
$8.23$11.62
6
24815-ZV5-000Ships in 1 to 2 Daysreplaced by 24815-ZV5-010
$8.04$11.36
7
24816-ZV5-000Ships in 1 to 2 Days
$4.07$5.74
8
24817-ZV5-000Ships in 1 to 2 Days
$3.81$5.38
9
24818-ZV5-003Ships in 1 to 2 Days
$1.33$1.88
10
24820-ZV5-010Ships in 1 to 2 Days
$102.08$144.04
11
24830-ZV5-010Ships in 1 to 2 Days
$54.08$76.32
12
24836-ZV5-000Ships in 1 to 2 Days
$33.64$47.46
13
24841-ZV5-000Ships in 1 to 2 Days
$57.93$81.74
14
24845-ZV5-000Ships in 1 to 2 Days
$39.52$55.76
15
24850-ZV5-000Ships in 1 to 2 Days
$46.76$65.98
16
24854-ZV5-000Ships in 1 to 2 Days
$8.10$11.44
17
24855-ZV5-000Ships in 1 to 2 Daysqty 2 used
$8.10$11.44
18
24860-ZV5-000Ships in 1 to 2 Days
$37.81$53.36
19
24865-ZV5-000Ships in 1 to 2 Days
$17.32$24.44
20
24875-ZV5-000Ships in 1 to 2 Days
$22.41$31.62
21
24876-ZV5-000Ships in 1 to 2 Days
$4.07$5.74
22
24877-ZV5-000Ships in 1 to 2 Days
$4.67$6.72
23
24878-ZV5-000Ships in 1 to 2 Days
$51.83$73.12
24
24881-ZV5-000Ships in 1 to 2 Daysqty 2 used
$3.81$5.38
25
24883-ZV5-000Ships in 1 to 2 Days
$3.90$5.50
26
24884-ZV5-000Ships in 1 to 2 Days
$3.90$5.50
27
24885-ZV5-000Ships in 1 to 2 Days
$69.85$98.54
28
24887-ZV5-000Ships in 1 to 2 Days
$4.63$6.52
29
24891-ZV5-000Ships in 1 to 2 Days
$7.84$11.06
30
24892-ZV5-000Ships in 1 to 2 Days
$15.26$21.52
31
24894-ZV5-000Ships in 1 to 2 Days
$6.31$8.90
32
24895-ZV5-000Ships in 1 to 2 Days
$6.32$8.92
33
24897-ZV5-000Ships in 1 to 2 Days
$4.96$7.00
34
24898-ZV5-000Ships in 1 to 2 Days
$4.85$6.84
35
CABLE ASSY., REMOTE CONTROL (B) (NOT AVAILABLE)
32530-ZW1-000No Longer Available
—
36
$105.96
37
32901-952-770Ships in 1 to 2 Daysqty 5 used
$2.19$3.00
38
35100-ZV5-003Ships in 1 to 2 Days
$137.02$187.70
39
35110-ZV5-003Ships in 1 to 2 Daysqty 2 used
$7.99$11.48
40
35370-ZV5-823Ships in 1 to 2 Days
$63.90$90.18
41
35495-ZV5-821Ships in 1 to 2 Days
$52.34$75.28
42
SWITCH ASSY., SOLENOID (NOT AVAILABLE)
35630-ZV5-003No Longer Available
—
43
35701-MG9-950Ships in 1 to 2 Days
$1.83$2.50
44
36180-ZV5-033In Stock
$56.84$77.86
45
36182-ZV4-651In Stock
$18.45$25.28
46
36187-ZV4-652Ships in 1 to 2 Days
$4.18$5.72
47
37210-ZV5-013Ships in 1 to 2 Days
$127.69$174.92
48
38403-341-672Ships in 1 to 2 Days
$4.66$6.38
49
38410-ZV5-003Ships in 1 to 2 Days
$56.17$76.94
50
PLATE, REMOTE CONTROL (CAUTION PICT=SILVER)
87701-ZV5-000No Longer Available
—
51
MARK, FAST IDLE (NOT AVAILABLE)
87702-ZV5-000No Longer Available
—
52
90009-ZV5-000Ships in 1 to 2 Days
$4.16$5.88
53
90105-MM4-000Ships in 1 to 2 Days
$2.03$2.78
54
90125-ZV5-000Ships in 1 to 2 Daysqty 3 used
$6.91$9.74
55
90302-ZV5-003Ships in 1 to 2 Daysqty 2 used
$5.27$7.22
56
90302-921-000In Stock
$4.10$5.62
57
90304-ZV4-000Ships in 1 to 2 Daysqty 3 used
$2.12$2.90
59
90502-ZV4-000Ships in 1 to 2 Days
$2.73$3.74
60
90506-ZV4-000Ships in 1 to 2 Daysqty 5 used
$2.45$3.36
61
90507-ZV4-000Ships in 1 to 2 Daysqty 2 used
$2.20$3.02
62
90512-921-010In Stockqty 6 used
$1.07$1.46
63
90557-ZV5-000Ships in 1 to 2 Days
$2.99$4.22
64
WASHER, PLAIN (4MM) (NOT AVAILABLE)
90561-ZV5-000No Longer Available
$1.62$2.22
65
90751-ZV5-000Ships in 1 to 2 Daysqty 2 used
$3.29$4.50
66
90772-ZV5-000Ships in 1 to 2 Days
$3.99$5.62
67
91151-ZV5-000Ships in 1 to 2 Days
$3.45$4.86
68
91475-SB6-000Ships in 1 to 2 Days
$7.72$10.58
69
91567-ZV5-000Ships in 1 to 2 Daysqty 2 used
$2.76$3.90
70
91570-ZV5-000Ships in 1 to 2 Daysqty 3 used
$8.10$11.44
71
92101-05016-4JShips in 1 to 2 Days
$1.21$1.66
72
93500-05010-4JShips in 1 to 2 Daysqty 2 used
$1.23$1.74
73
93700-05012-4JShips in 1 to 2 Daysqty 2 used
$1.69$2.44
74
93901-242J0Ships in 1 to 2 Days
$1.36$1.92
75
93901-250J0Ships in 1 to 2 Daysqty 2 used
$1.64$2.30
76
93901-251J0Ships in 1 to 2 Daysqty 3 used
$0.58$0.82
77
93901-252J0Ships in 1 to 2 Days
$1.53$2.16
78
93903-262J0Ships in 1 to 2 Daysqty 2 used
$2.37$3.34
79
93905-255J0Ships in 1 to 2 Daysqty 7 used
$2.37$3.34
80
94001-06490-0SShips in 1 to 2 Days
$2.15$2.94
81
94002-05490-0SShips in 1 to 2 Days
$0.96$1.36
82
94540-03029Ships in 1 to 2 Days
$1.34$1.90
83
94540-04029Ships in 1 to 2 Days
$5.23$7.16
84
94540-07029Ships in 1 to 2 Days
$4.38$6.00
85
17736-ZW1-000Ships in 1 to 2 Days
$3.94$5.40
86
CABLE ASSY., REMOTE CONTROL (B) (NOT AVAILABLE)
32530-ZW1-010No Longer Available
—
87
CABLE ASSY., REMOTE CONTROL EXTENSION (NOT AVAILABLE)
32570-ZW1-901No Longer Available
—
88
CABLE ASSY., SWITCH PANEL (NOT AVAILABLE)
32580-ZW1-V01No Longer Available
—
89
91058-MG9-681Ships in 1 to 2 Daysqty 2 used
$2.03$2.78
Diagram

REMOTE CONTROL (2)

BF90 BF90AW remote control (2) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW04F1501
Fits only BF90AW-JRTA, BF90AW-LRTA, BF90AW-XRTA — not every submodel of this generation.

Parts in this assembly

29 parts
1
BOX ASSY., REMOTE CONTROL (TOP MOUNT SINGLE) (NA USE ALT:24800-ZW7-V01)
24800-ZW1-V01No Longer Available
—
2
$80.17$109.82
3
$15.46$21.18
4
24817-ZW1-003Ships in 1 to 2 Days
$3.96$5.42
5
24819-ZW1-003Ships in 1 to 2 Days
$4.29$5.88
6
HOUSING ASSY., REMOTE CONTROL BOX (A) (NOT AVAILABLE)
24820-ZW1-V01No Longer Available
—
7
24821-ZW1-003Ships in 1 to 2 Days
$2.37$3.24
8
24822-ZW1-003Ships in 1 to 2 Days
$14.57$19.96
9
24824-ZW1-003Ships in 1 to 2 Days
$1.08$1.48
10
24829-ZW1-003Ships in 1 to 2 Daysqty 3 used
$0.16$0.22
11
24830-ZW1-V01Ships in 1 to 2 Days
$17.34$23.76
12
24832-ZW1-003Ships in 1 to 2 Daysqty 2 used
$24.66$33.78
13
24833-ZW1-003Ships in 1 to 2 Days
$0.98$1.34
14
24837-ZW1-003Ships in 1 to 2 Days
$7.56$10.36
15
$26.41$36.18
16
HOUSING ASSY. (INNER) (TOP MOUNT) (NOT AVAILABLE)
24870-ZW1-V01No Longer Available
—
17
GASKET (NOT AVAILABLE)
28434-ZW1-V01No Longer Available
$4.92$6.74
18
35370-ZW1-V01Ships in 1 to 2 Days
$93.60$128.22
19
87703-ZW1-003Ships in 1 to 2 Days
$4.76$6.52
20
90130-ZW1-003Ships in 1 to 2 Daysqty 2 used
$1.20$1.64
21
90131-ZW1-003Ships in 1 to 2 Days
$0.96$1.32
22
90132-ZW1-003Ships in 1 to 2 Daysqty 4 used
$1.20$1.64
23
90134-ZW1-003Ships in 1 to 2 Daysqty 2 used
$3.24$4.44
24
90135-ZW1-003Ships in 1 to 2 Daysqty 2 used
$1.34$1.84
25
90321-ZW1-003Ships in 1 to 2 Daysqty 4 used
$1.31$1.80
26
NUT (10-32) (NOT AVAILABLE)
90322-ZW1-003No Longer Available
$5.04$6.90
27
90323-ZW1-003Ships in 1 to 2 Days
$5.15$7.06
28
90324-ZW1-003Ships in 1 to 2 Daysqty 2 used
$1.26$1.72
29
90550-ZW1-003Ships in 1 to 2 Daysqty 2 used
$0.93$1.28
Diagram

REMOTE CONTROL (3)

BF90 BF90AW remote control (3) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW04F1502A
Fits only BF90AW-JRTA, BF90AW-LRTA, BF90AW-XRTA — not every submodel of this generation.

Parts in this assembly

34 parts
1
BOX ASSY., REMOTE CONTROL (TOP MOUNT DUAL) (NA USE ALT:24800-ZW7-V11)
24800-ZW1-V11No Longer Available
—
2
$91.86$125.84
3
HANDLE, REMOTE CONTROL
24811-ZW1-V11No Longer Available
—
4
24813-ZW1-V11Ships in 1 to 2 Days
$15.46$21.18
5
24817-ZW1-003Ships in 1 to 2 Days
$3.96$5.42
6
24819-ZW1-003Ships in 1 to 2 Days
$4.29$5.88
7
$65.66$89.94
8
24821-ZW1-003Ships in 1 to 2 Daysqty 2 used
$2.37$3.24
9
24822-ZW1-003Ships in 1 to 2 Daysqty 2 used
$14.57$19.96
10
24823-ZW1-V11Ships in 1 to 2 Days
$15.46$21.18
11
24824-ZW1-003Ships in 1 to 2 Days
$1.08$1.48
12
24829-ZW1-003Ships in 1 to 2 Daysqty 3 used
$0.16$0.22
13
$24.72$33.86
14
24832-ZW1-003Ships in 1 to 2 Daysqty 2 used
$24.66$33.78
15
24833-ZW1-003Ships in 1 to 2 Days
$0.98$1.34
16
24835-ZW1-003Ships in 1 to 2 Daysqty 2 used
$1.01$1.38
17
24837-ZW1-003Ships in 1 to 2 Days
$7.56$10.36
18
$26.41$36.18
19
$20.15$27.60
20
HOUSING ASSY. (INNER) (TOP MOUNT) (NOT AVAILABLE)
24870-ZW1-V01No Longer Available
—
21
28434-ZW1-V11Ships in 1 to 2 Days
$6.58$9.02
22
35370-ZW1-V01Ships in 1 to 2 Days
$93.60$128.22
23
$170.57$233.66
24
87704-ZW1-003Ships in 1 to 2 Days
$8.06$11.04
25
90130-ZW1-003Ships in 1 to 2 Daysqty 4 used
$1.20$1.64
26
90131-ZW1-003Ships in 1 to 2 Daysqty 2 used
$0.96$1.32
27
90132-ZW1-003Ships in 1 to 2 Daysqty 4 used
$1.20$1.64
28
90133-ZW1-003Ships in 1 to 2 Daysqty 2 used
$3.50$4.80
29
90134-ZW1-003Ships in 1 to 2 Daysqty 2 used
$3.24$4.44
30
90321-ZW1-003Ships in 1 to 2 Daysqty 4 used
$1.31$1.80
31
NUT (10-32) (NOT AVAILABLE)
90322-ZW1-003No Longer Available
$5.04$6.90
32
90323-ZW1-003Ships in 1 to 2 Days
$5.15$7.06
33
90324-ZW1-003Ships in 1 to 2 Daysqty 2 used
$1.26$1.72
34
90550-ZW1-003Ships in 1 to 2 Daysqty 2 used
$0.93$1.28
Diagram

REMOTE CONTROL (4)

BF90 BF90AW remote control (4) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW04F1503A
Fits only BF90AW-JRTA, BF90AW-LRTA, BF90AW-XRTA — not every submodel of this generation.

Parts in this assembly

27 parts
1
BOX ASSY., REMOTE CONTROL (PANEL MOUNT) (NA USE ALT:06240-ZW7-U00)
24800-ZW1-V21No Longer Available
—
2
24811-ZW1-V21Ships in 1 to 2 Days
$74.27$101.74
3
24812-ZW1-V21Ships in 1 to 2 Days
$5.46$7.48
4
24813-ZW1-V21Ships in 1 to 2 Days
$19.13$26.20
5
24816-ZW1-V21Ships in 1 to 2 Days
$1.56$2.14
6
24819-ZW1-V21Ships in 1 to 2 Days
$2.93$4.02
7
24820-ZW1-V21Ships in 1 to 2 Days
$14.25$19.52
8
24821-ZW1-003Ships in 1 to 2 Days
$2.37$3.24
9
24822-ZW1-V21Ships in 1 to 2 Days
$13.26$18.16
10
24829-ZW1-003Ships in 1 to 2 Days
$0.16$0.22
11
24830-ZW1-V21Ships in 1 to 2 Days
$7.43$10.18
12
24834-ZW1-003Ships in 1 to 2 Days
$2.51$3.44
13
24836-ZW1-V21Ships in 1 to 2 Days
$10.88$14.90
14
24870-ZW1-V21Ships in 1 to 2 Days
$150.09$205.60
15
SWITCH ASSY., EMERGENCY STOP (NOT AVAILABLE)
35180-ZW1-003No Longer Available
—
16
35182-ZW1-003Ships in 1 to 2 Days
$19.10$26.16
17
35370-ZW1-V01Ships in 1 to 2 Days
$93.60$128.22
18
87705-ZW1-003Ships in 1 to 2 Days
$4.41$6.04
19
87706-ZW1-003Ships in 1 to 2 Days
$6.41$8.78
19
87707-ZW1-003Ships in 1 to 2 Days
$7.24$9.92
20
SCREW A (NOT AVAILABLE)
90136-ZW1-003No Longer Available
—
21
90137-ZW1-003Ships in 1 to 2 Daysqty 3 used
$1.34$1.84
22
SCREW C (NOT AVAILABLE)
90138-ZW1-003No Longer Available
—
23
90131-ZW1-003Ships in 1 to 2 Days
$0.96$1.32
24
NUT (1/4X20) (NOT AVAILABLE)
90314-ZW1-003No Longer Available
—
25
90551-ZW1-003Ships in 1 to 2 Daysqty 3 used
$1.08$1.48
26
32167-ZW5-650Ships in 1 to 2 Days
$22.13$30.32
Diagram

SHIFT SHAFT

BF90 BF90AW shift shaft exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW04F0200A
Fits all 5 submodels of this generation.

Parts in this assembly

41 parts
1
CABLE, THROTTLE (NOT AVAILABLE)
17910-ZW1-003No Longer Available
—
2
17931-ZW1-000Ships in 1 to 2 Days
$21.13$30.38
3
24210-ZW1-000Ships in 1 to 2 Days
$10.02$13.72
3
24210-ZW1-010Ships in 1 to 2 Days
$10.02$13.72
4
24610-ZW1-901Ships in 1 to 2 Days
$79.07$113.74
4
SHAFT, SHIFT (A) (NOT AVAILABLE)
24610-ZW1-B01No Longer Available
—
5
24612-ZW1-000Ships in 1 to 2 Days
$18.54$25.40
5
24612-ZW1-010No Longer Available
$18.54$25.40
6
ROD, LINK
24613-ZW1-000Ships in 1 to 2 Days
$13.94$19.10
7
24618-ZV5-000Ships in 1 to 2 Daysqty 2 used
$14.05$19.82
8
SHAFT, SHIFT (B) (NOT AVAILABLE)
24620-ZW1-900No Longer Available
—
8
SHAFT, SHIFT (B) (NOT AVAILABLE)
24620-ZW1-B00No Longer Available
—
9
24626-ZV5-000Ships in 1 to 2 Daysqty 4 used
$2.25$3.18
9
24626-ZV5-010In Stockqty 4 used
$2.25$3.18
10
BRACKET, SHIFT LINK *NH8* (DARK GRAY)
24628-ZW1-000ZANo Longer Available
—
11
24629-ZW1-000Ships in 1 to 2 Days
$21.39$29.30
12
24630-ZW1-000No Longer Available
$49.48$67.78
12
LINK, SHIFT (NOT AVAILABLE)
24630-ZW1-700No Longer Available
—
13
35476-ZW1-010Ships in 1 to 2 Days
$10.67$15.36
14
SWITCH ASSY., NEUTRAL
35600-ZW1-003No Longer Available
—
15
35618-ZW9-020Ships in 1 to 2 Days
$4.69$6.62
16
BUSH, TORQUE LINK (NOT AVAILABLE)
45125-GM9-003No Longer Available
—
17
57264-759-003No Longer Available
$5.56$7.62
18
90011-ZW9-000Ships in 1 to 2 Daysqty 4 used
$1.71$2.34
18
90013-ZV0-010Ships in 1 to 2 Daysqty 4 used
$1.80$2.46
19
90014-ZV7-040Ships in 1 to 2 Daysqty 2 used
$1.58$2.22
20
BOLT, FLANGE (6MM) (NOT AVAILABLE)
90108-HE0-000No Longer Available
—
21
90302-ZV5-003Ships in 1 to 2 Days
$5.27$7.22
22
90406-KV3-780Ships in 1 to 2 Days
$2.22$3.14
23
90403-ZW1-000Ships in 1 to 2 Days
$1.71$2.34
24
90504-921-010Ships in 1 to 2 Daysqty 6 used
$1.27$1.74
25
90508-ZV7-000Ships in 1 to 2 Days
$6.60$9.04
26
90759-ZV1-000In Stockqty 2 used
$1.42$1.94
27
90765-ZW1-000Ships in 1 to 2 Daysqty 2 used
$2.10$2.96
28
91255-ZV4-651Ships in 1 to 2 Daysqty 2 used
$6.07$8.56
29
91305-KF0-003Ships in 1 to 2 Days
$2.82$3.86
30
94305-30183Ships in 1 to 2 Daysqty 2 used
$1.59$2.18
31
94540-12029In Stock
$8.02$10.98
32
95701-06012-02Ships in 1 to 2 Days
$2.10$2.96
33
90013-ZV0-010Ships in 1 to 2 Days
$1.80$2.46
33
95701-06012-02Ships in 1 to 2 Days
$2.10$2.96
Diagram

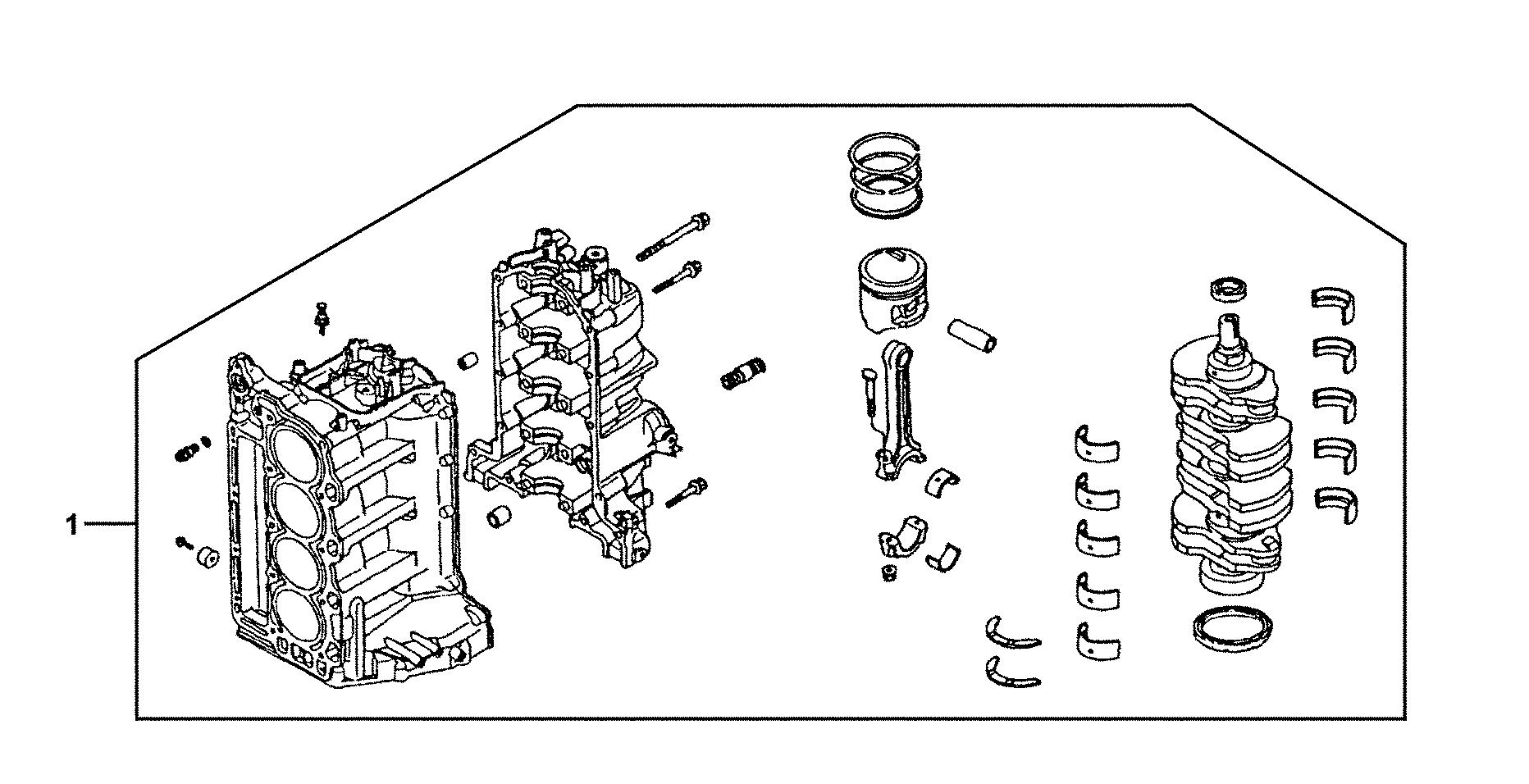

SHORT BLOCK

BF90 BF90AW short block exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW04E03A1Z
Fits all 5 submodels of this generation.

Parts in this assembly

1 parts
1
SHORT BLOCK *NH8* (DARK GRAY) (NOT AVAILABLE)
12011-ZW1-000ZANo Longer Available
—
Diagram

SPEEDOMETER KIT

BF90 BF90AW speedometer kit exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW04Y0100
Fits all 5 submodels of this generation.

Parts in this assembly

9 parts
1
SPEEDOMETER KIT
06372-ZV5-910No Longer Available
—
2
91302-ZE9-003Ships in 1 to 2 Days
$2.35$3.22
3
19270-ZW1-740Ships in 1 to 2 Days
$43.40
4
19270-881-812Ships in 1 to 2 Days
$10.42$14.70
5
19270-ZW1-740Ships in 1 to 2 Days
$43.40
6
19272-881-810Ships in 1 to 2 Days
$2.45$3.46
7
32550-ZV5-910Ships in 1 to 2 Days
$17.67
8
METER ASSY., VOLT (NOT AVAILABLE: USE 37453-ZW5-000ZA)
37450-ZV5-911No Longer Available
—
9
39700-ZV5-800AHShips in 1 to 2 Days
$47.13
Diagram

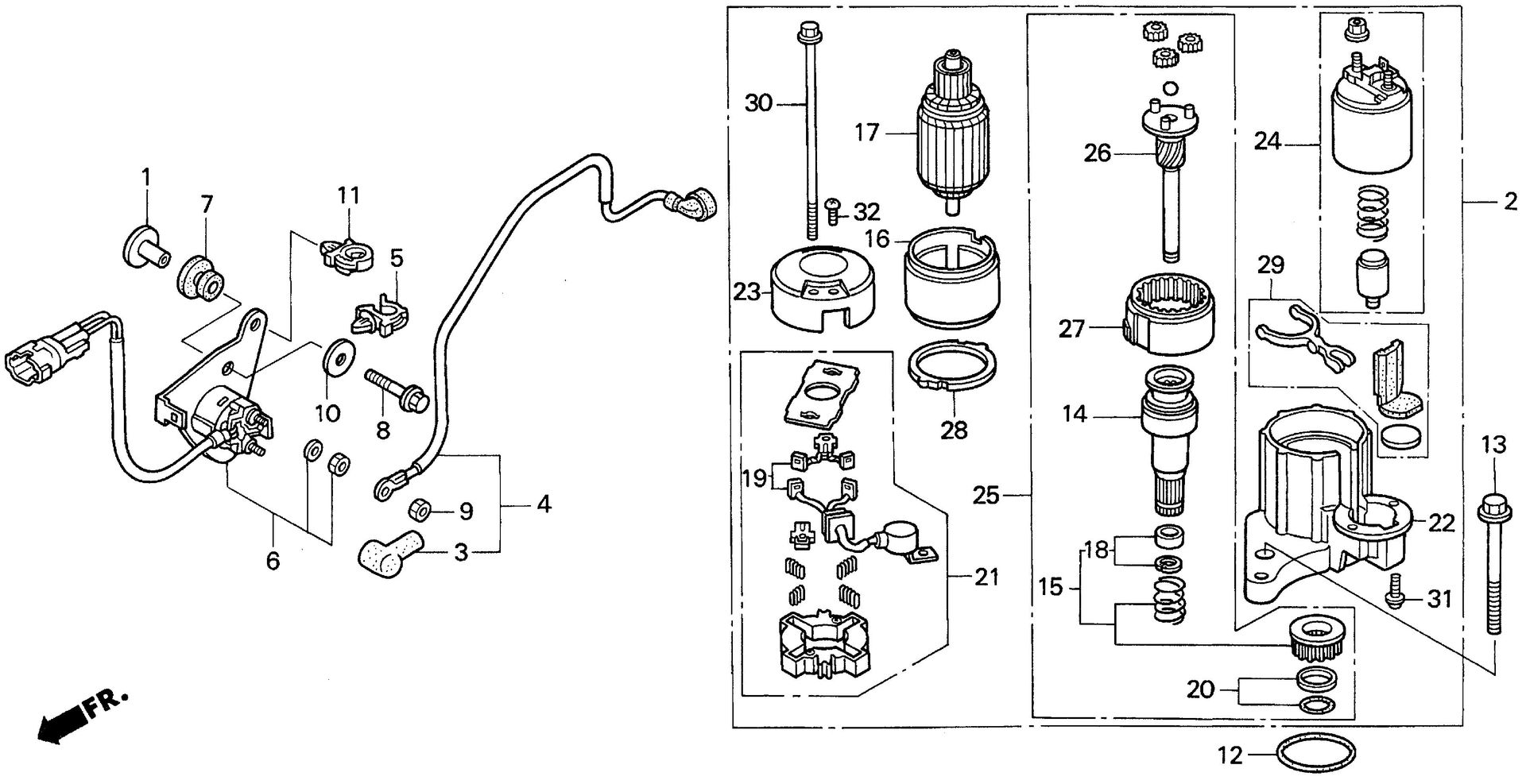

STARTER MOTOR

BF90 BF90AW starter motor exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW04E2100A
Fits all 5 submodels of this generation.

Parts in this assembly

32 parts
1
17612-KR3-600Ships in 1 to 2 Daysqty 2 used
$6.26$8.84
2
STARTER MOTOR ASSY. (NOT AVAILABLE)
31200-ZW1-004No Longer Available
$685.36
↳
Sierra alternative ·
18-15061In Stock save $340.04
$345.32
3
32136-659-000Ships in 1 to 2 Days
$4.99$7.18
4
WIRE, MAGNETIC SWITCH (NOT AVAILABLE)
32402-ZW1-000No Longer Available
—
5
32660-MJ6-710Ships in 1 to 2 Days
$3.43$4.70
6
SWITCH ASSY., STARTER MAGNETIC
35850-ZW1-003No Longer Available
$74.08$101.48
7
84905-459-670Ships in 1 to 2 Daysqty 2 used
$3.61$5.08
8
90121-ZV0-010Ships in 1 to 2 Daysqty 2 used
$2.29$3.30
9
90203-ZV5-000Ships in 1 to 2 Days
$1.53$2.16
10
WASHER, PLAIN (6MM)
90402-ZW1-000No Longer Available
—
11
90684-ZA0-601Ships in 1 to 2 Days
$3.21$4.40
12
O-RING (54.4X3.1) (NOT AVAILABLE)
91303-ZW1-003No Longer Available
$10.56$14.46
13
95701-10090-02In Stockqty 2 used
$3.46$4.74
14
CLUTCH, OVERRUNNING
31207-ZW1-004No Longer Available
$272.89$373.82
15
31213-ZW1-004Ships in 1 to 2 Days
$68.14$98.02
16
YOKE
31216-ZW1-004No Longer Available
—
17
31217-ZW1-004Ships in 1 to 2 Days
$393.40
18
31225-ZW1-004Ships in 1 to 2 Days
$8.69$12.50
19
31226-ZW1-004Ships in 1 to 2 Days
$54.09$74.10
20
31229-ZW1-004Ships in 1 to 2 Days
$21.14$29.82
21
31231-ZW1-004Ships in 1 to 2 Days
$88.26$126.94
22
BRACKET, FR. (NOT AVAILABLE)
31235-ZW1-004No Longer Available
$207.54$284.30
23
BRACKET, RR.
31236-ZW1-004No Longer Available
$52.59$72.04
24
31240-ZW1-004Ships in 1 to 2 Days
$308.09$422.04
25
SHAFT ASSY., CLUTCH
31242-ZW5-003No Longer Available
$557.91$764.26
26
31246-ZW5-003Ships in 1 to 2 Days
$191.49$275.44
27
31247-ZW1-004Ships in 1 to 2 Days
$67.41$95.10
28
31249-ZW1-004Ships in 1 to 2 Days
$10.76$15.18
29
31250-ZW1-004Ships in 1 to 2 Days
$13.55$19.12
30
31261-ZW1-004Ships in 1 to 2 Daysqty 2 used
$4.34$6.12
31
90106-ZW1-004Ships in 1 to 2 Daysqty 2 used
$4.00$5.64
32
90107-ZW1-004Ships in 1 to 2 Daysqty 2 used
$2.44$3.34
Diagram

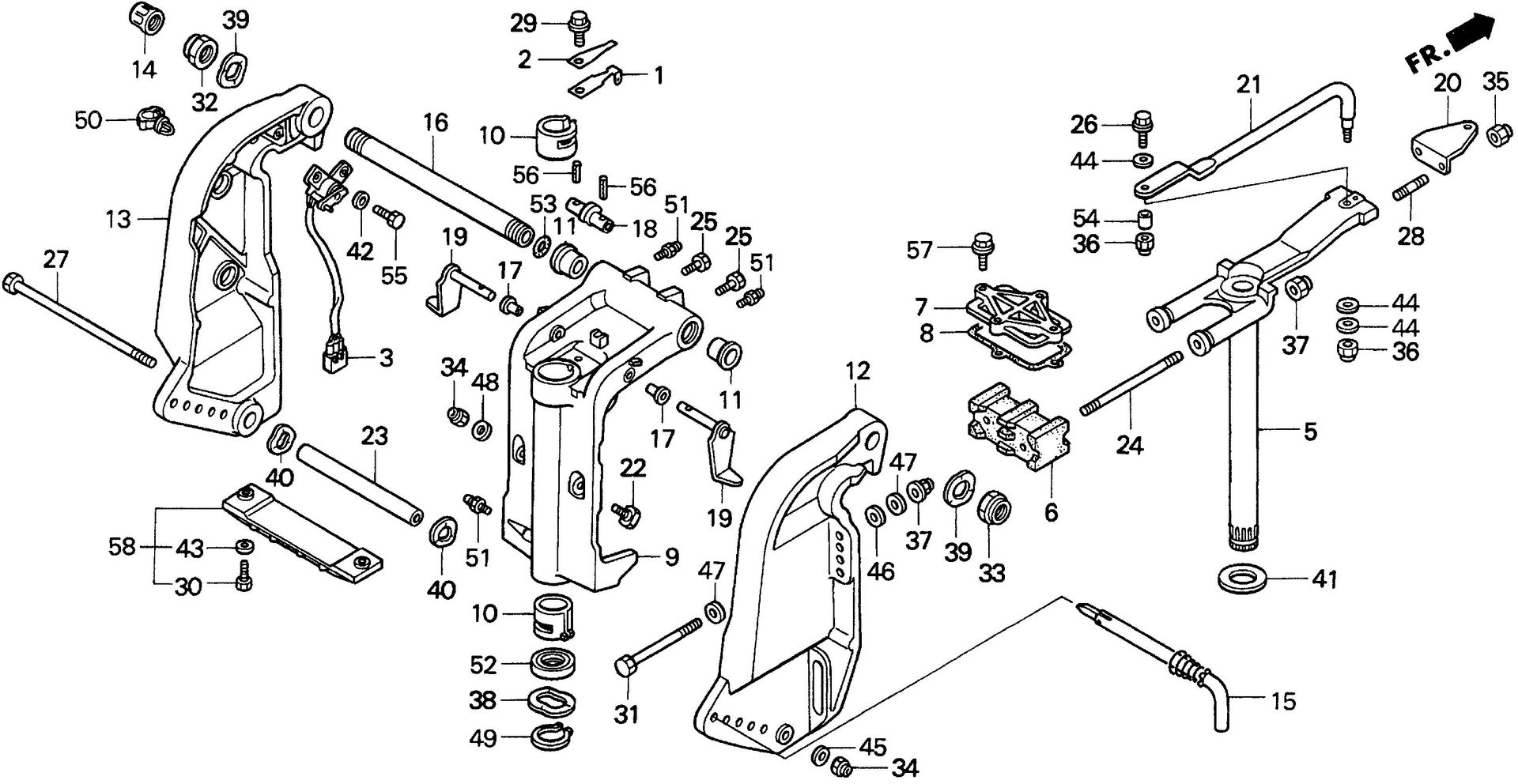

SWIVEL CASE - STERN BRACKET

BF90 BF90AW swivel case - stern bracket exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW04F1000A
Fits all 5 submodels of this generation.

Parts in this assembly

66 parts
1
24210-ZV1-010Ships in 1 to 2 Days
$10.25$14.04
2
24221-ZV4-010Ships in 1 to 2 Days
$7.30$10.00
3
SENSOR ASSY., TRIM ANGLE
35660-ZW1-003Ships in 1 to 2 Days
$135.17$185.16
5
FRAME, MOUNTING *NH282MU* (OYSTER SILVER METALLIC-U)
50100-ZW1-000ZANo Longer Available
—
5
FRAME, MOUNTING *NH282MU* (OYSTER SILVER METALLIC-U)
50100-ZW1-010ZANo Longer Available
—
5
FRAME, MOUNTING *NH282MU* (OYSTER SILVER METALLIC-U)
50100-ZW1-020ZANo Longer Available
—
6
MOUNT, RUBBER (UPPER) (NOT AVAILABLE)
50151-ZW1-000No Longer Available
—
7
HOLDER, MOUNTING (UPPER) (NOT AVAILABLE)
50167-ZW1-000No Longer Available
—
8
GASKET, MOUNTING HOLDER (UPPER)
50168-ZW1-000No Longer Available
$7.37$10.10
9
50201-ZW1-020ZAShips in 1 to 2 Days
$762.77
9
50201-ZW1-040ZAShips in 1 to 2 Days
$762.77
10
50211-ZV5-003Ships in 1 to 2 Daysqty 2 used
$11.40$11.97
11
50214-ZW1-000Ships in 1 to 2 Daysqty 2 used
$13.17
12
BRACKET, R. STERN *NH282MU* (OYSTER SILVER METALLIC-U) (NOT AVAILABLE)
50301-ZW1-000ZANo Longer Available
$581.26$796.24
12
$356.71$488.64
13
BRACKET, L. STERN *NH282MU* (OYSTER SILVER METALLIC-U) (NOT AVAILABLE)
50311-ZW1-000ZANo Longer Available
—
13
$365.44$500.60
14
50331-ZV5-000Ships in 1 to 2 Days
$5.88$8.06
15
06503-ZW5-000Ships in 1 to 2 Days
$33.59
16
50381-ZW1-000Ships in 1 to 2 Days
$167.75$236.68
16
50381-ZY9-000Ships in 1 to 2 Days
$167.75$236.68
17
50522-ZV5-000Ships in 1 to 2 Daysqty 2 used
$5.71$7.82
18
BRACKET, TILTING (NA USE ALT:04606-ZW1-000)
50527-ZW1-000No Longer Available
—
19
STOPPER, TILT (NA USE ALT:04606-ZW1-000)
50529-ZW1-000No Longer Available
—
20
53234-ZW1-000Ships in 1 to 2 Days
$13.75$18.84
20
53234-ZW1-010Ships in 1 to 2 Days
$13.75$18.84
21
53238-ZW1-010Ships in 1 to 2 Days
$63.38$86.84
22
56516-ZW1-000Ships in 1 to 2 Daysqty 2 used
$18.79$25.74
23
56539-ZZ0-C00Ships in 1 to 2 Days
$64.04$90.36
24
90101-ZW5-000Ships in 1 to 2 Daysqty 2 used
$35.97$50.76
25
90102-ZW1-000Ships in 1 to 2 Daysqty 2 used
$7.02$9.62
26
90105-ZW1-000Ships in 1 to 2 Days
$7.48$10.24
27
90108-ZW1-000Ships in 1 to 2 Days
$35.89$50.64
28
90109-ZV5-000Ships in 1 to 2 Daysqty 2 used
$6.39$9.20
29
90110-881-000Ships in 1 to 2 Days
$2.12$2.90
30
90113-ZV5-000Ships in 1 to 2 Daysqty 2 used
$2.60$3.66
31
90129-ZW1-010Ships in 1 to 2 Daysqty 4 used
$18.88$27.16
32
90304-ZV5-003Ships in 1 to 2 Days
$17.70$24.24
32
90304-ZV5-013Ships in 1 to 2 Days
$17.70$24.24
33
90304-ZW1-003Ships in 1 to 2 Days
$19.68$27.78
33
90304-ZW1-013Ships in 1 to 2 Days
$19.68$27.78
34
90306-ZV5-003In Stockqty 3 used
$3.40$4.66
35
90306-ZV5-003In Stockqty 2 used
$3.40$4.66
36
90307-ZV5-003Ships in 1 to 2 Daysqty 2 used
$6.47$8.86
37
90308-ZW1-003Ships in 1 to 2 Daysqty 6 used
$10.16$13.92
38
90501-ZV5-000Ships in 1 to 2 Days
$7.30$10.00
39
90502-ZV5-000Ships in 1 to 2 Daysqty 2 used
$8.72$11.94
40
WASHER, WAVE (32MM) (NOT AVAILABLE)
90502-ZW1-000No Longer Available
$5.64$7.72
41
90504-ZV5-000Ships in 1 to 2 Days
$7.30$10.00
42
90504-921-010Ships in 1 to 2 Daysqty 2 used
$1.27$1.74
43
90506-ZV4-000Ships in 1 to 2 Daysqty 2 used
$2.45$3.36
44
90514-ZV4-000Ships in 1 to 2 Daysqty 3 used
$1.69$2.32
45
90545-ZV5-000Ships in 1 to 2 Days
$2.72$3.84
46
90552-ZV5-000Ships in 1 to 2 Daysqty 4 used
$4.67$6.40
47
90559-ZV5-000Ships in 1 to 2 Daysqty 8 used
$2.95$4.04
48
90563-ZV5-000Ships in 1 to 2 Daysqty 2 used
$2.44$3.34
49
90651-ZV5-000Ships in 1 to 2 Days
$7.85$10.76
50
90681-763-A01Ships in 1 to 2 Days
$8.06$11.04
51
90951-ZV7-010Ships in 1 to 2 Daysqty 3 used
$1.90$2.60
52
91256-ZV5-003Ships in 1 to 2 Days
$7.80$10.68
53
91352-ZV5-000Ships in 1 to 2 Days
$1.74$2.46
54
91560-ZV5-000Ships in 1 to 2 Days
$3.07$4.20
55
92101-06020-4JShips in 1 to 2 Daysqty 2 used
$1.27$1.74
56
94305-25203Ships in 1 to 2 Daysqty 2 used
$1.37$1.88
57
BOLT, FLANGE (8X30)
95701-08030-02Ships in 1 to 2 Daysqty 4 used
$1.69$2.32
58
06411-ZW1-020Ships in 1 to 2 Days
$51.97
Diagram

THERMOSTAT

BF90 BF90AW thermostat exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW04E0400
Fits all 5 submodels of this generation.

Parts in this assembly

25 parts
1
19274-ZW5-000Ships in 1 to 2 Days
$17.48$25.14
2
19277-ZW1-000In Stock
$45.44$65.36
3
19278-ZW1-000ZAShips in 1 to 2 Days
$63.60$91.48
4
19279-ZW1-000Ships in 1 to 2 Days
$5.08$7.30
5
19291-ZW1-000In Stockqty 2 used
$8.57$12.32
6
SPRING, RELIEF VALVE (NOT AVAILABLE)
19292-ZW1-000No Longer Available
—
7
COVER, RELIEF VALVE
19295-ZW1-000No Longer Available
$10.07$13.80
8
19296-ZW1-000Ships in 1 to 2 Daysqty 2 used
$7.42$10.68
9
19297-ZW1-000In Stockqty 2 used
$7.68$11.04
10
SPACER, RELIEF VALVE *NH8* (DARK GRAY) (NOT AVAILABLE)
19298-ZW1-000ZANo Longer Available
—
11
19300-ZV5-043In Stock
$29.77$42.00
↳
Sierra alternative ·
18-3630In Stock save $0.08
$29.69
12
19315-ZV5-010Ships in 1 to 2 Days
$25.78$36.38
13
19351-ZV5-000In Stock
$2.98$4.20
14
COVER, WATER JACKET *NH8* (DARK GRAY) (NOT AVAILABLE)
19360-ZW1-000ZANo Longer Available
—
15
19371-ZW1-000Ships in 1 to 2 Days
$40.56$58.34
16
HOSE, WATER BYPASS (NOT AVAILABLE)
19508-ZW1-000No Longer Available
—
17
STAY, IGNITION WIRE CLAMP (NOT AVAILABLE)
32761-PV0-000No Longer Available
—
18
90013-ZV0-010Ships in 1 to 2 Days
$1.80$2.46
19
90121-ZV0-010Ships in 1 to 2 Daysqty 8 used
$2.29$3.30
20
90023-ZY9-M01Ships in 1 to 2 Daysqty 2 used
$1.47$2.08
21
90602-ZV3-030In Stockqty 4 used
$3.37$4.76
22
91356-SD4-953In Stockqty 2 used
$3.88$5.58
22
91356-SD4-952Ships in 1 to 2 Daysqty 2 used
$3.47$4.76
23
95701-06040-02Ships in 1 to 2 Daysqty 5 used
$1.71$2.40
24
BOLT, FLANGE (6X55)
95701-06055-02No Longer Available
$1.88$2.58
Diagram

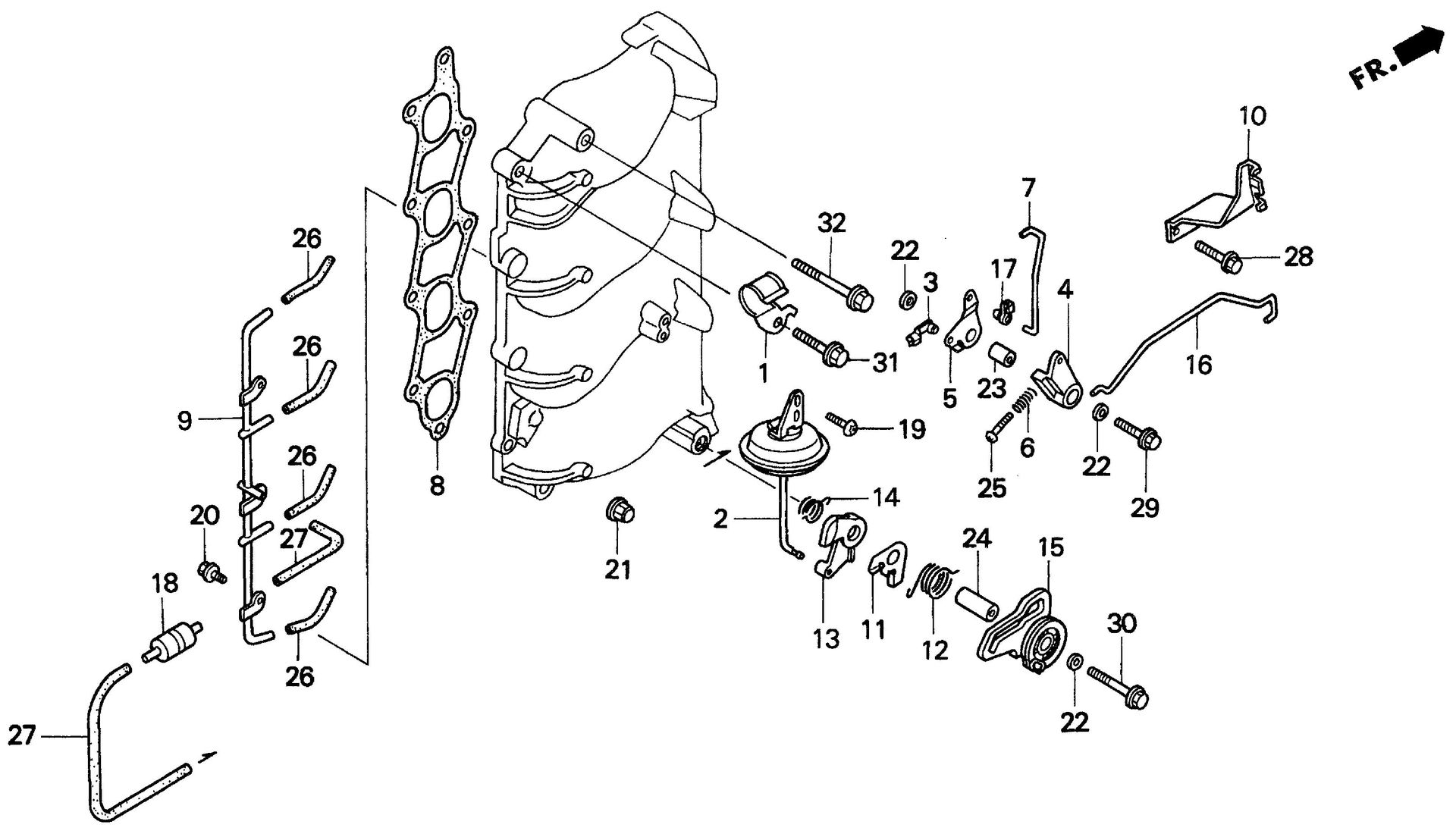

THROTTLE CAM

BF90 BF90AW throttle cam exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW04E1410
Fits all 5 submodels of this generation.

Parts in this assembly

32 parts
1
12328-ZW1-000Ships in 1 to 2 Days
$12.76$18.36
2
DIAPHRAGM ASSY.
16240-ZW1-003Ships in 1 to 2 Days
$50.46$69.12
3
16263-ZA0-000Ships in 1 to 2 Days
$3.78$5.18
4
ARM A, CHOKE
16574-ZV5-000No Longer Available
$6.25$8.56
5
ARM B, CHOKE (NOT AVAILABLE)
16575-ZW1-000No Longer Available
—
6
SPRING, CHOKE ARM ADJUSTING (NOT AVAILABLE)
16659-ZV5-000No Longer Available
—
7
ROD, CHOKE (NOT AVAILABLE)
16674-ZW1-000No Longer Available
$3.42$4.68
8
17151-ZW1-000Ships in 1 to 2 Days
$13.24$19.04
9
PIPE, INSTALL
17881-ZW1-000No Longer Available
—
10
STAY, THROTTLE CABLE
17926-ZW1-000Ships in 1 to 2 Days
$14.03$19.22
11
17927-ZV5-000Ships in 1 to 2 Days
$6.86$9.68
12
SPRING, ASSIST (NOT AVAILABLE)
17928-ZW1-000No Longer Available
—
13
CAM, THROTTLE OPENER (NOT AVAILABLE)
17937-ZW1-000No Longer Available
—
14
17938-ZV5-000Ships in 1 to 2 Days
$2.80$3.96
15
CAM, THROTTLE (NOT AVAILABLE)
17946-ZW1-000No Longer Available
—
16
ROD, CHOKE KNOB (NOT AVAILABLE)
17955-ZW1-000No Longer Available
—
17
17957-ZV4-000Ships in 1 to 2 Days
$1.90$2.74
18
VALVE, DASHPOT SOLENOID
36135-ZW1-004No Longer Available
$36.43$49.90
19
90011-ZV5-003Ships in 1 to 2 Daysqty 2 used
$1.45$2.04
20
90019-ZV1-010Ships in 1 to 2 Daysqty 3 used
$1.36$1.86
21
90208-438-000Ships in 1 to 2 Daysqty 2 used
$4.10$5.62
22
90511-ZV4-000Ships in 1 to 2 Daysqty 3 used
$2.20$3.02
23
91503-ZV5-000Ships in 1 to 2 Days
$5.14$7.40
24
COLLAR (6.7X12.5X31.5) (NOT AVAILABLE)
91504-ZW1-000No Longer Available
—
25
SCREW, PAN (4X16) (NOT AVAILABLE)
93500-04016-0BNo Longer Available
—
26
95001-35003-60MShips in 1 to 2 Daysqty 4 used
$27.23$39.16
27
95001-35003-60MShips in 1 to 2 Daysqty 2 used
$27.23$39.16
28
95701-06016-02Ships in 1 to 2 Daysqty 2 used
$0.98$1.34
29
95701-06030-02Ships in 1 to 2 Days
$1.71$2.46
30
95701-06045-02Ships in 1 to 2 Days
$1.36$1.96
31
95701-08035-02In Stockqty 6 used
$1.90$2.60
32
BOLT, FLANGE (8X70) (NOT AVAILABLE)
95701-08070-02No Longer Available
$2.10$2.88
Diagram

TIMING BELT

BF90 BF90AW timing belt exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW04E1300
Fits all 5 submodels of this generation.

Parts in this assembly

22 parts
1
COVER, TIMING BELT (LOWER) (NOT AVAILABLE)
11810-ZW1-000No Longer Available
—
2
COVER, TIMING BELT (UPPER)
11821-ZW1-000No Longer Available
—
3
RUBBER, SEAL (NOT AVAILABLE)
11831-ZW1-000No Longer Available
—
4
PULLEY, TIMING BELT DRIVE (NOT AVAILABLE)
13621-ZW1-003No Longer Available
—
5
13622-PM3-020Ships in 1 to 2 Daysqty 2 used
$10.37$14.90
6
PULLEY, TIMING BELT DRIVEN (NOT AVAILABLE)
14210-ZW1-000No Longer Available
—
7
14400-ZW1-004Ships in 1 to 2 Days
$137.15$197.24
8
14510-ZW1-004Ships in 1 to 2 Days
$113.69$163.52
9
14515-ZV5-000Ships in 1 to 2 Days
$5.88$8.30
10
14520-ZV5-000Ships in 1 to 2 Days
$4.53$6.20
10
14520-ZV5-010Ships in 1 to 2 Days
$4.53$6.20
10
14520-ZV5-020Ships in 1 to 2 Days
$4.53$6.20
11
40102-ZV5-000Ships in 1 to 2 Daysqty 6 used
$2.64$3.62
12
90003-ZW1-305Ships in 1 to 2 Daysqty 4 used
$5.14$7.40
13
90031-ZV5-000Ships in 1 to 2 Days
$4.07$5.86
14
90121-ZV0-010Ships in 1 to 2 Daysqty 6 used
$2.29$3.30
15
90435-ZZ5-M00Ships in 1 to 2 Daysreplaced by 90435-ZZ5-M01
$3.72$5.26
16
91553-ZV5-000Ships in 1 to 2 Daysqty 6 used
$2.67$3.66
16
91553-ZV5-010Ships in 1 to 2 Daysqty 6 used
$2.67$3.66
17
94103-06200Ships in 1 to 2 Daysqty 6 used
$1.04$1.46
18
95701-10045-08Ships in 1 to 2 Days
$2.91$3.98
19
96220-40100Ships in 1 to 2 Days
$0.45$0.62
Diagram

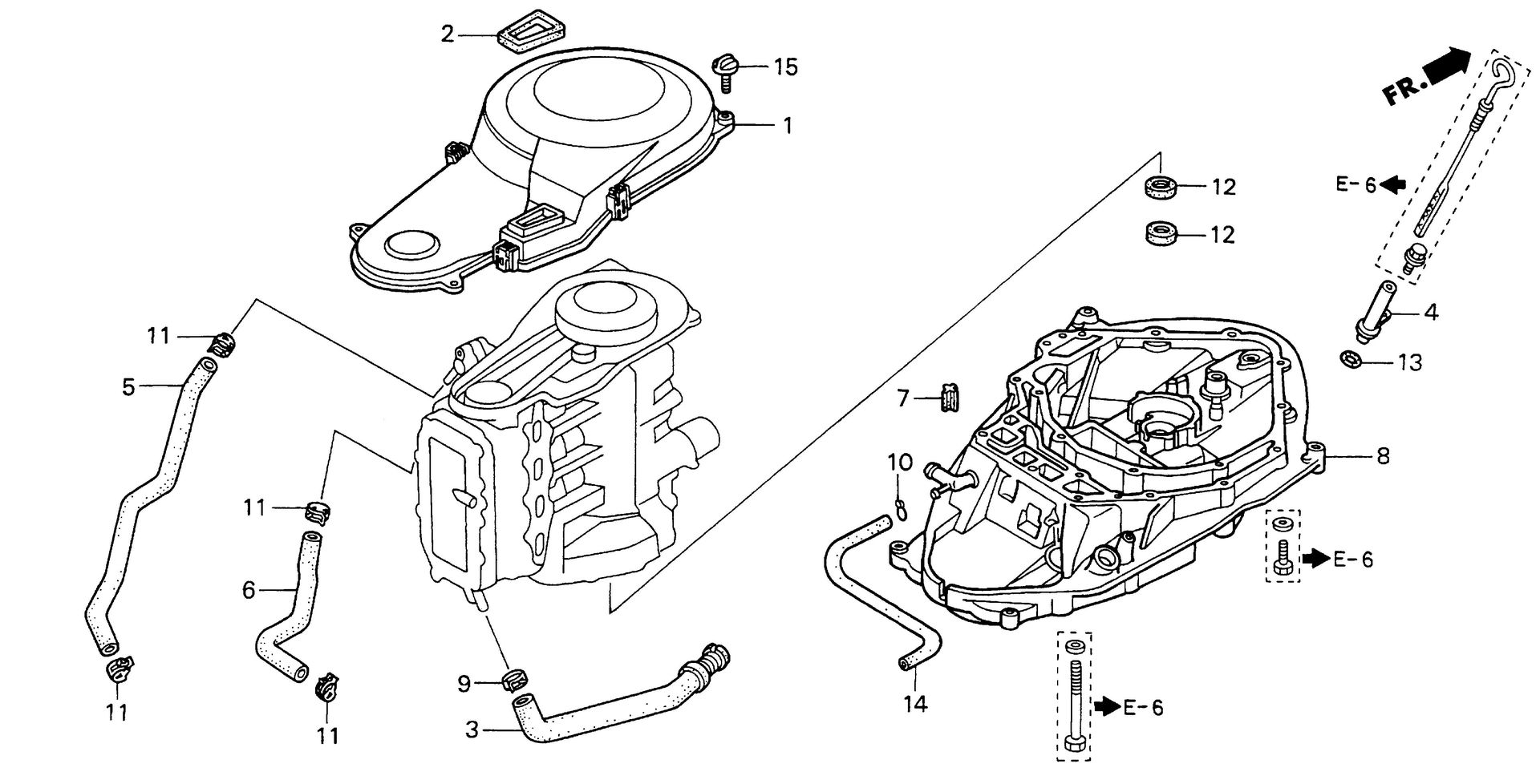

TIMING BELT COVER - MOUNT CASE

BF90 BF90AW timing belt cover - mount case exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW04F0301B
Fits all 5 submodels of this generation.

Parts in this assembly

15 parts
1
COVER, TIMING BELT (UPPER)
11821-ZW1-000No Longer Available
—
2
RUBBER, SEAL (NOT AVAILABLE)
11831-ZW1-000No Longer Available
—
3
TUBE, OIL (NOT AVAILABLE)
15422-ZW1-000No Longer Available
—
4
15665-ZW1-030Ships in 1 to 2 Days
$12.61$17.80
5
19274-ZW5-000Ships in 1 to 2 Days
$17.48$25.14
6
HOSE, WATER BYPASS (NOT AVAILABLE)
19508-ZW1-000No Longer Available
—
7
RUBBER, SEAL (NOT AVAILABLE)
23161-ZV5-000No Longer Available
$2.60$3.56
8
CASE, MOUNT *NH8* (DARK GRAY)
23170-ZW1-000ZANo Longer Available
—
9
90602-ZV5-013Ships in 1 to 2 Days
$2.19$3.10
10
90602-921-000Ships in 1 to 2 Days
$1.39$1.96
11
90602-ZV3-030In Stockqty 4 used
$3.37$4.76
12
SEAL, WATER (22X35X7) (NOT AVAILABLE)
91201-ZW1-003No Longer Available
—
13
91309-PJ7-010Ships in 1 to 2 Days
$3.05$4.30
14
BULK HOSE, VACUUM (4.5X1000) (4.5X430)
95005-45001-30MNo Longer Available
$8.79$12.04
15
90003-ZW1-305Ships in 1 to 2 Daysqty 4 used
$5.14$7.40
Diagram

TOOLS

BF90 BF90AW tools exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW04F1300
Fits all 5 submodels of this generation.

Parts in this assembly

12 parts
1
28470-816-000Ships in 1 to 2 Days
$7.37$10.40
2
TOOL KIT (NOT AVAILABLE)
89000-ZW1-000No Longer Available
—
3
SPANNER (8MM) (NOT AVAILABLE)
89203-836-000No Longer Available
—
4
WRENCH, PLUG (NOT AVAILABLE)
89216-KE5-000No Longer Available
—
5
89301-921-010Ships in 1 to 2 Days
$5.87$8.28
6
99001-10120Ships in 1 to 2 Days
$6.26$8.58
7
99001-14170Ships in 1 to 2 Days
$10.54$14.44
8
89210-GBJ-J10Ships in 1 to 2 Days
$19.36$26.52
9
99003-10000Ships in 1 to 2 Days
$3.81$5.22
10
99003-30000Ships in 1 to 2 Days
$3.81$5.22
11
99003-40000Ships in 1 to 2 Days
$1.17$1.60
12
BAG, TOOL (200MM)
99008-02000No Longer Available
—
Diagram

WATER PUMP - VERTICAL SHAFT (1)

BF90 BF90AW water pump - vertical shaft (1) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW04F0400AA
Fits all 5 submodels of this generation.

Parts in this assembly

37 parts
1
19210-ZW1-303Ships in 1 to 2 Days
$32.81$47.18
↳
Sierra alternative ·
18-3056In Stock save $6.63
$26.18
2
19221-ZW1-003Ships in 1 to 2 Days
$148.95$204.04
3
19231-ZW1-003Ships in 1 to 2 Days
$16.24$22.24
4
19232-ZW1-003Ships in 1 to 2 Days
$6.15$8.42
↳
Sierra alternative ·
18-2563-9In Stock
$7.46
5
GASKET B, IMPELLER (NOT AVAILABLE)
19234-ZW1-003No Longer Available
—
↳
Sierra alternative ·
18-2564-2In Stock
$16.82
6
19241-ZW1-003Ships in 1 to 2 Days
$130.07$178.18
7
19242-ZW1-003Ships in 1 to 2 Days
$11.99$16.42
↳
Sierra alternative ·
18-2565-9In Stock
$19.34
8
19251-ZW1-900No Longer Available
$59.25$81.16
8
19251-ZW1-910Ships in 1 to 2 Days
$67.74$97.44
10
24232-ZW1-003Ships in 1 to 2 Days
$44.75$61.30
10
24232-ZW1-013Ships in 1 to 2 Days
$53.45$73.22
11
24311-ZW1-003Ships in 1 to 2 Days
$64.52$88.38
11
ROD B, SHIFT (UL) (NOT AVAILABLE)
24311-ZW1-711No Longer Available
—
11
24311-ZW1-013Ships in 1 to 2 Days
$103.34$141.56
11
24311-ZW1-712Ships in 1 to 2 Days
$100.93$138.26
12
24320-ZW1-900No Longer Available
$49.57$67.90
13
24327-ZW1-000In Stock
$1.69$2.32
14
HOLDER, SEAL (NOT AVAILABLE)
24343-ZW1-003No Longer Available
—
15
40204-ZW1-000Ships in 1 to 2 Days
$7.43$10.18
16
41112-ZW1-003Ships in 1 to 2 Days
$174.37$238.86
16
SHAFT, VERTICAL (UL) (NOT AVAILABLE)
41112-ZW1-711No Longer Available
—
17
41116-ZW1-003Ships in 1 to 2 Days
$30.02$41.12
18
41131-ZW1-003Ships in 1 to 2 Days
$240.11$328.92
19
90109-ZW1-003In Stockqty 4 used
$3.08$4.22
20
90110-ZW1-003Ships in 1 to 2 Daysqty 8 used
$2.72$3.72
21
NUT, HEX. (NOT AVAILABLE)
90303-ZW1-003No Longer Available
$5.97$8.18
22
90518-ZW1-003Ships in 1 to 2 Days
$15.52$21.26
23
90651-ZW1-003Ships in 1 to 2 Days
$2.23$3.06
24
KEY, SPECIAL (NOT AVAILABLE)
90752-ZW1-003No Longer Available
$3.72$5.10
25
91052-ZW1-003Ships in 1 to 2 Days
$89.28$122.30
26
91054-ZW1-003No Longer Available
$63.82$87.42
27
91251-ZW1-003In Stock
$18.83$25.80
↳
Sierra alternative ·
18-0583In Stock save $1.11
$17.72
28
91253-ZW1-003In Stock
$15.74$21.56
↳
Sierra alternative ·
18-2054In Stock save $3.06
$12.68
29
91254-ZW1-003Ships in 1 to 2 Days
$18.98$26.00
↳
Sierra alternative ·
18-0522In Stock save $6.75
$12.23
30
O-RING
91353-ZW1-003No Longer Available
$3.65$5.00
↳
Sierra alternative ·
18-7198-9In Stock
$10.61
31
PUMP KIT, IMPELLER (NOT AVAILABLE)
19021-ZW1-003No Longer Available
—
↳
Sierra alternative ·
18-3214In Stock
$42.74
32
SLEEVE ASSY., WEAR (NOT AVAILABLE)
41115-ZW1-003No Longer Available
$18.47$25.30
Diagrams are Honda's official OEM illustrations, served from Honda's asset host. Prices are our own; where a struck-through figure appears beside one it is Honda's suggested retail. “In Stock” means the part is on our shelf here at Boe Marine. “Ships in 1 to 2 Days” means we order it in from Honda, who still supply it. Parts marked “No Longer Available” are shown so the drawing stays complete, but Honda has discontinued them. Where a Sierra replacement is listed beneath a Honda part, Sierra ships it direct to you; “Backorder Now” on one of those means Sierra has none at the moment and will ship it once restocked.
