Engine Parts & Service › Honda Marine › BF9

BF9 — Parts Diagrams

Generation BF9.9AX  ·  6 submodels

Assemblies (31)

Diagram

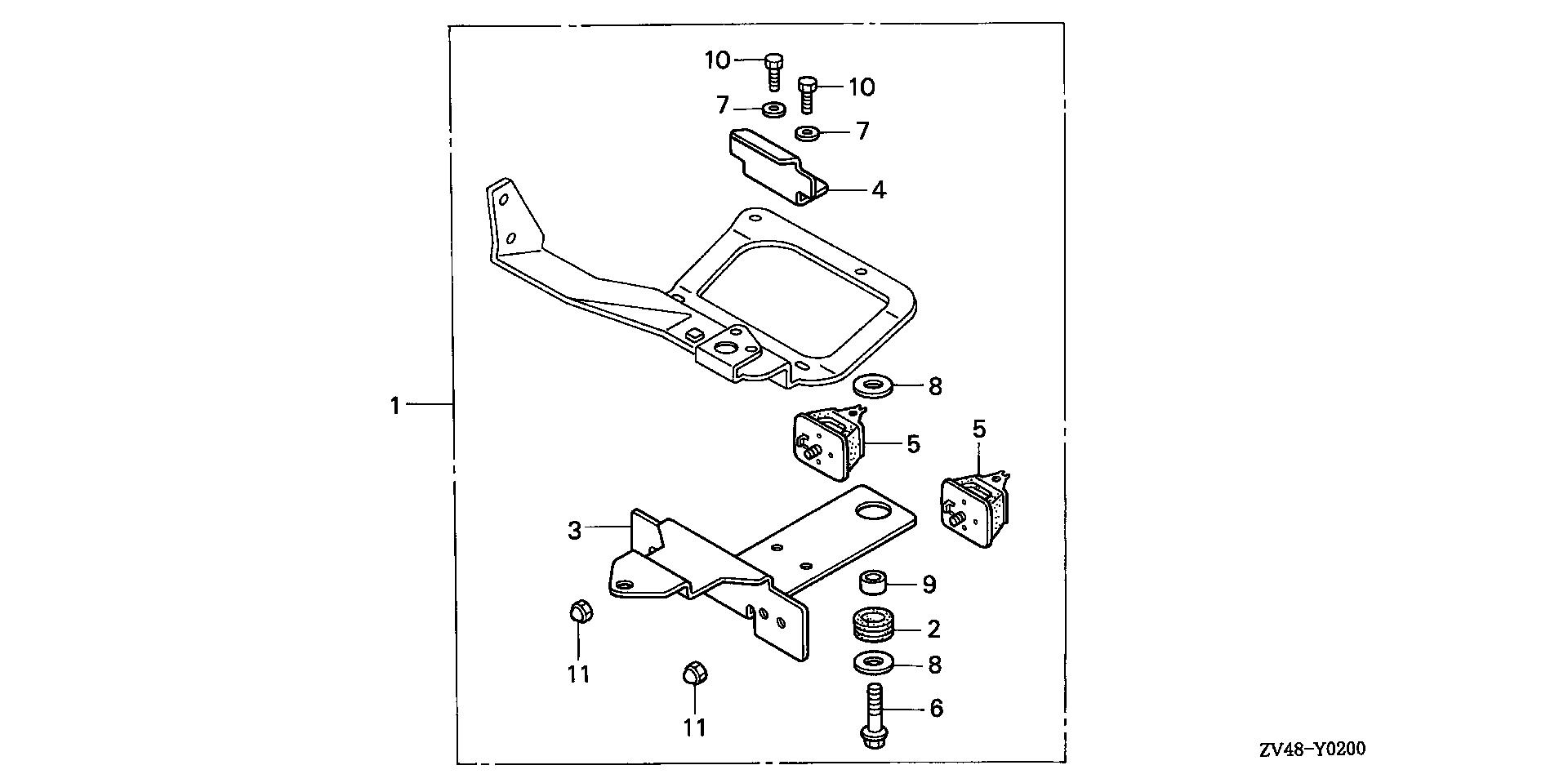

BRACKET KIT

BF9 BF9.9AX bracket kit exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV48Y0200
Fits all 6 submodels of this generation.

Parts in this assembly

11 parts
1
BRACKET KIT, REMOTE CONTROL (NOT AVAILABLE)
06530-ZV4-910No Longer Available
—
2
50329-HA7-670Ships in 1 to 2 Days
$2.88$3.94
3
PLATE, STEERING (NOT AVAILABLE)
53234-ZV4-910No Longer Available
—
4
PLATE, BRACKET STOP (NOT AVAILABLE)
53235-ZV4-910No Longer Available
$149.97$205.44
5
68326-ZA8-000Ships in 1 to 2 Daysqty 2 used
$14.19$20.02
6
BOLT, FLANGE (8X40) (NOT AVAILABLE)
90105-ZV0-000No Longer Available
—
7
90504-921-010Ships in 1 to 2 Daysqty 2 used
$1.27$1.74
8
WASHER, PLAIN (8MM) (NOT AVAILABLE)
90508-ZV4-000No Longer Available
—
9
91553-ZV4-000Ships in 1 to 2 Days
$3.12$4.50
10
92101-06016-4JShips in 1 to 2 Daysqty 2 used
$1.37$1.94
11
94021-06020Ships in 1 to 2 Daysqty 2 used
$2.16$2.96
Diagram

CAMSHAFT

BF9 BF9.9AX camshaft exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV48E0900
Fits all 6 submodels of this generation.

Parts in this assembly

18 parts
1
12209-422-005Ships in 1 to 2 Daysqty 4 used
$14.18$20.00
2
CAMSHAFT (NOT AVAILABLE)
14110-ZV6-000No Longer Available
—
2
CAMSHAFT (NOT AVAILABLE)
14110-ZV4-000No Longer Available
—
3
14431-ZV4-000Ships in 1 to 2 Daysqty 4 used
$10.92$15.70
4
14451-881-000Ships in 1 to 2 Days
$16.29$22.98
5
14481-881-000Ships in 1 to 2 Days
$4.37$6.16
6
VALVE, IN. (NOT AVAILABLE)
14711-ZV4-000No Longer Available
—
7
VALVE, EX. (NOT AVAILABLE)
14721-ZV4-000No Longer Available
—
8
SPRING, VALVE (NOT AVAILABLE)
14751-ZV4-000No Longer Available
—
9
14771-ZV1-000Ships in 1 to 2 Daysqty 2 used
$6.28$8.86
10
RETAINER, EX. VALVE SPRING (NOT AVAILABLE)
14773-ZV4-000No Longer Available
—
11
14775-028-010Ships in 1 to 2 Daysqty 4 used
$4.10$5.78
12
ROTATOR, VALVE (NOT AVAILABLE)
14781-ZV4-000No Longer Available
—
13
14781-107-003Ships in 1 to 2 Days
$2.45$3.46
14
90012-333-000Ships in 1 to 2 Daysqty 4 used
$2.64$3.62
15
90206-001-000Ships in 1 to 2 Daysqty 4 used
$1.59$2.18
16
90453-235-000Ships in 1 to 2 Days
$1.77$2.42
17
KEY, CAM PULLEY (12X16X3)
90741-921-000No Longer Available
—
Diagram

CARBURETOR

BF9 BF9.9AX carburetor exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV48E1400A
Fits all 6 submodels of this generation.

Parts in this assembly

37 parts
1
16010-ZV4-005In Stock
$14.89$21.00
2
16011-ZV4-005Ships in 1 to 2 Days
$29.68$41.88
↳
Sierra alternative ·
18-7047In Stock
$37.88
3
16013-ZV4-005Ships in 1 to 2 Days
$31.01$44.60
4
CHAMBER SET, FLOAT (NOT AVAILABLE)
16015-ZV4-650No Longer Available
—
5
SCREW SET (SOURCE: VINTAGE PARTS INC.)
16016-ZV4-D21No Longer Available
$6.28$8.60
5
16016-ZW4-D21Ships in 1 to 2 Days
$7.97$11.46
6
16024-ZY3-000Ships in 1 to 2 Days
$12.18$16.68
7
16028-ZV4-650Ships in 1 to 2 Days
$9.84$14.16
8
16071-ZV4-005Ships in 1 to 2 Days
$6.26$8.84
9
16081-ZV4-650Ships in 1 to 2 Daysqty 4 used
$3.21$4.54
10
CARBURETOR ASSY. (BG03F A) (NOT AVAILABLE)
16100-ZV6-D21No Longer Available
—
10
CARBURETOR ASSY. (BG06F A) (NOT AVAILABLE)
16100-ZV4-D21No Longer Available
—
10
16100-ZV4-D22Ships in 1 to 2 Days
$191.51
11
JET SET (#48) (NOT AVAILABLE)
16150-ZV6-015No Longer Available
—
11
JET SET (#52) (NOT AVAILABLE)
16150-ZV4-015No Longer Available
$14.78$20.24
11
JET SET (#58) (NOT AVAILABLE)
16150-ZV4-D21No Longer Available
$16.31$22.34
12
NOZZLE, MAIN (NOT AVAILABLE)
16166-ZV6-005No Longer Available
—
12
NOZZLE, MAIN (NOT AVAILABLE)
16166-ZV4-005No Longer Available
—
12
NOZZLE, MAIN (NOT AVAILABLE)
16166-ZV4-D21No Longer Available
—
13
INSULATOR, CARBURETOR (NOT AVAILABLE)
16211-ZV4-000No Longer Available
—
14
16221-ZV4-610Ships in 1 to 2 Daysqty 2 used
$2.74$3.94
↳
Sierra alternative ·
18-2470In Stock
$3.50
15
ROD, THROTTLE (NOT AVAILABLE)
16593-ZV4-000No Longer Available
—
16
ROD, CHOKE (NOT AVAILABLE)
16622-ZV4-000No Longer Available
—
17
GUIDE, AIR (NOT AVAILABLE)
17201-ZV4-A50No Longer Available
—
18
17202-ZV4-310Ships in 1 to 2 Daysqty 2 used
$2.09$2.86
19
17203-ZV4-000Ships in 1 to 2 Days
$6.66$9.58
20
95003-05008-60MShips in 1 to 2 Days
$26.65$38.34
21
95801-06095-02Ships in 1 to 2 Daysqty 2 used
$1.88$2.70
22
99101-GHB-0980Ships in 1 to 2 Days
$6.45$8.84
22
99101-GHB-1000Ships in 1 to 2 Days
$6.82$9.34
22
99101-KPB-1020Ships in 1 to 2 Days
$11.40$16.40
22
99101-KTB-0980Ships in 1 to 2 Days
$10.69$15.08
22
JET, MAIN (#100) (NOT AVAILABLE)
99101-ZV4-1000No Longer Available
—
22
99101-GHB-1020Ships in 1 to 2 Days
$6.45$8.84
22
99101-GHB-1050Ships in 1 to 2 Days
$6.45$8.84
22
99101-KFG-1050Ships in 1 to 2 Days
$11.32$15.96
22
99101-MAZ-1080Ships in 1 to 2 Days
$8.69$11.90
Diagram

CHARGE COIL KIT

BF9 BF9.9AX charge coil kit exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV48X0100
Fits only BF9.9AX-LA, BF9.9AX-LAS, BF9.9AX-SA, BF9.9AX-SAS — not every submodel of this generation.

Parts in this assembly

4 parts
1
COIL KIT, CHARGE (10A) (NOT AVAILABLE)
06320-ZV4-860No Longer Available
$54.81$75.08
2
COIL ASSY., CHARGE (12V-10A) (NOT AVAILABLE)
31630-ZV4-861No Longer Available
—
3
87512-ZV4-831Ships in 1 to 2 Days
$2.13$3.06
4
90023-ZY9-M01Ships in 1 to 2 Days
$1.47$2.08
Diagram

CRANKSHAFT - PISTON

BF9 BF9.9AX crankshaft - piston exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV48E0700
Fits all 6 submodels of this generation.

Parts in this assembly

17 parts
1
13010-ZV4-004Ships in 1 to 2 Daysqty 2 used
$28.79$41.42
2
PISTON (NOT AVAILABLE)
13101-ZV4-010No Longer Available
—
3
PIN, PISTON (NOT AVAILABLE)
13111-ZV4-000No Longer Available
—
4
ROD ASSY., CONNECTING (NOT AVAILABLE)
13200-ZV4-010No Longer Available
—
5
CRANKSHAFT (NOT AVAILABLE)
13310-ZV4-650No Longer Available
$547.70
6
13321-ZA0-003Ships in 1 to 2 Daysqty 4 used
$12.70$17.92
6
13322-ZA0-003Ships in 1 to 2 Daysqty 4 used
$12.16$17.16
6
13323-ZA0-003Ships in 1 to 2 Daysqty 4 used
$12.70$17.92
6
13324-ZA0-003Ships in 1 to 2 Daysqty 4 used
$12.16$17.16
6
13325-ZA0-003Ships in 1 to 2 Daysqty 4 used
$12.16$17.16
7
13351-ZV4-000Ships in 1 to 2 Days
$104.74$150.64
8
WEIGHT B, BALANCER (NOT AVAILABLE)
13356-ZV4-000No Longer Available
—
9
BOLT, CONNECTING ROD (NOT AVAILABLE)
90002-ZV4-000No Longer Available
—
10
WASHER, TONGUED (NOT AVAILABLE)
90452-ZV4-000No Longer Available
—
11
90565-ZV4-000Ships in 1 to 2 Daysqty 4 used
$2.06$2.96
12
90741-ZV4-000Ships in 1 to 2 Daysqty 2 used
$2.98$4.20
13
94601-14000Ships in 1 to 2 Daysqty 4 used
$0.66$0.90
Diagram

CYLINDER

BF9 BF9.9AX cylinder exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV48E0300C
Fits all 6 submodels of this generation.

Parts in this assembly

31 parts
1
GASKET, OIL CASE
11381-ZV4-610No Longer Available
$7.31$10.02
2
CASE ASSY., STARTER *NH8* (DARK GRAY) (NOT AVAILABLE)
11400-ZV4-000ZANo Longer Available
—
3
GASKET, STARTER CASE (NOT AVAILABLE)
11416-ZV4-610No Longer Available
—
4
CYLINDER ASSY. *NH8* (DARK GRAY) (NOT AVAILABLE)
12000-ZV4-030ZANo Longer Available
—
5
COVER, BREATHER *NH8* (DARK GRAY) (NOT AVAILABLE)
12312-ZV4-000ZANo Longer Available
$50.75$69.52
6
GASKET, BREATHER COVER (NOT AVAILABLE)
12318-ZV4-000No Longer Available
—
7
FILTER, BREATHER (NOT AVAILABLE)
12367-ZV4-010No Longer Available
—
8
PLATE, VALVE (NOT AVAILABLE)
12372-ZV4-010No Longer Available
—
9
STOPPER, VALVE (NOT AVAILABLE)
12374-ZV4-010No Longer Available
—
10
15611-ZV4-000Ships in 1 to 2 Days
$7.91$11.16
11
DIPSTICK, OIL (NOT AVAILABLE)
15650-ZV4-000No Longer Available
—
12
37200-935-004Ships in 1 to 2 Days
$30.54$43.10
13
WIRE, OIL PRESSURE SWITCH (NOT AVAILABLE)
37201-ZV4-000No Longer Available
—
14
37202-935-004Ships in 1 to 2 Days
$0.66$0.94
15
90013-ZV4-010Ships in 1 to 2 Daysqty 3 used
$1.36$1.92
16
BOLT, FLANGE (8X75) (NOT AVAILABLE)
90018-ZV4-000No Longer Available
—
17
90121-ZV0-010Ships in 1 to 2 Daysqty 9 used
$2.29$3.30
18
PIN, SPECIAL (6.5X10) (NOT AVAILABLE)
90701-ZV4-003No Longer Available
—
19
PIN, DOWEL (10X12) (NOT AVAILABLE)
90701-360-000No Longer Available
—
20
TUBE, BREATHER (NOT AVAILABLE)
90802-ZV4-A50No Longer Available
—
21
OIL SEAL (32X44X7) (NOT AVAILABLE)
91201-ZV4-003No Longer Available
—
22
OIL SEAL (30X42X7) (NOT AVAILABLE)
91202-ZV4-004No Longer Available
—
23
91301-805-000Ships in 1 to 2 Days
$3.65$5.00
24
91306-PJ4-000Ships in 1 to 2 Days
$3.31$4.54
25
93500-04006-3JShips in 1 to 2 Days
$0.93$1.28
26
93500-05010-0AShips in 1 to 2 Days
$0.89$1.22
27
94301-08120Ships in 1 to 2 Daysqty 2 used
$2.82$3.86
28
95701-06025-02Ships in 1 to 2 Daysqty 4 used
$1.33$1.88
29
95701-06050-02Ships in 1 to 2 Daysqty 2 used
$1.66$2.40
30
95701-08065-02Ships in 1 to 2 Daysqty 3 used
$2.06$2.96
31
96100-60013-00Ships in 1 to 2 Daysqty 4 used
$10.60$14.52
Diagram

CYLINDER HEAD

BF9 BF9.9AX cylinder head exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV48E0200B
Fits all 6 submodels of this generation.

Parts in this assembly

18 parts
1
CYLINDER HEAD *NH8* (DARK GRAY) (NOT AVAILABLE)
12200-ZV4-010ZANo Longer Available
—
2
GUIDE, VALVE (OVER SIZE) (NOT AVAILABLE)
12204-ZV4-315No Longer Available
—
3
GUIDE, EX. VALVE (OVER SIZE) (NOT AVAILABLE)
12205-ZV4-315No Longer Available
—
4
12251-ZV4-610Ships in 1 to 2 Days
$56.36$81.06
5
COVER, CYLINDER HEAD *NH8* (DARK GRAY) (NOT AVAILABLE)
12301-ZV4-000ZANo Longer Available
—
6
GASKET, HEAD COVER (NOT AVAILABLE)
12391-ZV4-000No Longer Available
—
7
BOLT, FLANGE (8X57) (NOT AVAILABLE)
90008-ZV4-000No Longer Available
—
8
BOLT, FLANGE (8X72) (NOT AVAILABLE)
90009-ZV4-000No Longer Available
—
9
BOLT, FLANGE (8X77) (NOT AVAILABLE)
90010-ZV4-000No Longer Available
—
10
BOLT, FLANGE (8X87) (NOT AVAILABLE)
90011-ZV4-000No Longer Available
—
11
90402-822-000Ships in 1 to 2 Daysqty 6 used
$1.31$1.86
12
91206-ZV4-003Ships in 1 to 2 Days
$10.32$14.56
13
94301-10160Ships in 1 to 2 Daysqty 2 used
$3.01$4.12
14
95701-06022-02Ships in 1 to 2 Daysqty 4 used
$1.18$1.70
15
98066-55716In Stockqty 2 used
$2.18$2.98
15
98066-55726Ships in 1 to 2 Daysqty 2 used
$2.23$3.06
15
98066-56716In Stockqty 2 used
$2.18$2.98
15
98066-56726Ships in 1 to 2 Daysqty 2 used
$2.10$2.88
Diagram

EXTENSION CASE

BF9 BF9.9AX extension case exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV48F0300
Fits all 6 submodels of this generation.

Parts in this assembly

35 parts
1
TUBE, WATER (LOWER) (NOT AVAILABLE)
19280-ZV4-000No Longer Available
—
2
CASE, EXTENSION *NH282MU* (L) (OYSTER SILVER METALLIC-U) (NOT AVAILABLE)
40201-ZV4-702ZBNo Longer Available
$461.58
2
CASE, EXTENSION *NH282MU* (S) (OYSTER SILVER METALLIC-U) (NOT AVAILABLE)
40201-ZV4-020ZBNo Longer Available
—
3
SEPARATOR, EXTENSION *NH282MU* (UL) (OYSTER SILVER METALLIC-U) (NOT AVAILABLE)
40202-ZV4-C30ZANo Longer Available
—
4
40210-ZV4-C30Ships in 1 to 2 Days
$18.21$26.18
5
CASE, GEAR *NH282MU* (OYSTER SILVER METALLIC-U) (NOT AVAILABLE)
41100-ZV4-050ZBNo Longer Available
—
6
SCREEN, R. WATER (NOT AVAILABLE)
41104-ZV4-010No Longer Available
$3.47$4.76
7
SCREEN, L. WATER (NOT AVAILABLE)
41105-ZV4-010No Longer Available
$3.59$4.92
8
41106-ZVA-000Ships in 1 to 2 Days
$15.83$21.68
8
41106-ZV4-650Ships in 1 to 2 Daysreplaced by 41106-ZVA-000
$15.83$21.68
9
41108-ZV4-000Ships in 1 to 2 Days
$4.96$7.00
10
HOUSING, R. MOUNTING (LOWER) *NH282MU* (OYSTER SILVER METALLIC-U) (NOT AVAILABLE)
50111-ZV4-020ZBNo Longer Available
—
11
HOUSING, L. MOUNTING (LOWER) *NH282MU* (OYSTER SILVER METALLIC-U) (NOT AVAILABLE)
50121-ZV4-020ZBNo Longer Available
—
12
50152-ZV4-000Ships in 1 to 2 Daysqty 2 used
$6.15$8.84
13
RUBBER, MOUNT (LOWER) (B) (NOT AVAILABLE)
50155-ZV4-000No Longer Available
—
14
90105-ZVA-000In Stockqty 3 used
$4.20$5.76
15
90106-ZV4-010Ships in 1 to 2 Days
$2.72$3.84
16
90121-ZV4-000Ships in 1 to 2 Days
$3.36$4.74
17
BOLT, HEX. (6X130) (NOT AVAILABLE)
90122-ZV4-000No Longer Available
—
18
BOLT, HEX. (8X50) (NOT AVAILABLE)
90123-ZV4-000No Longer Available
—
19
90302-ZV4-000Ships in 1 to 2 Daysqty 2 used
$4.91$6.72
20
90304-ZV4-000Ships in 1 to 2 Daysqty 3 used
$2.12$2.90
21
90502-ZV4-000Ships in 1 to 2 Days
$2.73$3.74
22
90501-ZV5-A10Ships in 1 to 2 Days
$2.89$4.08
23
WASHER, PLAIN (6X13X1.5) (NOT AVAILABLE)
90503-ZV4-000No Longer Available
—
24
90507-ZV4-000Ships in 1 to 2 Daysqty 8 used
$2.20$3.02
25
90507-921-000Ships in 1 to 2 Days
$0.89$1.22
26
90651-ZV5-A10Ships in 1 to 2 Days
$8.29$11.70
27
91052-ZV4-003Ships in 1 to 2 Daysqty 2 used
$11.17$16.06
28
91252-935-004Ships in 1 to 2 Days
$17.08$24.58
29
90101-ZV1-000Ships in 1 to 2 Daysqty 2 used
$2.85$4.02
30
SCREW, OVAL (5X25) (NOT AVAILABLE)
93700-05025-4JNo Longer Available
—
31
90506-ZV4-000Ships in 1 to 2 Daysqty 2 used
$2.45$3.36
32
94301-10140Ships in 1 to 2 Daysqty 4 used
$3.01$4.12
33
BEARING, RADIAL BALL (6302)
96100-63020-00Ships in 1 to 2 Days
$8.67$11.88
Diagram

FLYWHEEL

BF9 BF9.9AX flywheel exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV48E1900A
Fits all 6 submodels of this generation.

Parts in this assembly

12 parts
1
28451-ZV4-003No Longer Available
$17.14$23.48
2
COIL ASSY., EXCITER (NOT AVAILABLE)
30590-ZV4-651No Longer Available
—
3
31100-ZV4-010No Longer Available
$308.47
3
FLYWHEEL (SEL) (NOT AVAILABLE)
31100-ZV4-811No Longer Available
—
4
COIL ASSY., CHARGE (12V-6A) (NOT AVAILABLE)
31630-ZV4-661No Longer Available
—
5
COIL ASSY., CHARGE (12V-10A) (NOT AVAILABLE)
31630-ZV4-861No Longer Available
—
6
90016-920-000Ships in 1 to 2 Daysqty 3 used
$1.80$2.58
7
90121-ZV0-010Ships in 1 to 2 Daysqty 2 used
$2.29$3.30
8
90023-ZY9-M01Ships in 1 to 2 Daysqty 2 used
$1.47$2.08
9
NUT, SPECIAL (16MM) (NOT AVAILABLE)
90201-ZV4-010No Longer Available
—
10
90688-ZV4-003Ships in 1 to 2 Days
$2.15$3.02
11
90023-ZY9-M01Ships in 1 to 2 Days
$1.47$2.08
Diagram

FUEL PUMP

BF9 BF9.9AX fuel pump exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV48E1800B
Fits all 6 submodels of this generation.

Parts in this assembly

9 parts
1
PUMP ASSY., FUEL (NOT AVAILABLE) (MSDS)
16700-ZV4-005No Longer Available
—
2
16705-ZV4-005Ships in 1 to 2 Days
$27.49$39.54
3
TUBE, FUEL (A) (NOT AVAILABLE)
16850-ZV4-000No Longer Available
—
4
PROTECTOR, TUBE (NOT AVAILABLE)
16865-ZV4-000No Longer Available
—
5
SCREW, PAN (6X22) (NOT AVAILABLE)
90021-ZV4-000No Longer Available
—
6
WASHER, PLAIN (6.2MM) (NOT AVAILABLE)
90566-ZV4-000No Longer Available
—
7
WASHER, SPRING (6MM)
90567-ZV4-000No Longer Available
—
8
90603-ZV4-000Ships in 1 to 2 Daysqty 2 used
$1.42$1.94
9
91351-MG7-003Ships in 1 to 2 Days
$2.50$3.52
Diagram

FUEL STRAINER

BF9 BF9.9AX fuel strainer exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV48F0610B
Fits all 6 submodels of this generation.

Parts in this assembly

5 parts
1
TUBE, FUEL (B) (NOT AVAILABLE)
16860-ZV4-000No Longer Available
—
2
16910-ZV4-015In Stock
$13.99$19.16
3
16915-ZV4-000Ships in 1 to 2 Days
$6.41$8.78
4
90603-ZV4-000Ships in 1 to 2 Daysqty 4 used
$1.42$1.94
5
95001-55003-60MShips in 1 to 2 Days
$65.33$93.98
Diagram

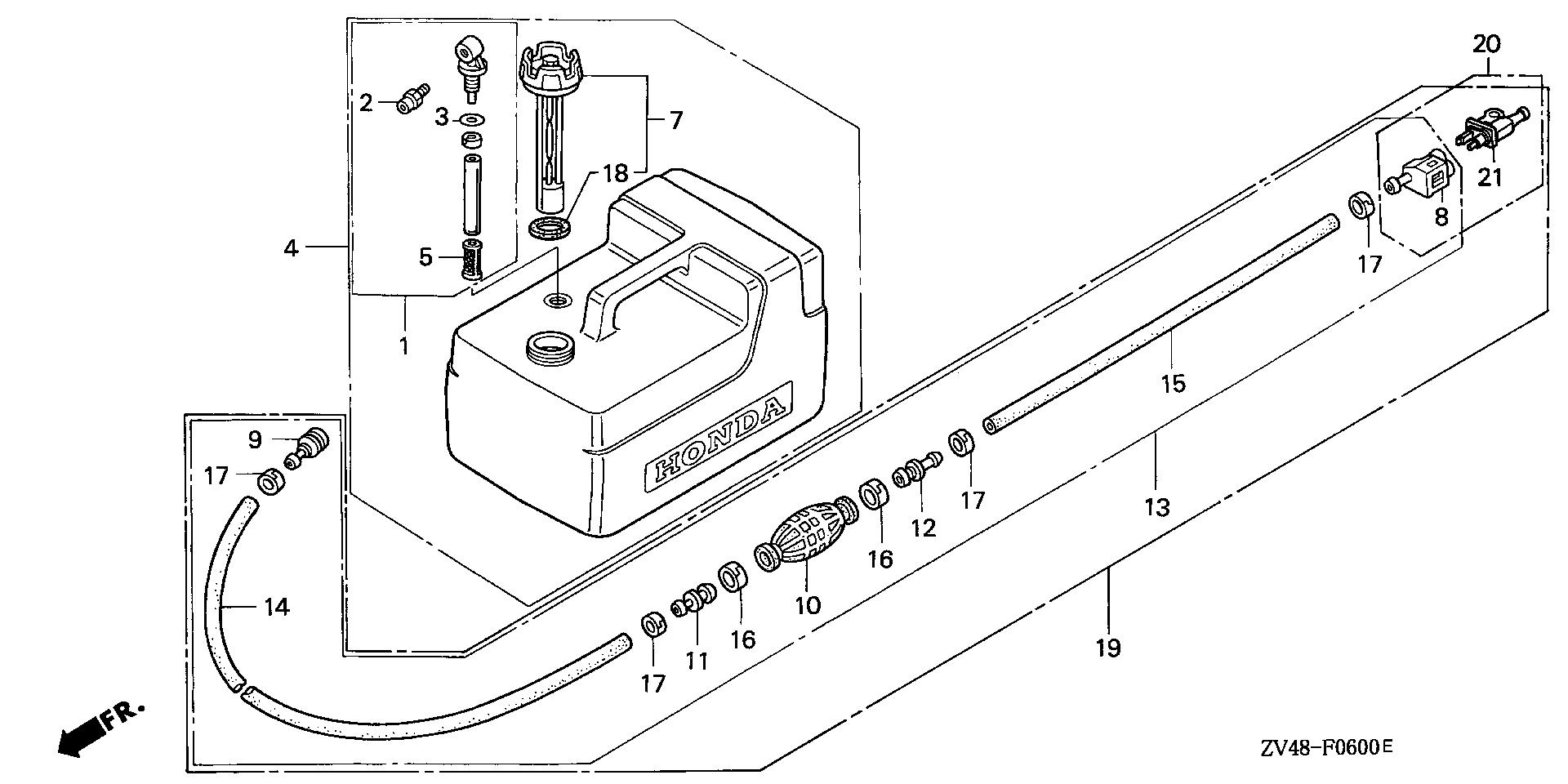

FUEL TANK

BF9 BF9.9AX fuel tank exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV48F0600E
Fits all 6 submodels of this generation.

Parts in this assembly

22 parts
1
16900-ZV4-A22Ships in 1 to 2 Days
$26.92$36.88
2
16977-ZV5-A00Ships in 1 to 2 Days
$14.60$20.00
↳
Sierra alternative ·
18-80400In Stock save $3.72
$10.88
3
16979-ZV5-900Ships in 1 to 2 Days
$0.60$0.82
4
17500-ZV4-A21Ships in 1 to 2 Daysreplaced by 17500-ZZ5-003
$167.65$229.66
4
17500-ZV4-A22Ships in 1 to 2 Daysreplaced by 17500-ZZ5-003
$167.65$229.66
4
17500-ZZ5-003Ships in 1 to 2 Days
$167.65$229.66
5
17583-ZV5-901In Stock
$1.90$2.60
7
CAP, FUEL FILLER
17620-ZV4-A21Ships in 1 to 2 Daysreplaced by 17620-ZV4-A23
$13.40$18.36
8
17650-ZW9-023Ships in 1 to 2 Days
$34.67$47.50
↳
Sierra alternative ·
18-80408In Stock save $20.37
$14.30
9
17660-ZW9-003Ships in 1 to 2 Days
$32.18$44.08
10
17661-921-010Ships in 1 to 2 Days
$12.99$17.80
11
17665-ZV5-000Ships in 1 to 2 Days
$12.13$16.62
12
17680-ZV4-000Ships in 1 to 2 Days
$12.13$16.62
13
17700-ZW9-030Ships in 1 to 2 Days
$65.67$89.96
14
17701-ZV5-000Ships in 1 to 2 Days
$46.09$63.14
15
TUBE, FUEL SHORT (6.3X500) (NOT AVAILABLE)
17702-ZV4-000No Longer Available
$9.75$13.36
16
17703-921-000Ships in 1 to 2 Daysqty 2 used
$3.53$4.84
17
17704-ZV4-010Ships in 1 to 2 Daysqty 4 used
$2.18$2.98
18
17624-ZV5-902Ships in 1 to 2 Days
$6.63$9.08
19
04101-ZW9-010Ships in 1 to 2 Days
$95.37$137.18
20
04104-ZW9-010Ships in 1 to 2 Days
$52.46$75.46
21
17710-ZW9-033Ships in 1 to 2 Days
$46.08$65.02
↳
Sierra alternative ·
18-80407In Stock save $0.01
$46.07
Diagram

GEAR CASE ASSEMBLY

BF9 BF9.9AX gear case assembly exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV48F0310
Fits all 6 submodels of this generation.

Parts in this assembly

3 parts
1
CASE ASSY., GEAR *NH282MU* (UL-TYPE) (OYSTER SILVER METALLIC-U) (NOT AVAILABLE)
41005-ZV4-C30ZANo Longer Available
—
1
CASE ASSY., GEAR *NH282MU* (S-TYPE) (OYSTER SILVER METALLIC-U) (NOT AVAILABLE)
41005-ZV4-A20ZANo Longer Available
—
1
CASE ASSY., GEAR *NH282MU* (L-TYPE) (OYSTER SILVER METALLIC-U) (NOT AVAILABLE)
41005-ZV4-B20ZANo Longer Available
—
Diagram

HANDLEBAR

BF9 BF9.9AX handlebar exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV48F0100
Fits all 6 submodels of this generation.

Parts in this assembly

37 parts
1
17910-ZV4-000Ships in 1 to 2 Daysqty 2 used
$11.59$16.68
2
CLAMP, THROTTLE CABLE (NOT AVAILABLE)
17922-ZV4-010No Longer Available
—
3
ARM, THROTTLE (NOT AVAILABLE)
17931-ZV4-010No Longer Available
—
4
17933-ZV4-000Ships in 1 to 2 Days
$9.83$14.14
5
ARM, CHOKE (NOT AVAILABLE)
17952-ZV4-000No Longer Available
$7.14$9.78
6
ROD, CHOKE KNOB (NOT AVAILABLE)
17955-ZV4-000No Longer Available
—
7
17957-ZV4-000Ships in 1 to 2 Daysqty 2 used
$1.90$2.74
8
SWITCH ASSY., EMERGENCY STOP
36180-ZV4-652No Longer Available
—
9
36182-ZV4-651In Stock
$18.45$25.28
10
40105-ZV4-000Ships in 1 to 2 Days
$17.05$24.52
11
HANDLEBAR *NH282MU* (OYSTER SILVER METALLIC-U) (NOT AVAILABLE)
53101-ZV4-650ZBNo Longer Available
—
12
REEL, CABLE (NOT AVAILABLE)
53102-ZV4-000No Longer Available
—
13
BOLT, FRICTION (NOT AVAILABLE)
53104-ZV4-010No Longer Available
—
14
BLOCK, THROTTLE FRICTION (NOT AVAILABLE)
53106-ZV4-000No Longer Available
—
15
PLATE, ADJUSTING (NOT AVAILABLE)
53130-ZV4-650No Longer Available
$9.37$12.84
16
PIPE, GRIP (NOT AVAILABLE)
53141-ZV4-000No Longer Available
—
17
RUBBER, GRIP
53165-ZV4-000No Longer Available
$12.66$17.34
18
SCREW, HANDLE PIVOT (NOT AVAILABLE)
53171-921-000No Longer Available
—
19
SPRING, HANDLE PIVOT (NOT AVAILABLE)
53172-921-003No Longer Available
$7.72$10.58
20
SPRING, THROTTLE FRICTION (NOT AVAILABLE)
53173-ZV4-000No Longer Available
—
21
90013-ZV0-010Ships in 1 to 2 Daysqty 2 used
$1.80$2.46
22
90116-ZV1-000Ships in 1 to 2 Days
$1.84$2.64
23
90302-921-000In Stock
$4.10$5.62
24
90306-ZV4-000No Longer Available
$2.93$4.02
25
90452-GK4-600In Stockqty 3 used
$1.28$1.82
26
90504-921-010Ships in 1 to 2 Days
$1.27$1.74
27
90507-ZV4-000Ships in 1 to 2 Days
$2.20$3.02
28
90511-ZV4-000Ships in 1 to 2 Days
$2.20$3.02
29
90512-921-010In Stockqty 2 used
$1.07$1.46
30
90514-ZV4-000Ships in 1 to 2 Daysqty 2 used
$1.69$2.32
31
WASHER, HANDLEBAR (NOT AVAILABLE)
90516-ZV4-000No Longer Available
$4.45$6.10
32
90759-ZV1-000In Stock
$1.42$1.94
33
92101-06012-4JShips in 1 to 2 Daysqty 3 used
$1.88$2.70
34
93500-05040-4JShips in 1 to 2 Days
$1.81$2.60
35
94001-05490-0SShips in 1 to 2 Days
$0.92$1.26
36
94002-05490-0SShips in 1 to 2 Daysqty 2 used
$0.96$1.36
37
94101-04200Ships in 1 to 2 Days
$0.66$0.90
Diagram

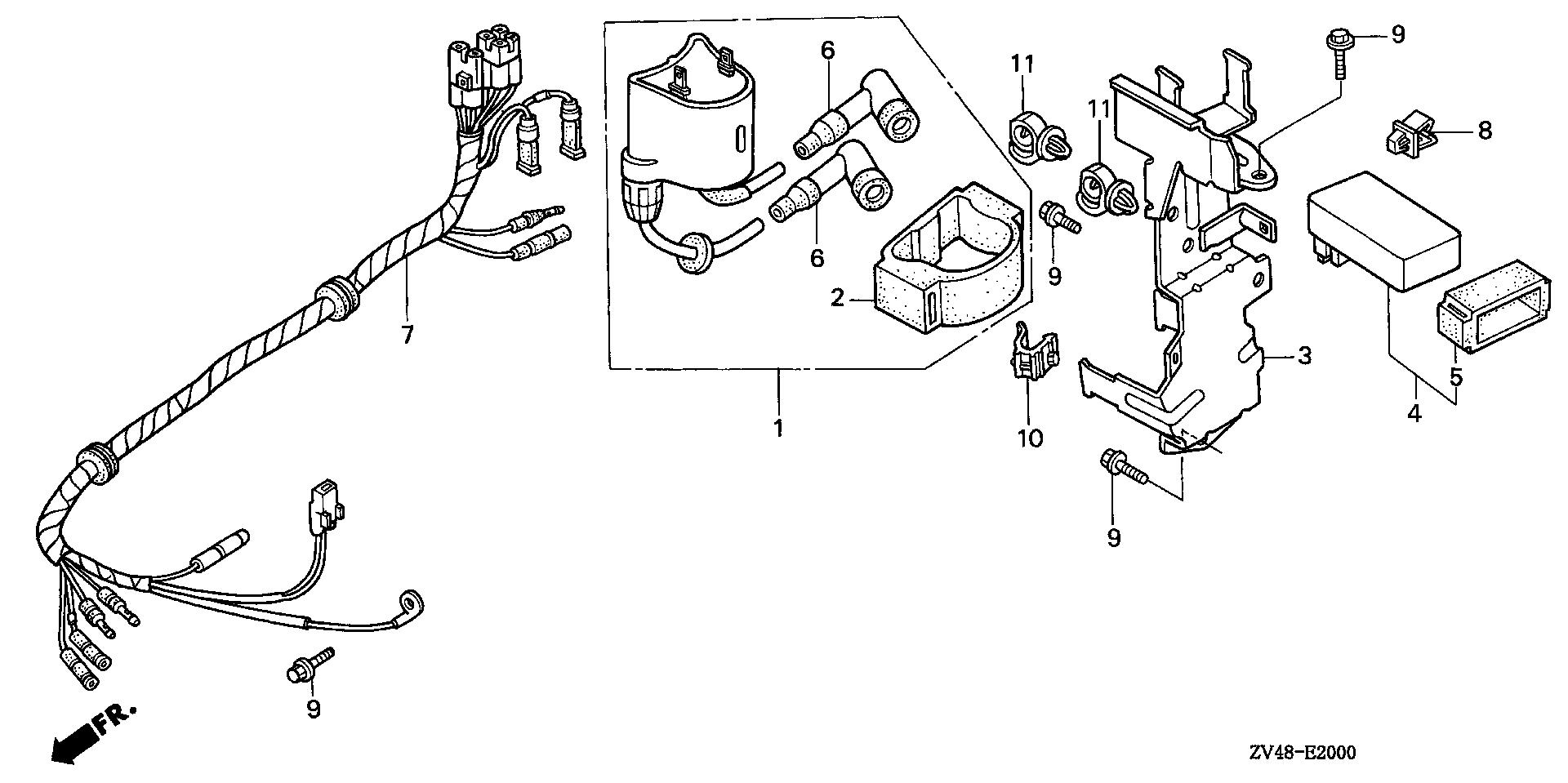

IGNITION COIL

BF9 BF9.9AX ignition coil exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV48E2000
Fits all 6 submodels of this generation.

Parts in this assembly

12 parts
1
30500-ZV4-505Ships in 1 to 2 Days
$121.31
2
30506-ML4-003Ships in 1 to 2 Days
$5.62$8.08
3
BRACKET, IGNITION COIL (NOT AVAILABLE)
30507-ZV4-010No Longer Available
$80.55$110.34
4
30580-ZV4-013Ships in 1 to 2 Days
$222.69$233.80
4
30580-ZV4-023Ships in 1 to 2 Days
$222.69$233.80
5
30583-ZV4-003Ships in 1 to 2 Days
$7.48$10.76
6
CAP ASSY., NOISE SUPPRESSOR (NOT AVAILABLE)
30700-881-010No Longer Available
$10.51$14.40
7
WIRE HARNESS ASSY. (NOT AVAILABLE)
32100-ZV4-650No Longer Available
—
8
37304-PE1-661Ships in 1 to 2 Days
$7.12$10.06
9
90013-ZV0-010Ships in 1 to 2 Daysqty 4 used
$1.80$2.46
10
90602-PA6-661Ships in 1 to 2 Days
$7.31$10.32
11
90683-SA0-003Ships in 1 to 2 Daysqty 2 used
$9.11$12.48
Diagram

INTAKE MANIFOLD - THERMOSTAT

BF9 BF9.9AX intake manifold - thermostat exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV48E0400B
Fits all 6 submodels of this generation.

Parts in this assembly

19 parts
1
12155-ZV4-A00Ships in 1 to 2 Daysreplaced by 12155-ZV4-A01
$10.91$14.94
1
12155-ZV4-A01Ships in 1 to 2 Days
$10.91$14.94
2
MANIFOLD, IN. *NH8* (DARK GRAY) (NOT AVAILABLE)
17100-ZV4-000ZANo Longer Available
$129.65$177.60
3
17151-ZV4-610Ships in 1 to 2 Days
$21.74$31.26
4
19300-881-761Ships in 1 to 2 Days
$40.24$55.12
5
19302-921-003In Stock
$7.33$10.04
6
COVER, THERMOSTAT *NH8* (DARK GRAY) (NOT AVAILABLE)
19315-ZV4-000ZANo Longer Available
—
7
19351-ZV4-610In Stock
$1.93$2.78
8
CLAMP, TUBE (NOT AVAILABLE)
19415-ZV4-000No Longer Available
—
9
BOLT, STUD (6X52) (NOT AVAILABLE)
90005-ZV4-000No Longer Available
—
10
90013-ZV0-010Ships in 1 to 2 Days
$1.80$2.46
11
90202-ZV0-000Ships in 1 to 2 Daysqty 2 used
$2.67$3.66
12
90602-921-000Ships in 1 to 2 Days
$1.39$1.96
13
TUBE, WATER CHECK (NOT AVAILABLE)
90806-ZV4-000No Longer Available
—
14
91401-ZV4-000Ships in 1 to 2 Days
$3.20$4.60
15
93500-05020-4JShips in 1 to 2 Days
$0.86$1.18
16
95701-06030-02Ships in 1 to 2 Daysqty 3 used
$1.71$2.46
17
95701-06060-02Ships in 1 to 2 Days
$1.88$2.70
18
95701-06075-02Ships in 1 to 2 Days
$2.03$2.92
Diagram

LABELS

BF9 BF9.9AX labels exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV48F1200B
Fits all 6 submodels of this generation.

Parts in this assembly

26 parts
1
87121-ZV4-A00Ships in 1 to 2 Days
$12.45$17.06
1
MARK, RR. (15) (NOT AVAILABLE)
87121-ZV4-A01No Longer Available
$12.45$17.06
1
87121-ZV4-G00Ships in 1 to 2 Days
$11.04$15.88
2
LABEL, INDICATION (E) (NOT AVAILABLE)
87123-ZV4-620No Longer Available
—
3
MARK, EMERGENCY SWITCH INDICATION (ENGLISH) (NOT AVAILABLE)
87124-ZV3-620No Longer Available
—
4
MARK, STARTER (ENGLISH) (NOT AVAILABLE)
87125-ZV3-620No Longer Available
—
5
87125-ZV4-A20Ships in 1 to 2 Days
$4.96$7.00
6
MARK, SIDE EMBLEM
87131-ZV4-A00No Longer Available
—
6
MARK, SIDE EMBLEM (NOT AVAILABLE)
87131-ZV4-A01No Longer Available
$27.80$38.08
6
87131-ZW9-S00Ships in 1 to 2 Daysqty 2 used
$11.94$17.18
7
87132-ZV4-A01Ships in 1 to 2 Daysreplaced by 87132-ZV4-A02
$10.86$15.62
7
87132-ZV4-A02Ships in 1 to 2 Daysqty 2 used
$10.86$15.62
7
87132-ZV4-G00Ships in 1 to 2 Daysqty 2 used
$8.91$12.80
8
87150-ZV6-A20Ships in 1 to 2 Days
$4.58$6.60
8
LABEL, SPECIFICATION (NOT AVAILABLE)
87150-ZV4-A20No Longer Available
—
9
87511-ZV5-620Ships in 1 to 2 Days
$3.43$4.94
10
87512-ZV4-831Ships in 1 to 2 Days
$2.13$3.06
10
87512-ZV4-A21Ships in 1 to 2 Days
$3.42$4.92
11
LABEL, OIL CAUTION (ENGLISH) (NOT AVAILABLE)
87531-ZV4-A20No Longer Available
—
12
MARK, THROTTLE (E) (NOT AVAILABLE)
87532-ZV6-A20No Longer Available
—
12
MARK, THROTTLE (E) (NOT AVAILABLE)
87532-ZV4-A20No Longer Available
—
13
87535-ZV5-620Ships in 1 to 2 Days
$3.87$5.46
14
87538-ZV1-C23Ships in 1 to 2 Days
$4.70$6.44
15
87634-ZW4-D20Ships in 1 to 2 Days
$17.61$25.32
16
MARK, RR. (9.9)
87121-ZV6-A01No Longer Available
$14.54$19.92
17
MARK (E-SPEC) (NOT AVAILABLE)
87135-ZW5-000No Longer Available
—
Diagram

OIL CASE - ENGINE COVER

BF9 BF9.9AX oil case - engine cover exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV48F0800F
Fits all 6 submodels of this generation.

Parts in this assembly

68 parts
2
17936-921-000Ships in 1 to 2 Days
$1.20$1.64
3
CABLE, NEUTRAL STARTING (NOT AVAILABLE)
17940-ZV4-013No Longer Available
—
4
17951-921-030Ships in 1 to 2 Days
$10.92$15.70
5
GUIDE, CHOKE KNOB (NOT AVAILABLE)
17953-921-010No Longer Available
$5.11$7.00
6
PLATE, EX. (NOT AVAILABLE)
18221-ZV4-000No Longer Available
—
7
BAND, EX. SEAL (NOT AVAILABLE)
18222-ZV4-000No Longer Available
—
8
COVER, EX. CHAMBER *NH8* (DARK GRAY)
18231-ZV4-000ZAShips in 1 to 2 Days
$15.11$20.70
8
COVER, EX. CHAMBER *NH8* (DARK GRAY) (NOT AVAILABLE)
18231-ZV4-010ZANo Longer Available
—
9
PLATE, EX. CHAMBER
18232-ZV4-000No Longer Available
—
9
PLATE, EX. CHAMBER (NOT AVAILABLE)
18232-ZV4-010No Longer Available
—
10
GASKET, EX. CHAMBER
18233-ZV4-610No Longer Available
$11.90$16.30
11
SPRING, CLICK (NOT AVAILABLE)
24210-ZV4-650No Longer Available
—
12
24221-ZV4-010Ships in 1 to 2 Days
$7.30$10.00
13
24611-ZV4-000Ships in 1 to 2 Days
$20.98$30.18
14
ARM, SHIFT (NOT AVAILABLE)
24612-ZV4-000No Longer Available
—
15
ROD, LINK (NOT AVAILABLE)
24613-ZV4-010No Longer Available
—
16
LEVER, SHIFT (NOT AVAILABLE)
24614-ZV4-651No Longer Available
—
17
24615-ZV4-030Ships in 1 to 2 Days
$5.37$7.72
18
LINK, SHIFT (B) (NOT AVAILABLE)
24616-ZV4-000No Longer Available
—
19
24621-ZV4-010Ships in 1 to 2 Days
$4.34$6.12
20
RUBBER, SHIFT SHAFT (NOT AVAILABLE)
24623-ZV4-650No Longer Available
—
21
BRACKET, WIRE HARNESS CLIP (NOT AVAILABLE)
32114-ZV4-000No Longer Available
—
22
SWITCH ASSY., STARTER (NOT AVAILABLE)
35150-ZV4-812No Longer Available
$21.37$29.28
23
37210-ZV4-003Ships in 1 to 2 Days
$37.60$54.08
24
$779.67$1,068.04
25
GROMMET, OIL CASE (B) (NOT AVAILABLE)
40106-ZV4-000No Longer Available
—
26
GROMMET, OIL CASE (D) (NOT AVAILABLE)
40108-ZV4-000No Longer Available
—
27
40109-ZV4-010Ships in 1 to 2 Days
$5.17$7.30
28
HANDLE, CARRYING *NH282MU* (OYSTER SILVER METALLIC-U) (NOT AVAILABLE)
50281-ZV4-651ZBNo Longer Available
$73.55$100.76
29
50285-ZV4-000Ships in 1 to 2 Days
$3.10$4.46
30
COVER, ENGINE *NH282MU* (OYSTER SILVER METALLIC-U)
63100-ZV4-000ZBNo Longer Available
—
30
COVER, ENGINE *NH282MU* (OYSTER SILVER METALLIC-U)
63100-ZV4-010ZBNo Longer Available
—
31
SEAL, ENGINE COVER (NOT AVAILABLE)
63102-ZV4-300No Longer Available
$27.80$38.08
32
$24.75$35.60
33
HANDLE, TILT (NOT AVAILABLE)
63105-ZV4-000No Longer Available
—
34
HOOK, COVER LOCK
63202-ZV4-000No Longer Available
—
34
HOOK, COVER LOCK (NOT AVAILABLE)
63202-ZV4-010No Longer Available
—
35
63205-920-000Ships in 1 to 2 Days
$4.53$6.20
36
GROMMET, WATER CHECK (NOT AVAILABLE)
82873-ZV4-003No Longer Available
—
37
90011-ZW9-000Ships in 1 to 2 Days
$1.71$2.34
38
90013-ZV4-010Ships in 1 to 2 Days
$1.36$1.92
39
90105-ZVA-000In Stock
$4.20$5.76
40
90120-ZV4-010Ships in 1 to 2 Daysqty 7 used
$2.44$3.50
41
BOLT, FLANGE (6X35) (NOT AVAILABLE)
90125-ZV4-000No Longer Available
—
42
90304-881-010No Longer Availableqty 3 used
$4.47$6.12
43
90302-921-000In Stock
$4.10$5.62
44
90452-GK4-600In Stockqty 2 used
$1.28$1.82
45
90506-ZV4-000Ships in 1 to 2 Daysqty 3 used
$2.45$3.36
46
90505-ZV1-000In Stock
$2.44$3.34
47
90506-ZV1-000In Stock
$2.44$3.34
48
90506-ZV4-000Ships in 1 to 2 Daysqty 7 used
$2.45$3.36
49
90507-921-000Ships in 1 to 2 Days
$0.89$1.22
50
90512-921-010In Stockqty 4 used
$1.07$1.46
51
90507-ZV4-000Ships in 1 to 2 Daysqty 2 used
$2.20$3.02
52
90605-ZV4-000Ships in 1 to 2 Days
$1.37$1.88
53
90660-ZA0-600Ships in 1 to 2 Days
$2.28$3.12
54
90687-ZV4-003Ships in 1 to 2 Days
$2.07$2.98
55
90759-ZV1-000In Stockqty 2 used
$1.42$1.94
56
90757-ZV1-000Ships in 1 to 2 Daysqty 2 used
$1.58$2.22
57
91255-ZV4-651Ships in 1 to 2 Daysqty 2 used
$6.07$8.56
58
COLLAR, DISTANCE (6MM) (NOT AVAILABLE)
91551-ZV4-000No Longer Available
$2.95$4.04
59
BOLT, HEX. (6X16)
92101-06016-0BShips in 1 to 2 Days
$1.18$1.62
60
90127-ZV4-000In Stockqty 3 used
$2.12$2.90
61
BOLT, HEX. (8X30) (NOT AVAILABLE)
90102-ZV4-000No Longer Available
—
62
90509-ZV4-000Ships in 1 to 2 Daysqty 2 used
$2.96$4.26
63
94301-08140Ships in 1 to 2 Daysqty 2 used
$2.74$3.76
64
94305-40203Ships in 1 to 2 Days
$1.42$1.94
65
95701-06016-02Ships in 1 to 2 Daysqty 4 used
$0.98$1.34
Diagram

OIL PUMP

BF9 BF9.9AX oil pump exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV48E0500
Fits all 6 submodels of this generation.

Parts in this assembly

26 parts
1
15100-ZV4-000Ships in 1 to 2 Days
$63.80$91.76
2
GASKET, PUMP BODY (NOT AVAILABLE)
15112-ZV4-000No Longer Available
—
3
15121-ZV4-000Ships in 1 to 2 Days
$5.45$7.84
4
15122-329-010Ships in 1 to 2 Days
$19.81$27.14
5
15123-329-010Ships in 1 to 2 Days
$15.93$21.82
6
SHAFT, OIL PUMP (NOT AVAILABLE)
15136-ZV4-000No Longer Available
—
7
PLATE, DEFENSE (NOT AVAILABLE)
15338-ZV4-000No Longer Available
$8.42$11.54
8
15410-ZV4-000Ships in 1 to 2 Days
$16.41$23.60
9
GASKET, OIL FILTER (NOT AVAILABLE)
15412-ZV4-000No Longer Available
—
10
FILTER ASSY., OIL (NOT AVAILABLE)
15420-ZV4-000No Longer Available
$16.48$22.58
11
FILTER, OIL
15421-ZV4-000No Longer Available
$8.35$11.44
12
TUBE, OIL (NOT AVAILABLE)
15422-ZV4-000No Longer Available
—
13
HOLDER, OIL FILTER (NOT AVAILABLE)
15423-ZV4-000No Longer Available
—
14
15473-881-000Ships in 1 to 2 Days
$9.11$13.10
15
15474-881-000Ships in 1 to 2 Days
$4.34$6.12
16
PIPE, EX. *TBLACK* (BLACK) (NOT AVAILABLE)
18330-ZV4-000ZBNo Longer Available
—
17
GASKET, EX. PIPE (NOT AVAILABLE)
18333-ZV4-610No Longer Available
$7.34$10.06
18
GROMMET, WATER TUBE (NOT AVAILABLE)
19252-ZV4-003No Longer Available
—
19
90006-ZV4-000Ships in 1 to 2 Daysqty 3 used
$2.82$4.06
20
BOLT, STUD (6X42) (NOT AVAILABLE)
90007-ZV4-000No Longer Available
—
21
90202-ZV0-000Ships in 1 to 2 Daysqty 6 used
$2.67$3.66
22
WASHER, SPRING (6MM)
90567-ZV4-000No Longer Available
—
23
O-RING, PUMP COVER (NOT AVAILABLE)
91301-ZV4-000No Longer Available
—
24
93500-05008-0BShips in 1 to 2 Daysqty 2 used
$1.20$1.68
25
95002-41050-08Ships in 1 to 2 Days
$2.32$3.18
26
95701-06022-00Ships in 1 to 2 Daysqty 2 used
$1.78$2.44
Diagram

PROPELLER SHAFT - PROPELLER

BF9 BF9.9AX propeller shaft - propeller exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV48F0500
Fits all 6 submodels of this generation.

Parts in this assembly

30 parts
1
SHIFTER, CLUTCH (NOT AVAILABLE)
24101-ZV4-300No Longer Available
—
2
PIN, SHIFTER (4X35) (NOT AVAILABLE)
24102-935-300No Longer Available
$3.14$4.30
3
SLIDER, SHIFT (NOT AVAILABLE)
24122-ZV4-300No Longer Available
—
4
24123-ZV1-300Ships in 1 to 2 Days
$4.66$6.70
5
GEAR, FR. BEVEL (27T) (NOT AVAILABLE)
41145-ZV4-000No Longer Available
—
6
SHIM (40MM) (0.08MM) (A) (NOT AVAILABLE)
41146-ZV4-000No Longer Available
—
6
SHIM (40MM) (0.10MM) (B) (NOT AVAILABLE)
41147-ZV4-000No Longer Available
—
6
SHIM (40MM) (0.12MM) (C) (NOT AVAILABLE)
41148-ZV4-000No Longer Available
—
6
SHIM (40MM) (0.15MM) (D) (NOT AVAILABLE)
41149-ZV4-000No Longer Available
—
7
GEAR, RR. BEVEL (27T) (NOT AVAILABLE)
41151-ZV4-000No Longer Available
—
8
SHIM A, GEAR (0.10MM) (NOT AVAILABLE)
41157-ZV4-000No Longer Available
—
8
SHIM B, GEAR (0.15MM) (NOT AVAILABLE)
41158-ZV4-000No Longer Available
$1.97$2.70
9
SHAFT, PROPELLER (NOT AVAILABLE)
41160-ZV4-000No Longer Available
—
10
SHAFT, PROPELLER (NOT AVAILABLE)
41161-ZV4-300No Longer Available
—
11
HOLDER ASSY., PROPELLER SHAFT *NH282MU* (OYSTER SILVER METALLIC-U) (NOT AVAILABLE)
41200-ZV4-040ZBNo Longer Available
—
12
PROPELLER, THREE-BLADE (9-1/2X8-5/8) *NH283* (STIN GRAY)
58130-ZV4-703ZBNo Longer Available
$178.21
12
$183.59
13
90124-ZV4-000Ships in 1 to 2 Daysqty 2 used
$2.12$2.90
14
90301-ZV4-000Ships in 1 to 2 Days
$5.39$7.74
15
WASHER, PROPELLER THRUST
90501-ZV4-000No Longer Available
$21.72$29.76
16
WASHER (17MM) (NOT AVAILABLE)
90503-921-020No Longer Available
$5.45$7.46
17
90506-ZV4-000Ships in 1 to 2 Daysqty 2 used
$2.45$3.36
18
90513-921-000Ships in 1 to 2 Days
$1.96$2.82
19
90758-ZV4-000In Stock
$1.46$2.10
20
BEARING, NEEDLE (17X23X12) (NOT AVAILABLE)
91053-ZV4-003No Longer Available
—
21
91251-935-004Ships in 1 to 2 Daysreplaced by 91252-ZW9-003
$12.44$17.90
21
91252-ZW9-003Ships in 1 to 2 Days
$12.44$17.90
22
91351-ZV4-003Ships in 1 to 2 Days
$2.73$3.86
23
BEARING, RADIAL BALL (6005)
96100-60050-00Ships in 1 to 2 Days
$10.95$15.00
24
96100-62050-00Ships in 1 to 2 Days
$18.13$24.84
Diagram

RECOIL STARTER

BF9 BF9.9AX recoil starter exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV48E1100
Fits all 6 submodels of this generation.

Parts in this assembly

23 parts
1
STARTER ASSY., RECOIL
28400-ZV4-013No Longer Available
—
2
CASE, RECOIL STARTER (NOT AVAILABLE)
28401-ZV4-003No Longer Available
—
3
REEL, RECOIL STARTER (NOT AVAILABLE)
28421-ZV4-003No Longer Available
—
4
RATCHET, STARTER (NOT AVAILABLE)
28422-ZV4-003No Longer Available
—
5
28431-ZV4-003Ships in 1 to 2 Days
$7.07$10.16
6
28432-ZV4-003Ships in 1 to 2 Days
$3.15$4.44
7
WASHER, THRUST (NOT AVAILABLE)
28433-ZV4-003No Longer Available
$3.07$4.20
8
28435-ZV4-003Ships in 1 to 2 Days
$5.17$7.30
9
28436-ZV4-003Ships in 1 to 2 Days
$3.43$4.84
10
28437-ZV4-003Ships in 1 to 2 Days
$2.31$3.32
11
28438-ZV4-003Ships in 1 to 2 Days
$2.26$3.20
12
SPRING, FRICTION (NOT AVAILABLE)
28441-ZV4-003No Longer Available
—
13
SPRING, RECOIL STARTER (NOT AVAILABLE)
28442-ZV4-003No Longer Available
$20.54$28.14
14
SPRING, RETURN (NOT AVAILABLE)
28443-ZV4-003No Longer Available
—
15
28445-ZV4-003Ships in 1 to 2 Daysqty 2 used
$3.23$4.64
16
SEAL, RECOIL (NOT AVAILABLE)
28455-ZV4-000No Longer Available
$17.58$24.08
17
28461-ZV4-013Ships in 1 to 2 Days
$8.38$11.82
18
ROPE, RECOIL STARTER (N/A: USE P/N 08550-ZG921-11)
28462-ZV4-003No Longer Available
—
19
GUIDE, ROLLER (NOT AVAILABLE)
28476-ZV4-003No Longer Available
—
20
ROLLER, STARTER (NOT AVAILABLE)
28478-ZV4-003No Longer Available
—
21
90021-ZV4-003Ships in 1 to 2 Days
$2.42$3.48
22
90022-ZV4-003Ships in 1 to 2 Days
$1.96$2.82
23
95701-06030-02Ships in 1 to 2 Daysqty 3 used
$1.71$2.46
Diagram

REGULATOR

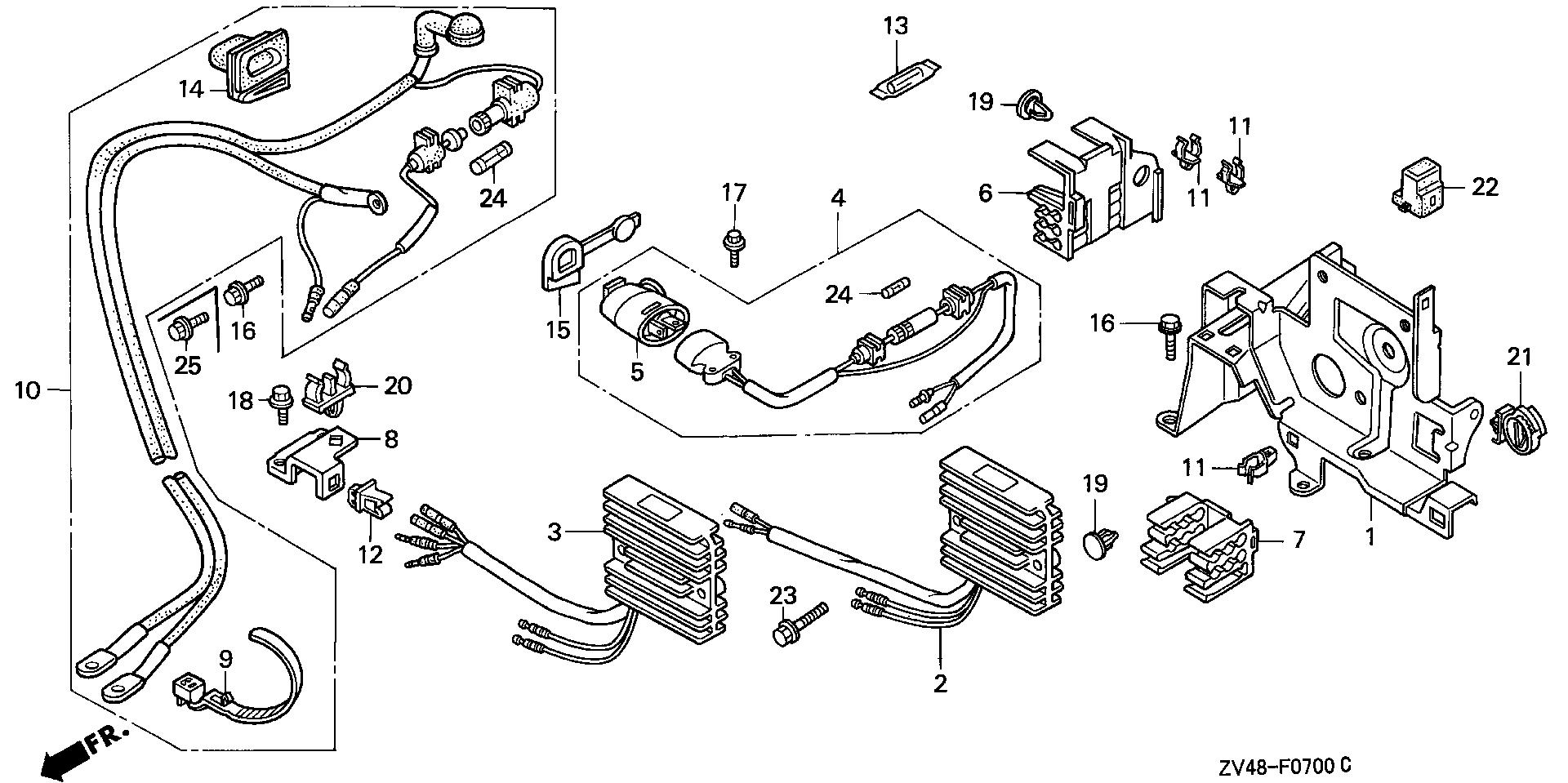

BF9 BF9.9AX regulator exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV48F0700C
Fits all 6 submodels of this generation.

Parts in this assembly

26 parts
1
BRACKET, NEUTRAL START CABLE (NOT AVAILABLE)
17948-ZV4-000No Longer Available
—
2
31600-ZV4-661Ships in 1 to 2 Days
$126.49$173.28
3
31600-ZV4-861Ships in 1 to 2 Days
$115.71$158.50
4
RECEPTACLE ASSY., CHARGE
31650-ZV4-661No Longer Available
—
5
31652-881-024Ships in 1 to 2 Days
$16.85$23.78
6
BRACKET, CONNECTOR (A) (NOT AVAILABLE)
32108-ZV4-870No Longer Available
—
7
32109-ZV4-000Ships in 1 to 2 Days
$8.23$11.84
8
BRACKET, SHIFT CABLE CLIP (NOT AVAILABLE)
32113-ZV4-810No Longer Available
—
9
32121-HA0-003No Longer Available
$7.81$10.70
10
CABLE ASSY., STARTER (NOT AVAILABLE)
32410-ZV4-811No Longer Available
—
11
32913-MG9-950Ships in 1 to 2 Daysqty 3 used
$1.45$2.04
12
37304-PE1-661Ships in 1 to 2 Days
$7.12$10.06
13
38207-ZV4-000Ships in 1 to 2 Days
$2.01$2.90
14
GROMMET C, OIL CASE (NOT AVAILABLE)
40107-ZV4-810No Longer Available
—
15
GROMMET C, OIL CASE (RECEPTACLE) (NOT AVAILABLE)
40107-ZV4-820No Longer Available
—
16
90013-ZV0-010Ships in 1 to 2 Daysqty 3 used
$1.80$2.46
17
90014-ZV1-000Ships in 1 to 2 Daysqty 2 used
$1.20$1.68
17
90014-ZV1-010Ships in 1 to 2 Daysqty 2 used
$1.20$1.68
18
90019-ZV1-010Ships in 1 to 2 Daysqty 2 used
$1.36$1.86
19
90683-ZV4-003Ships in 1 to 2 Daysqty 2 used
$1.81$2.60
20
90684-SB3-003Ships in 1 to 2 Days
$5.80$7.94
21
90684-ZA0-601Ships in 1 to 2 Days
$3.21$4.40
22
91637-SF1-003Ships in 1 to 2 Days
$9.84$14.16
23
95701-06020-02In Stockqty 2 used
$1.07$1.46
24
98200-11500In Stock
$0.83$1.14
25
90013-ZW4-000Ships in 1 to 2 Days
$2.45$3.46
Diagram

REMOTE CONTROL KIT

BF9 BF9.9AX remote control kit exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV48Y0100B
Fits all 6 submodels of this generation.

Parts in this assembly

32 parts
1
CONTROL KIT, REMOTE (NOT AVAILABLE)
06170-ZV4-912No Longer Available
—
1
BRACKET KIT, CONTROL CABLE (NOT AVAILABLE)
06170-ZV4-U00No Longer Available
—
2
BOX KIT, OUTBOARD MOTOR CONTROL (NOT AVAILABLE)
06240-ZV4-621No Longer Available
—
3
BRACKET, STEERING (NOT AVAILABLE)
17851-ZV4-910No Longer Available
—
4
17852-ZV4-910Ships in 1 to 2 Days
$37.33$53.70
5
PLATE, STEERING STOPPER (NOT AVAILABLE)
17853-ZV4-910No Longer Available
—
6
17855-ZV1-810Ships in 1 to 2 Daysqty 2 used
$9.21$13.00
7
17856-ZV1-810Ships in 1 to 2 Daysqty 2 used
$9.04$12.76
8
NUT, CONTROL ADJUSTING (NOT AVAILABLE)
17864-ZV4-911No Longer Available
—
9
BOLT, CONTROL ADJUSTING (NOT AVAILABLE)
17869-ZV4-910No Longer Available
—
10
PIVOT, SHIFT (NOT AVAILABLE)
24618-ZV4-911No Longer Available
—
11
PLATE, LOCK (NOT AVAILABLE)
24619-ZV4-910No Longer Available
—
12
LEVER, GEARSHIFT (NOT AVAILABLE)
24701-ZV4-912No Longer Available
—
13
LEVER, CONTROL BOX (NOT AVAILABLE)
24810-ZV4-911No Longer Available
$83.38$114.22
14
PLATE, CABLE CLAMP (NOT AVAILABLE)
24823-ZV4-911No Longer Available
$10.10$13.84
15
24855-ZV4-911Ships in 1 to 2 Daysqty 2 used
$9.07$13.04
16
CABLE ASSY., REMOTE CONTROL (NOT AVAILABLE)
32510-ZV4-911No Longer Available
—
17
SWITCH ASSY., ENGINE STOP (NOT AVAILABLE)
36100-ZV4-911No Longer Available
—
18
SWITCH ASSY., EMERGENCY STOP
36180-ZV4-911No Longer Available
—
19
NUT, CAP (NOT AVAILABLE)
36181-ZV4-003No Longer Available
$8.18$11.20
20
CAP (NOT AVAILABLE)
36183-ZV4-003No Longer Available
$38.88$53.26
21
RUBBER, SEALING (NOT AVAILABLE)
36184-ZV4-910No Longer Available
—
22
90106-ZV4-911Ships in 1 to 2 Daysqty 2 used
$2.85$4.10
23
SCREW (NOT AVAILABLE)
90130-ZV4-911No Longer Available
—
24
90452-GK4-600In Stockqty 5 used
$1.28$1.82
25
90504-921-010Ships in 1 to 2 Daysqty 4 used
$1.27$1.74
26
CLAMP, CORD (NOT AVAILABLE)
90686-ZV4-911No Longer Available
—
27
90756-ZV4-911Ships in 1 to 2 Days
$6.04$8.70
28
92101-05012-4JShips in 1 to 2 Daysqty 5 used
$1.39$2.00
29
92101-06016-4JShips in 1 to 2 Daysqty 2 used
$1.37$1.94
30
BOLT, HEX. (6X18) (NOT AVAILABLE)
92101-06018-4JNo Longer Available
—
31
94540-05029Ships in 1 to 2 Daysqty 3 used
$7.33$10.04
Diagram

STARTER MOTOR

BF9 BF9.9AX starter motor exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV48E2100A
Fits only BF9.9AX-LAS, BF9.9AX-SAS, BF9.9AX-XAS — not every submodel of this generation.

Parts in this assembly

29 parts
1
STARTER MOTOR ASSY. (NOT AVAILABLE)
31200-ZV4-813No Longer Available
—
2
31204-KS5-901Ships in 1 to 2 Daysqty 2 used
$2.85$4.02
3
31207-KS5-901Ships in 1 to 2 Days
$3.14$4.30
4
STARTER MOTOR UNIT (NOT AVAILABLE)
31210-ZV4-813No Longer Available
—
5
31214-ZV7-751Ships in 1 to 2 Days
$178.06$251.24
6
31216-ZV4-811Ships in 1 to 2 Days
$203.44$213.61
7
31217-ZV4-812Ships in 1 to 2 Days
$187.39$196.77
8
31221-ZV4-811Ships in 1 to 2 Days
$12.64$17.84
9
31223-ZV4-811Ships in 1 to 2 Days
$5.39$7.74
10
31231-ZV4-811Ships in 1 to 2 Days
$52.91$74.66
11
31233-ZV4-811Ships in 1 to 2 Days
$6.95$9.80
12
31235-ZV4-811Ships in 1 to 2 Days
$160.94$220.46
13
31236-ZV4-811Ships in 1 to 2 Days
$96.62$136.34
14
31238-ZV4-812Ships in 1 to 2 Days
$23.56$33.24
15
32402-ZV4-810Ships in 1 to 2 Days
$10.99$15.82
16
32411-ZV4-811Ships in 1 to 2 Days
$5.37$7.36
17
32412-ZV4-811Ships in 1 to 2 Days
$5.37$7.36
18
SWITCH ASSY., STARTER MAGNETIC (NOT AVAILABLE)
35850-ZV4-811No Longer Available
—
20
90126-881-000Ships in 1 to 2 Daysqty 2 used
$1.87$2.56
20
90026-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.87$2.56
21
90203-ZV4-811Ships in 1 to 2 Daysqty 4 used
$2.72$3.84
22
91320-MB0-000Ships in 1 to 2 Daysqty 3 used
$2.22$3.04
23
90405-ZV4-811Ships in 1 to 2 Days
$2.51$3.54
24
90602-ZV4-811Ships in 1 to 2 Days
$1.69$2.38
25
91401-ZV4-811Ships in 1 to 2 Days
$3.02$4.26
26
COLLAR, DISTANCE
91551-ZV4-810No Longer Available
$2.73$3.74
27
94301-10160Ships in 1 to 2 Daysqty 2 used
$3.01$4.12
28
96001-06032-02Ships in 1 to 2 Daysqty 2 used
$1.18$1.62
29
90012-ZV4-812Ships in 1 to 2 Days
$5.04$7.24
Diagram

STERN BRACKET

BF9 BF9.9AX stern bracket exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV48F1000A
Fits all 6 submodels of this generation.

Parts in this assembly

22 parts
2
BRACKET, R. STERN *NH282MU* (OYSTER SILVER METALLIC-U)
50300-ZV4-612ZBNo Longer Available
—
2
BRACKET, R. STERN *NH282MU* (OYSTER SILVER METALLIC-U) (NOT AVAILABLE)
50300-ZV4-613ZBNo Longer Available
—
3
BRACKET, L. STERN *NH282MU* (OYSTER SILVER METALLIC-U)
50310-ZV4-020ZBNo Longer Available
—
3
BRACKET, L. STERN *NH282MU* (OYSTER SILVER METALLIC-U)
50310-ZV4-030ZBNo Longer Available
—
4
GRIP, CLAMP *NH282MU* (OYSTER SILVER METALLIC-U) (NOT AVAILABLE)
50323-ZV4-310ZBNo Longer Available
$13.26$18.16
6
SPRING, TILT (NOT AVAILABLE)
50333-921-003No Longer Available
—
7
50340-ZV4-010Ships in 1 to 2 Days
$28.60$41.14
8
50341-ZV4-310Ships in 1 to 2 Days
$22.13$31.84
9
50342-ZV4-300Ships in 1 to 2 Days
$5.30$7.62
10
50343-921-300Ships in 1 to 2 Days
$3.21$4.40
11
90106-921-010Ships in 1 to 2 Days
$20.92$30.10
12
90305-ZV4-000Ships in 1 to 2 Days
$6.02$8.24
13
WASHER, SPRING (6MM) (NOT AVAILABLE)
90517-ZV4-000No Longer Available
—
14
90506-ZV4-000Ships in 1 to 2 Days
$2.45$3.36
15
90511-921-000Ships in 1 to 2 Days
$0.86$1.18
16
90513-921-000Ships in 1 to 2 Daysqty 2 used
$1.96$2.82
17
90514-921-000Ships in 1 to 2 Days
$0.99$1.36
18
91501-ZV4-000Ships in 1 to 2 Days
$20.35$29.28
19
BOLT, HEX. (6X160) (NOT AVAILABLE)
90126-ZV4-000No Longer Available
—
20
90304-ZV4-000Ships in 1 to 2 Days
$2.12$2.90
21
PIN, SPRING (2X8)
94305-20083Ships in 1 to 2 Days
$0.72$0.98
22
94305-40143In Stockqty 2 used
$1.34$1.84
Diagram

SWIVEL CASE

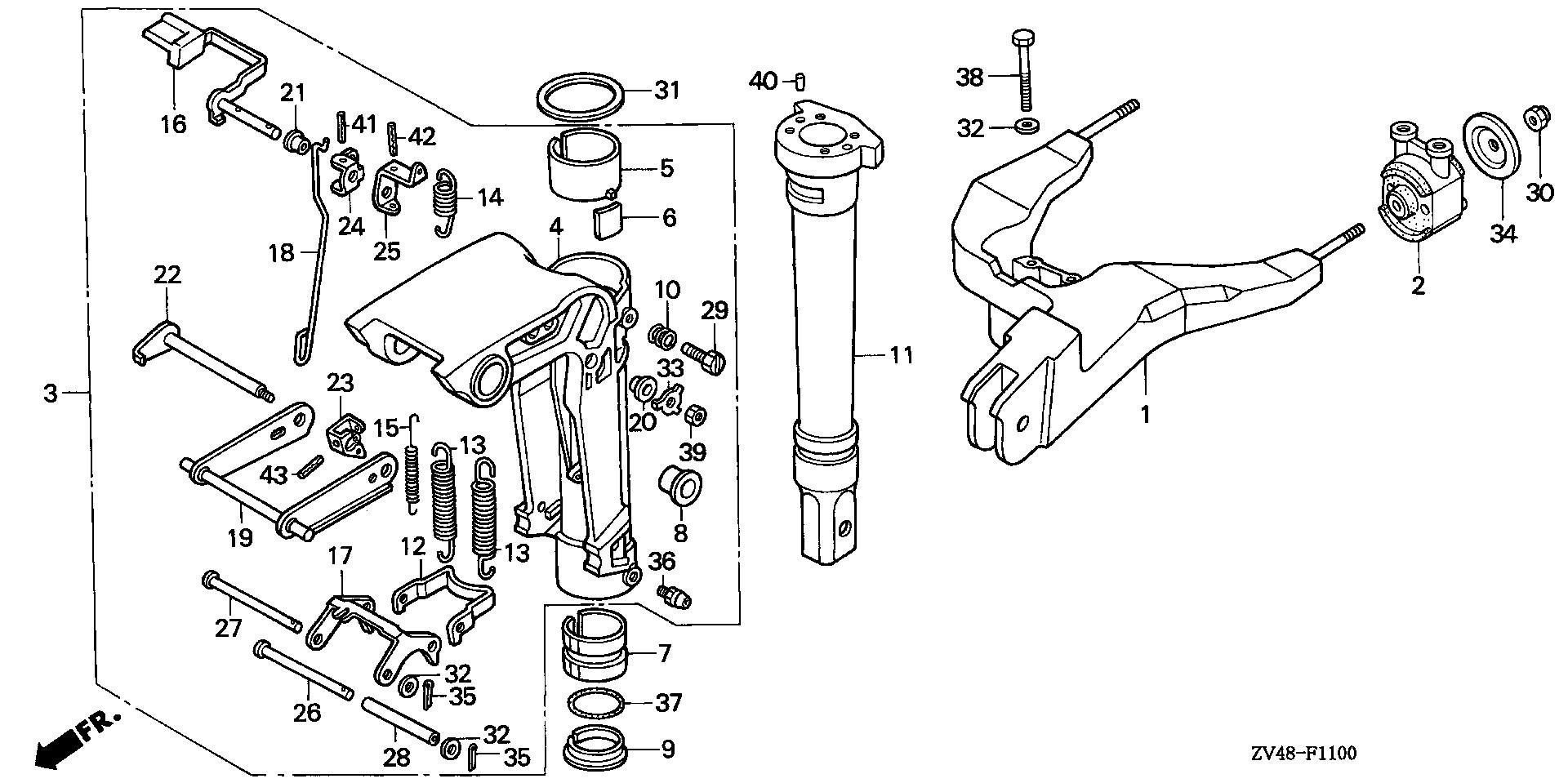

BF9 BF9.9AX swivel case exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV48F1100
Fits all 6 submodels of this generation.

Parts in this assembly

56 parts
1
FRAME, MOUNTING *NH282MU* (OYSTER SILVER METALLIC-U) (NOT AVAILABLE)
50100-ZV4-010ZBNo Longer Available
—
2
MOUNT, RUBBER (UPPER) *NH282MU* (OYSTER SILVER METALLIC-U) (NOT AVAILABLE)
50151-ZV4-000ZBNo Longer Available
—
3
CASE ASSY., SWIVEL *NH282MU* (OYSTER SILVER METALLIC-U)
50200-ZV4-020ZBNo Longer Available
—
3
CASE ASSY., SWIVEL *NH282MU* (OYSTER SILVER METALLIC-U)
50200-ZV4-030ZBNo Longer Available
—
3
CASE ASSY., SWIVEL *NH282MU* (OYSTER SILVER METALLIC-U)
50200-ZV4-040ZBNo Longer Available
—
4
CASE, SWIVEL *NH282MU* (OYSTER SILVER METALLIC-U)
50201-ZV4-020ZBNo Longer Available
—
4
CASE, SWIVEL *NH282MU* (OYSTER SILVER METALLIC-U) (NOT AVAILABLE)
50201-ZV4-030ZBNo Longer Available
—
5
LINER, SWIVEL CASE (NOT AVAILABLE)
50211-ZV4-000No Longer Available
—
6
BLOCK, FRICTION (NOT AVAILABLE)
50212-ZV4-000No Longer Available
$9.89
7
BUSH, SWIVEL SHAFT (NOT AVAILABLE)
50213-ZV4-000No Longer Available
—
8
50214-ZV4-003Ships in 1 to 2 Daysqty 2 used
$6.31$9.08
9
COLLAR, SWIVEL CASE (NOT AVAILABLE)
50215-ZV4-000No Longer Available
—
10
50233-881-000Ships in 1 to 2 Days
$4.63$6.66
11
SHAFT, SWIVEL *NH282MU* (OYSTER SILVER METALLIC-U) (NOT AVAILABLE)
50417-ZV4-000ZBNo Longer Available
—
12
HOOK, REVERSE LOCK (NOT AVAILABLE)
50512-ZV4-000No Longer Available
—
13
SPRING, REVERSE LOCK (NOT AVAILABLE)
50514-ZV4-000No Longer Available
—
14
SPRING, TILT LEVER (NOT AVAILABLE)
50515-ZV4-300No Longer Available
$3.39$4.64
15
50516-ZV4-300Ships in 1 to 2 Days
$4.66$6.70
16
LEVER, TILT
50517-ZV4-000No Longer Available
—
16
LEVER, TILT
50517-ZV4-010Ships in 1 to 2 Days
$14.79$20.26
17
ARM, REVERSE LOCK (NOT AVAILABLE)
50518-ZV4-000No Longer Available
—
18
ROD, RELEASE SWIVEL CASE (NOT AVAILABLE)
50519-ZV4-300No Longer Available
—
19
50520-ZV4-010Ships in 1 to 2 Days
$58.49$84.12
20
50521-ZV1-000Ships in 1 to 2 Daysqty 2 used
$5.88$8.30
21
50522-ZV4-000Ships in 1 to 2 Daysqty 2 used
$5.01$7.20
22
50525-ZV4-000Ships in 1 to 2 Days
$22.15$31.86
22
50525-ZV4-010Ships in 1 to 2 Days
$22.15$31.86
23
50526-ZV4-000Ships in 1 to 2 Days
$8.61$12.40
24
BRACKET, RELEASE ROD (NOT AVAILABLE)
50527-ZV4-000No Longer Available
—
24
50527-ZV4-010Ships in 1 to 2 Days
$4.98$7.16
25
BRACKET, TILT LEVER (NOT AVAILABLE)
50528-ZV4-000No Longer Available
—
25
50528-ZV4-010Ships in 1 to 2 Days
$4.98$7.16
26
SHAFT, REVERSE LOCK (A) (NOT AVAILABLE)
50531-ZV4-000No Longer Available
—
27
50532-ZV4-000Ships in 1 to 2 Days
$6.77$9.74
28
COLLAR, REVERSE LOCK (NOT AVAILABLE)
50533-ZV4-000No Longer Available
—
29
90109-ZV4-000Ships in 1 to 2 Days
$3.65$5.26
30
90305-ZV4-000Ships in 1 to 2 Daysqty 2 used
$6.02$8.24
31
WASHER, THRUST (51MM) (NOT AVAILABLE)
90504-ZV4-000No Longer Available
—
32
90504-921-010Ships in 1 to 2 Daysqty 6 used
$1.27$1.74
33
90505-ZV4-000Ships in 1 to 2 Days
$2.98$4.08
34
90513-ZV4-000Ships in 1 to 2 Daysqty 2 used
$6.42$9.24
35
90759-ZV1-000In Stockqty 2 used
$1.42$1.94
36
NIPPLE, GREASE (NOT AVAILABLE)
90901-ZV4-000No Longer Available
—
37
91356-MG9-003Ships in 1 to 2 Days
$3.11$4.48
38
BOLT, HEX. (6X60) (NOT AVAILABLE)
92101-06060-4JNo Longer Available
—
39
94002-06490-0SShips in 1 to 2 Days
$2.58$3.54
40
94303-06100Ships in 1 to 2 Daysqty 2 used
$2.74$3.76
41
90751-ZV4-C20Ships in 1 to 2 Days
$2.70$3.88
41
90751-ZV4-C21In Stock
$2.70$3.88
41
PIN, SPRING (2.5X22)
94305-25223No Longer Available
$1.34$1.84
42
90752-ZV4-C20Ships in 1 to 2 Days
$2.70$3.88
42
90752-ZV4-C21In Stock
$2.70$3.88
42
PIN, SPRING (2.5X25)
94305-25253Ships in 1 to 2 Days
$1.34$1.84
43
90752-ZV4-C20Ships in 1 to 2 Days
$2.70$3.88
43
90752-ZV4-C21In Stock
$2.70$3.88
43
PIN, SPRING (3X25)
94305-30253No Longer Available
$1.34$1.84
Diagram

TIMING BELT

BF9 BF9.9AX timing belt exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV48E1300
Fits all 6 submodels of this generation.

Parts in this assembly

15 parts
1
PULLEY, TIMING (NOT AVAILABLE)
14315-ZV4-000No Longer Available
—
2
14316-ZV4-000Ships in 1 to 2 Daysqty 2 used
$7.71$11.08
3
PULLEY, CAMSHAFT (NOT AVAILABLE)
14320-ZV4-000No Longer Available
—
4
14400-ZV4-004Ships in 1 to 2 Days
$45.96$66.10
5
COIL ASSY., PULSER (NOT AVAILABLE)
30400-ZV4-003No Longer Available
—
6
90013-ZV0-010Ships in 1 to 2 Days
$1.80$2.46
6
90013-ZW4-000Ships in 1 to 2 Days
$2.45$3.46
7
90202-ZV4-000Ships in 1 to 2 Days
$10.38$14.94
8
90451-ZV4-000No Longer Available
$4.44$6.08
9
90563-ZV4-000Ships in 1 to 2 Days
$4.88$6.88
10
90564-ZV4-000Ships in 1 to 2 Days
$4.37$5.98
11
CLIP, CORD (NOT AVAILABLE)
90689-ZV4-003No Longer Available
—
12
93500-05014-0BShips in 1 to 2 Daysqty 2 used
$1.26$1.80
12
90182-ZW4-000Ships in 1 to 2 Daysqty 2 used
$0.85$1.22
13
95701-06018-02Ships in 1 to 2 Days
$2.28$3.28
Diagram

TOOLS

BF9 BF9.9AX tools exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV48F1300
Fits all 6 submodels of this generation.

Parts in this assembly

20 parts
1
19270-881-812Ships in 1 to 2 Days
$10.42$14.70
2
19271-ZV1-810Ships in 1 to 2 Days
$13.20$18.62
3
19272-881-810Ships in 1 to 2 Days
$2.45$3.46
4
28470-816-000Ships in 1 to 2 Days
$7.37$10.40
5
36187-ZV4-652Ships in 1 to 2 Days
$4.18$5.72
6
TOOL KIT (N/A: SEE COMPONENTS)
89000-881-C00No Longer Available
—
7
SPANNER (8MM) (NOT AVAILABLE)
89203-836-000No Longer Available
—
8
WRENCH, BOX (P18X19) (NOT AVAILABLE)
89211-881-000No Longer Available
—
9
89301-921-010Ships in 1 to 2 Days
$5.87$8.28
10
98066-55716In Stock
$2.18$2.98
10
98066-55726Ships in 1 to 2 Days
$2.23$3.06
10
98066-56716In Stock
$2.18$2.98
10
98066-56726Ships in 1 to 2 Days
$2.10$2.88
11
99001-09120Ships in 1 to 2 Days
$2.50$3.42
12
99001-10120Ships in 1 to 2 Days
$6.26$8.58
13
89210-GBJ-J10Ships in 1 to 2 Days
$19.36$26.52
14
99003-10000Ships in 1 to 2 Days
$3.81$5.22
15
99003-30000Ships in 1 to 2 Days
$3.81$5.22
16
99003-40000Ships in 1 to 2 Days
$1.17$1.60
17
BAG, TOOL (200MM)
99008-02000No Longer Available
—
Diagram

VERTICAL SHAFT

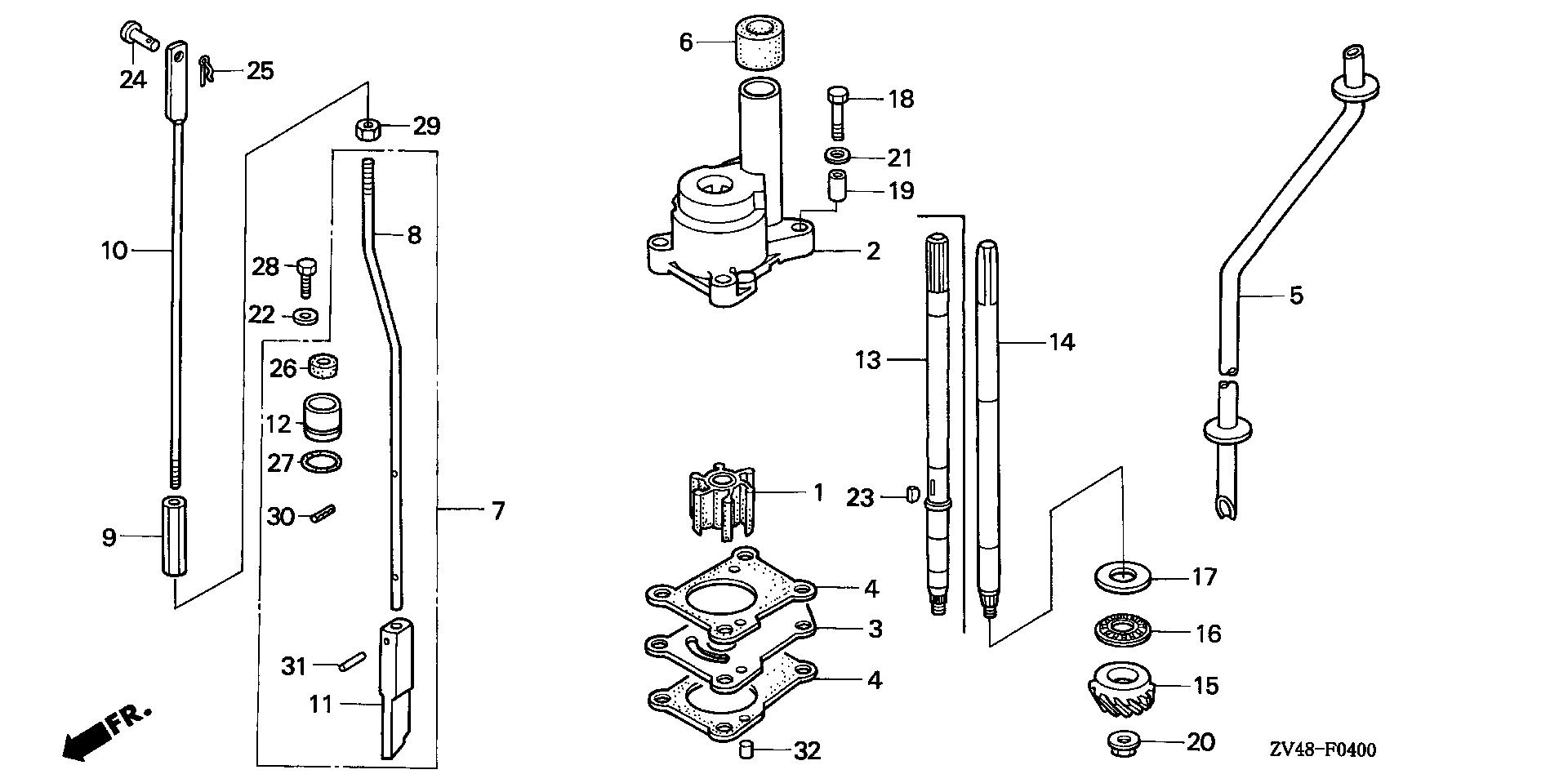

BF9 BF9.9AX vertical shaft exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV48F0400
Fits all 6 submodels of this generation.

Parts in this assembly

42 parts
1
19210-ZV4-651Ships in 1 to 2 Days
$21.90$31.50
↳
Sierra alternative ·
18-3247In Stock save $1.57
$20.33
2
19220-ZV4-000Ships in 1 to 2 Days
$68.93$99.14
3
19231-ZV4-020Ships in 1 to 2 Days
$8.44$12.14
4
19232-ZV4-610Ships in 1 to 2 Daysqty 2 used
$2.69$3.86
↳
Sierra alternative ·
18-2495In Stock save $0.81
$1.88
5
TUBE, WATER (NOT AVAILABLE)
19251-ZV4-C30No Longer Available
—
5
TUBE, WATER (NOT AVAILABLE)
19251-ZV4-000No Longer Available
—
5
TUBE, WATER (NOT AVAILABLE)
19251-ZV4-700No Longer Available
—
6
19253-ZV1-000Ships in 1 to 2 Daysreplaced by 19253-ZVD-000
$2.60$3.56
7
ROD B, SHIFT (UL) (NOT AVAILABLE)
24310-ZV4-C30No Longer Available
—
7
ROD, SHIFT (S) (NOT AVAILABLE)
24310-ZV4-010No Longer Available
—
7
ROD, SHIFT (L) (NOT AVAILABLE)
24310-ZV4-701No Longer Available
—
8
ROD B, SHIFT (UL) (NOT AVAILABLE)
24311-ZV4-C30No Longer Available
—
8
ROD B, SHIFT (S) (NOT AVAILABLE)
24311-ZV4-300No Longer Available
—
8
ROD B, SHIFT (L) (NOT AVAILABLE)
24311-ZV4-700No Longer Available
—
9
JOINT, SHIFT ROD (NOT AVAILABLE)
24312-ZV4-000No Longer Available
$18.29$25.06
10
ROD A, SHIFT (NOT AVAILABLE)
24320-ZV4-000No Longer Available
$17.51$23.98
11
24341-ZV4-300Ships in 1 to 2 Days
$22.05$31.70
12
HOLDER, SEAL (NOT AVAILABLE)
24343-ZV4-300No Longer Available
—
13
SHAFT, VERTICAL (UL) (NOT AVAILABLE)
41112-ZV4-C30No Longer Available
—
14
SHAFT, VERTICAL (S) (NOT AVAILABLE)
41112-ZV4-650No Longer Available
—
14
SHAFT, VERTICAL (L) (NOT AVAILABLE)
41112-ZV4-750No Longer Available
—
15
PINION (13T) (NOT AVAILABLE)
41131-ZV4-010No Longer Available
—
16
WASHER A, THRUST BEARING (2.00MM) (NOT AVAILABLE)
41135-935-003No Longer Available
$5.74$7.86
17
WASHER, THRUST BEARING A (3.00MM) (NOT AVAILABLE)
41135-ZV4-000No Longer Available
$8.66$11.86
17
WASHER, THRUST BEARING B (3.03MM) (NOT AVAILABLE)
41136-ZV4-000No Longer Available
—
17
WASHER, THRUST BEARING C (3.06MM) (NOT AVAILABLE)
41137-ZV4-000No Longer Available
—
17
WASHER, THRUST BEARING D (3.09MM) (NOT AVAILABLE)
41138-ZV4-000No Longer Available
—
18
90108-881-000Ships in 1 to 2 Daysqty 4 used
$3.74$5.38
19
90112-881-000Ships in 1 to 2 Daysqty 4 used
$4.96$7.00
20
NUT, SPECIAL (8MM) (NOT AVAILABLE)
90303-ZV4-010No Longer Available
—
21
90504-921-010Ships in 1 to 2 Daysqty 4 used
$1.27$1.74
22
90512-ZV4-000Ships in 1 to 2 Days
$3.04$4.16
23
KEY, WOODRUFF (16X12) (NOT AVAILABLE)
90752-ZV4-650No Longer Available
$2.20$3.02
24
90754-ZV4-000Ships in 1 to 2 Days
$2.10$3.02
25
90757-ZV1-000Ships in 1 to 2 Days
$1.58$2.22
26
91253-921-003In Stock
$11.46$16.18
27
91301-MY9-003Ships in 1 to 2 Days
$2.19$3.00
28
90105-881-000Ships in 1 to 2 Days
$2.12$2.90
29
94001-06490-0SShips in 1 to 2 Days
$2.15$2.94
30
94305-25122Ships in 1 to 2 Days
$2.03$2.78
31
96220-25118Ships in 1 to 2 Days
$0.61$0.84
32
96220-40100Ships in 1 to 2 Daysqty 2 used
$0.45$0.62
Diagram

WATER PUMP IMPELLER KIT

BF9 BF9.9AX water pump impeller kit exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV48Y0300AA
Fits all 6 submodels of this generation.

Parts in this assembly

4 parts
1
IMPELLER KIT, WATER PUMP (N/A: USE 06192-ZV4-000. SEAL NOT INCL. ORDER SEPARATELY.)
06192-ZV4-A00No Longer Available
—
↳
Sierra alternative ·
18-3280In Stock
$24.29
2
19210-ZV4-651Ships in 1 to 2 Days
$21.90$31.50
↳
Sierra alternative ·
18-3247In Stock save $1.57
$20.33
3
19232-ZV4-610Ships in 1 to 2 Daysqty 2 used
$2.69$3.86
↳
Sierra alternative ·
18-2495In Stock save $0.81
$1.88
4
91252-935-004Ships in 1 to 2 Days
$17.08$24.58
Diagram

WATER TUBE

BF9 BF9.9AX water tube exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV48F0611B
Fits all 6 submodels of this generation.

Parts in this assembly

3 parts
1
90605-ZV4-000Ships in 1 to 2 Days
$1.37$1.88
2
CLIP, TUBE (B16) (NOT AVAILABLE)
90606-ZV4-000No Longer Available
—
3
TUBE, WATER RETURN (A) (NOT AVAILABLE)
90807-ZV4-000No Longer Available
—
Diagrams are Honda's official OEM illustrations, served from Honda's asset host. Prices are our own; where a struck-through figure appears beside one it is Honda's suggested retail. “In Stock” means the part is on our shelf here at Boe Marine. “Ships in 1 to 2 Days” means we order it in from Honda, who still supply it. Parts marked “No Longer Available” are shown so the drawing stays complete, but Honda has discontinued them. Where a Sierra replacement is listed beneath a Honda part, Sierra ships it direct to you; “Backorder Now” on one of those means Sierra has none at the moment and will ship it once restocked.
