BF75 — Parts Diagrams

Generation BF75B  ·  2 submodels

Assemblies (24)

Diagram

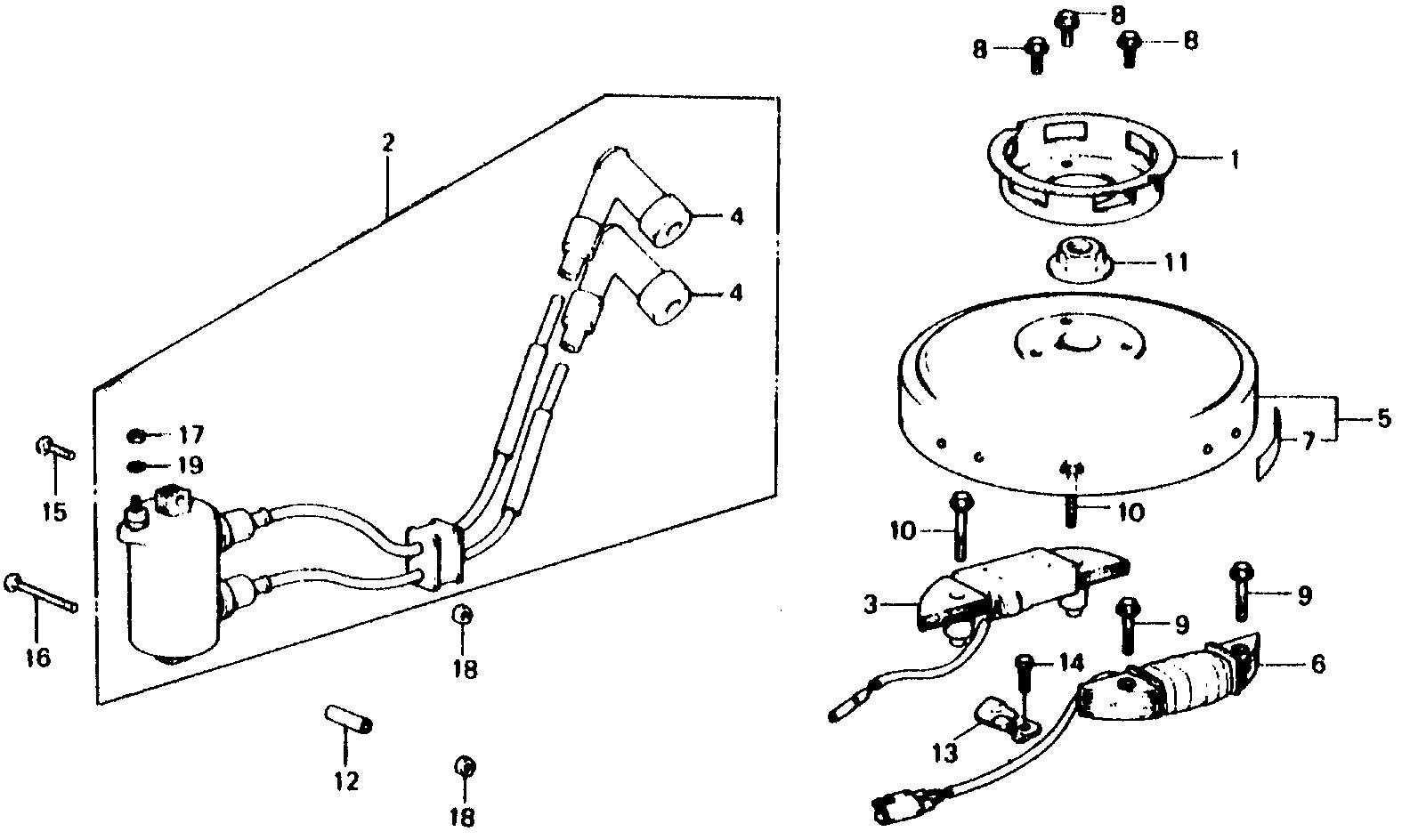

C.D.I. IGNITION COIL - FLYWHEEL

BF75 BF75B c.d.i. ignition coil - flywheel exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges below1388E0900
Fits all 2 submodels of this generation.

Parts in this assembly

19 parts
1
PULLEY, STARTER (NOT AVAILABLE)
28571-881-000No Longer Available
—
2
30500-ZV8-G01Ships in 1 to 2 Days
$120.64$126.67
3
COIL ASSY., EXCITER (NOT AVAILABLE)
30540-881-732No Longer Available
$66.90$91.64
4
CAP ASSY., NOISE SUPPRESSOR (NOT AVAILABLE)
30700-881-000No Longer Available
—
5
31100-881-000BShips in 1 to 2 Days
$280.23$383.88
6
COIL ASSY., CHARGE (NOT AVAILABLE)
31630-881-004No Longer Available
—
7
MARK, FLYWHEEL CAUTION (NOT AVAILABLE)
87541-896-000No Longer Available
—
8
90016-920-000Ships in 1 to 2 Daysqty 3 used
$1.80$2.58
9
BOLT, FLANGE (6X28) (NOT AVAILABLE)
90123-881-000No Longer Available
—
10
90124-881-000Ships in 1 to 2 Daysqty 2 used
$1.91$2.76
11
90201-881-000Ships in 1 to 2 Days
$5.17$7.08
12
COLLAR, DISTANCE
90742-881-000No Longer Available
—
13
91404-881-000Ships in 1 to 2 Days
$8.26$11.88
14
92101-06012-0AShips in 1 to 2 Days
$1.42$1.94
15
93500-06025-0AShips in 1 to 2 Days
$1.17$1.60
16
93500-06050-0BShips in 1 to 2 Days
$0.85$1.16
17
94001-05330-0SShips in 1 to 2 Days
$0.85$1.16
18
94001-06020-0SShips in 1 to 2 Daysqty 2 used
$1.34$1.84
19
94111-05800Ships in 1 to 2 Days
$1.04$1.42
Diagram

CAMSHAFT - VALVE

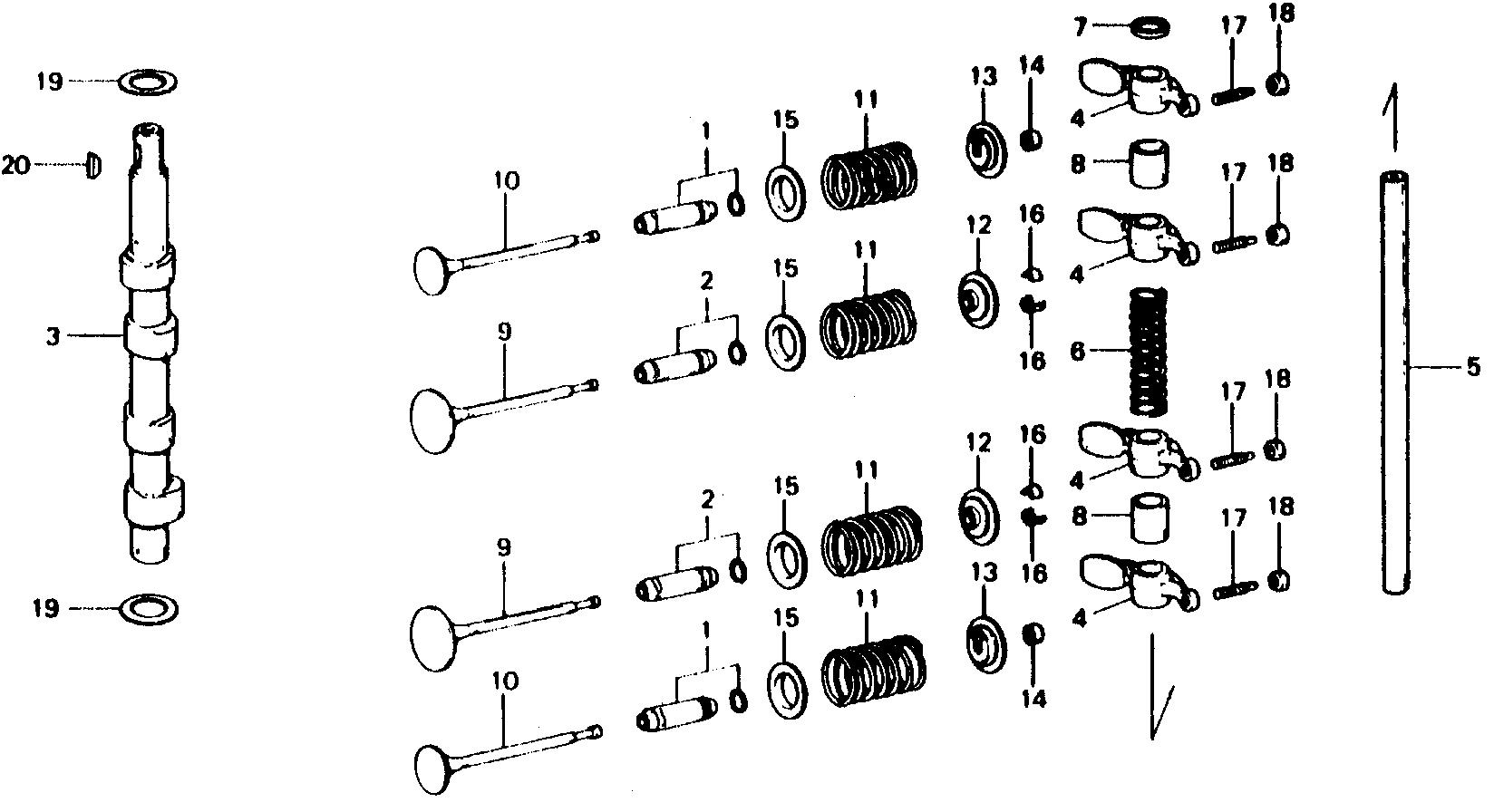

BF75 BF75B camshaft - valve exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges below1388E0200
Fits all 2 submodels of this generation.

Parts in this assembly

21 parts
1
GUIDE, VALVE (NOT AVAILABLE)
12021-921-000No Longer Available
—
2
12023-921-000Ships in 1 to 2 Daysqty 2 used
$9.24$13.30
3
CAMSHAFT (NOT AVAILABLE)
14100-882-010No Longer Available
—
3
CAMSHAFT (NOT AVAILABLE)
14100-881-000No Longer Available
—
4
ARM, VALVE ROCKER (NOT AVAILABLE)
14431-881-000No Longer Available
$10.50$14.38
5
14451-881-000Ships in 1 to 2 Days
$16.29$22.98
6
14481-881-000Ships in 1 to 2 Days
$4.37$6.16
7
14482-881-000Ships in 1 to 2 Days
$2.67$3.76
8
14483-881-000Ships in 1 to 2 Daysqty 2 used
$3.10$4.36
9
VALVE, IN.
14711-881-000No Longer Available
—
10
VALVE, EX. (NOT AVAILABLE)
14721-881-000No Longer Available
$19.37$26.54
11
14753-921-010Ships in 1 to 2 Daysqty 4 used
$4.44$6.26
12
RETAINER, VALVE SPRING (NOT AVAILABLE)
14771-881-000No Longer Available
$3.64$4.98
13
14771-935-810Ships in 1 to 2 Daysqty 2 used
$7.88$11.12
14
14772-881-000Ships in 1 to 2 Daysqty 2 used
$3.43$4.84
15
14775-921-000Ships in 1 to 2 Daysqty 4 used
$1.68$2.36
16
14781-235-000Ships in 1 to 2 Daysqty 4 used
$2.60$3.66
17
90012-333-000Ships in 1 to 2 Daysqty 4 used
$2.64$3.62
18
90206-001-000Ships in 1 to 2 Daysqty 4 used
$1.59$2.18
19
90453-235-000Ships in 1 to 2 Daysqty 2 used
$1.77$2.42
20
KEY, CAM PULLEY (12X16X3)
90741-921-000No Longer Available
—
Diagram

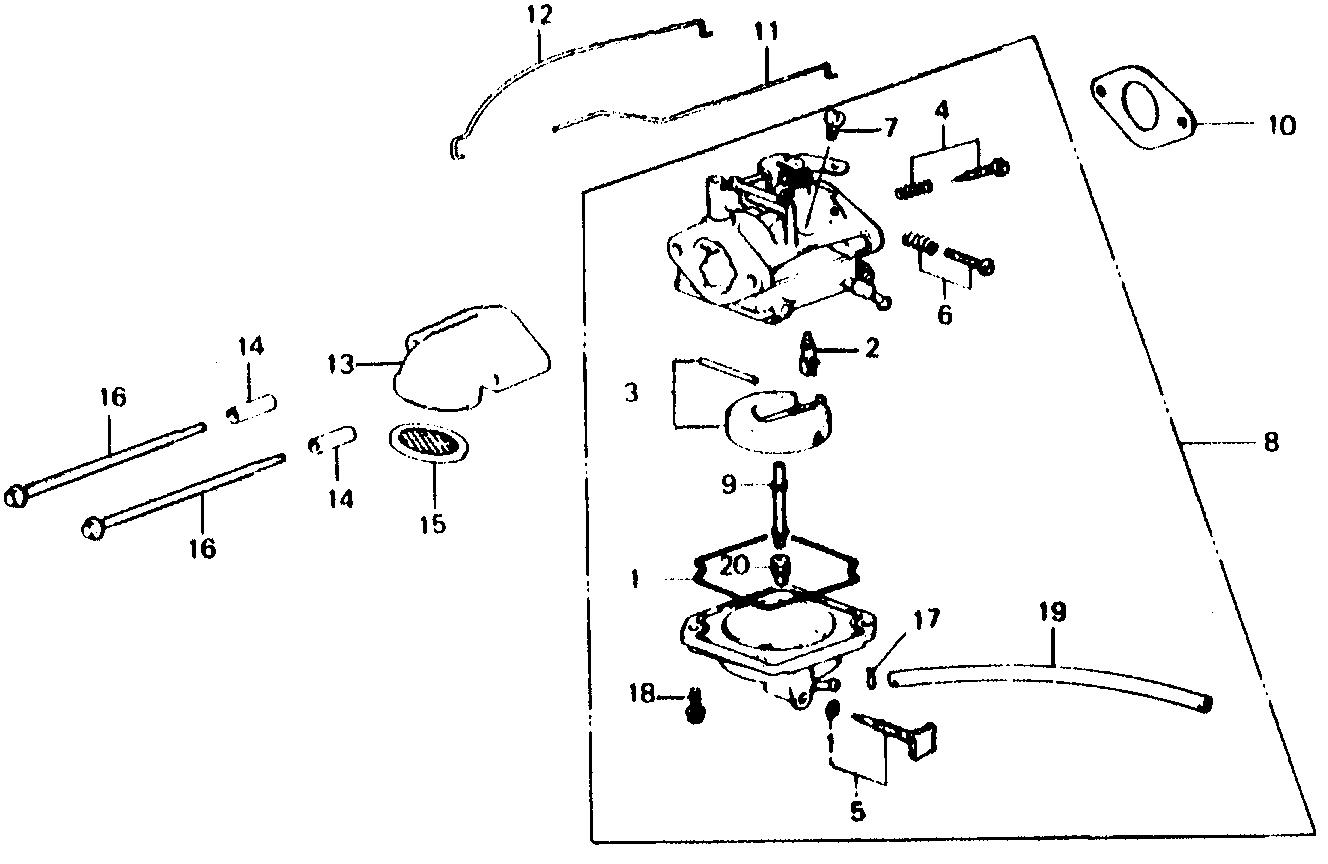

CARBURETOR - AIR GUIDE

BF75 BF75B carburetor - air guide exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges below1388E0600
Fits all 2 submodels of this generation.

Parts in this assembly

27 parts
1
16010-881-003Ships in 1 to 2 Days
$14.45$20.80
↳
Sierra alternative ·
18-2482In Stock
$15.38
2
16011-881-741Ships in 1 to 2 Days
$24.18$34.78
↳
Sierra alternative ·
18-7048Backorder Now save $0.88
$23.30
3
FLOAT SET (NOT AVAILABLE)
16013-881-003No Longer Available
$15.32$20.98
4
16016-881-003Ships in 1 to 2 Days
$3.59$4.92
5
16024-881-003Ships in 1 to 2 Days
$7.52$10.30
6
SCREW SET B (N/A: SEE ASSEMBLY)
16028-881-003No Longer Available
—
7
SCREW, PLUG (NOT AVAILABLE)
16071-881-003No Longer Available
—
8
CARBURETOR ASSY.
16100-881-023No Longer Available
—
8
CARBURETOR ASSY. (NOT AVAILABLE)
16100-881-033No Longer Available
—
9
NOZZLE, MAIN (N/A: SEE ASSEMBLY)
16166-881-003No Longer Available
—
10
16201-881-850Ships in 1 to 2 Days
$2.60$3.74
↳
Sierra alternative ·
18-2473In Stock
$3.05
11
ROD, THROTTLE (NOT AVAILABLE)
16593-881-010No Longer Available
—
12
ROD, CHOKE (NOT AVAILABLE)
16622-881-000No Longer Available
—
13
GUIDE, AIR
17201-881-010No Longer Available
—
13
GUIDE, AIR (NOT AVAILABLE)
17201-881-020No Longer Available
—
14
COLLAR, DISTANCE (NOT AVAILABLE)
17202-921-000No Longer Available
—
15
TRAP, FLAME (NOT AVAILABLE)
17203-881-000No Longer Available
—
16
BOLT, FLANGE (6X97)
90012-881-000No Longer Available
—
16
BOLT, FLANGE (6X97)
90012-882-000No Longer Available
—
17
CLIP B7, TUBE (NOT AVAILABLE)
90605-921-000No Longer Available
$1.14$1.56
18
93892-04012-08Ships in 1 to 2 Daysqty 2 used
$0.74$1.02
19
95001-35003-60MShips in 1 to 2 Days
$27.23$39.16
20
99101-124-0720Ships in 1 to 2 Days
$8.25$11.64
20
99101-124-0780Ships in 1 to 2 Days
$8.72$12.30
20
99101-124-0800Ships in 1 to 2 Days
$8.72$12.30
20
99101-124-0820Ships in 1 to 2 Days
$8.72$12.30
20
99101-124-0880Ships in 1 to 2 Days
$8.72$12.30
Diagram

CYLINDER - CYLINDER HEAD

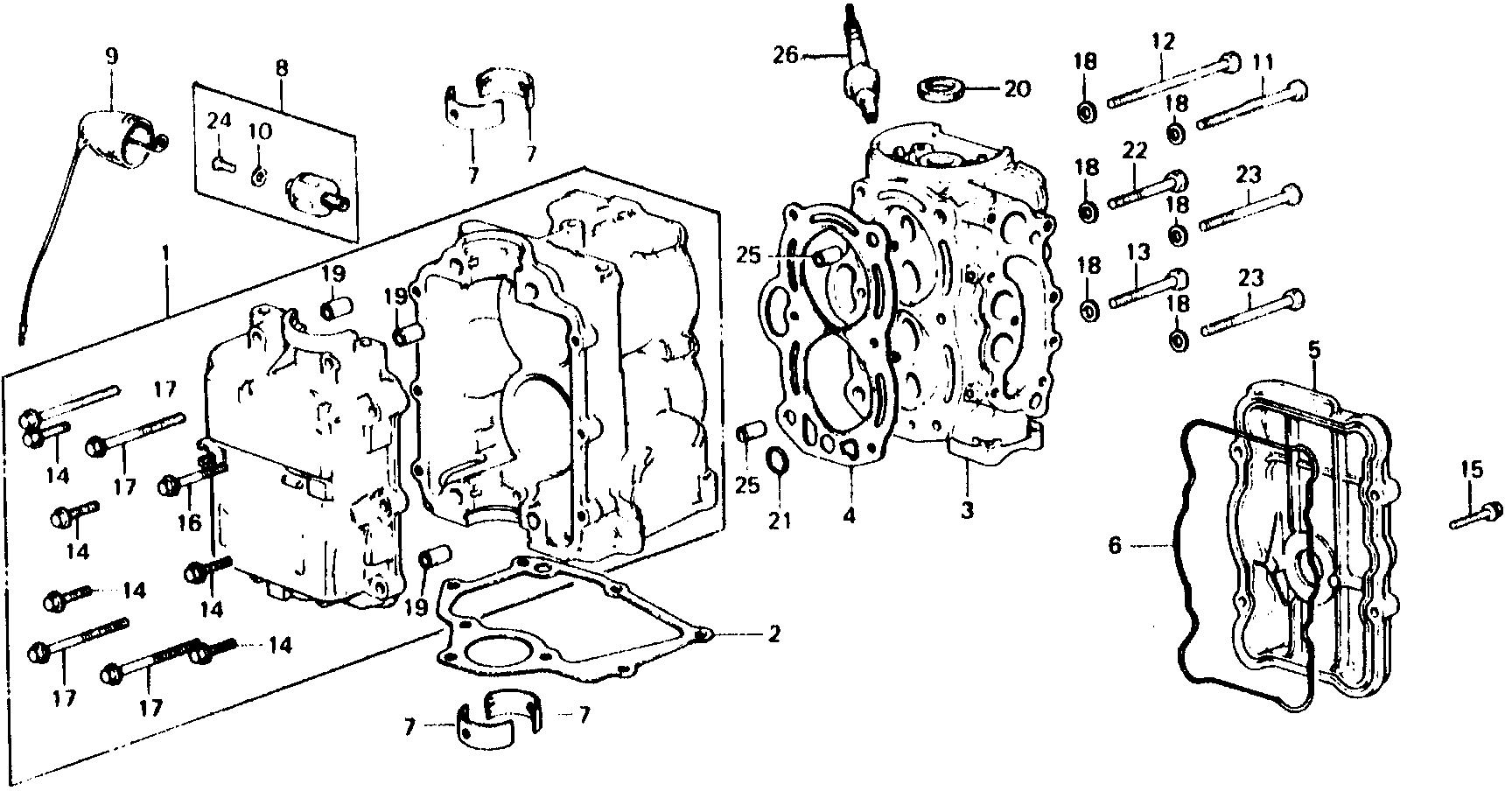

BF75 BF75B cylinder - cylinder head exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges below1388E0300
Fits all 2 submodels of this generation.

Parts in this assembly

31 parts
1
CYLINDER ASSY. (NOT AVAILABLE)
11000-882-030KANo Longer Available
—
1
CYLINDER ASSY. (NOT AVAILABLE)
11000-881-030KANo Longer Available
—
2
GASKET, OIL PAN
11210-881-306Ships in 1 to 2 Daysreplaced by 11210-881-850
$12.44$17.04
2
11210-881-850Ships in 1 to 2 Days
$11.84$17.04
3
CYLINDER HEAD (NOT AVAILABLE)
12200-882-601KANo Longer Available
—
4
12251-881-003Ships in 1 to 2 Days
$54.93$79.00
4
12251-881-306Ships in 1 to 2 Daysreplaced by 12251-881-003
$54.93$79.00
5
COVER, CYLINDER HEAD *NH8* (DARK GRAY) (NOT AVAILABLE)
12301-881-000ZANo Longer Available
$109.66$150.22
6
12391-881-000Ships in 1 to 2 Days
$6.47$9.30
7
BEARING, CRANKSHAFT (NOT AVAILABLE)
13315-881-000No Longer Available
$7.34$10.06
8
37200-935-004Ships in 1 to 2 Days
$30.54$43.10
9
37201-881-000No Longer Available
$8.07$11.06
10
37202-935-004Ships in 1 to 2 Days
$0.66$0.94
11
90017-935-000Ships in 1 to 2 Days
$1.96$2.76
12
90018-935-000Ships in 1 to 2 Days
$4.25$6.12
13
90019-881-000Ships in 1 to 2 Days
$2.38$3.36
14
BOLT, FLANGE (6X25) (NOT AVAILABLE)
90122-881-000No Longer Available
—
15
BOLT, FLANGE (6X28) (NOT AVAILABLE)
90123-881-000No Longer Available
—
16
90124-881-000Ships in 1 to 2 Days
$1.91$2.76
17
90126-881-000Ships in 1 to 2 Daysqty 4 used
$1.87$2.56
18
90402-822-000Ships in 1 to 2 Daysqty 6 used
$1.31$1.86
19
PIN, DOWEL (10X12) (NOT AVAILABLE)
90701-360-000No Longer Available
—
20
91206-921-000Ships in 1 to 2 Days
$6.57$9.28
21
15142-PH3-003Ships in 1 to 2 Days
$2.83$4.00
22
BOLT, HEX. (8X50) (NOT AVAILABLE)
92200-08050-0ANo Longer Available
—
23
BOLT, HEX. (8X65) (NOT AVAILABLE)
92200-08065-0ANo Longer Available
—
24
93500-04006-3JShips in 1 to 2 Days
$0.93$1.28
25
94301-10160Ships in 1 to 2 Daysqty 2 used
$3.01$4.12
26
98066-54716Ships in 1 to 2 Daysqty 2 used
$1.91$2.62
26
98066-55716In Stockqty 2 used
$2.18$2.98
26
98066-55726Ships in 1 to 2 Daysqty 2 used
$2.23$3.06
Diagram

EXTENSION CASE - GEAR CASE - SHIFT ROD

BF75 BF75B extension case - gear case - shift rod exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges below1388F0700
Fits all 2 submodels of this generation.

Parts in this assembly

38 parts
1
ROD, GEARSHIFT (S)
24310-881-000No Longer Available
—
1
ROD, GEARSHIFT (L)
24310-881-700No Longer Available
—
2
24311-881-300Ships in 1 to 2 Days
$40.02$57.56
2
ROD, GEARSHIFT (L) (NOT AVAILABLE)
24311-881-700No Longer Available
—
3
24312-881-000Ships in 1 to 2 Days
$25.90$37.26
4
GROMMET, ROD (ARAI) (NOT AVAILABLE)
24313-921-003No Longer Available
—
5
24341-ZV4-300Ships in 1 to 2 Days
$22.05$31.70
6
HOLDER, SEAL (NOT AVAILABLE)
24343-881-300No Longer Available
$21.68$29.70
7
CASE, EXTENSION *B9* (S) (ATLANTIS BLUE) (NOT AVAILABLE)
40201-881-000ZANo Longer Available
—
7
CASE, EXTENSION *B9* (L) (ATLANTIS BLUE) (NOT AVAILABLE)
40201-881-700ZANo Longer Available
—
8
CASE, GEAR *B9* (ATLANTIS BLUE)
41100-881-000ZANo Longer Available
—
8
CASE, GEAR *B9* (ATLANTIS BLUE)
41100-881-010ZANo Longer Available
—
9
41103-935-003Ships in 1 to 2 Days
$10.19$14.66
10
SCREEN, WATER (NOT AVAILABLE)
41104-921-320No Longer Available
$7.53$10.32
11
METAL, ANODE (NOT AVAILABLE)
41106-881-000No Longer Available
—
12
41106-935-812Ships in 1 to 2 Days
$9.75$14.02
13
RUBBER, INSULATE (NOT AVAILABLE)
41107-935-000No Longer Available
—
14
HOUSING, SETTING (LOWER) *B9* (ATLANTIS BLUE) (NOT AVAILABLE)
50121-881-000ZANo Longer Available
—
15
RUBBER A, MOUNTING (LOWER) (NOT AVAILABLE)
50151-881-000No Longer Available
$24.24$33.20
16
PLATE, MOUNTING (LOWER) (NOT AVAILABLE)
50152-881-000No Longer Available
—
17
RUBBER B, MOUNTING (LOWER) (NOT AVAILABLE)
50153-881-000No Longer Available
—
18
BOLT, OIL CHECK (NOT AVAILABLE)
90105-921-000No Longer Available
$5.68$7.78
19
90504-921-010Ships in 1 to 2 Daysqty 9 used
$1.27$1.74
20
90507-921-000Ships in 1 to 2 Days
$0.89$1.22
21
90518-921-000Ships in 1 to 2 Daysqty 6 used
$1.20$1.64
22
PIN, DOWEL (8X10) (NOT AVAILABLE)
90702-881-000No Longer Available
—
23
90855-921-300Ships in 1 to 2 Days
$2.73$3.92
24
91253-921-003In Stock
$11.46$16.18
25
91303-377-000Ships in 1 to 2 Days
$3.45$4.72
26
92101-06012-4JShips in 1 to 2 Daysqty 4 used
$1.88$2.70
27
BOLT, HEX. (6X16)
92101-06016-0BShips in 1 to 2 Daysqty 2 used
$1.18$1.62
28
BOLT, HEX. (6X40)
92000-06040-4JNo Longer Available
—
29
BOLT, HEX. (8X40)
92000-08040-4JNo Longer Available
—
30
BOLT, HEX. (8X50)
92101-08050-4JShips in 1 to 2 Daysqty 4 used
$4.98$6.82
31
WASHER, PLAIN (6MM)
94101-06200Ships in 1 to 2 Daysqty 2 used
$0.63$0.86
32
94301-10140Ships in 1 to 2 Daysqty 2 used
$3.01$4.12
33
94305-25122Ships in 1 to 2 Days
$2.03$2.78
34
96220-25118Ships in 1 to 2 Days
$0.61$0.84
Diagram

FUEL PUMP

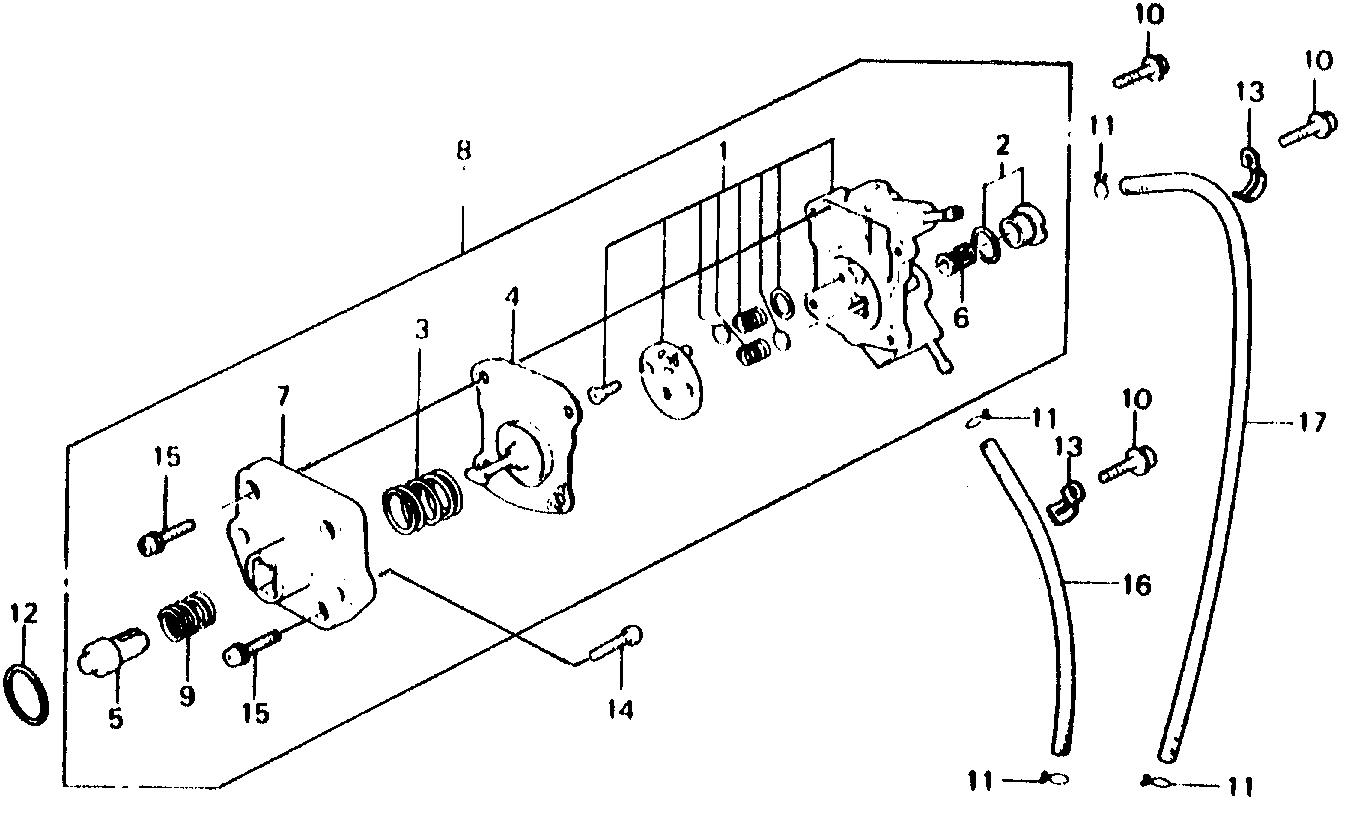

BF75 BF75B fuel pump exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges below1388E0500
Fits all 2 submodels of this generation.

Parts in this assembly

17 parts
1
16015-935-034Ships in 1 to 2 Days
$44.18$62.34
2
16016-935-004Ships in 1 to 2 Days
$17.62$24.86
3
SPRING, DIAPHRAGM (NOT AVAILABLE)
16050-935-024No Longer Available
—
4
DIAPHRAGM (NOT AVAILABLE)
16181-935-024No Longer Available
$16.67$22.84
5
16182-935-014Ships in 1 to 2 Days
$16.21$23.30
6
16194-935-004Ships in 1 to 2 Days
$6.91$9.74
7
BODY (LOWER) (NOT AVAILABLE)
16195-935-014No Longer Available
$26.31$36.04
8
16700-935-024Ships in 1 to 2 Daysreplaced by 16700-935-305
$93.13$133.96
9
SPRING, PUSH ROD (NOT AVAILABLE)
16707-882-601No Longer Available
—
10
BOLT, FLANGE (6X28) (NOT AVAILABLE)
90123-881-000No Longer Available
—
11
90602-921-000Ships in 1 to 2 Daysqty 4 used
$1.39$1.96
12
91351-MG7-003Ships in 1 to 2 Days
$2.50$3.52
13
91403-881-000Ships in 1 to 2 Daysqty 2 used
$5.15$7.42
14
93500-06020-0HShips in 1 to 2 Daysqty 2 used
$0.96$1.36
15
93892-04016-08Ships in 1 to 2 Daysqty 4 used
$0.89$1.22
16
95001-45003-60MShips in 1 to 2 Days
$51.79$74.50
17
95001-45003-60MShips in 1 to 2 Days
$51.79$74.50
Diagram

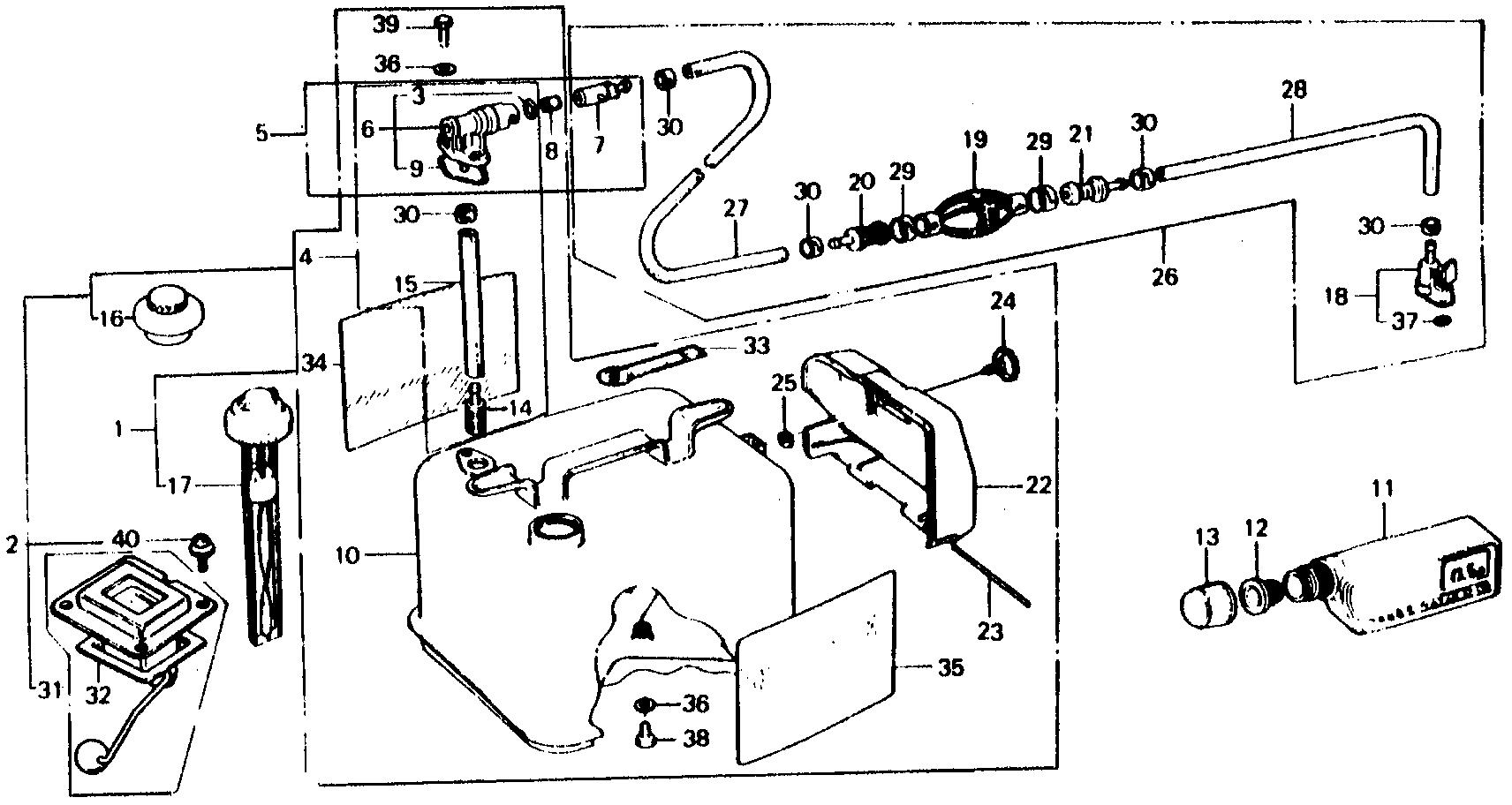

FUEL TANK - SUB TANK

BF75 BF75B fuel tank - sub tank exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges below1388F1000
Fits all 2 submodels of this generation.

Parts in this assembly

42 parts
1
061C7-881-711HShips in 1 to 2 Days
$306.10$419.32
2
061C7-881-711HShips in 1 to 2 Days
$306.10$419.32
3
O-RING (NOT AVAILABLE)
16075-935-006No Longer Available
—
4
16900-881-000Ships in 1 to 2 Days
$45.86$62.82
5
JOINT, FUEL CONSENT (NOT AVAILABLE)
16950-935-016No Longer Available
—
6
JOINT A, FUEL CONSENT (NOT AVAILABLE)
16951-935-006No Longer Available
—
7
JOINT B, FUEL CONSENT (NOT AVAILABLE)
16952-935-016No Longer Available
$11.17$15.30
8
ABSORBER, FUEL (NOT AVAILABLE)
16953-935-000No Longer Available
—
9
RING, PETCOCK SEAL (NOT AVAILABLE)
16962-865-010No Longer Available
—
10
TANK, FUEL *R8* (BRIGHT RED) (NOT AVAILABLE)
17500-881-000HNo Longer Available
—
10
TANK, FUEL (NOT AVAILABLE)
17500-881-711HNo Longer Available
—
11
TANK, OIL (NOT AVAILABLE)
17570-921-000No Longer Available
—
12
CAP, SUB-TANK (INNER) (NOT AVAILABLE)
17572-801-810No Longer Available
—
13
CAP, SUB-TANK (NOT AVAILABLE)
17573-801-810No Longer Available
—
14
FILTER, FUEL (NOT AVAILABLE)
17583-881-000No Longer Available
—
15
TUBE (INNER) (NOT AVAILABLE)
17611-935-000No Longer Available
—
16
CAP, FUEL FILLER
17620-881-712Ships in 1 to 2 Days
$28.98$39.70
17
CAP, FUEL FILLER (NOT AVAILABLE)
17620-921-153No Longer Available
—
18
17650-921-003ZBShips in 1 to 2 Days
$37.54$53.98
↳
Sierra alternative ·
18-80420In Stock save $0.83
$36.71
19
17661-921-010Ships in 1 to 2 Days
$12.99$17.80
20
VALVE, IN. (NOT AVAILABLE)
17670-921-000No Longer Available
—
21
VALVE, OUTLET
17680-921-000No Longer Available
$9.01$12.34
22
BOX, TOOL (NOT AVAILABLE)
17696-921-010No Longer Available
—
23
BAR (3X150) (NOT AVAILABLE)
17697-921-000No Longer Available
—
24
LATCH, TOOL BOX (NOT AVAILABLE)
17698-921-000No Longer Available
—
25
STOPPER, LATCH (NOT AVAILABLE)
17699-921-000No Longer Available
—
26
TUBE, FUEL *B9* (ATLANTIS BLUE) (N/A: SEE COMPONENTS)
17700-935-000ZANo Longer Available
—
27
TUBE, FUEL LONG (NOT AVAILABLE)
17701-921-000No Longer Available
—
28
TUBE, FUEL SHORT (NOT AVAILABLE)
17702-921-000No Longer Available
$7.26$9.94
29
17703-921-000Ships in 1 to 2 Daysqty 2 used
$3.53$4.84
30
BAND, TUBE CLIP (11MM) (NOT AVAILABLE)
17704-921-000No Longer Available
—
31
METER ASSY., FUEL
17800-881-013No Longer Available
—
32
GASKET (NOT AVAILABLE)
17803-881-003No Longer Available
—
33
87571-881-671Ships in 1 to 2 Days
$4.01$5.78
34
MARK, TANK (ENGLISH)
87573-881-670No Longer Available
—
35
87574-881-670Ships in 1 to 2 Days
$9.40$13.52
36
GASKET, FIBER (6MM) (NOT AVAILABLE)
90445-700-000No Longer Available
$1.20$1.64
37
91353-921-310Ships in 1 to 2 Days
$1.71$2.46
38
92101-06012-4JShips in 1 to 2 Days
$1.88$2.70
39
BOLT, HEX. (6X16)
92101-06016-0BShips in 1 to 2 Daysqty 2 used
$1.18$1.62
39
90120-881-000Ships in 1 to 2 Daysqty 2 used
$1.24$1.70
40
93500-05010-4JShips in 1 to 2 Daysqty 4 used
$1.23$1.74
Diagram

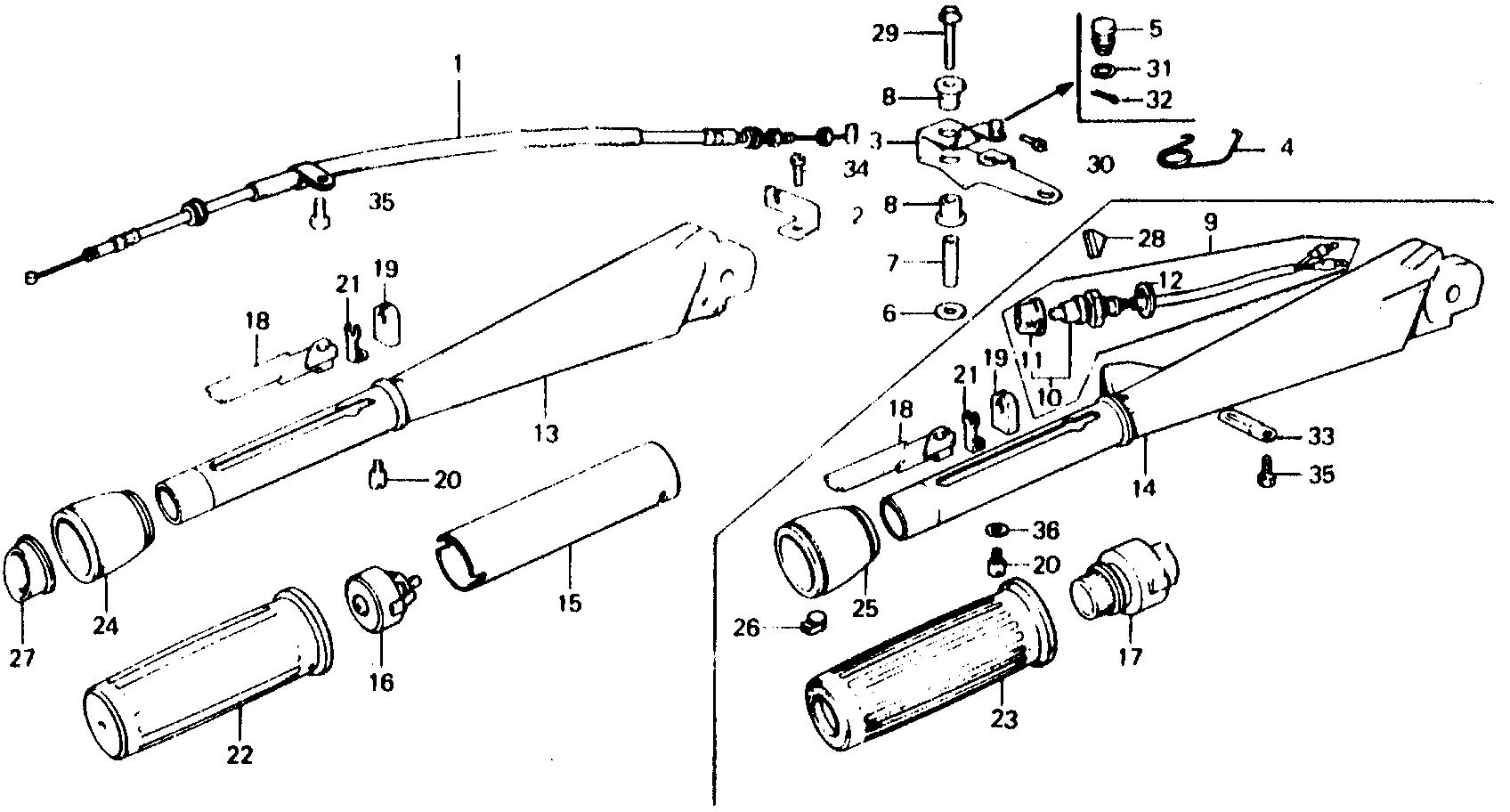

HANDLEBAR - THROTTLE CABLE

BF75 BF75B handlebar - throttle cable exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges below1388F0300
Fits all 2 submodels of this generation.

Parts in this assembly

41 parts
1
CABLE, THROTTLE (NOT AVAILABLE)
17910-881-000No Longer Available
—
2
HOLDER, CABLE (NOT AVAILABLE)
17921-881-000No Longer Available
—
3
ARM, THROTTLE
17930-881-305No Longer Available
—
3
17930-881-315Ships in 1 to 2 Days
$18.99$26.02
4
SPRING, THROTTLE ARM (NOT AVAILABLE)
17932-881-000No Longer Available
—
5
HOLDER, STARTER ROD (NOT AVAILABLE)
17933-881-310No Longer Available
—
6
17936-921-000Ships in 1 to 2 Days
$1.20$1.64
7
COLLAR, PIVOT (NOT AVAILABLE)
17937-881-000No Longer Available
—
8
24621-921-010Ships in 1 to 2 Daysqty 2 used
$4.99$7.18
9
SWITCH SET, ENGINE STOP (NOT AVAILABLE)
36010-921-305No Longer Available
—
10
SWITCH ASSY., ENGINE STOP
36100-921-033No Longer Available
—
10
SWITCH ASSY., ENGINE STOP
36100-921-043No Longer Available
—
11
CAP, BUTTON
36101-881-003Ships in 1 to 2 Days
$1.81$2.48
11
CAP, BUTTON (N/A: SEE ASSEMBLY)
36101-881-013No Longer Available
—
12
WASHER, ENGINE SWITCH (NOT AVAILABLE)
36111-881-305No Longer Available
—
13
HANDLEBAR *B9* (ATLANTIS BLUE)
53101-881-010ZANo Longer Available
—
14
HANDLEBAR *B9* (ATLANTIS BLUE)
53101-881-020ZANo Longer Available
—
14
HANDLEBAR *B9* (ATLANTIS BLUE) (NOT AVAILABLE)
53101-881-030ZANo Longer Available
—
15
PIPE, GRIP (NOT AVAILABLE)
53141-921-000No Longer Available
—
16
NUT, GRIP FRICTION (NOT AVAILABLE)
53160-921-000No Longer Available
$9.48$12.98
17
NUT, GRIP FRICTION (NOT AVAILABLE)
53160-921-010No Longer Available
—
18
HINGE, THROTTLE WIRE (NOT AVAILABLE)
53161-250-000No Longer Available
—
19
HOLDER, THROTTLE CABLE
53162-881-000No Longer Available
—
19
HOLDER, THROTTLE CABLE (NOT AVAILABLE)
53162-881-010No Longer Available
—
20
STOPPER, GRIP PIPE (NOT AVAILABLE)
53163-921-000No Longer Available
—
21
STOPPER, CABLE (NOT AVAILABLE)
53164-921-000No Longer Available
—
22
RUBBER, GRIP
53165-881-000No Longer Available
—
23
RUBBER, GRIP (NOT AVAILABLE)
53165-881-010No Longer Available
—
24
COVER, PIPE
53166-881-000No Longer Available
—
25
COVER, GRIP PIPE
53166-881-010No Longer Available
—
26
GROMMET, HANDLE COVER (NOT AVAILABLE)
53167-881-000No Longer Available
—
27
GUIDE B, GRIP PIPE (NOT AVAILABLE)
53168-921-000No Longer Available
—
28
MARK, HANDLE FOREIGN (NOT AVAILABLE)
87124-881-670No Longer Available
—
29
BOLT, FLANGE (6X35) (NOT AVAILABLE)
90104-881-000No Longer Available
—
30
90107-881-000Ships in 1 to 2 Days
$3.21$4.62
31
90504-921-010Ships in 1 to 2 Days
$1.27$1.74
32
90759-ZV1-000In Stock
$1.42$1.94
33
91403-881-000Ships in 1 to 2 Days
$5.15$7.42
34
BOLT, HEX. (6X12)
92101-06012-0BShips in 1 to 2 Days
$1.07$1.46
35
92101-06012-4JShips in 1 to 2 Days
$1.88$2.70
36
94101-05200Ships in 1 to 2 Days
$1.12$1.62
Diagram

INLET MANIFOLD - C.D.I. UNIT

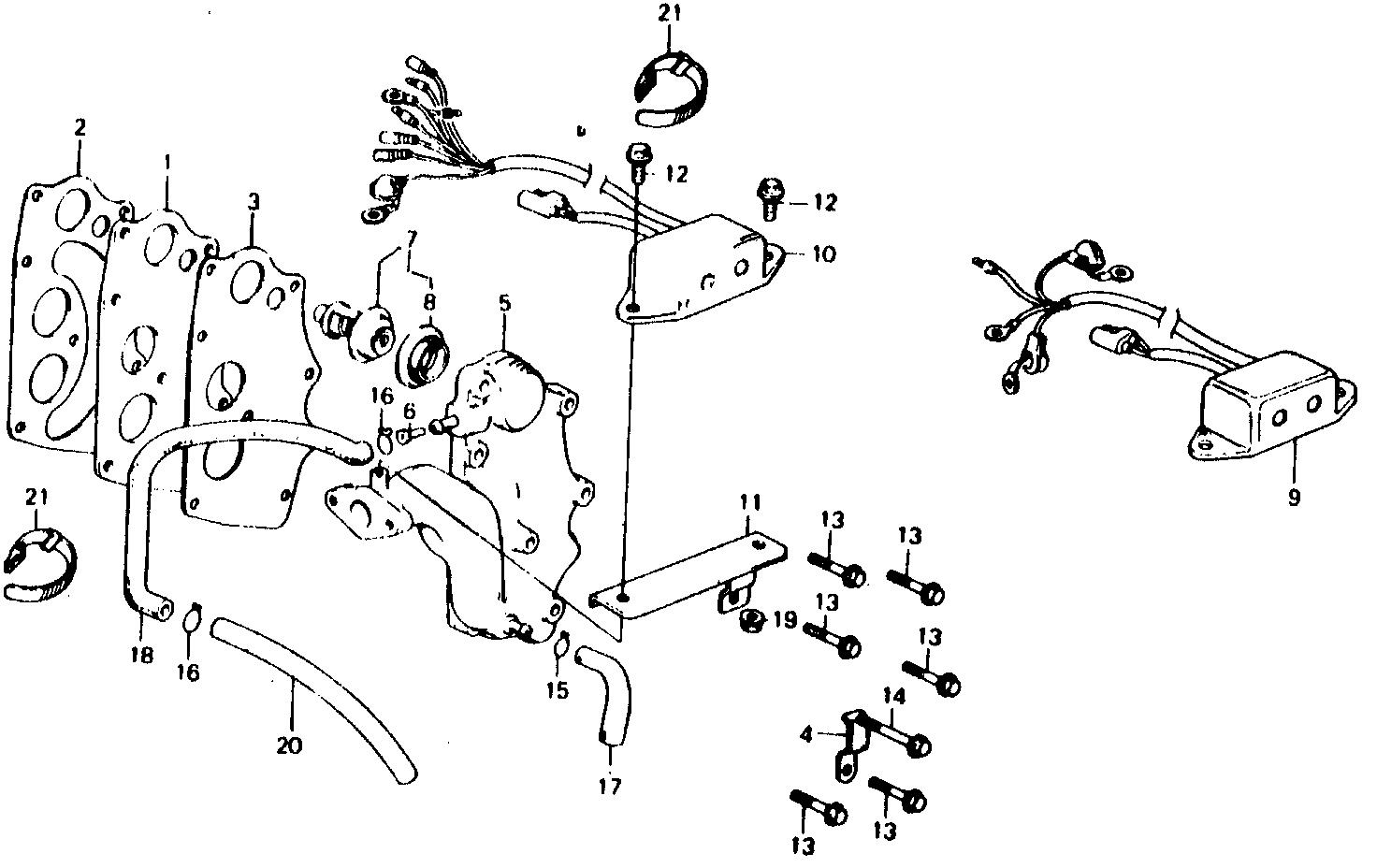

BF75 BF75B inlet manifold - c.d.i. unit exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges below1388E0700
Fits all 2 submodels of this generation.

Parts in this assembly

23 parts
1
PLATE, EX. CHAMBER (NOT AVAILABLE)
12515-881-000No Longer Available
—
2
12516-881-003Ships in 1 to 2 Days
$16.69$24.00
3
12517-881-306Ships in 1 to 2 Daysreplaced by 12517-881-003
$5.08$7.30
3
12517-881-850Ships in 1 to 2 Daysreplaced by 12517-881-003
$5.08$7.30
4
CLAMP, FUEL TUBE (NOT AVAILABLE)
16731-921-000No Longer Available
—
5
MANIFOLD, IN.
17100-881-020KANo Longer Available
—
6
NOZZLE, THROTTLE (NOT AVAILABLE)
17103-881-000No Longer Available
—
7
19300-881-741Ships in 1 to 2 Days
$45.03$64.76
8
19302-921-003In Stock
$7.33$10.04
9
MODULE, IGNITION CONTROL (CDI)
30580-881-732No Longer Available
—
↳
Sierra alternative ·
18-99349Backorder Now
$187.27
9
MODULE, IGNITION CONTROL (CDI) (NOT AVAILABLE)
30580-881-733No Longer Available
—
↳
Sierra alternative ·
18-99349Backorder Now
$187.27
10
MODULE, IGNITION CONTROL (CDI) (NOT AVAILABLE)
30580-881-734No Longer Available
—
↳
Sierra alternative ·
18-99338Backorder Now
$187.27
11
STAY, IGNITION CONTROL MODULE
30586-881-000Ships in 1 to 2 Days
$15.51$21.24
12
90016-920-000Ships in 1 to 2 Daysqty 2 used
$1.80$2.58
13
BOLT, FLANGE (6X28) (NOT AVAILABLE)
90123-881-000No Longer Available
—
14
BOLT, FLANGE (6X40) (NOT AVAILABLE)
90125-881-000No Longer Available
$1.59$2.18
15
90602-921-000Ships in 1 to 2 Days
$1.39$1.96
16
90604-ZV0-000Ships in 1 to 2 Daysqty 2 used
$1.37$1.88
17
TUBE, WATER CHECK (NOT AVAILABLE)
90806-881-000No Longer Available
—
18
TUBE, BYPASS (NOT AVAILABLE)
90807-881-000No Longer Available
—
19
94001-06020-0SShips in 1 to 2 Days
$1.34$1.84
20
95005-50003-30MNo Longer Available
$26.56$36.38
21
95014-62100Ships in 1 to 2 Days
$1.50$2.06
Diagram

MOUNT FRAME - UPPER MOUNT RUBBER

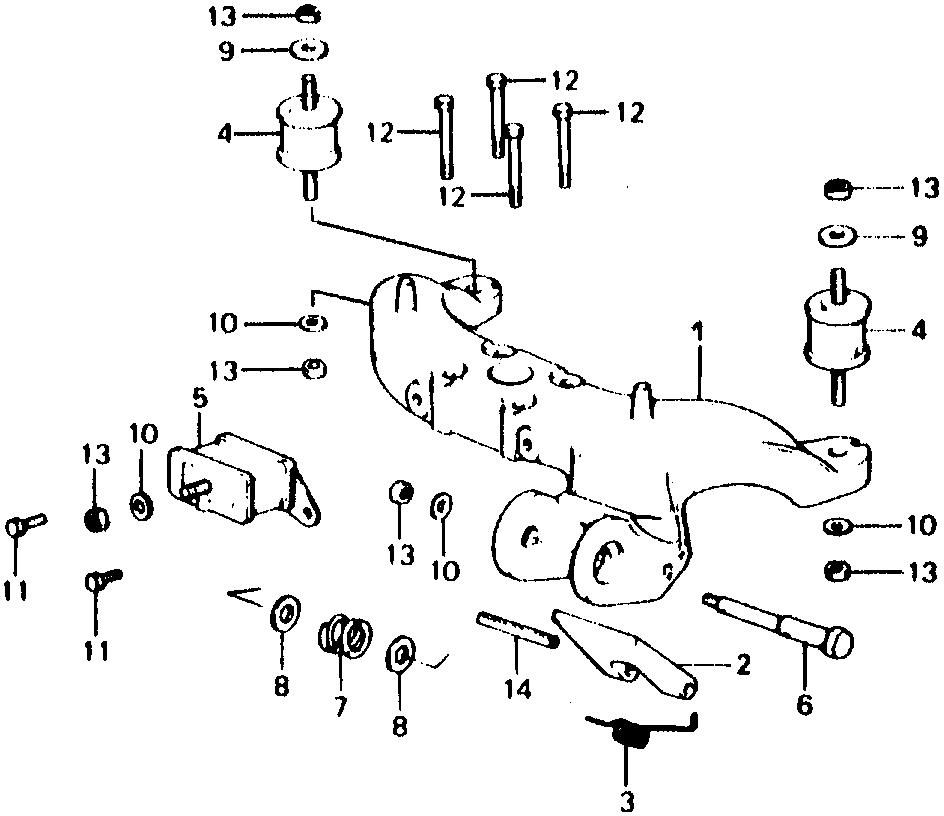

BF75 BF75B mount frame - upper mount rubber exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges below1388F0400
Fits all 2 submodels of this generation.

Parts in this assembly

17 parts
1
FRAME, MOUNTING *B9* (ATLANTIS BLUE)
50101-881-000ZANo Longer Available
—
1
FRAME, SETTING *B9* (ATLANTIS BLUE) (NOT AVAILABLE)
50101-881-010ZANo Longer Available
—
2
STOPPER, HANDLE *B9* (ATLANTIS BLUE) (NOT AVAILABLE)
50111-921-300ZBNo Longer Available
—
3
50112-921-300Ships in 1 to 2 Days
$2.93$4.22
4
50130-881-000No Longer Availableqty 2 used
$35.73$48.94
5
RUBBER, THRUST MOUNTING (NOT AVAILABLE)
50140-881-003No Longer Available
$29.59$40.54
6
SCREW, HANDLE PIVOT (NOT AVAILABLE)
53171-921-000No Longer Available
—
7
SPRING, HANDLE PIVOT (NOT AVAILABLE)
53172-921-003No Longer Available
$7.72$10.58
8
90511-921-000Ships in 1 to 2 Daysqty 2 used
$0.86$1.18
8
90513-921-000Ships in 1 to 2 Daysqty 2 used
$1.96$2.82
9
90514-921-000Ships in 1 to 2 Daysqty 2 used
$0.99$1.36
10
90518-921-000Ships in 1 to 2 Daysqty 4 used
$1.20$1.64
11
92101-06014-4JShips in 1 to 2 Daysqty 2 used
$1.31$1.90
12
BOLT, HEX. (6X40)
92000-06040-4JNo Longer Available
—
12
BOLT, HEX. (6X40)
92200-06040-4JNo Longer Available
$2.91$3.98
13
94002-08490-0SShips in 1 to 2 Daysqty 6 used
$1.42$1.94
14
PIN, SPRING (6X50)
94305-60503Ships in 1 to 2 Days
$1.85$2.54
Diagram

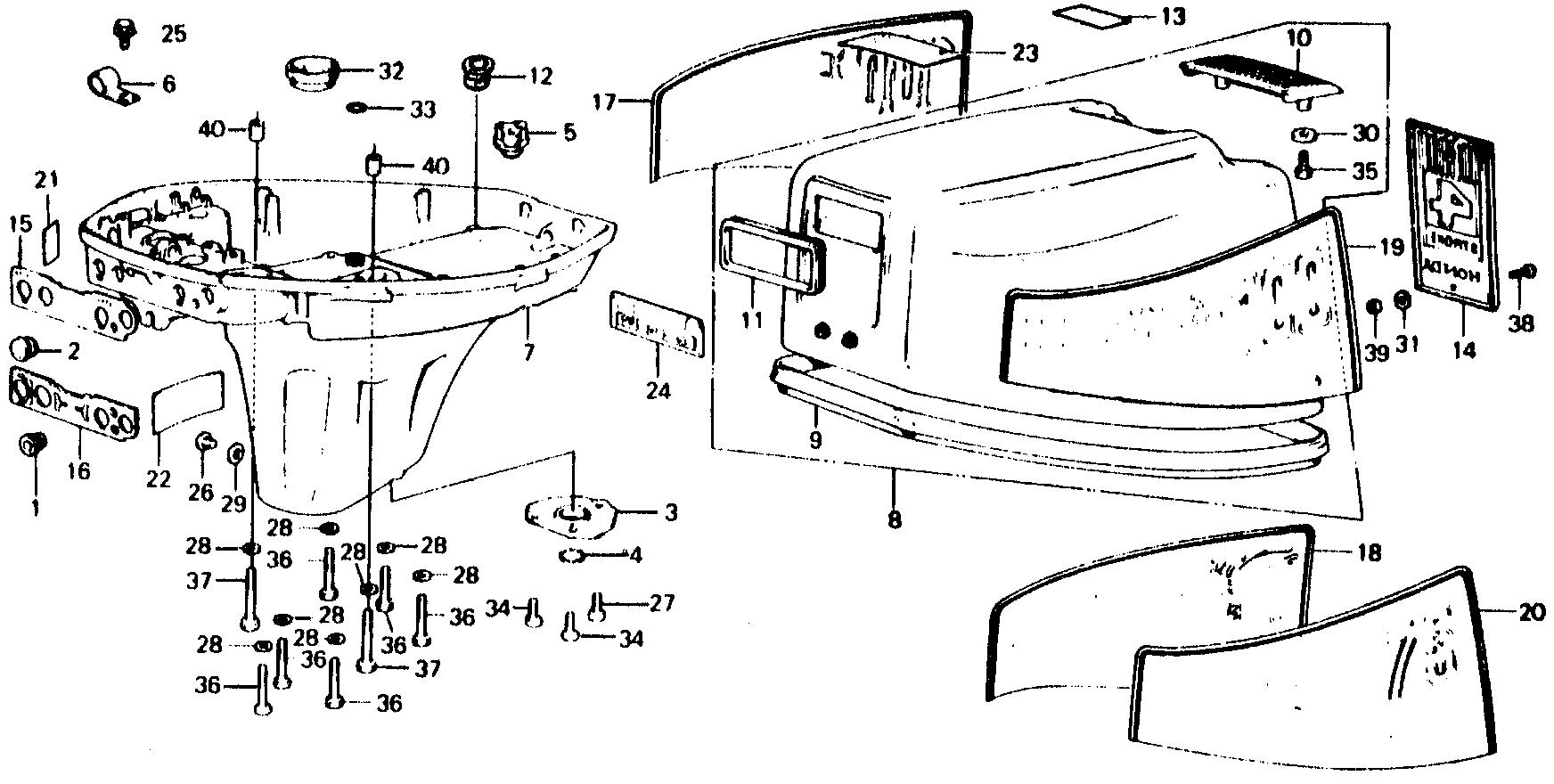

OIL CASE - ENGINE COVER

BF75 BF75B oil case - engine cover exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges below1388F0100
Fits all 2 submodels of this generation.

Parts in this assembly

55 parts
1
17914-881-300Ships in 1 to 2 Days
$2.92$4.20
2
GROMMET C, OIL CASE
17918-881-000No Longer Available
$2.28$3.12
3
PLATE, EX. (NOT AVAILABLE)
18221-881-000No Longer Available
$13.11$17.96
4
18222-881-000Ships in 1 to 2 Days
$5.20$7.34
5
MANIFOLD, TUBE (NOT AVAILABLE)
19262-921-000No Longer Available
—
6
CLAMP, WIRE (NOT AVAILABLE)
30549-881-010No Longer Available
—
7
CASE, OIL *B9* (ATLANTIS BLUE)
40101-881-010ZANo Longer Available
—
7
CASE, OIL *B9* (ATLANTIS BLUE) (NOT AVAILABLE)
40101-881-030ZANo Longer Available
—
8
COVER, ENGINE *NH24* (CERAMIC WHITE) (NOT AVAILABLE)
63100-881-010WFNo Longer Available
—
9
SEAL, ENGINE COVER (NOT AVAILABLE)
63102-881-300No Longer Available
—
10
HANDLE, TILT *NH24* (CERAMIC WHITE) (NOT AVAILABLE)
63105-881-300WFNo Longer Available
—
11
SEAL, RECOIL (NOT AVAILABLE)
63109-881-310No Longer Available
—
12
GROMMET, WATER CHECK (NOT AVAILABLE)
82873-881-010No Longer Available
$3.84$5.26
13
MARK, INSTRUCTION
87103-881-000Ships in 1 to 2 Days
$2.88$3.94
14
EMBLEM, RR. (NOT AVAILABLE)
87121-881-731No Longer Available
—
15
LABEL, INDICATION (NOT AVAILABLE)
87123-881-020No Longer Available
—
16
LABEL, INDICATION (NOT AVAILABLE)
87123-881-030No Longer Available
—
17
EMBLEM, R. SIDE COVER (NOT AVAILABLE)
87131-881-671No Longer Available
—
17
EMBLEM, R. SIDE COVER (NOT AVAILABLE)
87131-881-672No Longer Available
—
17
EMBLEM, R. SIDE COVER (NOT AVAILABLE)
87131-881-673No Longer Available
—
17
EMBLEM, R. SIDE COVER (NOT AVAILABLE)
87131-881-674No Longer Available
—
18
EMBLEM, R. SIDE COVER (NOT AVAILABLE)
87131-882-671No Longer Available
—
18
EMBLEM, R. SIDE COVER (NOT AVAILABLE)
87131-882-672No Longer Available
—
18
EMBLEM, R. SIDE COVER (NOT AVAILABLE)
87131-882-673No Longer Available
—
18
EMBLEM, R. SIDE COVER (NOT AVAILABLE)
87131-882-674No Longer Available
—
19
EMBLEM, L. SIDE COVER (NOT AVAILABLE)
87141-881-671No Longer Available
—
19
EMBLEM, L. SIDE COVER (NOT AVAILABLE)
87141-881-672No Longer Available
—
19
EMBLEM, L. SIDE COVER (NOT AVAILABLE)
87141-881-673No Longer Available
—
19
EMBLEM, L. SIDE COVER (NOT AVAILABLE)
87141-881-674No Longer Available
—
20
EMBLEM, L. SIDE COVER (NOT AVAILABLE)
87141-882-671No Longer Available
—
20
EMBLEM, L. SIDE COVER (NOT AVAILABLE)
87141-882-672No Longer Available
—
20
EMBLEM, L. SIDE COVER (NOT AVAILABLE)
87141-882-673No Longer Available
—
20
EMBLEM, L. SIDE COVER (NOT AVAILABLE)
87141-882-674No Longer Available
—
21
MARK, CHANGE (NOT AVAILABLE)
87511-921-600No Longer Available
—
22
LABEL, OIL FILLER POSITION (NOT AVAILABLE)
87531-935-630No Longer Available
—
23
MARK, STARTER CAUTION
87538-935-601No Longer Available
—
23
MARK, STARTER CAUTION (NOT AVAILABLE)
87538-935-602No Longer Available
—
24
MARK, FR. (NOT AVAILABLE)
87551-921-600No Longer Available
—
25
90016-920-000Ships in 1 to 2 Days
$1.80$2.58
26
BOLT, OIL CHECK (NOT AVAILABLE)
90105-921-000No Longer Available
$5.68$7.78
27
BOLT, HEX. (6X12) (NOT AVAILABLE)
90106-881-000No Longer Available
—
28
90504-921-010Ships in 1 to 2 Daysqty 8 used
$1.27$1.74
29
90507-921-000Ships in 1 to 2 Days
$0.89$1.22
30
90512-921-010In Stockqty 2 used
$1.07$1.46
31
WASHER, LOCK (4MM) (NOT AVAILABLE)
90519-921-000No Longer Available
—
32
SEAL, COUPLING (25X40X22)
91255-881-003No Longer Available
—
32
SEAL, COUPLING (25X40X22) (NOK) (NOT AVAILABLE)
91255-881-004No Longer Available
$13.71$18.78
33
91305-PE2-003Ships in 1 to 2 Days
$2.42$3.32
34
92101-06012-4JShips in 1 to 2 Daysqty 2 used
$1.88$2.70
35
92101-06016-4JShips in 1 to 2 Daysqty 2 used
$1.37$1.94
36
BOLT, HEX. (6X32) (NOT AVAILABLE)
92000-06032-4JNo Longer Available
—
37
BOLT, HEX. (6X40)
92000-06040-4JNo Longer Available
—
38
SCREW, PAN (4X10)
93500-04010-0GShips in 1 to 2 Daysqty 2 used
$0.58$0.80
39
NUT, HEX. (4MM)
94001-04390-0SShips in 1 to 2 Daysqty 2 used
$0.80$1.10
40
94301-08140Ships in 1 to 2 Daysqty 2 used
$2.74$3.76
Diagram

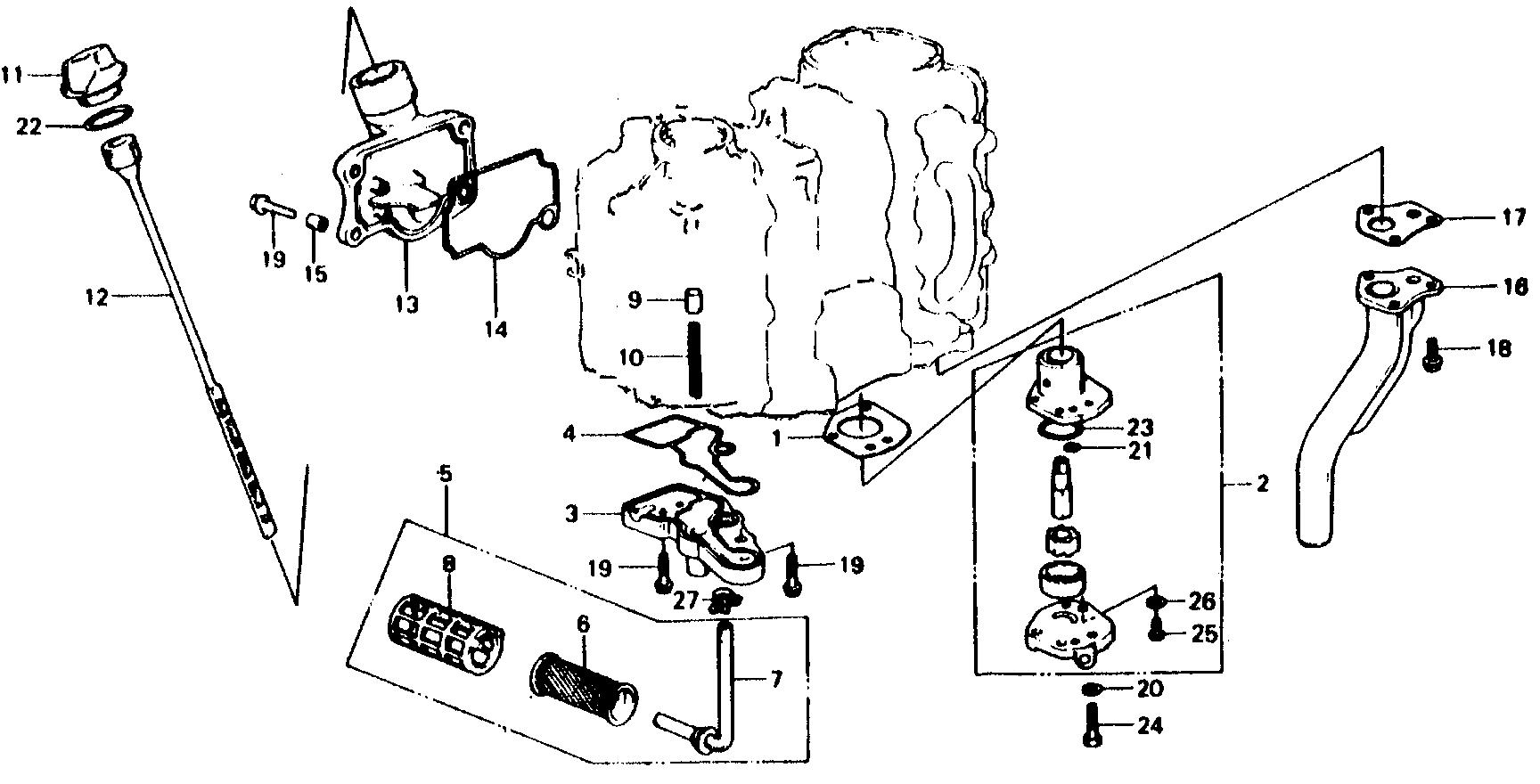

OIL PUMP - OIL FILTER - EXHAUST PIPE

BF75 BF75B oil pump - oil filter - exhaust pipe exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges below1388E0400
Fits all 2 submodels of this generation.

Parts in this assembly

28 parts
1
GASKET, PUMP BODY (NOT AVAILABLE)
15112-881-000No Longer Available
—
2
PUMP ASSY., OIL (NOT AVAILABLE)
15200-881-003No Longer Available
—
3
15410-881-000Ships in 1 to 2 Days
$16.37$23.54
4
GASKET, OIL FILTER (NOT AVAILABLE)
15412-881-000No Longer Available
—
5
FILTER ASSY., OIL (NOT AVAILABLE)
15420-881-000No Longer Available
—
6
FILTER, OIL (NOT AVAILABLE)
15421-881-000No Longer Available
$9.43$12.92
7
TUBE, OIL (NOT AVAILABLE)
15422-881-000No Longer Available
—
8
HOLDER, OIL FILTER
15423-881-000No Longer Available
—
9
15473-881-000Ships in 1 to 2 Days
$9.11$13.10
10
15474-881-000Ships in 1 to 2 Days
$4.34$6.12
11
15611-921-000Ships in 1 to 2 Days
$10.13$13.88
12
DIPSTICK, OIL (NOT AVAILABLE)
15612-921-000No Longer Available
—
13
BODY, OIL FILLER
15621-881-010No Longer Available
—
14
GASKET, OIL FILLER BODY (NOT AVAILABLE)
15622-881-000No Longer Available
$7.96$10.90
15
COLLAR A, DISTANCE
15623-881-000No Longer Available
—
16
PIPE, EX.
18201-881-000No Longer Available
—
17
GASKET, EX. PIPE
18211-881-306Ships in 1 to 2 Daysreplaced by 18211-881-850
$4.32$5.92
18
90120-881-000Ships in 1 to 2 Daysqty 3 used
$1.24$1.70
19
BOLT, FLANGE (6X22) (NOT AVAILABLE)
90121-881-000No Longer Available
—
20
90478-700-000Ships in 1 to 2 Daysqty 3 used
$0.70$1.00
21
91306-PJ4-000Ships in 1 to 2 Days
$3.31$4.54
22
91301-805-000Ships in 1 to 2 Days
$3.65$5.00
23
O-RING (25X1.0) (NOT AVAILABLE)
91315-935-003No Longer Available
—
24
BOLT, HEX. (6X28)
92201-06028-0BNo Longer Available
$2.12$2.90
24
90108-881-000Ships in 1 to 2 Daysqty 3 used
$3.74$5.38
25
93500-05010-0AShips in 1 to 2 Daysqty 2 used
$0.89$1.22
26
94101-05000Ships in 1 to 2 Daysqty 2 used
$0.91$1.24
27
95002-01120Ships in 1 to 2 Days
$2.83$4.08
Diagram

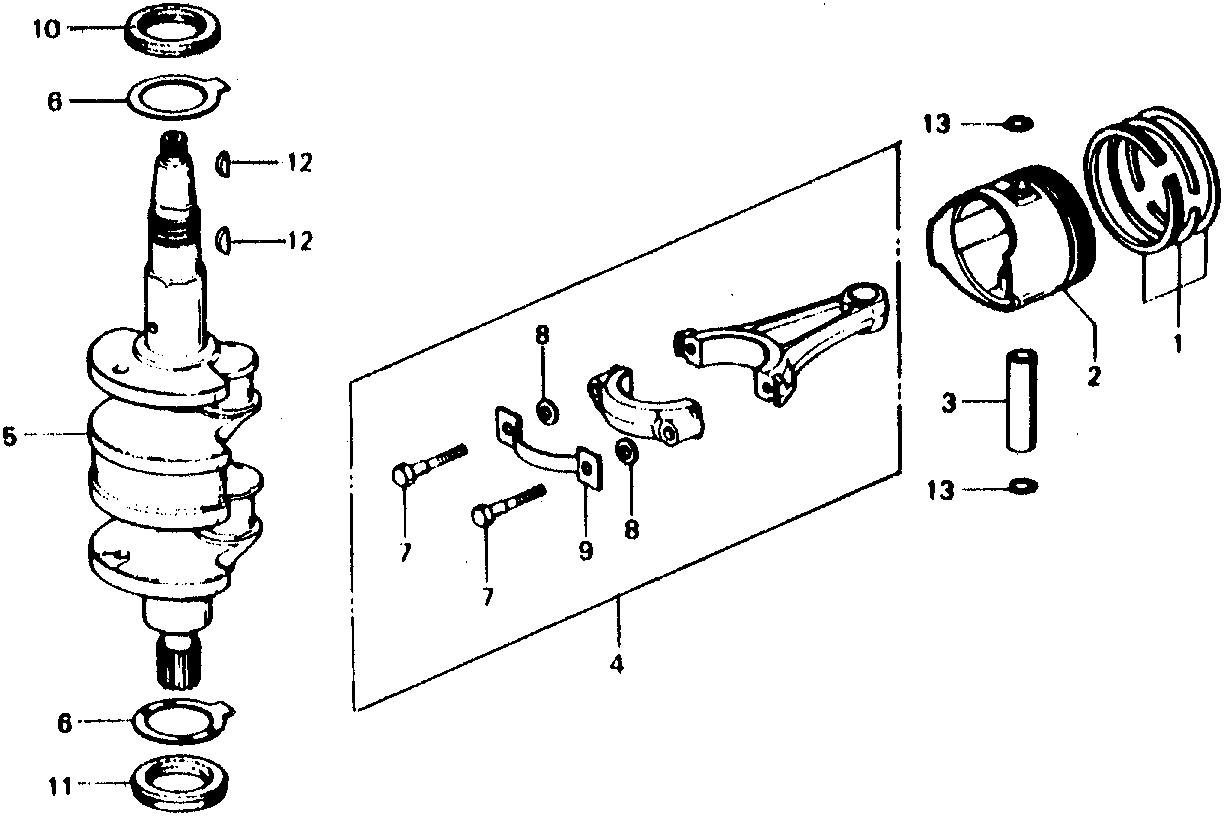

PISTON - CRANKSHAFT

BF75 BF75B piston - crankshaft exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges below1388E0100
Fits all 2 submodels of this generation.

Parts in this assembly

13 parts
1
RING SET, PISTON (2SET) (STD)
13010-881-000No Longer Available
$23.94$32.80
2
PISTON (NOT AVAILABLE)
13101-881-000No Longer Available
—
3
13111-881-000Ships in 1 to 2 Daysqty 2 used
$8.92$12.58
4
ROD ASSY., CONNECTING (NOT AVAILABLE)
13200-881-000No Longer Available
$79.25$108.56
5
CRANKSHAFT (NOT AVAILABLE)
13311-881-000No Longer Available
—
6
BEARING, CRANKSHAFT THRUST (NOT AVAILABLE)
13316-881-000No Longer Available
—
7
90011-881-000Ships in 1 to 2 Daysqty 4 used
$5.85$8.42
8
WASHER (6MM)
90402-921-000No Longer Available
$1.07$1.46
9
WASHER, LOCK (NOT AVAILABLE)
90452-881-000No Longer Available
—
10
OIL SEAL A (30X42X7)
91201-881-003No Longer Available
$8.23$11.28
11
91202-881-003Ships in 1 to 2 Days
$8.04$11.58
12
94401-16150Ships in 1 to 2 Daysqty 2 used
$1.27$1.74
13
94601-14000Ships in 1 to 2 Daysqty 4 used
$0.66$0.90
Diagram

PROPELLER SHAFT - PROPELLER

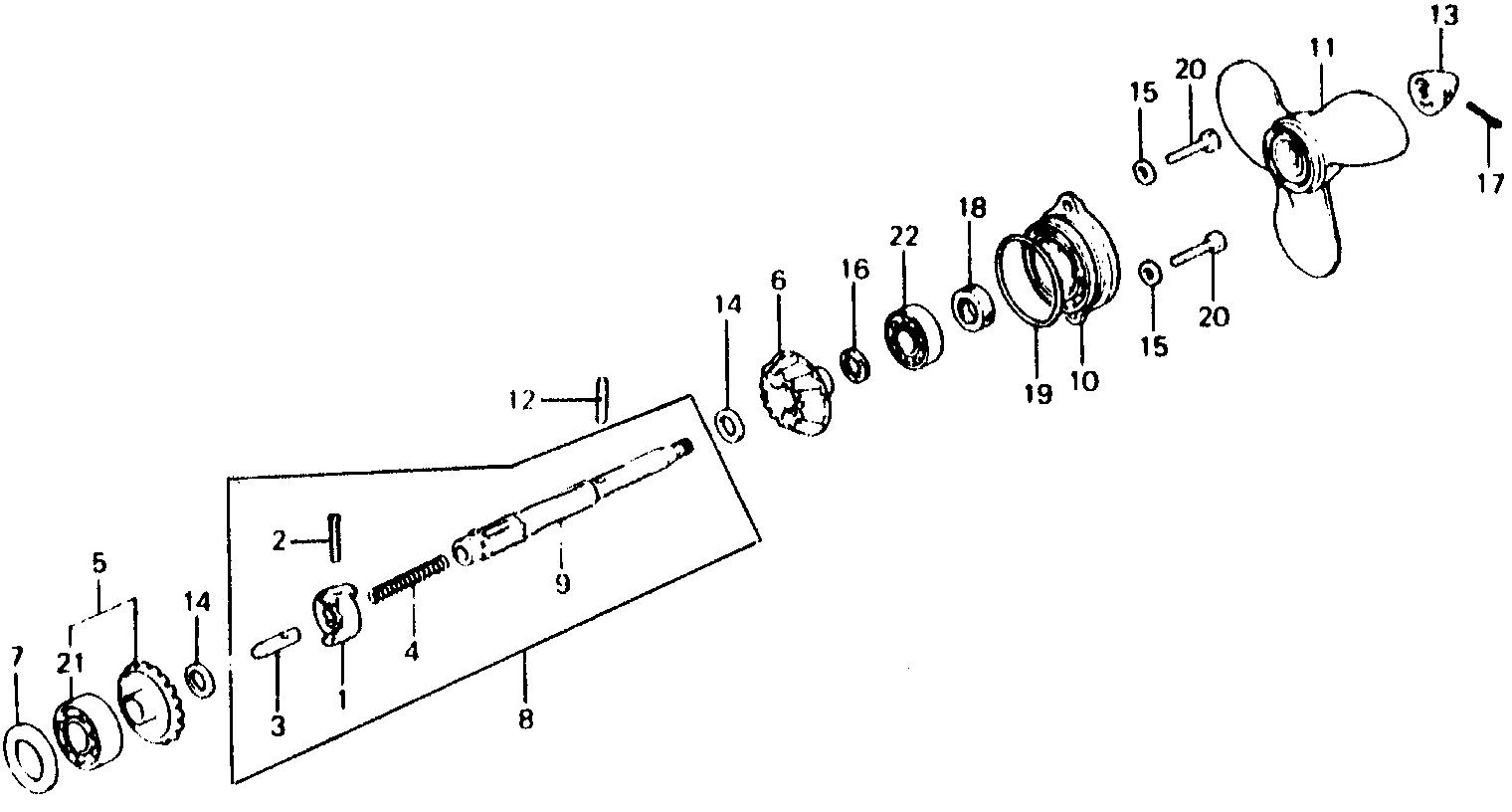

BF75 BF75B propeller shaft - propeller exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges below1388F0900
Fits all 2 submodels of this generation.

Parts in this assembly

26 parts
1
SHIFTER, CLUTCH (NOT AVAILABLE)
24101-935-300No Longer Available
—
2
PIN, SHIFTER (4X35) (NOT AVAILABLE)
24102-935-300No Longer Available
$3.14$4.30
3
SLIDER, SHIFT (NOT AVAILABLE)
24122-921-300No Longer Available
—
4
24123-921-300Ships in 1 to 2 Days
$10.51$15.12
5
GEAR, FR. BEVEL (NOT AVAILABLE)
41140-881-000No Longer Available
—
6
41150-881-000Ships in 1 to 2 Days
$179.11$257.62
7
41157-921-000Ships in 1 to 2 Days
$3.71$5.34
7
41158-921-000Ships in 1 to 2 Days
$4.29$6.18
8
41160-881-000Ships in 1 to 2 Days
$174.03$238.40
9
SHAFT, PROPELLER (NOT AVAILABLE)
41161-881-300No Longer Available
—
10
HOLDER, PROPELLER SHAFT *B9* (ATLANTIS BLUE) (NOT AVAILABLE)
41201-881-000ZANo Longer Available
—
11
58130-881-000ZAShips in 1 to 2 Daysreplaced by 58130-881-840ZB
$154.89
11
58130-881-840ZBShips in 1 to 2 Days
$154.89
12
58131-881-000Ships in 1 to 2 Days
$4.48$6.44
13
CAP, PROPELLER (NOT AVAILABLE)
58141-881-010No Longer Available
$14.42$19.76
14
WASHER (17MM) (NOT AVAILABLE)
90503-921-020No Longer Available
$5.45$7.46
15
90504-921-010Ships in 1 to 2 Daysqty 2 used
$1.27$1.74
16
WASHER C, GEAR (2.10MM) (NOT AVAILABLE)
90533-921-000No Longer Available
$3.97$5.44
16
WASHER D, GEAR (2.15MM)
90534-921-000No Longer Available
$3.99$5.46
17
90757-881-505Ships in 1 to 2 Days
$1.17$1.68
18
91251-935-004Ships in 1 to 2 Daysreplaced by 91252-ZW9-003
$12.44$17.90
18
91252-ZW9-003Ships in 1 to 2 Days
$12.44$17.90
19
91351-881-000Ships in 1 to 2 Days
$4.22$5.78
20
92101-06020-4JShips in 1 to 2 Daysqty 2 used
$1.27$1.74
21
BEARING, RADIAL BALL (6005)
96100-60050-00Ships in 1 to 2 Days
$10.95$15.00
22
BEARING, RADIAL BALL (6203)
96100-62030-00Ships in 1 to 2 Days
$8.47$11.60
Diagram

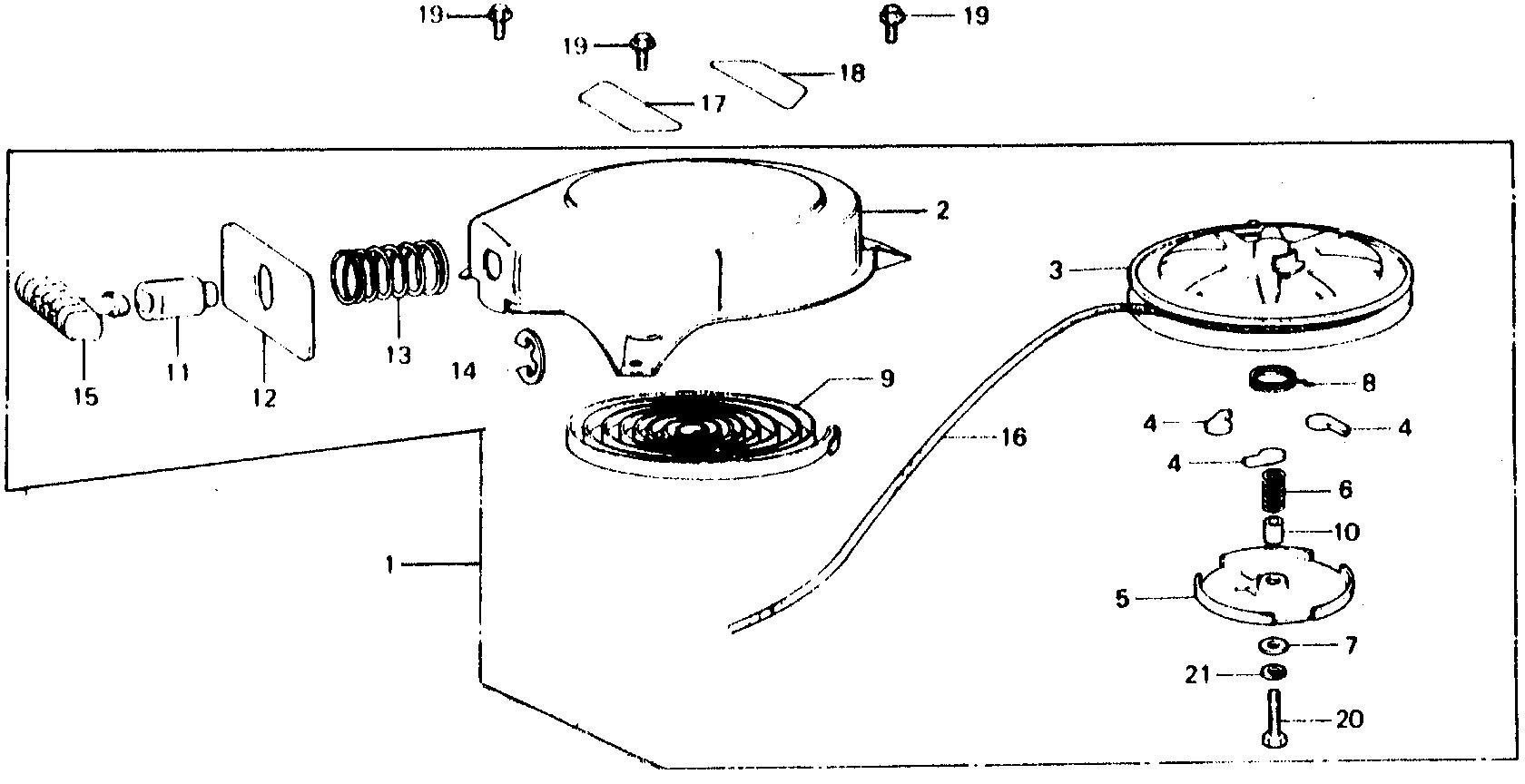

RECOIL STARTER

BF75 BF75B recoil starter exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges below1388E0800
Fits all 2 submodels of this generation.

Parts in this assembly

23 parts
1
STARTER ASSY., RECOIL *NH8* (DARK GRAY)
28400-881-006KANo Longer Available
—
1
STARTER ASSY., RECOIL *NH8* (DARK GRAY)
28400-881-016ZANo Longer Available
—
2
28401-881-016KAShips in 1 to 2 Days
$104.32$142.90
2
CASE, RECOIL STARTER *NH8* (DARK GRAY)
28401-881-016ZANo Longer Available
—
3
PULLEY, RECOIL STARTER (NOT AVAILABLE)
28421-935-000No Longer Available
$23.89$32.72
4
RATCHET, STARTER (NOT AVAILABLE)
28441-848-650No Longer Available
—
5
28443-935-000Ships in 1 to 2 Days
$21.99$31.62
6
SPRING, FRICTION (NOT AVAILABLE)
28444-921-000No Longer Available
—
7
WASHER
28445-935-000No Longer Available
$2.34$3.20
8
SPRING, SETTING (NOT AVAILABLE)
28447-935-000No Longer Available
—
9
28451-921-000No Longer Available
$22.13$30.32
10
COLLAR (NOT AVAILABLE)
28452-921-000No Longer Available
—
11
GUIDE, ROPE (NOT AVAILABLE)
28454-921-000No Longer Available
$10.95$15.00
12
PLATE, SEAL (NOT AVAILABLE)
28455-881-006No Longer Available
$9.69$13.28
13
SPRING, SEAL PLATE (NOT AVAILABLE)
28456-921-000No Longer Available
—
14
E-RING (NOT AVAILABLE)
28457-921-000No Longer Available
—
15
GRIP, STARTER (NOT AVAILABLE)
28461-921-010No Longer Available
—
16
ROPE, RECOIL STARTER (NA USE ALT:08540-ZG921-11)
28471-921-000No Longer Available
—
17
MARK B, RECOIL STARTER CAUTION (ENGLISH)
83537-935-600No Longer Available
—
18
MARK B, RECOIL STARTER CAUTION (FRENCH)
83537-935-610No Longer Available
—
19
90016-920-000Ships in 1 to 2 Daysqty 3 used
$1.80$2.58
20
92101-06025-0BShips in 1 to 2 Days
$2.29$3.30
21
94111-06000Ships in 1 to 2 Days
$0.86$1.18
Diagram

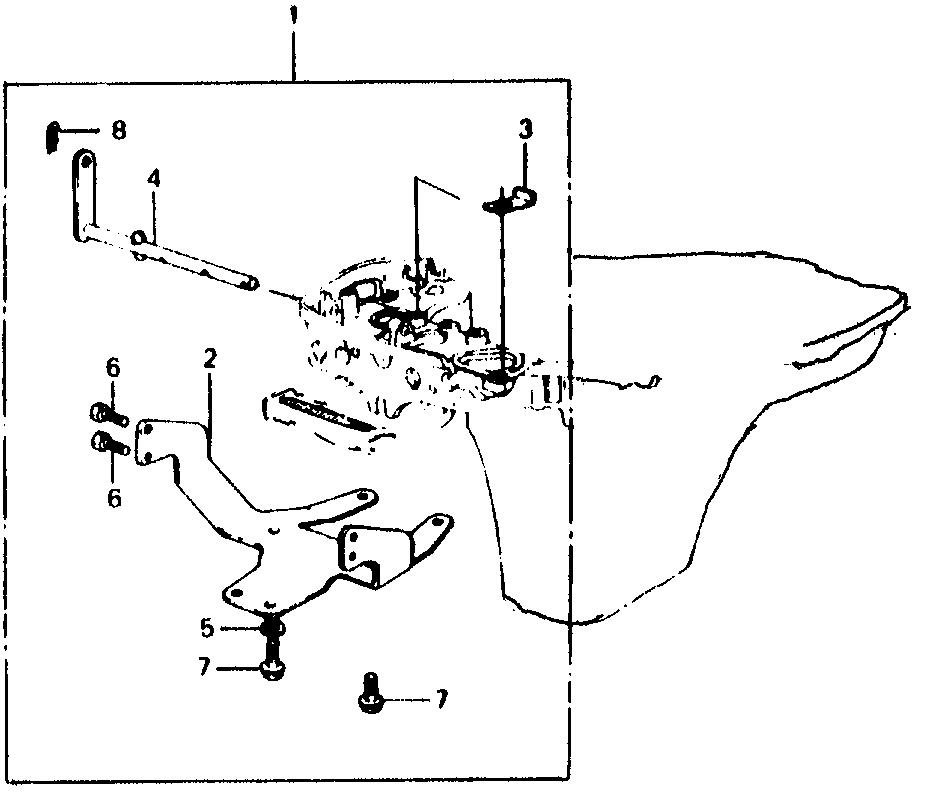

REMOTE CONTROL BRACKET

BF75 BF75B remote control bracket exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges below1388FOP01
Fits all 2 submodels of this generation.

Parts in this assembly

10 parts
1
CONTROL KIT, REMOTE
06170-881-810No Longer Available
—
1
CONTROL KIT, REMOTE
06170-881-811No Longer Available
—
2
BRACKET, STEERING
17851-881-811No Longer Available
—
3
17941-881-811Ships in 1 to 2 Days
$7.58$10.90
4
24701-881-811Ships in 1 to 2 Days
$61.54$88.52
4
24701-881-812Ships in 1 to 2 Days
$61.54$88.52
5
90504-921-010Ships in 1 to 2 Days
$1.27$1.74
6
BOLT, HEX. (5X10)
92101-05010-4JShips in 1 to 2 Daysqty 4 used
$2.51$3.44
7
92101-06012-4JShips in 1 to 2 Daysqty 2 used
$1.88$2.70
8
PIN, LOCK (6MM)
94251-06000Ships in 1 to 2 Daysqty 4 used
$1.01$1.38
Diagram

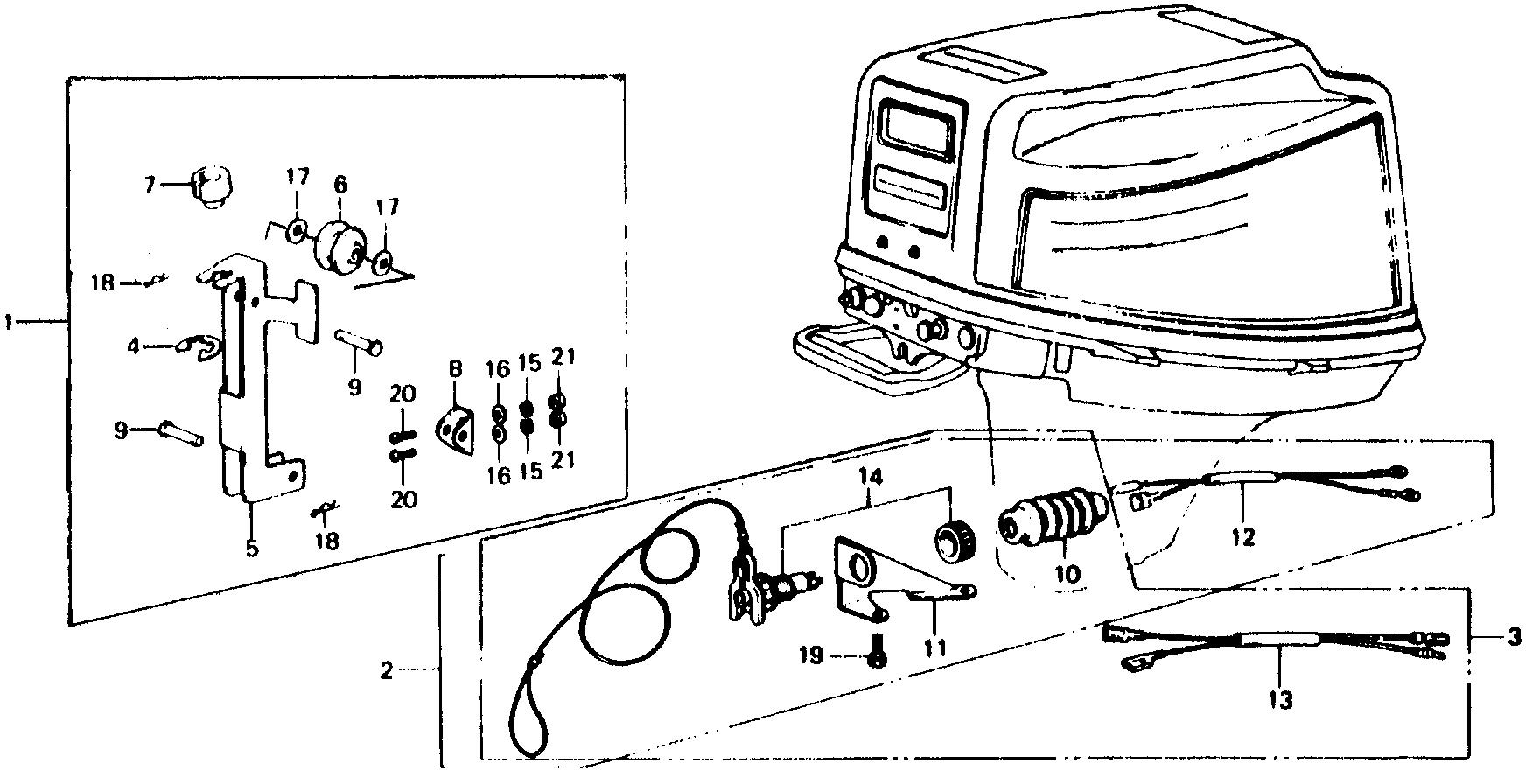

SAFETY SWITCH - VERTICAL STARTER

BF75 BF75B safety switch - vertical starter exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges below1388FOP02
Fits all 2 submodels of this generation.

Parts in this assembly

21 parts
1
STARTER KIT, VERTICAL (N/A: SEE COMPONENTS)
06280-881-810No Longer Available
—
2
SWITCH KIT, SAFETY
06360-881-810No Longer Available
—
3
SWITCH KIT, SAFETY
06360-881-812Ships in 1 to 2 Daysreplaced by 06360-881-506
$78.98
4
E-RING (NOT AVAILABLE)
28457-921-000No Longer Available
—
5
STAY, VERTICAL STARTER (NOT AVAILABLE)
28480-881-810No Longer Available
$62.91$86.18
6
28481-881-810Ships in 1 to 2 Days
$43.26$62.22
7
28482-881-810Ships in 1 to 2 Days
$11.58$16.66
8
28483-881-810Ships in 1 to 2 Days
$7.45$10.72
9
PIN, VERTICAL STARTER (NOT AVAILABLE)
28484-881-810No Longer Available
$24.41$33.44
10
RUBBER, SEALING (NOT AVAILABLE)
36102-881-810No Longer Available
—
11
STAY, SAFETY SWITCH (NOT AVAILABLE)
36103-881-810No Longer Available
$16.75$22.94
12
WIRE B, SWITCH (NOT AVAILABLE)
36105-881-810No Longer Available
—
13
WIRE B, SWITCH
36105-881-812Ships in 1 to 2 Days
$11.29$15.46
14
SWITCH, SAFETY
36106-881-810No Longer Available
—
15
90407-920-000Ships in 1 to 2 Daysqty 2 used
$1.04$1.46
16
90504-921-010Ships in 1 to 2 Daysqty 2 used
$1.27$1.74
17
90513-921-000Ships in 1 to 2 Daysqty 2 used
$1.96$2.82
18
91402-881-000Ships in 1 to 2 Daysqty 2 used
$1.69$2.44
19
92101-06012-4JShips in 1 to 2 Days
$1.88$2.70
20
SCREW, PAN (6X12)
93500-06012-4JShips in 1 to 2 Daysqty 2 used
$1.37$1.88
21
94001-06490-0SShips in 1 to 2 Daysqty 2 used
$2.15$2.94
Diagram

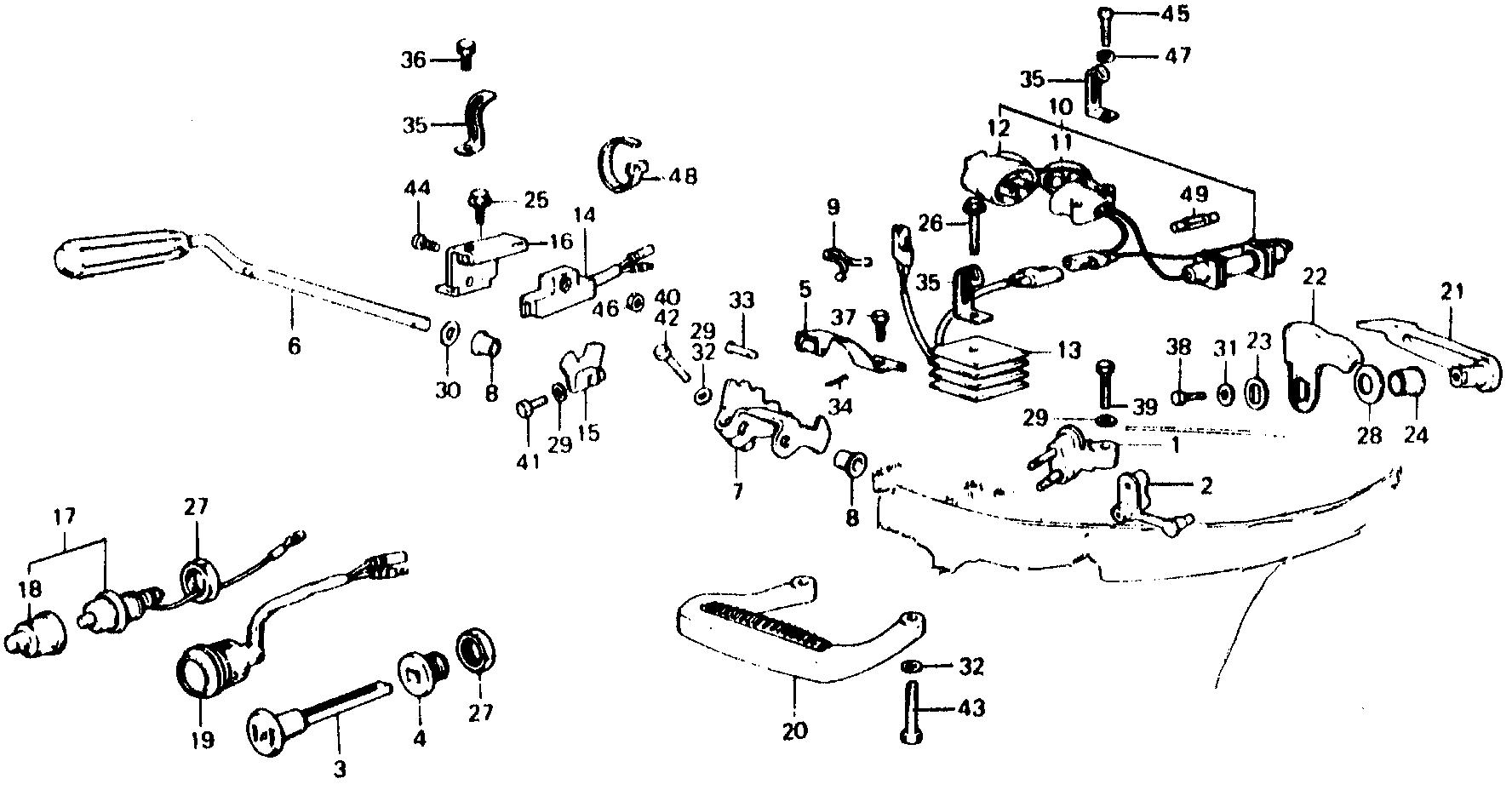

SHIFT SHAFT - CARRYING HANDLE - COVER LOCK LEVER

BF75 BF75B shift shaft - carrying handle - cover lock lever exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges below1388F0200
Fits all 2 submodels of this generation.

Parts in this assembly

55 parts
1
CONNECTOR, FUEL *B9* (ATLANTIS BLUE) (NOT AVAILABLE)
17710-881-000ZANo Longer Available
—
2
CAP, FUEL JOINT (NOT AVAILABLE)
17711-881-000No Longer Available
$2.44$3.34
3
17951-921-030Ships in 1 to 2 Days
$10.92$15.70
4
GUIDE, CHOKE KNOB (NOT AVAILABLE)
17953-921-010No Longer Available
$5.11$7.00
5
SPRING, CLICK (NOT AVAILABLE)
24210-921-000No Longer Available
$9.05$12.40
6
24610-881-000Ships in 1 to 2 Days
$36.53$52.54
6
24610-881-010Ships in 1 to 2 Days
$36.53$52.54
7
ARM, GEARSHIFT (NOT AVAILABLE)
24612-881-010No Longer Available
—
7
ARM, GEARSHIFT
24612-881-020No Longer Available
—
8
24621-921-010Ships in 1 to 2 Daysqty 2 used
$4.99$7.18
9
PURSE, LOCK (NOT AVAILABLE)
30801-882-600No Longer Available
—
10
RECEPTACLE ASSY., LAMP (NOT AVAILABLE)
31650-881-004No Longer Available
—
10
RECEPTACLE ASSY., CHARGE (NOT AVAILABLE)
31650-881-014No Longer Available
—
11
RECEPTACLE (NOT AVAILABLE)
31651-881-004No Longer Available
—
11
RECEPTACLE (NOT AVAILABLE)
31651-881-014No Longer Available
—
12
PLUG, RECEPTACLE (NOT AVAILABLE)
31652-881-004No Longer Available
—
12
31652-881-024Ships in 1 to 2 Days
$16.85$23.78
13
RECTIFIER ASSY. (NOT AVAILABLE)
31700-881-000No Longer Available
—
14
SWITCH ASSY., NEUTRAL (NOT AVAILABLE)
35100-881-003No Longer Available
—
15
35110-881-000Ships in 1 to 2 Days
$23.00$33.08
16
PLATE, SWITCH SETTING (NOT AVAILABLE)
35120-881-000No Longer Available
$20.76$28.44
17
SWITCH, ENGINE (NOT AVAILABLE)
36100-921-023No Longer Available
$16.26$22.28
18
CAP, BUTTON (N/A: USE P/N 36100-921-000)
36101-935-003No Longer Available
—
19
37210-ZV4-003Ships in 1 to 2 Days
$37.60$54.08
19
37210-881-025Ships in 1 to 2 Days
$37.60$54.08
20
HANDLE, CARRYING *B9* (ATLANTIS BLUE) (NOT AVAILABLE)
50281-921-000ZBNo Longer Available
—
21
63201-935-000ZBShips in 1 to 2 Days
$17.14$24.66
22
HOOK, COVER LOCK (NOT AVAILABLE)
63202-881-000No Longer Available
—
23
WASHER, COVER LOCK (NOT AVAILABLE)
63203-935-000No Longer Available
$2.88$3.94
24
63205-920-000Ships in 1 to 2 Days
$4.53$6.20
25
90016-920-000Ships in 1 to 2 Days
$1.80$2.58
26
90124-881-000Ships in 1 to 2 Days
$1.91$2.76
27
90302-921-000In Stockqty 2 used
$4.10$5.62
28
90455-881-000Ships in 1 to 2 Days
$3.26$4.60
29
90504-921-010Ships in 1 to 2 Daysqty 2 used
$1.27$1.74
30
90511-921-000Ships in 1 to 2 Days
$0.86$1.18
31
90512-921-010In Stock
$1.07$1.46
32
90518-921-000Ships in 1 to 2 Daysqty 2 used
$1.20$1.64
33
90754-921-010Ships in 1 to 2 Days
$8.72$12.30
34
90756-921-000Ships in 1 to 2 Days
$1.45$2.04
35
91403-881-000Ships in 1 to 2 Days
$5.15$7.42
36
BOLT, HEX. (6X8)
92000-06008-4JNo Longer Available
—
37
BOLT, HEX. (6X12)
92101-06012-0BShips in 1 to 2 Days
$1.07$1.46
38
BOLT, HEX. (6X16)
92101-06016-0BShips in 1 to 2 Days
$1.18$1.62
39
92101-06020-4JShips in 1 to 2 Days
$1.27$1.74
40
92101-06025-4JShips in 1 to 2 Days
$0.82$1.12
41
BOLT, HEX. (6X28)
92101-06028-4JShips in 1 to 2 Days
$4.86$6.66
42
92101-08028-4JShips in 1 to 2 Days
$3.10$4.24
43
BOLT, HEX. (8X32) (NOT AVAILABLE)
92000-08032-4JNo Longer Available
—
44
93500-05020-4JShips in 1 to 2 Days
$0.86$1.18
45
93500-05022-0BShips in 1 to 2 Daysqty 2 used
$1.27$1.82
46
94001-05490-0SShips in 1 to 2 Days
$0.92$1.26
47
94101-05200Ships in 1 to 2 Daysqty 2 used
$1.12$1.62
48
95014-62100Ships in 1 to 2 Days
$1.50$2.06
49
98200-10500Ships in 1 to 2 Days
$0.92$1.32
Diagram

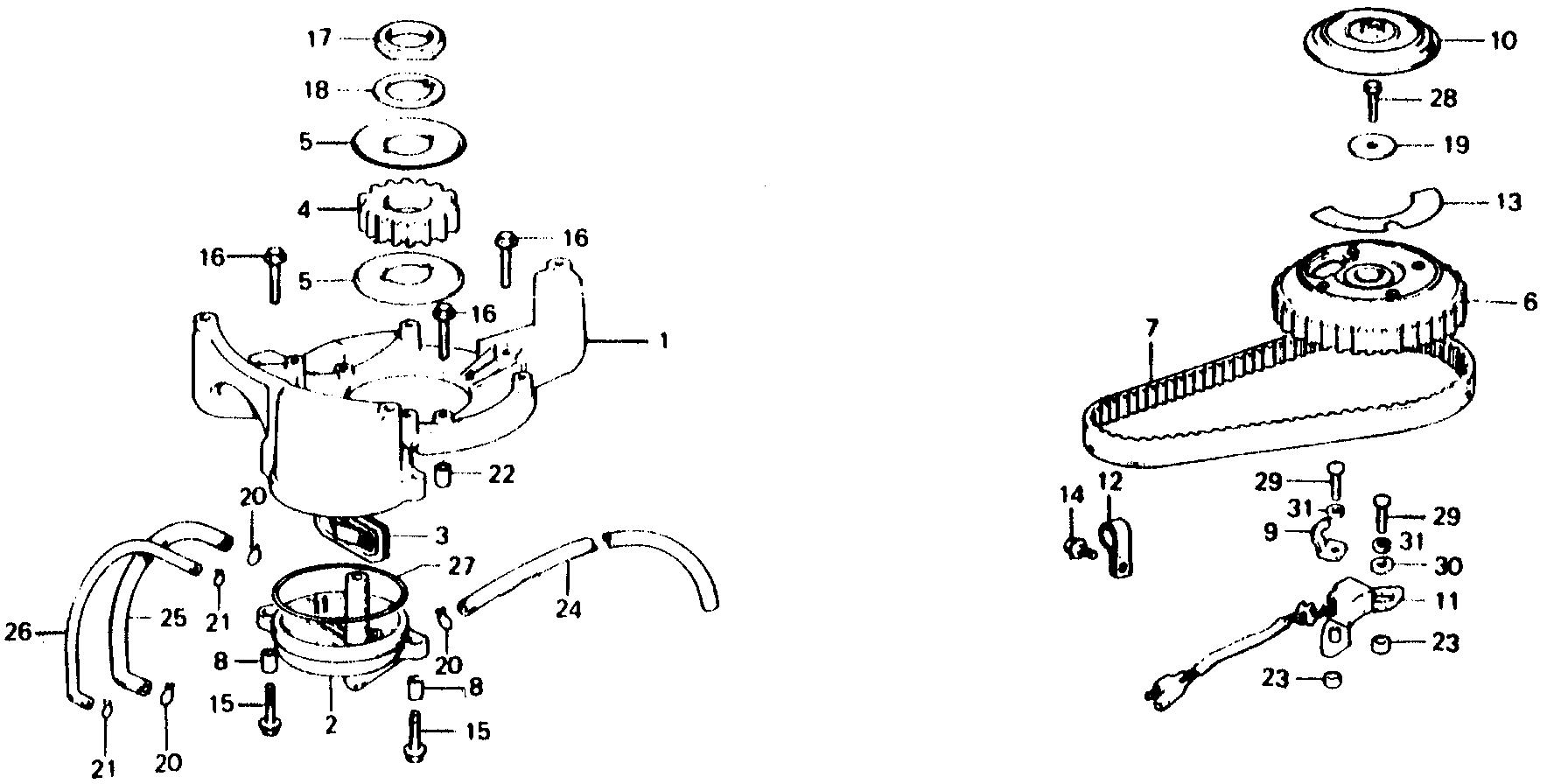

STARTER CASE - CAM PULLEY - PULSER COIL

BF75 BF75B starter case - cam pulley - pulser coil exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges below1388E1000
Fits all 2 submodels of this generation.

Parts in this assembly

31 parts
1
11301-881-020ZAShips in 1 to 2 Days
$199.79$209.76
2
COVER, BREATHER (NOT AVAILABLE)
12311-881-000No Longer Available
$25.93$35.52
3
BODY, VALVE (NOT AVAILABLE)
12370-881-000No Longer Available
—
4
PULLEY, TIMING (NOT AVAILABLE)
14311-881-000No Longer Available
—
5
FLANGE, TIMING PULLEY
14312-881-000No Longer Available
$7.71$10.56
6
PULLEY, CAMSHAFT (NOT AVAILABLE)
14320-882-600No Longer Available
—
7
14400-921-024Ships in 1 to 2 Days
$50.25$72.28
8
COLLAR A, DISTANCE
15623-881-000No Longer Available
—
9
PLATE, WIRE CLAMP (NOT AVAILABLE)
30207-882-600No Longer Available
$4.04$5.54
10
COVER, POINT (NOT AVAILABLE)
30210-881-000No Longer Available
—
11
COIL ASSY., PULSER (NOT AVAILABLE)
30400-882-601No Longer Available
—
12
CLAMP, WIRE (NOT AVAILABLE)
30549-881-010No Longer Available
—
13
87581-921-600Ships in 1 to 2 Days
$1.24$1.78
14
90016-920-000Ships in 1 to 2 Days
$1.80$2.58
15
BOLT, FLANGE (6X22) (NOT AVAILABLE)
90121-881-000No Longer Available
—
16
BOLT, FLANGE (6X28) (NOT AVAILABLE)
90123-881-000No Longer Available
—
17
90202-881-000Ships in 1 to 2 Days
$6.99$10.06
18
WASHER, LOCK (24MM) (NOT AVAILABLE)
90451-881-000No Longer Available
—
19
WASHER, WHEEL (6MM) (NOT AVAILABLE)
90563-706-000No Longer Available
—
20
90604-ZV0-000Ships in 1 to 2 Daysqty 3 used
$1.37$1.88
21
CLIP B7, TUBE (NOT AVAILABLE)
90605-921-000No Longer Available
$1.14$1.56
22
PIN, DOWEL (8X10) (NOT AVAILABLE)
90702-881-000No Longer Available
—
23
90705-882-600Ships in 1 to 2 Daysqty 2 used
$1.83$2.62
24
TUBE B, BREATHER (NOT AVAILABLE)
90803-881-000No Longer Available
—
25
TUBE C, BREATHER (NOT AVAILABLE)
90804-881-010No Longer Available
—
26
TUBE, OIL RETURN (NOT AVAILABLE)
90805-881-000No Longer Available
—
27
91311-881-003Ships in 1 to 2 Days
$3.10$4.46
28
92101-06022-0BShips in 1 to 2 Days
$1.12$1.54
29
93500-05014-0BShips in 1 to 2 Daysqty 2 used
$1.26$1.80
30
94101-05200Ships in 1 to 2 Days
$1.12$1.62
31
94111-05800Ships in 1 to 2 Daysqty 2 used
$1.04$1.42
Diagram

STERN BRACKET - ADJUST ROD

BF75 BF75B stern bracket - adjust rod exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges below1388F0500
Fits all 2 submodels of this generation.

Parts in this assembly

26 parts
1
50122-935-000Ships in 1 to 2 Daysqty 2 used
$5.37$7.58
1
50122-935-010Ships in 1 to 2 Daysqty 2 used
$5.37$7.58
2
BRACKET, R. STERN *B9* (ATLANTIS BLUE) (NOT AVAILABLE)
50300-881-000ZANo Longer Available
—
3
BRACKET, L. STERN *B9* (ATLANTIS BLUE) (NOT AVAILABLE)
50310-881-000ZANo Longer Available
—
4
GRIP, CLAMP *B9* (ATLANTIS BLUE) (NOT AVAILABLE)
50323-921-300ZBNo Longer Available
$12.59$17.24
5
SCREW, CLAMP
50325-881-300No Longer Available
—
6
SPRING, TILT (NOT AVAILABLE)
50333-921-003No Longer Available
—
7
COLLAR, DISTANCE (6MM) (NOT AVAILABLE)
50335-921-010No Longer Available
—
8
ROD, ADJUSTING (N/A: SEE COMPONENTS)
50340-921-000No Longer Available
$29.46$40.36
9
50341-921-300Ships in 1 to 2 Days
$13.26$19.06
10
STOPPER, ROD (NOT AVAILABLE)
50342-921-300No Longer Available
$2.61$3.58
11
50343-921-300Ships in 1 to 2 Days
$3.21$4.40
12
58131-881-000Ships in 1 to 2 Daysqty 2 used
$4.48$6.44
13
88111-ZVA-000Ships in 1 to 2 Days
$2.37$3.24
14
90106-921-010Ships in 1 to 2 Days
$20.92$30.10
15
NUT, SELF-LOCK (8MM) (NOT AVAILABLE)
90301-921-000No Longer Available
—
16
90407-920-000Ships in 1 to 2 Days
$1.04$1.46
17
90504-921-010Ships in 1 to 2 Days
$1.27$1.74
18
90511-921-000Ships in 1 to 2 Days
$0.86$1.18
19
90513-921-000Ships in 1 to 2 Daysqty 2 used
$1.96$2.82
20
90514-921-000Ships in 1 to 2 Days
$0.99$1.36
21
90757-881-505Ships in 1 to 2 Daysqty 2 used
$1.17$1.68
22
BOLT, HEX. (6X160)
92000-06160-4JNo Longer Available
—
23
94001-06490-0SShips in 1 to 2 Days
$2.15$2.94
24
PIN, SPRING (2X8)
94305-20083Ships in 1 to 2 Days
$0.72$0.98
25
94305-40143In Stockqty 2 used
$1.34$1.84
Diagram

SWIVEL CASE - SWIVEL SHAFT - TILT LEVER

BF75 BF75B swivel case - swivel shaft - tilt lever exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges below1388F0600
Fits all 2 submodels of this generation.

Parts in this assembly

33 parts
1
CASE, SWIVEL *B9* (ATLANTIS BLUE)
50201-881-010ZANo Longer Available
—
2
50211-881-000Ships in 1 to 2 Days
$15.08
3
50212-881-000Ships in 1 to 2 Days
$7.74$8.13
4
BUSH, SWIVEL SHAFT (NOT AVAILABLE)
50213-881-000No Longer Available
—
5
50233-881-000Ships in 1 to 2 Days
$4.63$6.66
6
SPRING, HOOK RETURN (NOT AVAILABLE)
50403-881-000No Longer Available
—
7
SHAFT, SWIVEL *B9* (ATLANTIS BLUE)
50417-881-000ZANo Longer Available
—
7
SHAFT, SWIVEL *B9* (ATLANTIS BLUE) (NOT AVAILABLE)
50417-881-010ZANo Longer Available
—
8
CASE, SWIVEL *B9* (ATLANTIS BLUE)
50500-881-000ZANo Longer Available
—
9
LOCK, REVERSE
50510-881-010No Longer Available
—
10
LINK, TILT (NOT AVAILABLE)
50511-881-300No Longer Available
—
11
BRACKET, TILT LEVER (NOT AVAILABLE)
50513-881-300No Longer Available
—
12
50514-881-310Ships in 1 to 2 Days
$4.12$5.92
13
SPRING, TILT LEVER (NOT AVAILABLE)
50515-881-300No Longer Available
—
14
SPRING, TILT LINK (NOT AVAILABLE)
50516-881-300No Longer Available
—
15
LEVER, TILT (NOT AVAILABLE)
50517-881-310No Longer Available
—
16
ROD, RELEASE SWIVEL CASE (NOT AVAILABLE)
50519-881-300No Longer Available
—
17
BUSH, TILT LEVER (NOT AVAILABLE)
50521-881-300No Longer Available
—
18
BUSH B, TILT LEVER (NOT AVAILABLE)
50522-881-000No Longer Available
—
19
51427-230-300Ships in 1 to 2 Daysqty 2 used
$2.95$4.24
20
PLATE, SETTING CAUTION (NOT AVAILABLE)
87535-921-600No Longer Available
—
21
COLLAR (6MM) (NOT AVAILABLE)
90103-881-010No Longer Available
—
22
90454-881-000Ships in 1 to 2 Days
$2.82$4.06
23
90504-921-010Ships in 1 to 2 Daysqty 2 used
$1.27$1.74
24
90511-921-000Ships in 1 to 2 Days
$0.86$1.18
25
WASHER, PLAIN (10MM) (NOT AVAILABLE)
90520-881-000No Longer Available
—
26
NIPPLE, GREASE
90901-881-000No Longer Available
—
27
OIL SEAL (32X37X7)
91256-881-003No Longer Available
—
27
OIL SEAL (32X37X7) (NOK) (NOT AVAILABLE)
91256-881-004No Longer Available
$9.17$12.56
28
91402-881-000Ships in 1 to 2 Days
$1.69$2.44
29
92101-06016-4JShips in 1 to 2 Daysqty 2 used
$1.37$1.94
30
BOLT, HEX. (8X20) (NOT AVAILABLE)
92000-08020-4JNo Longer Available
—
31
PIN, SPRING (4X25)
94305-40253Ships in 1 to 2 Days
$1.40$1.92
Diagram

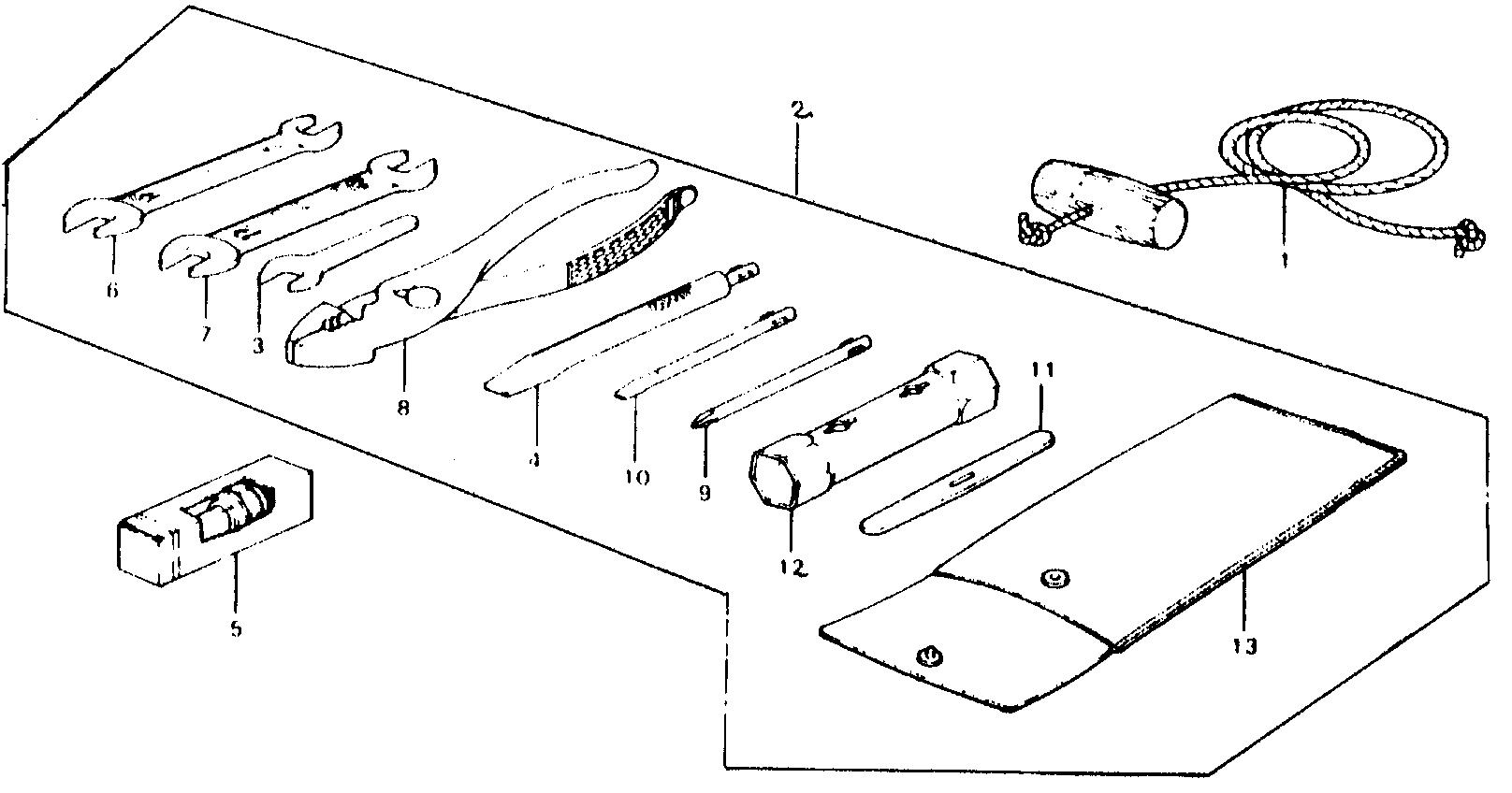

TOOLS - STARTER ROPE

BF75 BF75B tools - starter rope exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges below1388F1100
Fits all 2 submodels of this generation.

Parts in this assembly

14 parts
1
28470-816-000Ships in 1 to 2 Days
$7.37$10.40
2
TOOL KIT (N/A: SEE COMPONENTS)
89000-881-000No Longer Available
—
3
SPANNER (8MM) (NOT AVAILABLE)
89203-836-000No Longer Available
—
4
89301-921-010Ships in 1 to 2 Days
$5.87$8.28
5
98066-55716In Stock
$2.18$2.98
6
99001-09120Ships in 1 to 2 Days
$2.50$3.42
7
99001-10120Ships in 1 to 2 Days
$6.26$8.58
8
89210-GBJ-J10Ships in 1 to 2 Days
$19.36$26.52
9
99003-10000Ships in 1 to 2 Days
$3.81$5.22
10
99003-30000Ships in 1 to 2 Days
$3.81$5.22
11
99003-40000Ships in 1 to 2 Days
$1.17$1.60
12
99004-18190Ships in 1 to 2 Days
$3.64$4.98
12
WRENCH, BOX (P18X19) (NOT AVAILABLE)
89211-881-000No Longer Available
—
13
BAG, TOOL (200MM)
99008-02000No Longer Available
—
Diagram

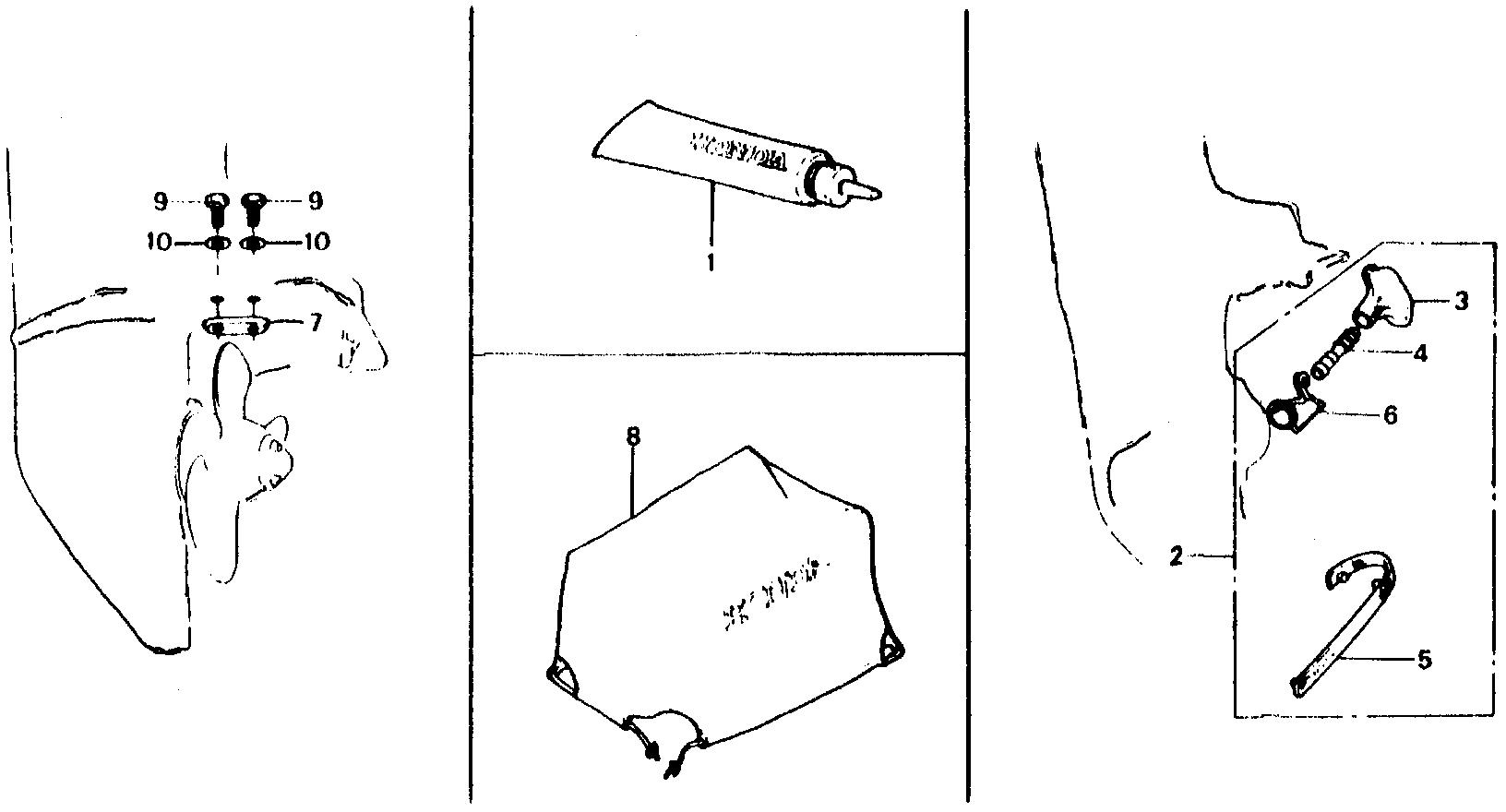

WATER MOUTH - BODY COVER - GEAR OIL

BF75 BF75B water mouth - body cover - gear oil exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges below1388FOP03
Fits all 2 submodels of this generation.

Parts in this assembly

9 parts
1
TUBE, GEAR OIL
08207-92160No Longer Available
—
2
JOINT SET W/MOUTH
19010-881-810Ships in 1 to 2 Daysreplaced by 06190-881-860
$17.93
3
19262-921-810Ships in 1 to 2 Days
$11.10$15.96
4
JOINT, HOSE (NOT AVAILABLE)
19263-921-810No Longer Available
—
5
PLUG, WATER (NOT AVAILABLE)
19264-935-810No Longer Available
—
6
CLIP, WATER MOUTH (NOT AVAILABLE)
19265-921-810No Longer Available
—
7
41106-935-812Ships in 1 to 2 Days
$9.75$14.02
8
COVER, BODY (NOT AVAILABLE)
63311-881-000No Longer Available
—
9
BOLT, HEX. (6X16)
92101-06016-0BShips in 1 to 2 Daysqty 2 used
$1.18$1.62
Diagram

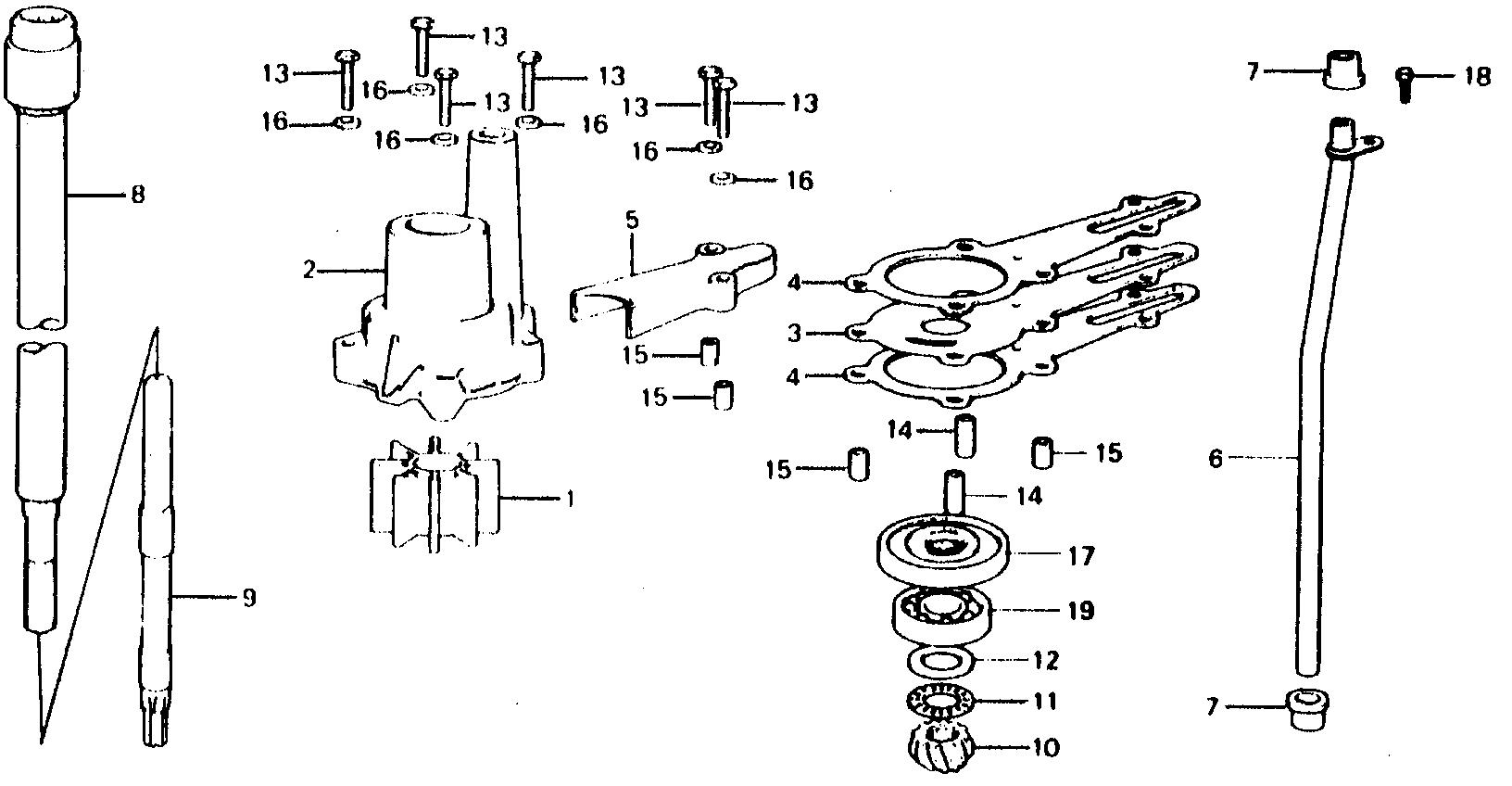

WATER PUMP - VERTICAL SHAFT

BF75 BF75B water pump - vertical shaft exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges below1388F0800
Fits all 2 submodels of this generation.

Parts in this assembly

24 parts
1
19210-881-A02In Stock
$24.34$34.34
↳
Sierra alternative ·
18-3245In Stock save $0.86
$23.48
2
19220-881-305Ships in 1 to 2 Days
$110.58$159.04
3
19231-881-840No Longer Available
$21.04$28.82
4
19232-881-306Ships in 1 to 2 Daysqty 2 used
$6.31$9.08
5
HOLDER, IMPELLER COVER (NOT AVAILABLE)
19233-881-000No Longer Available
—
6
TUBE, WATER (S) (NOT AVAILABLE)
19251-881-010No Longer Available
—
6
TUBE, WATER (L) (NOT AVAILABLE)
19251-881-701No Longer Available
—
7
19252-921-020Ships in 1 to 2 Daysqty 2 used
$3.40$4.90
8
SHAFT, VERTICAL (S)
41110-881-000No Longer Available
—
8
SHAFT, VERTICAL (L)
41110-881-700No Longer Available
—
9
SHAFT, PINION
41121-881-010No Longer Available
—
9
SHAFT, PINION
41121-881-020No Longer Available
—
10
PINION, BEVEL (NOT AVAILABLE)
41131-881-000No Longer Available
—
11
BEARING, THRUST (15MM) (NOT AVAILABLE)
41132-935-003No Longer Available
—
12
WASHER A, THRUST BEARING (2.00MM) (NOT AVAILABLE)
41135-935-003No Longer Available
$5.74$7.86
12
41136-935-003Ships in 1 to 2 Days
$6.37$9.16
12
WASHER C, THRUST BEARING (2.10MM) (NOT AVAILABLE)
41137-935-003No Longer Available
—
13
90108-881-000Ships in 1 to 2 Daysqty 6 used
$3.74$5.38
14
COLLAR A, DISTANCE (NOT AVAILABLE)
90111-935-000No Longer Available
—
15
90112-881-000Ships in 1 to 2 Daysqty 4 used
$4.96$7.00
16
90504-921-010Ships in 1 to 2 Daysqty 6 used
$1.27$1.74
17
91252-935-004Ships in 1 to 2 Days
$17.08$24.58
18
92101-06012-4JShips in 1 to 2 Days
$1.88$2.70
19
BEARING, RADIAL BALL (6302)
96100-63020-00Ships in 1 to 2 Days
$8.67$11.88
Diagrams are Honda's official OEM illustrations, served from Honda's asset host. Prices are our own; where a struck-through figure appears beside one it is Honda's suggested retail. “In Stock” means the part is on our shelf here at Boe Marine. “Ships in 1 to 2 Days” means we order it in from Honda, who still supply it. Parts marked “No Longer Available” are shown so the drawing stays complete, but Honda has discontinued them. Where a Sierra replacement is listed beneath a Honda part, Sierra ships it direct to you; “Backorder Now” on one of those means Sierra has none at the moment and will ship it once restocked.
