BF50 — Parts Diagrams

Generation BF50DK2  ·  2 submodels

Assemblies (59)

Diagram

AIR INLET GUIDE

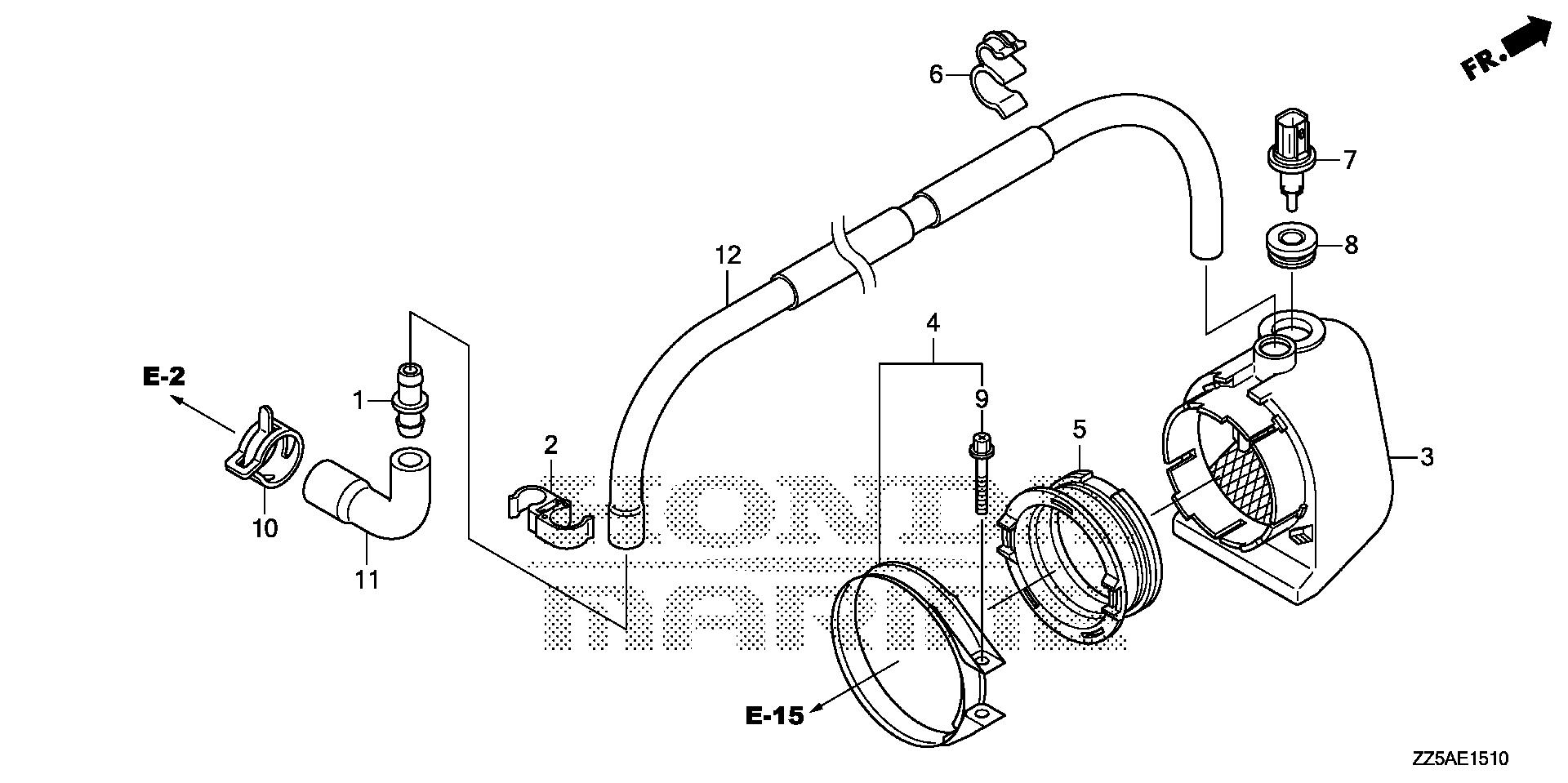

BF50 BF50DK2 air inlet guide exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ5AE1510
Fits all 2 submodels of this generation.

Parts in this assembly

16 parts
1
11357-KB1-950Ships in 1 to 2 Days
$19.55$27.58
2
16895-ZY9-003Ships in 1 to 2 Days
$3.45$4.72
3
17201-ZZ5-020Ships in 1 to 2 Days
$15.39$21.72
4
17315-ZZ5-000Ships in 1 to 2 Days
$8.22$11.60
4
17315-ZZ5-M01Ships in 1 to 2 Days
$9.56$13.10
5
17374-ZZ5-000Ships in 1 to 2 Days
$7.52$10.30
6
17439-PY3-A01Ships in 1 to 2 Days
$5.42$7.42
7
37880-PLC-004Ships in 1 to 2 Days
$68.21$93.44
7
37880-RE1-Z01Ships in 1 to 2 Days
$34.43$47.16
8
37881-P2A-000Ships in 1 to 2 Days
$5.20$7.12
9
90001-ZZ5-000Ships in 1 to 2 Days
$3.36$4.74
9
90001-ZZ5-M00Ships in 1 to 2 Days
$3.84$5.42
9
90001-ZZ5-M01Ships in 1 to 2 Days
$3.77$5.16
10
90601-ZV3-030Ships in 1 to 2 Days
$2.60$3.66
11
91403-ZZ5-000Ships in 1 to 2 Days
$3.80$5.36
12
91404-ZZ5-010Ships in 1 to 2 Days
$3.50$4.94
Diagram

ALTERNATOR

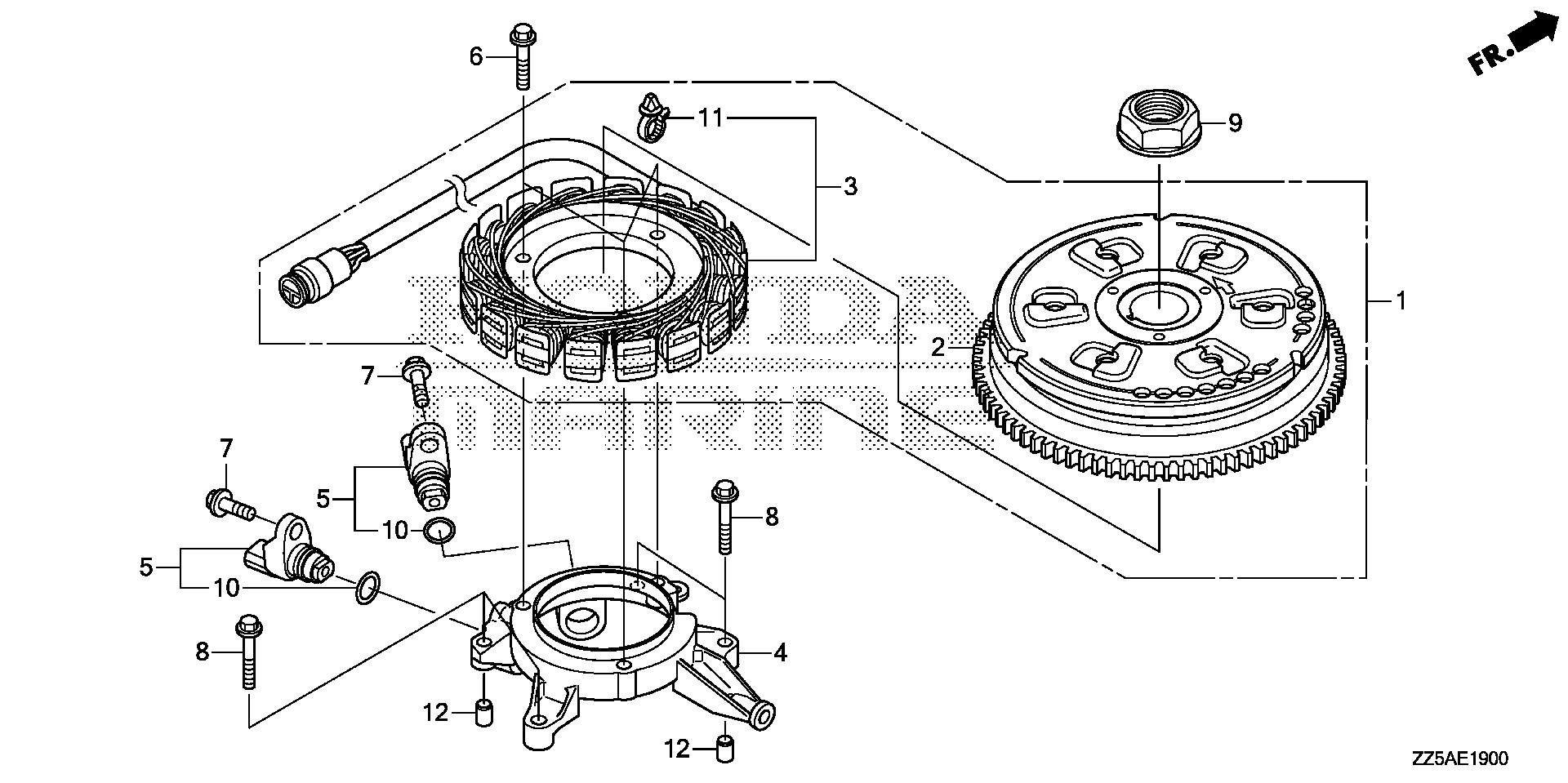

BF50 BF50DK2 alternator exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ5AE1900
Fits all 2 submodels of this generation.

Parts in this assembly

14 parts
1
31630-ZZ5-003ZAShips in 1 to 2 Days
$852.74$1,168.14
2
31631-ZZ5-003ZAShips in 1 to 2 Days
$298.88$307.83
3
31632-ZZ5-003Ships in 1 to 2 Days
$406.35
4
31636-ZZ5-000Ships in 1 to 2 Days
$79.66$112.38
5
35700-ZZ5-003Ships in 1 to 2 Daysqty 2 used
$48.19$68.00
6
90016-ZW9-000Ships in 1 to 2 Daysreplaced by 90014-ZZ5-M01
$1.87$2.56
6
90014-ZZ5-M01Ships in 1 to 2 Daysqty 3 used
$1.87$2.56
6
90014-ZZ5-M00Ships in 1 to 2 Daysqty 3 used
$1.87$2.56
7
90017-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.24$1.70
8
90002-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$1.46$2.00
9
90201-ZZ5-000Ships in 1 to 2 Days
$8.22$11.60
10
91333-PNA-003Ships in 1 to 2 Daysqty 2 used
$3.02$4.14
11
91540-S0A-003Ships in 1 to 2 Days
$4.15$5.68
12
94301-08100Ships in 1 to 2 Daysqty 2 used
$2.74$3.76
Diagram

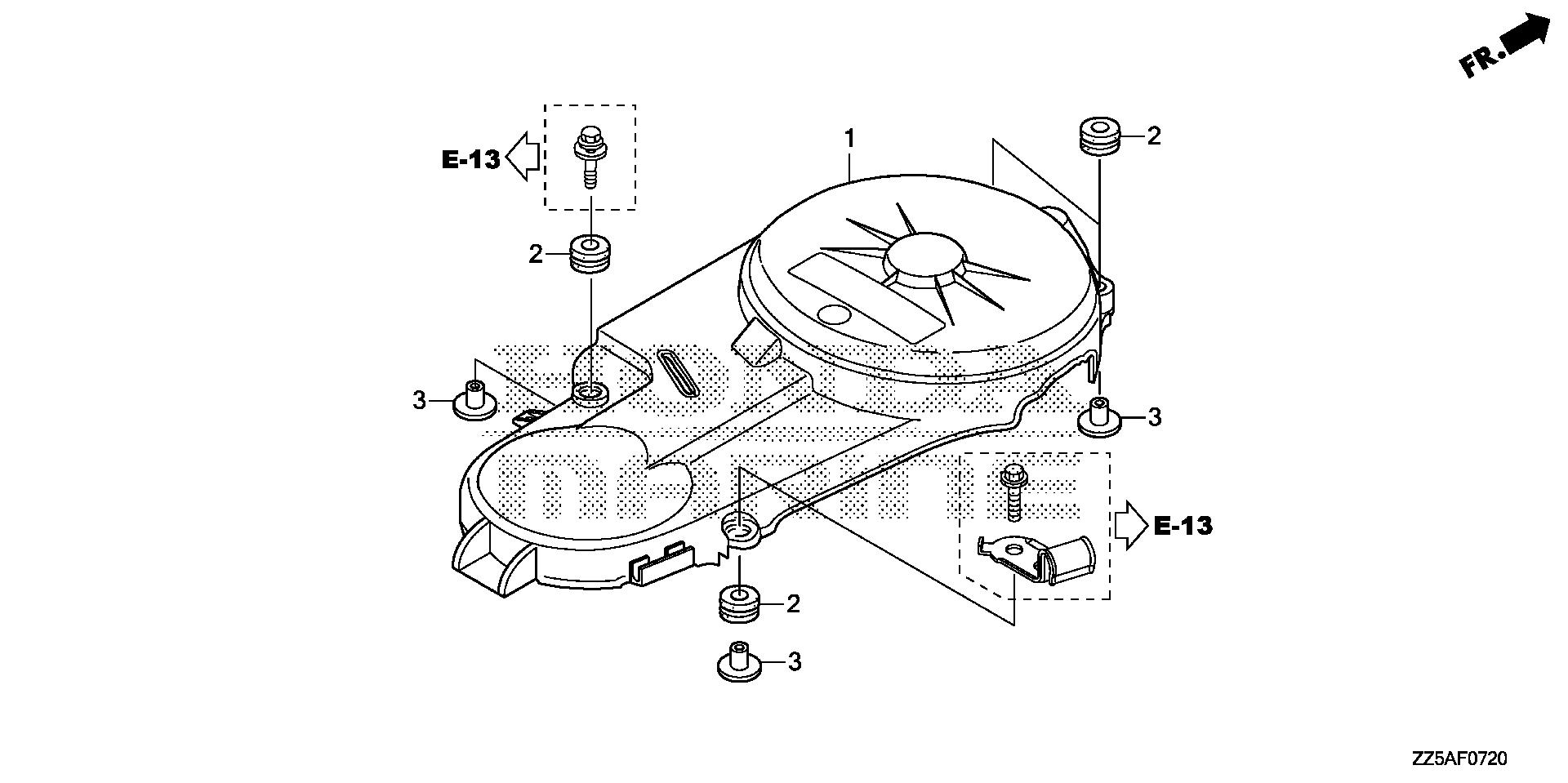

ALTERNATOR COVER

BF50 BF50DK2 alternator cover exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ5AF0720
Fits all 2 submodels of this generation.

Parts in this assembly

4 parts
1
31145-ZZ5-000Ships in 1 to 2 Days
$66.71$94.12
2
40102-ZV5-000Ships in 1 to 2 Daysqty 4 used
$2.64$3.62
3
91553-ZV5-010Ships in 1 to 2 Daysqty 4 used
$2.67$3.66
3
91551-ZVL-010Ships in 1 to 2 Daysqty 4 used
$2.23$3.06
Diagram

BOLT KIT (HI-LEX)

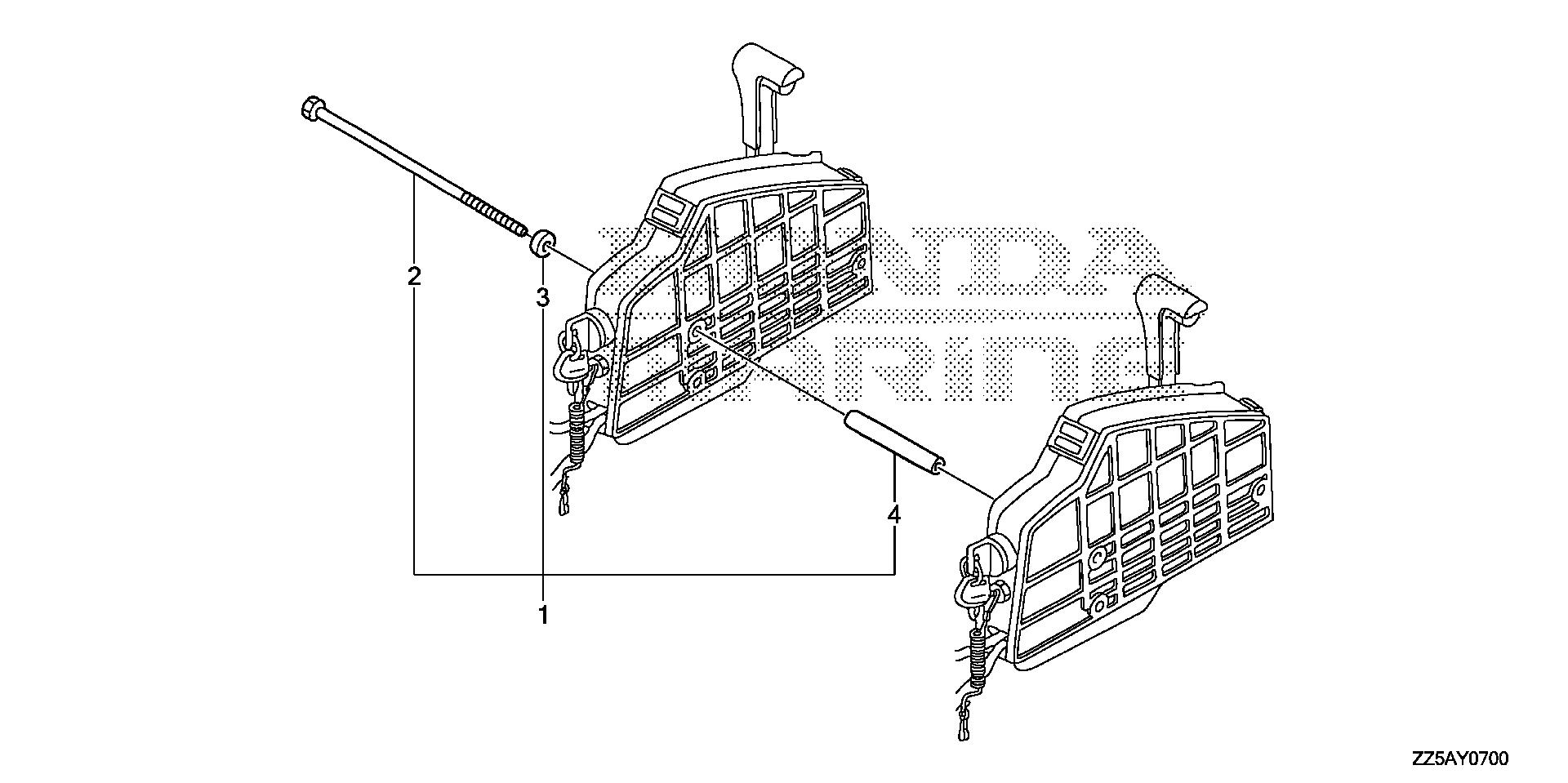

BF50 BF50DK2 bolt kit (hi-lex) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ5AY0700
Fits all 2 submodels of this generation.

Parts in this assembly

4 parts
1
06900-ZW5-U00Ships in 1 to 2 Days
$82.88$113.54
2
90021-ZW5-U00Ships in 1 to 2 Daysqty 3 used
$13.11$17.96
3
90511-ZW5-U00Ships in 1 to 2 Daysqty 3 used
$3.97$5.44
4
90512-ZW5-U00Ships in 1 to 2 Daysqty 3 used
$6.63$9.08
Diagram

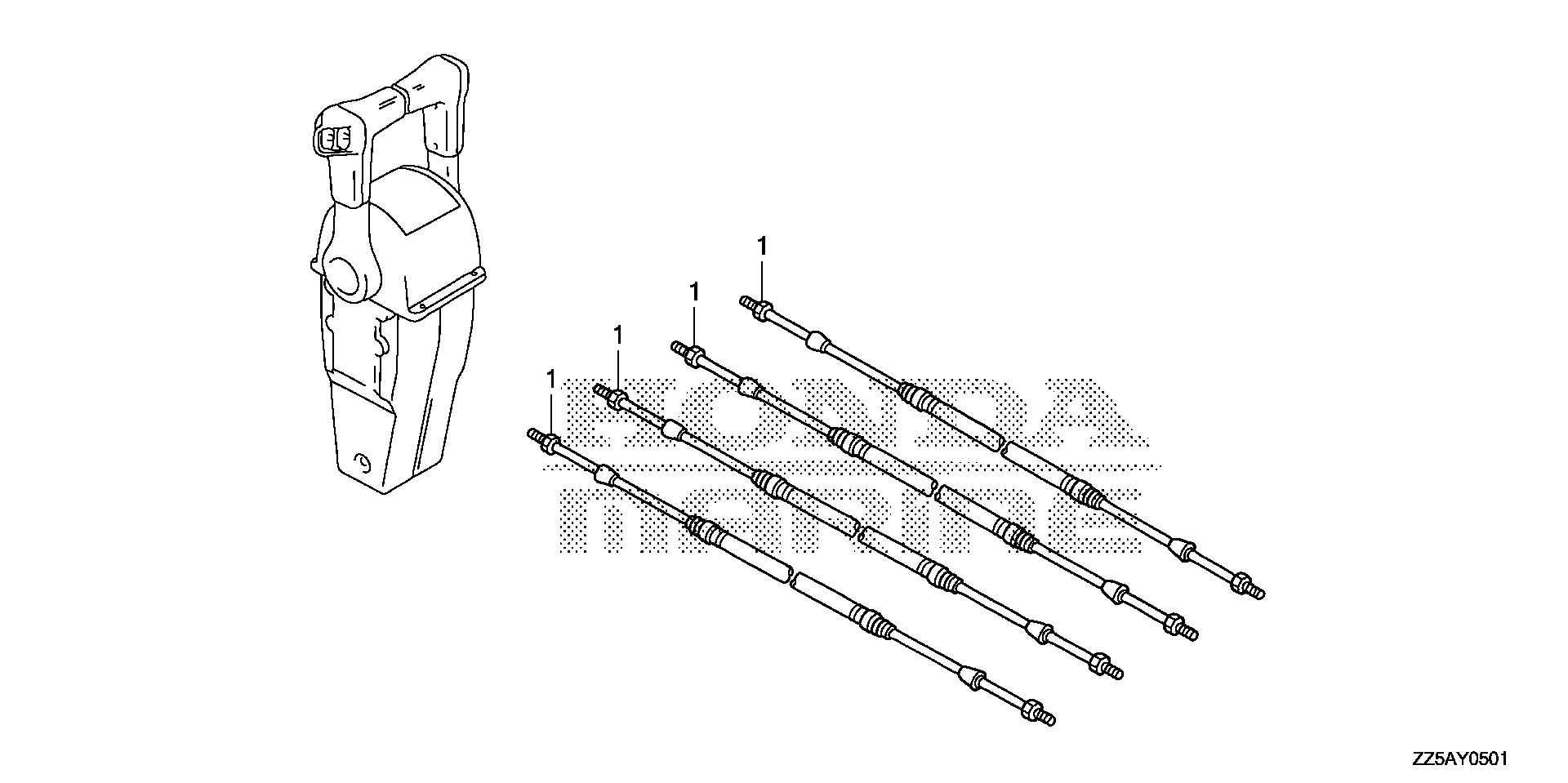

CABLE (DUAL) (HI-LEX)

BF50 BF50DK2 cable (dual) (hi-lex) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ5AY0501
Fits all 2 submodels of this generation.

Parts in this assembly

48 parts
1
24918-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$136.19$186.56
1
24920-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$145.68$199.56
1
24907-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$121.63$166.62
1
24909-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$133.11$182.34
1
24910-ZY3-003Ships in 1 to 2 Daysqty 4 used
$60.42
1
24910-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$102.89$140.94
1
24911-ZY3-003Ships in 1 to 2 Daysqty 4 used
$58.54
1
24912-ZW7-U01Ships in 1 to 2 Daysqty 4 used
$122.73$168.12
1
24912-ZY3-003Ships in 1 to 2 Daysqty 4 used
$64.99
1
24913-ZY3-003Ships in 1 to 2 Daysqty 4 used
$64.06
1
24913-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$156.28$214.08
1
24914-ZY3-003Ships in 1 to 2 Daysqty 4 used
$66.26
1
24915-ZY3-003Ships in 1 to 2 Daysqty 4 used
$63.91
1
CABLE, REMOTE CONTROL (16') (LOW FRICTION) (NOT AVAILABLE)
24916-ZY3-003No Longer Available
—
1
24917-ZY3-003Ships in 1 to 2 Daysqty 4 used
$73.32
1
CABLE, REMOTE CONTROL (18') (LOW FRICTION) (NOT AVAILABLE)
24918-ZY3-003No Longer Available
—
1
24919-ZY3-003Ships in 1 to 2 Daysqty 4 used
$78.63
1
CABLE, REMOTE CONTROL (20') (LOW FRICTION) (NOT AVAILABLE)
24920-ZY3-003No Longer Available
—
1
24921-ZY3-003Ships in 1 to 2 Daysqty 4 used
$85.70
1
24921-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$153.56$210.36
1
CABLE, REMOTE CONTROL (22') (LOW FRICTION) (NOT AVAILABLE)
24922-ZY3-003No Longer Available
—
1
24923-ZY3-003Ships in 1 to 2 Daysqty 4 used
$94.55
1
CABLE, REMOTE CONTROL (24') (LOW FRICTION) (NOT AVAILABLE)
24924-ZY3-003No Longer Available
—
1
24925-ZY3-003Ships in 1 to 2 Daysqty 4 used
$103.36
1
24926-ZY3-003Ships in 1 to 2 Daysqty 4 used
$109.53
1
24927-ZY3-003Ships in 1 to 2 Daysqty 4 used
$115.72
1
CABLE, REMOTE CONTROL (28') (LOW FRICTION) (NOT AVAILABLE)
24928-ZY3-003No Longer Available
—
1
24929-ZW7-U01Ships in 1 to 2 Daysqty 4 used
$220.69$302.32
1
24929-ZY3-003Ships in 1 to 2 Daysqty 4 used
$128.09
1
24929-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$219.69$300.94
1
24930-ZW7-U01Ships in 1 to 2 Daysqty 4 used
$231.05$316.50
1
CABLE, REMOTE CONTROL (30') (LOW FRICTION) (NOT AVAILABLE)
24930-ZY3-003No Longer Available
—
1
24931-ZY3-003Ships in 1 to 2 Daysqty 4 used
$141.35
1
CABLE, REMOTE CONTROL (32') (LOW FRICTION) (NOT AVAILABLE)
24932-ZY3-003No Longer Available
—
1
24933-ZW7-U01Ships in 1 to 2 Daysqty 4 used
$282.33$386.76
1
CABLE, REMOTE CONTROL (33') (LOW FRICTION)
24933-ZY3-003No Longer Available
—
1
24934-ZW7-U01Ships in 1 to 2 Daysqty 4 used
$284.66$389.94
1
CABLE, REMOTE CONTROL (34') (LOW FRICTION) (NOT AVAILABLE)
24934-ZY3-003No Longer Available
—
1
24935-ZY3-003Ships in 1 to 2 Daysqty 4 used
$169.60
1
24938-ZW7-U01Ships in 1 to 2 Daysqty 4 used
$329.84$451.84
1
24905-ZY3-003Ships in 1 to 2 Daysqty 4 used
$83.35$114.18
1
24906-ZY3-003Ships in 1 to 2 Daysqty 4 used
$86.32$118.24
1
24907-ZY3-003Ships in 1 to 2 Daysqty 4 used
$89.37$122.42
1
24908-ZY3-003Ships in 1 to 2 Daysqty 4 used
$92.43$126.62
1
24909-ZY3-003Ships in 1 to 2 Daysqty 4 used
$99.76$136.66
1
24917-ZW7-U01Ships in 1 to 2 Daysqty 4 used
$145.49$199.30
1
24917-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$131.44$180.06
1
24926-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$248.36$340.22
Diagram

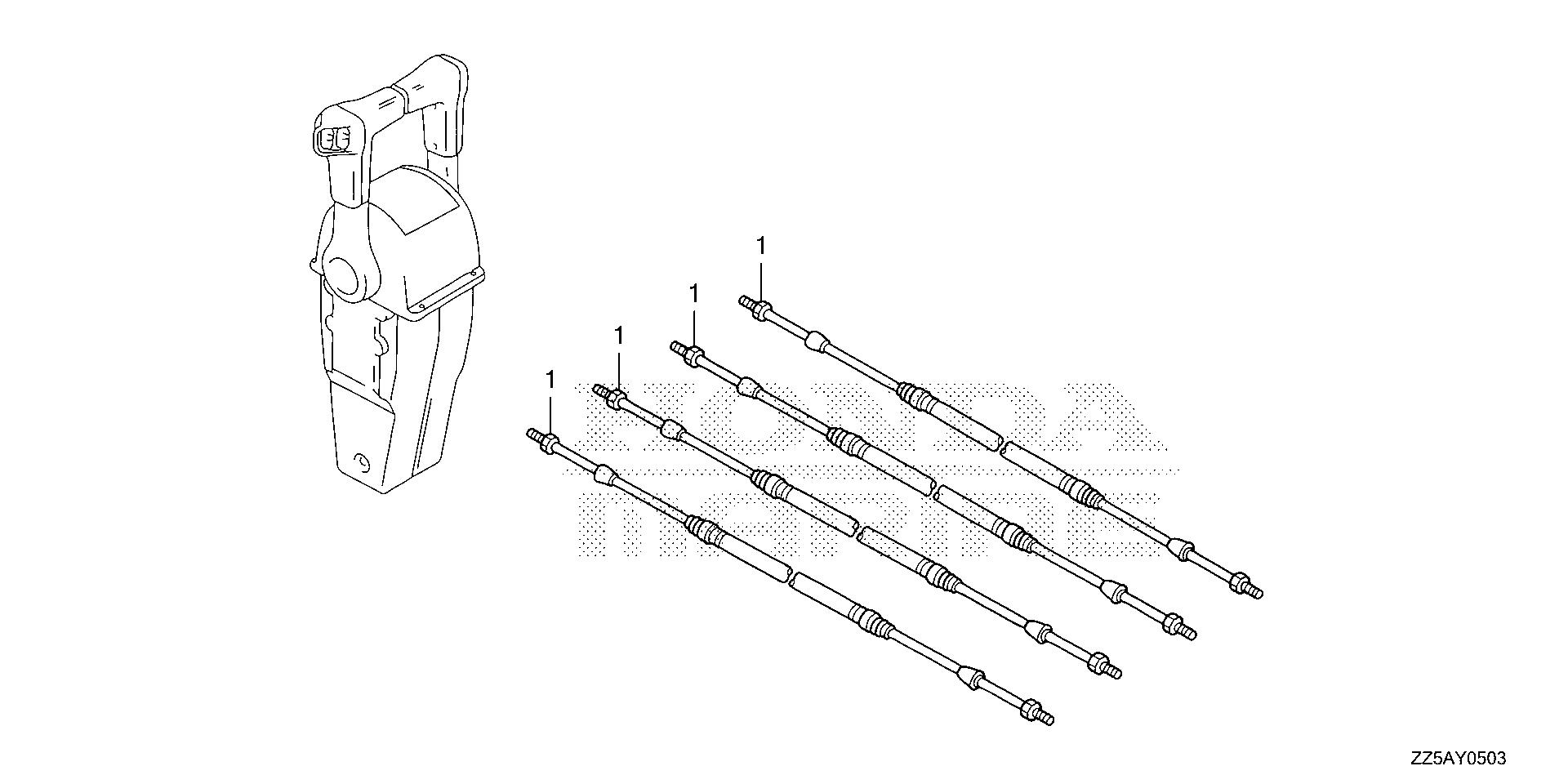

CABLE (DUAL) (NHK MEC)

BF50 BF50DK2 cable (dual) (nhk mec) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ5AY0503
Fits all 2 submodels of this generation.

Parts in this assembly

46 parts
1
24911-ZW7-U01Ships in 1 to 2 Daysqty 4 used
$113.43$155.38
1
24912-ZW7-U01Ships in 1 to 2 Daysqty 4 used
$122.73$168.12
1
24917-ZW7-U01Ships in 1 to 2 Daysqty 4 used
$145.49$199.30
1
24929-ZW7-U01Ships in 1 to 2 Daysqty 4 used
$220.69$302.32
1
24930-ZW7-U01Ships in 1 to 2 Daysqty 4 used
$231.05$316.50
1
24933-ZW7-U01Ships in 1 to 2 Daysqty 4 used
$282.33$386.76
1
24934-ZW7-U01Ships in 1 to 2 Daysqty 4 used
$284.66$389.94
1
24936-ZW7-U01Ships in 1 to 2 Daysreplaced by 24930-ZY6-A01
$233.63$320.04
1
24937-ZW7-U01Ships in 1 to 2 Daysqty 4 used
$314.16$430.36
1
24938-ZW7-U01Ships in 1 to 2 Daysqty 4 used
$329.84$451.84
1
24907-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$121.63$166.62
1
24908-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$96.59$132.32
1
24909-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$133.11$182.34
1
24910-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$102.89$140.94
1
24912-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$150.95$206.78
1
24913-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$156.28$214.08
1
24914-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$118.73$162.64
1
24915-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$122.65$168.02
1
24916-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$126.70$173.56
1
24917-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$131.44$180.06
1
24918-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$136.19$186.56
1
24919-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$140.89$193.00
1
24920-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$145.68$199.56
1
24921-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$153.56$210.36
1
24922-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$161.53$221.28
1
24925-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$185.22$253.72
1
24926-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$248.36$340.22
1
24929-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$219.69$300.94
1
24930-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$233.63$320.04
1
24905-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$83.35$114.18
1
24906-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$90.21$123.58
1
24911-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$145.49$199.30
1
24923-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$162.10$222.06
1
24924-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$164.70$225.62
1
24927-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$282.33$386.76
1
24928-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$202.94$278.00
1
24931-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$242.46$332.14
1
24932-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$254.51$348.64
1
24933-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$258.84$354.58
1
24934-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$270.60$370.68
1
24935-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$282.39$386.84
1
24936-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$297.10$406.98
1
24937-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$321.17$439.96
1
24938-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$326.54$447.32
1
24939-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$351.47$481.46
1
24940-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$355.90$487.54
Diagram

CABLE (SINGLE) (HI-LEX)

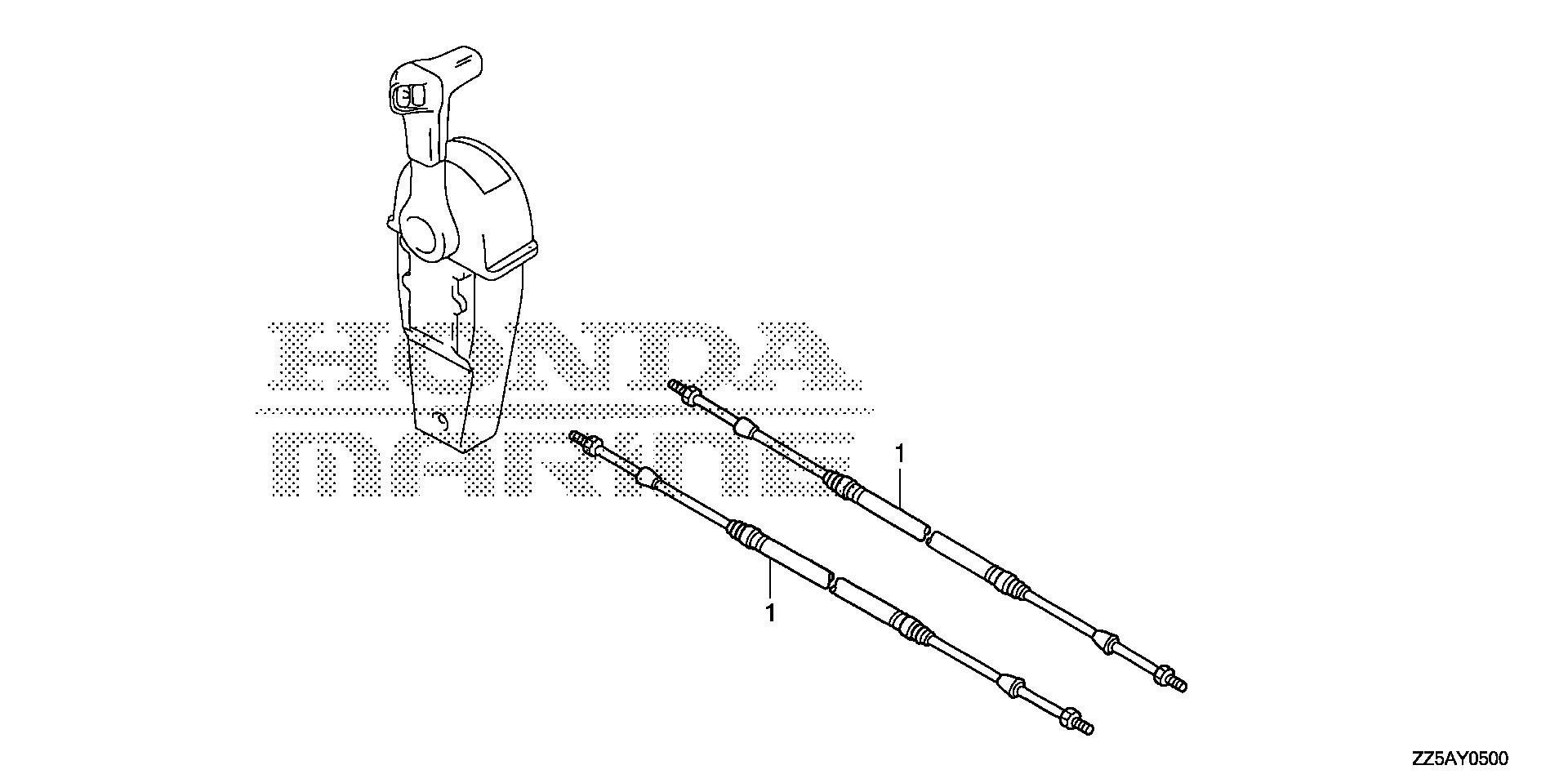

BF50 BF50DK2 cable (single) (hi-lex) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ5AY0500
Fits all 2 submodels of this generation.

Parts in this assembly

48 parts
1
24918-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$136.19$186.56
1
24920-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$145.68$199.56
1
24907-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$121.63$166.62
1
24909-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$133.11$182.34
1
24910-ZY3-003Ships in 1 to 2 Daysqty 2 used
$60.42
1
24910-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$102.89$140.94
1
24911-ZY3-003Ships in 1 to 2 Daysqty 2 used
$58.54
1
24912-ZW7-U01Ships in 1 to 2 Daysqty 2 used
$122.73$168.12
1
24912-ZY3-003Ships in 1 to 2 Daysqty 2 used
$64.99
1
24913-ZY3-003Ships in 1 to 2 Daysqty 2 used
$64.06
1
24913-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$156.28$214.08
1
24914-ZY3-003Ships in 1 to 2 Daysqty 2 used
$66.26
1
24915-ZY3-003Ships in 1 to 2 Daysqty 2 used
$63.91
1
CABLE, REMOTE CONTROL (16') (LOW FRICTION) (NOT AVAILABLE)
24916-ZY3-003No Longer Available
—
1
24917-ZY3-003Ships in 1 to 2 Daysqty 2 used
$73.32
1
CABLE, REMOTE CONTROL (18') (LOW FRICTION) (NOT AVAILABLE)
24918-ZY3-003No Longer Available
—
1
24919-ZY3-003Ships in 1 to 2 Daysqty 2 used
$78.63
1
CABLE, REMOTE CONTROL (20') (LOW FRICTION) (NOT AVAILABLE)
24920-ZY3-003No Longer Available
—
1
24921-ZY3-003Ships in 1 to 2 Daysqty 2 used
$85.70
1
24921-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$153.56$210.36
1
CABLE, REMOTE CONTROL (22') (LOW FRICTION) (NOT AVAILABLE)
24922-ZY3-003No Longer Available
—
1
24923-ZY3-003Ships in 1 to 2 Daysqty 2 used
$94.55
1
CABLE, REMOTE CONTROL (24') (LOW FRICTION) (NOT AVAILABLE)
24924-ZY3-003No Longer Available
—
1
24925-ZY3-003Ships in 1 to 2 Daysqty 2 used
$103.36
1
24926-ZY3-003Ships in 1 to 2 Daysqty 2 used
$109.53
1
24927-ZY3-003Ships in 1 to 2 Daysqty 2 used
$115.72
1
CABLE, REMOTE CONTROL (28') (LOW FRICTION) (NOT AVAILABLE)
24928-ZY3-003No Longer Available
—
1
24929-ZW7-U01Ships in 1 to 2 Daysqty 2 used
$220.69$302.32
1
24929-ZY3-003Ships in 1 to 2 Daysqty 2 used
$128.09
1
24929-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$219.69$300.94
1
24930-ZW7-U01Ships in 1 to 2 Daysqty 2 used
$231.05$316.50
1
CABLE, REMOTE CONTROL (30') (LOW FRICTION) (NOT AVAILABLE)
24930-ZY3-003No Longer Available
—
1
24931-ZY3-003Ships in 1 to 2 Daysqty 2 used
$141.35
1
CABLE, REMOTE CONTROL (32') (LOW FRICTION) (NOT AVAILABLE)
24932-ZY3-003No Longer Available
—
1
24933-ZW7-U01Ships in 1 to 2 Daysqty 2 used
$282.33$386.76
1
CABLE, REMOTE CONTROL (33') (LOW FRICTION)
24933-ZY3-003No Longer Available
—
1
24934-ZW7-U01Ships in 1 to 2 Daysqty 2 used
$284.66$389.94
1
CABLE, REMOTE CONTROL (34') (LOW FRICTION) (NOT AVAILABLE)
24934-ZY3-003No Longer Available
—
1
24935-ZY3-003Ships in 1 to 2 Daysqty 2 used
$169.60
1
24938-ZW7-U01Ships in 1 to 2 Daysqty 2 used
$329.84$451.84
1
24905-ZY3-003Ships in 1 to 2 Daysqty 2 used
$83.35$114.18
1
24906-ZY3-003Ships in 1 to 2 Daysqty 2 used
$86.32$118.24
1
24907-ZY3-003Ships in 1 to 2 Daysqty 2 used
$89.37$122.42
1
24908-ZY3-003Ships in 1 to 2 Daysqty 2 used
$92.43$126.62
1
24909-ZY3-003Ships in 1 to 2 Daysqty 2 used
$99.76$136.66
1
24917-ZW7-U01Ships in 1 to 2 Daysqty 2 used
$145.49$199.30
1
24917-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$131.44$180.06
1
24926-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$248.36$340.22

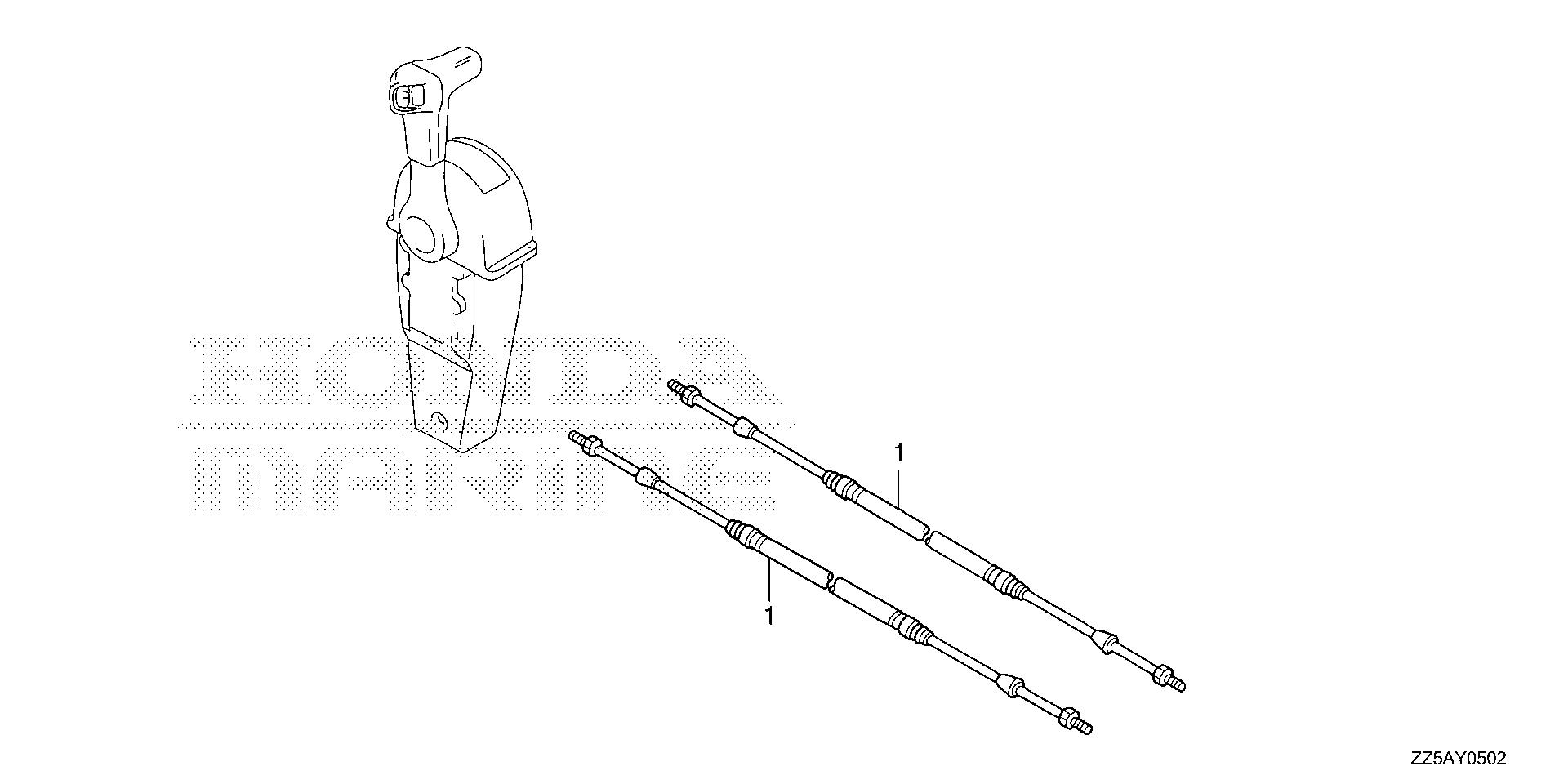

Diagram

CABLE (SINGLE) (NHK MEC)

BF50 BF50DK2 cable (single) (nhk mec) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ5AY0502
Fits all 2 submodels of this generation.

Parts in this assembly

46 parts
1
24911-ZW7-U01Ships in 1 to 2 Daysqty 2 used
$113.43$155.38
1
24912-ZW7-U01Ships in 1 to 2 Daysqty 2 used
$122.73$168.12
1
24917-ZW7-U01Ships in 1 to 2 Daysqty 2 used
$145.49$199.30
1
24929-ZW7-U01Ships in 1 to 2 Daysqty 2 used
$220.69$302.32
1
24930-ZW7-U01Ships in 1 to 2 Daysqty 2 used
$231.05$316.50
1
24933-ZW7-U01Ships in 1 to 2 Daysqty 2 used
$282.33$386.76
1
24934-ZW7-U01Ships in 1 to 2 Daysqty 2 used
$284.66$389.94
1
24936-ZW7-U01Ships in 1 to 2 Daysreplaced by 24930-ZY6-A01
$233.63$320.04
1
24937-ZW7-U01Ships in 1 to 2 Daysqty 2 used
$314.16$430.36
1
24938-ZW7-U01Ships in 1 to 2 Daysqty 2 used
$329.84$451.84
1
24907-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$121.63$166.62
1
24908-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$96.59$132.32
1
24909-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$133.11$182.34
1
24910-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$102.89$140.94
1
24912-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$150.95$206.78
1
24913-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$156.28$214.08
1
24914-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$118.73$162.64
1
24915-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$122.65$168.02
1
24916-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$126.70$173.56
1
24917-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$131.44$180.06
1
24918-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$136.19$186.56
1
24919-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$140.89$193.00
1
24920-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$145.68$199.56
1
24921-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$153.56$210.36
1
24922-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$161.53$221.28
1
24925-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$185.22$253.72
1
24926-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$248.36$340.22
1
24929-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$219.69$300.94
1
24930-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$233.63$320.04
1
24905-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$83.35$114.18
1
24906-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$90.21$123.58
1
24911-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$145.49$199.30
1
24923-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$162.10$222.06
1
24924-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$164.70$225.62
1
24927-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$282.33$386.76
1
24928-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$202.94$278.00
1
24931-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$242.46$332.14
1
24932-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$254.51$348.64
1
24933-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$258.84$354.58
1
24934-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$270.60$370.68
1
24935-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$282.39$386.84
1
24936-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$297.10$406.98
1
24937-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$321.17$439.96
1
24938-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$326.54$447.32
1
24939-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$351.47$481.46
1
24940-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$355.90$487.54
Diagram

CAMSHAFT

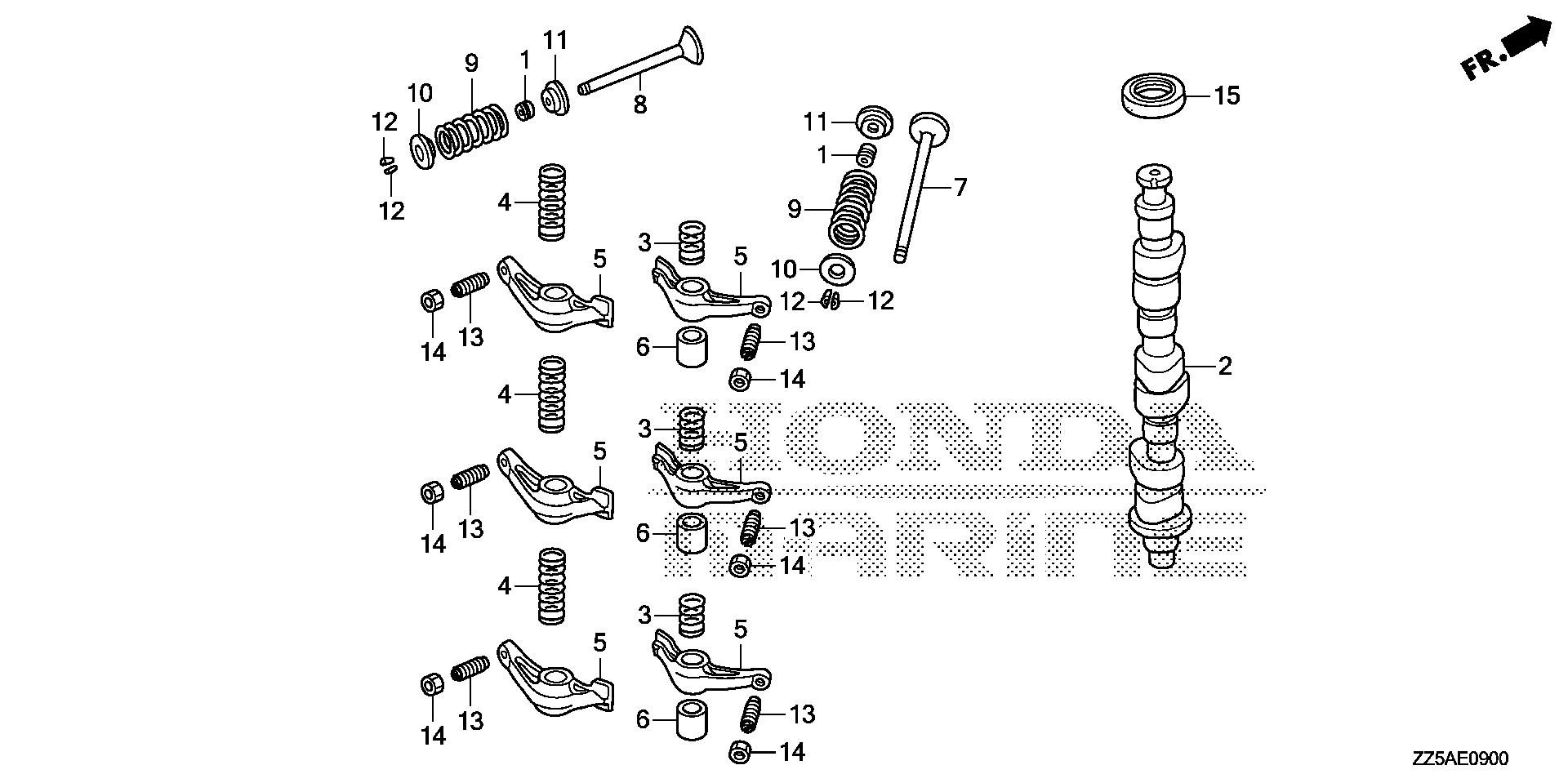

BF50 BF50DK2 camshaft exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ5AE0900
Fits all 2 submodels of this generation.

Parts in this assembly

15 parts
1
12209-422-005Ships in 1 to 2 Daysqty 6 used
$14.18$20.00
2
14111-ZZ5-000Ships in 1 to 2 Days
$285.30$402.50
3
14481-ZV5-000Ships in 1 to 2 Daysqty 3 used
$2.80$3.96
4
14482-ZV5-000Ships in 1 to 2 Daysqty 3 used
$3.23$4.56
5
14621-ZV5-000Ships in 1 to 2 Daysqty 6 used
$34.27$48.36
6
14636-ZV5-000Ships in 1 to 2 Daysqty 3 used
$3.88$5.48
7
14711-ZW4-000Ships in 1 to 2 Daysqty 3 used
$29.38$41.44
8
14721-ZV5-000Ships in 1 to 2 Daysqty 3 used
$45.73$64.52
9
14751-ZW4-000Ships in 1 to 2 Daysqty 6 used
$4.83$6.82
10
14765-ZV5-000Ships in 1 to 2 Daysqty 6 used
$8.19$11.56
11
14775-ZV5-000Ships in 1 to 2 Daysqty 6 used
$3.23$4.56
12
14781-MB4-000Ships in 1 to 2 Daysqty 12 used
$3.21$4.54
13
90012-KK9-960Ships in 1 to 2 Daysqty 6 used
$4.67$6.60
14
90206-ML7-000Ships in 1 to 2 Daysqty 6 used
$2.10$2.96
15
91201-ZV5-003Ships in 1 to 2 Days
$7.91$11.16

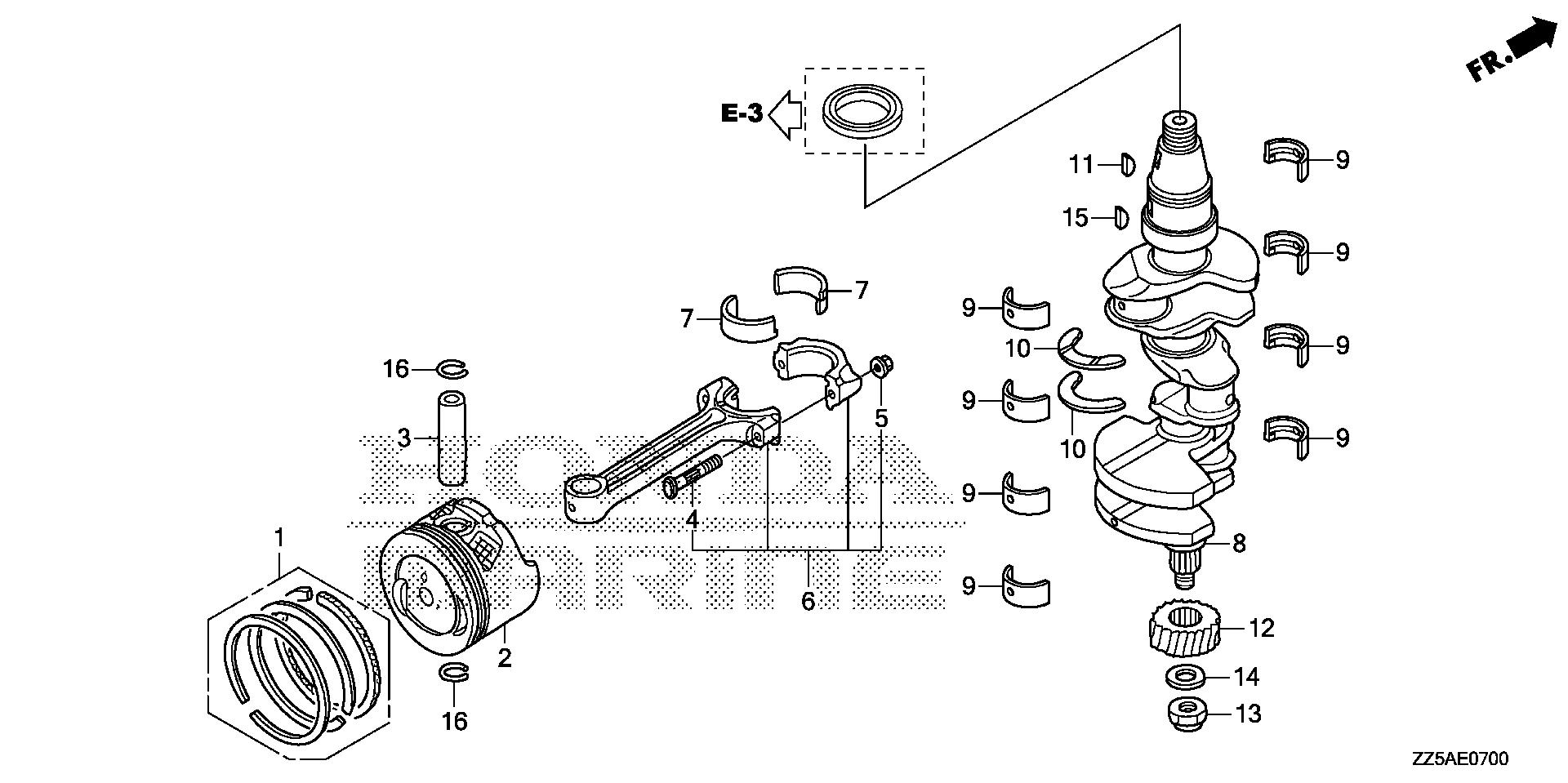

Diagram

CRANKSHAFT - PISTON

BF50 BF50DK2 crankshaft - piston exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ5AE0700
Fits all 2 submodels of this generation.

Parts in this assembly

33 parts
1
RING SET, PISTON (0.25) (NOT AVAILABLE)
13012-ZV5-010No Longer Available
—
1
13011-ZV5-010Ships in 1 to 2 Daysqty 3 used
$31.36$44.26
2
PISTON (0.25) (NOT AVAILABLE)
13102-ZV5-010No Longer Available
—
2
13101-ZV5-010Ships in 1 to 2 Daysqty 3 used
$55.06$77.68
3
13111-PWA-000Ships in 1 to 2 Daysqty 3 used
$26.44$36.22
4
13204-PE1-003Ships in 1 to 2 Daysqty 6 used
$8.58$12.12
5
13205-634-010Ships in 1 to 2 Daysqty 6 used
$7.21$10.18
6
13210-ZZ5-000Ships in 1 to 2 Daysqty 3 used
$103.76$146.40
7
13211-ZV5-003Ships in 1 to 2 Daysqty 6 used
$18.56$26.18
7
13212-ZV5-003Ships in 1 to 2 Daysqty 6 used
$19.40$27.38
7
13213-ZV5-003Ships in 1 to 2 Daysqty 6 used
$19.40$27.38
7
13214-ZV5-003Ships in 1 to 2 Daysqty 6 used
$19.40$27.38
7
13215-ZV5-003Ships in 1 to 2 Daysqty 6 used
$19.40$27.38
7
13216-ZV5-003Ships in 1 to 2 Daysqty 6 used
$19.40$27.38
7
13217-ZV5-003Ships in 1 to 2 Daysqty 6 used
$19.40$27.38
8
13311-ZZ5-000Ships in 1 to 2 Days
$675.08$695.30
9
13322-ZV5-003Ships in 1 to 2 Daysqty 8 used
$13.43$18.96
9
13323-ZV5-003Ships in 1 to 2 Daysqty 8 used
$14.05$19.82
9
13324-ZV5-003Ships in 1 to 2 Daysqty 8 used
$13.43$18.96
9
13325-ZV5-003Ships in 1 to 2 Daysqty 8 used
$13.43$18.96
9
13326-ZV5-003Ships in 1 to 2 Daysqty 8 used
$13.43$18.96
9
13327-ZV5-003Ships in 1 to 2 Daysqty 8 used
$13.43$18.96
9
13328-ZV5-003Ships in 1 to 2 Daysqty 8 used
$14.05$19.82
10
13331-ZZ5-003Ships in 1 to 2 Daysqty 2 used
$9.62$13.58
11
13331-357-000Ships in 1 to 2 Days
$3.64$5.14
11
13331-Z8B-900Ships in 1 to 2 Days
$4.44$6.08
12
23411-ZV5-000Ships in 1 to 2 Days
$73.48$103.68
12
23412-ZV5-000Ships in 1 to 2 Days
$73.48$103.68
12
23413-ZV5-000Ships in 1 to 2 Days
$73.48$103.68
13
90202-PB6-010Ships in 1 to 2 Days
$21.46$30.28
14
90473-ZV5-000Ships in 1 to 2 Days
$5.75$8.12
15
94401-25140Ships in 1 to 2 Days
$1.74$2.38
16
94601-18000Ships in 1 to 2 Daysqty 6 used
$0.93$1.28

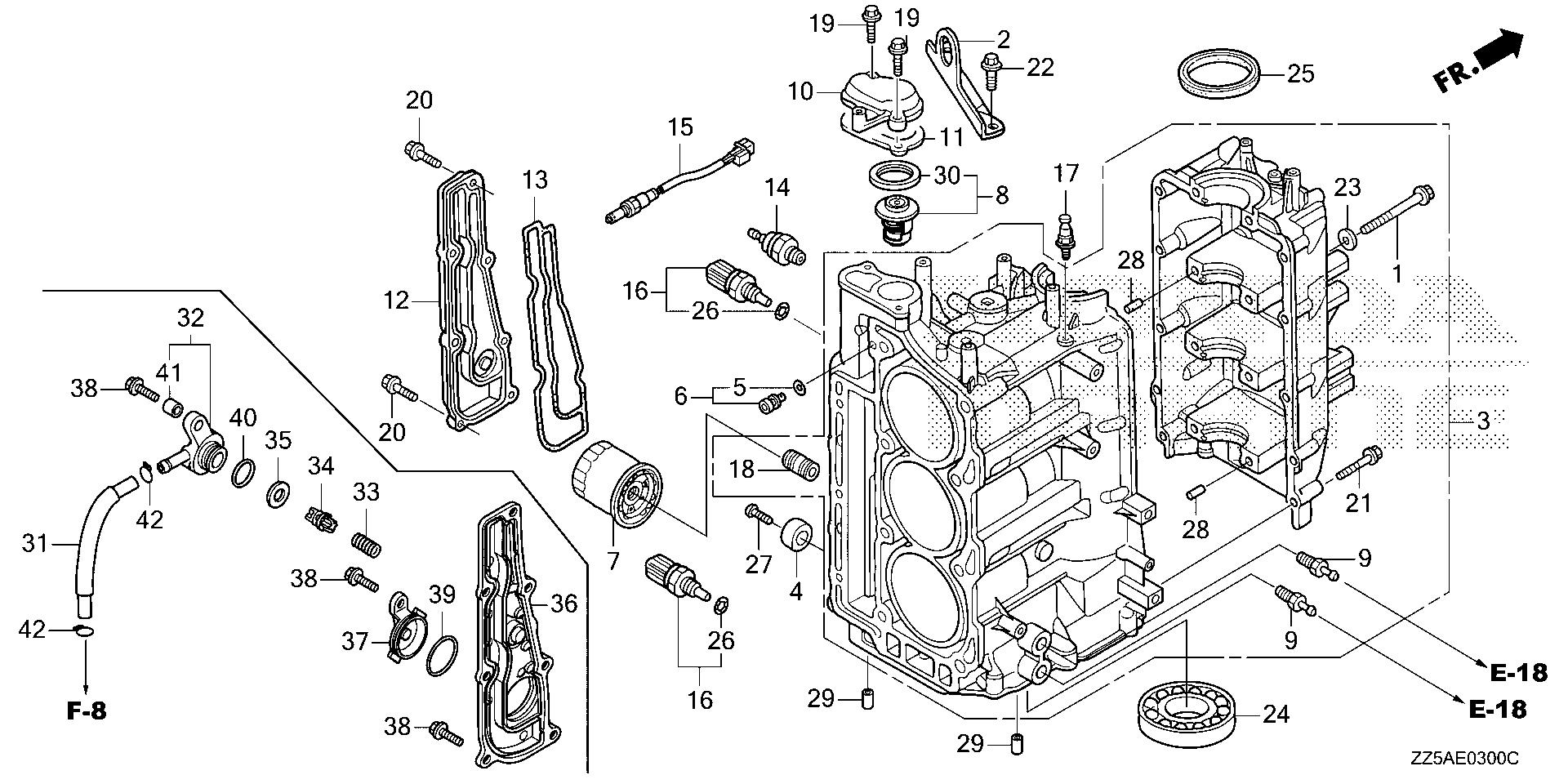

Diagram

CYLINDER BLOCK

BF50 BF50DK2 cylinder block exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ5AE0300C
Fits all 2 submodels of this generation.

Parts in this assembly

51 parts
1
11115-ZZ5-M02Ships in 1 to 2 Daysqty 8 used
$2.64$3.72
2
11911-ZV5-020Ships in 1 to 2 Days
$7.29$10.28
3
12000-ZZ5-415ZAShips in 1 to 2 Days
$1,576.34$1,623.48
3
12000-ZZ5-406ZAShips in 1 to 2 Days
$1,730.01$1,782.13
3
12000-ZZ5-416ZAShips in 1 to 2 Days
$1,697.26$1,748.33
3
12000-ZZ5-425ZAShips in 1 to 2 Days
$1,820.13$1,874.47
4
12155-ZV5-000Ships in 1 to 2 Daysreplaced by 12155-ZV5-010
$9.53$13.06
4
12155-ZV5-010Ships in 1 to 2 Days
$9.53$13.06
5
15142-PE0-000Ships in 1 to 2 Days
$2.67$3.66
6
15150-ZV5-000Ships in 1 to 2 Days
$7.50$10.58
7
15400-ZZ3-003In Stock
$16.47$22.56
↳
Sierra alternative ·
18-7913In Stock save $6.31
$10.16
8
19300-ZW9-003In Stock
$43.00$58.90
↳
Sierra alternative ·
18-3628-1In Stock save $0.08
$42.92
9
19312-ZW4-H00Ships in 1 to 2 Daysqty 2 used
$9.27$13.08
10
19315-ZV5-010Ships in 1 to 2 Days
$25.78$36.38
11
19351-ZV5-000In Stock
$2.98$4.20
12
19361-ZV5-000Ships in 1 to 2 Days
$46.76$65.98
13
19371-ZV5-000Ships in 1 to 2 Days
$12.38$17.46
14
35490-ZW5-003Ships in 1 to 2 Days
$30.30$42.74
15
35655-ZY3-C01Ships in 1 to 2 Days
$320.54$439.10
16
35673-ZW5-003Ships in 1 to 2 Daysqty 2 used
$19.18$26.28
17
90012-ZZ5-M02Ships in 1 to 2 Days
$3.72$5.10
18
90018-PN3-000Ships in 1 to 2 Days
$7.04$9.64
19
90018-ZW5-000Ships in 1 to 2 Daysqty 2 used
$1.64$2.24
19
90018-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.37$1.88
20
90030-ZY3-000Ships in 1 to 2 Daysqty 7 used
$0.92$1.26
21
90145-ZW4-000Ships in 1 to 2 Daysreplaced by 90045-ZZ5-M01
$1.71$2.42
21
90045-ZZ5-M01Ships in 1 to 2 Daysqty 10 used
$1.71$2.42
22
90051-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.36$1.86
22
90150-ZW4-000Ships in 1 to 2 Daysreplaced by 90051-ZZ5-M01
$1.36$1.86
23
90405-ZZ5-M01Ships in 1 to 2 Daysqty 8 used
$1.96$2.68
24
91003-ZV5-003Ships in 1 to 2 Days
$13.90$19.60
25
91202-ZV5-005Ships in 1 to 2 Days
$11.52$16.26
26
91307-PK2-005Ships in 1 to 2 Daysqty 2 used
$2.35$3.22
27
93500-06018-4JShips in 1 to 2 Days
$1.49$2.10
27
90004-ZX2-000Ships in 1 to 2 Days
$1.88$2.58
28
94301-10120Ships in 1 to 2 Daysqty 8 used
$3.01$4.12
29
94303-06100Ships in 1 to 2 Daysqty 2 used
$2.74$3.76
30
19303-ZW9-003In Stock
$5.30$7.26
31
19266-ZZ5-M00Ships in 1 to 2 Days
$3.20$4.52
32
19277-ZZ5-M00Ships in 1 to 2 Days
$11.65$16.44
33
19279-ZW9-010Ships in 1 to 2 Days
$1.58$2.16
34
19291-ZW9-000Ships in 1 to 2 Days
$5.90$8.08
35
19297-ZW9-000Ships in 1 to 2 Daysreplaced by 19297-ZW9-010
$1.53$2.10
35
19297-ZW9-010Ships in 1 to 2 Days
$1.53$2.10
36
19361-ZZ5-M01Ships in 1 to 2 Days
$38.98$55.00
37
19381-ZZ5-M00Ships in 1 to 2 Days
$22.82$31.26
38
90030-ZZ5-M01Ships in 1 to 2 Daysqty 9 used
$1.31$1.80
39
91302-ZZ5-M01Ships in 1 to 2 Days
$2.38$3.26
40
91303-800-000Ships in 1 to 2 Days
$2.04$2.80
41
91503-ZY1-300Ships in 1 to 2 Days
$1.96$2.76
42
95002-02129Ships in 1 to 2 Daysqty 2 used
$1.30$1.78
Diagram

CYLINDER HEAD

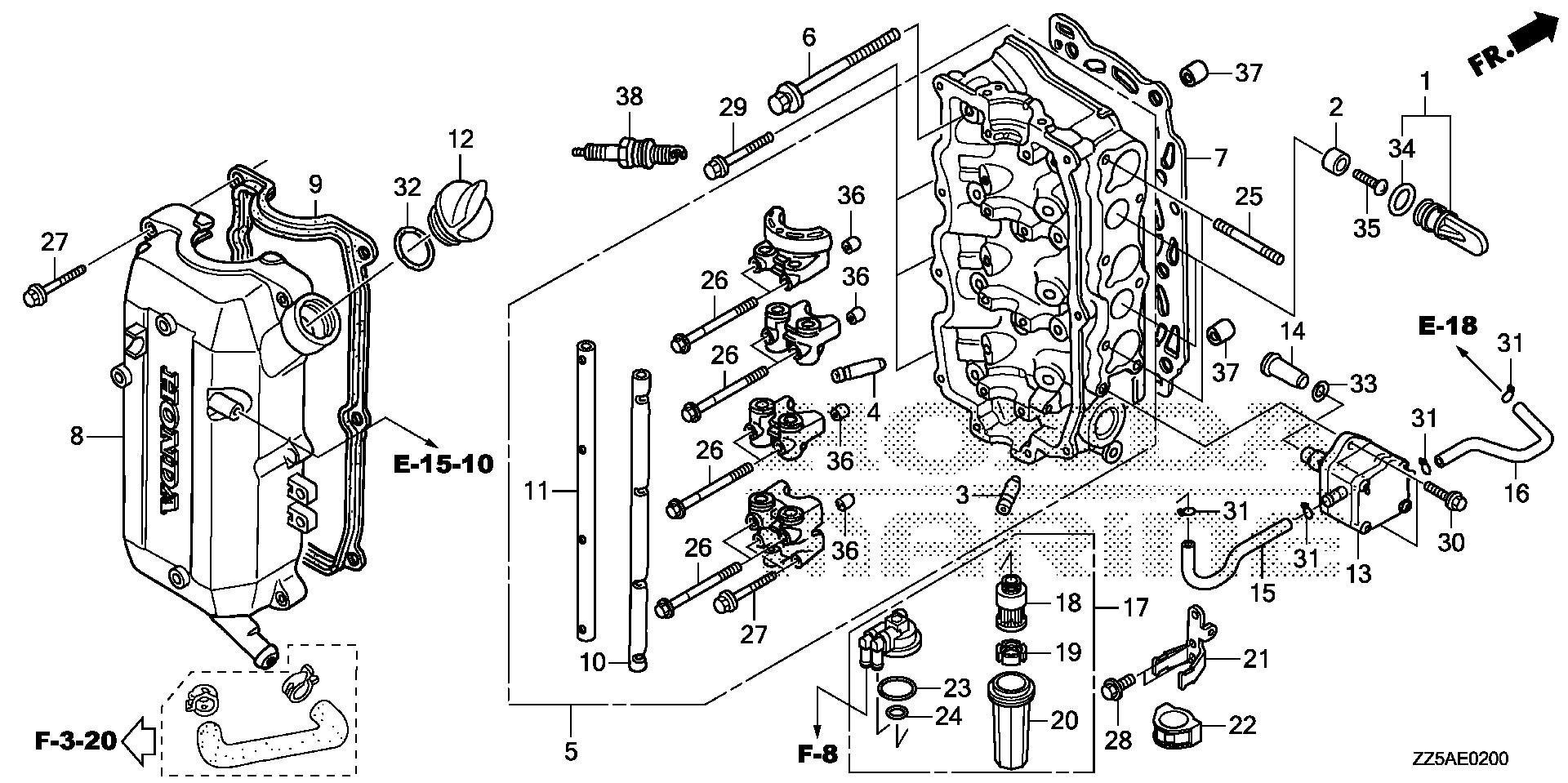

BF50 BF50DK2 cylinder head exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ5AE0200
Fits all 2 submodels of this generation.

Parts in this assembly

45 parts
1
12150-ZZ5-020Ships in 1 to 2 Daysqty 2 used
$4.26$6.02
2
06120-ZZ5-010Ships in 1 to 2 Daysqty 2 used
$8.73$12.32
2
12155-ZZ5-000Ships in 1 to 2 Daysreplaced by 12155-ZZ5-010
$8.18$11.20
2
12155-ZZ5-010Ships in 1 to 2 Daysqty 2 used
$8.18$11.20
3
12204-ZZ5-305Ships in 1 to 2 Daysqty 3 used
$9.01$12.70
4
12205-ZV5-325Ships in 1 to 2 Daysqty 3 used
$12.53$17.68
5
12206-ZZ5-M01ZAShips in 1 to 2 Days
$870.68$896.92
6
12228-ZV5-004Ships in 1 to 2 Daysqty 8 used
$8.02$11.30
7
12251-ZW4-H01Ships in 1 to 2 Days
$34.81$49.10
8
12310-ZZ5-M01Ships in 1 to 2 Days
$124.44$175.58
9
12391-ZV5-010Ships in 1 to 2 Days
$19.33$27.28
10
14631-ZV5-000Ships in 1 to 2 Days
$41.25$58.20
11
14632-ZV5-000Ships in 1 to 2 Days
$41.25$58.20
12
15611-921-000Ships in 1 to 2 Days
$10.13$13.88
13
16700-ZZ5-003Ships in 1 to 2 Days
$119.71$168.90
14
16717-ZZ5-000Ships in 1 to 2 Days
$9.88$13.94
15
16861-ZZ5-A00Ships in 1 to 2 Days
$10.69$15.08
16
16871-ZZ5-A00Ships in 1 to 2 Days
$11.15$15.74
17
16900-ZZ5-003Ships in 1 to 2 Days
$61.96$84.88
18
16901-ZZ5-003In Stock
$13.11$17.96
19
16906-ZZ5-003Ships in 1 to 2 Days
$3.69$5.06
20
16912-ZZ5-003Ships in 1 to 2 Days
$9.07$12.42
21
16914-ZZ5-010Ships in 1 to 2 Days
$13.02$18.38
22
16915-ZZ5-000Ships in 1 to 2 Days
$6.73$9.50
23
16918-ZZ5-003Ships in 1 to 2 Days
$2.38$3.26
24
16919-ZZ5-003Ships in 1 to 2 Days
$2.91$3.98
25
90006-ZV5-010Ships in 1 to 2 Daysreplaced by 90006-ZZ5-M01
$1.37$1.94
25
90006-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.37$1.94
25
90006-ZZ5-M00Ships in 1 to 2 Daysqty 2 used
$1.42$2.00
26
90018-ZV5-000Ships in 1 to 2 Daysqty 8 used
$2.60$3.66
27
90019-ZW9-000Ships in 1 to 2 Daysreplaced by 90019-ZZ5-M01
$2.25$3.08
27
90019-ZZ5-M01In Stockqty 9 used
$2.25$3.08
28
90021-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.14$1.56
29
90055-ZZ5-M01Ships in 1 to 2 Daysqty 3 used
$1.87$2.56
30
90068-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.31$1.80
31
90604-ZV0-000Ships in 1 to 2 Daysqty 4 used
$1.37$1.88
32
91301-805-000Ships in 1 to 2 Days
$3.65$5.00
33
91351-MG7-003Ships in 1 to 2 Days
$2.50$3.52
34
91310-ZZ5-003Ships in 1 to 2 Daysqty 2 used
$2.19$3.10
35
93500-05020-4JShips in 1 to 2 Daysqty 2 used
$0.86$1.18
35
90003-ZX2-000Ships in 1 to 2 Daysqty 2 used
$1.88$2.58
36
94301-08140Ships in 1 to 2 Daysqty 8 used
$2.74$3.76
37
94301-12160Ships in 1 to 2 Daysqty 2 used
$3.01$4.12
38
98069-57756Ships in 1 to 2 Daysqty 3 used
$5.39$7.38
38
98069-5777PShips in 1 to 2 Days
$4.15$5.68
Diagram

CYLINDER HEAD & CAMSHAFT ASSY.

Honda publishes no exploded diagram for this assembly. The parts list below is complete.
Ref numbers on the diagram match the badges belowZZ5AX0400
Fits all 2 submodels of this generation.

Parts in this assembly

2 parts
1
$1,120.40
1
$1,466.73$1,510.86

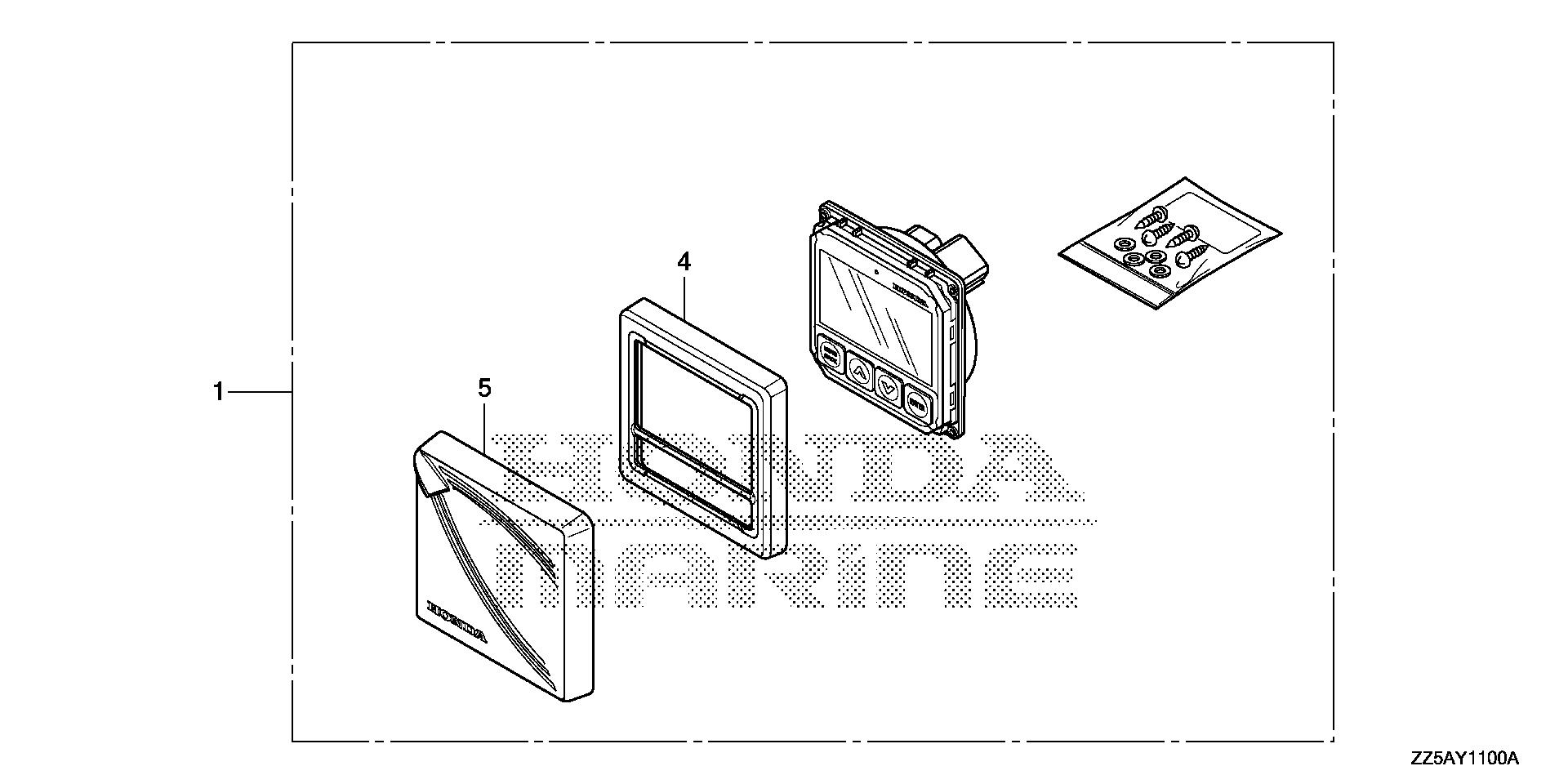

Diagram

DISPLAY KIT

BF50 BF50DK2 display kit exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ5AY1100A
Fits all 2 submodels of this generation.

Parts in this assembly

8 parts
1
06371-ZY6-000Ships in 1 to 2 Days
$1,350.19$1,849.58
1
06371-ZVP-000Ships in 1 to 2 Daysreplaced by 06371-ZVP-010
$599.95
1
06371-ZVP-010Ships in 1 to 2 Days
$883.78$1,210.66
1
06371-ZY6-040Ships in 1 to 2 Daysreplaced by 06371-ZVP-010
$779.52$1,067.84
4
BEZEL, DISPLAY
37106-ZY6-003No Longer Available
—
4
37106-ZY6-004Ships in 1 to 2 Days
$62.24$85.26
5
COVER, DISPLAY
37107-ZY6-003No Longer Available
—
5
37107-ZY6-004Ships in 1 to 2 Days
$69.48$95.18
Diagram

ELECTRONIC CONTROL UNIT

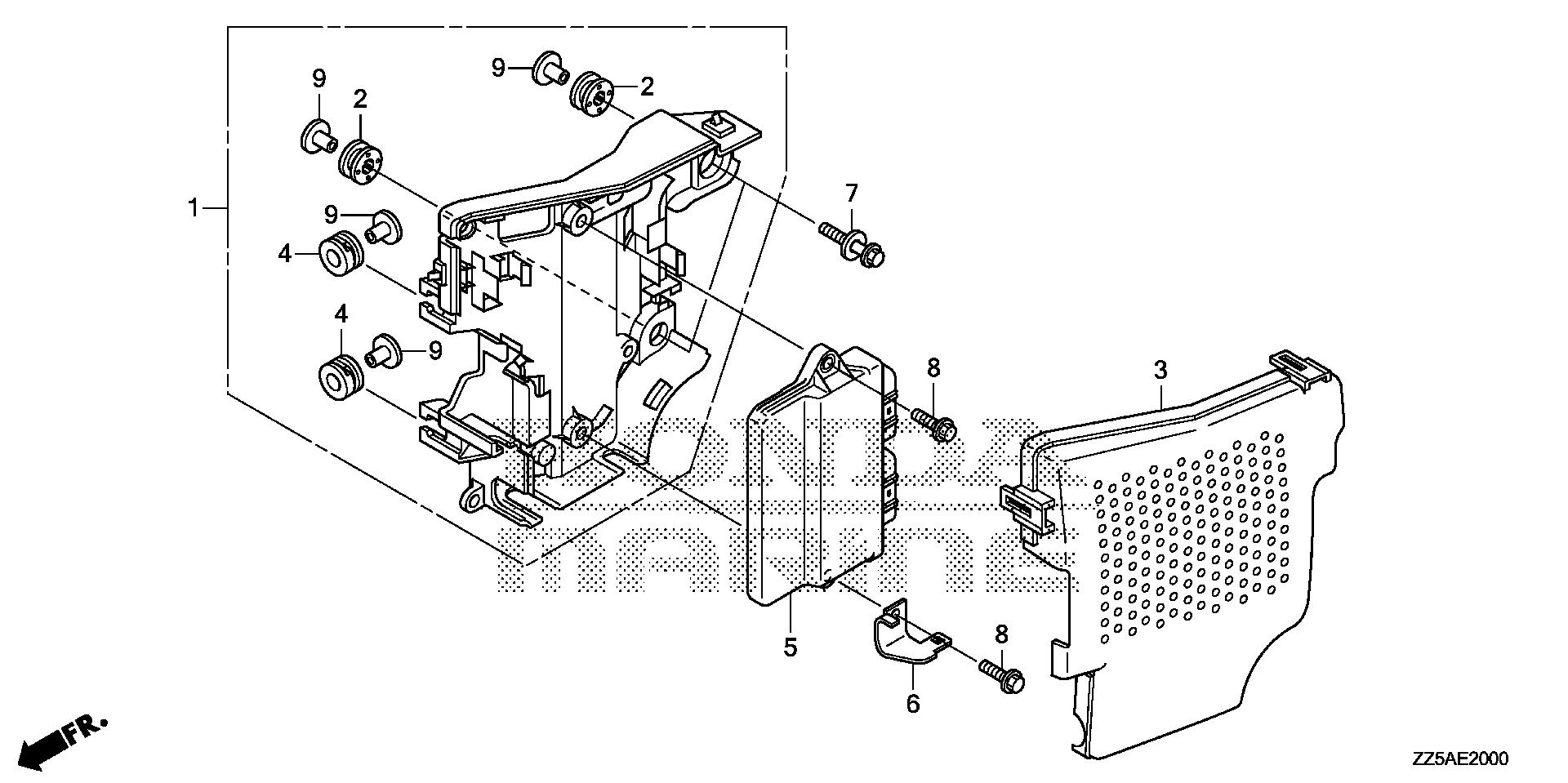

BF50 BF50DK2 electronic control unit exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ5AE2000
Fits all 2 submodels of this generation.

Parts in this assembly

20 parts
1
30410-ZZ5-000Ships in 1 to 2 Daysreplaced by 30410-ZZ5-010
$65.42$92.32
1
30410-ZZ5-010Ships in 1 to 2 Days
$65.42$92.32
2
30419-ZY9-003Ships in 1 to 2 Daysqty 2 used
$4.26$5.84
3
30421-ZZ5-010Ships in 1 to 2 Days
$32.31$45.58
4
30598-ZV5-000Ships in 1 to 2 Daysqty 2 used
$3.71$5.08
5
34750-ZZ4-053Ships in 1 to 2 Days
$1,019.12$1,396.06
5
34750-ZZ4-A02Ships in 1 to 2 Days
$690.96$975.02
5
34750-ZZ4-M02Ships in 1 to 2 Days
$995.52$1,404.60
5
34750-ZZ5-033Ships in 1 to 2 Daysreplaced by 34750-ZZ5-053
$1,198.35$1,641.58
5
34750-ZZ5-053Ships in 1 to 2 Days
$1,198.35$1,641.58
5
34750-ZZ5-A02Ships in 1 to 2 Days
$676.56$926.80
5
34750-ZZ5-M02Ships in 1 to 2 Days
$1,066.56$1,461.04
6
34754-ZZ5-000Ships in 1 to 2 Days
$7.50$10.58
6
34754-ZZ5-010Ships in 1 to 2 Days
$8.34$11.76
7
90003-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$2.55$3.50
7
90003-ZZ5-M00Ships in 1 to 2 Daysqty 2 used
$2.55$3.50
8
90018-ZW5-000Ships in 1 to 2 Daysqty 2 used
$1.64$2.24
8
90018-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.37$1.88
9
91553-ZV5-010Ships in 1 to 2 Daysqty 4 used
$2.67$3.66
9
91551-ZVL-010Ships in 1 to 2 Daysqty 4 used
$2.23$3.06
Diagram

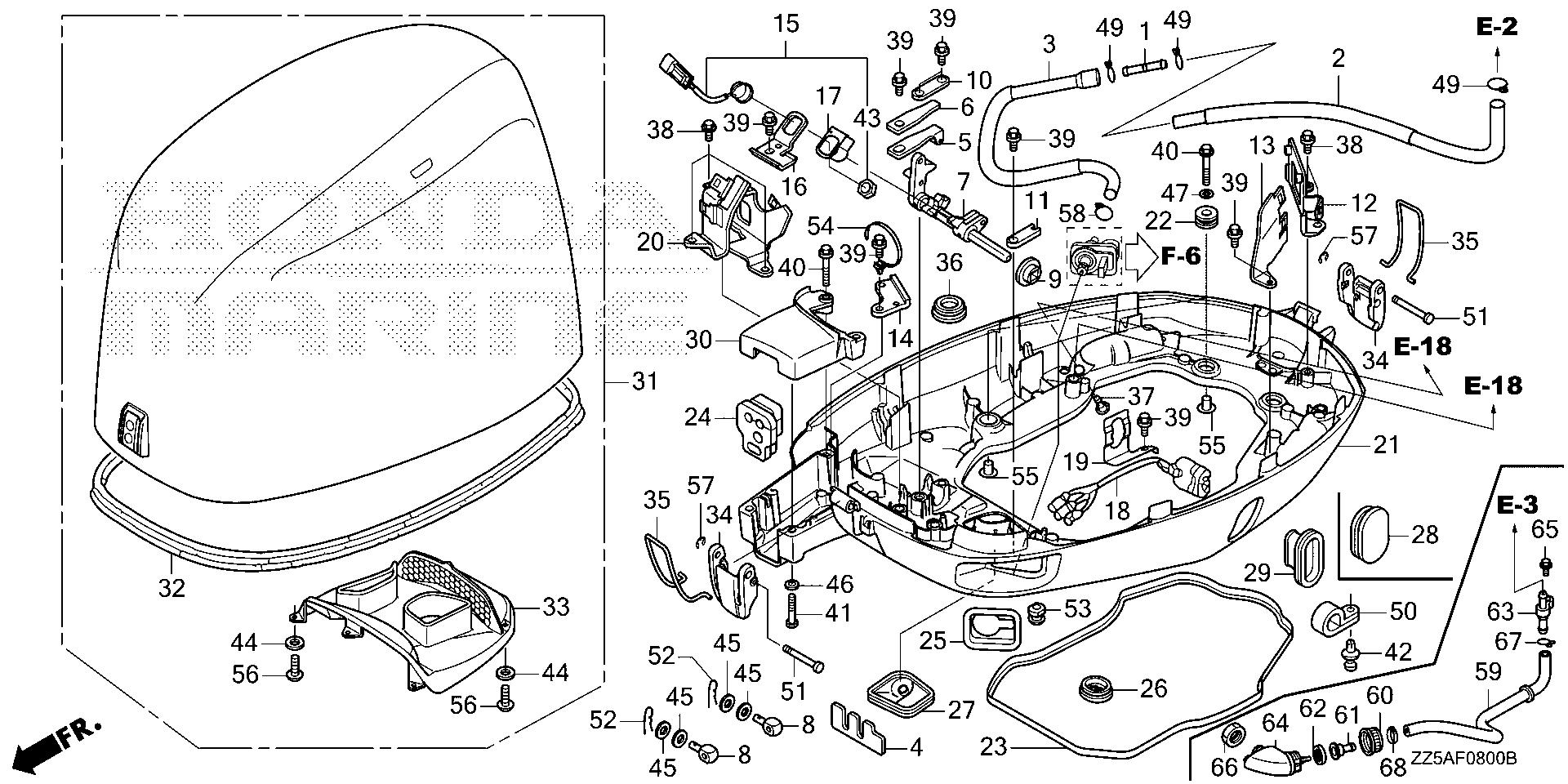

ENGINE COVER - UNDER CASE

BF50 BF50DK2 engine cover - under case exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ5AF0800B
Fits all 2 submodels of this generation.

Parts in this assembly

81 parts
1
16723-RMA-E00Ships in 1 to 2 Days
$7.81$10.70
2
16850-ZZ5-A00Ships in 1 to 2 Days
$24.85$35.06
3
16880-ZZ5-A00Ships in 1 to 2 Days
$32.27$45.54
4
17877-ZV5-000Ships in 1 to 2 Days
$7.88$11.12
5
24210-ZW4-H00Ships in 1 to 2 Days
$7.05$9.94
6
24221-ZV4-010Ships in 1 to 2 Days
$7.30$10.00
7
24610-ZZ5-000Ships in 1 to 2 Days
$35.05$49.46
8
24618-ZZ5-000Ships in 1 to 2 Daysqty 2 used
$22.98$32.42
9
24621-ZV4-010Ships in 1 to 2 Days
$4.34$6.12
10
24625-ZV5-010Ships in 1 to 2 Days
$2.25$3.18
11
24626-ZV5-010In Stock
$2.25$3.18
12
31753-ZZ5-000Ships in 1 to 2 Days
$43.20$60.96
13
32102-ZZ5-010Ships in 1 to 2 Days
$5.55$7.82
14
BRACKET, CABLE CLIP (NOT AVAILABLE)
32112-ZZ5-000No Longer Available
—
14
32112-ZZ5-010Ships in 1 to 2 Days
$5.31$7.50
15
35470-ZZ5-023Ships in 1 to 2 Days
$45.80$64.62
16
35616-ZV5-010Ships in 1 to 2 Days
$9.01$12.72
17
35618-ZW9-020Ships in 1 to 2 Days
$4.69$6.62
18
35640-ZZ5-003Ships in 1 to 2 Days
$62.08$87.58
19
35645-ZV5-020Ships in 1 to 2 Days
$9.18$12.96
20
38582-ZZ5-000Ships in 1 to 2 Days
$83.25$117.46
21
$270.86$371.04
21
$292.12$400.16
22
40102-ZV5-000Ships in 1 to 2 Daysqty 4 used
$2.64$3.62
23
40103-ZV5-000Ships in 1 to 2 Days
$24.34$34.34
24
40105-ZZ5-000Ships in 1 to 2 Days
$13.91$19.64
24
40105-ZZ5-610Ships in 1 to 2 Days
$13.49$19.04
25
40106-ZV5-000Ships in 1 to 2 Days
$7.88$11.12
26
40107-ZV5-000Ships in 1 to 2 Days
$5.88$8.30
26
40107-ZV5-820Ships in 1 to 2 Days
$6.06$8.54
27
40109-ZV5-000Ships in 1 to 2 Days
$14.06$19.84
28
40114-ZV5-010Ships in 1 to 2 Days
$6.75$9.52
29
40114-ZV5-821Ships in 1 to 2 Days
$10.23$14.44
30
$41.74$58.90
31
63100-ZZ5-010ZBShips in 1 to 2 Days
$741.65$1,046.56
31
63100-ZZ5-M00ZBShips in 1 to 2 Days
$618.81$873.18
32
63102-ZZ5-000Ships in 1 to 2 Days
$35.92$50.68
33
63144-ZZ5-300Ships in 1 to 2 Days
$47.80$67.44
34
63232-ZY9-010Ships in 1 to 2 Daysqty 2 used
$12.13$16.62
35
63237-ZY9-000Ships in 1 to 2 Daysqty 2 used
$7.97$10.92
36
63515-ZC0-700Ships in 1 to 2 Days
$5.80$7.94
37
82873-ZY9-000Ships in 1 to 2 Days
$4.38$6.00
38
90011-ZW9-000Ships in 1 to 2 Daysqty 5 used
$1.71$2.34
38
90011-ZZ5-M01Ships in 1 to 2 Daysqty 5 used
$1.18$1.62
39
90013-ZV0-010Ships in 1 to 2 Daysqty 8 used
$1.80$2.46
39
90020-ZZ5-M00Ships in 1 to 2 Daysqty 8 used
$1.12$1.58
39
90020-ZZ5-M01Ships in 1 to 2 Daysqty 8 used
$1.04$1.46
40
90016-ZZ5-M01Ships in 1 to 2 Daysqty 6 used
$1.42$1.94
40
90016-ZZ5-M00Ships in 1 to 2 Daysqty 6 used
$1.42$1.94
41
90114-881-000Ships in 1 to 2 Daysqty 2 used
$3.26$4.46
42
90127-ZV5-003Ships in 1 to 2 Days
$1.94$2.66
43
90302-ZV5-003Ships in 1 to 2 Days
$5.27$7.22
44
90452-GK4-600In Stockqty 6 used
$1.28$1.82
45
90504-921-010Ships in 1 to 2 Daysqty 4 used
$1.27$1.74
46
90506-ZV4-000Ships in 1 to 2 Daysqty 2 used
$2.45$3.36
47
90508-ZY3-000Ships in 1 to 2 Daysreplaced by 90508-ZZ5-M01
$2.00$2.74
47
90508-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$2.00$2.74
47
90508-ZZ5-M00Ships in 1 to 2 Daysqty 4 used
$2.00$2.74
49
90604-ZV0-000Ships in 1 to 2 Daysqty 3 used
$1.37$1.88
50
90628-750-000Ships in 1 to 2 Days
$2.12$2.90
51
90754-ZY9-000Ships in 1 to 2 Daysqty 2 used
$3.21$4.40
52
90765-ZW1-000Ships in 1 to 2 Daysqty 2 used
$2.10$2.96
53
90801-SB0-000Ships in 1 to 2 Days
$3.66$5.02
54
91540-STK-003Ships in 1 to 2 Days
$4.15$5.68
55
91553-ZV5-010Ships in 1 to 2 Daysqty 4 used
$2.67$3.66
55
91551-ZVL-010Ships in 1 to 2 Daysqty 4 used
$2.23$3.06
56
93500-05012-4JShips in 1 to 2 Daysqty 6 used
$1.37$1.94
57
94540-04029Ships in 1 to 2 Daysqty 2 used
$5.23$7.16
58
16163-GHB-610Ships in 1 to 2 Days
$1.66$2.28
59
19259-ZZ5-M00Ships in 1 to 2 Days
$6.56$9.26
59
19259-ZZ5-M01Ships in 1 to 2 Days
$6.26$8.84
60
19270-ZY3-000Ships in 1 to 2 Days
$13.02$17.84
61
19271-ZY3-000Ships in 1 to 2 Days
$8.85$12.12
62
19272-ZY3-000In Stock
$4.04$5.54
63
19287-ZZ5-M00Ships in 1 to 2 Days
$8.58$12.12
64
19289-ZZ5-M00Ships in 1 to 2 Days
$24.09$33.98
65
90020-ZZ5-M00Ships in 1 to 2 Days
$1.12$1.58
65
90020-ZZ5-M01Ships in 1 to 2 Days
$1.04$1.46
66
90302-921-000In Stock
$4.10$5.62
67
90651-ZY6-000Ships in 1 to 2 Days
$3.71$5.08
68
90601-ZZ5-003Ships in 1 to 2 Days
$3.81$5.38
Diagram

EXTENSION CASE

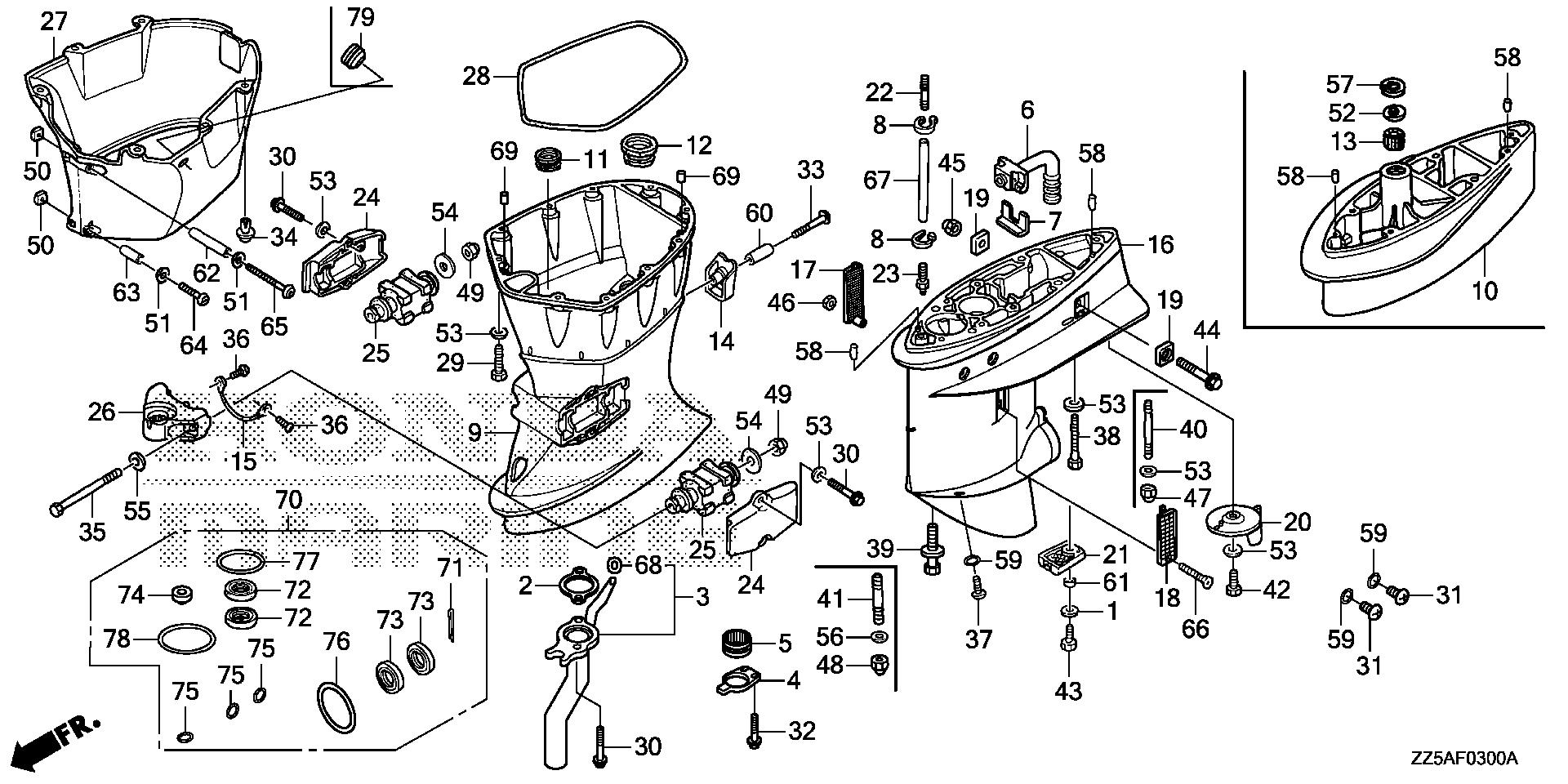

BF50 BF50DK2 extension case exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ5AF0300A
Fits all 2 submodels of this generation.

Parts in this assembly

80 parts
1
17936-921-000Ships in 1 to 2 Days
$1.20$1.64
2
18291-ZV5-010Ships in 1 to 2 Days
$2.92$4.12
3
06184-ZW4-000Ships in 1 to 2 Days
$100.74$142.12
4
18334-ZW4-000Ships in 1 to 2 Days
$32.30$45.58
5
18337-ZW4-000Ships in 1 to 2 Days
$7.05$9.96
6
19280-ZV5-000Ships in 1 to 2 Days
$23.59$33.30
7
19286-ZV5-000Ships in 1 to 2 Days
$4.83$6.82
8
32161-KM3-003Ships in 1 to 2 Daysqty 2 used
$3.34$4.58
9
$627.51$859.60
10
$605.04$828.82
11
40204-ZV5-000Ships in 1 to 2 Days
$3.15$4.32
12
40209-ZV5-000Ships in 1 to 2 Days
$8.26$11.66
13
40210-ZV5-A11Ships in 1 to 2 Days
$19.27$27.20
14
$13.91$19.64
15
40219-ZY3-023Ships in 1 to 2 Days
$9.05$12.40
16
41101-ZZ5-000ZBShips in 1 to 2 Days
$852.36
17
41104-ZZ0-010Ships in 1 to 2 Days
$7.45$10.50
18
41105-ZZ0-010Ships in 1 to 2 Days
$7.45$10.50
19
41106-ZW9-000In Stockqty 2 used
$8.72$12.30
20
41107-ZZ5-000ZCShips in 1 to 2 Days
$53.77
21
41108-ZV5-010Ships in 1 to 2 Days
$5.83$8.22
22
41171-ZV5-000Ships in 1 to 2 Days
$6.04$8.28
23
41172-ZV5-000Ships in 1 to 2 Days
$7.65$10.48
24
50111-ZV5-000ZBShips in 1 to 2 Daysqty 2 used
$70.26$99.12
25
50155-ZV5-000Ships in 1 to 2 Daysqty 2 used
$71.16$100.40
26
$134.26$189.42
27
63701-ZV5-010ZBShips in 1 to 2 Days
$176.27$248.70
27
63701-ZZ5-M00ZBShips in 1 to 2 Days
$151.45$213.70
28
63702-ZV5-000Ships in 1 to 2 Days
$8.26$11.66
29
90009-ZV5-000Ships in 1 to 2 Daysqty 10 used
$4.16$5.88
30
90101-HW1-671Ships in 1 to 2 Daysqty 6 used
$3.68$5.04
31
90101-ZW9-003In Stockqty 2 used
$2.80$3.84
32
90105-ZW9-000Ships in 1 to 2 Daysqty 2 used
$2.88$3.94
33
90110-ZV5-000Ships in 1 to 2 Days
$3.36$4.74
34
90117-ZV5-003Ships in 1 to 2 Daysqty 6 used
$2.38$3.36
35
90118-ZV5-000Ships in 1 to 2 Daysqty 2 used
$30.95$43.68
36
90119-ZV5-000Ships in 1 to 2 Daysqty 2 used
$1.65$2.26
37
90120-ZY3-000In Stock
$14.35$19.66
38
90122-ZV5-000Ships in 1 to 2 Days
$6.13$8.66
39
90123-ZY6-000Ships in 1 to 2 Daysqty 4 used
$6.45$8.84
40
90124-ZV5-A10Ships in 1 to 2 Days
$22.06$31.12
41
90125-ZV5-A10Ships in 1 to 2 Daysqty 4 used
$25.21$35.58
42
90126-ZV5-000Ships in 1 to 2 Days
$4.06$5.56
43
90127-ZV4-000In Stock
$2.12$2.90
44
90205-HW1-670Ships in 1 to 2 Days
$2.19$3.00
45
90205-ZY1-000Ships in 1 to 2 Days
$4.76$6.52
46
90302-ZV4-000Ships in 1 to 2 Days
$4.91$6.72
47
90305-ZV4-000Ships in 1 to 2 Days
$6.02$8.24
48
90306-ZV5-003In Stockqty 4 used
$3.40$4.66
49
90308-ZV5-003Ships in 1 to 2 Daysqty 2 used
$9.77$13.38
50
90311-ZV5-000Ships in 1 to 2 Daysqty 2 used
$7.65$10.80
51
90452-GK4-600In Stockqty 2 used
$1.28$1.82
52
90501-ZV5-A10Ships in 1 to 2 Days
$2.89$4.08
53
90507-ZV4-000Ships in 1 to 2 Daysqty 16 used
$2.20$3.02
54
90552-ZV5-000Ships in 1 to 2 Daysqty 2 used
$4.67$6.40
55
90559-ZV5-000Ships in 1 to 2 Daysqty 2 used
$2.95$4.04
56
90563-ZV5-000Ships in 1 to 2 Daysqty 4 used
$2.44$3.34
57
90651-ZV5-A10Ships in 1 to 2 Days
$8.29$11.70
58
90756-ZV5-000In Stockqty 2 used
$2.64$3.62
59
91301-ZW4-003In Stockqty 3 used
$0.99$1.36
60
91563-ZV5-000Ships in 1 to 2 Days
$6.23$8.80
61
91566-ZV5-000Ships in 1 to 2 Days
$4.83$6.82
62
91568-ZV5-000In Stock
$3.88$5.48
63
91569-ZV5-000In Stock
$4.83$6.82
64
93500-05030-4JShips in 1 to 2 Days
$2.18$3.06
65
93500-05045-4JShips in 1 to 2 Days
$2.50$3.52
66
93700-05040-4JShips in 1 to 2 Days
$1.36$1.86
67
95005-50003-30MNo Longer Available
$26.56$36.38
68
18338-ZZ5-000Ships in 1 to 2 Days
$3.53$4.98
69
90756-ZZ5-000Ships in 1 to 2 Daysqty 2 used
$2.80$3.96
70
06125-ZZ5-000Ships in 1 to 2 Days
$28.11$28.95
71
90758-ZV5-000Ships in 1 to 2 Days
$2.26$3.10
72
91251-ZV5-003Ships in 1 to 2 Daysqty 2 used
$7.20$10.16
73
91252-ZW4-003Ships in 1 to 2 Daysqty 2 used
$5.94$8.14
74
91253-ZW4-003Ships in 1 to 2 Days
$5.21$7.36
75
91301-ZW4-003In Stockqty 3 used
$0.99$1.36
76
91351-ZZ5-003Ships in 1 to 2 Days
$3.36$4.74
77
91351-740-003Ships in 1 to 2 Days
$2.25$3.18
78
91353-ZV5-003Ships in 1 to 2 Days
$2.96$4.18
79
19282-ZZ5-M00Ships in 1 to 2 Days
$4.50$6.34
Diagram

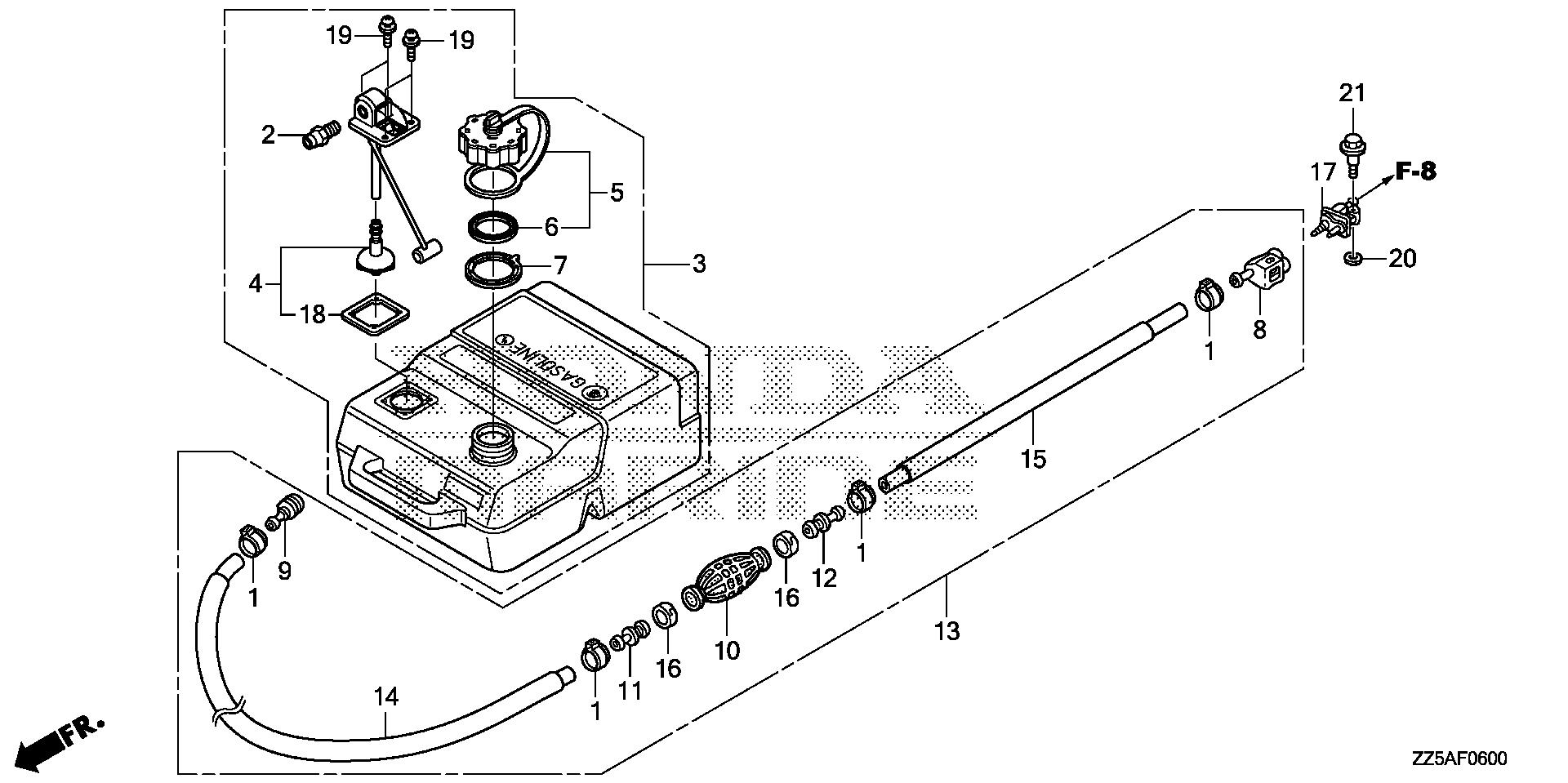

FUEL TANK

BF50 BF50DK2 fuel tank exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ5AF0600
Fits all 2 submodels of this generation.

Parts in this assembly

26 parts
1
16897-ZW9-003Ships in 1 to 2 Daysqty 4 used
$5.08$6.96
2
16977-ZV5-A00Ships in 1 to 2 Days
$14.60$20.00
↳
Sierra alternative ·
18-80400In Stock save $3.72
$10.88
3
17500-ZZ5-711Ships in 1 to 2 Days
$177.42$243.04
4
17580-ZZ5-003Ships in 1 to 2 Days
$30.38$41.62
5
17620-ZZ5-003Ships in 1 to 2 Days
$31.59$43.28
6
17624-ZZ5-003Ships in 1 to 2 Days
$2.86$3.92
7
17625-ZZ5-003Ships in 1 to 2 Days
$1.39$1.90
8
17650-ZW9-023Ships in 1 to 2 Days
$34.67$47.50
↳
Sierra alternative ·
18-80408In Stock save $20.37
$14.30
9
17660-ZW9-003Ships in 1 to 2 Days
$32.18$44.08
10
17661-ZW9-900Ships in 1 to 2 Days
$46.82$64.14
11
17665-ZV5-000Ships in 1 to 2 Days
$12.13$16.62
12
17680-ZV4-000Ships in 1 to 2 Days
$12.13$16.62
13
17700-ZW9-904Ships in 1 to 2 Days
$127.52$174.68
13
17700-ZZ5-A00Ships in 1 to 2 Days
$169.39$239.02
14
17701-ZY9-E04Ships in 1 to 2 Days
$94.21$129.06
14
17701-ZX2-A00Ships in 1 to 2 Days
$77.85$106.64
15
17702-ZW9-904Ships in 1 to 2 Days
$20.89$28.62
15
17702-ZZ5-A00Ships in 1 to 2 Days
$17.93$25.30
16
17703-921-010Ships in 1 to 2 Daysqty 2 used
$3.53$4.84
17
17710-ZW9-033Ships in 1 to 2 Days
$46.08$65.02
↳
Sierra alternative ·
18-80407In Stock save $0.01
$46.07
18
17742-ZZ5-003Ships in 1 to 2 Days
$4.22$5.78
19
17743-ZZ5-003Ships in 1 to 2 Daysqty 4 used
$2.93$4.02
20
17936-921-000Ships in 1 to 2 Days
$1.20$1.64
21
90112-ZY1-000In Stock
$3.08$4.22
21
90112-ZZ5-M00Ships in 1 to 2 Days
$1.90$2.68
21
90112-ZZ5-M01Ships in 1 to 2 Days
$1.69$2.38
Diagram

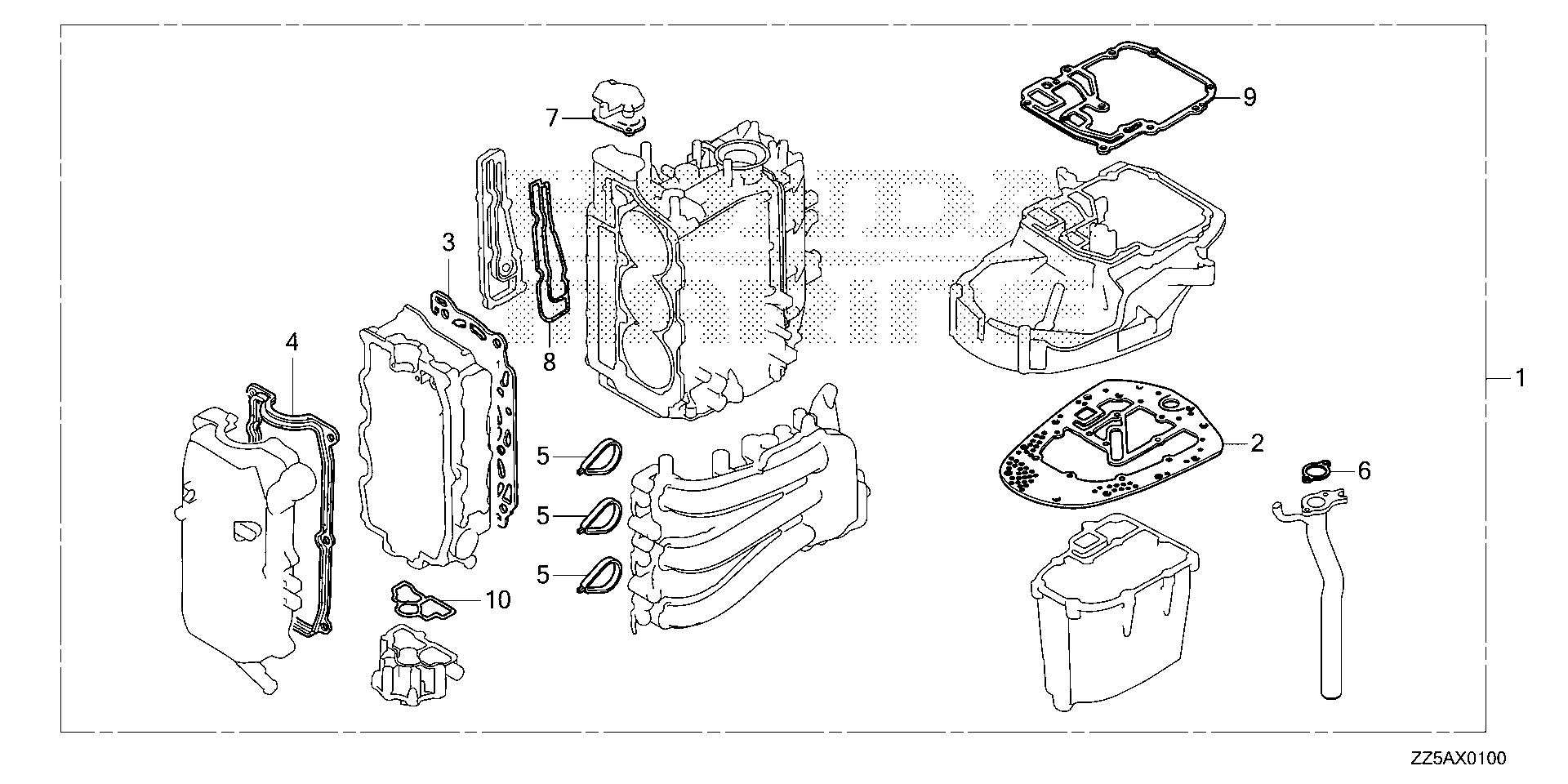

GASKET KIT

BF50 BF50DK2 gasket kit exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ5AX0100
Fits all 2 submodels of this generation.

Parts in this assembly

10 parts
1
06115-ZZ5-010Ships in 1 to 2 Days
$248.62$350.80
2
11381-ZV5-014Ships in 1 to 2 Days
$41.90$59.12
3
12251-ZW4-H01Ships in 1 to 2 Days
$34.81$49.10
4
12391-ZV5-010Ships in 1 to 2 Days
$19.33$27.28
5
17105-ZZ5-003Ships in 1 to 2 Daysqty 3 used
$61.89$87.32
6
18291-ZV5-010Ships in 1 to 2 Days
$2.92$4.12
7
19351-ZV5-000In Stock
$2.98$4.20
8
19371-ZV5-000Ships in 1 to 2 Days
$12.38$17.46
9
23162-ZV5-024Ships in 1 to 2 Days
$28.37$40.02
10
91301-ZV5-010Ships in 1 to 2 Days
$4.91$6.92
Diagram

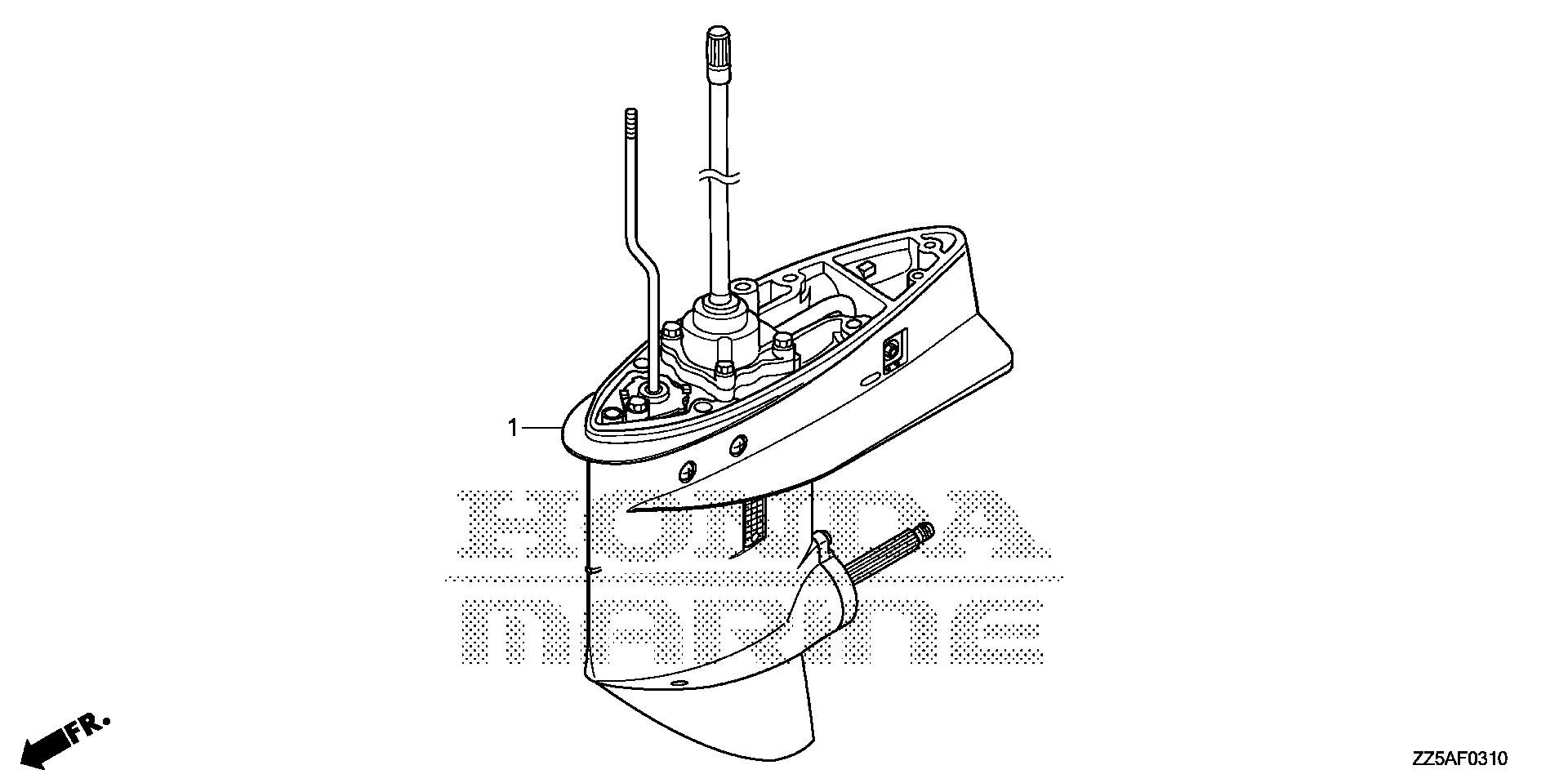

GEAR CASE ASSY.

BF50 BF50DK2 gear case assy. exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ5AF0310
Fits all 2 submodels of this generation.

Parts in this assembly

2 parts
1
$1,743.31
1
$1,889.54
Diagram

HANDLEBAR KIT

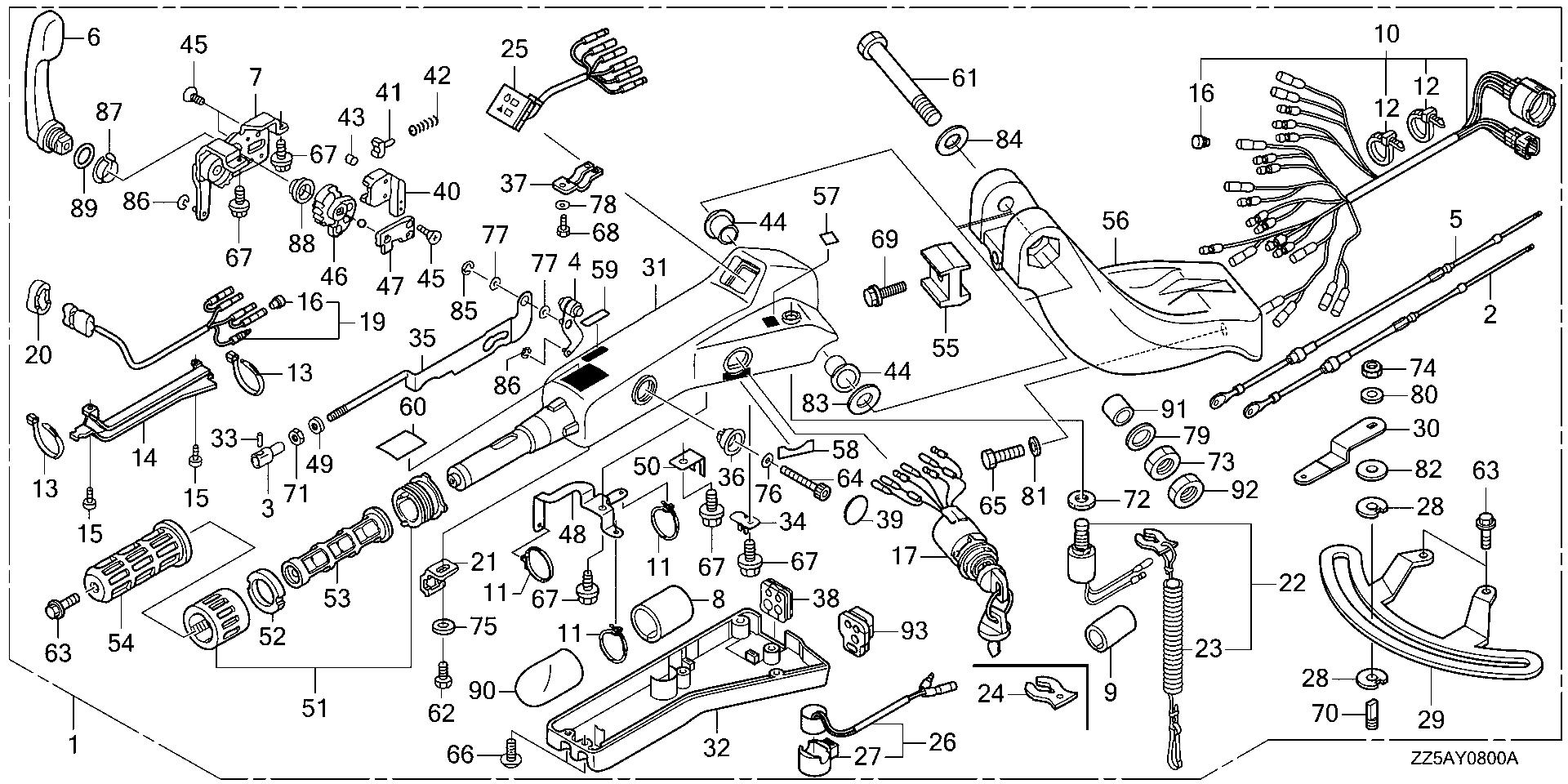

BF50 BF50DK2 handlebar kit exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ5AY0800A
Fits all 2 submodels of this generation.

Parts in this assembly

92 parts
1
06533-ZZ5-060ZBShips in 1 to 2 Days
$410.81
2
17910-ZW4-H01Ships in 1 to 2 Days
$68.65$96.88
3
17917-ZW9-000Ships in 1 to 2 Days
$6.82$9.62
4
17931-ZW4-H02Ships in 1 to 2 Days
$28.62$40.38
5
24590-ZW4-H01Ships in 1 to 2 Days
$71.77$101.26
6
24614-ZW4-H03Ships in 1 to 2 Days
$50.01$70.56
7
24615-ZW4-H03Ships in 1 to 2 Days
$93.83$132.40
8
32533-ZW4-H01Ships in 1 to 2 Days
$6.19$8.74
9
32534-ZY9-A01Ships in 1 to 2 Days
$5.10$7.18
10
32538-ZZ5-611Ships in 1 to 2 Days
$155.31$219.12
11
32543-ZW4-H01Ships in 1 to 2 Daysqty 3 used
$1.66$2.28
12
32544-ZW4-H01Ships in 1 to 2 Daysqty 2 used
$1.66$2.28
13
32547-ZW4-H01Ships in 1 to 2 Daysqty 2 used
$1.66$2.34
14
32548-ZW4-H01Ships in 1 to 2 Days
$12.42$17.54
15
32549-ZW4-H01Ships in 1 to 2 Daysqty 2 used
$1.62$2.28
16
32823-ZV5-003Ships in 1 to 2 Daysqty 13 used
$2.95$4.04
17
35100-ZW4-H02Ships in 1 to 2 Days
$87.70$120.14
19
35640-ZW4-H11Ships in 1 to 2 Days
$54.59$77.02
20
35643-ZW4-H02Ships in 1 to 2 Days
$16.60$23.42
21
35645-ZW4-H02Ships in 1 to 2 Days
$13.46$19.00
22
36180-ZV5-033In Stock
$56.84$77.86
23
36182-ZV4-651In Stock
$18.45$25.28
24
36187-ZV4-652Ships in 1 to 2 Daysqty 2 used
$4.18$5.72
25
37210-ZY9-A03Ships in 1 to 2 Days
$101.31$138.78
26
38400-ZY9-A00Ships in 1 to 2 Days
$70.36$96.40
27
38402-ZY9-A00Ships in 1 to 2 Days
$21.59$29.58
28
50212-ZW9-003Ships in 1 to 2 Daysqty 2 used
$10.86$14.88
29
50218-ZW4-H00Ships in 1 to 2 Days
$43.17$60.90
30
50219-ZW4-H00Ships in 1 to 2 Days
$8.23$11.62
31
53101-ZY9-A02ZBShips in 1 to 2 Days
$336.27$474.50
32
53102-ZY9-A02Ships in 1 to 2 Days
$15.32$21.62
33
53103-ZW9-000Ships in 1 to 2 Days
$2.80$3.96
34
53104-ZW4-H02Ships in 1 to 2 Days
$5.74$8.10
35
53105-ZW4-H01Ships in 1 to 2 Days
$35.83$50.56
36
53106-ZW4-H01Ships in 1 to 2 Days
$11.37$16.04
37
53107-ZW4-H02Ships in 1 to 2 Days
$6.06$8.54
38
53108-ZW4-H01Ships in 1 to 2 Days
$15.58$21.98
39
53109-ZW4-H02Ships in 1 to 2 Days
$8.83$12.46
40
53112-ZW4-H02Ships in 1 to 2 Days
$22.02$31.06
41
53113-ZW4-H01Ships in 1 to 2 Days
$5.12$7.02
42
53114-ZW4-H01Ships in 1 to 2 Days
$14.40$20.32
43
53116-ZW4-H01Ships in 1 to 2 Days
$1.69$2.32
44
53116-ZW4-H11Ships in 1 to 2 Daysqty 2 used
$6.58$9.02
45
53117-ZW4-H01Ships in 1 to 2 Daysqty 4 used
$0.85$1.20
46
53118-ZW4-H03Ships in 1 to 2 Days
$25.17$35.52
47
53119-ZW4-H02Ships in 1 to 2 Days
$9.56$13.50
48
53121-ZW4-H02Ships in 1 to 2 Days
$12.26$17.30
49
53122-ZW4-H01Ships in 1 to 2 Days
$15.64$22.06
50
53123-ZW4-H01Ships in 1 to 2 Days
$14.83$20.92
51
53130-ZW9-000Ships in 1 to 2 Days
$21.70$29.72
52
53133-ZW9-000Ships in 1 to 2 Days
$6.39$8.76
53
53141-ZW4-H00Ships in 1 to 2 Days
$23.61$33.30
54
53165-ZW9-000Ships in 1 to 2 Days
$11.20$15.80
55
53232-ZY9-A00Ships in 1 to 2 Days
$46.52$63.72
56
$181.77$249.00
57
87124-ZW6-U80Ships in 1 to 2 Days
$1.93$2.64
58
87125-ZW1-700Ships in 1 to 2 Days
$10.53$14.86
59
87511-ZW9-000Ships in 1 to 2 Days
$4.56$6.42
60
87532-ZW9-640Ships in 1 to 2 Days
$4.56$6.42
61
90101-ZW4-H00Ships in 1 to 2 Days
$16.41$22.48
62
90102-ZW4-H01Ships in 1 to 2 Days
$1.62$2.28
63
90102-ZW9-000Ships in 1 to 2 Daysqty 3 used
$2.12$2.90
64
90103-ZW4-H02Ships in 1 to 2 Days
$6.82$9.62
65
90103-ZY3-000In Stockqty 2 used
$5.39$7.38
66
90104-ZW4-H01Ships in 1 to 2 Daysqty 6 used
$1.62$2.22
67
90105-ZW4-H02Ships in 1 to 2 Daysqty 5 used
$1.75$2.48
68
90106-ZW4-H01Ships in 1 to 2 Daysqty 3 used
$1.53$2.16
69
90118-HW1-671Ships in 1 to 2 Days
$4.53$6.20
70
90162-ZW9-000Ships in 1 to 2 Days
$4.80$6.58
71
90301-ZW4-H01Ships in 1 to 2 Days
$1.62$2.28
72
90302-921-000In Stock
$4.10$5.62
73
90303-ZW4-H00Ships in 1 to 2 Days
$5.50$7.54
74
90305-ZW9-000Ships in 1 to 2 Days
$4.91$6.72
75
90501-ZW4-H01Ships in 1 to 2 Days
$1.62$2.28
76
90502-ZW4-H02Ships in 1 to 2 Days
$1.66$2.28
77
90503-ZW4-H01Ships in 1 to 2 Daysqty 2 used
$2.18$3.06
78
90504-ZW4-H01Ships in 1 to 2 Daysqty 3 used
$1.64$2.24
79
90506-ZV1-000In Stock
$2.44$3.34
80
90514-921-000Ships in 1 to 2 Days
$0.99$1.36
81
90514-ZV4-000Ships in 1 to 2 Daysqty 2 used
$1.69$2.32
82
90517-ZW9-000Ships in 1 to 2 Days
$1.42$1.94
83
90552-ZV5-000Ships in 1 to 2 Days
$4.67$6.40
84
90559-ZV5-000Ships in 1 to 2 Days
$2.95$4.04
85
90651-ZW4-H01Ships in 1 to 2 Days
$4.88$6.88
86
90652-ZW4-H01Ships in 1 to 2 Daysqty 2 used
$3.43$4.84
87
91051-ZW4-H02Ships in 1 to 2 Days
$2.83$3.88
88
91052-ZW4-H01Ships in 1 to 2 Days
$4.06$5.56
89
91304-HP5-601Ships in 1 to 2 Days
$2.98$4.08
90
91451-ZY9-A00Ships in 1 to 2 Days
$5.69$8.04
91
91552-ZW4-H00Ships in 1 to 2 Days
$7.88$10.80
92
94002-12490-0SShips in 1 to 2 Days
$2.86$3.92
93
40105-ZZ5-610Ships in 1 to 2 Days
$13.49$19.04
Diagram

IGNITION COIL

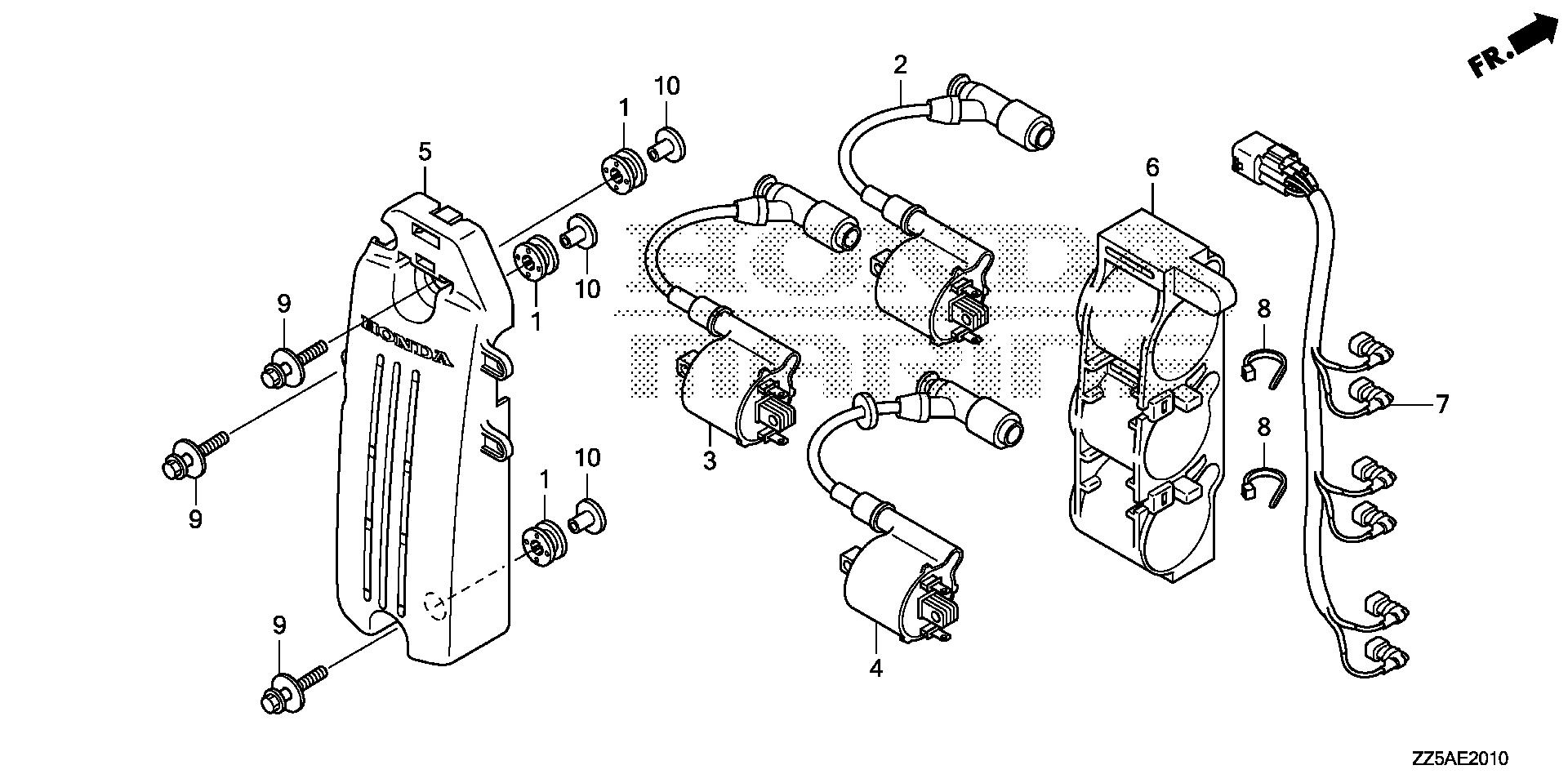

BF50 BF50DK2 ignition coil exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ5AE2010
Fits all 2 submodels of this generation.

Parts in this assembly

11 parts
1
30419-ZY9-003Ships in 1 to 2 Daysqty 3 used
$4.26$5.84
2
30511-ZZ5-013Ships in 1 to 2 Days
$57.43$59.15
3
30512-ZZ5-013Ships in 1 to 2 Days
$57.43$59.15
4
30513-ZZ5-013Ships in 1 to 2 Days
$53.40$55.00
5
30515-ZZ5-000Ships in 1 to 2 Days
$46.49$65.60
6
30516-ZZ5-000Ships in 1 to 2 Days
$28.40$40.08
7
30517-ZZ5-010Ships in 1 to 2 Days
$61.06$86.14
8
32161-KM3-003Ships in 1 to 2 Daysqty 2 used
$3.34$4.58
9
90013-ZW1-000Ships in 1 to 2 Daysqty 3 used
$2.48$3.40
9
90013-ZZ5-M01Ships in 1 to 2 Daysqty 3 used
$2.45$3.36
10
91501-ZZ5-010Ships in 1 to 2 Daysqty 3 used
$4.31$5.90
Diagram

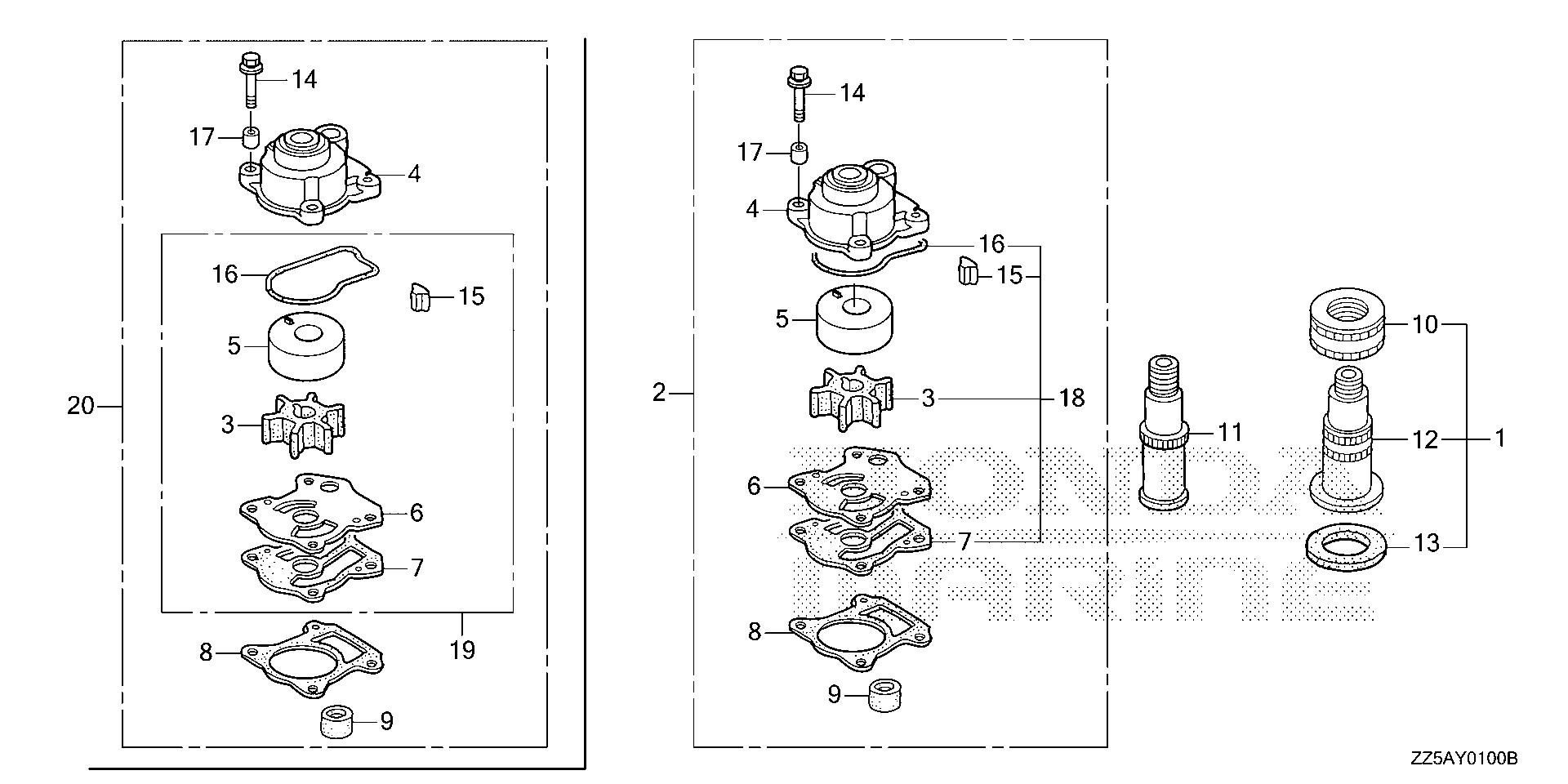

IMPELLER PUMP KIT - WATER HOSE JOINT KIT

BF50 BF50DK2 impeller pump kit - water hose joint kit exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ5AY0100B
Fits all 2 submodels of this generation.

Parts in this assembly

25 parts
1
06190-ZV1-860Ships in 1 to 2 Days
$12.10$16.58
2
06193-ZV5-020Ships in 1 to 2 Daysreplaced by 06193-ZV5-040
$59.20$83.52
2
06193-ZV5-040Ships in 1 to 2 Days
$59.20$83.52
3
19210-ZV5-003Ships in 1 to 2 Days
$25.54$34.98
↳
Sierra alternative ·
18-3248In Stock
$30.59
4
19221-ZV5-000In Stock
$26.48$37.36
5
19223-ZV5-000Ships in 1 to 2 Days
$14.45$20.40
6
19231-ZV5-000Ships in 1 to 2 Days
$11.91$16.80
7
19233-ZV5-000Ships in 1 to 2 Days
$6.47$9.12
8
19242-ZV5-000Ships in 1 to 2 Days
$6.47$9.12
9
19253-ZV5-000Ships in 1 to 2 Days
$4.34$6.12
10
19270-881-812Ships in 1 to 2 Days
$10.42$14.70
11
19271-ZV1-810Ships in 1 to 2 Days
$13.20$18.62
12
19271-ZV1-810Ships in 1 to 2 Days
$13.20$18.62
13
19272-881-810Ships in 1 to 2 Days
$2.45$3.46
14
90103-ZY1-000Ships in 1 to 2 Daysqty 4 used
$5.84$8.24
15
90752-ZV5-003Ships in 1 to 2 Days
$7.55$10.34
↳
Sierra alternative ·
18-3270In Stock save $4.50
$3.05
16
91356-ZV5-000In Stock
$3.88$5.48
17
91555-ZV5-000Ships in 1 to 2 Daysqty 4 used
$3.88$5.48
18
06192-ZV5-003Ships in 1 to 2 Daysreplaced by 06192-ZV5-023
$36.78$51.90
↳
Sierra alternative ·
18-3282In Stock
$39.41
18
06192-ZV5-013Ships in 1 to 2 Daysreplaced by 06192-ZV5-023
$36.78$51.90
18
06192-ZV5-023Ships in 1 to 2 Days
$36.78$51.90
19
06192-ZV5-013Ships in 1 to 2 Daysreplaced by 06192-ZV5-023
$36.78$51.90
19
06192-ZV5-023Ships in 1 to 2 Days
$36.78$51.90
20
06193-ZV5-040Ships in 1 to 2 Days
$59.20$83.52
21
90756-ZV5-000In Stockqty 2 used
$2.64$3.62
Diagram

INLET MANIFOLD - INJECTOR

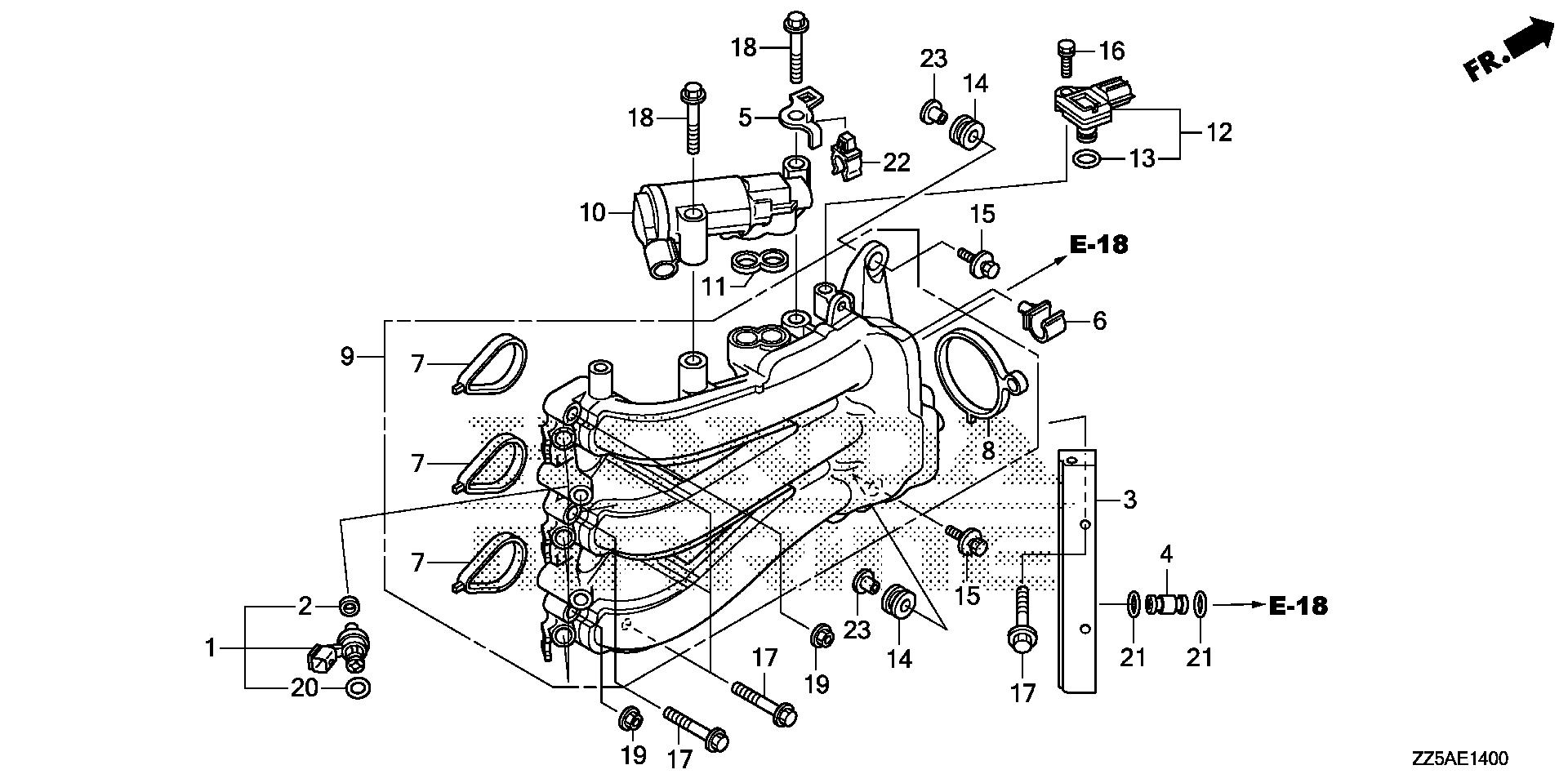

BF50 BF50DK2 inlet manifold - injector exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ5AE1400
Fits all 2 submodels of this generation.

Parts in this assembly

31 parts
1
16450-ZZ5-003Ships in 1 to 2 Daysqty 3 used
$97.17
2
16472-KPC-D50Ships in 1 to 2 Days
$2.06$2.82
3
16620-ZZ5-010Ships in 1 to 2 Days
$120.27$164.76
4
16752-ZY3-A00Ships in 1 to 2 Days
$7.34$10.06
5
16817-ZZ5-010Ships in 1 to 2 Days
$4.66$6.58
6
16896-ZY9-003Ships in 1 to 2 Days
$2.80$3.84
7
17105-ZZ5-003Ships in 1 to 2 Daysqty 3 used
$61.89$87.32
8
17107-ZZ5-003Ships in 1 to 2 Days
$12.98$17.78
9
17110-ZZ5-003Ships in 1 to 2 Days
$682.23$934.56
10
36550-ZZ5-003Ships in 1 to 2 Days
$179.32$245.64
11
36551-ZY6-003Ships in 1 to 2 Days
$10.86$14.88
12
37830-PNC-003Ships in 1 to 2 Days
$136.77$187.36
12
37830-RNA-A01Ships in 1 to 2 Days
$93.56$128.16
13
37835-PGK-A01Ships in 1 to 2 Days
$8.60$11.78
14
40102-ZV5-000Ships in 1 to 2 Daysqty 2 used
$2.64$3.62
15
90013-ZW1-000Ships in 1 to 2 Daysqty 2 used
$2.48$3.40
15
90013-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$2.45$3.36
16
90029-ZY3-000Ships in 1 to 2 Days
$0.61$0.86
16
90029-ZZ5-M00Ships in 1 to 2 Days
$1.20$1.68
16
90029-ZZ5-M01Ships in 1 to 2 Days
$1.14$1.56
17
90031-ZY3-000Ships in 1 to 2 Daysqty 6 used
$1.04$1.42
17
90032-ZZ5-M00Ships in 1 to 2 Daysqty 6 used
$1.45$2.04
17
90032-ZZ5-M01Ships in 1 to 2 Daysqty 6 used
$1.62$2.22
18
90026-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.87$2.56
18
90026-ZZ5-M00Ships in 1 to 2 Daysqty 2 used
$1.90$2.68
19
90201-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.04$1.42
20
91301-KPH-701Ships in 1 to 2 Daysqty 3 used
$2.83$3.88
21
91301-MJ0-003In Stockqty 2 used
$2.09$2.86
22
91531-SZ5-003Ships in 1 to 2 Days
$4.23$5.80
23
91553-ZV5-010Ships in 1 to 2 Daysqty 2 used
$2.67$3.66
23
91551-ZVL-010Ships in 1 to 2 Daysqty 2 used
$2.23$3.06
Diagram

LABEL

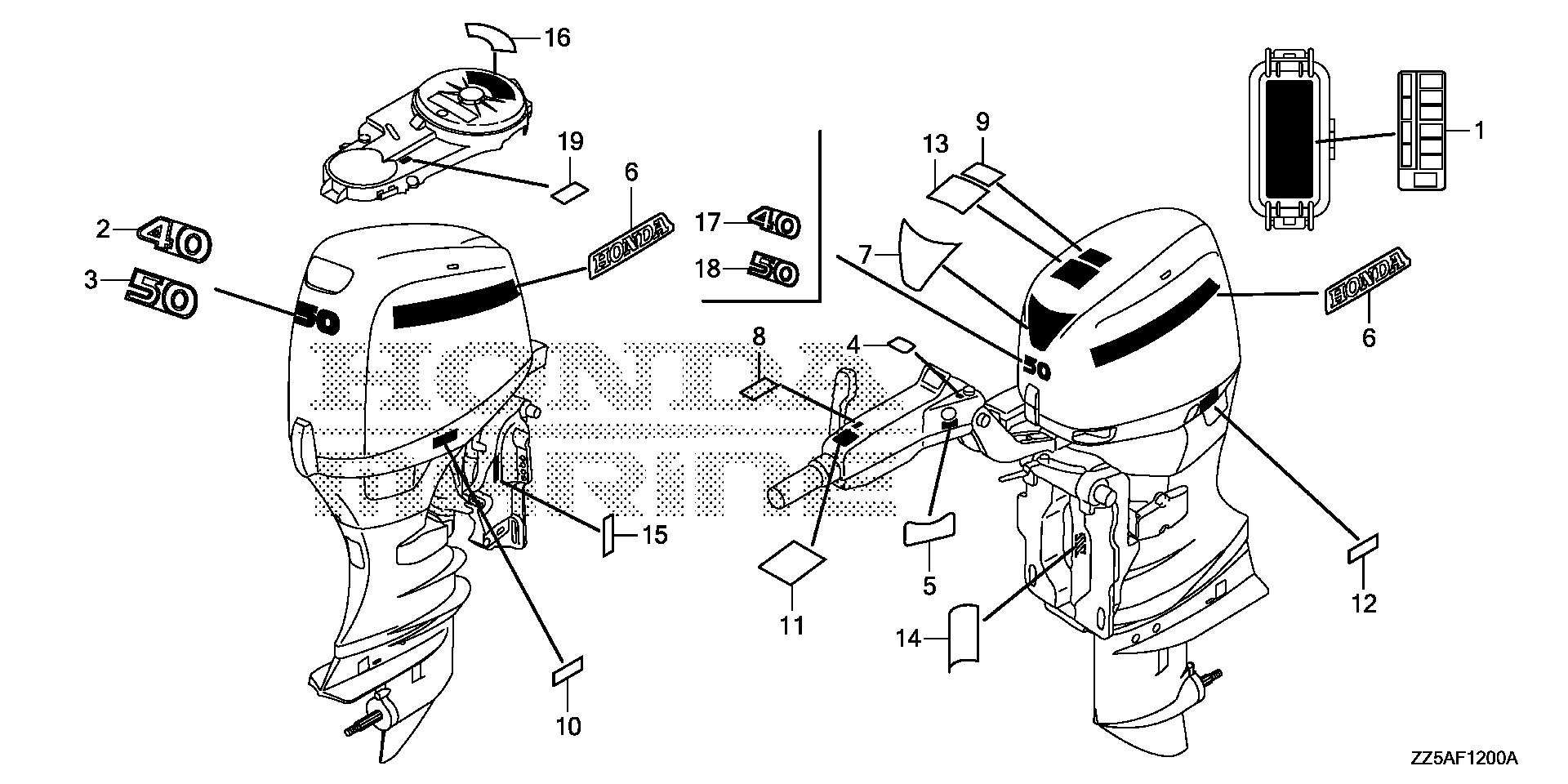

BF50 BF50DK2 label exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ5AF1200A
Fits all 2 submodels of this generation.

Parts in this assembly

20 parts
1
87117-ZY6-000Ships in 1 to 2 Days
$3.18$4.50
2
87121-ZZ4-010Ships in 1 to 2 Days
$28.11$39.66
2
87121-ZZ4-M00Ships in 1 to 2 Days
$22.85$32.24
3
87121-ZZ5-020Ships in 1 to 2 Days
$23.46$33.10
4
87124-ZW6-U80Ships in 1 to 2 Days
$1.93$2.64
5
87125-ZW1-700Ships in 1 to 2 Days
$10.53$14.86
6
87132-ZW4-H00Ships in 1 to 2 Daysqty 2 used
$20.16$27.62
7
87301-ZZ4-010Ships in 1 to 2 Days
$34.37$48.50
7
87301-ZZ5-010Ships in 1 to 2 Days
$32.89$46.42
8
87511-ZW9-000Ships in 1 to 2 Days
$4.56$6.42
10
87531-ZW4-720Ships in 1 to 2 Days
$3.84$5.42
11
87532-ZW9-640Ships in 1 to 2 Days
$4.56$6.42
12
87535-ZV5-620Ships in 1 to 2 Days
$3.87$5.46
13
87538-ZW1-740Ships in 1 to 2 Days
$9.34$13.18
14
87541-ZV5-621Ships in 1 to 2 Days
$4.89$6.90
15
87543-ZV5-000Ships in 1 to 2 Days
$4.75$6.70
16
87546-ZV5-621Ships in 1 to 2 Days
$8.22$11.60
17
87301-ZZ4-M00Ships in 1 to 2 Days
$15.32$21.60
18
87301-ZZ5-M00Ships in 1 to 2 Days
$15.75$22.22
19
87531-ZZ5-M00Ships in 1 to 2 Days
$3.81$5.38
Diagram

METER

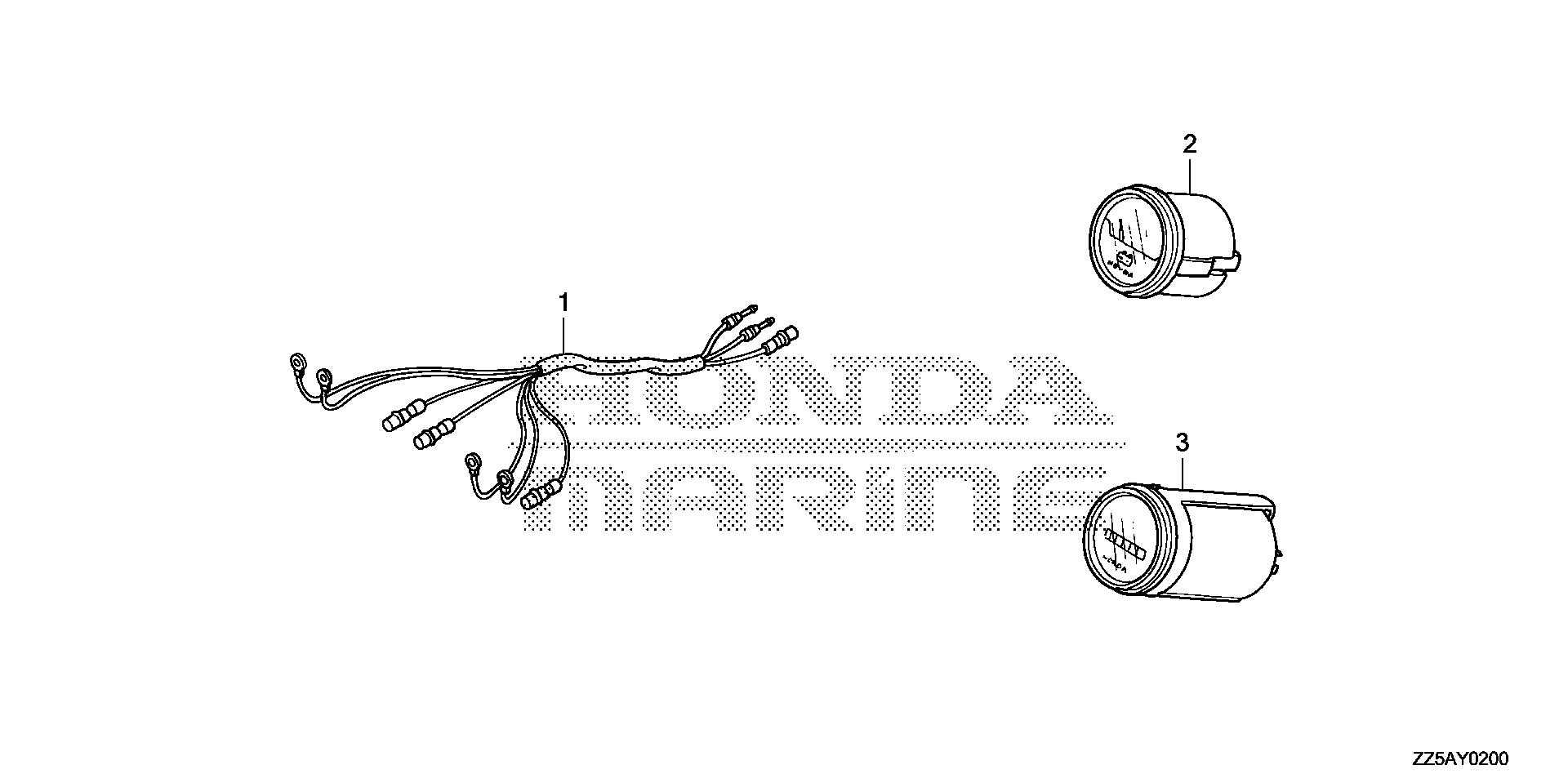

BF50 BF50DK2 meter exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ5AY0200
Fits all 2 submodels of this generation.

Parts in this assembly

3 parts
1
32550-ZV5-910Ships in 1 to 2 Days
$17.67
2
METER ASSY., VOLT (NOT AVAILABLE: USE 37453-ZW5-000ZA)
37450-ZV5-911No Longer Available
—
3
39700-ZV5-800AHShips in 1 to 2 Days
$47.13
Diagram

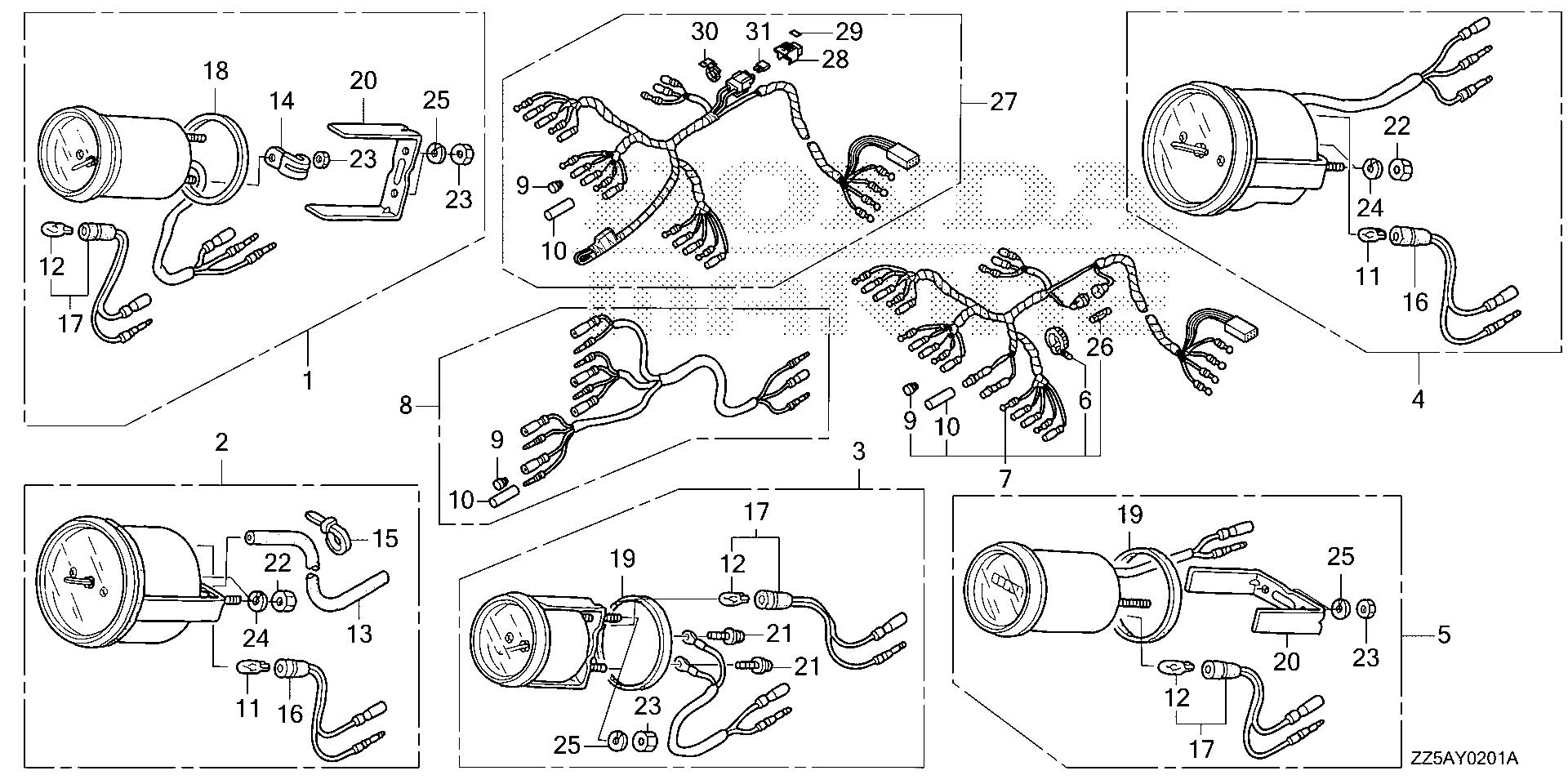

METER KIT (ANALOG) (1)

BF50 BF50DK2 meter kit (analog) (1) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ5AY0201A
Fits all 2 submodels of this generation.

Parts in this assembly

39 parts
1
06372-ZW5-U02Ships in 1 to 2 Days
$95.91
1
06372-ZW5-U12Ships in 1 to 2 Days
$185.23$253.74
2
06373-ZW5-U01Ships in 1 to 2 Days
$217.38$297.78
2
06373-ZW5-U11Ships in 1 to 2 Days
$207.98$284.90
3
06374-ZW5-U01Ships in 1 to 2 Days
$63.33
3
06374-ZW5-U10Ships in 1 to 2 Days
$57.08
3
06374-ZW5-U11Ships in 1 to 2 Days
$63.33
4
06375-ZW5-U01Ships in 1 to 2 Days
$185.48$254.08
4
06375-ZW5-U11Ships in 1 to 2 Days
$172.19$235.88
5
METER KIT, HOUR (NA USE ALT:39700-ZW5-000ZA)
06397-ZW5-U00No Longer Available
—
5
METER KIT, HOUR (B) (NA USE ALT:39700-ZW5-000ZA)
06397-ZW5-U10No Longer Available
—
5
06397-ZW5-U01Ships in 1 to 2 Days
$116.91
5
06397-ZW5-U11In Stock
$116.91
6
32161-404-000Ships in 1 to 2 Days
$2.15$2.94
7
32540-ZZ3-010Ships in 1 to 2 Days
$97.12$133.04
8
32550-ZW5-U00Ships in 1 to 2 Days
$33.11$45.36
9
32823-ZV5-003Ships in 1 to 2 Daysqty 8 used
$2.95$4.04
10
32824-ZV5-003Ships in 1 to 2 Daysqty 5 used
$3.11$4.26
11
34908-MB9-871Ships in 1 to 2 Days
$2.67$3.66
12
34908-MG9-951Ships in 1 to 2 Daysqty 3 used
$2.23$3.06
13
37202-ZW5-U01Ships in 1 to 2 Days
$30.97$42.42
14
37215-KM1-670Ships in 1 to 2 Days
$1.81$2.48
15
37226-MZ5-008Ships in 1 to 2 Days
$2.86$3.92
16
37258-ZV5-U01Ships in 1 to 2 Days
$13.18$18.06
17
37258-ZW5-U01Ships in 1 to 2 Daysqty 3 used
$13.18$18.06
18
37263-ZV5-821Ships in 1 to 2 Days
$3.45$4.72
19
37264-ZV5-821Ships in 1 to 2 Daysqty 2 used
$2.77$3.80
20
37266-ZV5-821Ships in 1 to 2 Daysqty 2 used
$16.16$22.14
21
37305-KE5-008Ships in 1 to 2 Daysqty 2 used
$2.64$3.62
22
90309-ZV5-821Ships in 1 to 2 Daysqty 2 used
$1.42$1.94
23
90310-ZV5-821Ships in 1 to 2 Daysqty 7 used
$1.27$1.74
24
90550-ZV5-821Ships in 1 to 2 Daysqty 2 used
$1.18$1.62
25
90560-ZV5-821Ships in 1 to 2 Daysqty 6 used
$1.24$1.70
26
98200-11000Ships in 1 to 2 Days
$1.61$2.20
27
32540-ZZ3-010Ships in 1 to 2 Days
$97.12$133.04
28
38216-Z2E-003Ships in 1 to 2 Days
$5.85$8.02
29
87116-ZZ3-000Ships in 1 to 2 Days
$1.37$1.88
30
91531-SR3-003Ships in 1 to 2 Days
$7.75$10.62
31
98200-41000Ships in 1 to 2 Days
$1.21$1.66
Diagram

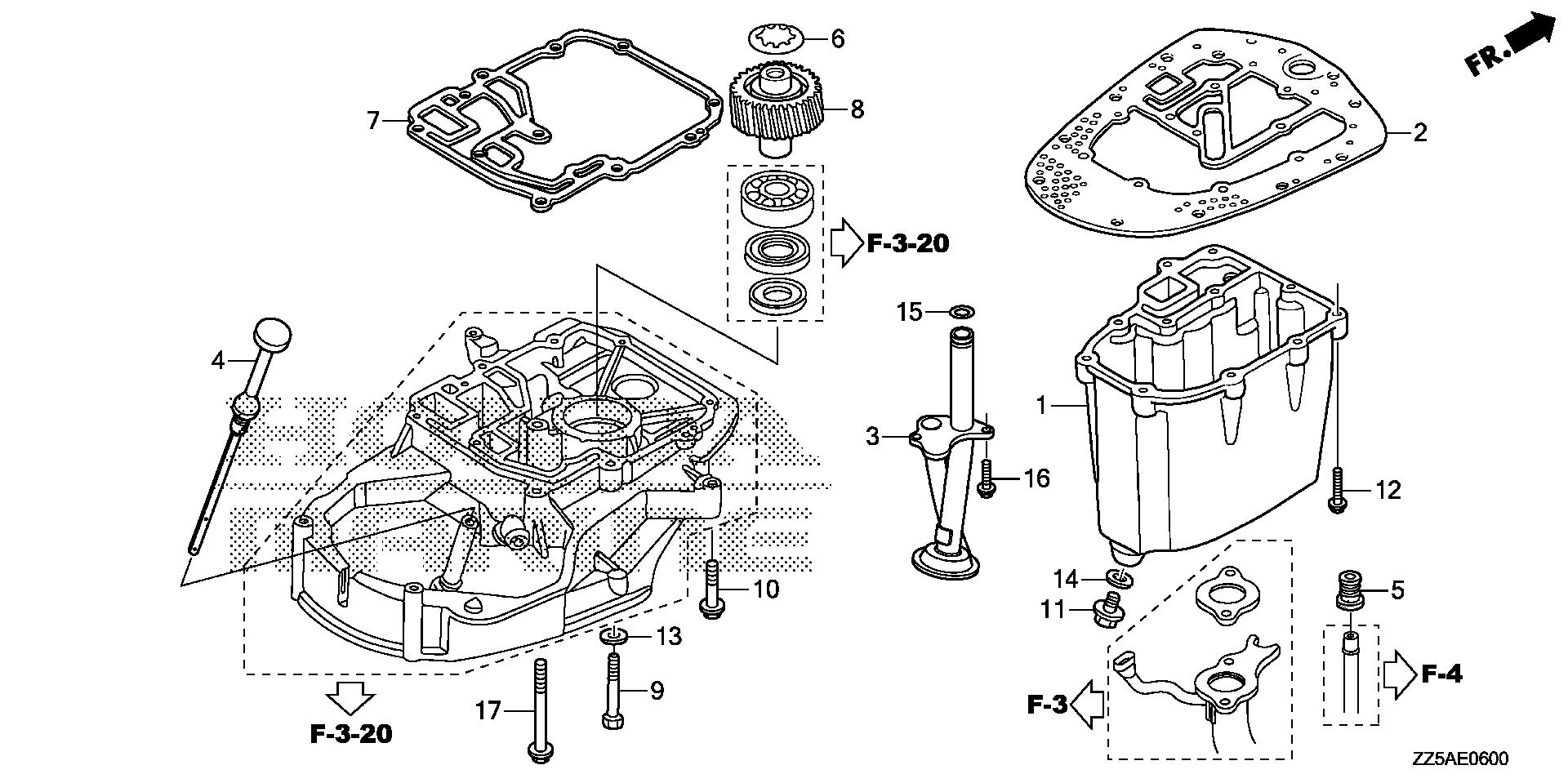

OIL PAN

BF50 BF50DK2 oil pan exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ5AE0600
Fits all 2 submodels of this generation.

Parts in this assembly

17 parts
1
11311-ZV5-040ZAShips in 1 to 2 Days
$125.60$177.24
2
11381-ZV5-014Ships in 1 to 2 Days
$41.90$59.12
3
15220-ZV5-000Ships in 1 to 2 Days
$58.90$83.08
4
15655-ZZ5-000Ships in 1 to 2 Days
$14.76$20.82
5
19252-ZV5-000Ships in 1 to 2 Days
$6.23$8.54
6
23134-ZV5-000Ships in 1 to 2 Days
$3.94$5.56
7
23162-ZV5-024Ships in 1 to 2 Days
$28.37$40.02
8
23437-ZV5-000Ships in 1 to 2 Days
$146.70$206.98
9
90010-ZV5-000Ships in 1 to 2 Daysqty 4 used
$4.69$6.62
10
90114-HW1-671Ships in 1 to 2 Daysqty 2 used
$3.87$5.30
11
90131-ZV5-000Ships in 1 to 2 Days
$7.43$10.18
12
90214-HW1-671Ships in 1 to 2 Daysqty 11 used
$3.08$4.22
13
90507-ZV4-000Ships in 1 to 2 Daysqty 4 used
$2.20$3.02
14
90601-ZE2-000In Stock
$2.38$3.26
15
91303-377-000Ships in 1 to 2 Days
$3.45$4.72
16
95701-06016-00Ships in 1 to 2 Daysqty 2 used
$1.49$2.04
17
95701-08075-08Ships in 1 to 2 Daysqty 4 used
$3.12$4.28
Diagram

OIL PUMP

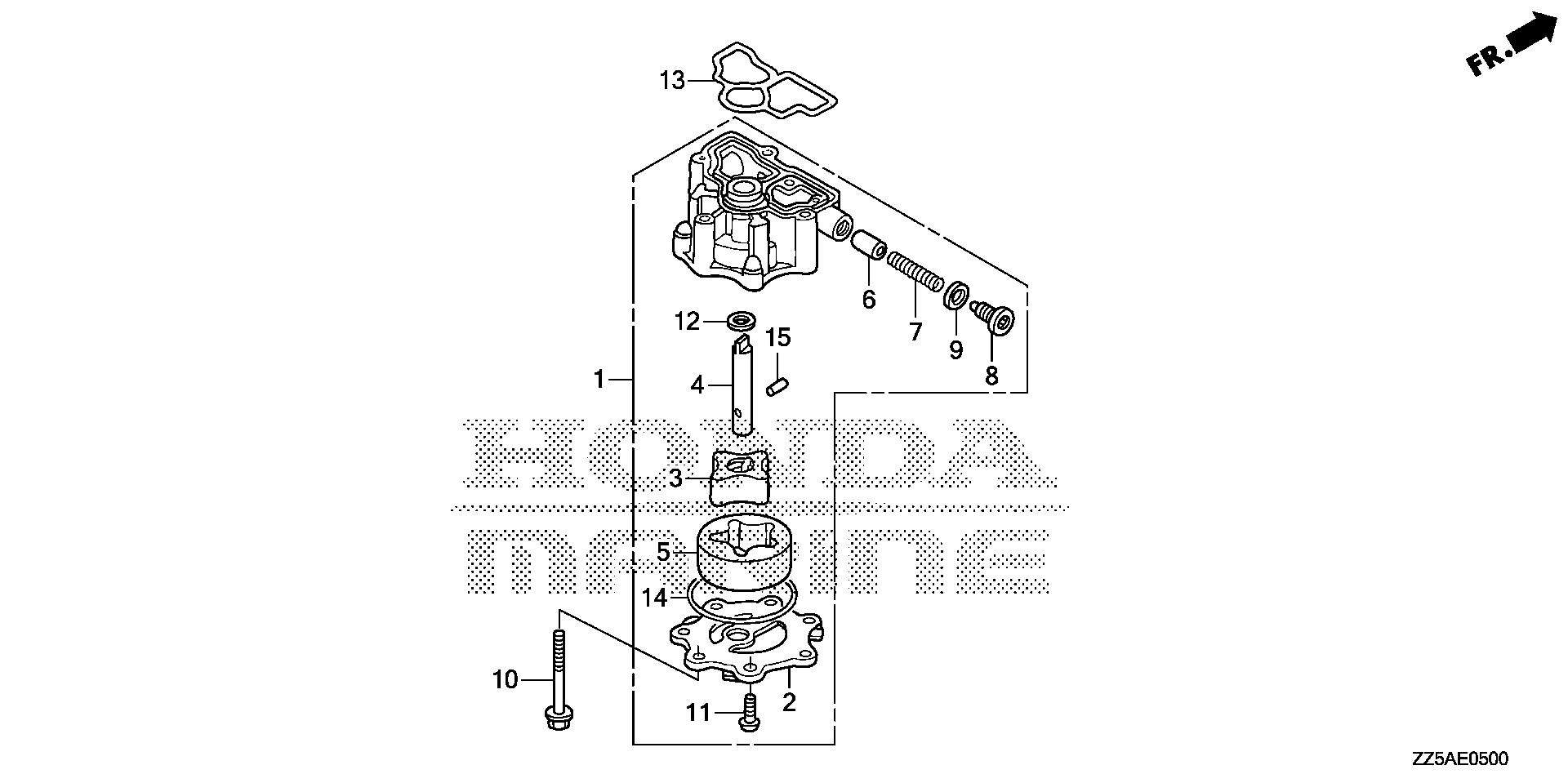

BF50 BF50DK2 oil pump exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ5AE0500
Fits all 2 submodels of this generation.

Parts in this assembly

20 parts
1
15100-ZV5-000Ships in 1 to 2 Days
$221.67$312.74
1
15100-ZZ5-M01Ships in 1 to 2 Days
$169.21$231.80
2
15116-ZV5-000Ships in 1 to 2 Days
$27.02$38.14
3
15122-ME5-000Ships in 1 to 2 Days
$16.29$16.78
4
15132-ZV5-000Ships in 1 to 2 Days
$16.19$22.84
5
15162-393-000Ships in 1 to 2 Days
$24.71$25.44
6
15231-413-020Ships in 1 to 2 Days
$20.53$28.12
7
15232-KT8-000Ships in 1 to 2 Days
$3.78$5.18
8
15236-ZV5-010Ships in 1 to 2 Days
$4.93$6.96
8
15236-ZZ5-M01Ships in 1 to 2 Days
$5.48$7.72
9
15302-PE0-300Ships in 1 to 2 Days
$8.13$11.14
10
90047-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$1.96$2.68
10
90147-ZW4-000Ships in 1 to 2 Daysreplaced by 90047-ZZ5-M01
$1.96$2.68
10
90047-ZZ5-M00Ships in 1 to 2 Daysqty 4 used
$1.90$2.68
11
90084-ZZ5-M00Ships in 1 to 2 Daysqty 3 used
$1.02$1.44
11
90084-ZZ5-M01Ships in 1 to 2 Daysqty 3 used
$1.02$1.44
12
90456-MC7-000Ships in 1 to 2 Days
$2.50$3.52
13
91301-ZV5-010Ships in 1 to 2 Days
$4.91$6.92
14
91302-KF0-003Ships in 1 to 2 Days
$3.49$4.78
15
96220-50178Ships in 1 to 2 Days
$0.82$1.12
Diagram

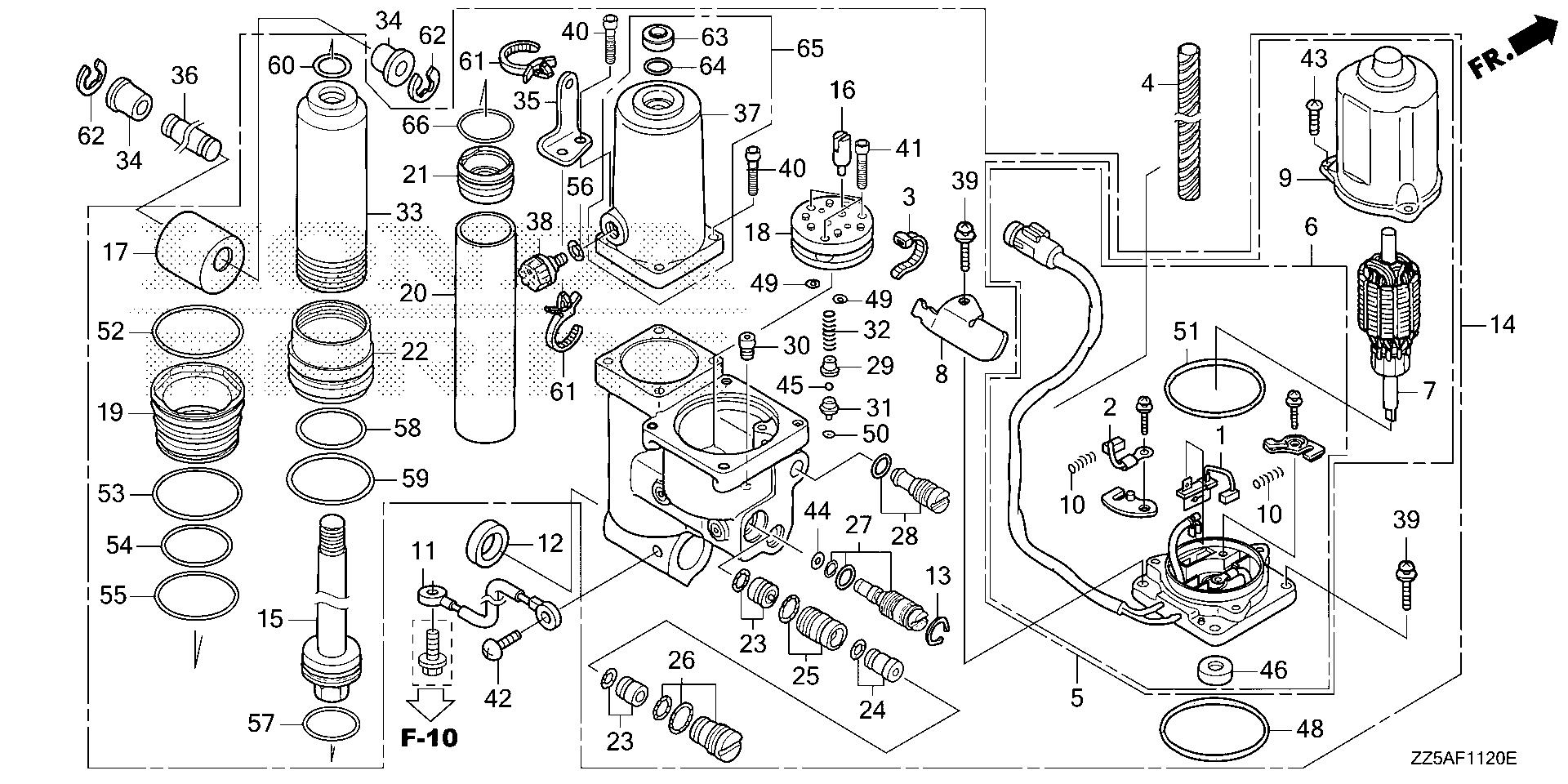

POWER TRIM-TILT

BF50 BF50DK2 power trim-tilt exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ5AF1120E
Fits all 2 submodels of this generation.

Parts in this assembly

68 parts
1
30280-ZW4-H11Ships in 1 to 2 Days
$92.23$126.34
2
31106-ZY3-003Ships in 1 to 2 Days
$33.08$45.32
3
35701-MG9-950Ships in 1 to 2 Days
$1.83$2.50
4
36104-ZV5-821Ships in 1 to 2 Days
$6.04$8.28
5
36120-ZW4-H12Ships in 1 to 2 Days
$389.30
6
36122-ZW4-H12Ships in 1 to 2 Days
$324.89$445.06
7
36123-ZW4-H12Ships in 1 to 2 Days
$185.15
8
36125-ZW4-H11Ships in 1 to 2 Days
$7.26$9.94
9
36129-ZV5-822Ships in 1 to 2 Days
$194.71
10
36136-ZV5-821Ships in 1 to 2 Daysqty 2 used
$7.21$9.88
11
40219-ZY3-023Ships in 1 to 2 Days
$9.05$12.40
12
50539-ZW4-H10Ships in 1 to 2 Days
$4.15$5.86
13
53549-ZY1-871Ships in 1 to 2 Days
$2.20$3.02
14
56000-ZW4-H19Ships in 1 to 2 Days
$1,402.66
15
56110-ZW4-H11Ships in 1 to 2 Days
$118.46$170.38
15
56110-ZW4-H12Ships in 1 to 2 Days
$108.46$153.02
16
56113-766-801Ships in 1 to 2 Days
$14.63$20.04
17
56113-ZW4-H11Ships in 1 to 2 Days
$54.95$77.54
18
56114-ZW4-H11Ships in 1 to 2 Days
$207.45$284.18
19
56115-ZW4-H11Ships in 1 to 2 Days
$99.97$136.94
20
56123-ZW4-H11Ships in 1 to 2 Days
$19.26$27.16
21
PISTON, FREE
56130-ZW4-H11No Longer Available
—
21
PISTON, FREE (NOT AVAILABLE)
56130-ZW4-H12No Longer Available
$52.31$71.66
22
56135-ZW4-H11Ships in 1 to 2 Days
$51.51$74.08
22
56135-ZW4-H12Ships in 1 to 2 Days
$24.45$25.19
23
56140-ZW4-H11Ships in 1 to 2 Daysqty 2 used
$71.20$100.46
24
56150-ZW4-H11Ships in 1 to 2 Days
$37.19$50.94
25
56161-ZY1-871Ships in 1 to 2 Days
$41.74$57.18
26
56163-ZY1-871Ships in 1 to 2 Days
$25.81$36.42
27
56170-ZW4-H12Ships in 1 to 2 Days
$110.49$155.90
28
56180-ZW4-H11Ships in 1 to 2 Days
$71.20$100.46
29
56182-ZW4-H11Ships in 1 to 2 Days
$12.85$17.60
30
56190-ZW4-H11Ships in 1 to 2 Days
$30.54$43.10
31
56191-ZW4-H11Ships in 1 to 2 Days
$16.82$23.04
32
56192-ZW4-H11Ships in 1 to 2 Days
$2.95$4.04
33
56511-ZW4-H11Ships in 1 to 2 Days
$95.56$134.82
34
56512-ZV5-000Ships in 1 to 2 Daysqty 2 used
$3.07$4.20
35
56517-ZW4-H11Ships in 1 to 2 Days
$5.93$8.12
36
56532-ZZ5-C00Ships in 1 to 2 Days
$17.07$23.38
37
56851-ZZ3-003Ships in 1 to 2 Days
$34.12$46.74
38
56860-ZW4-H11Ships in 1 to 2 Days
$5.02$6.88
39
90001-ZV5-791Ships in 1 to 2 Daysqty 4 used
$3.81$5.22
40
90111-ZW4-H11Ships in 1 to 2 Daysqty 4 used
$9.53$13.06
41
90115-ZV5-821Ships in 1 to 2 Daysqty 3 used
$16.38$22.44
42
90119-ZV5-000Ships in 1 to 2 Days
$1.65$2.26
43
90134-ZV5-821Ships in 1 to 2 Daysqty 3 used
$3.64$4.98
44
90402-V15-003Ships in 1 to 2 Days
$4.37$5.98
45
90921-ZW4-H11Ships in 1 to 2 Days
$0.80$1.10
46
91203-ZV5-821Ships in 1 to 2 Days
$30.78$42.16
48
91302-ZV5-821In Stock
$5.10$6.98
49
91304-ZV5-821Ships in 1 to 2 Daysqty 2 used
$3.43$4.70
50
91311-ZV5-822Ships in 1 to 2 Days
$2.41$3.30
51
91318-ZV5-822Ships in 1 to 2 Days
$5.45$7.46
52
91351-ZW4-H11Ships in 1 to 2 Days
$5.26$7.20
53
91352-ZW4-H11Ships in 1 to 2 Days
$5.12$7.02
54
91353-ZW4-H11Ships in 1 to 2 Days
$5.10$7.18
55
91354-ZW4-H11Ships in 1 to 2 Days
$5.10$7.18
56
91355-ZW4-H11Ships in 1 to 2 Days
$6.04$8.28
57
91356-ZW4-H11Ships in 1 to 2 Days
$6.19$8.48
58
91357-ZW4-H11Ships in 1 to 2 Days
$6.19$8.48
59
91358-ZW4-H11Ships in 1 to 2 Days
$9.86$13.90
60
91359-ZW4-H11Ships in 1 to 2 Days
$3.12$4.28
61
91541-S0A-003Ships in 1 to 2 Daysqty 2 used
$3.64$4.98
62
94540-10029Ships in 1 to 2 Daysqty 2 used
$6.80$9.32
63
91254-ZZ3-013Ships in 1 to 2 Days
$3.43$4.70
64
91357-ZZ3-003Ships in 1 to 2 Days
$2.83$3.88
65
56850-ZZ3-003Ships in 1 to 2 Days
$33.70$46.16
66
91356-ZW4-H11Ships in 1 to 2 Days
$6.19$8.48
Diagram

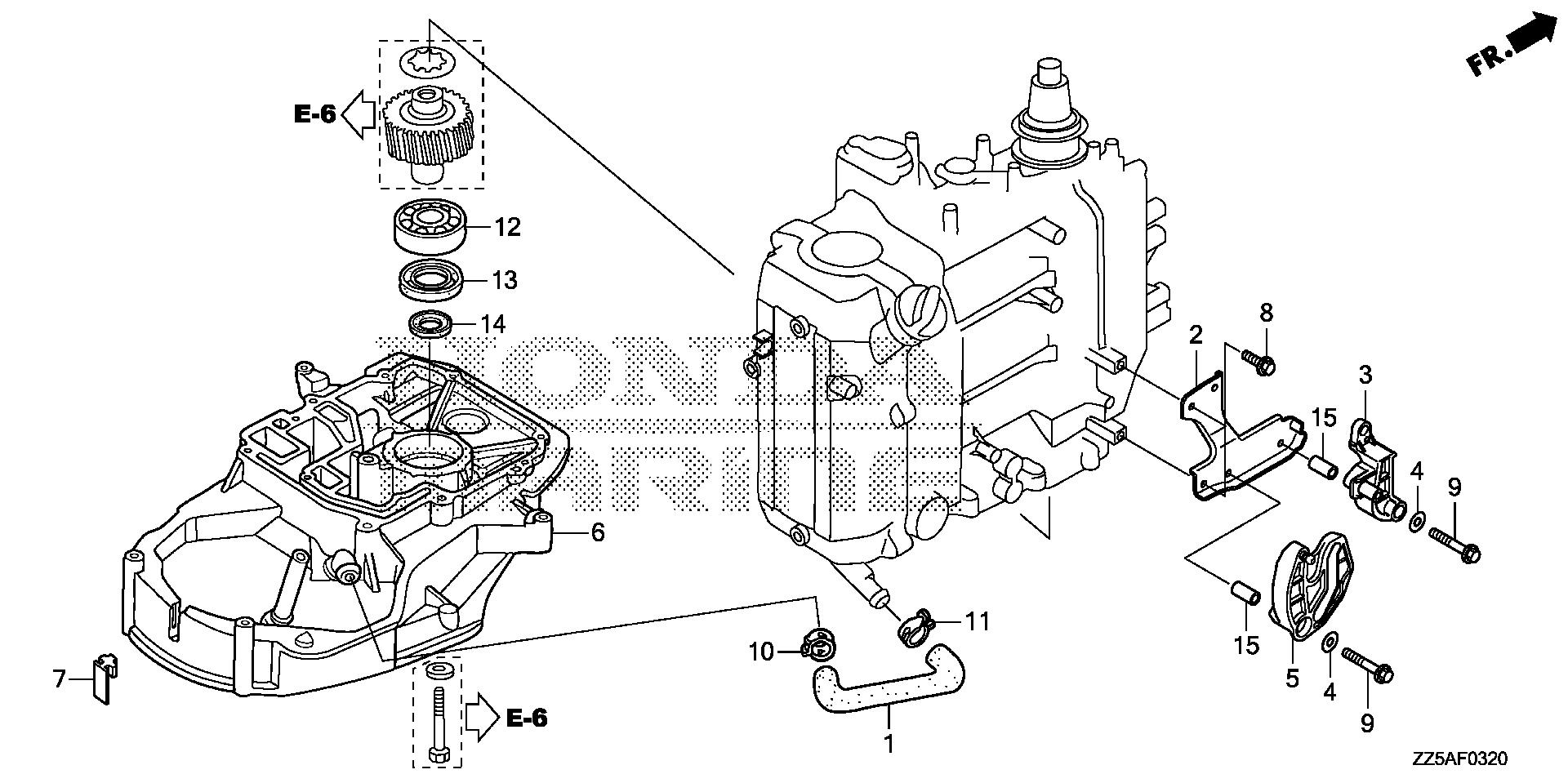

PRIMARY GEAR CASE

BF50 BF50DK2 primary gear case exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ5AF0320
Fits all 2 submodels of this generation.

Parts in this assembly

17 parts
1
15422-ZV5-010Ships in 1 to 2 Days
$13.59$19.18
2
17849-ZZ5-000Ships in 1 to 2 Days
$38.19$53.88
3
17930-ZZ5-010Ships in 1 to 2 Days
$55.00$77.60
4
17936-921-000Ships in 1 to 2 Daysqty 2 used
$1.20$1.64
5
17946-ZZ4-010Ships in 1 to 2 Days
$50.57$71.36
5
17946-ZZ5-010Ships in 1 to 2 Days
$54.44$76.82
6
23160-ZZ5-010ZAShips in 1 to 2 Days
$360.99
7
23173-ZW5-000Ships in 1 to 2 Days
$4.20$5.94
8
90011-ZW9-000Ships in 1 to 2 Daysqty 2 used
$1.71$2.34
8
90011-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.18$1.62
9
90002-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.46$2.00
10
90602-ZV3-030In Stock
$3.37$4.76
11
90604-ZY3-020Ships in 1 to 2 Days
$2.44$3.34
12
91024-ZV5-003Ships in 1 to 2 Days
$15.48$21.84
13
91204-ZV5-005Ships in 1 to 2 Days
$11.21$15.36
14
91221-ZV5-005Ships in 1 to 2 Days
$7.20$10.16
15
91552-ZZ5-010Ships in 1 to 2 Daysqty 2 used
$7.94$11.20
Diagram

PROPELLER

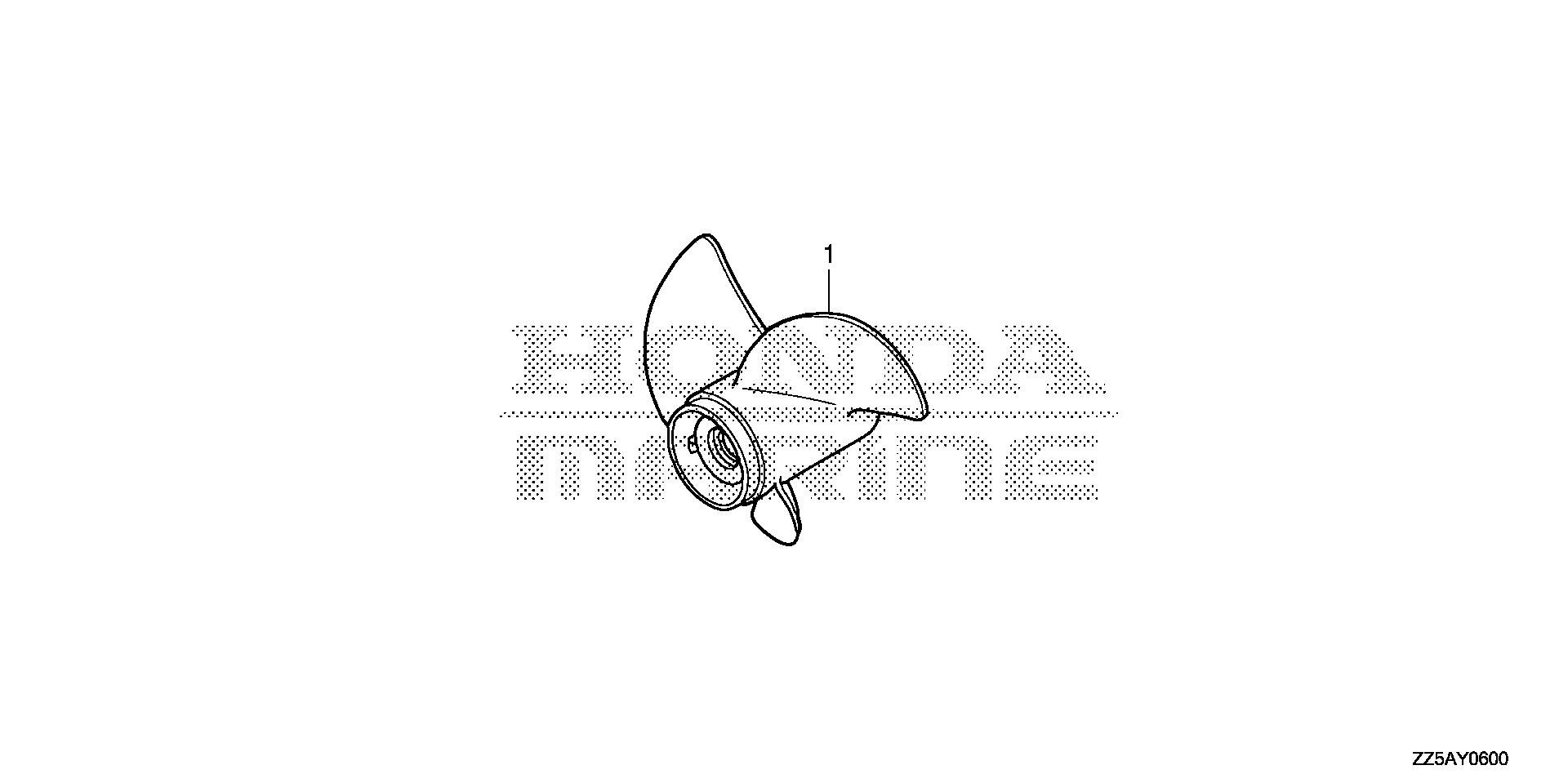

BF50 BF50DK2 propeller exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ5AY0600
Fits all 2 submodels of this generation.

Parts in this assembly

10 parts
1
$212.83
1
$233.48
1
$210.03
1
$210.03
1
$206.92
1
58130-ZW4-H53ZAShips in 1 to 2 Days
$209.06
1
$203.76
1
$228.38
1
$235.20
1
$235.20
Diagram

PROPELLER SHAFT

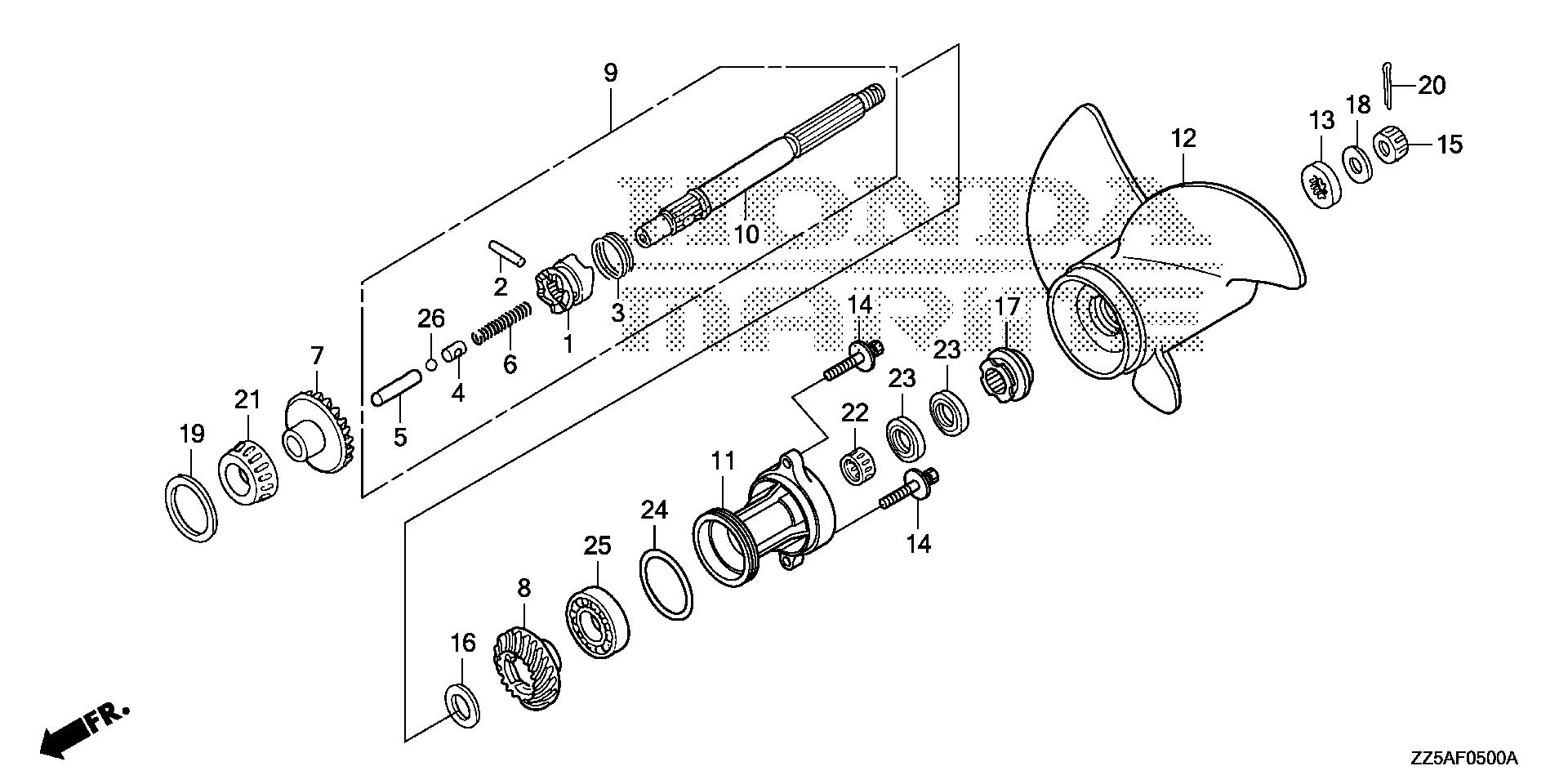

BF50 BF50DK2 propeller shaft exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ5AF0500A
Fits all 2 submodels of this generation.

Parts in this assembly

28 parts
1
24101-ZV5-020Ships in 1 to 2 Days
$60.33$85.10
2
24102-ZV5-000Ships in 1 to 2 Days
$3.07$4.20
3
24103-ZV5-000Ships in 1 to 2 Days
$1.78$2.44
4
24106-ZV5-000Ships in 1 to 2 Days
$8.26$11.66
5
24122-ZV5-000Ships in 1 to 2 Days
$10.95$15.46
6
24123-ZV5-003Ships in 1 to 2 Days
$4.37$6.16
7
41145-ZV5-020Ships in 1 to 2 Days
$135.63$191.38
8
41151-ZV5-010Ships in 1 to 2 Days
$158.16$223.18
9
41160-ZZ5-010Ships in 1 to 2 Days
$311.53$426.76
10
41161-ZZ5-000Ships in 1 to 2 Days
$259.34$355.26
11
$67.54$95.30
13
58151-ZV5-000Ships in 1 to 2 Days
$27.19$37.24
14
90105-ZY6-000Ships in 1 to 2 Daysqty 2 used
$5.96$8.16
15
90301-ZV5-000Ships in 1 to 2 Days
$12.42$17.02
16
90503-ZV5-000Ships in 1 to 2 Days
$6.02$8.24
17
90506-ZZ5-C00Ships in 1 to 2 Days
$42.59$58.34
18
90508-ZV5-000Ships in 1 to 2 Days
$4.56$6.24
19
90528-ZV5-000Ships in 1 to 2 Days
$7.88$10.80
19
90529-ZV5-000Ships in 1 to 2 Days
$7.88$10.80
19
90530-ZV5-000Ships in 1 to 2 Days
$7.88$10.80
19
90531-ZV5-000Ships in 1 to 2 Days
$7.88$10.80
20
90758-ZV5-000Ships in 1 to 2 Days
$2.26$3.10
21
91051-ZZ5-003Ships in 1 to 2 Days
$24.28$33.26
22
91053-ZV5-003Ships in 1 to 2 Days
$13.39$18.34
23
91252-ZW4-003Ships in 1 to 2 Daysqty 2 used
$5.94$8.14
24
91351-ZZ5-003Ships in 1 to 2 Days
$3.36$4.74
25
96100-60070-00Ships in 1 to 2 Days
$19.64$26.90
26
96211-11000Ships in 1 to 2 Days
$1.18$1.62
Diagram

REGULATOR

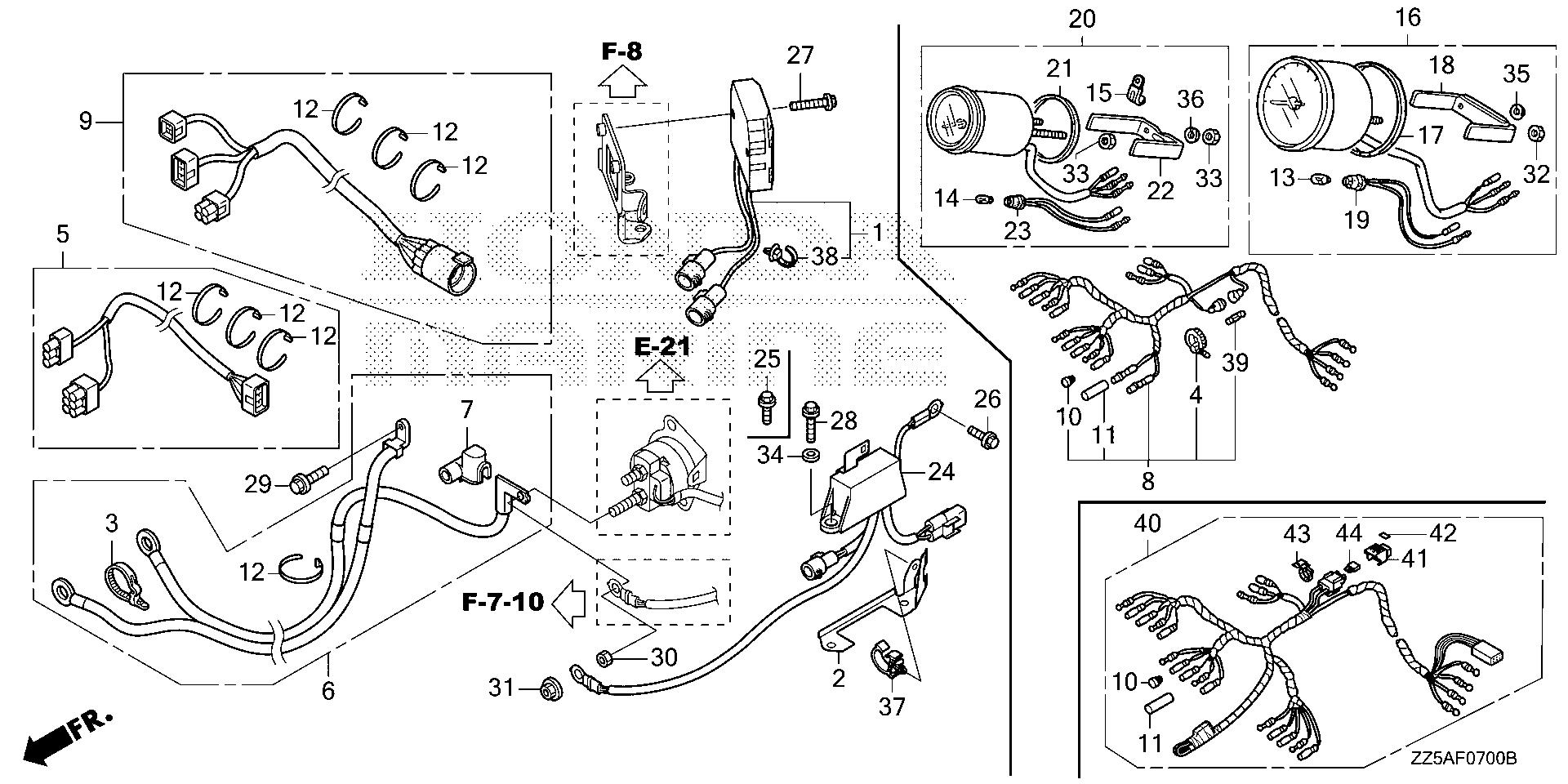

BF50 BF50DK2 regulator exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ5AF0700B
Fits all 2 submodels of this generation.

Parts in this assembly

27 parts
1
31750-ZZ5-003Ships in 1 to 2 Daysreplaced by 31750-ZZ5-013
$342.84$469.64
1
31750-ZZ5-013Ships in 1 to 2 Days
$342.84$469.64
2
32111-ZZ5-010Ships in 1 to 2 Days
$12.03$16.98
3
32121-HA0-003No Longer Available
$7.81$10.70
3
90651-KV6-003Ships in 1 to 2 Days
$4.12$5.64
6
32410-ZZ5-000Ships in 1 to 2 Days
$222.01$313.22
7
32411-ZZ5-000Ships in 1 to 2 Days
$10.85$15.30
12
32901-952-770Ships in 1 to 2 Days
$2.19$3.00
24
38550-ZZ5-003Ships in 1 to 2 Days
$177.73$250.78
25
90013-ZV0-010Ships in 1 to 2 Daysqty 2 used
$1.80$2.46
25
90020-ZZ5-M00Ships in 1 to 2 Daysqty 2 used
$1.12$1.58
25
90020-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.04$1.46
26
90013-ZW9-000Ships in 1 to 2 Days
$1.47$2.08
26
90105-ZZ5-M00Ships in 1 to 2 Days
$1.10$1.50
27
90016-ZW9-000Ships in 1 to 2 Daysreplaced by 90014-ZZ5-M01
$1.87$2.56
27
90014-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.87$2.56
27
90014-ZZ5-M00Ships in 1 to 2 Daysqty 2 used
$1.87$2.56
28
90104-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.85$2.54
28
90104-ZZ5-M00Ships in 1 to 2 Daysqty 2 used
$1.20$1.68
29
90107-ZY3-000Ships in 1 to 2 Days
$0.60$0.82
30
90203-ZV5-000Ships in 1 to 2 Days
$1.53$2.16
31
90203-ZY1-801Ships in 1 to 2 Days
$3.88$5.48
34
90403-ZW1-000Ships in 1 to 2 Daysqty 2 used
$1.71$2.34
34
90503-ZZ5-M00Ships in 1 to 2 Daysqty 2 used
$1.71$2.42
34
90503-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.49$2.04
37
90682-ZV5-003Ships in 1 to 2 Days
$1.66$2.34
38
91540-S0A-003Ships in 1 to 2 Days
$4.15$5.68
Diagram

REMOTE CONTROL (FLUSH MOUNT TYPE) (L.)

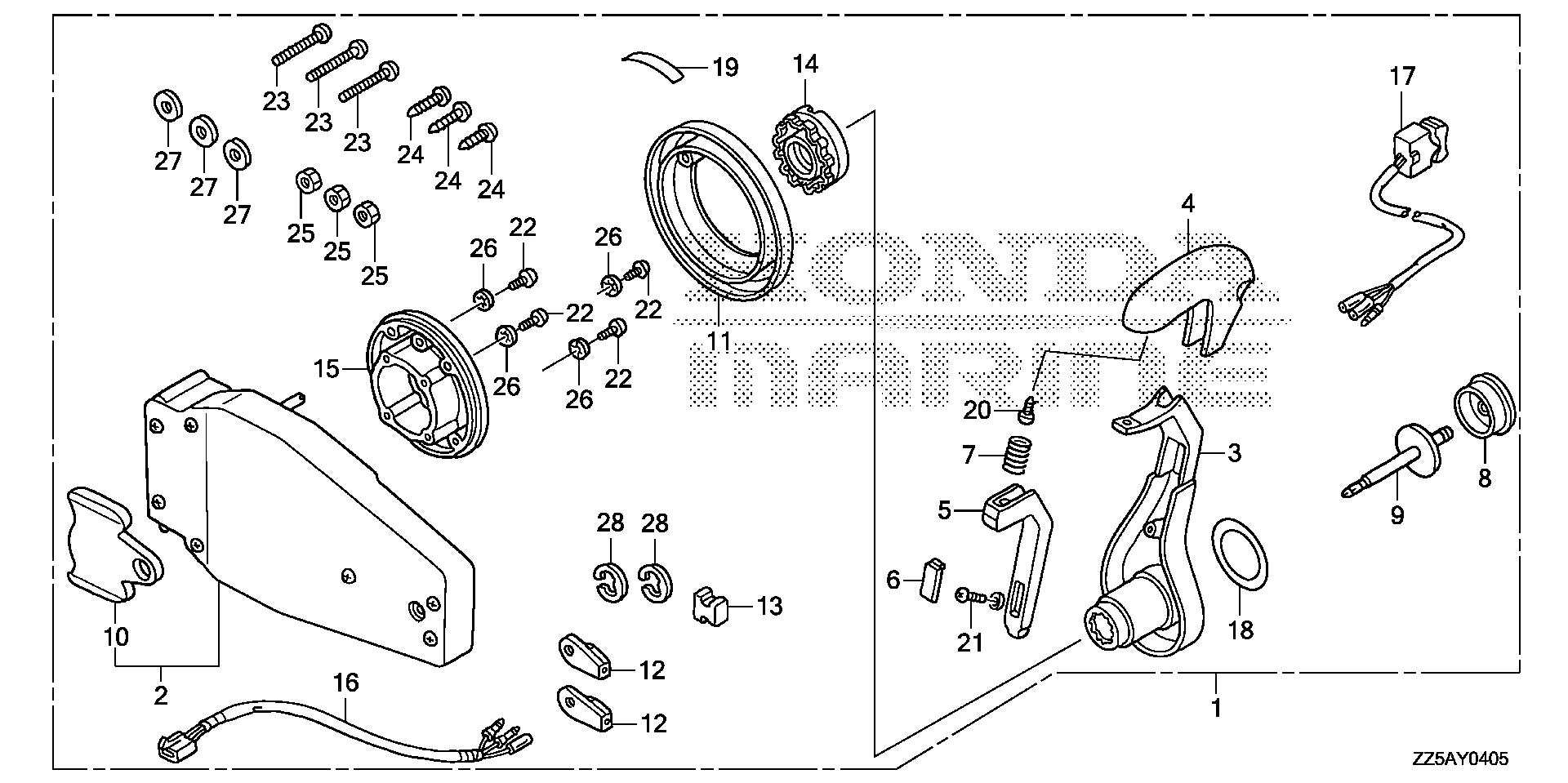

BF50 BF50DK2 remote control (flush mount type) (l.) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ5AY0405
Fits all 2 submodels of this generation.

Parts in this assembly

28 parts
1
06240-ZW7-U10Ships in 1 to 2 Days
$300.05
2
24810-ZW7-U11Ships in 1 to 2 Days
$428.07$586.40
3
24811-ZW7-U01Ships in 1 to 2 Days
$114.23$156.50
4
24812-ZW7-U01Ships in 1 to 2 Days
$14.41$19.74
5
24813-ZW7-U01Ships in 1 to 2 Days
$15.93$21.82
6
24814-ZW7-U01Ships in 1 to 2 Days
$3.61$4.94
7
24815-ZW7-U01Ships in 1 to 2 Days
$8.85$12.12
8
24816-ZW5-U01Ships in 1 to 2 Days
$7.72$10.58
9
24817-ZW7-U01Ships in 1 to 2 Days
$6.69$9.16
10
24826-ZW5-U01Ships in 1 to 2 Days
$13.81$18.92
11
24830-ZW7-U01Ships in 1 to 2 Days
$24.35$33.36
12
24831-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$8.45$11.58
13
24832-ZW5-U01Ships in 1 to 2 Days
$3.74$5.12
14
24832-ZW7-U01Ships in 1 to 2 Days
$14.88$20.38
15
24833-ZW7-U01Ships in 1 to 2 Days
$30.98$42.44
16
32530-ZW7-U20Ships in 1 to 2 Days
$14.76$20.22
17
35370-ZW7-U02Ships in 1 to 2 Days
$52.93$72.50
18
87701-ZW7-U01Ships in 1 to 2 Days
$6.19$8.48
19
87703-ZW7-U00Ships in 1 to 2 Days
$4.58$6.28
20
90101-ZW5-U00Ships in 1 to 2 Days
$2.60$3.56
21
90101-ZW7-U01Ships in 1 to 2 Days
$2.31$3.16
22
90102-ZW7-U01Ships in 1 to 2 Daysqty 4 used
$2.98$4.08
23
90103-ZW7-U01Ships in 1 to 2 Daysqty 3 used
$1.24$1.70
24
90104-ZW7-U01Ships in 1 to 2 Daysqty 3 used
$1.24$1.70
25
90301-ZW7-U01Ships in 1 to 2 Daysqty 3 used
$1.17$1.60
26
90501-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.85$1.16
27
90502-ZW7-U00Ships in 1 to 2 Daysqty 3 used
$1.34$1.84
28
94540-06029Ships in 1 to 2 Daysqty 2 used
$3.50$4.80
Diagram

REMOTE CONTROL (FLUSH MOUNT TYPE) (R.)

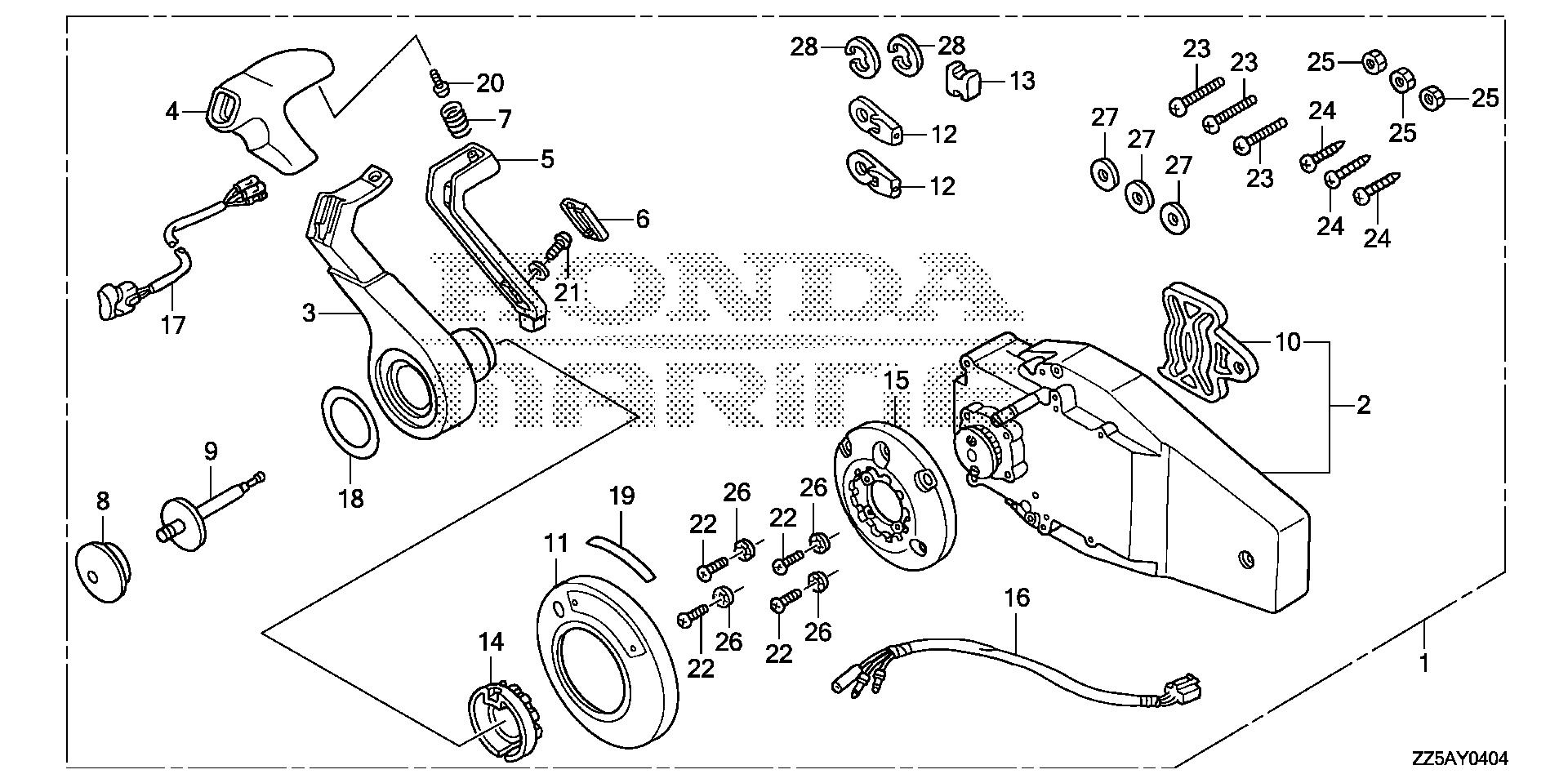

BF50 BF50DK2 remote control (flush mount type) (r.) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ5AY0404
Fits all 2 submodels of this generation.

Parts in this assembly

28 parts
1
06240-ZW7-U00Ships in 1 to 2 Days
$300.05
2
24810-ZW7-U01Ships in 1 to 2 Days
$428.07$586.40
3
24811-ZW7-U01Ships in 1 to 2 Days
$114.23$156.50
4
24812-ZW7-U01Ships in 1 to 2 Days
$14.41$19.74
5
24813-ZW7-U01Ships in 1 to 2 Days
$15.93$21.82
6
24814-ZW7-U01Ships in 1 to 2 Days
$3.61$4.94
7
24815-ZW7-U01Ships in 1 to 2 Days
$8.85$12.12
8
24816-ZW5-U01Ships in 1 to 2 Days
$7.72$10.58
9
24817-ZW7-U01Ships in 1 to 2 Days
$6.69$9.16
10
24826-ZW5-U01Ships in 1 to 2 Days
$13.81$18.92
11
24830-ZW7-U01Ships in 1 to 2 Days
$24.35$33.36
12
24831-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$8.45$11.58
13
24832-ZW5-U01Ships in 1 to 2 Days
$3.74$5.12
14
24832-ZW7-U01Ships in 1 to 2 Days
$14.88$20.38
15
24833-ZW7-U01Ships in 1 to 2 Days
$30.98$42.44
16
32530-ZW7-U20Ships in 1 to 2 Days
$14.76$20.22
17
35370-ZW7-U02Ships in 1 to 2 Days
$52.93$72.50
18
87701-ZW7-U01Ships in 1 to 2 Days
$6.19$8.48
19
87703-ZW7-U00Ships in 1 to 2 Days
$4.58$6.28
20
90101-ZW5-U00Ships in 1 to 2 Days
$2.60$3.56
21
90101-ZW7-U01Ships in 1 to 2 Days
$2.31$3.16
22
90102-ZW7-U01Ships in 1 to 2 Daysqty 4 used
$2.98$4.08
23
90103-ZW7-U01Ships in 1 to 2 Daysqty 3 used
$1.24$1.70
24
90104-ZW7-U01Ships in 1 to 2 Daysqty 3 used
$1.24$1.70
25
90301-ZW7-U01Ships in 1 to 2 Daysqty 3 used
$1.17$1.60
26
90501-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.85$1.16
27
90502-ZW7-U00Ships in 1 to 2 Daysqty 3 used
$1.34$1.84
28
94540-06029Ships in 1 to 2 Daysqty 2 used
$3.50$4.80
Diagram

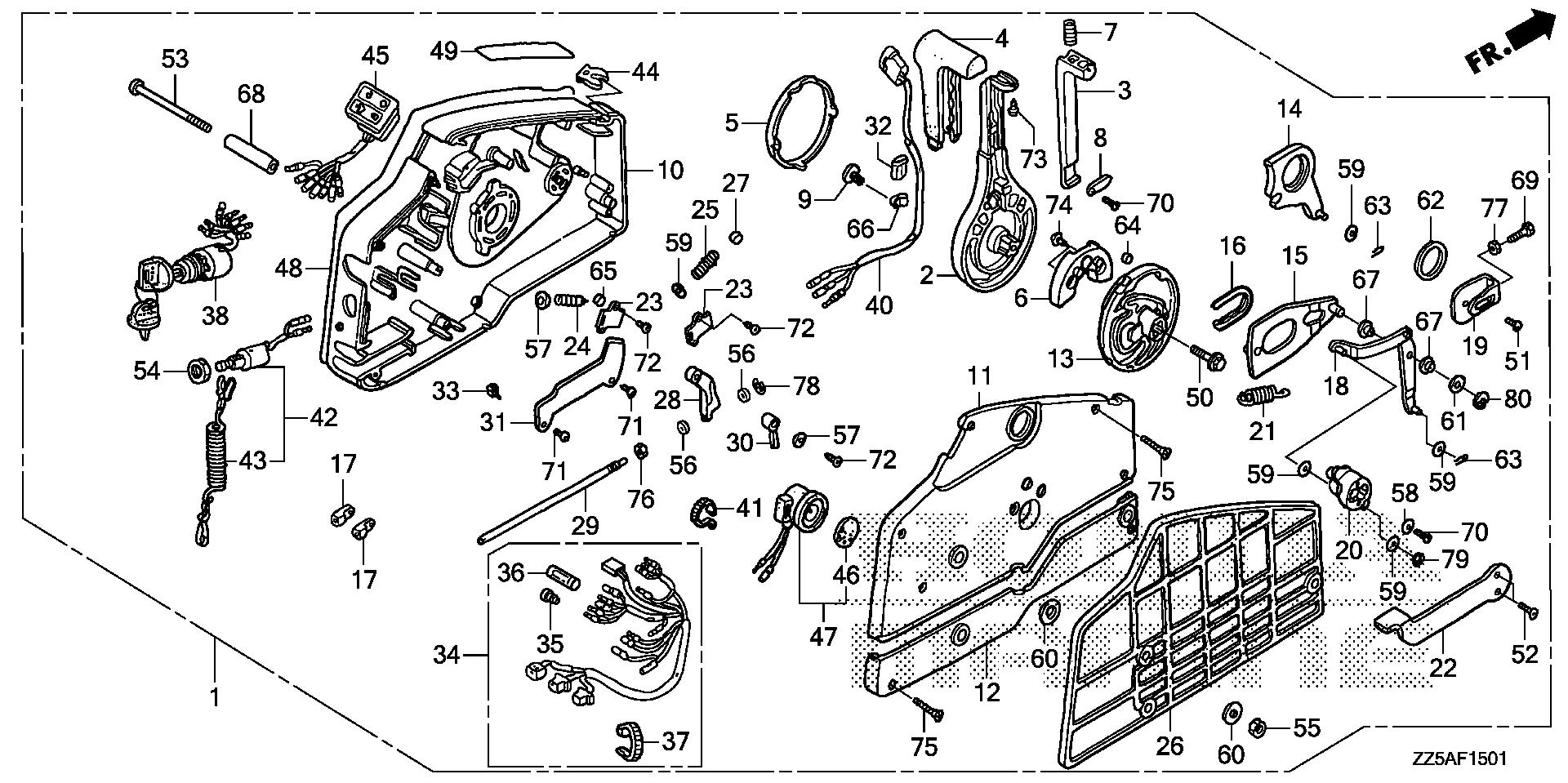

REMOTE CONTROL (HI-LEX) (P/T) (HANDLE CAP = GRAY)

BF50 BF50DK2 remote control (hi-lex) (p/t) (handle cap = gray) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ5AF1501
Fits all 2 submodels of this generation.

Parts in this assembly

82 parts
1
24800-ZZ5-A22Ships in 1 to 2 Daysreplaced by 24800-ZZ5-D24
$333.68
1
24800-ZZ5-A23Ships in 1 to 2 Daysreplaced by 24800-ZZ5-D24
$333.68
1
24800-ZZ5-A24Ships in 1 to 2 Daysreplaced by 24800-ZZ5-D24
$453.45$621.16
1
$474.41$649.88
2
24811-ZV5-010Ships in 1 to 2 Days
$115.09$162.38
3
LEVER, HANDLE LOCK (NOT AVAILABLE)
24812-ZV5-000No Longer Available
—
4
24813-ZV5-000Ships in 1 to 2 Days
$39.73$56.04
5
24814-ZV5-010Ships in 1 to 2 Days
$8.23$11.62
6
24815-ZV5-010Ships in 1 to 2 Days
$8.04$11.36
7
24816-ZV5-000Ships in 1 to 2 Days
$4.07$5.74
8
24817-ZV5-000Ships in 1 to 2 Days
$3.81$5.38
9
24818-ZV5-003Ships in 1 to 2 Days
$1.33$1.88
10
24820-ZV5-010Ships in 1 to 2 Days
$102.08$144.04
11
24830-ZV5-010Ships in 1 to 2 Days
$54.08$76.32
12
24836-ZV5-000Ships in 1 to 2 Days
$33.64$47.46
13
24841-ZV5-000Ships in 1 to 2 Days
$57.93$81.74
14
24845-ZV5-000Ships in 1 to 2 Days
$39.52$55.76
15
24850-ZV5-000Ships in 1 to 2 Days
$46.76$65.98
16
24854-ZV5-000Ships in 1 to 2 Days
$8.10$11.44
17
24855-ZV5-000Ships in 1 to 2 Daysqty 2 used
$8.10$11.44
18
24860-ZV5-000Ships in 1 to 2 Days
$37.81$53.36
19
24865-ZV5-000Ships in 1 to 2 Days
$17.32$24.44
20
24875-ZV5-000Ships in 1 to 2 Days
$22.41$31.62
21
24876-ZV5-000Ships in 1 to 2 Days
$4.07$5.74
22
24878-ZV5-000Ships in 1 to 2 Days
$51.83$73.12
23
24881-ZV5-000Ships in 1 to 2 Daysqty 2 used
$3.81$5.38
24
24883-ZV5-000Ships in 1 to 2 Days
$3.90$5.50
25
24884-ZV5-000Ships in 1 to 2 Days
$3.90$5.50
26
24885-ZV5-000Ships in 1 to 2 Days
$69.85$98.54
27
24887-ZV5-000Ships in 1 to 2 Days
$4.63$6.52
28
24891-ZV5-000Ships in 1 to 2 Days
$7.84$11.06
29
24892-ZV5-000Ships in 1 to 2 Days
$15.26$21.52
30
24894-ZV5-000Ships in 1 to 2 Days
$6.31$8.90
31
24895-ZV5-000Ships in 1 to 2 Days
$6.32$8.92
32
24897-ZV5-000Ships in 1 to 2 Days
$4.96$7.00
33
24898-ZV5-000Ships in 1 to 2 Days
$4.85$6.84
34
32530-ZZ5-000Ships in 1 to 2 Days
$176.30$248.72
35
32823-ZV5-003Ships in 1 to 2 Daysqty 7 used
$2.95$4.04
36
32824-ZV5-003Ships in 1 to 2 Days
$3.11$4.26
37
32901-952-770Ships in 1 to 2 Days
$2.19$3.00
38
35100-ZV5-013Ships in 1 to 2 Days
$85.13$116.62
40
35370-ZV5-823Ships in 1 to 2 Days
$63.90$90.18
41
35701-MG9-950Ships in 1 to 2 Days
$1.83$2.50
42
36180-ZV5-033In Stock
$56.84$77.86
43
36182-ZV4-651In Stock
$18.45$25.28
44
36187-ZV4-652Ships in 1 to 2 Days
$4.18$5.72
45
LAMP ASSY., INDICATION (4-LED) (NOT AVAILABLE)
37210-ZZ5-013No Longer Available
—
46
38403-341-672Ships in 1 to 2 Days
$4.66$6.38
47
38410-ZV5-003Ships in 1 to 2 Days
$56.17$76.94
48
$50.03$70.60
49
87702-ZW9-800Ships in 1 to 2 Days
$6.45$9.10
50
90008-ZW9-000Ships in 1 to 2 Days
$4.31$6.08
51
90105-MM4-000Ships in 1 to 2 Days
$2.03$2.78
52
90108-ZW4-000Ships in 1 to 2 Daysqty 2 used
$1.27$1.80
53
90125-ZV5-000Ships in 1 to 2 Daysqty 3 used
$6.91$9.74
54
90302-921-000In Stock
$4.10$5.62
55
90304-ZV4-000Ships in 1 to 2 Daysqty 3 used
$2.12$2.90
56
90401-ZW4-000Ships in 1 to 2 Daysqty 2 used
$1.24$1.70
57
90402-ZW4-000Ships in 1 to 2 Daysqty 2 used
$1.85$2.62
58
90502-ZV4-000Ships in 1 to 2 Days
$2.73$3.74
59
90504-921-010Ships in 1 to 2 Daysqty 5 used
$1.27$1.74
60
90512-921-010In Stockqty 6 used
$1.07$1.46
61
90518-921-000Ships in 1 to 2 Days
$1.20$1.64
62
90557-ZV5-000Ships in 1 to 2 Days
$2.99$4.22
63
90751-ZV5-000Ships in 1 to 2 Daysqty 2 used
$3.29$4.50
64
90772-ZV5-000Ships in 1 to 2 Days
$3.99$5.62
65
91151-ZV5-000Ships in 1 to 2 Days
$3.45$4.86
66
91475-SB6-000Ships in 1 to 2 Days
$7.72$10.58
67
91567-ZV5-000Ships in 1 to 2 Daysqty 2 used
$2.76$3.90
68
91570-ZV5-000Ships in 1 to 2 Daysqty 3 used
$8.10$11.44
69
92101-05016-4JShips in 1 to 2 Days
$1.21$1.66
70
93500-05010-4JShips in 1 to 2 Daysqty 2 used
$1.23$1.74
71
93901-250J0Ships in 1 to 2 Daysqty 2 used
$1.64$2.30
72
93901-251J0Ships in 1 to 2 Daysqty 3 used
$0.58$0.82
73
93901-252J0Ships in 1 to 2 Days
$1.53$2.16
74
93903-262J0Ships in 1 to 2 Daysqty 2 used
$2.37$3.34
75
93905-255J0Ships in 1 to 2 Daysqty 7 used
$2.37$3.34
76
94001-06490-0SShips in 1 to 2 Days
$2.15$2.94
77
94002-05490-0SShips in 1 to 2 Days
$0.96$1.36
78
94540-03029Ships in 1 to 2 Days
$1.34$1.90
79
94540-04029Ships in 1 to 2 Days
$5.23$7.16
80
94540-07029Ships in 1 to 2 Days
$4.38$6.00
Diagram

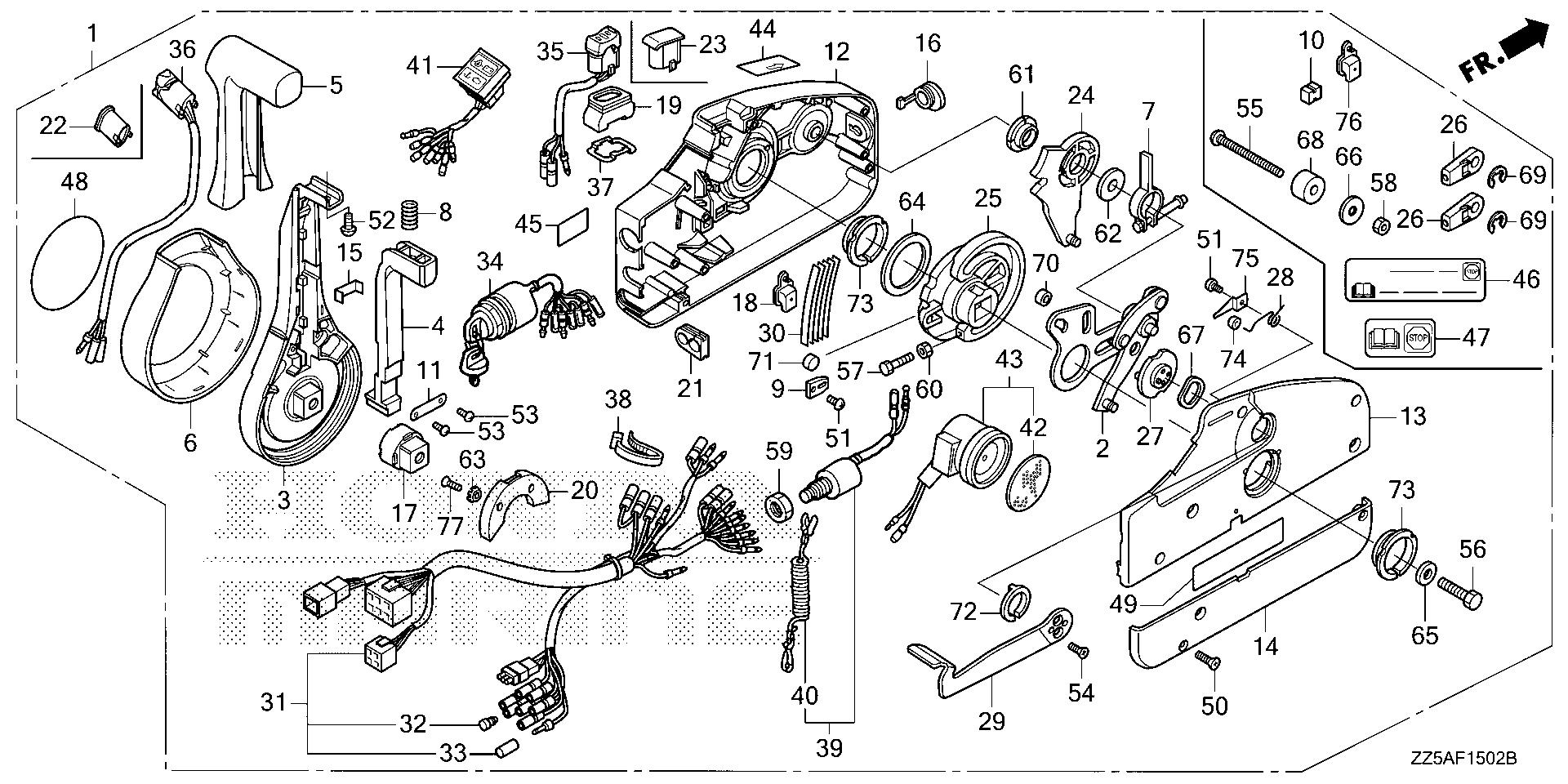

REMOTE CONTROL (NHK MEC) (HANDLE CAP = CHROME)

BF50 BF50DK2 remote control (nhk mec) (handle cap = chrome) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ5AF1502B
Fits all 2 submodels of this generation.

Parts in this assembly

84 parts
1
24800-ZZ5-A12Ships in 1 to 2 Days
$756.66$1,036.52
1
24800-ZZ5-A22Ships in 1 to 2 Daysreplaced by 24800-ZZ5-D24
$333.68
1
24800-ZZ5-A23Ships in 1 to 2 Daysreplaced by 24800-ZZ5-D24
$333.68
1
24800-ZZ5-A24Ships in 1 to 2 Daysreplaced by 24800-ZZ5-D24
$453.45$621.16
1
$474.41$649.88
1
24800-ZZ5-A04Ships in 1 to 2 Days
$474.41$649.88
1
BOX ASSY., REMOTE CONTROL (NHK MEC)
24800-ZZ5-A13No Longer Available
—
2
24810-ZZ5-D01Ships in 1 to 2 Days
$48.17$65.98
3
24811-ZZ5-D01Ships in 1 to 2 Days
$102.07$139.84
4
24812-ZZ5-D01Ships in 1 to 2 Days
$9.34$12.80
5
24813-ZZ5-D01Ships in 1 to 2 Days
$25.13$34.42
6
24814-ZZ5-D01Ships in 1 to 2 Days
$56.34$77.18
7
24815-ZZ5-D01Ships in 1 to 2 Days
$15.87$21.74
8
24816-ZZ5-D01Ships in 1 to 2 Days
$2.07$2.84
9
24817-ZZ5-D01Ships in 1 to 2 Days
$2.10$2.88
10
24818-ZZ5-D01Ships in 1 to 2 Days
$2.82$3.86
11
24819-ZZ5-D01Ships in 1 to 2 Days
$2.01$2.76
12
24821-ZZ5-D01Ships in 1 to 2 Days
$131.39$179.98
13
24822-ZZ5-D01Ships in 1 to 2 Days
$47.76$65.42
14
24823-ZZ5-D01Ships in 1 to 2 Days
$34.50$47.26
15
24824-ZZ5-D01Ships in 1 to 2 Days
$2.28$3.12
16
24826-ZZ5-D01Ships in 1 to 2 Days
$4.89$6.70
17
24827-ZZ5-D01Ships in 1 to 2 Days
$14.73$20.18
18
24828-ZZ5-D01Ships in 1 to 2 Days
$3.31$4.54
19
24829-ZZ5-D01Ships in 1 to 2 Days
$7.23$9.90
20
24831-ZZ5-D01Ships in 1 to 2 Days
$6.39$8.76
21
24832-ZZ5-D01Ships in 1 to 2 Days
$5.02$6.88
22
24832-ZZ5-D11Ships in 1 to 2 Days
$4.47$6.30
23
24833-ZZ5-D01Ships in 1 to 2 Days
$5.24$7.18
24
24845-ZZ5-D01Ships in 1 to 2 Days
$26.12$35.78
25
24850-ZZ5-D01Ships in 1 to 2 Days
$38.08$52.16
26
24855-ZZ5-D01Ships in 1 to 2 Daysqty 2 used
$3.72$5.10
27
24875-ZZ5-D01Ships in 1 to 2 Days
$14.34$19.64
28
24876-ZZ5-D01Ships in 1 to 2 Days
$1.65$2.26
29
24878-ZZ5-D01Ships in 1 to 2 Days
$27.11$37.14
30
24883-ZZ5-D01Ships in 1 to 2 Daysqty 5 used
$2.07$2.84
31
32530-ZZ5-D01Ships in 1 to 2 Days
$184.53$252.78
31
32530-ZZ5-D21Ships in 1 to 2 Days
$188.38$258.06
32
32823-ZV5-003Ships in 1 to 2 Daysqty 7 used
$2.95$4.04
33
32824-ZV5-003Ships in 1 to 2 Days
$3.11$4.26
34
35100-ZV5-013Ships in 1 to 2 Days
$85.13$116.62
35
35340-ZZ5-D21Ships in 1 to 2 Days
$44.12$60.44
36
35370-ZZ5-D02Ships in 1 to 2 Days
$45.01$61.66
37
35645-ZZ3-A41Ships in 1 to 2 Days
$10.12$13.86
38
35701-ZZ5-D01Ships in 1 to 2 Days
$2.13$2.92
39
36180-ZV5-033In Stock
$56.84$77.86
40
36182-ZV4-651In Stock
$18.45$25.28
41
37210-ZZ5-D02Ships in 1 to 2 Days
$117.91$161.52
42
38403-341-672Ships in 1 to 2 Days
$4.66$6.38
43
38410-ZV5-003Ships in 1 to 2 Days
$56.17$76.94
44
87701-ZZ5-D00Ships in 1 to 2 Days
$4.34$5.94
45
87702-ZZ5-A00Ships in 1 to 2 Days
$5.05$6.92
46
87702-ZZ5-A00Ships in 1 to 2 Days
$5.05$6.92
48
87703-ZZ5-D00Ships in 1 to 2 Days
$15.90$21.78
49
87704-ZZ5-D01Ships in 1 to 2 Days
$5.69$7.80
50
90101-ZZ5-D01Ships in 1 to 2 Daysqty 5 used
$2.69$3.68
51
90102-ZZ5-D01Ships in 1 to 2 Daysqty 2 used
$1.58$2.16
52
90103-ZZ5-D01Ships in 1 to 2 Days
$2.01$2.76
53
90104-ZZ5-D01Ships in 1 to 2 Daysqty 2 used
$1.93$2.64
54
90106-ZZ5-D01Ships in 1 to 2 Daysqty 2 used
$2.07$2.84
55
90107-ZZ5-D01Ships in 1 to 2 Daysqty 3 used
$3.72$5.10
56
90108-ZZ5-D01Ships in 1 to 2 Days
$3.66$5.02
57
90109-ZZ5-D01Ships in 1 to 2 Days
$2.88$3.94
58
90301-ZZ5-D01Ships in 1 to 2 Daysqty 3 used
$1.37$1.88
59
90302-921-000In Stock
$4.10$5.62
60
90302-ZZ5-D01Ships in 1 to 2 Days
$0.92$1.26
61
90501-ZZ5-D01Ships in 1 to 2 Days
$3.34$4.58
62
90502-ZZ5-D01Ships in 1 to 2 Days
$2.04$2.80
63
90503-ZZ5-D01Ships in 1 to 2 Daysqty 2 used
$2.91$3.98
64
90504-ZZ5-D01Ships in 1 to 2 Days
$2.91$3.98
65
90506-ZZ5-D01Ships in 1 to 2 Days
$2.69$3.68
66
90507-ZZ5-D01Ships in 1 to 2 Daysqty 3 used
$3.84$5.26
67
90508-ZZ5-D01Ships in 1 to 2 Days
$3.20$4.38
68
90509-ZZ5-D01Ships in 1 to 2 Daysqty 3 used
$3.61$4.94
69
90651-ZZ5-D01Ships in 1 to 2 Daysqty 2 used
$2.98$4.08
70
91151-ZZ5-D01Ships in 1 to 2 Days
$2.19$3.00
71
91152-ZZ5-D01Ships in 1 to 2 Days
$1.99$2.72
72
91153-ZZ5-D01Ships in 1 to 2 Days
$2.61$3.58
73
91154-ZZ5-D01Ships in 1 to 2 Daysqty 2 used
$3.30$4.52
74
91156-ZZ5-D01Ships in 1 to 2 Days
$1.85$2.54
75
91157-ZZ5-D01Ships in 1 to 2 Days
$3.18$4.36
76
24828-ZZ5-D01Ships in 1 to 2 Days
$3.31$4.54
77
90101-ZZ5-D01Ships in 1 to 2 Daysqty 2 used
$2.69$3.68
77
90111-ZZ5-D01Ships in 1 to 2 Daysqty 2 used
$1.05$1.44
Diagram

REMOTE CONTROL (TOP MOUNT DUAL TYPE) (L.)

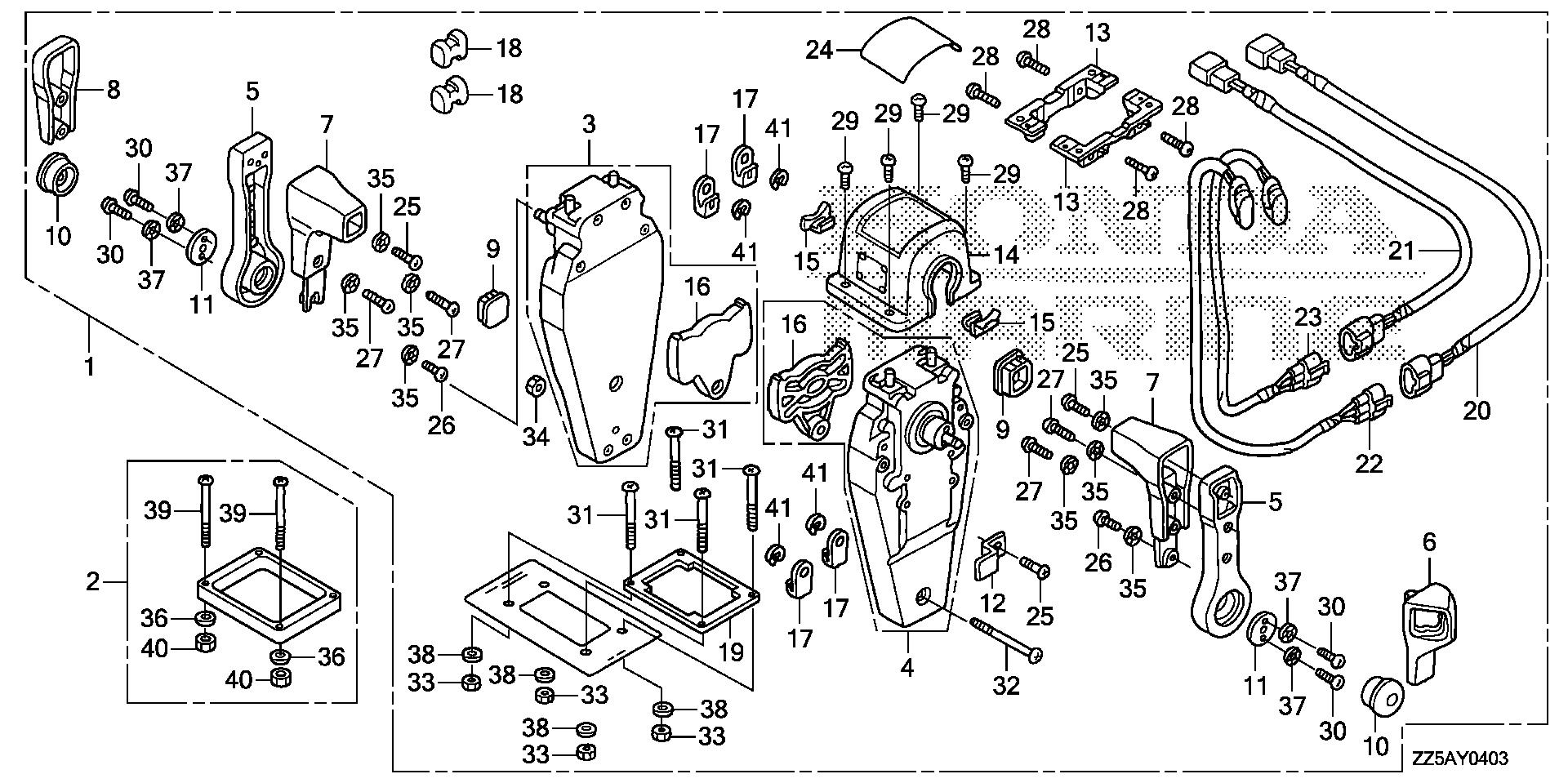

BF50 BF50DK2 remote control (top mount dual type) (l.) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ5AY0403
Fits all 2 submodels of this generation.

Parts in this assembly

42 parts
1
BOX KIT, REMOTE CONTROL (TOP MOUNT DUAL)(L) (NOT AVAILABLE)
06240-ZW5-U70No Longer Available
—
1
BOX KIT, REMOTE CONTROL (TOP MOUNT DUAL)(L)
06240-ZW5-U30No Longer Available
—
2
06241-ZW5-U10Ships in 1 to 2 Days
$33.81$46.32
3
24810-ZW5-U01Ships in 1 to 2 Days
$398.40$545.76
4
24810-ZW5-U11Ships in 1 to 2 Days
$398.40$545.76
5
24811-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$95.56$134.82
6
24812-ZW5-U11Ships in 1 to 2 Days
$13.83$19.50
7
24813-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$12.89$18.18
8
24813-ZW5-U21Ships in 1 to 2 Days
$5.45$7.68
9
24814-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$3.69$5.22
10
24816-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$7.72$10.58
11
24817-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$31.68$43.40
12
24818-ZW5-U01Ships in 1 to 2 Days
$7.11$9.74
13
24819-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$10.77$15.20
14
24820-ZW5-U21Ships in 1 to 2 Days
$30.50$43.04
15
24825-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$2.91$4.10
16
24826-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$13.81$18.92
17
24831-ZW5-U01Ships in 1 to 2 Daysqty 4 used
$8.45$11.58
18
24832-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$3.74$5.12
19
24834-ZW5-U21Ships in 1 to 2 Days
$8.82$12.08
20
32530-ZW7-U00Ships in 1 to 2 Days
$25.87$35.44
21
32530-ZW7-U10Ships in 1 to 2 Days
$26.46$36.24
22
35370-ZW5-U02Ships in 1 to 2 Days
$54.55$76.96
23
35370-ZW5-U12Ships in 1 to 2 Days
$54.55$76.96
24
87703-ZW5-U22Ships in 1 to 2 Days
$9.52$13.44
25
90101-ZW5-U00Ships in 1 to 2 Daysqty 3 used
$2.60$3.56
26
90102-ZW5-U00Ships in 1 to 2 Daysqty 2 used
$2.38$3.36
27
90103-ZW5-U01Ships in 1 to 2 Daysqty 4 used
$3.20$4.52
28
90104-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$1.14$1.56
29
90105-ZW5-U01Ships in 1 to 2 Daysqty 4 used
$2.38$3.36
30
90106-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$2.60$3.56
31
90107-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.93$1.28
32
90108-ZW5-U00Ships in 1 to 2 Daysqty 3 used
$1.31$1.80
33
90301-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$1.18$1.62
34
90302-ZW5-U21Ships in 1 to 2 Days
$1.18$1.62
35
90501-ZW5-U00Ships in 1 to 2 Daysqty 8 used
$0.85$1.16
36
90502-ZV4-000Ships in 1 to 2 Daysqty 4 used
$2.73$3.74
37
90502-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$1.69$2.32
38
90503-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.66$0.90
39
93500-05065-4JShips in 1 to 2 Daysqty 4 used
$2.50$3.42
40
94001-05490-0SShips in 1 to 2 Daysqty 4 used
$0.92$1.26
41
94540-06029Ships in 1 to 2 Daysqty 4 used
$3.50$4.80
Diagram

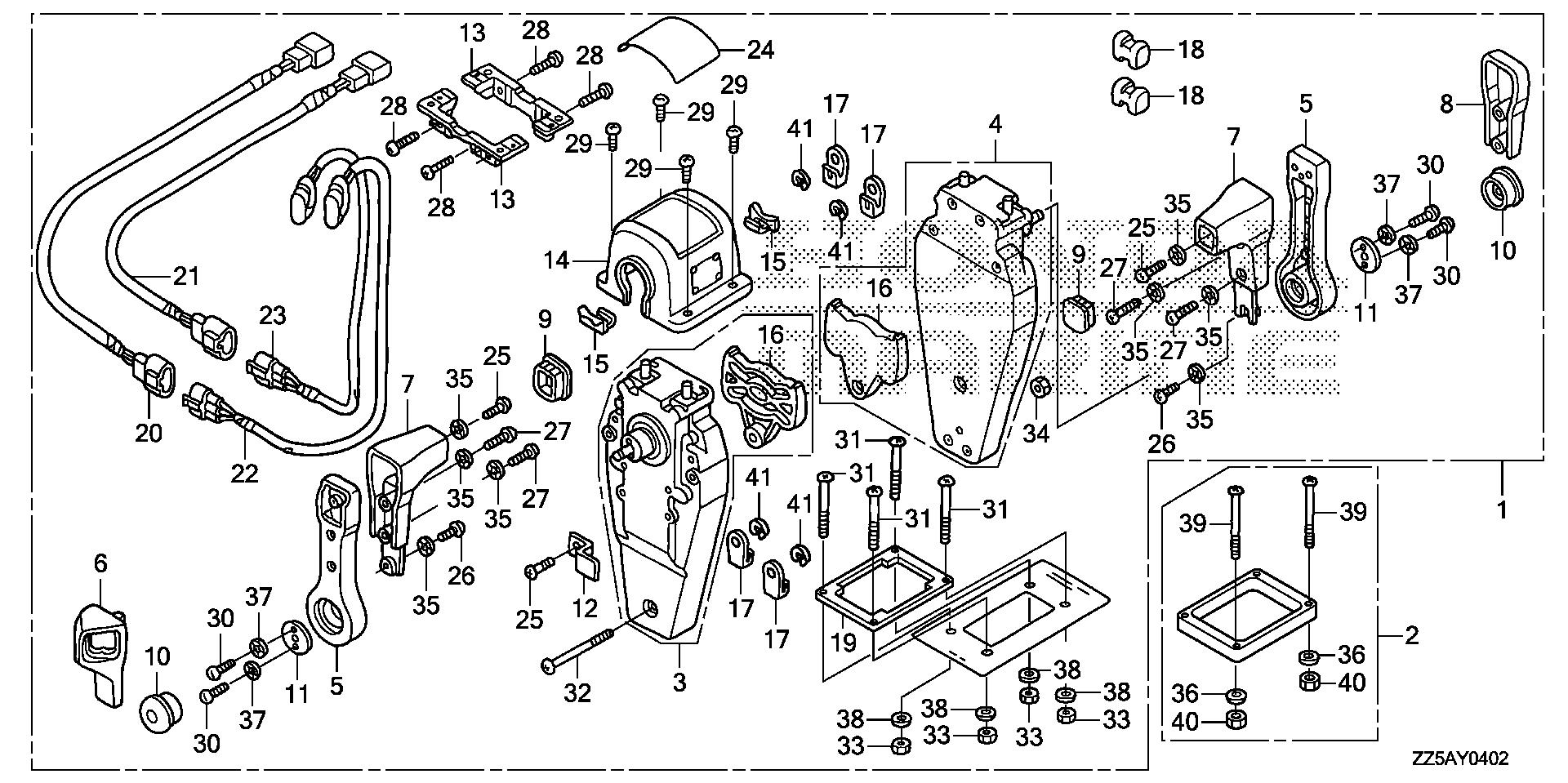

REMOTE CONTROL (TOP MOUNT DUAL TYPE) (R.)

BF50 BF50DK2 remote control (top mount dual type) (r.) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ5AY0402
Fits all 2 submodels of this generation.

Parts in this assembly

41 parts
1
06240-ZY6-V92Ships in 1 to 2 Days
$629.99
2
06241-ZW5-U10Ships in 1 to 2 Days
$33.81$46.32
3
24810-ZW5-U01Ships in 1 to 2 Days
$398.40$545.76
4
24810-ZW5-U11Ships in 1 to 2 Days
$398.40$545.76
5
24811-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$95.56$134.82
6
24812-ZW5-U01Ships in 1 to 2 Days
$12.56$17.72
7
24813-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$12.89$18.18
8
24813-ZW5-U21Ships in 1 to 2 Days
$5.45$7.68
9
24814-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$3.69$5.22
10
24816-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$7.72$10.58
11
24817-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$31.68$43.40
12
24818-ZW5-U01Ships in 1 to 2 Days
$7.11$9.74
13
24819-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$10.77$15.20
14
24820-ZW5-U21Ships in 1 to 2 Days
$30.50$43.04
15
24825-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$2.91$4.10
16
24826-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$13.81$18.92
17
24831-ZW5-U01Ships in 1 to 2 Daysqty 4 used
$8.45$11.58
18
24832-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$3.74$5.12
19
24834-ZW5-U21Ships in 1 to 2 Days
$8.82$12.08
20
32530-ZW7-U00Ships in 1 to 2 Days
$25.87$35.44
21
32530-ZW7-U10Ships in 1 to 2 Days
$26.46$36.24
22
35370-ZW5-U02Ships in 1 to 2 Days
$54.55$76.96
23
35370-ZW5-U12Ships in 1 to 2 Days
$54.55$76.96
24
87703-ZW5-U22Ships in 1 to 2 Days
$9.52$13.44
25
90101-ZW5-U00Ships in 1 to 2 Daysqty 3 used
$2.60$3.56
26
90102-ZW5-U00Ships in 1 to 2 Daysqty 2 used
$2.38$3.36
27
90103-ZW5-U01Ships in 1 to 2 Daysqty 4 used
$3.20$4.52
28
90104-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$1.14$1.56
29
90105-ZW5-U01Ships in 1 to 2 Daysqty 4 used
$2.38$3.36
30
90106-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$2.60$3.56
31
90107-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.93$1.28
32
90108-ZW5-U00Ships in 1 to 2 Daysqty 3 used
$1.31$1.80
33
90301-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$1.18$1.62
34
90302-ZW5-U21Ships in 1 to 2 Days
$1.18$1.62
35
90501-ZW5-U00Ships in 1 to 2 Daysqty 8 used
$0.85$1.16
36
90502-ZV4-000Ships in 1 to 2 Daysqty 4 used
$2.73$3.74
37
90502-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$1.69$2.32
38
90503-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.66$0.90
39
93500-05065-4JShips in 1 to 2 Daysqty 4 used
$2.50$3.42
40
94001-05490-0SShips in 1 to 2 Daysqty 4 used
$0.92$1.26
41
94540-06029Ships in 1 to 2 Daysqty 4 used
$3.50$4.80
Diagram

REMOTE CONTROL (TOP MOUNT SINGLE TYPE) (L.)

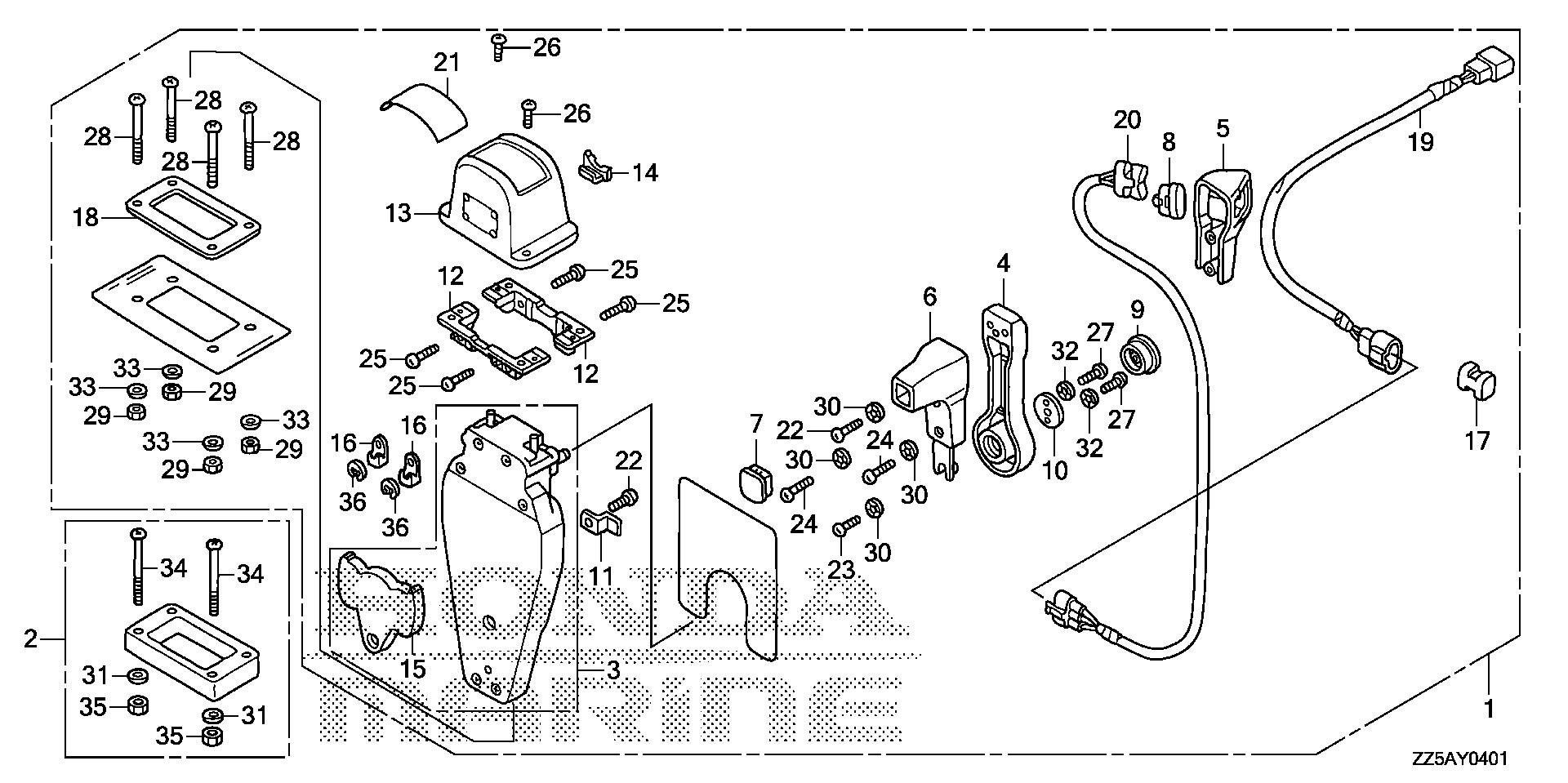

BF50 BF50DK2 remote control (top mount single type) (l.) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ5AY0401
Fits all 2 submodels of this generation.

Parts in this assembly

37 parts
1
BOX KIT, REMOTE CONTROL (TOP MOUNT SINGLE)(L) (NOT AVAILABLE)
06240-ZW5-U50No Longer Available
—
1
BOX KIT, REMOTE CONTROL (TOP MOUNT SINGLE)(L)
06240-ZW5-U10No Longer Available
—
2
06241-ZW5-U00Ships in 1 to 2 Days
$31.45$43.08
3
24810-ZW5-U11Ships in 1 to 2 Days
$398.40$545.76
4
24811-ZW5-U01Ships in 1 to 2 Days
$95.56$134.82
5
24812-ZW5-U11Ships in 1 to 2 Days
$13.83$19.50
6
24813-ZW5-U01Ships in 1 to 2 Days
$12.89$18.18
7
24814-ZW5-U01Ships in 1 to 2 Days
$3.69$5.22
8
24815-ZW5-U01Ships in 1 to 2 Days
$5.66$8.00
9
24816-ZW5-U01Ships in 1 to 2 Days
$7.72$10.58
10
24817-ZW5-U01Ships in 1 to 2 Days
$31.68$43.40
11
24818-ZW5-U01Ships in 1 to 2 Days
$7.11$9.74
12
24819-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$10.77$15.20
13
24820-ZW5-U01Ships in 1 to 2 Days
$27.23$38.42
14
24825-ZW5-U01Ships in 1 to 2 Days
$2.91$4.10
15
24826-ZW5-U01Ships in 1 to 2 Days
$13.81$18.92
16
24831-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$8.45$11.58
17
24832-ZW5-U01Ships in 1 to 2 Days
$3.74$5.12
18
24834-ZW5-U01Ships in 1 to 2 Days
$4.42$6.06
19
32530-ZW7-U10Ships in 1 to 2 Days
$26.46$36.24
20
35370-ZW5-U12Ships in 1 to 2 Days
$54.55$76.96
21
87703-ZW5-U02Ships in 1 to 2 Days
$7.08$10.00
22
90101-ZW5-U00Ships in 1 to 2 Daysqty 2 used
$2.60$3.56
23
90102-ZW5-U00Ships in 1 to 2 Days
$2.38$3.36
24
90103-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$3.20$4.52
25
90104-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$1.14$1.56
26
90105-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$2.38$3.36
27
90106-ZW5-U00Ships in 1 to 2 Daysqty 2 used
$2.60$3.56
28
90107-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.93$1.28
29
90301-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$1.18$1.62
30
90501-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.85$1.16
31
90502-ZV4-000Ships in 1 to 2 Daysqty 4 used
$2.73$3.74
32
90502-ZW5-U00Ships in 1 to 2 Daysqty 2 used
$1.69$2.32
33
90503-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.66$0.90
34
93500-05065-4JShips in 1 to 2 Daysqty 4 used
$2.50$3.42
35
94001-05490-0SShips in 1 to 2 Daysqty 4 used
$0.92$1.26
36
94540-06029Ships in 1 to 2 Daysqty 2 used
$3.50$4.80
Diagram

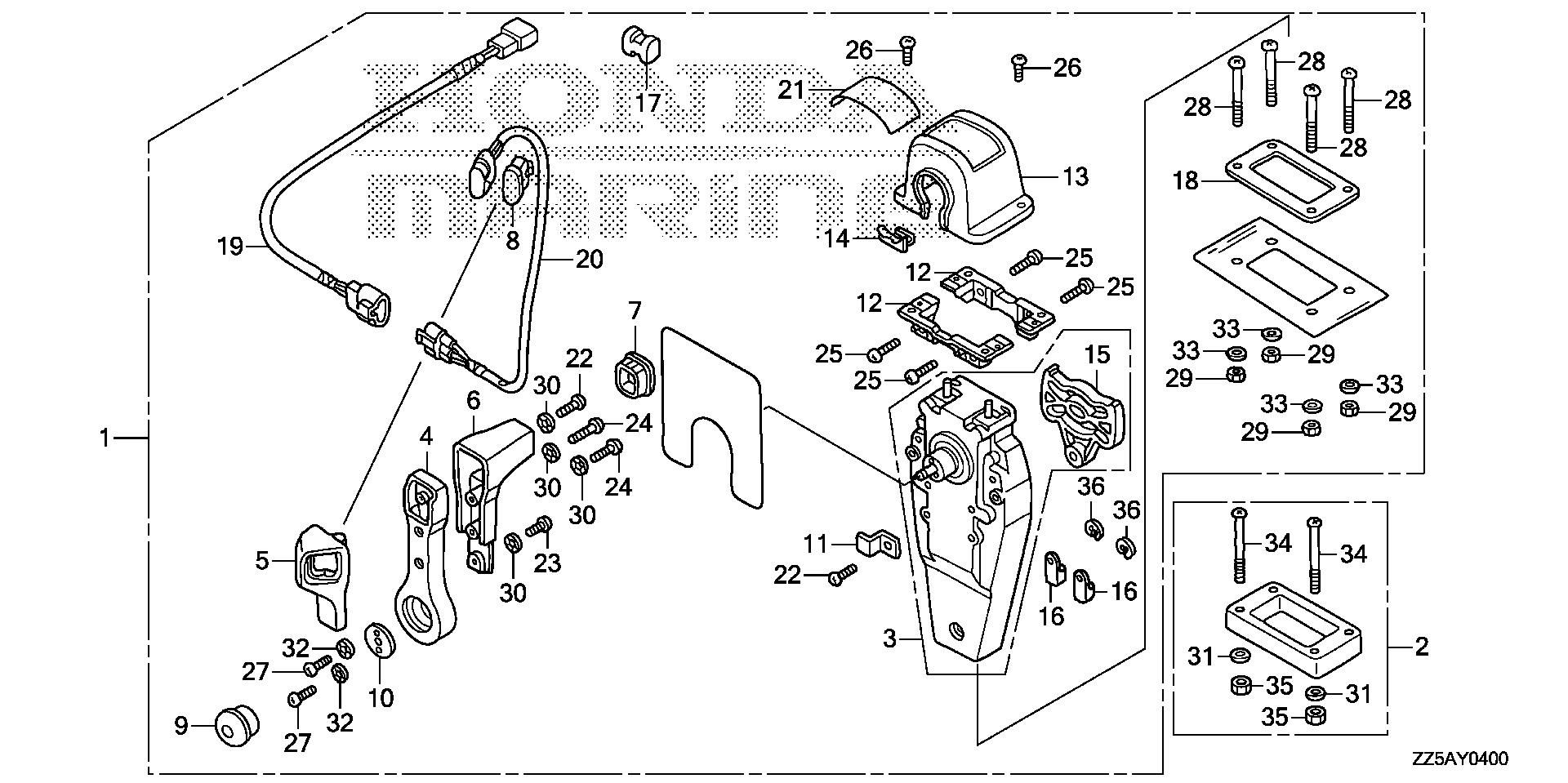

REMOTE CONTROL (TOP MOUNT SINGLE TYPE) (R.)

BF50 BF50DK2 remote control (top mount single type) (r.) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ5AY0400
Fits all 2 submodels of this generation.

Parts in this assembly

37 parts
1
BOX KIT, REMOTE CONTROL (TOP MOUNT SINGLE)(R) (NOT AVAILABLE)
06240-ZW5-U40No Longer Available
$261.37
1
BOX KIT, REMOTE CONTROL (TOP MOUNT SINGLE)(R)
06240-ZW5-U00Ships in 1 to 2 Daysreplaced by 06240-ZW5-U40
$261.37
2
06241-ZW5-U00Ships in 1 to 2 Days
$31.45$43.08
3
24810-ZW5-U01Ships in 1 to 2 Days
$398.40$545.76
4
24811-ZW5-U01Ships in 1 to 2 Days
$95.56$134.82
5
24812-ZW5-U01Ships in 1 to 2 Days
$12.56$17.72
6
24813-ZW5-U01Ships in 1 to 2 Days
$12.89$18.18
7
24814-ZW5-U01Ships in 1 to 2 Days
$3.69$5.22
8
24815-ZW5-U01Ships in 1 to 2 Days
$5.66$8.00
9
24816-ZW5-U01Ships in 1 to 2 Days
$7.72$10.58
10
24817-ZW5-U01Ships in 1 to 2 Days
$31.68$43.40
11
24818-ZW5-U01Ships in 1 to 2 Days
$7.11$9.74
12
24819-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$10.77$15.20
13
24820-ZW5-U01Ships in 1 to 2 Days
$27.23$38.42
14
24825-ZW5-U01Ships in 1 to 2 Days
$2.91$4.10
15
24826-ZW5-U01Ships in 1 to 2 Days
$13.81$18.92
16
24831-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$8.45$11.58
17
24832-ZW5-U01Ships in 1 to 2 Days
$3.74$5.12
18
24834-ZW5-U01Ships in 1 to 2 Days
$4.42$6.06
19
32530-ZW7-U00Ships in 1 to 2 Days
$25.87$35.44
20
35370-ZW5-U02Ships in 1 to 2 Days
$54.55$76.96
21
87703-ZW5-U02Ships in 1 to 2 Days
$7.08$10.00
22
90101-ZW5-U00Ships in 1 to 2 Daysqty 2 used
$2.60$3.56
23
90102-ZW5-U00Ships in 1 to 2 Days
$2.38$3.36
24
90103-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$3.20$4.52
25
90104-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$1.14$1.56
26
90105-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$2.38$3.36
27
90106-ZW5-U00Ships in 1 to 2 Daysqty 2 used
$2.60$3.56
28
90107-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.93$1.28
29
90301-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$1.18$1.62
30
90501-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.85$1.16
31
90502-ZV4-000Ships in 1 to 2 Daysqty 4 used
$2.73$3.74
32
90502-ZW5-U00Ships in 1 to 2 Daysqty 2 used
$1.69$2.32
33
90503-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.66$0.90
34
93500-05065-4JShips in 1 to 2 Daysqty 4 used
$2.50$3.42
35
94001-05490-0SShips in 1 to 2 Daysqty 4 used
$0.92$1.26
36
94540-06029Ships in 1 to 2 Daysqty 2 used
$3.50$4.80
Diagram

STARTER MOTOR

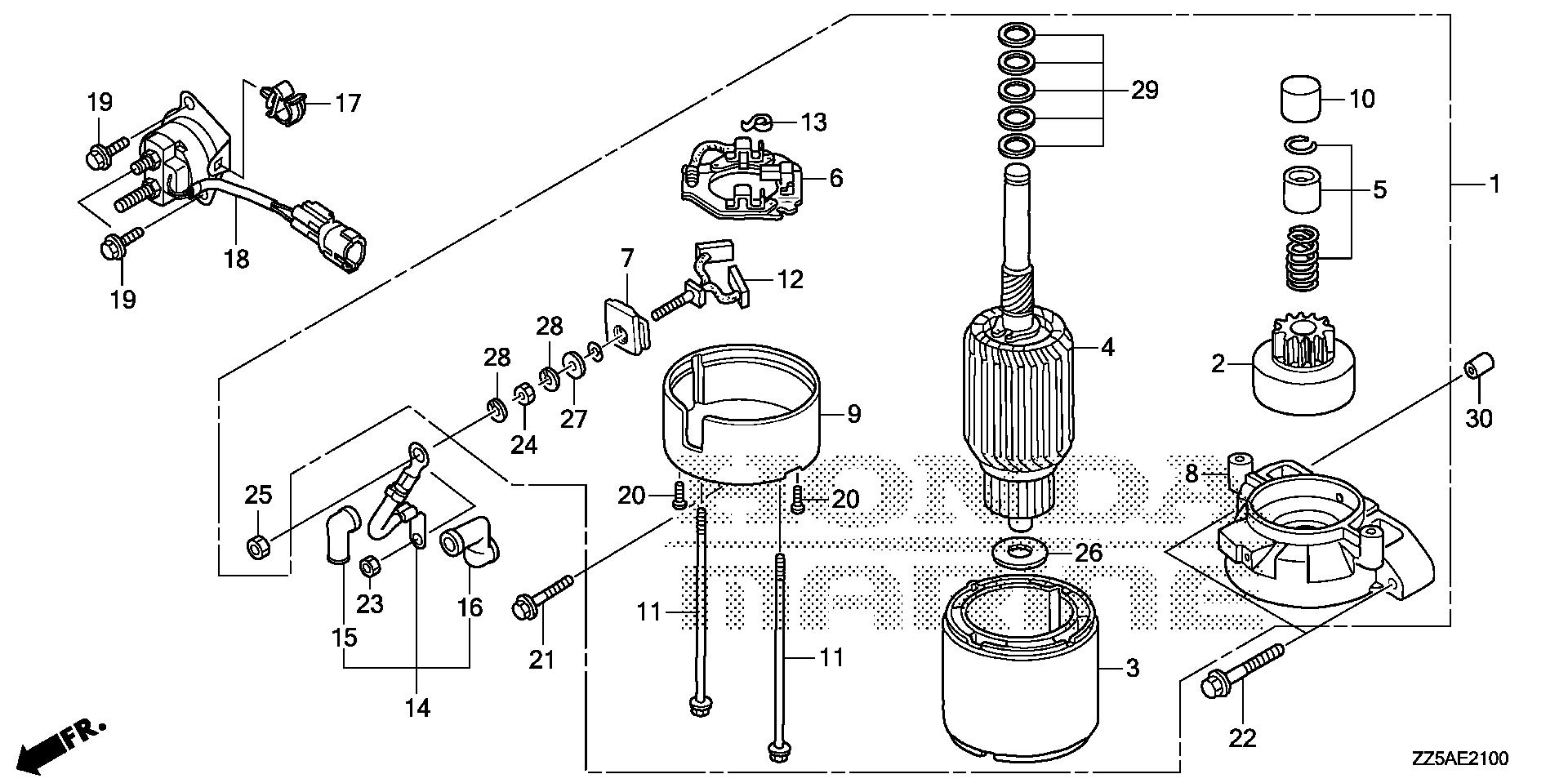

BF50 BF50DK2 starter motor exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ5AE2100
Fits all 2 submodels of this generation.

Parts in this assembly

33 parts
1
31200-ZZ5-003Ships in 1 to 2 Days
$745.44
2
31207-ZV5-013Ships in 1 to 2 Days
$242.30$331.92
3
31216-ZV5-013Ships in 1 to 2 Days
$224.63$231.40
4
31217-ZV5-013Ships in 1 to 2 Days
$212.94$219.32
5
31225-ZV5-013Ships in 1 to 2 Days
$16.24$22.90
6
31231-ZV5-013Ships in 1 to 2 Days
$68.94$97.26
7
31233-ZV5-003Ships in 1 to 2 Days
$10.45$14.74
8
31235-ZZ5-003Ships in 1 to 2 Days
$104.39$147.28
9
31236-ZV5-013Ships in 1 to 2 Days
$123.21$173.82
10
31239-ZV5-003Ships in 1 to 2 Days
$9.50$13.40
11
31261-ZV5-003Ships in 1 to 2 Daysqty 2 used
$6.73$9.50
12
31295-ZV5-013Ships in 1 to 2 Days
$26.65$37.58
13
31298-ZV5-013Ships in 1 to 2 Days
$3.02$4.26
14
32402-ZZ5-000Ships in 1 to 2 Days
$16.16$22.80
15
32411-402-000Ships in 1 to 2 Days
$3.29$4.50
16
32412-ZV5-003Ships in 1 to 2 Days
$5.90$8.08
17
32660-MJ6-710Ships in 1 to 2 Days
$3.43$4.70
18
35850-ZZ5-003Ships in 1 to 2 Days
$67.98$95.92
19
90011-ZW9-000Ships in 1 to 2 Daysqty 2 used
$1.71$2.34
19
90011-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.18$1.62
20
90015-ZV5-003Ships in 1 to 2 Daysqty 2 used
$1.62$2.28
21
90016-ZZ5-M01Ships in 1 to 2 Days
$1.42$1.94
21
90016-ZZ5-M00Ships in 1 to 2 Days
$1.42$1.94
22
90026-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.87$2.56
22
90026-ZZ5-M00Ships in 1 to 2 Daysqty 2 used
$1.90$2.68
23
90203-ZV5-000Ships in 1 to 2 Days
$1.53$2.16
24
90204-ZV5-003Ships in 1 to 2 Days
$2.96$4.18
25
90205-ZV5-003Ships in 1 to 2 Days
$4.45$6.28
26
90404-ZV5-003Ships in 1 to 2 Days
$2.32$3.28
27
90407-ZV5-003Ships in 1 to 2 Days
$2.39$3.38
28
90408-ZV5-003Ships in 1 to 2 Daysqty 2 used
$2.89$4.08
29
90409-ZV5-013Ships in 1 to 2 Days
$8.92$12.58
30
94301-10160Ships in 1 to 2 Days
$3.01$4.12
Diagram

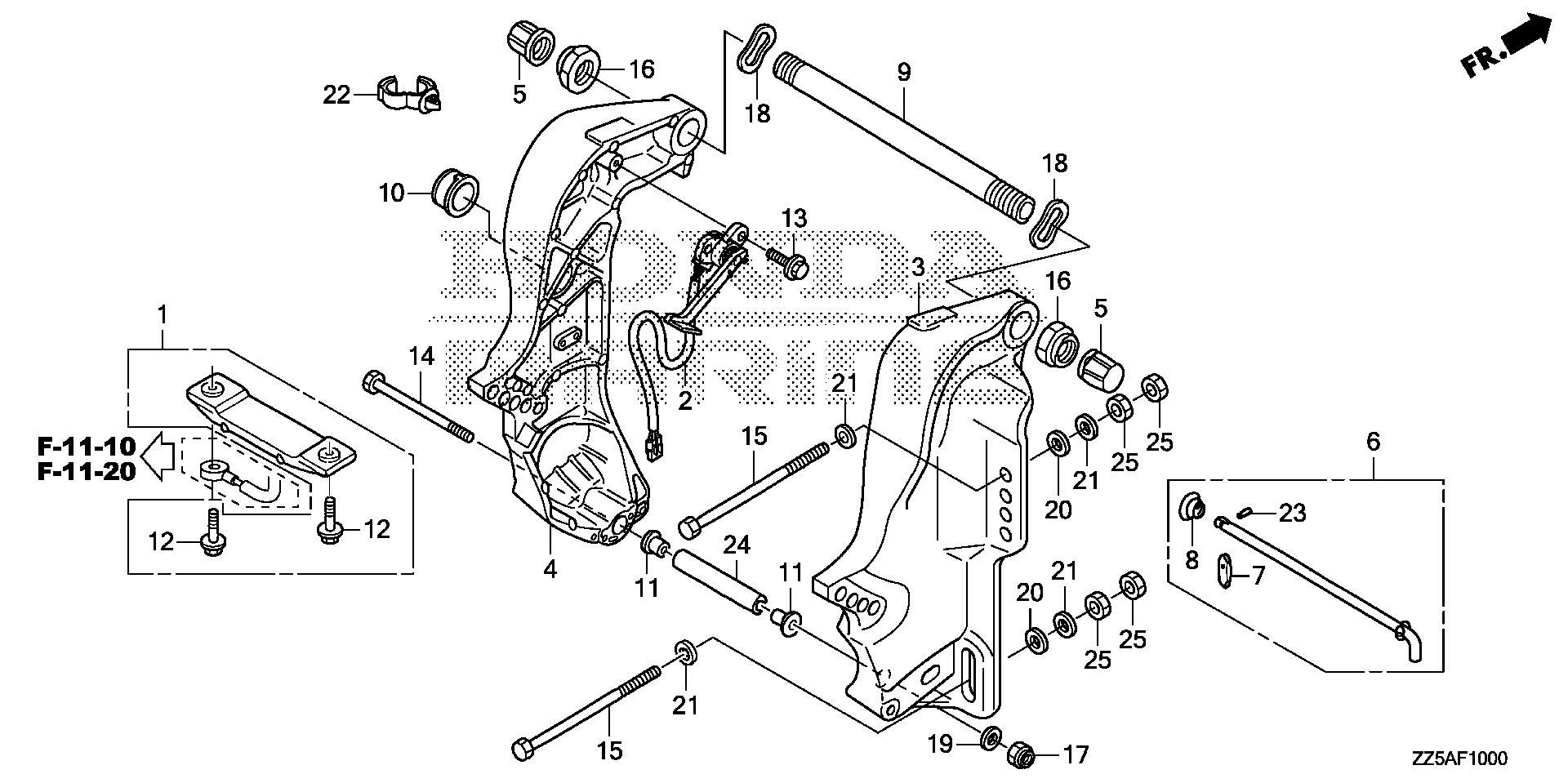

STERN BRACKET

BF50 BF50DK2 stern bracket exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ5AF1000
Fits all 2 submodels of this generation.

Parts in this assembly

25 parts
1
06411-ZV5-020Ships in 1 to 2 Days
$35.05$48.02
2
35660-ZZ5-013Ships in 1 to 2 Days
$140.86$192.96
3
$258.17$364.24
4
$235.44$332.18
5
50331-ZV5-000Ships in 1 to 2 Daysqty 2 used
$5.88$8.06
6
50340-ZZ5-000Ships in 1 to 2 Days
$59.74$81.84
7
50342-ZV5-300Ships in 1 to 2 Days
$5.17$7.08
8
50343-921-300Ships in 1 to 2 Days
$3.21$4.40
9
50381-ZZ5-000Ships in 1 to 2 Days
$76.85$108.42
10
56118-ZV5-820Ships in 1 to 2 Days
$8.56$11.72
11
56513-ZV5-000Ships in 1 to 2 Daysqty 2 used
$3.77$5.16
12
90009-ZW9-000Ships in 1 to 2 Daysqty 2 used
$2.88$3.94
13
90105-ZW9-000Ships in 1 to 2 Daysqty 2 used
$2.88$3.94
14
90108-ZV5-000Ships in 1 to 2 Days
$24.53$33.60
15
90129-ZZ3-000Ships in 1 to 2 Daysqty 4 used
$13.15$18.02
16
90304-ZV5-013Ships in 1 to 2 Daysqty 2 used
$17.70$24.24
17
90306-ZV5-003In Stock
$3.40$4.66
18
90517-ZV5-000Ships in 1 to 2 Daysqty 2 used
$5.50$7.76
19
90545-ZV5-000Ships in 1 to 2 Days
$2.72$3.84
20
90552-ZV5-000Ships in 1 to 2 Daysqty 4 used
$4.67$6.40
21
90559-ZV5-000Ships in 1 to 2 Daysqty 8 used
$2.95$4.04
22
90681-763-A01Ships in 1 to 2 Days
$8.06$11.04
23
90751-ZW6-000Ships in 1 to 2 Days
$1.33$1.82
24
91556-ZZ5-C00Ships in 1 to 2 Days
$27.52$37.70
25
94001-12490-0SShips in 1 to 2 Daysqty 8 used
$1.90$2.60
Diagram

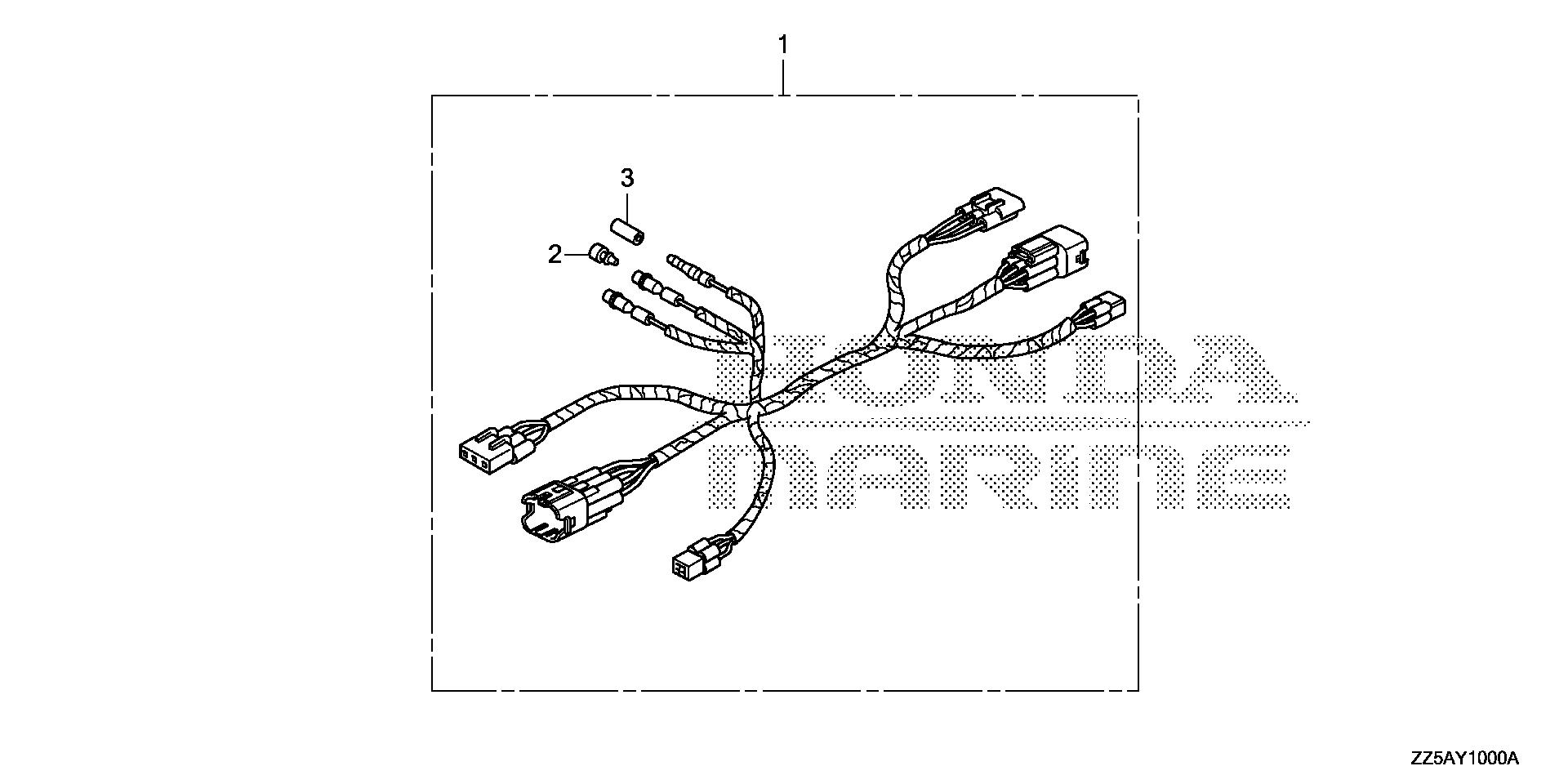

SUB HARNESS

BF50 BF50DK2 sub harness exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ5AY1000A
Fits all 2 submodels of this generation.

Parts in this assembly

3 parts
1
32186-ZZ3-000Ships in 1 to 2 Days
$144.07$197.36
2
32823-ZV5-003Ships in 1 to 2 Daysqty 2 used
$2.95$4.04
3
32824-ZV5-003Ships in 1 to 2 Days
$3.11$4.26
Diagram

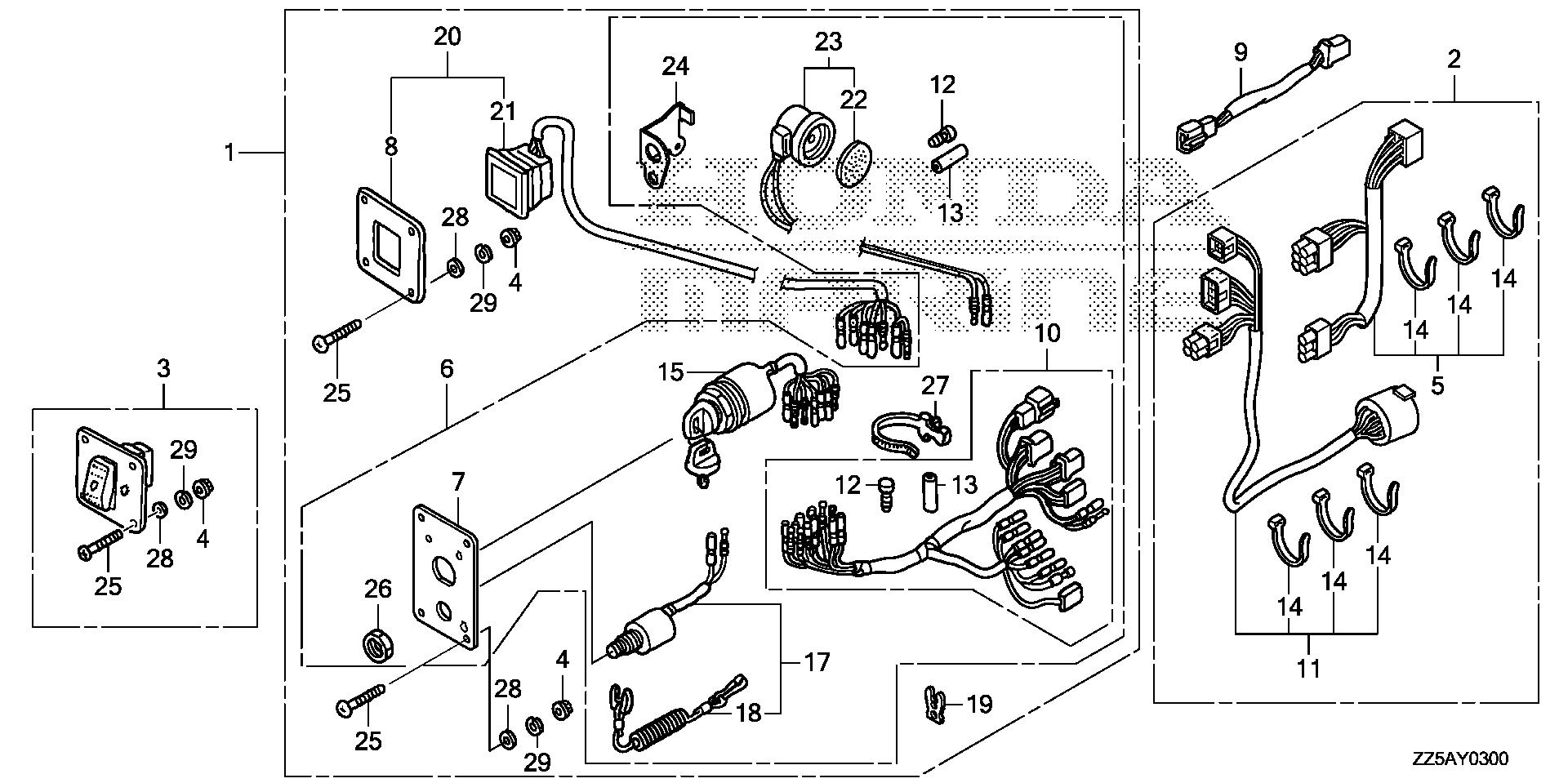

SWITCH PANEL KIT (1)

BF50 BF50DK2 switch panel kit (1) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ5AY0300
Fits all 2 submodels of this generation.

Parts in this assembly

42 parts
1
06323-ZZ5-M22Ships in 1 to 2 Days
$252.26$345.56
2
06325-ZZ5-600Ships in 1 to 2 Days
$278.07$380.92
2
06325-ZZ5-700Ships in 1 to 2 Days
$337.45$462.26
2
06325-ZZ5-800Ships in 1 to 2 Days
$404.99$554.78
3
06352-ZZ5-M00Ships in 1 to 2 Days
$64.21$90.60
3
06352-ZZ5-M01Ships in 1 to 2 Days
$55.33$75.80
4
18334-MT8-770Ships in 1 to 2 Daysqty 12 used
$1.53$2.16
4
90301-ZZ5-M00Ships in 1 to 2 Daysqty 12 used
$0.98$1.38
4
90301-ZZ5-M01Ships in 1 to 2 Daysqty 12 used
$0.91$1.24
5
32185-ZZ5-600Ships in 1 to 2 Days
$43.08$59.02
5
32185-ZZ5-700Ships in 1 to 2 Days
$53.14$72.80
5
32185-ZZ5-800Ships in 1 to 2 Days
$63.85$87.46
6
32341-ZZ5-763Ships in 1 to 2 Days
$308.78$422.98
7
32346-ZZ5-761Ships in 1 to 2 Daysreplaced by 32346-ZZ5-791
$17.91$24.54
7
32346-ZZ5-791Ships in 1 to 2 Days
$17.91$24.54
8
32347-ZZ5-761Ships in 1 to 2 Days
$11.20$15.34
9
32530-ZW7-U00Ships in 1 to 2 Days
$25.87$35.44
10
32545-ZZ5-000Ships in 1 to 2 Days
$87.72$120.16
11
$198.44$271.84
11
32580-ZZ5-D11Ships in 1 to 2 Days
$240.84$329.92
11
32580-ZZ5-D21Ships in 1 to 2 Days
$290.89$398.48
12
32823-ZV5-003Ships in 1 to 2 Daysqty 8 used
$2.95$4.04
13
32824-ZV5-003Ships in 1 to 2 Daysqty 3 used
$3.11$4.26
14
32901-952-770Ships in 1 to 2 Daysqty 6 used
$2.19$3.00
15
35100-ZV5-013Ships in 1 to 2 Days
$85.13$116.62
17
36180-ZV5-033In Stock
$56.84$77.86
18
36182-ZV4-651In Stock
$18.45$25.28
19
36187-ZV4-652Ships in 1 to 2 Days
$4.18$5.72
20
37205-ZZ5-763Ships in 1 to 2 Days
$149.96$205.42
21
37210-ZZ5-763Ships in 1 to 2 Days
$112.32$153.88
22
38403-341-672Ships in 1 to 2 Days
$4.66$6.38
23
38410-ZV5-003Ships in 1 to 2 Days
$56.17$76.94
24
38414-ZZ5-003Ships in 1 to 2 Days
$14.24$19.50
25
90109-ZW5-000Ships in 1 to 2 Daysqty 12 used
$1.20$1.64
26
90302-921-000In Stock
$4.10$5.62
27
90649-SC2-003Ships in 1 to 2 Days
$8.29$11.36
28
94103-05400Ships in 1 to 2 Daysqty 12 used
$0.92$1.26
28
90501-ZZ5-M00Ships in 1 to 2 Daysqty 12 used
$1.72$2.44
28
90501-ZZ5-M01Ships in 1 to 2 Daysqty 12 used
$1.59$2.18
29
94111-05400Ships in 1 to 2 Daysqty 12 used
$0.86$1.22
29
90502-ZZ5-M00Ships in 1 to 2 Daysqty 12 used
$1.66$2.34
29
90502-ZZ5-M01Ships in 1 to 2 Daysqty 12 used
$1.49$2.04
Diagram

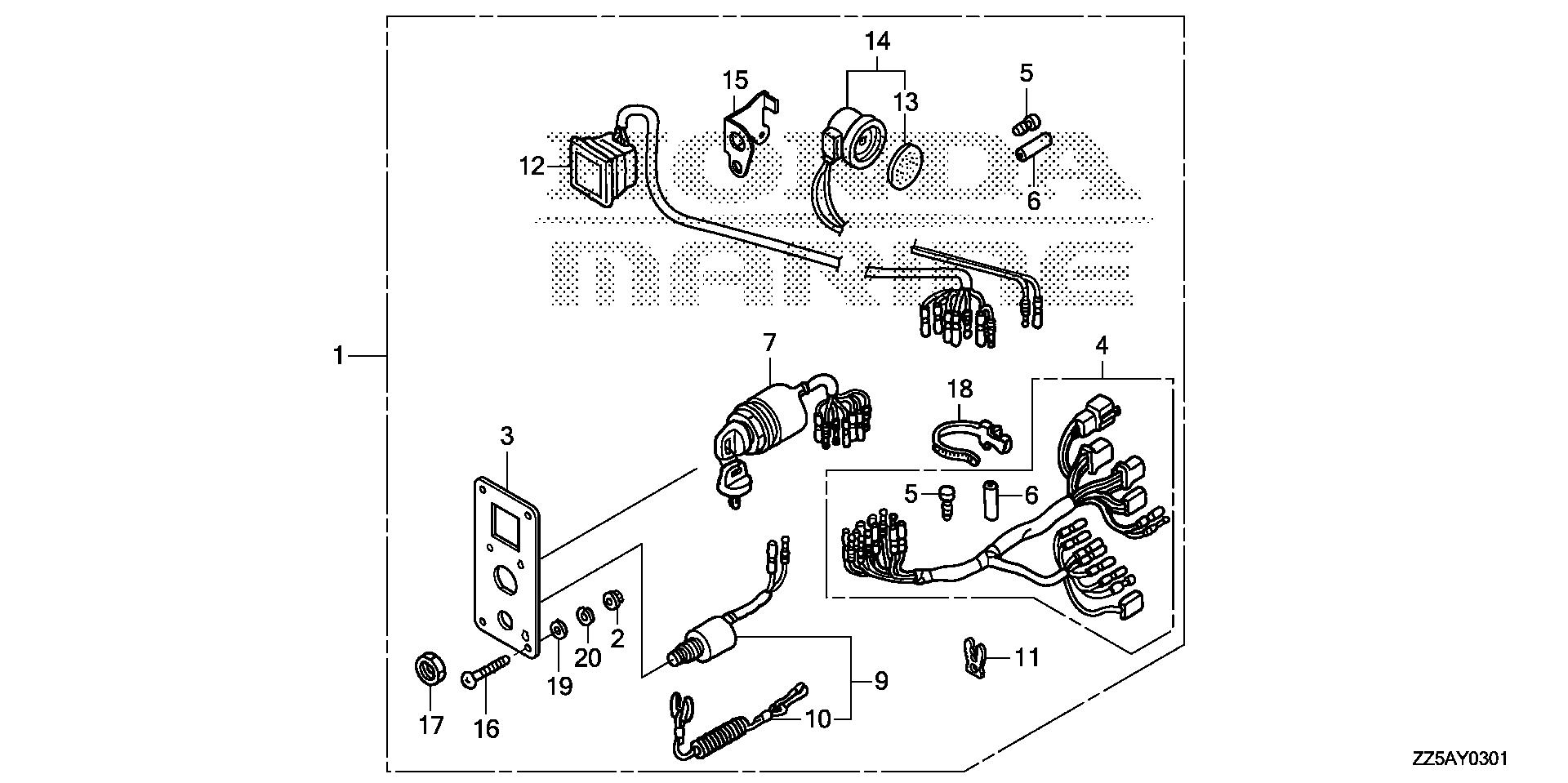

SWITCH PANEL KIT (2)

BF50 BF50DK2 switch panel kit (2) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ5AY0301
Fits all 2 submodels of this generation.

Parts in this assembly

25 parts
1
06323-ZZ5-M02Ships in 1 to 2 Days
$252.26$345.56
2
18334-MT8-770Ships in 1 to 2 Daysqty 4 used
$1.53$2.16
2
90301-ZZ5-M00Ships in 1 to 2 Daysqty 4 used
$0.98$1.38
2
90301-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$0.91$1.24
3
32346-ZZ5-003Ships in 1 to 2 Days
$20.12$27.56
4
32545-ZZ5-000Ships in 1 to 2 Days
$87.72$120.16
5
32823-ZV5-003Ships in 1 to 2 Daysqty 8 used
$2.95$4.04
6
32824-ZV5-003Ships in 1 to 2 Daysqty 3 used
$3.11$4.26
7
35100-ZV5-013Ships in 1 to 2 Days
$85.13$116.62
9
36180-ZV5-033In Stock
$56.84$77.86
10
36182-ZV4-651In Stock
$18.45$25.28
11
36187-ZV4-652Ships in 1 to 2 Days
$4.18$5.72
12
37210-ZZ5-713Ships in 1 to 2 Days
$112.32$153.88
13
38403-341-672Ships in 1 to 2 Days
$4.66$6.38
14
38410-ZV5-003Ships in 1 to 2 Days
$56.17$76.94
15
38414-ZZ5-003Ships in 1 to 2 Days
$14.24$19.50
16
90109-ZW5-000Ships in 1 to 2 Daysqty 4 used
$1.20$1.64
17
90302-921-000In Stock
$4.10$5.62
18
90649-SC2-003Ships in 1 to 2 Days
$8.29$11.36
19
94103-05400Ships in 1 to 2 Daysqty 4 used
$0.92$1.26
19
90501-ZZ5-M00Ships in 1 to 2 Daysqty 4 used
$1.72$2.44
19
90501-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$1.59$2.18
20
94111-05400Ships in 1 to 2 Daysqty 4 used
$0.86$1.22
20
90502-ZZ5-M00Ships in 1 to 2 Daysqty 4 used
$1.66$2.34
20
90502-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$1.49$2.04
Diagram

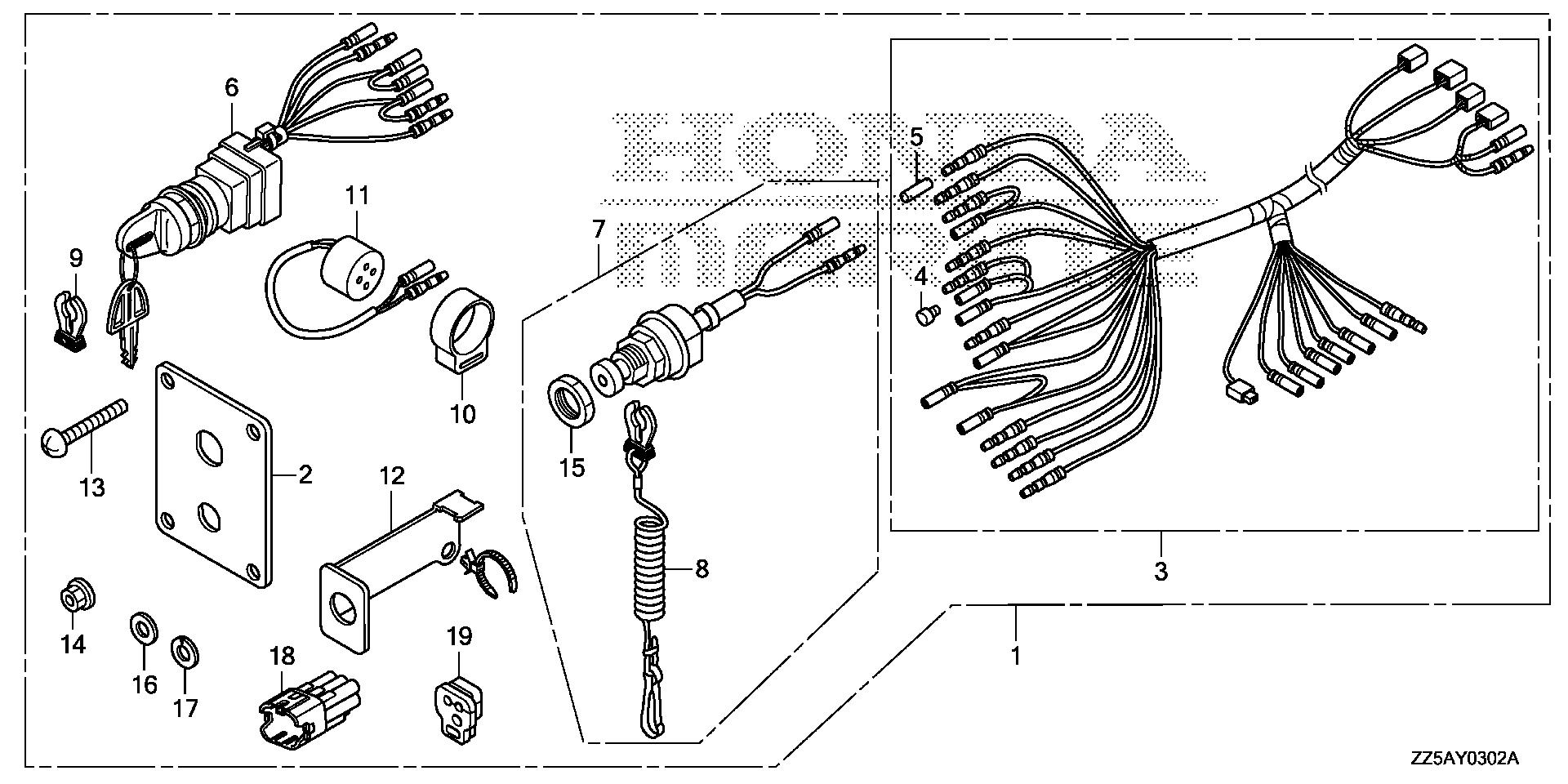

SWITCH PANEL KIT (3)

BF50 BF50DK2 switch panel kit (3) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ5AY0302A
Fits all 2 submodels of this generation.

Parts in this assembly

23 parts
1
06323-ZZ5-A00Ships in 1 to 2 Days
$237.67$325.58
1
06323-ZZ5-A02Ships in 1 to 2 Days
$219.42$300.58
2
32346-ZY6-003Ships in 1 to 2 Days
$28.69$39.30
3
32545-ZY6-003Ships in 1 to 2 Days
$83.10$113.84
4
32823-ZV5-003Ships in 1 to 2 Daysqty 9 used
$2.95$4.04
5
32824-ZV5-003Ships in 1 to 2 Daysqty 7 used
$3.11$4.26
6
35100-ZY6-013Ships in 1 to 2 Days
$82.90$113.56
7
36180-ZY6-003Ships in 1 to 2 Days
$50.08$68.60
8
36182-ZY6-003Ships in 1 to 2 Days
$17.53$24.02
9
36187-ZY6-003Ships in 1 to 2 Days
$4.22$5.78
10
38402-GC1-000Ships in 1 to 2 Days
$6.23$8.54
11
38410-ZY9-A01Ships in 1 to 2 Days
$43.30$59.32
12
38414-ZY6-003Ships in 1 to 2 Days
$14.76$20.22
13
90109-ZW5-000Ships in 1 to 2 Daysqty 4 used
$1.20$1.64
14
90301-ZZ5-M00Ships in 1 to 2 Daysqty 4 used
$0.98$1.38
14
90301-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$0.91$1.24
15
90302-ZY6-003Ships in 1 to 2 Days
$2.69$3.68
16
90501-ZZ5-M00Ships in 1 to 2 Daysqty 4 used
$1.72$2.44
16
90501-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$1.59$2.18
17
90502-ZZ5-M00Ships in 1 to 2 Daysqty 4 used
$1.66$2.34
17
90502-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$1.49$2.04
18
32606-ZY6-000Ships in 1 to 2 Days
$6.69$9.16
19
40105-ZZ5-610Ships in 1 to 2 Days
$13.49$19.04
Diagram

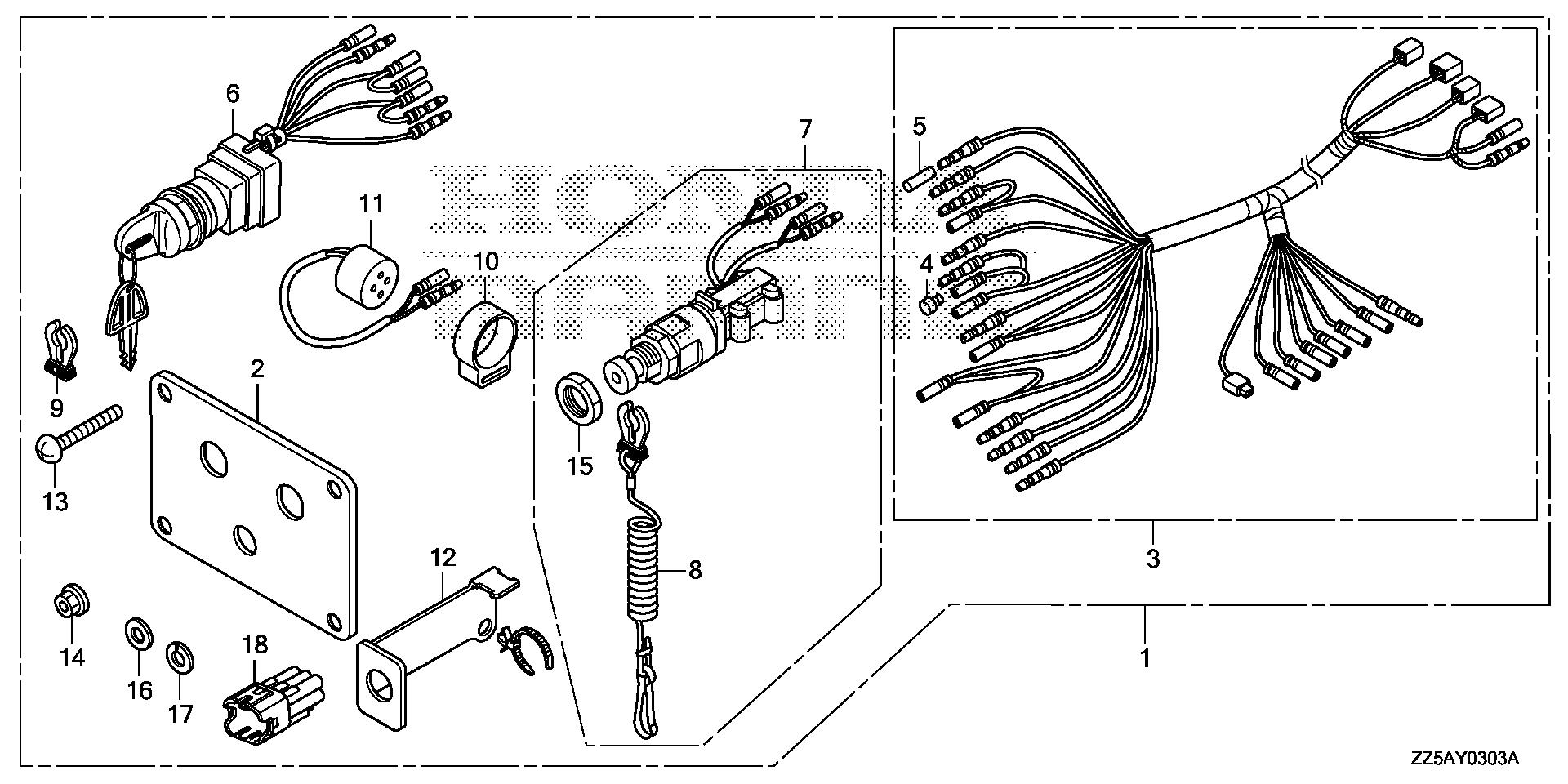

SWITCH PANEL KIT (4)

BF50 BF50DK2 switch panel kit (4) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ5AY0303A
Fits all 2 submodels of this generation.

Parts in this assembly

21 parts
1
06323-ZY6-712Ships in 1 to 2 Days
$469.00$642.46
2
32346-ZY6-711Ships in 1 to 2 Days
$64.81$88.78
3
32545-ZY6-003Ships in 1 to 2 Daysqty 2 used
$83.10$113.84
4
32823-ZV5-003Ships in 1 to 2 Daysqty 18 used
$2.95$4.04
5
32824-ZV5-003Ships in 1 to 2 Daysqty 14 used
$3.11$4.26
6
35100-ZY6-013Ships in 1 to 2 Daysqty 2 used
$82.90$113.56
7
36180-ZY6-712Ships in 1 to 2 Days
$86.29$118.20
8
36182-ZY6-003Ships in 1 to 2 Days
$17.53$24.02
9
36187-ZY6-003Ships in 1 to 2 Days
$4.22$5.78
10
38402-GC1-000Ships in 1 to 2 Daysqty 2 used
$6.23$8.54
11
38410-ZY9-A01Ships in 1 to 2 Daysqty 2 used
$43.30$59.32
12
38414-ZY6-003Ships in 1 to 2 Daysqty 2 used
$14.76$20.22
13
90109-ZW5-000Ships in 1 to 2 Daysqty 4 used
$1.20$1.64
14
90301-ZZ5-M00Ships in 1 to 2 Daysqty 4 used
$0.98$1.38
14
90301-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$0.91$1.24
15
90302-ZY6-003Ships in 1 to 2 Days
$2.69$3.68
16
90501-ZZ5-M00Ships in 1 to 2 Daysqty 4 used
$1.72$2.44
16
90501-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$1.59$2.18
17
90502-ZZ5-M00Ships in 1 to 2 Daysqty 4 used
$1.66$2.34
17
90502-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$1.49$2.04
18
32606-ZY6-000Ships in 1 to 2 Daysqty 2 used
$6.69$9.16
Diagram

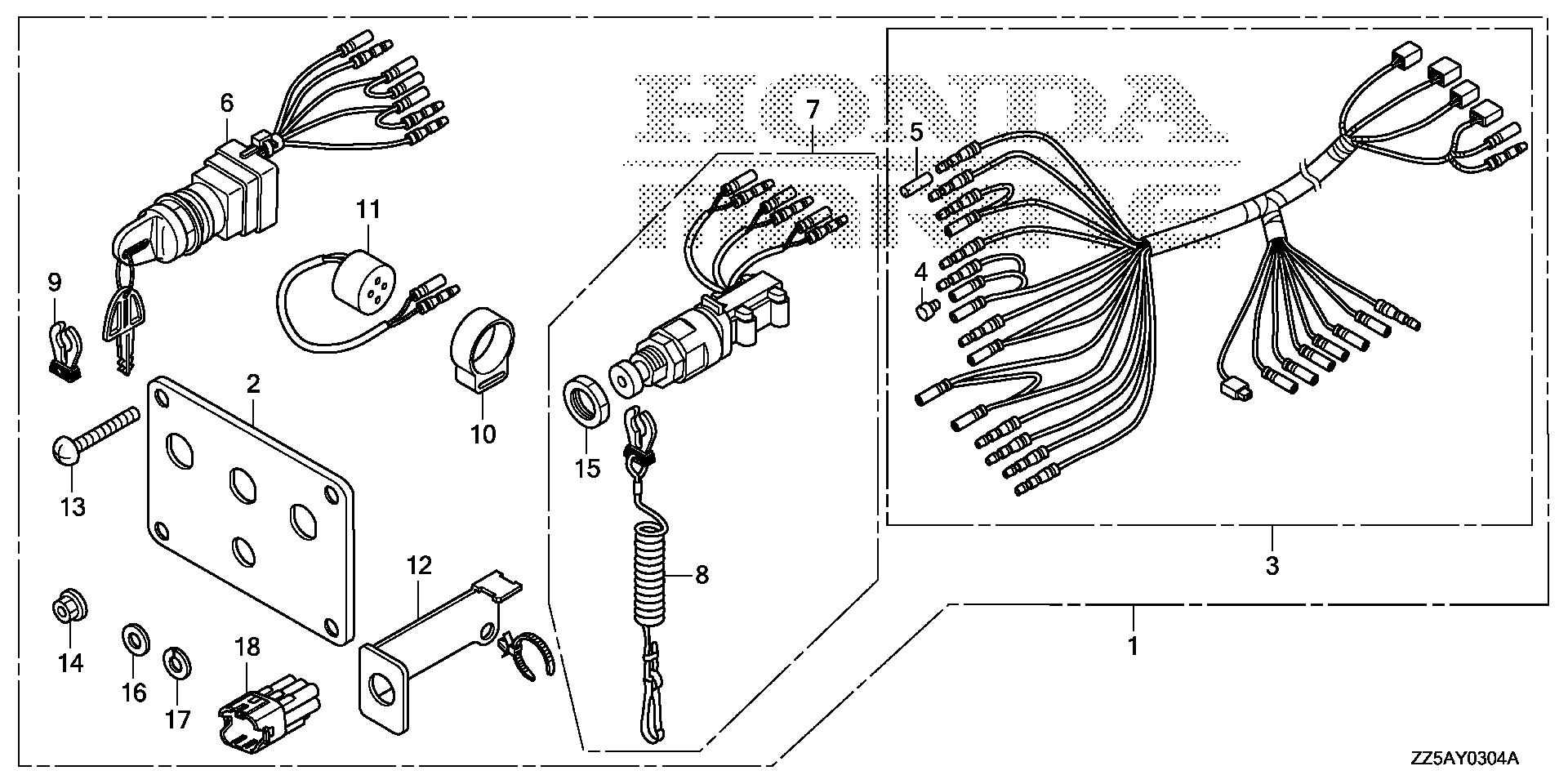

SWITCH PANEL KIT (5)

BF50 BF50DK2 switch panel kit (5) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ5AY0304A
Fits all 2 submodels of this generation.

Parts in this assembly

22 parts
1
06323-ZY6-610Ships in 1 to 2 Days
$411.42
1
06323-ZY6-612Ships in 1 to 2 Days
$653.58$895.32
2
32346-ZY6-611Ships in 1 to 2 Days
$62.02$84.96
3
32545-ZY6-003Ships in 1 to 2 Daysqty 3 used
$83.10$113.84
4
32823-ZV5-003Ships in 1 to 2 Daysqty 27 used
$2.95$4.04
5
32824-ZV5-003Ships in 1 to 2 Daysqty 21 used
$3.11$4.26
6
35100-ZY6-013Ships in 1 to 2 Daysqty 3 used
$82.90$113.56
7
36180-ZY6-612Ships in 1 to 2 Days
$86.29$118.20
8
36182-ZY6-003Ships in 1 to 2 Days
$17.53$24.02
9
36187-ZY6-003Ships in 1 to 2 Days
$4.22$5.78
10
38402-GC1-000Ships in 1 to 2 Daysqty 3 used
$6.23$8.54
11
38410-ZY9-A01Ships in 1 to 2 Daysqty 3 used
$43.30$59.32
12
38414-ZY6-003Ships in 1 to 2 Daysqty 3 used
$14.76$20.22
13
90109-ZW5-000Ships in 1 to 2 Daysqty 4 used
$1.20$1.64
14
90301-ZZ5-M00Ships in 1 to 2 Daysqty 4 used
$0.98$1.38
14
90301-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$0.91$1.24
15
90302-ZY6-003Ships in 1 to 2 Days
$2.69$3.68
16
90501-ZZ5-M00Ships in 1 to 2 Daysqty 4 used
$1.72$2.44
16
90501-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$1.59$2.18
17
90502-ZZ5-M00Ships in 1 to 2 Daysqty 4 used
$1.66$2.34
17
90502-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$1.49$2.04
18
32606-ZY6-000Ships in 1 to 2 Daysqty 3 used
$6.69$9.16
Diagram

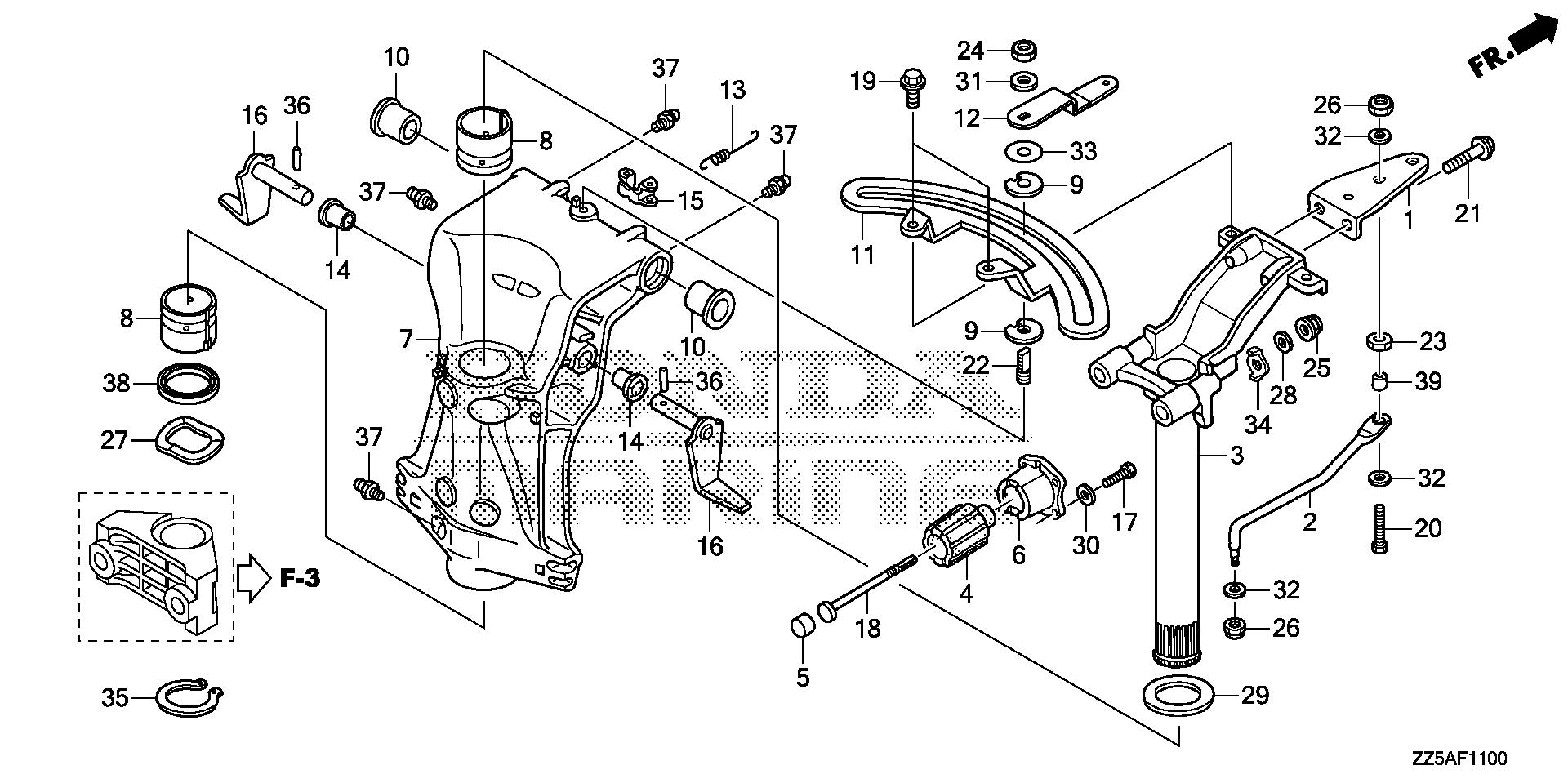

SWIVEL CASE

BF50 BF50DK2 swivel case exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ5AF1100
Fits all 2 submodels of this generation.

Parts in this assembly

40 parts
1
17852-ZW4-H10Ships in 1 to 2 Days
$23.39$33.00
2
17853-ZV5-000Ships in 1 to 2 Days
$80.01$112.90
3
50100-ZW4-H02Ships in 1 to 2 Days
$334.49$458.20
4
50151-ZV5-000Ships in 1 to 2 Daysqty 2 used
$66.56$93.92
4
50151-ZV5-A10Ships in 1 to 2 Daysqty 2 used
$67.89$95.80
5
50153-ZV5-000Ships in 1 to 2 Daysqty 2 used
$3.94$5.56
6
50167-ZZ5-000Ships in 1 to 2 Daysqty 2 used
$26.08$36.78
7
50201-ZZ5-000ZBShips in 1 to 2 Days
$366.84
8
50211-ZZ5-000Ships in 1 to 2 Daysqty 2 used
$8.21
9
50212-ZW9-003Ships in 1 to 2 Daysqty 2 used
$10.86$14.88
10
50214-ZV5-003Ships in 1 to 2 Daysqty 2 used
$7.65$10.48
11
50218-ZW4-H00Ships in 1 to 2 Days
$43.17$60.90
12
50219-ZW4-H00Ships in 1 to 2 Days
$8.23$11.62
13
50515-ZV5-000Ships in 1 to 2 Days
$3.23$4.42
14
50522-ZV5-000Ships in 1 to 2 Daysqty 2 used
$5.71$7.82
15
50527-ZV5-000Ships in 1 to 2 Days
$10.59$14.50
16
50529-ZW4-H00Ships in 1 to 2 Daysqty 2 used
$49.52$69.88
17
90101-ZV1-000Ships in 1 to 2 Daysqty 8 used
$2.85$4.02
18
90101-ZV5-003Ships in 1 to 2 Daysqty 2 used
$46.36$65.40
19
90102-ZW9-000Ships in 1 to 2 Daysqty 2 used
$2.12$2.90
20
90105-ZV5-000Ships in 1 to 2 Days
$6.91$9.74
21
90106-HW1-671Ships in 1 to 2 Daysqty 2 used
$5.39$7.60
22
90162-ZW9-000Ships in 1 to 2 Days
$4.80$6.58
23
90302-ZV5-000Ships in 1 to 2 Days
$8.66$12.22
24
90305-ZW9-000Ships in 1 to 2 Days
$4.91$6.72
25
90306-ZW4-003Ships in 1 to 2 Daysqty 2 used
$4.34$5.94
26
90307-ZV5-003Ships in 1 to 2 Daysqty 2 used
$6.47$8.86
27
90501-ZV5-000Ships in 1 to 2 Days
$7.30$10.00
28
90501-ZW4-000Ships in 1 to 2 Daysqty 2 used
$2.38$3.26
29
90504-ZV5-000Ships in 1 to 2 Days
$7.30$10.00
30
90506-ZV4-000Ships in 1 to 2 Daysqty 8 used
$2.45$3.36
31
90514-921-000Ships in 1 to 2 Days
$0.99$1.36
32
90514-ZV4-000Ships in 1 to 2 Daysqty 3 used
$1.69$2.32
33
90517-ZW9-000Ships in 1 to 2 Days
$1.42$1.94
34
90544-ZV5-020Ships in 1 to 2 Daysqty 2 used
$3.81$5.38
35
90651-ZW4-000Ships in 1 to 2 Days
$5.30$7.26
36
90752-ZW6-000Ships in 1 to 2 Daysqty 2 used
$2.31$3.16
37
90951-ZV7-010Ships in 1 to 2 Daysqty 4 used
$1.90$2.60
38
91256-ZV5-003Ships in 1 to 2 Days
$7.80$10.68
39
91560-ZV5-000Ships in 1 to 2 Days
$3.07$4.20
Diagram

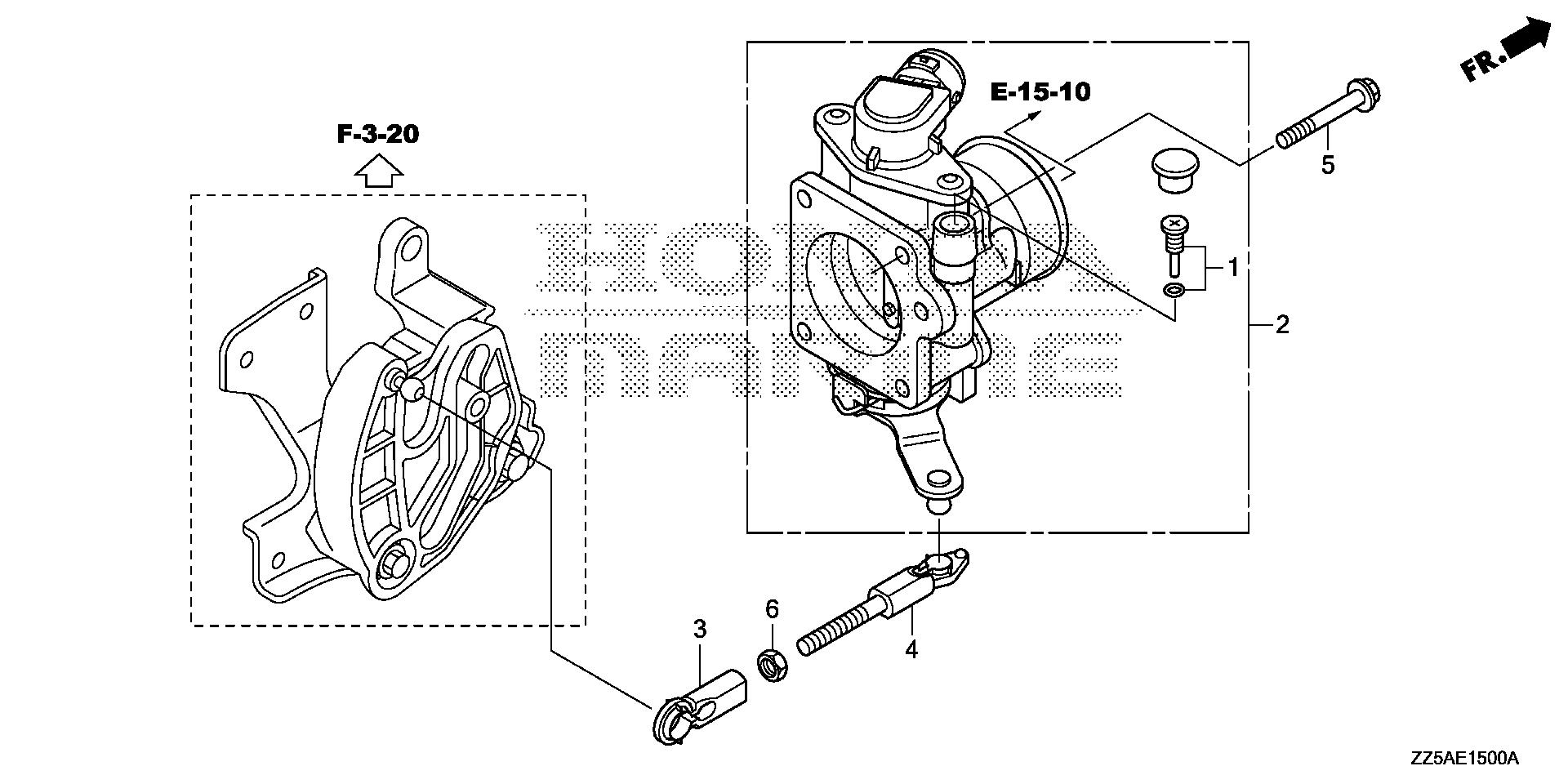

THROTTLE BODY

BF50 BF50DK2 throttle body exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ5AE1500A
Fits all 2 submodels of this generation.

Parts in this assembly

8 parts
1
16016-ZY6-003Ships in 1 to 2 Days
$6.04$8.28
2
16400-ZZ4-033Ships in 1 to 2 Days
$395.73
2
16400-ZZ5-024Ships in 1 to 2 Days
$407.56
3
17838-ZZ5-000Ships in 1 to 2 Days
$6.10$8.62
4
17840-ZZ5-000Ships in 1 to 2 Days
$10.23$14.44
5
90146-ZW4-000Ships in 1 to 2 Daysqty 4 used
$1.90$2.60
5
90046-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$1.90$2.60
6
94001-05490-0SShips in 1 to 2 Days
$0.92$1.26
Diagram

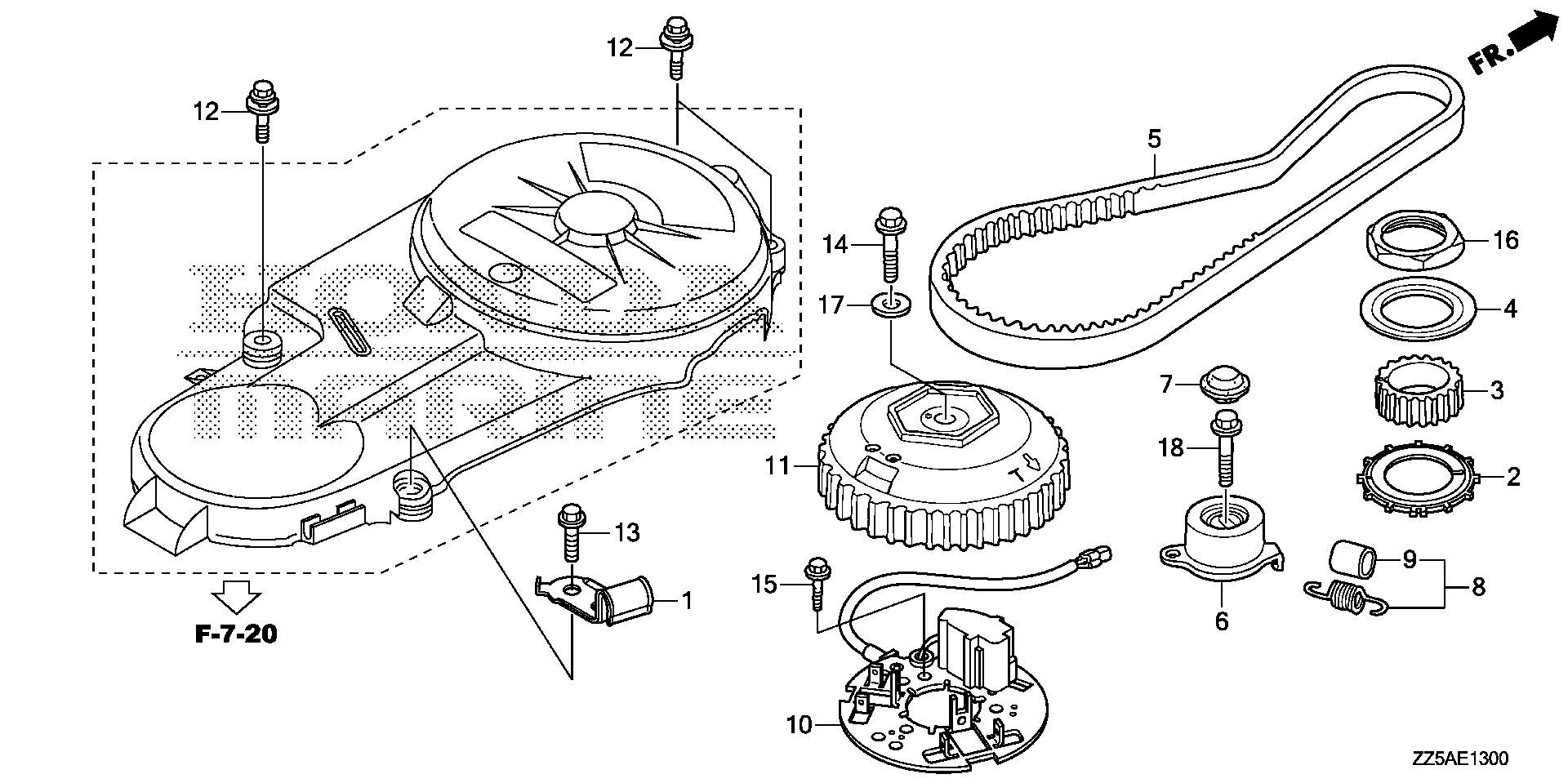

TIMING BELT

BF50 BF50DK2 timing belt exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ5AE1300
Fits all 2 submodels of this generation.

Parts in this assembly

24 parts
1
12328-ZZ5-010Ships in 1 to 2 Days
$5.12$7.24
2
13622-ZZ5-000Ships in 1 to 2 Days
$21.14$29.84
3
14315-ZZ5-000Ships in 1 to 2 Days
$51.76$73.02
4
14323-ZV5-000Ships in 1 to 2 Days
$10.45$14.74
5
14400-ZV5-014Ships in 1 to 2 Days
$95.47$134.68
6
14510-ZV5-013Ships in 1 to 2 Days
$72.18$101.84
7
14515-ZV5-000Ships in 1 to 2 Days
$5.88$8.30
8
14520-ZV5-020Ships in 1 to 2 Days
$4.53$6.20
9
14522-ZV5-000Ships in 1 to 2 Days
$2.26$3.10
10
30310-ZZ5-003Ships in 1 to 2 Days
$130.60$184.26
11
30410-ZV5-000Ships in 1 to 2 Days
$171.21$234.54
12
90013-ZW1-000Ships in 1 to 2 Daysqty 3 used
$2.48$3.40
12
90013-ZZ5-M01Ships in 1 to 2 Daysqty 3 used
$2.45$3.36
13
90016-ZW9-000Ships in 1 to 2 Daysreplaced by 90014-ZZ5-M01
$1.87$2.56
13
90014-ZZ5-M01Ships in 1 to 2 Days
$1.87$2.56
13
90014-ZZ5-M00Ships in 1 to 2 Days
$1.87$2.56
14
90031-ZV5-010Ships in 1 to 2 Days
$3.33$4.70
14
90031-ZZ5-M00Ships in 1 to 2 Days
$2.31$3.26
14
90031-ZZ5-M01Ships in 1 to 2 Days
$1.93$2.72
15
90050-ZZ5-M01Ships in 1 to 2 Daysqty 3 used
$2.19$3.10
16
90202-ZV5-000Ships in 1 to 2 Days
$21.94$30.96
17
90435-ZZ5-M00Ships in 1 to 2 Daysreplaced by 90435-ZZ5-M01
$3.72$5.26
17
90435-ZZ5-M01Ships in 1 to 2 Days
$3.72$5.26
18
95701-10038-08Ships in 1 to 2 Days
$2.88$4.06
Diagram

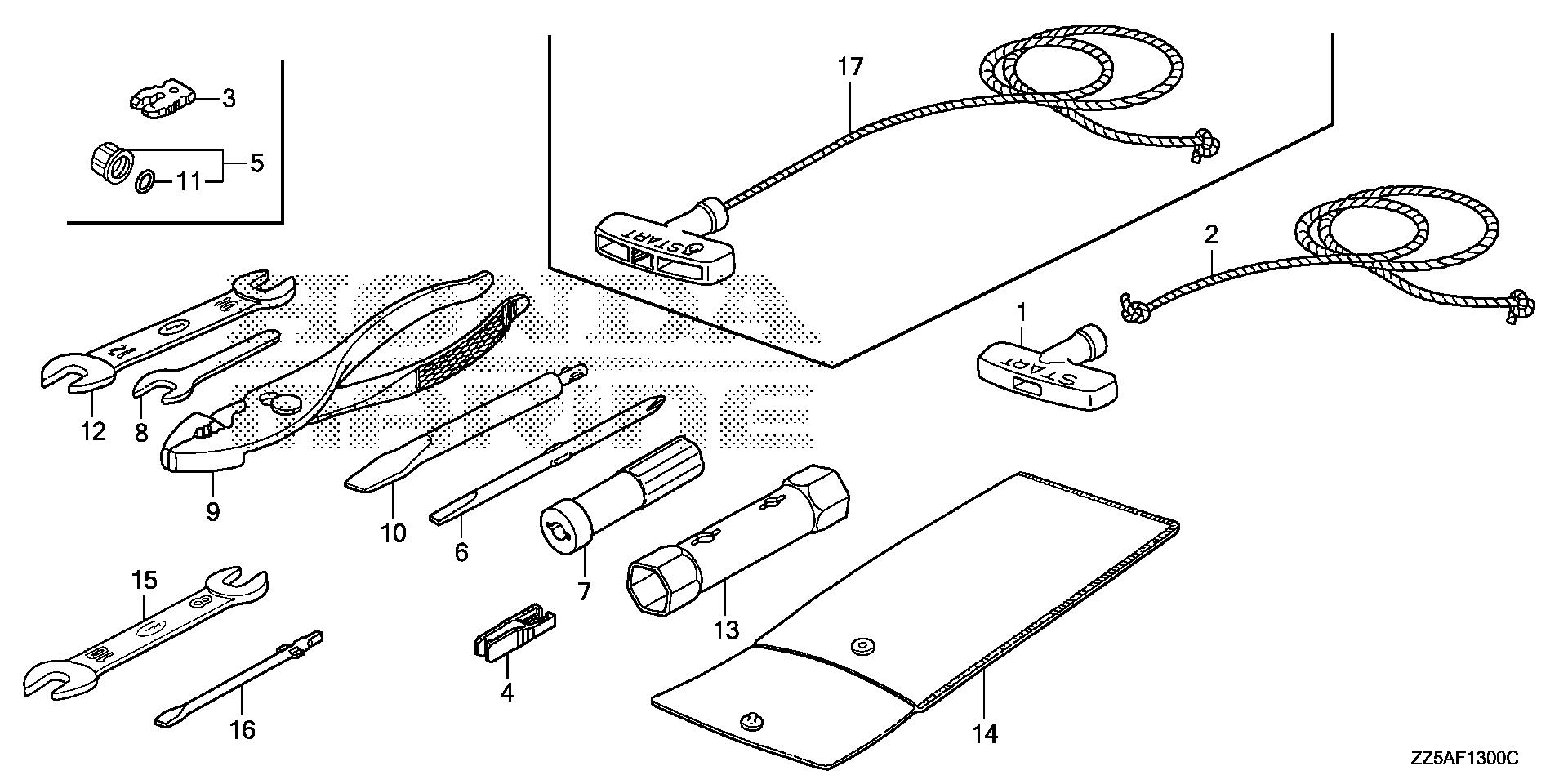

TOOL - OTHER PARTS

BF50 BF50DK2 tool - other parts exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ5AF1300C
Fits all 2 submodels of this generation.

Parts in this assembly

19 parts
1
28461-ZH8-013Ships in 1 to 2 Days
$1.69$2.32
2
28462-ZW9-003Ships in 1 to 2 Days
$9.75$13.36
3
36187-ZV4-652Ships in 1 to 2 Days
$4.18$5.72
4
38235-S04-003Ships in 1 to 2 Days
$0.93$1.28
5
50335-ZV5-000Ships in 1 to 2 Days
$8.73$12.32
6
89102-538-000Ships in 1 to 2 Days
$8.32$11.40
7
89103-538-000Ships in 1 to 2 Days
$4.37$5.98
7
99003-50000Ships in 1 to 2 Days
$4.96$6.80
8
SPANNER (8MM) (NOT AVAILABLE)
89203-836-000No Longer Available
—
9
89210-GBJ-J00Ships in 1 to 2 Days
$8.60$11.78
10
89301-921-010Ships in 1 to 2 Days
$5.87$8.28
11
91352-ZV5-000Ships in 1 to 2 Days
$1.74$2.46
12
99001-10120Ships in 1 to 2 Days
$6.26$8.58
13
99004-18190Ships in 1 to 2 Days
$3.64$4.98
14
99008-01600Ships in 1 to 2 Days
$2.13$2.92
14
BAG, TOOL (200MM)
99008-02000No Longer Available
—
15
89203-VF9-003Ships in 1 to 2 Days
$5.34$7.32
16
99003-30000Ships in 1 to 2 Days
$3.81$5.22
17
28470-ZZ5-003Ships in 1 to 2 Days
$14.82$20.92
Diagram

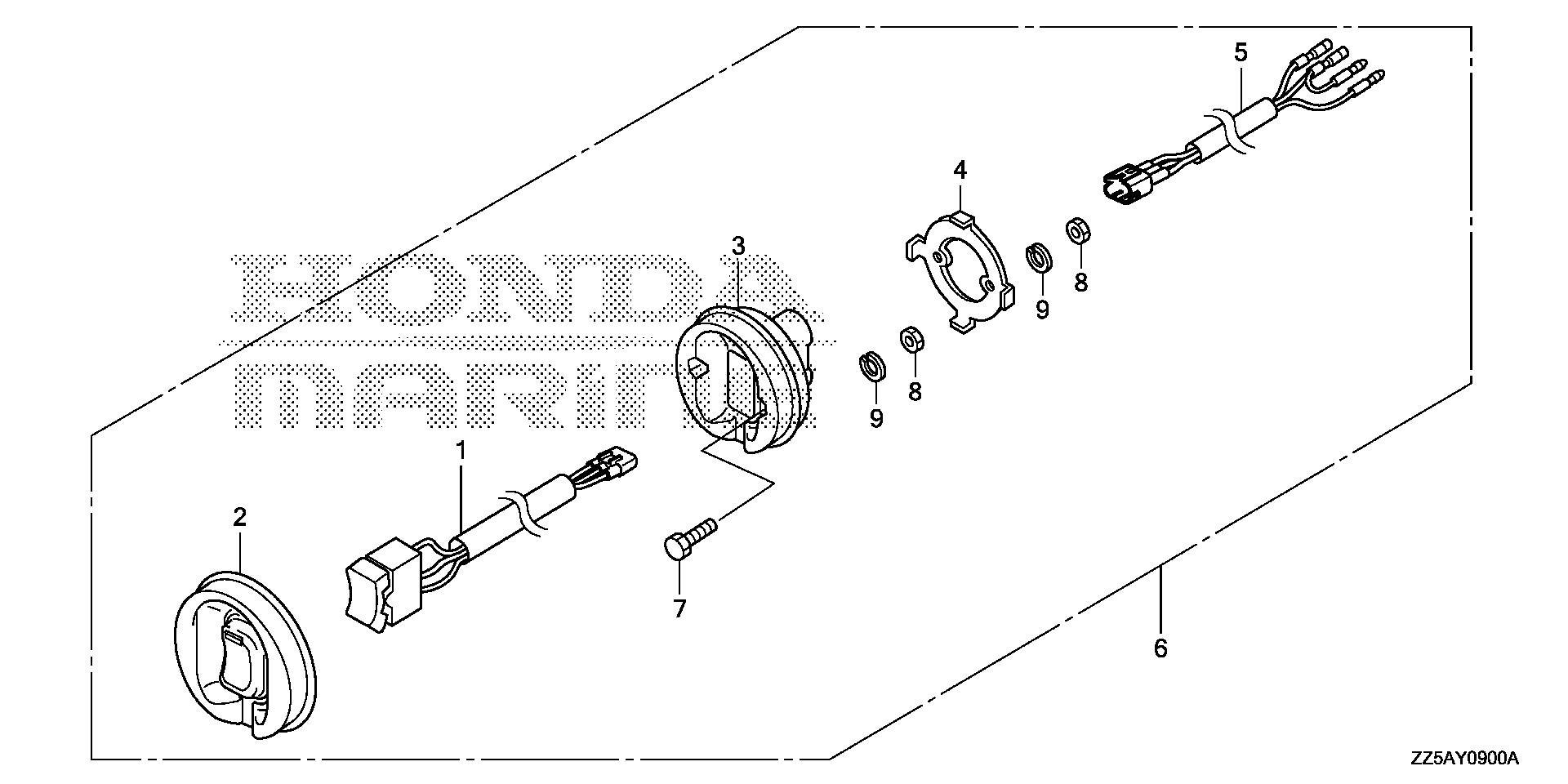

TROLLING CONTROL SWITCH

BF50 BF50DK2 trolling control switch exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ5AY0900A
Fits all 2 submodels of this generation.

Parts in this assembly

9 parts
1
35340-ZZ3-741Ships in 1 to 2 Days
$49.30$67.54
2
$8.73$11.96
3
35342-ZZ3-740Ships in 1 to 2 Days
$5.99$8.20
4
$5.12$7.02
5
$23.65$32.40
6
35345-ZZ3-741Ships in 1 to 2 Days
$71.50$97.94
7
92101-04020-4JShips in 1 to 2 Daysqty 2 used
$1.08$1.48
8
NUT, HEX. (4MM) (ENGINE NO.) (NOT AVAILABLE)
94001-04490-0SNo Longer Available
—
9
94111-04500Ships in 1 to 2 Daysqty 4 used
$0.58$0.80
Diagram

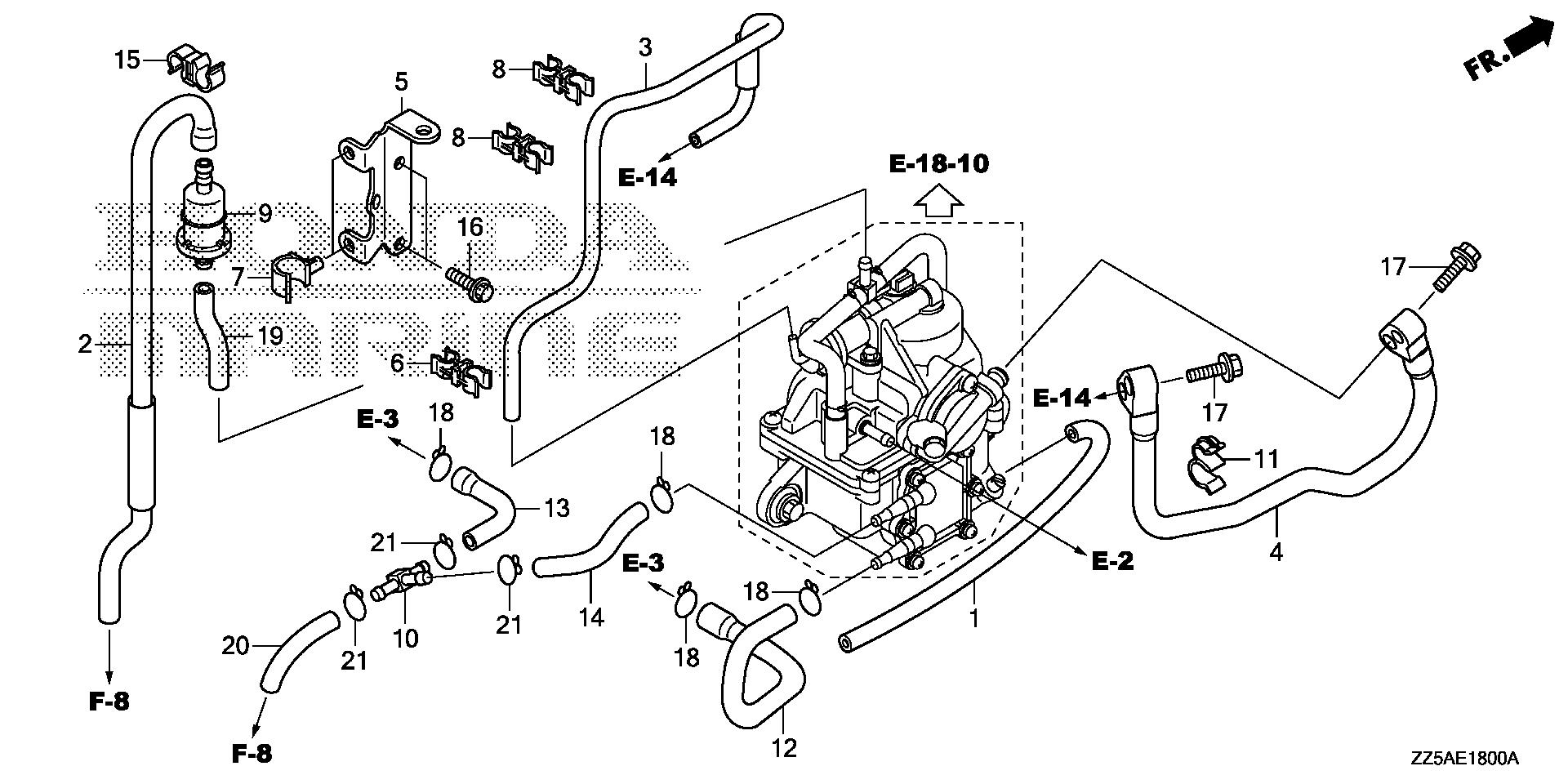

TUBING

BF50 BF50DK2 tubing exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ5AE1800A
Fits all 2 submodels of this generation.

Parts in this assembly

25 parts
1
16198-ZZ5-000Ships in 1 to 2 Days
$3.93$5.54
2
16199-ZZ5-000Ships in 1 to 2 Days
$14.40$20.32
3
16748-ZZ5-010Ships in 1 to 2 Days
$10.04$14.18
4
16755-ZZ5-003Ships in 1 to 2 Days
$100.64$137.86
5
16816-ZZ5-010Ships in 1 to 2 Days
$10.37$14.62
6
16895-ZZ5-003Ships in 1 to 2 Days
$2.79$3.94
7
16896-ZY9-003Ships in 1 to 2 Daysqty 2 used
$2.80$3.84
8
16898-ZY9-003Ships in 1 to 2 Daysqty 2 used
$3.85$5.28
9
16910-ZV4-015In Stock
$13.99$19.16
10
16960-ME9-000Ships in 1 to 2 Days
$16.05$21.98
11
17439-PY3-A01Ships in 1 to 2 Days
$5.42$7.42
12
19255-ZZ5-000Ships in 1 to 2 Days
$3.64$5.12
13
19256-ZZ5-000Ships in 1 to 2 Days
$3.18$4.50
14
19257-ZZ5-000Ships in 1 to 2 Days
$3.64$5.12
15
47585-SJ6-003Ships in 1 to 2 Days
$6.19$8.48
16
90011-ZW9-000Ships in 1 to 2 Daysqty 2 used
$1.71$2.34
16
90011-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.18$1.62
17
90016-ZW9-000Ships in 1 to 2 Daysreplaced by 90014-ZZ5-M01
$1.87$2.56
17
90014-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.87$2.56
17
90014-ZZ5-M00Ships in 1 to 2 Daysqty 2 used
$1.87$2.56
18
90603-ZV4-000Ships in 1 to 2 Daysqty 4 used
$1.42$1.94
19
95001-55003-60MShips in 1 to 2 Days
$65.33$93.98
20
95005-50003-30MNo Longer Available
$26.56$36.38
21
90603-ZV4-000Ships in 1 to 2 Daysqty 3 used
$1.42$1.94
21
16163-GHB-600Ships in 1 to 2 Daysqty 3 used
$1.90$2.60
Diagram

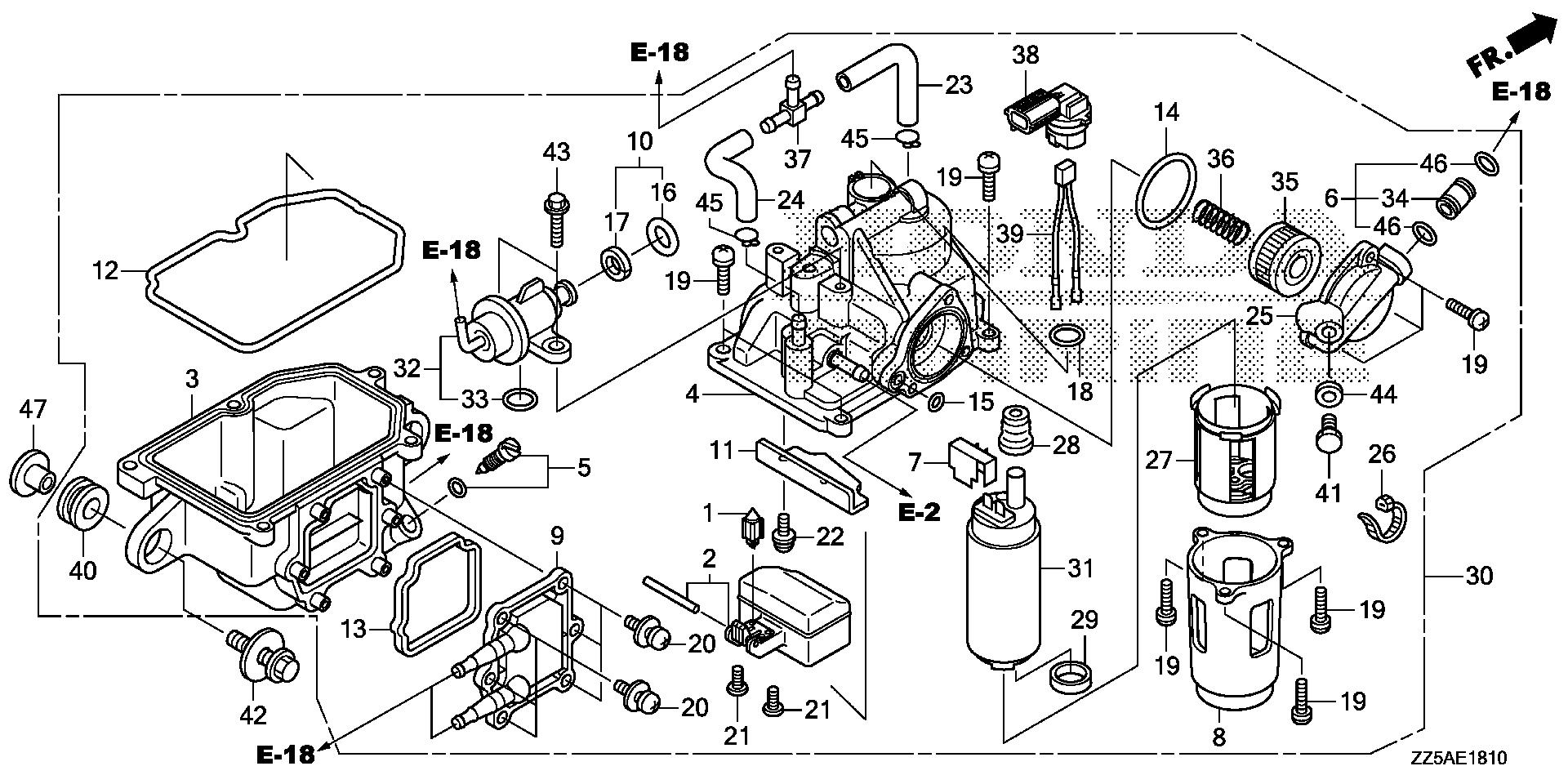

VAPOR SEPARATOR

BF50 BF50DK2 vapor separator exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ5AE1810
Fits all 2 submodels of this generation.

Parts in this assembly

50 parts
1
16011-ZY3-A01Ships in 1 to 2 Days
$42.79$58.62
2
16013-ZZ5-003Ships in 1 to 2 Days
$29.45$40.34
3
16019-ZZ5-003Ships in 1 to 2 Days
$167.30$229.18
4
16020-ZZ3-003Ships in 1 to 2 Days
$242.46$332.14
5
16024-ZY3-000Ships in 1 to 2 Days
$12.18$16.68
6
16026-ZY3-000Ships in 1 to 2 Days
$9.49$13.00
7
16041-ZZ5-003Ships in 1 to 2 Days
$7.69$10.54
8
16042-ZZ5-003Ships in 1 to 2 Days
$9.04$12.38
9
16061-ZZ5-003Ships in 1 to 2 Days
$26.67$36.54
10
16063-ZZ5-003Ships in 1 to 2 Days
$10.66$14.60
11
16064-ZZ5-003Ships in 1 to 2 Days
$7.05$9.66
12
16066-ZZ5-003Ships in 1 to 2 Days
$7.99$10.94
13
16072-ZZ5-003Ships in 1 to 2 Days
$8.58$11.76
14
16073-ZZ5-003Ships in 1 to 2 Days
$8.07$11.06
15
16074-ZZ5-003Ships in 1 to 2 Days
$20.64$28.28
16
16075-ZZ5-003Ships in 1 to 2 Days
$9.78$13.40
17
16076-ZZ5-003Ships in 1 to 2 Days
$3.27$4.48
18
16077-ZZ5-003Ships in 1 to 2 Days
$4.16$5.70
19
16081-ZW5-010In Stockqty 11 used
$4.18$5.72
20
16081-ZY9-003Ships in 1 to 2 Daysqty 6 used
$6.42$8.80
21
16082-ZY3-000Ships in 1 to 2 Daysqty 2 used
$3.80$5.20
22
16083-ZY3-000Ships in 1 to 2 Days
$3.11$4.26
23
16195-ZZ5-003Ships in 1 to 2 Days
$5.07$7.14
24
16196-ZZ5-003Ships in 1 to 2 Days
$5.07$7.14
25
16708-ZZ5-003Ships in 1 to 2 Days
$118.44$167.12
26
16709-ZZ5-003Ships in 1 to 2 Days
$2.80$3.84
27
16718-ZZ5-003Ships in 1 to 2 Days
$22.47$30.78
28
16721-ZZ5-003Ships in 1 to 2 Days
$17.32$23.72
29
16723-ZY6-003Ships in 1 to 2 Days
$9.86$13.50
30
16730-ZZ5-023Ships in 1 to 2 Days
$1,118.71$1,532.48
30
16730-ZZ5-M04Ships in 1 to 2 Days
$1,232.87$1,688.86
31
16735-ZZ5-003Ships in 1 to 2 Days
$285.93$391.72
32
16740-ZZ5-003Ships in 1 to 2 Days
$76.72$105.12
33
16741-PG7-005Ships in 1 to 2 Days
$3.83$5.24
34
16752-ZY3-000Ships in 1 to 2 Days
$7.36$10.08
35
16911-ZZ5-003Ships in 1 to 2 Days
$51.95$71.16
36
16913-ZZ5-003Ships in 1 to 2 Days
$59.50$81.60
37
16960-ME9-000Ships in 1 to 2 Days
$16.05$21.98
38
32166-ZZ5-003Ships in 1 to 2 Days
$9.04$12.38
39
32167-ZZ5-003Ships in 1 to 2 Days
$95.78$131.20
40
40102-ZV5-000Ships in 1 to 2 Daysqty 2 used
$2.64$3.62
41
90009-PP4-E01In Stock
$7.65$10.48
42
90013-ZW1-000Ships in 1 to 2 Daysqty 2 used
$2.48$3.40
42
90013-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$2.45$3.36
43
90021-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.14$1.56
44
90430-PD6-003In Stock
$4.41$6.04
45
90603-ZV4-000Ships in 1 to 2 Daysqty 2 used
$1.42$1.94
46
91301-MJ0-003In Stockqty 2 used
$2.09$2.86
47
91553-ZV5-010Ships in 1 to 2 Daysqty 2 used
$2.67$3.66
47
91551-ZVL-010Ships in 1 to 2 Daysqty 2 used
$2.23$3.06
Diagram

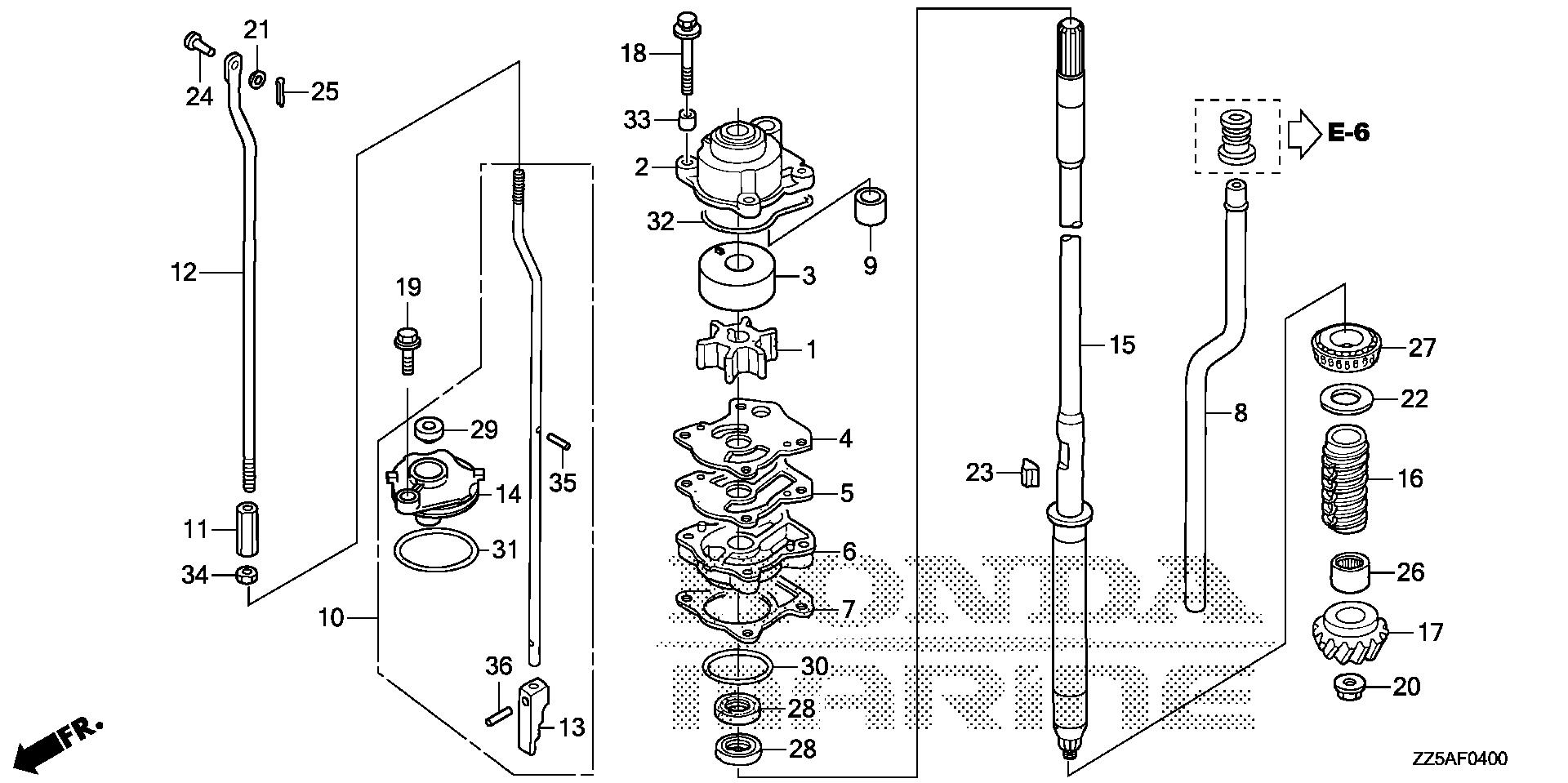

WATER PUMP

BF50 BF50DK2 water pump exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ5AF0400
Fits all 2 submodels of this generation.

Parts in this assembly

42 parts
1
19210-ZV5-003Ships in 1 to 2 Days
$25.54$34.98
↳
Sierra alternative ·
18-3248In Stock
$30.59
2
19221-ZV5-000In Stock
$26.48$37.36
3
19223-ZV5-000Ships in 1 to 2 Days
$14.45$20.40
4
19231-ZV5-000Ships in 1 to 2 Days
$11.91$16.80
5
19233-ZV5-000Ships in 1 to 2 Days
$6.47$9.12
6
19241-ZV5-000Ships in 1 to 2 Days
$26.48$37.36
7
19242-ZV5-000Ships in 1 to 2 Days
$6.47$9.12
8
19251-ZV5-701Ships in 1 to 2 Days
$42.38$59.80
8
19251-ZV5-A11Ships in 1 to 2 Days
$57.25$80.78
9
19253-ZV5-000Ships in 1 to 2 Days
$4.34$6.12
10
24310-ZV5-702Ships in 1 to 2 Days
$79.35$111.96
10
24310-ZV5-A12Ships in 1 to 2 Days
$81.75$115.36
11
24312-ZV5-000Ships in 1 to 2 Days
$15.90$22.44
12
24320-ZV5-000Ships in 1 to 2 Days
$31.30$44.16
13
24341-ZV5-701Ships in 1 to 2 Days
$58.18$82.10
14
24343-ZW4-000Ships in 1 to 2 Days
$50.27$70.94
15
41112-ZV5-701Ships in 1 to 2 Days
$417.60$589.28
15
41112-ZV5-A11Ships in 1 to 2 Days
$454.10$622.06
16
41116-ZV5-000Ships in 1 to 2 Days
$11.93$16.34
17
41131-ZV5-000Ships in 1 to 2 Days
$110.71$156.24
18
90103-ZY1-000Ships in 1 to 2 Daysqty 4 used
$5.84$8.24
19
90105-ZW9-000Ships in 1 to 2 Days
$2.88$3.94
20
90303-ZV5-000Ships in 1 to 2 Days
$6.47$8.86
21
90452-GK4-600In Stock
$1.28$1.82
22
90518-ZV5-000Ships in 1 to 2 Days
$6.23$8.54
22
90519-ZV5-000Ships in 1 to 2 Days
$6.23$8.54
22
90520-ZV5-000Ships in 1 to 2 Days
$6.23$8.54
22
90521-ZV5-000Ships in 1 to 2 Days
$6.23$8.54
23
90752-ZV5-003Ships in 1 to 2 Days
$7.55$10.34
↳
Sierra alternative ·
18-3270In Stock save $4.50
$3.05
24
90754-921-010Ships in 1 to 2 Days
$8.72$12.30
25
90756-921-000Ships in 1 to 2 Days
$1.45$2.04
26
91052-ZV5-003Ships in 1 to 2 Days
$29.73$41.94
27
91054-ZV5-003Ships in 1 to 2 Days
$31.05$42.54
28
91251-ZV5-003Ships in 1 to 2 Daysqty 2 used
$7.20$10.16
29
91253-ZW4-003Ships in 1 to 2 Days
$5.21$7.36
30
91351-740-003Ships in 1 to 2 Days
$2.25$3.18
31
91353-ZV5-003Ships in 1 to 2 Days
$2.96$4.18
32
91356-ZV5-000In Stock
$3.88$5.48
33
91555-ZV5-000Ships in 1 to 2 Daysqty 4 used
$3.88$5.48
34
94002-08490-0SShips in 1 to 2 Days
$1.42$1.94
35
94305-20122Ships in 1 to 2 Days
$2.03$2.78
36
91151-ZZ5-003Ships in 1 to 2 Days
$1.94$2.74
Diagram

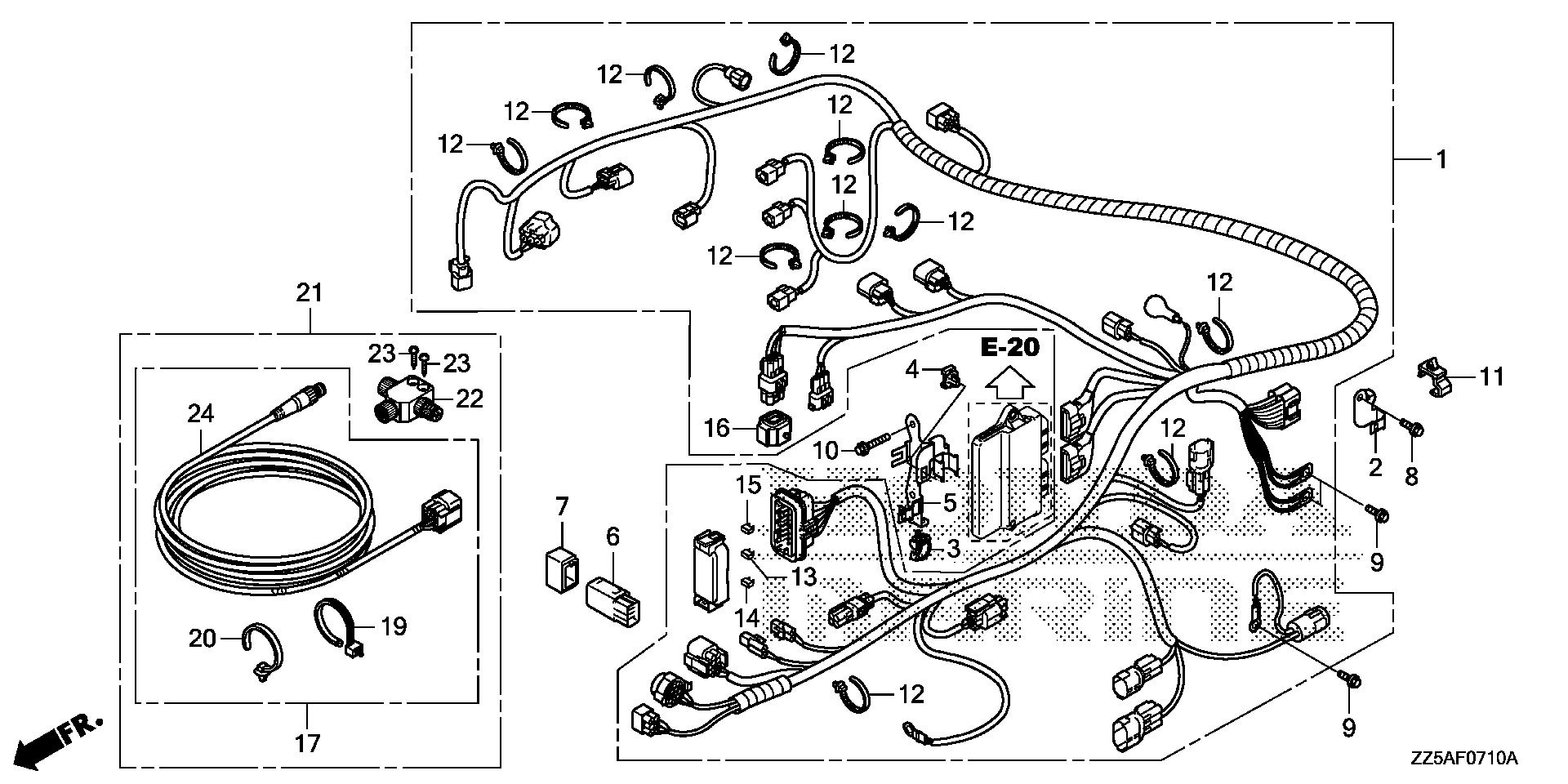

WIRE HARNESS

BF50 BF50DK2 wire harness exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZZ5AF0710A
Fits all 2 submodels of this generation.

Parts in this assembly

34 parts
1
WIRE HARNESS ASSY., MAIN (NOT AVAILABLE)
32100-ZZ5-010No Longer Available
$618.46$847.20
1
32100-ZZ5-030Ships in 1 to 2 Days
$566.12$775.50
1
32100-ZZ5-651No Longer Available
$600.31$822.34
1
32100-ZZ5-653Ships in 1 to 2 Days
$622.97$853.38
1
32100-ZZ5-M00Ships in 1 to 2 Days
$547.87$750.50
1
32100-ZZ5-S50Ships in 1 to 2 Days
$508.96$697.20
2
32103-ZZ5-010Ships in 1 to 2 Days
$8.34$11.76
3
32660-MJ6-710Ships in 1 to 2 Days
$3.43$4.70
3
91597-T2A-G01Ships in 1 to 2 Days
$3.52$4.96
4
38216-ZY3-003Ships in 1 to 2 Days
$2.19$3.00
5
38217-ZZ5-010Ships in 1 to 2 Days
$64.09$87.80
5
38217-ZZ5-020Ships in 1 to 2 Days
$43.04$60.72
6
38580-ZZ5-003Ships in 1 to 2 Days
$41.26$56.52
7
38586-ZZ5-003Ships in 1 to 2 Days
$3.61$4.94
8
90011-ZW9-000Ships in 1 to 2 Days
$1.71$2.34
8
90011-ZZ5-M01Ships in 1 to 2 Days
$1.18$1.62
9
90013-ZW9-000Ships in 1 to 2 Daysqty 3 used
$1.47$2.08
9
90105-ZZ5-M00Ships in 1 to 2 Daysqty 3 used
$1.10$1.50
10
90103-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$2.12$2.98
10
90103-ZZ5-M00Ships in 1 to 2 Daysqty 2 used
$1.39$1.96
11
90651-SB2-003Ships in 1 to 2 Days
$6.06$8.54
12
91541-S0A-003Ships in 1 to 2 Daysqty 11 used
$3.64$4.98
13
98200-41000Ships in 1 to 2 Daysqty 4 used
$1.21$1.66
14
98200-41500Ships in 1 to 2 Daysqty 3 used
$1.11$1.52
15
98200-43000Ships in 1 to 2 Daysqty 3 used
$1.61$2.20
16
32127-ZZ3-000Ships in 1 to 2 Days
$4.04$5.54
17
06328-ZZ3-764Ships in 1 to 2 Days
$267.59$366.56
19
90650-ZY1-003Ships in 1 to 2 Daysqty 2 used
$3.40$4.66
20
91540-STK-003Ships in 1 to 2 Daysqty 2 used
$4.15$5.68
21
06328-ZZ3-764Ships in 1 to 2 Days
$267.59$366.56
21
06328-ZZ3-765Ships in 1 to 2 Days
$239.18$327.64
22
32805-ZZ3-000Ships in 1 to 2 Days
$114.95
23
93901-446J0Ships in 1 to 2 Daysqty 2 used
$1.11$1.52
24
32800-ZZ3-000Ships in 1 to 2 Days
$200.56$274.74
Diagrams are Honda's official OEM illustrations, served from Honda's asset host. Prices are our own; where a struck-through figure appears beside one it is Honda's suggested retail. “In Stock” means the part is on our shelf here at Boe Marine. “Ships in 1 to 2 Days” means we order it in from Honda, who still supply it. Parts marked “No Longer Available” are shown so the drawing stays complete, but Honda has discontinued them. Where a Sierra replacement is listed beneath a Honda part, Sierra ships it direct to you; “Backorder Now” on one of those means Sierra has none at the moment and will ship it once restocked.
