BF350 — Parts Diagrams

Generation BF350A  ·  4 submodels

Assemblies (66)

Diagram

ACTUATOR

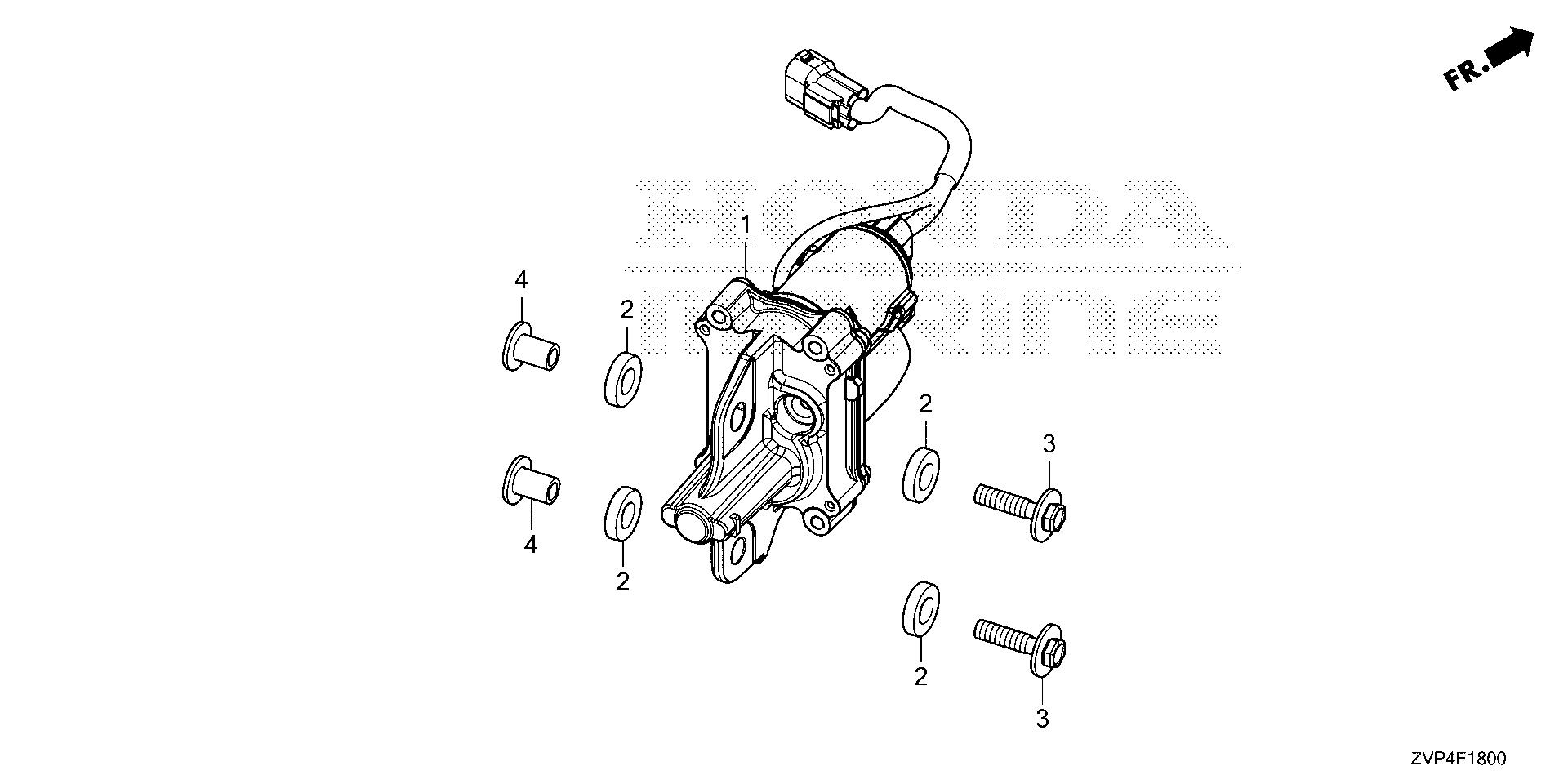

BF350 BF350A actuator exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVP4F1800
Fits all 4 submodels of this generation.

Parts in this assembly

4 parts
1
36520-ZVP-003Ships in 1 to 2 Days
$559.33$766.20
2
36522-ZVL-000Ships in 1 to 2 Daysqty 4 used
$3.46$4.74
3
90107-ZVL-000Ships in 1 to 2 Daysqty 2 used
$5.53$7.58
4
91551-ZVT-000Ships in 1 to 2 Daysqty 2 used
$5.31$7.28
Diagram

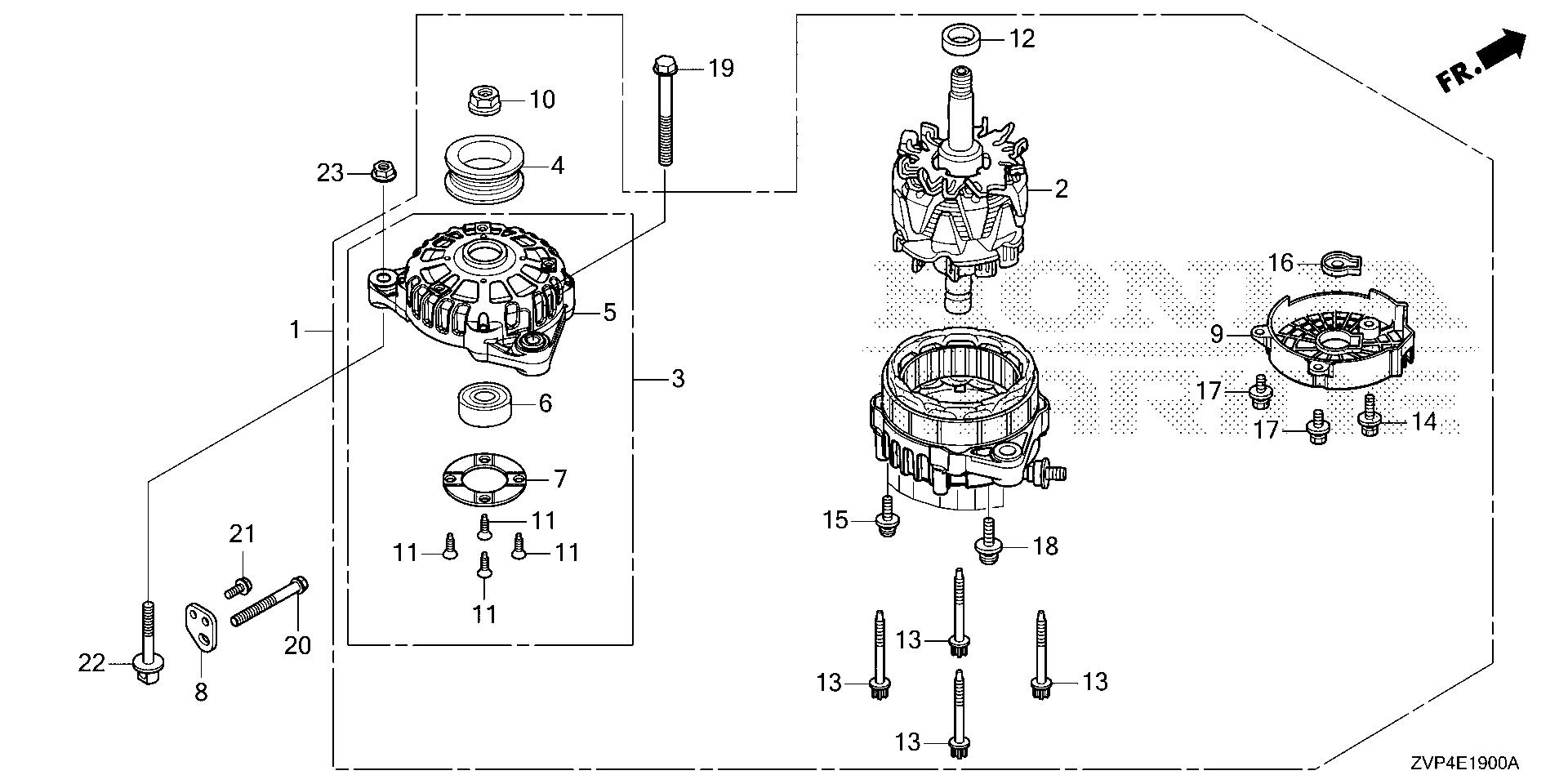

ALTERNATOR

BF350 BF350A alternator exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVP4E1900A
Fits all 4 submodels of this generation.

Parts in this assembly

23 parts
1
31630-ZVP-003Ships in 1 to 2 Days
$972.92
2
31631-ZVP-003Ships in 1 to 2 Days
$477.09
3
31632-ZVP-003Ships in 1 to 2 Days
$426.39$584.10
4
31633-ZVP-003Ships in 1 to 2 Days
$29.86$40.90
5
31634-ZVP-003Ships in 1 to 2 Days
$428.10$586.48
6
31635-ZVP-003Ships in 1 to 2 Days
$7.80$10.68
7
31636-ZVP-003Ships in 1 to 2 Days
$5.29$7.24
8
31637-ZVL-000Ships in 1 to 2 Days
$5.05$6.92
9
31639-ZVP-003Ships in 1 to 2 Days
$33.46$45.84
10
31641-ZVP-003Ships in 1 to 2 Days
$2.00$2.74
11
31642-ZVP-003Ships in 1 to 2 Daysqty 4 used
$1.87$2.56
12
31643-ZVP-003Ships in 1 to 2 Days
$6.47$8.86
13
31644-ZVP-003Ships in 1 to 2 Daysqty 4 used
$3.10$4.24
14
31645-ZVP-003Ships in 1 to 2 Days
$1.77$2.42
15
31646-ZVP-003Ships in 1 to 2 Daysqty 7 used
$1.77$2.42
16
31647-ZVP-003Ships in 1 to 2 Days
$2.47$3.38
17
31648-ZVP-003Ships in 1 to 2 Daysqty 2 used
$1.77$2.42
18
31649-ZVP-003Ships in 1 to 2 Days
$2.04$2.80
19
90002-ZVL-010Ships in 1 to 2 Days
$2.80$3.84
20
90011-ZVL-010Ships in 1 to 2 Days
$5.56$7.62
21
90017-ZZ5-M01Ships in 1 to 2 Days
$1.24$1.70
22
90055-ZVL-010Ships in 1 to 2 Days
$23.78$32.58
23
90203-ZVL-010Ships in 1 to 2 Days
$1.72$2.36
Diagram

BATTERY CORD

BF350 BF350A battery cord exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVP4F0710
Fits all 4 submodels of this generation.

Parts in this assembly

19 parts
1
31575-ZVL-010Ships in 1 to 2 Days
$29.78$40.80
2
32412-ZVP-000Ships in 1 to 2 Days
$3.93$5.38
3
32421-ZVP-000Ships in 1 to 2 Days
$219.93$301.28
4
32422-ZVP-000Ships in 1 to 2 Days
$171.21$234.54
5
32423-ZVP-000Ships in 1 to 2 Days
$47.79$65.46
6
32435-ZVP-000Ships in 1 to 2 Days
$41.49$56.84
7
32501-KSV-J00Ships in 1 to 2 Daysqty 2 used
$1.12$1.54
8
38216-ZZ3-003Ships in 1 to 2 Days
$5.42$7.42
9
38550-ZVP-003Ships in 1 to 2 Days
$160.23$219.52
10
38551-ZVP-000Ships in 1 to 2 Days
$12.82$17.56
11
38580-ZVP-003Ships in 1 to 2 Days
$25.11$34.40
12
38585-MKE-A11Ships in 1 to 2 Days
$4.99$6.84
13
90105-ZZ5-M00Ships in 1 to 2 Daysqty 3 used
$1.10$1.50
14
90107-ZY3-000Ships in 1 to 2 Days
$0.60$0.82
15
90203-ZW1-000Ships in 1 to 2 Days
$2.31$3.16
16
90203-ZW1-000Ships in 1 to 2 Days
$2.31$3.16
17
90405-ZY3-000Ships in 1 to 2 Days
$0.66$0.90
18
90651-KV6-003Ships in 1 to 2 Daysqty 3 used
$4.12$5.64
19
90652-KT1-771Ships in 1 to 2 Days
$4.51$6.18
Diagram

CABLE

BF350 BF350A cable exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVP4Y0900
Fits all 4 submodels of this generation.

Parts in this assembly

25 parts
1
31576-ZVL-000Ships in 1 to 2 Days
$12.85
2
32540-ZVL-601Ships in 1 to 2 Days
$73.80$101.10
3
32580-ZVL-600Ships in 1 to 2 Days
$207.73
3
32580-ZVL-700Ships in 1 to 2 Days
$253.87
3
32580-ZVL-800Ships in 1 to 2 Days
$300.04
3
32580-ZVP-N00Ships in 1 to 2 Days
$252.20
3
32580-ZVP-U00Ships in 1 to 2 Days
$299.49
5
32590-ZVL-000Ships in 1 to 2 Days
$76.94
5
32590-ZVL-810Ships in 1 to 2 Days
$181.42
5
32590-ZVL-820Ships in 1 to 2 Days
$242.85
5
32590-ZVL-830Ships in 1 to 2 Days
$289.99
5
32590-ZVL-840Ships in 1 to 2 Days
$347.13
6
32590-ZVL-600Ships in 1 to 2 Days
$69.25
6
32590-ZVL-700Ships in 1 to 2 Days
$92.31
6
32590-ZVL-800Ships in 1 to 2 Days
$115.40
6
32590-ZVP-900Ships in 1 to 2 Days
$149.95
8
32815-ZVL-000Ships in 1 to 2 Days
$138.56
8
32815-ZVL-600Ships in 1 to 2 Days
$185.70
8
32815-ZVL-700Ships in 1 to 2 Days
$222.89
8
32815-ZVL-800Ships in 1 to 2 Days
$292.33
9
06328-ZVL-800Ships in 1 to 2 Days
$87.95
10
32540-ZVP-PA0Ships in 1 to 2 Days
$49.95
11
32580-ZVP-800Ships in 1 to 2 Days
$349.95
12
32806-ZVL-000Ships in 1 to 2 Days
$32.92$45.10
13
32807-ZVL-000Ships in 1 to 2 Days
$34.41$47.14
Diagram

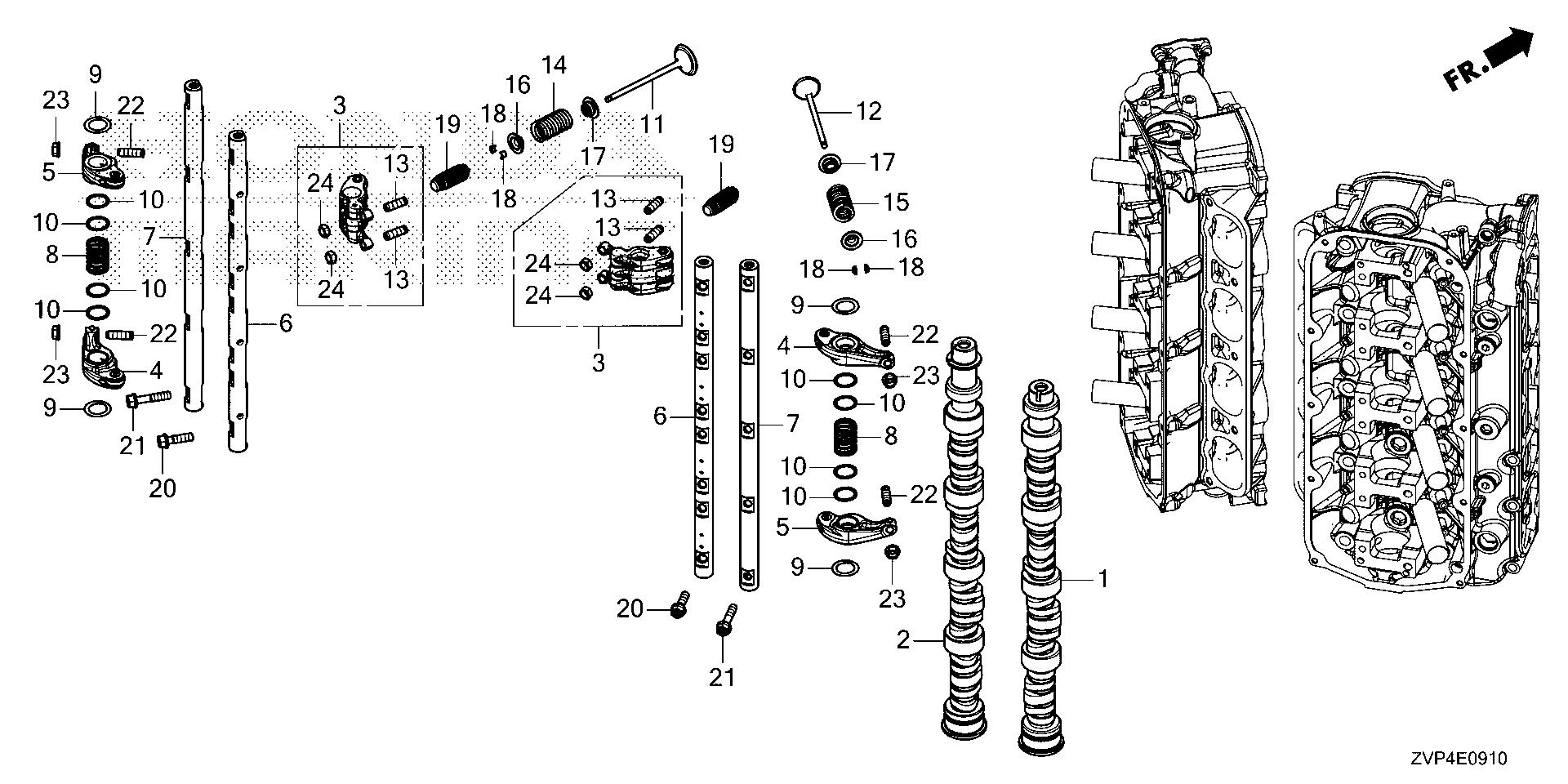

CAMSHAFT - ROCKER ARM

BF350 BF350A camshaft - rocker arm exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVP4E0910
Fits all 4 submodels of this generation.

Parts in this assembly

25 parts
1
14111-ZVP-000Ships in 1 to 2 Days
$369.06$505.56
2
14211-ZVP-000Ships in 1 to 2 Days
$369.06$505.56
3
14620-P8A-A01Ships in 1 to 2 Daysqty 8 used
$569.63$780.32
4
14626-ZVL-700Ships in 1 to 2 Daysqty 8 used
$32.85$45.00
5
14627-ZVL-700Ships in 1 to 2 Daysqty 8 used
$32.85$45.00
6
14631-ZVP-000Ships in 1 to 2 Daysqty 2 used
$50.79$69.58
7
14632-ZVP-000Ships in 1 to 2 Daysqty 2 used
$50.79$69.58
8
14645-ZVL-700Ships in 1 to 2 Daysqty 8 used
$3.29$4.50
9
14646-R70-A00Ships in 1 to 2 Daysqty 16 used
$4.39$6.02
10
14646-ZVL-700Ships in 1 to 2 Daysqty 32 used
$1.72$2.36
11
14711-RJA-000Ships in 1 to 2 Daysqty 16 used
$46.15$63.22
12
14721-RJA-E00Ships in 1 to 2 Daysqty 16 usedreplaced by 14721-ZVL-000
$39.54$54.16
12
14721-ZVL-000Ships in 1 to 2 Daysqty 16 used
$39.54$54.16
13
14744-PT0-004Ships in 1 to 2 Daysqty 16 used
$8.92$12.22
14
14761-RKG-003Ships in 1 to 2 Daysqty 16 used
$14.24$19.50
15
14762-P8E-A02Ships in 1 to 2 Daysqty 16 used
$18.22$24.96
16
14765-RDV-J00Ships in 1 to 2 Daysqty 32 used
$8.50$11.64
17
14775-PM3-000Ships in 1 to 2 Daysqty 32 used
$8.19$11.22
18
14781-RGM-A01Ships in 1 to 2 Daysqty 64 used
$5.68$7.78
19
14820-P8F-A01Ships in 1 to 2 Daysqty 8 used
$25.10$34.38
20
90003-P8A-A00Ships in 1 to 2 Daysqty 16 used
$4.93$6.76
21
90004-P8A-A00Ships in 1 to 2 Daysqty 10 used
$3.20$4.38
22
90017-ZVL-701Ships in 1 to 2 Daysqty 16 used
$2.79$3.82
23
90206-PM3-004Ships in 1 to 2 Daysqty 16 used
$4.98$6.82
24
90206-PT0-004Ships in 1 to 2 Daysqty 16 used
$3.50$4.80
Diagram

CRANKCASE

BF350 BF350A crankcase exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVP4E0310
Fits all 4 submodels of this generation.

Parts in this assembly

21 parts
1
11100-ZVP-000Ships in 1 to 2 Days
$494.25$677.08
2
12155-ZZ5-010Ships in 1 to 2 Daysqty 2 used
$8.18$11.20
3
12214-ZV5-000Ships in 1 to 2 Days
$2.92$4.00
4
15400-RTA-003In Stock
$8.50$11.64
5
15410-ZVP-000Ships in 1 to 2 Days
$155.72$213.34
6
15413-ZVP-000Ships in 1 to 2 Days
$2.07$2.84
7
15600-ZY9-M00Ships in 1 to 2 Days
$9.52$13.04
8
15631-ZY9-000Ships in 1 to 2 Days
$29.93$41.00
9
90003-ZX2-000Ships in 1 to 2 Daysqty 2 used
$1.88$2.58
10
90005-ZVP-000Ships in 1 to 2 Daysqty 2 used
$1.94$2.66
11
90014-ZZ5-M01Ships in 1 to 2 Daysqty 17 used
$1.87$2.56
12
90015-PH1-013Ships in 1 to 2 Days
$9.97$13.66
13
90032-ZZ5-M01Ships in 1 to 2 Daysqty 5 used
$1.62$2.22
14
90047-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.96$2.68
15
90049-ZVL-010Ships in 1 to 2 Daysqty 3 used
$1.30$1.78
16
90081-ZZ5-M01Ships in 1 to 2 Days
$4.51$6.18
17
90082-ZY3-003Ships in 1 to 2 Days
$3.80$5.20
18
90204-ZVL-010Ships in 1 to 2 Daysqty 2 used
$1.20$1.64
19
91302-MAL-601Ships in 1 to 2 Days
$3.55$4.86
20
91324-PF4-004Ships in 1 to 2 Days
$3.59$4.92
21
94301-08140Ships in 1 to 2 Daysqty 2 used
$2.74$3.76
Diagram

CRANKSHAFT - PISTON

BF350 BF350A crankshaft - piston exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVP4E0700
Fits all 4 submodels of this generation.

Parts in this assembly

28 parts
1
13010-ZVP-000Ships in 1 to 2 Daysqty 8 used
$55.00$75.34
2
PISTON (STD)
13101-ZVP-000Ships in 1 to 2 Daysqty 8 used
$66.44$91.02
3
13111-PEA-000Ships in 1 to 2 Daysqty 8 used
$34.18$46.82
4
13115-P5A-000Ships in 1 to 2 Daysqty 16 used
$3.94$5.40
5
13204-P8A-A01Ships in 1 to 2 Days
$8.23$11.28
6
ROD, CONNECTING
13210-ZVP-000Ships in 1 to 2 Daysqty 8 used
$118.01$161.66
7
13211-ZVP-003Ships in 1 to 2 Daysqty 16 used
$13.67$18.72
7
13212-ZVP-003Ships in 1 to 2 Daysqty 16 used
$13.67$18.72
7
13213-ZVP-003Ships in 1 to 2 Daysqty 16 used
$13.67$18.72
7
13214-ZVP-003Ships in 1 to 2 Daysqty 16 used
$13.67$18.72
7
13215-ZVP-003Ships in 1 to 2 Daysqty 16 used
$13.67$18.72
8
CRANKSHAFT
13311-ZVP-000Ships in 1 to 2 Days
$1,284.03
9
13321-ZVP-003Ships in 1 to 2 Daysqty 5 used
$13.78$18.88
9
13322-ZVP-003Ships in 1 to 2 Daysqty 5 used
$13.78$18.88
9
13323-ZVP-003Ships in 1 to 2 Daysqty 5 used
$13.78$18.88
9
13324-ZVP-003Ships in 1 to 2 Daysqty 5 used
$13.78$18.88
9
13325-ZVP-003Ships in 1 to 2 Daysqty 5 used
$13.78$18.88
9
13326-ZVP-003Ships in 1 to 2 Daysqty 5 used
$13.78$18.88
10
13331-ZVP-003Ships in 1 to 2 Daysqty 4 used
$35.42$48.52
11
13341-ZVP-003Ships in 1 to 2 Daysqty 5 used
$8.60$11.78
11
13342-ZVP-003Ships in 1 to 2 Daysqty 5 used
$8.60$11.78
11
13343-ZVP-003Ships in 1 to 2 Daysqty 5 used
$8.60$11.78
11
13344-ZVP-003Ships in 1 to 2 Daysqty 5 used
$13.78$18.88
11
13345-ZVP-003Ships in 1 to 2 Daysqty 5 used
$8.60$11.78
11
13346-ZVP-003Ships in 1 to 2 Daysqty 5 used
$8.60$11.78
12
RETAINER, SPRING
13391-ZVP-000Ships in 1 to 2 Days
$7.61$10.42
13
SEAT, SPRING
13392-ZVP-000Ships in 1 to 2 Days
$7.93$10.86
14
13398-ZY3-003Ships in 1 to 2 Days
$3.69$5.06
Diagram

CYLINDER & CRANKSHAFT ASSY.

Honda publishes no exploded diagram for this assembly. The parts list below is complete.
Ref numbers on the diagram match the badges belowZVP4X0200
Fits all 4 submodels of this generation.

Parts in this assembly

1 parts
1
12011-ZVP-PA1Ships in 1 to 2 Days
$9,980.08$9,980.48
Diagram

CYLINDER BLOCK

BF350 BF350A cylinder block exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVP4E0300B
Fits all 4 submodels of this generation.

Parts in this assembly

50 parts
1
11200-ZVL-010Ships in 1 to 2 Days
$289.63$396.76
2
11300-ZVP-000Ships in 1 to 2 Days
$67.06$91.86
3
BLOCK ASSY., CYLINDER
12000-ZVP-000Ships in 1 to 2 Days
$2,973.37
4
12155-ZV4-A01Ships in 1 to 2 Daysqty 6 used
$10.91$14.94
5
12155-ZV5-010Ships in 1 to 2 Daysqty 2 used
$9.53$13.06
6
12155-ZZ5-010Ships in 1 to 2 Daysqty 4 used
$8.18$11.20
8
12164-ZY3-000Ships in 1 to 2 Daysqty 6 used
$15.11$20.70
9
12214-ZV5-000Ships in 1 to 2 Days
$2.92$4.00
10
15115-P8A-A01In Stock
$5.10$6.98
11
15140-P8A-A00Ships in 1 to 2 Daysqty 2 used
$17.56$24.06
12
15142-P8A-A00Ships in 1 to 2 Daysqty 2 used
$3.55$4.86
13
15150-P8A-A00Ships in 1 to 2 Days
$43.23$59.22
14
COLLAR, OIL PASSAGE
15152-ZVP-000Ships in 1 to 2 Days
$5.17$7.08
15
15810-ZVL-003ZAShips in 1 to 2 Days
$258.24$353.76
16
15825-ZY3-003Ships in 1 to 2 Days
$20.45$28.02
17
19367-ZVP-000Ships in 1 to 2 Daysqty 2 used
$48.85$66.92
18
19368-ZVP-000Ships in 1 to 2 Daysqty 2 used
$6.41$8.78
19
30530-R1A-A01Ships in 1 to 2 Daysqty 2 used
$172.31$236.04
20
32116-ZVP-000Ships in 1 to 2 Days
$3.78$5.18
21
35673-ZY3-003Ships in 1 to 2 Daysqty 3 used
$22.62$30.98
22
37260-ZVP-003Ships in 1 to 2 Days
$99.83$136.76
23
37500-PNB-003Ships in 1 to 2 Days
$214.85$294.32
24
90001-MZ8-U40Ships in 1 to 2 Daysqty 10 used
$1.74$2.38
25
90003-ZX2-000Ships in 1 to 2 Daysqty 4 used
$1.88$2.58
26
90004-ZX2-000Ships in 1 to 2 Daysqty 2 used
$1.88$2.58
27
90008-ZVL-013Ships in 1 to 2 Daysqty 8 used
$3.40$4.66
28
90009-ZVL-013Ships in 1 to 2 Daysqty 2 used
$4.31$5.90
29
90014-RCA-A01Ships in 1 to 2 Daysqty 10 used
$4.89$6.70
30
90017-ZZ5-M01Ships in 1 to 2 Days
$1.24$1.70
31
90019-ZZ5-M01In Stockqty 7 used
$2.25$3.08
32
90020-ZVL-010Ships in 1 to 2 Daysqty 2 used
$1.24$1.70
33
90021-ZZ5-M01Ships in 1 to 2 Days
$1.14$1.56
34
90030-ZZ5-M01Ships in 1 to 2 Daysqty 8 used
$1.31$1.80
35
90038-ZVL-010Ships in 1 to 2 Days
$1.28$1.76
36
90054-ZY9-M01Ships in 1 to 2 Daysqty 2 used
$1.72$2.36
37
90081-ZZ5-M01Ships in 1 to 2 Days
$4.51$6.18
38
90715-PH7-000Ships in 1 to 2 Daysqty 10 used
$7.85$10.76
39
91212-ZY3-003Ships in 1 to 2 Days
$13.20$18.08
40
91214-55C-E01Ships in 1 to 2 Days
$15.32$20.98
41
91307-PNA-003Ships in 1 to 2 Daysqty 3 used
$2.01$2.76
42
91308-P8A-A01In Stockqty 2 used
$5.84$8.00
43
$2.77$3.80
44
91309-P8A-A01In Stock
$5.84$8.00
45
91319-PR3-003Ships in 1 to 2 Days
$4.58$6.28
46
91321-P0X-003In Stock
$4.20$5.76
47
91333-PNA-003Ships in 1 to 2 Days
$3.02$4.14
48
93500-05020-4JShips in 1 to 2 Daysqty 6 used
$0.86$1.18
49
94301-06100In Stockqty 4 used
$2.74$3.76
50
12171-ZY3-305Ships in 1 to 2 Daysqty 6 used
$2.67$3.66
51
06126-ZVL-000Ships in 1 to 2 Daysqty 6 used
$9.07
Diagram

CYLINDER HEAD

BF350 BF350A cylinder head exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVP4E0900B
Fits all 4 submodels of this generation.

Parts in this assembly

26 parts
1
12155-ZV4-A01Ships in 1 to 2 Daysqty 4 used
$10.91$14.94
2
12155-ZV5-010Ships in 1 to 2 Daysqty 4 used
$9.53$13.06
4
12164-ZY3-000Ships in 1 to 2 Daysqty 4 used
$15.11$20.70
5
CYLINDER HEAD, R.
12210-ZVP-000Ships in 1 to 2 Days
$1,575.39
6
12220-ZVP-000Ships in 1 to 2 Days
$1,575.39
7
12241-ZY3-000Ships in 1 to 2 Daysqty 2 used
$20.92$28.66
8
GASKET, CYLINDER HEAD
12251-ZVP-003Ships in 1 to 2 Daysqty 2 used
$63.96$87.62
9
35655-ZVP-003Ships in 1 to 2 Days
$210.96$288.98
10
35673-ZY3-003Ships in 1 to 2 Daysqty 2 used
$22.62$30.98
11
90004-ZX2-000Ships in 1 to 2 Daysqty 4 used
$1.88$2.58
12
90005-PT0-003Ships in 1 to 2 Daysqty 20 used
$16.79$23.00
13
90011-ZY9-M01Ships in 1 to 2 Daysqty 8 used
$2.72$3.72
14
90020-ZVL-010Ships in 1 to 2 Daysqty 2 used
$1.24$1.70
15
90151-ZZ0-M01Ships in 1 to 2 Daysqty 4 used
$1.66$2.28
16
90701-P8A-A00Ships in 1 to 2 Daysqty 4 used
$4.88$6.68
17
90705-PT0-000Ships in 1 to 2 Daysqty 4 used
$5.33$7.30
18
91213-RKG-003Ships in 1 to 2 Days
$11.74$16.08
19
91301-P8A-A00Ships in 1 to 2 Days
$1.71$2.34
20
91307-PNA-003Ships in 1 to 2 Daysqty 2 used
$2.01$2.76
21
92900-08040-0BShips in 1 to 2 Daysqty 4 used
$3.17$4.34
22
93500-05020-4JShips in 1 to 2 Daysqty 4 used
$0.86$1.18
23
94302-06100Ships in 1 to 2 Daysqty 4 used
$2.74$3.76
24
12210-PZ1-004Ships in 1 to 2 Days
$4.45$6.10
25
12211-PZ1-004Ships in 1 to 2 Days
$4.45$6.10
26
12171-ZY3-305Ships in 1 to 2 Daysqty 4 used
$2.67$3.66
27
06126-ZVL-000Ships in 1 to 2 Daysqty 4 used
$9.07
Diagram

CYLINDER HEAD & CAMSHAFT ASSY. (L.)

Honda publishes no exploded diagram for this assembly. The parts list below is complete.
Ref numbers on the diagram match the badges belowZVP4X0400
Fits all 4 submodels of this generation.

Parts in this assembly

1 parts
1
12225-ZVP-PA0Ships in 1 to 2 Daysreplaced by 12225-ZVP-PA1
$4,023.23
Diagram

CYLINDER HEAD & CAMSHAFT ASSY. (R.)

Honda publishes no exploded diagram for this assembly. The parts list below is complete.
Ref numbers on the diagram match the badges belowZVP4X0300
Fits all 4 submodels of this generation.

Parts in this assembly

1 parts
1
12215-ZVP-PA0Ships in 1 to 2 Daysreplaced by 12215-ZVP-PA1
$4,020.83
Diagram

CYLINDER HEAD COVER

BF350 BF350A cylinder head cover exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVP4E0100
Fits all 4 submodels of this generation.

Parts in this assembly

15 parts
1
COVER ASSY., R. CYLINDER HEAD
12310-ZVP-000Ships in 1 to 2 Days
$249.65$341.98
2
GASKET, HEAD COVER
12312-ZVP-000Ships in 1 to 2 Daysqty 2 used
$23.89$32.72
3
COVER, L. CYLINDER HEAD
12320-ZVP-000Ships in 1 to 2 Days
$249.65$341.98
4
12343-5G0-000Ships in 1 to 2 Days
$18.75$25.68
5
12345-5G0-A01Ships in 1 to 2 Daysqty 16 used
$8.34$11.42
6
12347-ZVP-000Ships in 1 to 2 Daysqty 16 used
$4.32$5.92
7
12359-ZVP-000Ships in 1 to 2 Days
$7.01$9.60
8
15425-ZY3-010Ships in 1 to 2 Daysqty 2 used
$22.88$31.34
9
15721-ZVP-000Ships in 1 to 2 Daysqty 2 used
$14.22$19.48
10
90014-ZVP-000Ships in 1 to 2 Daysqty 20 used
$1.49$2.04
11
90602-ZY3-020Ships in 1 to 2 Daysqty 2 used
$4.15$5.68
12
90602-ZY6-020Ships in 1 to 2 Daysqty 4 used
$2.35$3.22
13
91401-ZVP-000Ships in 1 to 2 Days
$7.96$10.90
14
91402-ZVP-000Ships in 1 to 2 Days
$10.60$14.52
15
91403-ZVP-000Ships in 1 to 2 Days
$7.04$9.64
Diagram

DISPLAY KIT

BF350 BF350A display kit exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVP4Y0800
Fits all 4 submodels of this generation.

Parts in this assembly

4 parts
1
06371-ZVP-000Ships in 1 to 2 Daysreplaced by 06371-ZVP-010
$599.95
1
06371-ZVP-010Ships in 1 to 2 Days
$883.78$1,210.66
2
37106-ZY6-004Ships in 1 to 2 Days
$62.24$85.26
3
37107-ZY6-004Ships in 1 to 2 Days
$69.48$95.18
Diagram

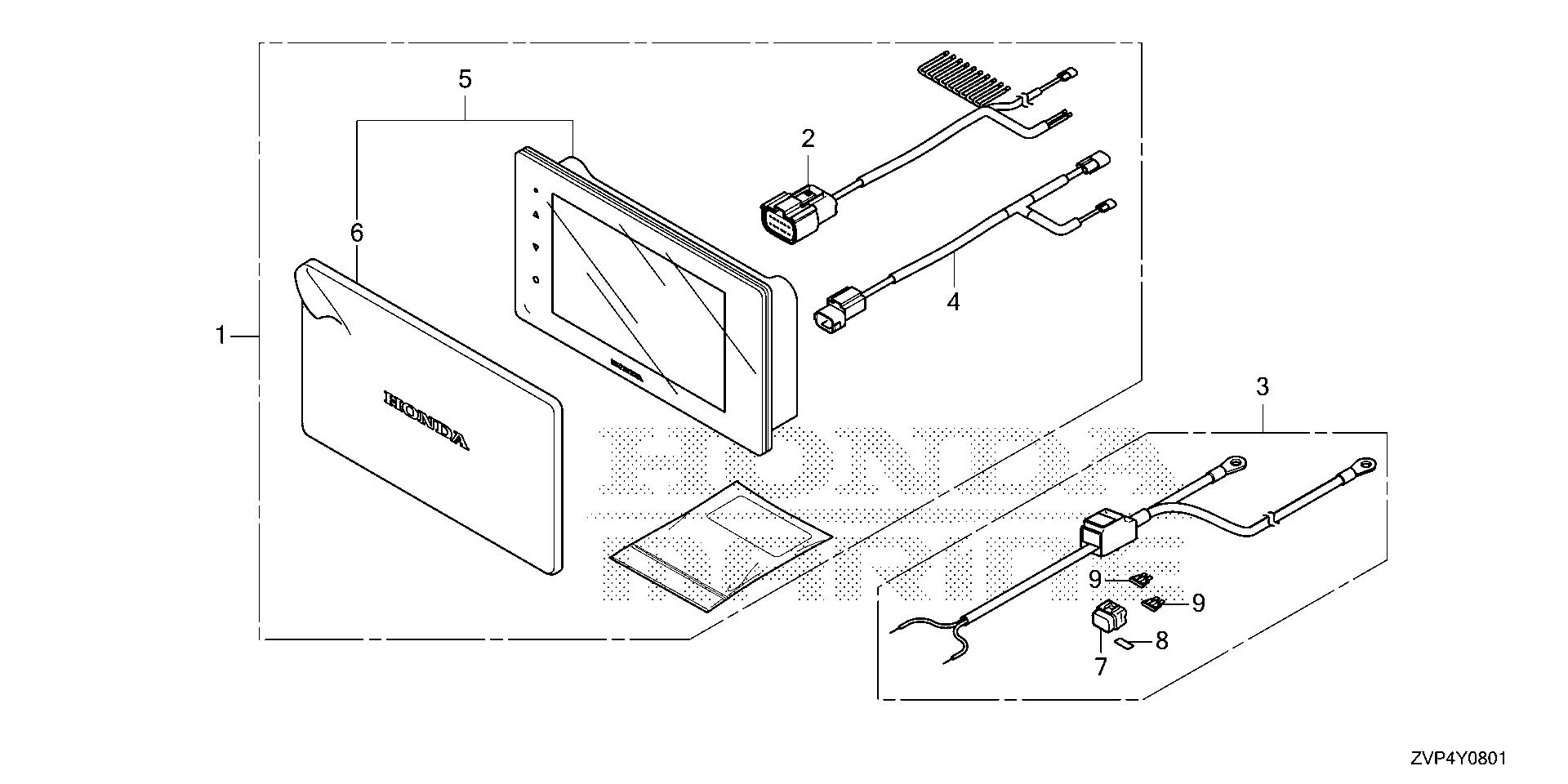

DISPLAY KIT (7 INCH)

BF350 BF350A display kit (7 inch) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVP4Y0801
Fits all 4 submodels of this generation.

Parts in this assembly

9 parts
1
06371-ZVP-A00Ships in 1 to 2 Days
$927.31
2
32710-ZVP-600Ships in 1 to 2 Days
$96.67$132.42
3
32711-ZVP-600Ships in 1 to 2 Days
$22.50$30.82
4
32712-ZVP-600Ships in 1 to 2 Days
$45.57$62.42
5
DISPLAY SET (7INCH) (NOT AVAILABLE)
37010-ZVP-601No Longer Available
—
6
37107-ZVP-601Ships in 1 to 2 Days
$104.95
7
38216-ZY3-801Ships in 1 to 2 Days
$6.10$8.36
8
87116-ZVP-600Ships in 1 to 2 Days
$1.56$2.14
9
98200-30750Ships in 1 to 2 Daysqty 2 used
$1.20$1.64
Diagram

ELECTRONIC CONTROL UNIT

BF350 BF350A electronic control unit exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVP4E2010
Fits all 4 submodels of this generation.

Parts in this assembly

13 parts
1
16896-ZY9-003Ships in 1 to 2 Daysqty 2 used
$2.80$3.84
2
30416-ZVP-000Ships in 1 to 2 Days
$45.41$62.20
3
30419-ZY9-003Ships in 1 to 2 Daysqty 8 used
$4.26$5.84
4
34750-ZVP-003Ships in 1 to 2 Days
$1,303.56$1,785.70
4
34750-ZVP-023Ships in 1 to 2 Days
$1,168.72$1,600.98
5
34754-ZVP-000Ships in 1 to 2 Days
$79.35$108.70
6
35640-ZY3-013Ships in 1 to 2 Days
$48.76$66.80
7
83551-GE2-000Ships in 1 to 2 Days
$5.68$7.78
8
90015-ZVL-010Ships in 1 to 2 Daysqty 8 used
$2.47$3.38
9
90018-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.37$1.88
10
90652-MGS-D31Ships in 1 to 2 Days
$2.93$4.02
11
91551-ZVL-010Ships in 1 to 2 Daysqty 8 used
$2.23$3.06
12
91558-SD5-003Ships in 1 to 2 Daysqty 2 used
$8.32$11.40
Diagram

ENGINE COVER

BF350 BF350A engine cover exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVP4F0800
Fits all 4 submodels of this generation.

Parts in this assembly

15 parts
1
63000-ZVP-000ZAShips in 1 to 2 Days
$3,450.05$4,726.10
1
63000-ZVP-000ZBShips in 1 to 2 Days
$3,301.18$4,522.16
1
63000-ZVP-010ZAShips in 1 to 2 Daysreplaced by 63000-ZVP-020ZA
$3,450.05$4,726.10
1
63000-ZVP-010ZBShips in 1 to 2 Daysreplaced by 63000-ZVP-020ZB
$3,301.18$4,522.16
1
63000-ZVP-020ZAShips in 1 to 2 Days
$3,450.05$4,726.10
1
63000-ZVP-020ZBShips in 1 to 2 Days
$3,301.18$4,522.16
2
63107-ZVP-000Ships in 1 to 2 Daysqty 2 used
$40.79$55.88
3
63108-ZVP-010Ships in 1 to 2 Days
$36.54$50.06
4
63109-ZVP-000Ships in 1 to 2 Daysqty 3 used
$3.18$4.36
5
90004-ZX2-000Ships in 1 to 2 Daysqty 6 used
$1.88$2.58
6
90103-ZVP-300Ships in 1 to 2 Daysqty 3 used
$7.05$9.66
7
90305-ZV4-000Ships in 1 to 2 Daysqty 3 used
$6.02$8.24
8
90405-ZZ5-M01Ships in 1 to 2 Daysqty 3 used
$1.96$2.68
9
90507-ZV4-000Ships in 1 to 2 Daysqty 3 used
$2.20$3.02
10
91552-ZVP-000Ships in 1 to 2 Daysqty 3 used
$2.13$2.92
Diagram

EXTENSION CASE

BF350 BF350A extension case exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVP4F0320
Fits all 4 submodels of this generation.

Parts in this assembly

20 parts
1
40201-ZVP-000Ships in 1 to 2 Days
$325.74$446.24
2
40203-ZVP-000Ships in 1 to 2 Days
$325.74$446.24
3
40204-ZVP-000Ships in 1 to 2 Days
$4.16$5.70
4
40210-ZY3-610Ships in 1 to 2 Days
$31.52$43.18
5
40219-ZY3-023Ships in 1 to 2 Days
$9.05$12.40
6
50111-ZVP-000Ships in 1 to 2 Daysqty 2 used
$57.80
7
50155-ZVP-000Ships in 1 to 2 Daysqty 2 used
$60.39$82.72
8
50156-ZVP-000Ships in 1 to 2 Daysqty 2 used
$16.06$22.00
9
50157-ZVP-000Ships in 1 to 2 Daysqty 2 used
$49.42$67.70
10
63718-ZVP-000Ships in 1 to 2 Days
$52.18$71.48
11
90102-ZW9-000Ships in 1 to 2 Days
$2.12$2.90
12
90103-ZVL-000Ships in 1 to 2 Daysqty 9 used
$3.93$5.38
13
90105-ZVP-000Ships in 1 to 2 Daysqty 8 used
$4.32$5.92
14
90107-ZVP-000Ships in 1 to 2 Daysqty 2 used
$39.07$53.52
15
90123-ZY6-000Ships in 1 to 2 Daysqty 6 used
$6.45$8.84
16
90302-ZVP-000Ships in 1 to 2 Daysqty 2 used
$10.95$15.00
17
90503-ZY3-610In Stock
$8.02$10.98
18
90511-ZY3-000Ships in 1 to 2 Daysqty 2 used
$3.42$4.68
19
90652-ZY3-000In Stock
$10.91$14.94
20
90756-ZV5-000In Stockqty 4 used
$2.64$3.62
Diagram

EXTENSION HARNESS

BF350 BF350A extension harness exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVP4Y1000
Fits all 4 submodels of this generation.

Parts in this assembly

7 parts
1
32532-ZVL-PA0Ships in 1 to 2 Days
$42.08$57.64
2
32533-ZVL-PA0Ships in 1 to 2 Days
$12.53$17.16
3
32534-ZVL-PA0Ships in 1 to 2 Days
$12.53$17.16
4
32535-ZVL-PA0Ships in 1 to 2 Days
$12.53$17.16
5
32536-ZVP-PA0Ships in 1 to 2 Days
$49.95
6
32537-ZVL-PA0Ships in 1 to 2 Days
$108.65$148.84
7
32538-ZVL-PA0Ships in 1 to 2 Days
$58.53$80.18
Diagram

EXTENSION HARNESS (2)

BF350 BF350A extension harness (2) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVP4Y1001
Fits all 4 submodels of this generation.

Parts in this assembly

5 parts
1
$30.54$41.84
2
$53.45$73.22
3
32580-ZVP-C00Ships in 1 to 2 Days
$204.93
3
32580-ZVP-N00Ships in 1 to 2 Days
$252.20
3
32580-ZVP-U00Ships in 1 to 2 Days
$299.49
Diagram

FUEL PIPE - INJECTOR

BF350 BF350A fuel pipe - injector exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVP4E1400
Fits all 4 submodels of this generation.

Parts in this assembly

23 parts
1
06160-ZVL-010Ships in 1 to 2 Days
$19.03
2
16450-ZVP-003Ships in 1 to 2 Daysqty 8 used
$74.16
3
16472-KPC-D50Ships in 1 to 2 Days
$2.06$2.82
4
16610-ZVP-003Ships in 1 to 2 Daysqty 2 used
$75.04$102.80
5
16620-ZVP-003Ships in 1 to 2 Days
$75.04$102.80
6
16630-ZVP-003Ships in 1 to 2 Days
$75.04$102.80
7
16641-ZVP-003Ships in 1 to 2 Daysqty 2 used
$19.20$26.30
8
16755-ZVP-003Ships in 1 to 2 Days
$36.89$50.54
9
16756-ZVP-003Ships in 1 to 2 Days
$36.89$50.54
10
16757-ZVP-003Ships in 1 to 2 Days
$36.89$50.54
11
16910-ZVL-003Ships in 1 to 2 Days
$20.06$27.48
↳
Sierra alternative ·
18-7521In Stock save $1.17
$18.89
12
16917-ZVL-010Ships in 1 to 2 Days
$11.23$15.38
13
17050-ZVP-000Ships in 1 to 2 Days
$458.76$458.79
14
17055-ZVP-003Ships in 1 to 2 Daysqty 2 used
$38.70$53.02
15
17711-S0X-931Ships in 1 to 2 Daysqty 6 used
$3.64$4.98
16
32193-ZVP-000Ships in 1 to 2 Days
$86.08$117.92
17
53740-SE0-953Ships in 1 to 2 Daysqty 2 used
$3.01$4.12
18
90014-ZZ5-M01Ships in 1 to 2 Daysqty 8 used
$1.87$2.56
19
90026-ZZ5-M01Ships in 1 to 2 Daysqty 6 used
$1.87$2.56
20
90201-ZVP-000Ships in 1 to 2 Daysqty 4 used
$1.61$2.20
21
91301-GGL-J01Ships in 1 to 2 Daysqty 8 used
$10.18$13.94
22
91301-PLC-000Ships in 1 to 2 Days
$3.42$4.68
23
91540-S30-003Ships in 1 to 2 Daysqty 5 used
$3.14$4.30
Diagram

FUEL STRAINER

BF350 BF350A fuel strainer exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVP4E1801
Fits all 4 submodels of this generation.

Parts in this assembly

12 parts
1
16805-ZVL-003Ships in 1 to 2 Days
$142.12$194.68
2
16818-ZY3-003Ships in 1 to 2 Days
$2.48$3.40
3
16851-ZVP-A00Ships in 1 to 2 Days
$30.94$42.38
4
16861-ZVP-A00Ships in 1 to 2 Days
$14.22$19.48
5
16900-ZVL-003Ships in 1 to 2 Days
$187.48$256.82
6
16901-ZY3-003In Stock
$14.02$19.20
↳
Sierra alternative ·
18-79909In Stock save $0.98
$13.04
7
16904-ZY3-003Ships in 1 to 2 Daysqty 3 used
$4.20$5.76
8
16915-ZY3-010Ships in 1 to 2 Days
$12.10$16.58
9
16918-ZY3-003In Stock
$6.54$8.96
10
16919-ZY3-003Ships in 1 to 2 Days
$11.46$15.70
11
17738-ZY3-000Ships in 1 to 2 Days
$9.91$13.58
12
90604-ZV0-000Ships in 1 to 2 Daysqty 3 used
$1.37$1.88
Diagram

FUEL TUBE

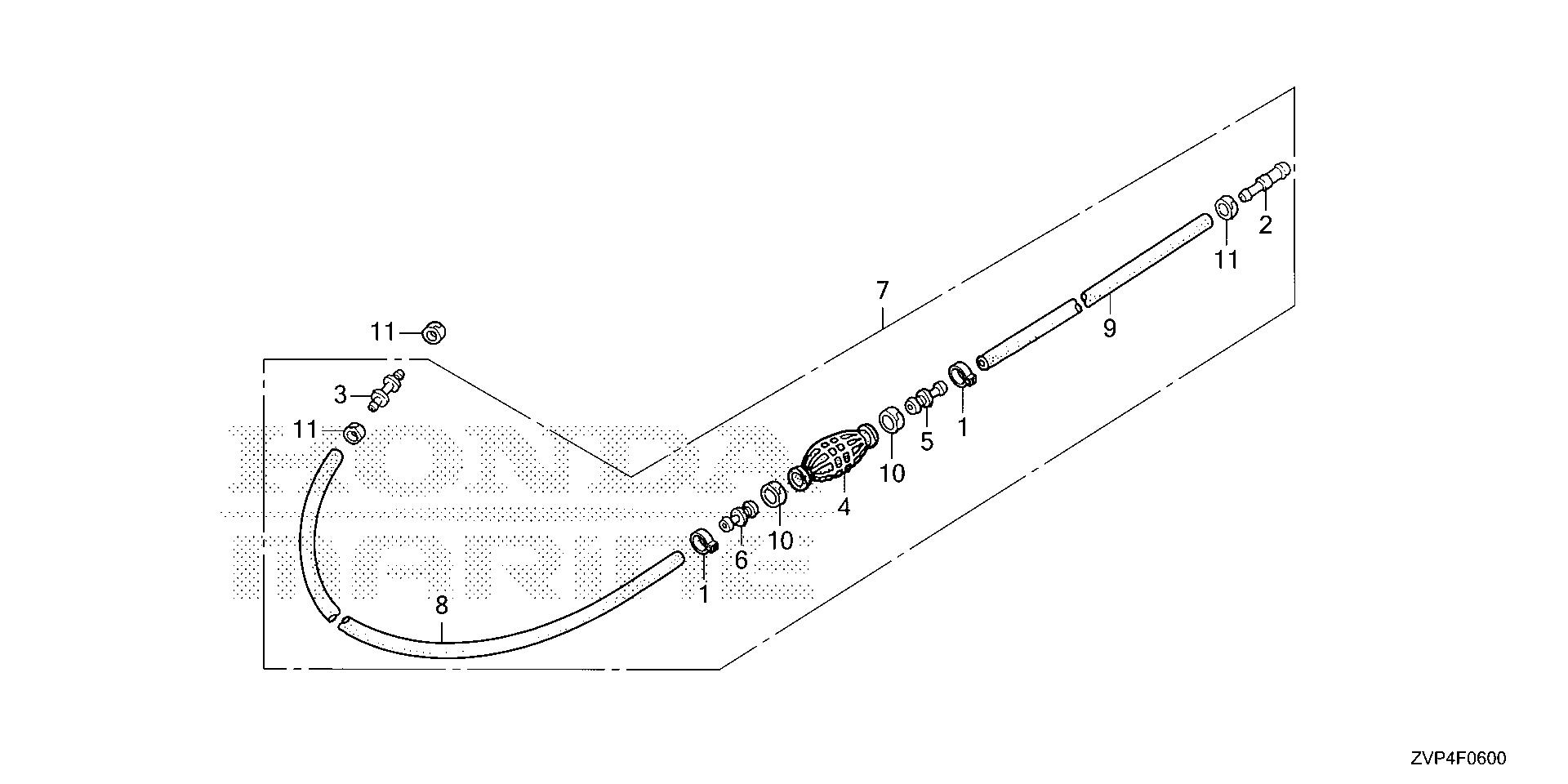

BF350 BF350A fuel tube exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVP4F0600
Fits all 4 submodels of this generation.

Parts in this assembly

11 parts
1
16897-ZW9-003Ships in 1 to 2 Daysqty 2 used
$5.08$6.96
2
16966-MR1-000Ships in 1 to 2 Days
$7.64$10.46
3
16966-MR5-000Ships in 1 to 2 Days
$7.64$10.46
4
17661-ZW9-900Ships in 1 to 2 Days
$46.82$64.14
5
17665-ZX2-003Ships in 1 to 2 Days
$11.46$15.70
6
17680-ZX2-003Ships in 1 to 2 Days
$10.12$13.86
7
17700-ZX2-C02Ships in 1 to 2 Days
$182.88$250.52
8
17701-ZX2-A00Ships in 1 to 2 Days
$77.85$106.64
9
17702-ZY9-E05Ships in 1 to 2 Days
$18.85$25.82
10
17703-921-010Ships in 1 to 2 Daysqty 2 used
$3.53$4.84
11
17704-ZV4-010Ships in 1 to 2 Daysqty 3 used
$2.18$2.98
Diagram

GASKET KIT

BF350 BF350A gasket kit exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVP4X0100
Fits all 4 submodels of this generation.

Parts in this assembly

22 parts
1
06115-ZVP-000Ships in 1 to 2 Days
$474.44$649.92
2
11381-ZVP-005Ships in 1 to 2 Days
$42.66$58.44
3
11382-ZVP-005Ships in 1 to 2 Daysqty 2 used
$4.32$5.92
4
GASKET, CYLINDER HEAD
12251-ZVP-003Ships in 1 to 2 Daysqty 2 used
$63.96$87.62
5
GASKET, HEAD COVER
12312-ZVP-000Ships in 1 to 2 Daysqty 2 used
$23.89$32.72
6
GASKET, TIMING BELT TENSIONER BASE
14529-ZVP-000Ships in 1 to 2 Days
$8.02$10.98
7
GASKET, OIL PUMP BODY
15112-ZVP-005Ships in 1 to 2 Days
$48.00$65.76
8
17055-ZVP-003Ships in 1 to 2 Daysqty 2 used
$38.70$53.02
9
17105-ZVP-000Ships in 1 to 2 Days
$21.84$29.92
10
19316-ZVP-000Ships in 1 to 2 Daysqty 2 used
$4.26$5.84
11
19318-ZVP-003Ships in 1 to 2 Daysqty 2 used
$6.42$8.80
12
19331-ZVP-003Ships in 1 to 2 Daysqty 2 used
$6.42$8.80
13
19363-ZVP-003Ships in 1 to 2 Daysqty 2 used
$17.23$23.60
14
19366-ZVP-003Ships in 1 to 2 Days
$10.86$14.88
15
19368-ZVP-000Ships in 1 to 2 Daysqty 2 used
$6.41$8.78
16
23172-ZVP-005Ships in 1 to 2 Days
$103.34$141.56
17
90601-ZE2-000In Stock
$2.38$3.26
18
91303-ZVT-000Ships in 1 to 2 Days
$5.52$7.56
19
91307-PNA-003Ships in 1 to 2 Daysqty 5 used
$2.01$2.76
20
91310-PH3-003Ships in 1 to 2 Days
$2.39$3.28
21
91319-PR3-003Ships in 1 to 2 Days
$4.58$6.28
22
91324-PC6-000Ships in 1 to 2 Daysqty 2 used
$2.99$4.10
Diagram

GEAR CASE

BF350 BF350A gear case exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVP4F0300
Fits all 4 submodels of this generation.

Parts in this assembly

34 parts
1
12155-ZV5-010Ships in 1 to 2 Days
$9.53$13.06
2
19286-ZW1-B00Ships in 1 to 2 Days
$6.28$8.60
3
40202-ZVP-600ZAShips in 1 to 2 Days
$776.31$1,063.44
3
$776.31$1,063.44
4
41101-ZVP-000ZAShips in 1 to 2 Days
$1,316.74
4
41101-ZVP-000ZBShips in 1 to 2 Days
$1,316.74
5
41102-ZW1-B00Ships in 1 to 2 Days
$6.29$8.62
6
$33.20$45.48
6
41102-ZX2-E00ZDShips in 1 to 2 Days
$32.22$44.14
7
41104-ZVP-000Ships in 1 to 2 Days
$5.84$8.00
8
41105-ZVP-000Ships in 1 to 2 Days
$5.84$8.00
9
41106-ZVP-000Ships in 1 to 2 Days
$5.14$7.04
10
41107-ZVP-000Ships in 1 to 2 Days
$5.14$7.04
11
41109-ZW1-B00In Stock
$18.12$24.82
12
90004-ZX2-000Ships in 1 to 2 Days
$1.88$2.58
13
90101-ZW9-003In Stock
$2.80$3.84
14
90103-ZY6-000In Stock
$3.11$4.26
15
90107-ZX2-C00Ships in 1 to 2 Daysqty 6 used
$8.86$12.14
16
90116-ZVP-000Ships in 1 to 2 Days
$2.35$3.22
17
90120-ZY3-000In Stock
$14.35$19.66
18
90124-ZY3-000Ships in 1 to 2 Days
$7.36$10.08
19
90130-ZY3-620Ships in 1 to 2 Days
$61.13$83.74
20
90131-ZY3-620Ships in 1 to 2 Daysqty 6 used
$42.00$57.54
21
90205-ZY1-000Ships in 1 to 2 Days
$4.76$6.52
22
90302-ZV4-000Ships in 1 to 2 Daysqty 3 used
$4.91$6.72
23
90306-ZV5-003In Stockqty 6 used
$3.40$4.66
24
90308-ZW1-003Ships in 1 to 2 Days
$10.16$13.92
25
90559-ZV5-000Ships in 1 to 2 Days
$2.95$4.04
26
90563-ZV5-000Ships in 1 to 2 Daysqty 6 used
$2.44$3.34
27
90756-ZV5-000In Stockqty 4 used
$2.64$3.62
28
91301-ZW4-003In Stockqty 2 used
$0.99$1.36
29
92101-06050-4JShips in 1 to 2 Days
$1.20$1.64
30
SCREW, OVAL (5X30)
93700-05030-4JShips in 1 to 2 Days
$1.01$1.38
31
SCREW, OVAL (5X45)
93700-05045-4JShips in 1 to 2 Days
$1.96$2.68
Diagram

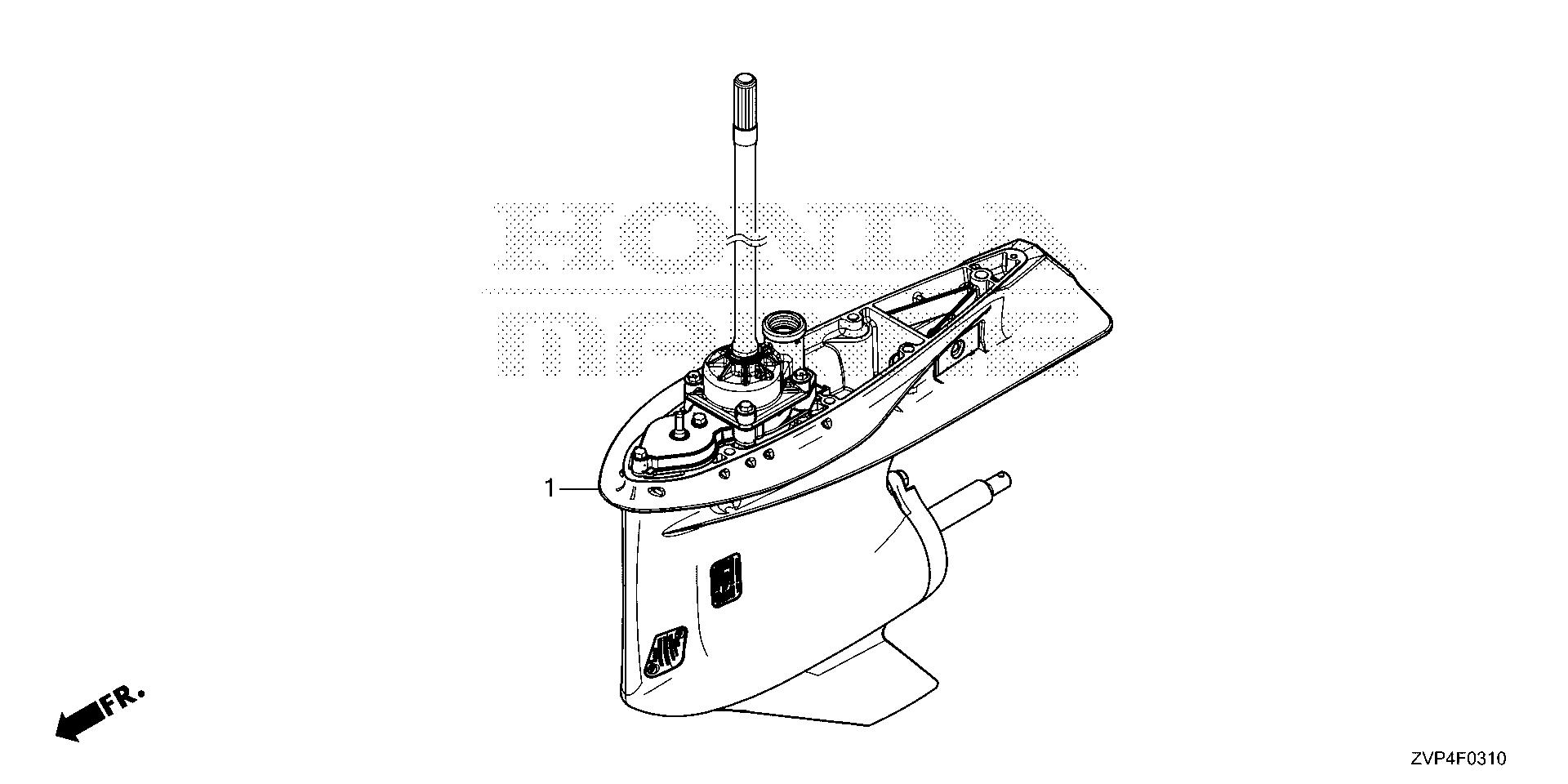

GEAR CASE ASSY.

BF350 BF350A gear case assy. exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVP4F0310
Fits all 4 submodels of this generation.

Parts in this assembly

12 parts
1
41100-ZVP-010ZAShips in 1 to 2 Days
$5,244.26
1
$5,018.13
1
41100-ZVP-602ZAShips in 1 to 2 Days
$4,532.31
1
$4,969.36
1
41100-ZVP-603ZAShips in 1 to 2 Days
$5,044.09
1
$5,337.13
1
$5,246.14
1
$5,246.14
1
$4,737.22
1
$4,737.22
1
$5,272.14
1
$5,578.41
Diagram

GEAR CASE KIT

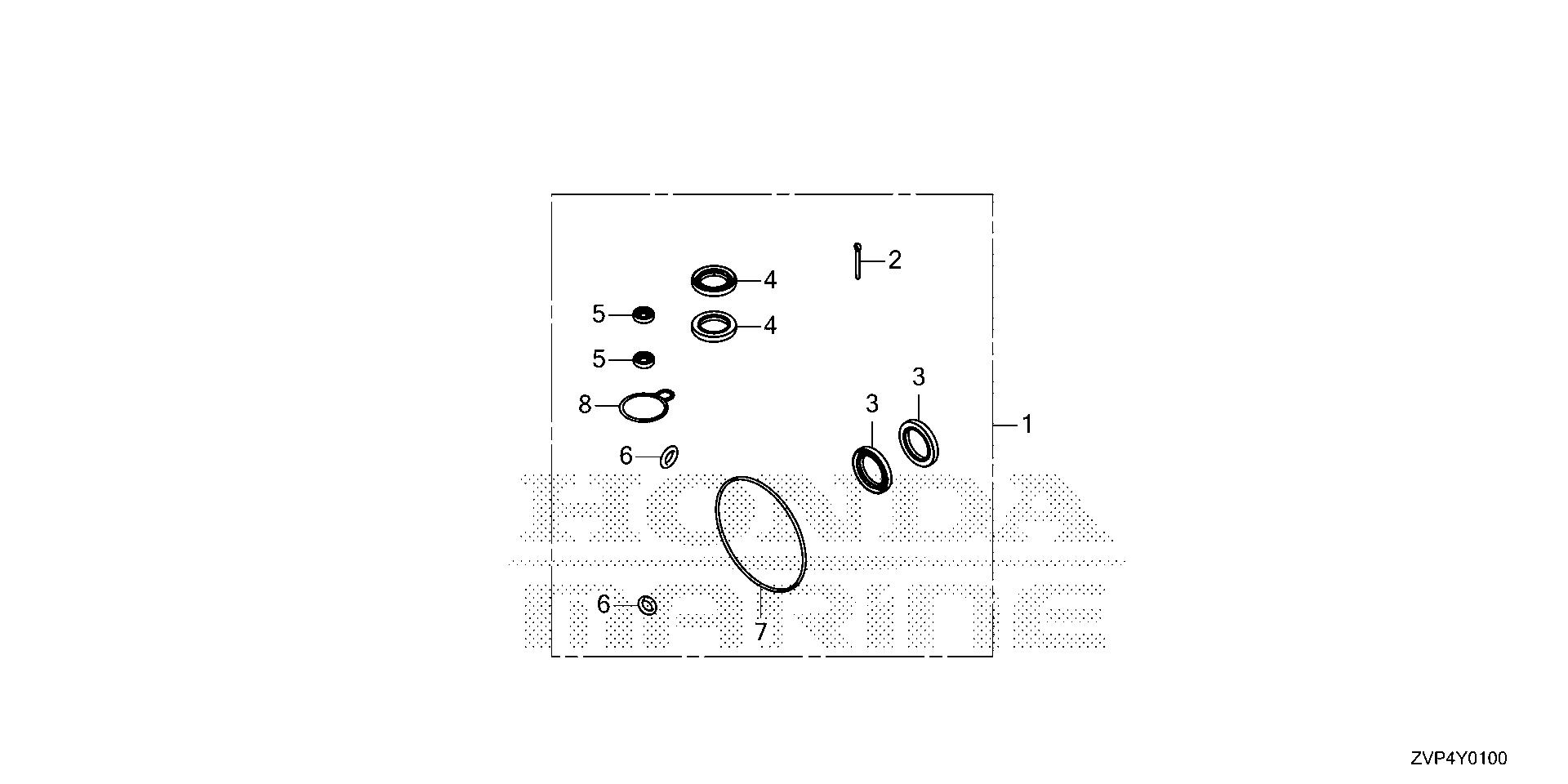

BF350 BF350A gear case kit exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVP4Y0100
Fits all 4 submodels of this generation.

Parts in this assembly

8 parts
1
06125-ZVP-000Ships in 1 to 2 Days
$27.43
2
90758-ZW1-B00In Stock
$1.87$2.56
3
91252-ZVP-003Ships in 1 to 2 Daysqty 2 used
$5.81$7.96
4
91252-ZZ3-003In Stockqty 2 used
$6.63$9.08
5
91254-ZY3-003Ships in 1 to 2 Daysqty 2 used
$4.53$6.20
6
91301-ZW4-003In Stockqty 2 used
$0.99$1.36
7
91351-ZX2-C00Ships in 1 to 2 Days
$6.98$9.56
8
91357-ZVP-000Ships in 1 to 2 Days
$3.18$4.36
Diagram

INLET MANIFOLD

BF350 BF350A inlet manifold exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVP4E1410
Fits all 4 submodels of this generation.

Parts in this assembly

13 parts
1
17100-ZVP-000Ships in 1 to 2 Days
$1,612.39$2,208.76
2
17105-ZVP-000Ships in 1 to 2 Days
$21.84$29.92
3
17109-ZVP-000Ships in 1 to 2 Daysqty 2 used
$9.21$12.62
4
17131-ZVP-000Ships in 1 to 2 Days
$1,071.54$1,467.86
5
17138-ZVP-000Ships in 1 to 2 Days
$17.23$23.60
6
35675-ZVP-003Ships in 1 to 2 Days
$27.26$37.34
7
37835-PGK-A01Ships in 1 to 2 Days
$8.60$11.78
8
90010-ZVL-010Ships in 1 to 2 Daysqty 6 used
$1.31$1.80
9
90018-ZZ5-M01Ships in 1 to 2 Daysqty 11 used
$1.37$1.88
10
90029-ZZ5-M01Ships in 1 to 2 Days
$1.14$1.56
11
90046-ZY3-000Ships in 1 to 2 Days
$7.49$10.26
12
90201-ZVP-000Ships in 1 to 2 Daysqty 2 used
$1.61$2.20
13
92900-08045-0BShips in 1 to 2 Daysqty 2 used
$3.23$4.42
Diagram

INTERFACE CABLE KIT

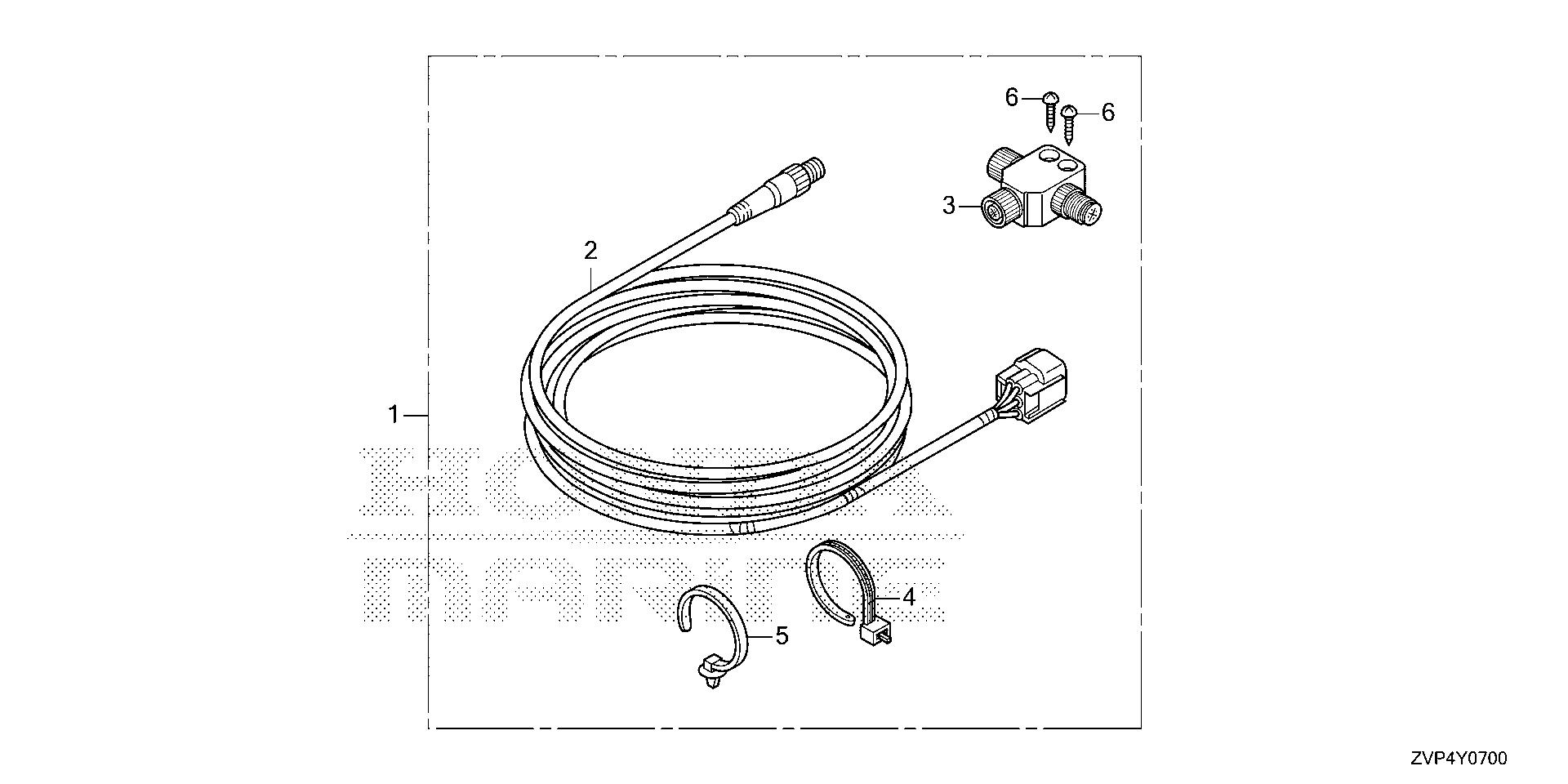

BF350 BF350A interface cable kit exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVP4Y0700
Fits all 4 submodels of this generation.

Parts in this assembly

10 parts
1
06328-ZVL-602Ships in 1 to 2 Days
$292.22$400.30
1
06328-ZVL-702Ships in 1 to 2 Days
$307.87$421.74
1
06328-ZZ3-765Ships in 1 to 2 Days
$239.18$327.64
2
32800-ZVL-600Ships in 1 to 2 Days
$247.54$339.10
2
32800-ZVL-700Ships in 1 to 2 Days
$327.61$448.78
2
32800-ZZ3-000Ships in 1 to 2 Days
$200.56$274.74
3
32805-ZZ3-000Ships in 1 to 2 Days
$114.95
4
90650-ZY1-003Ships in 1 to 2 Daysqty 2 used
$3.40$4.66
5
91540-STK-003Ships in 1 to 2 Daysqty 2 used
$4.15$5.68
6
93901-446J0Ships in 1 to 2 Daysqty 2 used
$1.11$1.52
Diagram

JUNCTION BOX

BF350 BF350A junction box exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVP4F0720
Fits all 4 submodels of this generation.

Parts in this assembly

12 parts
1
32370-ZVP-003Ships in 1 to 2 Days
$385.93
2
32371-ZVP-003Ships in 1 to 2 Days
$11.69$16.02
3
38206-V15-003Ships in 1 to 2 Days
$1.78$2.44
4
38228-TY3-003Ships in 1 to 2 Daysqty 2 used
$16.34$22.38
5
38235-ZY6-004Ships in 1 to 2 Days
$3.08$4.22
6
39794-SDA-004Ships in 1 to 2 Days
$68.82$94.28
7
39794-ZY6-003Ships in 1 to 2 Daysqty 5 used
$20.08$27.50
8
90018-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$1.37$1.88
9
90135-ZY6-004Ships in 1 to 2 Daysqty 2 used
$1.43$1.96
10
98200-40750Ships in 1 to 2 Daysqty 2 used
$1.11$1.52
11
98200-41500Ships in 1 to 2 Daysqty 8 used
$1.11$1.52
12
98200-43000Ships in 1 to 2 Daysqty 3 used
$1.61$2.20
Diagram

LABEL

BF350 BF350A label exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVP4F1200
Fits all 4 submodels of this generation.

Parts in this assembly

8 parts
1
87117-ZVP-A01Ships in 1 to 2 Days
$3.99$5.46
2
87121-ZVP-000ZAShips in 1 to 2 Days
$92.16$126.24
3
87122-ZVP-000ZAShips in 1 to 2 Days
$35.00$47.94
4
87132-ZVP-000ZAShips in 1 to 2 Daysqty 2 used
$212.94$291.70
5
87301-ZVP-000ZAShips in 1 to 2 Days
$39.78$54.50
6
87303-ZVP-000ZAShips in 1 to 2 Days
$43.27$59.28
7
87304-ZVP-000ZAShips in 1 to 2 Days
$20.10$27.54
9
87538-ZV1-C23Ships in 1 to 2 Days
$4.70$6.44
Diagram

MAINTENANCE KIT (200)

BF350 BF350A maintenance kit (200) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVP4Y1100
Fits all 4 submodels of this generation.

Parts in this assembly

23 parts
1
06160-ZVL-010Ships in 1 to 2 Days
$19.03
2
06411-ZVP-000Ships in 1 to 2 Days
$33.76
3
06510-ZVP-000Ships in 1 to 2 Days
$276.73
4
15400-RTA-003In Stock
$8.50$11.64
5
19210-ZVP-003Ships in 1 to 2 Days
$36.24$49.64
6
19223-ZVP-000Ships in 1 to 2 Days
$35.99$49.30
7
19231-ZVP-000Ships in 1 to 2 Days
$11.13$15.24
8
19234-ZVP-000Ships in 1 to 2 Days
$4.03$5.52
9
19253-ZVP-000Ships in 1 to 2 Days
$4.51$6.18
10
19300-ZVP-003Ships in 1 to 2 Daysqty 2 used
$70.96$97.20
11
19300-ZY3-023In Stock
$36.85$50.48
12
19316-ZVP-000Ships in 1 to 2 Daysqty 2 used
$4.26$5.84
13
19318-ZVP-003Ships in 1 to 2 Daysqty 2 used
$6.42$8.80
14
41109-ZW1-B00In Stock
$18.12$24.82
15
90101-ZW9-003In Stock
$2.80$3.84
16
90120-ZY3-000In Stock
$14.35$19.66
17
90205-ZY1-000Ships in 1 to 2 Days
$4.76$6.52
18
90601-ZE2-000In Stock
$2.38$3.26
19
90752-ZVP-000Ships in 1 to 2 Days
$23.42$32.08
20
90758-ZW1-B00In Stock
$1.87$2.56
21
91301-ZW4-003In Stockqty 2 used
$0.99$1.36
22
91356-ZY3-003Ships in 1 to 2 Days
$7.37$10.10
23
92101-06050-4JShips in 1 to 2 Days
$1.20$1.64
Diagram

MAINTENANCE KIT (400)

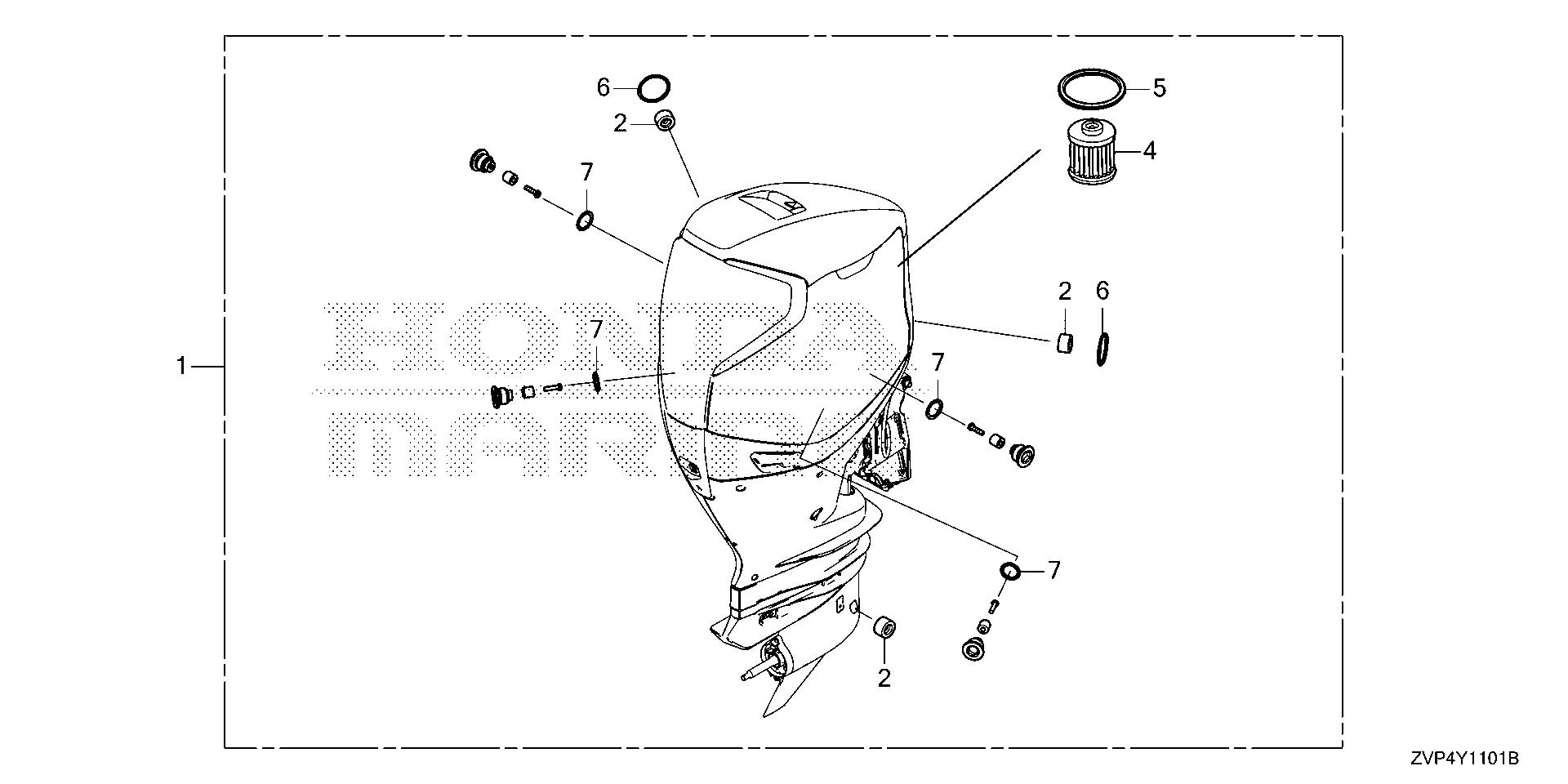

BF350 BF350A maintenance kit (400) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVP4Y1101B
Fits all 4 submodels of this generation.

Parts in this assembly

6 parts
1
06161-ZVP-000Ships in 1 to 2 Days
$125.77
2
12155-ZV5-010Ships in 1 to 2 Daysqty 5 used
$9.53$13.06
4
16901-ZY3-003In Stock
$14.02$19.20
↳
Sierra alternative ·
18-79909In Stock save $0.98
$13.04
5
16918-ZY3-003In Stock
$6.54$8.96
6
91302-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$2.38$3.26
7
12171-ZY3-305Ships in 1 to 2 Daysqty 10 used
$2.67$3.66
Diagram

MIDDLE COVER

BF350 BF350A middle cover exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVP4F0340
Fits all 4 submodels of this generation.

Parts in this assembly

43 parts
1
40114-ZVP-000Ships in 1 to 2 Days
$7.24$9.92
2
61102-MB6-631Ships in 1 to 2 Daysqty 6 used
$2.06$2.82
3
63145-ZVP-000Ships in 1 to 2 Days
$44.76$61.32
4
63147-ZVP-000Ships in 1 to 2 Days
$5.01$6.86
5
63202-ZVP-000Ships in 1 to 2 Daysqty 2 used
$21.75$29.80
6
63206-ZVP-000Ships in 1 to 2 Daysqty 2 used
$10.18$13.94
7
63208-ZVP-000Ships in 1 to 2 Daysqty 2 used
$18.40$25.20
8
63213-ZVP-000Ships in 1 to 2 Daysqty 2 used
$15.17$20.78
9
$35.76$48.98
9
$34.21$46.86
10
$34.21$46.86
10
$34.21$46.86
11
63301-ZVP-000Ships in 1 to 2 Daysqty 2 used
$5.94$8.14
12
63310-ZVP-000ZAShips in 1 to 2 Days
$423.09$579.58
12
$404.87$554.62
13
63313-ZVP-000Ships in 1 to 2 Daysqty 4 used
$3.18$4.36
14
63314-ZVP-000Ships in 1 to 2 Daysqty 2 used
$3.18$4.36
15
63315-ZVP-000ZAShips in 1 to 2 Days
$404.87$554.62
15
$404.87$554.62
16
63319-ZVP-000Ships in 1 to 2 Days
$4.19$5.74
17
63720-ZVP-000Ships in 1 to 2 Days
$51.23$70.18
18
63725-ZVP-000Ships in 1 to 2 Days
$51.23$70.18
19
63732-ZVP-000Ships in 1 to 2 Days
$97.66$133.78
20
63733-ZVP-000Ships in 1 to 2 Days
$110.81$151.80
21
63734-ZVP-000Ships in 1 to 2 Days
$110.81$151.80
22
82873-ZVP-000Ships in 1 to 2 Days
$6.42$8.80
23
82874-ZVP-000Ships in 1 to 2 Days
$3.34$4.58
24
83551-376-000Ships in 1 to 2 Days
$2.91$3.98
25
83551-GE2-000Ships in 1 to 2 Daysqty 5 used
$5.68$7.78
26
90103-ZY9-000Ships in 1 to 2 Daysqty 2 used
$2.73$3.74
27
90105-881-000Ships in 1 to 2 Daysqty 2 used
$2.12$2.90
28
90111-ZY3-000In Stockqty 4 used
$2.12$2.90
29
90214-HW1-671Ships in 1 to 2 Daysqty 4 used
$3.08$4.22
30
90503-ZVP-000Ships in 1 to 2 Daysqty 2 used
$1.74$2.38
31
90505-ZV1-000In Stockqty 2 used
$2.44$3.34
32
90505-ZV4-000Ships in 1 to 2 Daysqty 2 used
$2.98$4.08
33
90508-ZVP-000Ships in 1 to 2 Daysqty 2 used
$3.83$5.24
34
90512-ZV4-000Ships in 1 to 2 Daysqty 2 used
$3.04$4.16
35
90756-ZVP-000Ships in 1 to 2 Daysqty 2 used
$4.15$5.68
36
90757-ZVD-000Ships in 1 to 2 Daysqty 2 used
$1.07$1.46
37
91201-434-003Ships in 1 to 2 Daysqty 2 used
$4.29$5.88
38
91554-ZY9-000Ships in 1 to 2 Daysqty 6 used
$2.85$3.90
39
93913-153J0Ships in 1 to 2 Daysqty 4 used
$1.78$2.44
Diagram

MOUNT CASE

BF350 BF350A mount case exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVP4E0610A
Fits all 4 submodels of this generation.

Parts in this assembly

55 parts
1
12155-ZV5-010Ships in 1 to 2 Daysqty 4 used
$9.53$13.06
2
15655-ZVP-000Ships in 1 to 2 Days
$10.25$14.04
3
15665-ZVP-000Ships in 1 to 2 Days
$20.66$28.30
4
16959-MY1-000Ships in 1 to 2 Days
$17.30$23.70
5
18211-ZVP-010Ships in 1 to 2 Days
$25.04$34.30
6
19264-ZVP-000Ships in 1 to 2 Days
$5.85$8.02
7
19265-ZVP-000Ships in 1 to 2 Days
$6.95$9.52
8
19266-ZVP-000Ships in 1 to 2 Days
$6.44$8.82
9
19267-ZVP-000Ships in 1 to 2 Days
$2.79$3.82
10
19270-ZY3-000Ships in 1 to 2 Days
$13.02$17.84
11
19271-ZY3-000Ships in 1 to 2 Days
$8.85$12.12
12
19272-ZY3-000In Stock
$4.04$5.54
13
19274-ZVL-000Ships in 1 to 2 Days
$1.58$2.16
14
19277-ZY9-M01Ships in 1 to 2 Days
$11.17$15.30
15
19279-ZVP-000Ships in 1 to 2 Days
$5.81$7.96
16
19279-ZW9-010Ships in 1 to 2 Days
$1.58$2.16
17
19289-ZY3-000Ships in 1 to 2 Days
$2.95$4.04
18
19291-ZW5-000Ships in 1 to 2 Daysqty 2 used
$7.34$10.06
19
19291-ZW9-000Ships in 1 to 2 Days
$5.90$8.08
20
19292-ZW5-000Ships in 1 to 2 Daysqty 2 used
$4.19$5.74
21
19296-ZVP-000Ships in 1 to 2 Daysqty 2 used
$3.45$4.72
22
19297-ZW5-000Ships in 1 to 2 Daysqty 2 used
$6.29$8.62
23
19297-ZW9-010Ships in 1 to 2 Days
$1.53$2.10
24
19297-ZY3-000Ships in 1 to 2 Daysqty 2 used
$16.78$22.98
25
19298-ZY3-000ZBShips in 1 to 2 Daysqty 2 used
$53.41$73.16
26
23170-ZVP-000Ships in 1 to 2 Days
$828.92$1,135.50
27
23172-ZVP-005Ships in 1 to 2 Days
$103.34$141.56
28
90001-ZVP-000Ships in 1 to 2 Daysqty 2 used
$12.78$17.50
29
90004-ZX2-000Ships in 1 to 2 Daysqty 4 used
$1.88$2.58
30
90009-ZW9-000Ships in 1 to 2 Daysqty 2 used
$2.88$3.94
31
90010-ZVP-000Ships in 1 to 2 Daysqty 4 used
$22.12$30.30
32
90011-ZVP-000Ships in 1 to 2 Daysqty 2 used
$7.31$10.02
33
90011-ZY3-000Ships in 1 to 2 Daysqty 2 used
$12.79$17.52
34
90015-ZY3-000Ships in 1 to 2 Daysqty 3 used
$8.42$11.54
35
90021-ZZ5-M01Ships in 1 to 2 Days
$1.14$1.56
36
90045-ZVP-000Ships in 1 to 2 Daysqty 2 used
$2.99$4.10
37
90083-ZVP-000Ships in 1 to 2 Daysqty 2 used
$7.31$10.02
38
90105-ZW9-000Ships in 1 to 2 Days
$2.88$3.94
39
90109-ZVA-000Ships in 1 to 2 Daysqty 4 used
$2.93$4.02
40
90302-921-000In Stock
$4.10$5.62
41
90559-ZV5-000Ships in 1 to 2 Daysqty 10 used
$2.95$4.04
42
90563-ZV5-000Ships in 1 to 2 Daysqty 3 used
$2.44$3.34
43
90601-ZVL-000In Stockqty 8 used
$1.53$2.10
44
90651-ZY6-000Ships in 1 to 2 Daysqty 2 used
$3.71$5.08
45
90701-PW5-000Ships in 1 to 2 Daysqty 2 used
$6.07$8.32
46
91001-ZY3-003Ships in 1 to 2 Days
$35.97$49.28
47
91204-ZV5-005Ships in 1 to 2 Daysqty 2 used
$11.21$15.36
48
91303-800-000Ships in 1 to 2 Days
$2.04$2.80
49
91303-ZVL-000Ships in 1 to 2 Daysqty 2 used
$0.72$0.98
50
91305-ZY3-003In Stockqty 2 used
$2.73$3.74
51
91306-ZY3-003In Stockqty 2 used
$3.34$4.58
52
91309-ZVT-000Ships in 1 to 2 Days
$0.96$1.32
53
91601-ZVP-000Ships in 1 to 2 Daysqty 3 used
$7.39$10.12
54
BULK HOSE, FUEL (8X1000) (8X420)
95001-80001-60MNo Longer Available
$25.39$34.78
55
BOLT, FLANGE (10X80) (DR)
96300-10080-09Ships in 1 to 2 Daysqty 2 used
$1.45$1.98
Diagram

OIL CASE

BF350 BF350A oil case exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVP4E0600
Fits all 4 submodels of this generation.

Parts in this assembly

23 parts
1
11320-ZVP-010Ships in 1 to 2 Days
$752.37$1,030.64
2
11340-ZVP-000Ships in 1 to 2 Days
$298.58$409.02
3
11350-ZVP-000Ships in 1 to 2 Days
$248.80$340.84
4
11381-ZVP-005Ships in 1 to 2 Days
$42.66$58.44
5
11382-ZVP-005Ships in 1 to 2 Daysqty 2 used
$4.32$5.92
6
12155-ZV5-010Ships in 1 to 2 Daysqty 2 used
$9.53$13.06
7
19251-ZVP-000Ships in 1 to 2 Days
$45.30$62.06
7
19251-ZVP-600Ships in 1 to 2 Days
$56.59$77.52
8
19252-ZVP-000Ships in 1 to 2 Days
$5.17$7.08
9
19254-ZVP-000Ships in 1 to 2 Days
$3.31$4.54
10
63740-ZVP-000Ships in 1 to 2 Days
$114.06$156.24
11
90004-ZX2-000Ships in 1 to 2 Daysqty 2 used
$1.88$2.58
12
90010-ZVP-000Ships in 1 to 2 Daysqty 3 used
$22.12$30.30
13
90010-ZY3-000Ships in 1 to 2 Daysqty 4 used
$12.18$16.68
14
90012-ZVP-000Ships in 1 to 2 Daysqty 11 used
$7.31$10.02
15
90014-ZY6-000Ships in 1 to 2 Daysqty 12 used
$3.26$4.46
16
90101-ZW4-H00Ships in 1 to 2 Daysqty 2 used
$16.41$22.48
17
90101-ZX2-C00Ships in 1 to 2 Daysqty 2 used
$2.85$3.90
18
90102-ZW9-000Ships in 1 to 2 Days
$2.12$2.90
19
90131-ZV5-000Ships in 1 to 2 Days
$7.43$10.18
20
90559-ZV5-000Ships in 1 to 2 Daysqty 20 used
$2.95$4.04
21
90601-ZE2-000In Stock
$2.38$3.26
22
94301-06100In Stockqty 6 used
$2.74$3.76
Diagram

OIL PUMP - FLYWHEEL

BF350 BF350A oil pump - flywheel exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVP4E0500
Fits all 4 submodels of this generation.

Parts in this assembly

25 parts
1
PUMP ASSY., OIL
15100-ZVP-000Ships in 1 to 2 Days
$515.95$706.78
2
GASKET, OIL PUMP BODY
15112-ZVP-005Ships in 1 to 2 Days
$48.00$65.76
3
15113-ZY3-000Ships in 1 to 2 Days
$7.52$10.30
4
15121-ZY3-000Ships in 1 to 2 Days
$46.65$63.90
5
15220-ZVP-000Ships in 1 to 2 Days
$57.96$79.40
6
15223-ZVP-000Ships in 1 to 2 Days
$9.34$12.80
7
15231-PE0-000Ships in 1 to 2 Days
$18.48$25.32
8
15232-PG6-000Ships in 1 to 2 Days
$7.74$10.60
9
15233-PC6-000Ships in 1 to 2 Days
$9.07$12.42
10
15331-ZW5-003Ships in 1 to 2 Days
$41.62$57.02
11
15341-ZW5-003Ships in 1 to 2 Days
$34.76$47.62
12
31110-ZVP-000Ships in 1 to 2 Days
$554.19$759.16
13
31116-ZVP-010Ships in 1 to 2 Days
$213.45$292.42
14
90001-ZX2-000Ships in 1 to 2 Daysqty 8 used
$3.11$4.26
15
90002-ZVP-003Ships in 1 to 2 Daysqty 10 used
$1.61$2.20
16
90005-ZZ3-000Ships in 1 to 2 Daysqty 2 used
$1.62$2.22
17
90081-PH7-000Ships in 1 to 2 Daysqty 2 used
$9.74$13.34
18
90701-PW5-000Ships in 1 to 2 Daysqty 2 used
$6.07$8.32
19
90705-RNA-A00Ships in 1 to 2 Days
$9.81$13.44
20
91201-ZW5-003Ships in 1 to 2 Days
$12.18$16.68
21
91212-P01-003Ships in 1 to 2 Days
$11.10$15.20
22
91324-PC6-000Ships in 1 to 2 Daysqty 2 used
$2.99$4.10
23
93600-06016-0AShips in 1 to 2 Daysqty 8 used
$0.96$1.32
24
95701-08032-08Ships in 1 to 2 Daysqty 3 used
$2.03$2.78
25
96220-50080Ships in 1 to 2 Daysqty 2 used
$0.47$0.64
Diagram

PIPING

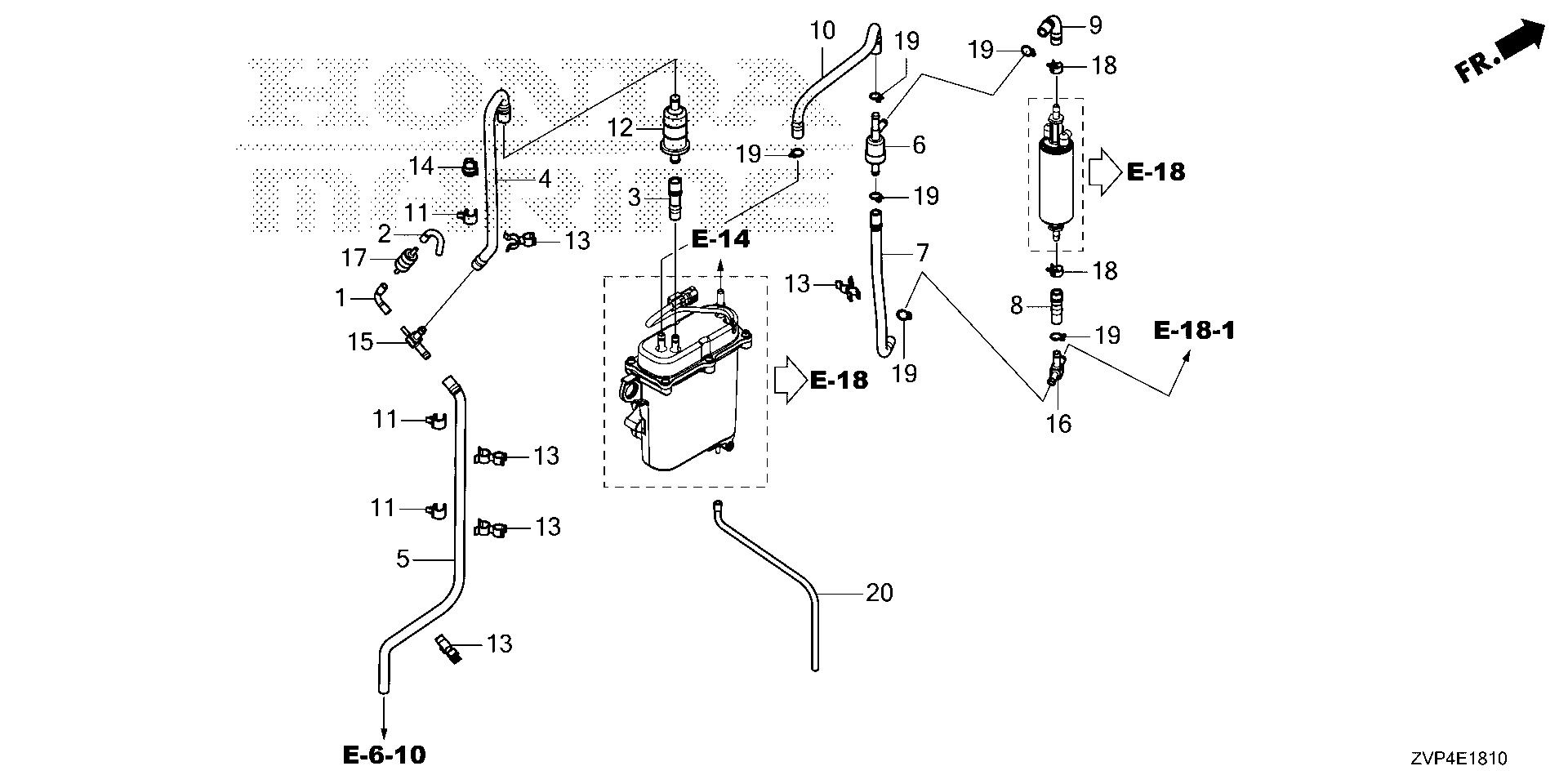

BF350 BF350A piping exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVP4E1810
Fits all 4 submodels of this generation.

Parts in this assembly

20 parts
1
16196-ZY6-000Ships in 1 to 2 Days
$6.04$8.28
2
16196-ZY9-000Ships in 1 to 2 Days
$1.42$1.94
3
16203-ZVP-000Ships in 1 to 2 Days
$4.35$5.96
4
16204-ZVP-000Ships in 1 to 2 Days
$11.30$15.48
5
16205-ZVP-000Ships in 1 to 2 Days
$12.41$17.00
6
16760-ZVP-003Ships in 1 to 2 Days
$28.59$39.16
7
16770-ZVP-A00Ships in 1 to 2 Days
$16.22$22.22
8
16871-ZVP-A00Ships in 1 to 2 Days
$2.00$2.74
9
16881-ZVP-A00Ships in 1 to 2 Days
$7.68$10.52
10
16891-ZVP-A00Ships in 1 to 2 Days
$16.22$22.22
11
16896-ZY9-003Ships in 1 to 2 Daysqty 3 used
$2.80$3.84
12
16911-759-003Ships in 1 to 2 Days
$31.54$43.20
13
16965-VM0-771Ships in 1 to 2 Daysqty 5 used
$2.72$3.72
14
17368-KV7-671Ships in 1 to 2 Days
$2.13$2.92
15
19269-ZY6-000Ships in 1 to 2 Days
$10.13$13.88
16
19518-MN5-010Ships in 1 to 2 Days
$8.69$11.90
17
36135-ZY6-003Ships in 1 to 2 Days
$26.35$36.10
18
90602-ZW5-030In Stockqty 2 used
$1.83$2.50
19
90604-ZV0-000Ships in 1 to 2 Daysqty 6 used
$1.37$1.88
20
95003-05008-60MShips in 1 to 2 Days
$26.65$38.34
Diagram

POWER TRIM-TILT

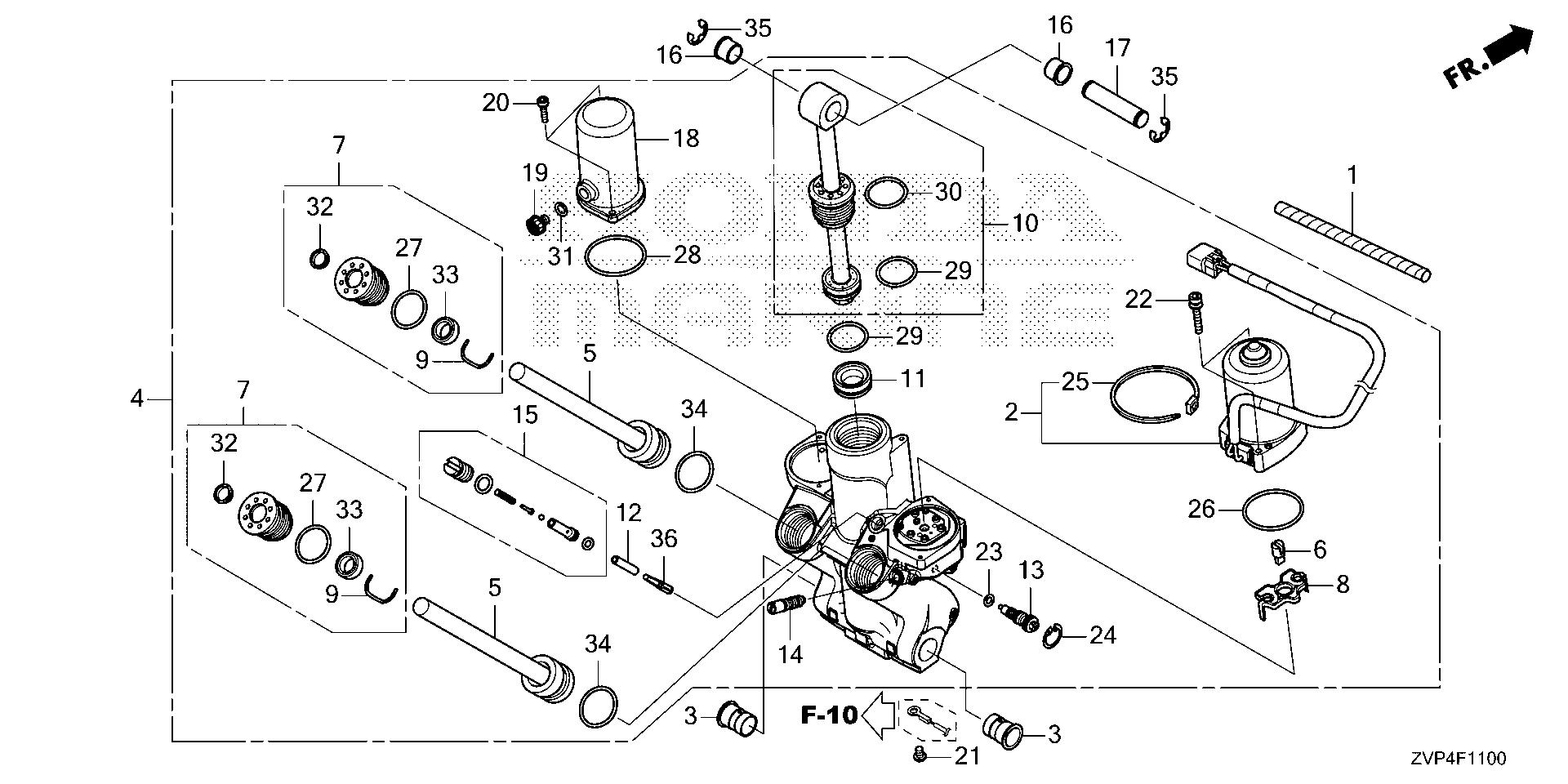

BF350 BF350A power trim-tilt exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVP4F1100
Fits all 4 submodels of this generation.

Parts in this assembly

36 parts
1
36104-ZY9-003Ships in 1 to 2 Days
$4.70$6.44
2
36120-ZVP-003Ships in 1 to 2 Days
$554.23$759.22
3
50214-ZV5-003Ships in 1 to 2 Daysqty 2 used
$7.65$10.48
4
56000-ZVP-003Ships in 1 to 2 Days
$2,717.28
5
56110-ZVP-003Ships in 1 to 2 Daysqty 2 used
$80.43$110.18
6
56113-ZW1-701Ships in 1 to 2 Days
$16.41$22.48
7
56115-ZVP-003Ships in 1 to 2 Daysqty 2 used
$78.04$106.90
8
56116-ZVP-003Ships in 1 to 2 Days
$25.37$34.76
9
56119-ZVP-003Ships in 1 to 2 Daysqty 2 used
$3.07$4.20
10
56120-ZVP-003Ships in 1 to 2 Days
$367.06$502.82
11
56130-ZVP-003Ships in 1 to 2 Days
$46.79$64.10
12
56167-ZVP-003Ships in 1 to 2 Days
$14.73$20.18
13
56170-ZVP-003Ships in 1 to 2 Days
$95.45$130.76
14
56180-ZVP-003Ships in 1 to 2 Days
$95.45$130.76
15
56190-ZVP-003Ships in 1 to 2 Days
$90.71$124.26
16
56513-ZV5-000Ships in 1 to 2 Daysqty 2 used
$3.77$5.16
17
56532-ZX2-C00Ships in 1 to 2 Days
$23.11$31.66
18
56851-ZVP-003Ships in 1 to 2 Days
$111.06$152.14
19
56860-ZW4-H11Ships in 1 to 2 Days
$5.02$6.88
20
90111-ZW4-H11Ships in 1 to 2 Daysqty 2 used
$9.53$13.06
21
90119-ZV5-000Ships in 1 to 2 Days
$1.65$2.26
22
90133-ZVP-003Ships in 1 to 2 Daysqty 2 used
$8.07$11.06
23
90402-V15-003Ships in 1 to 2 Days
$4.37$5.98
24
90604-ZV5-791Ships in 1 to 2 Days
$7.50$10.28
25
90621-766-801Ships in 1 to 2 Days
$4.66$6.38
26
91302-ZV5-821In Stock
$5.10$6.98
27
91316-ZV5-821Ships in 1 to 2 Daysqty 2 used
$3.34$4.58
28
91352-ZVP-003Ships in 1 to 2 Days
$3.45$4.72
29
91353-ZVP-003Ships in 1 to 2 Daysqty 2 used
$7.01$9.60
30
91355-ZVP-003Ships in 1 to 2 Days
$7.39$10.12
31
91355-ZW4-H11Ships in 1 to 2 Days
$6.04$8.28
32
91358-ZX2-003Ships in 1 to 2 Daysqty 2 used
$6.15$8.42
33
91361-ZVP-003Ships in 1 to 2 Daysqty 2 used
$3.18$4.36
34
91362-ZVP-003Ships in 1 to 2 Daysqty 2 used
$4.42$6.06
35
94540-15029Ships in 1 to 2 Daysqty 2 used
$8.02$10.98
36
56166-ZW1-701Ships in 1 to 2 Days
$3.65$5.00
Diagram

PROPELLER SHAFT

BF350 BF350A propeller shaft exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVP4F0500
Fits only BF350A-UDA, BF350A-XDA — not every submodel of this generation.

Parts in this assembly

50 parts
1
24101-ZVP-000Ships in 1 to 2 Days
$191.67$262.56
2
24102-ZY3-000Ships in 1 to 2 Days
$3.80$5.20
3
24103-ZY3-000Ships in 1 to 2 Days
$2.48$3.40
4
24120-ZVP-000Ships in 1 to 2 Days
$55.77$76.40
5
24122-ZVP-000Ships in 1 to 2 Days
$41.86$57.34
6
24123-ZY3-000Ships in 1 to 2 Daysqty 2 used
$2.12$2.90
7
24124-ZVP-300Ships in 1 to 2 Days
$18.47$25.30
8
41140-ZVP-000Ships in 1 to 2 Days
$691.54$947.32
9
41151-ZVP-000Ships in 1 to 2 Days
$341.64$468.00
10
41161-ZVP-000Ships in 1 to 2 Days
$312.48$428.06
11
41201-ZVP-000ZAShips in 1 to 2 Days
$138.26$189.40
11
$138.26$189.40
13
58130-ZVP-A01Ships in 1 to 2 Days
$699.95
13
58130-ZVP-C01Ships in 1 to 2 Days
$699.95
13
58130-ZVP-N01Ships in 1 to 2 Days
$699.95
13
58130-ZVP-U01Ships in 1 to 2 Days
$699.95
13
58130-ZVP-003Ships in 1 to 2 Days
$699.95
13
58130-ZVP-601Ships in 1 to 2 Days
$699.95
13
58130-ZVP-701Ships in 1 to 2 Days
$699.95
13
58130-ZVP-801Ships in 1 to 2 Days
$699.95
14
90123-ZY3-000In Stockqty 2 used
$9.49$13.00
15
90301-ZW1-B00Ships in 1 to 2 Days
$11.32$15.50
16
90506-ZVP-000Ships in 1 to 2 Days
$29.42$40.30
17
90508-ZW1-B00Ships in 1 to 2 Days
$11.07$15.16
18
90509-ZW5-711Ships in 1 to 2 Days
$14.89$20.40
19
90512-ZVP-000Ships in 1 to 2 Days
$36.24$49.64
20
90528-ZVP-000Ships in 1 to 2 Daysqty 2 used
$10.18$13.94
20
90529-ZVP-000Ships in 1 to 2 Daysqty 2 used
$10.18$13.94
20
90530-ZVP-000Ships in 1 to 2 Daysqty 2 used
$10.18$13.94
20
90531-ZVP-000Ships in 1 to 2 Daysqty 2 used
$10.18$13.94
21
90550-ZY3-000Ships in 1 to 2 Days
$12.03$16.48
21
90551-ZY3-000Ships in 1 to 2 Days
$12.03$16.48
21
90552-ZY3-000Ships in 1 to 2 Days
$12.03$16.48
21
90553-ZY3-000Ships in 1 to 2 Days
$12.03$16.48
21
90554-ZY3-000Ships in 1 to 2 Days
$12.18$16.68
21
90555-ZY3-000Ships in 1 to 2 Days
$12.18$16.68
22
90559-ZV5-000Ships in 1 to 2 Daysqty 2 used
$2.95$4.04
23
90758-ZW1-B00In Stock
$1.87$2.56
24
91005-PT2-N01Ships in 1 to 2 Days
$15.84$21.70
25
91051-ZVP-003Ships in 1 to 2 Days
$127.01$173.98
26
91054-ZVP-003Ships in 1 to 2 Days
$52.97$72.56
27
91057-ZVP-003Ships in 1 to 2 Days
$19.23$26.34
28
91252-ZVP-003Ships in 1 to 2 Daysqty 2 used
$5.81$7.96
29
91351-ZX2-C00Ships in 1 to 2 Days
$6.98$9.56
30
CIRCLIP (OUTER) (18MM)
94510-18000Ships in 1 to 2 Days
$1.28$1.76
31
96211-07000Ships in 1 to 2 Days
$1.17$1.60
32
96211-12000Ships in 1 to 2 Daysqty 2 used
$0.77$1.06
33
96220-30168Ships in 1 to 2 Days
$0.29$0.40
34
90651-ZX2-C00Ships in 1 to 2 Days
$3.14$4.30
35
91056-ZY3-711Ships in 1 to 2 Days
$42.85$58.70
Diagram

PROPELLER SHAFT (COUNTER ROTATION)

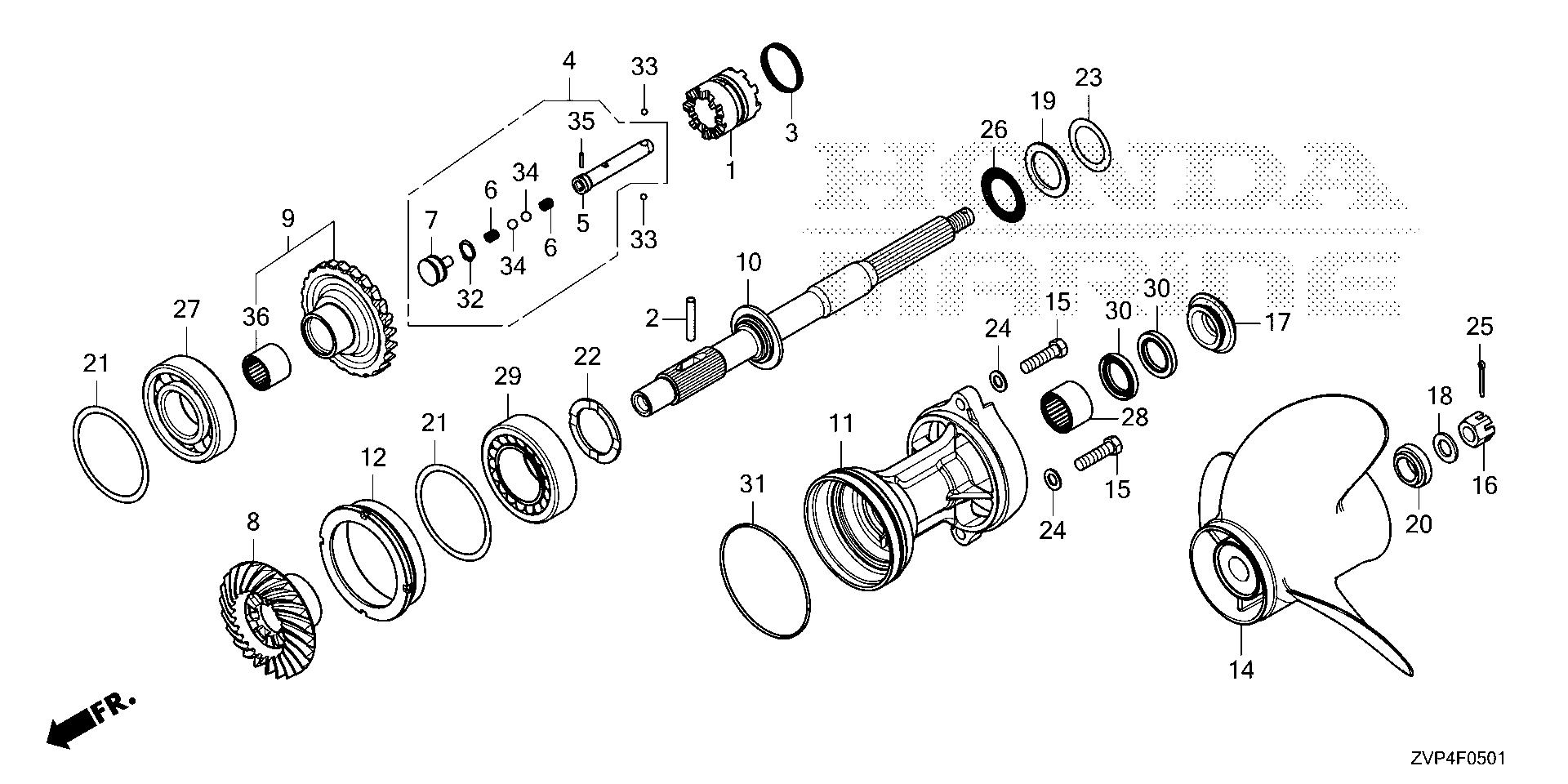

BF350 BF350A propeller shaft (counter rotation) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVP4F0501
Fits only BF350A-UCDA, BF350A-XCDA — not every submodel of this generation.

Parts in this assembly

49 parts
1
24101-ZVP-000Ships in 1 to 2 Days
$191.67$262.56
2
24102-ZY3-000Ships in 1 to 2 Days
$3.80$5.20
3
24103-ZY3-000Ships in 1 to 2 Days
$2.48$3.40
4
24120-ZVP-000Ships in 1 to 2 Days
$55.77$76.40
5
24122-ZVP-000Ships in 1 to 2 Days
$41.86$57.34
6
24123-ZY3-000Ships in 1 to 2 Daysqty 2 used
$2.12$2.90
7
24124-ZVP-300Ships in 1 to 2 Days
$18.47$25.30
8
41141-ZVP-700Ships in 1 to 2 Days
$668.86$916.24
9
41150-ZVP-700Ships in 1 to 2 Days
$388.18$531.76
10
41161-ZVP-000Ships in 1 to 2 Days
$312.48$428.06
11
$138.26$189.40
11
$138.26$189.40
12
41202-ZVP-700Ships in 1 to 2 Days
$129.59$177.52
14
58180-ZVP-A01Ships in 1 to 2 Days
$699.95
14
58180-ZVP-C01Ships in 1 to 2 Days
$699.95
14
58180-ZVP-N01Ships in 1 to 2 Days
$699.95
14
58180-ZVP-U01Ships in 1 to 2 Days
$699.95
14
58180-ZVP-003Ships in 1 to 2 Days
$699.95
14
58180-ZVP-601Ships in 1 to 2 Days
$699.95
14
58180-ZVP-701Ships in 1 to 2 Days
$699.95
14
58180-ZVP-801Ships in 1 to 2 Days
$699.95
15
90123-ZY3-000In Stockqty 2 used
$9.49$13.00
16
90301-ZW1-B00Ships in 1 to 2 Days
$11.32$15.50
17
90506-ZVP-000Ships in 1 to 2 Days
$29.42$40.30
18
90508-ZW1-B00Ships in 1 to 2 Days
$11.07$15.16
19
90509-ZW5-711Ships in 1 to 2 Days
$14.89$20.40
20
90512-ZVP-000Ships in 1 to 2 Days
$36.24$49.64
21
90528-ZVP-000Ships in 1 to 2 Daysqty 2 used
$10.18$13.94
21
90529-ZVP-000Ships in 1 to 2 Daysqty 2 used
$10.18$13.94
21
90530-ZVP-000Ships in 1 to 2 Daysqty 2 used
$10.18$13.94
21
90531-ZVP-000Ships in 1 to 2 Daysqty 2 used
$10.18$13.94
22
90542-ZVP-701Ships in 1 to 2 Days
$43.01$58.92
23
90548-ZW5-710Ships in 1 to 2 Days
$10.86$14.88
23
90549-ZW5-710Ships in 1 to 2 Days
$10.86$14.88
23
90550-ZW5-710Ships in 1 to 2 Days
$10.86$14.88
23
90551-ZW5-710Ships in 1 to 2 Days
$10.86$14.88
24
90559-ZV5-000Ships in 1 to 2 Daysqty 2 used
$2.95$4.04
25
90758-ZW1-B00In Stock
$1.87$2.56
26
91005-PT2-N01Ships in 1 to 2 Days
$15.84$21.70
27
91054-ZVP-003Ships in 1 to 2 Days
$52.97$72.56
28
91057-ZVP-003Ships in 1 to 2 Days
$19.23$26.34
29
91058-ZVP-701Ships in 1 to 2 Days
$165.18$226.28
30
91252-ZVP-003Ships in 1 to 2 Daysqty 2 used
$5.81$7.96
31
91351-ZX2-C00Ships in 1 to 2 Days
$6.98$9.56
32
CIRCLIP (OUTER) (18MM)
94510-18000Ships in 1 to 2 Days
$1.28$1.76
33
96211-07000Ships in 1 to 2 Days
$1.17$1.60
34
96211-12000Ships in 1 to 2 Daysqty 2 used
$0.77$1.06
35
96220-30168Ships in 1 to 2 Days
$0.29$0.40
36
91056-ZY3-711Ships in 1 to 2 Days
$42.85$58.70
Diagram

PUMP IMPELLER KIT

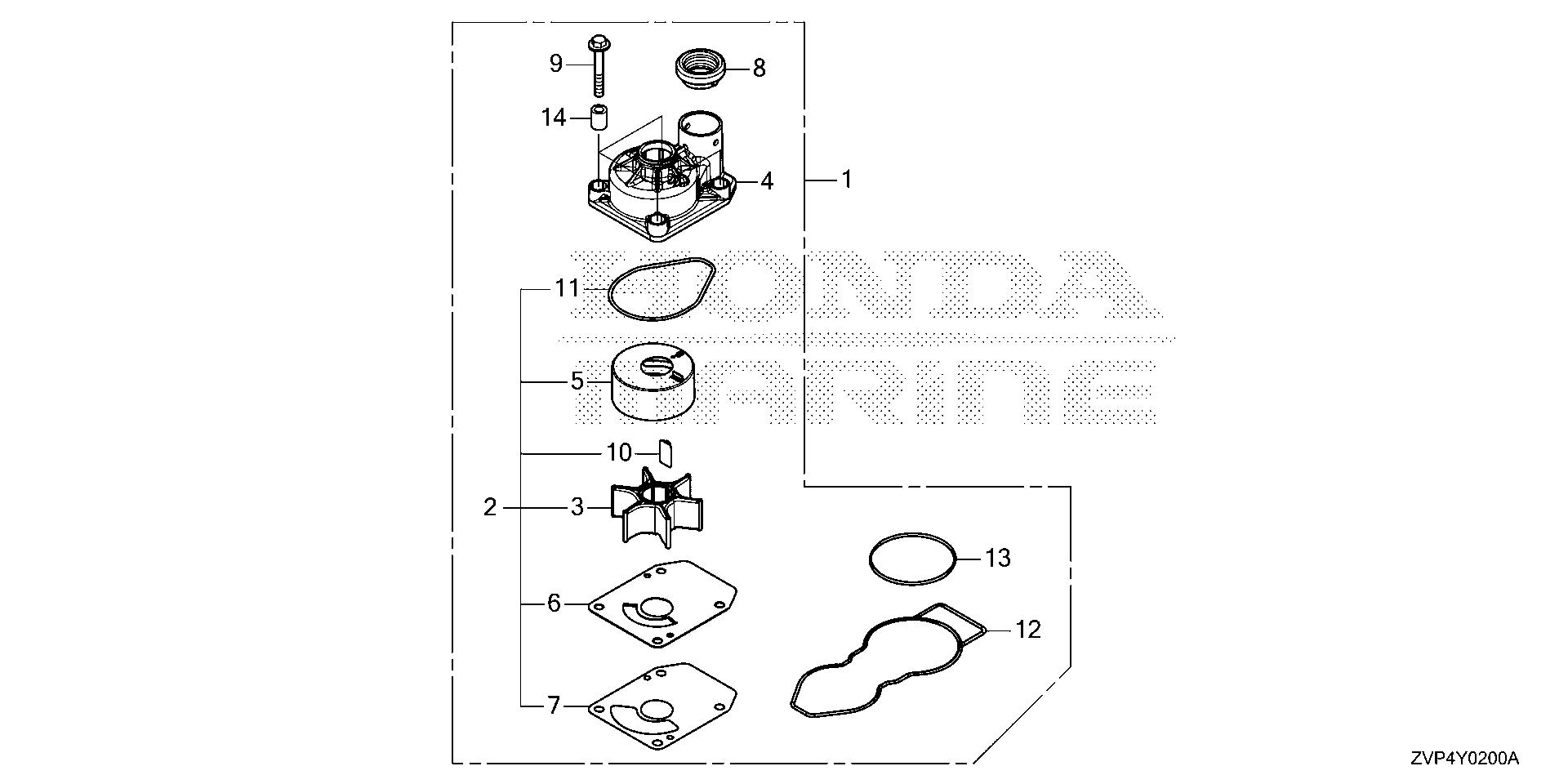

BF350 BF350A pump impeller kit exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVP4Y0200A
Fits all 4 submodels of this generation.

Parts in this assembly

14 parts
1
06192-ZVP-000Ships in 1 to 2 Days
$148.25$203.08
2
06193-ZVP-010Ships in 1 to 2 Days
$91.41$125.22
3
19210-ZVP-003Ships in 1 to 2 Days
$36.24$49.64
4
19221-ZVP-000Ships in 1 to 2 Days
$29.46$40.36
5
19223-ZVP-000Ships in 1 to 2 Days
$35.99$49.30
6
19231-ZVP-000Ships in 1 to 2 Days
$11.13$15.24
7
19234-ZVP-000Ships in 1 to 2 Days
$4.03$5.52
8
19253-ZVP-000Ships in 1 to 2 Days
$4.51$6.18
9
90105-ZX2-C00In Stockqty 4 used
$8.40$11.50
10
90752-ZVP-000Ships in 1 to 2 Days
$23.42$32.08
11
91356-ZY3-003Ships in 1 to 2 Days
$7.37$10.10
12
91358-ZVP-000Ships in 1 to 2 Days
$6.91$9.46
13
91359-ZVP-000Ships in 1 to 2 Days
$4.32$5.92
14
91551-ZY3-000Ships in 1 to 2 Daysqty 4 used
$2.12$2.90
Diagram

REMOTE CONTROL (FLUSH MOUNT TYPE) (MAIN)

BF350 BF350A remote control (flush mount type) (main) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVP4Y0310A
Fits all 4 submodels of this generation.

Parts in this assembly

41 parts
1
06240-ZVP-C01Ships in 1 to 2 Days
$2,019.95
2
BOX ASSY., REMOTE CONTROL (FLUSH MOUNT)(RH)
24800-ZVP-C01No Longer Available
—
3
24810-ZVP-C01Ships in 1 to 2 Days
$1,059.48$1,451.34
4
24811-ZVP-C01Ships in 1 to 2 Days
$12.86$17.62
7
24840-ZVP-C01Ships in 1 to 2 Days
$5.56$7.62
9
30420-ZVP-000Ships in 1 to 2 Days
$23.74$32.52
10
30430-ZVP-C00Ships in 1 to 2 Days
$895.43$1,226.62
11
32107-ZVL-003Ships in 1 to 2 Days
$10.47$14.34
12
32380-ZVP-C01Ships in 1 to 2 Days
$87.05$119.24
13
32386-ZVP-C01Ships in 1 to 2 Days
$16.19$22.18
14
32530-ZVP-C00Ships in 1 to 2 Days
$1,075.20$1,472.88
15
32606-K44-V01Ships in 1 to 2 Days
$6.51$8.92
16
32823-ZV5-003Ships in 1 to 2 Daysqty 2 used
$2.95$4.04
17
34330-ZVP-013Ships in 1 to 2 Days
$717.33$982.64
18
35100-ZVP-003Ships in 1 to 2 Days
$52.49$71.90
19
36180-ZVP-003Ships in 1 to 2 Days
$51.17$70.10
20
36182-ZY6-003Ships in 1 to 2 Days
$17.53$24.02
21
36187-ZY6-003Ships in 1 to 2 Days
$4.22$5.78
22
38206-V15-003Ships in 1 to 2 Daysqty 2 used
$1.78$2.44
23
38216-Z2E-003Ships in 1 to 2 Daysqty 2 used
$5.85$8.02
24
38400-ZY9-A00Ships in 1 to 2 Days
$70.36$96.40
25
38402-ZY9-A00Ships in 1 to 2 Days
$21.59$29.58
26
38580-ZY6-V11Ships in 1 to 2 Days
$53.55$73.36
27
38580-ZZ3-003Ships in 1 to 2 Days
$42.33$57.98
28
38581-ZY6-V11Ships in 1 to 2 Days
$3.77$5.16
29
38585-MKE-A11Ships in 1 to 2 Days
$4.99$6.84
30
87117-Z2E-000Ships in 1 to 2 Days
$1.66$2.28
31
87118-ZVL-000Ships in 1 to 2 Days
$1.56$2.14
32
87702-ZVP-C00Ships in 1 to 2 Days
$3.37$4.62
33
90018-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.37$1.88
34
90109-ZW5-000Ships in 1 to 2 Daysqty 8 used
$1.20$1.64
35
90301-ZZ5-M01Ships in 1 to 2 Daysqty 8 used
$0.91$1.24
36
90302-ZY6-003Ships in 1 to 2 Days
$2.69$3.68
37
90501-ZZ5-M01Ships in 1 to 2 Daysqty 8 used
$1.59$2.18
38
90502-ZZ5-M01Ships in 1 to 2 Daysqty 8 used
$1.49$2.04
39
90650-KV6-003Ships in 1 to 2 Days
$3.14$4.30
40
91058-MG9-681Ships in 1 to 2 Daysqty 3 used
$2.03$2.78
41
91531-SR3-003Ships in 1 to 2 Days
$7.75$10.62
42
98200-40500Ships in 1 to 2 Daysqty 2 used
$1.11$1.52
43
24850-ZVP-C01Ships in 1 to 2 Days
$39.74
44
24860-ZVP-C01Ships in 1 to 2 Days
$61.79
Diagram

REMOTE CONTROL (FLUSH MOUNT TYPE) (SECOND

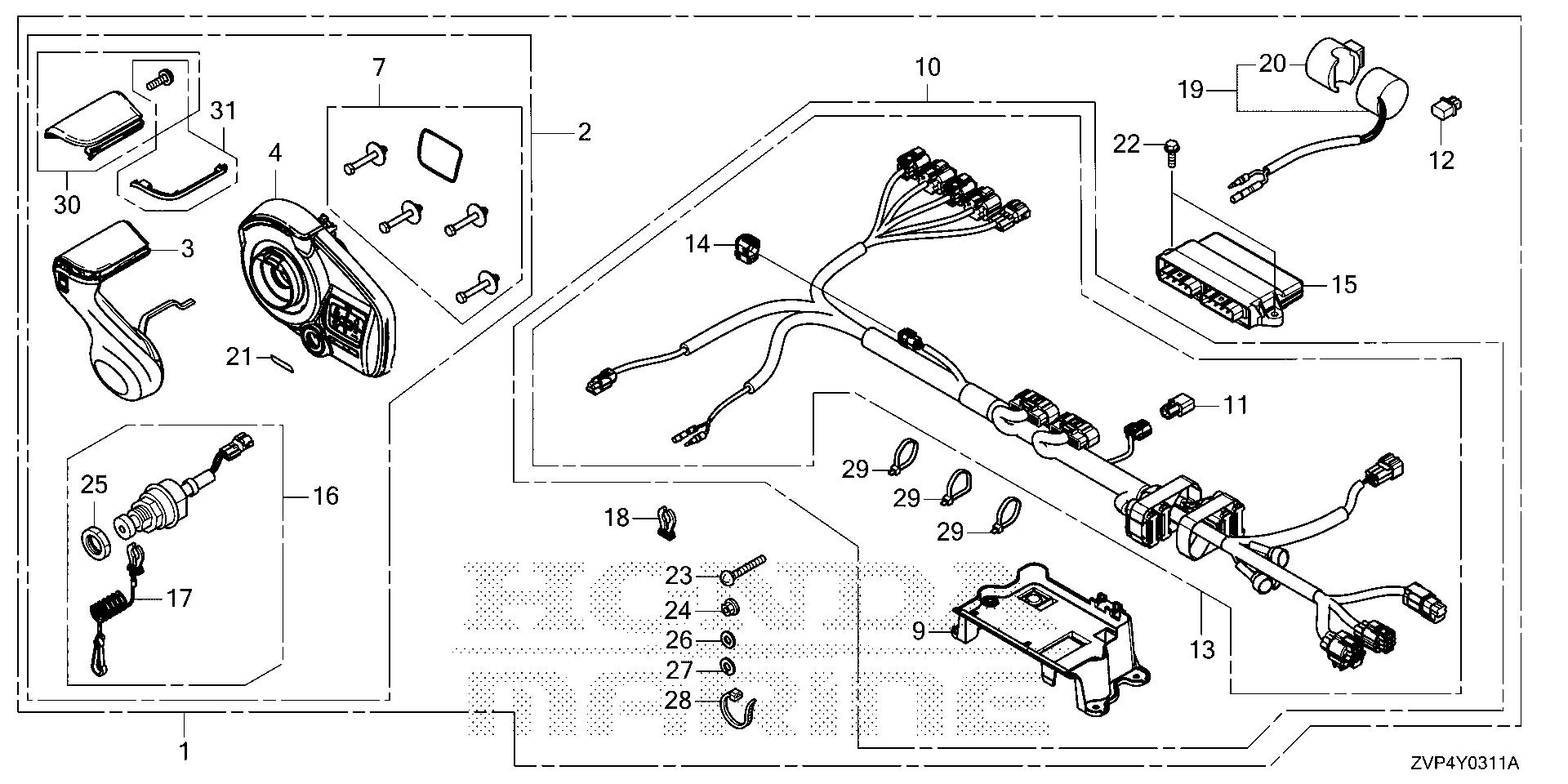

BF350 BF350A remote control (flush mount type) (second exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVP4Y0311A
Fits all 4 submodels of this generation.

Parts in this assembly

28 parts
1
06250-ZVP-C01Ships in 1 to 2 Days
$1,423.36
2
BOX ASSY., REMOTE CONTROL (FLUSH MOUNT)(RH)
24800-ZVP-C01No Longer Available
—
3
24810-ZVP-C01Ships in 1 to 2 Days
$1,059.48$1,451.34
4
24811-ZVP-C01Ships in 1 to 2 Days
$12.86$17.62
7
24840-ZVP-C01Ships in 1 to 2 Days
$5.56$7.62
9
30420-ZVP-000Ships in 1 to 2 Days
$23.74$32.52
10
30430-ZVP-U00Ships in 1 to 2 Days
$895.45$1,226.64
11
32107-ZVL-003Ships in 1 to 2 Days
$10.47$14.34
12
32108-ZVL-003Ships in 1 to 2 Days
$5.45$7.46
13
32530-ZVP-U00Ships in 1 to 2 Days
$749.78$1,027.10
14
32606-K44-V01Ships in 1 to 2 Days
$6.51$8.92
15
34330-ZVP-013Ships in 1 to 2 Days
$717.33$982.64
16
36180-ZVP-003Ships in 1 to 2 Days
$51.17$70.10
17
36182-ZY6-003Ships in 1 to 2 Days
$17.53$24.02
18
36187-ZY6-003Ships in 1 to 2 Days
$4.22$5.78
19
38400-ZY9-A00Ships in 1 to 2 Days
$70.36$96.40
20
38402-ZY9-A00Ships in 1 to 2 Days
$21.59$29.58
21
87702-ZVP-C00Ships in 1 to 2 Days
$3.37$4.62
22
90018-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.37$1.88
23
90109-ZW5-000Ships in 1 to 2 Daysqty 4 used
$1.20$1.64
24
90301-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$0.91$1.24
25
90302-ZY6-003Ships in 1 to 2 Days
$2.69$3.68
26
90501-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$1.59$2.18
27
90502-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$1.49$2.04
28
90650-KV6-003Ships in 1 to 2 Days
$3.14$4.30
29
91058-MG9-681Ships in 1 to 2 Daysqty 3 used
$2.03$2.78
30
24850-ZVP-C01Ships in 1 to 2 Days
$39.74
31
24860-ZVP-C01Ships in 1 to 2 Days
$61.79
Diagram

REMOTE CONTROL (TOP MOUNT DUAL TYPE) (MAIN)

BF350 BF350A remote control (top mount dual type) (main) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVP4Y0302
Fits all 4 submodels of this generation.

Parts in this assembly

40 parts
1
06240-ZVP-A60Ships in 1 to 2 Days
$1,499.95
1
06240-ZVP-A61Ships in 1 to 2 Days
$2,361.10$3,234.38
1
06240-ZVP-B60Ships in 1 to 2 Days
$1,499.95
1
$2,262.24$3,098.96
2
24800-ZVP-702Ships in 1 to 2 Days
$994.20
3
24810-ZVP-701Ships in 1 to 2 Days
$1,554.10$2,128.90
4
24811-ZVP-701Ships in 1 to 2 Days
$13.37$18.32
5
24821-ZVP-701Ships in 1 to 2 Days
$21.02$28.80
6
24822-ZVP-701Ships in 1 to 2 Days
$72.85$99.80
7
24823-ZVP-701Ships in 1 to 2 Days
$21.02$28.80
8
24824-ZVP-701Ships in 1 to 2 Days
$72.85$99.80
9
24840-ZVL-701Ships in 1 to 2 Days
$8.42$11.54
10
24841-ZVL-701Ships in 1 to 2 Daysqty 4 used
$1.34$1.84
11
24842-ZVL-701Ships in 1 to 2 Daysqty 4 used
$1.04$1.42
12
24891-ZVP-701Ships in 1 to 2 Daysqty 2 used
$3.18$4.36
13
24892-ZVP-701Ships in 1 to 2 Days
$2.85$3.90
14
30420-ZVP-000Ships in 1 to 2 Days
$23.74$32.52
15
30430-ZVP-A00Ships in 1 to 2 Days
$1,041.14$1,426.22
15
30430-ZVP-B00Ships in 1 to 2 Days
$1,041.14$1,426.22
16
32107-ZVL-003Ships in 1 to 2 Days
$10.47$14.34
17
32606-K44-V01Ships in 1 to 2 Days
$6.51$8.92
18
32823-ZV5-003Ships in 1 to 2 Daysqty 2 used
$2.95$4.04
19
34330-ZVP-013Ships in 1 to 2 Days
$717.33$982.64
20
38206-V15-003Ships in 1 to 2 Daysqty 2 used
$1.78$2.44
21
38216-Z2E-003Ships in 1 to 2 Daysqty 2 used
$5.85$8.02
22
38580-ZY6-V11Ships in 1 to 2 Days
$53.55$73.36
23
38580-ZZ3-003Ships in 1 to 2 Days
$42.33$57.98
24
38581-ZY6-V11Ships in 1 to 2 Days
$3.77$5.16
25
38585-MKE-A11Ships in 1 to 2 Days
$4.99$6.84
26
87117-Z2E-000Ships in 1 to 2 Days
$1.66$2.28
27
87118-ZVL-000Ships in 1 to 2 Days
$1.56$2.14
28
90018-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.37$1.88
29
90109-ZW5-000Ships in 1 to 2 Daysqty 4 used
$1.20$1.64
30
90301-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$0.91$1.24
31
90501-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$1.59$2.18
32
90502-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$1.49$2.04
33
91058-MG9-681Ships in 1 to 2 Daysqty 3 used
$2.03$2.78
34
91531-SR3-003Ships in 1 to 2 Days
$7.75$10.62
35
93500-05065-4JShips in 1 to 2 Daysqty 4 used
$2.50$3.42
36
98200-40500Ships in 1 to 2 Daysqty 2 used
$1.11$1.52
Diagram

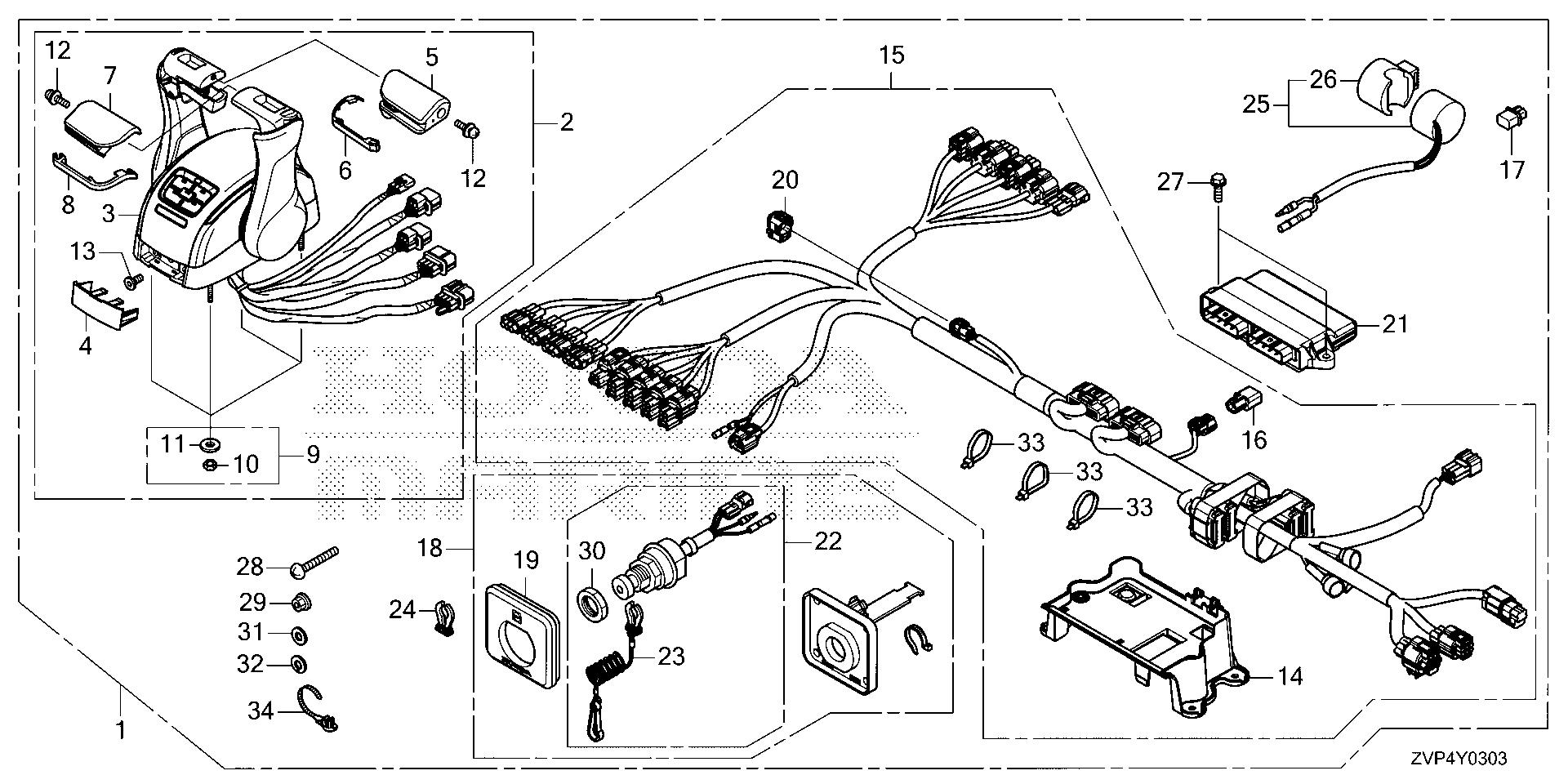

REMOTE CONTROL (TOP MOUNT DUAL TYPE) (SECOND)

BF350 BF350A remote control (top mount dual type) (second) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVP4Y0303
Fits all 4 submodels of this generation.

Parts in this assembly

39 parts
1
06250-ZVP-A60Ships in 1 to 2 Daysreplaced by 06250-ZVP-A61
$2,446.73$3,351.68
1
$2,446.73$3,351.68
1
06250-ZVP-B60Ships in 1 to 2 Daysreplaced by 06250-ZVP-B61
$1,499.95
1
06250-ZVP-B61Ships in 1 to 2 Days
$2,554.09$3,498.76
1
$2,262.24$3,098.96
2
24800-ZVP-702Ships in 1 to 2 Days
$994.20
3
24810-ZVP-701Ships in 1 to 2 Days
$1,554.10$2,128.90
4
24811-ZVP-701Ships in 1 to 2 Days
$13.37$18.32
5
24821-ZVP-701Ships in 1 to 2 Days
$21.02$28.80
6
24822-ZVP-701Ships in 1 to 2 Days
$72.85$99.80
7
24823-ZVP-701Ships in 1 to 2 Days
$21.02$28.80
8
24824-ZVP-701Ships in 1 to 2 Days
$72.85$99.80
9
24840-ZVL-701Ships in 1 to 2 Days
$8.42$11.54
10
24841-ZVL-701Ships in 1 to 2 Daysqty 4 used
$1.34$1.84
11
24842-ZVL-701Ships in 1 to 2 Daysqty 4 used
$1.04$1.42
12
24891-ZVP-701Ships in 1 to 2 Daysqty 2 used
$3.18$4.36
13
24892-ZVP-701Ships in 1 to 2 Days
$2.85$3.90
14
30420-ZVP-000Ships in 1 to 2 Days
$23.74$32.52
15
30430-ZVP-A60Ships in 1 to 2 Days
$694.11$950.84
15
30430-ZVP-B60Ships in 1 to 2 Days
$694.11$950.84
16
32107-ZVL-003Ships in 1 to 2 Days
$10.47$14.34
17
32108-ZVL-003Ships in 1 to 2 Days
$5.45$7.46
18
32390-ZVL-003Ships in 1 to 2 Days
$106.99$146.56
19
32396-ZVL-003Ships in 1 to 2 Days
$27.97$38.32
20
32606-K44-V01Ships in 1 to 2 Days
$6.51$8.92
21
34330-ZVP-013Ships in 1 to 2 Days
$717.33$982.64
22
36180-ZVL-003Ships in 1 to 2 Days
$51.26$70.22
23
36182-ZY6-003Ships in 1 to 2 Days
$17.53$24.02
24
36187-ZY6-003Ships in 1 to 2 Days
$4.22$5.78
25
38400-ZY9-A00Ships in 1 to 2 Days
$70.36$96.40
26
38402-ZY9-A00Ships in 1 to 2 Days
$21.59$29.58
27
90018-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.37$1.88
28
90109-ZW5-000Ships in 1 to 2 Daysqty 8 used
$1.20$1.64
29
90301-ZZ5-M01Ships in 1 to 2 Daysqty 8 used
$0.91$1.24
30
90302-ZY6-003Ships in 1 to 2 Days
$2.69$3.68
31
90501-ZZ5-M01Ships in 1 to 2 Daysqty 8 used
$1.59$2.18
32
90502-ZZ5-M01Ships in 1 to 2 Daysqty 8 used
$1.49$2.04
33
91058-MG9-681Ships in 1 to 2 Daysqty 3 used
$2.03$2.78
34
91549-TTA-003Ships in 1 to 2 Days
$3.66$5.02
Diagram

REMOTE CONTROL (TOP MOUNT SINGLE TYPE) (MAIN)

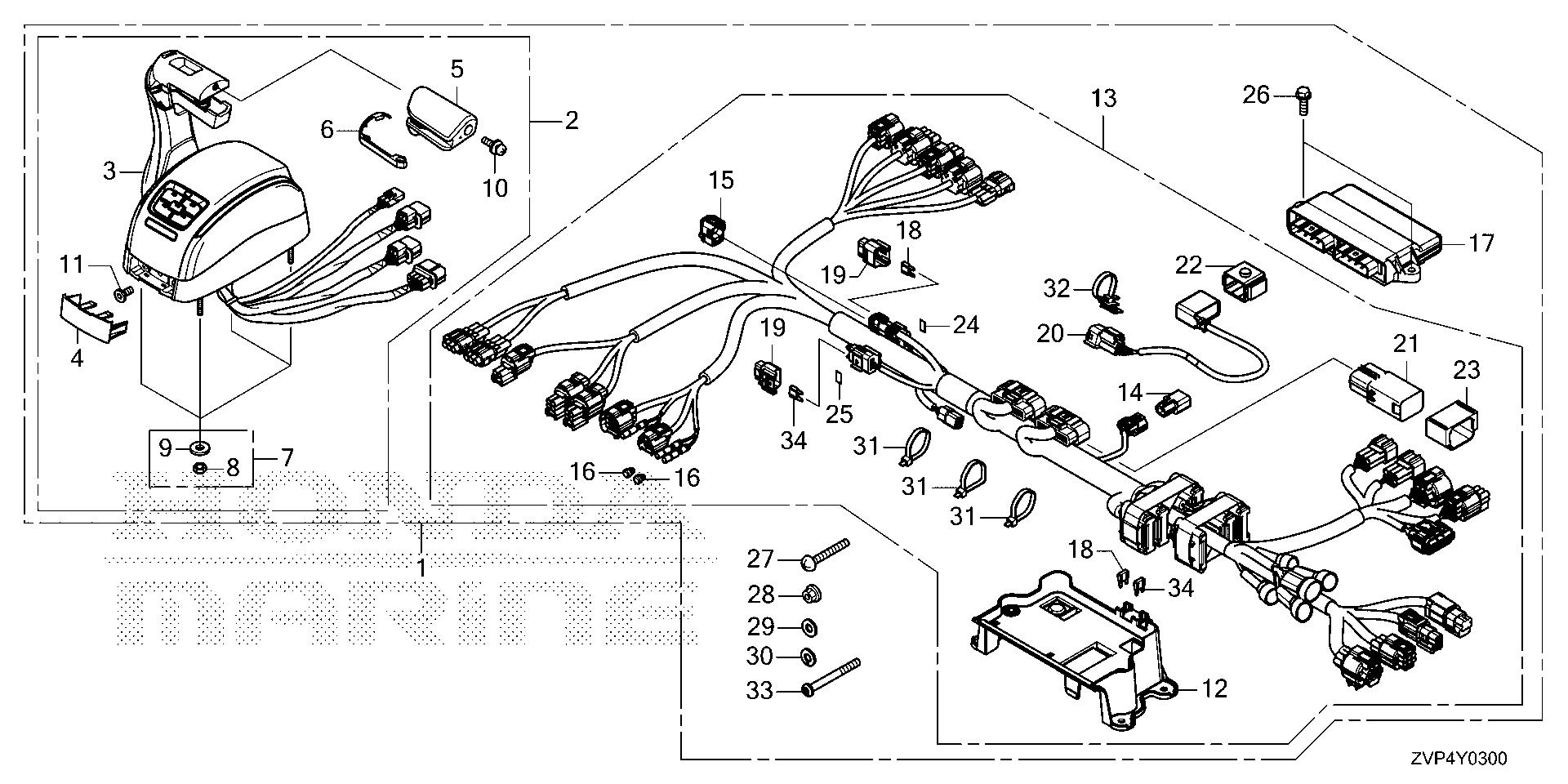

BF350 BF350A remote control (top mount single type) (main) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVP4Y0300
Fits all 4 submodels of this generation.

Parts in this assembly

36 parts
1
06240-ZVP-A00Ships in 1 to 2 Daysreplaced by 06240-ZVP-A03
$1,199.95
1
06240-ZVP-A01Ships in 1 to 2 Daysreplaced by 06240-ZVP-A03
$1,199.95
1
$1,382.95
2
24800-ZVP-602Ships in 1 to 2 Days
$684.28
3
24810-ZVP-601Ships in 1 to 2 Days
$1,119.37$1,533.38
4
24811-ZVP-701Ships in 1 to 2 Days
$13.37$18.32
5
24821-ZVP-601Ships in 1 to 2 Days
$33.61$46.04
6
24822-ZVP-601Ships in 1 to 2 Days
$60.02$82.22
7
24840-ZVL-701Ships in 1 to 2 Days
$8.42$11.54
8
24841-ZVL-701Ships in 1 to 2 Daysqty 4 used
$1.34$1.84
9
24842-ZVL-701Ships in 1 to 2 Daysqty 4 used
$1.04$1.42
10
24891-ZVP-701Ships in 1 to 2 Days
$3.18$4.36
11
24892-ZVP-701Ships in 1 to 2 Days
$2.85$3.90
12
30420-ZVP-000Ships in 1 to 2 Days
$23.74$32.52
13
30430-ZVP-A00Ships in 1 to 2 Days
$1,041.14$1,426.22
14
32107-ZVL-003Ships in 1 to 2 Days
$10.47$14.34
15
32606-K44-V01Ships in 1 to 2 Days
$6.51$8.92
16
32823-ZV5-003Ships in 1 to 2 Daysqty 2 used
$2.95$4.04
17
34330-ZVP-013Ships in 1 to 2 Days
$717.33$982.64
18
38206-V15-003Ships in 1 to 2 Daysqty 2 used
$1.78$2.44
19
38216-Z2E-003Ships in 1 to 2 Daysqty 2 used
$5.85$8.02
20
38580-ZY6-V11Ships in 1 to 2 Days
$53.55$73.36
21
38580-ZZ3-003Ships in 1 to 2 Days
$42.33$57.98
22
38581-ZY6-V11Ships in 1 to 2 Days
$3.77$5.16
23
38585-MKE-A11Ships in 1 to 2 Days
$4.99$6.84
24
87117-Z2E-000Ships in 1 to 2 Days
$1.66$2.28
25
87118-ZVL-000Ships in 1 to 2 Days
$1.56$2.14
26
90018-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.37$1.88
27
90109-ZW5-000Ships in 1 to 2 Daysqty 4 used
$1.20$1.64
28
90301-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$0.91$1.24
29
90501-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$1.59$2.18
30
90502-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$1.49$2.04
31
91058-MG9-681Ships in 1 to 2 Daysqty 3 used
$2.03$2.78
32
91531-SR3-003Ships in 1 to 2 Days
$7.75$10.62
33
93500-05065-4JShips in 1 to 2 Daysqty 4 used
$2.50$3.42
34
98200-40500Ships in 1 to 2 Daysqty 2 used
$1.11$1.52
Diagram

REMOTE CONTROL (TOP MOUNT SINGLE TYPE) (SECOND)

BF350 BF350A remote control (top mount single type) (second) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVP4Y0301
Fits all 4 submodels of this generation.

Parts in this assembly

32 parts
1
06250-ZVP-A01Ships in 1 to 2 Days
$1,987.67$2,722.84
2
24800-ZVP-602Ships in 1 to 2 Days
$684.28
3
24810-ZVP-601Ships in 1 to 2 Days
$1,119.37$1,533.38
4
24811-ZVP-701Ships in 1 to 2 Days
$13.37$18.32
5
24821-ZVP-601Ships in 1 to 2 Days
$33.61$46.04
6
24822-ZVP-601Ships in 1 to 2 Days
$60.02$82.22
7
24840-ZVL-701Ships in 1 to 2 Days
$8.42$11.54
8
24841-ZVL-701Ships in 1 to 2 Daysqty 4 used
$1.34$1.84
9
24842-ZVL-701Ships in 1 to 2 Daysqty 4 used
$1.04$1.42
10
24891-ZVP-701Ships in 1 to 2 Days
$3.18$4.36
11
24892-ZVP-701Ships in 1 to 2 Days
$2.85$3.90
12
30420-ZVP-000Ships in 1 to 2 Days
$23.74$32.52
13
30430-ZVP-A60Ships in 1 to 2 Days
$694.11$950.84
14
32107-ZVL-003Ships in 1 to 2 Days
$10.47$14.34
15
32108-ZVL-003Ships in 1 to 2 Days
$5.45$7.46
16
32390-ZVL-003Ships in 1 to 2 Days
$106.99$146.56
17
32396-ZVL-003Ships in 1 to 2 Days
$27.97$38.32
18
32606-K44-V01Ships in 1 to 2 Days
$6.51$8.92
19
34330-ZVP-013Ships in 1 to 2 Days
$717.33$982.64
20
36180-ZVL-003Ships in 1 to 2 Days
$51.26$70.22
21
36182-ZY6-003Ships in 1 to 2 Days
$17.53$24.02
22
36187-ZY6-003Ships in 1 to 2 Days
$4.22$5.78
23
38400-ZY9-A00Ships in 1 to 2 Days
$70.36$96.40
24
38402-ZY9-A00Ships in 1 to 2 Days
$21.59$29.58
25
90018-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.37$1.88
26
90109-ZW5-000Ships in 1 to 2 Daysqty 8 used
$1.20$1.64
27
90301-ZZ5-M01Ships in 1 to 2 Daysqty 8 used
$0.91$1.24
28
90302-ZY6-003Ships in 1 to 2 Days
$2.69$3.68
29
90501-ZZ5-M01Ships in 1 to 2 Daysqty 8 used
$1.59$2.18
30
90502-ZZ5-M01Ships in 1 to 2 Daysqty 8 used
$1.49$2.04
31
91058-MG9-681Ships in 1 to 2 Daysqty 3 used
$2.03$2.78
32
91549-TTA-003Ships in 1 to 2 Days
$3.66$5.02
Diagram

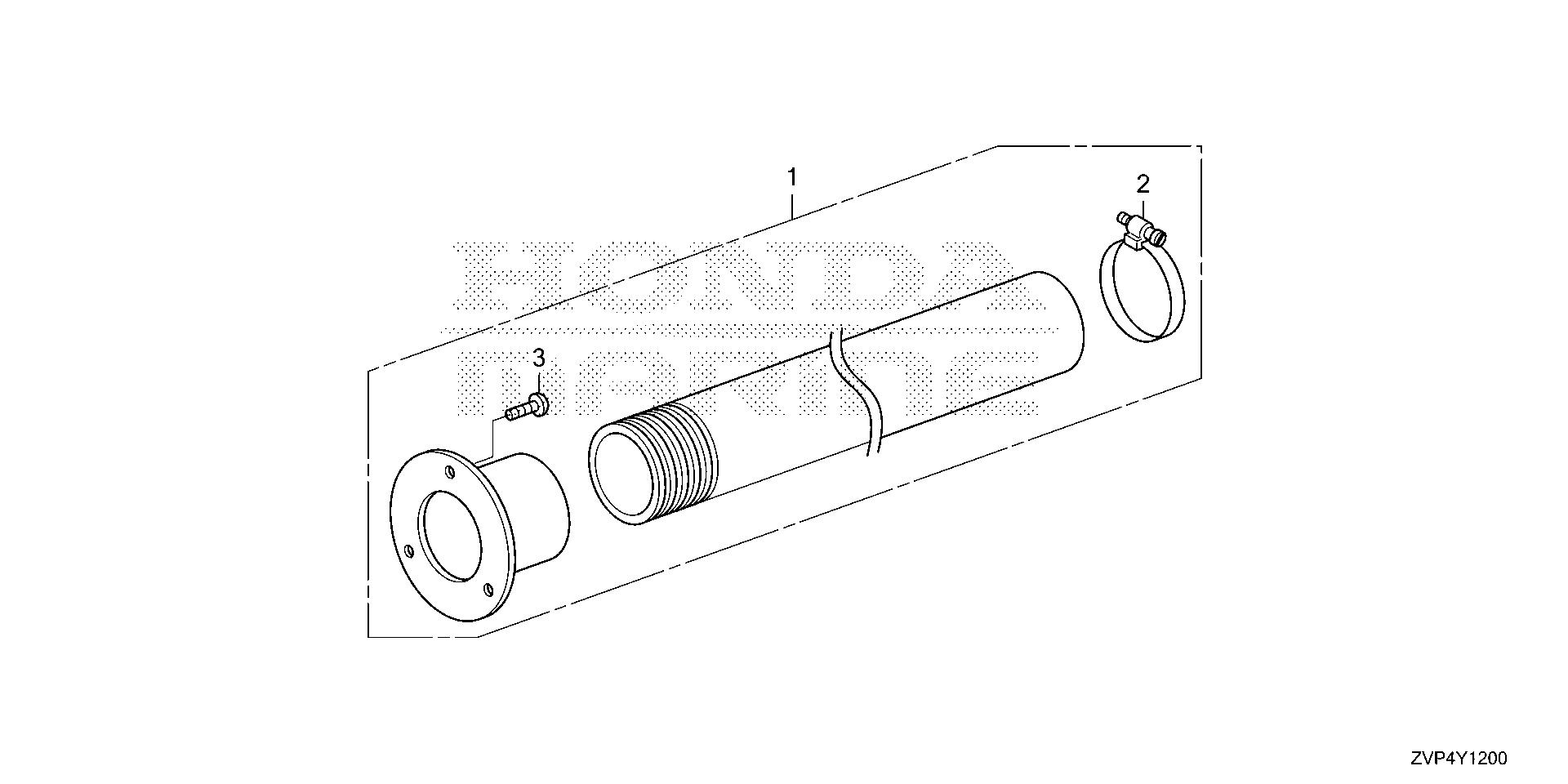

RIGGING HOSE KIT

BF350 BF350A rigging hose kit exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVP4Y1200
Fits all 4 submodels of this generation.

Parts in this assembly

3 parts
1
HOSE KIT, RIGGING (NOT AVAILABLE)
06177-ZY3-U02No Longer Available
$232.86$318.98
2
17748-ZY3-U01Ships in 1 to 2 Days
$12.78$17.50
3
17749-ZY3-U01Ships in 1 to 2 Daysqty 3 used
$3.61$4.94
Diagram

SHIFT SHAFT

BF350 BF350A shift shaft exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVP4F0200
Fits all 4 submodels of this generation.

Parts in this assembly

26 parts
1
24327-ZW1-000In Stock
$1.69$2.32
2
24612-ZVP-000Ships in 1 to 2 Days
$98.40$134.80
3
24613-ZVP-000Ships in 1 to 2 Days
$69.32$94.96
4
24614-ZVT-000Ships in 1 to 2 Days
$4.76$6.52
5
24616-ZVT-000Ships in 1 to 2 Days
$12.61$17.28
6
24617-ZVT-000Ships in 1 to 2 Days
$35.59$48.76
7
24618-ZVT-000Ships in 1 to 2 Days
$6.63$9.08
8
24619-ZVT-000Ships in 1 to 2 Days
$5.61$7.68
9
24627-ZVP-000Ships in 1 to 2 Days
$84.49$115.74
10
24629-ZVP-000Ships in 1 to 2 Days
$8.76$12.00
11
24630-ZVP-000Ships in 1 to 2 Days
$162.38$222.46
12
90014-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.87$2.56
13
90017-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.24$1.70
14
90026-ZY9-M01Ships in 1 to 2 Daysqty 2 used
$1.49$2.04
15
90151-ZZ0-M01Ships in 1 to 2 Daysqty 3 used
$1.66$2.28
16
90428-958-000Ships in 1 to 2 Days
$4.70$6.44
17
90451-155-000Ships in 1 to 2 Days
$3.83$5.24
18
90508-ZV7-000Ships in 1 to 2 Days
$6.60$9.04
19
90541-ZVP-000Ships in 1 to 2 Days
$5.66$7.76
20
90651-V43-003Ships in 1 to 2 Days
$2.42$3.32
21
90705-SD2-931Ships in 1 to 2 Days
$5.33$7.30
22
91251-ZW5-003Ships in 1 to 2 Days
$3.85$5.28
23
91255-ZY3-003Ships in 1 to 2 Days
$7.24$9.92
24
91310-PH3-003Ships in 1 to 2 Days
$2.39$3.28
25
91553-ZY6-000Ships in 1 to 2 Daysqty 2 used
$4.07$5.58
26
94540-12029In Stock
$8.02$10.98
Diagram

SMART UNIT

BF350 BF350A smart unit exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVP4Y0400
Fits all 4 submodels of this generation.

Parts in this assembly

31 parts
1
06311-ZVL-050Ships in 1 to 2 Days
$1,477.67$2,024.20
2
06311-ZVL-805Ships in 1 to 2 Days
$1,413.97$1,936.94
3
30435-ZVL-000Ships in 1 to 2 Days
$53.23
4
32145-ZVL-000Ships in 1 to 2 Days
$115.56$158.30
5
32340-ZVL-601Ships in 1 to 2 Days
$65.71$90.02
6
32346-ZVL-601Ships in 1 to 2 Days
$27.26$37.34
7
32380-ZVL-601Ships in 1 to 2 Days
$243.31$333.30
8
32380-ZVL-611Ships in 1 to 2 Days
$243.31$333.30
9
32386-ZVL-601Ships in 1 to 2 Days
$27.14$37.18
10
32386-ZVL-611Ships in 1 to 2 Days
$27.14$37.18
11
32606-K44-V01Ships in 1 to 2 Days
$6.51$8.92
12
34346-ZVL-000Ships in 1 to 2 Days
$9.65$13.22
13
35100-ZVL-601Ships in 1 to 2 Days
$94.16$128.98
15
35111-ZVL-003Ships in 1 to 2 Daysqty 2 used
$96.68$132.44
16
35140-ZVL-003Ships in 1 to 2 Days
$757.23$1,037.30
17
36180-ZVL-003Ships in 1 to 2 Days
$51.26$70.22
18
36182-ZY6-003Ships in 1 to 2 Days
$17.53$24.02
19
38400-ZY9-A00Ships in 1 to 2 Days
$70.36$96.40
20
38402-GC1-000Ships in 1 to 2 Days
$6.23$8.54
21
38402-ZY9-A00Ships in 1 to 2 Days
$21.59$29.58
22
38410-ZY9-A01Ships in 1 to 2 Days
$43.30$59.32
23
38580-ZZ5-003Ships in 1 to 2 Days
$41.26$56.52
24
38586-ZZ5-003Ships in 1 to 2 Days
$3.61$4.94
25
72148-S84-A10Ships in 1 to 2 Daysqty 2 used
$3.50$4.80
26
90109-ZW5-000Ships in 1 to 2 Daysqty 12 used
$1.20$1.64
27
90301-ZZ5-M01Ships in 1 to 2 Daysqty 12 used
$0.91$1.24
28
90302-ZY6-003Ships in 1 to 2 Days
$2.69$3.68
29
90501-ZZ5-M01Ships in 1 to 2 Daysqty 12 used
$1.59$2.18
30
90502-ZZ5-M01Ships in 1 to 2 Daysqty 12 used
$1.49$2.04
31
91535-TA0-003Ships in 1 to 2 Days
$4.56$6.24
32
91541-S0A-003Ships in 1 to 2 Days
$3.64$4.98
Diagram

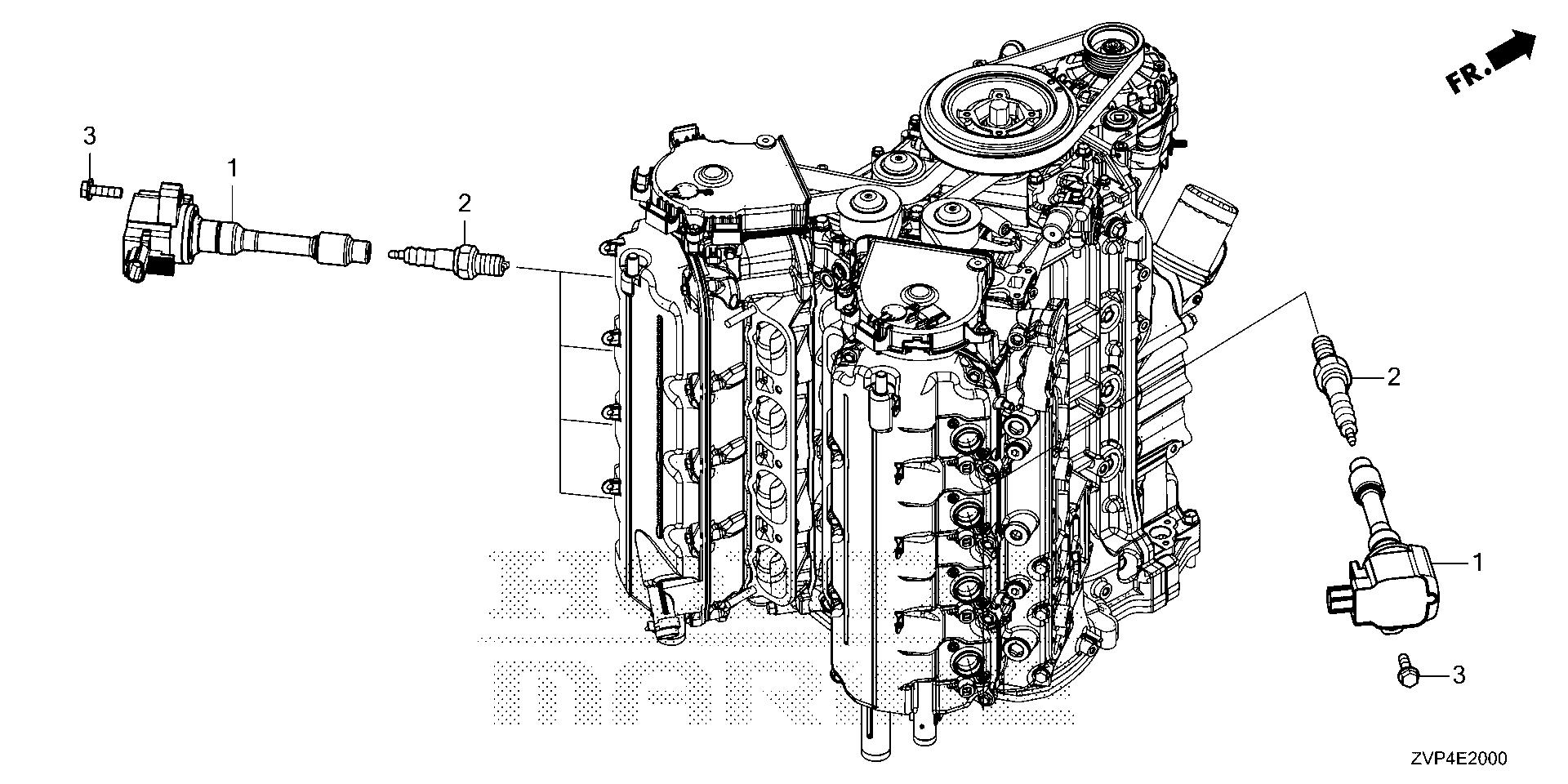

SPARK PLUG

BF350 BF350A spark plug exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVP4E2000
Fits all 4 submodels of this generation.

Parts in this assembly

4 parts
1
30520-58G-013Ships in 1 to 2 Daysqty 8 used
$115.56
2
31916-ZVP-003Ships in 1 to 2 Daysqty 8 used
$18.37$25.16
2
31917-ZVP-003Ships in 1 to 2 Daysqty 8 used
$25.43$34.84
3
90018-ZZ5-M01Ships in 1 to 2 Daysqty 8 used
$1.37$1.88
Diagram

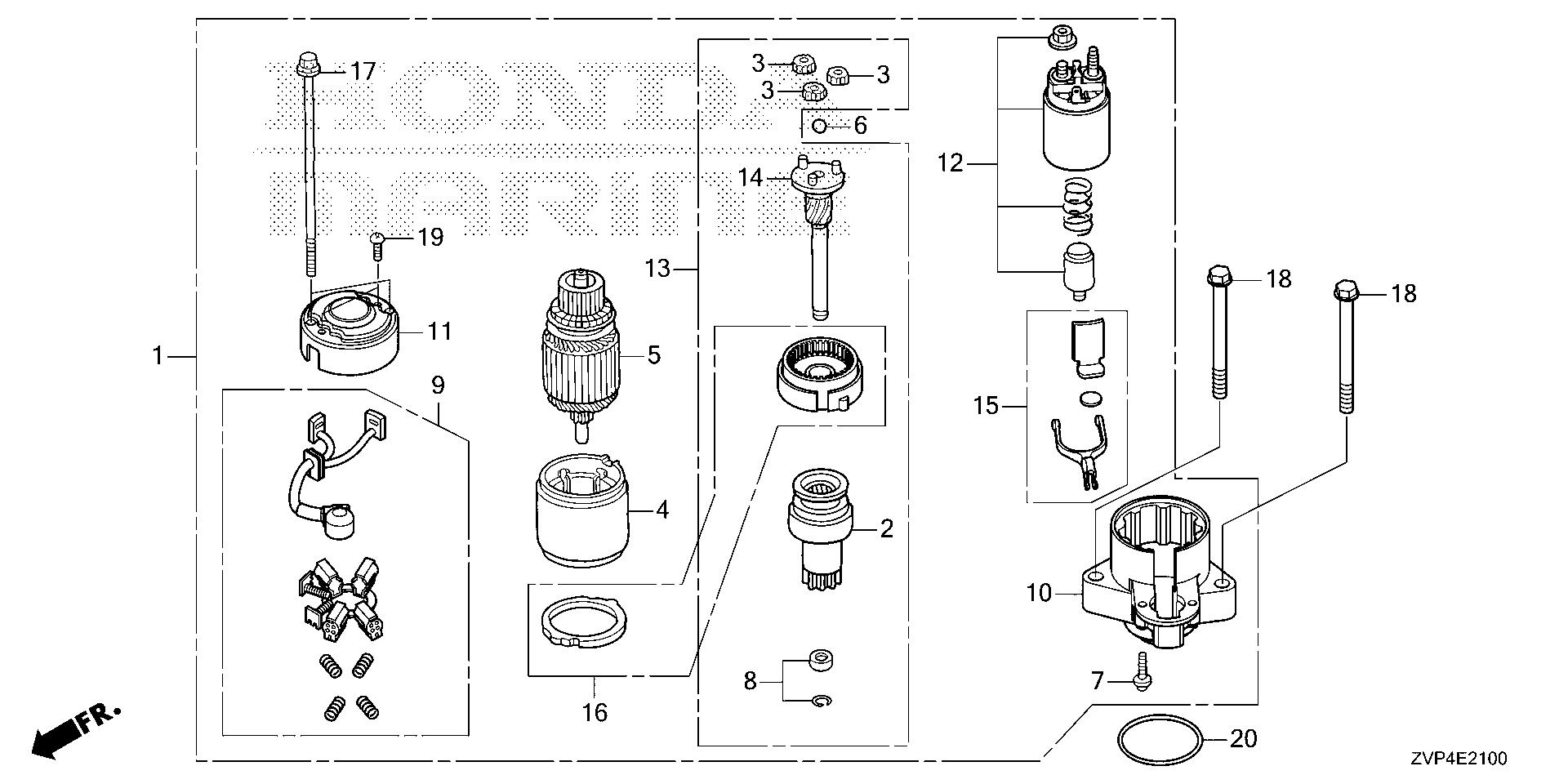

STARTER MOTOR

BF350 BF350A starter motor exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVP4E2100
Fits all 4 submodels of this generation.

Parts in this assembly

20 parts
1
31200-ZVP-003Ships in 1 to 2 Days
$635.48
2
31207-ZY9-H01Ships in 1 to 2 Days
$203.29$278.52
3
31215-ZVP-003Ships in 1 to 2 Daysqty 3 used
$14.16$19.40
4
31216-ZVP-003Ships in 1 to 2 Days
$147.33
5
31217-ZVP-003Ships in 1 to 2 Days
$219.88$219.89
6
31218-PY3-004Ships in 1 to 2 Days
$3.20$4.38
7
31226-ZY9-H01Ships in 1 to 2 Daysqty 2 used
$2.18$2.98
8
31229-ZY9-H01Ships in 1 to 2 Days
$15.04$20.60
9
31232-ZVP-003Ships in 1 to 2 Days
$49.48$67.78
10
31235-ZVP-003Ships in 1 to 2 Days
$92.11$126.18
11
31236-ZY3-003Ships in 1 to 2 Days
$35.00$47.94
12
31240-ZVP-003Ships in 1 to 2 Days
$184.56$252.82
13
31242-ZVP-003Ships in 1 to 2 Days
$305.10$417.94
14
31246-ZVP-003Ships in 1 to 2 Days
$99.00$135.62
15
31250-ZY3-003Ships in 1 to 2 Days
$12.03$16.48
16
31251-ZVP-003Ships in 1 to 2 Days
$35.17$48.18
17
31261-ZVP-003Ships in 1 to 2 Daysqty 2 used
$3.69$5.06
18
90003-ZVL-010Ships in 1 to 2 Daysqty 2 used
$5.23$7.16
19
90107-ZW1-004Ships in 1 to 2 Daysqty 2 used
$2.44$3.34
20
91303-ZVT-000Ships in 1 to 2 Days
$5.52$7.56
Diagram

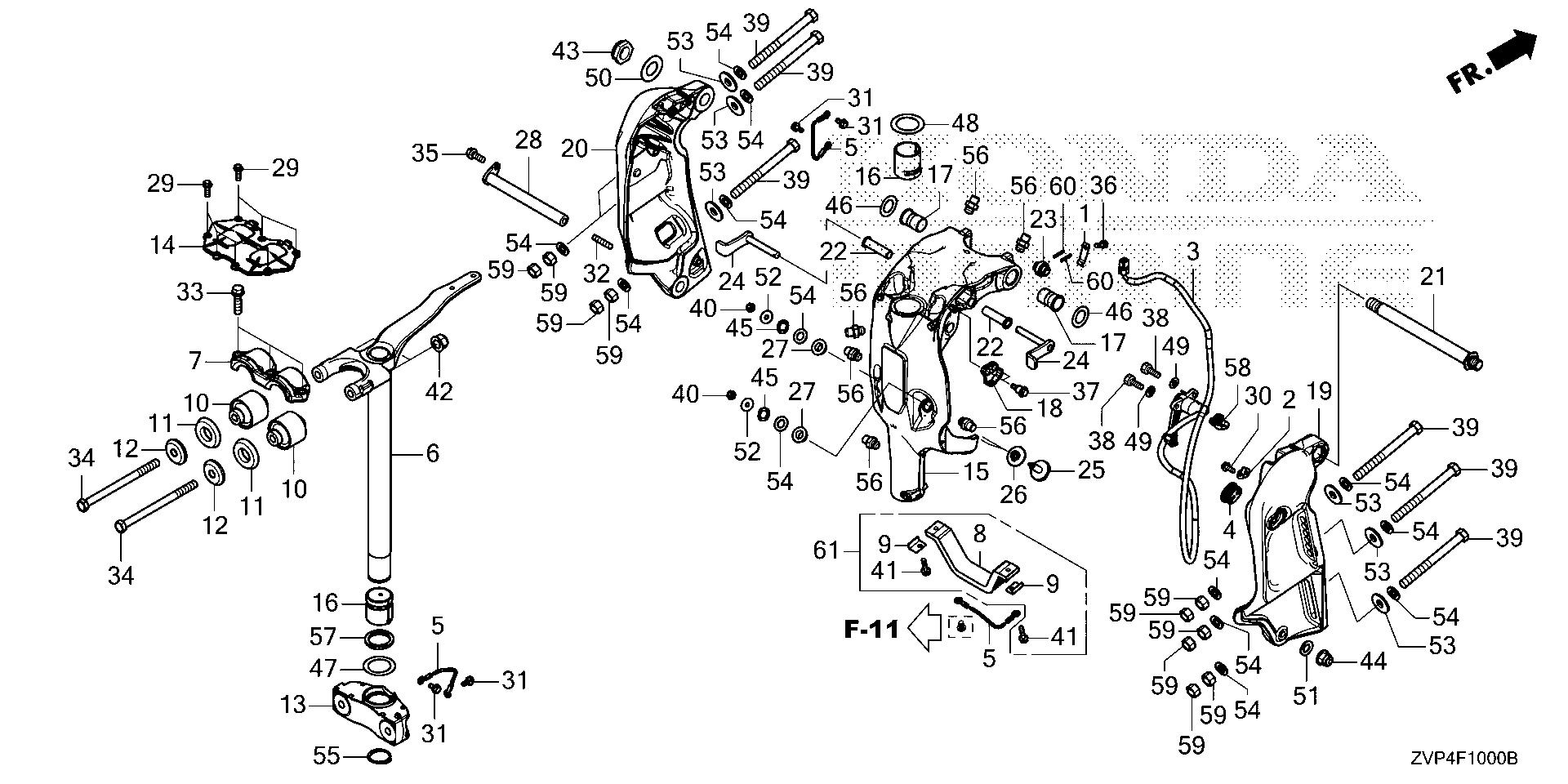

STERN BRACKET - SWIVEL CASE

BF350 BF350A stern bracket - swivel case exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVP4F1000B
Fits all 4 submodels of this generation.

Parts in this assembly

67 parts
1
24211-ZVP-000Ships in 1 to 2 Days
$3.81$5.22
2
32116-ZVP-000Ships in 1 to 2 Days
$3.78$5.18
3
35660-ZVP-003Ships in 1 to 2 Days
$230.18$315.32
4
35664-ZVP-000Ships in 1 to 2 Days
$8.98$12.30
5
40219-ZY3-023Ships in 1 to 2 Daysqty 3 used
$9.05$12.40
6
50100-ZVP-000ZAShips in 1 to 2 Days
$730.93$1,001.28
6
$730.93$1,001.28
7
50109-ZVP-000Ships in 1 to 2 Days
$54.13
8
50116-ZVP-000Ships in 1 to 2 Days
$51.22$70.16
9
50117-ZVP-000Ships in 1 to 2 Daysqty 2 used
$3.49$4.78
10
50151-ZVP-000Ships in 1 to 2 Daysqty 2 used
$54.87$75.16
11
50153-ZVP-000Ships in 1 to 2 Daysqty 2 used
$11.08$15.18
12
50158-ZVP-000Ships in 1 to 2 Daysqty 2 used
$25.35$34.72
13
50161-ZVP-000Ships in 1 to 2 Days
$114.52
14
50166-ZVP-000Ships in 1 to 2 Days
$49.07$67.22
15
50201-ZVP-000ZAShips in 1 to 2 Days
$1,092.71
15
50201-ZVP-000ZBShips in 1 to 2 Days
$1,092.71
16
50211-ZVP-000Ships in 1 to 2 Daysqty 2 used
$8.19
17
50214-ZVP-000Ships in 1 to 2 Daysqty 2 used
$8.19
18
50223-ZVP-000Ships in 1 to 2 Days
$5.78$7.92
19
50301-ZVP-000ZAShips in 1 to 2 Days
$397.35$544.36
19
$397.35$544.36
20
50311-ZVP-000ZAShips in 1 to 2 Days
$397.35$544.36
20
$397.35$544.36
21
50381-ZVP-000Ships in 1 to 2 Days
$60.90$83.42
22
50522-ZY3-000Ships in 1 to 2 Daysqty 2 used
$8.02$10.98
23
50527-ZVP-000Ships in 1 to 2 Days
$6.48$8.88
24
50529-ZVP-000Ships in 1 to 2 Daysqty 2 used
$50.71$69.46
25
56516-ZY3-A00Ships in 1 to 2 Daysqty 2 used
$14.83$20.32
26
56518-ZY3-A00Ships in 1 to 2 Daysqty 2 used
$11.97$16.40
27
56519-ZY3-A00Ships in 1 to 2 Daysqty 2 used
$5.90$8.08
28
56539-ZVL-000Ships in 1 to 2 Days
$80.21$109.88
29
90005-ZW9-030Ships in 1 to 2 Daysqty 7 used
$1.85$2.54
30
90101-ZX2-C00Ships in 1 to 2 Days
$2.85$3.90
31
90102-ZW9-000Ships in 1 to 2 Daysqty 4 used
$2.12$2.90
32
90105-ZVL-000Ships in 1 to 2 Days
$4.96$6.80
33
90105-ZVP-000Ships in 1 to 2 Daysqty 3 used
$4.32$5.92
34
90106-ZVP-000Ships in 1 to 2 Daysqty 2 used
$42.95$58.84
35
90106-ZY3-A00Ships in 1 to 2 Days
$1.04$1.42
36
90110-881-000Ships in 1 to 2 Days
$2.12$2.90
37
90113-ZY3-C00Ships in 1 to 2 Daysqty 2 used
$10.00$13.70
38
90124-ZV4-000Ships in 1 to 2 Daysqty 2 used
$2.12$2.90
39
90129-ZVL-000Ships in 1 to 2 Daysqty 6 used
$16.09$22.04
39
90129-ZVP-000Ships in 1 to 2 Daysqty 6 used
$23.45$32.12
39
90129-ZX2-000Ships in 1 to 2 Daysqty 6 used
$16.13$22.10
40
90205-ZY1-000Ships in 1 to 2 Daysqty 2 used
$4.76$6.52
41
90214-HW1-671Ships in 1 to 2 Daysqty 2 used
$3.08$4.22
42
90302-ZVP-000Ships in 1 to 2 Daysqty 2 used
$10.95$15.00
43
90304-ZV5-013Ships in 1 to 2 Days
$17.70$24.24
44
90306-ZW4-003Ships in 1 to 2 Days
$4.34$5.94
45
90501-ZY3-A00Ships in 1 to 2 Daysqty 2 used
$3.78$5.18
46
90502-ZV5-000Ships in 1 to 2 Daysqty 2 used
$8.72$11.94
47
90502-ZVP-000Ships in 1 to 2 Days
$7.61$10.42
48
90504-ZVP-000Ships in 1 to 2 Days
$4.19$5.74
49
90506-ZV4-000Ships in 1 to 2 Daysqty 2 used
$2.45$3.36
50
90509-ZY3-000Ships in 1 to 2 Days
$1.18$1.62
51
90511-921-000Ships in 1 to 2 Days
$0.86$1.18
52
90512-ZV4-000Ships in 1 to 2 Daysqty 2 used
$3.04$4.16
53
90552-ZV5-000Ships in 1 to 2 Daysqty 6 used
$4.67$6.40
54
90559-ZV5-000Ships in 1 to 2 Daysqty 14 used
$2.95$4.04
55
90651-ZVP-000Ships in 1 to 2 Days
$6.26$8.58
56
90951-ZV7-010Ships in 1 to 2 Daysqty 6 used
$1.90$2.60
57
91256-ZVP-003Ships in 1 to 2 Days
$15.15$20.76
58
91540-3A0-003Ships in 1 to 2 Days
$0.41$0.56
59
94001-12490-0SShips in 1 to 2 Daysqty 12 used
$1.90$2.60
60
94305-30203Ships in 1 to 2 Daysqty 2 used
$1.18$1.62
61
06411-ZVP-000Ships in 1 to 2 Days
$33.76
Diagram

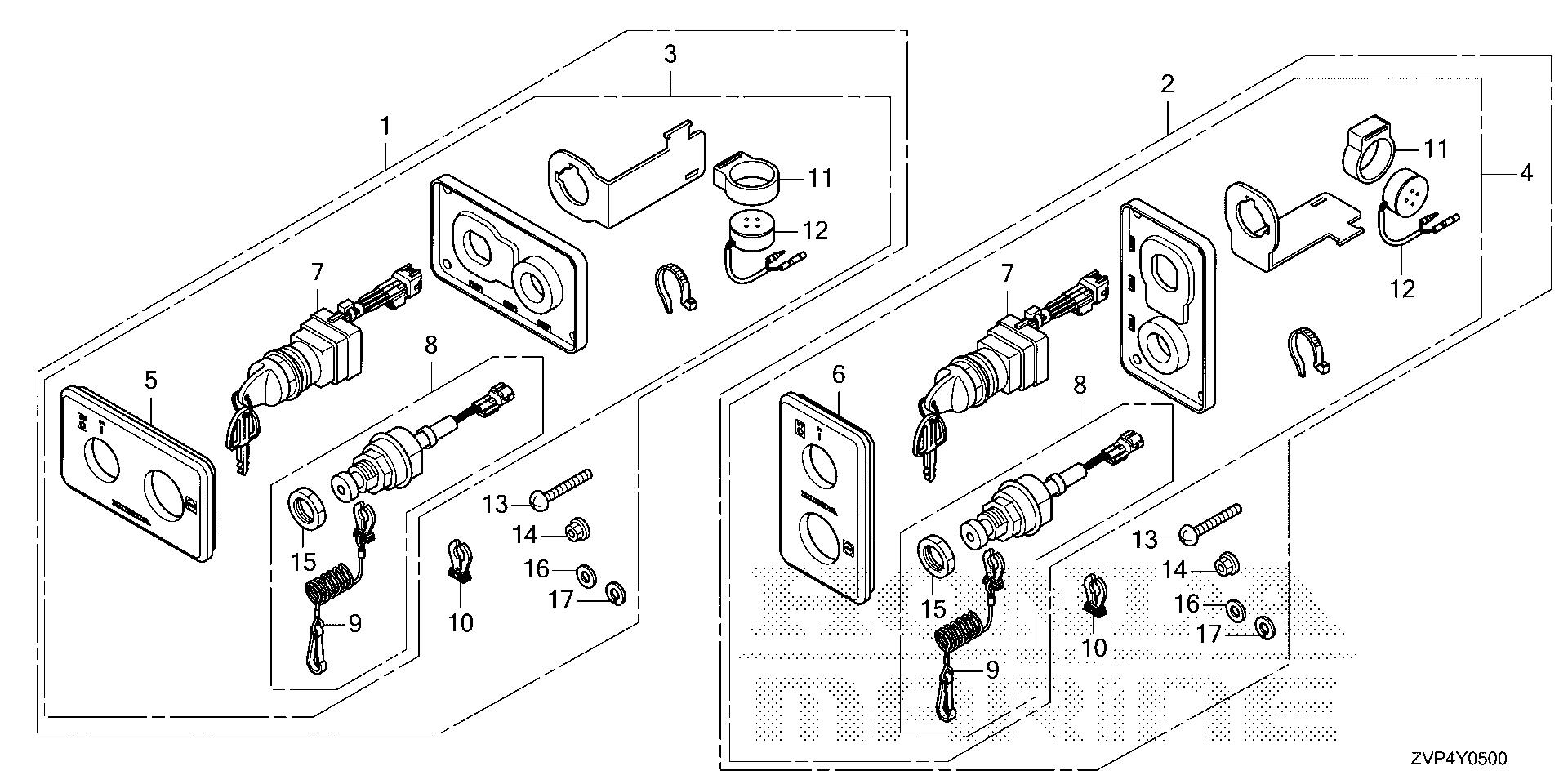

SWITCH PANEL KIT (DBW)

BF350 BF350A switch panel kit (dbw) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVP4Y0500
Fits all 4 submodels of this generation.

Parts in this assembly

25 parts
1
06323-ZVL-020Ships in 1 to 2 Daysreplaced by 06323-ZVL-812
$185.03$253.46
1
06323-ZVL-702Ships in 1 to 2 Daysreplaced by 06323-ZVL-722
$195.90$268.36
2
06323-ZVL-712Ships in 1 to 2 Days
$195.90$268.36
2
06323-ZVL-802Ships in 1 to 2 Days
$154.23$211.28
2
06323-ZVL-822Ships in 1 to 2 Days
$115.65$158.42
3
32380-ZVL-013Ships in 1 to 2 Days
$214.39$293.68
3
32380-ZVL-702Ships in 1 to 2 Days
$214.39$293.68
4
32380-ZVL-712Ships in 1 to 2 Days
$214.39$293.68
4
32380-ZVL-802Ships in 1 to 2 Days
$246.39$337.52
5
32386-ZVL-003Ships in 1 to 2 Days
$28.37$38.86
5
32386-ZVL-701Ships in 1 to 2 Days
$28.37$38.86
6
32386-ZVL-711Ships in 1 to 2 Days
$27.14$37.18
6
32386-ZVL-801Ships in 1 to 2 Days
$27.14$37.18
7
35100-ZVL-013Ships in 1 to 2 Days
$78.12$107.02
7
35100-ZVL-702Ships in 1 to 2 Days
$78.12$107.02
8
36180-ZVL-003Ships in 1 to 2 Days
$51.26$70.22
9
36182-ZY6-003Ships in 1 to 2 Days
$17.53$24.02
10
36187-ZY6-003Ships in 1 to 2 Days
$4.22$5.78
11
38402-GC1-000Ships in 1 to 2 Days
$6.23$8.54
12
38410-ZY9-A01Ships in 1 to 2 Days
$43.30$59.32
13
90109-ZW5-000Ships in 1 to 2 Daysqty 4 used
$1.20$1.64
14
90301-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$0.91$1.24
15
90302-ZY6-003Ships in 1 to 2 Days
$2.69$3.68
16
90501-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$1.59$2.18
17
90502-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$1.49$2.04
Diagram

SWITCH PANEL KIT (POWER TILT)

BF350 BF350A switch panel kit (power tilt) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVP4Y0600
Fits all 4 submodels of this generation.

Parts in this assembly

12 parts
1
06325-ZVL-010Ships in 1 to 2 Days
$125.97$172.56
2
06325-ZVL-601Ships in 1 to 2 Days
$234.62$321.40
3
32320-ZVL-003Ships in 1 to 2 Days
$150.88$206.68
4
32320-ZVL-601Ships in 1 to 2 Days
$208.49$285.60
5
32326-ZVL-003Ships in 1 to 2 Days
$57.85$79.24
6
32326-ZVL-601Ships in 1 to 2 Days
$55.35$75.82
7
35640-ZVL-003Ships in 1 to 2 Daysqty 3 used
$45.25$61.98
8
90109-ZW5-000Ships in 1 to 2 Daysqty 4 used
$1.20$1.64
9
90301-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$0.91$1.24
10
90501-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$1.59$2.18
11
90502-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$1.49$2.04
12
35640-ZVL-003Ships in 1 to 2 Daysqty 2 used
$45.25$61.98
Diagram

SWITCH PANEL KIT (START STOP)

BF350 BF350A switch panel kit (start stop) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVP4Y0601
Fits all 4 submodels of this generation.

Parts in this assembly

16 parts
1
06324-ZVL-020Ships in 1 to 2 Days
$100.61$137.82
1
06324-ZVL-601Ships in 1 to 2 Days
$100.61$137.82
2
06324-ZVL-702Ships in 1 to 2 Days
$138.61$189.88
3
06324-ZVL-802Ships in 1 to 2 Days
$244.10$334.38
4
32340-ZVL-003Ships in 1 to 2 Days
$65.71$90.02
4
32340-ZVL-601Ships in 1 to 2 Days
$65.71$90.02
5
32340-ZVL-701Ships in 1 to 2 Days
$147.87$202.56
6
32340-ZVL-801Ships in 1 to 2 Days
$230.04$315.12
7
32344-ZVL-701Ships in 1 to 2 Days
$43.45$59.52
8
32344-ZVL-801Ships in 1 to 2 Days
$55.51$76.04
9
32346-ZVL-003Ships in 1 to 2 Days
$27.52$37.70
9
32346-ZVL-601Ships in 1 to 2 Days
$27.26$37.34
10
90109-ZW5-000Ships in 1 to 2 Daysqty 4 used
$1.20$1.64
11
90301-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$0.91$1.24
12
90501-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$1.59$2.18
13
90502-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$1.49$2.04
Diagram

THROTTLE BODY

BF350 BF350A throttle body exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVP4E1500
Fits all 4 submodels of this generation.

Parts in this assembly

17 parts
1
16400-ZVT-003Ships in 1 to 2 Daysqty 2 used
$770.50$1,055.48
2
16406-ZVP-000Ships in 1 to 2 Days
$27.07$37.08
3
17249-PY3-000Ships in 1 to 2 Daysqty 2 used
$9.43$12.92
4
17315-ZY9-M01Ships in 1 to 2 Daysqty 2 used
$11.83$16.20
5
17374-ZY6-000Ships in 1 to 2 Daysqty 2 used
$23.27$31.88
6
19540-ZVP-000Ships in 1 to 2 Days
$198.05$271.32
7
19552-ZVP-000Ships in 1 to 2 Days
$15.59$21.36
8
37880-RE1-Z01Ships in 1 to 2 Days
$34.43$47.16
9
37881-P2A-000Ships in 1 to 2 Days
$5.20$7.12
10
40102-ZV5-000Ships in 1 to 2 Daysqty 4 used
$2.64$3.62
11
83551-376-000Ships in 1 to 2 Days
$2.91$3.98
12
90010-ZVL-010Ships in 1 to 2 Daysqty 8 used
$1.31$1.80
13
90013-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$2.45$3.36
14
90068-ZZ5-M01Ships in 1 to 2 Days
$1.31$1.80
15
90072-ZVL-010Ships in 1 to 2 Daysqty 2 used
$4.60$6.30
16
90503-ZZ5-M01Ships in 1 to 2 Days
$1.49$2.04
17
91551-ZVL-010Ships in 1 to 2 Daysqty 4 used
$2.23$3.06
Diagram

TIMING BELT

BF350 BF350A timing belt exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVP4E1300
Fits all 4 submodels of this generation.

Parts in this assembly

28 parts
1
13621-ZY3-C01Ships in 1 to 2 Days
$57.83$79.22
2
13622-ZVL-B10Ships in 1 to 2 Days
$26.65$36.50
2
13622-ZVL-000Ships in 1 to 2 Daysreplaced by 13622-ZVL-B10
$26.65$36.50
3
13811-ZVP-000Ships in 1 to 2 Days
$88.81$121.66
4
14221-ZVP-000Ships in 1 to 2 Days
$15.26$20.90
5
14261-ZVP-000Ships in 1 to 2 Days
$55.49$76.02
6
14271-ZVP-000Ships in 1 to 2 Days
$55.49$76.02
7
14400-ZVP-003Ships in 1 to 2 Days
$102.16$139.94
8
14510-ZY3-013Ships in 1 to 2 Days
$110.08$150.80
9
14515-ZY3-000In Stockqty 3 used
$3.93$5.38
10
14520-ZY3-000Ships in 1 to 2 Days
$4.96$6.80
11
BASE, TIMING BELT TENSIONER
14526-ZVP-000Ships in 1 to 2 Days
$83.63$114.56
12
GASKET, TIMING BELT TENSIONER BASE
14529-ZVP-000Ships in 1 to 2 Days
$8.02$10.98
13
14550-ZY3-003Ships in 1 to 2 Days
$98.84$135.40
14
14551-P8A-A01Ships in 1 to 2 Days
$13.37$18.32
15
14553-ZVL-023Ships in 1 to 2 Days
$9.01$12.34
16
14555-ZY3-003Ships in 1 to 2 Days
$76.12$104.28
17
19511-ZX2-000Ships in 1 to 2 Days
$45.22$61.94
18
31638-ZY3-003Ships in 1 to 2 Days
$30.89$42.32
19
90012-ZZ5-M02Ships in 1 to 2 Days
$3.72$5.10
20
90016-ZVL-000Ships in 1 to 2 Days
$1.49$2.04
21
90017-RJA-003Ships in 1 to 2 Days
$45.39$62.20
22
90017-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$1.24$1.70
23
90030-ZZ5-M01Ships in 1 to 2 Daysqty 5 used
$1.31$1.80
24
90031-P8A-A01Ships in 1 to 2 Daysqty 2 used
$20.98$28.74
25
90039-ZVL-010Ships in 1 to 2 Daysqty 3 used
$1.37$1.88
26
90704-RCA-A00Ships in 1 to 2 Days
$8.37$11.46
27
90741-ZY3-000Ships in 1 to 2 Daysqty 2 used
$3.40$4.66
Diagram

TIMING BELT COVER

BF350 BF350A timing belt cover exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVP4E1310
Fits all 4 submodels of this generation.

Parts in this assembly

11 parts
1
11812-P8A-A00Ships in 1 to 2 Daysqty 2 used
$9.08$12.44
2
COVER ASSY., R. TIMING BELT
11820-ZVP-000Ships in 1 to 2 Days
$30.53$41.82
3
COVER ASSY., L. TIMING BELT
11840-ZVP-000Ships in 1 to 2 Days
$29.51$40.42
4
11861-ZVP-000Ships in 1 to 2 Days
$83.04$113.78
5
35695-ZY9-003Ships in 1 to 2 Daysqty 2 used
$90.21$123.58
6
90007-ZVL-010Ships in 1 to 2 Daysqty 4 used
$2.91$3.98
7
90014-ZZ5-M01Ships in 1 to 2 Daysqty 3 used
$1.87$2.56
8
90017-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.24$1.70
9
91333-PNA-003Ships in 1 to 2 Daysqty 2 used
$3.02$4.14
10
91508-ZVL-000Ships in 1 to 2 Daysqty 2 used
$5.21$7.14
11
94301-08100Ships in 1 to 2 Daysqty 2 used
$2.74$3.76
Diagram

TOOL

BF350 BF350A tool exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVP4F1300
Fits all 4 submodels of this generation.

Parts in this assembly

12 parts
1
HANGER, ENGINE
11911-ZVP-000Ships in 1 to 2 Days
$74.56$102.14
2
HANGER, R. ENGINE
11912-ZVP-000Ships in 1 to 2 Days
$65.80$90.14
3
HANGER, L. ENGINE
11913-ZVP-000Ships in 1 to 2 Days
$67.57$92.56
4
89211-HE0-670Ships in 1 to 2 Days
$7.10$9.72
5
89216-ZVP-000Ships in 1 to 2 Days
$13.15$18.02
6
89217-355-000Ships in 1 to 2 Days
$9.83$13.46
7
89221-371-000Ships in 1 to 2 Days
$4.19$5.74
8
BOLT, FLANGE (10X30)
95701-10030-08Ships in 1 to 2 Days
$2.42$3.32
9
BOLT, FLANGE (10X150)
95701-10150-08Ships in 1 to 2 Daysqty 2 used
$6.89$9.44
10
99003-10000Ships in 1 to 2 Days
$3.81$5.22
11
99003-50000Ships in 1 to 2 Days
$4.96$6.80
12
BAG, TOOL (200MM)
99008-02000No Longer Available
—
Diagram

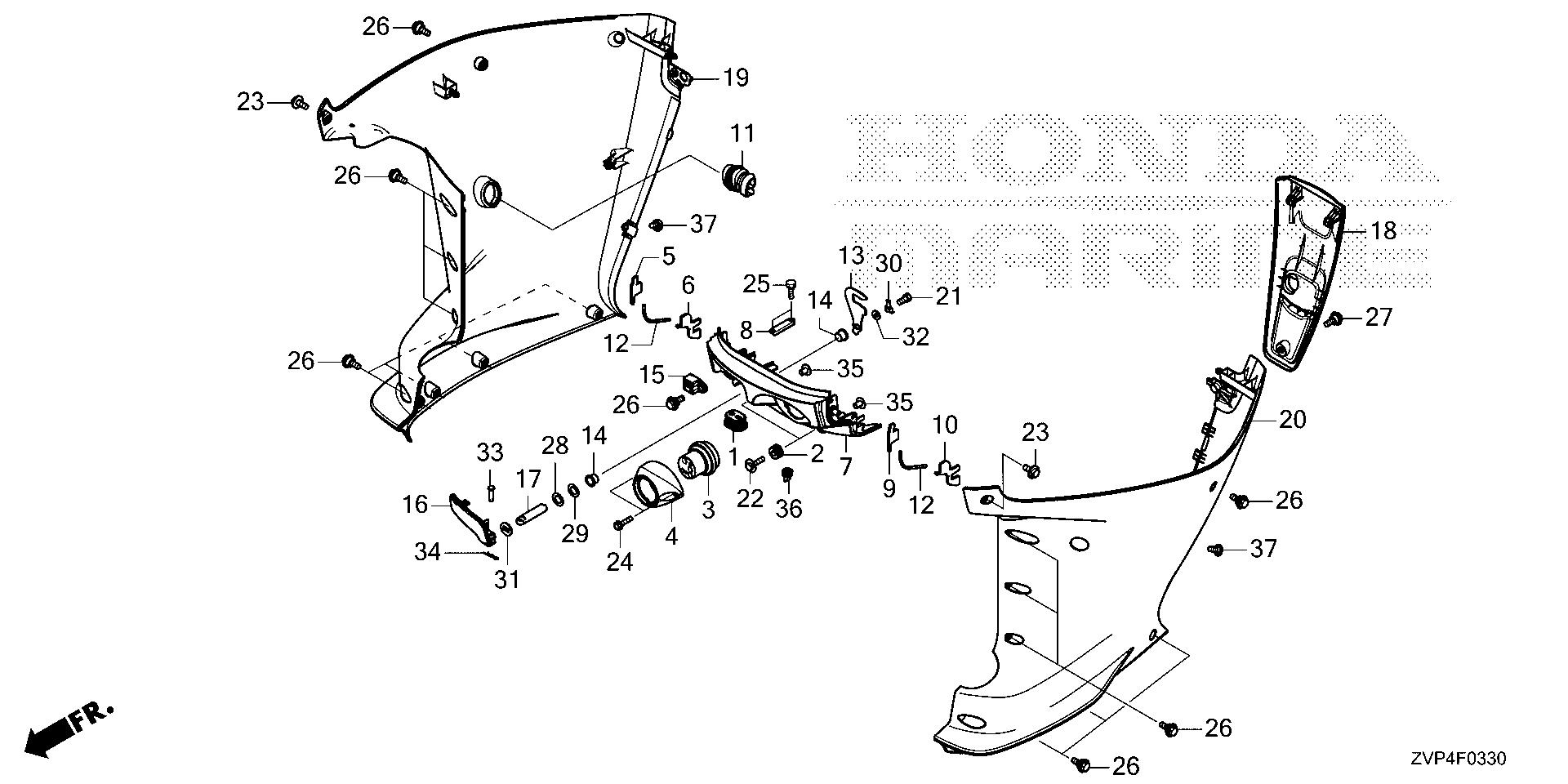

UNDER COVER

BF350 BF350A under cover exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVP4F0330
Fits all 4 submodels of this generation.

Parts in this assembly

41 parts
1
35664-ZVP-000Ships in 1 to 2 Days
$8.98$12.30
2
40102-ZV5-000Ships in 1 to 2 Daysqty 2 used
$2.64$3.62
3
40105-ZVP-000Ships in 1 to 2 Days
$17.75$24.32
4
40151-ZVL-000Ships in 1 to 2 Days
$55.71$76.32
5
40152-ZVP-000Ships in 1 to 2 Days
$2.88$3.94
6
40153-ZVP-000Ships in 1 to 2 Days
$4.54$6.22
7
$266.25$364.76
7
$266.25$364.76
8
40155-ZVP-000Ships in 1 to 2 Days
$4.82$6.60
9
40156-ZVP-000Ships in 1 to 2 Days
$2.88$3.94
10
40159-ZVP-000Ships in 1 to 2 Days
$4.54$6.22
11
40209-ZVP-000Ships in 1 to 2 Days
$13.96$19.12
12
63146-ZVP-000Ships in 1 to 2 Daysqty 2 used
$2.99$4.10
13
63202-ZVP-000Ships in 1 to 2 Days
$21.75$29.80
14
63205-920-000Ships in 1 to 2 Daysqty 2 used
$4.53$6.20
15
63209-ZVP-000Ships in 1 to 2 Days
$9.24$12.66
16
$31.13$42.64
16
$31.13$42.64
17
63214-ZVP-000Ships in 1 to 2 Days
$21.65$29.66
18
63320-ZVP-000ZBShips in 1 to 2 Days
$191.95$262.94
19
63711-ZVP-000ZAShips in 1 to 2 Days
$357.61$489.88
19
$357.61$489.88
20
63716-ZVP-000ZAShips in 1 to 2 Days
$357.61$489.88
20
$357.61$489.88
21
90105-881-000Ships in 1 to 2 Days
$2.12$2.90
22
90105-ZY9-000Ships in 1 to 2 Daysqty 2 used
$2.73$3.74
23
90108-ZVP-000Ships in 1 to 2 Daysqty 2 used
$2.35$3.22
24
90109-ZVL-000Ships in 1 to 2 Daysqty 2 used
$1.62$2.22
25
90110-881-000Ships in 1 to 2 Daysqty 2 used
$2.12$2.90
26
90111-ZY3-000In Stockqty 16 used
$2.12$2.90
27
90117-ZVP-000Ships in 1 to 2 Days
$1.33$1.82
28
90503-ZVP-000Ships in 1 to 2 Days
$1.74$2.38
29
90505-ZV1-000In Stock
$2.44$3.34
30
90505-ZV4-000Ships in 1 to 2 Days
$2.98$4.08
31
90508-ZVP-000Ships in 1 to 2 Days
$3.83$5.24
32
90512-ZV4-000Ships in 1 to 2 Days
$3.04$4.16
33
90756-ZVP-000Ships in 1 to 2 Days
$4.15$5.68
34
90757-ZVD-000Ships in 1 to 2 Days
$1.07$1.46
35
91551-ZVL-010Ships in 1 to 2 Daysqty 2 used
$2.23$3.06
36
91601-ZZ0-M00Ships in 1 to 2 Days
$5.21$7.14
37
90133-KPP-T00Ships in 1 to 2 Daysqty 2 used
$1.17$1.60
Diagram

VAPOR SEPARATOR

BF350 BF350A vapor separator exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVP4E1800
Fits all 4 submodels of this generation.

Parts in this assembly

29 parts
1
16011-ZVP-003Ships in 1 to 2 Days
$46.24$63.34
2
16013-ZVP-003Ships in 1 to 2 Days
$75.04$102.80
3
16014-ZVP-003Ships in 1 to 2 Days
$72.55$99.38
4
16019-ZVP-003Ships in 1 to 2 Days
$355.39$486.84
5
16020-ZVP-003Ships in 1 to 2 Days
$392.86$538.16
6
16024-ZVP-003Ships in 1 to 2 Days
$13.53$18.54
7
16030-ZVP-003Ships in 1 to 2 Days
$986.14$1,350.88
8
16061-ZVP-003Ships in 1 to 2 Days
$101.44$138.96
9
16063-ZVP-003Ships in 1 to 2 Days
$53.39$73.14
10
16072-ZVP-003Ships in 1 to 2 Days
$8.51$11.66
11
16073-ZVP-003Ships in 1 to 2 Days
$10.82$14.82
12
16081-ZVP-003Ships in 1 to 2 Daysqty 8 used
$5.45$7.46
13
16082-ZVP-003Ships in 1 to 2 Daysqty 6 used
$5.58$7.64
14
16111-ZVP-003Ships in 1 to 2 Days
$2.79$3.82
15
16380-ZVP-003Ships in 1 to 2 Days
$89.03$121.96
16
16700-ZVL-003Ships in 1 to 2 Days
$426.87$584.76
↳
Sierra alternative ·
18-97300In Stock save $12.25
$414.62
17
16710-ZVL-000Ships in 1 to 2 Daysqty 2 used
$5.99$8.20
18
16730-ZVP-003Ships in 1 to 2 Days
$1,612.31$2,208.64
19
16731-ZVP-003Ships in 1 to 2 Days
$6.67$9.14
20
16732-ZVP-003Ships in 1 to 2 Days
$21.56$29.54
21
16733-ZW5-000Ships in 1 to 2 Days
$6.64$9.10
22
16733-ZY3-000Ships in 1 to 2 Daysqty 2 used
$6.03$8.26
23
16735-ZVP-003Ships in 1 to 2 Days
$917.27$1,256.54
24
16737-ZVP-000Ships in 1 to 2 Days
$30.13$41.28
25
16740-ZVP-003Ships in 1 to 2 Days
$90.14$123.48
26
16896-ZY9-003Ships in 1 to 2 Days
$2.80$3.84
27
90007-ZVL-010Ships in 1 to 2 Daysqty 3 used
$2.91$3.98
28
90014-ZY9-M01Ships in 1 to 2 Daysqty 3 used
$2.73$3.74
29
91504-ZY9-M03Ships in 1 to 2 Daysqty 3 used
$5.65$7.74
Diagram

WATER JACKET COVER

BF350 BF350A water jacket cover exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVP4E0400
Fits all 4 submodels of this generation.

Parts in this assembly

43 parts
1
16896-ZY9-003Ships in 1 to 2 Days
$2.80$3.84
2
16959-MY1-000Ships in 1 to 2 Daysqty 3 used
$17.30$23.70
3
17202-ZY9-M01Ships in 1 to 2 Daysqty 2 used
$2.28$3.12
4
19257-ZVP-000Ships in 1 to 2 Days
$14.40$19.72
5
19259-ZVP-000Ships in 1 to 2 Days
$6.67$9.14
6
19261-ZVP-000Ships in 1 to 2 Days
$9.24$12.66
7
19262-ZVP-000Ships in 1 to 2 Days
$5.17$7.08
8
19263-ZVP-000Ships in 1 to 2 Days
$7.93$10.86
9
19268-ZVP-000Ships in 1 to 2 Days
$6.31$8.64
10
19269-ZVP-000Ships in 1 to 2 Days
$7.04$9.64
11
19271-ZVP-000Ships in 1 to 2 Days
$5.85$8.02
12
19272-ZVP-000Ships in 1 to 2 Days
$8.04$11.02
13
19275-ZVP-000Ships in 1 to 2 Days
$2.13$2.92
14
19277-ZVP-000Ships in 1 to 2 Days
$2.41$3.30
15
19300-ZVP-003Ships in 1 to 2 Daysqty 2 used
$70.96$97.20
16
19300-ZY3-023In Stock
$36.85$50.48
17
19303-ZW9-003In Stockqty 2 used
$5.30$7.26
18
19303-ZX2-003Ships in 1 to 2 Daysqty 2 used
$6.69$9.16
19
19315-ZVP-000Ships in 1 to 2 Daysqty 2 used
$20.53$28.12
20
19316-ZVP-000Ships in 1 to 2 Daysqty 2 used
$4.26$5.84
21
19317-ZVP-000Ships in 1 to 2 Daysqty 2 used
$26.21$35.90
22
19318-ZVP-003Ships in 1 to 2 Daysqty 2 used
$6.42$8.80
23
19330-ZVP-000Ships in 1 to 2 Daysqty 2 used
$29.36
24
19331-ZVP-003Ships in 1 to 2 Daysqty 2 used
$6.42$8.80
25
19361-ZVP-000Ships in 1 to 2 Daysqty 2 used
$68.56$93.92
26
19363-ZVP-003Ships in 1 to 2 Daysqty 2 used
$17.23$23.60
27
19365-ZVP-000Ships in 1 to 2 Days
$51.39$70.40
28
19366-ZVP-003Ships in 1 to 2 Days
$10.86$14.88
29
19381-ZZ5-M00Ships in 1 to 2 Daysqty 4 used
$22.82$31.26
30
19518-MN5-010Ships in 1 to 2 Days
$8.69$11.90
31
32111-ZVP-000Ships in 1 to 2 Days
$9.34$12.80
32
90002-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.46$2.00
33
90014-ZZ5-M01Ships in 1 to 2 Daysqty 6 used
$1.87$2.56
34
90018-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$1.37$1.88
35
90030-ZZ5-M01Ships in 1 to 2 Daysqty 38 used
$1.31$1.80
36
90032-ZZ5-M01Ships in 1 to 2 Daysqty 8 used
$1.62$2.22
37
90601-ZY3-030Ships in 1 to 2 Daysqty 13 used
$1.66$2.28
38
90602-ZVD-000Ships in 1 to 2 Days
$0.96$1.32
39
90604-ZV0-000Ships in 1 to 2 Daysqty 8 used
$1.37$1.88
40
90651-V43-003Ships in 1 to 2 Daysqty 4 used
$2.42$3.32
41
91302-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$2.38$3.26
42
19267-ZVP-000Ships in 1 to 2 Days
$2.79$3.82
43
90601-ZVL-000In Stockqty 2 used
$1.53$2.10
Diagram

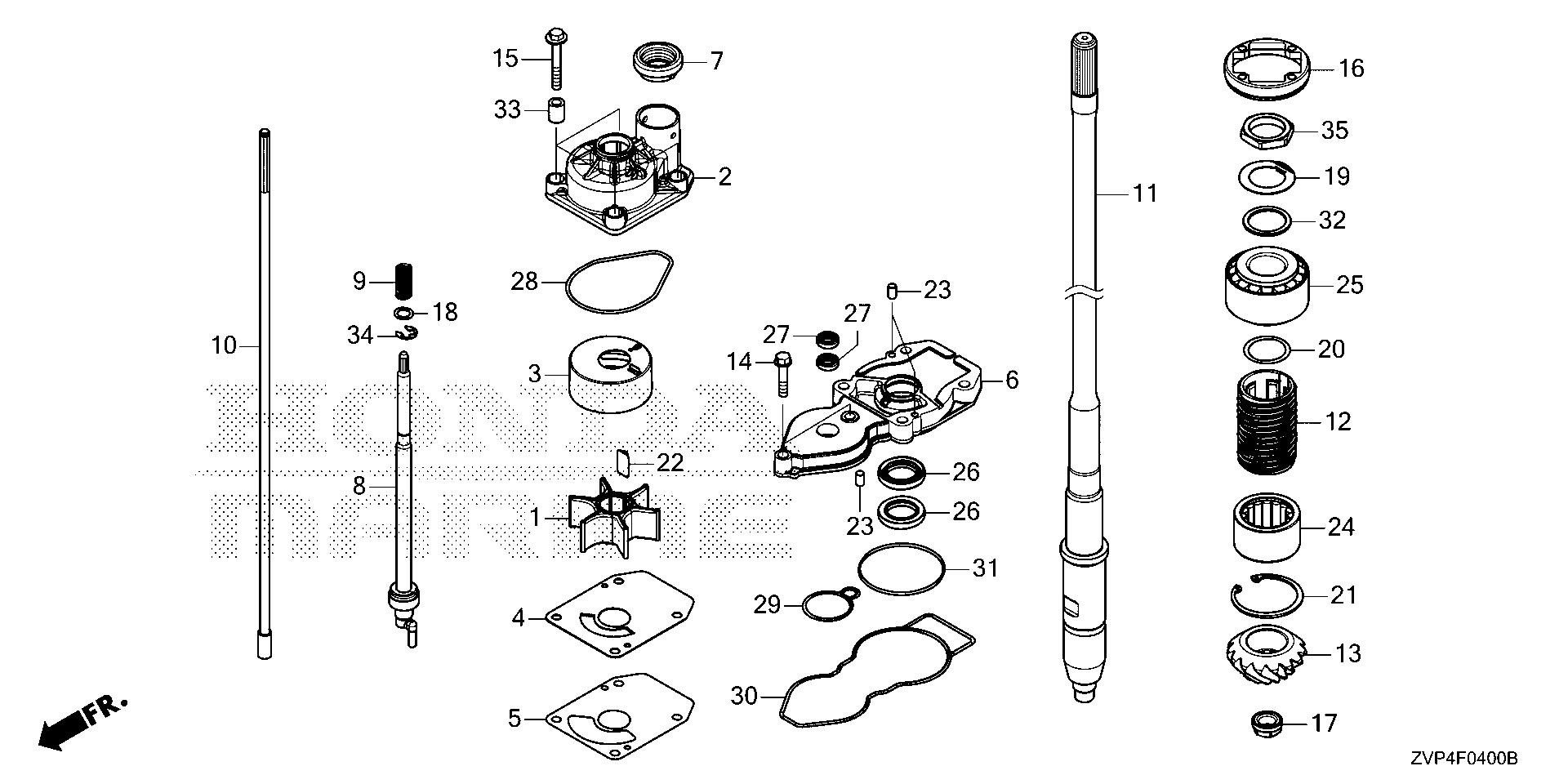

WATER PUMP - VERTICAL SHAFT

BF350 BF350A water pump - vertical shaft exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVP4F0400B
Fits all 4 submodels of this generation.

Parts in this assembly

42 parts
1
19210-ZVP-003Ships in 1 to 2 Days
$36.24$49.64
2
19221-ZVP-000Ships in 1 to 2 Days
$29.46$40.36
3
19223-ZVP-000Ships in 1 to 2 Days
$35.99$49.30
4
19231-ZVP-000Ships in 1 to 2 Days
$11.13$15.24
5
19234-ZVP-000Ships in 1 to 2 Days
$4.03$5.52
6
19241-ZVP-000Ships in 1 to 2 Days
$90.01$123.30
7
19253-ZVP-000Ships in 1 to 2 Days
$4.51$6.18
8
24310-ZY3-C00Ships in 1 to 2 Days
$162.88$223.12
8
24310-ZY3-E00Ships in 1 to 2 Days
$162.88$223.12
9
24318-ZVP-000Ships in 1 to 2 Days
$2.50$3.42
10
24320-ZY3-A20Ships in 1 to 2 Days
$141.69$194.10
10
24320-ZY6-610Ships in 1 to 2 Days
$85.10$116.58
11
41112-ZVP-000Ships in 1 to 2 Days
$587.24$804.44
11
41112-ZVP-601Ships in 1 to 2 Days
$667.18$913.94
11
41112-ZVP-602Ships in 1 to 2 Days
$667.18$913.94
12
41116-ZVP-000Ships in 1 to 2 Days
$17.46$23.92
13
41131-ZVP-000Ships in 1 to 2 Days
$389.28$533.26
14
90104-ZVP-000Ships in 1 to 2 Daysqty 2 used
$3.66$5.02
15
90105-ZX2-C00In Stockqty 4 used
$8.40$11.50
16
90301-ZVP-000Ships in 1 to 2 Days
$18.02$24.68
17
90303-ZVP-000Ships in 1 to 2 Days
$11.15$15.28
18
90472-723-000Ships in 1 to 2 Days
$1.43$1.96
19
90501-ZVP-000Ships in 1 to 2 Days
$4.03$5.52
20
90518-ZVP-000Ships in 1 to 2 Days
$5.81$7.96
20
90519-ZVP-000Ships in 1 to 2 Days
$5.81$7.96
20
90520-ZVP-000Ships in 1 to 2 Days
$5.81$7.96
20
90521-ZVP-000Ships in 1 to 2 Days
$5.81$7.96
21
90652-ZVP-000Ships in 1 to 2 Days
$3.21$4.40
22
90752-ZVP-000Ships in 1 to 2 Days
$23.42$32.08
23
90756-ZVL-000Ships in 1 to 2 Daysqty 3 used
$1.20$1.64
24
91053-ZVP-003Ships in 1 to 2 Days
$183.13$250.88
25
91056-ZVP-003Ships in 1 to 2 Days
$209.52$287.02
26
91252-ZZ3-003In Stockqty 2 used
$6.63$9.08
27
91254-ZY3-003Ships in 1 to 2 Daysqty 2 used
$4.53$6.20
28
91356-ZY3-003Ships in 1 to 2 Days
$7.37$10.10
29
91357-ZVP-000Ships in 1 to 2 Days
$3.18$4.36
30
91358-ZVP-000Ships in 1 to 2 Days
$6.91$9.46
31
91359-ZVP-000Ships in 1 to 2 Days
$4.32$5.92
32
91551-ZVP-000Ships in 1 to 2 Days
$4.23$5.80
33
91551-ZY3-000Ships in 1 to 2 Daysqty 4 used
$2.12$2.90
34
94540-10019Ships in 1 to 2 Days
$2.83$3.88
35
90204-RE5-000Ships in 1 to 2 Days
$12.07$16.54
Diagram

WIRE HARNESS

BF350 BF350A wire harness exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVP4F0700A
Fits all 4 submodels of this generation.

Parts in this assembly

17 parts
1
32100-ZVP-000Ships in 1 to 2 Days
$617.30$845.62
1
32100-ZVP-010Ships in 1 to 2 Days
$565.22$774.28
2
32107-ZVL-003Ships in 1 to 2 Days
$10.47$14.34
3
32127-ZZ3-000Ships in 1 to 2 Days
$4.04$5.54
4
32146-S84-003Ships in 1 to 2 Days
$17.04$23.34
5
32606-K44-V01Ships in 1 to 2 Days
$6.51$8.92
6
38206-V15-003Ships in 1 to 2 Days
$1.78$2.44
7
38216-Z2E-003Ships in 1 to 2 Daysqty 2 used
$5.85$8.02
8
87117-Z2E-000Ships in 1 to 2 Days
$1.66$2.28
9
87117-Z5T-W00Ships in 1 to 2 Days
$1.18$1.62
10
90105-ZZ5-M00Ships in 1 to 2 Daysqty 7 used
$1.10$1.50
11
90683-ZX2-003Ships in 1 to 2 Days
$5.80$7.94
12
91540-S30-003Ships in 1 to 2 Daysqty 9 used
$3.14$4.30
13
91540-S7S-003Ships in 1 to 2 Days
$5.33$7.30
14
91541-S0A-003Ships in 1 to 2 Daysqty 5 used
$3.64$4.98
15
98200-40750Ships in 1 to 2 Days
$1.11$1.52
16
90683-SA0-003Ships in 1 to 2 Days
$9.11$12.48
Diagrams are Honda's official OEM illustrations, served from Honda's asset host. Prices are our own; where a struck-through figure appears beside one it is Honda's suggested retail. “In Stock” means the part is on our shelf here at Boe Marine. “Ships in 1 to 2 Days” means we order it in from Honda, who still supply it. Parts marked “No Longer Available” are shown so the drawing stays complete, but Honda has discontinued them. Where a Sierra replacement is listed beneath a Honda part, Sierra ships it direct to you; “Backorder Now” on one of those means Sierra has none at the moment and will ship it once restocked.
