BF2 — Parts Diagrams

Generation BF2DK0  ·  3 submodels

Assemblies (22)

Diagram

AIR GUIDE

BF2 BF2DK0 air guide exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW68E1500A
Fits all 3 submodels of this generation.

Parts in this assembly

12 parts
1
15721-ZVA-000Ships in 1 to 2 Days
$2.45$3.36
2
16202-ZVA-000Ships in 1 to 2 Days
$1.90$2.60
3
17201-ZVA-000Ships in 1 to 2 Days
$32.62$44.68
4
17202-ZVA-300Ships in 1 to 2 Daysqty 3 used
$1.71$2.34
5
17204-ZVA-300Ships in 1 to 2 Days
$1.75$2.40
6
17371-ZVA-000Ships in 1 to 2 Days
$27.94$38.28
7
17374-ZVA-000Ships in 1 to 2 Days
$3.21$4.40
8
17375-ZVA-000Ships in 1 to 2 Days
$2.51$3.44
9
90002-ZVA-000Ships in 1 to 2 Days
$7.27$9.96
10
90005-ZVA-000Ships in 1 to 2 Days
$2.73$3.74
11
90049-ZY6-030Ships in 1 to 2 Daysqty 2 used
$2.12$2.90
12
17201-ZVA-000Ships in 1 to 2 Days
$32.62$44.68
Diagram

CAMSHAFT

BF2 BF2DK0 camshaft exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW68E0900
Fits all 3 submodels of this generation.

Parts in this assembly

18 parts
1
12209-ZM7-003Ships in 1 to 2 Days
$6.38$8.74
2
14111-ZM7-000Ships in 1 to 2 Days
$11.84$16.22
3
14126-Z0G-003Ships in 1 to 2 Daysqty 2 used
$1.15$1.58
4
14410-ZM7-000Ships in 1 to 2 Daysqty 2 used
$4.15$5.68
5
14431-ZM7-000Ships in 1 to 2 Daysqty 2 used
$10.69$14.64
6
14435-ZM7-003Ships in 1 to 2 Days
$1.15$1.58
7
14451-ZM7-000Ships in 1 to 2 Daysqty 2 used
$2.64$3.62
8
14711-ZW6-000Ships in 1 to 2 Days
$12.13$16.62
9
14721-ZW6-000Ships in 1 to 2 Days
$15.36$21.04
10
14731-ZM7-013Ships in 1 to 2 Daysqty 2 used
$5.59$7.66
11
14751-ZM7-000Ships in 1 to 2 Daysqty 2 used
$1.33$1.82
12
14754-ZM7-000Ships in 1 to 2 Days
$1.65$2.26
13
14771-ZDF-000Ships in 1 to 2 Daysqty 2 used
$0.92$1.26
14
15361-ZN4-000Ships in 1 to 2 Days
$4.53$6.20
15
90206-KM3-000Ships in 1 to 2 Daysqty 2 used
$1.24$1.70
16
90401-ZVA-000Ships in 1 to 2 Days
$1.59$2.18
17
91151-VB5-800Ships in 1 to 2 Days
$1.42$1.94
18
93404-05016-08Ships in 1 to 2 Days
$1.61$2.20
Diagram

CARBURETOR

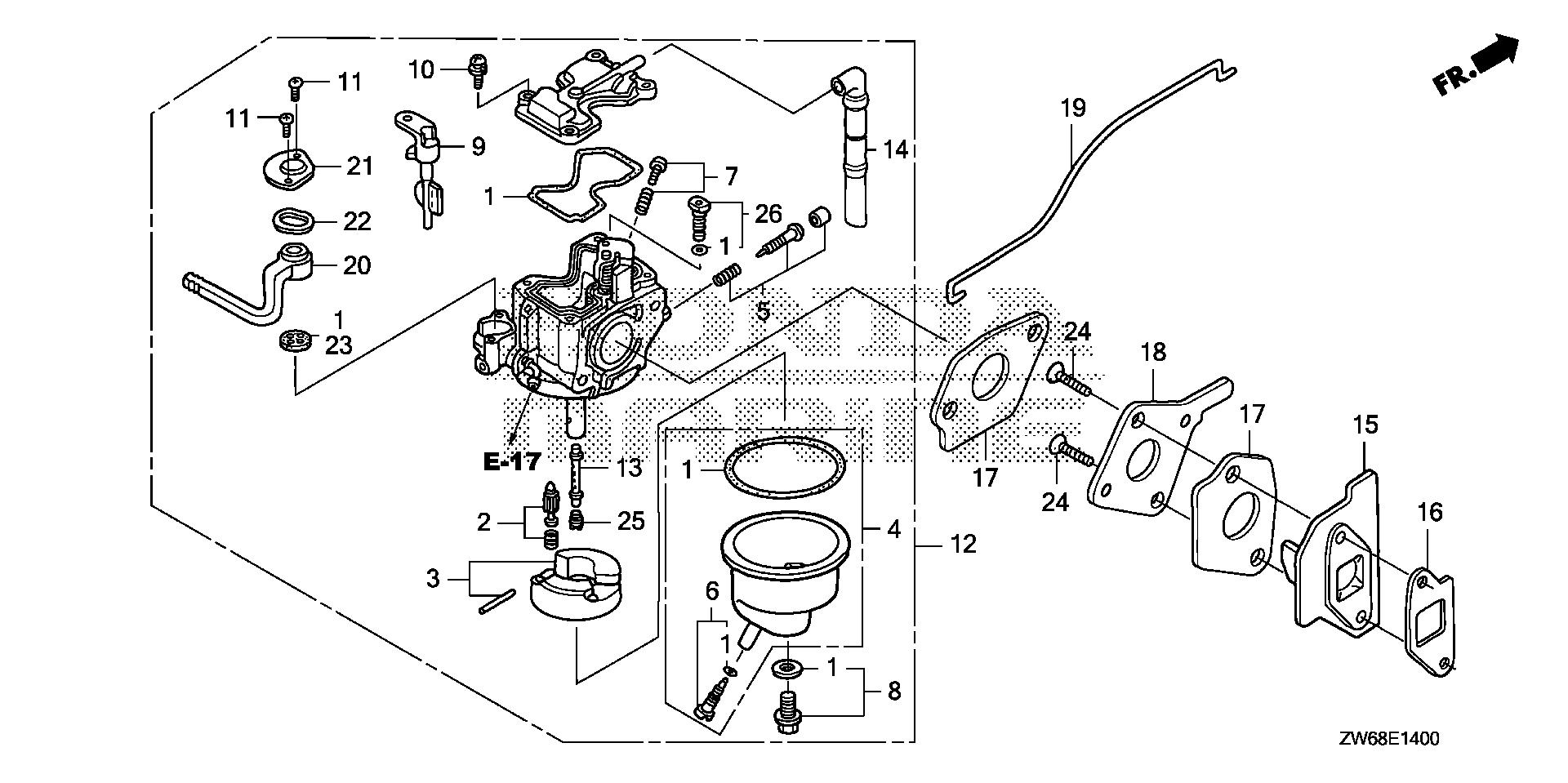

BF2 BF2DK0 carburetor exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW68E1400
Fits all 3 submodels of this generation.

Parts in this assembly

31 parts
1
16010-ZW6-611Ships in 1 to 2 Days
$12.45$17.06
2
16011-ZE0-005Ships in 1 to 2 Days
$21.42$29.34
3
16013-ZDJ-801Ships in 1 to 2 Days
$4.44$6.08
3
16013-ZG0-811Ships in 1 to 2 Daysreplaced by 16013-ZDJ-801
$4.44$6.08
4
16015-ZW6-G02Ships in 1 to 2 Days
$30.40$41.64
5
16016-ZW6-621Ships in 1 to 2 Days
$10.42$14.72
6
16024-ZB9-005In Stock
$7.26$9.94
6
16024-ZW6-013Ships in 1 to 2 Days
$9.88$13.54
7
16028-ZW6-003Ships in 1 to 2 Days
$10.18$13.94
8
16028-ZW6-611Ships in 1 to 2 Days
$10.86$14.88
9
16044-ZV0-A01Ships in 1 to 2 Days
$26.28$36.00
10
16081-ZV1-A00Ships in 1 to 2 Daysqty 4 used
$1.74$2.38
11
16082-ZW6-003Ships in 1 to 2 Daysqty 2 used
$0.61$0.84
12
16100-ZW6-G01Ships in 1 to 2 Days
$100.66$103.68
13
16166-ZW6-G01Ships in 1 to 2 Days
$14.89$20.40
14
16195-ZW6-000Ships in 1 to 2 Days
$7.59$10.72
15
16211-ZN4-000Ships in 1 to 2 Days
$6.99$9.58
16
16212-ZM7-000Ships in 1 to 2 Days
$1.66$2.28
17
16221-ZVA-000In Stockqty 2 used
$1.02$1.40
18
16225-ZVA-000Ships in 1 to 2 Days
$9.55$13.08
19
16674-ZW6-000Ships in 1 to 2 Daysreplaced by 16674-ZVA-000
$6.15$8.42
20
16953-ZW6-003Ships in 1 to 2 Days
$7.24$9.92
21
16954-ZW6-003Ships in 1 to 2 Days
$4.70$6.44
22
16956-ZE1-811Ships in 1 to 2 Days
$3.04$4.16
23
16957-ZE1-812Ships in 1 to 2 Days
$3.10$4.24
24
90012-ZVA-000Ships in 1 to 2 Daysqty 2 used
$0.70$0.96
25
99101-ZG0-0550Ships in 1 to 2 Days
$7.77$10.64
25
99101-ZG0-0580Ships in 1 to 2 Days
$6.38$8.74
25
99101-ZG0-0600Ships in 1 to 2 Days
$7.14$9.78
25
99101-ZG0-0620Ships in 1 to 2 Days
$5.61$7.68
26
99204-ZE0-0350Ships in 1 to 2 Days
$16.92$23.18
Diagram

CLUTCH

BF2 BF2DK0 clutch exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW68E1300A
Fits all 3 submodels of this generation.

Parts in this assembly

12 parts
1
22000-ZVA-003Ships in 1 to 2 Days
$26.15$35.82
2
22100-ZVA-000Ships in 1 to 2 Days
$68.56$93.92
3
22214-ZVA-000Ships in 1 to 2 Days
$34.66$47.48
4
22252-ZVA-003Ships in 1 to 2 Days
$7.18$9.84
5
22253-ZVA-000Ships in 1 to 2 Daysqty 2 used
$2.13$2.92
6
22254-ZVA-000Ships in 1 to 2 Daysqty 2 used
$1.39$1.90
7
22255-ZN4-000Ships in 1 to 2 Days
$2.47$3.54
9
22260-ZVA-000Ships in 1 to 2 Days
$61.74$84.58
10
22261-ZW6-030Ships in 1 to 2 Days
$65.55$92.50
11
BEARING, RADIAL BALL (6004) (NOT AVAILABLE)
91001-ZW6-702No Longer Available
—
12
91251-ZW6-013Ships in 1 to 2 Days
$8.00$10.96
13
94520-42000Ships in 1 to 2 Days
$2.54$3.48
Diagram

CRANKCASE COVER

BF2 BF2DK0 crankcase cover exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW68E0600
Fits all 3 submodels of this generation.

Parts in this assembly

8 parts
1
11340-ZVA-000Ships in 1 to 2 Days
$56.17$76.94
1
11340-ZW6-T00Ships in 1 to 2 Daysreplaced by 11340-ZVA-000
$56.17$76.94
2
16512-ZM7-D00Ships in 1 to 2 Days
$7.18$9.84
3
90174-ZW4-000Ships in 1 to 2 Daysqty 6 used
$1.78$2.44
4
90441-ZM7-000Ships in 1 to 2 Days
$1.62$2.22
5
90602-ZM7-000Ships in 1 to 2 Days
$1.33$1.82
6
91202-HC5-005Ships in 1 to 2 Days
$3.59$4.92
7
94301-06100In Stockqty 2 used
$2.74$3.76
Diagram

CRANKSHAFT

BF2 BF2DK0 crankshaft exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW68E0700
Fits all 3 submodels of this generation.

Parts in this assembly

2 parts
1
13310-ZN4-020Ships in 1 to 2 Days
$174.88
2
13331-ZM7-000Ships in 1 to 2 Days
$3.14$4.30
Diagram

CYLINDER

BF2 BF2DK0 cylinder exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW68E0300A
Fits all 3 submodels of this generation.

Parts in this assembly

31 parts
1
04103-ZW6-000Ships in 1 to 2 Days
$157.77$165.66
1
12100-ZW6-T00Ships in 1 to 2 Days
$510.12
2
12311-ZVA-010Ships in 1 to 2 Days
$14.05$19.24
3
12367-ZE6-010Ships in 1 to 2 Days
$2.37$3.34
3
12367-ZE6-020Ships in 1 to 2 Days
$1.81$2.48
4
15171-ZN4-000Ships in 1 to 2 Days
$5.64$7.72
5
15571-ZM7-003Ships in 1 to 2 Days
$2.77$3.80
6
15572-ZM7-000Ships in 1 to 2 Days
$1.49$2.04
7
15600-ZG4-003Ships in 1 to 2 Days
$4.89$6.70
8
04102-ZW6-000Ships in 1 to 2 Days
$41.48$59.66
8
15622-ZW6-010Ships in 1 to 2 Days
$37.60$53.04
9
15625-ZE1-003Ships in 1 to 2 Days
$2.42$3.32
10
15661-ZV0-003Ships in 1 to 2 Days
$9.29$12.72
11
19631-ZW6-010Ships in 1 to 2 Days
$8.72$12.30
12
90002-ZW6-020Ships in 1 to 2 Daysqty 4 used
$1.99$2.86
12
90009-ZVA-000Ships in 1 to 2 Daysqty 4 used
$2.96$4.06
12
90113-ZW9-000Ships in 1 to 2 Daysreplaced by 90113-ZW9-030
$0.96$1.38
12
90113-ZW9-030Ships in 1 to 2 Daysqty 4 used
$0.96$1.38
13
90003-ZVA-000Ships in 1 to 2 Days
$1.72$2.36
14
90008-ZM7-000Ships in 1 to 2 Days
$1.77$2.42
15
90019-ZV1-010Ships in 1 to 2 Daysqty 2 used
$1.36$1.86
16
90101-ZW9-003In Stock
$2.80$3.84
16
90105-ZVA-000In Stock
$4.20$5.76
17
90471-580-000Ships in 1 to 2 Days
$2.98$4.08
17
91325-P4V-003In Stock
$3.66$5.02
18
91301-ZE9-003Ships in 1 to 2 Days
$1.69$2.32
19
93500-03005-0AShips in 1 to 2 Days
$0.82$1.12
20
96220-60150Ships in 1 to 2 Daysqty 2 used
$0.85$1.16
21
98056-54757Ships in 1 to 2 Days
$5.20$7.12
21
98056-54777In Stock
$4.51$6.18
22
04102-ZW6-000Ships in 1 to 2 Days
$41.48$59.66
Diagram

ENGINE COVER

BF2 BF2DK0 engine cover exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW68F0800B
Fits all 3 submodels of this generation.

Parts in this assembly

21 parts
1
17514-ZV0-000Ships in 1 to 2 Daysqty 2 used
$3.18$4.58
2
17936-921-000Ships in 1 to 2 Daysqty 4 used
$1.20$1.64
3
17951-ZVA-000Ships in 1 to 2 Days
$6.58$9.02
4
35180-ZW6-023Ships in 1 to 2 Days
$60.27$82.58
5
36182-ZV4-651In Stock
$18.45$25.28
6
40100-ZVA-000Ships in 1 to 2 Days
$61.76$84.60
7
58131-ZV0-000Ships in 1 to 2 Daysqty 2 used
$3.33$4.56
8
COVER, ENGINE *NH282MU* (OYSTER SILVER METALLIC-U)
63100-ZW6-010ZANo Longer Available
—
8
63100-ZW6-020ZAShips in 1 to 2 Days
$103.76
9
63100-ZW6-020ZAShips in 1 to 2 Days
$103.76
10
63103-ZVA-010Ships in 1 to 2 Days
$4.89$6.70
11
63113-ZW6-010Ships in 1 to 2 Days
$3.04$4.28
12
88111-ZVA-000Ships in 1 to 2 Days
$2.37$3.24
12
88111-ZV0-000Ships in 1 to 2 Daysreplaced by 88111-ZVA-000
$2.37$3.24
13
90019-ZW4-000Ships in 1 to 2 Days
$2.45$3.36
14
90103-ZVA-000Ships in 1 to 2 Daysqty 4 used
$3.29$4.50
15
90302-921-000In Stock
$4.10$5.62
16
90757-ZV0-000In Stockreplaced by 94201-30402
$2.00$2.74
16
94201-30402In Stockqty 2 used
$2.00$2.74
17
91551-ZW6-000Ships in 1 to 2 Daysqty 3 used
$2.38$3.26
18
91552-ZVA-000Ships in 1 to 2 Days
$4.86$6.66
Diagram

EXHAUST PIPE

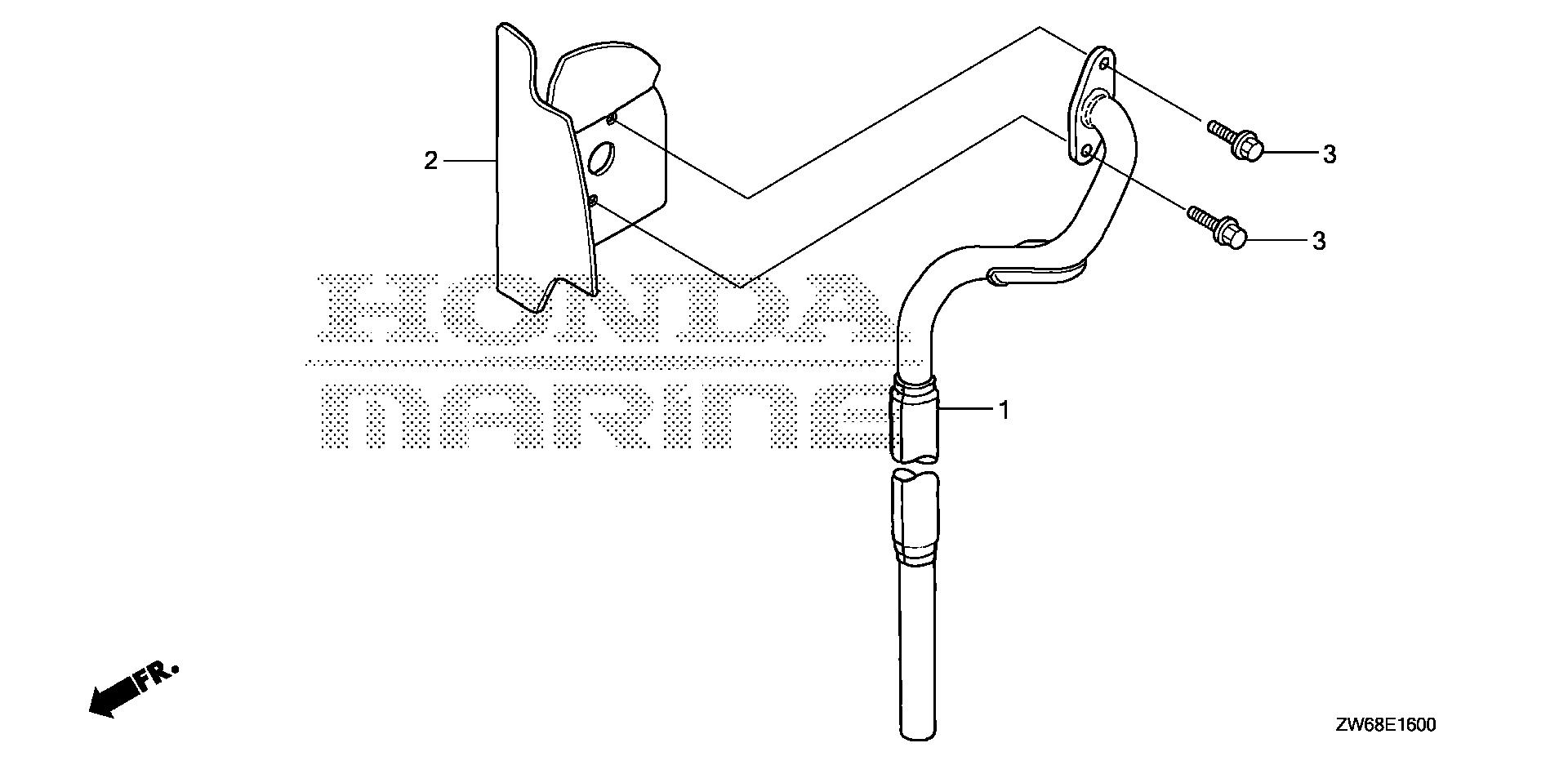

BF2 BF2DK0 exhaust pipe exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW68E1600
Fits all 3 submodels of this generation.

Parts in this assembly

5 parts
1
18330-ZVA-000Ships in 1 to 2 Days
$98.29$134.68
2
18515-ZVA-000Ships in 1 to 2 Days
$8.85$12.12
2
18515-ZW6-000Ships in 1 to 2 Daysreplaced by 18515-ZVA-000
$8.85$12.12
3
90003-ZVA-000Ships in 1 to 2 Daysqty 2 used
$1.72$2.36
3
90007-ZW6-000Ships in 1 to 2 Daysqty 2 used
$3.94$5.56
Diagram

EXTENSION CASE

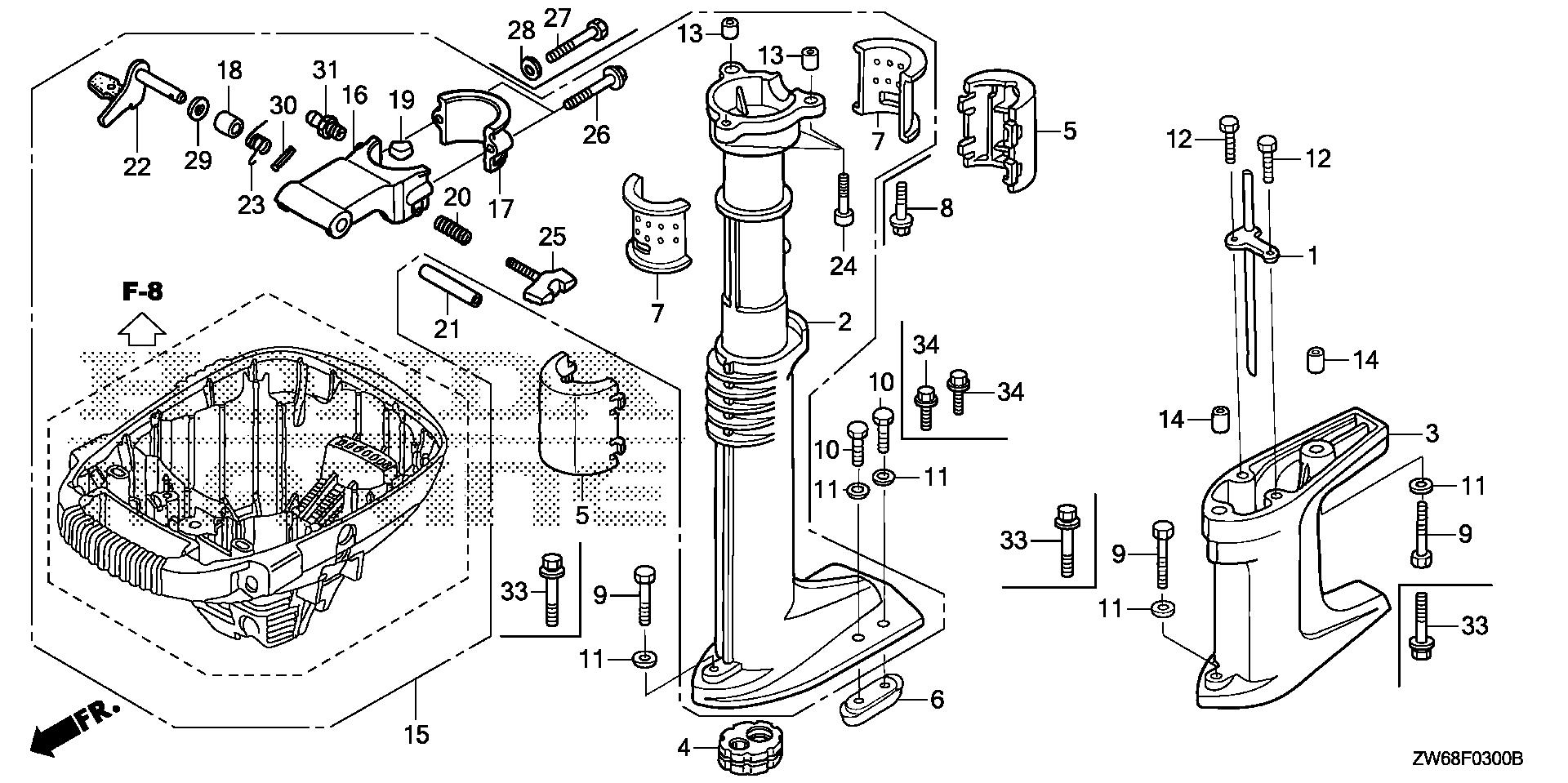

BF2 BF2DK0 extension case exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW68F0300B
Fits all 3 submodels of this generation.

Parts in this assembly

40 parts
1
19250-ZVA-610Ships in 1 to 2 Days
$17.08$23.40
2
40201-ZW6-C00ZAShips in 1 to 2 Days
$257.94$353.34
2
CASE, EXTENSION *NH246* (LOOSY GRAY) (NA USE ALT:04402-ZW6-000ZA)
40201-ZW6-010ZANo Longer Available
—
3
40202-ZW6-C00ZAShips in 1 to 2 Days
$176.66$242.00
4
40210-ZVA-000Ships in 1 to 2 Days
$26.19$35.88
4
40210-ZW6-611Ships in 1 to 2 Days
$32.03$45.20
5
40218-ZVA-000Ships in 1 to 2 Daysqty 2 used
$6.63$9.08
6
41106-ZVA-000Ships in 1 to 2 Days
$15.83$21.68
6
41106-ZV4-650Ships in 1 to 2 Daysreplaced by 41106-ZVA-000
$15.83$21.68
7
LINER, SWIVEL CASE (NOT AVAILABLE)
50211-ZV0-000No Longer Available
$7.90
8
90014-ZZ5-M01Ships in 1 to 2 Daysqty 3 used
$1.87$2.56
8
90104-ZVA-000Ships in 1 to 2 Daysqty 3 used
$5.40$7.40
9
90113-ZV0-000Ships in 1 to 2 Daysqty 3 used
$3.81$5.22
10
90127-ZV4-000In Stockqty 2 used
$2.12$2.90
11
90506-ZV4-000Ships in 1 to 2 Daysqty 5 used
$2.45$3.36
12
92101-05016-4JShips in 1 to 2 Daysqty 2 used
$1.21$1.66
13
94301-08100Ships in 1 to 2 Daysqty 2 used
$2.74$3.76
14
94301-08140Ships in 1 to 2 Daysqty 2 used
$2.74$3.76
15
CASE KIT, EXTENSION *NH246* (LOOSY GRAY) (NOT AVAILABLE)
04402-ZW6-010ZANo Longer Available
—
16
CASE, SWIVEL *NH246* (LOOSY GRAY) (NOT AVAILABLE)
50201-ZW6-000ZANo Longer Available
—
17
50203-ZW6-000ZAShips in 1 to 2 Days
$21.64$31.12
17
50203-ZW6-010ZAShips in 1 to 2 Days
$18.19$25.66
18
50204-ZVA-000Ships in 1 to 2 Days
$3.04$4.16
19
50212-ZVA-000Ships in 1 to 2 Days
$5.21
19
50212-ZW6-305Ships in 1 to 2 Days
$6.51$9.36
20
50233-ZVA-000Ships in 1 to 2 Days
$2.35$3.22
21
50337-ZVA-000Ships in 1 to 2 Days
$11.90$16.30
21
50337-ZV0-000Ships in 1 to 2 Daysreplaced by 50337-ZVA-000
$11.90$16.30
22
50511-ZVA-000Ships in 1 to 2 Days
$11.23$15.38
23
50516-ZVA-000Ships in 1 to 2 Days
$1.75$2.40
24
90104-ZVA-000Ships in 1 to 2 Daysqty 3 used
$5.40$7.40
25
90106-ZVA-000Ships in 1 to 2 Days
$7.05$9.66
26
90114-HW1-671Ships in 1 to 2 Daysqty 2 used
$3.87$5.30
27
90116-881-000Ships in 1 to 2 Daysqty 2 used
$4.09$5.60
28
90507-ZV4-000Ships in 1 to 2 Daysqty 2 used
$2.20$3.02
29
90518-921-000Ships in 1 to 2 Days
$1.20$1.64
30
90752-ZW6-000Ships in 1 to 2 Days
$2.31$3.16
31
90951-ZV7-010Ships in 1 to 2 Days
$1.90$2.60
33
90109-ZVA-000Ships in 1 to 2 Daysqty 3 used
$2.93$4.02
34
90215-HW1-671Ships in 1 to 2 Daysqty 2 used
$1.04$1.42
Diagram

FAN COVER

BF2 BF2DK0 fan cover exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW68E1200
Fits all 3 submodels of this generation.

Parts in this assembly

6 parts
1
16576-ZVA-000Ships in 1 to 2 Days
$2.72$3.72
2
19610-ZVA-000Ships in 1 to 2 Days
$47.92$65.64
3
19618-ZVA-000Ships in 1 to 2 Days
$4.45$6.10
4
90042-ZM7-000Ships in 1 to 2 Daysqty 2 used
$1.72$2.36
5
90043-ZM7-000Ships in 1 to 2 Days
$2.04$2.80
6
90058-ZY3-000Ships in 1 to 2 Days
$1.33$1.88
Diagram

FLYWHEEL

BF2 BF2DK0 flywheel exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW68E1900
Fits all 3 submodels of this generation.

Parts in this assembly

6 parts
1
28451-ZVA-003Ships in 1 to 2 Days
$13.65$18.70
2
30500-ZW6-014Ships in 1 to 2 Days
$67.28$69.30
3
31110-ZW6-004Ships in 1 to 2 Days
$75.89$78.18
4
32195-ZW6-000Ships in 1 to 2 Days
$5.46$7.70
5
90004-ZW4-000Ships in 1 to 2 Days
$1.01$1.38
6
90203-ZVA-000Ships in 1 to 2 Days
$2.51$3.44
Diagram

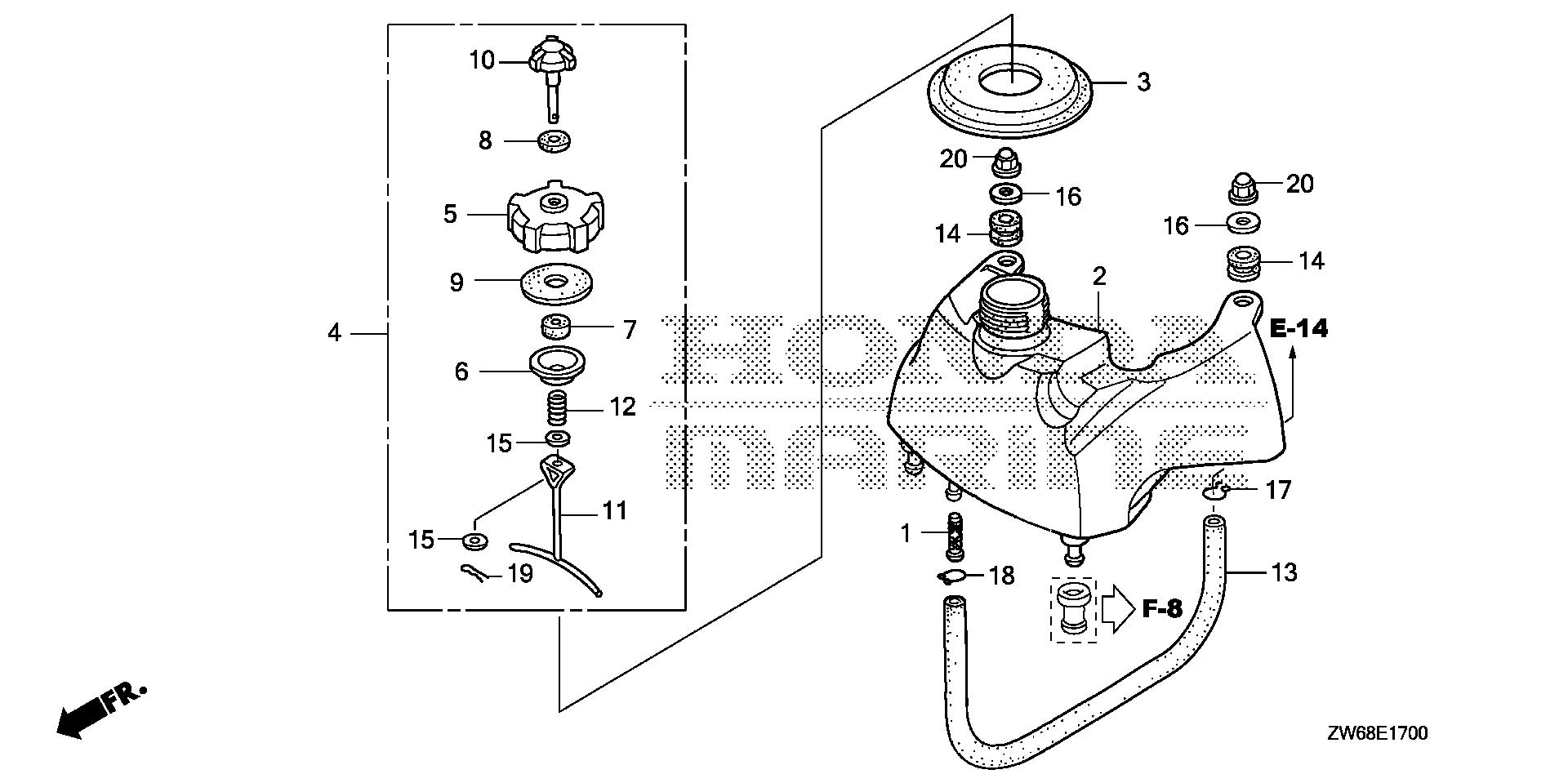

FUEL TANK

BF2 BF2DK0 fuel tank exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW68E1700
Fits all 3 submodels of this generation.

Parts in this assembly

22 parts
1
16952-ZE6-000Ships in 1 to 2 Days
$6.70$9.18
2
17511-ZW6-010Ships in 1 to 2 Days
$57.03$80.46
3
17515-ZV0-000Ships in 1 to 2 Days
$5.33$7.52
4
17620-ZW6-030Ships in 1 to 2 Days
$17.46$24.64
5
17621-ZV0-020Ships in 1 to 2 Days
$6.09$8.34
5
17621-ZV0-030Ships in 1 to 2 Days
$6.09$8.34
6
17622-ZV0-000Ships in 1 to 2 Days
$3.05$4.18
7
17623-ZV0-000Ships in 1 to 2 Days
$1.49$2.04
8
17624-ZV0-000Ships in 1 to 2 Days
$1.33$1.88
9
17625-ZV0-000Ships in 1 to 2 Days
$3.07$4.20
10
17626-ZV0-020Ships in 1 to 2 Days
$5.37$7.36
11
17628-ZV0-000Ships in 1 to 2 Days
$3.18$4.36
12
17629-ZV0-000Ships in 1 to 2 Days
$2.09$2.86
13
17701-ZVA-000Ships in 1 to 2 Days
$7.83$11.26
14
80105-MG9-000Ships in 1 to 2 Daysqty 2 used
$2.38$3.36
15
90402-ZW6-000Ships in 1 to 2 Daysqty 2 used
$1.11$1.56
16
WASHER (6.5X18) (NOT AVAILABLE)
90403-ZW6-000No Longer Available
—
16
90508-ZY3-000Ships in 1 to 2 Daysreplaced by 90508-ZZ5-M01
$2.00$2.74
17
90603-ZV4-000Ships in 1 to 2 Days
$1.42$1.94
18
90604-ZV0-000Ships in 1 to 2 Days
$1.37$1.88
19
90701-ZVA-000Ships in 1 to 2 Days
$1.26$1.80
20
94021-06020Ships in 1 to 2 Daysqty 2 used
$2.16$2.96
Diagram

FUEL TANK CAP

BF2 BF2DK0 fuel tank cap exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW68F0600
Fits only BF2DK0-SCAB — not every submodel of this generation.

Parts in this assembly

14 parts
1
16952-ZE6-000Ships in 1 to 2 Days
$6.70$9.18
2
17620-ZW6-030Ships in 1 to 2 Days
$17.46$24.64
3
17621-ZV0-020Ships in 1 to 2 Days
$6.09$8.34
3
17621-ZV0-030Ships in 1 to 2 Days
$6.09$8.34
4
17622-ZV0-000Ships in 1 to 2 Days
$3.05$4.18
5
17623-ZV0-000Ships in 1 to 2 Days
$1.49$2.04
6
17624-ZV0-000Ships in 1 to 2 Days
$1.33$1.88
7
17625-ZV0-000Ships in 1 to 2 Days
$3.07$4.20
8
17626-ZV0-020Ships in 1 to 2 Days
$5.37$7.36
9
17628-ZV0-000Ships in 1 to 2 Days
$3.18$4.36
10
17629-ZV0-000Ships in 1 to 2 Days
$2.09$2.86
11
90402-ZW6-000Ships in 1 to 2 Daysqty 2 used
$1.11$1.56
12
90701-ZVA-000Ships in 1 to 2 Days
$1.26$1.80
13
94021-06020Ships in 1 to 2 Daysqty 2 used
$2.16$2.96
Diagram

HANDLEBAR - THROTTLE CABLE

BF2 BF2DK0 handlebar - throttle cable exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW68F0100B
Fits all 3 submodels of this generation.

Parts in this assembly

30 parts
1
16576-ZVA-000Ships in 1 to 2 Days
$2.72$3.72
2
17910-ZVA-003Ships in 1 to 2 Days
$32.79$44.92
3
17920-ZVA-000Ships in 1 to 2 Days
$5.83$7.98
4
17921-ZVA-000Ships in 1 to 2 Days
$5.11$7.00
5
17930-ZW6-700Ships in 1 to 2 Days
$20.19$28.48
8
17932-ZVA-000Ships in 1 to 2 Days
$2.28$3.12
10
53101-ZW6-C00ZAShips in 1 to 2 Days
$93.89$128.64
11
53104-ZVA-000Ships in 1 to 2 Days
$6.94$9.50
12
53106-ZVA-000Ships in 1 to 2 Days
$7.15$9.80
13
53107-ZVA-000Ships in 1 to 2 Daysqty 2 used
$2.89$3.96
14
53108-ZVA-010Ships in 1 to 2 Days
$2.20$3.02
15
COLLAR, DISTANCE
53109-ZV0-000No Longer Available
$6.69$9.16
16
53140-GW0-000Ships in 1 to 2 Days
$15.71$22.16
17
GRIP, R. HANDLE
53165-GW0-000No Longer Available
—
19
53167-ZVA-000Ships in 1 to 2 Days
$12.78$17.50
20
53168-GAH-A00Ships in 1 to 2 Days
$10.26$14.06
21
COLLAR, SEAT CATCH (NOT AVAILABLE)
77235-GC2-000No Longer Available
—
21
91553-ZVA-010Ships in 1 to 2 Daysqty 2 used
$1.59$2.18
23
90056-ZY9-M01Ships in 1 to 2 Days
$1.10$1.50
24
90101-ZW6-700Ships in 1 to 2 Days
$4.37$5.98
25
BOLT, FLANGE (8X40) (NOT AVAILABLE)
90105-ZV0-000No Longer Available
—
26
90302-ZW4-000Ships in 1 to 2 Days
$0.82$1.16
28
90508-ZV0-000Ships in 1 to 2 Days
$3.87$5.46
29
90511-ZV4-000Ships in 1 to 2 Days
$2.20$3.02
30
92101-06014-4JShips in 1 to 2 Days
$1.31$1.90
31
93500-05020-4JShips in 1 to 2 Daysqty 2 used
$0.86$1.18
32
94001-05490-0SShips in 1 to 2 Daysqty 2 used
$0.92$1.26
33
94001-06490-0SShips in 1 to 2 Days
$2.15$2.94
34
90102-ZVA-000Ships in 1 to 2 Days
$7.64$10.46
35
90501-ZVA-000Ships in 1 to 2 Days
$3.31$4.54
Diagram

LABELS

BF2 BF2DK0 labels exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW68F1200B
Fits all 3 submodels of this generation.

Parts in this assembly

10 parts
1
87121-ZW6-B00Ships in 1 to 2 Days
$8.12$11.68
2
87124-ZW6-U80Ships in 1 to 2 Days
$1.93$2.64
2
MARK, EMERGENCY SWITCH INDICATION (NOT AVAILABLE)
87124-ZW6-000No Longer Available
$2.23$3.06
3
87131-ZW6-B00Ships in 1 to 2 Daysqty 2 used
$7.42$10.66
4
87132-ZVA-000Ships in 1 to 2 Daysqty 2 used
$6.44$8.82
6
87521-ZV0-610Ships in 1 to 2 Days
$2.23$3.22
8
87533-ZW6-740Ships in 1 to 2 Days
$9.50$13.40
10
87537-ZVA-000Ships in 1 to 2 Days
$5.43$7.44
11
87538-ZW6-740Ships in 1 to 2 Days
$15.15$21.80
12
87539-ZW6-740Ships in 1 to 2 Days
$4.95$6.98
Diagram

OIL CASE

BF2 BF2DK0 oil case exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW68E0500
Fits all 3 submodels of this generation.

Parts in this assembly

6 parts
1
11300-ZVA-405Ships in 1 to 2 Days
$116.44$159.52
2
11316-ZW6-000Ships in 1 to 2 Days
$5.97$8.42
3
15723-ZVA-000Ships in 1 to 2 Days
$4.73$6.48
4
90019-ZV1-010Ships in 1 to 2 Days
$1.36$1.86
5
90174-ZW4-000Ships in 1 to 2 Daysqty 8 used
$1.78$2.44
6
91202-HC5-005Ships in 1 to 2 Days
$3.59$4.92
Diagram

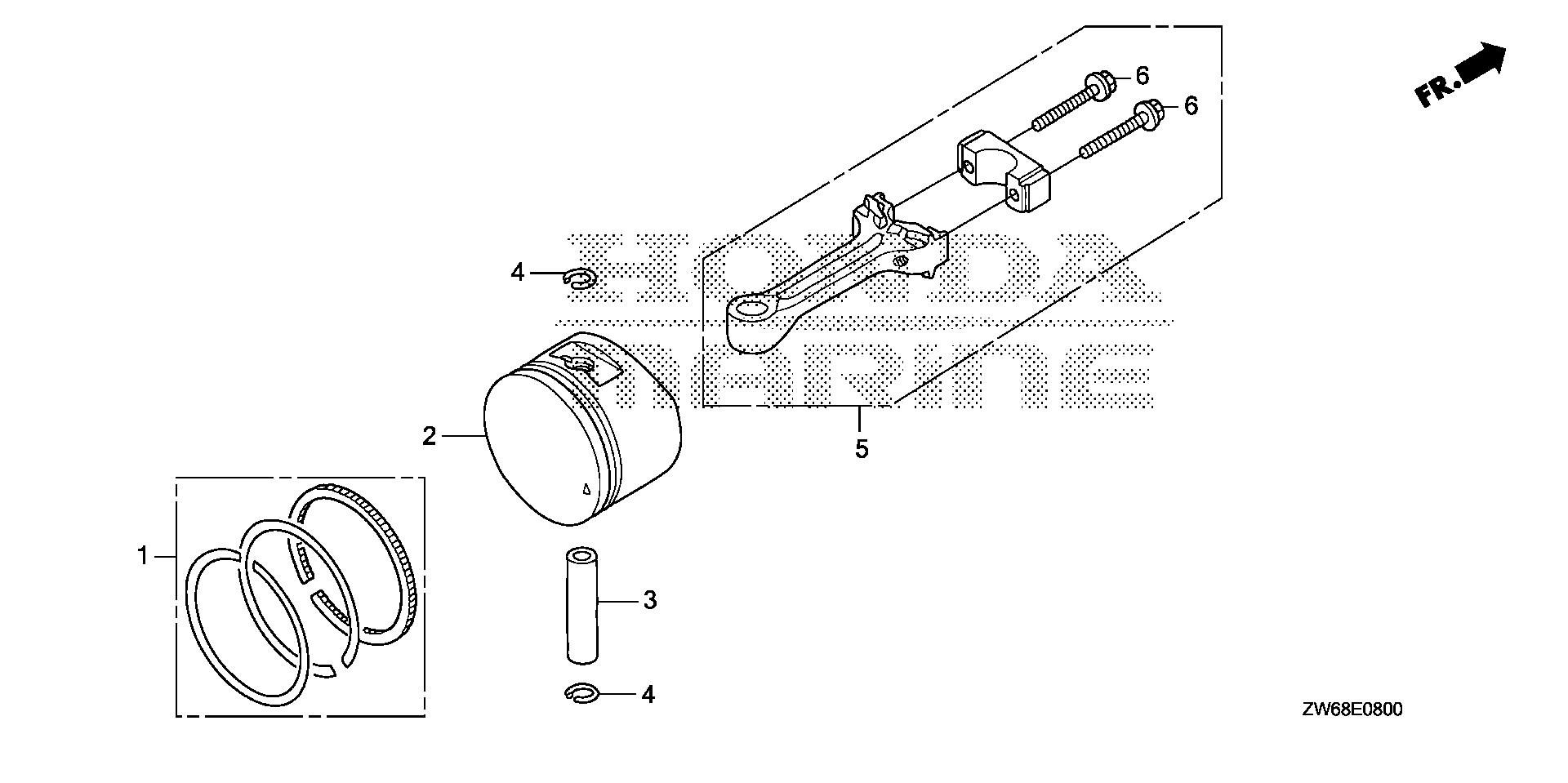

PISTON - CONNECTING ROD

BF2 BF2DK0 piston - connecting rod exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW68E0800
Fits all 3 submodels of this generation.

Parts in this assembly

7 parts
1
13010-ZW6-000Ships in 1 to 2 Days
$14.88$20.38
2
13101-ZDH-000Ships in 1 to 2 Days
$18.26$25.02
3
13111-GS7-000Ships in 1 to 2 Days
$10.60$14.52
3
13111-122-000Ships in 1 to 2 Daysreplaced by 13111-GS7-000
$10.60$14.52
4
13115-147-000Ships in 1 to 2 Days
$2.03$2.78
5
13200-ZN4-010Ships in 1 to 2 Days
$56.08$76.82
6
90001-ZM7-000Ships in 1 to 2 Daysqty 2 used
$2.20$3.02
Diagram

RECOIL STARTER

BF2 BF2DK0 recoil starter exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW68E1100
Fits all 3 submodels of this generation.

Parts in this assembly

5 parts
1
28400-ZVA-013Ships in 1 to 2 Days
$44.16
2
KNOB, STARTER (NOT AVAILABLE)
28461-ZA8-902No Longer Available
$8.73$11.96
2
28461-ZVA-003Ships in 1 to 2 Days
$6.03$8.26
3
28462-ZW6-003Ships in 1 to 2 Days
$9.94$13.62
4
90303-GC2-630Ships in 1 to 2 Daysqty 3 used
$3.47$4.90
Diagram

SWIVEL CASE

BF2 BF2DK0 swivel case exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW68F1000A
Fits only BF2DK0-LCHA, BF2DK0-SCHA — not every submodel of this generation.

Parts in this assembly

29 parts
1
50201-ZW6-C00ZAShips in 1 to 2 Days
$66.76
1
CASE, SWIVEL *NH246* (LOOSY GRAY) (NOT AVAILABLE)
50201-ZW6-000ZANo Longer Available
—
2
50203-ZW6-000ZAShips in 1 to 2 Days
$21.64$31.12
2
50203-ZW6-010ZAShips in 1 to 2 Days
$18.19$25.66
3
50204-ZVA-000Ships in 1 to 2 Days
$3.04$4.16
4
50212-ZVA-000Ships in 1 to 2 Days
$5.21
5
50233-ZVA-000Ships in 1 to 2 Days
$2.35$3.22
6
50300-ZVA-000ZAShips in 1 to 2 Daysqty 2 used
$189.39$259.44
7
50302-ZVA-000Ships in 1 to 2 Days
$16.69$22.86
8
50303-ZVA-000Ships in 1 to 2 Days
$13.86$18.98
9
50337-ZVA-000Ships in 1 to 2 Days
$11.90$16.30
9
50337-ZV0-000Ships in 1 to 2 Daysreplaced by 50337-ZVA-000
$11.90$16.30
10
50511-ZVA-000Ships in 1 to 2 Days
$11.23$15.38
11
50516-ZVA-000Ships in 1 to 2 Days
$1.75$2.40
12
90106-ZVA-000Ships in 1 to 2 Days
$7.05$9.66
13
90107-ZV0-000Ships in 1 to 2 Days
$5.20$7.34
14
90108-ZV0-000Ships in 1 to 2 Days
$5.21$7.14
15
90114-HW1-671Ships in 1 to 2 Daysqty 2 used
$3.87$5.30
15
90116-881-000Ships in 1 to 2 Daysqty 2 used
$4.09$5.60
16
90301-ZVA-000Ships in 1 to 2 Days
$6.42$8.80
16
90301-ZV0-000Ships in 1 to 2 Daysreplaced by 90301-ZVA-000
$6.42$8.80
17
90501-ZVA-000Ships in 1 to 2 Daysqty 2 used
$3.31$4.54
18
90507-ZV4-000Ships in 1 to 2 Daysqty 2 used
$2.20$3.02
19
90512-ZV0-000Ships in 1 to 2 Days
$3.07$4.32
20
90518-921-000Ships in 1 to 2 Days
$1.20$1.64
21
90751-ZW6-000Ships in 1 to 2 Days
$1.33$1.82
22
90752-ZW6-000Ships in 1 to 2 Days
$2.31$3.16
23
90951-ZV7-010Ships in 1 to 2 Days
$1.90$2.60
24
NUT, HEX. (8MM)
94001-08490-0SShips in 1 to 2 Days
$2.54$3.48
Diagram

TOOLS

BF2 BF2DK0 tools exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW68F1300A
Fits all 3 submodels of this generation.

Parts in this assembly

10 parts
1
ROPE, STARTER (N/A: USE ALTERNATE P/N 08540-ZG921-11)
28462-ZV0-000No Longer Available
—
2
36187-ZV4-652Ships in 1 to 2 Days
$4.18$5.72
3
83513-044-000Ships in 1 to 2 Days
$3.84$5.26
4
TOOL KIT
89000-ZW6-000No Longer Available
—
4
TOOL KIT (NOT AVAILABLE)
89000-ZW6-010No Longer Available
—
5
89203-VF9-003Ships in 1 to 2 Days
$5.34$7.32
6
89210-GBJ-J00Ships in 1 to 2 Days
$8.60$11.78
7
89216-130-690Ships in 1 to 2 Days
$7.21$9.88
8
98056-5475UShips in 1 to 2 Days
$23.01$31.52
9
99008-01600Ships in 1 to 2 Days
$2.13$2.92
Diagram

VERTICAL SHAFT - PROPELLER

BF2 BF2DK0 vertical shaft - propeller exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW68F0500A
Fits all 3 submodels of this generation.

Parts in this assembly

37 parts
1
40205-ZW6-C00ZAShips in 1 to 2 Days
$27.84$39.28
2
41100-ZW6-C10ZAShips in 1 to 2 Days
$244.41
3
41106-ZVA-000Ships in 1 to 2 Days
$15.83$21.68
3
41106-ZV4-650Ships in 1 to 2 Daysreplaced by 41106-ZVA-000
$15.83$21.68
4
41112-ZW6-C00Ships in 1 to 2 Days
$101.09$138.50
4
41112-ZW6-C10Ships in 1 to 2 Days
$106.90$146.44
5
41131-ZW6-000Ships in 1 to 2 Days
$35.93$49.22
6
41135-ZVA-000Ships in 1 to 2 Days
$6.99$9.58
7
SHAFT, PROPELLER (NOT AVAILABLE)
41160-ZW6-000No Longer Available
—
8
41200-ZW6-C10ZAShips in 1 to 2 Days
$44.90$61.50
9
41281-ZV0-850Ships in 1 to 2 Daysreplaced by 41281-ZVA-000
$1.99$2.72
10
58130-ZV0-841ZBShips in 1 to 2 Days
$58.27
11
58131-ZV0-000Ships in 1 to 2 Days
$3.33$4.56
12
90105-ZVA-000In Stockqty 2 used
$4.20$5.76
13
90113-ZV0-000Ships in 1 to 2 Days
$3.81$5.22
14
90127-ZV4-000In Stockqty 4 used
$2.12$2.90
15
90504-921-010Ships in 1 to 2 Days
$1.27$1.74
16
90506-ZV4-000Ships in 1 to 2 Daysqty 5 used
$2.45$3.36
17
90507-921-000Ships in 1 to 2 Days
$0.89$1.22
18
90531-ZVA-000Ships in 1 to 2 Days
$5.91$8.10
18
90532-ZV0-000Ships in 1 to 2 Days
$5.91$8.10
18
90533-ZV0-000Ships in 1 to 2 Days
$5.91$8.10
18
90534-ZV0-000Ships in 1 to 2 Days
$5.91$8.10
18
90535-ZV0-000Ships in 1 to 2 Days
$5.91$8.10
19
90755-SB2-000Ships in 1 to 2 Days
$5.29$7.60
19
E-RING (6MM)
94540-06018Ships in 1 to 2 Days
$3.50$4.80
20
90757-ZV0-000In Stockreplaced by 94201-30402
$2.00$2.74
20
94201-30402In Stock
$2.00$2.74
21
91251-ZV0-003Ships in 1 to 2 Days
$4.89$6.70
22
91253-ZV0-003Ships in 1 to 2 Days
$6.67$9.14
23
92101-06012-4JShips in 1 to 2 Days
$1.88$2.70
24
94301-08140Ships in 1 to 2 Daysqty 2 used
$2.74$3.76
25
BEARING, RADIAL BALL (6000)
96100-60000-00Ships in 1 to 2 Days
$8.19$11.22
26
41005-ZVA-000ZAShips in 1 to 2 Days
$448.03
27
41005-ZW6-C11ZAShips in 1 to 2 Daysreplaced by 41005-ZVA-610ZA
$512.60
29
90201-HW1-671Ships in 1 to 2 Days
$2.37$3.24
30
90215-HW1-671Ships in 1 to 2 Daysqty 4 used
$1.04$1.42
Diagrams are Honda's official OEM illustrations, served from Honda's asset host. Prices are our own; where a struck-through figure appears beside one it is Honda's suggested retail. “In Stock” means the part is on our shelf here at Boe Marine. “Ships in 1 to 2 Days” means we order it in from Honda, who still supply it. Parts marked “No Longer Available” are shown so the drawing stays complete, but Honda has discontinued them. Where a Sierra replacement is listed beneath a Honda part, Sierra ships it direct to you; “Backorder Now” on one of those means Sierra has none at the moment and will ship it once restocked.
