BF2 — Parts Diagrams

Generation BF2D6  ·  4 submodels

Assemblies (23)

Diagram

AIR GUIDE (1)

BF2 BF2D6 air guide (1) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW64E1500B
Fits all 4 submodels of this generation.

Parts in this assembly

7 parts
1
15721-ZVA-000Ships in 1 to 2 Days
$2.45$3.36
2
GUIDE, AIR
17201-ZW6-000Ships in 1 to 2 Days
$15.96$21.86
2
GUIDE, AIR (NOT AVAILABLE)
17201-ZW6-010No Longer Available
—
3
17202-ZVA-300Ships in 1 to 2 Daysqty 2 used
$1.71$2.34
4
TRAP, FLAME (NOT AVAILABLE)
17203-ZV0-000No Longer Available
—
5
90002-ZVA-000Ships in 1 to 2 Daysqty 2 used
$7.27$9.96
6
16202-ZVA-000Ships in 1 to 2 Days
$1.90$2.60
Diagram

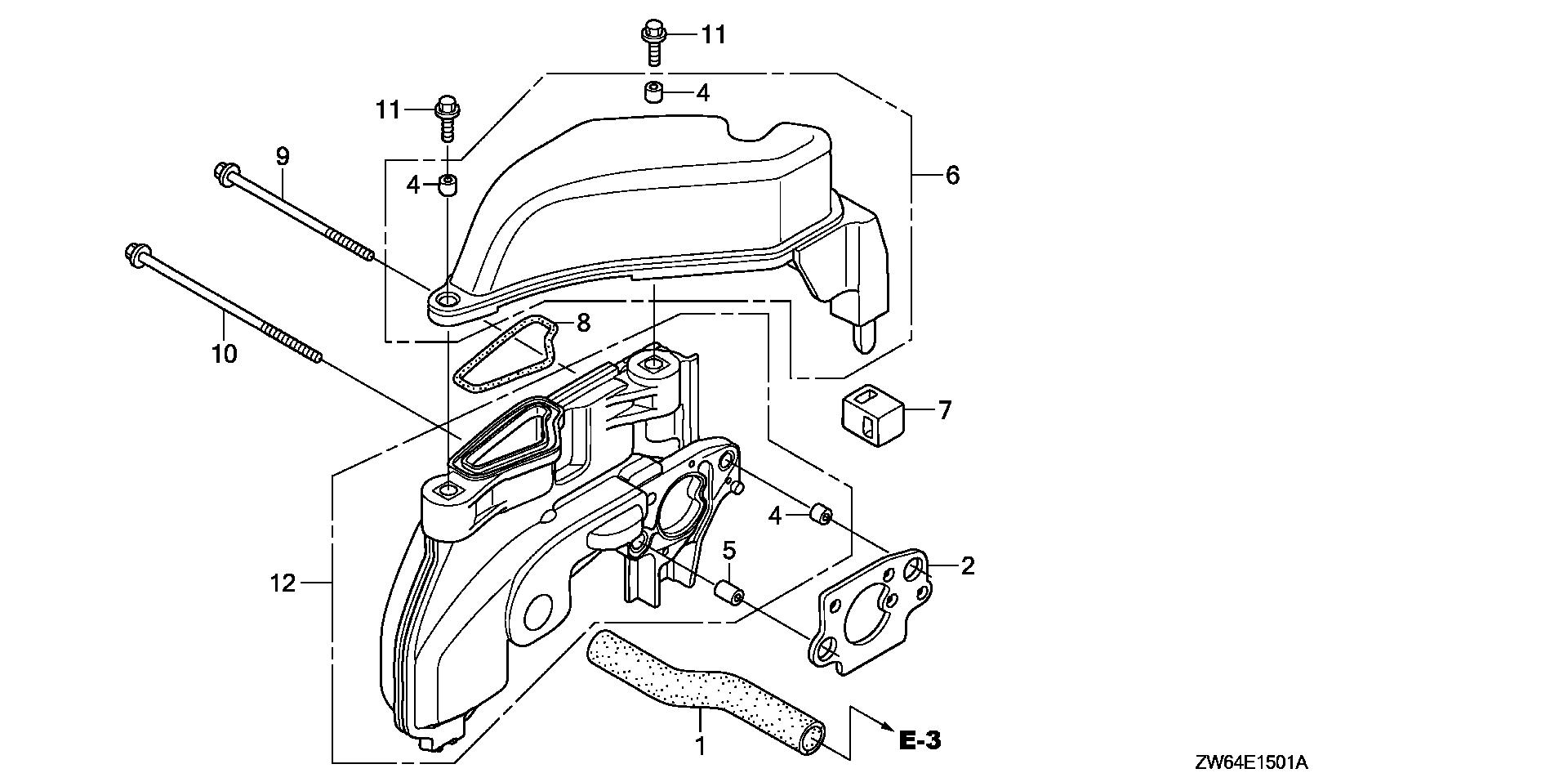

AIR GUIDE (2)

BF2 BF2D6 air guide (2) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW64E1501A
Fits all 4 submodels of this generation.

Parts in this assembly

12 parts
1
15721-ZVA-000Ships in 1 to 2 Days
$2.45$3.36
2
16202-ZVA-000Ships in 1 to 2 Days
$1.90$2.60
3
17201-ZVA-000Ships in 1 to 2 Days
$32.62$44.68
4
17202-ZVA-300Ships in 1 to 2 Days
$1.71$2.34
5
17204-ZVA-300Ships in 1 to 2 Days
$1.75$2.40
6
17371-ZVA-000Ships in 1 to 2 Days
$27.94$38.28
7
17374-ZVA-000Ships in 1 to 2 Days
$3.21$4.40
8
17375-ZVA-000Ships in 1 to 2 Days
$2.51$3.44
9
90002-ZVA-000Ships in 1 to 2 Days
$7.27$9.96
10
90005-ZVA-000Ships in 1 to 2 Days
$2.73$3.74
11
90049-ZY6-030Ships in 1 to 2 Days
$2.12$2.90
12
17201-ZVA-000Ships in 1 to 2 Days
$32.62$44.68
Diagram

CAMSHAFT

BF2 BF2D6 camshaft exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW64E0900
Fits all 4 submodels of this generation.

Parts in this assembly

19 parts
1
12209-ZM7-003Ships in 1 to 2 Days
$6.38$8.74
2
14111-ZM7-000Ships in 1 to 2 Days
$11.84$16.22
3
90702-P6R-008Ships in 1 to 2 Daysqty 2 used
$7.07$9.68
3
14126-Z0G-003Ships in 1 to 2 Daysqty 2 used
$1.15$1.58
4
14410-ZM7-000Ships in 1 to 2 Daysqty 2 used
$4.15$5.68
5
14431-ZM7-000Ships in 1 to 2 Daysqty 2 used
$10.69$14.64
6
14435-ZM7-003Ships in 1 to 2 Days
$1.15$1.58
7
14451-ZM7-000Ships in 1 to 2 Daysqty 2 used
$2.64$3.62
8
14711-ZW6-000Ships in 1 to 2 Days
$12.13$16.62
9
14721-ZW6-000Ships in 1 to 2 Days
$15.36$21.04
10
14731-ZM7-013Ships in 1 to 2 Daysqty 2 used
$5.59$7.66
11
14751-ZM7-000Ships in 1 to 2 Daysqty 2 used
$1.33$1.82
12
14754-ZM7-000Ships in 1 to 2 Days
$1.65$2.26
13
14771-ZDF-000Ships in 1 to 2 Daysqty 2 used
$0.92$1.26
14
15361-ZN4-000Ships in 1 to 2 Days
$4.53$6.20
15
90206-KM3-000Ships in 1 to 2 Daysqty 2 used
$1.24$1.70
16
90401-ZVA-000Ships in 1 to 2 Days
$1.59$2.18
17
91151-VB5-800Ships in 1 to 2 Days
$1.42$1.94
18
93404-05016-08Ships in 1 to 2 Days
$1.61$2.20
Diagram

CARBURETOR

BF2 BF2D6 carburetor exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW64E1400F
Fits all 4 submodels of this generation.

Parts in this assembly

50 parts
1
16010-ZV0-025Ships in 1 to 2 Days
$16.80$24.18
1
16010-ZW6-611Ships in 1 to 2 Days
$12.45$17.06
2
16011-ZE0-005Ships in 1 to 2 Days
$21.42$29.34
3
16013-ZDJ-801Ships in 1 to 2 Days
$4.44$6.08
3
16013-ZG0-811Ships in 1 to 2 Daysreplaced by 16013-ZDJ-801
$4.44$6.08
4
16015-ZW6-003No Longer Available
$26.35$36.10
5
16016-ZV0-E21Ships in 1 to 2 Days
$7.31$10.02
5
SCREW SET (CARBURETOR NO.) (NOT AVAILABLE)
16016-ZW6-711No Longer Available
—
5
16016-ZW6-621Ships in 1 to 2 Days
$10.42$14.72
6
16028-ZV0-A00Ships in 1 to 2 Days
$6.57$9.44
6
16028-ZW6-003Ships in 1 to 2 Days
$10.18$13.94
7
SCREW SET (CARBURETOR NO.)
16029-ZW6-003Ships in 1 to 2 Days
$29.58$40.52
7
SCREW SET (CARBURETOR NO.) (NOT AVAILABLE)
16029-ZW6-013No Longer Available
—
8
16044-ZV0-A01Ships in 1 to 2 Days
$26.28$36.00
9
SCREW, PAN (NOT AVAILABLE)
16082-ZV0-A00No Longer Available
—
9
16081-ZV1-A00Ships in 1 to 2 Daysqty 4 used
$1.74$2.38
10
16100-ZW6-711Ships in 1 to 2 Days
$138.43$145.33
10
16100-ZW6-712Ships in 1 to 2 Days
$138.43$145.33
10
16100-ZW6-714Ships in 1 to 2 Days
$138.43$145.33
10
16100-ZW6-717No Longer Available
$113.64$119.34
10
16100-ZW6-G01Ships in 1 to 2 Days
$100.66$103.68
11
16166-ZW6-711No Longer Available
$11.87$16.26
11
16166-ZW6-G01Ships in 1 to 2 Days
$14.89$20.40
12
16211-ZN4-000Ships in 1 to 2 Days
$6.99$9.58
13
16212-ZM7-000Ships in 1 to 2 Days
$1.66$2.28
14
16221-ZG0-801Ships in 1 to 2 Days
$1.94$2.66
15
16225-ZW6-000Ships in 1 to 2 Days
$11.81$16.98
16
16674-ZW6-000Ships in 1 to 2 Daysreplaced by 16674-ZVA-000
$6.15$8.42
17
16953-ZW6-003Ships in 1 to 2 Days
$7.24$9.92
18
16954-ZE1-812Ships in 1 to 2 Days
$3.04$4.16
18
16954-ZW6-003Ships in 1 to 2 Days
$4.70$6.44
19
16956-ZE1-811Ships in 1 to 2 Days
$3.04$4.16
20
16957-ZE1-812Ships in 1 to 2 Days
$3.10$4.24
21
16082-ZW6-003Ships in 1 to 2 Daysqty 2 used
$0.61$0.84
21
93500-03006-0HShips in 1 to 2 Daysqty 2 used
$0.82$1.12
22
SCREW, FLAT (5X20) (NOT AVAILABLE)
93600-05020-0BNo Longer Available
—
22
90012-ZVA-000Ships in 1 to 2 Daysqty 2 used
$0.70$0.96
23
TUBE KIT, AIR VENT (CARBURETOR NO.) (NOT AVAILABLE)
04101-ZW6-010No Longer Available
—
23
BULK HOSE, VINYL (4.5X8X1000) (4.5X8X100) (CARBURETOR NO.)
95003-09001-60MNo Longer Available
$4.53$6.20
24
99101-ZG0-0600Ships in 1 to 2 Days
$7.14$9.78
24
99101-ZG0-0620Ships in 1 to 2 Days
$5.61$7.68
24
99101-ZG0-0650Ships in 1 to 2 Days
$6.22$8.52
24
99101-ZG0-0580Ships in 1 to 2 Days
$6.38$8.74
25
99204-ZE0-0350Ships in 1 to 2 Days
$16.92$23.18
26
16015-ZW6-G02Ships in 1 to 2 Days
$30.40$41.64
27
$7.26$9.94
28
16028-ZW6-611Ships in 1 to 2 Days
$10.86$14.88
29
16195-ZW6-000Ships in 1 to 2 Days
$7.59$10.72
30
16221-ZVA-000In Stockqty 2 used
$1.02$1.40
31
16225-ZVA-000Ships in 1 to 2 Days
$9.55$13.08
Diagram

CLUTCH

BF2 BF2D6 clutch exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW64E1300D
Fits all 4 submodels of this generation.

Parts in this assembly

15 parts
1
22000-ZVA-003Ships in 1 to 2 Days
$26.15$35.82
2
22100-ZVA-000Ships in 1 to 2 Days
$68.56$93.92
3
22214-ZVA-000Ships in 1 to 2 Days
$34.66$47.48
4
22253-ZVA-000Ships in 1 to 2 Daysqty 2 used
$2.13$2.92
5
22254-ZVA-000Ships in 1 to 2 Daysqty 2 used
$1.39$1.90
6
22255-ZN4-000Ships in 1 to 2 Days
$2.47$3.54
7
22257-ZW6-000Ships in 1 to 2 Days
$57.10$80.58
8
22260-ZVA-000Ships in 1 to 2 Days
$61.74$84.58
9
22261-ZW6-030Ships in 1 to 2 Days
$65.55$92.50
10
BEARING, RADIAL BALL (6004)
91001-ZW6-701Ships in 1 to 2 Days
$14.50$19.86
10
BEARING, RADIAL BALL (6004) (NOT AVAILABLE)
91001-ZW6-702No Longer Available
—
11
91251-ZW6-013Ships in 1 to 2 Days
$8.00$10.96
12
94520-42000Ships in 1 to 2 Days
$2.54$3.48
13
95701-08014-08Ships in 1 to 2 Daysqty 2 used
$1.61$2.20
14
22252-ZVA-003Ships in 1 to 2 Days
$7.18$9.84
Diagram

CRANKCASE COVER

BF2 BF2D6 crankcase cover exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW64E0600A
Fits all 4 submodels of this generation.

Parts in this assembly

11 parts
1
COVER, CRANKCASE SIDE
11340-ZW6-000No Longer Available
—
1
COVER, CRANKCASE SIDE (NOT AVAILABLE)
11340-ZW6-010No Longer Available
—
1
11340-ZVA-000Ships in 1 to 2 Days
$56.17$76.94
1
11340-ZW6-T00Ships in 1 to 2 Daysreplaced by 11340-ZVA-000
$56.17$76.94
2
16512-ZM7-D00Ships in 1 to 2 Days
$7.18$9.84
3
90006-ZM7-000Ships in 1 to 2 Daysqty 6 used
$1.72$2.36
3
90174-ZW4-000Ships in 1 to 2 Daysqty 6 used
$1.78$2.44
4
90441-ZM7-000Ships in 1 to 2 Days
$1.62$2.22
5
90602-ZM7-000Ships in 1 to 2 Days
$1.33$1.82
6
91202-HC5-005Ships in 1 to 2 Days
$3.59$4.92
7
94301-06100In Stockqty 2 used
$2.74$3.76
Diagram

CRANKSHAFT

BF2 BF2D6 crankshaft exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW64E0700
Fits all 4 submodels of this generation.

Parts in this assembly

2 parts
1
13310-ZN4-020Ships in 1 to 2 Days
$174.88
2
13331-ZM7-000Ships in 1 to 2 Days
$3.14$4.30
Diagram

CYLINDER

BF2 BF2D6 cylinder exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW64E0300E
Fits all 4 submodels of this generation.

Parts in this assembly

26 parts
1
04103-ZW6-000Ships in 1 to 2 Days
$157.77$165.66
2
12311-ZW6-000ZAShips in 1 to 2 Days
$14.05$19.24
2
12311-ZVA-010Ships in 1 to 2 Days
$14.05$19.24
3
12367-ZE6-010Ships in 1 to 2 Days
$2.37$3.34
3
12367-ZE6-020Ships in 1 to 2 Days
$1.81$2.48
4
15171-ZN4-000Ships in 1 to 2 Days
$5.64$7.72
5
15571-ZM7-003Ships in 1 to 2 Days
$2.77$3.80
6
15572-ZM7-000Ships in 1 to 2 Days
$1.49$2.04
7
15600-ZG4-003Ships in 1 to 2 Days
$4.89$6.70
8
04102-ZW6-000Ships in 1 to 2 Days
$41.48$59.66
9
15625-ZE1-003Ships in 1 to 2 Days
$2.42$3.32
10
15661-ZV0-003Ships in 1 to 2 Days
$9.29$12.72
11
19631-ZW6-010Ships in 1 to 2 Days
$8.72$12.30
12
90002-ZW6-020Ships in 1 to 2 Daysqty 4 used
$1.99$2.86
13
90003-ZVA-000Ships in 1 to 2 Days
$1.72$2.36
14
90008-ZM7-000Ships in 1 to 2 Days
$1.77$2.42
15
90019-ZV1-010Ships in 1 to 2 Daysqty 2 used
$1.36$1.86
16
90105-ZVA-000In Stock
$4.20$5.76
17
90471-580-000Ships in 1 to 2 Days
$2.98$4.08
18
91301-ZE9-003Ships in 1 to 2 Days
$1.69$2.32
19
93500-03005-0AShips in 1 to 2 Days
$0.82$1.12
20
96220-60150Ships in 1 to 2 Daysqty 2 used
$0.85$1.16
21
98056-54757Ships in 1 to 2 Days
$5.20$7.12
21
98056-54777In Stock
$4.51$6.18
21
98056-55777In Stock
$2.19$3.00
22
04102-ZW6-000Ships in 1 to 2 Days
$41.48$59.66
Diagram

ENGINE COVER

BF2 BF2D6 engine cover exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW64F0800F
Fits all 4 submodels of this generation.

Parts in this assembly

25 parts
1
17514-ZV0-000Ships in 1 to 2 Daysqty 2 used
$3.18$4.58
2
17936-921-000Ships in 1 to 2 Daysqty 4 used
$1.20$1.64
3
17951-ZVA-000Ships in 1 to 2 Days
$6.58$9.02
4
35180-ZW6-023Ships in 1 to 2 Days
$60.27$82.58
5
36182-ZV4-651In Stock
$18.45$25.28
6
40100-ZVA-000Ships in 1 to 2 Days
$61.76$84.60
6
40100-ZW6-010Ships in 1 to 2 Days
$61.76$84.60
7
58131-ZV0-000Ships in 1 to 2 Daysqty 2 used
$3.33$4.56
8
63100-ZW6-020ZAShips in 1 to 2 Days
$103.76
8
63101-ZW6-000ZAShips in 1 to 2 Days
$103.76
9
63103-ZVA-010Ships in 1 to 2 Days
$4.89$6.70
10
88111-ZVA-000Ships in 1 to 2 Days
$2.37$3.24
10
88111-ZV0-000Ships in 1 to 2 Daysreplaced by 88111-ZVA-000
$2.37$3.24
11
90019-ZV1-010Ships in 1 to 2 Days
$1.36$1.86
11
90019-ZW4-000Ships in 1 to 2 Days
$2.45$3.36
12
90302-921-000In Stock
$4.10$5.62
13
90757-ZV0-000In Stockreplaced by 94201-30402
$2.00$2.74
13
94201-30402In Stockqty 2 used
$2.00$2.74
14
91551-ZW6-000Ships in 1 to 2 Daysqty 3 used
$2.38$3.26
15
90103-ZVA-000Ships in 1 to 2 Daysqty 4 used
$3.29$4.50
15
BOLT, FLANGE (6X60)
95801-06060-02Ships in 1 to 2 Daysqty 4 used
$1.64$2.24
16
91551-ZW6-000Ships in 1 to 2 Days
$2.38$3.26
16
91552-ZVA-000Ships in 1 to 2 Days
$4.86$6.66
17
63100-ZW6-020ZAShips in 1 to 2 Days
$103.76
18
63113-ZW6-010Ships in 1 to 2 Days
$3.04$4.28
Diagram

EXHAUST PIPE

BF2 BF2D6 exhaust pipe exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW64E1600A
Fits all 4 submodels of this generation.

Parts in this assembly

4 parts
1
18330-ZVA-000Ships in 1 to 2 Days
$98.29$134.68
2
18515-ZVA-000Ships in 1 to 2 Days
$8.85$12.12
2
18515-ZW6-000Ships in 1 to 2 Daysreplaced by 18515-ZVA-000
$8.85$12.12
3
90003-ZVA-000Ships in 1 to 2 Daysqty 2 used
$1.72$2.36
Diagram

EXTENSION CASE

BF2 BF2D6 extension case exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW64F0300E
Fits all 4 submodels of this generation.

Parts in this assembly

42 parts
1
40201-ZW6-C00ZAShips in 1 to 2 Days
$257.94$353.34
2
40202-ZW6-C00ZAShips in 1 to 2 Days
$176.66$242.00
3
40210-ZVA-000Ships in 1 to 2 Days
$26.19$35.88
3
40210-ZW6-611Ships in 1 to 2 Days
$32.03$45.20
4
40218-ZVA-000Ships in 1 to 2 Daysqty 2 used
$6.63$9.08
5
41106-ZVA-000Ships in 1 to 2 Days
$15.83$21.68
5
41106-ZV4-650Ships in 1 to 2 Daysreplaced by 41106-ZVA-000
$15.83$21.68
6
LINER, SWIVEL CASE (NOT AVAILABLE)
50211-ZV0-000No Longer Available
$7.90
6
50211-ZVA-000Ships in 1 to 2 Daysqty 2 used
$6.33
7
90113-ZV0-000Ships in 1 to 2 Daysqty 3 used
$3.81$5.22
8
90127-ZV4-000In Stockqty 2 used
$2.12$2.90
9
90506-ZV4-000Ships in 1 to 2 Daysqty 3 used
$2.45$3.36
10
94301-08100Ships in 1 to 2 Daysqty 2 used
$2.74$3.76
11
94301-08140Ships in 1 to 2 Daysqty 2 used
$2.74$3.76
12
90014-ZZ5-M01Ships in 1 to 2 Daysqty 3 used
$1.87$2.56
12
95701-06025-02Ships in 1 to 2 Daysqty 3 used
$1.33$1.88
13
19250-ZVA-610Ships in 1 to 2 Days
$17.08$23.40
14
92101-05016-4JShips in 1 to 2 Daysqty 2 used
$1.21$1.66
15
CASE KIT, EXTENSION *NH246* (LOOSY GRAY)
04402-ZW6-000ZAShips in 1 to 2 Days
$218.17$298.86
15
CASE KIT, EXTENSION *NH246* (LOOSY GRAY) (NOT AVAILABLE)
04402-ZW6-010ZANo Longer Available
—
16
CASE, SWIVEL *NH246* (LOOSY GRAY) (NOT AVAILABLE)
50201-ZW6-000ZANo Longer Available
—
16
50201-ZW6-C00ZAShips in 1 to 2 Days
$66.76
17
50203-ZW6-000ZAShips in 1 to 2 Days
$21.64$31.12
17
50203-ZW6-010ZAShips in 1 to 2 Days
$18.19$25.66
18
50204-ZVA-000Ships in 1 to 2 Days
$3.04$4.16
19
50212-ZW6-305Ships in 1 to 2 Days
$6.51$9.36
19
50212-ZVA-000Ships in 1 to 2 Days
$5.21
20
50233-ZVA-000Ships in 1 to 2 Days
$2.35$3.22
21
50337-ZVA-000Ships in 1 to 2 Days
$11.90$16.30
21
50337-ZV0-000Ships in 1 to 2 Daysreplaced by 50337-ZVA-000
$11.90$16.30
22
50511-ZVA-000Ships in 1 to 2 Days
$11.23$15.38
23
50516-ZVA-000Ships in 1 to 2 Days
$1.75$2.40
24
90104-ZVA-000Ships in 1 to 2 Daysqty 3 used
$5.40$7.40
25
90106-ZVA-000Ships in 1 to 2 Days
$7.05$9.66
26
90114-HW1-671Ships in 1 to 2 Daysqty 2 used
$3.87$5.30
27
90116-881-000Ships in 1 to 2 Daysqty 2 used
$4.09$5.60
28
90507-ZV4-000Ships in 1 to 2 Daysqty 2 used
$2.20$3.02
29
90518-921-000Ships in 1 to 2 Days
$1.20$1.64
30
NIPPLE, GREASE (NOT AVAILABLE)
90901-ZV4-000No Longer Available
—
30
90951-ZV7-010Ships in 1 to 2 Days
$1.90$2.60
31
90752-ZW6-000Ships in 1 to 2 Days
$2.31$3.16
31
94305-25203Ships in 1 to 2 Days
$1.37$1.88
Diagram

FAN COVER

BF2 BF2D6 fan cover exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW64E1200A
Fits all 4 submodels of this generation.

Parts in this assembly

7 parts
1
16576-ZW6-010Ships in 1 to 2 Days
$8.22$11.26
1
16576-ZVA-000Ships in 1 to 2 Days
$2.72$3.72
2
19610-ZVA-000Ships in 1 to 2 Days
$47.92$65.64
3
19618-ZVA-000Ships in 1 to 2 Days
$4.45$6.10
4
90058-ZY3-000Ships in 1 to 2 Days
$1.33$1.88
5
90042-ZM7-000Ships in 1 to 2 Daysqty 2 used
$1.72$2.36
6
90043-ZM7-000Ships in 1 to 2 Days
$2.04$2.80
Diagram

FLYWHEEL

BF2 BF2D6 flywheel exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW64E1900B
Fits all 4 submodels of this generation.

Parts in this assembly

8 parts
1
28451-ZVA-003Ships in 1 to 2 Days
$13.65$18.70
2
30500-ZW6-014Ships in 1 to 2 Days
$67.28$69.30
3
31110-ZW6-004Ships in 1 to 2 Days
$75.89$78.18
4
32195-ZW6-000Ships in 1 to 2 Days
$5.46$7.70
5
90004-ZC3-000Ships in 1 to 2 Days
$1.20$1.64
5
90004-ZW4-000Ships in 1 to 2 Days
$1.01$1.38
6
90373-SP0-000Ships in 1 to 2 Days
$7.14$10.28
6
90203-ZVA-000Ships in 1 to 2 Days
$2.51$3.44
Diagram

FUEL TANK (1)

BF2 BF2D6 fuel tank (1) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW64E1700B
Fits all 4 submodels of this generation.

Parts in this assembly

30 parts
1
16952-ZE6-000Ships in 1 to 2 Days
$6.70$9.18
2
17511-ZW6-010Ships in 1 to 2 Days
$57.03$80.46
3
17515-ZV0-000Ships in 1 to 2 Days
$5.33$7.52
4
17620-ZV0-010Ships in 1 to 2 Days
$14.44$19.78
4
17620-ZV0-050Ships in 1 to 2 Days
$14.44$19.78
4
CAP ASSY., FUEL TANK
17620-ZW6-010Ships in 1 to 2 Days
$17.99$24.64
4
17620-ZW6-030Ships in 1 to 2 Days
$17.46$24.64
5
17621-ZV0-010Ships in 1 to 2 Days
$6.09$8.34
5
17621-ZV0-020Ships in 1 to 2 Days
$6.09$8.34
5
17621-ZV0-030Ships in 1 to 2 Days
$6.09$8.34
6
17622-ZV0-000Ships in 1 to 2 Days
$3.05$4.18
7
17623-ZV0-000Ships in 1 to 2 Days
$1.49$2.04
8
17624-ZV0-000Ships in 1 to 2 Days
$1.33$1.88
9
17625-ZV0-000Ships in 1 to 2 Days
$3.07$4.20
10
17626-ZV0-010Ships in 1 to 2 Days
$5.37$7.36
10
17626-ZV0-020Ships in 1 to 2 Days
$5.37$7.36
11
17628-ZV0-000Ships in 1 to 2 Days
$3.18$4.36
12
17629-ZV0-000Ships in 1 to 2 Days
$2.09$2.86
13
17701-ZVA-000Ships in 1 to 2 Days
$7.83$11.26
14
80105-MG9-000Ships in 1 to 2 Daysqty 2 used
$2.38$3.36
15
90545-323-700Ships in 1 to 2 Daysqty 2 used
$1.83$2.50
15
WASHER (6.5X18) (NOT AVAILABLE)
90403-ZW6-000No Longer Available
—
16
CLIP, TUBE (B10) (NOT AVAILABLE)
90602-ZV0-000No Longer Available
—
16
90603-ZV4-000Ships in 1 to 2 Days
$1.42$1.94
17
90604-ZV0-000Ships in 1 to 2 Days
$1.37$1.88
18
94021-06020Ships in 1 to 2 Daysqty 2 used
$2.16$2.96
19
94101-04200Ships in 1 to 2 Daysqty 2 used
$0.66$0.90
19
90402-ZW6-000Ships in 1 to 2 Daysqty 2 used
$1.11$1.56
20
94251-04000Ships in 1 to 2 Days
$0.61$0.84
20
90701-ZVA-000Ships in 1 to 2 Days
$1.26$1.80
Diagram

FUEL TANK (2)

BF2 BF2D6 fuel tank (2) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW64F0600A
Fits only BF2D6-SCAB — not every submodel of this generation.

Parts in this assembly

14 parts
1
16952-ZE6-000Ships in 1 to 2 Days
$6.70$9.18
2
17620-ZW6-030Ships in 1 to 2 Days
$17.46$24.64
3
17621-ZV0-020Ships in 1 to 2 Days
$6.09$8.34
3
17621-ZV0-030Ships in 1 to 2 Days
$6.09$8.34
4
17622-ZV0-000Ships in 1 to 2 Days
$3.05$4.18
5
17623-ZV0-000Ships in 1 to 2 Days
$1.49$2.04
6
17624-ZV0-000Ships in 1 to 2 Days
$1.33$1.88
7
17625-ZV0-000Ships in 1 to 2 Days
$3.07$4.20
8
17626-ZV0-020Ships in 1 to 2 Days
$5.37$7.36
9
17628-ZV0-000Ships in 1 to 2 Days
$3.18$4.36
10
17629-ZV0-000Ships in 1 to 2 Days
$2.09$2.86
11
90402-ZW6-000Ships in 1 to 2 Daysqty 2 used
$1.11$1.56
12
90701-ZVA-000Ships in 1 to 2 Days
$1.26$1.80
13
94021-06020Ships in 1 to 2 Daysqty 2 used
$2.16$2.96
Diagram

HANDLEBAR - THROTTLE CABLE

BF2 BF2D6 handlebar - throttle cable exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW64F0100A
Fits all 4 submodels of this generation.

Parts in this assembly

43 parts
1
HOLDER, CABLE (NOT AVAILABLE)
16576-ZV0-000No Longer Available
—
1
16576-ZW6-010Ships in 1 to 2 Days
$8.22$11.26
1
16576-ZVA-000Ships in 1 to 2 Days
$2.72$3.72
2
17910-ZVA-003Ships in 1 to 2 Days
$32.79$44.92
3
17920-ZVA-000Ships in 1 to 2 Days
$5.83$7.98
4
17921-ZVA-000Ships in 1 to 2 Days
$5.11$7.00
4
17921-ZV1-010Ships in 1 to 2 Days
$5.11$7.00
5
17930-ZW6-700Ships in 1 to 2 Days
$20.19$28.48
6
17931-ZW6-000Ships in 1 to 2 Days
$22.69$32.00
7
17932-ZV0-000Ships in 1 to 2 Daysqty 2 used
$1.74$2.46
8
17932-ZVA-000Ships in 1 to 2 Days
$2.28$3.12
9
53101-ZW6-000ZAShips in 1 to 2 Days
$46.97$66.28
10
53101-ZW6-C00ZAShips in 1 to 2 Days
$93.89$128.64
10
53101-ZW6-700ZAShips in 1 to 2 Days
$93.89$128.64
11
53104-ZVA-000Ships in 1 to 2 Days
$6.94$9.50
12
53106-ZVA-000Ships in 1 to 2 Days
$7.15$9.80
13
53107-ZVA-000Ships in 1 to 2 Daysqty 2 used
$2.89$3.96
14
53108-ZVA-010Ships in 1 to 2 Days
$2.20$3.02
15
COLLAR, DISTANCE
53109-ZV0-000No Longer Available
$6.69$9.16
16
53140-GW0-000Ships in 1 to 2 Days
$15.71$22.16
17
GRIP, R. HANDLE
53165-GW0-000No Longer Available
—
18
53165-ZV0-000Ships in 1 to 2 Days
$11.02$15.56
19
53167-ZVA-000Ships in 1 to 2 Days
$12.78$17.50
19
53167-ZW6-700Ships in 1 to 2 Days
$12.78$17.50
20
53168-GAH-A00Ships in 1 to 2 Days
$10.26$14.06
21
COLLAR, SEAT CATCH (NOT AVAILABLE)
77235-GC2-000No Longer Available
—
22
90008-ZV0-000Ships in 1 to 2 Days
$2.09$2.94
23
90101-ZW6-700Ships in 1 to 2 Days
$4.37$5.98
24
BOLT, FLANGE (8X40) (NOT AVAILABLE)
90105-ZV0-000No Longer Available
—
25
90301-782-000Ships in 1 to 2 Days
$1.49$2.04
25
94001-06490-0SShips in 1 to 2 Days
$2.15$2.94
26
90481-ZV0-000Ships in 1 to 2 Days
$4.39$6.20
27
90504-921-010Ships in 1 to 2 Days
$1.27$1.74
28
90508-ZV0-000Ships in 1 to 2 Days
$3.87$5.46
29
90511-ZV4-000Ships in 1 to 2 Days
$2.20$3.02
30
92101-06014-4JShips in 1 to 2 Days
$1.31$1.90
31
93500-05020-4JShips in 1 to 2 Daysqty 2 used
$0.86$1.18
32
94001-05020-0SShips in 1 to 2 Daysqty 2 used
$0.86$1.18
32
94001-05490-0SShips in 1 to 2 Daysqty 2 used
$0.92$1.26
33
94001-06020-0SShips in 1 to 2 Days
$1.34$1.84
33
90302-ZW4-000Ships in 1 to 2 Days
$0.82$1.16
34
95701-06012-02Ships in 1 to 2 Days
$2.10$2.96
34
90056-ZY9-M01Ships in 1 to 2 Days
$1.10$1.50
Diagram

LABELS

BF2 BF2D6 labels exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW64F1200B
Fits all 4 submodels of this generation.

Parts in this assembly

16 parts
1
MARK, RR. (NOT AVAILABLE)
87121-ZW6-000No Longer Available
—
1
87121-ZW6-B00Ships in 1 to 2 Days
$8.12$11.68
2
MARK, EMERGENCY SWITCH INDICATION (NOT AVAILABLE)
87124-ZW6-000No Longer Available
$2.23$3.06
3
87131-ZW6-000Ships in 1 to 2 Daysqty 2 used
$7.91$11.38
3
87131-ZW6-B00Ships in 1 to 2 Daysqty 2 used
$7.42$10.66
4
87132-ZW6-000Ships in 1 to 2 Daysqty 2 used
$7.91$11.38
4
87132-ZVA-000Ships in 1 to 2 Daysqty 2 used
$6.44$8.82
5
LABEL, SPECIFICATION (NOT AVAILABLE)
87150-ZW6-740No Longer Available
—
6
87521-ZV0-610Ships in 1 to 2 Days
$2.23$3.22
7
MARK, THROTTLE (NOT AVAILABLE)
87532-ZW6-840No Longer Available
—
8
87533-ZW6-740Ships in 1 to 2 Days
$9.50$13.40
9
87537-ZVA-000Ships in 1 to 2 Days
$5.43$7.44
10
87538-ZW6-740Ships in 1 to 2 Days
$15.15$21.80
11
87539-ZW6-740Ships in 1 to 2 Days
$4.95$6.98
12
87634-ZW4-D20Ships in 1 to 2 Days
$17.61$25.32
13
MARK (E-SPEC) (NOT AVAILABLE)
87135-ZW5-000No Longer Available
—
Diagram

OIL CASE

BF2 BF2D6 oil case exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW64E0500B
Fits all 4 submodels of this generation.

Parts in this assembly

7 parts
1
11300-ZVA-405Ships in 1 to 2 Days
$116.44$159.52
2
90006-ZM7-000Ships in 1 to 2 Daysqty 8 used
$1.72$2.36
2
90174-ZW4-000Ships in 1 to 2 Daysqty 8 used
$1.78$2.44
3
91202-HC5-005Ships in 1 to 2 Days
$3.59$4.92
4
11316-ZW6-000Ships in 1 to 2 Days
$5.97$8.42
5
15723-ZVA-000Ships in 1 to 2 Days
$4.73$6.48
6
90019-ZV1-010Ships in 1 to 2 Days
$1.36$1.86
Diagram

PISTON - CONNECTING ROD

BF2 BF2D6 piston - connecting rod exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW64E0800B
Fits all 4 submodels of this generation.

Parts in this assembly

7 parts
1
13010-ZW6-000Ships in 1 to 2 Days
$14.88$20.38
2
13101-ZDH-000Ships in 1 to 2 Days
$18.26$25.02
3
13111-GS7-000Ships in 1 to 2 Days
$10.60$14.52
3
13111-122-000Ships in 1 to 2 Daysreplaced by 13111-GS7-000
$10.60$14.52
4
13115-147-000Ships in 1 to 2 Days
$2.03$2.78
5
13200-ZN4-010Ships in 1 to 2 Days
$56.08$76.82
7
90001-ZM7-000Ships in 1 to 2 Daysqty 2 used
$2.20$3.02
Diagram

RECOIL STARTER

BF2 BF2D6 recoil starter exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW64E1100A
Fits all 4 submodels of this generation.

Parts in this assembly

4 parts
1
28400-ZVA-013Ships in 1 to 2 Days
$44.16
6
KNOB, STARTER (NOT AVAILABLE)
28461-ZA8-902No Longer Available
$8.73$11.96
7
90303-GC2-630Ships in 1 to 2 Daysqty 3 used
$3.47$4.90
8
28462-ZW6-003Ships in 1 to 2 Days
$9.94$13.62
Diagram

SWIVEL CASE

BF2 BF2D6 swivel case exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW64F1000C
Fits only BF2D6-LCHA, BF2D6-SCHA, BF2D6-SHA — not every submodel of this generation.

Parts in this assembly

15 parts
6
50300-ZVA-000ZAShips in 1 to 2 Daysqty 2 used
$189.39$259.44
6
50300-ZW6-000ZAShips in 1 to 2 Daysqty 2 used
$189.39$259.44
7
50302-ZVA-000Ships in 1 to 2 Days
$16.69$22.86
8
50303-ZVA-000Ships in 1 to 2 Days
$13.86$18.98
13
90107-ZV0-000Ships in 1 to 2 Days
$5.20$7.34
14
90108-ZV0-000Ships in 1 to 2 Days
$5.21$7.14
16
90301-ZVA-000Ships in 1 to 2 Days
$6.42$8.80
16
90301-ZV0-000Ships in 1 to 2 Daysreplaced by 90301-ZVA-000
$6.42$8.80
17
90501-ZVA-000Ships in 1 to 2 Daysqty 2 used
$3.31$4.54
19
90512-ZV0-000Ships in 1 to 2 Days
$3.07$4.32
22
NUT, HEX. (8MM)
94001-08490-0SShips in 1 to 2 Days
$2.54$3.48
23
WASHER, SPRING (8MM) (NA USE ALT:94111-08800)
94111-08400No Longer Available
—
24
90751-ZW6-000Ships in 1 to 2 Days
$1.33$1.82
24
94305-25083Ships in 1 to 2 Days
$1.18$1.66
26
50300-ZVA-000ZAShips in 1 to 2 Daysqty 2 used
$189.39$259.44
Diagram

TOOLS

BF2 BF2D6 tools exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW64F1300A
Fits all 4 submodels of this generation.

Parts in this assembly

10 parts
1
ROPE, STARTER (N/A: USE ALTERNATE P/N 08540-ZG921-11)
28462-ZV0-000No Longer Available
—
2
36187-ZV4-652Ships in 1 to 2 Days
$4.18$5.72
3
TOOL KIT
89000-ZW6-000No Longer Available
—
4
89203-VF9-003Ships in 1 to 2 Days
$5.34$7.32
5
89216-130-690Ships in 1 to 2 Days
$7.21$9.88
6
89210-GBJ-J10Ships in 1 to 2 Days
$19.36$26.52
6
89210-GBJ-J00Ships in 1 to 2 Days
$8.60$11.78
10
99008-01600Ships in 1 to 2 Days
$2.13$2.92
11
83513-044-000Ships in 1 to 2 Days
$3.84$5.26
12
98056-5475UShips in 1 to 2 Days
$23.01$31.52
Diagram

VERTICAL SHAFT - PROPELLER

BF2 BF2D6 vertical shaft - propeller exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW64F0500A
Fits all 4 submodels of this generation.

Parts in this assembly

35 parts
1
40205-ZW6-C00ZAShips in 1 to 2 Days
$27.84$39.28
2
41100-ZW6-C10ZAShips in 1 to 2 Days
$244.41
2
41100-ZW6-000ZAShips in 1 to 2 Days
$244.41
3
41106-ZVA-000Ships in 1 to 2 Days
$15.83$21.68
3
41106-ZV4-650Ships in 1 to 2 Daysreplaced by 41106-ZVA-000
$15.83$21.68
4
41112-ZW6-C00Ships in 1 to 2 Days
$101.09$138.50
4
41112-ZW6-C10Ships in 1 to 2 Days
$106.90$146.44
4
41112-ZW6-000Ships in 1 to 2 Days
$101.09$138.50
4
41112-ZW6-610Ships in 1 to 2 Days
$106.90$146.44
5
41131-ZW6-000Ships in 1 to 2 Days
$35.93$49.22
6
41135-ZVA-000Ships in 1 to 2 Days
$6.99$9.58
7
SHAFT, PROPELLER (NOT AVAILABLE)
41160-ZW6-000No Longer Available
—
8
41200-ZW6-C10ZAShips in 1 to 2 Days
$44.90$61.50
9
41281-ZV0-850Ships in 1 to 2 Daysreplaced by 41281-ZVA-000
$1.99$2.72
10
58130-ZV0-841ZBShips in 1 to 2 Days
$58.27
11
58131-ZV0-000Ships in 1 to 2 Days
$3.33$4.56
12
90105-ZVA-000In Stockqty 2 used
$4.20$5.76
13
90113-ZV0-000Ships in 1 to 2 Days
$3.81$5.22
14
90127-ZV4-000In Stockqty 4 used
$2.12$2.90
15
90504-921-010Ships in 1 to 2 Days
$1.27$1.74
16
90506-ZV4-000Ships in 1 to 2 Daysqty 5 used
$2.45$3.36
17
90507-921-000Ships in 1 to 2 Days
$0.89$1.22
18
90531-ZVA-000Ships in 1 to 2 Days
$5.91$8.10
18
90532-ZV0-000Ships in 1 to 2 Days
$5.91$8.10
18
90533-ZV0-000Ships in 1 to 2 Days
$5.91$8.10
18
90534-ZV0-000Ships in 1 to 2 Days
$5.91$8.10
18
90535-ZV0-000Ships in 1 to 2 Days
$5.91$8.10
19
94301-08140Ships in 1 to 2 Daysqty 2 used
$2.74$3.76
20
90755-SB2-000Ships in 1 to 2 Days
$5.29$7.60
21
90757-ZV0-000In Stockreplaced by 94201-30402
$2.00$2.74
21
94201-30402In Stock
$2.00$2.74
22
91251-ZV0-003Ships in 1 to 2 Days
$4.89$6.70
23
91253-ZV0-003Ships in 1 to 2 Days
$6.67$9.14
24
92101-06012-4JShips in 1 to 2 Days
$1.88$2.70
25
BEARING, RADIAL BALL (6000)
96100-60000-00Ships in 1 to 2 Days
$8.19$11.22
Diagrams are Honda's official OEM illustrations, served from Honda's asset host. Prices are our own; where a struck-through figure appears beside one it is Honda's suggested retail. “In Stock” means the part is on our shelf here at Boe Marine. “Ships in 1 to 2 Days” means we order it in from Honda, who still supply it. Parts marked “No Longer Available” are shown so the drawing stays complete, but Honda has discontinued them. Where a Sierra replacement is listed beneath a Honda part, Sierra ships it direct to you; “Backorder Now” on one of those means Sierra has none at the moment and will ship it once restocked.
