Engine Parts & Service › Honda Marine › BF2

BF2 — Parts Diagrams

Generation BF2AM  ·  2 submodels

Assemblies (17)

Diagram

AIR GUIDE

BF2 BF2AM air guide exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV04E1600
Fits all 2 submodels of this generation.

Parts in this assembly

21 parts
1
GUIDE, AIR (NOT AVAILABLE)
17201-ZV0-000No Longer Available
—
1
GUIDE, AIR (NOT AVAILABLE)
17201-ZV0-A00No Longer Available
—
2
17202-ZVA-300Ships in 1 to 2 Daysqty 2 used
$1.71$2.34
3
TRAP, FLAME (NOT AVAILABLE)
17203-ZV0-000No Longer Available
—
4
CHAMBER, AIR GUIDE
17205-ZV0-000No Longer Available
—
4
CHAMBER, AIR GUIDE (NOT AVAILABLE)
17205-ZV0-010No Longer Available
—
5
STAY, AIR GUIDE CHAMBER (NOT AVAILABLE)
17206-ZV0-000No Longer Available
—
6
PIPE, EX. (NOT AVAILABLE)
18201-ZV0-000No Longer Available
—
7
PROTECTOR, EX. PIPE (NOT AVAILABLE)
18205-ZV0-000No Longer Available
—
8
GASKET, EX. PIPE (A) (NOT AVAILABLE)
18211-ZV0-000No Longer Available
—
8
GASKET, EX. PIPE (A) (NOT AVAILABLE)
18211-ZV0-010No Longer Available
—
8
GASKET, EX. PIPE (A) (NOT AVAILABLE)
18211-ZV0-850No Longer Available
$2.50$3.42
9
90017-ZV0-000Ships in 1 to 2 Days
$1.74$2.38
10
90202-ZV0-000Ships in 1 to 2 Daysqty 2 used
$2.67$3.66
11
90504-921-010Ships in 1 to 2 Daysqty 4 used
$1.27$1.74
12
92101-06012-4JShips in 1 to 2 Daysqty 2 used
$1.88$2.70
13
92101-06016-4JShips in 1 to 2 Daysqty 2 used
$1.37$1.94
14
90081-ZV0-000Ships in 1 to 2 Daysqty 4 used
$2.77$3.98
14
93903-253G0Ships in 1 to 2 Daysqty 4 used
$1.58$2.16
15
94021-05020-0SShips in 1 to 2 Daysqty 2 used
$0.63$0.86
16
94101-05200Ships in 1 to 2 Daysqty 2 used
$1.12$1.62
Diagram

CARBURETOR

BF2 BF2AM carburetor exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV04E1400
Fits all 2 submodels of this generation.

Parts in this assembly

68 parts
1
16010-ZV0-015Ships in 1 to 2 Days
$16.80$24.18
1
16010-ZV0-025Ships in 1 to 2 Days
$16.80$24.18
2
16011-ZE0-005Ships in 1 to 2 Days
$21.42$29.34
3
16013-ZDJ-801Ships in 1 to 2 Days
$4.44$6.08
3
16013-ZG0-811Ships in 1 to 2 Daysreplaced by 16013-ZDJ-801
$4.44$6.08
4
16015-ZW6-003No Longer Available
$26.35$36.10
5
16016-ZE0-005Ships in 1 to 2 Days
$11.02$15.10
5
16016-ZV0-A00Ships in 1 to 2 Days
$9.50$13.66
5
SCREW SET (NOT AVAILABLE)
16016-ZV0-A01No Longer Available
—
5
16016-ZV0-E21Ships in 1 to 2 Days
$7.31$10.02
6
SCREW SET
16016-ZV0-005Ships in 1 to 2 Days
$7.34$10.06
6
SCREW SET
16016-ZV0-015No Longer Available
—
6
SCREW SET (NOT AVAILABLE)
16016-ZV0-025No Longer Available
—
6
16028-ZV0-A00Ships in 1 to 2 Days
$6.57$9.44
7
16028-ZV0-005Ships in 1 to 2 Days
$8.99$12.32
7
SCREW SET
16028-ZV0-015No Longer Available
—
7
SCREW SET
16028-ZV0-025No Longer Available
—
7
SCREW SET (NOT AVAILABLE)
16029-ZV0-A00No Longer Available
$8.99$12.32
8
16044-ZV0-005Ships in 1 to 2 Days
$15.96$22.96
8
16044-ZV0-A00Ships in 1 to 2 Days
$24.28$33.26
8
16044-ZV0-A01Ships in 1 to 2 Days
$26.28$36.00
9
CARBURETOR ASSY. (BF09A A/B)
16100-ZV0-005Ships in 1 to 2 Days
$66.58$91.20
9
CARBURETOR ASSY. (BF09A B/C/D)
16100-ZV0-015Ships in 1 to 2 Days
$66.58$91.20
9
CARBURETOR ASSY. (BF09A D)
16100-ZV0-025No Longer Available
—
9
CARBURETOR ASSY. (BF22A B)
16100-ZV0-045No Longer Available
—
9
CARBURETOR ASSY. (BF22A C)
16100-ZV0-055No Longer Available
—
9
CARBURETOR ASSY. (BF22C A)
16100-ZV0-E21Ships in 1 to 2 Daysreplaced by 16100-ZV0-305
$71.11
9
CARBURETOR ASSY. (BF22A E)
16100-ZV0-075Ships in 1 to 2 Days
$71.11
10
NOZZLE, MAIN (NOT AVAILABLE)
16166-ZV0-005No Longer Available
—
10
NOZZLE, MAIN (NOT AVAILABLE)
16166-ZV0-015No Longer Available
—
10
NOZZLE, MAIN (NOT AVAILABLE)
16166-ZV0-A00No Longer Available
—
10
NOZZLE, MAIN (NOT AVAILABLE)
16166-ZV0-E21No Longer Available
—
11
16211-ZG0-010Ships in 1 to 2 Days
$8.56$12.08
11
16211-ZG0-020Ships in 1 to 2 Days
$8.56$12.08
11
INSULATOR, CARBURETOR
16211-ZV0-000No Longer Available
$5.05$6.92
12
16212-ZG0-800Ships in 1 to 2 Days
$1.99$2.80
12
GASKET, INSULATOR (NOT AVAILABLE)
16212-ZV0-000No Longer Available
—
12
GASKET, INSULATOR (NOT AVAILABLE)
16212-ZV0-850No Longer Available
—
13
16221-ZG0-801Ships in 1 to 2 Days
$1.94$2.66
14
GASKET, CARBURETOR
16221-ZV0-306Ships in 1 to 2 Daysreplaced by 16221-ZV0-850
$13.15$18.02
14
GASKET, CARBURETOR
16221-ZV0-850No Longer Available
$13.15$18.02
15
PLATE, CARBURETOR JOINT (NOT AVAILABLE)
16225-ZV0-000No Longer Available
—
16
LEVER, PETCOCK
16953-ZV0-005Ships in 1 to 2 Days
$5.36$7.34
16
LEVER, PETCOCK
16953-ZV0-015No Longer Available
—
16
LEVER, PETCOCK
16953-ZV0-A00No Longer Available
—
16
LEVER, PETCOCK
16953-ZV0-025No Longer Available
—
16
LEVER, VALVE (NOT AVAILABLE)
16953-ZV0-035No Longer Available
—
17
16954-ZE1-811Ships in 1 to 2 Days
$3.04$4.16
17
16954-ZE1-812Ships in 1 to 2 Days
$3.04$4.16
18
16956-ZE1-811Ships in 1 to 2 Days
$3.04$4.16
19
16957-ZE1-811Ships in 1 to 2 Days
$3.10$4.24
19
16957-ZE1-812Ships in 1 to 2 Days
$3.10$4.24
20
93500-03006-0HShips in 1 to 2 Daysqty 2 used
$0.82$1.12
20
93500-03008-0HShips in 1 to 2 Daysqty 2 used
$0.72$1.00
20
SCREW, PAN (3X8)
93500-03008-1GNo Longer Available
—
20
SCREW, PAN (NOT AVAILABLE)
16081-ZV0-A00No Longer Available
—
21
SCREW, FLAT (5X20) (NOT AVAILABLE)
93600-05020-0BNo Longer Available
—
22
93892-04012-08Ships in 1 to 2 Daysqty 4 used
$0.74$1.02
22
SCREW, PAN (NOT AVAILABLE)
16082-ZV0-A00No Longer Available
—
23
BULK HOSE, VINYL (4.5X8X1000) (4.5X8X750)
95003-09001-60MNo Longer Available
$4.53$6.20
24
99101-ZG0-0620Ships in 1 to 2 Days
$5.61$7.68
24
99101-ZG0-0650Ships in 1 to 2 Days
$6.22$8.52
24
99101-187-0600Ships in 1 to 2 Days
$7.14$9.78
24
JET, MAIN (#70) (NOT AVAILABLE)
99101-187-0700No Longer Available
—
24
99101-ZG0-0550Ships in 1 to 2 Days
$7.77$10.64
24
99101-ZG0-0580Ships in 1 to 2 Days
$6.38$8.74
24
99101-ZG0-0600Ships in 1 to 2 Days
$7.14$9.78
25
99204-ZE0-0350Ships in 1 to 2 Days
$16.92$23.18
Diagram

CYLINDER

BF2 BF2AM cylinder exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV04E0300
Fits all 2 submodels of this generation.

Parts in this assembly

33 parts
1
CYLINDER
121A0-ZV0-000No Longer Available
—
1
CYLINDER
121A0-ZV0-010No Longer Available
—
1
CYLINDER (NOT AVAILABLE)
12100-ZV0-840No Longer Available
—
1
CYLINDER (NOT AVAILABLE)
12100-ZV0-841No Longer Available
—
2
GUIDE, VALVE (OVER SIZE) (NOT AVAILABLE)
121A3-ZV0-300No Longer Available
—
2
12133-ZV0-305Ships in 1 to 2 Daysqty 2 used
$7.87$11.32
3
12211-ZV0-010Ships in 1 to 2 Days
$28.75$30.18
4
GASKET, CYLINDER HEAD (NOT AVAILABLE)
12281-ZV0-000No Longer Available
—
5
12361-ZV0-000Ships in 1 to 2 Days
$7.67$11.02
6
12367-ZG1-013Ships in 1 to 2 Days
$1.66$2.40
7
CAP, BREATHER CHAMBER
12370-ZV0-000No Longer Available
—
7
CAP, BREATHER CHAMBER
12370-ZV0-010No Longer Available
—
7
CAP, BREATHER CHAMBER (NOT AVAILABLE)
12370-ZV0-020No Longer Available
—
8
12372-879-000Ships in 1 to 2 Days
$1.84$2.60
9
12373-ZV0-000Ships in 1 to 2 Days
$1.74$2.50
10
12375-ZG1-000Ships in 1 to 2 Days
$1.96$2.82
11
TUBE, BREATHER (NOT AVAILABLE)
15721-ZV0-000No Longer Available
—
12
TUBE A, BREATHER (NOT AVAILABLE)
15722-ZV0-000No Longer Available
—
13
TUBE B, BREATHER (NOT AVAILABLE)
15723-ZV0-000No Longer Available
$4.34$5.94
13
TUBE B, BREATHER (NOT AVAILABLE)
15723-ZV0-010No Longer Available
—
14
19631-ZV0-000Ships in 1 to 2 Days
$9.17$13.18
15
55102-166-000Ships in 1 to 2 Days
$4.12$5.64
16
90058-ZY3-000Ships in 1 to 2 Daysqty 2 used
$1.33$1.88
17
90013-ZV0-010Ships in 1 to 2 Daysqty 4 used
$1.80$2.46
18
90063-ZV0-000Ships in 1 to 2 Daysqty 2 used
$2.28$3.28
19
90065-ZV0-010Ships in 1 to 2 Daysqty 2 used
$2.64$3.80
20
90124-881-000Ships in 1 to 2 Daysqty 6 used
$1.91$2.76
20
95818-06035-02Ships in 1 to 2 Daysqty 4 used
$1.20$1.72
21
90202-ZV0-000Ships in 1 to 2 Daysqty 2 used
$2.67$3.66
22
90512-921-010In Stockqty 2 used
$1.07$1.46
23
91202-892-004Ships in 1 to 2 Days
$2.44$3.44
24
98073-54744In Stock
$2.18$2.98
24
98073-54754Ships in 1 to 2 Days
$2.26$3.10
Diagram

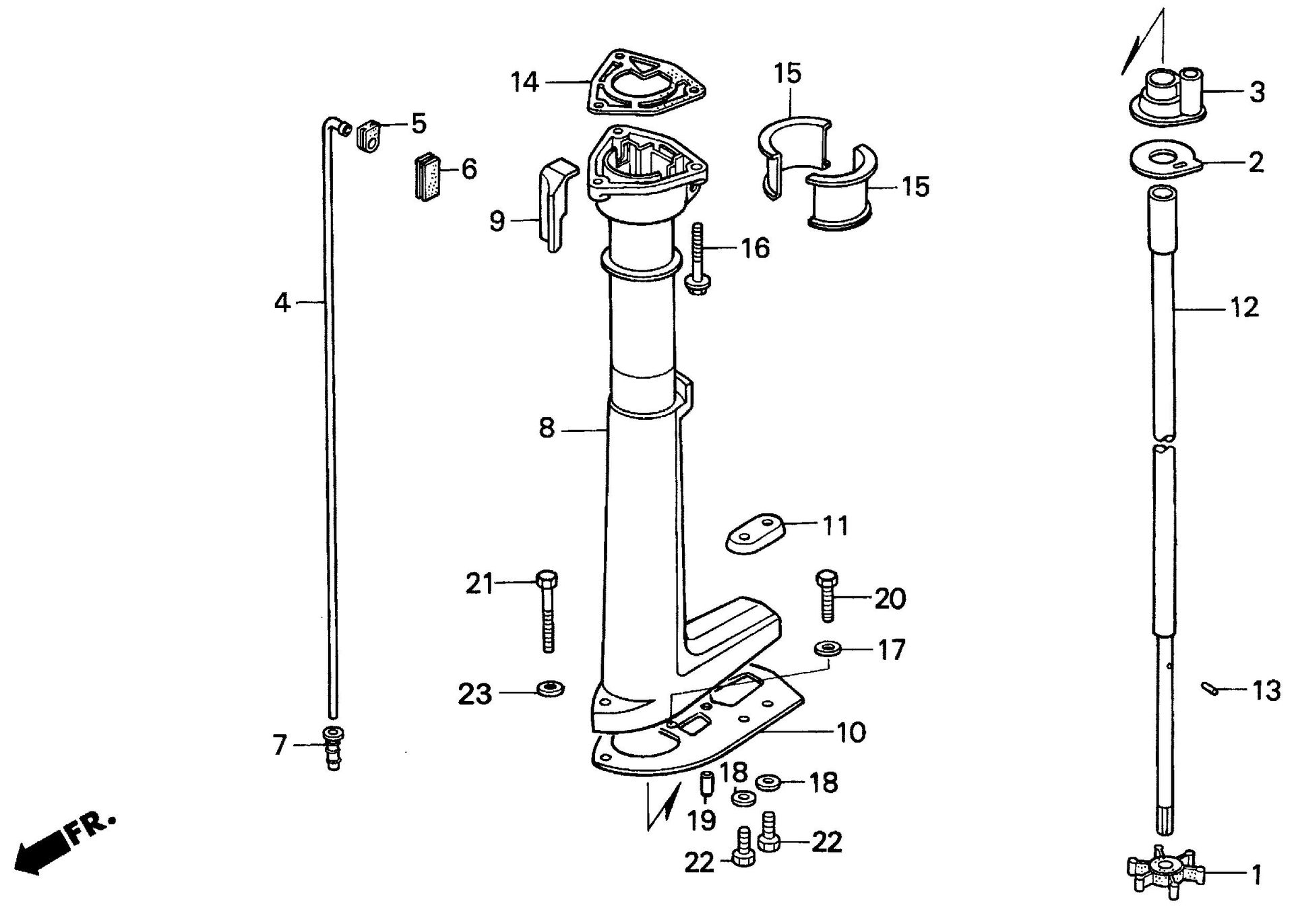

EXTENSION CASE

BF2 BF2AM extension case exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV04F0300ZA
Fits all 2 submodels of this generation.

Parts in this assembly

35 parts
1
19211-ZV0-003Ships in 1 to 2 Days
$26.12$37.56
2
COVER, IMPELLER (NOT AVAILABLE)
19231-ZV0-000No Longer Available
$3.58$4.90
3
HOLDER, IMPELLER COVER
19233-ZV0-000No Longer Available
$8.02$10.98
4
TUBE, WATER (NOT AVAILABLE)
19251-ZV0-000No Longer Available
—
4
TUBE, WATER (NOT AVAILABLE)
19251-ZV0-700No Longer Available
—
5
RUBBER, WATER SEAL (A) (NOT AVAILABLE)
19252-ZV0-000No Longer Available
—
6
RUBBER, WATER SEAL (B) (NOT AVAILABLE)
19253-ZV0-000No Longer Available
—
7
GROMMET, WATER PUMP (NOT AVAILABLE)
19254-ZV0-000No Longer Available
$2.92$4.00
8
CASE, EXTENSION *B107* (SENIOR BLUE) (NOT AVAILABLE)
40201-ZV0-000ZANo Longer Available
—
8
CASE, EXTENSION *NH210MC* (AQUA SILVER METALLIC-C)
40201-ZV0-840ZANo Longer Available
—
8
CASE, EXTENSION *NH210MC* (AQUA SILVER METALLIC-C)
40201-ZV0-841ZANo Longer Available
—
8
CASE, EXTENSION *NH210MC* (AQUA SILVER METALLIC-C) (NOT AVAILABLE)
40201-ZV0-842ZANo Longer Available
—
8
CASE, EXTENSION *NH282MU* (OYSTER SILVER METALLIC-U) (NOT AVAILABLE)
40201-ZV0-842ZBNo Longer Available
—
9
40203-ZV0-000Ships in 1 to 2 Days
$7.88$11.34
10
$36.24$49.64
10
$35.17$48.18
11
41106-935-812Ships in 1 to 2 Days
$9.75$14.02
11
41106-ZVA-000Ships in 1 to 2 Days
$15.83$21.68
11
41106-ZV4-650Ships in 1 to 2 Daysreplaced by 41106-ZVA-000
$15.83$21.68
12
SHAFT, VERTICAL
41110-ZV0-000No Longer Available
$71.64$98.14
12
SHAFT, VERTICAL (NOT AVAILABLE)
41110-ZV0-700No Longer Available
—
13
41122-ZV0-000Ships in 1 to 2 Days
$1.36$1.86
14
GASKET, CASE (UPPER) (NOT AVAILABLE)
50205-ZV0-000No Longer Available
—
14
GASKET, CASE (UPPER) (NOT AVAILABLE)
50205-ZV0-850No Longer Available
$4.34$5.94
15
LINER, SWIVEL CASE (NOT AVAILABLE)
50211-ZV0-000No Longer Available
$7.90
16
90023-ZY9-M01Ships in 1 to 2 Daysqty 3 used
$1.47$2.08
17
90504-921-010Ships in 1 to 2 Days
$1.27$1.74
18
90506-ZV4-000Ships in 1 to 2 Daysqty 2 used
$2.45$3.36
19
90751-ZV0-000Ships in 1 to 2 Daysqty 2 used
$2.61$3.76
20
92101-06012-4JShips in 1 to 2 Days
$1.88$2.70
21
90113-ZV0-000Ships in 1 to 2 Days
$3.81$5.22
22
90127-ZV4-000In Stockqty 2 used
$2.12$2.90
22
92101-06014-4JShips in 1 to 2 Daysqty 2 used
$1.31$1.90
23
90504-921-010Ships in 1 to 2 Days
$1.27$1.74
23
90506-ZV4-000Ships in 1 to 2 Days
$2.45$3.36
Diagram

FAN COVER

BF2 BF2AM fan cover exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV04E1200
Fits all 2 submodels of this generation.

Parts in this assembly

27 parts
1
HOLDER, CABLE (NOT AVAILABLE)
16576-ZV0-000No Longer Available
—
2
16622-ZV0-000Ships in 1 to 2 Days
$10.03$14.42
3
CABLE, THROTTLE (NOT AVAILABLE)
17910-ZV0-000No Longer Available
—
4
17931-ZV0-000Ships in 1 to 2 Days
$16.21$23.30
5
17932-ZV0-000Ships in 1 to 2 Days
$1.74$2.46
6
17951-ZVA-000Ships in 1 to 2 Days
$6.58$9.02
7
COVER, FAN
19610-ZV0-000No Longer Available
—
7
COVER, FAN (NOT AVAILABLE)
19610-ZV0-010No Longer Available
—
7
19610-ZV0-A02Ships in 1 to 2 Days
$125.34$180.30
8
19618-ZVA-000Ships in 1 to 2 Days
$4.45$6.10
9
SWITCH ASSY., STOP
36100-ZV0-003No Longer Available
—
9
SWITCH ASSY., STOP
36100-ZV0-013No Longer Available
—
9
SWITCH ASSY., STOP (NOT AVAILABLE)
36100-ZV0-023No Longer Available
—
10
SWITCH ASSY., EMERGENCY STOP
36180-ZV0-A01No Longer Available
—
10
SWITCH ASSY., EMERGENCY STOP
36180-ZV0-A02No Longer Available
—
11
36182-ZV4-651In Stock
$18.45$25.28
12
90017-ZV0-000Ships in 1 to 2 Daysqty 3 used
$1.74$2.38
13
90302-921-000In Stock
$4.10$5.62
14
90401-ZV0-000Ships in 1 to 2 Days
$2.42$3.48
15
GASKET, FIBER (6MM) (NOT AVAILABLE)
90445-700-000No Longer Available
$1.20$1.64
16
90481-ZV0-000Ships in 1 to 2 Days
$4.39$6.20
17
91403-881-000Ships in 1 to 2 Days
$5.15$7.42
18
90202-ZV0-000Ships in 1 to 2 Days
$2.67$3.66
19
95701-06012-00Ships in 1 to 2 Daysqty 2 used
$2.01$2.76
19
95701-06012-02Ships in 1 to 2 Daysqty 2 used
$2.10$2.96
20
95701-06018-02Ships in 1 to 2 Days
$2.28$3.28
21
36187-ZV4-652Ships in 1 to 2 Days
$4.18$5.72
Diagram

FUEL TANK

BF2 BF2AM fuel tank exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV04E1700
Fits all 2 submodels of this generation.

Parts in this assembly

25 parts
1
16952-ZE6-000Ships in 1 to 2 Days
$6.70$9.18
2
TANK, FUEL (NOT AVAILABLE)
17510-ZV0-010No Longer Available
—
3
TUBE, FUEL (NOT AVAILABLE)
17512-ZV0-000No Longer Available
—
4
17514-ZV0-000Ships in 1 to 2 Daysqty 2 used
$3.18$4.58
5
17515-ZV0-000Ships in 1 to 2 Days
$5.33$7.52
6
17516-ZV0-000Ships in 1 to 2 Daysqty 2 used
$2.98$4.08
7
17517-ZV0-000Ships in 1 to 2 Daysqty 2 used
$2.95$4.24
8
17620-ZV0-010Ships in 1 to 2 Days
$14.44$19.78
8
17620-ZV0-050Ships in 1 to 2 Days
$14.44$19.78
9
17621-ZV0-010Ships in 1 to 2 Days
$6.09$8.34
9
17621-ZV0-020Ships in 1 to 2 Days
$6.09$8.34
9
17621-ZV0-030Ships in 1 to 2 Days
$6.09$8.34
10
17622-ZV0-000Ships in 1 to 2 Days
$3.05$4.18
11
17623-ZV0-000Ships in 1 to 2 Days
$1.49$2.04
12
17624-ZV0-000Ships in 1 to 2 Days
$1.33$1.88
13
17625-ZV0-000Ships in 1 to 2 Days
$3.07$4.20
14
17626-ZV0-010Ships in 1 to 2 Days
$5.37$7.36
15
17628-ZV0-000Ships in 1 to 2 Days
$3.18$4.36
16
17629-ZV0-000Ships in 1 to 2 Days
$2.09$2.86
17
90202-ZV0-000Ships in 1 to 2 Daysqty 2 used
$2.67$3.66
18
CLIP, TUBE (B10) (NOT AVAILABLE)
90602-ZV0-000No Longer Available
—
19
90604-ZV0-000Ships in 1 to 2 Days
$1.37$1.88
20
94101-04200Ships in 1 to 2 Daysqty 2 used
$0.66$0.90
21
94103-06200Ships in 1 to 2 Daysqty 2 used
$1.04$1.46
22
94251-04000Ships in 1 to 2 Days
$0.61$0.84
Diagram

GASKET KIT

Honda publishes no exploded diagram for this assembly. The parts list below is complete.
Ref numbers on the diagram match the badges belowNOILL
Fits all 2 submodels of this generation.

Parts in this assembly

25 parts
0
GASKET KIT *B107* (SENIOR BLUE) (NOT AVAILABLE)
061A1-ZV0-000ZANo Longer Available
—
0
GASKET KIT *B107* (SENIOR BLUE) (NOT AVAILABLE)
061A1-ZV0-010ZANo Longer Available
—
0
GASKET KIT *NH210MC* (AQUA SILVER METALLIC-C) (NOT AVAILABLE)
061A1-ZV0-840ZANo Longer Available
—
0
GASKET KIT
061A1-ZV0-870No Longer Available
—
0
GASKET KIT
061A1-ZV0-880No Longer Available
—
1
GASKET, CASE COVER (NOT AVAILABLE)
11381-ZV0-000No Longer Available
—
1
GASKET, CASE COVER (NOT AVAILABLE)
11381-ZV0-850No Longer Available
—
2
GASKET, CYLINDER HEAD (NOT AVAILABLE)
12281-ZV0-000No Longer Available
—
3
12373-ZV0-000Ships in 1 to 2 Days
$1.74$2.50
4
12375-ZG1-000Ships in 1 to 2 Days
$1.96$2.82
5
15625-ZE1-003Ships in 1 to 2 Days
$2.42$3.32
6
16212-ZG0-800Ships in 1 to 2 Days
$1.99$2.80
6
GASKET, INSULATOR (NOT AVAILABLE)
16212-ZV0-000No Longer Available
—
6
GASKET, INSULATOR (NOT AVAILABLE)
16212-ZV0-850No Longer Available
—
7
16221-ZG0-801Ships in 1 to 2 Days
$1.94$2.66
8
GASKET, CARBURETOR
16221-ZV0-306Ships in 1 to 2 Daysreplaced by 16221-ZV0-850
$13.15$18.02
8
GASKET, CARBURETOR
16221-ZV0-850No Longer Available
$13.15$18.02
9
GASKET, EX. PIPE (A) (NOT AVAILABLE)
18211-ZV0-000No Longer Available
—
9
GASKET, EX. PIPE (A) (NOT AVAILABLE)
18211-ZV0-010No Longer Available
—
9
GASKET, EX. PIPE (A) (NOT AVAILABLE)
18211-ZV0-850No Longer Available
$2.50$3.42
10
$36.24$49.64
11
41281-ZV0-306Ships in 1 to 2 Daysreplaced by 41281-ZVA-000
$1.99$2.72
11
41281-ZV0-850Ships in 1 to 2 Daysreplaced by 41281-ZVA-000
$1.99$2.72
12
GASKET, CASE (UPPER) (NOT AVAILABLE)
50205-ZV0-000No Longer Available
—
12
GASKET, CASE (UPPER) (NOT AVAILABLE)
50205-ZV0-850No Longer Available
$4.34$5.94
Diagram

GEAR CASE

BF2 BF2AM gear case exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV04F0500
Fits all 2 submodels of this generation.

Parts in this assembly

65 parts
1
HOUSING, IMPELLER
19221-ZV0-000No Longer Available
—
1
HOUSING, IMPELLER (NOT AVAILABLE)
19221-ZV0-010No Longer Available
—
2
LINER, PUMP
19223-ZV0-000No Longer Available
—
2
LINER, PUMP (NOT AVAILABLE)
19223-ZV0-010No Longer Available
—
3
SEPARATOR, EXTENSION *NH210MC* (AQUA SILVER METALLIC-C)
40202-ZV0-940ZANo Longer Available
—
3
SEPARATOR, EXTENSION *NH210MC* (AQUA SILVER METALLIC-C)
40202-ZV0-941ZANo Longer Available
—
3
SEPARATOR, EXTENSION *NH210MC* (AQUA SILVER METALLIC-C) (NOT AVAILABLE)
40202-ZV0-942ZANo Longer Available
—
3
SEPARATOR, EXTENSION *NH282MU* (OYSTER SILVER METALLIC-U) (NOT AVAILABLE)
40202-ZV0-942ZBNo Longer Available
—
4
40204-ZV0-700Ships in 1 to 2 Days
$1.14$1.64
5
$36.24$49.64
5
$35.17$48.18
6
HOLDER, BUSH (NOT AVAILABLE)
40206-ZV0-700No Longer Available
—
7
40207-ZV0-700Ships in 1 to 2 Days
$4.83$6.96
8
BUSH, VERTICAL SHAFT (NOT AVAILABLE)
40208-ZV0-701No Longer Available
—
9
CASE, GEAR *B107* (SENIOR BLUE) (NOT AVAILABLE)
41101-ZV0-000ZANo Longer Available
—
9
CASE, GEAR *NH210MC* (AQUA SILVER METALLIC-C)
41101-ZV0-840ZANo Longer Available
—
9
CASE, GEAR *NH210MC* (AQUA SILVER METALLIC-C)
41101-ZV0-841ZANo Longer Available
—
9
$260.77$357.22
10
41106-935-812Ships in 1 to 2 Days
$9.75$14.02
10
41106-ZVA-000Ships in 1 to 2 Days
$15.83$21.68
10
41106-ZV4-650Ships in 1 to 2 Daysreplaced by 41106-ZVA-000
$15.83$21.68
11
41131-ZV0-000Ships in 1 to 2 Days
$32.85$47.24
12
41135-ZVA-000Ships in 1 to 2 Days
$6.99$9.58
13
SHAFT, PROPELLER (NOT AVAILABLE)
41160-ZV0-000No Longer Available
—
14
HOLDER, PROPELLER SHAFT *B107* (SENIOR BLUE) (NOT AVAILABLE)
41201-ZV0-000ZANo Longer Available
—
14
HOLDER, PROPELLER SHAFT *NH210MC* (AQUA SILVER METALLIC-C)
41201-ZV0-840ZANo Longer Available
—
14
HOLDER, PROPELLER SHAFT *NH210MC* (AQUA SILVER METALLIC-C)
41201-ZV0-841ZANo Longer Available
—
14
HOLDER, PROPELLER SHAFT *NH282MU* (OYSTER SILVER METALLIC-U) (NOT AVAILABLE)
41201-ZV0-842ZBNo Longer Available
—
15
41281-ZV0-306Ships in 1 to 2 Daysreplaced by 41281-ZVA-000
$1.99$2.72
15
41281-ZV0-850Ships in 1 to 2 Daysreplaced by 41281-ZVA-000
$1.99$2.72
16
58130-ZV0-840ZAShips in 1 to 2 Days
$58.27
16
58130-ZV0-841ZBShips in 1 to 2 Days
$58.27
17
58131-ZV0-000Ships in 1 to 2 Days
$3.33$4.56
18
BOLT, OIL CHECK (NOT AVAILABLE)
90105-921-000No Longer Available
$5.68$7.78
18
BOLT, OIL CHECK (NOT AVAILABLE)
90105-ZV4-000No Longer Available
$4.77$6.54
18
90105-ZVA-000In Stockqty 2 used
$4.20$5.76
19
90452-GK4-600In Stockqty 2 used
$1.28$1.82
20
90504-921-010Ships in 1 to 2 Days
$1.27$1.74
21
90506-ZV4-000Ships in 1 to 2 Daysqty 2 used
$2.45$3.36
22
90507-921-000Ships in 1 to 2 Days
$0.89$1.22
23
90531-ZVA-000Ships in 1 to 2 Days
$5.91$8.10
23
90532-ZV0-000Ships in 1 to 2 Days
$5.91$8.10
23
90533-ZV0-000Ships in 1 to 2 Days
$5.91$8.10
23
90534-ZV0-000Ships in 1 to 2 Days
$5.91$8.10
23
90535-ZV0-000Ships in 1 to 2 Days
$5.91$8.10
24
90752-ZV0-700Ships in 1 to 2 Daysqty 2 used
$2.48$3.58
25
90755-SB2-000Ships in 1 to 2 Days
$5.29$7.60
26
90757-ZV0-000In Stockreplaced by 94201-30402
$2.00$2.74
26
94201-30402In Stock
$2.00$2.74
27
91251-ZV0-003Ships in 1 to 2 Days
$4.89$6.70
28
91253-ZV0-003Ships in 1 to 2 Days
$6.67$9.14
29
92101-06012-4JShips in 1 to 2 Days
$1.88$2.70
30
92101-06016-4JShips in 1 to 2 Daysqty 2 used
$1.37$1.94
30
90127-ZV4-000In Stockqty 2 used
$2.12$2.90
31
92101-05025-4JNo Longer Availableqty 2 used
$1.83$2.50
32
90127-ZV4-000In Stockqty 2 used
$2.12$2.90
32
92101-06014-4JShips in 1 to 2 Daysqty 2 used
$1.31$1.90
33
90113-ZV0-000Ships in 1 to 2 Days
$3.81$5.22
34
90113-ZV0-000Ships in 1 to 2 Daysqty 2 used
$3.81$5.22
35
94301-08140Ships in 1 to 2 Daysqty 2 used
$2.74$3.76
36
BEARING, RADIAL BALL (6000)
96100-60000-00Ships in 1 to 2 Days
$8.19$11.22
37
90504-921-010Ships in 1 to 2 Daysqty 2 used
$1.27$1.74
37
90506-ZV4-000Ships in 1 to 2 Daysqty 2 used
$2.45$3.36
38
90504-921-010Ships in 1 to 2 Daysqty 3 used
$1.27$1.74
38
90506-ZV4-000Ships in 1 to 2 Daysqty 3 used
$2.45$3.36
Diagram

HANDLEBAR

BF2 BF2AM handlebar exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV04F0100
Fits all 2 submodels of this generation.

Parts in this assembly

34 parts
1
HANDLEBAR *B107* (SENIOR BLUE) (NOT AVAILABLE)
53101-ZV0-000ZANo Longer Available
—
1
HANDLEBAR *NH210MC* (AQUA SILVER METALLIC-C)
53101-ZV0-840ZANo Longer Available
—
1
HANDLEBAR *NH210MC* (AQUA SILVER METALLIC-C) (NOT AVAILABLE)
53101-ZV0-841ZANo Longer Available
—
1
HANDLEBAR *NH282MU* (OYSTER SILVER METALLIC-U) (NOT AVAILABLE)
53101-ZV0-841ZBNo Longer Available
—
2
53107-ZVA-000Ships in 1 to 2 Daysqty 2 used
$2.89$3.96
3
53108-ZVA-010Ships in 1 to 2 Days
$2.20$3.02
4
COLLAR, DISTANCE
53109-ZV0-000No Longer Available
$6.69$9.16
5
53165-ZV0-000Ships in 1 to 2 Days
$11.02$15.56
6
58131-ZV0-000Ships in 1 to 2 Daysqty 2 used
$3.33$4.56
7
COVER, ENGINE (NOT AVAILABLE)
63101-ZV0-010No Longer Available
—
7
COVER, ENGINE *NH209* (MARINE WHITE) (NOT AVAILABLE)
63101-ZV0-840ZANo Longer Available
—
7
63101-ZV0-840ZBShips in 1 to 2 Days
$150.97
8
63103-ZVA-010Ships in 1 to 2 Days
$4.89$6.70
9
COVER, TOP (NOT AVAILABLE)
63105-ZV0-000No Longer Available
—
10
88111-ZVA-000Ships in 1 to 2 Days
$2.37$3.24
10
88111-ZV0-000Ships in 1 to 2 Daysreplaced by 88111-ZVA-000
$2.37$3.24
11
BOLT, FLANGE (8X40) (NOT AVAILABLE)
90105-ZV0-000No Longer Available
—
12
90508-ZV0-000Ships in 1 to 2 Days
$3.87$5.46
13
90757-ZV0-000In Stockreplaced by 94201-30402
$2.00$2.74
13
94201-30402In Stockqty 2 used
$2.00$2.74
14
HOLDER, CABLE (NOT AVAILABLE)
16576-ZV0-000No Longer Available
—
15
17514-ZV0-000Ships in 1 to 2 Daysqty 2 used
$3.18$4.58
16
CABLE, THROTTLE (NOT AVAILABLE)
17910-ZV0-000No Longer Available
—
17
17931-ZV0-000Ships in 1 to 2 Days
$16.21$23.30
18
17932-ZV0-000Ships in 1 to 2 Days
$1.74$2.46
19
19610-ZV0-A02Ships in 1 to 2 Days
$125.34$180.30
20
SWITCH ASSY., EMERGENCY STOP
36180-ZV0-A02No Longer Available
—
21
36182-ZV4-651In Stock
$18.45$25.28
22
90202-ZV0-000Ships in 1 to 2 Days
$2.67$3.66
23
90302-921-000In Stock
$4.10$5.62
24
90401-ZV0-000Ships in 1 to 2 Days
$2.42$3.48
25
90481-ZV0-000Ships in 1 to 2 Days
$4.39$6.20
26
95701-06012-02Ships in 1 to 2 Daysqty 2 used
$2.10$2.96
27
36187-ZV4-652Ships in 1 to 2 Days
$4.18$5.72
Diagram

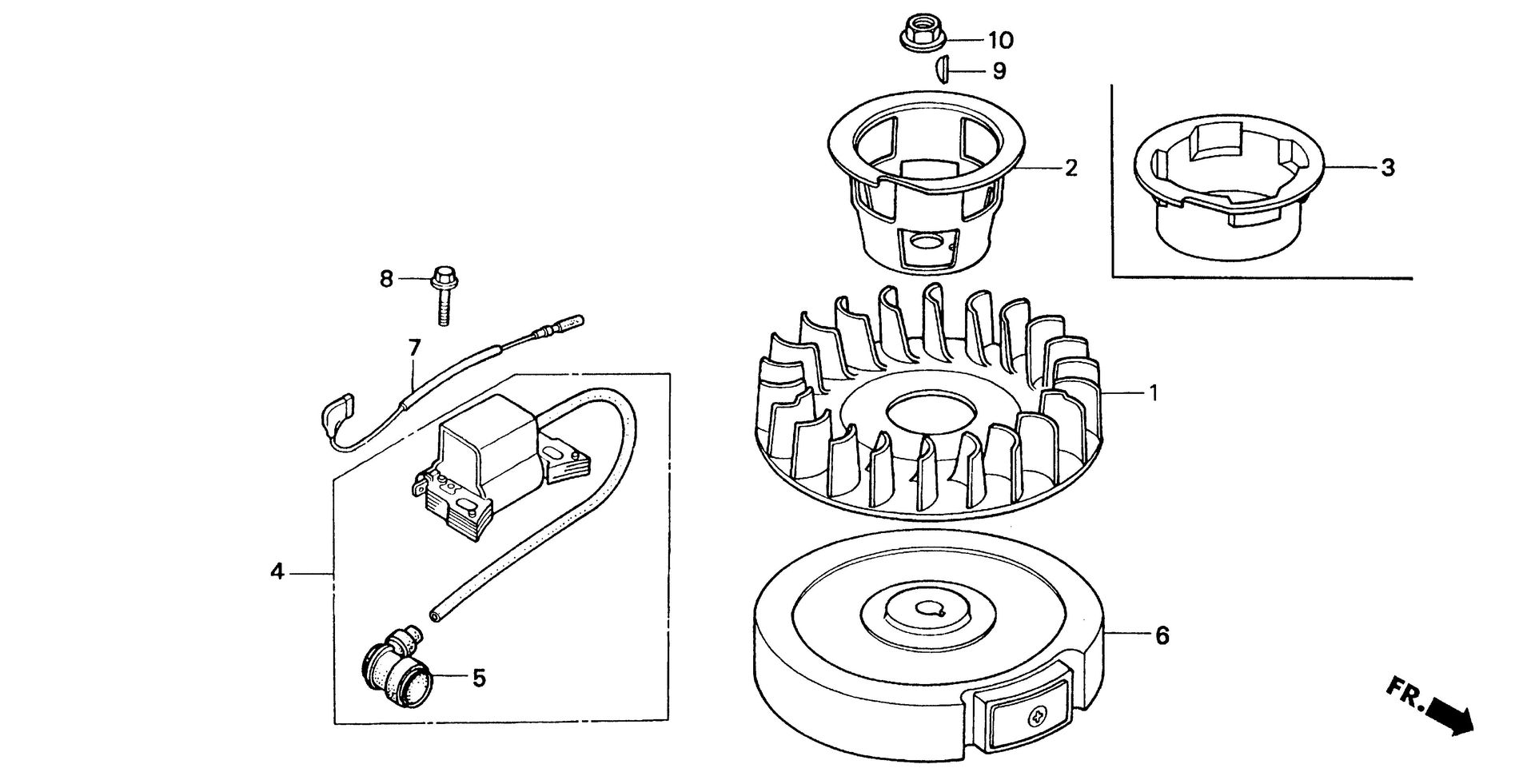

IGNITION COIL

BF2 BF2AM ignition coil exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV04E2000
Fits all 2 submodels of this generation.

Parts in this assembly

16 parts
1
FAN, COOLING (NOT AVAILABLE)
19511-ZG0-000No Longer Available
—
2
28451-ZV0-003Ships in 1 to 2 Days
$17.93$25.78
3
PULLEY, STARTER (NOT AVAILABLE)
28451-ZV0-004No Longer Available
—
4
COIL ASSY., IGNITION
30500-ZV0-003No Longer Available
—
4
COIL ASSY., IGNITION (NOT AVAILABLE)
30500-ZV0-013No Longer Available
—
4
30500-ZV0-023No Longer Available
$65.39$89.58
5
30700-896-702Ships in 1 to 2 Days
$8.32$11.96
6
FLYWHEEL (NOT AVAILABLE)
31100-ZG0-920No Longer Available
—
6
FLYWHEEL
31100-ZV0-000No Longer Available
—
6
FLYWHEEL
31100-ZV0-010No Longer Available
—
6
FLYWHEEL (NOT AVAILABLE)
31100-ZV0-020No Longer Available
—
7
WIRE, STOP SWITCH (NOT AVAILABLE)
36101-ZV0-000No Longer Available
—
7
WIRE, STOP SWITCH (200MM)
36101-ZV0-A00No Longer Available
—
8
90121-ZV0-010Ships in 1 to 2 Daysqty 2 used
$2.29$3.30
9
90741-035-000Ships in 1 to 2 Days
$4.22$5.96
10
94050-12020Ships in 1 to 2 Days
$1.56$2.24
Diagram

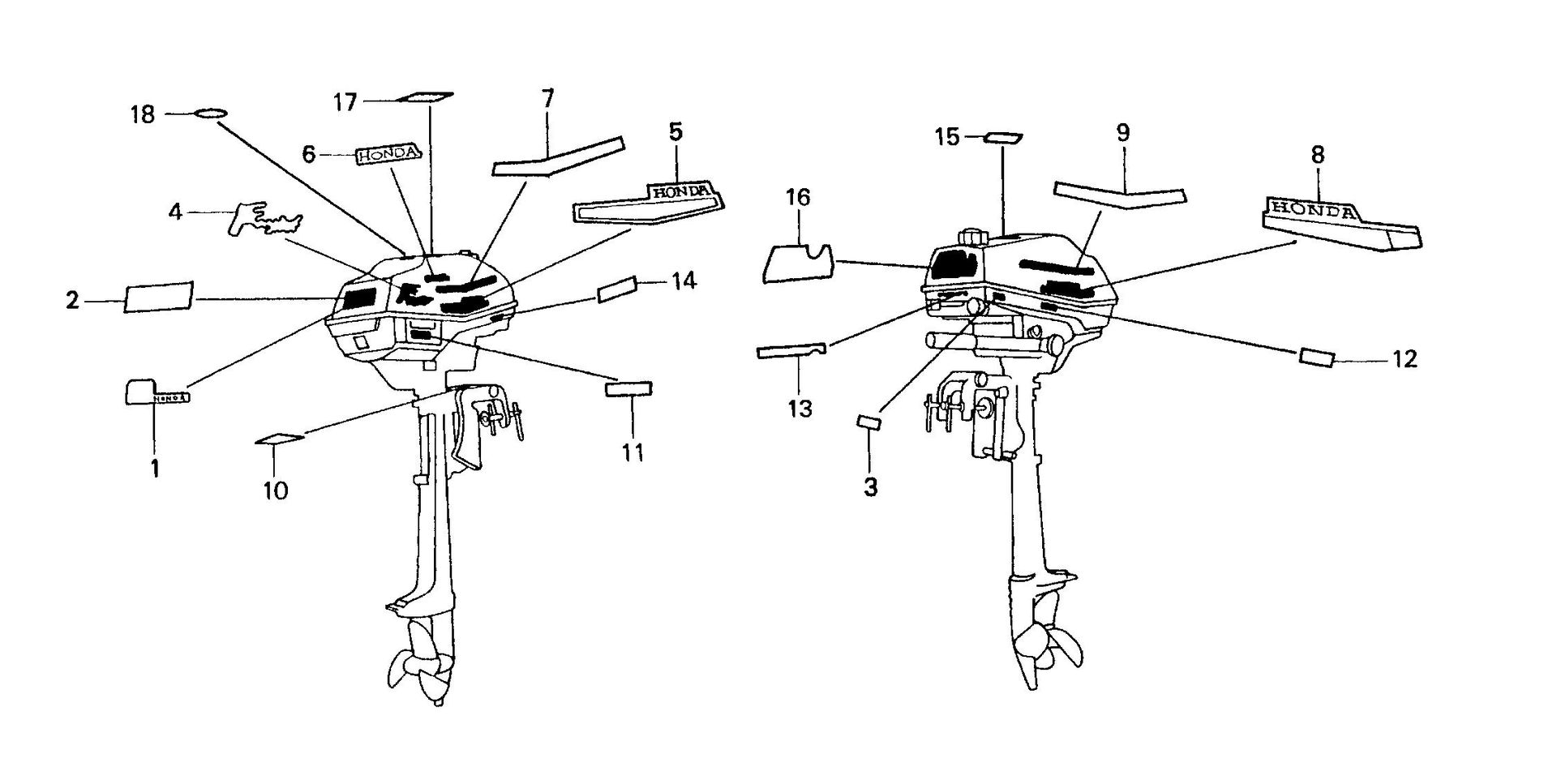

LABELS

BF2 BF2AM labels exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV04F1200
Fits all 2 submodels of this generation.

Parts in this assembly

33 parts
1
MARK, RR. (NOT AVAILABLE)
87121-ZV0-C00No Longer Available
—
2
EMBLEM, RR. (NOT AVAILABLE)
87121-ZV0-000No Longer Available
—
2
MARK, RR. EMBLEM (NOT AVAILABLE)
87121-ZV0-840No Longer Available
—
3
87125-ZV0-A21Ships in 1 to 2 Days
$3.91$5.62
4
MARK, SIDE (NOT AVAILABLE)
87131-ZV0-C00No Longer Available
—
5
STRIPE, R. SIDE COVER (NOT AVAILABLE)
87131-ZV0-600No Longer Available
—
5
MARK, R. SIDE STRIPE (LOWER) (NOT AVAILABLE)
87131-ZV0-841No Longer Available
—
6
MARK, SIDE STRIPE (HONDA)
87132-ZV0-C00No Longer Available
—
6
MARK, SIDE STRIPE (HONDA) (NOT AVAILABLE)
87132-ZV0-C01No Longer Available
—
7
MARK, R. STRIPE (UPPER) (NOT AVAILABLE)
87132-ZV0-840No Longer Available
—
8
STRIPE, L. SIDE COVER (NOT AVAILABLE)
87141-ZV0-600No Longer Available
—
8
87141-ZV0-841Ships in 1 to 2 Days
$18.59$26.74
9
87142-ZV0-840Ships in 1 to 2 Days
$13.05$18.78
10
87150-ZV0-C20Ships in 1 to 2 Days
$4.44$6.38
11
87521-ZV0-610Ships in 1 to 2 Days
$2.23$3.22
12
MARK, OIL CAUTION (E) (NOT AVAILABLE)
87531-ZV0-610No Longer Available
—
12
MARK, OIL CAUTION (NOT AVAILABLE)
87531-ZV0-860No Longer Available
—
12
LABEL, OIL CAUTION (E) (NOT AVAILABLE)
87531-ZV0-C20No Longer Available
—
13
MARK, INDICATION (E) (NOT AVAILABLE)
87532-ZV0-610No Longer Available
—
13
MARK, INDICATION (NOT AVAILABLE)
87532-ZV0-860No Longer Available
—
13
MARK, INDICATION (E) (NOT AVAILABLE)
87532-ZV0-C20No Longer Available
—
14
CAUTION, STORING (E) (NOT AVAILABLE)
87535-ZV0-610No Longer Available
—
14
CAUTION, STORING (NOT AVAILABLE)
87535-ZV0-860No Longer Available
—
15
LABEL, RECOIL CAUTION (E,F) (NOT AVAILABLE)
87537-ZV0-600No Longer Available
—
16
LABEL, OPERATOR CAUTION (E) (NOT AVAILABLE)
87538-ZV0-610No Longer Available
—
16
CAUTION, OPERATOR
87538-ZV0-860No Longer Available
—
16
CAUTION, OPERATOR (NOT AVAILABLE)
87538-ZV0-861No Longer Available
—
16
87538-ZV0-C21Ships in 1 to 2 Days
$6.29$9.06
17
MARK, TANK CAUTION (E) (NOT AVAILABLE)
87571-ZV0-610No Longer Available
—
17
MARK, TANK CAUTION (NOT AVAILABLE)
87571-ZV0-860No Longer Available
—
17
LABEL, TANK CAUTION (E)
87571-ZV0-C20No Longer Available
—
17
MARK, TANK CAUTION (NOT AVAILABLE)
87571-ZV0-C21No Longer Available
—
18
87634-ZW4-D20Ships in 1 to 2 Days
$17.61$25.32
Diagram

OIL PAN

BF2 BF2AM oil pan exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV04E0600
Fits all 2 submodels of this generation.

Parts in this assembly

18 parts
1
PAN, OIL
11300-ZV0-000No Longer Available
—
2
GASKET, CASE COVER (NOT AVAILABLE)
11381-ZV0-000No Longer Available
—
2
GASKET, CASE COVER (NOT AVAILABLE)
11381-ZV0-850No Longer Available
—
3
15331-ZV0-000Ships in 1 to 2 Days
$6.98$10.04
3
15331-ZV0-010Ships in 1 to 2 Days
$6.98$10.04
4
15332-ZV0-000Ships in 1 to 2 Days
$8.45$12.16
5
SHAFT, OIL SLINGER (NOT AVAILABLE)
15332-896-700No Longer Available
—
6
CAP, OIL FILLER
15620-ZG0-010No Longer Available
—
6
CAP, OIL FILLER (NOT AVAILABLE)
15620-ZG0-003No Longer Available
$4.80$6.58
7
15625-ZE1-003Ships in 1 to 2 Days
$2.42$3.32
8
15661-ZV0-003Ships in 1 to 2 Days
$9.29$12.72
9
90005-896-000Ships in 1 to 2 Days
$2.16$2.96
10
90015-ZV0-000Ships in 1 to 2 Daysqty 6 used
$2.64$3.62
11
91201-896-701Ships in 1 to 2 Days
$9.53$13.44
12
91203-ZV0-003No Longer Available
$7.59$10.40
13
94101-06800Ships in 1 to 2 Days
$0.60$0.82
14
94103-05800Ships in 1 to 2 Days
$0.91$1.24
15
94301-08140Ships in 1 to 2 Daysqty 2 used
$2.74$3.76
Diagram

PISTON - RINGS

BF2 BF2AM piston - rings exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV04E0800
Fits all 2 submodels of this generation.

Parts in this assembly

37 parts
1
RING SET, PISTON (STD) (TEIKOKU)
130A1-896-003No Longer Available
$27.20$37.26
1
RING SET, PISTON (0.25) (TEIKOKU) (NOT AVAILABLE)
130B1-896-003No Longer Available
—
1
RING SET, PISTON (0.25) (NIPPON) (NOT AVAILABLE)
130B1-896-004No Longer Available
—
1
RING SET, PISTON (0.50) (TEIKOKU) (NOT AVAILABLE)
130C1-896-003No Longer Available
—
1
RING SET, PISTON (0.50) (NIPPON)
130C1-896-004No Longer Available
—
1
RING SET, PISTON (0.75) (TEIKOKU) (NOT AVAILABLE)
130D1-896-003No Longer Available
—
1
RING SET, PISTON (0.75) (NIPPON) (NOT AVAILABLE)
130D1-896-004No Longer Available
—
2
13101-ZA8-000No Longer Available
$26.38$36.14
2
PISTON (0.25)
13102-892-000No Longer Available
—
2
13103-ZA8-000Ships in 1 to 2 Days
$35.04$50.40
2
PISTON (0.75)
13104-892-000No Longer Available
—
3
13111-892-000Ships in 1 to 2 Days
$5.20$7.12
4
13115-147-000Ships in 1 to 2 Days
$2.03$2.78
5
13200-ZG0-000Ships in 1 to 2 Days
$57.63$82.90
5
13200-ZG0-305Ships in 1 to 2 Days
$35.22$50.66
6
13310-ZV0-010Ships in 1 to 2 Days
$224.45$307.46
7
14111-ZV0-000Ships in 1 to 2 Days
$67.89$97.64
9
14711-ZV0-000Ships in 1 to 2 Days
$13.71$18.78
9
VALVE, IN. (NOT AVAILABLE)
14711-ZV0-010No Longer Available
—
10
VALVE, EX. (NOT AVAILABLE)
14721-ZV0-000No Longer Available
—
11
14732-ZA8-000Ships in 1 to 2 Daysqty 2 used
$13.99$19.74
11
14732-ZC0-000Ships in 1 to 2 Daysqty 2 used
$13.99$19.74
12
14751-896-000Ships in 1 to 2 Daysqty 2 used
$3.01$4.24
13
14771-ZG0-000Ships in 1 to 2 Daysqty 2 used
$3.88$5.48
14
14801-892-000Ships in 1 to 2 Daysqty 2 used
$5.36$7.56
14
14803-892-000Ships in 1 to 2 Daysqty 2 used
$5.61$7.92
14
14806-892-000Ships in 1 to 2 Daysqty 2 used
$5.36$7.56
14
14809-892-000Ships in 1 to 2 Daysqty 2 used
$5.36$7.56
14
14812-892-000Ships in 1 to 2 Daysqty 2 used
$5.36$7.56
14
14815-892-000Ships in 1 to 2 Daysqty 2 used
$5.36$7.56
14
14818-892-000Ships in 1 to 2 Daysqty 2 used
$5.36$7.56
14
14820-892-000Ships in 1 to 2 Daysqty 2 used
$5.36$7.56
15
90001-ZG0-000Ships in 1 to 2 Daysqty 2 used
$2.64$3.72
16
90452-ZG0-000Ships in 1 to 2 Daysqty 2 used
$1.34$1.94
17
90454-428-000Ships in 1 to 2 Days
$2.44$3.34
18
BEARING, RADIAL BALL (6203)
96100-62030-00Ships in 1 to 2 Days
$8.47$11.60
19
SEAL, VALVE STEM (NOT AVAILABLE)
12209-ZG1-H11No Longer Available
—
Diagram

RECOIL STARTER (1)

BF2 BF2AM recoil starter (1) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV04E1100
Fits only BF2AM-SA — not every submodel of this generation.

Parts in this assembly

17 parts
1
28400-ZV0-003No Longer Available
$70.74$96.90
2
CASE, STARTER (NOT AVAILABLE)
28410-ZV0-003No Longer Available
—
3
28420-ZG0-003Ships in 1 to 2 Daysreplaced by 28421-Z1B-D10
$24.25$34.22
3
28421-Z1B-D10Ships in 1 to 2 Days
$24.25$34.22
4
28422-ZG0-003Ships in 1 to 2 Daysreplaced by 28422-Z1B-D10
$5.30$7.48
5
28423-ZV0-003Ships in 1 to 2 Days
$3.42$4.92
6
PLATE A, FRICTION (NOT AVAILABLE)
28431-ZV0-003No Longer Available
—
7
28432-ZG0-003Ships in 1 to 2 Days
$1.93$2.64
7
28432-883-T20Ships in 1 to 2 Days
$1.93$2.64
8
SPRING, FRICTION
28441-ZV0-003No Longer Available
$3.90$5.34
9
SPRING, RETURN
28442-ZG0-003No Longer Available
$19.17$26.26
10
COVER, REEL STARTER (NOT AVAILABLE)
28443-ZV0-003No Longer Available
—
11
GRIP, STARTER
28461-ZG0-003No Longer Available
—
11
GRIP, STARTER (NOT AVAILABLE)
28461-ZG0-013No Longer Available
—
12
ROPE, STARTER (N/A: USE ALT P/N 08540-ZG921-11)
28462-ZV0-003No Longer Available
—
13
90003-ZV0-003Ships in 1 to 2 Days
$3.14$4.52
14
90202-ZV0-000Ships in 1 to 2 Daysqty 3 used
$2.67$3.66
Diagram

RECOIL STARTER (2)

BF2 BF2AM recoil starter (2) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV04E1101
Fits all 2 submodels of this generation.

Parts in this assembly

12 parts
1
STARTER ASSY., RECOIL (NOT AVAILABLE)
28400-ZV0-004No Longer Available
—
2
28410-ZV0-004Ships in 1 to 2 Days
$110.95$159.58
3
REEL, RECOIL STARTER (NOT AVAILABLE)
28420-ZG0-004No Longer Available
—
4
28422-896-010Ships in 1 to 2 Days
$5.85$8.26
5
28431-ZV0-004Ships in 1 to 2 Days
$3.66$5.28
6
28441-ZV0-004Ships in 1 to 2 Days
$4.01$5.78
7
28442-ZE6-003Ships in 1 to 2 Days
$18.13$25.58
8
28443-ZV0-004Ships in 1 to 2 Days
$7.14$10.26
9
GRIP, STARTER (NOT AVAILABLE)
28461-878-810No Longer Available
$5.18$7.10
10
ROPE, RECOIL STARTER (NA USE ALT:08540-ZG921-11)
28462-ZV0-004No Longer Available
—
11
90202-ZV0-000Ships in 1 to 2 Daysqty 3 used
$2.67$3.66
12
92101-06012-0HShips in 1 to 2 Days
$1.36$1.92
Diagram

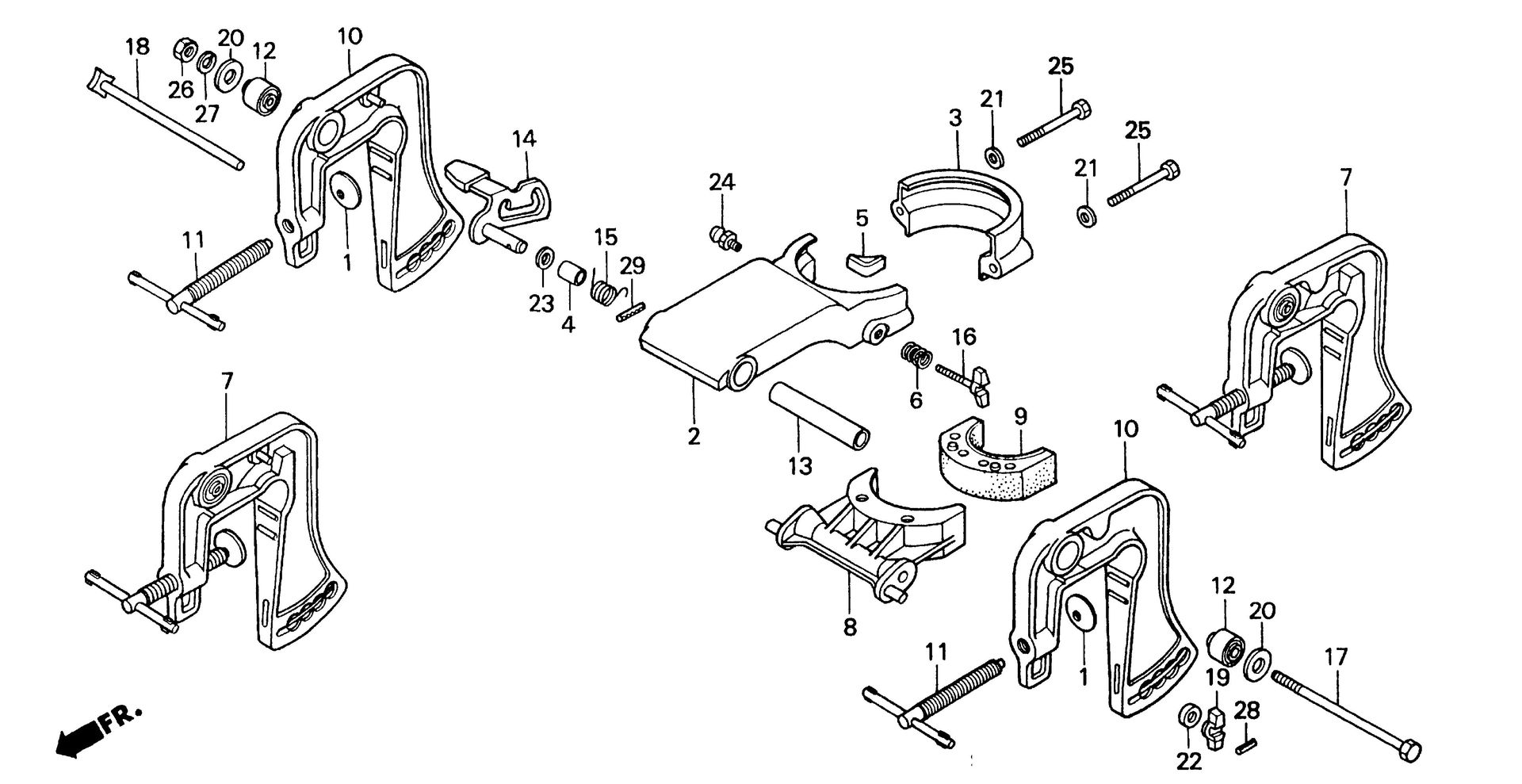

SWIVEL CASE

BF2 BF2AM swivel case exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV04F1100
Fits only BF2AM-SA — not every submodel of this generation.

Parts in this assembly

47 parts
1
50122-935-000Ships in 1 to 2 Daysqty 2 used
$5.37$7.58
1
50122-935-010Ships in 1 to 2 Daysqty 2 used
$5.37$7.58
2
CASE, SWIVEL *B107* (SENIOR BLUE) (NOT AVAILABLE)
50201-ZV0-030ZANo Longer Available
—
2
CASE, SWIVEL *NH210MC* (AQUA SILVER METALLIC-C)
50201-ZV0-840ZANo Longer Available
—
2
CASE, SWIVEL *NH210MC* (AQUA SILVER METALLIC-C) (NOT AVAILABLE)
50201-ZV0-841ZANo Longer Available
—
2
CASE, SWIVEL *NH282MU* (OYSTER SILVER METALLIC-U) (NOT AVAILABLE)
50201-ZV0-841ZBNo Longer Available
—
3
CAP, SWIVEL CASE *B107* (SENIOR BLUE) (NOT AVAILABLE)
50203-ZV0-000ZANo Longer Available
—
3
CAP, SWIVEL CASE *NH210MC* (AQUA SILVER METALLIC-C)
50203-ZV0-840ZANo Longer Available
—
3
CAP, SWIVEL CASE *NH210MC* (AQUA SILVER METALLIC-C) (NOT AVAILABLE)
50203-ZV0-841ZANo Longer Available
—
3
CAP, SWIVEL CASE *NH282MU* (OYSTER SILVER METALLIC-U) (NOT AVAILABLE)
50203-ZV0-841ZBNo Longer Available
—
4
50204-ZVA-000Ships in 1 to 2 Days
$3.04$4.16
5
50212-ZVA-000Ships in 1 to 2 Days
$5.21
6
50233-ZVA-000Ships in 1 to 2 Days
$2.35$3.22
7
BRACKET, STERN *NH210MC* (AQUA SILVER METALLIC-C)
50300-ZV0-841ZANo Longer Available
—
7
BRACKET, STERN *NH282MU* (OYSTER SILVER METALLIC-U)
50300-ZV0-841ZBNo Longer Available
—
7
BRACKET, R. STERN *NH282MU* (OYSTER SILVER METALLIC-U) (NOT AVAILABLE)
50300-ZV0-842ZBNo Longer Available
—
8
RECEIVER, THRUST (NOT AVAILABLE)
50302-ZV0-000No Longer Available
—
9
50303-ZVA-000Ships in 1 to 2 Days
$13.86$18.98
10
BRACKET, L. STERN *B107* (SENIOR BLUE) (NOT AVAILABLE)
50311-ZV0-000ZANo Longer Available
—
10
BRACKET, STERN *NH210MC* (AQUA SILVER METALLIC-C) (NOT AVAILABLE)
50311-ZV0-840ZANo Longer Available
—
11
SCREW, CLAMP (NOT AVAILABLE)
50325-ZV0-000No Longer Available
—
11
SCREW, CLAMP (NOT AVAILABLE)
50325-ZV0-010No Longer Available
—
12
50333-ZV0-000Ships in 1 to 2 Daysqty 2 used
$8.94$12.60
13
50337-ZVA-000Ships in 1 to 2 Days
$11.90$16.30
13
50337-ZV0-000Ships in 1 to 2 Daysreplaced by 50337-ZVA-000
$11.90$16.30
14
ARM, TILT LOCK (NA USE ALT:04602-ZV0-000ZA)
50511-ZV0-000No Longer Available
—
14
50511-ZVA-000Ships in 1 to 2 Days
$11.23$15.38
15
50516-ZVA-000Ships in 1 to 2 Days
$1.75$2.40
16
90106-ZVA-000Ships in 1 to 2 Days
$7.05$9.66
17
90107-ZV0-000Ships in 1 to 2 Days
$5.20$7.34
18
90108-ZV0-000Ships in 1 to 2 Days
$5.21$7.14
19
90301-ZVA-000Ships in 1 to 2 Days
$6.42$8.80
19
90301-ZV0-000Ships in 1 to 2 Daysreplaced by 90301-ZVA-000
$6.42$8.80
20
90501-ZVA-000Ships in 1 to 2 Daysqty 2 used
$3.31$4.54
21
90518-921-000Ships in 1 to 2 Daysqty 2 used
$1.20$1.64
21
90507-ZV4-000Ships in 1 to 2 Daysqty 2 used
$2.20$3.02
22
90512-ZV0-000Ships in 1 to 2 Days
$3.07$4.32
23
90518-921-000Ships in 1 to 2 Days
$1.20$1.64
24
NIPPLE, GREASE
90901-881-000No Longer Available
—
24
NIPPLE, GREASE (NOT AVAILABLE)
90901-ZV4-000No Longer Available
—
25
BOLT, HEX. (8X40)
92000-08040-4JNo Longer Available
—
25
90116-881-000Ships in 1 to 2 Daysqty 2 used
$4.09$5.60
26
94001-08220-0SShips in 1 to 2 Days
$0.98$1.40
26
NUT, HEX. (8MM)
94001-08490-0SShips in 1 to 2 Days
$2.54$3.48
27
WASHER, SPRING (8MM) (NA USE ALT:94111-08800)
94111-08400No Longer Available
—
28
94305-25083Ships in 1 to 2 Days
$1.18$1.66
29
94305-25203Ships in 1 to 2 Days
$1.37$1.88
Diagram

TOOLS

BF2 BF2AM tools exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV04F1300
Fits all 2 submodels of this generation.

Parts in this assembly

12 parts
1
ROPE, STARTER (N/A: USE ALTERNATE P/N 08540-ZG921-11)
28462-ZV0-000No Longer Available
—
2
36187-ZV4-652Ships in 1 to 2 Days
$4.18$5.72
3
TOOL KIT (NOT AVAILABLE)
89000-ZV0-A00No Longer Available
—
4
TOOL KIT (NOT AVAILABLE)
89000-ZV0-000No Longer Available
—
5
89216-896-610Ships in 1 to 2 Days
$14.66$21.08
6
98073-54744In Stock
$2.18$2.98
7
99001-10120Ships in 1 to 2 Days
$6.26$8.58
8
89210-GBJ-J10Ships in 1 to 2 Days
$19.36$26.52
9
99003-10000Ships in 1 to 2 Days
$3.81$5.22
10
99003-30000Ships in 1 to 2 Days
$3.81$5.22
11
99003-50000Ships in 1 to 2 Days
$4.96$6.80
12
BAG, TOOL (200MM)
99008-02000No Longer Available
—
Diagrams are Honda's official OEM illustrations, served from Honda's asset host. Prices are our own; where a struck-through figure appears beside one it is Honda's suggested retail. “In Stock” means the part is on our shelf here at Boe Marine. “Ships in 1 to 2 Days” means we order it in from Honda, who still supply it. Parts marked “No Longer Available” are shown so the drawing stays complete, but Honda has discontinued them. Where a Sierra replacement is listed beneath a Honda part, Sierra ships it direct to you; “Backorder Now” on one of those means Sierra has none at the moment and will ship it once restocked.
