BF25 — Parts Diagrams

Generation BF25AY  ·  7 submodels

Assemblies (40)

Diagram

CAMSHAFT

BF25 BF25AY camshaft exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV94E0900ZA
Fits all 7 submodels of this generation.

Parts in this assembly

12 parts
1
CAMSHAFT (NOT AVAILABLE)
14110-ZV7-000No Longer Available
—
1
14110-ZW2-000Ships in 1 to 2 Days
$292.63$400.86
2
14481-ZV7-000Ships in 1 to 2 Daysqty 2 used
$2.88$4.06
3
14482-ZV7-000Ships in 1 to 2 Daysqty 2 used
$2.15$3.02
4
14621-ZV7-000Ships in 1 to 2 Daysqty 6 used
$37.11$52.36
5
14631-ZV7-000Ships in 1 to 2 Days
$43.42$61.26
6
14636-ZV7-000Ships in 1 to 2 Daysqty 2 used
$3.71$5.24
7
14641-ZV7-000Ships in 1 to 2 Days
$43.42$61.26
8
90012-333-000Ships in 1 to 2 Daysqty 6 used
$2.64$3.62
9
90206-001-000Ships in 1 to 2 Daysqty 6 used
$1.59$2.18
10
95801-06028-09Ships in 1 to 2 Daysqty 2 used
$1.17$1.64
11
96220-30168Ships in 1 to 2 Days
$0.29$0.40
Diagram

CARBURETOR

BF25 BF25AY carburetor exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV94E1400A
Fits all 7 submodels of this generation.

Parts in this assembly

84 parts
1
12155-ZV5-000Ships in 1 to 2 Daysreplaced by 12155-ZV5-010
$9.53$13.06
2
CLAMP, TUBE
12328-ZV5-000No Longer Available
—
3
16010-ZV4-005In Stock
$14.89$21.00
4
16011-ZV4-005Ships in 1 to 2 Daysqty 3 used
$29.68$41.88
↳
Sierra alternative ·
18-7047In Stock
$37.88
5
16013-ZV4-005Ships in 1 to 2 Daysqty 3 used
$31.01$44.60
6
16016-ZV3-000Ships in 1 to 2 Daysqty 3 used
$10.16$14.62
6
16016-ZV7-B51Ships in 1 to 2 Daysqty 3 used
$8.58$12.34
6
16016-ZW1-L41Ships in 1 to 2 Daysqty 3 used
$9.10$12.84
7
16023-ZV3-000Ships in 1 to 2 Daysqty 3 used
$62.49$88.16
8
16024-ZY3-000Ships in 1 to 2 Daysqty 3 used
$12.18$16.68
9
16028-ZV3-000Ships in 1 to 2 Days
$9.18$12.96
10
16029-ZV3-000Ships in 1 to 2 Daysqty 2 used
$9.61$13.56
11
16052-KG4-003Ships in 1 to 2 Daysqty 2 used
$5.87$8.28
12
16071-ZV4-005Ships in 1 to 2 Daysqty 3 used
$6.26$8.84
13
16081-ZV4-650Ships in 1 to 2 Daysqty 12 used
$3.21$4.54
14
CARBURETOR ASSY. (BG10A D) *NH8* (DARK GRAY)
16100-ZV7-013ZAShips in 1 to 2 Days
$514.64
14
CARBURETOR ASSY. (BG10A B) *NH8* (DARK GRAY)
16100-ZV7-020ZAShips in 1 to 2 Days
$514.64
14
CARBURETOR ASSY. (BG10B B) *NH8* (DARK GRAY)
16100-ZV7-B52ZAShips in 1 to 2 Days
$514.64
14
CARBURETOR ASSY. (BG13A A) *NH8* (DARK GRAY)
16100-ZW2-003ZANo Longer Available
—
14
CARBURETOR ASSY. (BG13B B) *NH8* (DARK GRAY)
16100-ZW2-A22ZAShips in 1 to 2 Days
$514.64
15
CARBURETOR ASSY. (#1/#2)
16101-ZV7-020Ships in 1 to 2 Daysqty 2 used
$184.77
15
CARBURETOR ASSY. (#1/#2) (NOT AVAILABLE)
16101-ZV7-030No Longer Available
—
15
16101-ZV7-B52Ships in 1 to 2 Daysqty 2 used
$172.37
15
CARBURETOR ASSY. (#1/#2)
16101-ZV7-B53No Longer Available
$172.37
15
CARBURETOR ASSY. (#1/#2) (NOT AVAILABLE)
16101-ZW2-000No Longer Available
—
15
CARBURETOR ASSY. (#1/#2)
16101-ZW2-A22Ships in 1 to 2 Daysqty 2 used
$186.21
16
CARBURETOR ASSY. (#3)
16102-ZV7-020Ships in 1 to 2 Days
$184.77
16
CARBURETOR ASSY. (#3) (NOT AVAILABLE)
16102-ZV7-030No Longer Available
—
16
CARBURETOR ASSY. (#3)
16102-ZV7-B52Ships in 1 to 2 Days
$186.21
16
CARBURETOR ASSY. (#3) (NOT AVAILABLE)
16102-ZW2-000No Longer Available
—
16
CARBURETOR ASSY. (#3)
16102-ZW2-A22Ships in 1 to 2 Days
$171.21
17
LEVER, LINK (NOT AVAILABLE)
16142-ZV3-000No Longer Available
—
18
LINE, CHOKE (NOT AVAILABLE)
16144-ZV3-000No Longer Available
—
19
16150-ZV7-010In Stockqty 3 used
$23.35$33.58
20
NOZZLE, MAIN
16166-ZV7-010Ships in 1 to 2 Daysqty 3 used
$13.17$18.04
20
NOZZLE, MAIN (NOT AVAILABLE)
16166-ZV7-020No Longer Available
—
20
NOZZLE, MAIN (NOT AVAILABLE)
16166-ZW2-000No Longer Available
$16.80$23.02
21
INSULATOR, CARBURETOR (NOT AVAILABLE)
16211-ZV7-000No Longer Available
—
21
16211-ZW2-000Ships in 1 to 2 Daysqty 3 used
$8.19$11.56
22
16221-ZV7-000Ships in 1 to 2 Daysqty 6 used
$4.96$7.14
22
16221-ZW2-000In Stockqty 6 used
$2.80$3.96
23
CLAMP, FUEL TUBE (A) (NOT AVAILABLE)
16223-ZV5-000No Longer Available
$4.12$5.64
24
16263-ZA0-000Ships in 1 to 2 Days
$3.78$5.18
25
ARM A, CHOKE
16574-ZV5-000No Longer Available
$6.25$8.56
26
ARM B, CHOKE
16575-ZV5-000No Longer Available
$6.25$8.56
27
ROD, CHOKE (NOT AVAILABLE)
16622-ZV5-000No Longer Available
—
28
ROD, CHOKE KNOB (NOT AVAILABLE)
16628-ZV7-000No Longer Available
—
29
SPRING, CHOKE ARM ADJUSTING (NOT AVAILABLE)
16659-ZV5-000No Longer Available
—
30
CLAMP, FUEL TUBE
16815-ZV5-000No Longer Available
—
31
TUBE C, FUEL (NOT AVAILABLE)
16871-ZV7-000No Longer Available
$4.50$6.16
32
16881-ZV5-000Ships in 1 to 2 Days
$3.78$5.18
33
16960-ME9-000Ships in 1 to 2 Days
$16.05$21.98
34
17100-ZV7-000ZAShips in 1 to 2 Days
$213.64$292.66
35
17151-ZV7-000Ships in 1 to 2 Days
$12.89$18.20
36
17202-ZV5-310Ships in 1 to 2 Daysqty 6 used
$2.20$3.02
37
PLATE, MUFFLER (NOT AVAILABLE)
17380-ZV5-000No Longer Available
—
38
17384-ZV5-000Ships in 1 to 2 Days
$22.91$32.32
39
17881-ZV5-010Ships in 1 to 2 Days
$38.16$53.86
40
17957-ZV4-000Ships in 1 to 2 Days
$1.90$2.74
41
36135-ZV5-004Ships in 1 to 2 Days
$39.11$55.18
42
90013-ZV0-010Ships in 1 to 2 Daysqty 2 used
$1.80$2.46
43
90019-ZV1-010Ships in 1 to 2 Daysqty 2 used
$1.36$1.86
44
90021-ZV5-000Ships in 1 to 2 Daysqty 6 used
$3.84$5.26
45
90452-323-000Ships in 1 to 2 Days
$1.53$2.16
46
90511-ZV4-000Ships in 1 to 2 Daysqty 2 used
$2.20$3.02
47
90603-ZV4-000Ships in 1 to 2 Daysqty 8 used
$1.42$1.94
48
91503-ZV5-000Ships in 1 to 2 Days
$5.14$7.40
49
SCREW, PAN (4X16) (NOT AVAILABLE)
93500-04016-0BNo Longer Available
—
50
93500-05010-0BShips in 1 to 2 Daysqty 3 used
$0.98$1.34
51
93500-06018-4JShips in 1 to 2 Days
$1.49$2.10
52
95001-35003-60MShips in 1 to 2 Daysqty 3 used
$27.23$39.16
53
95001-35003-60MShips in 1 to 2 Days
$27.23$39.16
54
95001-55003-60MShips in 1 to 2 Days
$65.33$93.98
55
95001-55003-60MShips in 1 to 2 Days
$65.33$93.98
56
95001-55003-60MShips in 1 to 2 Days
$65.33$93.98
57
$26.65$38.34
58
95701-06028-02Ships in 1 to 2 Days
$1.90$2.72
59
96220-60150Ships in 1 to 2 Daysqty 6 used
$0.85$1.16
60
99101-ZV5-0950Ships in 1 to 2 Daysqty 3 used
$5.65$8.12
60
99101-ZV5-0980Ships in 1 to 2 Daysqty 3 used
$5.45$7.68
60
99101-ZV5-1000Ships in 1 to 2 Daysqty 3 used
$4.92$6.94
60
99101-ZV5-1050Ships in 1 to 2 Daysqty 3 used
$5.31$7.50
60
JET, MAIN (#108) (NOT AVAILABLE)
99101-ZV5-1080No Longer Available
—
60
JET, MAIN (#110) (NOT AVAILABLE)
99101-ZV5-1100No Longer Available
—
Diagram

CHARGE RECEPTACLE KIT (1)

BF25 BF25AY charge receptacle kit (1) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV94Y0300
Fits only BF25AY-LHA, BF25AY-SHA — not every submodel of this generation.

Parts in this assembly

18 parts
1
06310-ZV7-020Ships in 1 to 2 Days
$292.91$401.24
2
30564-ZA5-000Ships in 1 to 2 Days
$4.67$6.40
3
BRACKET, REGULATOR
31604-ZV7-000Ships in 1 to 2 Days
$16.59$22.72
4
COIL ASSY., CHARGE (12V-6A) (NOT AVAILABLE)
31630-ZV7-003No Longer Available
—
5
RECEPTACLE ASSY., CHARGE
31650-ZV7-003No Longer Available
—
6
RECEPTACLE (NOT AVAILABLE)
31651-ZV7-003No Longer Available
—
7
31652-881-024Ships in 1 to 2 Days
$16.85$23.78
8
RECTIFIER ASSY., REGULATOR (NOT AVAILABLE)
31750-ZV7-003No Longer Available
—
9
38207-ZV4-000Ships in 1 to 2 Days
$2.01$2.90
10
40107-ZV7-000Ships in 1 to 2 Days
$13.84$19.92
11
87512-ZV4-A21Ships in 1 to 2 Days
$3.42$4.92
12
90013-ZV0-010Ships in 1 to 2 Daysqty 2 used
$1.80$2.46
13
90014-ZV1-000Ships in 1 to 2 Daysqty 2 used
$1.20$1.68
13
90014-ZV1-010Ships in 1 to 2 Daysqty 2 used
$1.20$1.68
14
90014-ZV7-040Ships in 1 to 2 Daysqty 2 used
$1.58$2.22
15
90672-SA0-003Ships in 1 to 2 Days
$7.17$9.82
16
95701-06020-02In Stockqty 2 used
$1.07$1.46
17
98200-11500In Stock
$0.83$1.14
Diagram

CHARGE RECEPTACLE KIT (2)

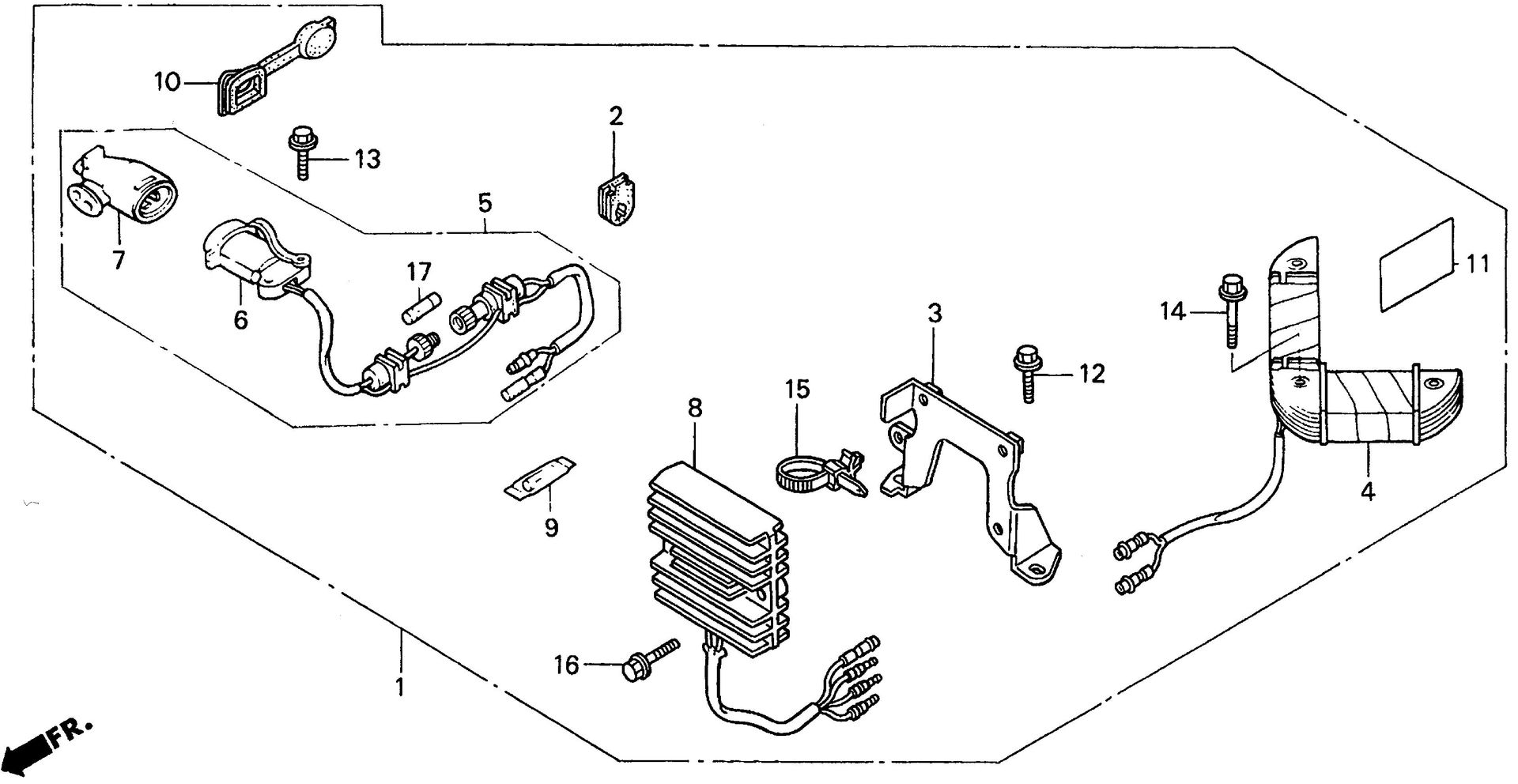

BF25 BF25AY charge receptacle kit (2) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV94Y0301
Fits only BF25AY-LHA, BF25AY-SHA — not every submodel of this generation.

Parts in this assembly

19 parts
1
RECEPTACLE KIT, CHARGE (10A) (NOT AVAILABLE)
06320-ZV7-000No Longer Available
—
1
RECEPTACLE KIT, CHARGE (10A)
06320-ZV7-010No Longer Available
—
2
30564-ZA5-000Ships in 1 to 2 Days
$4.67$6.40
3
BRACKET, REGULATOR
31604-ZV7-000Ships in 1 to 2 Days
$16.59$22.72
4
COIL ASSY., CHARGE (12V-10A) (NOT AVAILABLE)
31630-ZV7-911No Longer Available
—
5
RECEPTACLE ASSY., CHARGE
31650-ZV7-003No Longer Available
—
6
RECEPTACLE (NOT AVAILABLE)
31651-ZV7-003No Longer Available
—
7
31652-881-024Ships in 1 to 2 Days
$16.85$23.78
8
RECTIFIER ASSY., REGULATOR (NOT AVAILABLE)
31750-ZV7-003No Longer Available
—
9
38207-ZV4-000Ships in 1 to 2 Days
$2.01$2.90
10
40107-ZV7-000Ships in 1 to 2 Days
$13.84$19.92
11
87512-ZV4-831Ships in 1 to 2 Days
$2.13$3.06
12
90013-ZV0-010Ships in 1 to 2 Daysqty 2 used
$1.80$2.46
13
90014-ZV1-000Ships in 1 to 2 Daysqty 2 used
$1.20$1.68
13
90014-ZV1-010Ships in 1 to 2 Daysqty 2 used
$1.20$1.68
14
90014-ZV7-040Ships in 1 to 2 Daysqty 3 used
$1.58$2.22
15
90672-SA0-003Ships in 1 to 2 Days
$7.17$9.82
16
95701-06020-02In Stockqty 2 used
$1.07$1.46
17
98200-11500In Stock
$0.83$1.14
Diagram

CRANKSHAFT

BF25 BF25AY crankshaft exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV94E0700
Fits all 7 submodels of this generation.

Parts in this assembly

23 parts
1
13010-ZV4-004Ships in 1 to 2 Daysqty 3 used
$28.79$41.42
1
RING SET, PISTON (0.25) (NOT AVAILABLE)
13011-ZV7-000No Longer Available
—
2
PISTON (STD) (NOT AVAILABLE)
13101-ZV7-000No Longer Available
—
2
PISTON (0.25) (NOT AVAILABLE)
13102-ZV7-000No Longer Available
—
3
PIN, PISTON (NOT AVAILABLE)
13111-ZV7-000No Longer Available
—
4
ROD SET, CONNECTING (NOT AVAILABLE)
13210-ZV7-000No Longer Available
—
5
13213-KV0-000Ships in 1 to 2 Daysqty 6 used
$5.96$8.40
6
13215-KM3-000Ships in 1 to 2 Daysqty 6 used
$3.71$5.24
7
13215-333-003Ships in 1 to 2 Daysqty 6 used
$13.36$18.84
7
13216-333-003Ships in 1 to 2 Daysqty 6 used
$8.34$11.76
7
13217-333-003Ships in 1 to 2 Daysqty 6 used
$8.72$12.30
7
13218-333-003Ships in 1 to 2 Daysqty 6 used
$11.11$15.68
7
13219-333-003Ships in 1 to 2 Daysqty 6 used
$11.11$15.68
8
CRANKSHAFT (NOT AVAILABLE)
13310-ZV7-000No Longer Available
—
9
13315-MJ0-010Ships in 1 to 2 Daysqty 8 used
$9.78$13.80
9
13316-MJ0-010Ships in 1 to 2 Daysqty 8 used
$9.78$13.80
9
13317-MJ0-010Ships in 1 to 2 Daysqty 8 used
$9.78$13.80
9
13318-MJ0-000Ships in 1 to 2 Daysqty 8 used
$10.48$14.80
10
13331-ZW2-F01Ships in 1 to 2 Daysqty 2 used
$7.72$10.90
11
13331-357-000Ships in 1 to 2 Days
$3.64$5.14
12
NUT, SPECIAL (16MM) (NOT AVAILABLE)
90201-ZV4-010No Longer Available
—
13
90741-ZV4-000Ships in 1 to 2 Days
$2.98$4.20
14
94601-14000Ships in 1 to 2 Daysqty 6 used
$0.66$0.90
Diagram

CYLINDER BLOCK

BF25 BF25AY cylinder block exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV94E0300
Fits all 7 submodels of this generation.

Parts in this assembly

31 parts
1
BOLT, FLANGE (8X85)
11115-ZV7-000No Longer Available
—
2
11911-ZV7-020Ships in 1 to 2 Days
$8.40$11.84
3
BLOCK ASSY., CYLINDER *NH8* (DARK GRAY) (NOT AVAILABLE)
12000-ZV7-000ZANo Longer Available
—
4
12155-ZV5-000Ships in 1 to 2 Daysreplaced by 12155-ZV5-010
$9.53$13.06
5
15142-PE0-000Ships in 1 to 2 Days
$2.67$3.66
6
15150-ZV5-000Ships in 1 to 2 Days
$7.50$10.58
7
15400-PFB-014Ships in 1 to 2 Daysreplaced by 15400-ZZ3-003
$16.47$22.56
↳
Sierra alternative ·
18-7913In Stock save $6.31
$10.16
7
15400-ZZ3-003In Stock
$16.47$22.56
↳
Sierra alternative ·
18-7913In Stock save $6.31
$10.16
7
15400-PFB-007Ships in 1 to 2 Daysreplaced by 15400-ZZ3-003
$16.47$22.56
↳
Sierra alternative ·
18-7911-1In Stock save $5.41
$11.06
8
19300-ZV5-023Ships in 1 to 2 Days
$29.77$42.00
↳
Sierra alternative ·
18-3630In Stock save $0.08
$29.69
8
19300-ZV5-043In Stock
$29.77$42.00
↳
Sierra alternative ·
18-3630In Stock save $0.08
$29.69
9
19315-ZV5-010Ships in 1 to 2 Days
$25.78$36.38
10
19351-ZV5-000In Stock
$2.98$4.20
11
19361-ZV7-000ZAShips in 1 to 2 Days
$66.50$93.82
12
19371-ZV7-000Ships in 1 to 2 Days
$12.18$17.18
13
24626-ZV5-000Ships in 1 to 2 Days
$2.25$3.18
13
24626-ZV5-010In Stock
$2.25$3.18
14
37240-P13-013Ships in 1 to 2 Days
$62.08$85.04
15
90012-ZZ5-M02Ships in 1 to 2 Days
$3.72$5.10
16
90013-ZV0-010Ships in 1 to 2 Days
$1.80$2.46
17
90014-ZV7-040Ships in 1 to 2 Daysqty 2 used
$1.58$2.22
18
90018-PN3-000Ships in 1 to 2 Days
$7.04$9.64
19
90020-ZV5-000Ships in 1 to 2 Daysqty 6 used
$1.91$2.76
20
90405-ZZ5-M01Ships in 1 to 2 Daysqty 8 used
$1.96$2.68
21
91201-ZE3-004Ships in 1 to 2 Days
$7.99$10.94
22
91262-SL4-005Ships in 1 to 2 Days
$10.83$15.28
23
93500-06018-4JShips in 1 to 2 Days
$1.49$2.10
24
94301-10120Ships in 1 to 2 Daysqty 8 used
$3.01$4.12
25
94303-06100Ships in 1 to 2 Daysqty 2 used
$2.74$3.76
26
95701-06040-02Ships in 1 to 2 Daysqty 8 used
$1.71$2.40
27
95701-08018-02Ships in 1 to 2 Daysqty 2 used
$1.36$1.96
Diagram

CYLINDER HEAD

BF25 BF25AY cylinder head exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV94E0200ZA
Fits all 7 submodels of this generation.

Parts in this assembly

41 parts
1
CYLINDER HEAD ASSY. BARE *NH8* (DARK GRAY)
12010-ZV7-000ZANo Longer Available
—
1
CYLINDER HEAD ASSY. BARE *NH8* (DARK GRAY) (NOT AVAILABLE)
12010-ZV7-010ZANo Longer Available
—
1
CYLINDER HEAD *NH8* (DARK GRAY)
12210-ZV7-010ZANo Longer Available
—
2
GUIDE, VALVE (OVER SIZE)
12204-ZV4-305No Longer Available
—
2
GUIDE, VALVE (OVER SIZE) (NOT AVAILABLE)
12204-ZV4-315No Longer Available
—
3
GUIDE, EX. VALVE (OVER SIZE)
12205-ZV4-305No Longer Available
—
3
GUIDE, EX. VALVE (OVER SIZE) (NOT AVAILABLE)
12205-ZV4-315No Longer Available
—
4
12209-KL4-005Ships in 1 to 2 Daysqty 6 used
$7.88$10.80
5
12212-ZV7-000Ships in 1 to 2 Days
$6.92$9.76
6
12228-ZV7-000Ships in 1 to 2 Daysqty 8 used
$4.37$6.16
7
12251-ZV7-004Ships in 1 to 2 Days
$80.01$115.08
8
COVER, CYLINDER HEAD
12310-ZV7-000No Longer Available
—
9
12312-ZV7-010Ships in 1 to 2 Days
$19.99$28.20
10
12314-ZV5-300Ships in 1 to 2 Daysqty 6 used
$4.83$6.82
11
VALVE, IN. (NOT AVAILABLE)
14711-ZV4-000No Longer Available
—
12
VALVE, EX. (NOT AVAILABLE)
14721-ZV7-000No Longer Available
—
13
SPRING, VALVE (NOT AVAILABLE)
14751-ZV4-000No Longer Available
—
14
14771-ZV1-000Ships in 1 to 2 Daysqty 6 used
$6.28$8.86
15
14775-028-010Ships in 1 to 2 Daysqty 6 used
$4.10$5.78
16
14781-107-003Ships in 1 to 2 Days
$2.45$3.46
17
TUBE, OIL
15422-ZV7-000No Longer Available
—
18
15611-ZV4-000Ships in 1 to 2 Days
$7.91$11.16
19
PUMP ASSY., FUEL (MSDS)
16700-ZV5-003Ships in 1 to 2 Days
$116.64$159.78
19
16700-ZW1-004Ships in 1 to 2 Days
$113.24$159.78
20
16716-ZV5-000Ships in 1 to 2 Days
$9.20$12.98
21
SWITCH ASSY., THERMOSTAT
37760-ZV7-003No Longer Available
—
21
SWITCH ASSY., THERMOSTAT (NOT AVAILABLE)
37760-ZV7-013No Longer Available
—
22
BOLT, STUD (6X28)
90006-ZV5-000No Longer Available
$1.93$2.64
23
90405-ZZ5-M01Ships in 1 to 2 Daysqty 8 used
$1.96$2.68
24
91202-KJ9-003Ships in 1 to 2 Days
$4.80$6.58
25
91301-805-000Ships in 1 to 2 Days
$3.65$5.00
26
91351-MG7-003Ships in 1 to 2 Days
$2.50$3.52
27
91307-PH7-660Ships in 1 to 2 Days
$2.80$3.96
28
90601-ZV3-030Ships in 1 to 2 Days
$2.60$3.66
29
94301-10120Ships in 1 to 2 Daysqty 2 used
$3.01$4.12
30
95701-06012-00Ships in 1 to 2 Days
$2.01$2.76
31
95701-06035-02Ships in 1 to 2 Daysqty 6 used
$0.99$1.42
32
95701-08040-02Ships in 1 to 2 Daysqty 3 used
$1.33$1.88
33
96001-06020-02In Stockqty 2 used
$1.20$1.64
34
98069-5771PIn Stock
$2.98
34
98069-57726Ships in 1 to 2 Daysqty 3 used
$2.18$2.98
Diagram

CYLINDER HEAD ASSEMBLY

BF25 BF25AY cylinder head assembly exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV94E02A1Z
Fits all 7 submodels of this generation.

Parts in this assembly

2 parts
1
CYLINDER HEAD ASSY. BARE *NH8* (DARK GRAY) (NOT AVAILABLE)
12215-ZV7-000ZANo Longer Available
—
1
$1,815.82$2,487.42
Diagram

ENGINE COVER

BF25 BF25AY engine cover exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV94F0800A
Fits all 7 submodels of this generation.

Parts in this assembly

35 parts
1
15665-ZV7-030Ships in 1 to 2 Days
$13.87$19.56
2
KNOB, CHOKE (NOT AVAILABLE)
17951-ZV5-000No Longer Available
—
3
GUIDE, CHOKE KNOB (NOT AVAILABLE)
17953-ZV5-000No Longer Available
—
4
19271-ZV5-000No Longer Available
$11.08$15.18
5
37210-ZV4-003Ships in 1 to 2 Days
$37.60$54.08
6
CASE, ENGINE (LOWER) *NH282MU* (OYSTER SILVER METALLIC-U)
40101-ZV7-000ZANo Longer Available
—
6
CASE, ENGINE (LOWER) *NH282MU* (OYSTER SILVER METALLIC-U)
40101-ZV7-010ZANo Longer Available
—
7
40106-ZV5-000Ships in 1 to 2 Days
$7.88$11.12
8
40107-ZV7-750Ships in 1 to 2 Days
$7.23$10.20
9
40109-ZV4-010Ships in 1 to 2 Days
$5.17$7.30
10
GROMMET, CASE (LOWER) (F) (NOT AVAILABLE)
40113-ZV5-000No Longer Available
—
11
40151-ZV7-000ZAShips in 1 to 2 Days
$70.90$101.98
12
53115-732-000Ships in 1 to 2 Days
$3.20$4.52
13
COVER, ENGINE *NH282MU* (OYSTER SILVER METALLIC-U)
63100-ZV7-750ZANo Longer Available
—
13
COVER, ENGINE *NH282MU* (OYSTER SILVER METALLIC-U)
63100-ZV7-000ZANo Longer Available
—
14
63102-ZV7-300Ships in 1 to 2 Days
$56.25$79.38
15
HANDLE, TILT *NH282MU* (OYSTER SILVER METALLIC-U) (NOT AVAILABLE)
63105-ZV5-000ZANo Longer Available
—
16
63240-ZV5-000Ships in 1 to 2 Days
$40.00$57.54
17
82873-ZV5-003Ships in 1 to 2 Days
$5.71$8.06
18
90010-ZV5-000Ships in 1 to 2 Daysqty 3 used
$4.69$6.62
19
90010-ZV7-000Ships in 1 to 2 Daysqty 2 used
$7.05$9.66
20
90013-ZV0-010Ships in 1 to 2 Days
$1.80$2.46
21
90015-ZV0-000Ships in 1 to 2 Daysqty 2 used
$2.64$3.62
22
90121-ZV4-000Ships in 1 to 2 Daysqty 2 used
$3.36$4.74
23
90301-473-003Ships in 1 to 2 Daysqty 3 used
$4.10$5.62
24
90304-881-010No Longer Availableqty 2 used
$4.47$6.12
25
90506-ZV4-000Ships in 1 to 2 Daysqty 2 used
$2.45$3.36
26
90507-ZV4-000Ships in 1 to 2 Daysqty 5 used
$2.20$3.02
27
90512-921-010In Stockqty 3 used
$1.07$1.46
28
90602-921-000Ships in 1 to 2 Daysqty 2 used
$1.39$1.96
29
90801-SB0-000Ships in 1 to 2 Daysqty 2 used
$3.66$5.02
30
91221-ZV5-005Ships in 1 to 2 Days
$7.20$10.16
31
91309-PJ7-010Ships in 1 to 2 Days
$3.05$4.30
32
BULK HOSE, VACUUM (4.5X1000) (4.5X330)
95005-45001-30MNo Longer Available
$8.79$12.04
33
BOLT, FLANGE (8X70)
95701-08070-00Ships in 1 to 2 Daysqty 3 used
$3.88$5.32
Diagram

EXTENSION CASE

BF25 BF25AY extension case exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV94F0300A
Fits all 7 submodels of this generation.

Parts in this assembly

39 parts
1
06412-ZV5-000Ships in 1 to 2 Days
$15.01
2
19280-ZV5-000Ships in 1 to 2 Days
$23.59$33.30
3
19286-ZV5-000Ships in 1 to 2 Days
$4.83$6.82
4
$560.28$588.34
4
$616.61
5
SEPARATOR, EXTENSION *NH282MU* (UL) (OYSTER SILVER METALLIC-U)
40202-ZV7-D11ZANo Longer Available
$618.34$847.04
6
40209-ZV5-000Ships in 1 to 2 Days
$8.26$11.66
7
40210-ZV5-A11Ships in 1 to 2 Days
$19.27$27.20
8
40219-ZY3-013Ships in 1 to 2 Daysreplaced by 40219-ZY3-023
$9.05$12.40
8
40219-ZY3-023Ships in 1 to 2 Days
$9.05$12.40
9
CASE, GEAR *NH282MU* (OYSTER SILVER METALLIC-U)
41101-ZV7-000ZANo Longer Available
—
10
41104-ZV5-000Ships in 1 to 2 Days
$7.65$11.00
11
41105-ZV5-000Ships in 1 to 2 Days
$7.65$11.00
12
41107-ZV5-000In Stock
$23.36$24.06
↳
Sierra alternative ·
18-6165AIn Stock save $0.51
$22.85
13
41108-ZV4-000Ships in 1 to 2 Days
$4.96$7.00
14
50111-ZV5-000ZAShips in 1 to 2 Daysqty 2 used
$84.60$87.13
15
50155-ZV5-000Ships in 1 to 2 Daysqty 2 used
$71.16$100.40
16
$172.30$177.45
17
90009-ZV5-000Ships in 1 to 2 Daysqty 8 used
$4.16$5.88
18
90105-ZVA-000In Stockqty 2 used
$4.20$5.76
19
90106-ZV4-010Ships in 1 to 2 Days
$2.72$3.84
20
90115-ZV5-000Ships in 1 to 2 Daysqty 4 used
$3.83$5.40
21
90118-ZV5-000Ships in 1 to 2 Daysqty 2 used
$30.95$43.68
22
90119-ZV5-000Ships in 1 to 2 Daysqty 2 used
$1.65$2.26
23
90120-ZV5-003In Stock
$5.97$8.58
24
90123-ZV5-010Ships in 1 to 2 Daysqty 4 used
$6.51$9.36
25
90126-ZV5-000Ships in 1 to 2 Days
$4.06$5.56
26
90302-ZV4-000Ships in 1 to 2 Daysqty 2 used
$4.91$6.72
27
90308-ZV5-003Ships in 1 to 2 Daysqty 2 used
$9.77$13.38
28
90452-GK4-600In Stock
$1.28$1.82
29
90501-ZV5-A10Ships in 1 to 2 Days
$2.89$4.08
30
90507-ZV4-000Ships in 1 to 2 Daysqty 13 used
$2.20$3.02
31
90507-921-000Ships in 1 to 2 Days
$0.89$1.22
32
90552-ZV5-000Ships in 1 to 2 Daysqty 2 used
$4.67$6.40
33
90559-ZV5-000Ships in 1 to 2 Daysqty 2 used
$2.95$4.04
34
90563-ZV5-000Ships in 1 to 2 Daysqty 4 used
$2.44$3.34
35
90651-ZV5-A10Ships in 1 to 2 Days
$8.29$11.70
36
90756-ZV5-000In Stockqty 4 used
$2.64$3.62
37
93700-05028-4JShips in 1 to 2 Days
$2.50$3.52
Diagram

FLYWHEEL

BF25 BF25AY flywheel exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV94E1900A
Fits all 7 submodels of this generation.

Parts in this assembly

9 parts
1
28451-ZV7-003Ships in 1 to 2 Days
$43.03$60.70
2
COIL ASSY., EXCITER (NOT AVAILABLE)
30590-ZV7-003No Longer Available
—
3
31110-ZV7-750ZAShips in 1 to 2 Days
$342.12$352.33
3
FLYWHEEL *TBLACK* (BLACK) (NOT AVAILABLE)
31110-ZV7-000ZANo Longer Available
—
4
COIL ASSY., CHARGE (12V-6A) (NOT AVAILABLE)
31630-ZV7-003No Longer Available
—
5
COIL ASSY., CHARGE (12V-10A) (NOT AVAILABLE)
31630-ZV7-911No Longer Available
—
6
90014-ZV7-040Ships in 1 to 2 Daysqty 3 used
$1.58$2.22
7
90016-920-000Ships in 1 to 2 Daysqty 4 used
$1.80$2.58
8
90121-ZV0-010Ships in 1 to 2 Daysqty 2 used
$2.29$3.30
Diagram

FUEL TANK

BF25 BF25AY fuel tank exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV94F0600BA
Fits all 7 submodels of this generation.

Parts in this assembly

28 parts
1
04802-ZV5-A00Ships in 1 to 2 Days
$71.25$97.60
1
16900-ZV5-902Ships in 1 to 2 Days
$27.02$37.02
2
16977-ZV5-A00Ships in 1 to 2 Days
$14.60$20.00
↳
Sierra alternative ·
18-80400In Stock save $3.72
$10.88
2
16977-ZV5-900Ships in 1 to 2 Days
$10.66$14.60
↳
Sierra alternative ·
18-80406In Stock
$11.78
3
16979-ZV5-900Ships in 1 to 2 Days
$0.60$0.82
4
17500-ZV5-904Ships in 1 to 2 Daysreplaced by 17500-ZZ5-711
$177.42$243.04
4
17500-ZZ5-711Ships in 1 to 2 Days
$177.42$243.04
5
17583-ZV5-901In Stock
$1.90$2.60
6
CAP, FUEL FILLER
17620-ZV5-900No Longer Available
—
7
04104-ZW9-010Ships in 1 to 2 Days
$52.46$75.46
7
17650-ZV4-005Ships in 1 to 2 Days
$52.46$75.46
8
17660-ZV5-902Ships in 1 to 2 Days
$17.36$23.78
↳
Sierra alternative ·
18-38008In Stock
$17.99
8
17660-ZW9-003Ships in 1 to 2 Days
$32.18$44.08
9
17661-921-010Ships in 1 to 2 Days
$12.99$17.80
10
17665-ZV5-000Ships in 1 to 2 Days
$12.13$16.62
11
17680-ZV4-000Ships in 1 to 2 Days
$12.13$16.62
12
04101-ZW9-010Ships in 1 to 2 Days
$95.37$137.18
12
17700-ZV5-010Ships in 1 to 2 Days
$95.37$137.18
13
17701-ZV5-000Ships in 1 to 2 Days
$46.09$63.14
14
TUBE, FUEL SHORT (6.3X500) (NOT AVAILABLE)
17702-ZV4-000No Longer Available
$9.75$13.36
15
17703-921-000Ships in 1 to 2 Daysqty 2 used
$3.53$4.84
16
17704-ZV4-010Ships in 1 to 2 Daysqty 4 used
$2.18$2.98
17
04104-ZW9-010Ships in 1 to 2 Days
$52.46$75.46
17
17710-ZV4-005Ships in 1 to 2 Days
$52.46$75.46
18
17936-921-000Ships in 1 to 2 Days
$1.20$1.64
19
90013-ZV4-010Ships in 1 to 2 Days
$1.36$1.92
20
COLLAR, DISTANCE (6MM) (NOT AVAILABLE)
91551-ZV4-000No Longer Available
$2.95$4.04
21
GASKET, FUEL CAP (NOT AVAILABLE)
17624-ZV5-900No Longer Available
—
Diagram

GASKET KIT

Honda publishes no exploded diagram for this assembly. The parts list below is complete.
Ref numbers on the diagram match the badges belowNOILL
Fits all 7 submodels of this generation.

Parts in this assembly

22 parts
0
GASKET KIT
061A1-ZV7-000No Longer Available
—
0
GASKET KIT
06111-ZV7-010Ships in 1 to 2 Days
$111.50$152.74
1
11381-ZV7-000Ships in 1 to 2 Days
$27.30$38.52
1
11381-ZV7-020Ships in 1 to 2 Days
$27.30$38.52
2
12251-ZV7-004Ships in 1 to 2 Days
$80.01$115.08
3
12312-ZV7-010Ships in 1 to 2 Days
$19.99$28.20
4
15142-PE0-000Ships in 1 to 2 Days
$2.67$3.66
5
16221-ZV7-000Ships in 1 to 2 Daysqty 6 used
$4.96$7.14
5
16221-ZW2-000In Stockqty 6 used
$2.80$3.96
6
17151-ZV7-000Ships in 1 to 2 Days
$12.89$18.20
7
17384-ZV5-000Ships in 1 to 2 Days
$22.91$32.32
8
17394-ZV5-000Ships in 1 to 2 Days
$4.31$6.08
9
GASKET, EX. PIPE (NOT AVAILABLE)
18291-MT7-000No Longer Available
—
9
18333-ZV7-000Ships in 1 to 2 Days
$5.39$7.60
10
19351-ZV5-000In Stock
$2.98$4.20
11
19371-ZV7-000Ships in 1 to 2 Days
$12.18$17.18
12
23162-ZV7-000Ships in 1 to 2 Days
$28.37$40.02
12
23162-ZV7-010Ships in 1 to 2 Days
$28.37$40.02
13
91301-ZV7-010Ships in 1 to 2 Days
$6.07$8.56
14
91301-805-000Ships in 1 to 2 Days
$3.65$5.00
15
91302-ZV7-000Ships in 1 to 2 Days
$4.34$6.12
16
91351-MG7-003Ships in 1 to 2 Days
$2.50$3.52
Diagram

GASKET KIT (SHORT BLOCK & HEAD ASSY.)

BF25 BF25AY gasket kit (short block & head assy.) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV94E03A5Z
Fits all 7 submodels of this generation.

Parts in this assembly

1 parts
1
GASKET KIT (SHORT BLOCK, HEAD ASSY.)
06115-ZV7-010No Longer Available
—
Diagram

GEAR CASE

BF25 BF25AY gear case exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV94F0310
Fits all 7 submodels of this generation.

Parts in this assembly

5 parts
1
$1,740.40
1
$1,740.40
1
$1,559.32
1
$1,559.32
1
CASE ASSY., GEAR *NH282MU* (OYSTER SILVER METALLIC-U)
41100-ZV7-720ZANo Longer Available
—
Diagram

HANDLEBAR

BF25 BF25AY handlebar exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV94F0100B
Fits only BF25AY-LHA, BF25AY-LHSA, BF25AY-SHA, BF25AY-SHSA — not every submodel of this generation.

Parts in this assembly

52 parts
1
CABLE, THROTTLE
17910-ZV3-003No Longer Available
—
1
CABLE, THROTTLE (NOT AVAILABLE)
17910-ZV3-013No Longer Available
—
1
17910-ZV3-023Ships in 1 to 2 Daysqty 2 used
$14.18$20.40
2
BRACKET, THROTTLE CABLE
17929-ZV7-000Ships in 1 to 2 Days
$29.67$40.64
3
ARM, THROTTLE (NOT AVAILABLE)
17931-ZV3-000No Longer Available
$18.64$25.54
4
ROD, LINK (NOT AVAILABLE)
24613-ZV7-000No Longer Available
$23.40$32.06
5
LEVER, SHIFT
24614-ZV3-000No Longer Available
—
6
LINK, SHIFT (A) (NOT AVAILABLE)
24615-ZV3-000Ships in 1 to 2 Days
$10.23$14.02
7
24617-ZV3-000Ships in 1 to 2 Days
$3.53$5.08
7
24617-ZV3-010Ships in 1 to 2 Days
$3.53$5.08
8
COLLAR, DISTANCE (NOT AVAILABLE)
24622-ZV3-000No Longer Available
—
9
24626-ZV5-000Ships in 1 to 2 Days
$2.25$3.18
9
24626-ZV5-010In Stock
$2.25$3.18
10
SWITCH ASSY., STARTER (NOT AVAILABLE)
35150-ZV7-751No Longer Available
—
11
35180-ZV7-033Ships in 1 to 2 Days
$58.56$82.64
12
36182-ZV4-651In Stock
$18.45$25.28
13
36187-ZV4-652Ships in 1 to 2 Days
$4.18$5.72
14
GROMMET, CASE (LOWER) (A)
40105-ZV3-000No Longer Available
$31.52$43.18
14
GROMMET, CASE (LOWER) (A) (NOT AVAILABLE)
40105-ZV7-000No Longer Available
—
15
$192.46$263.64
16
50285-ZV4-000Ships in 1 to 2 Days
$3.10$4.46
17
53101-ZV3-000ZAShips in 1 to 2 Days
$79.64$109.10
17
HANDLEBAR *NH282MU* (OYSTER SILVER METALLIC-U) (NOT AVAILABLE)
53101-ZV3-010ZANo Longer Available
$126.82$173.72
18
REEL, THROTTLE (NOT AVAILABLE)
53102-ZV3-000No Longer Available
$72.46$99.26
19
53104-ZV3-000Ships in 1 to 2 Days
$16.76$23.66
20
BLOCK, THROTTLE FRICTION (NOT AVAILABLE)
53106-ZV3-000No Longer Available
$6.58$9.02
21
RUBBER, HANDLE MOUNTING
53109-ZV3-000No Longer Available
$7.02$9.62
22
53111-ZV3-010Ships in 1 to 2 Days
$8.85$12.72
23
PIPE, GRIP (NOT AVAILABLE)
53141-ZV3-000No Longer Available
$38.82$53.18
24
53148-ZV3-000Ships in 1 to 2 Days
$2.98$4.28
25
RUBBER, GRIP
53165-ZV4-000No Longer Available
$12.66$17.34
26
90013-ZV0-010Ships in 1 to 2 Days
$1.80$2.46
27
90119-ZV5-000Ships in 1 to 2 Days
$1.65$2.26
28
90123-ZV3-000Ships in 1 to 2 Days
$1.83$2.62
29
90127-ZV4-000In Stockqty 2 used
$2.12$2.90
30
90205-PP9-020Ships in 1 to 2 Daysqty 2 used
$8.86$12.74
31
90302-921-000In Stock
$4.10$5.62
32
90306-ZV5-003In Stockqty 2 used
$3.40$4.66
33
90452-GK4-600In Stockqty 2 used
$1.28$1.82
34
90506-ZV1-000In Stock
$2.44$3.34
35
90515-ZV3-000Ships in 1 to 2 Days
$4.92$7.08
36
90543-ZV3-000Ships in 1 to 2 Daysqty 2 used
$2.45$3.52
37
90563-ZV5-000Ships in 1 to 2 Daysqty 2 used
$2.44$3.34
38
90759-ZV1-000In Stockqty 3 used
$1.42$1.94
39
91451-ZV3-003Ships in 1 to 2 Days
$5.53$7.96
40
91475-SB6-000Ships in 1 to 2 Days
$7.72$10.58
41
91503-ZV5-000Ships in 1 to 2 Days
$5.14$7.40
42
91559-ZV3-000Ships in 1 to 2 Days
$10.18$14.64
43
94002-06490-0SShips in 1 to 2 Days
$2.58$3.54
44
94305-40203Ships in 1 to 2 Days
$1.42$1.94
45
94305-40283Ships in 1 to 2 Days
$1.81$2.60
46
95801-06028-02Ships in 1 to 2 Days
$1.64$2.36
Diagram

IGNITION COIL (1)

BF25 BF25AY ignition coil (1) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV94E2000ZA
Fits all 7 submodels of this generation.

Parts in this assembly

25 parts
1
30500-ZW2-F01Ships in 1 to 2 Days
$109.21$112.48
3
30511-ZV7-003Ships in 1 to 2 Days
$50.29
4
30512-ZV7-003Ships in 1 to 2 Days
$50.29
5
30513-ZW2-F01Ships in 1 to 2 Days
$38.37
6
30516-ZV5-003Ships in 1 to 2 Days
$6.69$9.44
7
MODULE, IGNITION CONTROL (CDI) (NOT AVAILABLE)
30580-ZV7-003No Longer Available
—
7
MODULE, IGNITION CONTROL (CDI) (NOT AVAILABLE)
30580-ZV7-781No Longer Available
$420.68
7
MODULE, IGNITION CONTROL (CDI) (NOT AVAILABLE)
30400-ZW2-003No Longer Available
—
7
MODULE, IGNITION CONTROL (CDI) (NOT AVAILABLE)
30400-ZW2-781No Longer Available
—
8
CASE, IGNITION CONTROL MODULE (CDI) (NOT AVAILABLE)
30587-ZV5-003No Longer Available
—
9
30588-ZV5-013Ships in 1 to 2 Days
$26.91$37.96
10
30598-ZV5-000Ships in 1 to 2 Daysqty 2 used
$3.71$5.08
12
32106-ZV5-010Ships in 1 to 2 Days
$9.36$13.20
13
32610-ZV7-750Ships in 1 to 2 Days
$40.89$58.82
13
WIRE ASSY., GROUND (NOT AVAILABLE)
32610-ZV5-000No Longer Available
—
14
CLAMP, CENTER WIRE
32766-PE2-003No Longer Available
—
15
32805-413-000Ships in 1 to 2 Days
$2.22$3.14
16
37204-ZV7-010Ships in 1 to 2 Days
$15.39$22.14
17
40102-ZV5-000Ships in 1 to 2 Daysqty 2 used
$2.64$3.62
18
90013-ZV0-010Ships in 1 to 2 Days
$1.80$2.46
19
90121-ZV0-010Ships in 1 to 2 Daysqty 4 used
$2.29$3.30
20
91553-ZV5-000Ships in 1 to 2 Daysqty 4 used
$2.67$3.66
20
91553-ZV5-010Ships in 1 to 2 Daysqty 4 used
$2.67$3.66
21
94103-06200Ships in 1 to 2 Daysqty 4 used
$1.04$1.46
22
95701-06020-02In Stockqty 2 used
$1.07$1.46
Diagram

IGNITION COIL (2)

BF25 BF25AY ignition coil (2) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV94F0701ZA
Fits all 7 submodels of this generation.

Parts in this assembly

19 parts
1
MODULE, IGNITION CONTROL (CDI) (NOT AVAILABLE)
30580-ZV7-003No Longer Available
—
1
MODULE, IGNITION CONTROL (CDI) (NOT AVAILABLE)
30580-ZV7-781No Longer Available
$420.68
1
MODULE, IGNITION CONTROL (CDI) (NOT AVAILABLE)
30400-ZW2-003No Longer Available
—
1
MODULE, IGNITION CONTROL (CDI) (NOT AVAILABLE)
30400-ZW2-781No Longer Available
—
2
30500-ZW2-F01Ships in 1 to 2 Days
$109.21$112.48
4
30511-ZV7-003Ships in 1 to 2 Days
$50.29
5
30512-ZV7-003Ships in 1 to 2 Days
$50.29
6
30513-ZW2-F01Ships in 1 to 2 Days
$38.37
7
30516-ZV5-003Ships in 1 to 2 Days
$6.69$9.44
8
CASE, IGNITION CONTROL MODULE (CDI) (NOT AVAILABLE)
30587-ZV5-003No Longer Available
—
9
30598-ZV5-000Ships in 1 to 2 Daysqty 2 used
$3.71$5.08
11
32106-ZV5-010Ships in 1 to 2 Days
$9.36$13.20
12
32610-ZV7-750Ships in 1 to 2 Days
$40.89$58.82
12
WIRE ASSY., GROUND (NOT AVAILABLE)
32610-ZV5-000No Longer Available
—
13
32805-413-000Ships in 1 to 2 Days
$2.22$3.14
14
40102-ZV5-000Ships in 1 to 2 Daysqty 2 used
$2.64$3.62
15
91553-ZV5-000Ships in 1 to 2 Daysqty 4 used
$2.67$3.66
15
91553-ZV5-010Ships in 1 to 2 Daysqty 4 used
$2.67$3.66
16
95701-06020-02In Stockqty 2 used
$1.07$1.46
Diagram

IMPELLER KIT

BF25 BF25AY impeller kit exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV94Y0401
Fits all 7 submodels of this generation.

Parts in this assembly

5 parts
1
06192-ZV7-020In Stock
$35.17$49.62
2
19210-ZV7-003Ships in 1 to 2 Days
$28.95$40.86
↳
Sierra alternative ·
18-3249Backorder Now
$28.97
3
19233-ZV5-000Ships in 1 to 2 Days
$6.47$9.12
4
19242-ZV5-000Ships in 1 to 2 Days
$6.47$9.12
5
91251-ZV5-003Ships in 1 to 2 Daysqty 2 used
$7.20$10.16
Diagram

MARKS

BF25 BF25AY marks exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV94F1200C
Fits all 7 submodels of this generation.

Parts in this assembly

25 parts
1
EMBLEM, RR. (25)
87121-ZV7-000No Longer Available
—
1
EMBLEM, RR. (25) (NOT AVAILABLE)
87121-ZV7-010No Longer Available
—
2
MARK, RR. (30)
87121-ZW2-000No Longer Available
—
2
MARK, RR. (30) (NOT AVAILABLE)
87121-ZW2-010No Longer Available
—
3
MARK, EMERGENCY SWITCH INDICATION (ENGLISH) (NOT AVAILABLE)
87124-ZV3-620No Longer Available
—
4
MARK, STARTER (ENGLISH) (NOT AVAILABLE)
87125-ZV3-620No Longer Available
—
5
MARK, SIDE EMBLEM
87131-ZV4-A00No Longer Available
—
5
MARK, SIDE EMBLEM (NOT AVAILABLE)
87131-ZV4-A01No Longer Available
$27.80$38.08
5
87131-ZV7-010Ships in 1 to 2 Daysqty 2 used
$65.36$94.00
6
87132-ZV4-A01Ships in 1 to 2 Daysreplaced by 87132-ZV4-A02
$10.86$15.62
6
MARK, SIDE STRIPE
87132-ZW2-000No Longer Available
—
6
MARK, SIDE STRIPE (NOT AVAILABLE)
87132-ZW2-010No Longer Available
$21.29$29.16
7
87152-ZV7-000Ships in 1 to 2 Days
$6.12$8.80
7
87152-ZW2-000Ships in 1 to 2 Days
$5.33$7.66
8
87227-ZV7-000Ships in 1 to 2 Days
$5.80$8.34
9
87511-ZV5-620Ships in 1 to 2 Days
$3.43$4.94
10
87512-ZV4-831Ships in 1 to 2 Days
$2.13$3.06
11
87531-ZV7-000Ships in 1 to 2 Days
$6.82$9.80
11
87531-ZW2-000Ships in 1 to 2 Days
$4.03$5.80
12
MARK, THROTTLE (ENGLISH) (NOT AVAILABLE)
87532-ZV3-620No Longer Available
—
13
87535-ZV5-620Ships in 1 to 2 Days
$3.87$5.46
14
87538-ZW1-740Ships in 1 to 2 Days
$9.34$13.18
15
MARK, EMERGENCY START (ENGLISH)
87546-ZV7-000No Longer Available
—
15
MARK, EMERGENCY START (ENGLISH) (NOT AVAILABLE)
87546-ZV7-010No Longer Available
$8.73$11.96
16
87634-ZW4-D20Ships in 1 to 2 Days
$17.61$25.32
Diagram

METER

BF25 BF25AY meter exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV94Y0200
Fits only BF25AY-LRSA, BF25AY-SRSA, BF25AY-XRSA — not every submodel of this generation.

Parts in this assembly

16 parts
1
32161-404-000Ships in 1 to 2 Days
$2.15$2.94
2
32540-ZV5-910Ships in 1 to 2 Days
$97.12$133.04
2
32540-ZV5-911Ships in 1 to 2 Daysreplaced by 32540-ZZ3-010
$97.12$133.04
2
32540-ZZ3-010Ships in 1 to 2 Days
$97.12$133.04
3
32550-ZV5-910Ships in 1 to 2 Days
$17.67
4
34908-MB9-871Ships in 1 to 2 Days
$2.67$3.66
5
37250-ZV7-913Ships in 1 to 2 Days
$224.97$308.18
5
TACHOMETER ASSY. (NOT AVAILABLE)
37250-ZW2-911No Longer Available
$365.67$500.92
6
37253-ZV5-821Ships in 1 to 2 Days
$4.12$5.64
7
37256-ZV5-821Ships in 1 to 2 Days
$21.83$29.90
8
37258-ZV5-821Ships in 1 to 2 Days
$16.09$22.04
9
METER ASSY., VOLT (NOT AVAILABLE: USE 37453-ZW5-000ZA)
37450-ZV5-911No Longer Available
—
10
39700-ZV5-800AHShips in 1 to 2 Days
$47.13
11
90309-ZV5-821Ships in 1 to 2 Daysqty 2 used
$1.42$1.94
12
90550-ZV5-821Ships in 1 to 2 Daysqty 2 used
$1.18$1.62
13
98200-11000Ships in 1 to 2 Days
$1.61$2.20
Diagram

MUFFLER COVER

BF25 BF25AY muffler cover exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV94E1420
Fits all 7 submodels of this generation.

Parts in this assembly

19 parts
1
STAY, SOLENOID
16675-ZV7-781No Longer Available
$15.39$21.08
2
17202-ZV4-310Ships in 1 to 2 Daysqty 2 used
$2.09$2.86
3
COVER, MUFFLER (NOT AVAILABLE)
17390-ZV5-000No Longer Available
—
3
COVER, MUFFLER (NOT AVAILABLE)
17390-ZV5-010No Longer Available
$143.27$196.26
4
17394-ZV5-000Ships in 1 to 2 Days
$4.31$6.08
5
NUT, MUFFLER COVER (NOT AVAILABLE)
17398-ZV5-000No Longer Available
—
6
32109-ZV7-780Ships in 1 to 2 Days
$6.83$9.82
6
32109-ZV7-781Ships in 1 to 2 Days
$6.83$9.82
7
36103-ZE1-000Ships in 1 to 2 Days
$1.81$2.48
8
SOLENOID ASSY., REMOTE CHOKE (NOT AVAILABLE)
36310-ZV7-781No Longer Available
—
9
36311-ZV7-781Ships in 1 to 2 Days
$31.21$44.90
10
90013-ZV0-010Ships in 1 to 2 Days
$1.80$2.46
11
90011-ZW9-000Ships in 1 to 2 Daysqty 2 used
$1.71$2.34
12
90545-323-700Ships in 1 to 2 Daysqty 2 used
$1.83$2.50
13
TUBE, BREATHER (NOT AVAILABLE)
91401-ZV7-000No Longer Available
—
14
90601-ZV3-030Ships in 1 to 2 Days
$2.60$3.66
15
95701-06025-02Ships in 1 to 2 Days
$1.33$1.88
16
95701-06040-02Ships in 1 to 2 Days
$1.71$2.40
17
96001-06012-02Ships in 1 to 2 Days
$1.14$1.56
Diagram

OIL PAN

BF25 BF25AY oil pan exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV94E0600
Fits all 7 submodels of this generation.

Parts in this assembly

11 parts
1
PAN, OIL *TGRAY* (GRAY)
11311-ZV7-000ZANo Longer Available
—
1
11311-ZV7-030ZAShips in 1 to 2 Days
$141.53$199.68
2
11381-ZV7-000Ships in 1 to 2 Days
$27.30$38.52
2
11381-ZV7-020Ships in 1 to 2 Days
$27.30$38.52
3
15650-ZV7-000Ships in 1 to 2 Days
$19.37$27.34
4
23162-ZV7-000Ships in 1 to 2 Days
$28.37$40.02
4
23162-ZV7-010Ships in 1 to 2 Days
$28.37$40.02
5
90113-ZV5-000Ships in 1 to 2 Daysqty 10 used
$2.60$3.66
6
90131-ZV5-000Ships in 1 to 2 Days
$7.43$10.18
7
90506-ZV4-000Ships in 1 to 2 Daysqty 10 used
$2.45$3.36
8
90601-ZE2-000In Stock
$2.38$3.26
Diagram

OIL PUMP

BF25 BF25AY oil pump exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV94E0500A
Fits all 7 submodels of this generation.

Parts in this assembly

27 parts
1
PUMP ASSY., OIL
15100-ZV7-000No Longer Available
—
2
15111-ZV7-000Ships in 1 to 2 Days
$102.62$144.80
3
15121-ZV7-000Ships in 1 to 2 Days
$30.57$43.14
4
15136-ZV7-000Ships in 1 to 2 Days
$11.36$16.02
5
15220-ZV7-000Ships in 1 to 2 Days
$63.74$89.94
6
15231-413-020Ships in 1 to 2 Days
$20.53$28.12
7
15232-KT8-000Ships in 1 to 2 Days
$3.78$5.18
8
15236-ZV5-010Ships in 1 to 2 Days
$4.93$6.96
9
15302-PE0-300Ships in 1 to 2 Days
$8.13$11.14
10
GASKET, EX. PIPE (NOT AVAILABLE)
18291-MT7-000No Longer Available
—
11
PIPE, EX. (NOT AVAILABLE. SEE OUTBOARD MOTOR SERVICE BULLETIN #15.)
18330-ZV7-000No Longer Available
—
12
18330-ZV7-010Ships in 1 to 2 Days
$75.77$106.92
13
GASKET, EX. PIPE (NOT AVAILABLE)
18291-MT7-000No Longer Available
—
13
18333-ZV7-000Ships in 1 to 2 Days
$5.39$7.60
14
19252-ZV5-000Ships in 1 to 2 Days
$6.23$8.54
15
90017-ZV0-000Ships in 1 to 2 Daysqty 3 used
$1.74$2.38
16
90101-ZV1-000Ships in 1 to 2 Daysqty 2 used
$2.85$4.02
17
90105-881-000Ships in 1 to 2 Days
$2.12$2.90
18
90115-ZV5-000Ships in 1 to 2 Daysqty 2 used
$3.83$5.40
19
90456-333-000Ships in 1 to 2 Days
$2.44$3.34
20
90506-ZV4-000Ships in 1 to 2 Daysqty 3 used
$2.45$3.36
21
90507-ZV4-000Ships in 1 to 2 Daysqty 2 used
$2.20$3.02
22
91301-ZV7-010Ships in 1 to 2 Days
$6.07$8.56
23
91302-ZV7-000Ships in 1 to 2 Days
$4.34$6.12
24
95701-06016-00Ships in 1 to 2 Daysqty 5 used
$1.49$2.04
25
95701-06045-02Ships in 1 to 2 Daysqty 4 used
$1.36$1.96
26
96220-40158Ships in 1 to 2 Days
$0.41$0.56
Diagram

OUTBOARD INSTALLATION KIT

BF25 BF25AY outboard installation kit exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV94Y0400
Fits all 7 submodels of this generation.

Parts in this assembly

5 parts
1
06413-ZV7-000Ships in 1 to 2 Days
$44.15
2
90129-ZV7-000Ships in 1 to 2 Daysqty 4 used
$18.32$25.86
3
90306-ZV5-003In Stockqty 4 used
$3.40$4.66
4
90552-ZV7-000Ships in 1 to 2 Daysqty 4 used
$8.09$11.42
5
90563-ZV5-000Ships in 1 to 2 Daysqty 8 used
$2.44$3.34
Diagram

PROPELLER

BF25 BF25AY propeller exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV94F0500
Fits all 7 submodels of this generation.

Parts in this assembly

30 parts
1
SHIFTER, CLUTCH (NOT AVAILABLE)
24101-ZV7-000No Longer Available
—
2
24102-ZV7-000Ships in 1 to 2 Days
$3.43$4.84
3
24103-ZV7-000Ships in 1 to 2 Days
$1.78$2.52
4
24106-ZV5-000Ships in 1 to 2 Days
$8.26$11.66
5
24122-ZV7-000Ships in 1 to 2 Days
$10.95$15.46
6
24123-ZV5-003Ships in 1 to 2 Days
$4.37$6.16
7
41145-ZV7-010Ships in 1 to 2 Days
$189.81$267.78
8
GEAR, RR. BEVEL (NOT AVAILABLE)
41151-ZV7-000No Longer Available
—
9
SHAFT ASSY., PROPELLER (NOT AVAILABLE)
41160-ZV7-000No Longer Available
$247.15
10
HOLDER, PROPELLER SHAFT *NH282MU* (OYSTER SILVER METALLIC-U) (NOT AVAILABLE)
41201-ZV7-000ZANo Longer Available
—
11
$211.87
11
$230.77
11
$230.77
12
90124-ZV4-000Ships in 1 to 2 Daysqty 2 used
$2.12$2.90
13
90301-ZV7-000Ships in 1 to 2 Days
$8.50$11.98
14
90503-ZV5-000Ships in 1 to 2 Days
$6.02$8.24
15
90506-ZV4-000Ships in 1 to 2 Daysqty 2 used
$2.45$3.36
16
90506-ZV7-000Ships in 1 to 2 Daysreplaced by 90506-ZV7-020
$29.35$41.40
17
90508-ZV7-000Ships in 1 to 2 Days
$6.60$9.04
18
90528-ZV5-000Ships in 1 to 2 Daysqty 2 used
$7.88$10.80
18
90529-ZV5-000Ships in 1 to 2 Daysqty 2 used
$7.88$10.80
18
90530-ZV5-000Ships in 1 to 2 Daysqty 2 used
$7.88$10.80
18
90531-ZV5-000Ships in 1 to 2 Daysqty 2 used
$7.88$10.80
19
90758-ZV1-000Ships in 1 to 2 Days
$2.26$3.20
20
91051-ZV5-003Ships in 1 to 2 Days
$37.23$52.54
21
91053-ZV5-003Ships in 1 to 2 Days
$13.39$18.34
22
91062-HA7-672Ships in 1 to 2 Days
$25.65$35.14
23
91252-ZV5-003In Stockqty 2 used
$8.54$12.28
24
91351-ZV7-003Ships in 1 to 2 Days
$7.23$10.20
25
96211-11000Ships in 1 to 2 Days
$1.18$1.62
Diagram

PUMP IMPELLER KIT

BF25 BF25AY pump impeller kit exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV94Y0500
Fits only BF25AY-LHA, BF25AY-SRSA — not every submodel of this generation.

Parts in this assembly

5 parts
1
PUMP KIT, IMPELLER (NOT AVAILABLE)
06193-ZV7-000No Longer Available
—
2
19210-ZV7-003Ships in 1 to 2 Days
$28.95$40.86
↳
Sierra alternative ·
18-3249Backorder Now
$28.97
3
19223-ZV5-000Ships in 1 to 2 Days
$14.45$20.40
4
19231-ZV7-000Ships in 1 to 2 Days
$13.45$18.98
5
19233-ZV5-000Ships in 1 to 2 Days
$6.47$9.12
Diagram

RECOIL STARTER

BF25 BF25AY recoil starter exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV94E1100
Fits only BF25AY-LHA, BF25AY-SHA — not every submodel of this generation.

Parts in this assembly

27 parts
1
STARTER ASSY., RECOIL
28400-ZV7-003No Longer Available
—
2
CASE, RECOIL STARTER (NOT AVAILABLE)
28401-ZV7-003No Longer Available
—
3
28418-ZV7-003No Longer Available
$3.68$5.04
4
PULLEY, RECOIL STARTER (NOT AVAILABLE)
28421-ZV7-003No Longer Available
$56.11$76.86
5
RATCHET, STARTER (NOT AVAILABLE)
28422-ZV7-003No Longer Available
$6.66$9.12
6
28424-ZV7-003Ships in 1 to 2 Days
$10.29$14.80
7
28427-ZV7-003Ships in 1 to 2 Days
$4.00$5.76
8
28428-ZV7-003Ships in 1 to 2 Days
$3.08$4.44
9
PLATE, FRICTION (NOT AVAILABLE)
28431-ZV7-003No Longer Available
$5.87$8.04
10
28432-ZV4-003Ships in 1 to 2 Days
$3.15$4.44
11
28433-ZV7-003Ships in 1 to 2 Days
$4.45$6.40
12
28435-ZV4-003Ships in 1 to 2 Days
$5.17$7.30
13
28436-ZV4-003Ships in 1 to 2 Days
$3.43$4.84
14
28437-ZV4-003Ships in 1 to 2 Days
$2.31$3.32
15
28438-ZV4-003Ships in 1 to 2 Days
$2.26$3.20
16
28439-ZV7-003Ships in 1 to 2 Days
$3.81$5.48
17
28441-ZV7-003Ships in 1 to 2 Days
$8.28$11.90
18
28442-ZV7-003Ships in 1 to 2 Days
$47.20$67.90
19
SPRING, RETURN (NOT AVAILABLE)
28443-ZV7-003No Longer Available
$4.00$5.48
20
SEAL, RECOIL (NOT AVAILABLE)
28455-ZV4-000No Longer Available
$17.58$24.08
21
28461-ZV4-013Ships in 1 to 2 Days
$8.38$11.82
22
ROPE, RECOIL STARTER (NA USE ALT:08560-ZG921-11)
28462-ZV7-003No Longer Available
—
23
28471-ZV7-003Ships in 1 to 2 Days
$11.80$16.98
24
28476-ZV7-003Ships in 1 to 2 Days
$4.41$6.34
25
90021-ZV7-003Ships in 1 to 2 Days
$2.39$3.44
26
90022-ZV4-003Ships in 1 to 2 Days
$1.96$2.82
27
95701-06022-02Ships in 1 to 2 Daysqty 4 used
$1.18$1.70
Diagram

REGULATOR

BF25 BF25AY regulator exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV94F0700A
Fits all 7 submodels of this generation.

Parts in this assembly

31 parts
1
30564-ZA5-000Ships in 1 to 2 Days
$4.67$6.40
2
BRACKET, REGULATOR
31604-ZV7-000Ships in 1 to 2 Days
$16.59$22.72
2
BRACKET, REGULATOR
31604-ZV7-780No Longer Available
—
3
RECEPTACLE ASSY., CHARGE
31650-ZV7-003No Longer Available
—
4
RECEPTACLE (NOT AVAILABLE)
31651-ZV7-003No Longer Available
—
5
31652-881-024Ships in 1 to 2 Days
$16.85$23.78
6
RECTIFIER ASSY., REGULATOR (12A) (NOT AVAILABLE)
31750-ZV7-781No Longer Available
—
6
RECTIFIER ASSY., REGULATOR (12A)
31750-ZV7-751No Longer Available
—
6
RECTIFIER ASSY., REGULATOR (NOT AVAILABLE)
31750-ZV7-003No Longer Available
—
7
BRACKET, CONNECTOR
32108-ZV7-000No Longer Available
—
8
32112-ZV7-750Ships in 1 to 2 Days
$7.30$10.00
9
32121-HA0-003No Longer Available
$7.81$10.70
10
CABLE ASSY., STARTER (NOT AVAILABLE)
32410-ZV7-750No Longer Available
—
11
32411-ZV7-751Ships in 1 to 2 Days
$7.58$10.70
12
CABLE ASSY., REMOTE CONTROL (NOT AVAILABLE)
32520-ZV7-780No Longer Available
—
13
32903-701-000Ships in 1 to 2 Days
$1.69$2.38
14
37304-PE1-661Ships in 1 to 2 Days
$7.12$10.06
15
38207-ZV4-000Ships in 1 to 2 Days
$2.01$2.90
16
40107-ZV7-000Ships in 1 to 2 Days
$13.84$19.92
17
90013-ZV0-010Ships in 1 to 2 Daysqty 3 used
$1.80$2.46
18
90014-ZV1-000Ships in 1 to 2 Daysqty 2 used
$1.20$1.68
18
90014-ZV1-010Ships in 1 to 2 Daysqty 2 used
$1.20$1.68
19
90019-ZV1-010Ships in 1 to 2 Days
$1.36$1.86
20
90630-751-000Ships in 1 to 2 Days
$1.85$2.54
21
90672-SA0-003Ships in 1 to 2 Days
$7.17$9.82
22
90683-KJ2-003Ships in 1 to 2 Days
$3.59$4.92
23
90683-SA0-003Ships in 1 to 2 Days
$9.11$12.48
24
91547-SF4-003Ships in 1 to 2 Days
$7.55$10.86
25
95701-06020-02In Stockqty 2 used
$1.07$1.46
26
98200-11500In Stock
$0.83$1.14
27
98200-31500Ships in 1 to 2 Daysqty 2 used
$1.20$1.64
Diagram

REMOTE CONTROL

BF25 BF25AY remote control exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV94F1150C
Fits only BF25AY-LRSA, BF25AY-SRSA, BF25AY-XRSA — not every submodel of this generation.

Parts in this assembly

86 parts
1
17877-ZV5-000Ships in 1 to 2 Days
$7.88$11.12
2
24618-ZV5-000Ships in 1 to 2 Daysqty 2 used
$14.05$19.82
3
BOX ASSY., REMOTE CONTROL (A/T)
24800-ZV5-010No Longer Available
—
4
24811-ZV5-010Ships in 1 to 2 Days
$115.09$162.38
5
LEVER, HANDLE LOCK (NOT AVAILABLE)
24812-ZV5-000No Longer Available
—
6
24813-ZV5-000Ships in 1 to 2 Days
$39.73$56.04
7
24814-ZV5-010Ships in 1 to 2 Days
$8.23$11.62
8
24815-ZV5-000Ships in 1 to 2 Daysreplaced by 24815-ZV5-010
$8.04$11.36
9
24816-ZV5-000Ships in 1 to 2 Days
$4.07$5.74
10
24817-ZV5-000Ships in 1 to 2 Days
$3.81$5.38
11
24819-ZV5-000Ships in 1 to 2 Days
$5.62$8.08
12
24820-ZV5-010Ships in 1 to 2 Days
$102.08$144.04
13
24830-ZV5-010Ships in 1 to 2 Days
$54.08$76.32
14
24836-ZV5-000Ships in 1 to 2 Days
$33.64$47.46
15
24841-ZV5-000Ships in 1 to 2 Days
$57.93$81.74
16
24845-ZV5-000Ships in 1 to 2 Days
$39.52$55.76
17
24850-ZV5-000Ships in 1 to 2 Days
$46.76$65.98
18
24854-ZV5-000Ships in 1 to 2 Days
$8.10$11.44
19
24855-ZV5-000Ships in 1 to 2 Daysqty 2 used
$8.10$11.44
20
24860-ZV5-000Ships in 1 to 2 Days
$37.81$53.36
21
24865-ZV5-000Ships in 1 to 2 Days
$17.32$24.44
22
24875-ZV5-000Ships in 1 to 2 Days
$22.41$31.62
23
24876-ZV5-000Ships in 1 to 2 Days
$4.07$5.74
24
24877-ZV5-000Ships in 1 to 2 Days
$4.67$6.72
25
24878-ZV5-000Ships in 1 to 2 Days
$51.83$73.12
26
24881-ZV5-000Ships in 1 to 2 Daysqty 2 used
$3.81$5.38
27
24883-ZV5-000Ships in 1 to 2 Days
$3.90$5.50
28
24884-ZV5-000Ships in 1 to 2 Days
$3.90$5.50
29
24885-ZV5-000Ships in 1 to 2 Days
$69.85$98.54
30
24887-ZV5-000Ships in 1 to 2 Days
$4.63$6.52
31
24891-ZV5-000Ships in 1 to 2 Days
$7.84$11.06
32
24892-ZV5-000Ships in 1 to 2 Days
$15.26$21.52
33
24894-ZV5-000Ships in 1 to 2 Days
$6.31$8.90
34
24898-ZV5-000Ships in 1 to 2 Days
$4.85$6.84
35
CABLE ASSY., REMOTE CONTROL (B) (NOT AVAILABLE)
32530-ZW1-000No Longer Available
—
36
32901-952-770Ships in 1 to 2 Daysqty 3 used
$2.19$3.00
37
35100-ZV5-003Ships in 1 to 2 Days
$137.02$187.70
38
35110-ZV5-003Ships in 1 to 2 Daysqty 2 used
$7.99$11.48
39
SWITCH ASSY., SOLENOID (NOT AVAILABLE)
35630-ZV5-003No Longer Available
—
40
35701-MG9-950Ships in 1 to 2 Days
$1.83$2.50
41
36180-ZV5-033In Stock
$56.84$77.86
42
36182-ZV4-651In Stock
$18.45$25.28
43
36187-ZV4-652Ships in 1 to 2 Days
$4.18$5.72
44
37210-ZV5-013Ships in 1 to 2 Days
$127.69$174.92
45
38403-341-672Ships in 1 to 2 Days
$4.66$6.38
46
38410-ZV5-003Ships in 1 to 2 Days
$56.17$76.94
47
40105-ZV5-000Ships in 1 to 2 Days
$12.63$17.82
48
PLATE, REMOTE CONTROL (CAUTION PICT=SILVER)
87701-ZV5-000No Longer Available
—
49
MARK, FAST IDLE (NOT AVAILABLE)
87702-ZV5-000No Longer Available
—
50
90009-ZV5-000Ships in 1 to 2 Days
$4.16$5.88
51
90105-MM4-000Ships in 1 to 2 Days
$2.03$2.78
52
90125-ZV5-000Ships in 1 to 2 Daysqty 3 used
$6.91$9.74
53
90302-ZV5-003Ships in 1 to 2 Days
$5.27$7.22
54
90302-921-000In Stock
$4.10$5.62
55
90304-ZV4-000Ships in 1 to 2 Daysqty 3 used
$2.12$2.90
56
90452-GK4-600In Stockqty 2 used
$1.28$1.82
57
90502-ZV4-000Ships in 1 to 2 Days
$2.73$3.74
58
90504-921-010Ships in 1 to 2 Daysqty 4 used
$1.27$1.74
59
90506-ZV4-000Ships in 1 to 2 Daysqty 5 used
$2.45$3.36
60
90507-ZV4-000Ships in 1 to 2 Daysqty 2 used
$2.20$3.02
61
90512-921-010In Stockqty 6 used
$1.07$1.46
62
90557-ZV5-000Ships in 1 to 2 Days
$2.99$4.22
63
WASHER, PLAIN (4MM) (NOT AVAILABLE)
90561-ZV5-000No Longer Available
$1.62$2.22
64
90751-ZV5-000Ships in 1 to 2 Daysqty 2 used
$3.29$4.50
65
90765-ZV5-000Ships in 1 to 2 Daysqty 2 used
$1.78$2.52
66
90772-ZV5-000Ships in 1 to 2 Days
$3.99$5.62
67
91151-ZV5-000Ships in 1 to 2 Days
$3.45$4.86
68
91567-ZV5-000Ships in 1 to 2 Daysqty 2 used
$2.76$3.90
69
91570-ZV5-000Ships in 1 to 2 Daysqty 3 used
$8.10$11.44
70
92101-05016-4JShips in 1 to 2 Days
$1.21$1.66
71
93500-05010-4JShips in 1 to 2 Daysqty 2 used
$1.23$1.74
72
93700-05012-4JShips in 1 to 2 Daysqty 2 used
$1.69$2.44
73
93901-242J0Ships in 1 to 2 Days
$1.36$1.92
74
93901-251J0Ships in 1 to 2 Daysqty 3 used
$0.58$0.82
75
93901-252J0Ships in 1 to 2 Days
$1.53$2.16
76
93903-262J0Ships in 1 to 2 Daysqty 2 used
$2.37$3.34
77
93905-255J0Ships in 1 to 2 Daysqty 7 used
$2.37$3.34
78
94001-06490-0SShips in 1 to 2 Days
$2.15$2.94
79
94002-05490-0SShips in 1 to 2 Days
$0.96$1.36
80
94540-03029Ships in 1 to 2 Days
$1.34$1.90
81
94540-04029Ships in 1 to 2 Days
$5.23$7.16
82
94540-07029Ships in 1 to 2 Days
$4.38$6.00
83
17736-ZW1-000Ships in 1 to 2 Days
$3.94$5.40
84
CABLE ASSY., REMOTE CONTROL (B) (NOT AVAILABLE)
32530-ZW1-010No Longer Available
—
85
CABLE ASSY., SWITCH PANEL (NOT AVAILABLE)
32580-ZW1-V01No Longer Available
—
86
91058-MG9-681Ships in 1 to 2 Daysqty 2 used
$2.03$2.78
Diagram

SHIFT SHAFT

BF25 BF25AY shift shaft exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV94F0200
Fits all 7 submodels of this generation.

Parts in this assembly

28 parts
1
TUBE, FUEL (NOT AVAILABLE)
16850-ZV7-000No Longer Available
$23.59$32.32
2
TUBE B, FUEL (NOT AVAILABLE)
16861-ZV7-000No Longer Available
$5.37$7.36
3
16910-ZV4-015In Stock
$13.99$19.16
4
16915-ZV4-000Ships in 1 to 2 Days
$6.41$8.78
5
17930-ZV5-000Ships in 1 to 2 Days
$18.73$26.42
6
17940-ZV7-000Ships in 1 to 2 Days
$13.69$19.70
7
BRACKET, NEUTRAL START CABLE
17948-ZV7-000Ships in 1 to 2 Days
$4.54$6.22
8
24210-ZV1-010Ships in 1 to 2 Days
$10.25$14.04
9
24221-ZV4-010Ships in 1 to 2 Days
$7.30$10.00
10
24610-ZV7-010Ships in 1 to 2 Days
$40.78$57.54
11
24611-ZV7-300Ships in 1 to 2 Days
$23.33$32.92
12
24621-ZV4-010Ships in 1 to 2 Days
$4.34$6.12
13
24625-ZV5-000Ships in 1 to 2 Days
$2.25$3.18
13
24625-ZV5-010Ships in 1 to 2 Days
$2.25$3.18
14
24626-ZV5-000Ships in 1 to 2 Days
$2.25$3.18
14
24626-ZV5-010In Stock
$2.25$3.18
15
04302-ZV7-020Ships in 1 to 2 Days
$36.88$37.99
16
35616-ZV5-000Ships in 1 to 2 Days
$9.01$12.72
16
35616-ZV5-010Ships in 1 to 2 Days
$9.01$12.72
17
35618-ZW9-020Ships in 1 to 2 Days
$4.69$6.62
18
90013-ZV0-010Ships in 1 to 2 Daysqty 5 used
$1.80$2.46
19
90019-ZV1-010Ships in 1 to 2 Days
$1.36$1.86
20
90302-ZV5-003Ships in 1 to 2 Days
$5.27$7.22
21
90508-ZV1-000Ships in 1 to 2 Days
$3.72$5.26
22
90603-ZV4-000Ships in 1 to 2 Daysqty 4 used
$1.42$1.94
23
90628-750-000Ships in 1 to 2 Days
$2.12$2.90
24
90759-ZV1-000In Stock
$1.42$1.94
25
94305-30203Ships in 1 to 2 Daysqty 2 used
$1.18$1.62
Diagram

SHORT BLOCK

BF25 BF25AY short block exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV94E03A1Z
Fits all 7 submodels of this generation.

Parts in this assembly

1 parts
1
SHORT BLOCK *NH8* (DARK GRAY) (NOT AVAILABLE)
12011-ZV7-000ZANo Longer Available
—
Diagram

STARTER MOTOR

BF25 BF25AY starter motor exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV94E2100ZA
Fits only BF25AY-LHSA, BF25AY-LRSA, BF25AY-SHSA, BF25AY-SRSA, BF25AY-XRSA — not every submodel of this generation.

Parts in this assembly

30 parts
1
STARTER MOTOR ASSY. (NOT AVAILABLE)
31200-ZV7-751No Longer Available
—
2
31204-KS5-901Ships in 1 to 2 Daysqty 2 used
$2.85$4.02
3
31207-KS5-901Ships in 1 to 2 Days
$3.14$4.30
4
STARTER MOTOR UNIT (NOT AVAILABLE)
31210-ZV7-751No Longer Available
—
5
31214-ZV7-751Ships in 1 to 2 Days
$178.06$251.24
6
31216-ZV7-751Ships in 1 to 2 Days
$186.09$191.64
7
31217-ZV7-751Ships in 1 to 2 Days
$219.65
8
31221-ZV4-811Ships in 1 to 2 Days
$12.64$17.84
9
31223-ZV4-811Ships in 1 to 2 Days
$5.39$7.74
10
31231-ZV4-811Ships in 1 to 2 Days
$52.91$74.66
11
31233-ZV4-811Ships in 1 to 2 Days
$6.95$9.80
12
31235-ZV4-811Ships in 1 to 2 Days
$160.94$220.46
13
31236-ZV4-811Ships in 1 to 2 Days
$96.62$136.34
14
31238-ZV4-812Ships in 1 to 2 Days
$23.56$33.24
15
STAY, STARTER MOTOR
31255-ZV7-750Ships in 1 to 2 Days
$7.14$9.78
16
32402-ZV7-750Ships in 1 to 2 Days
$18.34$25.88
17
32411-ZV4-811Ships in 1 to 2 Days
$5.37$7.36
18
32412-ZV4-811Ships in 1 to 2 Days
$5.37$7.36
19
35850-ZV7-751Ships in 1 to 2 Days
$91.57$129.20
21
90126-881-000Ships in 1 to 2 Daysqty 2 used
$1.87$2.56
22
90203-ZV4-811Ships in 1 to 2 Daysqty 4 used
$2.72$3.84
23
90405-ZV4-811Ships in 1 to 2 Days
$2.51$3.54
24
90602-ZV4-811Ships in 1 to 2 Days
$1.69$2.38
25
91320-MB0-000Ships in 1 to 2 Daysqty 3 used
$2.22$3.04
26
91401-ZV4-811Ships in 1 to 2 Days
$3.02$4.26
27
91551-ZV7-750Ships in 1 to 2 Daysqty 2 used
$4.13$5.82
28
94301-10160Ships in 1 to 2 Daysqty 2 used
$3.01$4.12
29
95701-06016-02Ships in 1 to 2 Daysqty 2 used
$0.98$1.34
30
96001-06025-02Ships in 1 to 2 Daysqty 2 used
$1.27$1.74
31
90012-ZV7-752Ships in 1 to 2 Days
$6.91$9.74
Diagram

STERN BRACKET

BF25 BF25AY stern bracket exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV94F1000A
Fits all 7 submodels of this generation.

Parts in this assembly

23 parts
1
50122-935-010Ships in 1 to 2 Daysqty 2 used
$5.37$7.58
2
$171.11$246.10
3
$156.83$225.58
4
GRIP, CLAMP *NH282MU* (OYSTER SILVER METALLIC-U) (NOT AVAILABLE)
50323-ZV4-310ZBNo Longer Available
$13.26$18.16
5
SCREW, CLAMP (NOT AVAILABLE)
50325-881-310Ships in 1 to 2 Daysreplaced by 50325-881-505
$14.00$19.18
6
50331-ZV5-000Ships in 1 to 2 Daysqty 2 used
$5.88$8.06
7
50335-ZV5-000Ships in 1 to 2 Days
$8.73$12.32
8
50340-ZV7-010Ships in 1 to 2 Days
$47.93$68.94
9
50341-ZV7-310Ships in 1 to 2 Days
$29.48$42.40
10
50342-ZV5-300Ships in 1 to 2 Days
$5.17$7.08
11
50343-ZV7-300Ships in 1 to 2 Days
$3.78$5.44
12
50381-ZV5-000Ships in 1 to 2 Days
$76.85$108.42
12
50381-ZZ5-000Ships in 1 to 2 Days
$76.85$108.42
13
90108-ZV7-000Ships in 1 to 2 Days
$14.63$21.04
14
90304-ZV5-003Ships in 1 to 2 Daysqty 2 used
$17.70$24.24
14
90304-ZV5-013Ships in 1 to 2 Daysqty 2 used
$17.70$24.24
15
90305-ZV4-000Ships in 1 to 2 Days
$6.02$8.24
16
90507-ZV4-000Ships in 1 to 2 Days
$2.20$3.02
17
90517-ZV5-000Ships in 1 to 2 Daysqty 2 used
$5.50$7.76
18
91352-ZV5-000Ships in 1 to 2 Days
$1.74$2.46
19
91501-ZV7-000Ships in 1 to 2 Days
$30.82$44.34
20
94305-25083Ships in 1 to 2 Days
$1.18$1.66
21
94305-40143In Stockqty 2 used
$1.34$1.84
Diagram

SWIVEL CASE

BF25 BF25AY swivel case exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV94F1100A
Fits all 7 submodels of this generation.

Parts in this assembly

64 parts
1
17853-ZV5-000Ships in 1 to 2 Days
$80.01$112.90
2
FRAME, MOUNTING *NH282MU* (OYSTER SILVER METALLIC-U) (NOT AVAILABLE)
50100-ZV7-000ZANo Longer Available
—
3
50151-ZV5-000Ships in 1 to 2 Daysqty 2 used
$66.56$93.92
4
50153-ZV5-000Ships in 1 to 2 Daysqty 2 used
$3.94$5.56
5
50167-ZV7-000ZAShips in 1 to 2 Daysqty 2 used
$48.63$69.94
6
$388.94$532.80
7
50211-ZV5-003Ships in 1 to 2 Daysqty 2 used
$11.40$11.97
8
BLOCK, FRICTION (NOT AVAILABLE)
50212-ZV5-000No Longer Available
$8.59
9
50214-ZV5-003Ships in 1 to 2 Daysqty 2 used
$7.65$10.48
10
50233-881-000Ships in 1 to 2 Days
$4.63$6.66
11
HOOK, REVERSE LOCK (NOT AVAILABLE)
50512-ZV7-000No Longer Available
$22.12$30.30
12
SPRING, REVERSE LOCK (NOT AVAILABLE)
50514-ZV7-000No Longer Available
—
13
SPRING, TILT LEVER (NOT AVAILABLE)
50515-ZV4-300No Longer Available
$3.39$4.64
14
50516-ZV4-300Ships in 1 to 2 Days
$4.66$6.70
15
LEVER, TILT
50517-ZV7-000No Longer Available
—
15
LEVER, TILT
50517-ZV7-010No Longer Available
—
16
50518-ZV7-000Ships in 1 to 2 Days
$23.61$33.96
17
ROD, RELEASE SWIVEL CASE (NOT AVAILABLE)
50519-ZV7-000No Longer Available
—
18
ARM, TILT
50520-ZV7-000No Longer Available
—
19
50521-ZV1-000Ships in 1 to 2 Daysqty 2 used
$5.88$8.30
20
50522-ZV4-000Ships in 1 to 2 Daysqty 2 used
$5.01$7.20
21
SHAFT, TILT
50525-ZV7-020No Longer Available
$26.43$36.20
21
SHAFT, TILT
50525-ZV7-010Ships in 1 to 2 Days
$26.43$36.20
22
50526-ZV4-000Ships in 1 to 2 Days
$8.61$12.40
23
BRACKET, RELEASE ROD (NOT AVAILABLE)
50527-ZV4-000No Longer Available
—
23
50527-ZV4-010Ships in 1 to 2 Days
$4.98$7.16
24
BRACKET, TILT LEVER (NOT AVAILABLE)
50528-ZV4-000No Longer Available
—
24
50528-ZV4-010Ships in 1 to 2 Days
$4.98$7.16
25
50531-ZV7-000Ships in 1 to 2 Days
$9.34$13.44
26
50532-ZV4-000Ships in 1 to 2 Days
$6.77$9.74
27
COLLAR, REVERSE LOCK (NOT AVAILABLE)
50533-ZV4-000No Longer Available
—
28
53234-ZV7-780Ships in 1 to 2 Days
$44.03$63.34
28
53234-ZV7-781Ships in 1 to 2 Days
$44.03$63.34
29
90101-ZV1-000Ships in 1 to 2 Daysqty 6 used
$2.85$4.02
30
90101-ZV5-003Ships in 1 to 2 Daysqty 2 used
$46.36$65.40
31
90105-ZV5-000Ships in 1 to 2 Days
$6.91$9.74
32
90109-ZV4-000Ships in 1 to 2 Days
$3.65$5.26
33
90109-ZV5-000Ships in 1 to 2 Daysqty 2 used
$6.39$9.20
34
90302-ZV5-000Ships in 1 to 2 Days
$8.66$12.22
35
90306-ZW4-003Ships in 1 to 2 Daysqty 2 used
$4.34$5.94
36
90306-ZV5-003In Stockqty 2 used
$3.40$4.66
37
90307-ZV5-003Ships in 1 to 2 Daysqty 2 used
$6.47$8.86
38
90501-ZV5-000Ships in 1 to 2 Days
$7.30$10.00
39
90504-ZV5-000Ships in 1 to 2 Days
$7.30$10.00
40
90504-921-010Ships in 1 to 2 Daysqty 2 used
$1.27$1.74
41
90505-ZV4-000Ships in 1 to 2 Days
$2.98$4.08
42
90506-ZV4-000Ships in 1 to 2 Daysqty 6 used
$2.45$3.36
43
90514-ZV4-000Ships in 1 to 2 Daysqty 3 used
$1.69$2.32
44
WASHER, SPECIAL
90544-ZV7-000Ships in 1 to 2 Daysqty 2 used
$2.80$3.84
45
90651-ZV5-000Ships in 1 to 2 Days
$7.85$10.76
46
90759-ZV1-000In Stockqty 2 used
$1.42$1.94
47
90951-ZV7-010Ships in 1 to 2 Daysqty 3 used
$1.90$2.60
48
91256-ZV5-003Ships in 1 to 2 Days
$7.80$10.68
49
91560-ZV5-000Ships in 1 to 2 Days
$3.07$4.20
50
94002-06490-0SShips in 1 to 2 Days
$2.58$3.54
51
PIN, SPRING (2.5X22)
94305-25223No Longer Available
$1.34$1.84
51
90751-ZV4-C20Ships in 1 to 2 Days
$2.70$3.88
51
90751-ZV4-C21In Stock
$2.70$3.88
52
PIN, SPRING (2.5X25)
94305-25253Ships in 1 to 2 Days
$1.34$1.84
52
90752-ZV4-C20Ships in 1 to 2 Days
$2.70$3.88
52
90752-ZV4-C21In Stock
$2.70$3.88
53
PIN, SPRING (3X25)
94305-30253No Longer Available
$1.34$1.84
53
90752-ZV4-C20Ships in 1 to 2 Days
$2.70$3.88
53
90752-ZV4-C21In Stock
$2.70$3.88
Diagram

THROTTLE ROD

BF25 BF25AY throttle rod exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV94E1410
Fits all 7 submodels of this generation.

Parts in this assembly

15 parts
1
DIAPHRAGM ASSY. (NOT AVAILABLE)
16400-ZV5-015No Longer Available
$48.25$66.10
2
17838-ZV5-000Ships in 1 to 2 Days
$7.65$10.48
3
17840-ZV7-000Ships in 1 to 2 Days
$19.53$27.56
4
17927-ZV5-000Ships in 1 to 2 Days
$6.86$9.68
5
17928-ZV5-000Ships in 1 to 2 Days
$3.23$4.56
6
17937-ZV5-010Ships in 1 to 2 Days
$6.67$9.42
7
17938-ZV5-000Ships in 1 to 2 Days
$2.80$3.96
8
17946-ZV5-000Ships in 1 to 2 Days
$15.90$22.44
9
90011-ZV5-003Ships in 1 to 2 Daysqty 2 used
$1.45$2.04
10
90202-ZV0-000Ships in 1 to 2 Daysqty 2 used
$2.67$3.66
11
90511-ZV4-000Ships in 1 to 2 Days
$2.20$3.02
12
91504-ZV5-000Ships in 1 to 2 Days
$8.85$12.48
13
94001-05490-0SShips in 1 to 2 Days
$0.92$1.26
14
95701-06032-02Ships in 1 to 2 Daysqty 4 used
$1.36$1.96
15
95701-06040-02Ships in 1 to 2 Days
$1.71$2.40
Diagram

TIMING BELT

BF25 BF25AY timing belt exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV94E1300
Fits all 7 submodels of this generation.

Parts in this assembly

23 parts
1
14315-ZV7-000Ships in 1 to 2 Days
$84.05$118.60
2
PULLEY, CAMSHAFT (NOT AVAILABLE)
14320-ZV7-000No Longer Available
—
3
14323-ZV7-000Ships in 1 to 2 Daysqty 2 used
$12.94$18.26
4
14400-ZV7-014Ships in 1 to 2 Days
$64.97$91.68
5
14510-ZV5-013Ships in 1 to 2 Days
$72.18$101.84
6
14515-ZV5-000Ships in 1 to 2 Days
$5.88$8.30
7
14520-ZV7-000Ships in 1 to 2 Days
$4.44$6.26
7
14520-ZV7-010Ships in 1 to 2 Days
$4.44$6.26
8
14522-ZV5-000Ships in 1 to 2 Days
$2.26$3.10
9
17202-ZV5-310Ships in 1 to 2 Daysqty 4 used
$2.20$3.02
10
28491-ZV7-750Ships in 1 to 2 Days
$79.82$112.64
10
BRACKET, RECOIL (NOT AVAILABLE)
28491-ZV7-000No Longer Available
$77.07$105.58
11
COIL ASSY., PULSER (NOT AVAILABLE)
30310-ZV7-003No Longer Available
—
12
COVER, FLYWHEEL (NOT AVAILABLE)
31145-ZV7-750No Longer Available
—
13
90013-ZV0-010Ships in 1 to 2 Daysqty 3 used
$1.80$2.46
14
90126-881-000Ships in 1 to 2 Daysqty 2 used
$1.87$2.56
15
90202-ZV7-000Ships in 1 to 2 Days
$18.24$25.72
16
90405-ZZ5-M01Ships in 1 to 2 Days
$1.96$2.68
17
90545-323-700Ships in 1 to 2 Daysqty 4 used
$1.83$2.50
18
94301-10160Ships in 1 to 2 Daysqty 2 used
$3.01$4.12
19
95701-06022-02Ships in 1 to 2 Daysqty 2 used
$1.18$1.70
20
95701-08025-02Ships in 1 to 2 Days
$2.09$2.86
21
95701-10038-08Ships in 1 to 2 Days
$2.88$4.06
Diagram

TOOLS

BF25 BF25AY tools exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV94F1300
Fits all 7 submodels of this generation.

Parts in this assembly

11 parts
1
28470-816-000Ships in 1 to 2 Days
$7.37$10.40
2
TOOL KIT
89000-ZV5-000No Longer Available
—
3
SPANNER (8MM) (NOT AVAILABLE)
89203-836-000No Longer Available
—
4
WRENCH, BOX (P18X19) (NOT AVAILABLE)
89211-881-000No Longer Available
—
5
89301-921-010Ships in 1 to 2 Days
$5.87$8.28
6
99001-10120Ships in 1 to 2 Days
$6.26$8.58
7
89210-GBJ-J10Ships in 1 to 2 Days
$19.36$26.52
8
99003-10000Ships in 1 to 2 Days
$3.81$5.22
9
99003-30000Ships in 1 to 2 Days
$3.81$5.22
10
99003-40000Ships in 1 to 2 Days
$1.17$1.60
11
BAG, TOOL (200MM)
99008-02000No Longer Available
—
Diagram

WATER HOSE JOINT

BF25 BF25AY water hose joint exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV94Y0100
Fits all 7 submodels of this generation.

Parts in this assembly

4 parts
1
06190-ZV1-860Ships in 1 to 2 Days
$12.10$16.58
2
19270-881-812Ships in 1 to 2 Days
$10.42$14.70
3
19271-ZV1-810Ships in 1 to 2 Days
$13.20$18.62
4
19272-881-810Ships in 1 to 2 Days
$2.45$3.46
Diagram

WATER PUMP

BF25 BF25AY water pump exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZV94F0400
Fits all 7 submodels of this generation.

Parts in this assembly

55 parts
1
19210-ZV7-003Ships in 1 to 2 Days
$28.95$40.86
↳
Sierra alternative ·
18-3249Backorder Now
$28.97
2
19221-ZV5-000In Stock
$26.48$37.36
3
19223-ZV5-000Ships in 1 to 2 Days
$14.45$20.40
4
19231-ZV7-000Ships in 1 to 2 Days
$13.45$18.98
5
19233-ZV5-000Ships in 1 to 2 Days
$6.47$9.12
6
19241-ZV5-000Ships in 1 to 2 Days
$26.48$37.36
7
19242-ZV5-000Ships in 1 to 2 Days
$6.47$9.12
8
TUBE, WATER (UL)
19251-ZV7-D10Ships in 1 to 2 Days
$39.23$53.74
8
TUBE, WATER (UL) (NOT AVAILABLE)
19251-ZV7-D11No Longer Available
$39.23$53.74
8
19251-ZV7-010Ships in 1 to 2 Days
$34.43$48.58
8
19251-ZV7-720Ships in 1 to 2 Days
$38.54$55.44
8
19251-ZV7-721Ships in 1 to 2 Days
$38.54$55.44
9
19253-ZV5-000Ships in 1 to 2 Days
$4.34$6.12
10
24310-ZV7-000Ships in 1 to 2 Days
$97.66$137.78
10
24310-ZV7-020Ships in 1 to 2 Days
$97.66$137.78
10
24310-ZV7-030Ships in 1 to 2 Days
$97.66$137.78
10
24310-ZV7-506Ships in 1 to 2 Days
$84.17$121.06
10
24310-ZV7-723Ships in 1 to 2 Days
$104.49$150.28
11
ROD B, SHIFT (S) (NOT AVAILABLE)
24311-ZV7-300No Longer Available
—
11
ROD B, SHIFT (UL) (NOT AVAILABLE)
24311-ZV7-D10No Longer Available
—
11
ROD B, SHIFT (L)
24311-ZV7-720Ships in 1 to 2 Days
$24.59$33.68
12
24312-ZV7-000Ships in 1 to 2 Days
$14.40$20.30
13
24320-ZV7-000Ships in 1 to 2 Days
$26.10$36.82
14
ROD, PUSH
24341-ZV7-300Ships in 1 to 2 Days
$31.10$42.60
15
HOLDER, SEAL (NOT AVAILABLE)
24343-ZV7-300No Longer Available
$17.93$24.56
16
40204-ZV5-000Ships in 1 to 2 Days
$3.15$4.32
17
41112-ZV7-000Ships in 1 to 2 Days
$439.12$619.68
17
SHAFT, VERTICAL (UL)
41112-ZV7-D10No Longer Available
$551.59$755.60
17
41112-ZV7-720Ships in 1 to 2 Days
$491.28$706.62
18
41116-ZV5-000Ships in 1 to 2 Days
$11.93$16.34
19
41131-ZV7-000Ships in 1 to 2 Days
$100.26$141.48
20
90105-881-000Ships in 1 to 2 Days
$2.12$2.90
21
90114-881-000Ships in 1 to 2 Daysqty 4 used
$3.26$4.46
22
90303-ZV7-000Ships in 1 to 2 Days
$9.77$13.78
23
90452-GK4-600In Stock
$1.28$1.82
24
90512-ZV4-000Ships in 1 to 2 Days
$3.04$4.16
25
90512-921-010In Stockqty 4 used
$1.07$1.46
26
90518-ZV5-000Ships in 1 to 2 Days
$6.23$8.54
26
90519-ZV5-000Ships in 1 to 2 Days
$6.23$8.54
26
90520-ZV5-000Ships in 1 to 2 Days
$6.23$8.54
26
90521-ZV5-000Ships in 1 to 2 Days
$6.23$8.54
27
90752-ZV7-000Ships in 1 to 2 Days
$7.55$10.64
↳
Sierra alternative ·
18-3269In Stock save $5.46
$2.09
28
90754-921-010Ships in 1 to 2 Days
$8.72$12.30
29
90756-921-000Ships in 1 to 2 Days
$1.45$2.04
30
91052-ZV5-003Ships in 1 to 2 Days
$29.73$41.94
31
91054-ZV5-003Ships in 1 to 2 Days
$31.05$42.54
32
91251-ZV5-003Ships in 1 to 2 Daysqty 2 used
$7.20$10.16
33
91253-921-003In Stock
$11.46$16.18
34
91351-MG7-003Ships in 1 to 2 Days
$2.50$3.52
35
91351-740-003Ships in 1 to 2 Days
$2.25$3.18
36
91356-ZV5-000In Stock
$3.88$5.48
37
91555-ZV5-000Ships in 1 to 2 Daysqty 4 used
$3.88$5.48
38
94001-06490-0SShips in 1 to 2 Days
$2.15$2.94
39
94305-20122Ships in 1 to 2 Days
$2.03$2.78
40
96220-25138Ships in 1 to 2 Days
$0.57$0.80
Diagrams are Honda's official OEM illustrations, served from Honda's asset host. Prices are our own; where a struck-through figure appears beside one it is Honda's suggested retail. “In Stock” means the part is on our shelf here at Boe Marine. “Ships in 1 to 2 Days” means we order it in from Honda, who still supply it. Parts marked “No Longer Available” are shown so the drawing stays complete, but Honda has discontinued them. Where a Sierra replacement is listed beneath a Honda part, Sierra ships it direct to you; “Backorder Now” on one of those means Sierra has none at the moment and will ship it once restocked.
