BF250 — Parts Diagrams

Generation BF250D  ·  15 submodels

Assemblies (100)

Diagram

ACTUATOR

BF250 BF250D actuator exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4F1800
Fits only BF250D-LDA, BF250D-LDS, BF250D-UCDA, BF250D-UCDS, BF250D-UDA, BF250D-UDS, BF250D-XCDA, BF250D-XCDS, BF250D-XDA, BF250D-XDS — not every submodel of this generation.

Parts in this assembly

11 parts
1
36520-ZVL-003Ships in 1 to 2 Days
$563.03$771.28
1
36520-ZVL-611Ships in 1 to 2 Days
$494.08$676.82
2
36521-ZVL-000Ships in 1 to 2 Days
$83.61$114.54
2
36521-ZVL-A10Ships in 1 to 2 Days
$107.02$146.62
3
36522-ZVL-000Ships in 1 to 2 Daysqty 6 used
$3.46$4.74
4
90106-ZVL-000Ships in 1 to 2 Daysqty 4 used
$3.83$5.40
4
90106-ZVL-010Ships in 1 to 2 Daysqty 4 used
$3.49$4.78
5
90107-ZVL-000Ships in 1 to 2 Daysqty 3 used
$5.53$7.58
5
90014-ZY9-M01Ships in 1 to 2 Daysqty 3 used
$2.73$3.74
6
91504-ZY9-M00Ships in 1 to 2 Daysqty 3 used
$5.65$7.74
6
91504-ZY9-M03Ships in 1 to 2 Daysqty 3 used
$5.65$7.74
Diagram

ALTERNATOR

BF250 BF250D alternator exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4E1900
Fits all 15 submodels of this generation.

Parts in this assembly

29 parts
1
31105-PR7-A01Ships in 1 to 2 Days
$51.39$70.42
2
31111-PT0-003Ships in 1 to 2 Days
$42.30$57.94
3
31114-PT0-013Ships in 1 to 2 Days
$42.15$57.74
4
31118-PT0-003Ships in 1 to 2 Daysqty 4 used
$10.15$13.90
5
31138-PD1-004Ships in 1 to 2 Days
$10.16$13.92
6
31141-P13-003Ships in 1 to 2 Days
$127.22$174.32
7
31142-PD1-004Ships in 1 to 2 Days
$8.09$11.08
8
31145-PD1-004Ships in 1 to 2 Daysqty 4 used
$8.60$11.78
9
31146-PT0-003Ships in 1 to 2 Daysqty 4 used
$5.36$7.34
10
31147-P13-003Ships in 1 to 2 Days
$2.89$3.96
11
31147-PT0-003Ships in 1 to 2 Daysqty 3 used
$4.00$5.48
12
31148-P13-003Ships in 1 to 2 Daysqty 4 used
$3.11$4.26
13
31148-PT0-003Ships in 1 to 2 Daysqty 2 used
$4.00$5.48
14
31630-ZY3-013Ships in 1 to 2 Days
$1,218.41$1,669.06
15
31631-ZY3-003Ships in 1 to 2 Days
$440.90
16
31637-ZVL-000Ships in 1 to 2 Days
$5.05$6.92
17
31639-ZY3-003Ships in 1 to 2 Days
$148.03$202.80
18
31694-ZY3-003Ships in 1 to 2 Days
$10.06$13.78
19
31710-ZY3-003Ships in 1 to 2 Days
$196.87$269.68
20
31750-ZY3-003Ships in 1 to 2 Days
$261.41$358.10
21
90002-ZVL-010Ships in 1 to 2 Days
$2.80$3.84
21
BOLT, FLANGE (10X90) (NOT AVAILABLE)
90002-ZX2-000No Longer Available
—
22
90011-ZVL-000Ships in 1 to 2 Days
$5.31$7.50
22
90011-ZVL-010Ships in 1 to 2 Days
$5.56$7.62
23
90017-ZZ5-M01Ships in 1 to 2 Days
$1.24$1.70
24
90055-ZVL-010Ships in 1 to 2 Days
$23.78$32.58
25
90203-ZVL-010Ships in 1 to 2 Days
$1.72$2.36
26
90231-PD1-014Ships in 1 to 2 Daysqty 7 used
$4.31$5.90
27
94001-06080-0SShips in 1 to 2 Days
$1.30$1.78
Diagram

CABLE (1)

BF250 BF250D cable (1) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4F1600
Fits only BF250D-XDS — not every submodel of this generation.

Parts in this assembly

11 parts
1
32436-ZVL-900Ships in 1 to 2 Days
$112.61$154.26
2
32436-ZVL-910Ships in 1 to 2 Days
$83.57$114.48
3
32437-ZVL-900Ships in 1 to 2 Days
$48.41$66.32
4
32438-ZVL-900Ships in 1 to 2 Days
$68.56$93.92
5
32823-ZV5-003Ships in 1 to 2 Daysqty 4 used
$2.95$4.04
6
32824-ZV5-003Ships in 1 to 2 Days
$3.11$4.26
7
38206-797-A01Ships in 1 to 2 Daysqty 6 used
$1.97$2.70
8
38216-ZVL-901Ships in 1 to 2 Daysqty 3 used
$5.23$7.16
9
87117-Z2E-000Ships in 1 to 2 Daysqty 3 used
$1.66$2.28
10
91531-SR3-003Ships in 1 to 2 Daysqty 3 used
$7.75$10.62
11
91540-STK-003Ships in 1 to 2 Days
$4.15$5.68
Diagram

CABLE (2)

BF250 BF250D cable (2) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4F1601
Fits only BF250D-LDS, BF250D-UCDS, BF250D-UDS, BF250D-XCDS, BF250D-XDS — not every submodel of this generation.

Parts in this assembly

14 parts
1
32107-ZVL-003Ships in 1 to 2 Days
$10.47$14.34
2
COVER, CONNECTOR (NOT AVAILABLE)
32108-KFG-000No Longer Available
$3.26$4.46
3
32127-ZZ3-000Ships in 1 to 2 Daysqty 2 used
$4.04$5.54
4
32530-ZVL-000Ships in 1 to 2 Days
$733.61$1,034.98
5
32530-ZVL-600Ships in 1 to 2 Days
$573.74$785.94
6
32606-K44-V01Ships in 1 to 2 Days
$6.51$8.92
7
38206-V15-003Ships in 1 to 2 Days
$1.78$2.44
8
38216-Z2E-003Ships in 1 to 2 Daysqty 2 used
$5.85$8.02
9
87117-Z2E-000Ships in 1 to 2 Days
$1.66$2.28
10
87118-ZVL-000Ships in 1 to 2 Days
$1.56$2.14
11
91535-STK-003Ships in 1 to 2 Days
$6.75$9.24
12
91535-TA0-003Ships in 1 to 2 Daysqty 6 used
$4.56$6.24
13
91541-S0A-003Ships in 1 to 2 Daysqty 5 used
$3.64$4.98
14
98200-40500Ships in 1 to 2 Days
$1.11$1.52
Diagram

CABLE (3)

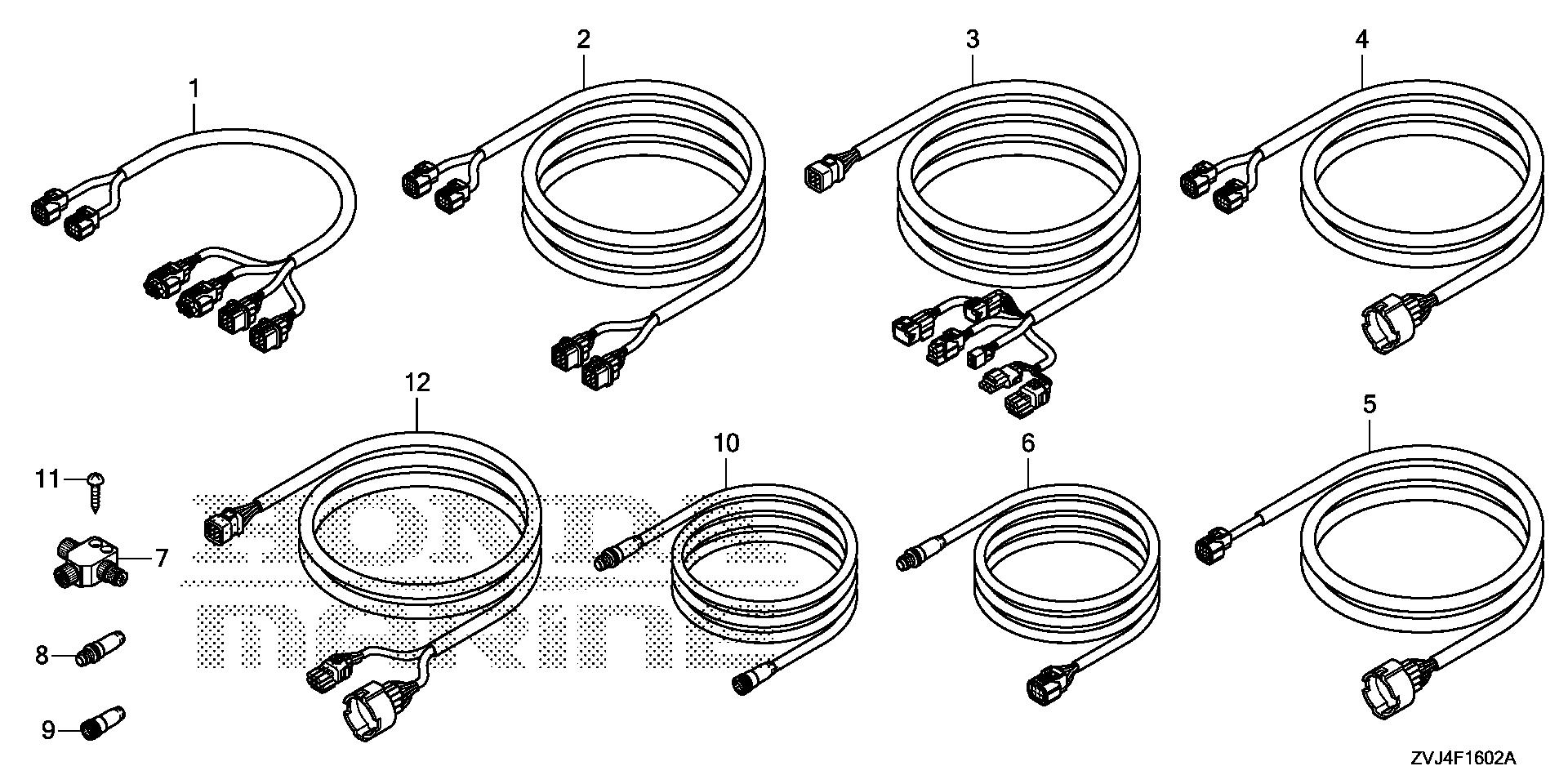

BF250 BF250D cable (3) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4F1602A
Fits only BF250D-LDS, BF250D-UCDS, BF250D-UDS, BF250D-XCDS, BF250D-XDS — not every submodel of this generation.

Parts in this assembly

29 parts
1
32540-ZVL-601Ships in 1 to 2 Days
$73.80$101.10
2
32580-ZVL-600Ships in 1 to 2 Days
$207.73
2
32580-ZVL-700Ships in 1 to 2 Days
$253.87
2
32580-ZVL-800Ships in 1 to 2 Days
$300.04
2
32580-ZVP-N00Ships in 1 to 2 Days
$252.20
2
32580-ZVP-U00Ships in 1 to 2 Days
$299.49
3
32580-ZVL-901Ships in 1 to 2 Days
$158.16$216.66
3
32580-ZVL-910Ships in 1 to 2 Daysreplaced by 32580-ZVL-911
$138.03
3
32580-ZVL-911Ships in 1 to 2 Days
$147.08
3
32580-ZVL-921Ships in 1 to 2 Days
$237.18$324.90
4
32590-ZVL-000Ships in 1 to 2 Days
$76.94
5
32590-ZVL-600Ships in 1 to 2 Days
$69.25
5
32590-ZVL-700Ships in 1 to 2 Days
$92.31
5
32590-ZVL-800Ships in 1 to 2 Days
$115.40
6
32800-ZVL-600Ships in 1 to 2 Days
$247.54$339.10
6
32800-ZVL-700Ships in 1 to 2 Days
$327.61$448.78
6
32800-ZZ3-000Ships in 1 to 2 Daysqty 2 used
$200.56$274.74
7
32805-ZZ3-000Ships in 1 to 2 Daysqty 3 used
$114.95
8
32806-ZVL-000Ships in 1 to 2 Daysqty 2 used
$32.92$45.10
9
32807-ZVL-000Ships in 1 to 2 Daysqty 2 used
$34.41$47.14
10
32815-ZVL-000Ships in 1 to 2 Days
$138.56
10
32815-ZVL-600Ships in 1 to 2 Days
$185.70
10
32815-ZVL-700Ships in 1 to 2 Days
$222.89
10
32815-ZVL-800Ships in 1 to 2 Days
$292.33
11
93901-446J0Ships in 1 to 2 Daysqty 6 used
$1.11$1.52
12
32590-ZVL-900Ships in 1 to 2 Daysreplaced by 32590-ZVL-901
$70.59
12
32590-ZVL-901Ships in 1 to 2 Days
$92.91$127.28
12
32590-ZVL-910Ships in 1 to 2 Daysreplaced by 32590-ZVL-911
$93.98
12
32590-ZVL-911Ships in 1 to 2 Days
$123.87$169.68
Diagram

CABLE (DUAL) (HI-LEX)

BF250 BF250D cable (dual) (hi-lex) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4Y1301
Fits only BF250D-LRA, BF250D-UCRA, BF250D-URA, BF250D-XCRA, BF250D-XRA — not every submodel of this generation.

Parts in this assembly

31 parts
1
24905-ZY3-003Ships in 1 to 2 Daysqty 4 used
$83.35$114.18
1
24906-ZY3-003Ships in 1 to 2 Daysqty 4 used
$86.32$118.24
1
24907-ZY3-003Ships in 1 to 2 Daysqty 4 used
$89.37$122.42
1
24908-ZY3-003Ships in 1 to 2 Daysqty 4 used
$92.43$126.62
1
24909-ZY3-003Ships in 1 to 2 Daysqty 4 used
$99.76$136.66
1
24910-ZY3-003Ships in 1 to 2 Daysqty 4 used
$60.42
1
24911-ZY3-003Ships in 1 to 2 Daysqty 4 used
$58.54
1
24912-ZY3-003Ships in 1 to 2 Daysqty 4 used
$64.99
1
24913-ZY3-003Ships in 1 to 2 Daysqty 4 used
$64.06
1
24914-ZY3-003Ships in 1 to 2 Daysqty 4 used
$66.26
1
24915-ZY3-003Ships in 1 to 2 Daysqty 4 used
$63.91
1
CABLE, REMOTE CONTROL (16') (LOW FRICTION) (NOT AVAILABLE)
24916-ZY3-003No Longer Available
—
1
24917-ZY3-003Ships in 1 to 2 Daysqty 4 used
$73.32
1
CABLE, REMOTE CONTROL (18') (LOW FRICTION) (NOT AVAILABLE)
24918-ZY3-003No Longer Available
—
1
24919-ZY3-003Ships in 1 to 2 Daysqty 4 used
$78.63
1
CABLE, REMOTE CONTROL (20') (LOW FRICTION) (NOT AVAILABLE)
24920-ZY3-003No Longer Available
—
1
24921-ZY3-003Ships in 1 to 2 Daysqty 4 used
$85.70
1
CABLE, REMOTE CONTROL (22') (LOW FRICTION) (NOT AVAILABLE)
24922-ZY3-003No Longer Available
—
1
24923-ZY3-003Ships in 1 to 2 Daysqty 4 used
$94.55
1
CABLE, REMOTE CONTROL (24') (LOW FRICTION) (NOT AVAILABLE)
24924-ZY3-003No Longer Available
—
1
24925-ZY3-003Ships in 1 to 2 Daysqty 4 used
$103.36
1
24926-ZY3-003Ships in 1 to 2 Daysqty 4 used
$109.53
1
24927-ZY3-003Ships in 1 to 2 Daysqty 4 used
$115.72
1
CABLE, REMOTE CONTROL (28') (LOW FRICTION) (NOT AVAILABLE)
24928-ZY3-003No Longer Available
—
1
24929-ZY3-003Ships in 1 to 2 Daysqty 4 used
$128.09
1
CABLE, REMOTE CONTROL (30') (LOW FRICTION) (NOT AVAILABLE)
24930-ZY3-003No Longer Available
—
1
24931-ZY3-003Ships in 1 to 2 Daysqty 4 used
$141.35
1
CABLE, REMOTE CONTROL (32') (LOW FRICTION) (NOT AVAILABLE)
24932-ZY3-003No Longer Available
—
1
CABLE, REMOTE CONTROL (33') (LOW FRICTION)
24933-ZY3-003No Longer Available
—
1
CABLE, REMOTE CONTROL (34') (LOW FRICTION) (NOT AVAILABLE)
24934-ZY3-003No Longer Available
—
1
24935-ZY3-003Ships in 1 to 2 Daysqty 4 used
$169.60
Diagram

CABLE (DUAL) (NHK MEC)

BF250 BF250D cable (dual) (nhk mec) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4Y1303
Fits only BF250D-LRA, BF250D-UCRA, BF250D-URA, BF250D-XCRA, BF250D-XRA — not every submodel of this generation.

Parts in this assembly

36 parts
1
24905-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$83.35$114.18
1
24906-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$90.21$123.58
1
24907-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$121.63$166.62
1
24908-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$96.59$132.32
1
24909-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$133.11$182.34
1
24910-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$102.89$140.94
1
24911-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$145.49$199.30
1
24912-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$150.95$206.78
1
24913-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$156.28$214.08
1
24914-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$118.73$162.64
1
24915-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$122.65$168.02
1
24916-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$126.70$173.56
1
24917-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$131.44$180.06
1
24918-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$136.19$186.56
1
24919-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$140.89$193.00
1
24920-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$145.68$199.56
1
24921-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$153.56$210.36
1
24922-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$161.53$221.28
1
24923-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$162.10$222.06
1
24924-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$164.70$225.62
1
24925-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$185.22$253.72
1
24926-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$248.36$340.22
1
24927-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$282.33$386.76
1
24928-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$202.94$278.00
1
24929-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$219.69$300.94
1
24930-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$233.63$320.04
1
24931-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$242.46$332.14
1
24932-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$254.51$348.64
1
24933-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$258.84$354.58
1
24934-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$270.60$370.68
1
24935-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$282.39$386.84
1
24936-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$297.10$406.98
1
24937-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$321.17$439.96
1
24938-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$326.54$447.32
1
24939-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$351.47$481.46
1
24940-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$355.90$487.54
Diagram

CABLE (SINGLE) (HI-LEX)

BF250 BF250D cable (single) (hi-lex) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4Y1300
Fits only BF250D-LRA, BF250D-UCRA, BF250D-URA, BF250D-XCRA, BF250D-XRA — not every submodel of this generation.

Parts in this assembly

31 parts
1
24905-ZY3-003Ships in 1 to 2 Daysqty 2 used
$83.35$114.18
1
24906-ZY3-003Ships in 1 to 2 Daysqty 2 used
$86.32$118.24
1
24907-ZY3-003Ships in 1 to 2 Daysqty 2 used
$89.37$122.42
1
24908-ZY3-003Ships in 1 to 2 Daysqty 2 used
$92.43$126.62
1
24909-ZY3-003Ships in 1 to 2 Daysqty 2 used
$99.76$136.66
1
24910-ZY3-003Ships in 1 to 2 Daysqty 2 used
$60.42
1
24911-ZY3-003Ships in 1 to 2 Daysqty 2 used
$58.54
1
24912-ZY3-003Ships in 1 to 2 Daysqty 2 used
$64.99
1
24913-ZY3-003Ships in 1 to 2 Daysqty 2 used
$64.06
1
24914-ZY3-003Ships in 1 to 2 Daysqty 2 used
$66.26
1
24915-ZY3-003Ships in 1 to 2 Daysqty 2 used
$63.91
1
CABLE, REMOTE CONTROL (16') (LOW FRICTION) (NOT AVAILABLE)
24916-ZY3-003No Longer Available
—
1
24917-ZY3-003Ships in 1 to 2 Daysqty 2 used
$73.32
1
CABLE, REMOTE CONTROL (18') (LOW FRICTION) (NOT AVAILABLE)
24918-ZY3-003No Longer Available
—
1
24919-ZY3-003Ships in 1 to 2 Daysqty 2 used
$78.63
1
CABLE, REMOTE CONTROL (20') (LOW FRICTION) (NOT AVAILABLE)
24920-ZY3-003No Longer Available
—
1
24921-ZY3-003Ships in 1 to 2 Daysqty 2 used
$85.70
1
CABLE, REMOTE CONTROL (22') (LOW FRICTION) (NOT AVAILABLE)
24922-ZY3-003No Longer Available
—
1
24923-ZY3-003Ships in 1 to 2 Daysqty 2 used
$94.55
1
CABLE, REMOTE CONTROL (24') (LOW FRICTION) (NOT AVAILABLE)
24924-ZY3-003No Longer Available
—
1
24925-ZY3-003Ships in 1 to 2 Daysqty 2 used
$103.36
1
24926-ZY3-003Ships in 1 to 2 Daysqty 2 used
$109.53
1
24927-ZY3-003Ships in 1 to 2 Daysqty 2 used
$115.72
1
CABLE, REMOTE CONTROL (28') (LOW FRICTION) (NOT AVAILABLE)
24928-ZY3-003No Longer Available
—
1
24929-ZY3-003Ships in 1 to 2 Daysqty 2 used
$128.09
1
CABLE, REMOTE CONTROL (30') (LOW FRICTION) (NOT AVAILABLE)
24930-ZY3-003No Longer Available
—
1
24931-ZY3-003Ships in 1 to 2 Daysqty 2 used
$141.35
1
CABLE, REMOTE CONTROL (32') (LOW FRICTION) (NOT AVAILABLE)
24932-ZY3-003No Longer Available
—
1
CABLE, REMOTE CONTROL (33') (LOW FRICTION)
24933-ZY3-003No Longer Available
—
1
CABLE, REMOTE CONTROL (34') (LOW FRICTION) (NOT AVAILABLE)
24934-ZY3-003No Longer Available
—
1
24935-ZY3-003Ships in 1 to 2 Daysqty 2 used
$169.60
Diagram

CABLE (SINGLE) (NHK MEC)

BF250 BF250D cable (single) (nhk mec) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4Y1302
Fits only BF250D-LRA, BF250D-UCRA, BF250D-URA, BF250D-XCRA, BF250D-XRA — not every submodel of this generation.

Parts in this assembly

36 parts
1
24905-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$83.35$114.18
1
24906-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$90.21$123.58
1
24907-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$121.63$166.62
1
24908-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$96.59$132.32
1
24909-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$133.11$182.34
1
24910-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$102.89$140.94
1
24911-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$145.49$199.30
1
24912-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$150.95$206.78
1
24913-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$156.28$214.08
1
24914-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$118.73$162.64
1
24915-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$122.65$168.02
1
24916-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$126.70$173.56
1
24917-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$131.44$180.06
1
24918-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$136.19$186.56
1
24919-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$140.89$193.00
1
24920-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$145.68$199.56
1
24921-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$153.56$210.36
1
24922-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$161.53$221.28
1
24923-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$162.10$222.06
1
24924-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$164.70$225.62
1
24925-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$185.22$253.72
1
24926-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$248.36$340.22
1
24927-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$282.33$386.76
1
24928-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$202.94$278.00
1
24929-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$219.69$300.94
1
24930-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$233.63$320.04
1
24931-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$242.46$332.14
1
24932-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$254.51$348.64
1
24933-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$258.84$354.58
1
24934-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$270.60$370.68
1
24935-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$282.39$386.84
1
24936-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$297.10$406.98
1
24937-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$321.17$439.96
1
24938-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$326.54$447.32
1
24939-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$351.47$481.46
1
24940-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$355.90$487.54
Diagram

CABLE KIT (1)

BF250 BF250D cable kit (1) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4Y1000
Fits all 15 submodels of this generation.

Parts in this assembly

23 parts
1
06328-ZVL-800Ships in 1 to 2 Days
$87.95
2
06385-ZVL-900Ships in 1 to 2 Days
$725.37$993.66
3
32436-ZVL-900Ships in 1 to 2 Days
$112.61$154.26
4
32436-ZVL-910Ships in 1 to 2 Days
$83.57$114.48
5
32437-ZVL-900Ships in 1 to 2 Days
$48.41$66.32
6
32438-ZVL-900Ships in 1 to 2 Days
$68.56$93.92
7
32800-ZZ3-000Ships in 1 to 2 Days
$200.56$274.74
8
32805-ZZ3-000Ships in 1 to 2 Daysqty 2 used
$114.95
9
32806-ZVL-000Ships in 1 to 2 Days
$32.92$45.10
10
32807-ZVL-000Ships in 1 to 2 Days
$34.41$47.14
11
32815-ZVL-000Ships in 1 to 2 Days
$138.56
12
32823-ZV5-003Ships in 1 to 2 Daysqty 4 used
$2.95$4.04
13
32824-ZV5-003Ships in 1 to 2 Days
$3.11$4.26
14
38206-797-A01Ships in 1 to 2 Daysqty 6 used
$1.97$2.70
15
38216-ZVL-901Ships in 1 to 2 Daysqty 3 used
$5.23$7.16
16
38580-ZZ5-003Ships in 1 to 2 Days
$41.26$56.52
17
38582-ZVL-900Ships in 1 to 2 Days
$16.89$23.14
18
38585-MKE-A11Ships in 1 to 2 Days
$4.99$6.84
19
87117-Z2E-000Ships in 1 to 2 Daysqty 3 used
$1.66$2.28
20
90113-TA0-A00Ships in 1 to 2 Daysqty 3 used
$8.28$11.34
21
91531-SR3-003Ships in 1 to 2 Daysqty 3 used
$7.75$10.62
22
91540-STK-003Ships in 1 to 2 Days
$4.15$5.68
23
93901-446J0Ships in 1 to 2 Daysqty 4 used
$1.11$1.52
Diagram

CABLE KIT (2)

BF250 BF250D cable kit (2) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4Y1001D
Fits all 15 submodels of this generation.

Parts in this assembly

24 parts
1
32540-ZVL-601Ships in 1 to 2 Days
$73.80$101.10
2
32580-ZVL-600Ships in 1 to 2 Days
$207.73
2
32580-ZVL-700Ships in 1 to 2 Days
$253.87
2
32580-ZVL-800Ships in 1 to 2 Days
$300.04
2
32580-ZVP-N00Ships in 1 to 2 Days
$252.20
2
32580-ZVP-U00Ships in 1 to 2 Days
$299.49
3
32580-ZVL-901Ships in 1 to 2 Days
$158.16$216.66
3
32580-ZVL-911Ships in 1 to 2 Days
$147.08
3
32580-ZVL-921Ships in 1 to 2 Days
$237.18$324.90
4
32590-ZVL-000Ships in 1 to 2 Days
$76.94
4
32590-ZVL-810Ships in 1 to 2 Days
$181.42
4
32590-ZVL-820Ships in 1 to 2 Days
$242.85
4
32590-ZVL-830Ships in 1 to 2 Days
$289.99
4
32590-ZVL-840Ships in 1 to 2 Days
$347.13
5
32590-ZVL-600Ships in 1 to 2 Days
$69.25
5
32590-ZVL-700Ships in 1 to 2 Days
$92.31
5
32590-ZVL-800Ships in 1 to 2 Days
$115.40
6
32590-ZVL-901Ships in 1 to 2 Days
$92.91$127.28
6
32590-ZVL-911Ships in 1 to 2 Days
$123.87$169.68
7
31576-ZVL-000Ships in 1 to 2 Days
$12.85
8
32815-ZVL-000Ships in 1 to 2 Days
$138.56
8
32815-ZVL-600Ships in 1 to 2 Days
$185.70
8
32815-ZVL-700Ships in 1 to 2 Days
$222.89
8
32815-ZVL-800Ships in 1 to 2 Days
$292.33
Diagram

CABLE KIT (3)

BF250 BF250D cable kit (3) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4Y1002B
Fits only BF250D-LDA, BF250D-UCDA, BF250D-UDA, BF250D-XCDA, BF250D-XDA — not every submodel of this generation.

Parts in this assembly

9 parts
1
32532-ZVL-PA0Ships in 1 to 2 Days
$42.08$57.64
2
32533-ZVL-PA0Ships in 1 to 2 Days
$12.53$17.16
3
32534-ZVL-PA0Ships in 1 to 2 Days
$12.53$17.16
4
32535-ZVL-PA0Ships in 1 to 2 Days
$12.53$17.16
5
32536-ZVL-PA0Ships in 1 to 2 Days
$70.44$96.50
6
32537-ZVL-PA0Ships in 1 to 2 Days
$108.65$148.84
7
32538-ZVL-PA0Ships in 1 to 2 Days
$58.53$80.18
8
32536-ZVP-PA0Ships in 1 to 2 Days
$49.95
9
32540-ZVP-PA0Ships in 1 to 2 Days
$49.95
Diagram

CAMSHAFT - ROCKER ARM

BF250 BF250D camshaft - rocker arm exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4E0910A
Fits all 15 submodels of this generation.

Parts in this assembly

37 parts
1
14111-ZVJ-000Ships in 1 to 2 Days
$352.97$483.52
1
14111-ZX2-000Ships in 1 to 2 Days
$396.16$542.68
2
14211-ZVJ-000Ships in 1 to 2 Days
$337.73$462.64
2
14211-ZX2-000Ships in 1 to 2 Days
$396.16$542.68
3
14610-RDV-J00Ships in 1 to 2 Daysqty 6 used
$136.71$187.28
4
14620-P8A-A01Ships in 1 to 2 Daysqty 6 used
$569.63$780.32
5
14626-P8A-A00Ships in 1 to 2 Daysqty 6 used
$54.18$74.22
5
14626-ZVL-700Ships in 1 to 2 Daysqty 6 used
$32.85$45.00
6
14627-P8A-A00Ships in 1 to 2 Daysqty 6 used
$54.18$74.22
6
14627-ZVL-700Ships in 1 to 2 Daysqty 6 used
$32.85$45.00
7
14631-RDV-J00Ships in 1 to 2 Daysqty 2 used
$78.50$107.54
7
14631-P8A-A00Ships in 1 to 2 Daysqty 2 used
$111.44$152.66
8
14632-RCA-A00Ships in 1 to 2 Daysqty 2 used
$113.08$154.90
8
14632-ZVL-700Ships in 1 to 2 Daysqty 2 used
$29.96$41.04
9
14645-P8A-A01Ships in 1 to 2 Daysqty 6 used
$1.39$1.90
9
14645-ZVL-700Ships in 1 to 2 Daysqty 6 used
$3.29$4.50
10
14646-RDV-J00Ships in 1 to 2 Daysqty 12 used
$4.92$6.74
11
14711-RJA-000Ships in 1 to 2 Daysqty 12 used
$46.15$63.22
12
14721-RJA-E00Ships in 1 to 2 Daysqty 12 usedreplaced by 14721-ZVL-000
$39.54$54.16
12
14721-ZVL-000Ships in 1 to 2 Daysqty 12 used
$39.54$54.16
13
14744-PM3-000Ships in 1 to 2 Daysqty 12 used
$8.92$12.22
14
14744-PT0-004Ships in 1 to 2 Daysqty 12 used
$8.92$12.22
15
14761-RKG-003Ships in 1 to 2 Daysqty 12 used
$14.24$19.50
16
14762-P8E-A02Ships in 1 to 2 Daysqty 12 used
$18.22$24.96
17
14765-RDV-J00Ships in 1 to 2 Daysqty 24 used
$8.50$11.64
18
14775-PM3-000Ships in 1 to 2 Daysqty 24 used
$8.19$11.22
19
14781-RGM-A01Ships in 1 to 2 Daysqty 48 used
$5.68$7.78
20
90003-P8A-A00Ships in 1 to 2 Daysqty 12 used
$4.93$6.76
21
90004-P8A-A00Ships in 1 to 2 Daysqty 8 used
$3.20$4.38
22
90206-PM3-004Ships in 1 to 2 Daysqty 12 used
$4.98$6.82
23
90206-PT0-004Ships in 1 to 2 Daysqty 12 used
$3.50$4.80
24
14646-R70-A00Ships in 1 to 2 Daysqty 12 used
$4.39$6.02
25
14646-ZVL-700Ships in 1 to 2 Daysqty 24 used
$1.72$2.36
26
14744-PT0-004Ships in 1 to 2 Daysqty 12 used
$8.92$12.22
26
90017-ZVL-701Ships in 1 to 2 Daysqty 12 used
$2.79$3.82
27
90206-PM3-004Ships in 1 to 2 Daysqty 12 used
$4.98$6.82
27
90206-PT0-004Ships in 1 to 2 Daysqty 12 used
$3.50$4.80
Diagram

CONTROL CASE

BF250 BF250D control case exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4F0730
Fits only BF250D-LDS, BF250D-UCDS, BF250D-UDS, BF250D-XCDS, BF250D-XDS — not every submodel of this generation.

Parts in this assembly

17 parts
1
30420-ZVL-000Ships in 1 to 2 Days
$53.53
2
30435-ZVL-000Ships in 1 to 2 Days
$53.23
3
34330-ZVL-013Ships in 1 to 2 Days
$986.57$1,351.46
4
38206-V15-003Ships in 1 to 2 Days
$1.78$2.44
5
38400-ZY9-A00Ships in 1 to 2 Days
$70.36$96.40
6
38402-ZY9-A00Ships in 1 to 2 Days
$21.59$29.58
7
38580-ZZ3-003Ships in 1 to 2 Days
$42.33$57.98
8
38580-ZZ5-003Ships in 1 to 2 Days
$41.26$56.52
9
38582-ZVL-900Ships in 1 to 2 Days
$16.89$23.14
10
38585-MKE-A11Ships in 1 to 2 Days
$4.99$6.84
11
38586-ZZ5-003Ships in 1 to 2 Daysqty 2 used
$3.61$4.94
12
90018-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.37$1.88
13
90113-TA0-A00Ships in 1 to 2 Daysqty 3 used
$8.28$11.34
14
91535-STK-003Ships in 1 to 2 Days
$6.75$9.24
15
91549-TTA-003Ships in 1 to 2 Days
$3.66$5.02
16
93901-446J0Ships in 1 to 2 Daysqty 4 used
$1.11$1.52
17
98200-40500Ships in 1 to 2 Days
$1.11$1.52
Diagram

CRANKCASE

BF250 BF250D crankcase exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4E0310A
Fits all 15 submodels of this generation.

Parts in this assembly

35 parts
1
11100-ZVL-010Ships in 1 to 2 Days
$466.33$466.36
1
11100-ZVL-020Ships in 1 to 2 Days
$534.86$754.68
1
11100-ZVL-030Ships in 1 to 2 Days
$482.41$660.84
1
11100-ZVL-900Ships in 1 to 2 Days
$527.73$744.56
1
11100-ZVL-B10Ships in 1 to 2 Days
$295.64$295.65
1
11100-ZVL-910Ships in 1 to 2 Days
$295.64$295.65
2
11911-ZX2-000Ships in 1 to 2 Days
$27.74$39.14
2
11911-ZX2-010Ships in 1 to 2 Days
$31.26$42.82
3
12214-ZV5-000Ships in 1 to 2 Days
$2.92$4.00
4
15400-RTA-003In Stock
$8.50$11.64
5
15600-ZY9-M00Ships in 1 to 2 Days
$9.52$13.04
6
15631-ZY9-000Ships in 1 to 2 Days
$29.93$41.00
7
90014-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.87$2.56
8
90015-PH1-013Ships in 1 to 2 Days
$9.97$13.66
9
90032-ZZ5-M00Ships in 1 to 2 Daysqty 15 used
$1.45$2.04
9
90032-ZZ5-M01Ships in 1 to 2 Daysqty 15 used
$1.62$2.22
10
90041-ZVL-010Ships in 1 to 2 Daysqty 2 used
$1.66$2.28
11
90047-ZZ5-M00Ships in 1 to 2 Daysqty 2 used
$1.90$2.68
11
90047-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.96$2.68
12
90063-ZVL-000Ships in 1 to 2 Daysqty 2 used
$1.66$2.34
12
90063-ZVL-010Ships in 1 to 2 Daysqty 2 used
$1.66$2.28
13
90081-ZZ5-M00Ships in 1 to 2 Days
$4.70$6.64
13
90081-ZZ5-M01Ships in 1 to 2 Days
$4.51$6.18
14
90082-ZY3-003Ships in 1 to 2 Days
$3.80$5.20
15
90151-ZZ0-M00Ships in 1 to 2 Daysqty 2 used
$1.62$2.28
15
90151-ZZ0-M01Ships in 1 to 2 Daysqty 2 used
$1.66$2.28
16
90204-ZVL-010Ships in 1 to 2 Daysqty 2 used
$1.20$1.64
17
91302-MAL-601Ships in 1 to 2 Days
$3.55$4.86
18
91324-PF4-004Ships in 1 to 2 Days
$3.59$4.92
19
94301-08140Ships in 1 to 2 Daysqty 2 used
$2.74$3.76
20
15410-ZVP-000Ships in 1 to 2 Days
$155.72$213.34
21
15413-ZVP-000Ships in 1 to 2 Days
$2.07$2.84
22
24651-ZVL-910Ships in 1 to 2 Days
$8.06$11.04
23
90049-ZVL-010Ships in 1 to 2 Daysqty 3 used
$1.30$1.78
24
90103-ZZ0-M01Ships in 1 to 2 Days
$1.31$1.80
Diagram

CRANKSHAFT - PISTON

BF250 BF250D crankshaft - piston exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4E0700
Fits all 15 submodels of this generation.

Parts in this assembly

42 parts
1
13010-ZX2-000Ships in 1 to 2 Daysqty 6 used
$55.23$75.66
2
13101-ZX2-000Ships in 1 to 2 Daysqty 6 used
$74.90$102.60
3
13111-PEA-000Ships in 1 to 2 Daysqty 6 used
$34.18$46.82
4
13115-P5A-000Ships in 1 to 2 Daysqty 12 used
$3.94$5.40
5
13204-P8A-A01Ships in 1 to 2 Days
$8.23$11.28
6
13210-RKG-000Ships in 1 to 2 Daysqty 6 used
$253.44$347.22
6
13210-ZVL-000Ships in 1 to 2 Daysqty 6 used
$72.23$98.94
7
13211-RYE-A01Ships in 1 to 2 Daysqty 12 used
$23.91$32.76
7
13212-RYE-A01Ships in 1 to 2 Daysqty 12 used
$30.86$42.28
7
13213-RYE-A01Ships in 1 to 2 Daysqty 12 used
$30.86$42.28
7
13214-RYE-A01Ships in 1 to 2 Daysqty 12 used
$30.86$42.28
7
13215-RYE-A01Ships in 1 to 2 Daysqty 12 used
$23.91$32.76
8
13310-ZX2-000Ships in 1 to 2 Days
$1,001.44
9
13321-ZX2-003Ships in 1 to 2 Daysqty 4 used
$14.37$19.68
9
13322-ZX2-003Ships in 1 to 2 Daysqty 4 used
$15.02$20.58
9
13323-ZX2-003Ships in 1 to 2 Daysqty 4 used
$15.02$20.58
9
13324-ZX2-003Ships in 1 to 2 Daysqty 4 used
$14.37$19.68
9
13325-ZX2-003Ships in 1 to 2 Daysqty 4 used
$15.02$20.58
9
13326-ZX2-003Ships in 1 to 2 Daysqty 4 used
$14.37$19.68
9
13321-ZVL-B11Ships in 1 to 2 Daysqty 4 used
$12.18$16.68
9
13322-ZVL-B11Ships in 1 to 2 Daysqty 4 used
$12.18$16.68
9
13323-ZVL-B11Ships in 1 to 2 Daysqty 4 used
$12.18$16.68
9
13324-ZVL-B11Ships in 1 to 2 Daysqty 4 used
$12.18$16.68
9
13325-ZVL-B11Ships in 1 to 2 Daysqty 4 used
$12.18$16.68
9
13326-ZVL-B11Ships in 1 to 2 Daysqty 4 used
$12.18$16.68
10
13331-ZY3-A06Ships in 1 to 2 Daysqty 2 used
$10.92$14.96
11
13341-ZX2-003Ships in 1 to 2 Daysqty 4 used
$15.02$20.58
11
13342-ZX2-003Ships in 1 to 2 Daysqty 4 used
$15.02$20.58
11
13343-ZX2-003Ships in 1 to 2 Daysqty 4 used
$15.02$20.58
11
13344-ZX2-003Ships in 1 to 2 Daysqty 4 used
$14.37$19.68
11
13345-ZX2-003Ships in 1 to 2 Daysqty 4 used
$15.02$20.58
11
13346-ZX2-003Ships in 1 to 2 Daysqty 4 used
$14.37$19.68
11
13341-ZVL-B11Ships in 1 to 2 Daysqty 4 used
$11.20$15.34
11
13342-ZVL-B11Ships in 1 to 2 Daysqty 4 used
$11.20$15.34
11
13343-ZVL-B11Ships in 1 to 2 Daysqty 4 used
$11.20$15.34
11
13344-ZVL-B11Ships in 1 to 2 Daysqty 4 used
$13.49$18.48
11
13345-ZVL-B11Ships in 1 to 2 Daysqty 4 used
$11.20$15.34
11
13346-ZVL-B11Ships in 1 to 2 Daysqty 4 used
$11.20$15.34
12
13391-ZY3-010Ships in 1 to 2 Days
$7.07$9.68
13
13392-ZX2-000Ships in 1 to 2 Days
$8.47$11.60
14
13398-ZY3-003Ships in 1 to 2 Days
$3.69$5.06
14
13398-ZVL-B11Ships in 1 to 2 Days
$2.35$3.22
Diagram

CYLINDER & CRANKSHAFT ASSY.

Honda publishes no exploded diagram for this assembly. The parts list below is complete.
Ref numbers on the diagram match the badges belowZVJ4X0200
Fits all 15 submodels of this generation.

Parts in this assembly

4 parts
1
$4,701.71$4,701.93
1
$7,632.05$7,632.07
1
$6,296.60
1
$6,296.60
Diagram

CYLINDER BLOCK

BF250 BF250D cylinder block exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4E0300E
Fits all 15 submodels of this generation.

Parts in this assembly

74 parts
1
11200-ZVL-000Ships in 1 to 2 Days
$314.70$431.10
1
11200-ZVL-010Ships in 1 to 2 Days
$289.63$396.76
2
11300-ZY3-C00Ships in 1 to 2 Days
$89.73$122.92
3
12000-ZVL-010ZAShips in 1 to 2 Days
$2,840.34$2,840.50
3
12000-ZVL-020ZAShips in 1 to 2 Days
$3,145.74
4
12155-ZV4-A00Ships in 1 to 2 Daysreplaced by 12155-ZV4-A01
$10.91$14.94
4
12155-ZV4-A01Ships in 1 to 2 Daysqty 6 used
$10.91$14.94
5
12155-ZY3-000Ships in 1 to 2 Daysreplaced by 12155-ZY3-010
$8.28$11.34
5
12155-ZY3-010Ships in 1 to 2 Daysqty 2 used
$8.28$11.34
6
12164-ZY3-000Ships in 1 to 2 Daysqty 6 used
$15.11$20.70
7
12171-ZY3-305Ships in 1 to 2 Daysqty 6 used
$2.67$3.66
8
12214-ZV5-000Ships in 1 to 2 Days
$2.92$4.00
9
15115-P8A-A01In Stock
$5.10$6.98
10
15140-P8A-A00Ships in 1 to 2 Daysqty 2 used
$17.56$24.06
11
15142-P8A-A00Ships in 1 to 2 Daysqty 2 used
$3.55$4.86
12
15150-P8A-A00Ships in 1 to 2 Days
$43.23$59.22
13
15280-R70-A00Ships in 1 to 2 Daysqty 3 used
$28.24$38.68
14
15290-RJA-000Ships in 1 to 2 Daysqty 3 used
$40.73$55.80
15
15655-ZVL-000Ships in 1 to 2 Days
$15.62$21.40
15
15655-ZVL-B10Ships in 1 to 2 Days
$10.64$14.58
16
15656-ZVL-000Ships in 1 to 2 Days
$30.16$41.32
17
15657-ZY3-000In Stock
$7.05$9.66
18
15810-ZY2-000ZAShips in 1 to 2 Days
$190.85$261.44
18
15810-ZVL-003ZAShips in 1 to 2 Days
$258.24$353.76
19
15825-ZY2-000Ships in 1 to 2 Days
$15.73
19
15825-ZY3-003Ships in 1 to 2 Days
$20.45$28.02
20
30530-R1A-A01Ships in 1 to 2 Days
$172.31$236.04
21
32114-ZVL-000Ships in 1 to 2 Days
$2.89$3.96
21
32116-ZVP-000Ships in 1 to 2 Days
$3.78$5.18
22
32193-ZVL-000Ships in 1 to 2 Days
$39.36$53.92
22
32193-ZVL-B10Ships in 1 to 2 Days
$27.52$37.70
23
35673-ZY3-003Ships in 1 to 2 Days
$22.62$30.98
24
37260-RNA-A01Ships in 1 to 2 Days
$428.89$587.52
24
37260-ZVP-003Ships in 1 to 2 Days
$99.83$136.76
25
37500-PNB-003Ships in 1 to 2 Days
$214.85$294.32
26
90001-ZVL-000Ships in 1 to 2 Daysqty 2 used
$4.16$5.88
26
90001-ZVL-010Ships in 1 to 2 Daysqty 2 used
$4.09$5.60
27
90006-ZVL-003Ships in 1 to 2 Days
$4.50$6.34
27
90006-ZVL-013Ships in 1 to 2 Days
$4.23$5.80
28
90008-ZVL-003Ships in 1 to 2 Daysqty 5 used
$3.66$5.18
28
90008-ZVL-013Ships in 1 to 2 Daysqty 5 used
$3.40$4.66
29
90009-ZVL-003Ships in 1 to 2 Daysqty 2 used
$3.97$5.60
29
90009-ZVL-013Ships in 1 to 2 Daysqty 2 used
$4.31$5.90
30
90021-ZZ5-M01Ships in 1 to 2 Days
$1.14$1.56
31
90014-RCA-A01Ships in 1 to 2 Daysqty 8 used
$4.89$6.70
32
90017-ZZ5-M01Ships in 1 to 2 Days
$1.24$1.70
33
90019-ZZ5-M01In Stockqty 7 used
$2.25$3.08
34
90020-ZVL-000Ships in 1 to 2 Daysqty 2 used
$1.23$1.74
34
90020-ZVL-010Ships in 1 to 2 Daysqty 2 used
$1.24$1.70
35
90028-ZVL-000Ships in 1 to 2 Daysqty 4 used
$0.92$1.30
35
90028-ZVL-010Ships in 1 to 2 Daysqty 4 used
$0.82$1.12
36
90030-ZZ5-M01Ships in 1 to 2 Daysqty 8 used
$1.31$1.80
37
90038-ZVL-000Ships in 1 to 2 Days
$1.31$1.86
37
90038-ZVL-010Ships in 1 to 2 Days
$1.28$1.76
38
90054-ZY9-M00Ships in 1 to 2 Days
$1.69$2.38
38
90054-ZY9-M01Ships in 1 to 2 Days
$1.72$2.36
39
90081-ZZ5-M00Ships in 1 to 2 Days
$4.70$6.64
39
90081-ZZ5-M01Ships in 1 to 2 Days
$4.51$6.18
40
90715-PH7-000Ships in 1 to 2 Daysqty 8 used
$7.85$10.76
41
91212-ZY3-003Ships in 1 to 2 Days
$13.20$18.08
42
91214-PNA-014Ships in 1 to 2 Daysreplaced by 91214-RNB-A01
$17.14$23.48
42
91214-RNB-A01Ships in 1 to 2 Days
$17.14$23.48
43
91303-ZVL-000Ships in 1 to 2 Daysqty 2 used
$0.72$0.98
44
91307-PNA-003Ships in 1 to 2 Days
$2.01$2.76
45
91308-P8A-A01In Stock
$5.84$8.00
46
$2.77$3.80
47
91309-P8A-A01In Stock
$5.84$8.00
48
91319-PR3-003Ships in 1 to 2 Days
$4.58$6.28
49
91321-P0X-003In Stock
$4.20$5.76
50
91333-PNA-003Ships in 1 to 2 Days
$3.02$4.14
51
93500-05016-4JShips in 1 to 2 Daysqty 2 used
$0.99$1.36
52
93500-05020-4JShips in 1 to 2 Daysqty 6 used
$0.86$1.18
53
94301-06100In Stockqty 4 used
$2.74$3.76
55
06126-ZVL-000Ships in 1 to 2 Daysqty 6 used
$9.07
Diagram

CYLINDER HEAD

BF250 BF250D cylinder head exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4E0900A
Fits all 15 submodels of this generation.

Parts in this assembly

18 parts
1
11911-ZY3-010Ships in 1 to 2 Daysqty 2 used
$20.02$27.42
4
12210-PZ1-004Ships in 1 to 2 Days
$4.45$6.10
5
12210-ZVL-010ZAShips in 1 to 2 Daysqty 2 used
$1,363.01
5
12210-ZVL-B10Ships in 1 to 2 Daysqty 2 used
$1,161.99
6
12211-PZ1-004Ships in 1 to 2 Days
$4.45$6.10
7
12231-ZVL-000Ships in 1 to 2 Days
$18.05$24.72
8
12241-ZY3-000Ships in 1 to 2 Days
$20.92$28.66
9
12251-ZY3-A01Ships in 1 to 2 Daysqty 2 used
$55.86$76.52
9
12251-ZVL-B13Ships in 1 to 2 Daysqty 2 used
$35.39$48.48
10
14820-P8F-A01Ships in 1 to 2 Daysqty 6 used
$25.10$34.38
11
90005-PT0-003Ships in 1 to 2 Daysqty 16 used
$16.79$23.00
12
90026-ZY9-M01Ships in 1 to 2 Daysqty 4 used
$1.49$2.04
13
90035-ZVL-010Ships in 1 to 2 Daysqty 4 used
$0.96$1.32
14
90701-P8A-A00Ships in 1 to 2 Daysqty 4 used
$4.88$6.68
15
90705-PT0-000Ships in 1 to 2 Daysqty 4 used
$5.33$7.30
16
91213-RKG-003Ships in 1 to 2 Days
$11.74$16.08
17
91301-P8A-A00Ships in 1 to 2 Days
$1.71$2.34
18
94302-06100Ships in 1 to 2 Daysqty 4 used
$2.74$3.76
Diagram

CYLINDER HEAD & CAMSHAFT ASSY. (L.)

Honda publishes no exploded diagram for this assembly. The parts list below is complete.
Ref numbers on the diagram match the badges belowZVJ4X0400
Fits all 15 submodels of this generation.

Parts in this assembly

6 parts
1
$2,706.86
1
$2,137.32$2,137.40
1
$3,460.91
1
$2,270.95$2,271.08
1
12225-ZVJ-PC0Ships in 1 to 2 Days
$1,846.27
1
12225-ZVL-PC0Ships in 1 to 2 Days
$1,918.93$1,918.98
Diagram

CYLINDER HEAD & CAMSHAFT ASSY. (R.)

Honda publishes no exploded diagram for this assembly. The parts list below is complete.
Ref numbers on the diagram match the badges belowZVJ4X0300
Fits all 15 submodels of this generation.

Parts in this assembly

6 parts
1
$2,788.25
1
$2,137.32
1
$2,780.29$2,780.41
1
$2,270.95$2,271.08
1
12215-ZVJ-PC0Ships in 1 to 2 Days
$1,846.27
1
12215-ZVL-PC0Ships in 1 to 2 Days
$1,918.93$1,918.98
Diagram

CYLINDER HEAD COVER (1)

BF250 BF250D cylinder head cover (1) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4E0100
Fits all 15 submodels of this generation.

Parts in this assembly

20 parts
1
12310-ZVL-405ZAShips in 1 to 2 Days
$250.87$343.66
2
12312-ZY3-000Ships in 1 to 2 Daysqty 2 used
$36.88$50.52
3
12320-ZVL-405ZAShips in 1 to 2 Days
$228.46$312.96
4
12342-P2F-A01Ships in 1 to 2 Daysreplaced by 12342-RYE-004
$5.80$7.94
4
12342-RYE-004Ships in 1 to 2 Daysqty 6 used
$5.80$7.94
5
15425-ZY3-010Ships in 1 to 2 Daysqty 2 used
$22.88$31.34
6
16916-ZVL-000Ships in 1 to 2 Days
$7.97$10.92
7
17193-MT2-000Ships in 1 to 2 Days
$12.82$17.56
8
32104-ZVL-000Ships in 1 to 2 Days
$8.15$11.16
9
32114-ZVL-000Ships in 1 to 2 Days
$2.89$3.96
10
32129-ZY3-000Ships in 1 to 2 Daysqty 3 used
$4.64$6.36
11
50310-HE0-003Ships in 1 to 2 Days
$2.83$3.88
12
90011-ZZ5-M01Ships in 1 to 2 Daysqty 6 used
$1.18$1.62
13
90019-ZZ5-M01In Stockqty 16 used
$2.25$3.08
14
90602-ZY3-020Ships in 1 to 2 Daysqty 2 used
$4.15$5.68
15
90683-SA0-003Ships in 1 to 2 Days
$9.11$12.48
16
91401-ZY3-A00Ships in 1 to 2 Days
$12.88$17.64
17
91402-ZY3-030Ships in 1 to 2 Days
$12.12$16.60
18
91403-ZY3-000Ships in 1 to 2 Days
$3.08$4.22
19
91566-SK7-003Ships in 1 to 2 Days
$6.34$8.68
Diagram

DISPLAY KIT (4.3 INCH)

BF250 BF250D display kit (4.3 inch) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4Y0800A
Fits all 15 submodels of this generation.

Parts in this assembly

5 parts
1
06371-ZVP-000Ships in 1 to 2 Daysreplaced by 06371-ZVP-010
$599.95
1
06371-ZVP-010Ships in 1 to 2 Days
$883.78$1,210.66
1
06371-ZY6-040Ships in 1 to 2 Daysreplaced by 06371-ZVP-010
$779.52$1,067.84
4
37106-ZY6-004Ships in 1 to 2 Days
$62.24$85.26
5
37107-ZY6-004Ships in 1 to 2 Days
$69.48$95.18
Diagram

ELECTRONIC CONTROL UNIT (1)

BF250 BF250D electronic control unit (1) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4E2010
Fits all 15 submodels of this generation.

Parts in this assembly

23 parts
1
30416-ZVL-000Ships in 1 to 2 Days
$56.77$58.47
1
30416-ZVL-020Ships in 1 to 2 Days
$54.53
2
30419-ZY9-003Ships in 1 to 2 Daysqty 8 used
$4.26$5.84
3
32101-ZVL-000Ships in 1 to 2 Daysqty 4 used
$4.23$5.80
4
32102-ZVL-000Ships in 1 to 2 Days
$4.72$6.46
5
32117-ZW9-000Ships in 1 to 2 Days
$7.07$9.68
6
34750-ZVJ-063Ships in 1 to 2 Days
$1,149.59$1,574.78
6
34750-ZVJ-902Ships in 1 to 2 Days
$1,215.45$1,665.00
6
34750-ZVJ-904Ships in 1 to 2 Days
$1,000.52$1,370.58
6
34750-ZVK-063Ships in 1 to 2 Days
$1,193.58$1,635.04
6
34750-ZVK-902Ships in 1 to 2 Days
$1,270.10$1,739.86
6
34750-ZVK-904Ships in 1 to 2 Days
$1,000.52$1,370.58
6
34750-ZVL-063Ships in 1 to 2 Days
$1,193.58$1,635.04
6
34750-ZVL-904Ships in 1 to 2 Days
$1,193.58$1,635.04
7
34754-ZVL-000Ships in 1 to 2 Days
$111.81$111.83
8
90015-ZVL-010Ships in 1 to 2 Daysqty 8 used
$2.47$3.38
9
90102-ZZ0-M00Ships in 1 to 2 Daysqty 2 used
$4.31$6.08
9
90102-ZZ0-M01Ships in 1 to 2 Daysqty 2 used
$4.19$5.74
10
90103-ZZ0-M00Ships in 1 to 2 Daysqty 5 used
$1.20$1.68
10
90103-ZZ0-M01Ships in 1 to 2 Daysqty 5 used
$1.31$1.80
11
90683-SA0-003Ships in 1 to 2 Days
$9.11$12.48
12
91503-ZY9-M00Ships in 1 to 2 Daysqty 8 used
$2.23$3.06
12
91551-ZVL-010Ships in 1 to 2 Daysqty 8 used
$2.23$3.06
Diagram

ENGINE COVER (1)

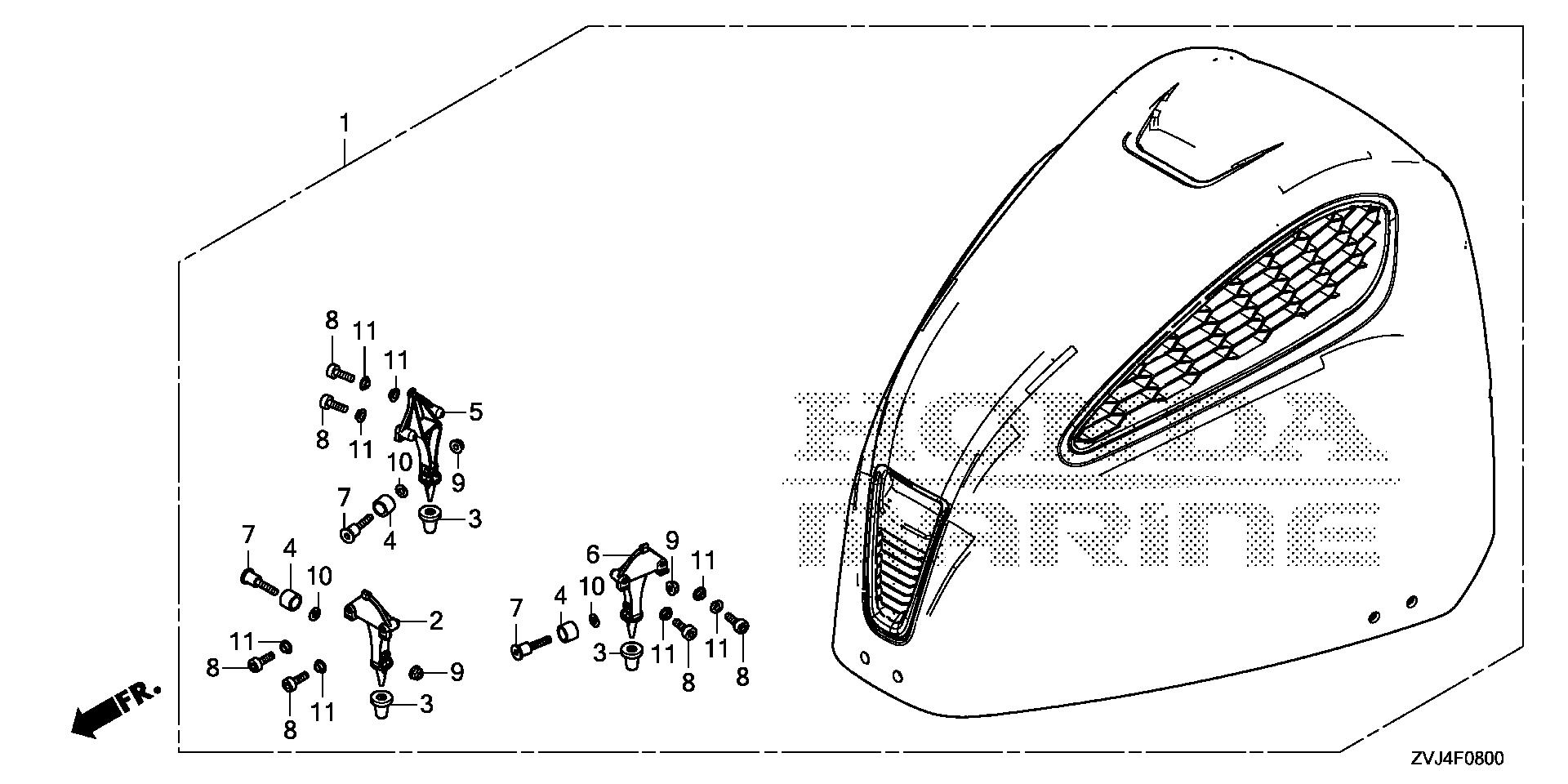

BF250 BF250D engine cover (1) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4F0800
Fits all 15 submodels of this generation.

Parts in this assembly

12 parts
1
63100-ZVL-010ZAShips in 1 to 2 Days
$1,332.98$1,826.00
1
$1,332.98$1,826.00
2
63107-ZVL-000Ships in 1 to 2 Days
$43.11$59.06
3
63108-ZVL-000Ships in 1 to 2 Daysqty 3 used
$4.53$6.20
4
63109-ZVL-000Ships in 1 to 2 Daysqty 3 used
$4.07$5.58
5
63112-ZVL-000Ships in 1 to 2 Days
$42.25$57.88
6
63117-ZVL-000Ships in 1 to 2 Days
$42.25$57.88
7
90101-ZVL-000Ships in 1 to 2 Daysqty 3 used
$3.78$5.18
8
90101-ZY6-000Ships in 1 to 2 Daysqty 6 used
$2.80$3.84
9
90205-ZY1-000Ships in 1 to 2 Daysqty 3 used
$4.76$6.52
10
90506-ZV4-000Ships in 1 to 2 Daysqty 3 used
$2.45$3.36
11
91556-ZY3-000Ships in 1 to 2 Daysqty 8 used
$2.48$3.40
Diagram

EXHAUST MANIFOLD - THERMOSTAT

BF250 BF250D exhaust manifold - thermostat exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4E0400C
Fits all 15 submodels of this generation.

Parts in this assembly

35 parts
1
12155-ZV5-000Ships in 1 to 2 Daysreplaced by 12155-ZV5-010
$9.53$13.06
1
12155-ZV5-010Ships in 1 to 2 Daysqty 4 used
$9.53$13.06
2
18110-ZVL-000ZAShips in 1 to 2 Days
$123.50$169.18
3
18115-ZY3-003Ships in 1 to 2 Days
$31.61$43.30
4
18120-ZVL-000ZAShips in 1 to 2 Days
$123.50$169.18
4
18120-ZVL-B10ZAShips in 1 to 2 Days
$220.21$301.66
5
18125-ZY3-003Ships in 1 to 2 Days
$31.64$43.34
6
19255-ZVL-020Ships in 1 to 2 Days
$2.73$3.74
7
19256-ZY3-010Ships in 1 to 2 Daysqty 2 used
$4.61$6.32
8
19257-ZY3-010Ships in 1 to 2 Daysqty 2 used
$15.23$20.86
9
19261-ZVL-000Ships in 1 to 2 Days
$1.58$2.16
10
19300-ZX2-003Ships in 1 to 2 Days
$39.11$53.58
11
19303-ZX2-003Ships in 1 to 2 Daysqty 2 used
$6.69$9.16
12
SPACER, THERMOSTAT COVER *NH8* (DARK GRAY) (NOT AVAILABLE)
19313-ZVL-010ZANo Longer Available
$40.12$54.96
12
SPACER, THERMOSTAT COVER *NH8* (DARK GRAY) (NA USE ALT:19313-ZVL-020)
19313-ZVL-020ZANo Longer Available
—
12
19313-ZVL-020Ships in 1 to 2 Days
$27.52$37.70
13
19315-ZVL-010ZAShips in 1 to 2 Daysqty 2 used
$22.89$31.36
14
35673-ZY3-003Ships in 1 to 2 Daysqty 2 used
$22.62$30.98
15
90019-ZZ5-M01In Stock
$2.25$3.08
16
90027-ZY9-M01Ships in 1 to 2 Daysqty 8 used
$2.69$3.68
17
90034-ZVL-010In Stockqty 5 used
$1.04$1.42
18
90055-ZZ5-M01Ships in 1 to 2 Daysqty 8 used
$1.87$2.56
19
90601-ZVL-000In Stockqty 2 used
$1.53$2.10
19
90601-ZY3-030Ships in 1 to 2 Daysqty 2 used
$1.66$2.28
20
90603-ZY3-020Ships in 1 to 2 Daysqty 4 used
$3.64$4.98
21
90604-ZY3-020Ships in 1 to 2 Daysqty 2 used
$2.44$3.34
22
91301-ZY3-003In Stockqty 2 used
$8.42$11.54
23
91307-PNA-003Ships in 1 to 2 Daysqty 2 used
$2.01$2.76
24
91356-SD4-952Ships in 1 to 2 Days
$3.47$4.76
25
90004-ZX2-000Ships in 1 to 2 Daysqty 4 used
$1.88$2.58
25
93500-06018-4JShips in 1 to 2 Daysqty 4 used
$1.49$2.10
26
90601-ZVL-000In Stockqty 2 used
$1.53$2.10
26
90601-ZY3-030Ships in 1 to 2 Daysqty 2 used
$1.66$2.28
27
35655-ZVL-B11Ships in 1 to 2 Days
$173.20$237.26
28
91541-S0A-003Ships in 1 to 2 Days
$3.64$4.98
Diagram

EXTENSION CASE (1)

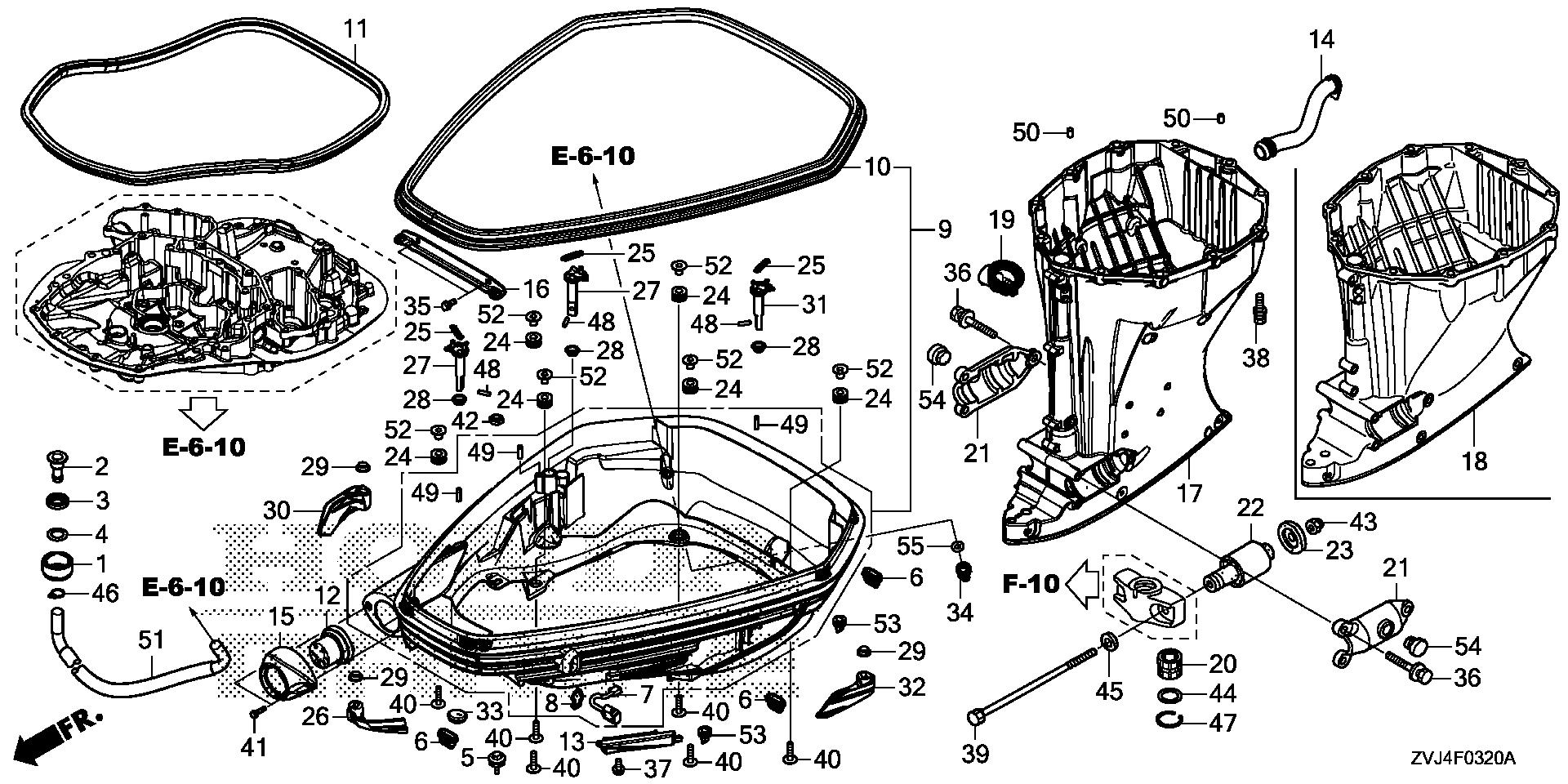

BF250 BF250D extension case (1) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4F0320A
Fits all 15 submodels of this generation.

Parts in this assembly

62 parts
1
19270-ZY3-000Ships in 1 to 2 Days
$13.02$17.84
2
19271-ZY3-000Ships in 1 to 2 Days
$8.85$12.12
3
19272-ZY3-000In Stock
$4.04$5.54
4
19274-ZVL-000Ships in 1 to 2 Days
$1.58$2.16
5
19289-ZY3-000Ships in 1 to 2 Days
$2.95$4.04
6
23173-ZY3-010Ships in 1 to 2 Daysqty 3 used
$8.32$11.40
7
35640-ZY3-013Ships in 1 to 2 Days
$48.76$66.80
8
35645-ZY9-000Ships in 1 to 2 Days
$7.75$10.62
9
06330-ZVL-000Ships in 1 to 2 Days
$941.60$1,289.86
9
40100-ZVL-020Ships in 1 to 2 Daysreplaced by 06330-ZVL-000
$941.60$1,289.86
10
40102-ZVL-010Ships in 1 to 2 Days
$136.50$187.00
11
40103-ZVL-000Ships in 1 to 2 Days
$26.08$35.72
12
40105-ZVL-000Ships in 1 to 2 Days
$23.78$32.58
12
40105-ZVL-900Ships in 1 to 2 Days
$23.78$32.58
13
40110-ZVL-000Ships in 1 to 2 Days
$50.78$71.64
13
40110-ZVL-010Ships in 1 to 2 Days
$15.62$21.40
14
40116-ZVL-000Ships in 1 to 2 Days
$31.71$43.44
15
40151-ZVL-000Ships in 1 to 2 Days
$55.71$76.32
16
40154-ZVL-000Ships in 1 to 2 Days
$28.95$39.66
17
40201-ZVL-000Ships in 1 to 2 Days
$912.24$1,249.64
18
40201-ZVL-900Ships in 1 to 2 Days
$872.89$1,195.74
19
40209-ZVL-000Ships in 1 to 2 Days
$15.48$21.20
20
40210-ZY3-610Ships in 1 to 2 Days
$31.52$43.18
21
50111-ZY3-020Ships in 1 to 2 Daysqty 2 used
$87.19$87.20
22
50155-ZY3-000Ships in 1 to 2 Daysqty 2 used
$85.80$117.56
23
50157-ZY3-010Ships in 1 to 2 Daysqty 2 used
$14.00$19.18
24
51640-121-730Ships in 1 to 2 Daysqty 6 used
$3.68$5.04
25
63119-ZVL-000Ships in 1 to 2 Daysqty 3 used
$2.98$4.08
26
63210-ZVL-000Ships in 1 to 2 Days
$17.48$23.94
27
63212-ZVL-000Ships in 1 to 2 Daysqty 2 used
$30.48$41.76
28
63213-ZVL-000Ships in 1 to 2 Daysqty 3 used
$3.72$5.10
29
63214-ZVL-000Ships in 1 to 2 Daysqty 3 used
$3.72$5.10
30
63220-ZVL-000Ships in 1 to 2 Days
$17.48$23.94
31
63222-ZVL-000Ships in 1 to 2 Days
$30.48$41.76
32
63230-ZVL-000Ships in 1 to 2 Days
$17.48$23.94
33
63515-ZC0-700Ships in 1 to 2 Days
$5.80$7.94
34
82873-ZVL-000Ships in 1 to 2 Days
$8.67$11.88
35
90051-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.36$1.86
36
90102-ZVL-000Ships in 1 to 2 Daysqty 6 used
$2.79$3.82
37
90102-ZW9-000Ships in 1 to 2 Days
$2.12$2.90
37
90109-ZVL-000Ships in 1 to 2 Days
$1.62$2.22
38
90103-ZVL-000Ships in 1 to 2 Daysqty 11 used
$3.93$5.38
39
90105-ZY3-010Ships in 1 to 2 Daysqty 2 used
$57.58$78.88
40
90107-ZVL-000Ships in 1 to 2 Daysqty 6 used
$5.53$7.58
41
90109-ZVL-000Ships in 1 to 2 Daysqty 2 used
$1.62$2.22
42
90302-921-000In Stock
$4.10$5.62
43
90302-ZY3-000Ships in 1 to 2 Daysqty 2 used
$23.05$31.58
44
90503-ZY3-610In Stock
$8.02$10.98
45
90511-ZY3-000Ships in 1 to 2 Daysqty 2 used
$3.42$4.68
46
90605-ZV4-000Ships in 1 to 2 Days
$1.37$1.88
46
90651-ZY6-000Ships in 1 to 2 Days
$3.71$5.08
47
90652-ZY3-000In Stock
$10.91$14.94
48
90751-ZVL-000Ships in 1 to 2 Daysqty 3 used
$0.99$1.36
49
90752-ZVL-000Ships in 1 to 2 Daysqty 3 used
$9.91$13.58
50
90756-ZV5-000In Stockqty 2 used
$2.64$3.62
51
04601-ZVL-000Ships in 1 to 2 Days
$11.74$16.56
51
91451-ZVL-010Ships in 1 to 2 Days
$8.34$11.42
52
91504-ZY9-M00Ships in 1 to 2 Daysqty 6 used
$5.65$7.74
52
91504-ZY9-M03Ships in 1 to 2 Daysqty 6 used
$5.65$7.74
53
91601-ZZ0-M00Ships in 1 to 2 Daysqty 2 used
$5.21$7.14
54
95011-63000Ships in 1 to 2 Daysqty 2 used
$3.94$5.40
55
16075-GHB-830Ships in 1 to 2 Days
$3.40$4.66
Diagram

FUEL PIPE - INJECTOR

BF250 BF250D fuel pipe - injector exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4E1400B
Fits all 15 submodels of this generation.

Parts in this assembly

44 parts
1
16450-ZY6-003Ships in 1 to 2 Daysqty 6 used
$115.56
2
16451-ZY3-000Ships in 1 to 2 Daysqty 6 used
$4.44$6.08
3
16611-ZY3-A00Ships in 1 to 2 Days
$124.26$170.22
4
16614-P5G-003Ships in 1 to 2 Days
$13.02$17.84
5
16620-ZY3-A00Ships in 1 to 2 Days
$144.60$198.08
6
16740-ZY3-A01Ships in 1 to 2 Days
$93.02$127.42
7
16741-PG7-005Ships in 1 to 2 Days
$3.83$5.24
8
16748-ZVL-000Ships in 1 to 2 Days
$1.62$2.22
9
16752-ZY3-A00Ships in 1 to 2 Daysqty 3 used
$7.34$10.06
10
16755-ZVL-003Ships in 1 to 2 Days
$52.27$71.60
11
16757-ZY3-003Ships in 1 to 2 Days
$94.43$129.36
12
16765-ZVL-003Ships in 1 to 2 Days
$52.27$71.60
12
16765-ZVL-B11Ships in 1 to 2 Days
$36.38$49.84
13
16910-ZVL-003Ships in 1 to 2 Days
$20.06$27.48
↳
Sierra alternative ·
18-7521In Stock save $1.17
$18.89
14
16917-ZVL-010Ships in 1 to 2 Days
$11.23$15.38
15
16965-VM0-771Ships in 1 to 2 Days
$2.72$3.72
16
17051-ZY3-A00Ships in 1 to 2 Days
$278.99$382.18
17
17055-RCA-A01Ships in 1 to 2 Days
$21.83$29.90
17
17065-RCA-A01Ships in 1 to 2 Days
$21.83$29.90
18
17061-ZY3-A00Ships in 1 to 2 Days
$303.50$415.76
19
17065-RCA-A01Ships in 1 to 2 Days
$21.83$29.90
20
17105-P8E-A01Ships in 1 to 2 Days
$27.40$37.54
21
17108-ZY3-000Ships in 1 to 2 Days
$131.81$180.56
22
17711-S0X-931Ships in 1 to 2 Daysqty 2 used
$3.64$4.98
23
32112-ZY3-000Ships in 1 to 2 Daysqty 4 used
$6.13$8.40
24
90014-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$1.87$2.56
25
90019-ZZ5-M01In Stockqty 4 used
$2.25$3.08
26
90021-ZZ5-M01Ships in 1 to 2 Daysqty 6 used
$1.14$1.56
27
90042-ZY9-M00Ships in 1 to 2 Daysqty 6 used
$1.07$1.50
27
90042-ZY9-M01Ships in 1 to 2 Daysqty 6 used
$1.14$1.56
28
90043-ZVL-000Ships in 1 to 2 Daysqty 8 used
$1.59$2.24
28
90043-ZVL-010Ships in 1 to 2 Daysqty 8 used
$1.59$2.18
28
92900-08025-0BShips in 1 to 2 Daysqty 8 used
$2.72$3.72
29
90044-ZVL-010Ships in 1 to 2 Daysqty 2 used
$2.95$4.04
30
90205-ZY9-M00Ships in 1 to 2 Daysqty 8 used
$1.66$2.34
30
90205-ZY9-M01Ships in 1 to 2 Daysqty 8 used
$1.72$2.36
30
90201-ZVP-000Ships in 1 to 2 Daysqty 8 used
$1.61$2.20
31
90650-SB2-003Ships in 1 to 2 Daysqty 4 used
$6.34$8.68
32
91301-MJ0-003In Stockqty 6 used
$2.09$2.86
33
91301-PLC-000Ships in 1 to 2 Days
$3.42$4.68
34
91302-PNA-003Ships in 1 to 2 Daysqty 6 used
$2.67$3.66
35
94301-10120Ships in 1 to 2 Daysqty 4 used
$3.01$4.12
36
06160-ZVL-010Ships in 1 to 2 Days
$19.03
37
16918-ZVL-000Ships in 1 to 2 Days
$6.48$8.88
Diagram

FUEL STRAINER (1)

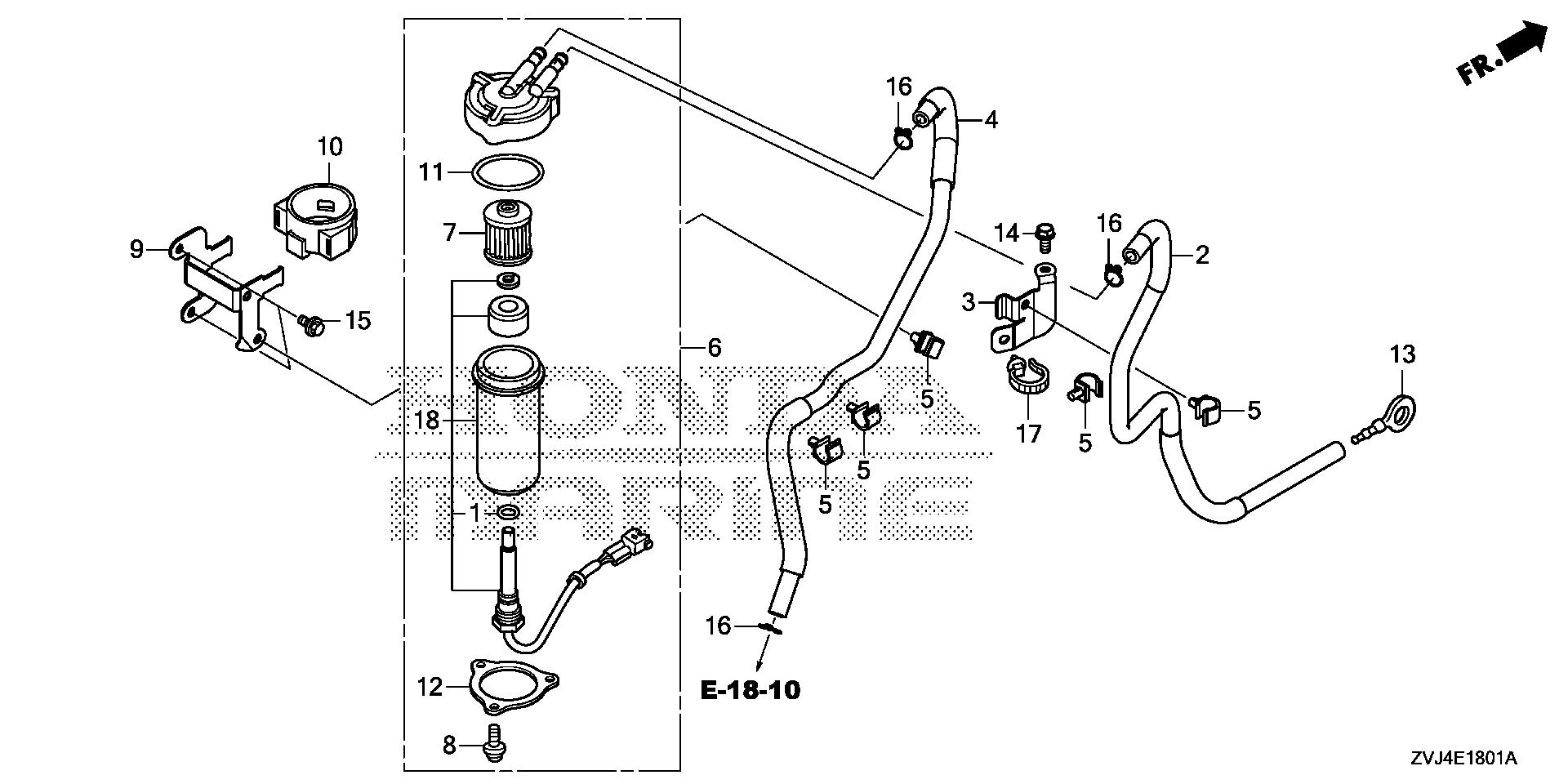

BF250 BF250D fuel strainer (1) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4E1801A
Fits all 15 submodels of this generation.

Parts in this assembly

19 parts
1
16818-ZY3-003Ships in 1 to 2 Days
$2.48$3.40
2
16840-ZVL-A00Ships in 1 to 2 Days
$22.97$31.46
3
16841-ZVL-000Ships in 1 to 2 Days
$13.10$17.94
4
16850-ZVL-A00Ships in 1 to 2 Days
$20.38$27.92
5
16896-ZY9-003Ships in 1 to 2 Daysqty 5 used
$2.80$3.84
6
16900-ZVL-003Ships in 1 to 2 Days
$187.48$256.82
7
16901-ZY3-003In Stock
$14.02$19.20
↳
Sierra alternative ·
18-79909In Stock save $0.98
$13.04
8
16904-ZY3-003Ships in 1 to 2 Daysqty 3 used
$4.20$5.76
9
16914-ZVL-000Ships in 1 to 2 Days
$15.94$21.84
10
16915-ZY3-010Ships in 1 to 2 Days
$12.10$16.58
11
16918-ZY3-003In Stock
$6.54$8.96
12
16919-ZY3-003Ships in 1 to 2 Days
$11.46$15.70
13
17738-ZY3-000Ships in 1 to 2 Days
$9.91$13.58
14
90021-ZZ5-M01Ships in 1 to 2 Days
$1.14$1.56
15
90103-ZZ0-M00Ships in 1 to 2 Daysqty 2 used
$1.20$1.68
15
90103-ZZ0-M01Ships in 1 to 2 Daysqty 2 used
$1.31$1.80
16
90604-ZV0-000Ships in 1 to 2 Daysqty 3 used
$1.37$1.88
17
91540-STK-003Ships in 1 to 2 Days
$4.15$5.68
18
16805-ZVL-003Ships in 1 to 2 Days
$142.12$194.68
Diagram

FUEL TUBE

BF250 BF250D fuel tube exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4F0600
Fits all 15 submodels of this generation.

Parts in this assembly

11 parts
1
16897-ZW9-003Ships in 1 to 2 Daysqty 2 used
$5.08$6.96
2
16966-MR1-000Ships in 1 to 2 Days
$7.64$10.46
3
16966-MR5-000Ships in 1 to 2 Days
$7.64$10.46
4
17661-ZW9-900Ships in 1 to 2 Days
$46.82$64.14
5
17665-ZX2-003Ships in 1 to 2 Days
$11.46$15.70
6
17680-ZX2-003Ships in 1 to 2 Days
$10.12$13.86
7
17700-ZX2-C02Ships in 1 to 2 Days
$182.88$250.52
8
17701-ZX2-A00Ships in 1 to 2 Days
$77.85$106.64
9
17702-ZY9-E05Ships in 1 to 2 Days
$18.85$25.82
10
17703-921-010Ships in 1 to 2 Daysqty 2 used
$3.53$4.84
11
17704-ZV4-010Ships in 1 to 2 Daysqty 3 used
$2.18$2.98
Diagram

FUSE BOX - RELAY

BF250 BF250D fuse box - relay exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4F0720C
Fits all 15 submodels of this generation.

Parts in this assembly

21 parts
1
BOX ASSY., JUNCTION (NOT AVAILABLE)
32370-ZVL-013No Longer Available
—
1
32370-ZVL-023Ships in 1 to 2 Days
$379.56
1
32370-ZY3-H01Ships in 1 to 2 Days
$415.33
1
32370-ZVL-A11Ships in 1 to 2 Days
$237.24
1
32370-ZVL-911Ships in 1 to 2 Days
$237.24
2
32371-ZVL-013Ships in 1 to 2 Days
$14.95$20.48
2
32371-ZY3-H01Ships in 1 to 2 Days
$17.45$23.90
2
32371-ZVL-A11Ships in 1 to 2 Days
$12.34$16.90
2
32371-ZVL-911Ships in 1 to 2 Days
$12.34$16.90
3
38228-ZX2-003Ships in 1 to 2 Daysqty 2 used
$3.08$4.22
4
38235-ZY6-004Ships in 1 to 2 Days
$3.08$4.22
5
39794-SDA-004Ships in 1 to 2 Days
$68.82$94.28
6
39794-ZY6-003Ships in 1 to 2 Daysqty 4 used
$20.08$27.50
7
90018-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$1.37$1.88
8
90135-ZY6-004Ships in 1 to 2 Daysqty 2 used
$1.43$1.96
9
98200-40750Ships in 1 to 2 Daysqty 2 used
$1.11$1.52
10
98200-41000Ships in 1 to 2 Daysqty 3 used
$1.21$1.66
11
98200-41500Ships in 1 to 2 Daysqty 4 used
$1.11$1.52
12
98200-43000Ships in 1 to 2 Daysqty 3 used
$1.61$2.20
13
98200-42000Ships in 1 to 2 Daysqty 2 used
$1.11$1.52
14
38206-V15-003Ships in 1 to 2 Days
$1.78$2.44
Diagram

GASKET KIT

BF250 BF250D gasket kit exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4X0100B
Fits all 15 submodels of this generation.

Parts in this assembly

30 parts
1
06115-ZVL-010Ships in 1 to 2 Days
$463.71$635.22
1
06115-ZVL-B10Ships in 1 to 2 Days
$330.50$452.74
2
11381-ZVL-003Ships in 1 to 2 Days
$55.74$76.36
2
11381-ZVL-B13Ships in 1 to 2 Days
$26.65$36.50
3
12251-ZY3-A01Ships in 1 to 2 Daysqty 2 used
$55.86$76.52
3
12251-ZVL-B13Ships in 1 to 2 Daysqty 2 used
$35.39$48.48
4
12312-ZY3-000Ships in 1 to 2 Daysqty 2 used
$36.88$50.52
4
12312-ZVL-B10Ships in 1 to 2 Daysqty 2 used
$21.07$28.86
5
14529-ZY3-000Ships in 1 to 2 Days
$5.23$7.16
6
15112-ZY3-013Ships in 1 to 2 Days
$54.76$75.02
6
15112-ZVL-B13Ships in 1 to 2 Days
$42.38$58.06
7
17055-RCA-A01Ships in 1 to 2 Days
$21.83$29.90
7
17065-RCA-A01Ships in 1 to 2 Days
$21.83$29.90
8
17065-RCA-A01Ships in 1 to 2 Days
$21.83$29.90
9
17105-P8E-A01Ships in 1 to 2 Days
$27.40$37.54
10
18115-ZY3-003Ships in 1 to 2 Days
$31.61$43.30
11
18125-ZY3-003Ships in 1 to 2 Days
$31.64$43.34
12
18333-ZVL-003Ships in 1 to 2 Daysqty 2 used
$6.04$8.28
13
23172-ZVL-003Ships in 1 to 2 Days
$73.13$100.18
13
23172-ZVL-B13Ships in 1 to 2 Days
$60.24$82.52
14
90601-ZE2-000In Stock
$2.38$3.26
15
91301-MJ0-003In Stockqty 2 used
$2.09$2.86
16
91301-ZY3-003In Stockqty 2 used
$8.42$11.54
17
91302-PF0-003Ships in 1 to 2 Days
$3.14$4.30
18
91303-ZY3-000Ships in 1 to 2 Days
$7.37$10.10
19
91307-PNA-003Ships in 1 to 2 Days
$2.01$2.76
20
91319-PR3-003Ships in 1 to 2 Days
$4.58$6.28
21
91324-PC6-000Ships in 1 to 2 Days
$2.99$4.10
22
91356-ZVL-003Ships in 1 to 2 Days
$1.31$1.80
23
11382-ZVL-B13Ships in 1 to 2 Daysqty 2 used
$3.80$5.20
Diagram

GEAR CASE

BF250 BF250D gear case exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4F0300
Fits all 15 submodels of this generation.

Parts in this assembly

32 parts
1
19286-ZW1-B00Ships in 1 to 2 Days
$6.28$8.60
2
$1,319.69$1,807.80
2
40202-ZY3-621ZDShips in 1 to 2 Days
$1,091.42$1,495.10
3
41101-ZX2-C01ZAShips in 1 to 2 Days
$1,316.08
3
41101-ZX2-C01ZDShips in 1 to 2 Days
$1,222.70
4
41102-ZW1-B00Ships in 1 to 2 Days
$6.29$8.62
5
$33.20$45.48
5
41102-ZX2-E00ZDShips in 1 to 2 Days
$32.22$44.14
6
41104-ZY3-C01Ships in 1 to 2 Days
$10.47$14.34
7
41105-ZY3-C01Ships in 1 to 2 Days
$10.47$14.34
8
41107-ZX2-C00ZAShips in 1 to 2 Days
$56.04
8
$69.66$95.42
9
41109-ZW1-B00In Stock
$18.12$24.82
10
CASE, GEAR *NHB14M* (AQUA MARINE SILVER METALLIC) (NOT AVAILABLE)
41110-ZX2-305ZANo Longer Available
—
10
CASE, GEAR *NH565* (GRAND PRIX WHITE) (NOT AVAILABLE)
41110-ZX2-305ZCNo Longer Available
—
11
90101-ZW9-003In Stock
$2.80$3.84
12
90101-ZZ0-000Ships in 1 to 2 Days
$2.44$3.34
13
90103-ZY6-000In Stock
$3.11$4.26
14
90107-ZX2-C00Ships in 1 to 2 Daysqty 6 used
$8.86$12.14
15
90120-ZY3-000In Stock
$14.35$19.66
16
90124-ZY3-000Ships in 1 to 2 Days
$7.36$10.08
17
90130-ZY3-620Ships in 1 to 2 Days
$61.13$83.74
18
90131-ZY3-620Ships in 1 to 2 Daysqty 6 used
$42.00$57.54
19
90205-ZY1-000Ships in 1 to 2 Days
$4.76$6.52
20
90302-ZV4-000Ships in 1 to 2 Days
$4.91$6.72
21
90306-ZV5-003In Stockqty 6 used
$3.40$4.66
22
90308-ZW1-003Ships in 1 to 2 Days
$10.16$13.92
23
90559-ZV5-000Ships in 1 to 2 Days
$2.95$4.04
24
90563-ZV5-000Ships in 1 to 2 Daysqty 6 used
$2.44$3.34
25
90756-ZV5-000In Stockqty 2 used
$2.64$3.62
26
91301-ZW4-003In Stockqty 2 used
$0.99$1.36
27
92101-06055-4JShips in 1 to 2 Days
$1.97$2.70
Diagram

GEAR CASE ASSY.

BF250 BF250D gear case assy. exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4F0310
Fits all 15 submodels of this generation.

Parts in this assembly

42 parts
1
41100-ZVL-030ZBShips in 1 to 2 Days
$2,808.95
1
41100-ZVL-030ZCShips in 1 to 2 Daysreplaced by 41100-ZVL-040ZC
$3,427.14
1
$3,427.14
1
$3,429.06
1
41100-ZVL-702ZBShips in 1 to 2 Daysreplaced by 41100-ZVL-705ZB
$3,429.06
1
41100-ZVL-702ZCShips in 1 to 2 Daysreplaced by 41100-ZVL-705ZC
$3,311.92
1
$3,429.06
1
41100-ZVL-703ZCShips in 1 to 2 Daysreplaced by 41100-ZVL-705ZC
$3,311.92
1
$3,429.06
1
$3,311.92
1
41100-ZVL-900ZBShips in 1 to 2 Days
$4,271.88
1
41100-ZVL-901ZBShips in 1 to 2 Days
$3,743.04
1
41100-ZVL-901ZCShips in 1 to 2 Daysreplaced by 41100-ZVL-902ZC
$3,911.74
1
41100-ZVL-902ZBShips in 1 to 2 Days
$3,376.30
1
$3,911.74
1
41100-ZVL-903ZBShips in 1 to 2 Days
$3,166.65
1
$3,166.65
1
41100-ZVL-600ZAShips in 1 to 2 Days
$4,033.93
1
41100-ZVL-601ZAShips in 1 to 2 Days
$4,033.93
1
41100-ZVL-602ZAShips in 1 to 2 Days
$3,481.82
1
41100-ZVL-602ZBShips in 1 to 2 Daysreplaced by 41100-ZVL-603ZB
$3,916.49
1
41100-ZVL-603ZAShips in 1 to 2 Days
$3,347.67
1
$3,916.49
1
$3,916.49
1
$4,405.40
1
CASE ASSY., GEAR *NHB14M* (UL)(COUNTER ROTATION) (AQUA MARINE SILVER METALLIC)
41100-ZVL-800ZBShips in 1 to 2 Daysreplaced by 41100-ZVL-802ZB
$3,093.09
1
$4,033.93
1
$3,498.01
1
41100-ZVL-803ZBShips in 1 to 2 Daysreplaced by 41100-ZVL-805ZB
$3,093.09
1
$3,093.09
1
CASE ASSY., GEAR *NH565* (L) (GRAND PRIX WHITE)
41100-ZVL-910ZANo Longer Available
—
1
CASE ASSY., GEAR *NHB14M* (L) (AQUA MARINE SILVER METALLIC)
41100-ZVL-910ZBNo Longer Available
—
1
CASE ASSY., GEAR *NH565* (XL) (GRAND PRIX WHITE)
41100-ZVL-A10ZANo Longer Available
—
1
$2,959.60
1
CASE ASSY., GEAR *NH565* (XL)(COUNTER ROTATION) (GRAND PRIX WHITE)
41100-ZVL-710ZANo Longer Available
—
1
$3,012.51
1
$3,012.51
1
CASE ASSY., GEAR *NH565* (UL) (GRAND PRIX WHITE)
41100-ZVL-610ZANo Longer Available
—
1
CASE ASSY., GEAR *NHB14M* (UL) (AQUA MARINE SILVER METALLIC)
41100-ZVL-610ZBNo Longer Available
—
1
CASE ASSY., GEAR *NHB14M* (UL)(COUNTER ROTATION) (AQUA MARINE SILVER METALLIC)
41100-ZVL-810ZBNo Longer Available
—
1
$3,029.84
1
$3,029.84
Diagram

GEAR CASE KIT

BF250 BF250D gear case kit exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4Y1700A
Fits all 15 submodels of this generation.

Parts in this assembly

8 parts
1
06125-ZX2-C01Ships in 1 to 2 Days
$35.19
2
90758-ZW1-B00In Stock
$1.87$2.56
3
91251-ZY3-C01In Stockqty 2 used
$5.62$7.70
4
91252-ZZ3-003In Stockqty 2 used
$6.63$9.08
5
91254-ZY3-003Ships in 1 to 2 Daysqty 2 used
$4.53$6.20
6
91301-ZW4-003In Stockqty 2 used
$0.99$1.36
7
91308-MJ0-003Ships in 1 to 2 Days
$3.61$4.94
8
91351-ZX2-C00Ships in 1 to 2 Days
$6.98$9.56
Diagram

INTAKE MANIFOLD

BF250 BF250D intake manifold exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4E1410
Fits all 15 submodels of this generation.

Parts in this assembly

27 parts
1
17105-ZY3-004In Stock
$61.61$84.40
2
17109-ZY3-004Ships in 1 to 2 Days
$11.67$15.98
↳
Sierra alternative ·
18-0396In Stock save $5.56
$6.11
3
17110-ZVL-003Ships in 1 to 2 Days
$1,134.46$1,554.06
4
17131-ZVL-000ZAShips in 1 to 2 Days
$289.96$397.20
4
17131-ZVL-B10Ships in 1 to 2 Days
$96.32$131.94
5
17138-ZY3-004Ships in 1 to 2 Days
$51.64$70.74
6
37830-RNA-A01Ships in 1 to 2 Days
$93.56$128.16
6
35675-ZVP-003Ships in 1 to 2 Days
$27.26$37.34
7
37831-ZVL-000Ships in 1 to 2 Days
$3.94$5.40
8
37832-ZVL-000Ships in 1 to 2 Days
$2.28$3.22
8
37832-ZVL-010Ships in 1 to 2 Days
$2.07$2.84
9
37835-PGK-A01Ships in 1 to 2 Days
$8.60$11.78
10
83551-MB9-000Ships in 1 to 2 Days
$2.35$3.22
11
90013-ZVL-000Ships in 1 to 2 Days
$0.58$0.82
11
90013-ZVL-010Ships in 1 to 2 Days
$0.54$0.74
12
90014-ZVL-000Ships in 1 to 2 Days
$0.92$1.30
12
90014-ZVL-010Ships in 1 to 2 Days
$0.82$1.12
13
90023-ZVL-010Ships in 1 to 2 Daysqty 10 used
$1.01$1.38
13
90030-ZZ5-M01Ships in 1 to 2 Daysqty 10 used
$1.31$1.80
14
90031-ZY3-000Ships in 1 to 2 Days
$1.04$1.42
14
90032-ZZ5-M01Ships in 1 to 2 Days
$1.62$2.22
15
90020-ZVL-010Ships in 1 to 2 Daysqty 7 used
$1.24$1.70
16
90205-ZY9-M01Ships in 1 to 2 Daysqty 2 used
$1.72$2.36
17
90301-ZZ5-M00Ships in 1 to 2 Days
$0.98$1.38
17
90301-ZZ5-M01Ships in 1 to 2 Days
$0.91$1.24
18
90501-ZZ5-M00Ships in 1 to 2 Days
$1.72$2.44
18
90501-ZZ5-M01Ships in 1 to 2 Days
$1.59$2.18
Diagram

INTERFACE CABLE KIT

BF250 BF250D interface cable kit exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4Y0700
Fits all 15 submodels of this generation.

Parts in this assembly

10 parts
1
06328-ZVL-602Ships in 1 to 2 Days
$292.22$400.30
1
06328-ZVL-702Ships in 1 to 2 Days
$307.87$421.74
1
06328-ZZ3-765Ships in 1 to 2 Days
$239.18$327.64
2
32800-ZVL-600Ships in 1 to 2 Days
$247.54$339.10
2
32800-ZVL-700Ships in 1 to 2 Days
$327.61$448.78
2
32800-ZZ3-000Ships in 1 to 2 Days
$200.56$274.74
3
32805-ZZ3-000Ships in 1 to 2 Days
$114.95
4
90650-ZY1-003Ships in 1 to 2 Daysqty 2 used
$3.40$4.66
5
91540-STK-003Ships in 1 to 2 Daysqty 2 used
$4.15$5.68
6
93901-446J0Ships in 1 to 2 Daysqty 2 used
$1.11$1.52
Diagram

LABEL (1)

BF250 BF250D label (1) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4F1200
Fits all 15 submodels of this generation.

Parts in this assembly

13 parts
1
87117-ZVL-A02Ships in 1 to 2 Days
$2.79$3.82
1
87117-ZVL-S00Ships in 1 to 2 Days
$2.82$3.86
2
87121-ZVJ-010Ships in 1 to 2 Days
$34.49$47.24
3
87121-ZVK-010Ships in 1 to 2 Days
$32.72$44.82
4
87121-ZVL-010Ships in 1 to 2 Days
$38.12$52.22
5
87132-ZVL-000Ships in 1 to 2 Daysqty 2 used
$39.36$53.92
6
87301-ZVJ-010Ships in 1 to 2 Days
$8.02$10.98
7
87301-ZVK-010Ships in 1 to 2 Days
$8.02$10.98
8
87301-ZVL-010Ships in 1 to 2 Days
$8.02$10.98
9
87303-ZZ5-C00Ships in 1 to 2 Days
$15.23$20.86
10
87304-ZZ5-C00Ships in 1 to 2 Days
$10.13$13.88
12
87531-733-E81Ships in 1 to 2 Days
$3.77$5.16
13
87538-ZV1-C23Ships in 1 to 2 Days
$4.70$6.44
Diagram

MAINTENANCE KIT (200)

BF250 BF250D maintenance kit (200) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4Y1800B
Fits only BF250D-LDA, BF250D-LRA, BF250D-UCDA, BF250D-UCRA, BF250D-UDA, BF250D-URA, BF250D-XCDA, BF250D-XCRA, BF250D-XDA, BF250D-XRA — not every submodel of this generation.

Parts in this assembly

31 parts
1
06160-ZVL-010Ships in 1 to 2 Days
$19.03
2
06411-ZW1-020Ships in 1 to 2 Days
$51.97
3
06510-ZVL-010Ships in 1 to 2 Daysreplaced by 06510-ZVL-040
$180.45
3
06510-ZVL-020Ships in 1 to 2 Daysreplaced by 06510-ZVL-040
$180.45
3
06510-ZVL-030Ships in 1 to 2 Daysreplaced by 06510-ZVL-040
$180.45
3
06510-ZVL-040Ships in 1 to 2 Days
$180.45
3
06510-ZVL-601Ships in 1 to 2 Days
$218.77
3
MAINTENANCE KIT (200)
06510-ZVL-910No Longer Available
—
4
15400-RTA-003In Stock
$8.50$11.64
5
19210-ZY3-003In Stockreplaced by 19210-ZY3-023
$40.22$55.10
5
19210-ZY3-023Ships in 1 to 2 Days
$40.22$55.10
6
19223-ZY3-000Ships in 1 to 2 Days
$31.49$43.14
7
19231-ZY3-000In Stock
$15.29$20.94
8
19234-ZX2-C00Ships in 1 to 2 Days
$6.96$9.54
9
19253-ZY3-000Ships in 1 to 2 Days
$6.54$8.96
10
19300-ZX2-003Ships in 1 to 2 Days
$39.11$53.58
11
41109-ZW1-B00In Stock
$18.12$24.82
12
90101-ZW9-003In Stock
$2.80$3.84
13
90120-ZY3-000In Stock
$14.35$19.66
14
90205-ZY1-000Ships in 1 to 2 Days
$4.76$6.52
15
90601-ZE2-000In Stock
$2.38$3.26
16
90752-ZVL-600Ships in 1 to 2 Days
$18.38$25.18
16
KEY, WOODRUFF (NOT AVAILABLE)
90752-ZY3-003No Longer Available
$18.38$25.18
17
90756-ZVL-000Ships in 1 to 2 Daysqty 2 used
$1.20$1.64
18
90758-ZW1-B00In Stock
$1.87$2.56
19
91301-ZW4-003In Stockqty 2 used
$0.99$1.36
20
91356-ZY3-003Ships in 1 to 2 Days
$7.37$10.10
21
92101-06055-4JShips in 1 to 2 Days
$1.97$2.70
22
91356-SD4-952Ships in 1 to 2 Days
$3.47$4.76
23
06411-ZVL-910Ships in 1 to 2 Days
$48.18$66.00
24
06411-ZVP-000Ships in 1 to 2 Days
$33.76
Diagram

MAINTENANCE KIT (400)

BF250 BF250D maintenance kit (400) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4Y1801A
Fits only BF250D-LDA, BF250D-LRA, BF250D-UCDA, BF250D-UCRA, BF250D-UDA, BF250D-URA, BF250D-XCDA, BF250D-XCRA, BF250D-XDA, BF250D-XRA — not every submodel of this generation.

Parts in this assembly

10 parts
1
06161-ZVL-000Ships in 1 to 2 Days
$117.11
1
06161-ZVL-010Ships in 1 to 2 Days
$117.11
2
12155-ZV5-000Ships in 1 to 2 Daysreplaced by 12155-ZV5-010
$9.53$13.06
2
12155-ZV5-010Ships in 1 to 2 Daysqty 4 used
$9.53$13.06
4
12171-ZY3-305Ships in 1 to 2 Daysqty 6 used
$2.67$3.66
5
16901-ZY3-003In Stock
$14.02$19.20
↳
Sierra alternative ·
18-79909In Stock save $0.98
$13.04
6
16918-ZY3-003In Stock
$6.54$8.96
7
18115-ZY3-003Ships in 1 to 2 Days
$31.61$43.30
8
18125-ZY3-003Ships in 1 to 2 Days
$31.64$43.34
9
91301-ZY3-003In Stockqty 2 used
$8.42$11.54
Diagram

METER

BF250 BF250D meter exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4Y0900E
Fits all 15 submodels of this generation.

Parts in this assembly

30 parts
1
06372-ZW5-U02Ships in 1 to 2 Days
$95.91
1
06372-ZW5-U12Ships in 1 to 2 Days
$185.23$253.74
3
06374-ZW5-U01Ships in 1 to 2 Days
$63.33
3
06374-ZW5-U11Ships in 1 to 2 Days
$63.33
5
06397-ZW5-U01Ships in 1 to 2 Days
$116.91
5
06397-ZW5-U11In Stock
$116.91
7
34908-MG9-951Ships in 1 to 2 Daysqty 2 used
$2.23$3.06
9
37215-KM1-670Ships in 1 to 2 Days
$1.81$2.48
12
37258-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$13.18$18.06
13
37263-ZV5-821Ships in 1 to 2 Days
$3.45$4.72
14
37264-ZV5-821Ships in 1 to 2 Days
$2.77$3.80
15
37266-ZV5-821Ships in 1 to 2 Daysqty 2 used
$16.16$22.14
16
37305-KE5-008Ships in 1 to 2 Daysqty 2 used
$2.64$3.62
18
90310-ZV5-821Ships in 1 to 2 Daysqty 5 used
$1.27$1.74
20
90560-ZV5-821Ships in 1 to 2 Daysqty 4 used
$1.24$1.70
22
32540-ZZ3-010Ships in 1 to 2 Days
$97.12$133.04
23
32550-ZW5-U00Ships in 1 to 2 Days
$33.11$45.36
24
32823-ZV5-003Ships in 1 to 2 Daysqty 13 used
$2.95$4.04
25
32824-ZV5-003Ships in 1 to 2 Daysqty 10 used
$3.11$4.26
27
38216-Z2E-003Ships in 1 to 2 Days
$5.85$8.02
28
87116-ZZ3-000Ships in 1 to 2 Days
$1.37$1.88
29
91531-SR3-003Ships in 1 to 2 Days
$7.75$10.62
30
98200-41000Ships in 1 to 2 Days
$1.21$1.66
31
06375-ZY6-U10Ships in 1 to 2 Days
$138.73
31
06375-ZY6-U90Ships in 1 to 2 Days
$138.73
31
06375-ZY6-U11Ships in 1 to 2 Days
$138.73
31
06375-ZY6-U91Ships in 1 to 2 Days
$138.73
32
37251-ZY6-U11Ships in 1 to 2 Days
$1.97$2.70
33
37252-ZY6-U11Ships in 1 to 2 Days
$6.32$8.66
34
37253-ZY6-U11Ships in 1 to 2 Days
$11.07$15.16
Diagram

MOUNT CASE

BF250 BF250D mount case exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4E0610C
Fits all 15 submodels of this generation.

Parts in this assembly

67 parts
1
12155-ZY3-000Ships in 1 to 2 Daysreplaced by 12155-ZY3-010
$8.28$11.34
1
12155-ZY3-010Ships in 1 to 2 Daysqty 2 used
$8.28$11.34
2
16163-GHB-610Ships in 1 to 2 Days
$1.66$2.28
3
18141-ZY3-A00ZAShips in 1 to 2 Days
$91.66$125.58
3
18141-ZVL-B10Ships in 1 to 2 Days
$48.95$67.06
4
18148-ZY3-003In Stockqty 2 used
$29.45$40.34
5
18149-ZY3-A01Ships in 1 to 2 Daysqty 2 used
$27.67$37.90
6
18151-ZY3-A00ZAShips in 1 to 2 Days
$91.66$125.58
6
18151-ZVL-B10Ships in 1 to 2 Days
$48.95$67.06
7
19277-ZY3-000ZAShips in 1 to 2 Days
$40.98$56.14
8
19278-ZY3-000Ships in 1 to 2 Days
$21.81$29.88
9
19279-ZW9-010Ships in 1 to 2 Days
$1.58$2.16
10
19291-ZW5-000Ships in 1 to 2 Daysqty 2 used
$7.34$10.06
11
19291-ZW9-000Ships in 1 to 2 Days
$5.90$8.08
12
19292-ZW5-000Ships in 1 to 2 Daysqty 2 used
$4.19$5.74
13
19294-ZY3-000ZBShips in 1 to 2 Days
$53.41$73.16
14
19295-ZY3-000Ships in 1 to 2 Days
$16.76$22.96
15
19296-ZY3-000Ships in 1 to 2 Daysqty 2 usedreplaced by 19296-ZVP-000
$3.45$4.72
15
19296-ZVP-000Ships in 1 to 2 Daysqty 2 used
$3.45$4.72
16
19297-ZW5-000Ships in 1 to 2 Daysqty 2 used
$6.29$8.62
17
19297-ZW9-010Ships in 1 to 2 Days
$1.53$2.10
18
19297-ZY3-000Ships in 1 to 2 Days
$16.78$22.98
19
19298-ZY3-000ZBShips in 1 to 2 Days
$53.41$73.16
20
19361-ZVL-010Ships in 1 to 2 Days
$58.81$80.56
21
19362-ZVL-000Ships in 1 to 2 Daysqty 2 used
$8.83$12.10
22
19366-ZVL-010Ships in 1 to 2 Days
$68.71$94.12
23
23170-ZVL-020ZAShips in 1 to 2 Days
$675.33
23
23170-ZVL-B10Ships in 1 to 2 Days
$1,112.64
24
23172-ZVL-003Ships in 1 to 2 Days
$73.13$100.18
24
23172-ZVL-B13Ships in 1 to 2 Days
$60.24$82.52
25
90009-371-015Ships in 1 to 2 Days
$10.42$14.28
26
90010-ZY3-000Ships in 1 to 2 Daysqty 2 used
$12.18$16.68
27
90011-ZY3-000Ships in 1 to 2 Days
$12.79$17.52
28
90013-ZY3-000Ships in 1 to 2 Days
$11.77$16.12
29
90015-ZY3-000Ships in 1 to 2 Daysqty 2 used
$8.42$11.54
30
90030-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.31$1.80
31
90032-ZZ5-M00Ships in 1 to 2 Daysqty 4 used
$1.45$2.04
31
90032-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$1.62$2.22
32
90045-ZVL-000Ships in 1 to 2 Daysqty 2 used
$3.81$5.38
32
90045-ZVL-010Ships in 1 to 2 Daysqty 2 used
$4.20$5.76
32
92900-10045-3BShips in 1 to 2 Days
$1.97$2.70
33
90046-ZVL-000Ships in 1 to 2 Daysqty 8 used
$6.47$8.86
34
90049-ZVL-000Ships in 1 to 2 Daysqty 4 used
$1.15$1.62
34
90049-ZVL-010Ships in 1 to 2 Daysqty 4 used
$1.30$1.78
35
90059-ZY3-000Ships in 1 to 2 Days
$3.80$5.20
36
90207-HW1-671Ships in 1 to 2 Daysqty 2 used
$2.07$2.84
37
90559-ZV5-000Ships in 1 to 2 Daysqty 3 used
$2.95$4.04
38
90563-ZV5-000Ships in 1 to 2 Daysqty 3 used
$2.44$3.34
39
90601-ZY3-030Ships in 1 to 2 Days
$1.66$2.28
40
90605-ZV4-000Ships in 1 to 2 Days
$1.37$1.88
41
90701-PW5-000Ships in 1 to 2 Days
$6.07$8.32
42
91001-ZY3-003Ships in 1 to 2 Days
$35.97$49.28
43
91202-ZW5-003Ships in 1 to 2 Daysqty 2 used
$12.18$16.68
44
91303-800-000Ships in 1 to 2 Days
$2.04$2.80
45
91304-ZY3-000Ships in 1 to 2 Daysqty 2 used
$6.89$9.44
46
91305-ZY3-003In Stockqty 2 used
$2.73$3.74
47
91306-ZY3-003In Stockqty 2 used
$3.34$4.58
48
91405-ZY3-000Ships in 1 to 2 Days
$4.44$6.08
49
93500-05016-4JShips in 1 to 2 Daysqty 2 used
$0.99$1.36
50
94302-10160Ships in 1 to 2 Days
$1.62$2.22
51
19257-ZVL-000Ships in 1 to 2 Days
$4.29$5.88
51
19257-ZVL-B10Ships in 1 to 2 Days
$3.04$4.16
52
95701-10070-09Ships in 1 to 2 Daysqty 2 used
$1.83$2.50
53
95701-12120-09Ships in 1 to 2 Daysqty 2 used
$2.83$3.88
54
90602-ZVD-000Ships in 1 to 2 Days
$0.96$1.32
55
90605-ZV4-000Ships in 1 to 2 Days
$1.37$1.88
55
90651-ZY6-000Ships in 1 to 2 Days
$3.71$5.08
Diagram

OIL PAN (1)

BF250 BF250D oil pan (1) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4E0600
Fits all 15 submodels of this generation.

Parts in this assembly

14 parts
1
11310-ZVL-000ZAShips in 1 to 2 Days
$329.36$451.18
2
11381-ZVL-003Ships in 1 to 2 Days
$55.74$76.36
3
18330-ZY3-020Ships in 1 to 2 Days
$177.59$243.28
4
18333-ZVL-003Ships in 1 to 2 Daysqty 2 used
$6.04$8.28
5
18340-ZY3-020Ships in 1 to 2 Days
$182.91$250.56
6
19252-ZY3-000Ships in 1 to 2 Days
$6.53$8.94
7
19254-ZY3-000Ships in 1 to 2 Days
$3.47$4.76
8
90070-ZVL-000Ships in 1 to 2 Daysqty 21 used
$5.45$7.68
8
90070-ZVL-010Ships in 1 to 2 Daysqty 21 used
$5.27$7.22
9
90071-ZVL-000Ships in 1 to 2 Daysqty 6 used
$5.45$7.68
9
90071-ZVL-010Ships in 1 to 2 Daysqty 6 used
$5.04$6.90
10
90127-ZV4-000In Stock
$2.12$2.90
11
90131-ZV5-000Ships in 1 to 2 Days
$7.43$10.18
12
90601-ZE2-000In Stock
$2.38$3.26
Diagram

OIL PUMP - FLYWHEEL

BF250 BF250D oil pump - flywheel exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4E0500A
Fits all 15 submodels of this generation.

Parts in this assembly

35 parts
1
15100-ZVL-010ZAShips in 1 to 2 Days
$475.60$651.50
1
15100-ZVL-B10Ships in 1 to 2 Days
$274.66$376.24
2
15112-ZY3-013Ships in 1 to 2 Days
$54.76$75.02
2
15112-ZVL-B13Ships in 1 to 2 Days
$42.38$58.06
3
15113-ZY3-000Ships in 1 to 2 Days
$7.52$10.30
4
15121-ZY3-000Ships in 1 to 2 Days
$46.65$63.90
5
15131-ZY3-405Ships in 1 to 2 Days
$37.90$51.92
6
15132-ZY3-405Ships in 1 to 2 Days
$31.52$43.18
7
15220-ZY3-020Ships in 1 to 2 Days
$86.97$119.14
8
15231-PE0-000Ships in 1 to 2 Days
$18.48$25.32
9
15232-PG6-000Ships in 1 to 2 Days
$7.74$10.60
10
15233-PC6-000Ships in 1 to 2 Days
$9.07$12.42
11
31110-ZX2-000ZAShips in 1 to 2 Daysreplaced by 31110-ZVL-B10
$650.52$891.12
11
31110-ZVL-B10Ships in 1 to 2 Days
$650.52$891.12
12
31116-ZY3-000Ships in 1 to 2 Daysreplaced by 31116-ZY3-020
$97.33
12
31116-ZY3-020Ships in 1 to 2 Days
$97.33
13
90001-ZX2-000Ships in 1 to 2 Daysqty 8 used
$3.11$4.26
14
90002-ZW5-013Ships in 1 to 2 Daysqty 8 used
$2.39$3.28
15
90081-PH7-000Ships in 1 to 2 Daysqty 2 used
$9.74$13.34
15
90081-ZZ5-M00Ships in 1 to 2 Daysqty 2 used
$4.70$6.64
15
90081-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$4.51$6.18
16
90701-PW5-000Ships in 1 to 2 Days
$6.07$8.32
17
91201-ZW5-003Ships in 1 to 2 Days
$12.18$16.68
18
91212-P01-003Ships in 1 to 2 Days
$11.10$15.20
19
91324-PC6-000Ships in 1 to 2 Days
$2.99$4.10
20
93600-06016-0AShips in 1 to 2 Daysqty 8 used
$0.96$1.32
21
94302-10160Ships in 1 to 2 Days
$1.62$2.22
22
95701-06014-00Ships in 1 to 2 Daysqty 2 used
$0.92$1.26
23
95701-06018-00Ships in 1 to 2 Daysqty 2 used
$1.62$2.22
24
95701-08030-09Ships in 1 to 2 Daysqty 4 used
$1.21$1.66
25
96220-50080Ships in 1 to 2 Daysqty 2 used
$0.47$0.64
26
15220-ZVP-000Ships in 1 to 2 Days
$57.96$79.40
27
15223-ZVL-B10Ships in 1 to 2 Days
$10.44$14.30
28
90005-ZZ3-000Ships in 1 to 2 Daysqty 2 used
$1.62$2.22
29
91324-PC6-000Ships in 1 to 2 Daysqty 2 used
$2.99$4.10
Diagram

PIPING

BF250 BF250D piping exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4E1810A
Fits all 15 submodels of this generation.

Parts in this assembly

36 parts
1
16193-ZY3-A00Ships in 1 to 2 Days
$4.58$6.28
2
16196-ZY3-A00Ships in 1 to 2 Days
$5.97$8.18
3
16197-ZY3-000Ships in 1 to 2 Days
$6.66$9.12
4
16198-ZY3-A00Ships in 1 to 2 Days
$7.93$10.86
5
16199-ZY3-A00Ships in 1 to 2 Days
$9.86$13.50
6
16723-RMA-E00Ships in 1 to 2 Days
$7.81$10.70
7
16760-ZVL-003Ships in 1 to 2 Days
$34.63$47.44
8
16770-ZVL-A00Ships in 1 to 2 Days
$15.37$21.06
9
16860-ZVL-A00Ships in 1 to 2 Days
$15.37$21.06
9
16860-ZVL-A10Ships in 1 to 2 Days
$16.66$22.82
10
16870-ZVL-A00Ships in 1 to 2 Days
$7.68$10.52
11
16875-ZVL-000Ships in 1 to 2 Days
$8.67$11.88
11
19518-MN5-010Ships in 1 to 2 Days
$8.69$11.90
12
16880-ZVL-A00Ships in 1 to 2 Days
$6.09$8.34
13
16890-ZVL-A00Ships in 1 to 2 Days
$6.09$8.34
14
16911-759-003Ships in 1 to 2 Days
$31.54$43.20
15
16915-ZW5-000In Stock
$11.68$16.00
16
16965-VM0-771Ships in 1 to 2 Daysqty 7 used
$2.72$3.72
17
17721-ZY3-000Ships in 1 to 2 Days
$4.77$6.54
18
17723-ZY3-A01Ships in 1 to 2 Days
$21.81$29.88
19
17724-ZY3-010Ships in 1 to 2 Days
$16.41$22.48
20
19258-ZY3-010Ships in 1 to 2 Days
$3.39$4.64
21
19259-ZY3-000Ships in 1 to 2 Days
$6.98$9.56
22
19269-ZY6-000Ships in 1 to 2 Days
$10.13$13.88
23
36135-ZY6-003Ships in 1 to 2 Days
$26.35$36.10
24
53740-SE0-953Ships in 1 to 2 Days
$3.01$4.12
25
90601-ZW5-030Ships in 1 to 2 Daysqty 4 used
$1.83$2.50
26
90601-ZY3-030Ships in 1 to 2 Daysqty 4 used
$1.66$2.28
27
90602-ZW5-030In Stockqty 2 used
$1.83$2.50
28
90604-ZV0-000Ships in 1 to 2 Daysqty 8 used
$1.37$1.88
29
90652-ZW5-003Ships in 1 to 2 Days
$1.96$2.68
29
CLAMP, OXYGEN SENSOR (NOT AVAILABLE)
36533-P3F-A01No Longer Available
$5.10$6.98
30
95001-35003-60MShips in 1 to 2 Days
$27.23$39.16
31
95003-05008-60MShips in 1 to 2 Days
$26.65$38.34
32
16770-ZVL-A10Ships in 1 to 2 Days
$16.75$22.94
33
16880-ZVL-A10Ships in 1 to 2 Days
$5.56$7.62
Diagram

POWER TRIM-TILT

BF250 BF250D power trim-tilt exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4F1100B
Fits all 15 submodels of this generation.

Parts in this assembly

55 parts
1
30280-ZX2-013Ships in 1 to 2 Days
$31.46$43.10
2
31106-ZX2-013Ships in 1 to 2 Days
$39.89$54.64
3
35701-MG9-950Ships in 1 to 2 Days
$1.83$2.50
4
36104-ZVL-000Ships in 1 to 2 Days
$5.84$8.00
5
36120-ZX2-023Ships in 1 to 2 Days
$525.21$719.46
5
36120-ZVL-A11Ships in 1 to 2 Days
$325.57$445.98
6
36122-ZX2-023Ships in 1 to 2 Days
$338.02$463.04
7
36123-ZY3-013Ships in 1 to 2 Days
$205.10
7
36123-ZW1-013Ships in 1 to 2 Days
$172.01
8
36129-ZX2-003Ships in 1 to 2 Days
$363.63$498.12
8
36129-ZVL-A11Ships in 1 to 2 Days
$171.42
9
36136-ZV5-821Ships in 1 to 2 Daysqty 2 used
$7.21$9.88
10
40107-ZW1-700Ships in 1 to 2 Days
$14.99$20.54
11
40219-ZY3-023Ships in 1 to 2 Days
$9.05$12.40
12
50214-ZV5-003Ships in 1 to 2 Daysqty 2 used
$7.65$10.48
13
56000-ZX2-073Ships in 1 to 2 Days
$2,324.08
13
56000-ZVL-A11Ships in 1 to 2 Days
$1,901.20
14
56100-ZY3-023Ships in 1 to 2 Days
$1,460.15
14
56100-ZVL-A11Ships in 1 to 2 Days
$785.65
15
56110-ZW1-701Ships in 1 to 2 Daysqty 2 used
$114.96$157.48
16
56113-ZW1-701Ships in 1 to 2 Days
$16.41$22.48
17
56115-ZY9-023Ships in 1 to 2 Daysqty 2 used
$96.91$132.78
18
56116-ZW1-701Ships in 1 to 2 Days
$14.56$19.94
19
56117-ZV5-821Ships in 1 to 2 Days
$8.47$11.60
20
56118-ZV5-820Ships in 1 to 2 Days
$8.56$11.72
21
56120-ZY3-023Ships in 1 to 2 Days
$400.01$547.96
22
56130-ZW1-702Ships in 1 to 2 Days
$64.34$88.16
23
56170-ZY3-013Ships in 1 to 2 Days
$102.84$140.88
23
56170-ZY3-023Ships in 1 to 2 Days
$102.84$140.88
24
56180-ZW1-701Ships in 1 to 2 Days
$80.62$110.44
25
56513-ZV5-000Ships in 1 to 2 Daysqty 2 used
$3.77$5.16
26
56532-ZX2-C00Ships in 1 to 2 Days
$23.11$31.66
27
56851-ZW1-703Ships in 1 to 2 Days
$18.50$25.34
28
56860-ZW1-701Ships in 1 to 2 Days
$13.46$18.44
29
90113-ZW1-702Ships in 1 to 2 Daysqty 3 used
$3.11$4.26
30
90114-ZW1-702Ships in 1 to 2 Days
$14.00$19.18
31
90115-ZW1-702Ships in 1 to 2 Daysqty 2 used
$10.82$14.82
32
90116-ZW1-702Ships in 1 to 2 Daysqty 4 used
$5.90$8.08
33
90119-ZV5-000Ships in 1 to 2 Days
$1.65$2.26
34
90652-ZW1-702Ships in 1 to 2 Days
$6.50$8.90
35
91203-ZV5-821Ships in 1 to 2 Days
$30.78$42.16
36
91207-ZW1-013In Stock
$5.71$7.82
37
91302-ZV5-821In Stock
$5.10$6.98
38
91316-ZV5-821Ships in 1 to 2 Daysqty 2 used
$3.34$4.58
39
91352-ZX2-003Ships in 1 to 2 Daysqty 6 used
$2.13$2.92
40
91353-ZW1-703Ships in 1 to 2 Days
$5.90$8.08
41
91354-ZW1-701Ships in 1 to 2 Daysqty 2 used
$8.25$11.30
42
91355-ZW1-701Ships in 1 to 2 Days
$13.01$17.82
43
91357-ZW1-701Ships in 1 to 2 Daysqty 2 used
$11.71$16.04
44
91358-ZX2-003Ships in 1 to 2 Daysqty 2 used
$6.15$8.42
45
91361-ZW1-701Ships in 1 to 2 Daysqty 2 used
$6.60$9.04
46
91557-ZW1-701Ships in 1 to 2 Days
$10.25$14.04
46
91557-ZX2-003Ships in 1 to 2 Days
$7.48$10.24
47
94540-15029Ships in 1 to 2 Daysqty 2 used
$8.02$10.98
48
90136-ZY3-003Ships in 1 to 2 Daysqty 2 used
$0.92$1.26
Diagram

PROPELLER

BF250 BF250D propeller exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4Y1500
Fits all 15 submodels of this generation.

Parts in this assembly

14 parts
1
58130-ZX2-T01Ships in 1 to 2 Days
$1,716.86
1
58130-ZX2-T11Ships in 1 to 2 Days
$1,794.33
1
58130-ZX2-T21Ships in 1 to 2 Days
$1,794.33
1
58130-ZX2-T31Ships in 1 to 2 Days
$1,794.33
1
58130-ZX2-T41Ships in 1 to 2 Days
$1,716.86
1
58130-ZX2-T51Ships in 1 to 2 Days
$1,716.86
1
58130-ZX2-T61Ships in 1 to 2 Days
$1,716.86
1
58180-ZX2-T61Ships in 1 to 2 Days
$1,716.86
1
58180-ZX2-T01Ships in 1 to 2 Days
$1,794.33
1
58180-ZX2-T11Ships in 1 to 2 Days
$1,716.86
1
58180-ZX2-T21Ships in 1 to 2 Days
$1,716.86
1
58180-ZX2-T31Ships in 1 to 2 Days
$1,794.33
1
58180-ZX2-T41Ships in 1 to 2 Days
$1,716.86
1
58180-ZX2-T51Ships in 1 to 2 Days
$1,716.86
Diagram

PROPELLER SHAFT (1)

BF250 BF250D propeller shaft (1) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4F0500A
Fits only BF250D-LDA, BF250D-LDS, BF250D-LRA, BF250D-UDA, BF250D-UDS, BF250D-URA, BF250D-XDA, BF250D-XDS, BF250D-XRA — not every submodel of this generation.

Parts in this assembly

59 parts
1
24101-ZX2-C00Ships in 1 to 2 Days
$212.81$291.52
2
24102-ZY3-000Ships in 1 to 2 Days
$3.80$5.20
3
24103-ZY3-000Ships in 1 to 2 Days
$2.48$3.40
4
24113-ZY3-A01Ships in 1 to 2 Days
$83.21$113.98
5
24122-ZY3-A01Ships in 1 to 2 Days
$63.54$87.04
6
24123-ZY3-000Ships in 1 to 2 Daysqty 2 used
$2.12$2.90
7
24124-ZY3-310Ships in 1 to 2 Days
$15.87$21.74
8
06400-ZX2-C00Ships in 1 to 2 Days
$386.97
8
41140-ZVL-A10Ships in 1 to 2 Days
$610.82$836.74
9
41151-ZX2-C00Ships in 1 to 2 Days
$485.41$664.94
9
41151-ZVL-A10Ships in 1 to 2 Days
$274.66$376.24
10
41161-ZX2-C00Ships in 1 to 2 Days
$349.35$478.58
10
41161-ZVL-A10Ships in 1 to 2 Days
$264.23$361.96
11
41201-ZVL-000ZBShips in 1 to 2 Days
$182.53$250.04
11
41201-ZVL-010ZBShips in 1 to 2 Days
$207.41$284.12
11
$182.53$250.04
11
41201-ZVL-A10ZAShips in 1 to 2 Days
$135.81$186.04
11
$135.81$186.04
12
41202-ZX2-C00Ships in 1 to 2 Days
$105.78$144.90
13
90123-ZY3-000In Stockqty 2 used
$9.49$13.00
14
90301-ZW1-B00Ships in 1 to 2 Days
$11.32$15.50
15
90506-ZX2-C00Ships in 1 to 2 Days
$38.65$52.94
16
90509-ZW5-711Ships in 1 to 2 Days
$14.89$20.40
17
90512-ZX2-C00Ships in 1 to 2 Days
$37.55$51.44
18
90528-ZX2-C00Ships in 1 to 2 Daysqty 2 used
$16.34$22.38
18
90529-ZX2-C00Ships in 1 to 2 Daysqty 2 used
$16.34$22.38
18
90530-ZX2-C00Ships in 1 to 2 Daysqty 2 used
$16.34$22.38
18
90531-ZX2-C00Ships in 1 to 2 Daysqty 2 used
$16.34$22.38
19
90548-ZY3-000Ships in 1 to 2 Days
$12.03$16.48
19
90549-ZY3-000Ships in 1 to 2 Days
$12.03$16.48
19
90550-ZY3-000Ships in 1 to 2 Days
$12.03$16.48
19
90551-ZY3-000Ships in 1 to 2 Days
$12.03$16.48
19
90552-ZY3-000Ships in 1 to 2 Days
$12.03$16.48
19
90553-ZY3-000Ships in 1 to 2 Days
$12.03$16.48
19
90554-ZY3-000Ships in 1 to 2 Days
$12.18$16.68
19
90555-ZY3-000Ships in 1 to 2 Days
$12.18$16.68
19
90556-ZY3-000Ships in 1 to 2 Days
$10.98$15.04
19
90557-ZY3-000Ships in 1 to 2 Days
$10.83$14.84
19
90558-ZY3-000Ships in 1 to 2 Days
$10.83$14.84
19
90559-ZY3-000Ships in 1 to 2 Days
$10.83$14.84
19
90560-ZY3-000Ships in 1 to 2 Days
$10.83$14.84
20
90559-ZV5-000Ships in 1 to 2 Daysqty 2 used
$2.95$4.04
21
90651-ZX2-C00Ships in 1 to 2 Days
$3.14$4.30
22
90758-ZW1-B00In Stock
$1.87$2.56
23
91005-PT2-N01Ships in 1 to 2 Days
$15.84$21.70
24
91051-ZX2-C01Ships in 1 to 2 Days
$55.60$76.16
25
91055-ZX2-C01Ships in 1 to 2 Days
$44.24$60.60
26
91056-ZY3-711Ships in 1 to 2 Days
$42.85$58.70
27
91057-ZY3-003Ships in 1 to 2 Days
$45.65$62.54
28
91151-ZY3-000Ships in 1 to 2 Days
$1.90$2.60
29
91252-ZZ3-003In Stockqty 2 used
$6.63$9.08
30
91351-ZX2-C00Ships in 1 to 2 Days
$6.98$9.56
31
94510-15000Ships in 1 to 2 Days
$1.12$1.54
32
96211-07000Ships in 1 to 2 Days
$1.17$1.60
33
96211-12000Ships in 1 to 2 Daysqty 2 used
$0.77$1.06
34
06400-ZX2-C00Ships in 1 to 2 Days
$386.97
34
06400-ZVL-A10Ships in 1 to 2 Days
$750.44$1,028.00
35
06400-ZX2-C00Ships in 1 to 2 Days
$386.97
35
41131-ZVL-A10Ships in 1 to 2 Days
$246.43$337.58
Diagram

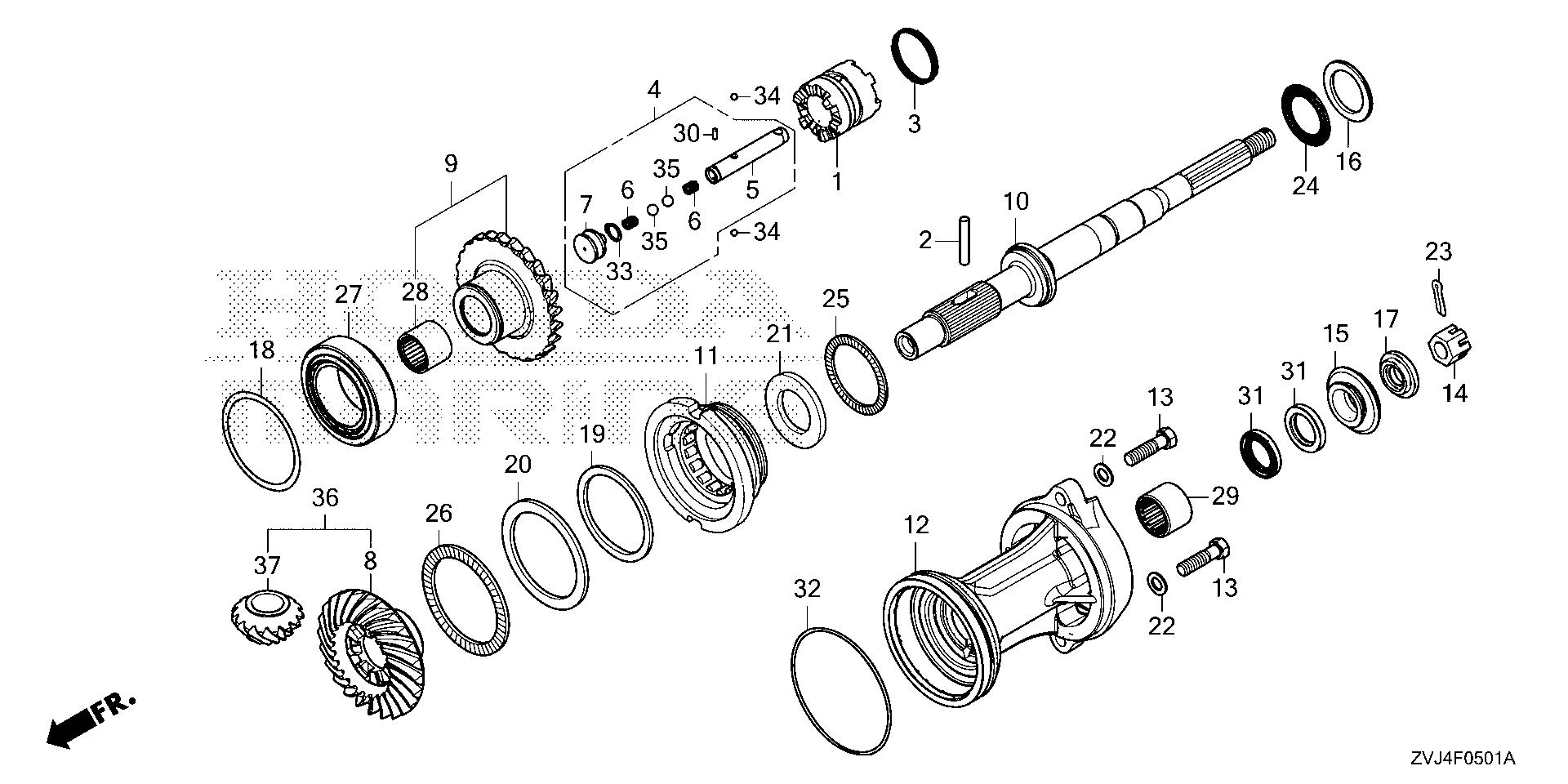

PROPELLER SHAFT (2)

BF250 BF250D propeller shaft (2) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4F0501A
Fits only BF250D-UCDA, BF250D-UCDS, BF250D-UCRA, BF250D-XCDA, BF250D-XCDS, BF250D-XCRA — not every submodel of this generation.

Parts in this assembly

45 parts
1
24101-ZX2-C00Ships in 1 to 2 Days
$212.81$291.52
2
24102-ZY3-000Ships in 1 to 2 Days
$3.80$5.20
3
24103-ZY3-000Ships in 1 to 2 Days
$2.48$3.40
4
24113-ZY3-A01Ships in 1 to 2 Days
$83.21$113.98
5
24122-ZY3-A01Ships in 1 to 2 Days
$63.54$87.04
6
24123-ZY3-000Ships in 1 to 2 Daysqty 2 used
$2.12$2.90
7
24124-ZY3-310Ships in 1 to 2 Days
$15.87$21.74
8
GEAR, BEVEL (24T) (FORWARD)(COUNTER ROTATION) (NOT AVAILABLE)
41141-ZX2-E00No Longer Available
—
9
41150-ZX2-E00Ships in 1 to 2 Days
$533.79$731.22
10
41161-ZX2-E00Ships in 1 to 2 Days
$349.35$478.58
11
41200-ZX2-E00Ships in 1 to 2 Days
$185.35$253.90
12
41201-ZVL-000ZBShips in 1 to 2 Days
$182.53$250.04
12
41201-ZVL-010ZBShips in 1 to 2 Days
$207.41$284.12
12
$182.53$250.04
13
90123-ZY3-000In Stockqty 2 used
$9.49$13.00
14
90301-ZW1-B00Ships in 1 to 2 Days
$11.32$15.50
15
90506-ZX2-C00Ships in 1 to 2 Days
$38.65$52.94
16
90509-ZW5-711Ships in 1 to 2 Days
$14.89$20.40
17
90512-ZX2-C00Ships in 1 to 2 Days
$37.55$51.44
18
90528-ZX2-C00Ships in 1 to 2 Days
$16.34$22.38
18
90529-ZX2-C00Ships in 1 to 2 Days
$16.34$22.38
18
90530-ZX2-C00Ships in 1 to 2 Days
$16.34$22.38
18
90531-ZX2-C00Ships in 1 to 2 Days
$16.34$22.38
19
90528-ZX2-E00Ships in 1 to 2 Days
$16.72$22.90
19
90529-ZX2-E00Ships in 1 to 2 Days
$16.00$21.92
19
90530-ZX2-E00Ships in 1 to 2 Days
$16.72$22.90
19
90531-ZX2-E00Ships in 1 to 2 Days
$16.72$22.90
20
90541-ZX2-E01Ships in 1 to 2 Days
$17.77$24.34
21
90542-ZX2-E01Ships in 1 to 2 Days
$16.76$22.96
22
90559-ZV5-000Ships in 1 to 2 Daysqty 2 used
$2.95$4.04
23
90758-ZW1-B00In Stock
$1.87$2.56
24
91005-PT2-N01Ships in 1 to 2 Days
$15.84$21.70
25
91033-PG4-013Ships in 1 to 2 Days
$27.00$36.98
26
91054-ZX2-E01Ships in 1 to 2 Days
$26.95$36.92
27
91055-ZX2-C01Ships in 1 to 2 Days
$44.24$60.60
28
91056-ZY3-711Ships in 1 to 2 Days
$42.85$58.70
29
91057-ZY3-003Ships in 1 to 2 Days
$45.65$62.54
30
91151-ZY3-000Ships in 1 to 2 Days
$1.90$2.60
31
91252-ZZ3-003In Stockqty 2 used
$6.63$9.08
32
91351-ZX2-C00Ships in 1 to 2 Days
$6.98$9.56
33
94510-15000Ships in 1 to 2 Days
$1.12$1.54
34
96211-07000Ships in 1 to 2 Days
$1.17$1.60
35
96211-12000Ships in 1 to 2 Daysqty 2 used
$0.77$1.06
36
06400-ZX2-E01Ships in 1 to 2 Days
$334.11
37
GEAR, PINION (COUNTER ROTATION) (NOT AVAILABLE)
41131-ZX2-E00No Longer Available
—
Diagram

REMOTE CONTROL (FLUSH MOUNT TYPE) (DBW)

BF250 BF250D remote control (flush mount type) (dbw) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4F1502
Fits only BF250D-LDS — not every submodel of this generation.

Parts in this assembly

31 parts
1
24800-ZVL-003Ships in 1 to 2 Days
$1,231.92
2
24801-ZVL-003Ships in 1 to 2 Days
$2.28$3.12
3
24802-ZVL-003Ships in 1 to 2 Daysqty 4 used
$4.04$5.54
4
24810-ZVL-003Ships in 1 to 2 Days
$357.58$489.84
5
24811-ZVL-003Ships in 1 to 2 Daysqty 2 used
$1.58$2.16
6
24811-ZVL-701Ships in 1 to 2 Daysqty 2 used
$5.75$7.88
7
24812-ZVL-003Ships in 1 to 2 Daysqty 2 used
$2.69$3.68
8
24815-ZVL-701Ships in 1 to 2 Daysqty 6 used
$1.99$2.72
9
24816-ZVL-701Ships in 1 to 2 Days
$3.69$5.06
10
24817-ZVL-701Ships in 1 to 2 Days
$3.69$5.06
11
24830-ZVL-003Ships in 1 to 2 Days
$54.41$74.54
12
24831-ZVL-003Ships in 1 to 2 Days
$3.61$4.94
13
24840-ZVL-003Ships in 1 to 2 Days
$30.54$41.84
14
24841-ZVL-003Ships in 1 to 2 Daysqty 4 used
$1.34$1.84
15
24841-ZVL-701Ships in 1 to 2 Daysqty 2 used
$1.34$1.84
16
24842-ZVL-003Ships in 1 to 2 Daysqty 4 used
$3.88$5.32
17
24843-ZVL-003Ships in 1 to 2 Daysqty 4 used
$3.87$5.30
18
24850-ZVL-003Ships in 1 to 2 Days
$25.65$35.14
19
24851-ZVL-003Ships in 1 to 2 Daysqty 8 used
$1.58$2.16
20
24870-ZVL-003Ships in 1 to 2 Days
$183.89$251.92
21
24872-ZVL-003Ships in 1 to 2 Days
$24.32$33.32
22
24873-ZVL-003Ships in 1 to 2 Days
$3.50$4.80
23
24874-ZVL-003Ships in 1 to 2 Days
$2.19$3.00
24
24875-ZVL-003Ships in 1 to 2 Days
$7.61$10.42
25
24875-ZVL-701Ships in 1 to 2 Days
$3.18$4.36
26
24876-ZVL-701Ships in 1 to 2 Days
$1.04$1.42
27
24877-ZVL-701Ships in 1 to 2 Daysqty 5 used
$2.13$2.92
28
24878-ZVL-701Ships in 1 to 2 Days
$1.21$1.66
29
35370-ZVL-003Ships in 1 to 2 Days
$45.25$61.98
30
87703-ZW7-U00Ships in 1 to 2 Days
$4.58$6.28
31
93500-05065-4JShips in 1 to 2 Daysqty 4 used
$2.50$3.42
Diagram

REMOTE CONTROL (FLUSH MOUNT TYPE) (L.) (MECH)

BF250 BF250D remote control (flush mount type) (l.) (mech) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4Y0305
Fits only BF250D-LRA, BF250D-UCRA, BF250D-URA, BF250D-XCRA, BF250D-XRA — not every submodel of this generation.

Parts in this assembly

28 parts
1
06240-ZW7-U10Ships in 1 to 2 Days
$300.05
2
24810-ZW7-U11Ships in 1 to 2 Days
$428.07$586.40
3
24811-ZW7-U01Ships in 1 to 2 Days
$114.23$156.50
4
24812-ZW7-U01Ships in 1 to 2 Days
$14.41$19.74
5
24813-ZW7-U01Ships in 1 to 2 Days
$15.93$21.82
6
24814-ZW7-U01Ships in 1 to 2 Days
$3.61$4.94
7
24815-ZW7-U01Ships in 1 to 2 Days
$8.85$12.12
8
24816-ZW5-U01Ships in 1 to 2 Days
$7.72$10.58
9
24817-ZW7-U01Ships in 1 to 2 Days
$6.69$9.16
10
24826-ZW5-U01Ships in 1 to 2 Days
$13.81$18.92
11
24830-ZW7-U01Ships in 1 to 2 Days
$24.35$33.36
12
24831-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$8.45$11.58
13
24832-ZW5-U01Ships in 1 to 2 Days
$3.74$5.12
14
24832-ZW7-U01Ships in 1 to 2 Days
$14.88$20.38
15
24833-ZW7-U01Ships in 1 to 2 Days
$30.98$42.44
16
32530-ZW7-U20Ships in 1 to 2 Days
$14.76$20.22
17
35370-ZW7-U02Ships in 1 to 2 Days
$52.93$72.50
18
87701-ZW7-U01Ships in 1 to 2 Days
$6.19$8.48
19
87703-ZW7-U00Ships in 1 to 2 Days
$4.58$6.28
20
90101-ZW5-U00Ships in 1 to 2 Days
$2.60$3.56
21
90101-ZW7-U01Ships in 1 to 2 Days
$2.31$3.16
22
90102-ZW7-U01Ships in 1 to 2 Daysqty 4 used
$2.98$4.08
23
90103-ZW7-U01Ships in 1 to 2 Daysqty 3 used
$1.24$1.70
24
90104-ZW7-U01Ships in 1 to 2 Daysqty 3 used
$1.24$1.70
25
90301-ZW7-U01Ships in 1 to 2 Daysqty 3 used
$1.17$1.60
26
90501-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.85$1.16
27
90502-ZW7-U00Ships in 1 to 2 Daysqty 3 used
$1.34$1.84
28
94540-06029Ships in 1 to 2 Daysqty 2 used
$3.50$4.80
Diagram

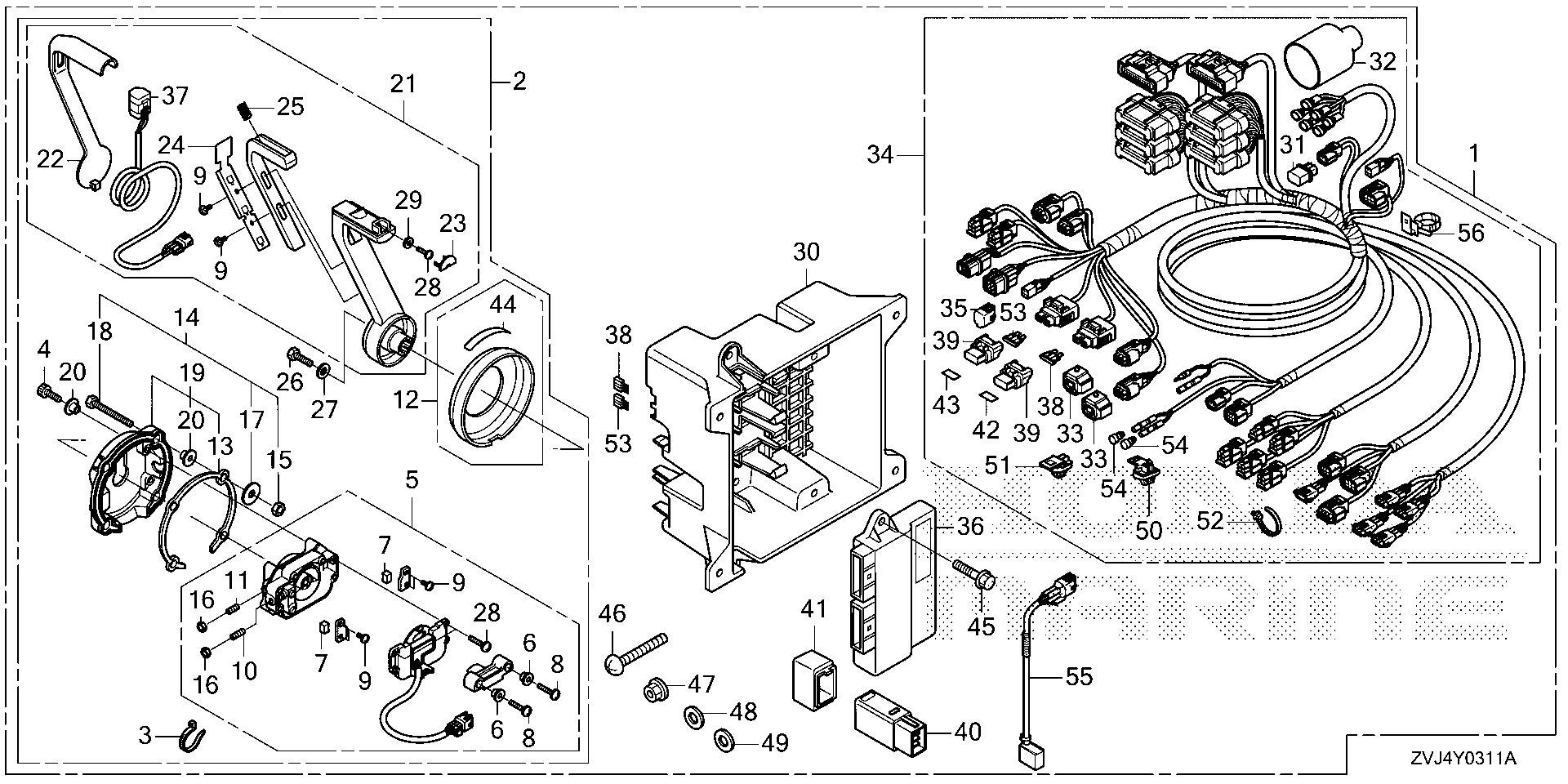

REMOTE CONTROL (FLUSH MOUNT TYPE) (MAIN) (DBW)

BF250 BF250D remote control (flush mount type) (main) (dbw) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4Y0311A
Fits only BF250D-LDA, BF250D-LDS, BF250D-UCDA, BF250D-UCDS, BF250D-UDA, BF250D-UDS, BF250D-XCDA, BF250D-XCDS, BF250D-XDA, BF250D-XDS — not every submodel of this generation.

Parts in this assembly

56 parts
1
06240-ZVL-030Ships in 1 to 2 Days
$1,366.65
2
24800-ZVL-003Ships in 1 to 2 Days
$1,231.92
3
24801-ZVL-003Ships in 1 to 2 Days
$2.28$3.12
4
24802-ZVL-003Ships in 1 to 2 Daysqty 4 used
$4.04$5.54
5
24810-ZVL-003Ships in 1 to 2 Days
$357.58$489.84
6
24811-ZVL-003Ships in 1 to 2 Daysqty 2 used
$1.58$2.16
7
24811-ZVL-701Ships in 1 to 2 Daysqty 2 used
$5.75$7.88
8
24812-ZVL-003Ships in 1 to 2 Daysqty 2 used
$2.69$3.68
9
24815-ZVL-701Ships in 1 to 2 Daysqty 6 used
$1.99$2.72
10
24816-ZVL-701Ships in 1 to 2 Days
$3.69$5.06
11
24817-ZVL-701Ships in 1 to 2 Days
$3.69$5.06
12
24830-ZVL-003Ships in 1 to 2 Days
$54.41$74.54
13
24831-ZVL-003Ships in 1 to 2 Days
$3.61$4.94
14
24840-ZVL-003Ships in 1 to 2 Days
$30.54$41.84
15
24841-ZVL-003Ships in 1 to 2 Daysqty 4 used
$1.34$1.84
16
24841-ZVL-701Ships in 1 to 2 Daysqty 2 used
$1.34$1.84
17
24842-ZVL-003Ships in 1 to 2 Daysqty 4 used
$3.88$5.32
18
24843-ZVL-003Ships in 1 to 2 Daysqty 4 used
$3.87$5.30
19
24850-ZVL-003Ships in 1 to 2 Days
$25.65$35.14
20
24851-ZVL-003Ships in 1 to 2 Daysqty 8 used
$1.58$2.16
21
24870-ZVL-003Ships in 1 to 2 Days
$183.89$251.92
22
24872-ZVL-003Ships in 1 to 2 Days
$24.32$33.32
23
24873-ZVL-003Ships in 1 to 2 Days
$3.50$4.80
24
24874-ZVL-003Ships in 1 to 2 Days
$2.19$3.00
25
24875-ZVL-003Ships in 1 to 2 Days
$7.61$10.42
26
24875-ZVL-701Ships in 1 to 2 Days
$3.18$4.36
27
24876-ZVL-701Ships in 1 to 2 Days
$1.04$1.42
28
24877-ZVL-701Ships in 1 to 2 Daysqty 5 used
$2.13$2.92
29
24878-ZVL-701Ships in 1 to 2 Days
$1.21$1.66
30
30420-ZVL-000Ships in 1 to 2 Days
$53.53
31
32107-ZVL-003Ships in 1 to 2 Days
$10.47$14.34
32
COVER, CONNECTOR (NOT AVAILABLE)
32108-KFG-000No Longer Available
$3.26$4.46
33
32127-ZZ3-000Ships in 1 to 2 Daysqty 2 used
$4.04$5.54
34
32530-ZVL-010Ships in 1 to 2 Days
$726.03$994.56
35
32606-K44-V01Ships in 1 to 2 Days
$6.51$8.92
36
34330-ZVL-013Ships in 1 to 2 Days
$986.57$1,351.46
37
35370-ZVL-003Ships in 1 to 2 Days
$45.25$61.98
38
38206-V15-003Ships in 1 to 2 Daysqty 2 used
$1.78$2.44
39
38216-Z2E-003Ships in 1 to 2 Daysqty 2 used
$5.85$8.02
40
38580-ZZ3-003Ships in 1 to 2 Days
$42.33$57.98
41
38586-ZZ5-003Ships in 1 to 2 Days
$3.61$4.94
42
87117-Z2E-000Ships in 1 to 2 Days
$1.66$2.28
43
87118-ZVL-000Ships in 1 to 2 Days
$1.56$2.14
44
87703-ZW7-U00Ships in 1 to 2 Days
$4.58$6.28
45
90018-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.37$1.88
46
90109-ZW5-000Ships in 1 to 2 Daysqty 4 used
$1.20$1.64
47
90301-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$0.91$1.24
48
90501-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$1.59$2.18
49
90502-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$1.49$2.04
50
91535-STK-003Ships in 1 to 2 Days
$6.75$9.24
51
91535-TA0-003Ships in 1 to 2 Daysqty 6 used
$4.56$6.24
52
91541-S0A-003Ships in 1 to 2 Daysqty 5 used
$3.64$4.98
53
98200-40500Ships in 1 to 2 Daysqty 2 used
$1.11$1.52
54
32823-ZV5-003Ships in 1 to 2 Daysqty 2 used
$2.95$4.04
55
38580-ZY6-V11Ships in 1 to 2 Days
$53.55$73.36
56
91531-SR3-003Ships in 1 to 2 Days
$7.75$10.62
Diagram

REMOTE CONTROL (FLUSH MOUNT TYPE) (R.) (MECH)

BF250 BF250D remote control (flush mount type) (r.) (mech) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4Y0304
Fits only BF250D-LRA, BF250D-UCRA, BF250D-URA, BF250D-XCRA, BF250D-XRA — not every submodel of this generation.

Parts in this assembly

28 parts
1
06240-ZW7-U00Ships in 1 to 2 Days
$300.05
2
24810-ZW7-U01Ships in 1 to 2 Days
$428.07$586.40
3
24811-ZW7-U01Ships in 1 to 2 Days
$114.23$156.50
4
24812-ZW7-U01Ships in 1 to 2 Days
$14.41$19.74
5
24813-ZW7-U01Ships in 1 to 2 Days
$15.93$21.82
6
24814-ZW7-U01Ships in 1 to 2 Days
$3.61$4.94
7
24815-ZW7-U01Ships in 1 to 2 Days
$8.85$12.12
8
24816-ZW5-U01Ships in 1 to 2 Days
$7.72$10.58
9
24817-ZW7-U01Ships in 1 to 2 Days
$6.69$9.16
10
24826-ZW5-U01Ships in 1 to 2 Days
$13.81$18.92
11
24830-ZW7-U01Ships in 1 to 2 Days
$24.35$33.36
12
24831-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$8.45$11.58
13
24832-ZW5-U01Ships in 1 to 2 Days
$3.74$5.12
14
24832-ZW7-U01Ships in 1 to 2 Days
$14.88$20.38
15
24833-ZW7-U01Ships in 1 to 2 Days
$30.98$42.44
16
32530-ZW7-U20Ships in 1 to 2 Days
$14.76$20.22
17
35370-ZW7-U02Ships in 1 to 2 Days
$52.93$72.50
18
87701-ZW7-U01Ships in 1 to 2 Days
$6.19$8.48
19
87703-ZW7-U00Ships in 1 to 2 Days
$4.58$6.28
20
90101-ZW5-U00Ships in 1 to 2 Days
$2.60$3.56
21
90101-ZW7-U01Ships in 1 to 2 Days
$2.31$3.16
22
90102-ZW7-U01Ships in 1 to 2 Daysqty 4 used
$2.98$4.08
23
90103-ZW7-U01Ships in 1 to 2 Daysqty 3 used
$1.24$1.70
24
90104-ZW7-U01Ships in 1 to 2 Daysqty 3 used
$1.24$1.70
25
90301-ZW7-U01Ships in 1 to 2 Daysqty 3 used
$1.17$1.60
26
90501-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.85$1.16
27
90502-ZW7-U00Ships in 1 to 2 Daysqty 3 used
$1.34$1.84
28
94540-06029Ships in 1 to 2 Daysqty 2 used
$3.50$4.80
Diagram

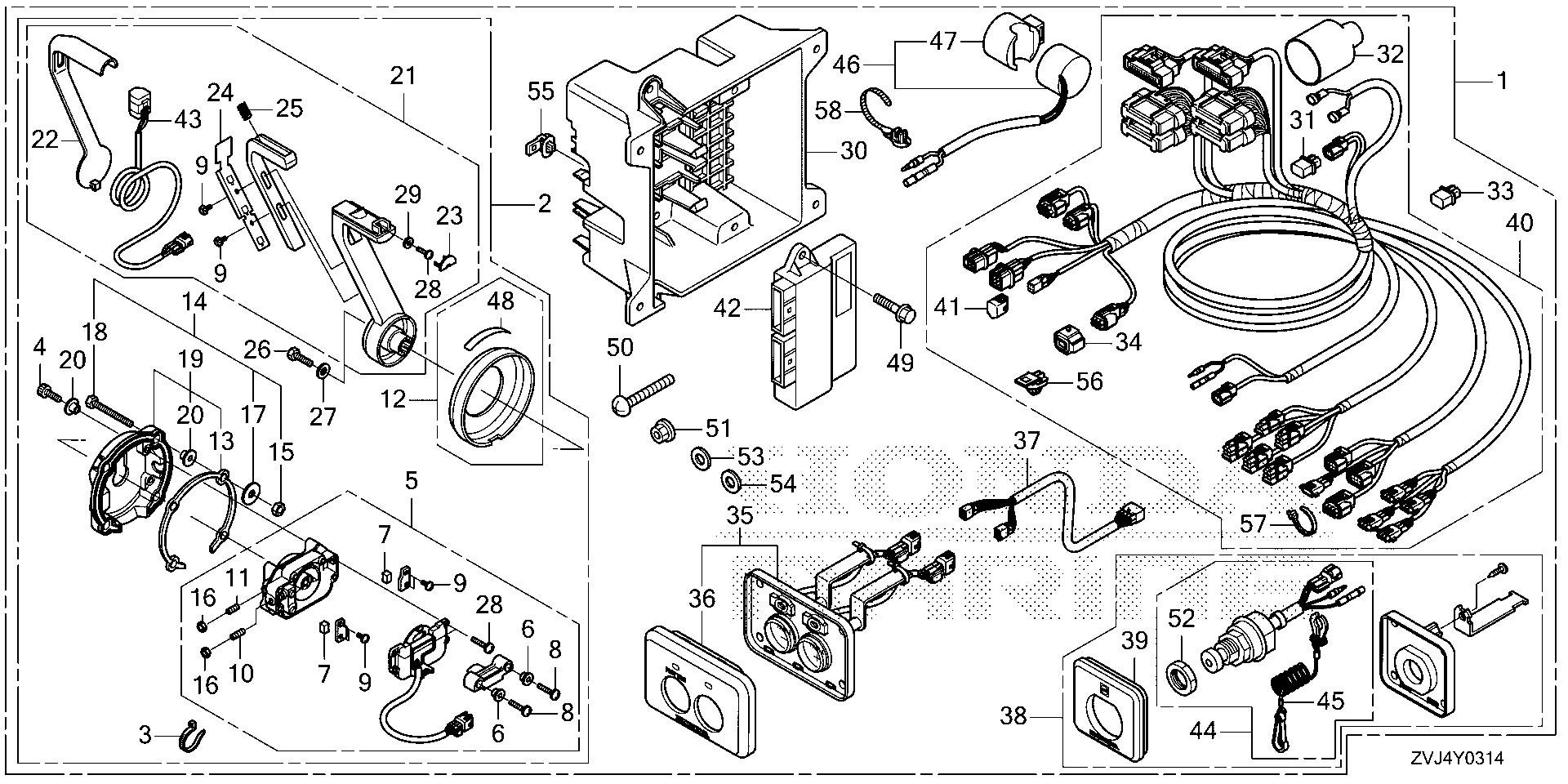

REMOTE CONTROL (FLUSH MOUNT TYPE) (SECOND

BF250 BF250D remote control (flush mount type) (second exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4Y0314
Fits only BF250D-LDA, BF250D-LDS, BF250D-UCDA, BF250D-UCDS, BF250D-UDA, BF250D-UDS, BF250D-XCDA, BF250D-XCDS, BF250D-XDA, BF250D-XDS — not every submodel of this generation.

Parts in this assembly

58 parts
1
06250-ZVL-800Ships in 1 to 2 Days
$1,553.47
2
24800-ZVL-003Ships in 1 to 2 Days
$1,231.92
3
24801-ZVL-003Ships in 1 to 2 Days
$2.28$3.12
4
24802-ZVL-003Ships in 1 to 2 Daysqty 4 used
$4.04$5.54
5
24810-ZVL-003Ships in 1 to 2 Days
$357.58$489.84
6
24811-ZVL-003Ships in 1 to 2 Daysqty 2 used
$1.58$2.16
7
24811-ZVL-701Ships in 1 to 2 Daysqty 2 used
$5.75$7.88
8
24812-ZVL-003Ships in 1 to 2 Daysqty 2 used
$2.69$3.68
9
24815-ZVL-701Ships in 1 to 2 Daysqty 6 used
$1.99$2.72
10
24816-ZVL-701Ships in 1 to 2 Days
$3.69$5.06
11
24817-ZVL-701Ships in 1 to 2 Days
$3.69$5.06
12
24830-ZVL-003Ships in 1 to 2 Days
$54.41$74.54
13
24831-ZVL-003Ships in 1 to 2 Days
$3.61$4.94
14
24840-ZVL-003Ships in 1 to 2 Days
$30.54$41.84
15
24841-ZVL-003Ships in 1 to 2 Daysqty 4 used
$1.34$1.84
16
24841-ZVL-701Ships in 1 to 2 Daysqty 2 used
$1.34$1.84
17
24842-ZVL-003Ships in 1 to 2 Daysqty 4 used
$3.88$5.32
18
24843-ZVL-003Ships in 1 to 2 Daysqty 4 used
$3.87$5.30
19
24850-ZVL-003Ships in 1 to 2 Days
$25.65$35.14
20
24851-ZVL-003Ships in 1 to 2 Daysqty 8 used
$1.58$2.16
21
24870-ZVL-003Ships in 1 to 2 Days
$183.89$251.92
22
24872-ZVL-003Ships in 1 to 2 Days
$24.32$33.32
23
24873-ZVL-003Ships in 1 to 2 Days
$3.50$4.80
24
24874-ZVL-003Ships in 1 to 2 Days
$2.19$3.00
25
24875-ZVL-003Ships in 1 to 2 Days
$7.61$10.42
26
24875-ZVL-701Ships in 1 to 2 Days
$3.18$4.36
27
24876-ZVL-701Ships in 1 to 2 Days
$1.04$1.42
28
24877-ZVL-701Ships in 1 to 2 Daysqty 5 used
$2.13$2.92
29
24878-ZVL-701Ships in 1 to 2 Days
$1.21$1.66
30
30420-ZVL-000Ships in 1 to 2 Days
$53.53
31
32107-ZVL-003Ships in 1 to 2 Days
$10.47$14.34
32
COVER, CONNECTOR (NOT AVAILABLE)
32108-KFG-000No Longer Available
$3.26$4.46
33
32108-ZVL-003Ships in 1 to 2 Days
$5.45$7.46
34
32127-ZZ3-000Ships in 1 to 2 Days
$4.04$5.54
35
32351-ZVL-003Ships in 1 to 2 Days
$196.55$269.24
36
32354-ZVL-003Ships in 1 to 2 Days
$45.52$62.36
37
32357-ZVL-003Ships in 1 to 2 Days
$33.97$46.54
38
32390-ZVL-003Ships in 1 to 2 Days
$106.99$146.56
39
32396-ZVL-003Ships in 1 to 2 Days
$27.97$38.32
40
32530-ZVL-600Ships in 1 to 2 Days
$573.74$785.94
41
32606-K44-V01Ships in 1 to 2 Days
$6.51$8.92
42
34330-ZVL-013Ships in 1 to 2 Days
$986.57$1,351.46
43
35370-ZVL-003Ships in 1 to 2 Days
$45.25$61.98
44
36180-ZVL-003Ships in 1 to 2 Days
$51.26$70.22
45
36182-ZY6-003Ships in 1 to 2 Days
$17.53$24.02
46
38400-ZY9-A00Ships in 1 to 2 Days
$70.36$96.40
47
38402-ZY9-A00Ships in 1 to 2 Days
$21.59$29.58
48
87703-ZW7-U00Ships in 1 to 2 Days
$4.58$6.28
49
90018-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.37$1.88
50
90109-ZW5-000Ships in 1 to 2 Daysqty 12 used
$1.20$1.64
51
90301-ZZ5-M01Ships in 1 to 2 Daysqty 12 used
$0.91$1.24
52
90302-ZY6-003Ships in 1 to 2 Days
$2.69$3.68
53
90501-ZZ5-M01Ships in 1 to 2 Daysqty 12 used
$1.59$2.18
54
90502-ZZ5-M01Ships in 1 to 2 Daysqty 12 used
$1.49$2.04
55
91535-STK-003Ships in 1 to 2 Days
$6.75$9.24
56
91535-TA0-003Ships in 1 to 2 Daysqty 2 used
$4.56$6.24
57
91541-S0A-003Ships in 1 to 2 Daysqty 5 used
$3.64$4.98
58
91549-TTA-003Ships in 1 to 2 Days
$3.66$5.02
Diagram

REMOTE CONTROL (MECH)

BF250 BF250D remote control (mech) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4Y0306B
Fits only BF250D-LRA, BF250D-UCRA, BF250D-URA, BF250D-XCRA, BF250D-XRA — not every submodel of this generation.

Parts in this assembly

76 parts
1
24800-ZZ5-A03Ships in 1 to 2 Daysreplaced by 24800-ZZ5-A04
$474.41$649.88
1
24800-ZZ5-A04Ships in 1 to 2 Days
$474.41$649.88
2
24810-ZZ5-D01Ships in 1 to 2 Days
$48.17$65.98
3
24811-ZZ5-D01Ships in 1 to 2 Days
$102.07$139.84
4
24812-ZZ5-D01Ships in 1 to 2 Days
$9.34$12.80
5
24813-ZZ5-D01Ships in 1 to 2 Days
$25.13$34.42
6
24814-ZZ5-D01Ships in 1 to 2 Days
$56.34$77.18
7
24815-ZZ5-D01Ships in 1 to 2 Days
$15.87$21.74
8
24816-ZZ5-D01Ships in 1 to 2 Days
$2.07$2.84
9
24817-ZZ5-D01Ships in 1 to 2 Days
$2.10$2.88
10
24818-ZZ5-D01Ships in 1 to 2 Days
$2.82$3.86
11
24819-ZZ5-D01Ships in 1 to 2 Days
$2.01$2.76
12
24821-ZZ5-D01Ships in 1 to 2 Days
$131.39$179.98
13
24822-ZZ5-D01Ships in 1 to 2 Days
$47.76$65.42
14
24823-ZZ5-D01Ships in 1 to 2 Days
$34.50$47.26
15
24824-ZZ5-D01Ships in 1 to 2 Days
$2.28$3.12
16
24826-ZZ5-D01Ships in 1 to 2 Days
$4.89$6.70
17
24827-ZZ5-D01Ships in 1 to 2 Days
$14.73$20.18
18
24828-ZZ5-D01Ships in 1 to 2 Days
$3.31$4.54
19
24828-ZZ5-D01Ships in 1 to 2 Days
$3.31$4.54
20
24829-ZZ5-D01Ships in 1 to 2 Days
$7.23$9.90
21
24831-ZZ5-D01Ships in 1 to 2 Days
$6.39$8.76
22
24832-ZZ5-D01Ships in 1 to 2 Days
$5.02$6.88
24
24833-ZZ5-D01Ships in 1 to 2 Days
$5.24$7.18
25
24845-ZZ5-D01Ships in 1 to 2 Days
$26.12$35.78
26
24850-ZZ5-D01Ships in 1 to 2 Days
$38.08$52.16
27
24855-ZZ5-D01Ships in 1 to 2 Daysqty 2 used
$3.72$5.10
28
24875-ZZ5-D01Ships in 1 to 2 Days
$14.34$19.64
29
24876-ZZ5-D01Ships in 1 to 2 Days
$1.65$2.26
30
24878-ZZ5-D01Ships in 1 to 2 Days
$27.11$37.14
31
24883-ZZ5-D01Ships in 1 to 2 Daysqty 5 used
$2.07$2.84
32
32530-ZZ5-D01Ships in 1 to 2 Days
$184.53$252.78
33
32823-ZV5-003Ships in 1 to 2 Daysqty 7 used
$2.95$4.04
34
32824-ZV5-003Ships in 1 to 2 Days
$3.11$4.26
35
35100-ZV5-013Ships in 1 to 2 Days
$85.13$116.62
37
35370-ZZ5-D02Ships in 1 to 2 Days
$45.01$61.66
38
35645-ZZ3-A41Ships in 1 to 2 Days
$10.12$13.86
39
35701-ZZ5-D01Ships in 1 to 2 Days
$2.13$2.92
40
36180-ZV5-033In Stock
$56.84$77.86
41
36182-ZV4-651In Stock
$18.45$25.28
42
37210-ZZ5-D02Ships in 1 to 2 Days
$117.91$161.52
43
38403-341-672Ships in 1 to 2 Days
$4.66$6.38
44
38410-ZV5-003Ships in 1 to 2 Days
$56.17$76.94
45
87701-ZZ5-D00Ships in 1 to 2 Days
$4.34$5.94
46
87702-ZZ5-A00Ships in 1 to 2 Days
$5.05$6.92
47
87702-ZZ5-A00Ships in 1 to 2 Days
$5.05$6.92
49
87703-ZZ5-D00Ships in 1 to 2 Days
$15.90$21.78
50
87704-ZZ5-D01Ships in 1 to 2 Days
$5.69$7.80
51
90101-ZZ5-D01Ships in 1 to 2 Daysqty 5 used
$2.69$3.68
52
90102-ZZ5-D01Ships in 1 to 2 Daysqty 2 used
$1.58$2.16
53
90103-ZZ5-D01Ships in 1 to 2 Days
$2.01$2.76
54
90104-ZZ5-D01Ships in 1 to 2 Daysqty 2 used
$1.93$2.64
55
90106-ZZ5-D01Ships in 1 to 2 Daysqty 2 used
$2.07$2.84
56
90107-ZZ5-D01Ships in 1 to 2 Daysqty 3 used
$3.72$5.10
57
90108-ZZ5-D01Ships in 1 to 2 Days
$3.66$5.02
58
90109-ZZ5-D01Ships in 1 to 2 Days
$2.88$3.94
59
90301-ZZ5-D01Ships in 1 to 2 Daysqty 3 used
$1.37$1.88
60
90302-921-000In Stock
$4.10$5.62
61
90302-ZZ5-D01Ships in 1 to 2 Days
$0.92$1.26
62
90501-ZZ5-D01Ships in 1 to 2 Days
$3.34$4.58
63
90502-ZZ5-D01Ships in 1 to 2 Days
$2.04$2.80
64
90503-ZZ5-D01Ships in 1 to 2 Daysqty 2 used
$2.91$3.98
65
90504-ZZ5-D01Ships in 1 to 2 Days
$2.91$3.98
66
90506-ZZ5-D01Ships in 1 to 2 Days
$2.69$3.68
67
90507-ZZ5-D01Ships in 1 to 2 Daysqty 3 used
$3.84$5.26
68
90508-ZZ5-D01Ships in 1 to 2 Days
$3.20$4.38
69
90509-ZZ5-D01Ships in 1 to 2 Daysqty 3 used
$3.61$4.94
70
90651-ZZ5-D01Ships in 1 to 2 Daysqty 2 used
$2.98$4.08
71
91151-ZZ5-D01Ships in 1 to 2 Days
$2.19$3.00
72
91152-ZZ5-D01Ships in 1 to 2 Days
$1.99$2.72
73
91153-ZZ5-D01Ships in 1 to 2 Days
$2.61$3.58
74
91154-ZZ5-D01Ships in 1 to 2 Daysqty 2 used
$3.30$4.52
75
91156-ZZ5-D01Ships in 1 to 2 Days
$1.85$2.54
76
91157-ZZ5-D01Ships in 1 to 2 Days
$3.18$4.36
77
90101-ZZ5-D01Ships in 1 to 2 Daysqty 2 used
$2.69$3.68
77
90111-ZZ5-D01Ships in 1 to 2 Daysqty 2 used
$1.05$1.44
Diagram

REMOTE CONTROL (TOP MOUNT DUAL TYPE) (DBW)

BF250 BF250D remote control (top mount dual type) (dbw) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4F1501
Fits only BF250D-UCDS, BF250D-UDS, BF250D-XCDS — not every submodel of this generation.

Parts in this assembly

38 parts
1
24800-ZVL-701Ships in 1 to 2 Daysqty 2 used
$1,668.53
2
24801-ZVL-701Ships in 1 to 2 Daysqty 2 used
$6.80$9.32
3
24802-ZVL-701Ships in 1 to 2 Daysqty 4 used
$2.09$2.86
4
24803-ZVL-701Ships in 1 to 2 Daysqty 2 used
$21.94$30.06
5
24804-ZVL-701Ships in 1 to 2 Daysqty 2 used
$4.76$6.52
6
24805-ZVL-701Ships in 1 to 2 Daysqty 4 used
$4.04$5.54
7
24806-ZVL-701Ships in 1 to 2 Daysqty 8 used
$2.13$2.92
8
24807-ZVL-701Ships in 1 to 2 Daysqty 4 used
$2.28$3.12
9
24810-ZVL-701Ships in 1 to 2 Daysqty 2 used
$367.66$503.70
10
24811-ZVL-701Ships in 1 to 2 Daysqty 8 used
$5.75$7.88
11
24812-ZVL-701Ships in 1 to 2 Daysqty 2 used
$2.00$2.74
12
24813-ZVL-701Ships in 1 to 2 Daysqty 8 used
$4.04$5.54
13
24814-ZVL-701Ships in 1 to 2 Daysqty 2 used
$3.05$4.18
14
24815-ZVL-701Ships in 1 to 2 Daysqty 36 used
$1.99$2.72
15
24816-ZVL-701Ships in 1 to 2 Daysqty 8 used
$3.69$5.06
16
24817-ZVL-701Ships in 1 to 2 Daysqty 4 used
$3.69$5.06
17
24820-ZVL-701Ships in 1 to 2 Daysqty 2 used
$351.89$482.10
18
24830-ZVL-701Ships in 1 to 2 Daysqty 2 used
$79.85$109.38
19
24831-ZVL-701Ships in 1 to 2 Daysqty 2 used
$22.75$31.16
20
24832-ZVL-701Ships in 1 to 2 Daysqty 2 used
$2.28$3.12
21
24840-ZVL-701Ships in 1 to 2 Daysqty 2 used
$8.42$11.54
22
24841-ZVL-701Ships in 1 to 2 Daysqty 20 used
$1.34$1.84
23
24842-ZVL-701Ships in 1 to 2 Daysqty 8 used
$1.04$1.42
24
24870-ZVL-701Ships in 1 to 2 Daysqty 2 used
$164.85$225.82
25
24871-ZVL-701Ships in 1 to 2 Daysqty 4 used
$76.66$105.02
26
24872-ZVL-701Ships in 1 to 2 Daysqty 2 used
$25.42$34.82
27
24873-ZVL-701Ships in 1 to 2 Daysqty 4 used
$3.50$4.80
28
24874-ZVL-701Ships in 1 to 2 Daysqty 4 used
$2.19$3.00
29
24875-ZVL-701Ships in 1 to 2 Daysqty 4 used
$3.18$4.36
30
24876-ZVL-701Ships in 1 to 2 Daysqty 4 used
$1.04$1.42
31
24877-ZVL-701Ships in 1 to 2 Daysqty 4 used
$2.13$2.92
32
24878-ZVL-701Ships in 1 to 2 Daysqty 4 used
$1.21$1.66
33
24879-ZVL-701Ships in 1 to 2 Daysqty 4 used
$1.99$2.72
34
24880-ZVL-701Ships in 1 to 2 Daysqty 2 used
$92.74$127.04
35
24881-ZVL-701Ships in 1 to 2 Daysqty 2 used
$14.95$20.48
36
35330-ZVL-701Ships in 1 to 2 Daysqty 2 used
$43.87$60.10
37
35370-ZVL-701Ships in 1 to 2 Daysqty 2 used
$47.27$64.76
38
93500-05065-4JShips in 1 to 2 Daysqty 8 used
$2.50$3.42
Diagram

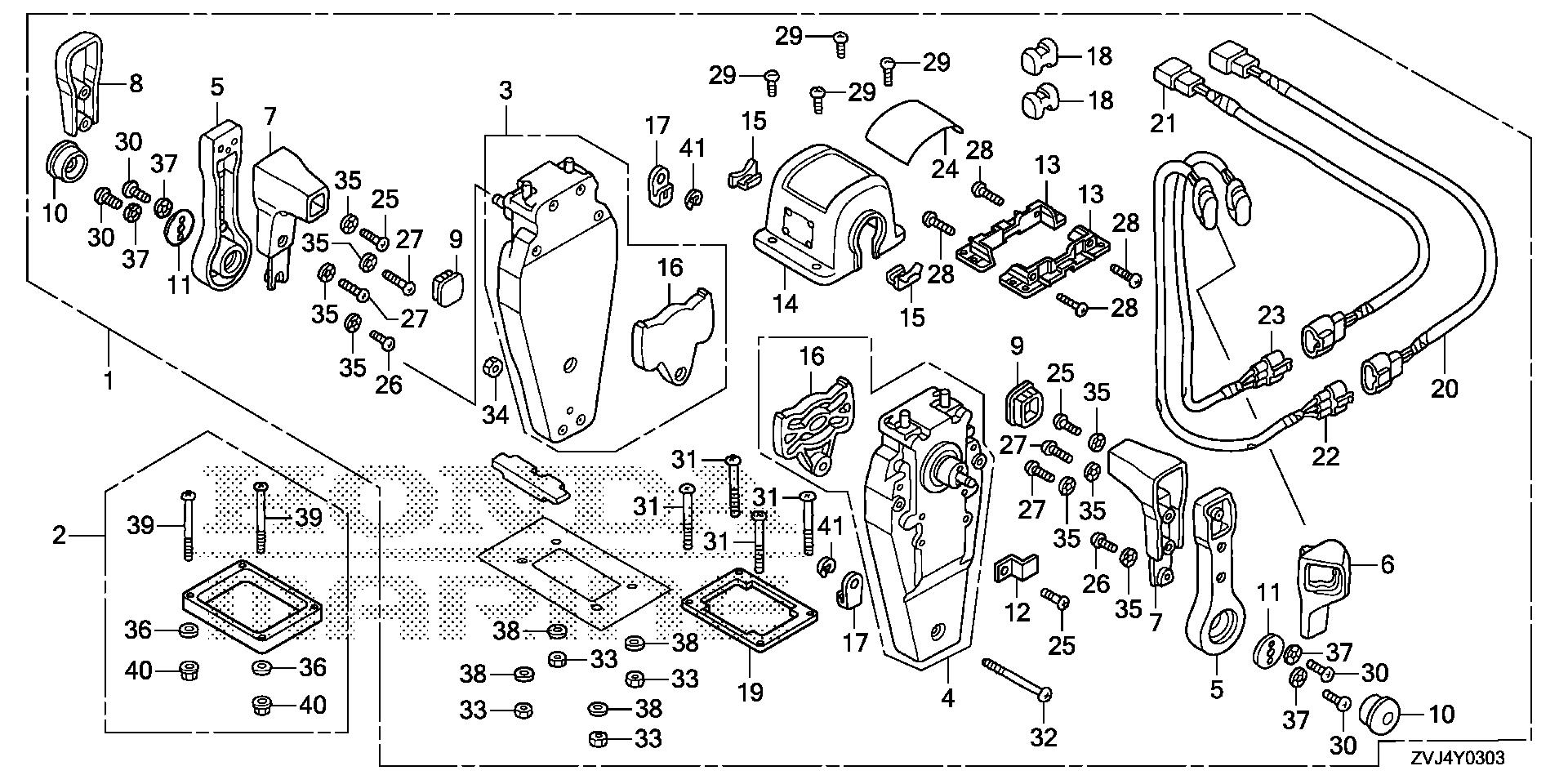

REMOTE CONTROL (TOP MOUNT DUAL TYPE) (L.) (MECH)

BF250 BF250D remote control (top mount dual type) (l.) (mech) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4Y0303
Fits only BF250D-LRA, BF250D-UCRA, BF250D-URA, BF250D-XCRA, BF250D-XRA — not every submodel of this generation.

Parts in this assembly

41 parts
1
BOX KIT, REMOTE CONTROL (TOP MOUNT DUAL)(L)
06240-ZW5-U30No Longer Available
—
2
06241-ZW5-U10Ships in 1 to 2 Days
$33.81$46.32
3
24810-ZW5-U01Ships in 1 to 2 Days
$398.40$545.76
4
24810-ZW5-U11Ships in 1 to 2 Days
$398.40$545.76
5
24811-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$95.56$134.82
6
24812-ZW5-U11Ships in 1 to 2 Days
$13.83$19.50
7
24813-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$12.89$18.18
8
24813-ZW5-U21Ships in 1 to 2 Days
$5.45$7.68
9
24814-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$3.69$5.22
10
24816-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$7.72$10.58
11
24817-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$31.68$43.40
12
24818-ZW5-U01Ships in 1 to 2 Days
$7.11$9.74
13
24819-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$10.77$15.20
14
24820-ZW5-U21Ships in 1 to 2 Days
$30.50$43.04
15
24825-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$2.91$4.10
16
24826-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$13.81$18.92
17
24831-ZW5-U01Ships in 1 to 2 Daysqty 4 used
$8.45$11.58
18
24832-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$3.74$5.12
19
24834-ZW5-U21Ships in 1 to 2 Days
$8.82$12.08
20
32530-ZW7-U00Ships in 1 to 2 Days
$25.87$35.44
21
32530-ZW7-U10Ships in 1 to 2 Days
$26.46$36.24
22
35370-ZW5-U02Ships in 1 to 2 Days
$54.55$76.96
23
35370-ZW5-U12Ships in 1 to 2 Days
$54.55$76.96
24
87703-ZW5-U22Ships in 1 to 2 Days
$9.52$13.44
25
90101-ZW5-U00Ships in 1 to 2 Daysqty 3 used
$2.60$3.56
26
90102-ZW5-U00Ships in 1 to 2 Daysqty 2 used
$2.38$3.36
27
90103-ZW5-U01Ships in 1 to 2 Daysqty 4 used
$3.20$4.52
28
90104-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$1.14$1.56
29
90105-ZW5-U01Ships in 1 to 2 Daysqty 4 used
$2.38$3.36
30
90106-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$2.60$3.56
31
90107-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.93$1.28
32
90108-ZW5-U00Ships in 1 to 2 Daysqty 3 used
$1.31$1.80
33
90301-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$1.18$1.62
34
90302-ZW5-U21Ships in 1 to 2 Days
$1.18$1.62
35
90501-ZW5-U00Ships in 1 to 2 Daysqty 8 used
$0.85$1.16
36
90502-ZV4-000Ships in 1 to 2 Daysqty 4 used
$2.73$3.74
37
90502-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$1.69$2.32
38
90503-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.66$0.90
39
93500-05065-4JShips in 1 to 2 Daysqty 4 used
$2.50$3.42
40
94001-05490-0SShips in 1 to 2 Daysqty 4 used
$0.92$1.26
41
94540-06029Ships in 1 to 2 Daysqty 4 used
$3.50$4.80
Diagram

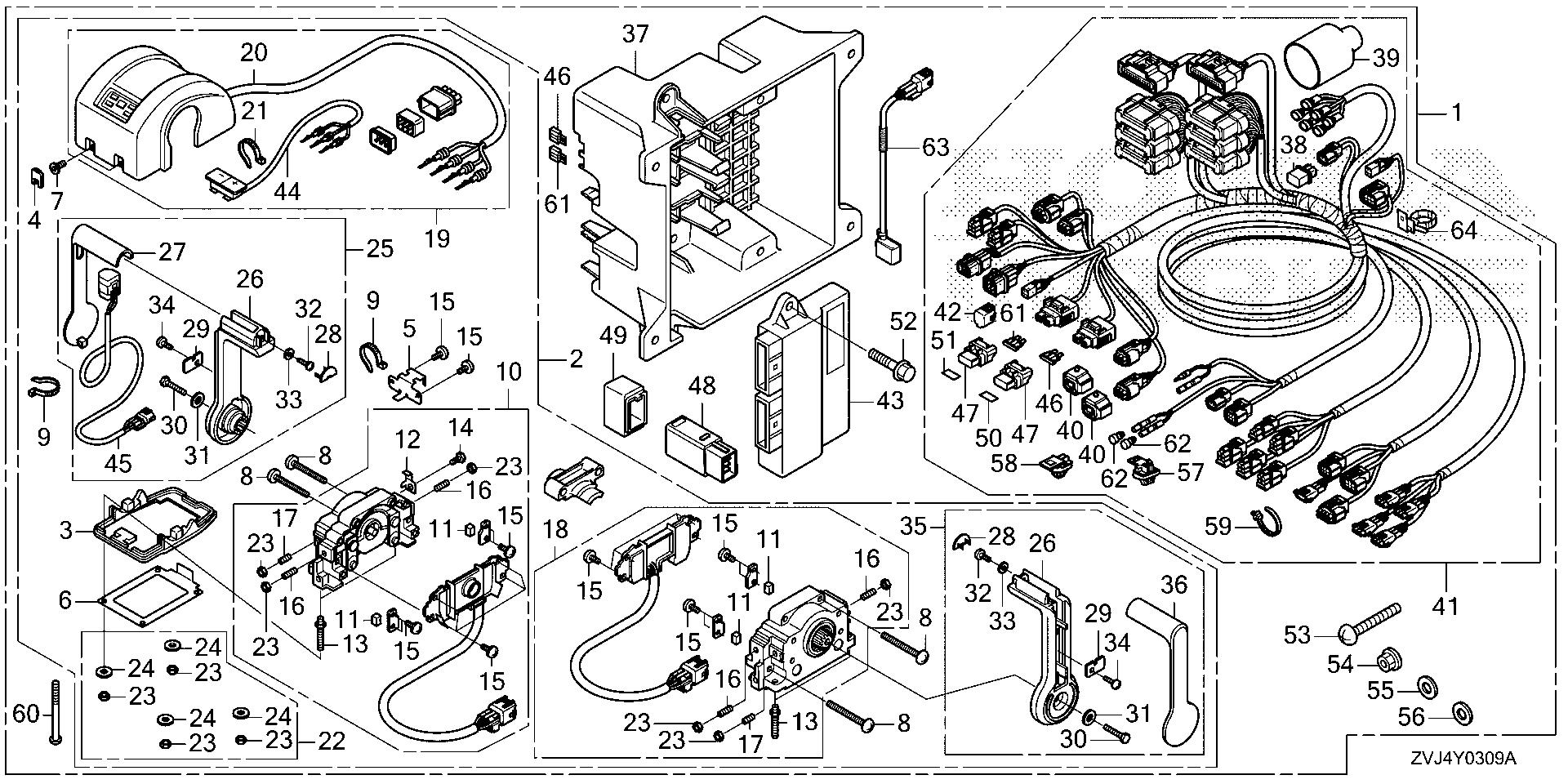

REMOTE CONTROL (TOP MOUNT DUAL TYPE) (MAIN) (DBW)

BF250 BF250D remote control (top mount dual type) (main) (dbw) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4Y0309A
Fits only BF250D-LDA, BF250D-LDS, BF250D-UCDA, BF250D-UCDS, BF250D-UDA, BF250D-UDS, BF250D-XCDA, BF250D-XCDS, BF250D-XDA, BF250D-XDS — not every submodel of this generation.

Parts in this assembly

64 parts
1
06240-ZVL-704Ships in 1 to 2 Days
$1,587.85
2
24800-ZVL-701Ships in 1 to 2 Days
$1,668.53
3
24801-ZVL-701Ships in 1 to 2 Days
$6.80$9.32
4
24802-ZVL-701Ships in 1 to 2 Daysqty 2 used
$2.09$2.86
5
24803-ZVL-701Ships in 1 to 2 Days
$21.94$30.06
6
24804-ZVL-701Ships in 1 to 2 Days
$4.76$6.52
7
24805-ZVL-701Ships in 1 to 2 Daysqty 2 used
$4.04$5.54
8
24806-ZVL-701Ships in 1 to 2 Daysqty 4 used
$2.13$2.92
9
24807-ZVL-701Ships in 1 to 2 Daysqty 2 used
$2.28$3.12
10
24810-ZVL-701Ships in 1 to 2 Days
$367.66$503.70
11
24811-ZVL-701Ships in 1 to 2 Daysqty 4 used
$5.75$7.88
12
24812-ZVL-701Ships in 1 to 2 Days
$2.00$2.74
13
24813-ZVL-701Ships in 1 to 2 Daysqty 4 used
$4.04$5.54
14
24814-ZVL-701Ships in 1 to 2 Days
$3.05$4.18
15
24815-ZVL-701Ships in 1 to 2 Daysqty 18 used
$1.99$2.72
16
24816-ZVL-701Ships in 1 to 2 Daysqty 4 used
$3.69$5.06
17
24817-ZVL-701Ships in 1 to 2 Daysqty 2 used
$3.69$5.06
18
24820-ZVL-701Ships in 1 to 2 Days
$351.89$482.10
19
24830-ZVL-701Ships in 1 to 2 Days
$79.85$109.38
20
24831-ZVL-701Ships in 1 to 2 Days
$22.75$31.16
21
24832-ZVL-701Ships in 1 to 2 Days
$2.28$3.12
22
24840-ZVL-701Ships in 1 to 2 Days
$8.42$11.54
23
24841-ZVL-701Ships in 1 to 2 Daysqty 10 used
$1.34$1.84
24
24842-ZVL-701Ships in 1 to 2 Daysqty 4 used
$1.04$1.42
25
24870-ZVL-701Ships in 1 to 2 Days
$164.85$225.82
26
24871-ZVL-701Ships in 1 to 2 Daysqty 2 used
$76.66$105.02
27
24872-ZVL-701Ships in 1 to 2 Days
$25.42$34.82
28
24873-ZVL-701Ships in 1 to 2 Daysqty 2 used
$3.50$4.80
29
24874-ZVL-701Ships in 1 to 2 Daysqty 2 used
$2.19$3.00
30
24875-ZVL-701Ships in 1 to 2 Daysqty 2 used
$3.18$4.36
31
24876-ZVL-701Ships in 1 to 2 Daysqty 2 used
$1.04$1.42
32
24877-ZVL-701Ships in 1 to 2 Daysqty 2 used
$2.13$2.92
33
24878-ZVL-701Ships in 1 to 2 Daysqty 2 used
$1.21$1.66
34
24879-ZVL-701Ships in 1 to 2 Daysqty 2 used
$1.99$2.72
35
24880-ZVL-701Ships in 1 to 2 Days
$92.74$127.04
36
24881-ZVL-701Ships in 1 to 2 Days
$14.95$20.48
37
30420-ZVL-000Ships in 1 to 2 Days
$53.53
38
32107-ZVL-003Ships in 1 to 2 Days
$10.47$14.34
39
COVER, CONNECTOR (NOT AVAILABLE)
32108-KFG-000No Longer Available
$3.26$4.46
40
32127-ZZ3-000Ships in 1 to 2 Daysqty 2 used
$4.04$5.54
41
32530-ZVL-010Ships in 1 to 2 Days
$726.03$994.56
42
32606-K44-V01Ships in 1 to 2 Days
$6.51$8.92
43
34330-ZVL-013Ships in 1 to 2 Days
$986.57$1,351.46
44
35330-ZVL-701Ships in 1 to 2 Days
$43.87$60.10
45
35370-ZVL-701Ships in 1 to 2 Days
$47.27$64.76
46
38206-V15-003Ships in 1 to 2 Daysqty 2 used
$1.78$2.44
47
38216-Z2E-003Ships in 1 to 2 Daysqty 2 used
$5.85$8.02
48
38580-ZZ3-003Ships in 1 to 2 Days
$42.33$57.98
49
38586-ZZ5-003Ships in 1 to 2 Days
$3.61$4.94
50
87117-Z2E-000Ships in 1 to 2 Days
$1.66$2.28
51
87118-ZVL-000Ships in 1 to 2 Days
$1.56$2.14
52
90018-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.37$1.88
53
90109-ZW5-000Ships in 1 to 2 Daysqty 4 used
$1.20$1.64
54
90301-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$0.91$1.24
55
90501-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$1.59$2.18
56
90502-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$1.49$2.04
57
91535-STK-003Ships in 1 to 2 Days
$6.75$9.24
58
91535-TA0-003Ships in 1 to 2 Daysqty 6 used
$4.56$6.24
59
91541-S0A-003Ships in 1 to 2 Daysqty 5 used
$3.64$4.98
60
93500-05065-4JShips in 1 to 2 Daysqty 4 used
$2.50$3.42
61
98200-40500Ships in 1 to 2 Daysqty 2 used
$1.11$1.52
62
32823-ZV5-003Ships in 1 to 2 Daysqty 2 used
$2.95$4.04
63
38580-ZY6-V11Ships in 1 to 2 Days
$53.55$73.36
64
91531-SR3-003Ships in 1 to 2 Days
$7.75$10.62
Diagram

REMOTE CONTROL (TOP MOUNT DUAL TYPE) (NHK MEC)

BF250 BF250D remote control (top mount dual type) (nhk mec) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4Y0313
Fits only BF250D-LRA, BF250D-UCRA, BF250D-URA, BF250D-XCRA, BF250D-XRA — not every submodel of this generation.

Parts in this assembly

59 parts
1
06240-ZY6-V92Ships in 1 to 2 Days
$629.99
2
06241-ZY6-V10Ships in 1 to 2 Days
$35.16$48.16
3
24810-ZY6-U11Ships in 1 to 2 Days
$298.02$408.24
4
24810-ZY6-V11Ships in 1 to 2 Days
$298.02$408.24
5
24811-ZY6-U11Ships in 1 to 2 Daysqty 2 used
$101.27$138.72
6
24812-ZY6-U12Ships in 1 to 2 Daysqty 2 used
$11.33$15.52
7
24813-ZY6-U12Ships in 1 to 2 Daysqty 2 used
$9.80$13.42
8
24814-ZY6-U11Ships in 1 to 2 Daysqty 2 used
$48.75$66.78
9
24816-ZY6-U11Ships in 1 to 2 Daysqty 2 used
$5.93$8.12
10
24817-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$31.68$43.40
11
24818-ZW5-U01Ships in 1 to 2 Days
$7.11$9.74
12
24819-ZY6-V11Ships in 1 to 2 Daysqty 2 used
$8.09$11.08
13
24820-ZY6-V11Ships in 1 to 2 Days
$40.75$55.82
14
24821-ZY6-V11Ships in 1 to 2 Days
$4.75$6.50
15
24824-ZY6-V11Ships in 1 to 2 Daysqty 2 used
$2.48$3.40
16
24825-ZY6-U11Ships in 1 to 2 Daysqty 2 used
$2.04$2.80
17
24826-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$13.81$18.92
18
24827-ZY6-U11Ships in 1 to 2 Daysqty 2 used
$0.93$1.28
19
24828-ZY6-U11Ships in 1 to 2 Daysqty 2 used
$1.59$2.18
20
24831-ZW5-U01Ships in 1 to 2 Daysqty 4 used
$8.45$11.58
21
24832-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$3.74$5.12
22
24832-ZY6-U91Ships in 1 to 2 Daysqty 2 used
$4.79
23
24832-ZY6-V11Ships in 1 to 2 Days
$4.38$6.00
24
24834-ZY6-V11Ships in 1 to 2 Days
$6.18$8.46
25
24835-ZY6-U11Ships in 1 to 2 Days
$2.07$2.84
26
35370-ZY6-U11Ships in 1 to 2 Days
$37.67$51.60
27
35370-ZY6-V11Ships in 1 to 2 Days
$37.67$51.60
28
35370-ZY6-V21Ships in 1 to 2 Days
$37.67$51.60
29
35375-ZY6-V91Ships in 1 to 2 Days
$277.09$379.58
30
38206-797-A01Ships in 1 to 2 Daysqty 2 used
$1.97$2.70
31
38216-ZVL-901Ships in 1 to 2 Days
$5.23$7.16
32
38580-ZY6-V11Ships in 1 to 2 Daysqty 2 used
$53.55$73.36
33
38581-ZY6-V11Ships in 1 to 2 Daysqty 2 used
$3.77$5.16
34
87117-Z2E-000Ships in 1 to 2 Days
$1.66$2.28
35
87703-ZY6-V11Ships in 1 to 2 Days
$6.80$9.32
36
90101-ZW5-U00Ships in 1 to 2 Days
$2.60$3.56
37
90102-ZY6-U11Ships in 1 to 2 Daysqty 2 used
$1.90$2.60
38
90103-ZY6-U11Ships in 1 to 2 Daysqty 4 used
$1.97$2.70
39
90104-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$1.14$1.56
40
90104-ZY6-U11Ships in 1 to 2 Daysqty 2 used
$1.97$2.70
41
90106-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$2.60$3.56
42
90106-ZY6-U11Ships in 1 to 2 Daysqty 4 used
$2.04$2.80
43
90107-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.93$1.28
44
90108-ZW5-U00Ships in 1 to 2 Daysqty 3 used
$1.31$1.80
45
90111-ZY6-U11Ships in 1 to 2 Daysqty 2 used
$2.51$3.44
46
90112-ZY6-U11Ships in 1 to 2 Daysqty 2 used
$3.80$5.20
47
90301-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$1.18$1.62
48
90301-ZZ5-D01Ships in 1 to 2 Daysqty 4 used
$1.37$1.88
49
90302-ZW5-U21Ships in 1 to 2 Days
$1.18$1.62
50
90501-ZW5-U00Ships in 1 to 2 Daysqty 6 used
$0.85$1.16
51
90502-ZV4-000Ships in 1 to 2 Daysqty 4 used
$2.73$3.74
52
90502-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$1.69$2.32
53
90503-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.66$0.90
54
90651-ZZ5-D01Ships in 1 to 2 Daysqty 4 used
$2.98$4.08
55
90651-ZZ5-D01Ships in 1 to 2 Daysqty 4 used
$2.98$4.08
56
91531-SR3-003Ships in 1 to 2 Days
$7.75$10.62
57
91541-ZY6-V11Ships in 1 to 2 Days
$1.87$2.56
58
93500-05065-4JShips in 1 to 2 Daysqty 4 used
$2.50$3.42
59
94001-05490-0SShips in 1 to 2 Daysqty 4 used
$0.92$1.26
Diagram

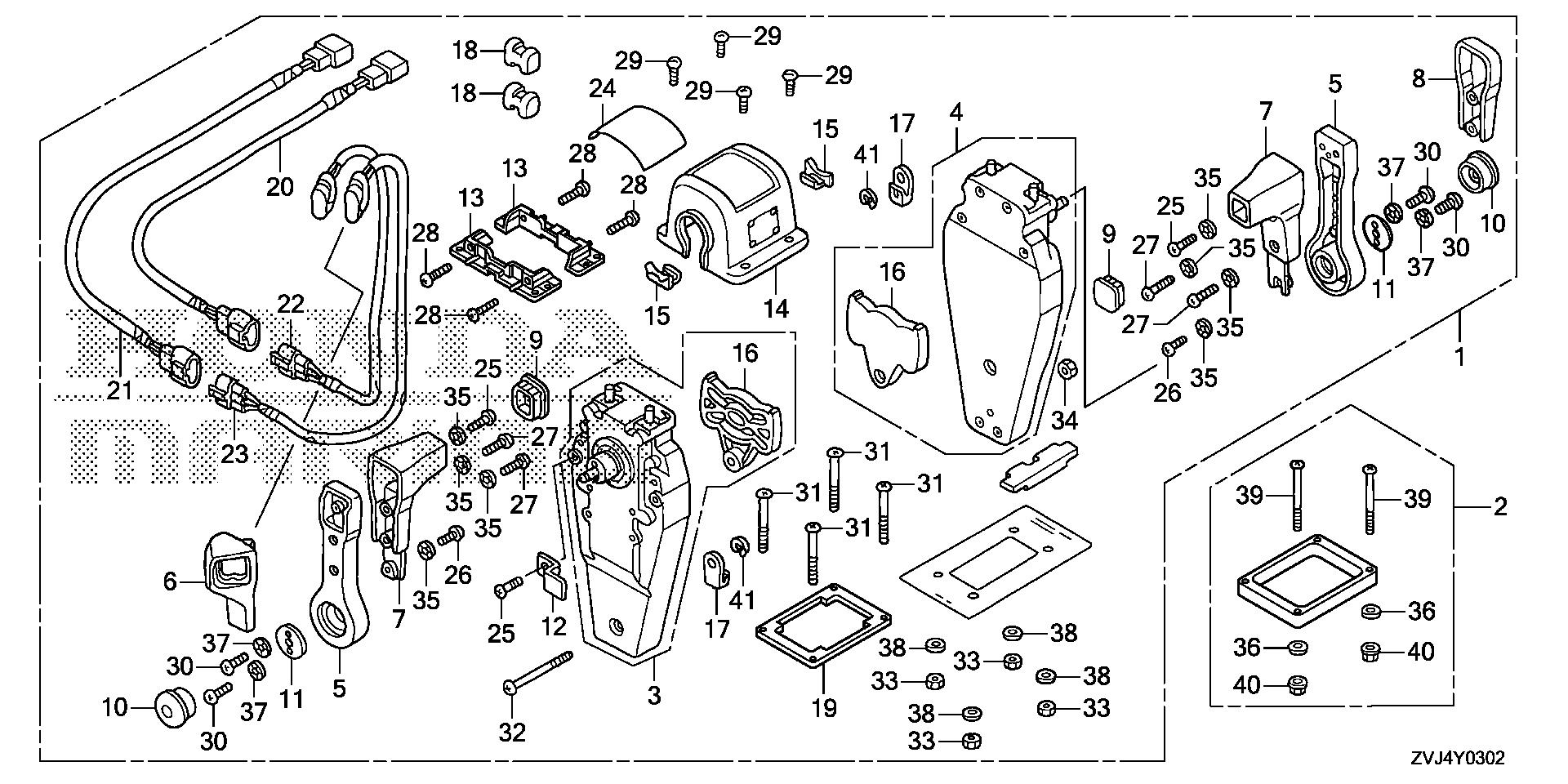

REMOTE CONTROL (TOP MOUNT DUAL TYPE) (R.) (MECH)

BF250 BF250D remote control (top mount dual type) (r.) (mech) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4Y0302
Fits only BF250D-LRA, BF250D-UCRA, BF250D-URA, BF250D-XCRA, BF250D-XRA — not every submodel of this generation.

Parts in this assembly

41 parts
1
06240-ZY6-V92Ships in 1 to 2 Days
$629.99
2
06241-ZW5-U10Ships in 1 to 2 Days
$33.81$46.32
3
24810-ZW5-U01Ships in 1 to 2 Days
$398.40$545.76
4
24810-ZW5-U11Ships in 1 to 2 Days
$398.40$545.76
5
24811-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$95.56$134.82
6
24812-ZW5-U01Ships in 1 to 2 Days
$12.56$17.72
7
24813-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$12.89$18.18
8
24813-ZW5-U21Ships in 1 to 2 Days
$5.45$7.68
9
24814-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$3.69$5.22
10
24816-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$7.72$10.58
11
24817-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$31.68$43.40
12
24818-ZW5-U01Ships in 1 to 2 Days
$7.11$9.74
13
24819-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$10.77$15.20
14
24820-ZW5-U21Ships in 1 to 2 Days
$30.50$43.04
15
24825-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$2.91$4.10
16
24826-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$13.81$18.92
17
24831-ZW5-U01Ships in 1 to 2 Daysqty 4 used
$8.45$11.58
18
24832-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$3.74$5.12
19
24834-ZW5-U21Ships in 1 to 2 Days
$8.82$12.08
20
32530-ZW7-U00Ships in 1 to 2 Days
$25.87$35.44
21
32530-ZW7-U10Ships in 1 to 2 Days
$26.46$36.24
22
35370-ZW5-U02Ships in 1 to 2 Days
$54.55$76.96
23
35370-ZW5-U12Ships in 1 to 2 Days
$54.55$76.96
24
87703-ZW5-U22Ships in 1 to 2 Days
$9.52$13.44
25
90101-ZW5-U00Ships in 1 to 2 Daysqty 3 used
$2.60$3.56
26
90102-ZW5-U00Ships in 1 to 2 Daysqty 2 used
$2.38$3.36
27
90103-ZW5-U01Ships in 1 to 2 Daysqty 4 used
$3.20$4.52
28
90104-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$1.14$1.56
29
90105-ZW5-U01Ships in 1 to 2 Daysqty 4 used
$2.38$3.36
30
90106-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$2.60$3.56
31
90107-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.93$1.28
32
90108-ZW5-U00Ships in 1 to 2 Daysqty 3 used
$1.31$1.80
33
90301-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$1.18$1.62
34
90302-ZW5-U21Ships in 1 to 2 Days
$1.18$1.62
35
90501-ZW5-U00Ships in 1 to 2 Daysqty 8 used
$0.85$1.16
36
90502-ZV4-000Ships in 1 to 2 Daysqty 4 used
$2.73$3.74
37
90502-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$1.69$2.32
38
90503-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.66$0.90
39
93500-05065-4JShips in 1 to 2 Daysqty 4 used
$2.50$3.42
40
94001-05490-0SShips in 1 to 2 Daysqty 4 used
$0.92$1.26
41
94540-06029Ships in 1 to 2 Daysqty 4 used
$3.50$4.80
Diagram

REMOTE CONTROL (TOP MOUNT DUAL TYPE) (SECOND) (DBW)

BF250 BF250D remote control (top mount dual type) (second) (dbw) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4Y0310
Fits only BF250D-LDA, BF250D-LDS, BF250D-UCDA, BF250D-UCDS, BF250D-UDA, BF250D-UDS, BF250D-XCDA, BF250D-XCDS, BF250D-XDA, BF250D-XDS — not every submodel of this generation.

Parts in this assembly

65 parts
1
06250-ZVL-703Ships in 1 to 2 Days
$1,607.85
2
24800-ZVL-701Ships in 1 to 2 Days
$1,668.53
3
24801-ZVL-701Ships in 1 to 2 Days
$6.80$9.32
4
24802-ZVL-701Ships in 1 to 2 Daysqty 2 used
$2.09$2.86
5
24803-ZVL-701Ships in 1 to 2 Days
$21.94$30.06
6
24804-ZVL-701Ships in 1 to 2 Days
$4.76$6.52
7
24805-ZVL-701Ships in 1 to 2 Daysqty 2 used
$4.04$5.54
8
24806-ZVL-701Ships in 1 to 2 Daysqty 4 used
$2.13$2.92
9
24807-ZVL-701Ships in 1 to 2 Daysqty 2 used
$2.28$3.12
10
24810-ZVL-701Ships in 1 to 2 Days
$367.66$503.70
11
24811-ZVL-701Ships in 1 to 2 Daysqty 4 used
$5.75$7.88
12
24812-ZVL-701Ships in 1 to 2 Days
$2.00$2.74
13
24813-ZVL-701Ships in 1 to 2 Daysqty 4 used
$4.04$5.54
14
24814-ZVL-701Ships in 1 to 2 Days
$3.05$4.18
15
24815-ZVL-701Ships in 1 to 2 Daysqty 18 used
$1.99$2.72
16
24816-ZVL-701Ships in 1 to 2 Daysqty 4 used
$3.69$5.06
17
24817-ZVL-701Ships in 1 to 2 Daysqty 2 used
$3.69$5.06
18
24820-ZVL-701Ships in 1 to 2 Days
$351.89$482.10
19
24830-ZVL-701Ships in 1 to 2 Days
$79.85$109.38
20
24831-ZVL-701Ships in 1 to 2 Days
$22.75$31.16
21
24832-ZVL-701Ships in 1 to 2 Days
$2.28$3.12
22
24840-ZVL-701Ships in 1 to 2 Days
$8.42$11.54
23
24841-ZVL-701Ships in 1 to 2 Daysqty 10 used
$1.34$1.84
24
24842-ZVL-701Ships in 1 to 2 Daysqty 4 used
$1.04$1.42
25
24870-ZVL-701Ships in 1 to 2 Days
$164.85$225.82
26
24871-ZVL-701Ships in 1 to 2 Daysqty 2 used
$76.66$105.02
27
24872-ZVL-701Ships in 1 to 2 Days
$25.42$34.82
28
24873-ZVL-701Ships in 1 to 2 Daysqty 2 used
$3.50$4.80
29
24874-ZVL-701Ships in 1 to 2 Daysqty 2 used
$2.19$3.00
30
24875-ZVL-701Ships in 1 to 2 Daysqty 2 used
$3.18$4.36
31
24876-ZVL-701Ships in 1 to 2 Daysqty 2 used
$1.04$1.42
32
24877-ZVL-701Ships in 1 to 2 Daysqty 2 used
$2.13$2.92
33
24878-ZVL-701Ships in 1 to 2 Daysqty 2 used
$1.21$1.66
34
24879-ZVL-701Ships in 1 to 2 Daysqty 2 used
$1.99$2.72
35
24880-ZVL-701Ships in 1 to 2 Days
$92.74$127.04
36
24881-ZVL-701Ships in 1 to 2 Days
$14.95$20.48
37
30420-ZVL-000Ships in 1 to 2 Days
$53.53
38
32107-ZVL-003Ships in 1 to 2 Days
$10.47$14.34
39
COVER, CONNECTOR (NOT AVAILABLE)
32108-KFG-000No Longer Available
$3.26$4.46
40
32108-ZVL-003Ships in 1 to 2 Days
$5.45$7.46
41
32127-ZZ3-000Ships in 1 to 2 Days
$4.04$5.54
42
32390-ZVL-003Ships in 1 to 2 Days
$106.99$146.56
43
32396-ZVL-003Ships in 1 to 2 Days
$27.97$38.32
44
32530-ZVL-600Ships in 1 to 2 Days
$573.74$785.94
45
32606-K44-V01Ships in 1 to 2 Days
$6.51$8.92
46
34330-ZVL-013Ships in 1 to 2 Days
$986.57$1,351.46
47
35330-ZVL-701Ships in 1 to 2 Days
$43.87$60.10
48
35370-ZVL-701Ships in 1 to 2 Days
$47.27$64.76
49
36180-ZVL-003Ships in 1 to 2 Days
$51.26$70.22
50
36182-ZY6-003Ships in 1 to 2 Days
$17.53$24.02
51
38400-ZY9-A00Ships in 1 to 2 Days
$70.36$96.40
52
38402-ZY9-A00Ships in 1 to 2 Days
$21.59$29.58
53
90018-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.37$1.88
54
90109-ZW5-000Ships in 1 to 2 Daysqty 8 used
$1.20$1.64
55
90301-ZZ5-M00Ships in 1 to 2 Daysqty 8 used
$0.98$1.38
55
90301-ZZ5-M01Ships in 1 to 2 Daysqty 8 used
$0.91$1.24
56
90302-ZY6-003Ships in 1 to 2 Days
$2.69$3.68
57
90501-ZZ5-M00Ships in 1 to 2 Daysqty 8 used
$1.72$2.44
57
90501-ZZ5-M01Ships in 1 to 2 Daysqty 8 used
$1.59$2.18
58
90502-ZZ5-M00Ships in 1 to 2 Daysqty 8 used
$1.66$2.34
58
90502-ZZ5-M01Ships in 1 to 2 Daysqty 8 used
$1.49$2.04
59
91535-STK-003Ships in 1 to 2 Days
$6.75$9.24
60
91535-TA0-003Ships in 1 to 2 Daysqty 2 used
$4.56$6.24
61
91541-S0A-003Ships in 1 to 2 Daysqty 5 used
$3.64$4.98
62
91549-TTA-003Ships in 1 to 2 Days
$3.66$5.02
Diagram

REMOTE CONTROL (TOP MOUNT SINGLE TYPE) (DBW)

BF250 BF250D remote control (top mount single type) (dbw) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4F1500
Fits only BF250D-XDS — not every submodel of this generation.

Parts in this assembly

36 parts
1
24800-ZVL-601Ships in 1 to 2 Days
$1,091.82
2
24801-ZVL-601Ships in 1 to 2 Days
$3.43$4.70
3
24802-ZVL-701Ships in 1 to 2 Days
$2.09$2.86
4
24803-ZVL-601Ships in 1 to 2 Days
$21.94$30.06
5
24804-ZVL-601Ships in 1 to 2 Days
$3.61$4.94
6
24805-ZVL-701Ships in 1 to 2 Days
$4.04$5.54
7
24806-ZVL-701Ships in 1 to 2 Daysqty 4 used
$2.13$2.92
8
24807-ZVL-701Ships in 1 to 2 Daysqty 2 used
$2.28$3.12
9
24810-ZVL-701Ships in 1 to 2 Days
$367.66$503.70
10
24811-ZVL-701Ships in 1 to 2 Daysqty 2 used
$5.75$7.88
11
24812-ZVL-701Ships in 1 to 2 Days
$2.00$2.74
12
24813-ZVL-701Ships in 1 to 2 Daysqty 4 used
$4.04$5.54
13
24814-ZVL-701Ships in 1 to 2 Daysqty 2 used
$3.05$4.18
14
24815-ZVL-701Ships in 1 to 2 Daysqty 9 used
$1.99$2.72
15
24816-ZVL-701Ships in 1 to 2 Daysqty 2 used
$3.69$5.06
16
24817-ZVL-701Ships in 1 to 2 Days
$3.69$5.06
17
24820-ZVL-601Ships in 1 to 2 Days
$22.78$31.20
18
24830-ZVL-601Ships in 1 to 2 Days
$77.53$106.20
19
24831-ZVL-601Ships in 1 to 2 Days
$19.39$26.56
20
24832-ZVL-701Ships in 1 to 2 Days
$2.28$3.12
21
24840-ZVL-701Ships in 1 to 2 Days
$8.42$11.54
22
24841-ZVL-701Ships in 1 to 2 Daysqty 7 used
$1.34$1.84
23
24842-ZVL-701Ships in 1 to 2 Daysqty 4 used
$1.04$1.42
24
24870-ZVL-701Ships in 1 to 2 Days
$164.85$225.82
25
24871-ZVL-701Ships in 1 to 2 Days
$76.66$105.02
26
24872-ZVL-701Ships in 1 to 2 Days
$25.42$34.82
27
24873-ZVL-701Ships in 1 to 2 Days
$3.50$4.80
28
24874-ZVL-701Ships in 1 to 2 Days
$2.19$3.00
29
24875-ZVL-701Ships in 1 to 2 Days
$3.18$4.36
30
24876-ZVL-701Ships in 1 to 2 Days
$1.04$1.42
31
24877-ZVL-701Ships in 1 to 2 Days
$2.13$2.92
32
24878-ZVL-701Ships in 1 to 2 Days
$1.21$1.66
33
24879-ZVL-701Ships in 1 to 2 Days
$1.99$2.72
34
35330-ZVL-701Ships in 1 to 2 Days
$43.87$60.10
35
35370-ZVL-701Ships in 1 to 2 Days
$47.27$64.76
36
93500-05065-4JShips in 1 to 2 Daysqty 4 used
$2.50$3.42
Diagram

REMOTE CONTROL (TOP MOUNT SINGLE TYPE) (L.) (MECH)

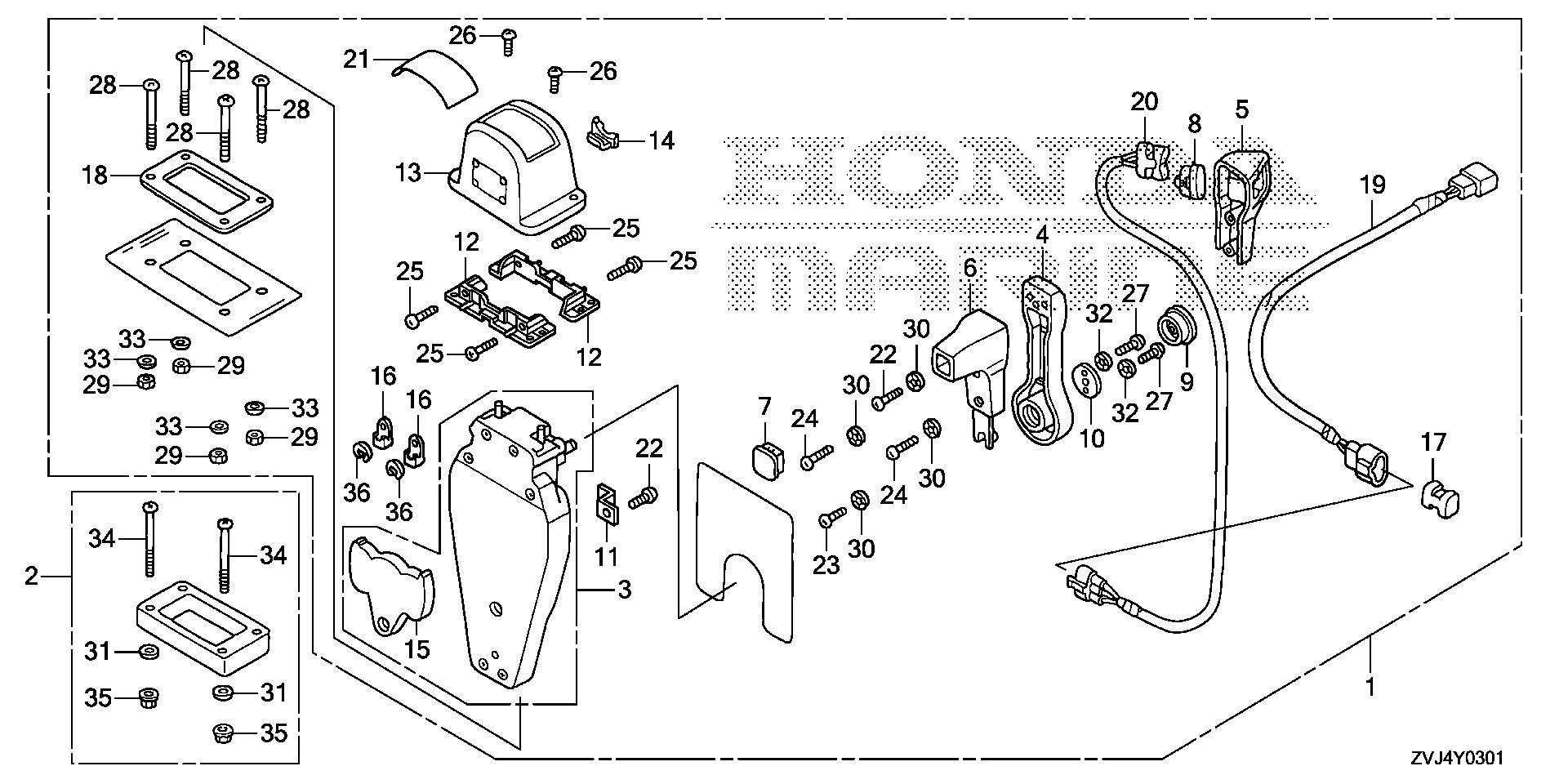

BF250 BF250D remote control (top mount single type) (l.) (mech) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4Y0301
Fits only BF250D-LRA, BF250D-UCRA, BF250D-URA, BF250D-XCRA, BF250D-XRA — not every submodel of this generation.

Parts in this assembly

36 parts
1
BOX KIT, REMOTE CONTROL (TOP MOUNT SINGLE)(L)
06240-ZW5-U10No Longer Available
—
2
06241-ZW5-U00Ships in 1 to 2 Days
$31.45$43.08
3
24810-ZW5-U11Ships in 1 to 2 Days
$398.40$545.76
4
24811-ZW5-U01Ships in 1 to 2 Days
$95.56$134.82
5
24812-ZW5-U11Ships in 1 to 2 Days
$13.83$19.50
6
24813-ZW5-U01Ships in 1 to 2 Days
$12.89$18.18
7
24814-ZW5-U01Ships in 1 to 2 Days
$3.69$5.22
8
24815-ZW5-U01Ships in 1 to 2 Days
$5.66$8.00
9
24816-ZW5-U01Ships in 1 to 2 Days
$7.72$10.58
10
24817-ZW5-U01Ships in 1 to 2 Days
$31.68$43.40
11
24818-ZW5-U01Ships in 1 to 2 Days
$7.11$9.74
12
24819-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$10.77$15.20
13
24820-ZW5-U01Ships in 1 to 2 Days
$27.23$38.42
14
24825-ZW5-U01Ships in 1 to 2 Days
$2.91$4.10
15
24826-ZW5-U01Ships in 1 to 2 Days
$13.81$18.92
16
24831-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$8.45$11.58
17
24832-ZW5-U01Ships in 1 to 2 Days
$3.74$5.12
18
24834-ZW5-U01Ships in 1 to 2 Days
$4.42$6.06
19
32530-ZW7-U10Ships in 1 to 2 Days
$26.46$36.24
20
35370-ZW5-U12Ships in 1 to 2 Days
$54.55$76.96
21
87703-ZW5-U02Ships in 1 to 2 Days
$7.08$10.00
22
90101-ZW5-U00Ships in 1 to 2 Daysqty 2 used
$2.60$3.56
23
90102-ZW5-U00Ships in 1 to 2 Days
$2.38$3.36
24
90103-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$3.20$4.52
25
90104-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$1.14$1.56
26
90105-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$2.38$3.36
27
90106-ZW5-U00Ships in 1 to 2 Daysqty 2 used
$2.60$3.56
28
90107-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.93$1.28
29
90301-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$1.18$1.62
30
90501-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.85$1.16
31
90502-ZV4-000Ships in 1 to 2 Daysqty 4 used
$2.73$3.74
32
90502-ZW5-U00Ships in 1 to 2 Daysqty 2 used
$1.69$2.32
33
90503-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.66$0.90
34
93500-05065-4JShips in 1 to 2 Daysqty 4 used
$2.50$3.42
35
94001-05490-0SShips in 1 to 2 Daysqty 4 used
$0.92$1.26
36
94540-06029Ships in 1 to 2 Daysqty 2 used
$3.50$4.80
Diagram

REMOTE CONTROL (TOP MOUNT SINGLE TYPE) (MAIN) (DBW)

BF250 BF250D remote control (top mount single type) (main) (dbw) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4Y0307A
Fits only BF250D-LDA, BF250D-LDS, BF250D-UCDA, BF250D-UCDS, BF250D-UDA, BF250D-UDS, BF250D-XCDA, BF250D-XCDS, BF250D-XDA, BF250D-XDS — not every submodel of this generation.

Parts in this assembly

62 parts
1
06240-ZVL-604Ships in 1 to 2 Days
$1,271.85
2
24800-ZVL-601Ships in 1 to 2 Days
$1,091.82
3
24801-ZVL-601Ships in 1 to 2 Days
$3.43$4.70
4
24802-ZVL-701Ships in 1 to 2 Days
$2.09$2.86
5
24803-ZVL-601Ships in 1 to 2 Days
$21.94$30.06
6
24804-ZVL-601Ships in 1 to 2 Days
$3.61$4.94
7
24805-ZVL-701Ships in 1 to 2 Days
$4.04$5.54
8
24806-ZVL-701Ships in 1 to 2 Daysqty 4 used
$2.13$2.92
9
24807-ZVL-701Ships in 1 to 2 Daysqty 2 used
$2.28$3.12
10
24810-ZVL-701Ships in 1 to 2 Days
$367.66$503.70
11
24811-ZVL-701Ships in 1 to 2 Daysqty 2 used
$5.75$7.88
12
24812-ZVL-701Ships in 1 to 2 Days
$2.00$2.74
13
24813-ZVL-701Ships in 1 to 2 Daysqty 4 used
$4.04$5.54
14
24814-ZVL-701Ships in 1 to 2 Daysqty 2 used
$3.05$4.18
15
24815-ZVL-701Ships in 1 to 2 Daysqty 9 used
$1.99$2.72
16
24816-ZVL-701Ships in 1 to 2 Daysqty 2 used
$3.69$5.06
17
24817-ZVL-701Ships in 1 to 2 Days
$3.69$5.06
18
24820-ZVL-601Ships in 1 to 2 Days
$22.78$31.20
19
24830-ZVL-601Ships in 1 to 2 Days
$77.53$106.20
20
24831-ZVL-601Ships in 1 to 2 Days
$19.39$26.56
21
24832-ZVL-701Ships in 1 to 2 Days
$2.28$3.12
22
24840-ZVL-701Ships in 1 to 2 Days
$8.42$11.54
23
24841-ZVL-701Ships in 1 to 2 Daysqty 7 used
$1.34$1.84
24
24842-ZVL-701Ships in 1 to 2 Daysqty 4 used
$1.04$1.42
25
24870-ZVL-701Ships in 1 to 2 Days
$164.85$225.82
26
24871-ZVL-701Ships in 1 to 2 Days
$76.66$105.02
27
24872-ZVL-701Ships in 1 to 2 Days
$25.42$34.82
28
24873-ZVL-701Ships in 1 to 2 Days
$3.50$4.80
29
24874-ZVL-701Ships in 1 to 2 Days
$2.19$3.00
30
24875-ZVL-701Ships in 1 to 2 Days
$3.18$4.36
31
24876-ZVL-701Ships in 1 to 2 Days
$1.04$1.42
32
24877-ZVL-701Ships in 1 to 2 Days
$2.13$2.92
33
24878-ZVL-701Ships in 1 to 2 Days
$1.21$1.66
34
24879-ZVL-701Ships in 1 to 2 Days
$1.99$2.72
35
30420-ZVL-000Ships in 1 to 2 Days
$53.53
36
32107-ZVL-003Ships in 1 to 2 Days
$10.47$14.34
37
COVER, CONNECTOR (NOT AVAILABLE)
32108-KFG-000No Longer Available
$3.26$4.46
38
32127-ZZ3-000Ships in 1 to 2 Daysqty 2 used
$4.04$5.54
39
32530-ZVL-010Ships in 1 to 2 Days
$726.03$994.56
40
32606-K44-V01Ships in 1 to 2 Days
$6.51$8.92
41
34330-ZVL-013Ships in 1 to 2 Days
$986.57$1,351.46
42
35330-ZVL-701Ships in 1 to 2 Days
$43.87$60.10
43
35370-ZVL-701Ships in 1 to 2 Days
$47.27$64.76
44
38206-V15-003Ships in 1 to 2 Daysqty 2 used
$1.78$2.44
45
38216-Z2E-003Ships in 1 to 2 Daysqty 2 used
$5.85$8.02
46
38580-ZZ3-003Ships in 1 to 2 Days
$42.33$57.98
47
38586-ZZ5-003Ships in 1 to 2 Days
$3.61$4.94
48
87117-Z2E-000Ships in 1 to 2 Days
$1.66$2.28
49
87118-ZVL-000Ships in 1 to 2 Days
$1.56$2.14
50
90018-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.37$1.88
51
90109-ZW5-000Ships in 1 to 2 Daysqty 4 used
$1.20$1.64
52
90301-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$0.91$1.24
53
90501-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$1.59$2.18
54
90502-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$1.49$2.04
55
91535-STK-003Ships in 1 to 2 Days
$6.75$9.24
56
91535-TA0-003Ships in 1 to 2 Daysqty 6 used
$4.56$6.24
57
91541-S0A-003Ships in 1 to 2 Daysqty 5 used
$3.64$4.98
58
93500-05065-4JShips in 1 to 2 Daysqty 4 used
$2.50$3.42
59
98200-40500Ships in 1 to 2 Daysqty 2 used
$1.11$1.52
60
32823-ZV5-003Ships in 1 to 2 Daysqty 2 used
$2.95$4.04
61
38580-ZY6-V11Ships in 1 to 2 Days
$53.55$73.36
62
91531-SR3-003Ships in 1 to 2 Days
$7.75$10.62
Diagram

REMOTE CONTROL (TOP MOUNT SINGLE TYPE) (NHK MEC)

BF250 BF250D remote control (top mount single type) (nhk mec) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4Y0312A
Fits only BF250D-LRA, BF250D-UCRA, BF250D-URA, BF250D-XCRA, BF250D-XRA — not every submodel of this generation.

Parts in this assembly

45 parts
1
06240-ZY6-U91Ships in 1 to 2 Days
$280.72
2
06241-ZY6-U10Ships in 1 to 2 Days
$32.82$44.96
3
24810-ZY6-U11Ships in 1 to 2 Days
$298.02$408.24
4
24811-ZY6-U11Ships in 1 to 2 Days
$101.27$138.72
5
24812-ZY6-U12Ships in 1 to 2 Days
$11.33$15.52
6
24813-ZY6-U12Ships in 1 to 2 Days
$9.80$13.42
7
24814-ZY6-U11Ships in 1 to 2 Days
$48.75$66.78
8
24816-ZY6-U11Ships in 1 to 2 Days
$5.93$8.12
9
24817-ZW5-U01Ships in 1 to 2 Days
$31.68$43.40
10
24818-ZW5-U01Ships in 1 to 2 Days
$7.11$9.74
11
24819-ZY6-U11Ships in 1 to 2 Daysqty 2 used
$8.09$11.08
12
24820-ZY6-U11Ships in 1 to 2 Days
$20.43$27.98
13
24821-ZY6-U11Ships in 1 to 2 Days
$4.96$6.80
14
24824-ZY6-U11Ships in 1 to 2 Days
$2.48$3.40
15
24825-ZY6-U11Ships in 1 to 2 Days
$2.04$2.80
16
24826-ZW5-U01Ships in 1 to 2 Days
$13.81$18.92
17
24826-ZY6-U11Ships in 1 to 2 Days
$8.85$12.12
18
24827-ZY6-U11Ships in 1 to 2 Days
$0.93$1.28
19
24828-ZY6-U11Ships in 1 to 2 Days
$1.59$2.18
20
24831-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$8.45$11.58
21
24832-ZW5-U01Ships in 1 to 2 Days
$3.74$5.12
22
24832-ZY6-U91Ships in 1 to 2 Days
$4.79
23
24834-ZY6-U11Ships in 1 to 2 Days
$3.17$4.34
24
35370-ZY6-U11Ships in 1 to 2 Days
$37.67$51.60
25
87703-ZY6-U11Ships in 1 to 2 Days
$5.08$6.96
26
90101-ZW5-U00Ships in 1 to 2 Days
$2.60$3.56
27
90102-ZY6-U11Ships in 1 to 2 Days
$1.90$2.60
28
90103-ZY6-U11Ships in 1 to 2 Daysqty 2 used
$1.97$2.70
29
90104-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$1.14$1.56
30
90104-ZY6-U11Ships in 1 to 2 Days
$1.97$2.70
31
90106-ZW5-U00Ships in 1 to 2 Daysqty 2 used
$2.60$3.56
32
90106-ZY6-U11Ships in 1 to 2 Daysqty 2 used
$2.04$2.80
33
90107-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.93$1.28
34
90111-ZY6-U11Ships in 1 to 2 Days
$2.51$3.44
35
90112-ZY6-U11Ships in 1 to 2 Days
$3.80$5.20
36
90301-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$1.18$1.62
37
90301-ZZ5-D01Ships in 1 to 2 Daysqty 2 used
$1.37$1.88
38
90501-ZW5-U00Ships in 1 to 2 Daysqty 3 used
$0.85$1.16
39
90502-ZV4-000Ships in 1 to 2 Daysqty 4 used
$2.73$3.74
40
90502-ZW5-U00Ships in 1 to 2 Daysqty 2 used
$1.69$2.32
41
90503-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.66$0.90
42
90651-ZZ5-D01Ships in 1 to 2 Daysqty 2 used
$2.98$4.08
43
90651-ZZ5-D01Ships in 1 to 2 Daysqty 2 used
$2.98$4.08
44
93500-05065-4JShips in 1 to 2 Daysqty 4 used
$2.50$3.42
45
94001-05490-0SShips in 1 to 2 Daysqty 4 used
$0.92$1.26
Diagram

REMOTE CONTROL (TOP MOUNT SINGLE TYPE) (R.) (MECH)

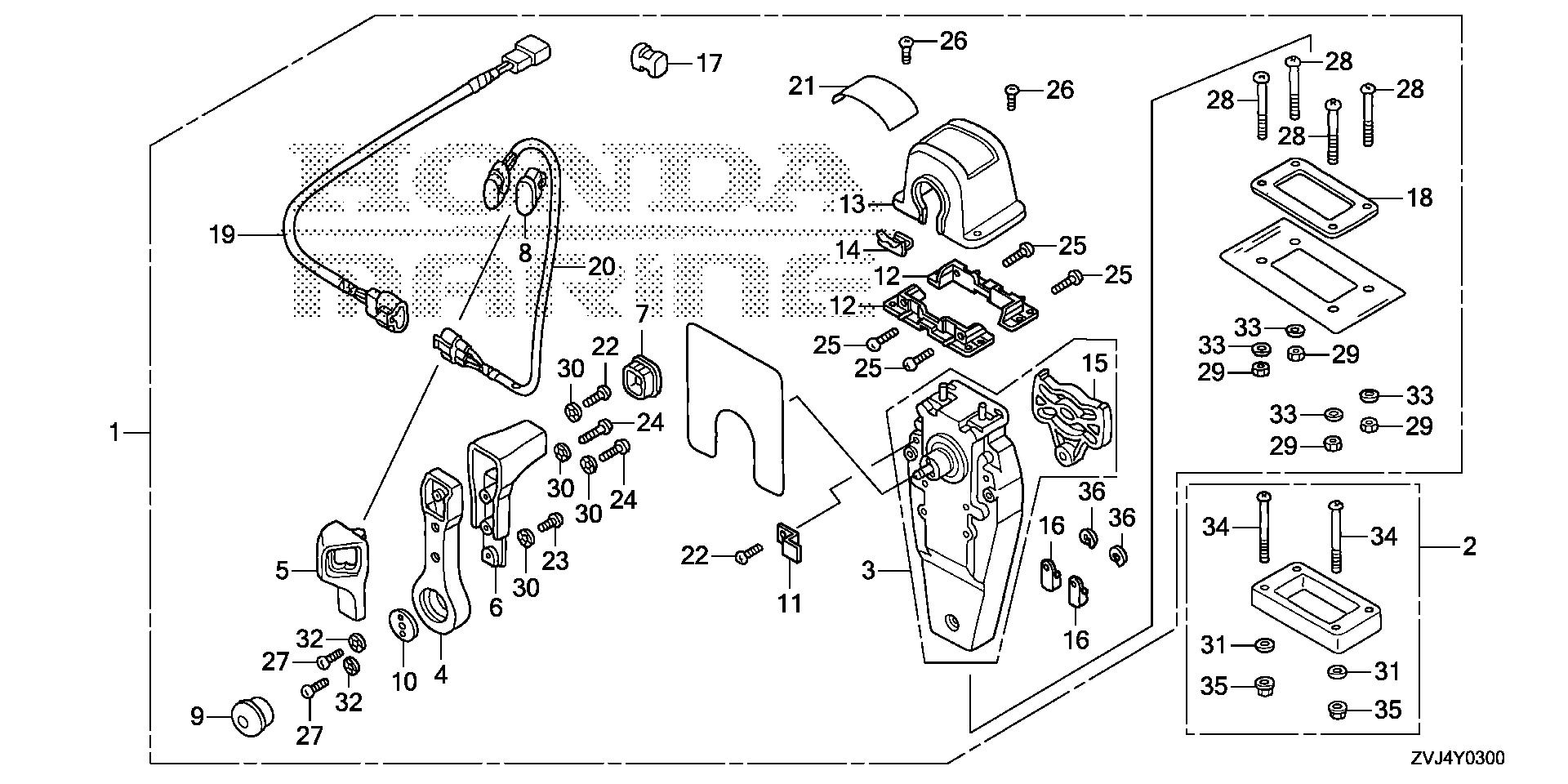

BF250 BF250D remote control (top mount single type) (r.) (mech) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4Y0300
Fits only BF250D-LRA, BF250D-UCRA, BF250D-URA, BF250D-XCRA, BF250D-XRA — not every submodel of this generation.

Parts in this assembly

36 parts
1
BOX KIT, REMOTE CONTROL (TOP MOUNT SINGLE)(R)
06240-ZW5-U00Ships in 1 to 2 Daysreplaced by 06240-ZW5-U40
$261.37
2
06241-ZW5-U00Ships in 1 to 2 Days
$31.45$43.08
3
24810-ZW5-U01Ships in 1 to 2 Days
$398.40$545.76
4
24811-ZW5-U01Ships in 1 to 2 Days
$95.56$134.82
5
24812-ZW5-U01Ships in 1 to 2 Days
$12.56$17.72
6
24813-ZW5-U01Ships in 1 to 2 Days
$12.89$18.18
7
24814-ZW5-U01Ships in 1 to 2 Days
$3.69$5.22
8
24815-ZW5-U01Ships in 1 to 2 Days
$5.66$8.00
9
24816-ZW5-U01Ships in 1 to 2 Days
$7.72$10.58
10
24817-ZW5-U01Ships in 1 to 2 Days
$31.68$43.40
11
24818-ZW5-U01Ships in 1 to 2 Days
$7.11$9.74
12
24819-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$10.77$15.20
13
24820-ZW5-U01Ships in 1 to 2 Days
$27.23$38.42
14
24825-ZW5-U01Ships in 1 to 2 Days
$2.91$4.10
15
24826-ZW5-U01Ships in 1 to 2 Days
$13.81$18.92
16
24831-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$8.45$11.58
17
24832-ZW5-U01Ships in 1 to 2 Days
$3.74$5.12
18
24834-ZW5-U01Ships in 1 to 2 Days
$4.42$6.06
19
32530-ZW7-U00Ships in 1 to 2 Days
$25.87$35.44
20
35370-ZW5-U02Ships in 1 to 2 Days
$54.55$76.96
21
87703-ZW5-U02Ships in 1 to 2 Days
$7.08$10.00
22
90101-ZW5-U00Ships in 1 to 2 Daysqty 2 used
$2.60$3.56
23
90102-ZW5-U00Ships in 1 to 2 Days
$2.38$3.36
24
90103-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$3.20$4.52
25
90104-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$1.14$1.56
26
90105-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$2.38$3.36
27
90106-ZW5-U00Ships in 1 to 2 Daysqty 2 used
$2.60$3.56
28
90107-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.93$1.28
29
90301-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$1.18$1.62
30
90501-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.85$1.16
31
90502-ZV4-000Ships in 1 to 2 Daysqty 4 used
$2.73$3.74
32
90502-ZW5-U00Ships in 1 to 2 Daysqty 2 used
$1.69$2.32
33
90503-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.66$0.90
34
93500-05065-4JShips in 1 to 2 Daysqty 4 used
$2.50$3.42
35
94001-05490-0SShips in 1 to 2 Daysqty 4 used
$0.92$1.26
36
94540-06029Ships in 1 to 2 Daysqty 2 used
$3.50$4.80
Diagram

REMOTE CONTROL (TOP MOUNT SINGLE TYPE) (SECOND) (DBW)

BF250 BF250D remote control (top mount single type) (second) (dbw) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4Y0308
Fits only BF250D-LDA, BF250D-LDS, BF250D-UCDA, BF250D-UCDS, BF250D-UDA, BF250D-UDS, BF250D-XCDA, BF250D-XCDS, BF250D-XDA, BF250D-XDS — not every submodel of this generation.

Parts in this assembly

61 parts
1
06250-ZVL-600Ships in 1 to 2 Daysreplaced by 06250-ZVL-603
$1,300.12
1
06250-ZVL-603Ships in 1 to 2 Days
$1,300.12
2
24800-ZVL-601Ships in 1 to 2 Days
$1,091.82
3
24801-ZVL-601Ships in 1 to 2 Days
$3.43$4.70
4
24802-ZVL-701Ships in 1 to 2 Days
$2.09$2.86
5
24803-ZVL-601Ships in 1 to 2 Days
$21.94$30.06
6
24804-ZVL-601Ships in 1 to 2 Days
$3.61$4.94
7
24805-ZVL-701Ships in 1 to 2 Days
$4.04$5.54
8
24806-ZVL-701Ships in 1 to 2 Daysqty 4 used
$2.13$2.92
9
24807-ZVL-701Ships in 1 to 2 Daysqty 2 used
$2.28$3.12
10
24810-ZVL-701Ships in 1 to 2 Days
$367.66$503.70
11
24811-ZVL-701Ships in 1 to 2 Daysqty 2 used
$5.75$7.88
12
24812-ZVL-701Ships in 1 to 2 Days
$2.00$2.74
13
24813-ZVL-701Ships in 1 to 2 Daysqty 4 used
$4.04$5.54
14
24814-ZVL-701Ships in 1 to 2 Daysqty 2 used
$3.05$4.18
15
24815-ZVL-701Ships in 1 to 2 Daysqty 9 used
$1.99$2.72
16
24816-ZVL-701Ships in 1 to 2 Daysqty 2 used
$3.69$5.06
17
24817-ZVL-701Ships in 1 to 2 Days
$3.69$5.06
18
24820-ZVL-601Ships in 1 to 2 Days
$22.78$31.20
19
24830-ZVL-601Ships in 1 to 2 Days
$77.53$106.20
20
24831-ZVL-601Ships in 1 to 2 Days
$19.39$26.56
21
24832-ZVL-701Ships in 1 to 2 Days
$2.28$3.12
22
24840-ZVL-701Ships in 1 to 2 Days
$8.42$11.54
23
24841-ZVL-701Ships in 1 to 2 Daysqty 7 used
$1.34$1.84
24
24842-ZVL-701Ships in 1 to 2 Daysqty 4 used
$1.04$1.42
25
24870-ZVL-701Ships in 1 to 2 Days
$164.85$225.82
26
24871-ZVL-701Ships in 1 to 2 Days
$76.66$105.02
27
24872-ZVL-701Ships in 1 to 2 Days
$25.42$34.82
28
24873-ZVL-701Ships in 1 to 2 Days
$3.50$4.80
29
24874-ZVL-701Ships in 1 to 2 Days
$2.19$3.00
30
24875-ZVL-701Ships in 1 to 2 Days
$3.18$4.36
31
24876-ZVL-701Ships in 1 to 2 Days
$1.04$1.42
32
24877-ZVL-701Ships in 1 to 2 Days
$2.13$2.92
33
24878-ZVL-701Ships in 1 to 2 Days
$1.21$1.66
34
24879-ZVL-701Ships in 1 to 2 Days
$1.99$2.72
35
30420-ZVL-000Ships in 1 to 2 Days
$53.53
36
32107-ZVL-003Ships in 1 to 2 Days
$10.47$14.34
37
COVER, CONNECTOR (NOT AVAILABLE)
32108-KFG-000No Longer Available
$3.26$4.46
38
32108-ZVL-003Ships in 1 to 2 Days
$5.45$7.46
39
32127-ZZ3-000Ships in 1 to 2 Days
$4.04$5.54
40
32390-ZVL-003Ships in 1 to 2 Days
$106.99$146.56
41
32396-ZVL-003Ships in 1 to 2 Days
$27.97$38.32
42
32530-ZVL-600Ships in 1 to 2 Days
$573.74$785.94
43
32606-K44-V01Ships in 1 to 2 Days
$6.51$8.92
44
34330-ZVL-013Ships in 1 to 2 Days
$986.57$1,351.46
45
35330-ZVL-701Ships in 1 to 2 Days
$43.87$60.10
46
35370-ZVL-701Ships in 1 to 2 Days
$47.27$64.76
47
36180-ZVL-003Ships in 1 to 2 Days
$51.26$70.22
48
36182-ZY6-003Ships in 1 to 2 Days
$17.53$24.02
49
38400-ZY9-A00Ships in 1 to 2 Days
$70.36$96.40
50
38402-ZY9-A00Ships in 1 to 2 Days
$21.59$29.58
51
90018-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.37$1.88
52
90109-ZW5-000Ships in 1 to 2 Daysqty 8 used
$1.20$1.64
53
90301-ZZ5-M00Ships in 1 to 2 Daysqty 8 used
$0.98$1.38
54
90302-ZY6-003Ships in 1 to 2 Days
$2.69$3.68
55
90501-ZZ5-M00Ships in 1 to 2 Daysqty 8 used
$1.72$2.44
56
90502-ZZ5-M00Ships in 1 to 2 Daysqty 8 used
$1.66$2.34
57
91535-STK-003Ships in 1 to 2 Days
$6.75$9.24
58
91535-TA0-003Ships in 1 to 2 Daysqty 2 used
$4.56$6.24
59
91541-S0A-003Ships in 1 to 2 Daysqty 5 used
$3.64$4.98
60
91549-TTA-003Ships in 1 to 2 Days
$3.66$5.02
Diagram

REMOTE CONTROL COVER KIT

BF250 BF250D remote control cover kit exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4Y1100
Fits only BF250D-LRA, BF250D-UCRA, BF250D-URA, BF250D-XCRA, BF250D-XRA — not every submodel of this generation.

Parts in this assembly

2 parts
1
06881-ZW5-U01Ships in 1 to 2 Days
$27.52$37.70
2
06881-ZW5-U11Ships in 1 to 2 Days
$33.04$45.26
Diagram

RIGGING HOSE KIT

BF250 BF250D rigging hose kit exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4Y0100
Fits only BF250D-LDA, BF250D-LRA, BF250D-UCDA, BF250D-UCRA, BF250D-UDA, BF250D-URA, BF250D-XCDA, BF250D-XCRA, BF250D-XDA, BF250D-XRA — not every submodel of this generation.

Parts in this assembly

3 parts
1
HOSE KIT, RIGGING (NOT AVAILABLE)
06177-ZY3-U02No Longer Available
$232.86$318.98
2
17748-ZY3-U01Ships in 1 to 2 Days
$12.78$17.50
3
17749-ZY3-U01Ships in 1 to 2 Daysqty 3 used
$3.61$4.94
Diagram

SHIFT SHAFT (1)

BF250 BF250D shift shaft (1) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4F0200B
Fits only BF250D-LRA, BF250D-UCRA, BF250D-URA, BF250D-XCRA, BF250D-XRA — not every submodel of this generation.

Parts in this assembly

52 parts
1
17224-KN5-670Ships in 1 to 2 Days
$1.23$1.68
2
17877-ZVL-900Ships in 1 to 2 Days
$16.99$23.28
3
17878-ZVL-900Ships in 1 to 2 Days
$9.96$13.64
4
17931-ZY3-000Ships in 1 to 2 Days
$17.07$23.38
5
17932-ZVL-900Ships in 1 to 2 Days
$19.96$27.34
6
17936-921-000Ships in 1 to 2 Daysqty 3 used
$1.20$1.64
7
24210-ZW1-010Ships in 1 to 2 Days
$10.02$13.72
8
24221-ZY3-000Ships in 1 to 2 Days
$13.20$18.08
9
24327-ZW1-000In Stock
$1.69$2.32
10
24610-ZY3-A00Ships in 1 to 2 Days
$83.04$113.76
13
24617-ZY3-000Ships in 1 to 2 Daysqty 2 used
$4.07$5.58
14
24618-ZY3-000Ships in 1 to 2 Days
$5.90$8.08
15
24619-ZY3-000Ships in 1 to 2 Days
$5.56$7.62
16
24620-ZY3-000Ships in 1 to 2 Days
$86.18$118.06
17
24621-ZVL-000Ships in 1 to 2 Days
$5.08$6.96
18
24622-ZVL-000Ships in 1 to 2 Days
$4.79$6.56
20
24627-ZVL-900Ships in 1 to 2 Days
$91.22$124.96
21
24628-ZVL-900Ships in 1 to 2 Days
$115.19$157.80
22
24629-ZW1-000Ships in 1 to 2 Days
$21.39$29.30
23
35470-ZX2-013Ships in 1 to 2 Days
$43.01$58.92
23
35470-ZVL-911Ships in 1 to 2 Days
$24.56$33.64
24
35476-ZY3-010Ships in 1 to 2 Days
$22.54$30.88
25
35477-ZVL-000Ships in 1 to 2 Days
$3.02$4.14
26
90017-ZZ5-M01Ships in 1 to 2 Days
$1.24$1.70
27
90021-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$1.14$1.56
28
90101-ZX2-C00Ships in 1 to 2 Daysqty 3 used
$2.85$3.90
29
90101-ZZ0-M00Ships in 1 to 2 Daysqty 2 used
$1.66$2.34
29
90101-ZZ0-M01Ships in 1 to 2 Daysqty 2 used
$1.77$2.42
30
90114-881-000Ships in 1 to 2 Days
$3.26$4.46
31
90201-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.04$1.42
31
90205-ZY1-000Ships in 1 to 2 Daysqty 2 used
$4.76$6.52
32
90302-ZV5-003Ships in 1 to 2 Days
$5.27$7.22
33
90402-HA0-000Ships in 1 to 2 Days
$3.80$5.20
34
90428-958-000Ships in 1 to 2 Days
$4.70$6.44
35
90508-ZV7-000Ships in 1 to 2 Days
$6.60$9.04
36
90508-ZZ5-M01Ships in 1 to 2 Days
$2.00$2.74
38
90512-ZV4-000Ships in 1 to 2 Days
$3.04$4.16
40
90751-ZY3-000Ships in 1 to 2 Days
$12.18$16.68
41
91152-ZY3-003Ships in 1 to 2 Days
$12.03$16.48
42
91251-ZW5-003Ships in 1 to 2 Days
$3.85$5.28
43
91255-ZY3-003Ships in 1 to 2 Days
$7.24$9.92
44
91302-PF0-003Ships in 1 to 2 Days
$3.14$4.30
45
91541-S0A-003Ships in 1 to 2 Days
$3.64$4.98
46
94540-04029Ships in 1 to 2 Daysqty 3 used
$5.23$7.16
47
94540-12029In Stockqty 2 used
$8.02$10.98
48
24640-ZVL-900Ships in 1 to 2 Days
$63.63$87.16
49
24628-ZVL-910Ships in 1 to 2 Days
$82.37$112.84
50
24640-ZVL-910Ships in 1 to 2 Days
$83.86$114.88
51
90021-ZZ5-M01Ships in 1 to 2 Days
$1.14$1.56
52
90105-ZVL-910Ships in 1 to 2 Daysqty 2 used
$3.46$4.74
53
90105-ZW9-000Ships in 1 to 2 Daysqty 3 used
$2.88$3.94
54
91535-TA0-003Ships in 1 to 2 Days
$4.56$6.24
Diagram

SHIFT SHAFT (2)

BF250 BF250D shift shaft (2) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4F0201E
Fits only BF250D-LDA, BF250D-LDS, BF250D-UCDA, BF250D-UCDS, BF250D-UDA, BF250D-UDS, BF250D-XCDA, BF250D-XCDS, BF250D-XDA, BF250D-XDS — not every submodel of this generation.

Parts in this assembly

36 parts
1
17936-921-000Ships in 1 to 2 Daysqty 3 used
$1.20$1.64
2
24210-ZVL-000Ships in 1 to 2 Days
$8.03$11.00
3
24221-ZY3-000Ships in 1 to 2 Days
$13.20$18.08
4
24327-ZW1-000In Stock
$1.69$2.32
5
24610-ZY3-A00Ships in 1 to 2 Days
$83.04$113.76
8
24614-ZVL-000Ships in 1 to 2 Days
$3.47$4.76
9
24617-ZVL-010Ships in 1 to 2 Days
$39.29$53.82
10
24618-ZVL-000Ships in 1 to 2 Days
$4.89$6.70
11
24620-ZY3-000Ships in 1 to 2 Days
$86.18$118.06
12
24627-ZVL-010Ships in 1 to 2 Days
$80.80$110.68
13
24629-ZW1-000Ships in 1 to 2 Days
$21.39$29.30
14
35470-ZX2-013Ships in 1 to 2 Days
$43.01$58.92
15
35476-ZY3-010Ships in 1 to 2 Days
$22.54$30.88
16
35477-ZVL-000Ships in 1 to 2 Days
$3.02$4.14
17
90017-ZZ5-M01Ships in 1 to 2 Days
$1.24$1.70
18
90021-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.14$1.56
19
90026-ZY9-M01Ships in 1 to 2 Daysqty 2 used
$1.49$2.04
20
90101-ZZ0-M00Ships in 1 to 2 Daysqty 2 used
$1.66$2.34
20
90101-ZZ0-M01Ships in 1 to 2 Daysqty 2 used
$1.77$2.42
21
90205-ZY1-000Ships in 1 to 2 Daysqty 2 used
$4.76$6.52
22
90302-ZV5-003Ships in 1 to 2 Days
$5.27$7.22
23
90402-HA0-000Ships in 1 to 2 Days
$3.80$5.20
24
90428-958-000Ships in 1 to 2 Days
$4.70$6.44
25
90508-ZV7-000Ships in 1 to 2 Days
$6.60$9.04
26
90508-ZZ5-M00Ships in 1 to 2 Days
$2.00$2.74
26
90508-ZZ5-M01Ships in 1 to 2 Days
$2.00$2.74
28
90705-SD2-931Ships in 1 to 2 Days
$5.33$7.30
29
91152-ZY3-003Ships in 1 to 2 Days
$12.03$16.48
30
91251-ZW5-003Ships in 1 to 2 Days
$3.85$5.28
31
91255-ZY3-003Ships in 1 to 2 Days
$7.24$9.92
32
91302-PF0-003Ships in 1 to 2 Days
$3.14$4.30
33
91541-S0A-003Ships in 1 to 2 Days
$3.64$4.98
34
94540-12029In Stockqty 2 used
$8.02$10.98
35
24639-ZVL-000Ships in 1 to 2 Days
$2.80$3.84
36
24617-ZVL-010Ships in 1 to 2 Days
$39.29$53.82
38
24640-ZVL-000Ships in 1 to 2 Days
$49.30$67.54
Diagram

SMART UNIT

BF250 BF250D smart unit exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4Y0400
Fits only BF250D-LDA, BF250D-LDS, BF250D-UCDA, BF250D-UCDS, BF250D-UDA, BF250D-UDS, BF250D-XCDA, BF250D-XCDS, BF250D-XDA, BF250D-XDS — not every submodel of this generation.

Parts in this assembly

33 parts
1
06311-ZVL-050Ships in 1 to 2 Days
$1,477.67$2,024.20
2
06311-ZVL-804Ships in 1 to 2 Days
$1,761.07$2,412.42
2
06311-ZVL-805Ships in 1 to 2 Days
$1,413.97$1,936.94
3
30435-ZVL-000Ships in 1 to 2 Days
$53.23
4
32145-ZVL-000Ships in 1 to 2 Days
$115.56$158.30
5
32340-ZVL-601Ships in 1 to 2 Days
$65.71$90.02
6
32346-ZVL-601Ships in 1 to 2 Days
$27.26$37.34
7
32380-ZVL-601Ships in 1 to 2 Days
$243.31$333.30
8
32380-ZVL-611Ships in 1 to 2 Days
$243.31$333.30
9
32386-ZVL-601Ships in 1 to 2 Days
$27.14$37.18
10
32386-ZVL-611Ships in 1 to 2 Days
$27.14$37.18
11
32606-K44-V01Ships in 1 to 2 Days
$6.51$8.92
12
34346-ZVL-000Ships in 1 to 2 Days
$9.65$13.22
13
35100-ZVL-601Ships in 1 to 2 Daysqty 2 used
$94.16$128.98
14
35110-ZVL-601Ships in 1 to 2 Daysqty 2 used
$13.58$18.60
15
35111-ZVL-003Ships in 1 to 2 Daysqty 2 used
$96.68$132.44
16
35140-ZVL-003Ships in 1 to 2 Days
$757.23$1,037.30
17
36180-ZVL-003Ships in 1 to 2 Daysqty 2 used
$51.26$70.22
18
36182-ZY6-003Ships in 1 to 2 Daysqty 2 used
$17.53$24.02
19
38400-ZY9-A00Ships in 1 to 2 Days
$70.36$96.40
20
38402-GC1-000Ships in 1 to 2 Daysqty 2 used
$6.23$8.54
21
38402-ZY9-A00Ships in 1 to 2 Days
$21.59$29.58
22
38410-ZY9-A01Ships in 1 to 2 Daysqty 2 used
$43.30$59.32
23
38580-ZZ5-003Ships in 1 to 2 Days
$41.26$56.52
24
38586-ZZ5-003Ships in 1 to 2 Days
$3.61$4.94
25
72148-S84-A10Ships in 1 to 2 Daysqty 2 used
$3.50$4.80
26
90109-ZW5-000Ships in 1 to 2 Daysqty 12 used
$1.20$1.64
27
90301-ZZ5-M01Ships in 1 to 2 Daysqty 12 used
$0.91$1.24
28
90302-ZY6-003Ships in 1 to 2 Daysqty 2 used
$2.69$3.68
29
90501-ZZ5-M01Ships in 1 to 2 Daysqty 12 used
$1.59$2.18
30
90502-ZZ5-M01Ships in 1 to 2 Daysqty 12 used
$1.49$2.04
31
91535-TA0-003Ships in 1 to 2 Days
$4.56$6.24
32
91541-S0A-003Ships in 1 to 2 Days
$3.64$4.98
Diagram

SMART UNIT

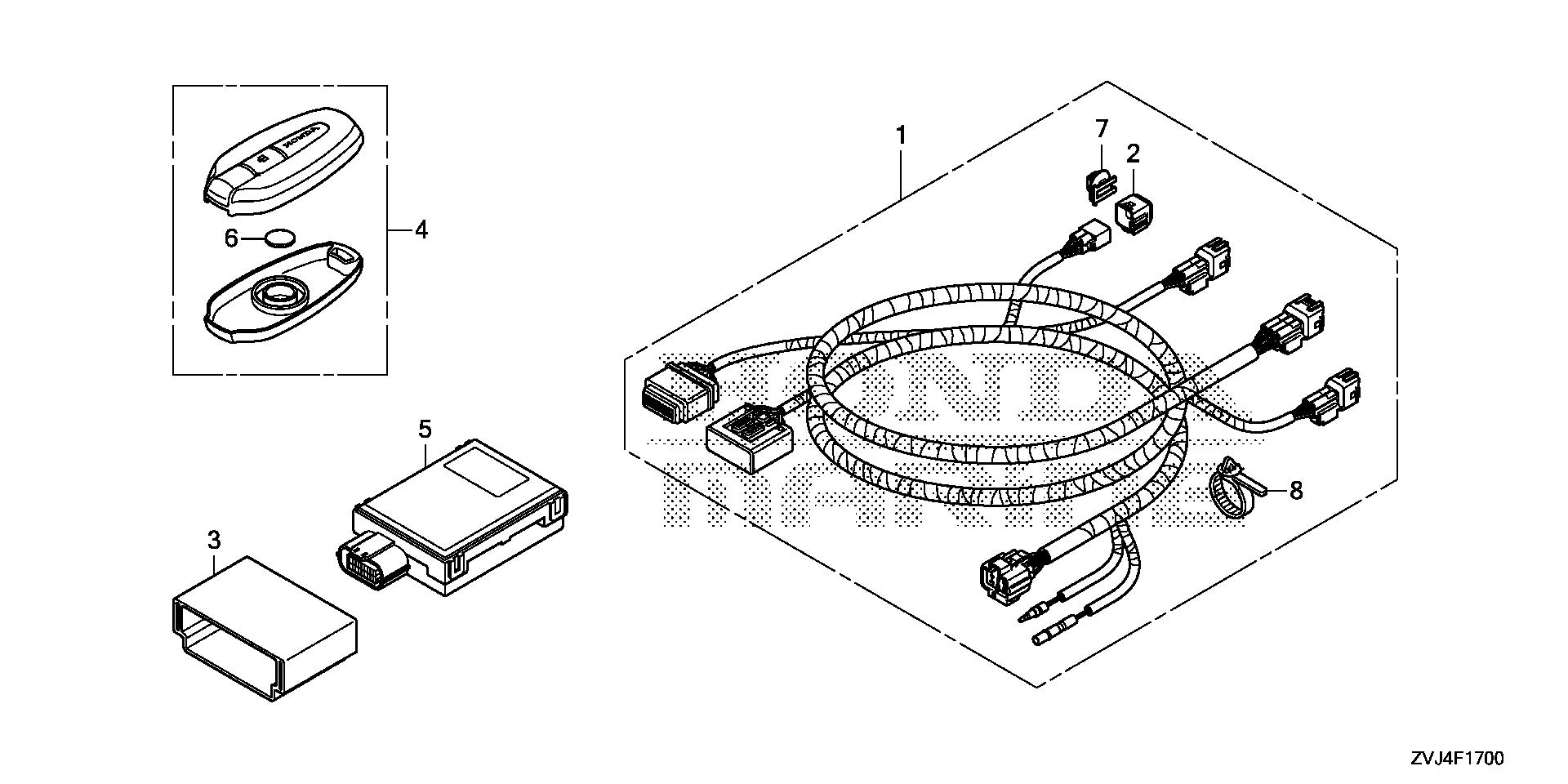

BF250 BF250D smart unit exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4F1700
Fits only BF250D-LDS — not every submodel of this generation.

Parts in this assembly

10 parts
1
32145-ZVL-000Ships in 1 to 2 Days
$115.56$158.30
2
32606-K44-V01Ships in 1 to 2 Days
$6.51$8.92
3
34346-ZVL-000Ships in 1 to 2 Days
$9.65$13.22
4
35111-ZVL-003Ships in 1 to 2 Daysqty 2 used
$96.68$132.44
4
35112-ZVL-601Ships in 1 to 2 Days
$133.01$182.22
5
35140-ZVL-003Ships in 1 to 2 Days
$757.23$1,037.30
5
35141-ZVL-601Ships in 1 to 2 Days
$1,104.72$1,513.32
6
72148-S84-A10Ships in 1 to 2 Daysqty 3 used
$3.50$4.80
7
91535-TA0-003Ships in 1 to 2 Days
$4.56$6.24
8
91541-S0A-003Ships in 1 to 2 Days
$3.64$4.98
Diagram

SPARK PLUG

BF250 BF250D spark plug exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4E2000B
Fits all 15 submodels of this generation.

Parts in this assembly

15 parts
1
30520-ZVL-003Ships in 1 to 2 Daysqty 6 used
$92.51$126.72
1
30520-58G-013Ships in 1 to 2 Daysqty 6 used
$115.56
2
30525-ZVL-000Ships in 1 to 2 Daysqty 6 used
$4.23$5.80
3
31916-ZX2-003Ships in 1 to 2 Days
$7.75$10.62
3
9807B-5617CShips in 1 to 2 Daysqty 6 used
$17.87
3
31916-ZVP-003Ships in 1 to 2 Daysqty 6 used
$18.37$25.16
3
31917-ZVP-003Ships in 1 to 2 Daysqty 6 used
$25.43$34.84
4
38553-ZY9-003Ships in 1 to 2 Daysqty 6 used
$4.23$5.80
5
90015-ZVL-010Ships in 1 to 2 Daysqty 6 used
$2.47$3.38
6
90018-ZZ5-M01Ships in 1 to 2 Daysqty 6 used
$1.37$1.88
7
91503-ZY9-M00Ships in 1 to 2 Daysqty 6 used
$2.23$3.06
7
91551-ZVL-010Ships in 1 to 2 Daysqty 6 used
$2.23$3.06
8
30531-ZVL-000Ships in 1 to 2 Days
$23.99$32.86
9
30536-ZVL-000Ships in 1 to 2 Days
$23.99$32.86
10
90018-ZZ5-M01Ships in 1 to 2 Daysqty 6 used
$1.37$1.88
Diagram

STARTER CABLE (1)

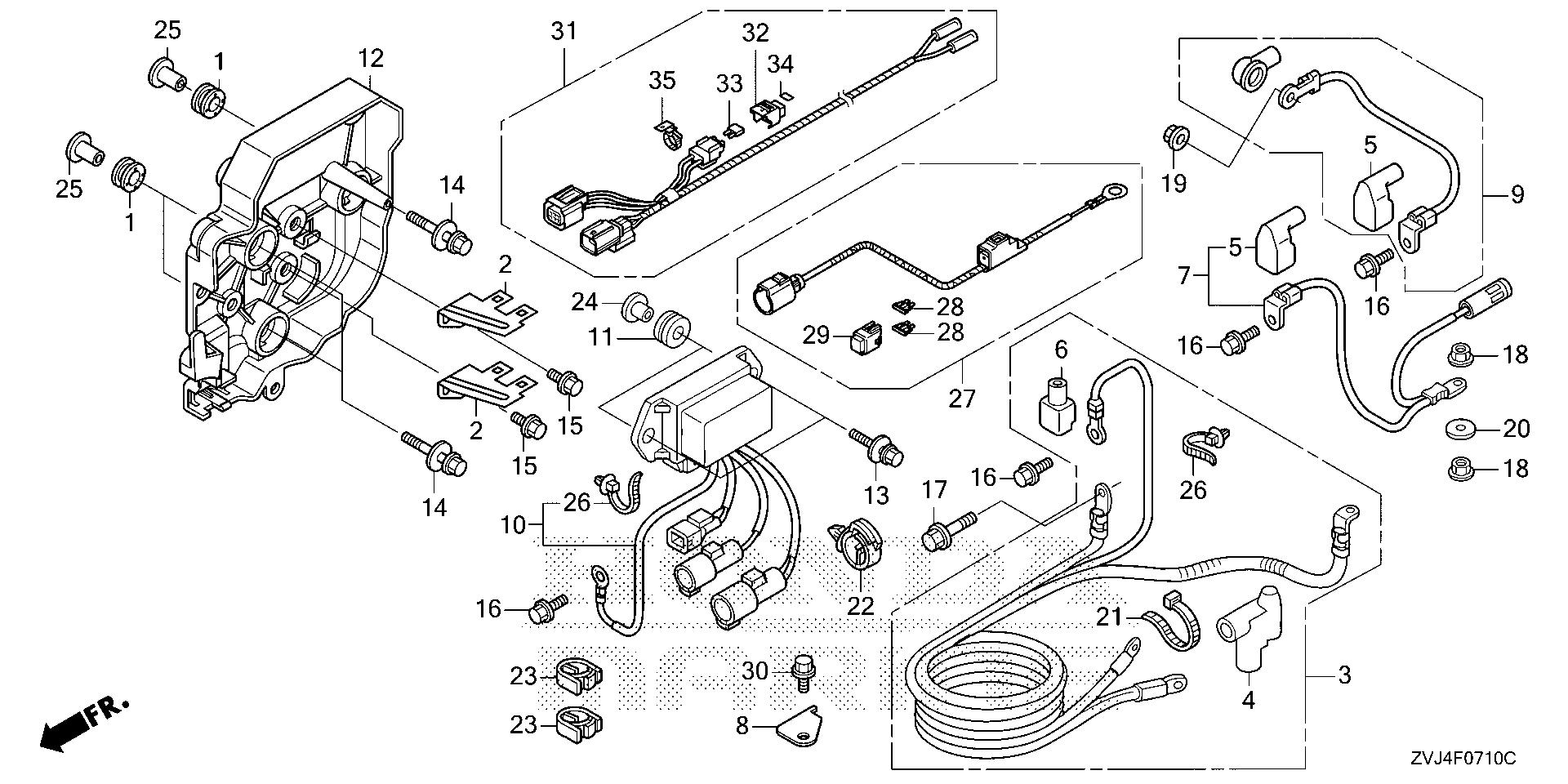

BF250 BF250D starter cable (1) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4F0710C
Fits all 15 submodels of this generation.

Parts in this assembly

37 parts
1
30419-ZY9-003Ships in 1 to 2 Daysqty 3 used
$4.26$5.84
2
32103-ZVL-000Ships in 1 to 2 Daysqty 2 used
$4.72$6.46
3
32410-ZVL-010Ships in 1 to 2 Days
$413.57$566.58
4
32411-ZY3-003Ships in 1 to 2 Days
$13.29$18.20
5
32414-ZX2-300Ships in 1 to 2 Daysqty 2 used
$4.45$6.10
6
32414-ZY6-640Ships in 1 to 2 Days
$3.87$5.30
7
32415-ZX2-000Ships in 1 to 2 Days
$28.84$39.50
8
32421-ZVL-000Ships in 1 to 2 Days
$5.21$7.14
9
32435-ZX2-000Ships in 1 to 2 Days
$21.72$29.76
10
38550-ZVL-003Ships in 1 to 2 Days
$217.91$298.50
11
38551-ZW1-000In Stockqty 2 used
$6.58$9.02
12
38552-ZX2-000Ships in 1 to 2 Days
$35.51$48.64
13
90013-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$2.45$3.36
14
90015-ZVL-010Ships in 1 to 2 Daysqty 3 used
$2.47$3.38
15
90103-ZZ0-M00Ships in 1 to 2 Daysqty 2 used
$1.20$1.68
15
90103-ZZ0-M01Ships in 1 to 2 Daysqty 2 used
$1.31$1.80
16
90105-ZZ5-M00Ships in 1 to 2 Daysqty 4 used
$1.10$1.50
17
90107-ZY3-000Ships in 1 to 2 Days
$0.60$0.82
18
90203-ZW1-000Ships in 1 to 2 Daysqty 2 used
$2.31$3.16
19
90304-ZY3-000Ships in 1 to 2 Days
$0.89$1.22
20
90405-ZY3-000Ships in 1 to 2 Days
$0.66$0.90
21
90651-KV6-003Ships in 1 to 2 Days
$4.12$5.64
22
90681-763-A01Ships in 1 to 2 Days
$8.06$11.04
23
90683-ZX2-003Ships in 1 to 2 Daysqty 2 used
$5.80$7.94
24
91501-ZZ5-010Ships in 1 to 2 Daysqty 2 used
$4.31$5.90
25
91503-ZY9-M00Ships in 1 to 2 Daysqty 3 used
$2.23$3.06
25
91551-ZVL-010Ships in 1 to 2 Daysqty 3 used
$2.23$3.06
26
91541-S0A-003Ships in 1 to 2 Daysqty 3 used
$3.64$4.98
27
31575-ZVL-010Ships in 1 to 2 Days
$29.78$40.80
28
32501-KSV-J00Ships in 1 to 2 Daysqty 2 used
$1.12$1.54
29
38216-ZZ3-003Ships in 1 to 2 Days
$5.42$7.42
30
90102-ZW9-000Ships in 1 to 2 Days
$2.12$2.90
31
32531-ZVL-000Ships in 1 to 2 Days
$30.82$42.22
32
38216-Z2E-003Ships in 1 to 2 Days
$5.85$8.02
33
38221-GJE-J01Ships in 1 to 2 Days
$3.45$4.72
34
87116-ZVL-000Ships in 1 to 2 Days
$1.37$1.88
35
91531-SR3-003Ships in 1 to 2 Days
$7.75$10.62
Diagram

STARTER MOTOR

BF250 BF250D starter motor exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4E2100
Fits all 15 submodels of this generation.

Parts in this assembly

39 parts
1
31200-ZY3-003Ships in 1 to 2 Daysreplaced by 31200-ZVL-B11
$727.51
1
31200-ZVL-B11Ships in 1 to 2 Days
$727.51
2
31201-P5A-005Ships in 1 to 2 Days
$610.13$835.92
2
31217-ZVL-B11Ships in 1 to 2 Days
$193.03
3
31207-ZY9-H01Ships in 1 to 2 Days
$203.29$278.52
4
31215-PY3-004Ships in 1 to 2 Daysqty 3 used
$46.68$63.94
4
31215-RAA-A01Ships in 1 to 2 Daysqty 3 used
$44.56$61.04
5
31216-ZY3-003Ships in 1 to 2 Days
$191.10
5
31216-ZVL-B11Ships in 1 to 2 Days
$133.60
6
31218-PY3-004Ships in 1 to 2 Days
$3.20$4.38
7
31226-ZY3-003Ships in 1 to 2 Days
$54.08$74.08
8
31226-ZY9-H01Ships in 1 to 2 Daysqty 2 used
$2.18$2.98
9
31229-ZY9-H01Ships in 1 to 2 Days
$15.04$20.60
10
31232-ZY3-003Ships in 1 to 2 Days
$64.82$88.80
10
31232-ZVL-B11Ships in 1 to 2 Days
$43.65$59.80
11
31235-ZY3-003Ships in 1 to 2 Days
$141.43$193.74
11
31235-ZVL-B11Ships in 1 to 2 Days
$83.45$114.32
12
31236-ZY3-003Ships in 1 to 2 Days
$35.00$47.94
12
31236-ZVL-B11Ships in 1 to 2 Days
$20.10$27.54
13
31241-ZY3-003Ships in 1 to 2 Days
$235.21$322.20
13
31240-ZVL-B11Ships in 1 to 2 Days
$163.46$223.92
14
31243-P5A-005Ships in 1 to 2 Daysqty 2 used
$10.16$13.92
14
31261-ZVL-B11Ships in 1 to 2 Daysqty 2 used
$2.80$3.84
15
31243-ZY3-003Ships in 1 to 2 Days
$388.11$531.66
15
31242-ZVL-B11Ships in 1 to 2 Days
$254.68$348.88
16
31246-ZY9-H01Ships in 1 to 2 Days
$141.01$193.16
16
31246-ZVL-B11Ships in 1 to 2 Days
$87.63$120.04
17
31250-ZY3-003Ships in 1 to 2 Days
$12.03$16.48
17
31250-ZVL-B11Ships in 1 to 2 Days
$6.80$9.32
18
31251-ZY3-003Ships in 1 to 2 Days
$44.95$61.58
18
31251-ZVL-B11Ships in 1 to 2 Days
$30.32$41.54
19
90003-ZVL-000Ships in 1 to 2 Days
$4.73$6.68
19
90003-ZVL-010Ships in 1 to 2 Days
$5.23$7.16
20
90005-ZVL-000Ships in 1 to 2 Days
$2.96$4.18
20
90005-ZVL-010Ships in 1 to 2 Days
$3.40$4.66
20
90018-ZVL-B10Ships in 1 to 2 Days
$7.18$9.84
21
90107-ZW1-004Ships in 1 to 2 Daysqty 2 used
$2.44$3.34
22
91303-ZY3-000Ships in 1 to 2 Days
$7.37$10.10
22
91303-ZVT-000Ships in 1 to 2 Days
$5.52$7.56
Diagram

STERN BRACKET - SWIVEL CASE (1)

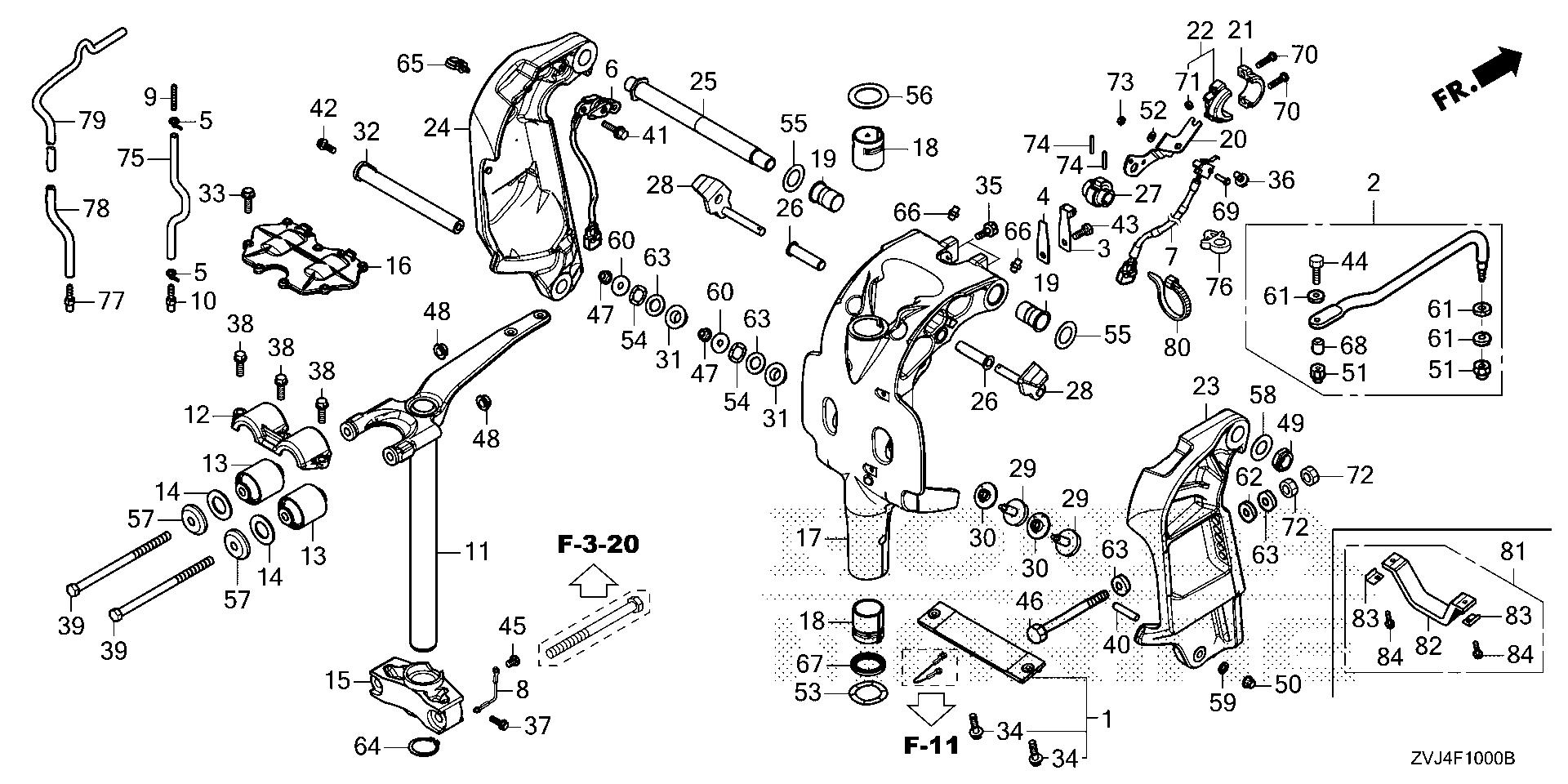

BF250 BF250D stern bracket - swivel case (1) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4F1000B
Fits all 15 submodels of this generation.

Parts in this assembly

95 parts
1
06411-ZW1-020Ships in 1 to 2 Days
$51.97
2
06532-ZY3-U00Ships in 1 to 2 Days
$79.38$108.74
3
24210-ZV1-010Ships in 1 to 2 Days
$10.25$14.04
4
24221-ZV4-010Ships in 1 to 2 Days
$7.30$10.00
5
32161-KM3-003Ships in 1 to 2 Daysqty 2 used
$3.34$4.58
6
35660-ZY3-003Ships in 1 to 2 Days
$174.13$238.54
7
35745-ZZ3-743Ships in 1 to 2 Days
$36.54$50.06
8
40219-ZY3-023Ships in 1 to 2 Days
$9.05$12.40
9
41171-ZV5-000Ships in 1 to 2 Days
$6.04$8.28
10
41172-ZV5-000Ships in 1 to 2 Days
$7.65$10.48
11
50100-ZVL-000Ships in 1 to 2 Days
$882.79$1,209.30
11
50100-ZVL-010Ships in 1 to 2 Days
$790.25$1,082.54
11
50100-ZVL-900Ships in 1 to 2 Days
$778.52$1,066.46
11
50100-ZVL-901Ships in 1 to 2 Days
$696.83$954.56
12
50109-ZVL-000Ships in 1 to 2 Days
$52.34
13
50151-ZY3-000Ships in 1 to 2 Daysqty 2 used
$65.55$89.82
14
50153-ZY3-000Ships in 1 to 2 Daysqty 2 used
$6.06$8.30
15
50161-ZY3-610Ships in 1 to 2 Days
$113.57
15
$116.27$159.28
15
$113.08$154.90
16
50166-ZVL-010Ships in 1 to 2 Days
$53.36$73.10
17
50201-ZVL-000ZBShips in 1 to 2 Days
$1,151.17
17
$1,151.17
17
50201-ZVL-900ZBShips in 1 to 2 Days
$1,022.82
17
$1,022.82
18
50211-ZY3-000Ships in 1 to 2 Daysqty 2 used
$9.93
19
50214-ZY3-000Ships in 1 to 2 Daysqty 2 used
$10.51$14.40
20
50222-ZVL-000Ships in 1 to 2 Days
$11.07$15.16
21
50223-ZZ3-000Ships in 1 to 2 Days
$6.79$9.30
22
50224-ZZ3-000Ships in 1 to 2 Days
$9.30$12.74
23
$362.01$495.90
23
50301-ZY3-030ZDShips in 1 to 2 Days
$367.95$504.04
24
50311-ZVL-000ZBShips in 1 to 2 Days
$350.71$480.42
24
$368.27$504.48
25
50381-ZVL-000Ships in 1 to 2 Days
$82.37$116.22
25
50381-ZVL-020Ships in 1 to 2 Days
$76.91$105.36
26
50522-ZY3-000Ships in 1 to 2 Daysqty 2 used
$8.02$10.98
27
50527-ZY3-000Ships in 1 to 2 Days
$10.37$14.20
28
50529-ZVL-000Ships in 1 to 2 Daysqty 2 used
$71.34$97.72
29
56516-ZY3-A00Ships in 1 to 2 Daysqty 2 used
$14.83$20.32
30
56518-ZY3-A00Ships in 1 to 2 Daysqty 2 used
$11.97$16.40
31
56519-ZY3-A00Ships in 1 to 2 Daysqty 2 used
$5.90$8.08
32
56539-ZVL-000Ships in 1 to 2 Days
$80.21$109.88
33
90005-ZW9-030Ships in 1 to 2 Daysqty 7 used
$1.85$2.54
34
90009-ZW9-000Ships in 1 to 2 Daysqty 2 used
$2.88$3.94
35
90102-ZW1-000Ships in 1 to 2 Daysqty 2 used
$7.02$9.62
36
90102-ZW9-000Ships in 1 to 2 Days
$2.12$2.90
37
90103-ZW9-010Ships in 1 to 2 Days
$2.04$2.80
38
90103-ZY6-000In Stockqty 3 used
$3.11$4.26
39
90104-ZY3-010Ships in 1 to 2 Daysqty 2 used
$42.15$57.74
40
90105-ZVL-000Ships in 1 to 2 Days
$4.96$6.80
41
90105-ZW9-000Ships in 1 to 2 Daysqty 2 used
$2.88$3.94
42
90106-ZY3-A00Ships in 1 to 2 Days
$1.04$1.42
43
90110-881-000Ships in 1 to 2 Days
$2.12$2.90
44
90117-ZY3-000Ships in 1 to 2 Days
$3.80$5.20
45
90119-ZV5-000Ships in 1 to 2 Days
$1.65$2.26
46
90129-ZX2-000Ships in 1 to 2 Daysqty 6 used
$16.13$22.10
47
90205-ZY1-000Ships in 1 to 2 Daysqty 2 used
$4.76$6.52
48
90302-ZW5-003Ships in 1 to 2 Daysqty 2 used
$6.15$8.42
49
90304-ZV5-013Ships in 1 to 2 Days
$17.70$24.24
50
90306-ZW4-003Ships in 1 to 2 Days
$4.34$5.94
51
90307-ZV5-003Ships in 1 to 2 Daysqty 2 used
$6.47$8.86
52
90401-ZW4-000Ships in 1 to 2 Days
$1.24$1.70
53
90501-ZV5-000Ships in 1 to 2 Days
$7.30$10.00
54
90501-ZY3-A00Ships in 1 to 2 Daysqty 2 used
$3.78$5.18
55
90502-ZV5-000Ships in 1 to 2 Daysqty 2 used
$8.72$11.94
56
90504-ZV5-000Ships in 1 to 2 Days
$7.30$10.00
57
90504-ZX2-C00Ships in 1 to 2 Daysqty 2 used
$18.76$25.70
58
90509-ZY3-000Ships in 1 to 2 Days
$1.18$1.62
59
90511-921-000Ships in 1 to 2 Days
$0.86$1.18
60
90512-ZV4-000Ships in 1 to 2 Daysqty 2 used
$3.04$4.16
61
90514-ZV4-000Ships in 1 to 2 Daysqty 3 used
$1.69$2.32
62
90552-ZV5-000Ships in 1 to 2 Daysqty 6 used
$4.67$6.40
63
90559-ZV5-000Ships in 1 to 2 Daysqty 14 used
$2.95$4.04
64
90651-ZV5-000Ships in 1 to 2 Days
$7.85$10.76
65
90681-763-A01Ships in 1 to 2 Days
$8.06$11.04
66
90951-ZV7-010Ships in 1 to 2 Daysqty 6 used
$1.90$2.60
67
91256-ZV5-003Ships in 1 to 2 Days
$7.80$10.68
68
91560-ZY3-000Ships in 1 to 2 Days
$3.42$4.68
69
93500-04014-4JShips in 1 to 2 Days
$0.93$1.28
70
93500-05020-4JShips in 1 to 2 Daysqty 2 used
$0.86$1.18
71
94001-05490-0SShips in 1 to 2 Daysqty 2 used
$0.92$1.26
72
94001-12490-0SShips in 1 to 2 Daysqty 12 used
$1.90$2.60
73
94002-04490-0SShips in 1 to 2 Days
$1.02$1.40
74
94305-30203Ships in 1 to 2 Daysqty 2 used
$1.18$1.62
75
95005-50003-30MNo Longer Available
$26.56$36.38
76
16731-747-003Ships in 1 to 2 Days
$2.70$3.70
77
41172-ZV5-000Ships in 1 to 2 Days
$7.65$10.48
78
95005-50003-30MNo Longer Available
$26.56$36.38
79
95005-50003-30MNo Longer Available
$26.56$36.38
80
35701-MG9-950Ships in 1 to 2 Days
$1.83$2.50
81
06411-ZVP-000Ships in 1 to 2 Days
$33.76
82
50116-ZVP-000Ships in 1 to 2 Days
$51.22$70.16
83
50117-ZVP-000Ships in 1 to 2 Daysqty 2 used
$3.49$4.78
84
90214-HW1-671Ships in 1 to 2 Daysqty 2 used
$3.08$4.22
Diagram

SWITCH PANEL (FUNCTION)

BF250 BF250D switch panel (function) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4F1402
Fits only BF250D-LDS — not every submodel of this generation.

Parts in this assembly

3 parts
1
32351-ZVL-003Ships in 1 to 2 Days
$196.55$269.24
2
32354-ZVL-003Ships in 1 to 2 Days
$45.52$62.36
3
32357-ZVL-003Ships in 1 to 2 Days
$33.97$46.54
Diagram

SWITCH PANEL (KEY)

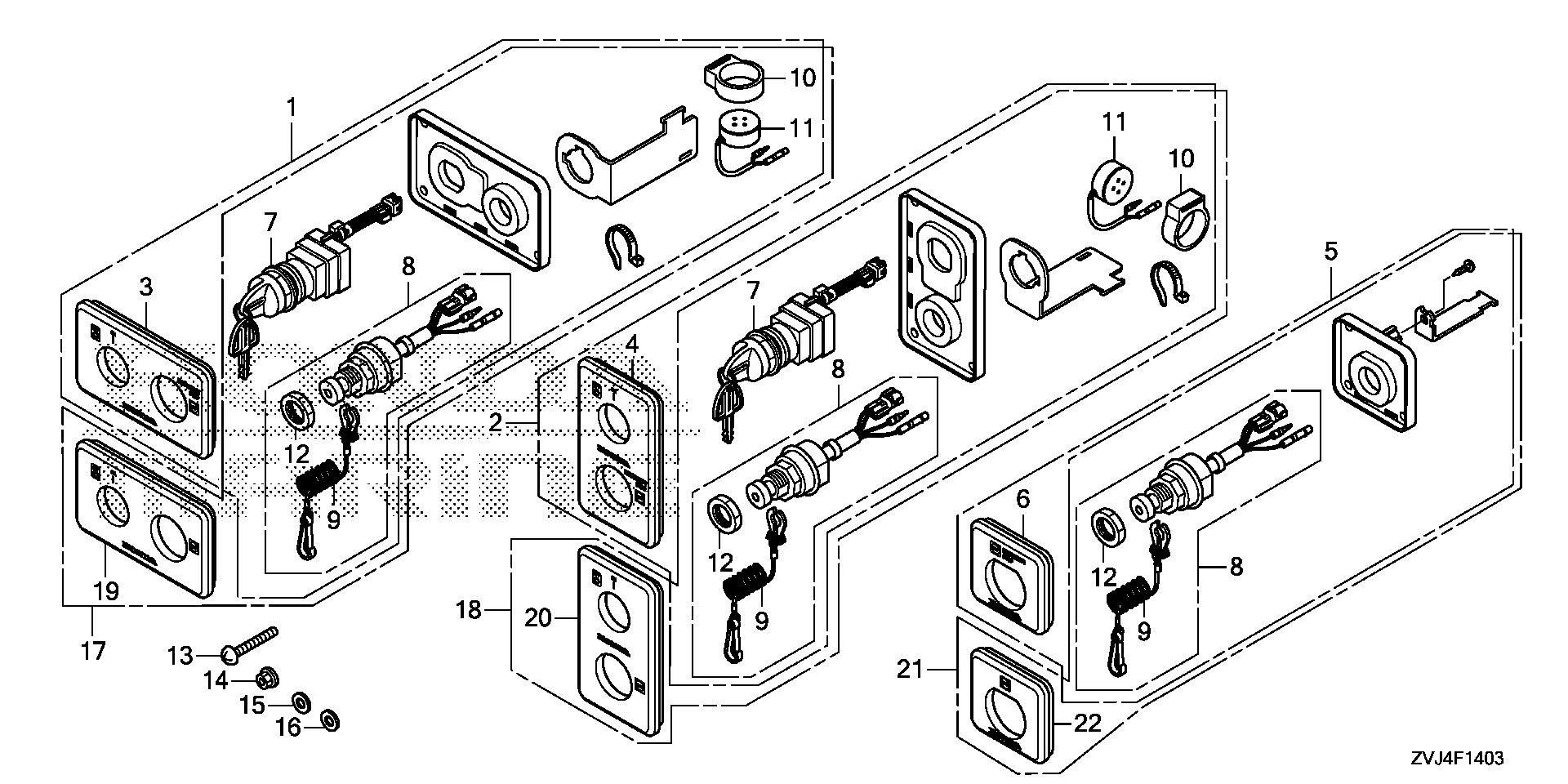

BF250 BF250D switch panel (key) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4F1403
Fits only BF250D-UCDS, BF250D-UDS, BF250D-XCDS, BF250D-XDS — not every submodel of this generation.

Parts in this assembly

31 parts
1
32380-ZVL-003Ships in 1 to 2 Days
$253.75$347.60
1
32380-ZVL-701Ships in 1 to 2 Days
$242.80$332.60
2
32380-ZVL-711Ships in 1 to 2 Days
$242.80$332.60
2
32380-ZVL-802Ships in 1 to 2 Days
$246.39$337.52
3
32386-ZVL-003Ships in 1 to 2 Days
$28.37$38.86
3
32386-ZVL-701Ships in 1 to 2 Days
$28.37$38.86
4
32386-ZVL-711Ships in 1 to 2 Days
$27.14$37.18
4
32386-ZVL-801Ships in 1 to 2 Days
$27.14$37.18
5
32390-ZVL-003Ships in 1 to 2 Days
$106.99$146.56
6
32396-ZVL-003Ships in 1 to 2 Days
$27.97$38.32
7
35100-ZVL-013Ships in 1 to 2 Daysqty 2 used
$78.12$107.02
7
35100-ZVL-702Ships in 1 to 2 Daysqty 2 used
$78.12$107.02
8
36180-ZVL-003Ships in 1 to 2 Daysqty 3 used
$51.26$70.22
9
36182-ZY6-003Ships in 1 to 2 Daysqty 3 used
$17.53$24.02
10
38402-GC1-000Ships in 1 to 2 Daysqty 2 used
$6.23$8.54
11
38410-ZY9-A01Ships in 1 to 2 Daysqty 2 used
$43.30$59.32
12
90302-ZY6-003Ships in 1 to 2 Daysqty 3 used
$2.69$3.68
13
90109-ZW5-000Ships in 1 to 2 Daysqty 4 used
$1.20$1.64
14
90301-ZZ5-M00Ships in 1 to 2 Daysqty 4 used
$0.98$1.38
15
90501-ZZ5-M00Ships in 1 to 2 Daysqty 4 used
$1.72$2.44
16
90502-ZZ5-M00Ships in 1 to 2 Daysqty 4 used
$1.66$2.34
17
32380-ZVL-721Ships in 1 to 2 Days
$242.80$332.60
17
32380-ZVL-811Ships in 1 to 2 Days
$242.80$332.60
18
32380-ZVL-731Ships in 1 to 2 Days
$242.80$332.60
18
32380-ZVL-821Ships in 1 to 2 Days
$242.80$332.60
19
32386-ZVL-721Ships in 1 to 2 Days
$27.14$37.18
19
32386-ZVL-811Ships in 1 to 2 Days
$27.14$37.18
20
32386-ZVL-731Ships in 1 to 2 Days
$27.14$37.18
20
32386-ZVL-821Ships in 1 to 2 Days
$27.14$37.18
21
32390-ZVL-801Ships in 1 to 2 Days
$102.39$140.26
22
32396-ZVL-801Ships in 1 to 2 Days
$27.97$38.32
Diagram

SWITCH PANEL (POWER TILT)

BF250 BF250D switch panel (power tilt) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4F1400
Fits only BF250D-UCDS, BF250D-UDS, BF250D-XCDS — not every submodel of this generation.

Parts in this assembly

5 parts
1
32320-ZVL-003Ships in 1 to 2 Daysqty 2 used
$150.88$206.68
2
32320-ZVL-601Ships in 1 to 2 Days
$208.49$285.60
3
32326-ZVL-003Ships in 1 to 2 Daysqty 2 used
$57.85$79.24
4
32326-ZVL-601Ships in 1 to 2 Days
$55.35$75.82
5
35640-ZVL-003Ships in 1 to 2 Daysqty 4 used
$45.25$61.98
Diagram

SWITCH PANEL (SMART)

BF250 BF250D switch panel (smart) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4F1404
Fits only BF250D-LDS — not every submodel of this generation.

Parts in this assembly

19 parts
1
32380-ZVL-601Ships in 1 to 2 Days
$243.31$333.30
2
32380-ZVL-611Ships in 1 to 2 Days
$243.31$333.30
3
32386-ZVL-601Ships in 1 to 2 Days
$27.14$37.18
4
32386-ZVL-611Ships in 1 to 2 Days
$27.14$37.18
5
35100-ZVL-601Ships in 1 to 2 Daysqty 2 used
$94.16$128.98
6
35110-ZVL-601Ships in 1 to 2 Daysqty 2 used
$13.58$18.60
7
36180-ZVL-003Ships in 1 to 2 Daysqty 2 used
$51.26$70.22
8
36182-ZY6-003Ships in 1 to 2 Daysqty 2 used
$17.53$24.02
9
38402-GC1-000Ships in 1 to 2 Daysqty 2 used
$6.23$8.54
10
38410-ZY9-A01Ships in 1 to 2 Daysqty 2 used
$43.30$59.32
11
90302-ZY6-003Ships in 1 to 2 Daysqty 2 used
$2.69$3.68
12
90109-ZW5-000Ships in 1 to 2 Daysqty 4 used
$1.20$1.64
13
90301-ZZ5-M00Ships in 1 to 2 Daysqty 4 used
$0.98$1.38
14
90501-ZZ5-M00Ships in 1 to 2 Daysqty 4 used
$1.72$2.44
15
90502-ZZ5-M00Ships in 1 to 2 Daysqty 4 used
$1.66$2.34
16
32380-ZVL-621Ships in 1 to 2 Days
$243.31$333.30
17
32380-ZVL-631Ships in 1 to 2 Days
$243.31$333.30
18
32386-ZVL-621Ships in 1 to 2 Days
$27.14$37.18
19
32386-ZVL-631Ships in 1 to 2 Days
$27.14$37.18
Diagram

SWITCH PANEL (START STOP)

BF250 BF250D switch panel (start stop) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4F1401
Fits only BF250D-LDS, BF250D-UCDS, BF250D-UDS, BF250D-XCDS — not every submodel of this generation.

Parts in this assembly

8 parts
1
32340-ZVL-003Ships in 1 to 2 Days
$65.71$90.02
1
32340-ZVL-601Ships in 1 to 2 Days
$65.71$90.02
2
32340-ZVL-701Ships in 1 to 2 Daysqty 2 used
$147.87$202.56
3
32340-ZVL-801Ships in 1 to 2 Days
$230.04$315.12
4
32344-ZVL-701Ships in 1 to 2 Daysqty 2 used
$43.45$59.52
5
32344-ZVL-801Ships in 1 to 2 Days
$55.51$76.04
6
32346-ZVL-003Ships in 1 to 2 Days
$27.52$37.70
6
32346-ZVL-601Ships in 1 to 2 Days
$27.26$37.34
Diagram

SWITCH PANEL KIT (FUNCTION)

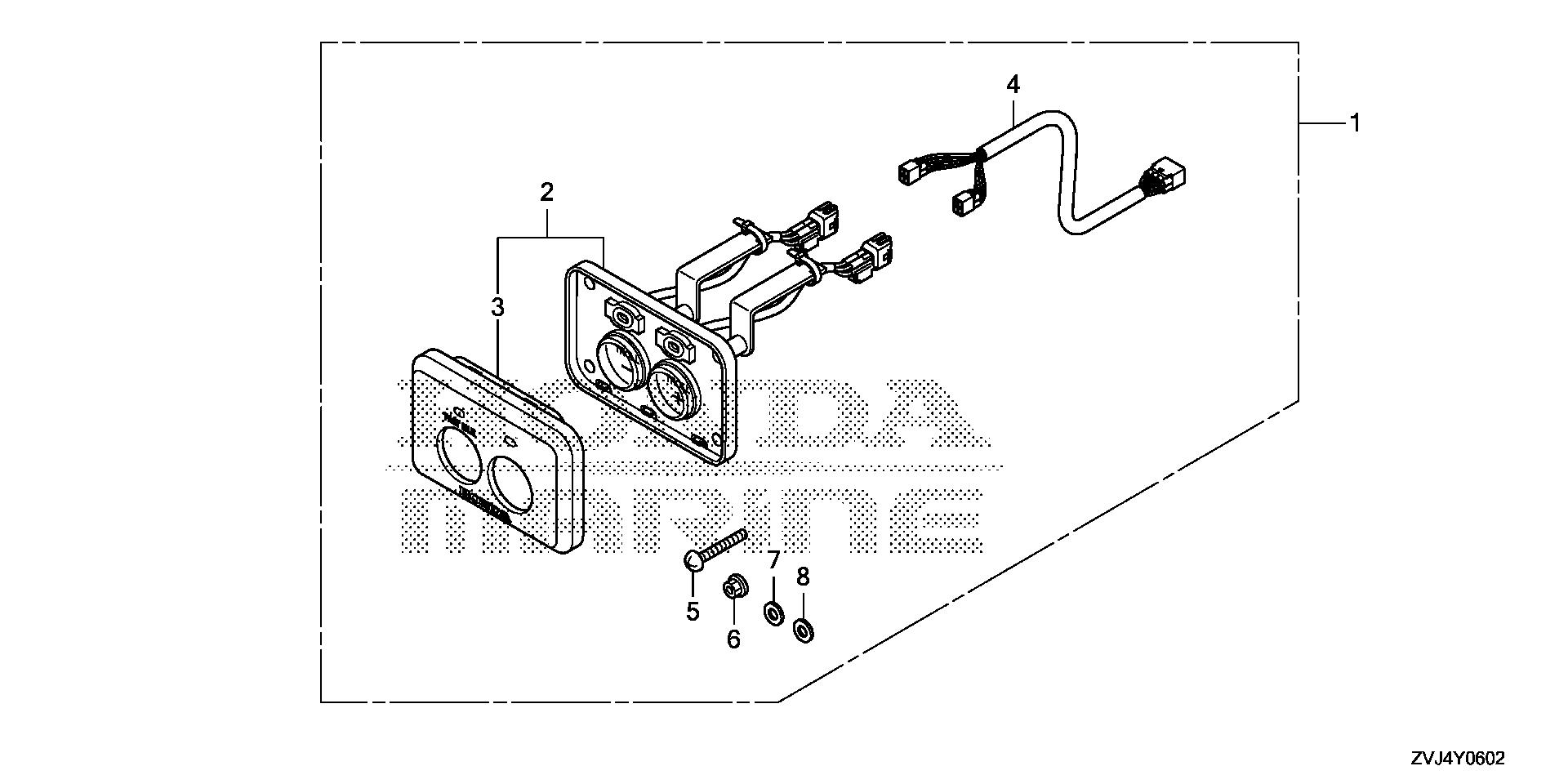

BF250 BF250D switch panel kit (function) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4Y0602
Fits only BF250D-LDA, BF250D-LDS, BF250D-UCDA, BF250D-UCDS, BF250D-UDA, BF250D-UDS, BF250D-XCDA, BF250D-XCDS, BF250D-XDA, BF250D-XDS — not every submodel of this generation.

Parts in this assembly

8 parts
1
06326-ZVL-010Ships in 1 to 2 Days
$211.55$289.80
2
32351-ZVL-003Ships in 1 to 2 Days
$196.55$269.24
3
32354-ZVL-003Ships in 1 to 2 Days
$45.52$62.36
4
32357-ZVL-003Ships in 1 to 2 Days
$33.97$46.54
5
90109-ZW5-000Ships in 1 to 2 Daysqty 4 used
$1.20$1.64
6
90301-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$0.91$1.24
7
90501-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$1.59$2.18
8
90502-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$1.49$2.04
Diagram

SWITCH PANEL KIT (1) (MECH)

BF250 BF250D switch panel kit (1) (mech) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4Y0500
Fits only BF250D-LRA, BF250D-UCRA, BF250D-URA, BF250D-XCRA, BF250D-XRA — not every submodel of this generation.

Parts in this assembly

20 parts
1
06323-ZY6-020Ships in 1 to 2 Days
$164.78$225.72
1
06323-ZY6-642Ships in 1 to 2 Days
$146.64$200.88
2
32346-ZY6-003Ships in 1 to 2 Days
$28.69$39.30
2
32346-ZY6-641Ships in 1 to 2 Days
$26.95$36.92
3
32545-ZY6-003Ships in 1 to 2 Days
$83.10$113.84
4
32606-ZY6-000Ships in 1 to 2 Days
$6.69$9.16
5
32823-ZV5-003Ships in 1 to 2 Daysqty 9 used
$2.95$4.04
6
32824-ZV5-003Ships in 1 to 2 Daysqty 7 used
$3.11$4.26
7
35100-ZY6-013Ships in 1 to 2 Days
$82.90$113.56
8
36180-ZY6-003Ships in 1 to 2 Days
$50.08$68.60
9
36182-ZY6-003Ships in 1 to 2 Days
$17.53$24.02
10
36187-ZY6-003Ships in 1 to 2 Days
$4.22$5.78
11
38402-GC1-000Ships in 1 to 2 Days
$6.23$8.54
12
38410-ZY9-A01Ships in 1 to 2 Days
$43.30$59.32
13
38414-ZY6-003Ships in 1 to 2 Days
$14.76$20.22
14
90109-ZW5-000Ships in 1 to 2 Daysqty 4 used
$1.20$1.64
15
90301-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$0.91$1.24
16
90302-ZY6-003Ships in 1 to 2 Days
$2.69$3.68
17
90501-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$1.59$2.18
18
90502-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$1.49$2.04
Diagram

SWITCH PANEL KIT (2) (MECH)

BF250 BF250D switch panel kit (2) (mech) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4Y0501
Fits only BF250D-LRA, BF250D-UCRA, BF250D-URA, BF250D-XCRA, BF250D-XRA — not every submodel of this generation.

Parts in this assembly

20 parts
1
06323-ZY6-712Ships in 1 to 2 Days
$469.00$642.46
1
06323-ZY6-752Ships in 1 to 2 Days
$413.59$566.56
2
32346-ZY6-711Ships in 1 to 2 Days
$64.81$88.78
2
32346-ZY6-751Ships in 1 to 2 Days
$60.98$83.54
3
32545-ZY6-003Ships in 1 to 2 Daysqty 2 used
$83.10$113.84
4
32606-ZY6-000Ships in 1 to 2 Daysqty 2 used
$6.69$9.16
5
32823-ZV5-003Ships in 1 to 2 Daysqty 18 used
$2.95$4.04
6
32824-ZV5-003Ships in 1 to 2 Daysqty 14 used
$3.11$4.26
7
35100-ZY6-013Ships in 1 to 2 Daysqty 2 used
$82.90$113.56
8
36180-ZY6-712Ships in 1 to 2 Days
$86.29$118.20
9
36182-ZY6-003Ships in 1 to 2 Days
$17.53$24.02
10
36187-ZY6-003Ships in 1 to 2 Days
$4.22$5.78
11
38402-GC1-000Ships in 1 to 2 Daysqty 2 used
$6.23$8.54
12
38410-ZY9-A01Ships in 1 to 2 Daysqty 2 used
$43.30$59.32
13
38414-ZY6-003Ships in 1 to 2 Daysqty 2 used
$14.76$20.22
14
90109-ZW5-000Ships in 1 to 2 Daysqty 4 used
$1.20$1.64
15
90301-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$0.91$1.24
16
90302-ZY6-003Ships in 1 to 2 Days
$2.69$3.68
17
90501-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$1.59$2.18
18
90502-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$1.49$2.04
Diagram

SWITCH PANEL KIT (3) (MECH)

BF250 BF250D switch panel kit (3) (mech) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4Y0502
Fits only BF250D-LRA, BF250D-UCRA, BF250D-URA, BF250D-XCRA, BF250D-XRA — not every submodel of this generation.

Parts in this assembly

20 parts
1
06323-ZY6-612Ships in 1 to 2 Days
$653.58$895.32
1
06323-ZY6-652Ships in 1 to 2 Days
$602.29$825.06
2
32346-ZY6-611Ships in 1 to 2 Days
$62.02$84.96
2
32346-ZY6-651Ships in 1 to 2 Days
$60.98$83.54
3
32545-ZY6-003Ships in 1 to 2 Daysqty 3 used
$83.10$113.84
4
32606-ZY6-000Ships in 1 to 2 Daysqty 3 used
$6.69$9.16
5
32823-ZV5-003Ships in 1 to 2 Daysqty 27 used
$2.95$4.04
6
32824-ZV5-003Ships in 1 to 2 Daysqty 21 used
$3.11$4.26
7
35100-ZY6-013Ships in 1 to 2 Daysqty 3 used
$82.90$113.56
8
36180-ZY6-612Ships in 1 to 2 Days
$86.29$118.20
9
36182-ZY6-003Ships in 1 to 2 Days
$17.53$24.02
10
36187-ZY6-003Ships in 1 to 2 Days
$4.22$5.78
11
38402-GC1-000Ships in 1 to 2 Daysqty 3 used
$6.23$8.54
12
38410-ZY9-A01Ships in 1 to 2 Daysqty 3 used
$43.30$59.32
13
38414-ZY6-003Ships in 1 to 2 Daysqty 3 used
$14.76$20.22
14
90109-ZW5-000Ships in 1 to 2 Daysqty 4 used
$1.20$1.64
15
90301-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$0.91$1.24
16
90302-ZY6-003Ships in 1 to 2 Days
$2.69$3.68
17
90501-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$1.59$2.18
18
90502-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$1.49$2.04
Diagram

SWITCH PANEL KIT (4) (MECH)

BF250 BF250D switch panel kit (4) (mech) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4Y0503
Fits only BF250D-LRA, BF250D-UCRA, BF250D-URA, BF250D-XCRA, BF250D-XRA — not every submodel of this generation.

Parts in this assembly

26 parts
1
06323-ZZ5-M22Ships in 1 to 2 Days
$252.26$345.56
1
06323-ZZ5-M92Ships in 1 to 2 Days
$116.84
2
06352-ZZ5-M01Ships in 1 to 2 Days
$55.33$75.80
3
32341-ZZ5-763Ships in 1 to 2 Days
$308.78$422.98
3
32341-ZZ5-792Ships in 1 to 2 Days
$228.39$312.88
4
32346-ZZ5-761Ships in 1 to 2 Daysreplaced by 32346-ZZ5-791
$17.91$24.54
4
32346-ZZ5-791Ships in 1 to 2 Days
$17.91$24.54
5
32347-ZZ5-761Ships in 1 to 2 Days
$11.20$15.34
6
32545-ZZ5-000Ships in 1 to 2 Days
$87.72$120.16
7
32823-ZV5-003Ships in 1 to 2 Daysqty 8 used
$2.95$4.04
8
32824-ZV5-003Ships in 1 to 2 Daysqty 3 used
$3.11$4.26
9
35100-ZV5-013Ships in 1 to 2 Days
$85.13$116.62
10
36180-ZV5-033In Stock
$56.84$77.86
11
36182-ZV4-651In Stock
$18.45$25.28
12
36187-ZV4-652Ships in 1 to 2 Days
$4.18$5.72
13
37205-ZZ5-763Ships in 1 to 2 Days
$149.96$205.42
14
37210-ZZ5-763Ships in 1 to 2 Days
$112.32$153.88
15
38403-341-672Ships in 1 to 2 Days
$4.66$6.38
16
38410-ZV5-003Ships in 1 to 2 Days
$56.17$76.94
17
38414-ZZ5-003Ships in 1 to 2 Days
$14.24$19.50
18
90109-ZW5-000Ships in 1 to 2 Daysqty 12 used
$1.20$1.64
19
90301-ZZ5-M01Ships in 1 to 2 Daysqty 12 used
$0.91$1.24
20
90302-921-000In Stock
$4.10$5.62
21
90501-ZZ5-M01Ships in 1 to 2 Daysqty 12 used
$1.59$2.18
22
90502-ZZ5-M01Ships in 1 to 2 Daysqty 12 used
$1.49$2.04
23
90649-SC2-003Ships in 1 to 2 Days
$8.29$11.36
Diagram

SWITCH PANEL KIT (5) (MECH)

BF250 BF250D switch panel kit (5) (mech) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4Y0504
Fits only BF250D-LRA, BF250D-UCRA, BF250D-URA, BF250D-XCRA, BF250D-XRA — not every submodel of this generation.

Parts in this assembly

21 parts
1
06323-ZZ5-M02Ships in 1 to 2 Days
$252.26$345.56
1
06323-ZZ5-M82Ships in 1 to 2 Days
$116.84
2
32346-ZZ5-003Ships in 1 to 2 Days
$20.12$27.56
2
32346-ZZ5-781Ships in 1 to 2 Days
$17.91$24.54
3
32545-ZZ5-000Ships in 1 to 2 Days
$87.72$120.16
4
32823-ZV5-003Ships in 1 to 2 Daysqty 8 used
$2.95$4.04
5
32824-ZV5-003Ships in 1 to 2 Daysqty 3 used
$3.11$4.26
6
35100-ZV5-013Ships in 1 to 2 Days
$85.13$116.62
7
36180-ZV5-033In Stock
$56.84$77.86
8
36182-ZV4-651In Stock
$18.45$25.28
9
36187-ZV4-652Ships in 1 to 2 Days
$4.18$5.72
10
37210-ZZ5-713Ships in 1 to 2 Days
$112.32$153.88
11
38403-341-672Ships in 1 to 2 Days
$4.66$6.38
12
38410-ZV5-003Ships in 1 to 2 Days
$56.17$76.94
13
38414-ZZ5-003Ships in 1 to 2 Days
$14.24$19.50
14
90109-ZW5-000Ships in 1 to 2 Daysqty 4 used
$1.20$1.64
15
90301-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$0.91$1.24
16
90302-921-000In Stock
$4.10$5.62
17
90501-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$1.59$2.18
18
90502-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$1.49$2.04
19
90649-SC2-003Ships in 1 to 2 Days
$8.29$11.36
Diagram

SWITCH PANEL KIT (6) (DBW)

BF250 BF250D switch panel kit (6) (dbw) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4Y0505
Fits only BF250D-LDA, BF250D-LDS, BF250D-UCDA, BF250D-UCDS, BF250D-UDA, BF250D-UDS, BF250D-XCDA, BF250D-XCDS, BF250D-XDA, BF250D-XDS — not every submodel of this generation.

Parts in this assembly

36 parts
1
06323-ZVL-020Ships in 1 to 2 Daysreplaced by 06323-ZVL-812
$185.03$253.46
1
06323-ZVL-702Ships in 1 to 2 Daysreplaced by 06323-ZVL-722
$195.90$268.36
1
06323-ZVL-722Ships in 1 to 2 Days
$122.46$167.76
1
06323-ZVL-812Ships in 1 to 2 Days
$185.03$253.46
2
06323-ZVL-712Ships in 1 to 2 Days
$195.90$268.36
2
06323-ZVL-802Ships in 1 to 2 Days
$154.23$211.28
2
06323-ZVL-822Ships in 1 to 2 Days
$115.65$158.42
2
06323-ZVL-732Ships in 1 to 2 Days
$195.90$268.36
3
32380-ZVL-013Ships in 1 to 2 Days
$214.39$293.68
3
32380-ZVL-702Ships in 1 to 2 Days
$214.39$293.68
3
32380-ZVL-722Ships in 1 to 2 Days
$214.39$293.68
3
32380-ZVL-812Ships in 1 to 2 Days
$214.39$293.68
4
32380-ZVL-712Ships in 1 to 2 Days
$214.39$293.68
4
32380-ZVL-802Ships in 1 to 2 Days
$246.39$337.52
4
32380-ZVL-732Ships in 1 to 2 Days
$214.39$293.68
4
32380-ZVL-822Ships in 1 to 2 Days
$214.39$293.68
5
32386-ZVL-003Ships in 1 to 2 Days
$28.37$38.86
5
32386-ZVL-701Ships in 1 to 2 Days
$28.37$38.86
5
32386-ZVL-721Ships in 1 to 2 Days
$27.14$37.18
5
32386-ZVL-811Ships in 1 to 2 Days
$27.14$37.18
6
32386-ZVL-711Ships in 1 to 2 Days
$27.14$37.18
6
32386-ZVL-801Ships in 1 to 2 Days
$27.14$37.18
6
32386-ZVL-731Ships in 1 to 2 Days
$27.14$37.18
6
32386-ZVL-821Ships in 1 to 2 Days
$27.14$37.18
7
35100-ZVL-013Ships in 1 to 2 Daysqty 2 used
$78.12$107.02
7
35100-ZVL-702Ships in 1 to 2 Daysqty 2 used
$78.12$107.02
8
36180-ZVL-003Ships in 1 to 2 Daysqty 2 used
$51.26$70.22
9
36182-ZY6-003Ships in 1 to 2 Daysqty 2 used
$17.53$24.02
10
36187-ZY6-003Ships in 1 to 2 Days
$4.22$5.78
11
38402-GC1-000Ships in 1 to 2 Daysqty 2 used
$6.23$8.54
12
38410-ZY9-A01Ships in 1 to 2 Daysqty 2 used
$43.30$59.32
13
90109-ZW5-000Ships in 1 to 2 Daysqty 8 used
$1.20$1.64
14
90301-ZZ5-M01Ships in 1 to 2 Daysqty 8 used
$0.91$1.24
15
90302-ZY6-003Ships in 1 to 2 Daysqty 2 used
$2.69$3.68
16
90501-ZZ5-M01Ships in 1 to 2 Daysqty 8 used
$1.59$2.18
17
90502-ZZ5-M01Ships in 1 to 2 Daysqty 8 used
$1.49$2.04
Diagram

SWITCH PANEL KIT (POWER TILT)

BF250 BF250D switch panel kit (power tilt) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4Y0600
Fits only BF250D-LDA, BF250D-LDS, BF250D-UCDA, BF250D-UCDS, BF250D-UDA, BF250D-UDS, BF250D-XCDA, BF250D-XCDS, BF250D-XDA, BF250D-XDS — not every submodel of this generation.

Parts in this assembly

11 parts
1
06325-ZVL-010Ships in 1 to 2 Days
$125.97$172.56
2
06325-ZVL-601Ships in 1 to 2 Days
$234.62$321.40
3
32320-ZVL-003Ships in 1 to 2 Days
$150.88$206.68
4
32320-ZVL-601Ships in 1 to 2 Days
$208.49$285.60
5
32326-ZVL-003Ships in 1 to 2 Days
$57.85$79.24
6
32326-ZVL-601Ships in 1 to 2 Days
$55.35$75.82
7
35640-ZVL-003Ships in 1 to 2 Daysqty 5 used
$45.25$61.98
8
90109-ZW5-000Ships in 1 to 2 Daysqty 8 used
$1.20$1.64
9
90301-ZZ5-M01Ships in 1 to 2 Daysqty 8 used
$0.91$1.24
10
90501-ZZ5-M01Ships in 1 to 2 Daysqty 8 used
$1.59$2.18
11
90502-ZZ5-M01Ships in 1 to 2 Daysqty 8 used
$1.49$2.04
Diagram

SWITCH PANEL KIT (START STOP)

BF250 BF250D switch panel kit (start stop) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4Y0601
Fits only BF250D-LDA, BF250D-LDS, BF250D-UCDA, BF250D-UCDS, BF250D-UDA, BF250D-UDS, BF250D-XCDA, BF250D-XCDS, BF250D-XDA, BF250D-XDS — not every submodel of this generation.

Parts in this assembly

16 parts
1
06324-ZVL-020Ships in 1 to 2 Days
$100.61$137.82
1
06324-ZVL-601Ships in 1 to 2 Days
$100.61$137.82
2
06324-ZVL-702Ships in 1 to 2 Days
$138.61$189.88
3
06324-ZVL-802Ships in 1 to 2 Days
$244.10$334.38
4
32340-ZVL-003Ships in 1 to 2 Days
$65.71$90.02
4
32340-ZVL-601Ships in 1 to 2 Days
$65.71$90.02
5
32340-ZVL-701Ships in 1 to 2 Days
$147.87$202.56
6
32340-ZVL-801Ships in 1 to 2 Days
$230.04$315.12
7
32344-ZVL-701Ships in 1 to 2 Days
$43.45$59.52
8
32344-ZVL-801Ships in 1 to 2 Days
$55.51$76.04
9
32346-ZVL-003Ships in 1 to 2 Days
$27.52$37.70
9
32346-ZVL-601Ships in 1 to 2 Days
$27.26$37.34
10
90109-ZW5-000Ships in 1 to 2 Daysqty 12 used
$1.20$1.64
11
90301-ZZ5-M01Ships in 1 to 2 Daysqty 12 used
$0.91$1.24
12
90501-ZZ5-M01Ships in 1 to 2 Daysqty 12 used
$1.59$2.18
13
90502-ZZ5-M01Ships in 1 to 2 Daysqty 12 used
$1.49$2.04
Diagram

THROTTLE BODY

BF250 BF250D throttle body exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4E1500A
Fits all 15 submodels of this generation.

Parts in this assembly

36 parts
1
16016-ZY3-003Ships in 1 to 2 Days
$10.03$13.74
2
16176-ZVL-003Ships in 1 to 2 Days
$3.01$4.12
3
16176-ZY3-000Ships in 1 to 2 Days
$3.39$4.64
4
16400-ZVK-023Ships in 1 to 2 Days
$451.23
4
16400-ZY3-A03Ships in 1 to 2 Days
$420.40
5
16400-ZVL-003Ships in 1 to 2 Days
$833.84$1,142.24
6
16404-ZVL-000Ships in 1 to 2 Days
$84.72$116.06
7
16404-ZX2-000Ships in 1 to 2 Days
$101.00$138.38
8
16405-ZY3-000Ships in 1 to 2 Days
$2.85$3.90
9
16406-ZVL-000Ships in 1 to 2 Days
$52.37$71.74
10
17249-PY3-000Ships in 1 to 2 Days
$9.43$12.92
11
17315-ZY9-M01Ships in 1 to 2 Days
$11.83$16.20
12
17374-ZX2-000Ships in 1 to 2 Days
$28.31$38.78
13
17910-ZVL-003Ships in 1 to 2 Daysqty 2 used
$20.18$27.64
13
17910-ZVL-B11Ships in 1 to 2 Daysqty 2 used
$14.19$19.44
14
19540-ZVL-010Ships in 1 to 2 Days
$185.06$253.50
15
35665-ZW5-003Ships in 1 to 2 Days
$19.35$26.50
16
36550-ZY3-003Ships in 1 to 2 Days
$381.07$522.02
17
40102-ZV5-000Ships in 1 to 2 Daysqty 4 used
$2.64$3.62
18
90010-ZVL-000Ships in 1 to 2 Daysqty 4 used
$1.31$1.80
18
90010-ZVL-010Ships in 1 to 2 Daysqty 4 used
$1.31$1.80
19
90012-ZVL-000Ships in 1 to 2 Daysqty 4 used
$3.50$4.94
19
90012-ZVL-010Ships in 1 to 2 Daysqty 4 used
$3.24$4.44
20
90013-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$2.45$3.36
21
90021-ZZ5-M01Ships in 1 to 2 Days
$1.14$1.56
22
90030-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.31$1.80
23
90034-ZVL-010In Stockqty 2 used
$1.04$1.42
24
90037-ZVL-010Ships in 1 to 2 Daysqty 4 used
$1.28$1.76
25
90072-ZVL-010Ships in 1 to 2 Daysqty 2 used
$4.60$6.30
26
91303-P0A-A02Ships in 1 to 2 Days
$3.80$5.20
27
91503-ZY9-M00Ships in 1 to 2 Daysqty 4 used
$2.23$3.06
27
91551-ZVL-010Ships in 1 to 2 Daysqty 4 used
$2.23$3.06
28
94301-06100In Stockqty 2 used
$2.74$3.76
29
46392-S0X-A01Ships in 1 to 2 Daysqty 2 used
$5.83$7.98
30
90107-ZW9-000Ships in 1 to 2 Days
$4.69$6.42
31
90508-ZZ5-M01Ships in 1 to 2 Days
$2.00$2.74
Diagram

TIMING BELT

BF250 BF250D timing belt exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4E1300
Fits all 15 submodels of this generation.

Parts in this assembly

35 parts
1
13621-ZY3-C01Ships in 1 to 2 Days
$57.83$79.22
2
13622-ZVL-B10Ships in 1 to 2 Days
$26.65$36.50
2
13622-ZVL-000Ships in 1 to 2 Daysreplaced by 13622-ZVL-B10
$26.65$36.50
3
13811-ZX2-000Ships in 1 to 2 Days
$101.95$139.66
4
14261-ZY3-C00Ships in 1 to 2 Days
$82.08$112.44
5
14270-ZVL-010Ships in 1 to 2 Days
$106.70$146.16
6
14400-P8A-A02Ships in 1 to 2 Days
$155.15$212.54
7
14510-ZY3-013Ships in 1 to 2 Days
$110.08$150.80
8
14515-ZY3-000In Stockqty 3 used
$3.93$5.38
9
14520-ZY3-000Ships in 1 to 2 Days
$4.96$6.80
10
14526-ZVL-415ZAShips in 1 to 2 Days
$104.19$142.72
11
14529-ZY3-000Ships in 1 to 2 Days
$5.23$7.16
12
14550-ZY3-003Ships in 1 to 2 Days
$98.84$135.40
13
14551-P8A-A01Ships in 1 to 2 Days
$13.37$18.32
14
14553-ZVL-003Ships in 1 to 2 Days
$8.13$11.48
14
14553-ZVL-023Ships in 1 to 2 Days
$9.01$12.34
15
14555-ZY3-003Ships in 1 to 2 Days
$76.12$104.28
16
19511-ZX2-000Ships in 1 to 2 Days
$45.22$61.94
17
31638-ZY3-003Ships in 1 to 2 Days
$30.89$42.32
18
32111-ZVL-000Ships in 1 to 2 Days
$9.67$13.24
19
41122-ZV0-000Ships in 1 to 2 Days
$1.36$1.86
20
90011-ZZ5-M01Ships in 1 to 2 Days
$1.18$1.62
21
90012-ZZ5-M02Ships in 1 to 2 Days
$3.72$5.10
22
90017-RJA-003Ships in 1 to 2 Days
$45.39$62.20
23
90017-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$1.24$1.70
24
90030-ZZ5-M01Ships in 1 to 2 Days
$1.31$1.80
25
90031-P8A-A01Ships in 1 to 2 Daysqty 2 used
$20.98$28.74
26
90039-ZVL-000Ships in 1 to 2 Daysqty 3 used
$1.30$1.84
26
90039-ZVL-010Ships in 1 to 2 Daysqty 3 used
$1.37$1.88
27
90016-ZVL-000Ships in 1 to 2 Days
$1.49$2.04
27
90040-ZVL-000Ships in 1 to 2 Days
$1.66$2.34
27
90040-ZVL-010Ships in 1 to 2 Days
$1.59$2.18
28
90704-RCA-A00Ships in 1 to 2 Days
$8.37$11.46
29
90741-ZY3-000Ships in 1 to 2 Daysqty 2 used
$3.40$4.66
30
94301-06100In Stock
$2.74$3.76
Diagram

TIMING BELT COVER

BF250 BF250D timing belt cover exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4E1310A
Fits all 15 submodels of this generation.

Parts in this assembly

13 parts
1
11812-P8A-A00Ships in 1 to 2 Daysqty 2 used
$9.08$12.44
2
11820-ZVL-000Ships in 1 to 2 Days
$38.91$53.30
2
11820-ZVL-B10Ships in 1 to 2 Days
$29.54$40.46
3
11840-ZVL-000Ships in 1 to 2 Days
$43.76$59.94
4
11861-ZVL-000Ships in 1 to 2 Days
$51.17$70.10
5
11871-ZY3-000Ships in 1 to 2 Days
$62.96$86.24
6
37840-R70-A01Ships in 1 to 2 Days
$271.82$372.36
7
90004-ZVL-000Ships in 1 to 2 Days
$0.58$0.82
7
90004-ZVL-010Ships in 1 to 2 Days
$0.54$0.74
8
90007-ZVL-010Ships in 1 to 2 Daysqty 4 used
$2.91$3.98
9
90017-P8A-A01Ships in 1 to 2 Daysqty 4 used
$8.38$11.48
10
91508-ZVL-000Ships in 1 to 2 Daysqty 2 used
$5.21$7.14
11
50310-HE0-003Ships in 1 to 2 Days
$2.83$3.88
Diagram

TOOL

BF250 BF250D tool exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4F1300
Fits only BF250D-LDA, BF250D-LDS, BF250D-LRA, BF250D-UDA, BF250D-UDS, BF250D-URA, BF250D-XDA, BF250D-XDS, BF250D-XRA — not every submodel of this generation.

Parts in this assembly

9 parts
1
89216-SF4-000Ships in 1 to 2 Days
$29.05$39.80
1
89216-ZVP-000Ships in 1 to 2 Days
$13.15$18.02
2
89217-355-000Ships in 1 to 2 Days
$9.83$13.46
3
89221-371-000Ships in 1 to 2 Days
$4.19$5.74
4
99003-10000Ships in 1 to 2 Days
$3.81$5.22
5
99003-50000Ships in 1 to 2 Days
$4.96$6.80
6
99006-19000Ships in 1 to 2 Days
$4.44$6.08
6
89211-HE0-670Ships in 1 to 2 Days
$7.10$9.72
7
BAG, TOOL (200MM)
99008-02000No Longer Available
—
Diagram

UNDER COVER (1)

BF250 BF250D under cover (1) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4F0330A
Fits all 15 submodels of this generation.

Parts in this assembly

19 parts
1
40102-ZV5-000Ships in 1 to 2 Daysqty 5 used
$2.64$3.62
2
47117-196-000Ships in 1 to 2 Daysqty 2 used
$2.57$3.52
3
$281.72$385.92
3
$281.72$385.92
3
$243.76$333.92
4
$233.25$319.52
4
$243.76$333.92
5
$243.76$333.92
5
$243.76$333.92
6
$233.25$319.52
6
$243.76$333.92
7
COVER, RR.
63721-ZVL-000No Longer Available
—
7
63730-ZVL-000Ships in 1 to 2 Days
$56.03$76.76
8
90109-ZVL-000Ships in 1 to 2 Daysqty 5 used
$1.62$2.22
9
90111-ZY3-000In Stockqty 12 used
$2.12$2.90
10
90512-ZVL-000Ships in 1 to 2 Daysqty 5 used
$0.61$0.86
11
91551-ZVL-010Ships in 1 to 2 Daysqty 3 used
$2.23$3.06
12
91551-ZVL-010Ships in 1 to 2 Daysqty 2 used
$2.23$3.06
13
90110-ZVL-000Ships in 1 to 2 Daysqty 5 used
$2.35$3.22
Diagram

VAPOR SEPARATOR ASSY.

BF250 BF250D vapor separator assy. exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4E1800A
Fits all 15 submodels of this generation.

Parts in this assembly

65 parts
1
16011-ZY3-A01Ships in 1 to 2 Days
$42.79$58.62
2
16013-ZY3-000Ships in 1 to 2 Days
$85.70$117.42
3
16015-ZVL-000Ships in 1 to 2 Days
$168.86$231.34
4
16020-ZVL-003Ships in 1 to 2 Days
$226.59$310.40
5
16024-ZY3-000Ships in 1 to 2 Days
$12.18$16.68
6
16026-ZY3-000Ships in 1 to 2 Days
$9.49$13.00
7
16030-ZVL-003Ships in 1 to 2 Days
$831.91$1,139.60
7
16030-ZVL-B11Ships in 1 to 2 Days
$582.06$797.34
8
16031-ZY3-020Ships in 1 to 2 Days
$29.90$40.96
9
16036-ZY3-003Ships in 1 to 2 Days
$314.83$431.28
10
16041-ZY3-000Ships in 1 to 2 Days
$8.02$10.98
11
16042-ZY3-000Ships in 1 to 2 Days
$10.63$14.56
12
16061-ZY3-010Ships in 1 to 2 Days
$29.32$40.16
13
16072-ZY3-000In Stock
$8.42$11.54
14
16073-ZY3-000In Stock
$10.51$14.40
15
91301-P2F-A01In Stock
$3.17$4.34
16
16075-ZY3-000In Stock
$15.91$21.80
17
16076-ZY3-000Ships in 1 to 2 Days
$10.51$14.40
18
16077-ZY3-000Ships in 1 to 2 Daysqty 2 used
$10.51$14.40
19
16078-ZY3-000In Stock
$11.46$15.70
20
16081-ZW5-010In Stockqty 21 used
$4.18$5.72
20
16738-ZVT-003Ships in 1 to 2 Daysqty 21 used
$2.18$2.98
21
16082-ZY3-000Ships in 1 to 2 Daysqty 2 used
$3.80$5.20
22
16083-ZY3-000Ships in 1 to 2 Days
$3.11$4.26
23
16086-ZW5-000Ships in 1 to 2 Daysqty 8 used
$3.34$4.58
24
16087-ZW5-000Ships in 1 to 2 Daysqty 8 used
$3.69$5.06
25
16087-ZY3-000Ships in 1 to 2 Days
$5.53$7.58
26
16088-ZY3-000Ships in 1 to 2 Days
$4.20$5.76
27
16700-ZVL-003Ships in 1 to 2 Days
$426.87$584.76
↳
Sierra alternative ·
18-97300In Stock save $12.25
$414.62
28
16701-ZX2-003Ships in 1 to 2 Days
$177.81
29
16708-ZY3-000Ships in 1 to 2 Days
$141.61$193.98
30
16710-ZVL-000Ships in 1 to 2 Daysqty 2 used
$5.99$8.20
31
16715-ZW5-023Ships in 1 to 2 Days
$133.05$182.28
32
16718-ZY6-013Ships in 1 to 2 Days
$23.11$31.66
33
16721-ZY3-000Ships in 1 to 2 Days
$23.32$31.94
34
16723-ZY6-003Ships in 1 to 2 Days
$9.86$13.50
35
16725-ZVL-000Ships in 1 to 2 Days
$17.14$23.48
36
16726-ZVL-000Ships in 1 to 2 Days
$32.82$44.96
37
16730-ZVL-043Ships in 1 to 2 Days
$1,000.73$1,370.86
37
16730-ZVL-B11Ships in 1 to 2 Days
$702.44$962.24
38
16733-ZW5-000Ships in 1 to 2 Days
$6.64$9.10
39
16733-ZY3-000Ships in 1 to 2 Daysqty 2 used
$6.03$8.26
40
16734-ZY3-000Ships in 1 to 2 Days
$26.03$35.66
41
16735-ZY3-004Ships in 1 to 2 Days
$360.81$494.26
42
16752-ZY3-000Ships in 1 to 2 Days
$7.36$10.08
43
32166-ZX2-003Ships in 1 to 2 Days
$111.18$152.30
44
32168-ZW5-003Ships in 1 to 2 Days
$1.53$2.10
45
90009-PP4-E01In Stock
$7.65$10.48
46
90014-ZY9-M01Ships in 1 to 2 Daysqty 3 used
$2.73$3.74
47
90014-ZZ5-M00Ships in 1 to 2 Daysqty 2 used
$1.87$2.56
47
90014-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.87$2.56
48
90016-ZZ5-M00Ships in 1 to 2 Daysqty 2 used
$1.42$1.94
48
90016-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.42$1.94
48
90014-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.87$2.56
49
90017-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.24$1.70
50
90021-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.14$1.56
51
90430-PD6-003In Stock
$4.41$6.04
52
90691-ZB7-003Ships in 1 to 2 Daysqty 2 used
$3.07$4.20
53
91301-MJ0-003In Stockqty 2 used
$2.09$2.86
54
91504-ZY9-M00Ships in 1 to 2 Daysqty 3 used
$5.65$7.74
54
91504-ZY9-M03Ships in 1 to 2 Daysqty 3 used
$5.65$7.74
55
16725-ZVL-B10Ships in 1 to 2 Days
$12.09$16.56
56
16733-ZW5-000Ships in 1 to 2 Daysqty 2 used
$6.64$9.10
57
17202-ZY9-M01Ships in 1 to 2 Daysqty 2 used
$2.28$3.12
58
90030-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.31$1.80
Diagram

WATER PUMP - VERTICAL SHAFT

BF250 BF250D water pump - vertical shaft exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4F0400B
Fits all 15 submodels of this generation.

Parts in this assembly

54 parts
1
19210-ZY3-003In Stockreplaced by 19210-ZY3-023
$40.22$55.10
1
19210-ZY3-023Ships in 1 to 2 Days
$40.22$55.10
2
19221-ZY3-010Ships in 1 to 2 Days
$46.12$63.18
3
19223-ZY3-000Ships in 1 to 2 Days
$31.49$43.14
4
19231-ZY3-000In Stock
$15.29$20.94
5
19234-ZX2-C00Ships in 1 to 2 Days
$6.96$9.54
6
19241-ZVL-010Ships in 1 to 2 Days
$59.48$81.48
7
19251-ZY3-000Ships in 1 to 2 Days
$35.13$48.12
7
19251-ZY3-611Ships in 1 to 2 Days
$39.51$54.12
7
19251-ZY3-621Ships in 1 to 2 Days
$46.15$63.22
7
19251-ZVL-910Ships in 1 to 2 Days
$13.11$17.96
7
19251-ZVL-A10Ships in 1 to 2 Days
$23.80$32.60
7
19251-ZVL-610Ships in 1 to 2 Days
$34.43$47.16
8
19253-ZY3-000Ships in 1 to 2 Days
$6.54$8.96
9
24310-ZY3-C00Ships in 1 to 2 Days
$162.88$223.12
9
24310-ZY3-E00Ships in 1 to 2 Days
$162.88$223.12
9
24310-ZVL-710Ships in 1 to 2 Days
$111.72$153.04
10
24318-ZY3-000Ships in 1 to 2 Days
$2.73$3.74
11
24320-ZY6-000Ships in 1 to 2 Days
$85.10$116.58
11
24320-ZY6-610Ships in 1 to 2 Days
$85.10$116.58
11
24320-ZY3-A20Ships in 1 to 2 Days
$141.69$194.10
12
24343-ZW1-B02Ships in 1 to 2 Days
$16.06$22.00
13
40204-ZY3-000Ships in 1 to 2 Days
$6.34$8.68
14
41112-ZX2-C00Ships in 1 to 2 Days
$765.39$1,048.48
14
41112-ZX2-C01Ships in 1 to 2 Days
$442.16$605.70
14
41112-ZX2-C10Ships in 1 to 2 Days
$803.76$1,101.04
14
41112-ZX2-C11Ships in 1 to 2 Days
$450.78$617.50
14
41112-ZX2-C20Ships in 1 to 2 Days
$842.10$1,153.56
14
41112-ZX2-C21Ships in 1 to 2 Days
$472.24$646.90
15
41116-ZY3-000Ships in 1 to 2 Days
$22.69$31.08
17
90105-ZX2-C00In Stockqty 4 used
$8.40$11.50
18
90215-HW1-671Ships in 1 to 2 Days
$1.04$1.42
19
90301-ZX2-C00Ships in 1 to 2 Days
$18.26$25.02
20
90303-ZX2-C00Ships in 1 to 2 Days
$9.05$12.40
21
90472-723-000Ships in 1 to 2 Days
$1.43$1.96
22
90518-ZX2-C00Ships in 1 to 2 Days
$7.10$9.72
22
90519-ZX2-C00Ships in 1 to 2 Days
$7.10$9.72
22
90520-ZX2-C00Ships in 1 to 2 Days
$7.10$9.72
22
90521-ZX2-C00Ships in 1 to 2 Days
$7.10$9.72
23
90752-ZVL-600Ships in 1 to 2 Days
$18.38$25.18
23
KEY, WOODRUFF (NOT AVAILABLE)
90752-ZY3-003No Longer Available
$18.38$25.18
24
90756-ZVL-000Ships in 1 to 2 Daysqty 2 used
$1.20$1.64
24
90756-ZV5-000In Stockqty 2 used
$2.64$3.62
25
91053-ZX2-C01Ships in 1 to 2 Days
$30.75$42.12
26
91056-ZX2-C01Ships in 1 to 2 Days
$51.96$71.18
27
91251-ZY3-C01In Stockqty 2 used
$5.62$7.70
28
91254-ZY3-003Ships in 1 to 2 Daysqty 2 used
$4.53$6.20
29
91308-MJ0-003Ships in 1 to 2 Days
$3.61$4.94
30
91356-ZY3-003Ships in 1 to 2 Days
$7.37$10.10
31
91358-ZX2-C00Ships in 1 to 2 Days
$7.88$10.80
32
91359-ZX2-C00Ships in 1 to 2 Days
$6.98$9.56
33
91551-ZY3-000Ships in 1 to 2 Daysqty 4 used
$2.12$2.90
34
94520-47000Ships in 1 to 2 Days
$2.15$2.94
35
94540-10019Ships in 1 to 2 Days
$2.83$3.88
Diagram

WATER PUMP IMPELLER SET

BF250 BF250D water pump impeller set exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4Y0200A
Fits all 15 submodels of this generation.

Parts in this assembly

21 parts
1
06192-ZX2-C01Ships in 1 to 2 Daysreplaced by 06192-ZX2-C04
$70.12$96.06
1
06192-ZX2-C02Ships in 1 to 2 Daysreplaced by 06192-ZX2-C04
$70.12$96.06
1
06192-ZX2-C04Ships in 1 to 2 Days
$70.12$96.06
2
06193-ZX2-C02Ships in 1 to 2 Daysreplaced by 06193-ZX2-C04
$137.82$188.80
2
06193-ZX2-C04Ships in 1 to 2 Days
$137.82$188.80
3
19210-ZY3-003In Stockreplaced by 19210-ZY3-023
$40.22$55.10
3
19210-ZY3-023Ships in 1 to 2 Days
$40.22$55.10
4
19221-ZY3-010Ships in 1 to 2 Days
$46.12$63.18
5
19223-ZY3-000Ships in 1 to 2 Days
$31.49$43.14
6
19231-ZY3-000In Stock
$15.29$20.94
7
19234-ZX2-C00Ships in 1 to 2 Days
$6.96$9.54
8
19253-ZY3-000Ships in 1 to 2 Days
$6.54$8.96
9
90105-ZX2-C00In Stockqty 4 used
$8.40$11.50
10
90752-ZVL-600Ships in 1 to 2 Days
$18.38$25.18
10
KEY, WOODRUFF (NOT AVAILABLE)
90752-ZY3-003No Longer Available
$18.38$25.18
11
91356-ZY3-003Ships in 1 to 2 Days
$7.37$10.10
12
91358-ZX2-C00Ships in 1 to 2 Days
$7.88$10.80
13
91359-ZX2-C00Ships in 1 to 2 Days
$6.98$9.56
14
91551-ZY3-000Ships in 1 to 2 Daysqty 4 used
$2.12$2.90
15
90756-ZV5-000In Stockqty 2 used
$2.64$3.62
15
90756-ZVL-000Ships in 1 to 2 Daysqty 2 used
$1.20$1.64
Diagram

WIRE HARNESS (1)

BF250 BF250D wire harness (1) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZVJ4F0700
Fits all 15 submodels of this generation.

Parts in this assembly

13 parts
1
32100-ZVJ-040Ships in 1 to 2 Days
$668.11$915.22
1
32100-ZVJ-900Ships in 1 to 2 Days
$694.13$950.86
1
32100-ZVL-040Ships in 1 to 2 Days
$698.22$956.46
1
32100-ZVL-900Ships in 1 to 2 Days
$694.13$950.86
2
32106-ZVL-000Ships in 1 to 2 Days
$6.41$8.78
3
32107-ZVL-003Ships in 1 to 2 Days
$10.47$14.34
3
32108-ZVL-003Ships in 1 to 2 Days
$5.45$7.46
4
32127-ZZ3-000Ships in 1 to 2 Days
$4.04$5.54
5
32606-K44-V01Ships in 1 to 2 Days
$6.51$8.92
6
90021-ZZ5-M01Ships in 1 to 2 Days
$1.14$1.56
7
90105-ZZ5-M00Ships in 1 to 2 Daysqty 2 used
$1.10$1.50
8
90653-ZY3-003Ships in 1 to 2 Daysqty 3 used
$2.42$3.32
9
91541-S0A-003Ships in 1 to 2 Daysqty 12 used
$3.64$4.98
Diagrams are Honda's official OEM illustrations, served from Honda's asset host. Prices are our own; where a struck-through figure appears beside one it is Honda's suggested retail. “In Stock” means the part is on our shelf here at Boe Marine. “Ships in 1 to 2 Days” means we order it in from Honda, who still supply it. Parts marked “No Longer Available” are shown so the drawing stays complete, but Honda has discontinued them. Where a Sierra replacement is listed beneath a Honda part, Sierra ships it direct to you; “Backorder Now” on one of those means Sierra has none at the moment and will ship it once restocked.
