BF225 — Parts Diagrams

Generation BF225A6  ·  5 submodels

Assemblies (70)

Diagram

ACCESSORIES

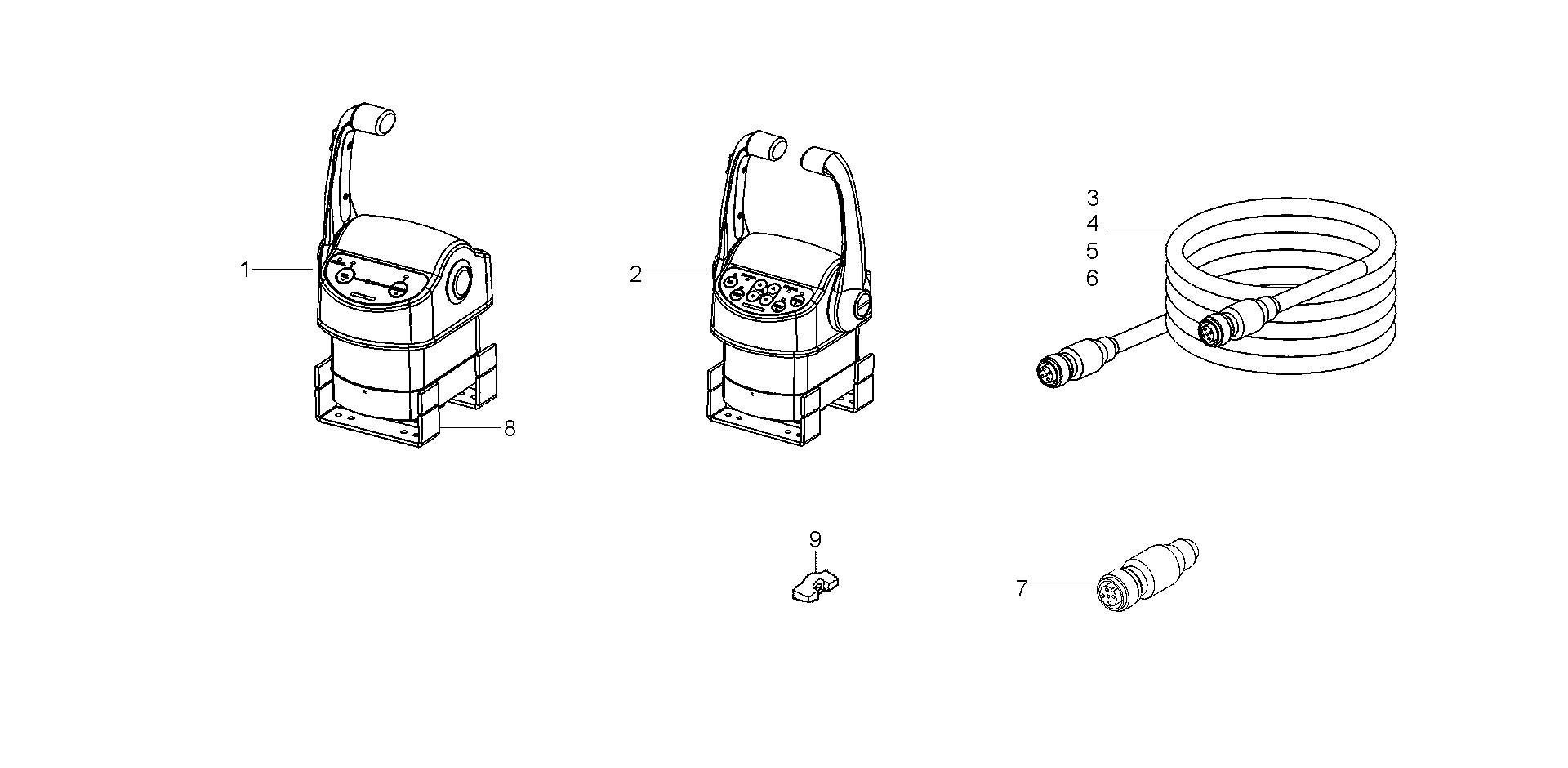

BF225 BF225A6 accessories exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AXEX05
Fits all 5 submodels of this generation.

Parts in this assembly

9 parts
1
06240-ZX2-040AHShips in 1 to 2 Days
$1,750.46
2
06240-ZX2-060AHShips in 1 to 2 Days
$2,635.32
3
32530-ZX2-015AHShips in 1 to 2 Days
$144.76
4
32530-ZX2-020AHShips in 1 to 2 Days
$144.76
5
32530-ZX2-025AHShips in 1 to 2 Days
$164.51
6
32530-ZX2-030AHShips in 1 to 2 Days
$164.51
7
32530-ZX2-000AHShips in 1 to 2 Days
$53.54$73.34
8
32112-ZX2-000HEShips in 1 to 2 Daysqty 2 used
$15.59$21.36
9
90206-ZX2-000HEShips in 1 to 2 Daysqty 4 used
$1.16
Diagram

ALTERNATOR

BF225 BF225A6 alternator exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AE1900
Fits all 5 submodels of this generation.

Parts in this assembly

28 parts
1
31105-PR7-A01Ships in 1 to 2 Days
$51.39$70.42
2
31111-PT0-003Ships in 1 to 2 Days
$42.30$57.94
3
31114-PT0-013Ships in 1 to 2 Days
$42.15$57.74
4
31118-PT0-003Ships in 1 to 2 Daysqty 4 used
$10.15$13.90
5
31138-PD1-004Ships in 1 to 2 Days
$10.16$13.92
6
31141-P13-003Ships in 1 to 2 Days
$127.22$174.32
7
31142-PD1-004Ships in 1 to 2 Days
$8.09$11.08
8
31145-PD1-004Ships in 1 to 2 Daysqty 4 used
$8.60$11.78
9
31146-PT0-003Ships in 1 to 2 Daysqty 4 used
$5.36$7.34
10
31147-PT0-003Ships in 1 to 2 Daysqty 3 used
$4.00$5.48
11
31147-P13-003Ships in 1 to 2 Days
$2.89$3.96
12
31148-PT0-003Ships in 1 to 2 Daysqty 2 used
$4.00$5.48
13
31148-P13-003Ships in 1 to 2 Daysqty 4 used
$3.11$4.26
14
31630-ZY3-013Ships in 1 to 2 Days
$1,218.41$1,669.06
15
31631-ZY3-003Ships in 1 to 2 Days
$440.90
16
31637-ZY3-000Ships in 1 to 2 Days
$5.05$6.92
17
31639-ZY3-003Ships in 1 to 2 Days
$148.03$202.80
18
31694-ZY3-003Ships in 1 to 2 Days
$10.06$13.78
19
31710-ZY3-003Ships in 1 to 2 Days
$196.87$269.68
20
31750-ZY3-003Ships in 1 to 2 Days
$261.41$358.10
21
90005-ZVL-010Ships in 1 to 2 Days
$3.40$4.66
22
90011-ZVL-010Ships in 1 to 2 Days
$5.56$7.62
23
90017-ZZ5-M01Ships in 1 to 2 Days
$1.24$1.70
24
90055-ZVL-010Ships in 1 to 2 Days
$23.78$32.58
25
90203-ZVL-010Ships in 1 to 2 Days
$1.72$2.36
25
90203-ZW5-010Ships in 1 to 2 Daysreplaced by 90203-ZVL-010
$1.72$2.36
26
90231-PD1-014Ships in 1 to 2 Daysqty 7 used
$4.31$5.90
27
94001-06080-0SShips in 1 to 2 Days
$1.30$1.78
Diagram

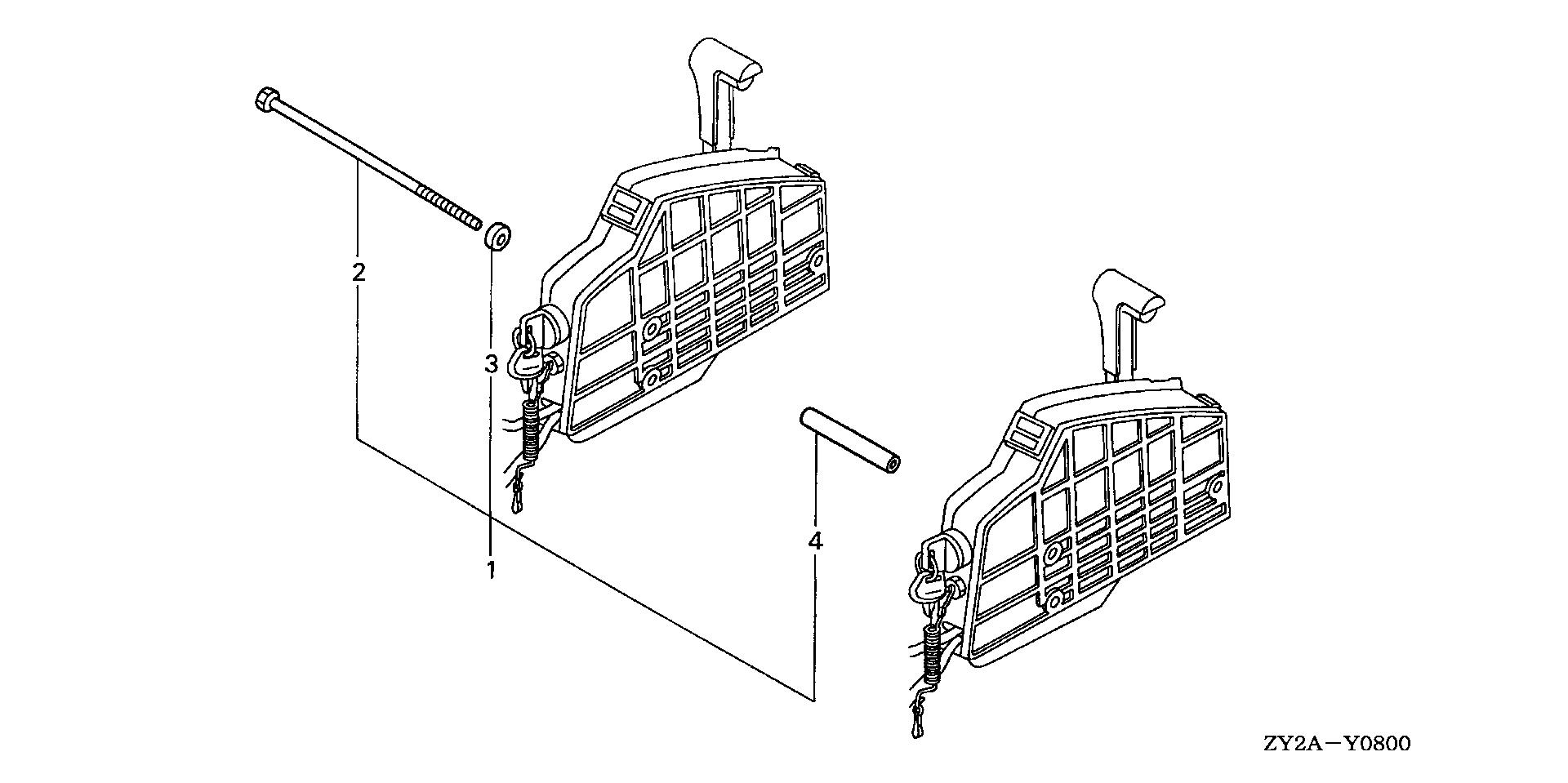

BOLT KIT

BF225 BF225A6 bolt kit exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AY0800
Fits all 5 submodels of this generation.

Parts in this assembly

4 parts
1
06900-ZW5-U00Ships in 1 to 2 Days
$82.88$113.54
2
90021-ZW5-U00Ships in 1 to 2 Daysqty 3 used
$13.11$17.96
3
90511-ZW5-U00Ships in 1 to 2 Daysqty 3 used
$3.97$5.44
4
90512-ZW5-U00Ships in 1 to 2 Daysqty 3 used
$6.63$9.08
Diagram

CABLE (DUAL)

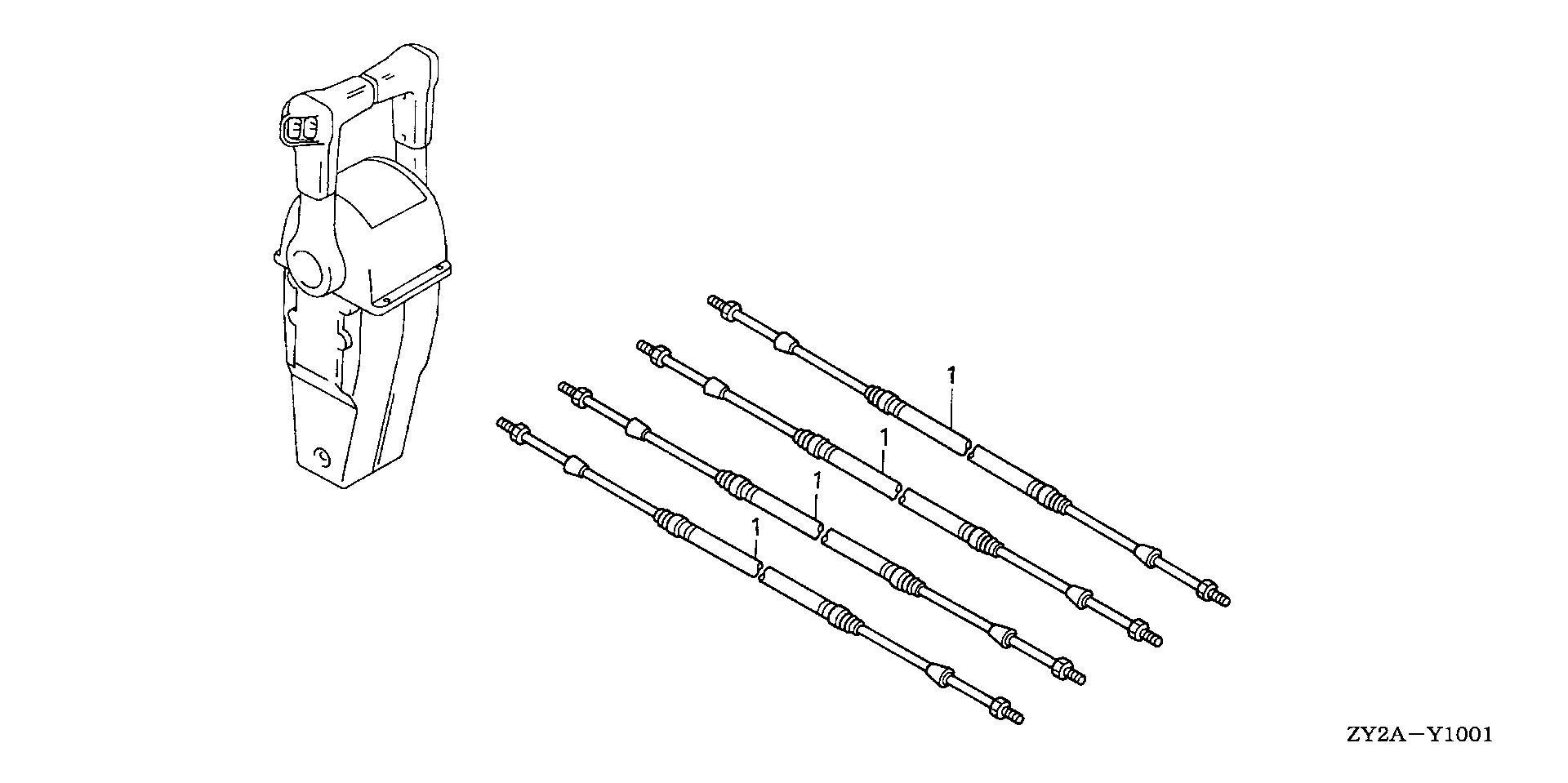

BF225 BF225A6 cable (dual) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AY1001
Fits all 5 submodels of this generation.

Parts in this assembly

55 parts
1
24907-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$121.63$166.62
1
24908-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$96.59$132.32
1
24909-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$133.11$182.34
1
24910-ZY3-003Ships in 1 to 2 Daysqty 4 used
$60.42
1
24910-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$102.89$140.94
1
24911-ZW7-U01Ships in 1 to 2 Daysqty 4 used
$113.43$155.38
1
24911-ZY3-003Ships in 1 to 2 Daysqty 4 used
$58.54
1
24912-ZW7-U01Ships in 1 to 2 Daysqty 4 used
$122.73$168.12
1
24912-ZY3-003Ships in 1 to 2 Daysqty 4 used
$64.99
1
24912-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$150.95$206.78
1
24913-ZY3-003Ships in 1 to 2 Daysqty 4 used
$64.06
1
24913-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$156.28$214.08
1
24914-ZY3-003Ships in 1 to 2 Daysqty 4 used
$66.26
1
24914-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$118.73$162.64
1
24915-ZY3-003Ships in 1 to 2 Daysqty 4 used
$63.91
1
24915-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$122.65$168.02
1
CABLE, REMOTE CONTROL (16') (LOW FRICTION) (NOT AVAILABLE)
24916-ZY3-003No Longer Available
—
1
24916-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$126.70$173.56
1
24917-ZW7-U01Ships in 1 to 2 Daysqty 4 used
$145.49$199.30
1
24917-ZY3-003Ships in 1 to 2 Daysqty 4 used
$73.32
1
24917-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$131.44$180.06
1
CABLE, REMOTE CONTROL (18') (LOW FRICTION) (NOT AVAILABLE)
24918-ZY3-003No Longer Available
—
1
24918-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$136.19$186.56
1
24919-ZY3-003Ships in 1 to 2 Daysqty 4 used
$78.63
1
24919-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$140.89$193.00
1
CABLE, REMOTE CONTROL (20') (LOW FRICTION) (NOT AVAILABLE)
24920-ZY3-003No Longer Available
—
1
24920-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$145.68$199.56
1
24921-ZY3-003Ships in 1 to 2 Daysqty 4 used
$85.70
1
24921-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$153.56$210.36
1
CABLE, REMOTE CONTROL (22') (LOW FRICTION) (NOT AVAILABLE)
24922-ZY3-003No Longer Available
—
1
24922-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$161.53$221.28
1
24923-ZY3-003Ships in 1 to 2 Daysqty 4 used
$94.55
1
CABLE, REMOTE CONTROL (24') (LOW FRICTION) (NOT AVAILABLE)
24924-ZY3-003No Longer Available
—
1
24925-ZY3-003Ships in 1 to 2 Daysqty 4 used
$103.36
1
24925-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$185.22$253.72
1
24926-ZY3-003Ships in 1 to 2 Daysqty 4 used
$109.53
1
24926-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$248.36$340.22
1
24927-ZY3-003Ships in 1 to 2 Daysqty 4 used
$115.72
1
CABLE, REMOTE CONTROL (28') (LOW FRICTION) (NOT AVAILABLE)
24928-ZY3-003No Longer Available
—
1
24929-ZW7-U01Ships in 1 to 2 Daysqty 4 used
$220.69$302.32
1
24929-ZY3-003Ships in 1 to 2 Daysqty 4 used
$128.09
1
24930-ZW7-U01Ships in 1 to 2 Daysqty 4 used
$231.05$316.50
1
CABLE, REMOTE CONTROL (30') (LOW FRICTION) (NOT AVAILABLE)
24930-ZY3-003No Longer Available
—
1
24930-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$233.63$320.04
1
24931-ZY3-003Ships in 1 to 2 Daysqty 4 used
$141.35
1
CABLE, REMOTE CONTROL (32') (LOW FRICTION) (NOT AVAILABLE)
24932-ZY3-003No Longer Available
—
1
24933-ZW7-U01Ships in 1 to 2 Daysqty 4 used
$282.33$386.76
1
CABLE, REMOTE CONTROL (33') (LOW FRICTION)
24933-ZY3-003No Longer Available
—
1
24934-ZW7-U01Ships in 1 to 2 Daysqty 4 used
$284.66$389.94
1
CABLE, REMOTE CONTROL (34') (LOW FRICTION) (NOT AVAILABLE)
24934-ZY3-003No Longer Available
—
1
24935-ZW7-U01Ships in 1 to 2 Daysreplaced by 24929-ZY6-A01
$219.69$300.94
1
24935-ZY3-003Ships in 1 to 2 Daysqty 4 used
$169.60
1
24936-ZW7-U01Ships in 1 to 2 Daysreplaced by 24930-ZY6-A01
$233.63$320.04
1
24937-ZW7-U01Ships in 1 to 2 Daysqty 4 used
$314.16$430.36
1
24938-ZW7-U01Ships in 1 to 2 Daysqty 4 used
$329.84$451.84
Diagram

CABLE (SINGLE)

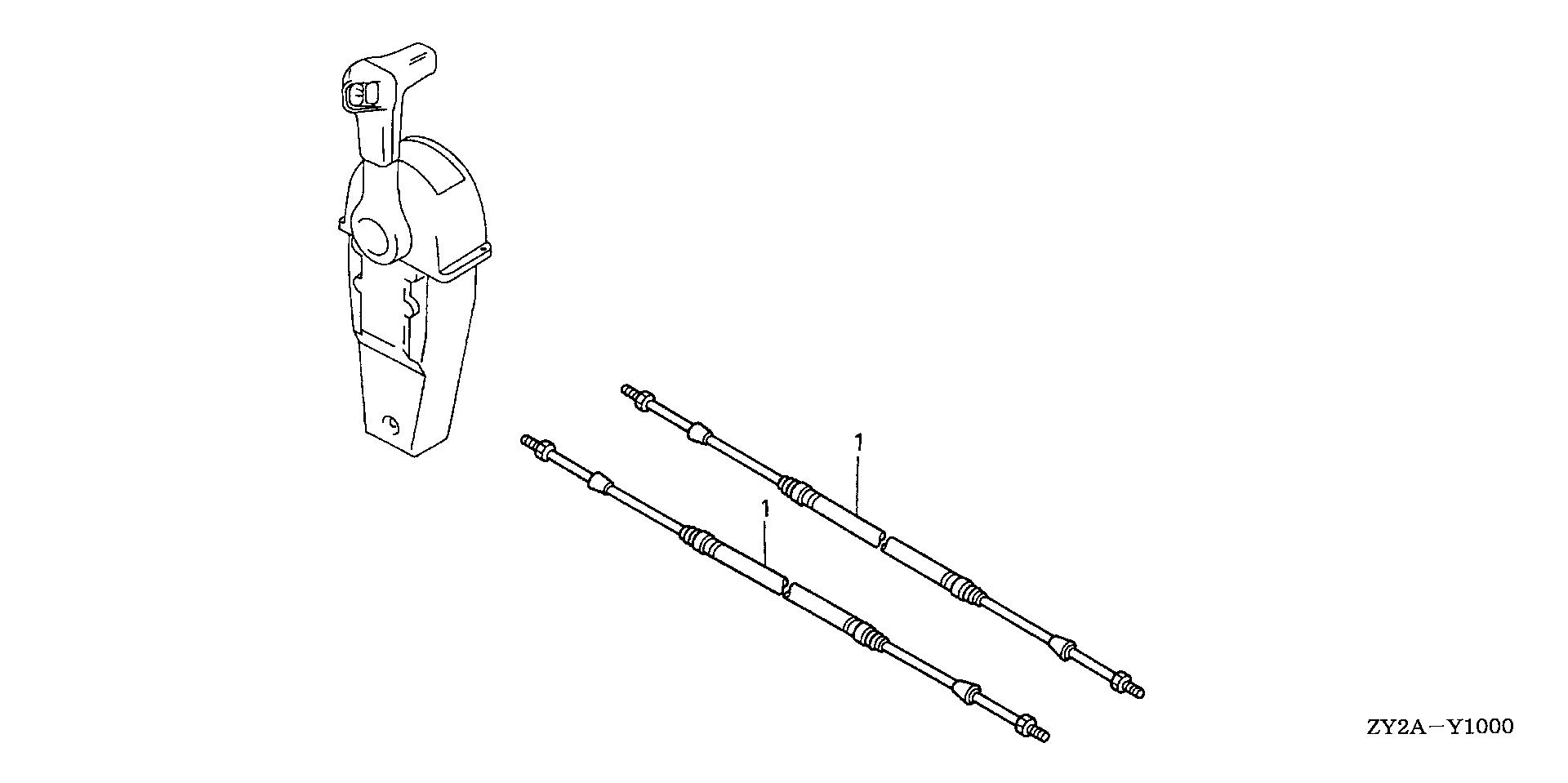

BF225 BF225A6 cable (single) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AY1000
Fits all 5 submodels of this generation.

Parts in this assembly

55 parts
1
24907-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$121.63$166.62
1
24908-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$96.59$132.32
1
24909-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$133.11$182.34
1
24910-ZY3-003Ships in 1 to 2 Daysqty 2 used
$60.42
1
24910-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$102.89$140.94
1
24911-ZW7-U01Ships in 1 to 2 Daysqty 2 used
$113.43$155.38
1
24911-ZY3-003Ships in 1 to 2 Daysqty 2 used
$58.54
1
24912-ZW7-U01Ships in 1 to 2 Daysqty 2 used
$122.73$168.12
1
24912-ZY3-003Ships in 1 to 2 Daysqty 2 used
$64.99
1
24912-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$150.95$206.78
1
24913-ZY3-003Ships in 1 to 2 Daysqty 2 used
$64.06
1
24913-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$156.28$214.08
1
24914-ZY3-003Ships in 1 to 2 Daysqty 2 used
$66.26
1
24914-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$118.73$162.64
1
24915-ZY3-003Ships in 1 to 2 Daysqty 2 used
$63.91
1
24915-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$122.65$168.02
1
CABLE, REMOTE CONTROL (16') (LOW FRICTION) (NOT AVAILABLE)
24916-ZY3-003No Longer Available
—
1
24916-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$126.70$173.56
1
24917-ZW7-U01Ships in 1 to 2 Daysqty 2 used
$145.49$199.30
1
24917-ZY3-003Ships in 1 to 2 Daysqty 2 used
$73.32
1
24917-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$131.44$180.06
1
CABLE, REMOTE CONTROL (18') (LOW FRICTION) (NOT AVAILABLE)
24918-ZY3-003No Longer Available
—
1
24918-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$136.19$186.56
1
24919-ZY3-003Ships in 1 to 2 Daysqty 2 used
$78.63
1
24919-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$140.89$193.00
1
CABLE, REMOTE CONTROL (20') (LOW FRICTION) (NOT AVAILABLE)
24920-ZY3-003No Longer Available
—
1
24920-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$145.68$199.56
1
24921-ZY3-003Ships in 1 to 2 Daysqty 2 used
$85.70
1
24921-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$153.56$210.36
1
CABLE, REMOTE CONTROL (22') (LOW FRICTION) (NOT AVAILABLE)
24922-ZY3-003No Longer Available
—
1
24922-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$161.53$221.28
1
24923-ZY3-003Ships in 1 to 2 Daysqty 2 used
$94.55
1
CABLE, REMOTE CONTROL (24') (LOW FRICTION) (NOT AVAILABLE)
24924-ZY3-003No Longer Available
—
1
24925-ZY3-003Ships in 1 to 2 Daysqty 2 used
$103.36
1
24925-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$185.22$253.72
1
24926-ZY3-003Ships in 1 to 2 Daysqty 2 used
$109.53
1
24926-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$248.36$340.22
1
24927-ZY3-003Ships in 1 to 2 Daysqty 2 used
$115.72
1
CABLE, REMOTE CONTROL (28') (LOW FRICTION) (NOT AVAILABLE)
24928-ZY3-003No Longer Available
—
1
24929-ZW7-U01Ships in 1 to 2 Daysqty 2 used
$220.69$302.32
1
24929-ZY3-003Ships in 1 to 2 Daysqty 2 used
$128.09
1
24930-ZW7-U01Ships in 1 to 2 Daysqty 2 used
$231.05$316.50
1
CABLE, REMOTE CONTROL (30') (LOW FRICTION) (NOT AVAILABLE)
24930-ZY3-003No Longer Available
—
1
24930-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$233.63$320.04
1
24931-ZY3-003Ships in 1 to 2 Daysqty 2 used
$141.35
1
CABLE, REMOTE CONTROL (32') (LOW FRICTION) (NOT AVAILABLE)
24932-ZY3-003No Longer Available
—
1
24933-ZW7-U01Ships in 1 to 2 Daysqty 2 used
$282.33$386.76
1
CABLE, REMOTE CONTROL (33') (LOW FRICTION)
24933-ZY3-003No Longer Available
—
1
24934-ZW7-U01Ships in 1 to 2 Daysqty 2 used
$284.66$389.94
1
CABLE, REMOTE CONTROL (34') (LOW FRICTION) (NOT AVAILABLE)
24934-ZY3-003No Longer Available
—
1
24935-ZW7-U01Ships in 1 to 2 Daysreplaced by 24929-ZY6-A01
$219.69$300.94
1
24935-ZY3-003Ships in 1 to 2 Daysqty 2 used
$169.60
1
24936-ZW7-U01Ships in 1 to 2 Daysreplaced by 24930-ZY6-A01
$233.63$320.04
1
24937-ZW7-U01Ships in 1 to 2 Daysqty 2 used
$314.16$430.36
1
24938-ZW7-U01Ships in 1 to 2 Daysqty 2 used
$329.84$451.84
Diagram

CAMSHAFT - ROCKER ARM

BF225 BF225A6 camshaft - rocker arm exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AE0910
Fits all 5 submodels of this generation.

Parts in this assembly

27 parts
1
14111-ZY2-A00Ships in 1 to 2 Days
$413.46$566.38
1
14111-ZY3-A00Ships in 1 to 2 Days
$400.93$549.22
2
14211-ZY2-A00Ships in 1 to 2 Days
$413.46$566.38
2
14211-ZY3-A00Ships in 1 to 2 Days
$400.93$549.22
3
14436-ZY3-000Ships in 1 to 2 Days
$16.67$23.52
4
14610-RDV-J00Ships in 1 to 2 Daysqty 6 used
$136.71$187.28
5
14620-P8A-A01Ships in 1 to 2 Daysqty 6 used
$569.63$780.32
6
14626-P8A-A00Ships in 1 to 2 Daysqty 6 used
$54.18$74.22
7
14627-P8A-A00Ships in 1 to 2 Daysqty 6 used
$54.18$74.22
8
14631-RDV-J00Ships in 1 to 2 Daysqty 2 used
$78.50$107.54
8
14631-P8A-A00Ships in 1 to 2 Daysqty 2 used
$111.44$152.66
9
14632-RCA-A00Ships in 1 to 2 Daysqty 2 used
$113.08$154.90
10
14645-P8A-A01Ships in 1 to 2 Daysqty 6 used
$1.39$1.90
11
14646-RDV-J00Ships in 1 to 2 Daysqty 12 used
$4.92$6.74
12
14711-PXK-000Ships in 1 to 2 Daysqty 12 used
$41.81$59.00
13
14721-RJA-E00Ships in 1 to 2 Daysqty 12 usedreplaced by 14721-ZVL-000
$39.54$54.16
14
14744-PM3-000Ships in 1 to 2 Daysqty 12 used
$8.92$12.22
15
14744-PT0-004Ships in 1 to 2 Daysqty 12 used
$8.92$12.22
16
14761-P8E-A02Ships in 1 to 2 Daysqty 12 used
$18.70$25.62
17
14762-P8E-A02Ships in 1 to 2 Daysqty 12 used
$18.22$24.96
18
14765-PJ7-000Ships in 1 to 2 Daysqty 24 used
$7.46$10.22
19
14775-PM3-000Ships in 1 to 2 Daysqty 24 used
$8.19$11.22
20
14781-PJ7-003Ships in 1 to 2 Daysqty 48 used
$5.91$8.34
21
90003-P8A-A00Ships in 1 to 2 Daysqty 12 used
$4.93$6.76
22
90004-P8A-A00Ships in 1 to 2 Daysqty 8 used
$3.20$4.38
23
90206-PM3-004Ships in 1 to 2 Daysqty 12 used
$4.98$6.82
24
90206-PT0-004Ships in 1 to 2 Daysqty 12 used
$3.50$4.80
Diagram

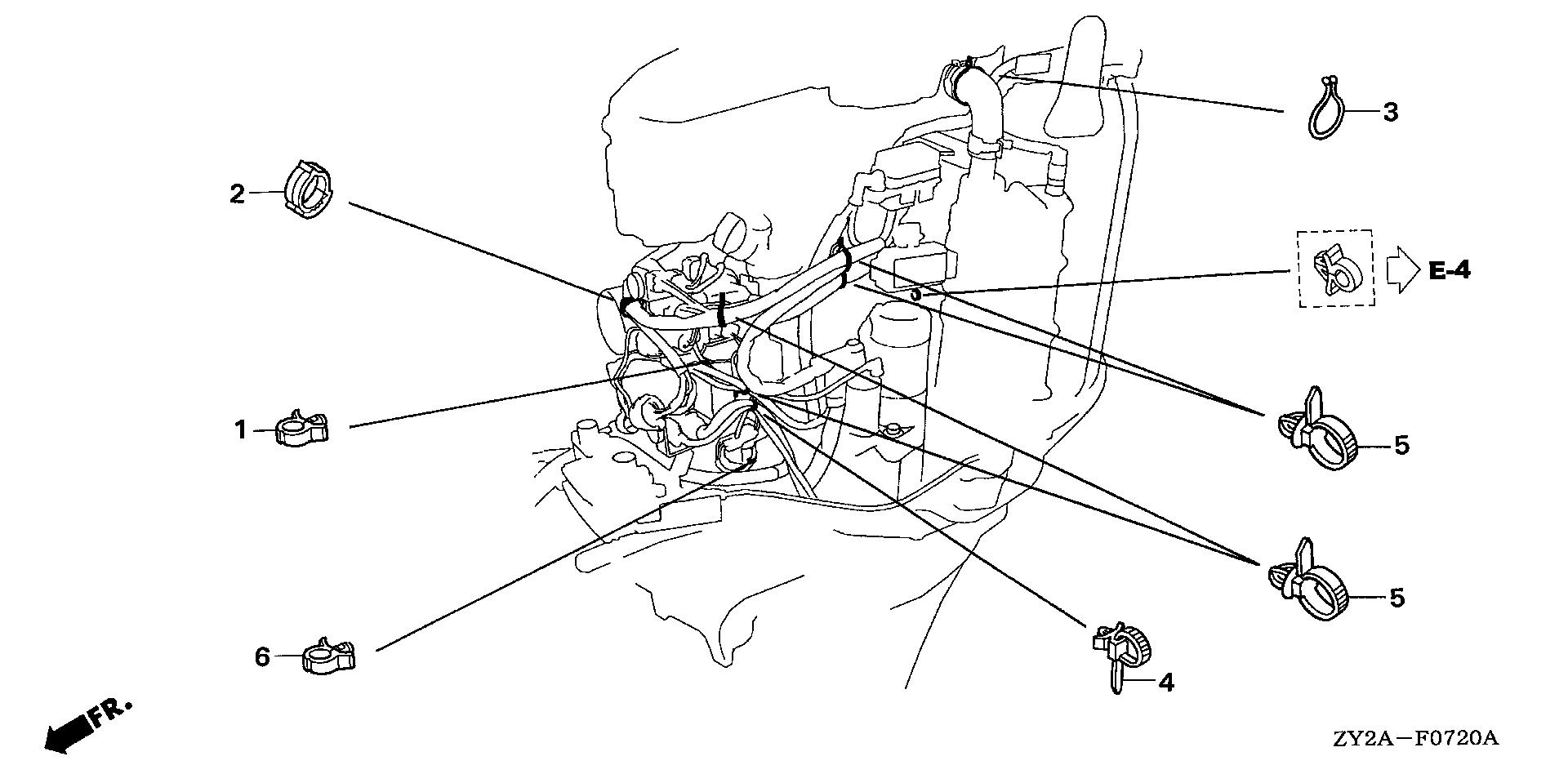

CLAMP

BF225 BF225A6 clamp exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AF0720A
Fits all 5 submodels of this generation.

Parts in this assembly

6 parts
1
46391-VM0-003Ships in 1 to 2 Days
$2.35$3.22
2
90650-ZY1-003Ships in 1 to 2 Days
$3.40$4.66
3
90655-ZY3-003Ships in 1 to 2 Days
$3.29$4.64
4
90672-SA0-003Ships in 1 to 2 Days
$7.17$9.82
5
91541-S0A-003Ships in 1 to 2 Daysqty 4 used
$3.64$4.98
6
46391-VM0-003Ships in 1 to 2 Days
$2.35$3.22
Diagram

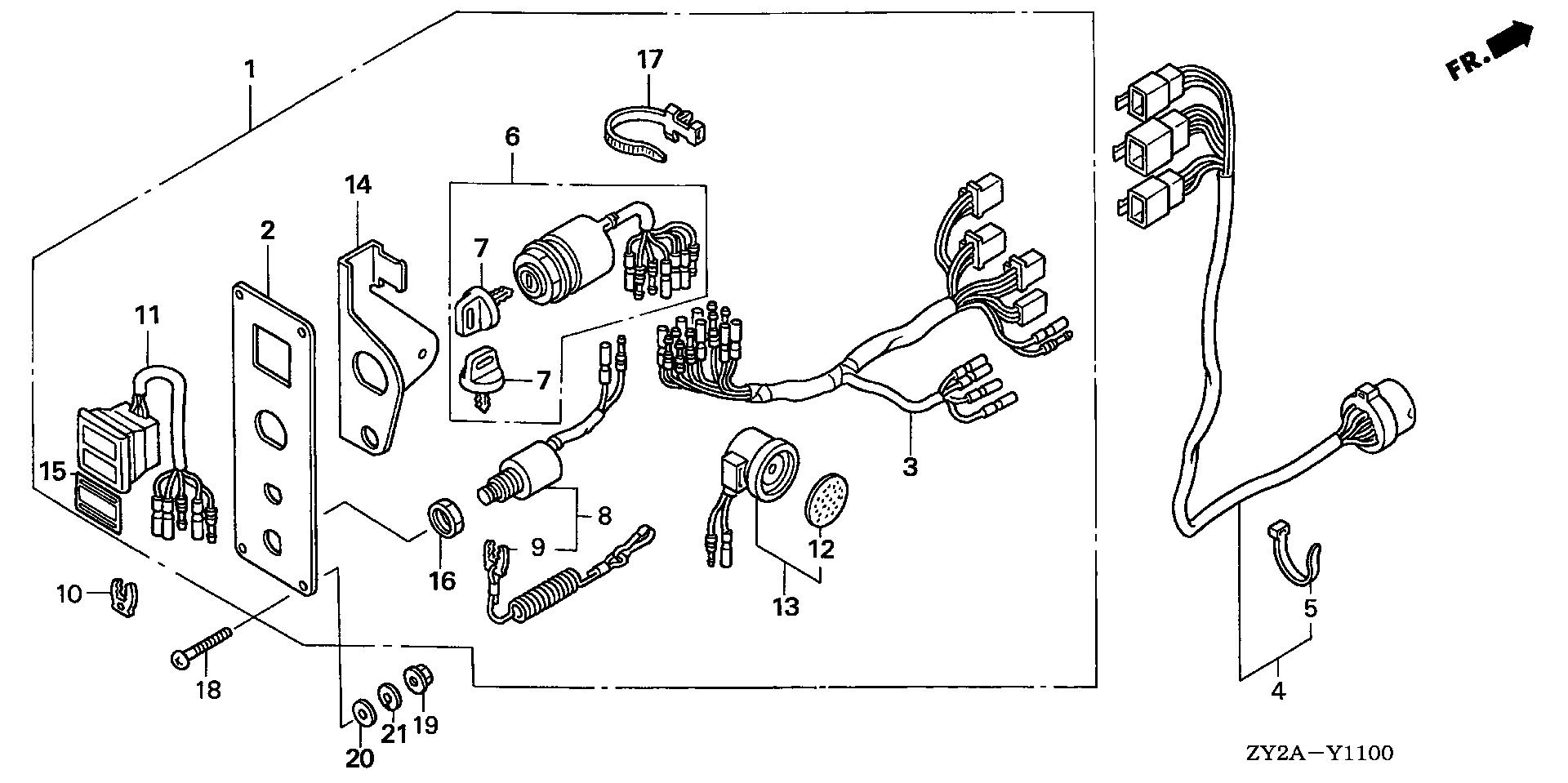

CONTROL PANEL

BF225 BF225A6 control panel exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AY1100
Fits all 5 submodels of this generation.

Parts in this assembly

22 parts
1
32340-ZW5-506In Stock
$185.19$253.68
2
32346-ZW1-505No Longer Available
$23.81$32.62
3
32545-ZW1-V03Ships in 1 to 2 Days
$104.29$147.12
4
32580-ZW2-D01Ships in 1 to 2 Days
$200.34$288.12
5
32901-952-770Ships in 1 to 2 Daysqty 3 used
$2.19$3.00
6
35100-ZV5-003Ships in 1 to 2 Days
$137.02$187.70
6
35100-ZV5-013Ships in 1 to 2 Days
$85.13$116.62
7
35110-ZV5-003Ships in 1 to 2 Daysqty 2 used
$7.99$11.48
8
36180-ZV5-033In Stock
$56.84$77.86
9
36182-ZV4-651In Stock
$18.45$25.28
10
36187-ZV4-652Ships in 1 to 2 Days
$4.18$5.72
11
37210-ZW1-702Ships in 1 to 2 Days
$119.31$163.44
12
38403-341-672Ships in 1 to 2 Days
$4.66$6.38
13
38410-ZV5-003Ships in 1 to 2 Days
$56.17$76.94
14
38414-ZW1-V02Ships in 1 to 2 Days
$30.70$44.16
15
87120-ZW5-010Ships in 1 to 2 Days
$16.37$23.54
16
90302-921-000In Stock
$4.10$5.62
17
90649-SC2-003Ships in 1 to 2 Days
$8.29$11.36
18
90109-ZW5-000Ships in 1 to 2 Daysqty 4 used
$1.20$1.64
19
18334-MT8-770Ships in 1 to 2 Daysqty 4 used
$1.53$2.16
20
94103-05400Ships in 1 to 2 Daysqty 4 used
$0.92$1.26
21
94111-05400Ships in 1 to 2 Daysqty 4 used
$0.86$1.22
Diagram

CONTROL PANEL KIT

BF225 BF225A6 control panel kit exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AY0400B
Fits all 5 submodels of this generation.

Parts in this assembly

28 parts
2
32545-ZW1-V03Ships in 1 to 2 Days
$104.29$147.12
3
32823-ZV5-003Ships in 1 to 2 Days
$2.95$4.04
4
32824-ZV5-003Ships in 1 to 2 Days
$3.11$4.26
5
32901-952-770Ships in 1 to 2 Daysqty 5 used
$2.19$3.00
6
35100-ZV5-003Ships in 1 to 2 Days
$137.02$187.70
6
35100-ZV5-013Ships in 1 to 2 Days
$85.13$116.62
7
35110-ZV5-003Ships in 1 to 2 Daysqty 2 used
$7.99$11.48
8
35118-ZW5-U02Ships in 1 to 2 Days
$10.69$15.08
9
35180-ZV7-033Ships in 1 to 2 Days
$58.56$82.64
10
35184-ZW5-U03Ships in 1 to 2 Days
$12.53$17.68
11
35630-ZW5-U11Ships in 1 to 2 Days
$54.55$76.96
12
35634-ZW5-U12Ships in 1 to 2 Days
$10.69$15.08
13
36182-ZV4-651In Stock
$18.45$25.28
14
36187-ZV4-652Ships in 1 to 2 Days
$4.18$5.72
15
37210-ZW5-U01Ships in 1 to 2 Days
$72.53$102.34
16
37214-ZW5-U02Ships in 1 to 2 Days
$10.69$15.08
17
38410-ZW5-U01Ships in 1 to 2 Days
$54.33$76.66
18
90302-921-000In Stock
$4.10$5.62
19
90305-ZW1-V01Ships in 1 to 2 Days
$4.01$5.66
20
90513-ZW5-U00Ships in 1 to 2 Days
$3.14$4.42
21
90649-SC2-003Ships in 1 to 2 Days
$8.29$11.36
22
90109-ZW5-000Ships in 1 to 2 Daysqty 16 used
$1.20$1.64
23
18334-MT8-770Ships in 1 to 2 Daysqty 16 used
$1.53$2.16
24
94103-05400Ships in 1 to 2 Daysqty 16 used
$0.92$1.26
25
94111-05400Ships in 1 to 2 Daysqty 16 used
$0.86$1.22
26
38414-ZW5-U00Ships in 1 to 2 Days
$15.88$22.42
27
32340-ZW5-U07Ships in 1 to 2 Days
$310.34$425.12
27
32340-ZW5-U06Ships in 1 to 2 Days
$284.69$389.98
Diagram

COVER - BRACKET

BF225 BF225A6 cover - bracket exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AF0711
Fits all 5 submodels of this generation.

Parts in this assembly

4 parts
1
30421-ZY3-000Ships in 1 to 2 Days
$56.21$77.00
2
30422-ZY3-000Ships in 1 to 2 Days
$9.07$12.80
3
$86.59$118.62
4
90851-898-000Ships in 1 to 2 Daysqty 2 used
$4.10$5.62
Diagram

CRANKCASE

BF225 BF225A6 crankcase exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AE0310
Fits all 5 submodels of this generation.

Parts in this assembly

22 parts
1
11100-ZY3-415ZAShips in 1 to 2 Days
$586.85$604.39
2
11911-ZY3-010Ships in 1 to 2 Days
$20.02$27.42
3
15400-PLM-A02PEIn Stock
$9.07$12.42
3
15400-ZJ1-004Ships in 1 to 2 Daysreplaced by 15400-PLM-A02PE
$9.07$12.42
↳
Sierra alternative ·
18-7909In Stock
$9.53
3
15400-PLM-A01Ships in 1 to 2 Daysreplaced by 15400-PLM-A02
$8.50$11.64
3
$8.50$11.64
4
15611-921-000Ships in 1 to 2 Days
$10.13$13.88
5
15631-ZW1-000Ships in 1 to 2 Days
$30.37$42.84
6
90015-PH1-013Ships in 1 to 2 Days
$9.97$13.66
7
90025-ZY3-000Ships in 1 to 2 Daysqty 2 used
$1.07$1.54
7
90030-ZY3-000Ships in 1 to 2 Daysqty 2 used
$0.92$1.26
8
90026-ZY9-M01Ships in 1 to 2 Daysqty 2 used
$1.49$2.04
9
90031-ZY3-000Ships in 1 to 2 Daysqty 15 used
$1.04$1.42
10
90033-ZY3-010Ships in 1 to 2 Daysqty 2 used
$0.95$1.36
10
90147-ZW4-000Ships in 1 to 2 Daysreplaced by 90047-ZZ5-M01
$1.96$2.68
11
90041-ZVL-010Ships in 1 to 2 Daysqty 2 used
$1.66$2.28
12
90063-ZVL-010Ships in 1 to 2 Daysqty 2 used
$1.66$2.28
13
90082-ZY3-003Ships in 1 to 2 Days
$3.80$5.20
14
90083-ZY3-A01Ships in 1 to 2 Days
$3.88$5.32
15
90204-ZVL-010Ships in 1 to 2 Daysqty 2 used
$1.20$1.64
16
91301-805-000Ships in 1 to 2 Days
$3.65$5.00
17
94301-08140Ships in 1 to 2 Daysqty 2 used
$2.74$3.76
Diagram

CRANKSHAFT - PISTON

BF225 BF225A6 crankshaft - piston exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AE0700A
Fits all 5 submodels of this generation.

Parts in this assembly

26 parts
1
13010-ZY3-A00Ships in 1 to 2 Daysqty 6 used
$60.52$82.90
2
13101-ZY3-A00Ships in 1 to 2 Daysqty 6 used
$78.59$110.88
3
13111-PEA-000Ships in 1 to 2 Daysqty 6 used
$34.18$46.82
4
13115-P5A-000Ships in 1 to 2 Daysqty 12 used
$3.94$5.40
5
13204-P8A-A01Ships in 1 to 2 Days
$8.23$11.28
6
13210-PGK-A00Ships in 1 to 2 Daysqty 6 used
$254.13$365.48
7
13211-P8F-A11Ships in 1 to 2 Daysqty 12 used
$28.41$40.08
7
13212-P8F-A11Ships in 1 to 2 Daysqty 12 used
$32.95$46.48
7
13213-P8F-A11Ships in 1 to 2 Daysqty 12 used
$32.95$46.48
7
13214-P8F-A11Ships in 1 to 2 Daysqty 12 used
$32.95$46.48
7
13215-P8F-A11Ships in 1 to 2 Daysqty 12 used
$28.41$40.08
8
13310-RGL-A00Ships in 1 to 2 Days
$631.44$864.98
9
13321-P8A-A01Ships in 1 to 2 Daysqty 4 used
$28.59$40.34
9
13322-P8A-A01Ships in 1 to 2 Daysqty 4 used
$28.59$40.34
9
13323-P8A-A01Ships in 1 to 2 Daysqty 4 used
$28.59$40.34
9
13324-P8A-A01Ships in 1 to 2 Daysqty 4 used
$28.59$40.34
9
13325-P8A-A01Ships in 1 to 2 Daysqty 4 used
$28.59$40.34
9
13326-P8A-A01Ships in 1 to 2 Daysqty 4 used
$23.18$32.72
11
13341-P8A-A01Ships in 1 to 2 Daysqty 4 used
$28.59$40.34
11
13342-P8A-A01Ships in 1 to 2 Daysqty 4 used
$28.59$40.34
11
13343-P8A-A01Ships in 1 to 2 Daysqty 4 used
$28.59$40.34
11
13344-P8A-A01Ships in 1 to 2 Daysqty 4 used
$28.59$40.34
11
13345-P8A-A01Ships in 1 to 2 Daysqty 4 used
$28.59$40.34
11
13346-P8A-A01Ships in 1 to 2 Daysqty 4 used
$27.08$38.22
12
94301-10120Ships in 1 to 2 Daysqty 12 used
$3.01$4.12
13
06131-ZY3-030Ships in 1 to 2 Days
$40.08$57.64
Diagram

CYLINDER BLOCK

BF225 BF225A6 cylinder block exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AE0300B
Fits all 5 submodels of this generation.

Parts in this assembly

52 parts
1
11200-ZY3-040ZAShips in 1 to 2 Days
$253.79$358.12
2
CASE ASSY., OIL SEAL
11300-ZY3-000No Longer Available
$110.27$151.06
3
12000-ZY3-406ZAShips in 1 to 2 Days
$3,831.67$5,248.86
3
$3,831.67$5,248.86
3
12000-ZY3-436ZAShips in 1 to 2 Days
$3,469.66
4
12214-ZV5-000Ships in 1 to 2 Days
$2.92$4.00
5
15115-P8A-A01In Stock
$5.10$6.98
6
15140-P8A-A00Ships in 1 to 2 Daysqty 2 used
$17.56$24.06
7
15142-P8A-A00Ships in 1 to 2 Daysqty 2 used
$3.55$4.86
8
15150-P8A-A00Ships in 1 to 2 Days
$43.23$59.22
9
DIPSTICK, OIL (NOT AVAILABLE)
15655-ZY3-000No Longer Available
$30.08$41.20
10
15656-ZY3-000Ships in 1 to 2 Days
$34.09$48.10
11
15657-ZY3-000In Stock
$7.05$9.66
12
15810-ZY2-000ZAShips in 1 to 2 Days
$190.85$261.44
12
15810-ZY3-003ZAShips in 1 to 2 Days
$322.91$455.60
13
15825-ZY2-000Ships in 1 to 2 Days
$15.73
13
15825-ZY3-003Ships in 1 to 2 Days
$20.45$28.02
14
30530-P8F-A01Ships in 1 to 2 Days
$104.96$143.78
15
32111-ZY3-010Ships in 1 to 2 Days
$11.34$16.00
16
32114-ZVL-000Ships in 1 to 2 Days
$2.89$3.96
17
32116-ZY3-000Ships in 1 to 2 Days
$6.03$8.50
18
WIRE, SWITCH (NOT AVAILABLE)
32193-ZY3-000No Longer Available
$56.21$77.00
19
35490-ZW9-003Ships in 1 to 2 Days
$31.45$44.38
20
35490-ZY3-004Ships in 1 to 2 Days
$31.55$44.52
21
35673-ZY3-003Ships in 1 to 2 Days
$22.62$30.98
22
35700-ZY3-003Ships in 1 to 2 Days
$118.35$162.12
23
90001-ZVL-010Ships in 1 to 2 Daysqty 2 used
$4.09$5.60
24
90006-ZY3-003Ships in 1 to 2 Days
$4.89$6.90
25
90008-ZY3-003Ships in 1 to 2 Daysqty 5 used
$3.97$5.60
26
90009-ZY3-003Ships in 1 to 2 Daysqty 2 used
$4.31$5.90
27
90011-ZW9-000Ships in 1 to 2 Days
$1.71$2.34
28
90014-RCA-A01Ships in 1 to 2 Daysqty 8 used
$4.89$6.70
29
90017-ZZ5-M01Ships in 1 to 2 Days
$1.24$1.70
30
90019-ZW9-000Ships in 1 to 2 Daysreplaced by 90019-ZZ5-M01
$2.25$3.08
31
90021-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.14$1.56
32
90020-ZVL-010Ships in 1 to 2 Daysqty 2 used
$1.24$1.70
33
90028-ZY3-000Ships in 1 to 2 Daysqty 4 used
$1.04$1.46
34
90030-ZY3-000Ships in 1 to 2 Daysqty 8 used
$0.92$1.26
35
90038-ZY3-000Ships in 1 to 2 Days
$1.62$2.28
36
90081-ZV5-010Ships in 1 to 2 Days
$4.51$6.18
37
90715-PH7-000Ships in 1 to 2 Daysqty 8 used
$7.85$10.76
38
91212-ZY3-003Ships in 1 to 2 Days
$13.20$18.08
39
91214-PL2-003Ships in 1 to 2 Days
$35.74$51.42
40
91307-PNA-003Ships in 1 to 2 Days
$2.01$2.76
41
91308-PK1-003Ships in 1 to 2 Daysreplaced by 91308-P3R-T01
$2.77$3.80
41
$2.77$3.80
42
91308-P8A-A01In Stock
$5.84$8.00
43
91309-P8A-A01In Stock
$5.84$8.00
44
91319-PR3-003Ships in 1 to 2 Days
$4.58$6.28
45
91321-P0X-003In Stock
$4.20$5.76
46
94301-06100In Stockqty 4 used
$2.74$3.76
47
94303-05080Ships in 1 to 2 Days
$2.80$3.84
Diagram

CYLINDER HEAD

BF225 BF225A6 cylinder head exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AE0900D
Fits all 5 submodels of this generation.

Parts in this assembly

23 parts
1
11911-ZY3-010Ships in 1 to 2 Daysqty 2 used
$20.02$27.42
2
12204-PJ7-305Ships in 1 to 2 Days
$15.58$21.34
3
GUIDE, EX. VALVE (OVER SIZE) (NOT AVAILABLE)
12205-PJ7-305No Longer Available
$18.75$25.68
4
12210-PZ1-004Ships in 1 to 2 Days
$4.45$6.10
5
12210-ZY3-020ZAShips in 1 to 2 Daysqty 2 used
$1,913.33$1,970.81
6
12211-PZ1-004Ships in 1 to 2 Days
$4.45$6.10
7
12251-PGE-A01Ships in 1 to 2 Daysqty 2 used
$62.47$85.58
7
12251-ZY3-A01Ships in 1 to 2 Daysqty 2 used
$55.86$76.52
8
14820-P8F-A01Ships in 1 to 2 Daysqty 6 used
$25.10$34.38
9
16897-ZY3-000Ships in 1 to 2 Days
$5.87$8.28
10
17938-SE0-941Ships in 1 to 2 Days
$6.54$8.96
11
90005-PT0-003Ships in 1 to 2 Daysqty 16 used
$16.79$23.00
12
90026-ZY9-M01Ships in 1 to 2 Daysqty 4 used
$1.49$2.04
13
90060-ZY3-000Ships in 1 to 2 Days
$2.85$4.02
14
90701-P8A-A00Ships in 1 to 2 Daysqty 4 used
$4.88$6.68
15
90705-PT0-000Ships in 1 to 2 Daysqty 4 used
$5.33$7.30
16
91213-P8A-A01Ships in 1 to 2 Daysreplaced by 91213-RKG-003
$11.74$16.08
16
91213-RKG-003Ships in 1 to 2 Days
$11.74$16.08
17
94302-06100Ships in 1 to 2 Daysqty 4 used
$2.74$3.76
18
12231-ZVL-000Ships in 1 to 2 Days
$18.05$24.72
19
12241-ZY3-000Ships in 1 to 2 Days
$20.92$28.66
20
90035-ZY3-000Ships in 1 to 2 Daysqty 4 used
$1.02$1.44
21
91301-P8A-A00Ships in 1 to 2 Days
$1.71$2.34
Diagram

CYLINDER HEAD ASSEMBLY

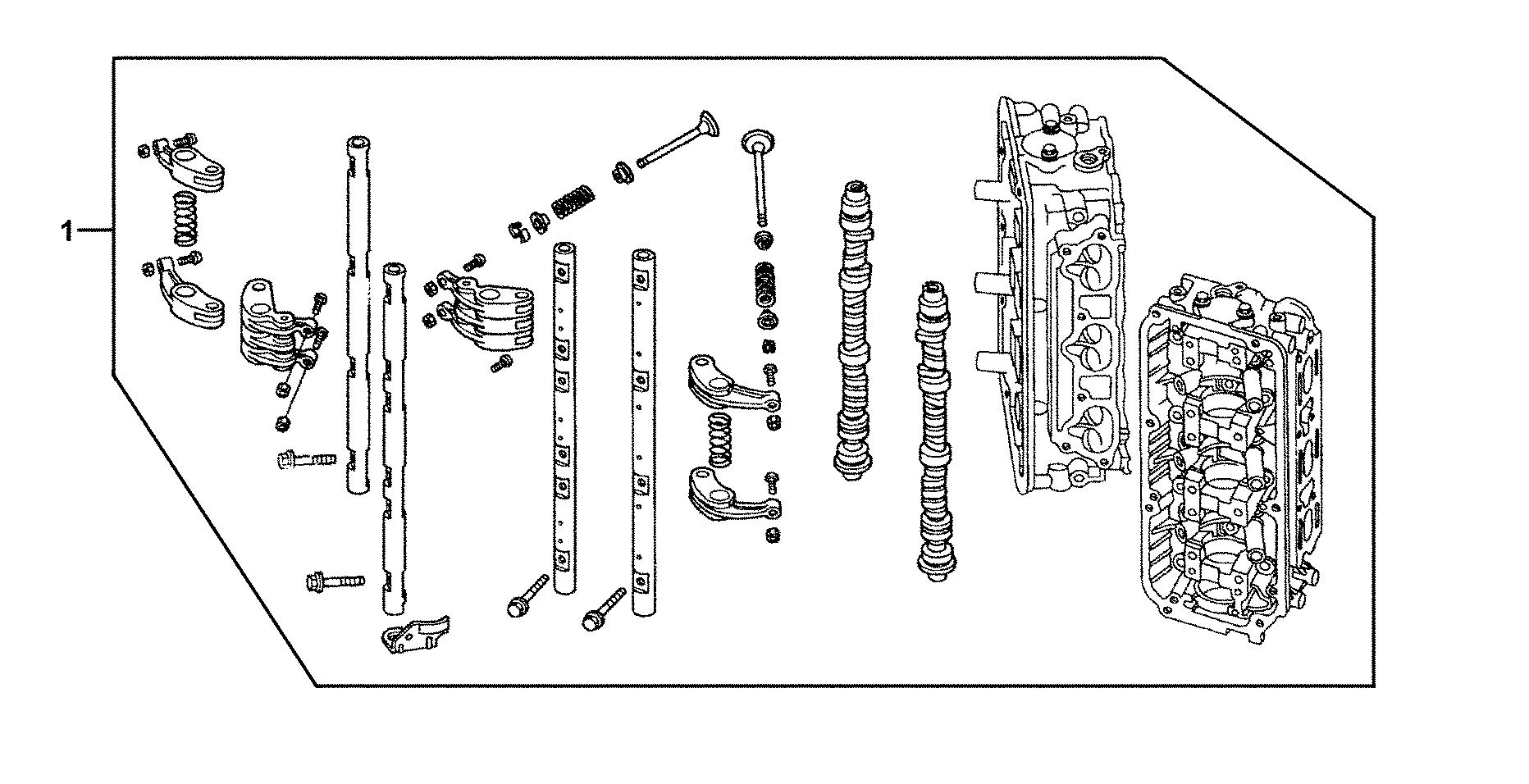

BF225 BF225A6 cylinder head assembly exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AE09A1Z
Fits all 5 submodels of this generation.

Parts in this assembly

4 parts
1
12215-ZY2-A04ZAShips in 1 to 2 Days
$2,290.26
1
CYLINDER HEAD-CAM ASSY. *NH8* (DARK GRAY)
12225-ZY2-A03ZANo Longer Available
—
1
12215-ZY3-A03ZAShips in 1 to 2 Days
$2,626.02
1
12225-ZY3-A03ZAShips in 1 to 2 Days
$2,475.10$2,549.18
Diagram

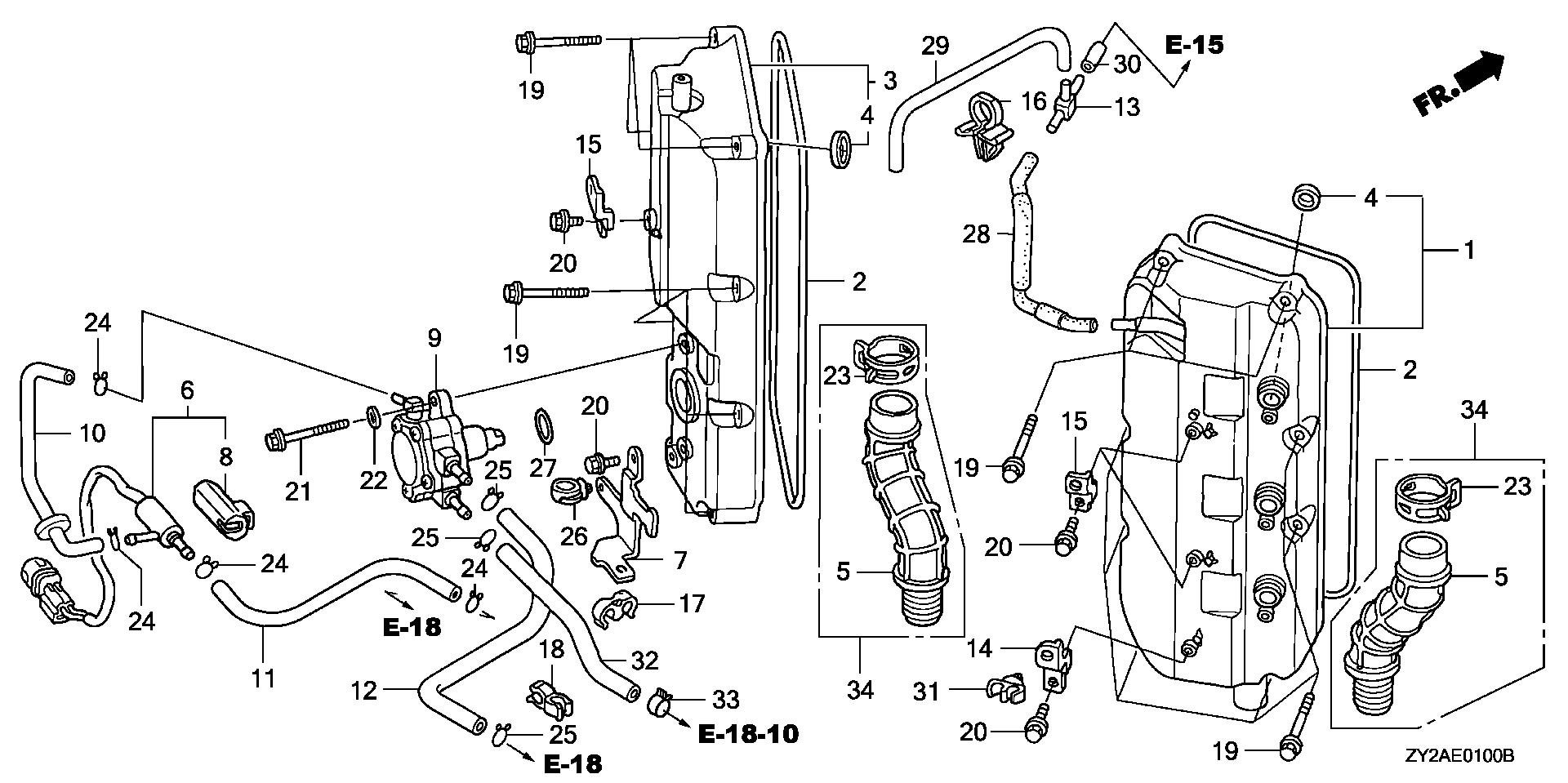

CYLINDER HEAD COVER

BF225 BF225A6 cylinder head cover exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AE0100B
Fits all 5 submodels of this generation.

Parts in this assembly

36 parts
1
12310-ZY3-405ZAShips in 1 to 2 Days
$294.85$415.98
2
12312-ZY3-000Ships in 1 to 2 Daysqty 2 used
$36.88$50.52
3
12320-ZY3-405ZAShips in 1 to 2 Days
$294.85$415.98
4
12342-P2F-A01Ships in 1 to 2 Daysreplaced by 12342-RYE-004
$5.80$7.94
4
12342-RYE-004Ships in 1 to 2 Daysqty 6 used
$5.80$7.94
5
15425-ZY3-010Ships in 1 to 2 Daysqty 2 used
$22.88$31.34
6
16200-ZY3-003Ships in 1 to 2 Days
$175.17$239.96
7
16203-ZY3-000Ships in 1 to 2 Days
$13.02$18.38
8
16204-ZY3-003Ships in 1 to 2 Days
$12.54$17.70
9
16700-ZY3-A01Ships in 1 to 2 Days
$278.96$393.64
10
16881-ZY3-010Ships in 1 to 2 Days
$3.29$4.64
11
16891-ZY3-000Ships in 1 to 2 Days
$4.73$6.68
12
16896-ZY3-000Ships in 1 to 2 Days
$5.08$7.16
13
17193-MT2-000Ships in 1 to 2 Days
$12.82$17.56
14
32114-ZVL-000Ships in 1 to 2 Days
$2.89$3.96
15
32129-ZY3-000Ships in 1 to 2 Daysqty 3 used
$4.64$6.36
16
50310-HE0-003Ships in 1 to 2 Days
$2.83$3.88
17
53740-SE0-953Ships in 1 to 2 Days
$3.01$4.12
18
54316-SD9-013Ships in 1 to 2 Days
$9.77$13.78
19
90019-ZW9-000Ships in 1 to 2 Daysreplaced by 90019-ZZ5-M01
$2.25$3.08
20
90011-ZW9-000Ships in 1 to 2 Daysqty 5 used
$1.71$2.34
20
90021-ZZ5-M01Ships in 1 to 2 Daysqty 5 used
$1.14$1.56
21
90036-ZY3-030Ships in 1 to 2 Daysqty 2 used
$0.95$1.30
22
90406-ZY3-000Ships in 1 to 2 Daysqty 2 used
$0.67$0.94
23
90602-ZY3-020Ships in 1 to 2 Daysqty 2 used
$4.15$5.68
24
90603-ZV4-000Ships in 1 to 2 Daysqty 4 used
$1.42$1.94
25
90604-ZV0-000Ships in 1 to 2 Daysqty 3 used
$1.37$1.88
26
90691-ZB7-003Ships in 1 to 2 Days
$3.07$4.20
27
91305-KT7-003Ships in 1 to 2 Days
$2.66$3.64
28
91401-ZY3-A00Ships in 1 to 2 Days
$12.88$17.64
29
91402-ZY3-030Ships in 1 to 2 Days
$12.12$16.60
30
91403-ZY3-000Ships in 1 to 2 Days
$3.08$4.22
31
91566-SK7-003Ships in 1 to 2 Days
$6.34$8.68
32
95001-75008-60MShips in 1 to 2 Days
$131.68$189.42
33
90602-ZW5-030In Stock
$1.83$2.50
34
06154-ZY3-000Ships in 1 to 2 Daysqty 2 used
$24.91$35.82
Diagram

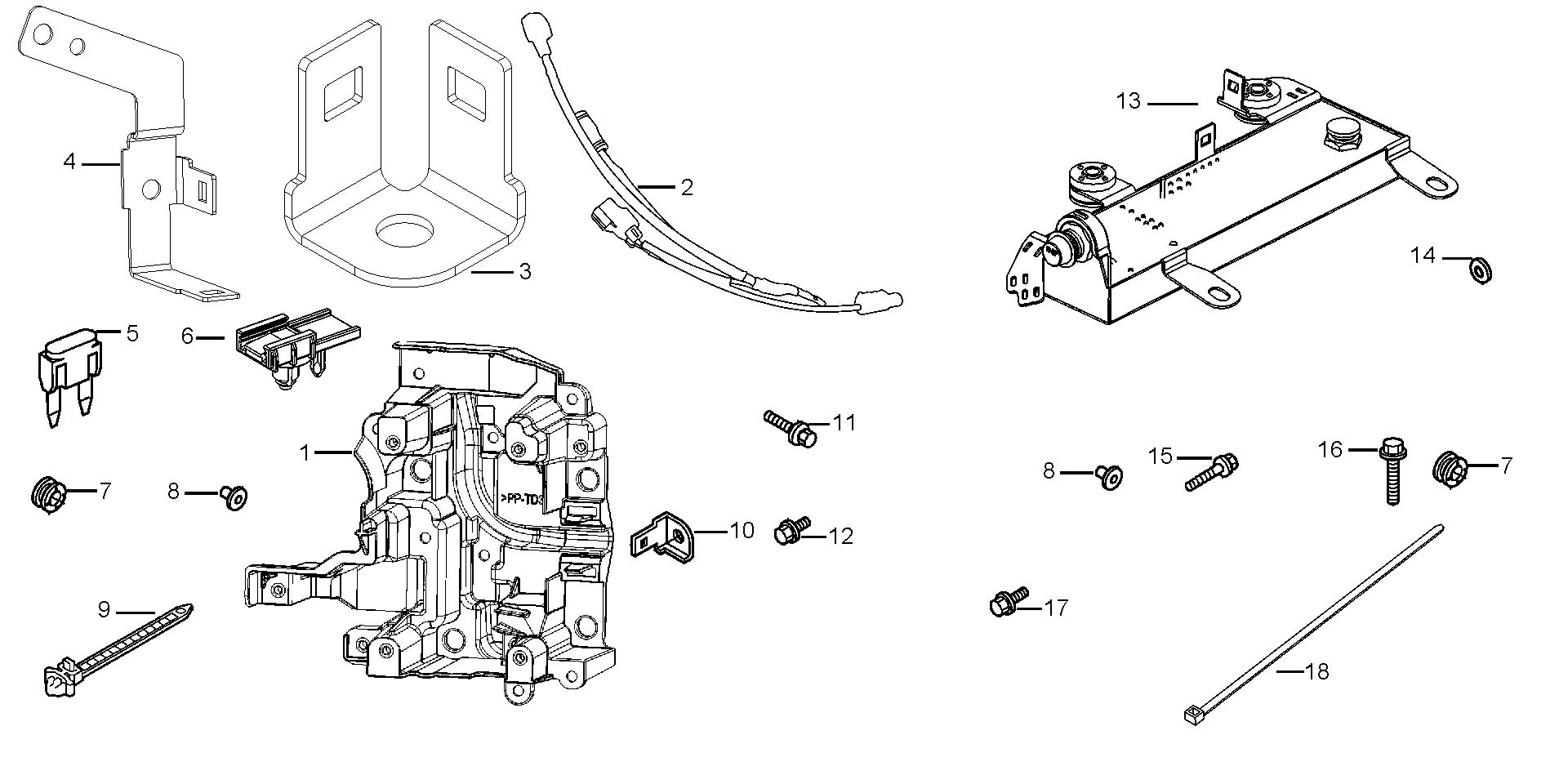

ELECTRICAL PARTS BOX - MOTOR CONTROL

BF225 BF225A6 electrical parts box - motor control exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AXEX01
Fits all 5 submodels of this generation.

Parts in this assembly

18 parts
1
30416-ZX2-001AHShips in 1 to 2 Days
$74.40
2
32415-ZX2-001AHShips in 1 to 2 Days
$265.84
3
32101-ZZ3-002AHShips in 1 to 2 Days
$33.74
4
32101-ZZ3-003AHShips in 1 to 2 Days
$55.54
5
98200-42000Ships in 1 to 2 Daysqty 2 used
$1.11$1.52
6
90653-ZX2-000AHShips in 1 to 2 Days
$13.54
7
38553-ZY9-003Ships in 1 to 2 Daysqty 6 used
$4.23$5.80
8
91553-ZV5-010Ships in 1 to 2 Daysqty 6 used
$2.67$3.66
9
91541-S0A-003Ships in 1 to 2 Daysqty 3 used
$3.64$4.98
10
32101-ZZ3-010Ships in 1 to 2 Daysqty 2 used
$5.05$6.92
11
90003-ZZ5-M01Ships in 1 to 2 Daysqty 6 used
$2.55$3.50
12
90103-ZZ0-M01Ships in 1 to 2 Daysqty 4 used
$1.31$1.80
13
34750-ZX2-000AHShips in 1 to 2 Days
$1,431.11
14
90512-ZV4-000Ships in 1 to 2 Daysqty 2 used
$3.04$4.16
15
90145-ZW4-000Ships in 1 to 2 Daysreplaced by 90045-ZZ5-M01
$1.71$2.42
16
90003-ZY9-M01Ships in 1 to 2 Daysqty 2 used
$1.93$2.64
17
90013-ZW9-000Ships in 1 to 2 Days
$1.47$2.08
18
32901-ZX2-200AHShips in 1 to 2 Daysqty 5 used
$0.80
Diagram

ELECTRONIC CONTROL UNIT

BF225 BF225A6 electronic control unit exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AE2010
Fits all 5 submodels of this generation.

Parts in this assembly

13 parts
1
CONTROL UNIT, ELECTRONIC
34750-ZY2-A01No Longer Available
—
1
CONTROL UNIT, ELECTRONIC (NOT AVAILABLE)
34750-ZY2-A02No Longer Available
—
1
CONTROL UNIT, ELECTRONIC
34750-ZY2-A03No Longer Available
—
1
CONTROL UNIT, ELECTRONIC
34750-ZY3-A01No Longer Available
—
1
CONTROL UNIT, ELECTRONIC (NOT AVAILABLE)
34750-ZY3-A02No Longer Available
—
1
CONTROL UNIT, ELECTRONIC
34750-ZY3-A03No Longer Available
—
2
34754-ZY3-000Ships in 1 to 2 Days
$97.89$140.80
3
38551-ZY3-000Ships in 1 to 2 Daysqty 3 used
$5.52$7.94
4
90011-ZW9-000Ships in 1 to 2 Daysqty 8 used
$1.71$2.34
5
90016-ZZ5-M01Ships in 1 to 2 Daysqty 3 used
$1.42$1.94
6
90404-ZY3-000Ships in 1 to 2 Daysqty 3 used
$1.84$2.60
7
90683-SA0-003Ships in 1 to 2 Days
$9.11$12.48
8
91503-ZY3-000Ships in 1 to 2 Daysqty 3 used
$4.42$6.36
Diagram

ENGINE COVER

BF225 BF225A6 engine cover exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AF0800C
Fits all 5 submodels of this generation.

Parts in this assembly

25 parts
1
17251-KE8-690Ships in 1 to 2 Daysqty 4 used
$2.38$3.26
2
32104-538-308Ships in 1 to 2 Days
$6.94$9.98
3
$1,536.72$2,105.10
3
$1,536.72$2,105.10
4
63102-ZY3-010Ships in 1 to 2 Days
$62.28$87.88
5
63107-ZY3-010Ships in 1 to 2 Daysqty 4 used
$32.60$46.00
6
63108-ZY3-000Ships in 1 to 2 Daysqty 4 used
$5.23$7.38
7
63111-ZY3-300ZAShips in 1 to 2 Daysreplaced by 63111-ZY3-310ZA
$35.38$50.88
7
63111-ZY3-310ZAShips in 1 to 2 Days
$35.38$50.88
8
63119-ZY3-000Ships in 1 to 2 Daysqty 4 used
$2.95$4.16
9
63143-ZY3-H00Ships in 1 to 2 Days
$144.31$203.62
10
90105-ZW9-000Ships in 1 to 2 Daysqty 4 used
$2.88$3.94
11
90109-ZY3-010Ships in 1 to 2 Daysqty 4 used
$3.65$5.16
12
90133-ZY3-000Ships in 1 to 2 Daysqty 4 used
$2.80$3.84
13
90504-921-010Ships in 1 to 2 Daysqty 4 used
$1.27$1.74
14
90507-ZY3-000Ships in 1 to 2 Daysqty 4 used
$2.23$3.06
15
91556-ZY3-000Ships in 1 to 2 Daysqty 12 used
$2.48$3.40
16
SCREW, TAPPING (4X10)
93911-141J0Ships in 1 to 2 Daysqty 2 used
$3.49$4.78
17
SCREW, TAPPING (4X10)
93913-141J0Ships in 1 to 2 Daysqty 3 used
$2.99$4.10
18
94002-06490-0SShips in 1 to 2 Daysqty 4 used
$2.58$3.54
19
06631-ZY3-305ZANo Longer Available
$93.16$127.62
20
90852-ZY3-300Ships in 1 to 2 Daysqty 7 used
$0.48$0.68
21
SCREW, TAPPING (4X10)
93913-141J0Ships in 1 to 2 Days
$2.99$4.10
22
95011-62000Ships in 1 to 2 Days
$1.23$1.68
23
06631-ZX2-C01Ships in 1 to 2 Daysqty 4 used
$39.23$55.36
Diagram

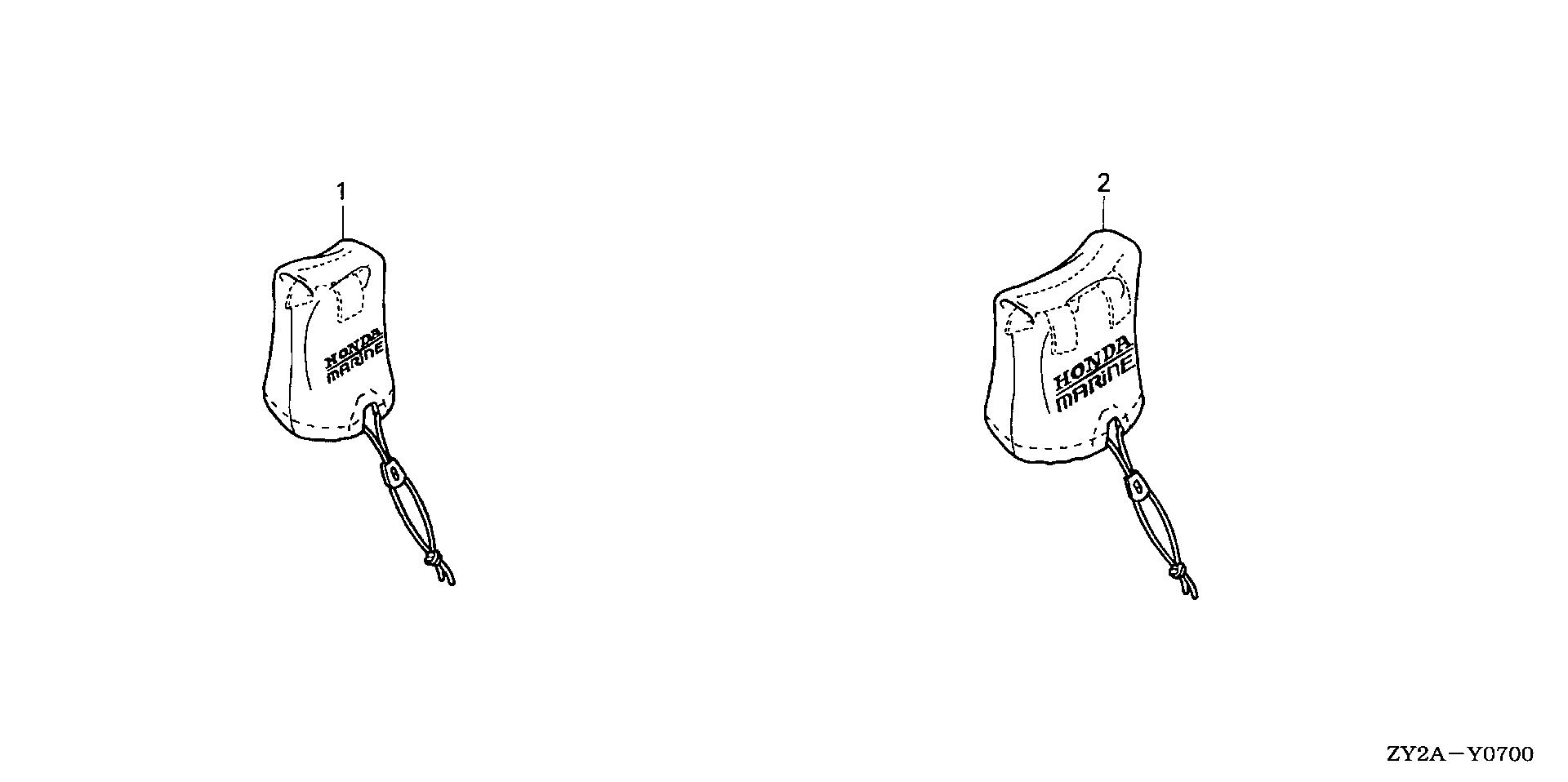

ENGINE COVER (ACCESSORY SOFT COVER)

BF225 BF225A6 engine cover (accessory soft cover) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AY1400
Fits all 5 submodels of this generation.

Parts in this assembly

1 parts
1
88163-ZY3-U00Ships in 1 to 2 Days
$147.71$208.42
Diagram

EXHAUST MANIFOLD - THERMOSTAT

BF225 BF225A6 exhaust manifold - thermostat exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AE0400F
Fits all 5 submodels of this generation.

Parts in this assembly

35 parts
1
12155-ZV5-000Ships in 1 to 2 Daysreplaced by 12155-ZV5-010
$9.53$13.06
1
12155-ZV5-010Ships in 1 to 2 Daysqty 4 used
$9.53$13.06
2
18110-ZY3-010ZAShips in 1 to 2 Days
$141.65$405.76
3
18115-ZY3-003Ships in 1 to 2 Days
$31.61$43.30
4
MANIFOLD, L. EX. *NH8* (DARK GRAY)
18120-ZY3-010ZANo Longer Available
$136.79$187.38
4
MANIFOLD, L. EX. *NH8* (DARK GRAY)
18120-ZY3-020ZANo Longer Available
—
5
18125-ZY3-003Ships in 1 to 2 Days
$31.64$43.34
6
19255-ZY3-000Ships in 1 to 2 Days
$2.88$4.06
7
19256-ZY3-010Ships in 1 to 2 Daysqty 2 used
$4.61$6.32
8
19257-ZY3-010Ships in 1 to 2 Daysqty 2 used
$15.23$20.86
9
19261-ZVL-000Ships in 1 to 2 Days
$1.58$2.16
10
19300-ZY3-023In Stock
$36.85$50.48
11
19315-ZY3-020ZAShips in 1 to 2 Daysqty 2 used
$29.04$40.98
12
35655-ZY3-013In Stock
$331.20$476.46
13
35673-ZY3-003Ships in 1 to 2 Daysqty 2 used
$22.62$30.98
14
46391-VM0-003Ships in 1 to 2 Days
$2.35$3.22
15
90019-ZW9-000Ships in 1 to 2 Daysreplaced by 90019-ZZ5-M01
$2.25$3.08
16
90055-ZZ5-M01Ships in 1 to 2 Daysqty 8 used
$1.87$2.56
17
90027-ZY3-000In Stockqty 8 used
$1.42$2.00
18
90034-ZY3-000Ships in 1 to 2 Daysreplaced by 90034-ZVL-010
$1.04$1.42
19
90601-ZY3-030Ships in 1 to 2 Daysqty 4 used
$1.66$2.28
20
90603-ZY3-020Ships in 1 to 2 Daysqty 4 used
$3.64$4.98
21
90604-ZY3-020Ships in 1 to 2 Daysqty 2 used
$2.44$3.34
22
91301-ZY3-003In Stockqty 2 used
$8.42$11.54
23
91307-PNA-003Ships in 1 to 2 Daysqty 2 used
$2.01$2.76
24
91356-SD4-952Ships in 1 to 2 Daysqty 2 used
$3.47$4.76
25
93500-06018-4JShips in 1 to 2 Daysqty 4 used
$1.49$2.10
26
TUBE SET, WATER (NOT AVAILABLE)
06195-ZY3-000No Longer Available
—
27
90019-ZW9-000Ships in 1 to 2 Daysreplaced by 90019-ZZ5-M01
$2.25$3.08
27
90146-ZW4-000Ships in 1 to 2 Daysqty 3 used
$1.90$2.60
28
$61.73$87.08
29
91356-SD4-952Ships in 1 to 2 Days
$3.47$4.76
30
$60.00
30
35655-ZY3-C01Ships in 1 to 2 Days
$320.54$439.10
31
19303-ZW9-003In Stockqty 2 used
$5.30$7.26
Diagram

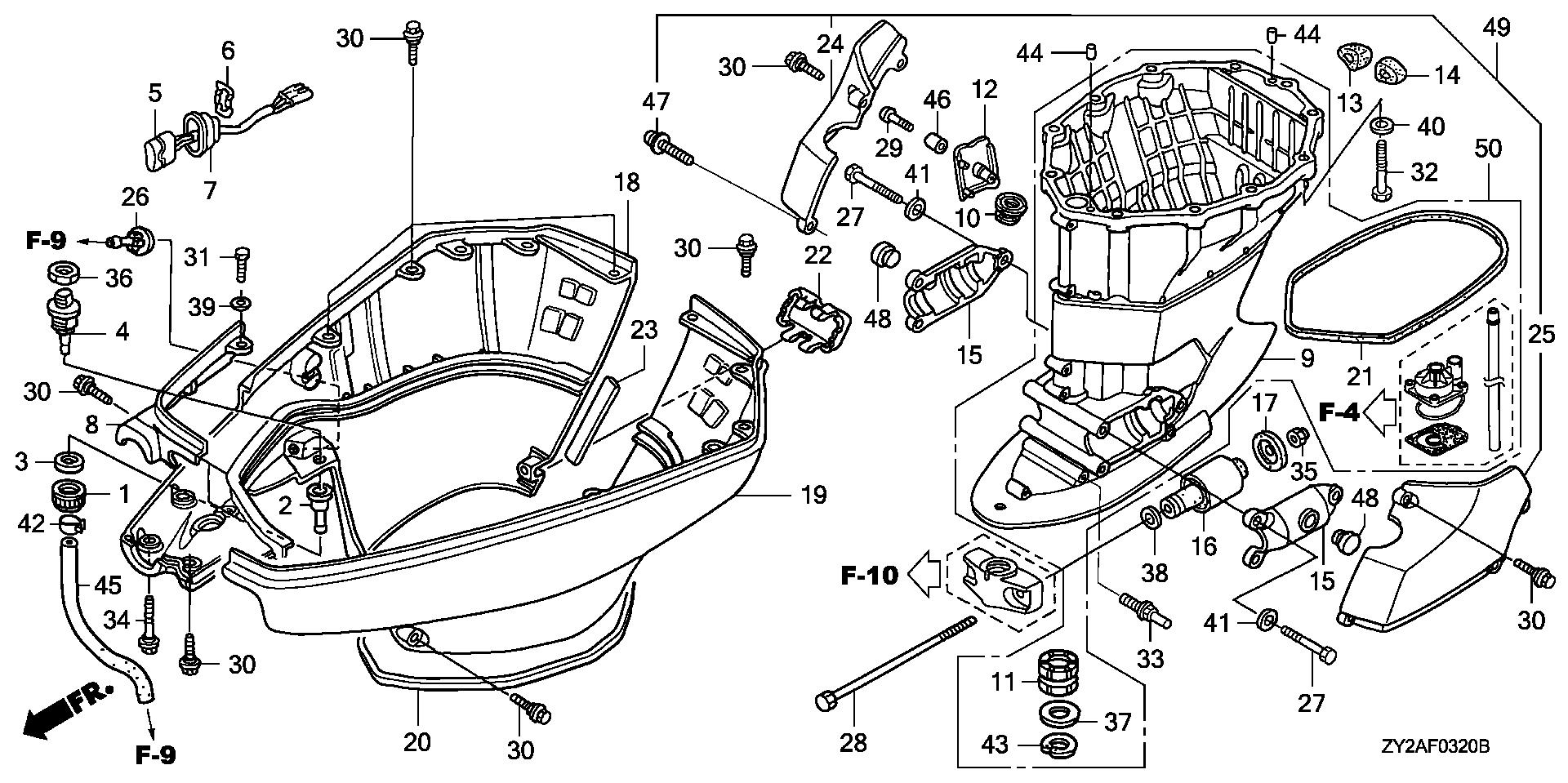

EXTENSION CASE

BF225 BF225A6 extension case exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AF0320B
Fits all 5 submodels of this generation.

Parts in this assembly

64 parts
1
19270-ZY3-000Ships in 1 to 2 Days
$13.02$17.84
2
19271-ZY3-000Ships in 1 to 2 Days
$8.85$12.12
3
19272-ZY3-000In Stock
$4.04$5.54
4
19289-ZY3-000Ships in 1 to 2 Days
$2.95$4.04
5
35640-ZY3-013Ships in 1 to 2 Days
$48.76$66.80
6
35645-ZY3-000Ships in 1 to 2 Days
$9.68$13.66
7
40114-ZY3-010Ships in 1 to 2 Days
$11.74$16.56
8
$151.45$207.46
9
CASE, EXTENSION *NH282MU* (XL) (OYSTER SILVER METALLIC-U)
40201-ZY3-610ZANo Longer Available
—
9
CASE, EXTENSION *NH282MU* (L) (OYSTER SILVER METALLIC-U)
40201-ZY3-020ZANo Longer Available
$1,139.35$1,560.76
10
40209-ZW1-000Ships in 1 to 2 Days
$14.94$21.08
11
40210-ZY3-610Ships in 1 to 2 Days
$31.52$43.18
12
$30.82$44.34
12
COVER, DRAIN PLUG *NH282MU* (XL) (OYSTER SILVER METALLIC-U)
40212-ZY3-610ZANo Longer Available
—
12
COVER, DRAIN PLUG *NH282MU* (XL) (OYSTER SILVER METALLIC-U) (NOT AVAILABLE)
40212-ZY3-611ZANo Longer Available
$29.92$40.98
13
SEAL, R. IDOL PORT
40225-ZY3-000No Longer Available
$6.73$9.22
13
40225-ZY3-010Ships in 1 to 2 Days
$8.44$11.90
14
SEAL, L. IDOL PORT (NOT AVAILABLE)
40226-ZY3-000No Longer Available
—
14
40226-ZY3-010Ships in 1 to 2 Days
$8.44$11.90
15
50111-ZY3-020Ships in 1 to 2 Daysqty 2 used
$87.19$87.20
16
50155-ZY3-000Ships in 1 to 2 Daysqty 2 used
$85.80$117.56
17
50157-ZY3-010Ships in 1 to 2 Daysqty 2 used
$14.00$19.18
18
COVER, R. ENGINE (LOWER) *NH282MU* (OYSTER SILVER METALLIC-U)
63710-ZY3-A00ZANo Longer Available
—
18
COVER, R. ENGINE (LOWER) *NH282MU* (OYSTER SILVER METALLIC-U)
63710-ZY3-A02ZANo Longer Available
—
18
COVER, R. ENGINE (LOWER) *NH282MU* (OYSTER SILVER METALLIC-U) (NOT AVAILABLE)
63710-ZY3-A03ZANo Longer Available
—
19
$322.03$463.14
20
63718-ZY3-000Ships in 1 to 2 Days
$29.01$40.94
21
63719-ZY3-000Ships in 1 to 2 Days
$12.45$17.58
22
$38.66$55.60
23
63728-ZY3-000Ships in 1 to 2 Days
$2.19$3.08
24
$264.93$278.21
24
$150.06$205.56
24
$137.69$198.08
25
$264.93$278.21
25
63736-ZY3-A11ZAShips in 1 to 2 Daysreplaced by 63736-ZY3-A12ZA
$152.69$209.16
25
$152.69$209.16
25
$137.96$188.98
26
82873-ZV5-000Ships in 1 to 2 Daysreplaced by 82873-ZV5-003
$5.71$8.06
27
90102-ZY3-A00Ships in 1 to 2 Daysqty 6 used
$6.38$9.00
28
90105-ZY3-010Ships in 1 to 2 Daysqty 2 used
$57.58$78.88
29
90110-ZV5-000Ships in 1 to 2 Days
$3.36$4.74
30
90111-ZY3-000In Stockqty 27 used
$2.12$2.90
31
90113-ZV5-000Ships in 1 to 2 Daysqty 2 used
$2.60$3.66
32
90122-ZY3-000Ships in 1 to 2 Daysqty 11 used
$6.16$8.44
33
90129-ZY3-A00Ships in 1 to 2 Daysqty 2 used
$2.38$3.36
34
90132-ZY3-000Ships in 1 to 2 Daysqty 2 used
$3.20$4.38
35
90302-ZY3-000Ships in 1 to 2 Daysqty 2 used
$23.05$31.58
36
90302-921-000In Stock
$4.10$5.62
37
90503-ZY3-610In Stock
$8.02$10.98
38
90511-ZY3-000Ships in 1 to 2 Daysqty 2 used
$3.42$4.68
39
90512-921-010In Stockqty 2 used
$1.07$1.46
40
90559-ZV5-000Ships in 1 to 2 Daysqty 11 used
$2.95$4.04
41
90563-ZV5-000Ships in 1 to 2 Daysqty 6 used
$2.44$3.34
42
90605-ZV4-000Ships in 1 to 2 Days
$1.37$1.88
43
90652-ZY3-000In Stock
$10.91$14.94
44
90756-ZV5-000In Stockqty 2 used
$2.64$3.62
45
04601-ZVL-000Ships in 1 to 2 Days
$11.74$16.56
46
91563-ZV5-000Ships in 1 to 2 Days
$6.23$8.80
47
93500-06025-4JShips in 1 to 2 Days
$1.66$2.28
47
90134-ZY3-000Ships in 1 to 2 Days
$2.96$4.18
48
95011-63000Ships in 1 to 2 Daysqty 2 used
$3.94$5.40
49
$264.93$278.21
50
$772.12
50
CASE KIT, EXTENSION *NH282MU* (XL) (OYSTER SILVER METALLIC-U)
04406-ZY3-610ZANo Longer Available
—
Diagram

FAN RIGGING

BF225 BF225A6 fan rigging exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AXEX03
Fits all 5 submodels of this generation.

Parts in this assembly

6 parts
1
32419-ZY3-A00AHShips in 1 to 2 Days
$103.16
2
36104-ZX2-000AHShips in 1 to 2 Days
$4.94
3
40105-ZX2-000AHShips in 1 to 2 Days
$9.92
4
17877-ZX2-000AHShips in 1 to 2 Days
$7.72
5
90021-ZZ5-M01Ships in 1 to 2 Days
$1.14$1.56
6
32101-ZZ3-004AHShips in 1 to 2 Days
$22.85$31.30
Diagram

FRONT COVER BRACKET - FRONT LOCK SHAFT

BF225 BF225A6 front cover bracket - front lock shaft exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AF0810A
Fits all 5 submodels of this generation.

Parts in this assembly

42 parts
1
32419-ZY3-A00Ships in 1 to 2 Days
$16.64$23.48
2
32421-ZY3-000Ships in 1 to 2 Days
$6.39$9.02
3
GROMMET A, CASE (LOWER)
40105-ZY3-A10No Longer Available
—
3
GROMMET A, CASE (LOWER) (NOT AVAILABLE)
40105-ZY3-A11No Longer Available
$18.69$25.60
4
40119-ZY3-003Ships in 1 to 2 Days
$12.88$17.64
5
40154-ZY3-000ZAShips in 1 to 2 Days
$244.37$344.80
6
40155-ZY3-000Ships in 1 to 2 Days
$170.29$233.28
7
40157-ZY3-000Ships in 1 to 2 Days
$155.75$213.36
8
40158-ZY3-000Ships in 1 to 2 Days
$66.85$94.32
9
40159-ZY3-000Ships in 1 to 2 Daysqty 2 used
$66.66$94.06
10
47117-196-000Ships in 1 to 2 Daysqty 4 used
$2.57$3.52
11
51640-121-730Ships in 1 to 2 Daysqty 6 used
$3.68$5.04
12
60180-ZY3-003Ships in 1 to 2 Days
$20.91$30.08
13
CABLE B, COVER LOCK (NOT AVAILABLE)
60185-ZY3-003No Longer Available
$16.83$23.06
14
$64.77$93.16
15
63205-ZY3-000Ships in 1 to 2 Daysqty 10 used
$4.20$5.76
16
63208-ZY3-000Ships in 1 to 2 Days
$6.34$8.94
17
63212-ZY3-000Ships in 1 to 2 Daysqty 4 used
$10.51$14.84
18
63223-ZY3-000Ships in 1 to 2 Days
$2.63$3.70
19
63224-ZY3-000Ships in 1 to 2 Days
$12.44$17.56
20
63225-ZY3-000Ships in 1 to 2 Days
$30.19$42.60
21
63226-ZY3-000Ships in 1 to 2 Daysqty 2 used
$32.73$46.20
22
LOCK ASSY., FR. (NOT AVAILABLE)
63230-ZY3-000No Longer Available
—
23
63260-ZY3-000Ships in 1 to 2 Daysqty 2 used
$20.53$28.96
24
63515-ZC0-700Ships in 1 to 2 Days
$5.80$7.94
25
63729-ZY3-003Ships in 1 to 2 Days
$5.93$8.36
26
90009-ZV5-000Ships in 1 to 2 Daysqty 6 used
$4.16$5.88
27
90021-ZZ5-M01Ships in 1 to 2 Days
$1.14$1.56
28
90021-ZZ5-M01Ships in 1 to 2 Days
$1.14$1.56
29
90101-ML0-720Ships in 1 to 2 Daysqty 6 used
$3.64$4.98
30
90102-ZW9-000Ships in 1 to 2 Daysqty 6 used
$2.12$2.90
31
90105-ZW9-000Ships in 1 to 2 Daysqty 4 used
$2.88$3.94
32
90106-ZY3-A00Ships in 1 to 2 Daysqty 4 used
$1.04$1.42
33
90502-MM8-610Ships in 1 to 2 Days
$2.82$3.86
34
90506-ZW9-000Ships in 1 to 2 Days
$1.23$1.74
35
90518-921-000Ships in 1 to 2 Daysqty 7 used
$1.20$1.64
36
90684-ZA0-601Ships in 1 to 2 Days
$3.21$4.40
37
91541-S0A-003Ships in 1 to 2 Days
$3.64$4.98
38
91504-ZY9-M03Ships in 1 to 2 Daysqty 6 used
$5.65$7.74
38
91551-ZW1-010Ships in 1 to 2 Daysreplaced by 91504-ZY9-M03
$5.65$7.74
38
91554-ZW1-000Ships in 1 to 2 Daysreplaced by 91504-ZY9-M03
$5.65$7.74
39
94540-06029Ships in 1 to 2 Daysqty 6 used
$3.50$4.80
Diagram

FUEL PIPE - INJECTOR

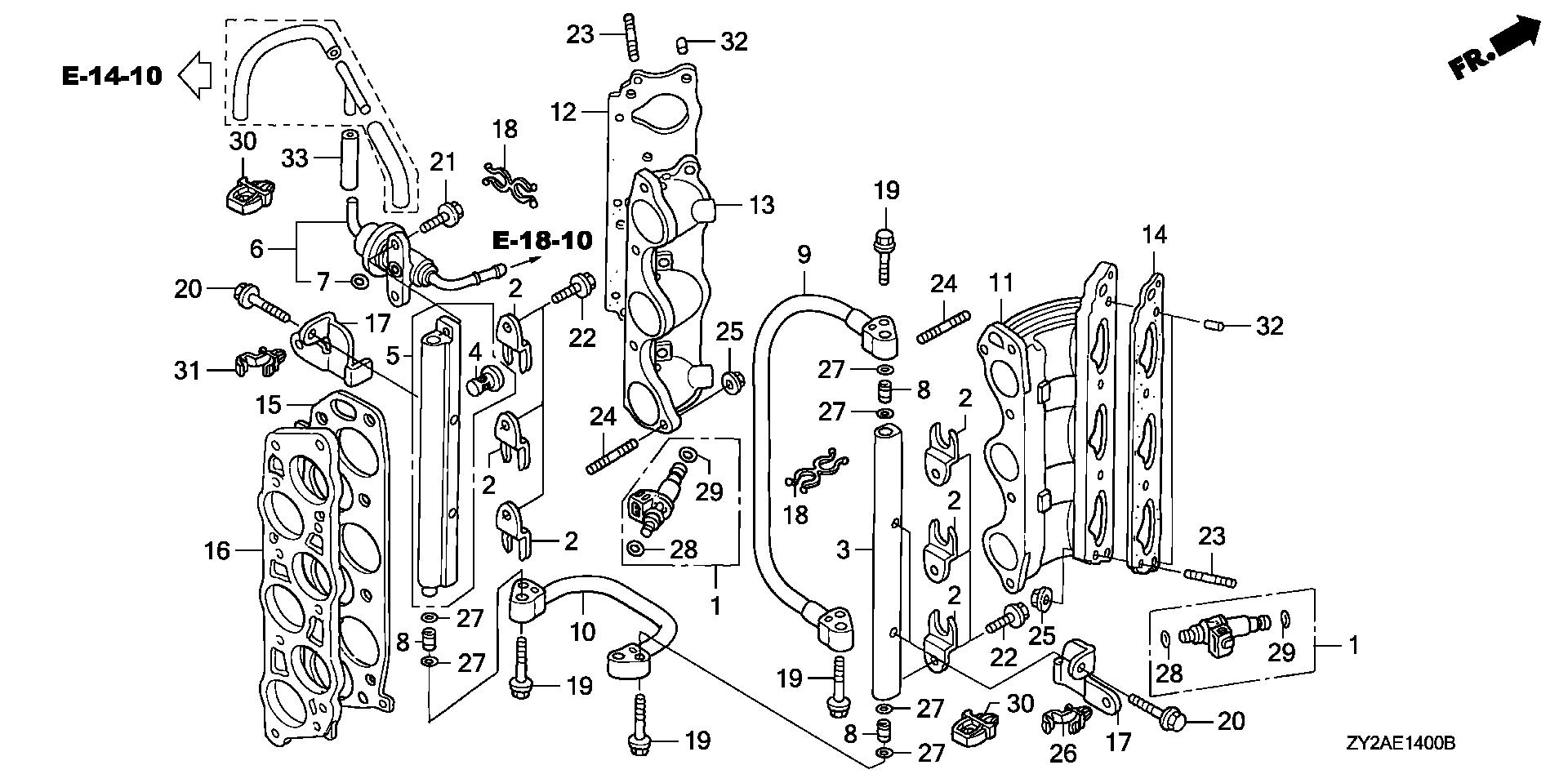

BF225 BF225A6 fuel pipe - injector exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AE1400B
Fits all 5 submodels of this generation.

Parts in this assembly

34 parts
1
16450-ZY6-003Ships in 1 to 2 Daysqty 6 used
$115.56
2
16451-ZY3-000Ships in 1 to 2 Daysqty 6 used
$4.44$6.08
3
16611-ZY3-A00Ships in 1 to 2 Days
$124.26$170.22
4
16614-P5G-003Ships in 1 to 2 Days
$13.02$17.84
5
16620-ZY3-A00Ships in 1 to 2 Days
$144.60$198.08
6
16740-ZY3-A01Ships in 1 to 2 Days
$93.02$127.42
7
16741-PG7-005Ships in 1 to 2 Days
$3.83$5.24
8
16752-ZY3-A00Ships in 1 to 2 Daysqty 3 used
$7.34$10.06
9
16755-ZY3-003Ships in 1 to 2 Days
$100.16$141.32
10
16757-ZY3-003Ships in 1 to 2 Days
$94.43$129.36
11
17051-ZY3-A00Ships in 1 to 2 Days
$278.99$382.18
12
17065-RCA-A01Ships in 1 to 2 Days
$21.83$29.90
13
17061-ZY3-A00Ships in 1 to 2 Days
$303.50$415.76
14
17055-RCA-A01Ships in 1 to 2 Days
$21.83$29.90
15
17105-P8E-A01Ships in 1 to 2 Days
$27.40$37.54
16
17108-ZY3-000Ships in 1 to 2 Days
$131.81$180.56
17
32112-ZY3-000Ships in 1 to 2 Daysqty 4 used
$6.13$8.40
18
78419-SJ6-003Ships in 1 to 2 Daysqty 2 used
$4.06$5.72
19
90016-ZW9-000Ships in 1 to 2 Daysreplaced by 90014-ZZ5-M01
$1.87$2.56
20
90019-ZW9-000Ships in 1 to 2 Daysreplaced by 90019-ZZ5-M01
$2.25$3.08
21
90021-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.14$1.56
22
90042-ZY3-000Ships in 1 to 2 Daysqty 6 usedreplaced by 90042-ZY9-M01
$1.14$1.56
23
90043-ZVL-010Ships in 1 to 2 Daysqty 8 used
$1.59$2.18
23
90043-ZY3-000Ships in 1 to 2 Daysreplaced by 90043-ZVL-010
$1.59$2.18
24
90044-ZVL-010Ships in 1 to 2 Daysqty 2 used
$2.95$4.04
25
90205-ZY9-M01Ships in 1 to 2 Daysqty 8 used
$1.72$2.36
26
90650-SB2-003Ships in 1 to 2 Daysqty 2 used
$6.34$8.68
27
91301-MJ0-003In Stockqty 6 used
$2.09$2.86
28
91301-PLC-000Ships in 1 to 2 Days
$3.42$4.68
29
91302-PNA-003Ships in 1 to 2 Daysqty 6 used
$2.67$3.66
30
91504-750-003Ships in 1 to 2 Daysqty 2 used
$2.89$4.08
31
91505-ZA0-601Ships in 1 to 2 Daysqty 2 used
$3.45$4.96
32
94301-10120Ships in 1 to 2 Daysqty 4 used
$3.01$4.12
33
95001-35003-60MShips in 1 to 2 Days
$27.23$39.16
Diagram

FUEL TUBE

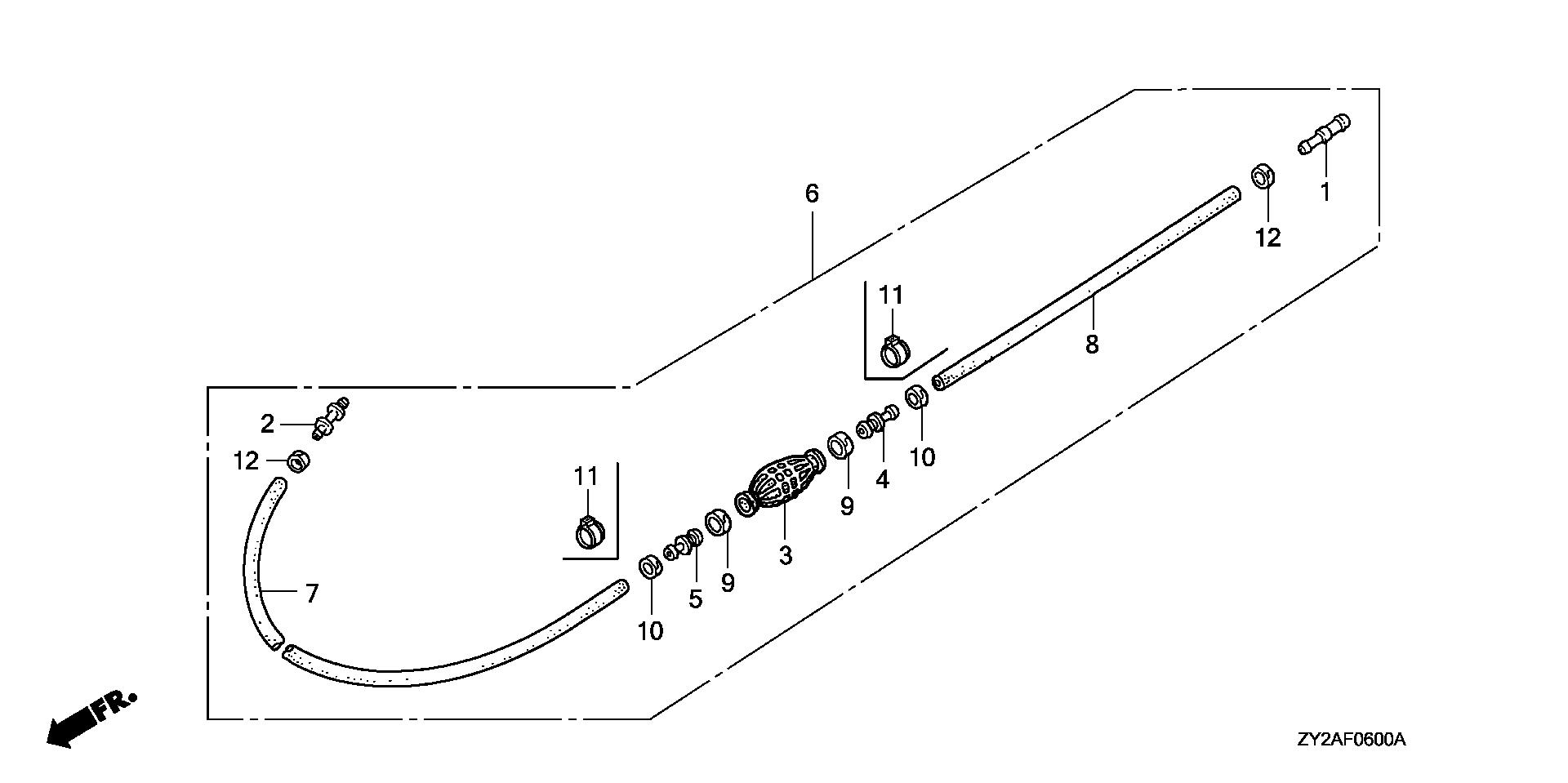

BF225 BF225A6 fuel tube exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AF0600A
Fits all 5 submodels of this generation.

Parts in this assembly

16 parts
1
16966-MR1-000Ships in 1 to 2 Days
$7.64$10.46
2
16966-MR5-000Ships in 1 to 2 Days
$7.64$10.46
3
17661-921-010Ships in 1 to 2 Days
$12.99$17.80
4
17665-ZV5-000Ships in 1 to 2 Days
$12.13$16.62
5
17680-ZV4-000Ships in 1 to 2 Days
$12.13$16.62
6
17700-ZY3-010Ships in 1 to 2 Days
$79.92$114.96
6
TUBE ASSY., FUEL TANK (JOINT TYPE)(FKM)
17700-ZY3-C03No Longer Available
$157.87$216.26
7
17701-ZV5-000Ships in 1 to 2 Days
$46.09$63.14
7
17701-ZY9-E00Ships in 1 to 2 Days
$86.51$118.50
7
17701-ZY9-E04Ships in 1 to 2 Days
$94.21$129.06
8
TUBE, FUEL SHORT (6.3X500) (NOT AVAILABLE)
17702-ZV4-000No Longer Available
$9.75$13.36
8
17702-ZY9-E04Ships in 1 to 2 Days
$22.63$31.92
9
17703-921-010Ships in 1 to 2 Daysqty 2 used
$3.53$4.84
10
17704-ZV4-010Ships in 1 to 2 Daysqty 2 used
$2.18$2.98
11
16895-ZW9-900Ships in 1 to 2 Daysqty 2 used
$3.64$5.22
12
17704-ZV4-010Ships in 1 to 2 Daysqty 2 used
$2.18$2.98
Diagram

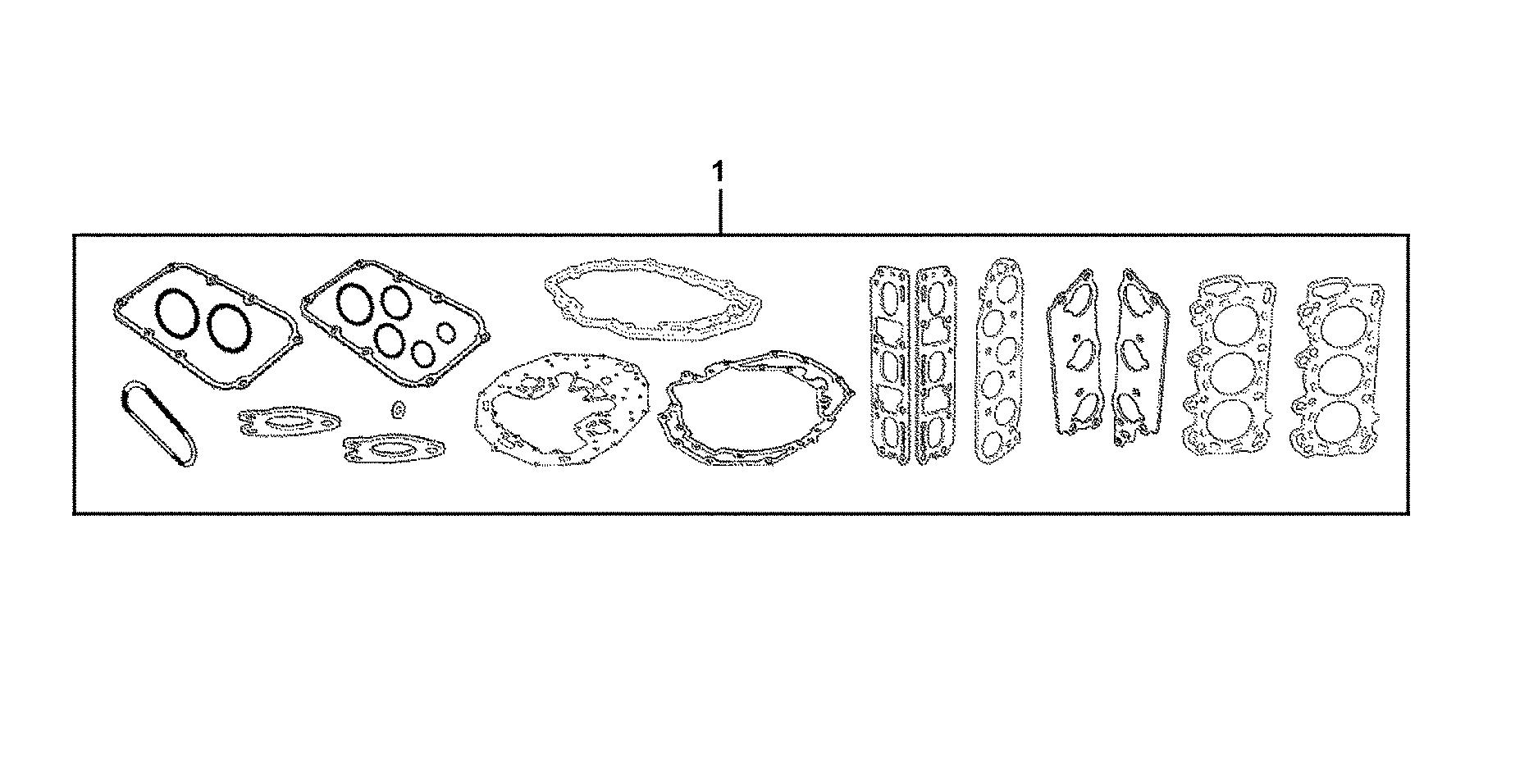

GASKET KIT (SHORT BLOCK & HEAD ASSY.)

BF225 BF225A6 gasket kit (short block & head assy.) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AE09A5Z
Fits all 5 submodels of this generation.

Parts in this assembly

1 parts
1
06115-ZY3-050Ships in 1 to 2 Days
$412.74$565.40
Diagram

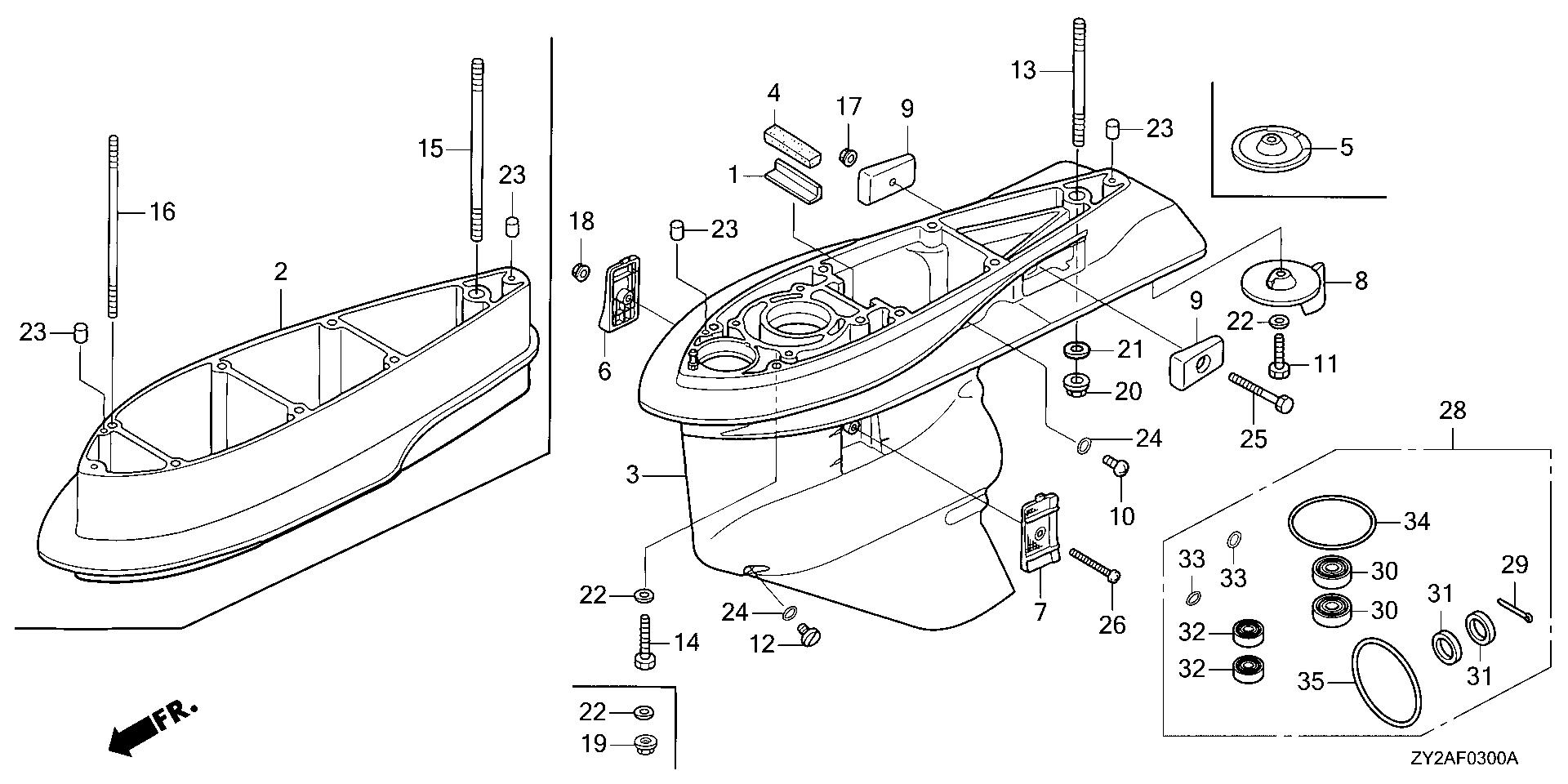

GEAR CASE

BF225 BF225A6 gear case exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AF0300A
Fits all 5 submodels of this generation.

Parts in this assembly

35 parts
1
19286-ZW1-B00Ships in 1 to 2 Days
$6.28$8.60
2
$1,385.31$1,897.68
3
CASE, GEAR *NH282MU* (OYSTER SILVER METALLIC-U)
41101-ZY3-020ZANo Longer Available
—
4
41102-ZW1-B00Ships in 1 to 2 Days
$6.29$8.62
5
$32.78$46.24
6
SCREEN, R. WATER (NOT AVAILABLE)
41104-ZY3-611No Longer Available
$7.62$10.44
7
SCREEN, L. WATER (NOT AVAILABLE)
41105-ZY3-611No Longer Available
$8.58$11.76
8
41107-ZX2-C00ZBShips in 1 to 2 Days
$55.47$57.14
8
41107-ZY3-000ZAShips in 1 to 2 Daysreplaced by 41107-ZX2-C00ZB
$55.47$57.14
9
41109-ZW1-B00In Stock
$18.12$24.82
10
90101-ZW9-003In Stock
$2.80$3.84
11
90103-ZY3-000In Stock
$5.39$7.38
12
90120-ZY3-000In Stock
$14.35$19.66
13
90124-ZY3-000Ships in 1 to 2 Days
$7.36$10.08
14
90126-ZY3-000Ships in 1 to 2 Daysqty 6 used
$7.49$10.26
15
90130-ZY3-620Ships in 1 to 2 Days
$61.13$83.74
16
90131-ZY3-620Ships in 1 to 2 Daysqty 6 used
$42.00$57.54
17
90205-PP9-020Ships in 1 to 2 Days
$8.86$12.74
18
90302-ZV4-000Ships in 1 to 2 Days
$4.91$6.72
19
90306-ZV5-003In Stockqty 6 used
$3.40$4.66
20
90308-ZW1-003Ships in 1 to 2 Days
$10.16$13.92
21
90559-ZV5-000Ships in 1 to 2 Days
$2.95$4.04
22
90563-ZV5-000Ships in 1 to 2 Daysqty 7 used
$2.44$3.34
23
90756-ZV5-000In Stockqty 2 used
$2.64$3.62
24
91301-ZW4-003In Stockqty 2 used
$0.99$1.36
25
92101-06055-4JShips in 1 to 2 Days
$1.97$2.70
26
SCREW, OVAL (5X45)
93700-05045-4JShips in 1 to 2 Days
$1.96$2.68
28
06125-ZY3-C00Ships in 1 to 2 Days
$37.23$38.34
29
90758-ZW1-B00In Stock
$1.87$2.56
30
91251-ZY3-C01In Stockqty 2 used
$5.62$7.70
31
91252-ZZ3-003In Stockqty 2 used
$6.63$9.08
32
91254-ZY3-003Ships in 1 to 2 Daysqty 2 used
$4.53$6.20
33
91301-ZW4-003In Stockqty 2 used
$0.99$1.36
34
91308-MJ0-003Ships in 1 to 2 Days
$3.61$4.94
35
91351-ZY3-C00Ships in 1 to 2 Days
$7.49$10.56
Diagram

GEAR CASE ASSY.

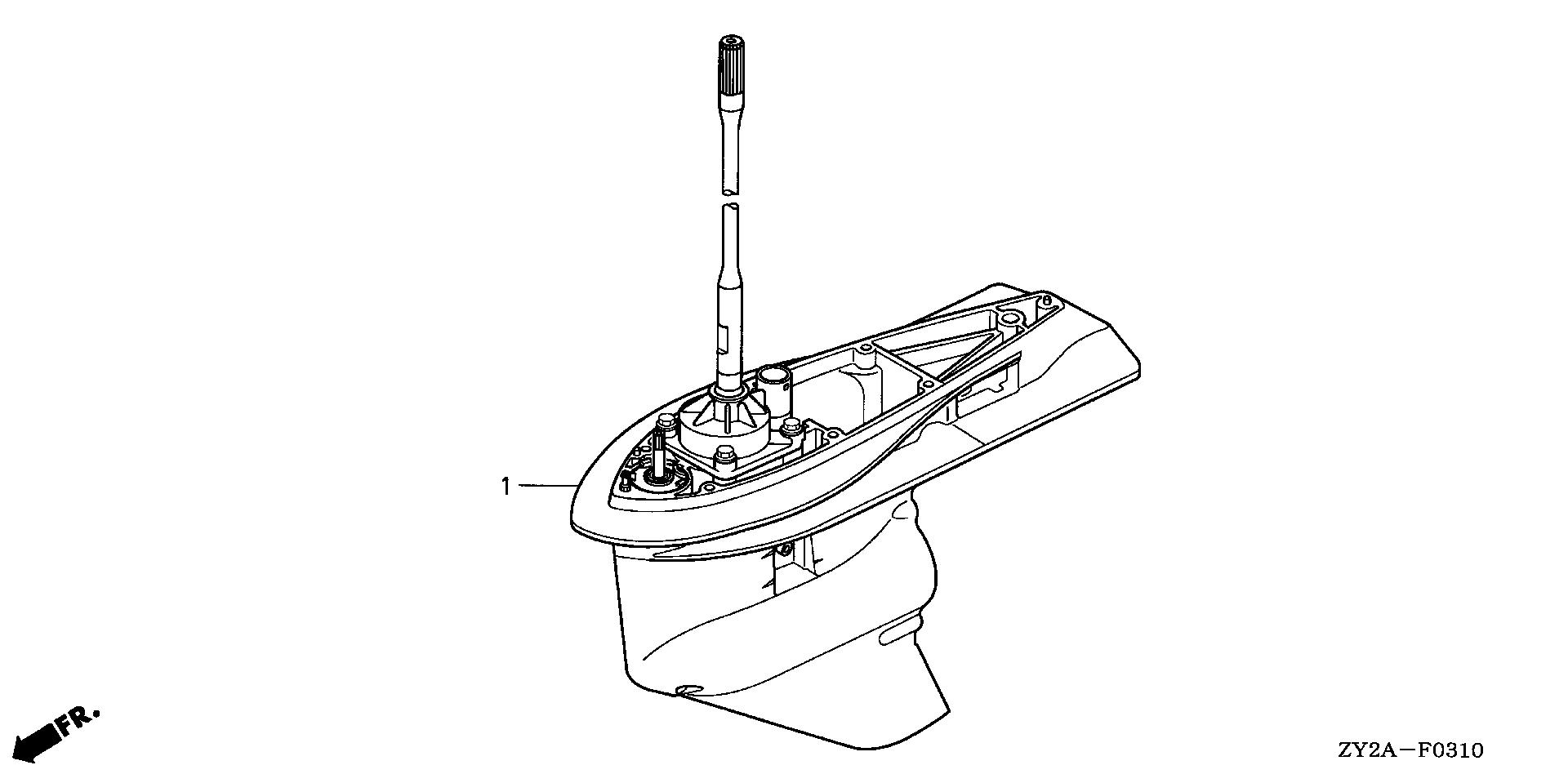

BF225 BF225A6 gear case assy. exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AF0310
Fits all 5 submodels of this generation.

Parts in this assembly

9 parts
1
CASE ASSY., GEAR *NH282MU* (L) (OYSTER SILVER METALLIC-U)
41100-ZY3-A02ZANo Longer Available
—
1
CASE ASSY., GEAR *NH282MU* (XXL) (OYSTER SILVER METALLIC-U)
41100-ZY3-A22ZANo Longer Available
—
1
$4,249.90
1
$5,154.32
1
$3,936.60
1
CASE ASSY., GEAR *NH282MU* (L) (OYSTER SILVER METALLIC-U)
41100-ZY3-A03ZANo Longer Available
—
1
CASE ASSY., GEAR *NH282MU* (L) (OYSTER SILVER METALLIC-U) (NOT AVAILABLE)
41100-ZY3-A04ZANo Longer Available
—
1
CASE ASSY., GEAR *NH282MU* (XXL) (OYSTER SILVER METALLIC-U)
41100-ZY3-A23ZANo Longer Available
—
1
CASE ASSY., GEAR *NH282MU* (XXL) (OYSTER SILVER METALLIC-U)
41100-ZY3-A24ZANo Longer Available
—
Diagram

INTAKE MANIFOLD

BF225 BF225A6 intake manifold exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AE1410
Fits all 5 submodels of this generation.

Parts in this assembly

25 parts
1
17105-ZY3-004In Stock
$61.61$84.40
2
17109-ZY3-004Ships in 1 to 2 Days
$11.67$15.98
↳
Sierra alternative ·
18-0396In Stock save $5.56
$6.11
3
17110-ZY3-003Ships in 1 to 2 Days
$1,535.06$2,102.82
4
17113-ZY3-003Ships in 1 to 2 Days
$68.20$96.22
5
17130-ZY3-003ZAShips in 1 to 2 Days
$554.33$759.36
6
17138-ZY3-004Ships in 1 to 2 Days
$51.64$70.74
7
17201-MG9-000Ships in 1 to 2 Days
$15.51$21.24
8
32128-ZY3-000Ships in 1 to 2 Days
$3.15$4.32
9
36145-PM4-004Ships in 1 to 2 Days
$71.66$101.12
10
36163-ZY3-003Ships in 1 to 2 Days
$88.96$121.86
11
36165-P8D-J00Ships in 1 to 2 Days
$2.72$3.84
12
37830-PGK-A01Ships in 1 to 2 Days
$121.71$166.72
13
37835-PGK-A01Ships in 1 to 2 Days
$8.60$11.78
14
90023-ZVL-010Ships in 1 to 2 Daysqty 10 used
$1.01$1.38
14
90023-ZY3-000Ships in 1 to 2 Daysreplaced by 90023-ZVL-010
$1.01$1.38
15
90020-ZVL-010Ships in 1 to 2 Daysqty 7 used
$1.24$1.70
16
90029-ZY3-000Ships in 1 to 2 Days
$0.61$0.86
17
90031-ZY3-000Ships in 1 to 2 Days
$1.04$1.42
18
90058-ZY3-000Ships in 1 to 2 Days
$1.33$1.88
19
90205-ZY9-M01Ships in 1 to 2 Daysqty 2 used
$1.72$2.36
20
95001-35003-60MShips in 1 to 2 Days
$27.23$39.16
21
95001-35003-60MShips in 1 to 2 Days
$27.23$39.16
22
95001-35003-60MShips in 1 to 2 Days
$27.23$39.16
23
95001-35003-60MShips in 1 to 2 Days
$27.23$39.16
24
95001-35003-60MShips in 1 to 2 Days
$27.23$39.16
Diagram

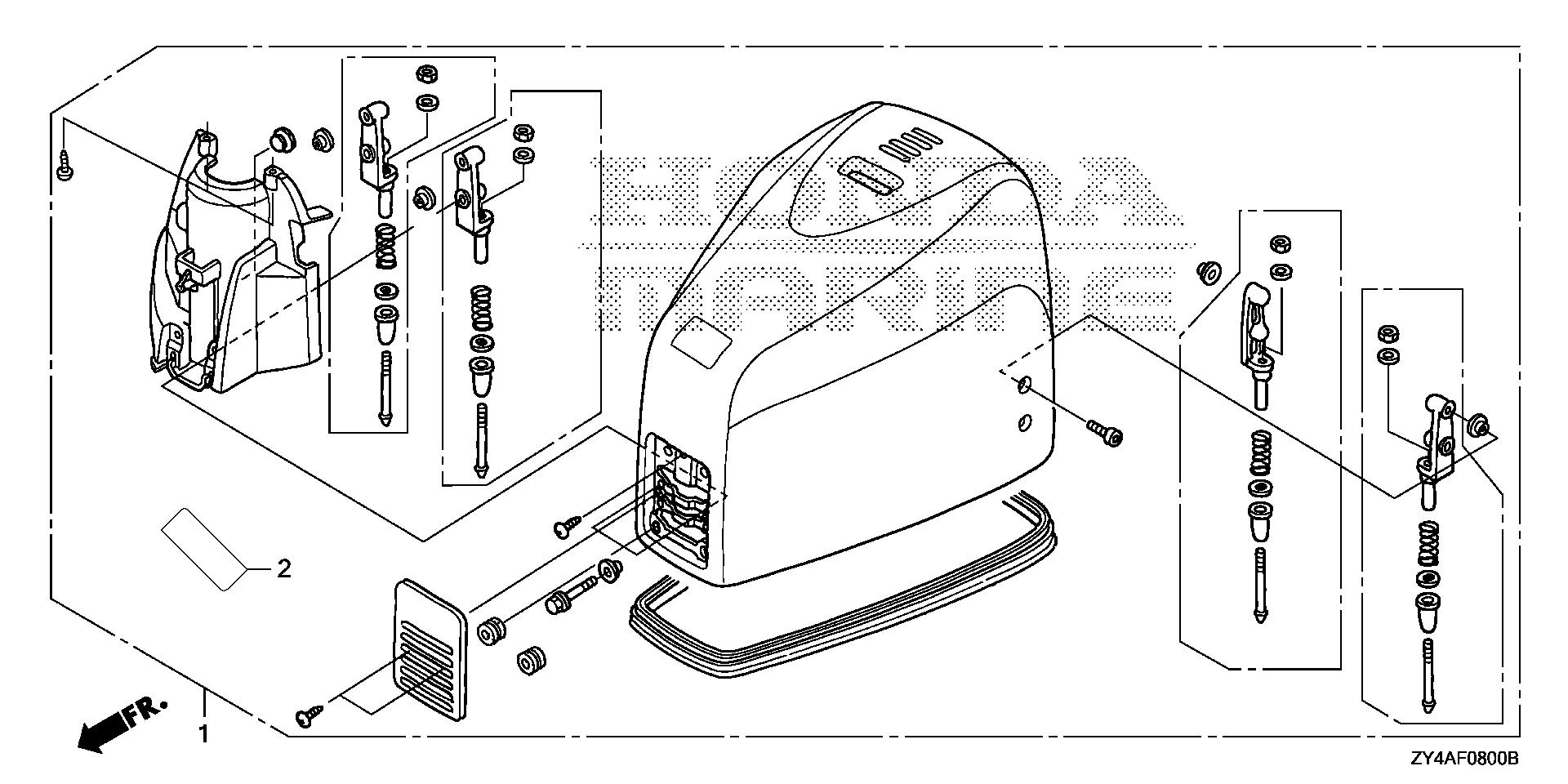

IST COWEL (AQUAMARINE AND GP WHITE)

BF225 BF225A6 ist cowel (aquamarine and gp white) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AXEX04
Fits all 5 submodels of this generation.

Parts in this assembly

3 parts
1
COWL, IST (AQUAMARINE) (NOT AVAILABLE)
63100-ZY3-A01ABNo Longer Available
—
1
63100-ZY3-A01ACShips in 1 to 2 Days
$2,159.92
2
41106-ZY3-010AHShips in 1 to 2 Days
$15.60
Diagram

IST DECAL

BF225 BF225A6 ist decal exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AXEX06
Fits all 5 submodels of this generation.

Parts in this assembly

1 parts
1
DECAL, IST (NOT AVAILABLE)
87100-ZX2-000AHNo Longer Available
$8.70
Diagram

LABELS

BF225 BF225A6 labels exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AF1200
Fits all 5 submodels of this generation.

Parts in this assembly

13 parts
1
87101-ZY3-000Ships in 1 to 2 Days
$30.18$42.58
2
87117-ZY3-000Ships in 1 to 2 Days
$3.80$5.46
3
87121-ZY2-000Ships in 1 to 2 Days
$54.97$79.08
4
87121-ZY3-000Ships in 1 to 2 Days
$60.78$87.44
5
87131-ZW5-A00Ships in 1 to 2 Days
$78.17$112.42
6
87131-ZY3-000Ships in 1 to 2 Days
$83.85$120.60
7
87132-ZY3-000Ships in 1 to 2 Daysqty 2 used
$47.39$66.86
8
MARK (E-SPEC) (NOT AVAILABLE)
87135-ZW5-000No Longer Available
—
9
87301-ZY2-000Ships in 1 to 2 Days
$16.83$24.22
10
87301-ZY3-000Ships in 1 to 2 Days
$16.83$24.22
12
87531-ZY3-000Ships in 1 to 2 Days
$5.56$7.84
13
87538-ZV1-C23Ships in 1 to 2 Days
$4.70$6.44
15
87801-ZY3-710Ships in 1 to 2 Days
$11.46$16.48
Diagram

METER

BF225 BF225A6 meter exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AY0600A
Fits all 5 submodels of this generation.

Parts in this assembly

29 parts
1
06372-ZW5-U02Ships in 1 to 2 Days
$95.91
1
06372-ZW5-U12Ships in 1 to 2 Days
$185.23$253.74
2
06373-ZW5-U01Ships in 1 to 2 Days
$217.38$297.78
2
06373-ZW5-U11Ships in 1 to 2 Days
$207.98$284.90
3
06374-ZW5-U01Ships in 1 to 2 Days
$63.33
3
06374-ZW5-U10Ships in 1 to 2 Days
$57.08
4
06375-ZW5-U01Ships in 1 to 2 Days
$185.48$254.08
4
06375-ZW5-U11Ships in 1 to 2 Days
$172.19$235.88
5
METER KIT, HOUR (NA USE ALT:39700-ZW5-000ZA)
06397-ZW5-U00No Longer Available
—
5
METER KIT, HOUR (B) (NA USE ALT:39700-ZW5-000ZA)
06397-ZW5-U10No Longer Available
—
6
32161-404-000Ships in 1 to 2 Days
$2.15$2.94
7
32540-ZV5-911Ships in 1 to 2 Daysreplaced by 32540-ZZ3-010
$97.12$133.04
8
32550-ZW5-U00Ships in 1 to 2 Days
$33.11$45.36
9
34908-MB9-871Ships in 1 to 2 Daysqty 2 used
$2.67$3.66
10
34908-MG9-951Ships in 1 to 2 Daysqty 3 used
$2.23$3.06
11
37202-ZW5-U01Ships in 1 to 2 Days
$30.97$42.42
12
37215-KM1-670Ships in 1 to 2 Days
$1.81$2.48
13
37226-MZ5-008Ships in 1 to 2 Daysqty 2 used
$2.86$3.92
14
37258-ZV5-U01Ships in 1 to 2 Daysqty 2 used
$13.18$18.06
15
37258-ZW5-U01Ships in 1 to 2 Daysqty 3 used
$13.18$18.06
16
37263-ZV5-821Ships in 1 to 2 Days
$3.45$4.72
17
37264-ZV5-821Ships in 1 to 2 Daysqty 2 used
$2.77$3.80
18
37266-ZV5-821Ships in 1 to 2 Daysqty 2 used
$16.16$22.14
19
37305-KE5-008Ships in 1 to 2 Daysqty 2 used
$2.64$3.62
20
90309-ZV5-821Ships in 1 to 2 Daysqty 4 used
$1.42$1.94
21
90310-ZV5-821Ships in 1 to 2 Daysqty 5 used
$1.27$1.74
22
90550-ZV5-821Ships in 1 to 2 Daysqty 4 used
$1.18$1.62
23
90560-ZV5-821Ships in 1 to 2 Daysqty 5 used
$1.24$1.70
24
98200-11000Ships in 1 to 2 Days
$1.61$2.20
Diagram

MOUNT CASE

BF225 BF225A6 mount case exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AF0900B
Fits all 5 submodels of this generation.

Parts in this assembly

42 parts
1
16163-GHB-610Ships in 1 to 2 Days
$1.66$2.28
2
18141-ZY3-A00ZAShips in 1 to 2 Days
$91.66$125.58
3
18148-ZY3-003In Stockqty 2 used
$29.45$40.34
4
18149-ZY3-A01Ships in 1 to 2 Daysqty 2 used
$27.67$37.90
5
18151-ZY3-A00ZAShips in 1 to 2 Days
$91.66$125.58
6
19277-ZY3-000ZAShips in 1 to 2 Days
$40.98$56.14
7
19278-ZY3-000Ships in 1 to 2 Days
$21.81$29.88
8
19279-ZW9-010Ships in 1 to 2 Days
$1.58$2.16
9
19291-ZW5-000Ships in 1 to 2 Daysqty 2 used
$7.34$10.06
10
19291-ZW9-000Ships in 1 to 2 Days
$5.90$8.08
11
19292-ZW5-000Ships in 1 to 2 Daysqty 2 used
$4.19$5.74
12
19294-ZY3-000ZBShips in 1 to 2 Days
$53.41$73.16
13
19295-ZY3-000Ships in 1 to 2 Days
$16.76$22.96
14
19296-ZY3-000Ships in 1 to 2 Daysqty 2 usedreplaced by 19296-ZVP-000
$3.45$4.72
15
19297-ZW5-000Ships in 1 to 2 Daysqty 2 used
$6.29$8.62
16
19297-ZW9-000Ships in 1 to 2 Daysreplaced by 19297-ZW9-010
$1.53$2.10
16
19297-ZW9-010Ships in 1 to 2 Days
$1.53$2.10
17
19297-ZY3-000Ships in 1 to 2 Days
$16.78$22.98
18
19298-ZY3-000ZBShips in 1 to 2 Days
$53.41$73.16
19
19361-ZY3-000Ships in 1 to 2 Days
$92.01$129.82
20
19362-ZY3-000Ships in 1 to 2 Daysqty 2 used
$12.38$17.46
21
19366-ZY3-000Ships in 1 to 2 Days
$94.30$133.08
22
23170-ZY3-030ZAShips in 1 to 2 Days
$826.68$1,132.44
23
23173-ZY3-000Ships in 1 to 2 Days
$8.32$11.40
23
23173-ZY3-010Ships in 1 to 2 Days
$8.32$11.40
24
90030-ZY3-000Ships in 1 to 2 Daysqty 2 used
$0.92$1.26
25
90031-ZY3-000Ships in 1 to 2 Daysqty 4 used
$1.04$1.42
26
90045-ZY3-000Ships in 1 to 2 Daysqty 2 used
$4.20$5.76
27
90046-ZY3-000Ships in 1 to 2 Daysqty 2 used
$7.49$10.26
28
90047-ZY3-000Ships in 1 to 2 Daysqty 6 used
$7.99$11.26
29
90207-HW1-671Ships in 1 to 2 Daysqty 2 used
$2.07$2.84
30
90049-ZVL-010Ships in 1 to 2 Daysqty 4 used
$1.30$1.78
31
90059-ZY3-000Ships in 1 to 2 Days
$3.80$5.20
32
90603-ZV4-000Ships in 1 to 2 Days
$1.42$1.94
33
90605-ZV4-000Ships in 1 to 2 Daysqty 2 used
$1.37$1.88
34
91202-ZW5-003Ships in 1 to 2 Daysqty 2 used
$12.18$16.68
35
91303-800-000Ships in 1 to 2 Days
$2.04$2.80
36
91304-ZY3-000Ships in 1 to 2 Daysqty 2 used
$6.89$9.44
37
91305-ZY3-003In Stockqty 2 used
$2.73$3.74
38
91306-ZY3-003In Stockqty 2 used
$3.34$4.58
39
91404-ZY3-000Ships in 1 to 2 Days
$3.46$4.88
40
91405-ZY3-000Ships in 1 to 2 Days
$4.44$6.08
Diagram

MOUNT CASE BOLT

BF225 BF225A6 mount case bolt exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AE0610
Fits all 5 submodels of this generation.

Parts in this assembly

12 parts
1
23172-ZY3-003Ships in 1 to 2 Days
$109.57$154.62
2
90009-371-015Ships in 1 to 2 Days
$10.42$14.28
3
90010-ZY3-000Ships in 1 to 2 Daysqty 2 used
$12.18$16.68
4
90011-ZY3-000Ships in 1 to 2 Days
$12.79$17.52
5
90013-ZY3-000Ships in 1 to 2 Days
$11.77$16.12
6
90015-ZY3-000Ships in 1 to 2 Daysqty 2 used
$8.42$11.54
7
90559-ZV5-000Ships in 1 to 2 Daysqty 3 used
$2.95$4.04
8
90563-ZV5-000Ships in 1 to 2 Daysqty 3 used
$2.44$3.34
9
90701-PW5-000Ships in 1 to 2 Days
$6.07$8.32
10
94302-10160Ships in 1 to 2 Days
$1.62$2.22
11
95701-10070-09Ships in 1 to 2 Daysqty 2 used
$1.83$2.50
12
95701-12120-09Ships in 1 to 2 Daysqty 2 used
$2.83$3.88
Diagram

OIL PAN

BF225 BF225A6 oil pan exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AE0600A
Fits all 5 submodels of this generation.

Parts in this assembly

15 parts
1
11311-ZY3-010ZAShips in 1 to 2 Days
$406.27$573.18
2
11381-ZY3-013Ships in 1 to 2 Days
$66.14$93.30
3
18330-ZY3-020Ships in 1 to 2 Days
$177.59$243.28
4
18333-ZVL-003Ships in 1 to 2 Daysqty 2 used
$6.04$8.28
4
18333-ZY3-003Ships in 1 to 2 Daysreplaced by 18333-ZVL-003
$6.04$8.28
5
18340-ZY3-020Ships in 1 to 2 Days
$182.91$250.56
6
19252-ZY3-000Ships in 1 to 2 Days
$6.53$8.94
7
19254-ZY3-000Ships in 1 to 2 Days
$3.47$4.76
8
90009-ZV5-000Ships in 1 to 2 Daysqty 21 used
$4.16$5.88
9
90053-ZY3-010Ships in 1 to 2 Daysqty 6 used
$3.88$5.48
10
90127-ZV4-000In Stock
$2.12$2.90
11
90131-ZV5-000Ships in 1 to 2 Days
$7.43$10.18
12
90401-ZW1-000Ships in 1 to 2 Daysqty 27 used
$2.23$3.06
13
90601-ZE2-000In Stock
$2.38$3.26
14
04101-ZY3-010Ships in 1 to 2 Days
$175.04$251.74
Diagram

OIL PUMP - FLYWHEEL

BF225 BF225A6 oil pump - flywheel exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AE0500A
Fits all 5 submodels of this generation.

Parts in this assembly

29 parts
1
15100-ZVL-010ZAShips in 1 to 2 Days
$475.60$651.50
1
15100-ZY3-000ZAShips in 1 to 2 Daysreplaced by 15100-ZVL-010ZA
$475.60$651.50
2
15112-ZY3-013Ships in 1 to 2 Days
$54.76$75.02
3
15113-ZY3-000Ships in 1 to 2 Days
$7.52$10.30
4
15121-ZY3-000Ships in 1 to 2 Days
$46.65$63.90
5
15131-ZY3-405Ships in 1 to 2 Days
$37.90$51.92
6
15132-ZY3-405Ships in 1 to 2 Days
$31.52$43.18
7
15220-ZY3-010Ships in 1 to 2 Days
$48.47$69.72
8
15231-PE0-000Ships in 1 to 2 Days
$18.48$25.32
9
15232-PG6-000Ships in 1 to 2 Days
$7.74$10.60
10
15233-PC6-000Ships in 1 to 2 Days
$9.07$12.42
11
31110-ZY3-000ZAShips in 1 to 2 Days
$736.80
12
31116-ZY3-000Ships in 1 to 2 Daysreplaced by 31116-ZY3-020
$97.33
12
31116-ZY3-020Ships in 1 to 2 Days
$97.33
13
90002-ZW5-013Ships in 1 to 2 Daysqty 8 used
$2.39$3.28
14
90011-PH3-000Ships in 1 to 2 Daysqty 8 used
$9.67$13.24
15
90081-ZV5-010Ships in 1 to 2 Daysqty 2 used
$4.51$6.18
16
90701-PW5-000Ships in 1 to 2 Days
$6.07$8.32
17
91201-ZW5-003Ships in 1 to 2 Days
$12.18$16.68
18
91212-P01-003Ships in 1 to 2 Days
$11.10$15.20
19
91324-PC6-000Ships in 1 to 2 Days
$2.99$4.10
20
93600-06016-0AShips in 1 to 2 Daysqty 8 used
$0.96$1.32
21
94302-10160Ships in 1 to 2 Days
$1.62$2.22
22
94303-05080Ships in 1 to 2 Daysqty 2 used
$2.80$3.84
22
96220-50080Ships in 1 to 2 Daysqty 2 used
$0.47$0.64
23
95701-06018-00Ships in 1 to 2 Daysqty 2 used
$1.62$2.22
24
95701-08030-09Ships in 1 to 2 Daysqty 4 used
$1.21$1.66
26
15220-ZY3-020Ships in 1 to 2 Days
$86.97$119.14
27
95701-06014-00Ships in 1 to 2 Daysqty 2 used
$0.92$1.26
Diagram

PIPING

BF225 BF225A6 piping exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AE1810
Fits all 5 submodels of this generation.

Parts in this assembly

24 parts
1
16193-ZY3-A00Ships in 1 to 2 Days
$4.58$6.28
2
16196-ZY3-A00Ships in 1 to 2 Days
$5.97$8.18
3
16197-ZY3-000Ships in 1 to 2 Days
$6.66$9.12
4
16198-ZY3-A00Ships in 1 to 2 Days
$7.93$10.86
5
16199-ZY3-A00Ships in 1 to 2 Days
$9.86$13.50
6
16751-ZY3-000Ships in 1 to 2 Days
$31.23$44.06
7
16911-759-003Ships in 1 to 2 Days
$31.54$43.20
8
16915-ZW5-000In Stock
$11.68$16.00
9
16965-VM0-771Ships in 1 to 2 Daysqty 2 used
$2.72$3.72
10
17450-KY7-740Ships in 1 to 2 Daysqty 2 used
$2.72$3.72
11
17721-ZY3-000Ships in 1 to 2 Days
$4.77$6.54
12
17723-ZY3-A01Ships in 1 to 2 Days
$21.81$29.88
13
17724-ZY3-010Ships in 1 to 2 Days
$16.41$22.48
14
19258-ZY3-010Ships in 1 to 2 Days
$3.39$4.64
15
19259-ZY3-000Ships in 1 to 2 Days
$6.98$9.56
16
19269-ZY6-000Ships in 1 to 2 Days
$10.13$13.88
17
36135-ZY6-003Ships in 1 to 2 Days
$26.35$36.10
18
90103-ZZ0-M01Ships in 1 to 2 Daysqty 2 used
$1.31$1.80
19
90601-ZW5-030Ships in 1 to 2 Daysqty 4 used
$1.83$2.50
20
90601-ZY3-030Ships in 1 to 2 Daysqty 4 used
$1.66$2.28
21
90655-MB1-921Ships in 1 to 2 Days
$2.83$3.88
22
91592-SL0-A51Ships in 1 to 2 Days
$5.66$8.00
23
95001-35003-60MShips in 1 to 2 Days
$27.23$39.16
24
95003-05008-60MShips in 1 to 2 Days
$26.65$38.34
Diagram

POWER TRIM-TILT

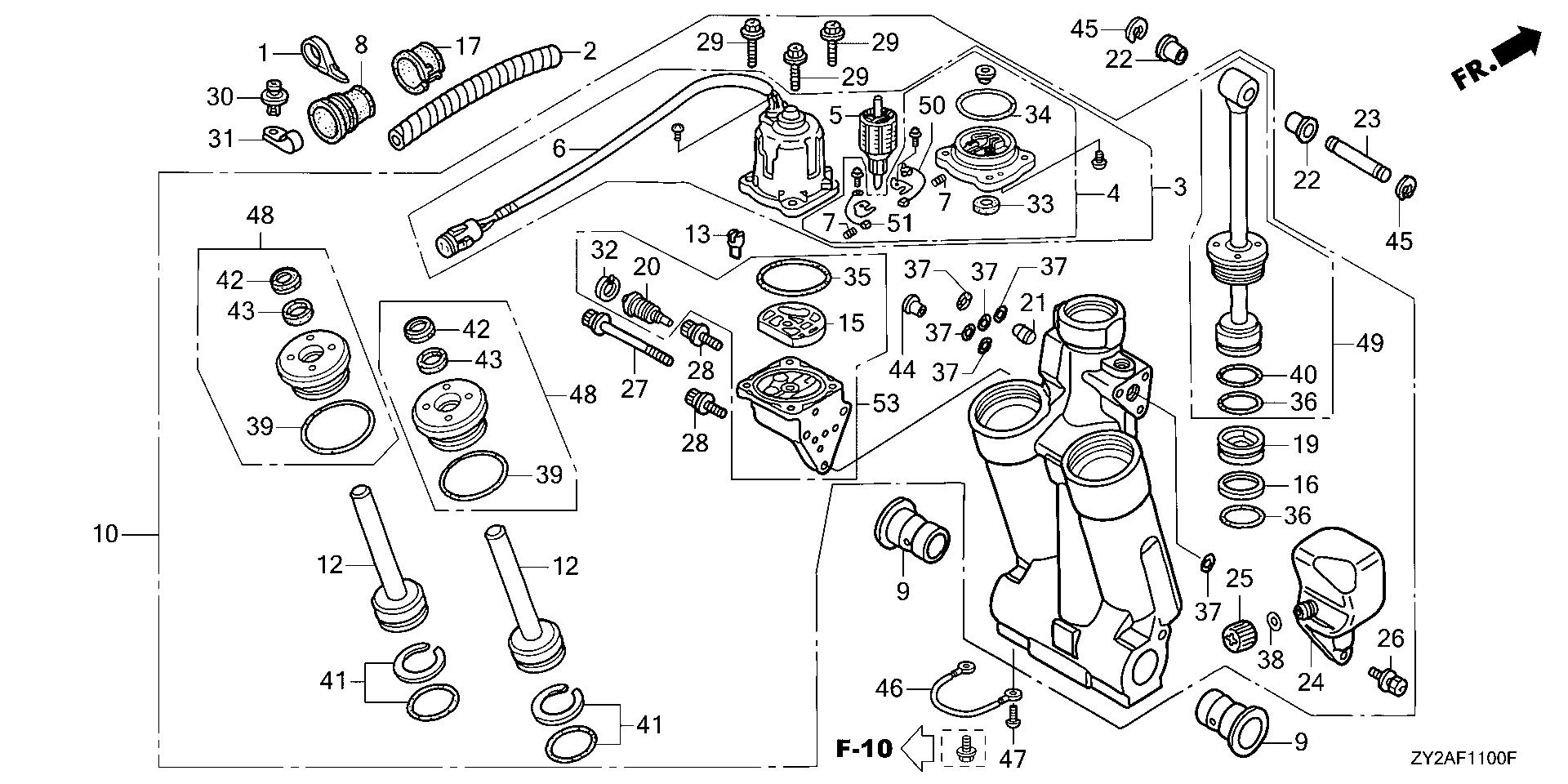

BF225 BF225A6 power trim-tilt exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AF1100F
Fits all 5 submodels of this generation.

Parts in this assembly

58 parts
1
35701-MG9-950Ships in 1 to 2 Days
$1.83$2.50
2
36104-ZW1-003Ships in 1 to 2 Days
$7.91$11.16
3
36120-ZY3-023Ships in 1 to 2 Days
$552.03$756.20
↳
Sierra alternative ·
18-6742In Stock save $59.65
$492.38
4
36122-ZX2-023Ships in 1 to 2 Days
$338.02$463.04
5
36123-ZY3-003Ships in 1 to 2 Days
$232.74
5
36123-ZY3-013Ships in 1 to 2 Days
$205.10
6
36129-ZY3-013Ships in 1 to 2 Days
$305.17$418.04
7
36136-ZV5-821Ships in 1 to 2 Daysqty 2 used
$7.21$9.88
8
40107-ZW1-700Ships in 1 to 2 Days
$14.99$20.54
9
50214-ZV5-003Ships in 1 to 2 Daysqty 2 used
$7.65$10.48
10
TRIM-TILT ASSY., POWER
56000-ZY3-013No Longer Available
—
10
TRIM-TILT ASSY., POWER
56000-ZY3-023No Longer Available
—
10
56000-ZY3-083Ships in 1 to 2 Days
$3,024.81
11
56100-ZY3-023Ships in 1 to 2 Days
$1,460.15
12
56110-ZW1-701Ships in 1 to 2 Daysqty 2 used
$114.96$157.48
13
56113-ZW1-701Ships in 1 to 2 Days
$16.41$22.48
14
56115-ZW1-703Ships in 1 to 2 Daysqty 2 used
$95.03$136.68
14
56115-ZY9-023Ships in 1 to 2 Daysqty 2 used
$96.91$132.78
15
56116-ZW1-701Ships in 1 to 2 Days
$14.56$19.94
16
56117-ZV5-821Ships in 1 to 2 Days
$8.47$11.60
17
56118-ZV5-820Ships in 1 to 2 Days
$8.56$11.72
18
56120-ZY3-023Ships in 1 to 2 Days
$400.01$547.96
19
56130-ZW1-702Ships in 1 to 2 Days
$64.34$88.16
20
56170-ZY3-013Ships in 1 to 2 Days
$102.84$140.88
21
56180-ZW1-701Ships in 1 to 2 Days
$80.62$110.44
22
56513-ZV5-000Ships in 1 to 2 Daysqty 2 used
$3.77$5.16
23
56532-ZX2-C00Ships in 1 to 2 Days
$23.11$31.66
24
56851-ZW1-703Ships in 1 to 2 Days
$18.50$25.34
25
56860-ZW1-701Ships in 1 to 2 Days
$13.46$18.44
26
90113-ZW1-702Ships in 1 to 2 Daysqty 3 used
$3.11$4.26
27
90114-ZW1-702Ships in 1 to 2 Days
$14.00$19.18
28
90115-ZW1-702Ships in 1 to 2 Daysqty 2 used
$10.82$14.82
29
90116-ZW1-702Ships in 1 to 2 Daysqty 4 used
$5.90$8.08
30
90127-ZV5-003Ships in 1 to 2 Days
$1.94$2.66
31
90602-SB0-003Ships in 1 to 2 Days
$4.04$5.54
32
90652-ZW1-702Ships in 1 to 2 Days
$6.50$8.90
33
91203-ZV5-821Ships in 1 to 2 Days
$30.78$42.16
34
91207-ZW1-013In Stock
$5.71$7.82
35
91302-ZV5-821In Stock
$5.10$6.98
36
91316-ZV5-821Ships in 1 to 2 Daysqty 2 used
$3.34$4.58
37
91352-ZW1-702Ships in 1 to 2 Daysreplaced by 91352-ZX2-003
$2.13$2.92
38
91353-ZW1-703Ships in 1 to 2 Days
$5.90$8.08
39
91354-ZW1-701Ships in 1 to 2 Daysqty 2 used
$8.25$11.30
40
91355-ZW1-701Ships in 1 to 2 Days
$13.01$17.82
41
91357-ZW1-701Ships in 1 to 2 Daysqty 2 used
$11.71$16.04
42
91358-ZW1-701Ships in 1 to 2 Daysqty 2 used
$8.26$11.32
43
91361-ZW1-701Ships in 1 to 2 Daysqty 2 used
$6.60$9.04
44
91557-ZW1-701Ships in 1 to 2 Days
$10.25$14.04
45
94540-15029Ships in 1 to 2 Daysqty 2 used
$8.02$10.98
46
40219-ZY3-023Ships in 1 to 2 Days
$9.05$12.40
47
90119-ZV5-000Ships in 1 to 2 Days
$1.65$2.26
48
56115-ZW1-315In Stockqty 2 used
$80.33$110.04
48
56115-ZY9-023Ships in 1 to 2 Daysqty 2 used
$96.91$132.78
49
56120-ZY3-023Ships in 1 to 2 Days
$400.01$547.96
50
30280-ZX2-013Ships in 1 to 2 Days
$31.46$43.10
51
31106-ZY3-003Ships in 1 to 2 Days
$33.08$45.32
52
04605-ZY3-000Ships in 1 to 2 Days
$1,522.04
53
56100-ZY3-023Ships in 1 to 2 Days
$1,460.15
Diagram

PROPELLER

BF225 BF225A6 propeller exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AY1300
Fits all 5 submodels of this generation.

Parts in this assembly

18 parts
1
58130-ZY3-013AShips in 1 to 2 Days
$182.21
1
$317.68
1
$319.48
1
$327.83
1
$313.78
1
$313.78
1
58133-ZY3-A15AHShips in 1 to 2 Days
$481.56
1
$481.56
1
$481.56
1
58133-ZY3-A21AHShips in 1 to 2 Days
$481.56
1
58133-ZY3-A23SShips in 1 to 2 Days
$481.56
1
58133-ZY3-A25AHShips in 1 to 2 Days
$481.56
1
58133-ZY3-B15AHShips in 1 to 2 Days
$481.56
1
58133-ZY3-B17AHShips in 1 to 2 Days
$481.56
1
58133-ZY3-B19AHShips in 1 to 2 Days
$481.56
1
58133-ZY3-B21AHShips in 1 to 2 Days
$481.56
1
58133-ZY3-B23SShips in 1 to 2 Days
$481.56
1
$334.47
Diagram

PROPELLER SHAFT (1)

BF225 BF225A6 propeller shaft (1) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AF0500A
Fits only BF225A6-LA, BF225A6-XA, BF225A6-XXA — not every submodel of this generation.

Parts in this assembly

48 parts
1
24101-ZY3-A00Ships in 1 to 2 Days
$142.26$194.88
1
24101-ZY3-A01Ships in 1 to 2 Days
$132.89$182.04
2
24102-ZY3-000Ships in 1 to 2 Days
$3.80$5.20
3
24103-ZY3-000Ships in 1 to 2 Days
$2.48$3.40
4
24113-ZY3-A01Ships in 1 to 2 Days
$83.21$113.98
5
24122-ZY3-A00Ships in 1 to 2 Days
$70.52$101.44
5
24122-ZY3-A01Ships in 1 to 2 Days
$63.54$87.04
6
24123-ZY3-000Ships in 1 to 2 Daysqty 2 used
$2.12$2.90
7
24124-ZY3-310Ships in 1 to 2 Days
$15.87$21.74
8
GEAR, FR. BEVEL (28T)
41140-ZY3-A02No Longer Available
—
8
GEAR, FR. BEVEL (28T) (NOT AVAILABLE)
41140-ZY3-A03No Longer Available
—
8
GEAR, FR. BEVEL (28T) (NOT AVAILABLE)
41140-ZY3-A04No Longer Available
—
9
$285.74$391.42
10
41161-ZY3-A00Ships in 1 to 2 Days
$337.08$461.76
11
HOLDER, PROPELLER SHAFT *NH282MU* (OYSTER SILVER METALLIC-U) (NOT AVAILABLE)
41201-ZY3-A00ZANo Longer Available
$158.42$217.02
12
41202-ZY3-000Ships in 1 to 2 Days
$89.64$126.48
13
90123-ZY3-000In Stockqty 2 used
$9.49$13.00
14
90301-ZW1-B00Ships in 1 to 2 Days
$11.32$15.50
15
90506-ZX2-C00Ships in 1 to 2 Days
$38.65$52.94
16
90509-ZW5-710Ships in 1 to 2 Daysreplaced by 90509-ZW5-711
$14.89$20.40
16
90509-ZW5-711Ships in 1 to 2 Days
$14.89$20.40
17
90512-ZX2-C00Ships in 1 to 2 Days
$37.55$51.44
18
90528-ZY3-000Ships in 1 to 2 Daysqty 2 used
$16.85$23.08
18
90529-ZY3-000Ships in 1 to 2 Daysqty 2 used
$16.85$23.08
18
90530-ZY3-000Ships in 1 to 2 Daysqty 2 used
$16.85$23.08
18
90531-ZY3-000Ships in 1 to 2 Daysqty 2 used
$16.85$23.08
19
90550-ZY3-000Ships in 1 to 2 Days
$12.03$16.48
19
90551-ZY3-000Ships in 1 to 2 Days
$12.03$16.48
19
90552-ZY3-000Ships in 1 to 2 Days
$12.03$16.48
19
90553-ZY3-000Ships in 1 to 2 Days
$12.03$16.48
19
90554-ZY3-000Ships in 1 to 2 Days
$12.18$16.68
19
90555-ZY3-000Ships in 1 to 2 Days
$12.18$16.68
19
90548-ZY3-000Ships in 1 to 2 Days
$12.03$16.48
19
90549-ZY3-000Ships in 1 to 2 Days
$12.03$16.48
19
90556-ZY3-000Ships in 1 to 2 Days
$10.98$15.04
20
90559-ZV5-000Ships in 1 to 2 Daysqty 2 used
$2.95$4.04
21
90758-ZW1-B00In Stock
$1.87$2.56
22
91005-PT2-N01Ships in 1 to 2 Days
$15.84$21.70
23
91051-ZY3-003Ships in 1 to 2 Days
$62.31$87.92
24
91055-ZY3-003Ships in 1 to 2 Days
$70.69$99.74
25
91057-ZY3-003Ships in 1 to 2 Days
$45.65$62.54
26
91151-ZY3-003Ships in 1 to 2 Days
$1.58$2.26
26
91151-ZY3-000Ships in 1 to 2 Days
$1.90$2.60
27
91252-ZY3-003Ships in 1 to 2 Daysqty 2 used
$7.36$10.58
28
91351-ZY3-003Ships in 1 to 2 Days
$7.37$10.10
29
94510-15000Ships in 1 to 2 Days
$1.12$1.54
30
96211-07000Ships in 1 to 2 Days
$1.17$1.60
31
96211-12000Ships in 1 to 2 Daysqty 2 used
$0.77$1.06
Diagram

PROPELLER SHAFT (2)

BF225 BF225A6 propeller shaft (2) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AF0501A
Fits only BF225A6-XCA, BF225A6-XXCA — not every submodel of this generation.

Parts in this assembly

43 parts
1
24101-ZY3-A00Ships in 1 to 2 Days
$142.26$194.88
1
24101-ZY3-A01Ships in 1 to 2 Days
$132.89$182.04
2
24102-ZY3-000Ships in 1 to 2 Days
$3.80$5.20
3
24103-ZY3-000Ships in 1 to 2 Days
$2.48$3.40
4
24113-ZY3-A01Ships in 1 to 2 Days
$83.21$113.98
5
24122-ZY3-A00Ships in 1 to 2 Days
$70.52$101.44
5
24122-ZY3-A01Ships in 1 to 2 Days
$63.54$87.04
6
24123-ZY3-000Ships in 1 to 2 Daysqty 2 used
$2.12$2.90
7
24124-ZY3-310Ships in 1 to 2 Days
$15.87$21.74
8
41141-ZY3-B02Ships in 1 to 2 Days
$285.74$391.42
8
$251.31$344.26
9
$309.08$423.40
10
41161-ZY3-B00Ships in 1 to 2 Days
$374.87$513.52
11
HOLDER, PROPELLER SHAFT *NH282MU* (OYSTER SILVER METALLIC-U) (NOT AVAILABLE)
41201-ZY3-A00ZANo Longer Available
$158.42$217.02
12
41202-ZY3-700Ships in 1 to 2 Days
$93.69$132.18
13
90123-ZY3-000In Stockqty 2 used
$9.49$13.00
14
90301-ZW1-B00Ships in 1 to 2 Days
$11.32$15.50
15
90506-ZX2-C00Ships in 1 to 2 Days
$38.65$52.94
16
90509-ZW5-710Ships in 1 to 2 Daysreplaced by 90509-ZW5-711
$14.89$20.40
16
90509-ZW5-711Ships in 1 to 2 Daysqty 2 used
$14.89$20.40
17
90512-ZX2-C00Ships in 1 to 2 Days
$37.55$51.44
18
90528-ZY3-000Ships in 1 to 2 Daysqty 2 used
$16.85$23.08
18
90529-ZY3-000Ships in 1 to 2 Daysqty 2 used
$16.85$23.08
18
90530-ZY3-000Ships in 1 to 2 Daysqty 2 used
$16.85$23.08
18
90531-ZY3-000Ships in 1 to 2 Daysqty 2 used
$16.85$23.08
19
90548-ZW5-710Ships in 1 to 2 Days
$10.86$14.88
19
90549-ZW5-710Ships in 1 to 2 Days
$10.86$14.88
19
90550-ZW5-710Ships in 1 to 2 Days
$10.86$14.88
19
90551-ZW5-710Ships in 1 to 2 Days
$10.86$14.88
20
90559-ZV5-000Ships in 1 to 2 Daysqty 2 used
$2.95$4.04
21
90758-ZW1-B00In Stock
$1.87$2.56
22
91005-PT2-N01Ships in 1 to 2 Days
$15.84$21.70
23
91051-ZY3-003Ships in 1 to 2 Days
$62.31$87.92
24
91055-ZY3-003Ships in 1 to 2 Days
$70.69$99.74
25
91056-ZY3-711Ships in 1 to 2 Days
$42.85$58.70
26
91057-ZY3-003Ships in 1 to 2 Days
$45.65$62.54
27
91151-ZY3-003Ships in 1 to 2 Days
$1.58$2.26
27
91151-ZY3-000Ships in 1 to 2 Days
$1.90$2.60
28
91252-ZY3-003Ships in 1 to 2 Daysqty 2 used
$7.36$10.58
29
91351-ZY3-003Ships in 1 to 2 Days
$7.37$10.10
30
94510-15000Ships in 1 to 2 Days
$1.12$1.54
31
96211-07000Ships in 1 to 2 Days
$1.17$1.60
32
96211-12000Ships in 1 to 2 Daysqty 2 used
$0.77$1.06
Diagram

REMOTE CONTROL (FLUSH MOUNT TYPE) (L.)

BF225 BF225A6 remote control (flush mount type) (l.) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AY0305
Fits all 5 submodels of this generation.

Parts in this assembly

28 parts
1
06240-ZW7-U10Ships in 1 to 2 Days
$300.05
2
24810-ZW7-U11Ships in 1 to 2 Days
$428.07$586.40
3
24811-ZW7-U01Ships in 1 to 2 Days
$114.23$156.50
4
24812-ZW7-U01Ships in 1 to 2 Days
$14.41$19.74
5
24813-ZW7-U01Ships in 1 to 2 Days
$15.93$21.82
6
24814-ZW7-U01Ships in 1 to 2 Days
$3.61$4.94
7
24815-ZW7-U01Ships in 1 to 2 Days
$8.85$12.12
8
24816-ZW5-U01Ships in 1 to 2 Days
$7.72$10.58
9
24817-ZW7-U01Ships in 1 to 2 Days
$6.69$9.16
10
24826-ZW5-U01Ships in 1 to 2 Days
$13.81$18.92
11
24830-ZW7-U01Ships in 1 to 2 Days
$24.35$33.36
12
24831-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$8.45$11.58
13
24832-ZW5-U01Ships in 1 to 2 Days
$3.74$5.12
14
24832-ZW7-U01Ships in 1 to 2 Days
$14.88$20.38
15
24833-ZW7-U01Ships in 1 to 2 Days
$30.98$42.44
16
32530-ZW7-U20Ships in 1 to 2 Days
$14.76$20.22
17
35370-ZW7-U02Ships in 1 to 2 Days
$52.93$72.50
18
87701-ZW7-U01Ships in 1 to 2 Days
$6.19$8.48
19
87703-ZW7-U00Ships in 1 to 2 Days
$4.58$6.28
20
90101-ZW7-U01Ships in 1 to 2 Days
$2.31$3.16
21
90102-ZW5-U00Ships in 1 to 2 Days
$2.38$3.36
22
90102-ZW7-U01Ships in 1 to 2 Daysqty 4 used
$2.98$4.08
23
90103-ZW7-U01Ships in 1 to 2 Daysqty 3 used
$1.24$1.70
24
90104-ZW7-U01Ships in 1 to 2 Daysqty 3 used
$1.24$1.70
25
90301-ZW7-U01Ships in 1 to 2 Daysqty 3 used
$1.17$1.60
26
90501-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.85$1.16
27
90502-ZW7-U00Ships in 1 to 2 Daysqty 3 used
$1.34$1.84
28
94540-06029Ships in 1 to 2 Daysqty 2 used
$3.50$4.80
Diagram

REMOTE CONTROL (FLUSH MOUNT TYPE) (R.)

BF225 BF225A6 remote control (flush mount type) (r.) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AY0304
Fits all 5 submodels of this generation.

Parts in this assembly

28 parts
1
06240-ZW7-U00Ships in 1 to 2 Days
$300.05
2
24810-ZW7-U01Ships in 1 to 2 Days
$428.07$586.40
3
24811-ZW7-U01Ships in 1 to 2 Days
$114.23$156.50
4
24812-ZW7-U01Ships in 1 to 2 Days
$14.41$19.74
5
24813-ZW7-U01Ships in 1 to 2 Days
$15.93$21.82
6
24814-ZW7-U01Ships in 1 to 2 Days
$3.61$4.94
7
24815-ZW7-U01Ships in 1 to 2 Days
$8.85$12.12
8
24816-ZW5-U01Ships in 1 to 2 Days
$7.72$10.58
9
24817-ZW7-U01Ships in 1 to 2 Days
$6.69$9.16
10
24826-ZW5-U01Ships in 1 to 2 Days
$13.81$18.92
11
24830-ZW7-U01Ships in 1 to 2 Days
$24.35$33.36
12
24831-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$8.45$11.58
13
24832-ZW5-U01Ships in 1 to 2 Days
$3.74$5.12
14
24832-ZW7-U01Ships in 1 to 2 Days
$14.88$20.38
15
24833-ZW7-U01Ships in 1 to 2 Days
$30.98$42.44
16
32530-ZW7-U20Ships in 1 to 2 Days
$14.76$20.22
17
35370-ZW7-U02Ships in 1 to 2 Days
$52.93$72.50
18
87701-ZW7-U01Ships in 1 to 2 Days
$6.19$8.48
19
87703-ZW7-U00Ships in 1 to 2 Days
$4.58$6.28
20
90101-ZW7-U01Ships in 1 to 2 Days
$2.31$3.16
21
90102-ZW5-U00Ships in 1 to 2 Days
$2.38$3.36
22
90102-ZW7-U01Ships in 1 to 2 Daysqty 4 used
$2.98$4.08
23
90103-ZW7-U01Ships in 1 to 2 Daysqty 3 used
$1.24$1.70
24
90104-ZW7-U01Ships in 1 to 2 Daysqty 3 used
$1.24$1.70
25
90301-ZW7-U01Ships in 1 to 2 Daysqty 3 used
$1.17$1.60
26
90501-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.85$1.16
27
90502-ZW7-U00Ships in 1 to 2 Daysqty 3 used
$1.34$1.84
28
94540-06029Ships in 1 to 2 Daysqty 2 used
$3.50$4.80
Diagram

REMOTE CONTROL (HI-LEX) (HANDLE CAP = GRAY)

BF225 BF225A6 remote control (hi-lex) (handle cap = gray) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AY0900A
Fits all 5 submodels of this generation.

Parts in this assembly

91 parts
1
24800-ZW2-A02Ships in 1 to 2 Daysreplaced by 24800-ZW2-A03
$403.62
1
24800-ZW2-A03Ships in 1 to 2 Days
$435.35
2
24811-ZV5-010Ships in 1 to 2 Days
$115.09$162.38
3
LEVER, HANDLE LOCK (NOT AVAILABLE)
24812-ZV5-000No Longer Available
—
4
24813-ZV5-000Ships in 1 to 2 Days
$39.73$56.04
5
24814-ZV5-010Ships in 1 to 2 Days
$8.23$11.62
6
24815-ZV5-000Ships in 1 to 2 Daysreplaced by 24815-ZV5-010
$8.04$11.36
6
24815-ZV5-010Ships in 1 to 2 Days
$8.04$11.36
7
24816-ZV5-000Ships in 1 to 2 Days
$4.07$5.74
8
24817-ZV5-000Ships in 1 to 2 Days
$3.81$5.38
9
24818-ZV5-003Ships in 1 to 2 Days
$1.33$1.88
10
24820-ZV5-010Ships in 1 to 2 Days
$102.08$144.04
11
24830-ZV5-010Ships in 1 to 2 Days
$54.08$76.32
12
24836-ZV5-000Ships in 1 to 2 Days
$33.64$47.46
13
24841-ZV5-000Ships in 1 to 2 Days
$57.93$81.74
14
24845-ZV5-000Ships in 1 to 2 Days
$39.52$55.76
15
24850-ZV5-000Ships in 1 to 2 Days
$46.76$65.98
16
24854-ZV5-000Ships in 1 to 2 Days
$8.10$11.44
17
24855-ZV5-000Ships in 1 to 2 Daysqty 2 used
$8.10$11.44
18
24860-ZV5-000Ships in 1 to 2 Days
$37.81$53.36
19
24865-ZV5-000Ships in 1 to 2 Days
$17.32$24.44
20
24875-ZV5-000Ships in 1 to 2 Days
$22.41$31.62
21
24876-ZV5-000Ships in 1 to 2 Days
$4.07$5.74
22
24877-ZV5-000Ships in 1 to 2 Days
$4.67$6.72
23
24878-ZV5-000Ships in 1 to 2 Days
$51.83$73.12
24
24881-ZV5-000Ships in 1 to 2 Daysqty 2 used
$3.81$5.38
25
24883-ZV5-000Ships in 1 to 2 Days
$3.90$5.50
26
24884-ZV5-000Ships in 1 to 2 Days
$3.90$5.50
27
24885-ZV5-000Ships in 1 to 2 Days
$69.85$98.54
28
24887-ZV5-000Ships in 1 to 2 Days
$4.63$6.52
29
24891-ZV5-000Ships in 1 to 2 Days
$7.84$11.06
30
24892-ZV5-000Ships in 1 to 2 Days
$15.26$21.52
31
24894-ZV5-000Ships in 1 to 2 Days
$6.31$8.90
32
24895-ZV5-000Ships in 1 to 2 Days
$6.32$8.92
33
24897-ZV5-000Ships in 1 to 2 Days
$4.96$7.00
34
24898-ZV5-000Ships in 1 to 2 Days
$4.85$6.84
35
32530-ZY3-010Ships in 1 to 2 Days
$279.60$394.54
36
CABLE ASSY., REMOTE CONTROL EXTENSION
32570-ZY3-900No Longer Available
$158.40$216.98
37
32580-ZW2-D01Ships in 1 to 2 Days
$200.34$288.12
38
32901-952-770Ships in 1 to 2 Daysqty 4 used
$2.19$3.00
39
35100-ZV5-003Ships in 1 to 2 Days
$137.02$187.70
39
35100-ZV5-013Ships in 1 to 2 Days
$85.13$116.62
40
35110-ZV5-003Ships in 1 to 2 Daysqty 2 used
$7.99$11.48
41
35370-ZV5-823Ships in 1 to 2 Days
$63.90$90.18
42
SWITCH ASSY., SOLENOID (NOT AVAILABLE)
35630-ZV5-003No Longer Available
—
43
35701-MG9-950Ships in 1 to 2 Days
$1.83$2.50
44
36180-ZV5-033In Stock
$56.84$77.86
45
36182-ZV4-651In Stock
$18.45$25.28
46
36187-ZV4-652Ships in 1 to 2 Days
$4.18$5.72
47
37210-ZV5-013Ships in 1 to 2 Days
$127.69$174.92
48
38403-341-672Ships in 1 to 2 Days
$4.66$6.38
49
38410-ZV5-003Ships in 1 to 2 Days
$56.17$76.94
50
PLATE, REMOTE CONTROL (CAUTION PICT=SILVER) (NOT AVAILABLE)
87701-ZV5-010No Longer Available
$53.83$73.74
51
87702-ZW5-620Ships in 1 to 2 Days
$8.91$12.80
51
87702-ZW9-800Ships in 1 to 2 Days
$6.45$9.10
52
90009-ZV5-000Ships in 1 to 2 Days
$4.16$5.88
52
90008-ZW9-000Ships in 1 to 2 Days
$4.31$6.08
53
90105-MM4-000Ships in 1 to 2 Days
$2.03$2.78
54
90125-ZV5-000Ships in 1 to 2 Daysqty 3 used
$6.91$9.74
55
90302-ZV5-003Ships in 1 to 2 Days
$5.27$7.22
56
90302-921-000In Stock
$4.10$5.62
57
90304-ZV4-000Ships in 1 to 2 Daysqty 3 used
$2.12$2.90
58
90502-ZV4-000Ships in 1 to 2 Days
$2.73$3.74
59
90506-ZV4-000Ships in 1 to 2 Daysqty 5 used
$2.45$3.36
60
90507-ZV4-000Ships in 1 to 2 Daysqty 2 used
$2.20$3.02
61
90512-921-010In Stockqty 6 used
$1.07$1.46
62
90557-ZV5-000Ships in 1 to 2 Days
$2.99$4.22
63
WASHER, PLAIN (4MM) (NOT AVAILABLE)
90561-ZV5-000No Longer Available
$1.62$2.22
63
90401-ZW4-000Ships in 1 to 2 Daysqty 2 used
$1.24$1.70
64
90751-ZV5-000Ships in 1 to 2 Daysqty 2 used
$3.29$4.50
65
90772-ZV5-000Ships in 1 to 2 Days
$3.99$5.62
66
91151-ZV5-000Ships in 1 to 2 Days
$3.45$4.86
67
91475-SB6-000Ships in 1 to 2 Days
$7.72$10.58
68
91567-ZV5-000Ships in 1 to 2 Daysqty 2 used
$2.76$3.90
69
91570-ZV5-000Ships in 1 to 2 Daysqty 3 used
$8.10$11.44
70
92101-05016-4JShips in 1 to 2 Days
$1.21$1.66
71
93500-05010-4JShips in 1 to 2 Daysqty 2 used
$1.23$1.74
72
93700-05012-4JShips in 1 to 2 Daysqty 2 used
$1.69$2.44
72
90108-ZW4-000Ships in 1 to 2 Daysqty 2 used
$1.27$1.80
73
93901-242J0Ships in 1 to 2 Days
$1.36$1.92
74
93901-250J0Ships in 1 to 2 Daysqty 2 used
$1.64$2.30
75
93901-251J0Ships in 1 to 2 Daysqty 3 used
$0.58$0.82
76
93901-252J0Ships in 1 to 2 Days
$1.53$2.16
77
93903-262J0Ships in 1 to 2 Daysqty 2 used
$2.37$3.34
78
93905-255J0Ships in 1 to 2 Daysqty 7 used
$2.37$3.34
79
94001-06490-0SShips in 1 to 2 Days
$2.15$2.94
80
94002-05490-0SShips in 1 to 2 Days
$0.96$1.36
81
94540-03029Ships in 1 to 2 Days
$1.34$1.90
82
94540-04029Ships in 1 to 2 Days
$5.23$7.16
83
94540-07029Ships in 1 to 2 Days
$4.38$6.00
84
90402-ZW4-000Ships in 1 to 2 Daysqty 2 used
$1.85$2.62
Diagram

REMOTE CONTROL (NHK MEC) (HANDLE CAP = CHROME)

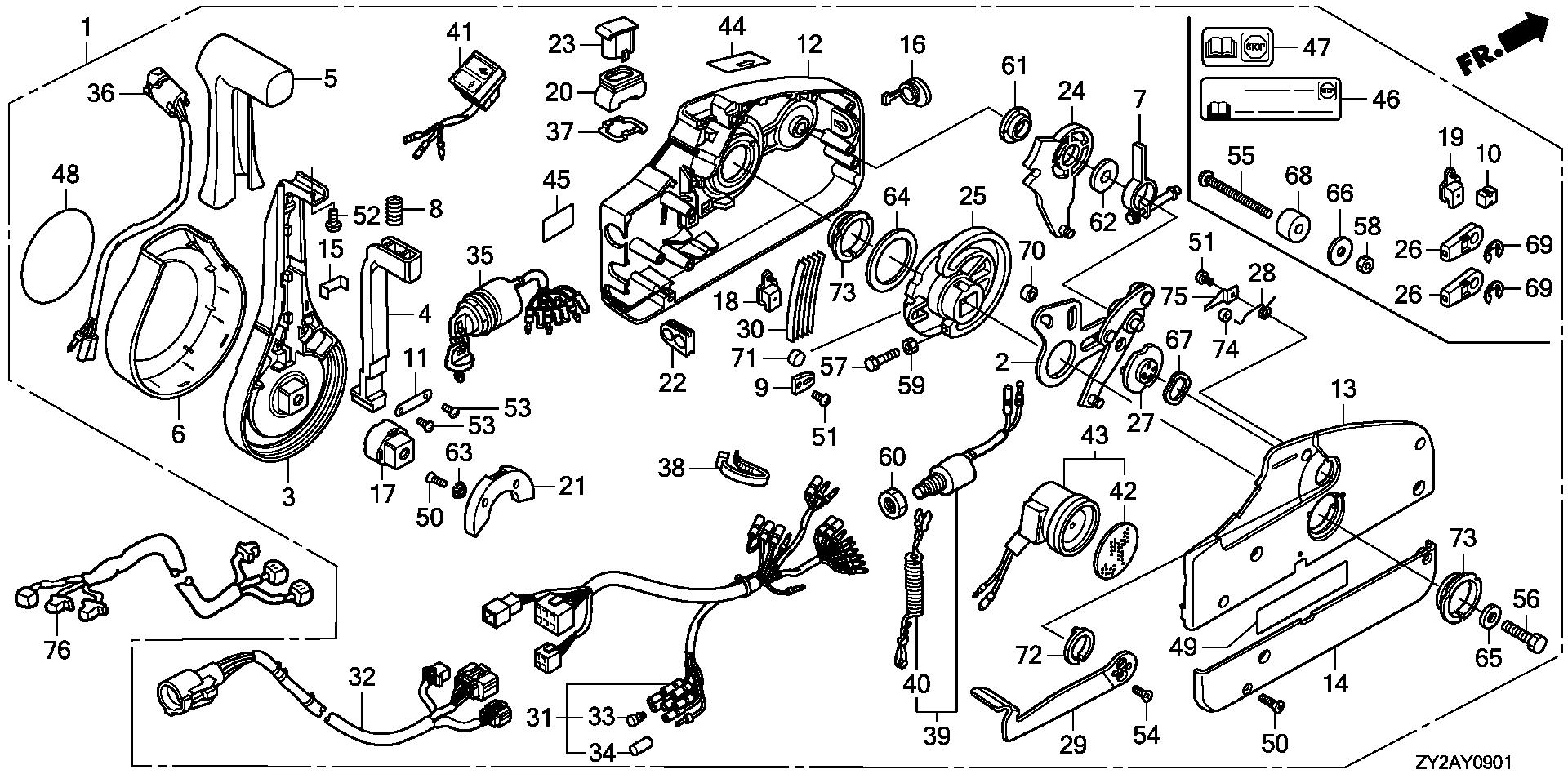

BF225 BF225A6 remote control (nhk mec) (handle cap = chrome) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AY0901
Fits all 5 submodels of this generation.

Parts in this assembly

76 parts
1
24800-ZW2-A02Ships in 1 to 2 Daysreplaced by 24800-ZW2-A03
$403.62
1
24800-ZW2-A03Ships in 1 to 2 Days
$435.35
2
24810-ZZ5-D01Ships in 1 to 2 Days
$48.17$65.98
3
24811-ZZ5-D01Ships in 1 to 2 Days
$102.07$139.84
4
24812-ZZ5-D01Ships in 1 to 2 Days
$9.34$12.80
5
24813-ZZ5-D01Ships in 1 to 2 Days
$25.13$34.42
6
24814-ZZ5-D01Ships in 1 to 2 Days
$56.34$77.18
7
24815-ZZ5-D01Ships in 1 to 2 Days
$15.87$21.74
8
24816-ZZ5-D01Ships in 1 to 2 Days
$2.07$2.84
9
24817-ZZ5-D01Ships in 1 to 2 Days
$2.10$2.88
10
24818-ZZ5-D01Ships in 1 to 2 Days
$2.82$3.86
11
24819-ZZ5-D01Ships in 1 to 2 Days
$2.01$2.76
12
24821-ZZ5-D01Ships in 1 to 2 Days
$131.39$179.98
13
24822-ZZ5-D01Ships in 1 to 2 Days
$47.76$65.42
14
24823-ZZ5-D01Ships in 1 to 2 Days
$34.50$47.26
15
24824-ZZ5-D01Ships in 1 to 2 Days
$2.28$3.12
16
24826-ZZ5-D01Ships in 1 to 2 Days
$4.89$6.70
17
24827-ZZ5-D01Ships in 1 to 2 Days
$14.73$20.18
18
24828-ZZ5-D01Ships in 1 to 2 Days
$3.31$4.54
19
24828-ZZ5-D01Ships in 1 to 2 Days
$3.31$4.54
20
24829-ZZ5-D01Ships in 1 to 2 Days
$7.23$9.90
21
24831-ZZ5-D01Ships in 1 to 2 Days
$6.39$8.76
22
24832-ZZ5-D01Ships in 1 to 2 Days
$5.02$6.88
23
24833-ZZ5-D01Ships in 1 to 2 Days
$5.24$7.18
24
24845-ZZ5-D01Ships in 1 to 2 Days
$26.12$35.78
25
24850-ZZ5-D01Ships in 1 to 2 Days
$38.08$52.16
26
24855-ZZ5-D01Ships in 1 to 2 Daysqty 2 used
$3.72$5.10
27
24875-ZZ5-D01Ships in 1 to 2 Days
$14.34$19.64
28
24876-ZZ5-D01Ships in 1 to 2 Days
$1.65$2.26
29
24878-ZZ5-D01Ships in 1 to 2 Days
$27.11$37.14
30
24883-ZZ5-D01Ships in 1 to 2 Daysqty 5 used
$2.07$2.84
31
32530-ZW2-D01Ships in 1 to 2 Days
$177.54$255.38
32
32580-ZW2-D01Ships in 1 to 2 Days
$200.34$288.12
33
32823-ZV5-003Ships in 1 to 2 Daysqty 7 used
$2.95$4.04
34
32824-ZV5-003Ships in 1 to 2 Daysqty 2 used
$3.11$4.26
35
35100-ZV5-013Ships in 1 to 2 Days
$85.13$116.62
36
35370-ZZ5-D02Ships in 1 to 2 Days
$45.01$61.66
37
35645-ZZ3-A41Ships in 1 to 2 Days
$10.12$13.86
38
35701-ZZ5-D01Ships in 1 to 2 Days
$2.13$2.92
39
36180-ZV5-033In Stock
$56.84$77.86
40
36182-ZV4-651In Stock
$18.45$25.28
41
37210-ZV5-013Ships in 1 to 2 Days
$127.69$174.92
42
38403-341-672Ships in 1 to 2 Days
$4.66$6.38
43
38410-ZV5-003Ships in 1 to 2 Days
$56.17$76.94
44
87701-ZZ5-D00Ships in 1 to 2 Days
$4.34$5.94
45
87702-ZZ5-A00Ships in 1 to 2 Days
$5.05$6.92
46
87702-ZZ5-A00Ships in 1 to 2 Days
$5.05$6.92
48
87703-ZZ5-D00Ships in 1 to 2 Days
$15.90$21.78
49
87704-ZZ5-D01Ships in 1 to 2 Days
$5.69$7.80
50
90101-ZZ5-D01Ships in 1 to 2 Daysqty 7 used
$2.69$3.68
51
90102-ZZ5-D01Ships in 1 to 2 Daysqty 2 used
$1.58$2.16
52
90103-ZZ5-D01Ships in 1 to 2 Days
$2.01$2.76
53
90104-ZZ5-D01Ships in 1 to 2 Daysqty 2 used
$1.93$2.64
54
90106-ZZ5-D01Ships in 1 to 2 Daysqty 2 used
$2.07$2.84
55
90107-ZZ5-D01Ships in 1 to 2 Daysqty 3 used
$3.72$5.10
56
90108-ZZ5-D01Ships in 1 to 2 Days
$3.66$5.02
57
90109-ZZ5-D01Ships in 1 to 2 Days
$2.88$3.94
58
90301-ZZ5-D01Ships in 1 to 2 Daysqty 3 used
$1.37$1.88
59
90302-ZZ5-D01Ships in 1 to 2 Days
$0.92$1.26
60
90302-921-000In Stock
$4.10$5.62
61
90501-ZZ5-D01Ships in 1 to 2 Days
$3.34$4.58
62
90502-ZZ5-D01Ships in 1 to 2 Days
$2.04$2.80
63
90503-ZZ5-D01Ships in 1 to 2 Daysqty 2 used
$2.91$3.98
64
90504-ZZ5-D01Ships in 1 to 2 Days
$2.91$3.98
65
90506-ZZ5-D01Ships in 1 to 2 Days
$2.69$3.68
66
90507-ZZ5-D01Ships in 1 to 2 Daysqty 3 used
$3.84$5.26
67
90508-ZZ5-D01Ships in 1 to 2 Days
$3.20$4.38
68
90509-ZZ5-D01Ships in 1 to 2 Daysqty 3 used
$3.61$4.94
69
90651-ZZ5-D01Ships in 1 to 2 Daysqty 2 used
$2.98$4.08
70
91151-ZZ5-D01Ships in 1 to 2 Days
$2.19$3.00
71
91152-ZZ5-D01Ships in 1 to 2 Days
$1.99$2.72
72
91153-ZZ5-D01Ships in 1 to 2 Days
$2.61$3.58
73
91154-ZZ5-D01Ships in 1 to 2 Daysqty 2 used
$3.30$4.52
74
91156-ZZ5-D01Ships in 1 to 2 Days
$1.85$2.54
75
91157-ZZ5-D01Ships in 1 to 2 Days
$3.18$4.36
76
CABLE ASSY., REMOTE CONTROL EXTENSION
32570-ZY3-900No Longer Available
$158.40$216.98
Diagram

REMOTE CONTROL (TOP MOUNT DUAL TYPE) (L.)

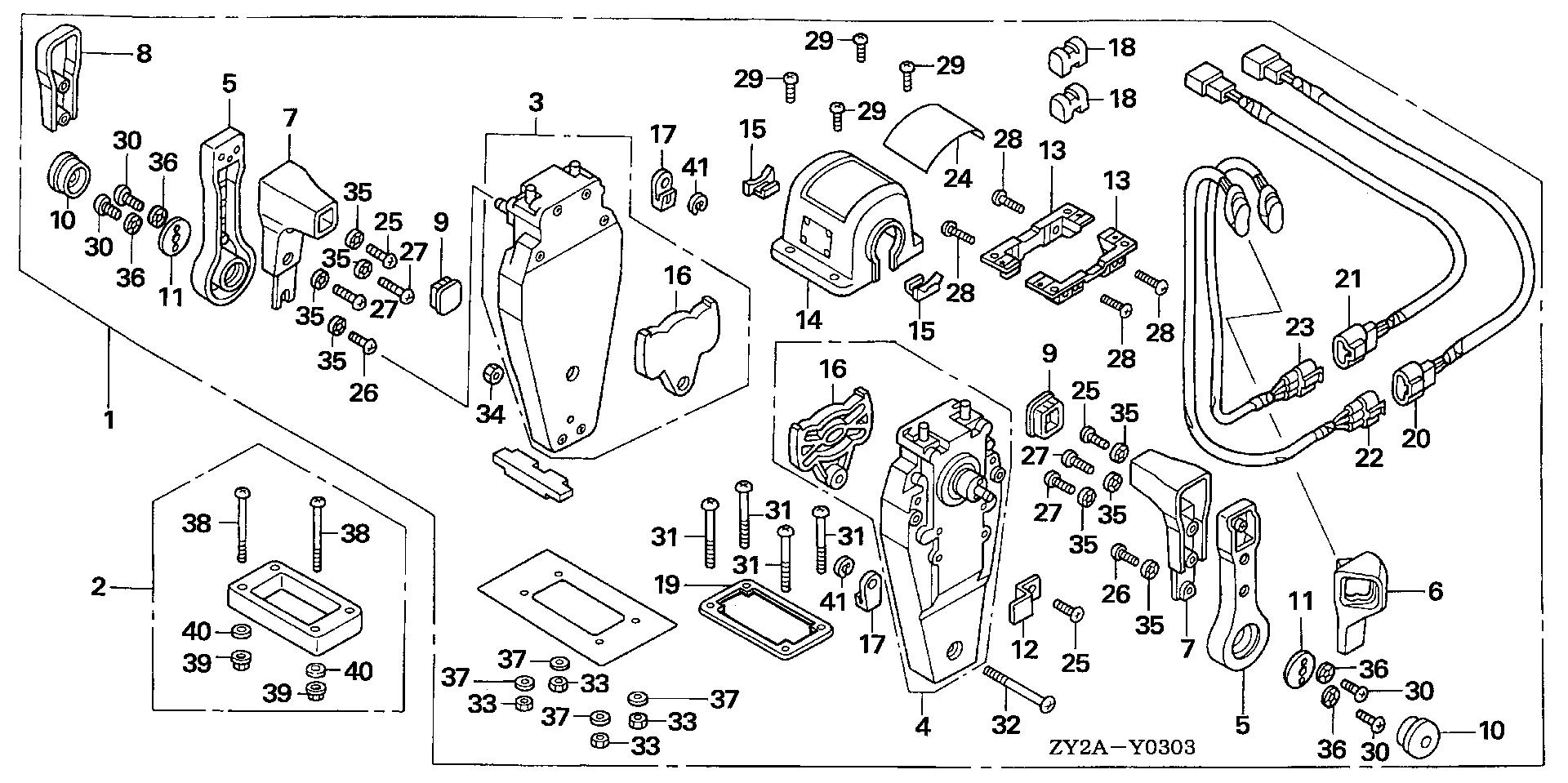

BF225 BF225A6 remote control (top mount dual type) (l.) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AY0303
Fits all 5 submodels of this generation.

Parts in this assembly

41 parts
1
BOX KIT, REMOTE CONTROL (TOP MOUNT DUAL)(L)
06240-ZW5-U30No Longer Available
—
2
06241-ZW5-U10Ships in 1 to 2 Days
$33.81$46.32
3
24810-ZW5-U01Ships in 1 to 2 Days
$398.40$545.76
4
24810-ZW5-U11Ships in 1 to 2 Days
$398.40$545.76
5
24811-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$95.56$134.82
6
24812-ZW5-U11Ships in 1 to 2 Days
$13.83$19.50
7
24813-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$12.89$18.18
8
24813-ZW5-U21Ships in 1 to 2 Days
$5.45$7.68
9
24814-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$3.69$5.22
10
24816-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$7.72$10.58
11
24817-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$31.68$43.40
12
24818-ZW5-U01Ships in 1 to 2 Days
$7.11$9.74
13
24819-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$10.77$15.20
14
24820-ZW5-U21Ships in 1 to 2 Days
$30.50$43.04
15
24825-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$2.91$4.10
16
24826-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$13.81$18.92
17
24831-ZW5-U01Ships in 1 to 2 Daysqty 4 used
$8.45$11.58
18
24832-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$3.74$5.12
19
24834-ZW5-U21Ships in 1 to 2 Days
$8.82$12.08
20
32530-ZW7-U00Ships in 1 to 2 Days
$25.87$35.44
21
32530-ZW7-U10Ships in 1 to 2 Days
$26.46$36.24
22
35370-ZW5-U02Ships in 1 to 2 Days
$54.55$76.96
23
35370-ZW5-U12Ships in 1 to 2 Days
$54.55$76.96
24
87703-ZW5-U22Ships in 1 to 2 Days
$9.52$13.44
25
90101-ZW5-U00Ships in 1 to 2 Daysqty 3 used
$2.60$3.56
26
90102-ZW5-U00Ships in 1 to 2 Daysqty 2 used
$2.38$3.36
27
90103-ZW5-U01Ships in 1 to 2 Daysqty 4 used
$3.20$4.52
28
90104-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$1.14$1.56
29
90105-ZW5-U01Ships in 1 to 2 Daysqty 4 used
$2.38$3.36
30
90106-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$2.60$3.56
31
90107-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.93$1.28
32
90108-ZW5-U00Ships in 1 to 2 Days
$1.31$1.80
33
90301-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$1.18$1.62
34
90302-ZW5-U21Ships in 1 to 2 Days
$1.18$1.62
35
90501-ZW5-U00Ships in 1 to 2 Daysqty 8 used
$0.85$1.16
36
90502-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$1.69$2.32
37
90503-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.66$0.90
38
93500-05065-4JShips in 1 to 2 Daysqty 4 used
$2.50$3.42
39
94001-05490-0SShips in 1 to 2 Daysqty 4 used
$0.92$1.26
40
90502-ZV4-000Ships in 1 to 2 Daysqty 4 used
$2.73$3.74
41
94540-06029Ships in 1 to 2 Daysqty 4 used
$3.50$4.80
Diagram

REMOTE CONTROL (TOP MOUNT DUAL TYPE) (R.)

BF225 BF225A6 remote control (top mount dual type) (r.) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AY0302
Fits all 5 submodels of this generation.

Parts in this assembly

41 parts
1
06240-ZY6-V92Ships in 1 to 2 Days
$629.99
2
06241-ZW5-U10Ships in 1 to 2 Days
$33.81$46.32
3
24810-ZW5-U01Ships in 1 to 2 Days
$398.40$545.76
4
24810-ZW5-U11Ships in 1 to 2 Days
$398.40$545.76
5
24811-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$95.56$134.82
6
24812-ZW5-U01Ships in 1 to 2 Days
$12.56$17.72
7
24813-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$12.89$18.18
8
24813-ZW5-U21Ships in 1 to 2 Days
$5.45$7.68
9
24814-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$3.69$5.22
10
24816-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$7.72$10.58
11
24817-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$31.68$43.40
12
24818-ZW5-U01Ships in 1 to 2 Days
$7.11$9.74
13
24819-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$10.77$15.20
14
24820-ZW5-U21Ships in 1 to 2 Days
$30.50$43.04
15
24825-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$2.91$4.10
16
24826-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$13.81$18.92
17
24831-ZW5-U01Ships in 1 to 2 Daysqty 4 used
$8.45$11.58
18
24832-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$3.74$5.12
19
24834-ZW5-U21Ships in 1 to 2 Days
$8.82$12.08
20
32530-ZW7-U00Ships in 1 to 2 Days
$25.87$35.44
21
32530-ZW7-U10Ships in 1 to 2 Days
$26.46$36.24
22
35370-ZW5-U02Ships in 1 to 2 Days
$54.55$76.96
23
35370-ZW5-U12Ships in 1 to 2 Days
$54.55$76.96
24
87703-ZW5-U22Ships in 1 to 2 Days
$9.52$13.44
25
90101-ZW5-U00Ships in 1 to 2 Daysqty 3 used
$2.60$3.56
26
90102-ZW5-U00Ships in 1 to 2 Daysqty 2 used
$2.38$3.36
27
90103-ZW5-U01Ships in 1 to 2 Daysqty 4 used
$3.20$4.52
28
90104-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$1.14$1.56
29
90105-ZW5-U01Ships in 1 to 2 Daysqty 4 used
$2.38$3.36
30
90106-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$2.60$3.56
31
90107-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.93$1.28
32
90108-ZW5-U00Ships in 1 to 2 Days
$1.31$1.80
33
90301-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$1.18$1.62
34
90302-ZW5-U21Ships in 1 to 2 Days
$1.18$1.62
35
90501-ZW5-U00Ships in 1 to 2 Daysqty 8 used
$0.85$1.16
36
90502-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$1.69$2.32
37
90503-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.66$0.90
38
93500-05065-4JShips in 1 to 2 Daysqty 4 used
$2.50$3.42
39
94001-05490-0SShips in 1 to 2 Daysqty 4 used
$0.92$1.26
40
90502-ZV4-000Ships in 1 to 2 Daysqty 4 used
$2.73$3.74
41
94540-06029Ships in 1 to 2 Daysqty 4 used
$3.50$4.80
Diagram

REMOTE CONTROL (TOP MOUNT SINGLE TYPE) (L.)

BF225 BF225A6 remote control (top mount single type) (l.) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AY0301
Fits all 5 submodels of this generation.

Parts in this assembly

36 parts
1
BOX KIT, REMOTE CONTROL (TOP MOUNT SINGLE)(L)
06240-ZW5-U10No Longer Available
—
2
06241-ZW5-U00Ships in 1 to 2 Days
$31.45$43.08
3
24810-ZW5-U11Ships in 1 to 2 Days
$398.40$545.76
4
24811-ZW5-U01Ships in 1 to 2 Days
$95.56$134.82
5
24812-ZW5-U11Ships in 1 to 2 Days
$13.83$19.50
6
24813-ZW5-U01Ships in 1 to 2 Days
$12.89$18.18
7
24814-ZW5-U01Ships in 1 to 2 Days
$3.69$5.22
8
24815-ZW5-U01Ships in 1 to 2 Days
$5.66$8.00
9
24816-ZW5-U01Ships in 1 to 2 Days
$7.72$10.58
10
24817-ZW5-U01Ships in 1 to 2 Days
$31.68$43.40
11
24818-ZW5-U01Ships in 1 to 2 Days
$7.11$9.74
12
24819-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$10.77$15.20
13
24820-ZW5-U01Ships in 1 to 2 Days
$27.23$38.42
14
24825-ZW5-U01Ships in 1 to 2 Days
$2.91$4.10
15
24826-ZW5-U01Ships in 1 to 2 Days
$13.81$18.92
16
24831-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$8.45$11.58
17
24832-ZW5-U01Ships in 1 to 2 Days
$3.74$5.12
18
24834-ZW5-U01Ships in 1 to 2 Days
$4.42$6.06
19
32530-ZW7-U10Ships in 1 to 2 Days
$26.46$36.24
20
35370-ZW5-U12Ships in 1 to 2 Days
$54.55$76.96
21
87703-ZW5-U02Ships in 1 to 2 Days
$7.08$10.00
22
90101-ZW5-U00Ships in 1 to 2 Daysqty 2 used
$2.60$3.56
23
90102-ZW5-U00Ships in 1 to 2 Days
$2.38$3.36
24
90103-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$3.20$4.52
25
90104-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$1.14$1.56
26
90105-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$2.38$3.36
27
90106-ZW5-U00Ships in 1 to 2 Daysqty 2 used
$2.60$3.56
28
90107-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.93$1.28
29
90301-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$1.18$1.62
30
90501-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.85$1.16
31
90502-ZW5-U00Ships in 1 to 2 Daysqty 2 used
$1.69$2.32
32
90503-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.66$0.90
33
93500-05065-4JShips in 1 to 2 Daysqty 4 used
$2.50$3.42
34
94001-05490-0SShips in 1 to 2 Daysqty 4 used
$0.92$1.26
35
90502-ZV4-000Ships in 1 to 2 Daysqty 4 used
$2.73$3.74
36
94540-06029Ships in 1 to 2 Daysqty 2 used
$3.50$4.80
Diagram

REMOTE CONTROL (TOP MOUNT SINGLE TYPE) (R.)

BF225 BF225A6 remote control (top mount single type) (r.) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AY0300
Fits all 5 submodels of this generation.

Parts in this assembly

36 parts
1
BOX KIT, REMOTE CONTROL (TOP MOUNT SINGLE)(R)
06240-ZW5-U00Ships in 1 to 2 Daysreplaced by 06240-ZW5-U40
$261.37
2
06241-ZW5-U00Ships in 1 to 2 Days
$31.45$43.08
3
24810-ZW5-U01Ships in 1 to 2 Days
$398.40$545.76
4
24811-ZW5-U01Ships in 1 to 2 Days
$95.56$134.82
5
24812-ZW5-U01Ships in 1 to 2 Days
$12.56$17.72
6
24813-ZW5-U01Ships in 1 to 2 Days
$12.89$18.18
7
24814-ZW5-U01Ships in 1 to 2 Days
$3.69$5.22
8
24815-ZW5-U01Ships in 1 to 2 Days
$5.66$8.00
9
24816-ZW5-U01Ships in 1 to 2 Days
$7.72$10.58
10
24817-ZW5-U01Ships in 1 to 2 Days
$31.68$43.40
11
24818-ZW5-U01Ships in 1 to 2 Days
$7.11$9.74
12
24819-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$10.77$15.20
13
24820-ZW5-U01Ships in 1 to 2 Days
$27.23$38.42
14
24825-ZW5-U01Ships in 1 to 2 Days
$2.91$4.10
15
24826-ZW5-U01Ships in 1 to 2 Days
$13.81$18.92
16
24831-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$8.45$11.58
17
24832-ZW5-U01Ships in 1 to 2 Days
$3.74$5.12
18
24834-ZW5-U01Ships in 1 to 2 Days
$4.42$6.06
19
32530-ZW7-U00Ships in 1 to 2 Days
$25.87$35.44
20
35370-ZW5-U02Ships in 1 to 2 Days
$54.55$76.96
21
87703-ZW5-U02Ships in 1 to 2 Days
$7.08$10.00
22
90101-ZW5-U00Ships in 1 to 2 Daysqty 2 used
$2.60$3.56
23
90102-ZW5-U00Ships in 1 to 2 Days
$2.38$3.36
24
90103-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$3.20$4.52
25
90104-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$1.14$1.56
26
90105-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$2.38$3.36
27
90106-ZW5-U00Ships in 1 to 2 Daysqty 2 used
$2.60$3.56
28
90107-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.93$1.28
29
90301-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$1.18$1.62
30
90501-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.85$1.16
31
90502-ZW5-U00Ships in 1 to 2 Daysqty 2 used
$1.69$2.32
32
90503-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.66$0.90
33
93500-05065-4JShips in 1 to 2 Daysqty 4 used
$2.50$3.42
34
94001-05490-0SShips in 1 to 2 Daysqty 4 used
$0.92$1.26
35
90502-ZV4-000Ships in 1 to 2 Daysqty 4 used
$2.73$3.74
36
94540-06029Ships in 1 to 2 Daysqty 2 used
$3.50$4.80
Diagram

REMOTE CONTROL COVER KIT

BF225 BF225A6 remote control cover kit exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AY0700
Fits all 5 submodels of this generation.

Parts in this assembly

2 parts
1
06881-ZW5-U01Ships in 1 to 2 Days
$27.52$37.70
2
06881-ZW5-U11Ships in 1 to 2 Days
$33.04$45.26
Diagram

SHIFT SHAFT

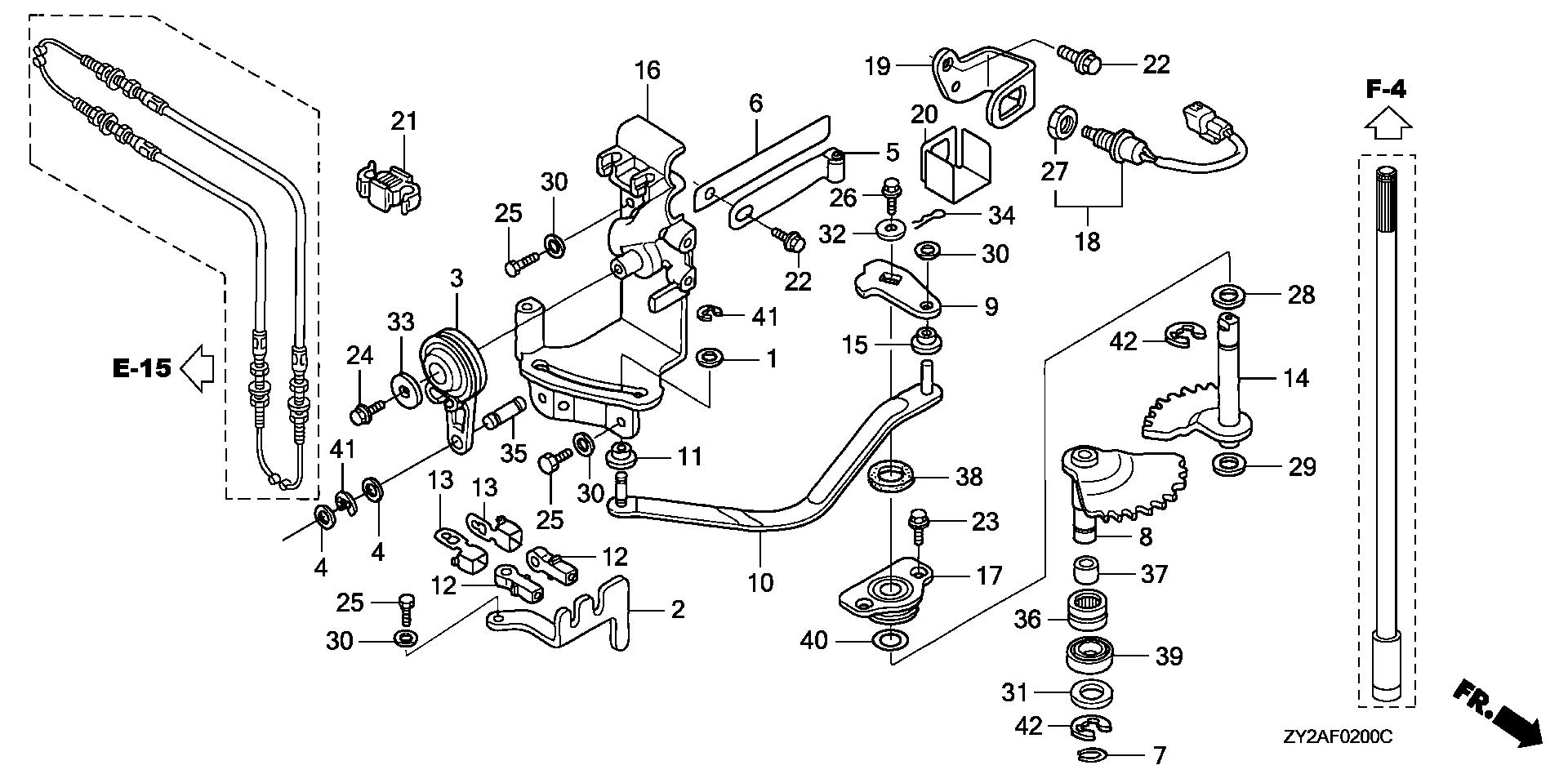

BF225 BF225A6 shift shaft exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AF0200C
Fits all 5 submodels of this generation.

Parts in this assembly

43 parts
1
17224-KN5-670Ships in 1 to 2 Days
$1.23$1.68
2
17877-ZY3-000Ships in 1 to 2 Days
$7.83$11.04
3
17931-ZY3-000Ships in 1 to 2 Days
$17.07$23.38
4
17936-921-000Ships in 1 to 2 Daysqty 2 used
$1.20$1.64
5
24210-ZW1-010Ships in 1 to 2 Days
$10.02$13.72
6
24221-ZY3-000Ships in 1 to 2 Days
$13.20$18.08
7
24327-ZW1-000In Stock
$1.69$2.32
8
24610-ZY3-A00Ships in 1 to 2 Days
$83.04$113.76
9
24612-ZY3-010Ships in 1 to 2 Days
$16.48$23.26
10
24613-ZY3-000Ships in 1 to 2 Days
$35.68$50.36
11
24617-ZY3-000Ships in 1 to 2 Days
$4.07$5.58
12
24618-ZY3-000Ships in 1 to 2 Daysqty 2 used
$5.90$8.08
13
24619-ZY3-000Ships in 1 to 2 Daysqty 2 used
$5.56$7.62
14
24620-ZY3-000Ships in 1 to 2 Days
$86.18$118.06
15
24623-ZY3-000Ships in 1 to 2 Days
$6.18$8.46
16
24628-ZY3-000Ships in 1 to 2 Days
$92.96$131.14
17
24629-ZW1-000Ships in 1 to 2 Days
$21.39$29.30
18
35470-ZY3-023Ships in 1 to 2 Days
$44.08$60.38
19
35476-ZY3-010Ships in 1 to 2 Days
$22.54$30.88
20
35477-ZY3-000Ships in 1 to 2 Days
$3.72$5.26
21
80385-SM4-940Ships in 1 to 2 Days
$3.31$4.76
22
90011-ZW9-000Ships in 1 to 2 Daysqty 2 used
$1.71$2.34
23
90101-ZZ0-M01Ships in 1 to 2 Daysqty 2 used
$1.77$2.42
24
90102-ZW9-000Ships in 1 to 2 Days
$2.12$2.90
25
90127-ZV4-000In Stockqty 4 used
$2.12$2.90
26
95701-06016-00Ships in 1 to 2 Days
$1.49$2.04
26
90017-ZZ5-M01Ships in 1 to 2 Days
$1.24$1.70
27
90302-ZV5-003Ships in 1 to 2 Days
$5.27$7.22
28
90402-HA0-000Ships in 1 to 2 Days
$3.80$5.20
29
90501-ZW5-000Ships in 1 to 2 Days
$7.33$10.04
30
90506-ZV4-000Ships in 1 to 2 Daysqty 5 used
$2.45$3.36
31
90508-ZV7-000Ships in 1 to 2 Days
$6.60$9.04
32
90508-ZY3-000Ships in 1 to 2 Daysreplaced by 90508-ZZ5-M01
$2.00$2.74
33
90512-ZV4-000Ships in 1 to 2 Days
$3.04$4.16
34
90705-SD2-931Ships in 1 to 2 Days
$5.33$7.30
35
90751-ZY3-000Ships in 1 to 2 Days
$12.18$16.68
36
91001-ZY3-003Ships in 1 to 2 Days
$35.97$49.28
37
91152-ZY3-003Ships in 1 to 2 Days
$12.03$16.48
38
91251-ZW5-003Ships in 1 to 2 Days
$3.85$5.28
39
91255-ZY3-003Ships in 1 to 2 Days
$7.24$9.92
40
91302-PF0-003Ships in 1 to 2 Days
$3.14$4.30
41
94540-04029Ships in 1 to 2 Daysqty 2 used
$5.23$7.16
42
94540-12029In Stockqty 2 used
$8.02$10.98
Diagram

SHIFT THROTTLE ACTIVATOR

BF225 BF225A6 shift throttle activator exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AXEX02
Fits all 5 submodels of this generation.

Parts in this assembly

18 parts
1
24615-ZX2-001AHShips in 1 to 2 Days
$1,266.66
2
BOLT, FLANGE (6X20)
95701-06020-05Ships in 1 to 2 Daysqty 2 used
$1.62$2.22
3
90302-ZW4-000AHShips in 1 to 2 Days
$0.78
4
95701-06050-00AHShips in 1 to 2 Days
$7.02
5
92876-ZX2-003AHShips in 1 to 2 Daysqty 2 used
$2.90
6
24628-ZY3-002AHShips in 1 to 2 Days
$34.72
7
24628-ZY3-003AHShips in 1 to 2 Days
$49.60
8
90508-ZY3-000Ships in 1 to 2 Daysreplaced by 90508-ZZ5-M01
$2.00$2.74
9
90011-ZW9-000Ships in 1 to 2 Daysqty 4 used
$1.71$2.34
10
17931-ZX2-000AHShips in 1 to 2 Days
$3,272.95
11
24628-ZY3-001AHShips in 1 to 2 Days
$166.64
12
24628-ZY3-004AHShips in 1 to 2 Days
$71.42
13
90011-ZW9-000Ships in 1 to 2 Days
$1.71$2.34
14
80106-GCF-670Ships in 1 to 2 Days
$0.96$1.32
15
SCREW, SHCS (6X25) (NOT AVAILABLE)
96700-06025-08AHNo Longer Available
—
16
WASHER, LOCK (NOT AVAILABLE)
90508-ZX2-000AHNo Longer Available
—
17
90016-ZZ5-M01Ships in 1 to 2 Days
$1.42$1.94
18
24628-ZY3-005AHShips in 1 to 2 Days
$71.42
Diagram

SHORT BLOCK

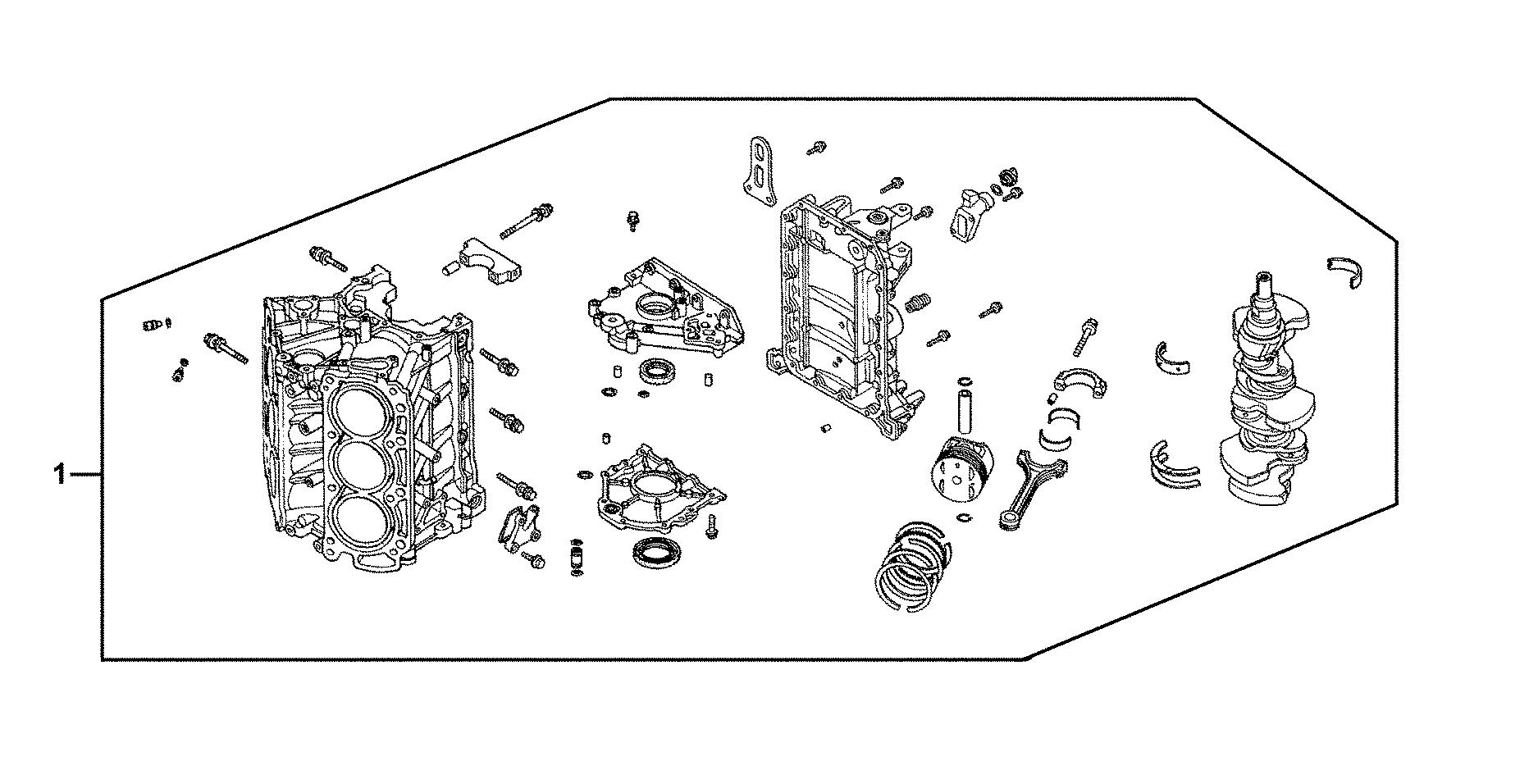

BF225 BF225A6 short block exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AE03A1Z
Fits all 5 submodels of this generation.

Parts in this assembly

1 parts
1
SHORT BLOCK *NH8* (DARK GRAY)
12011-ZY3-A00ZANo Longer Available
—
Diagram

SPARK PLUG

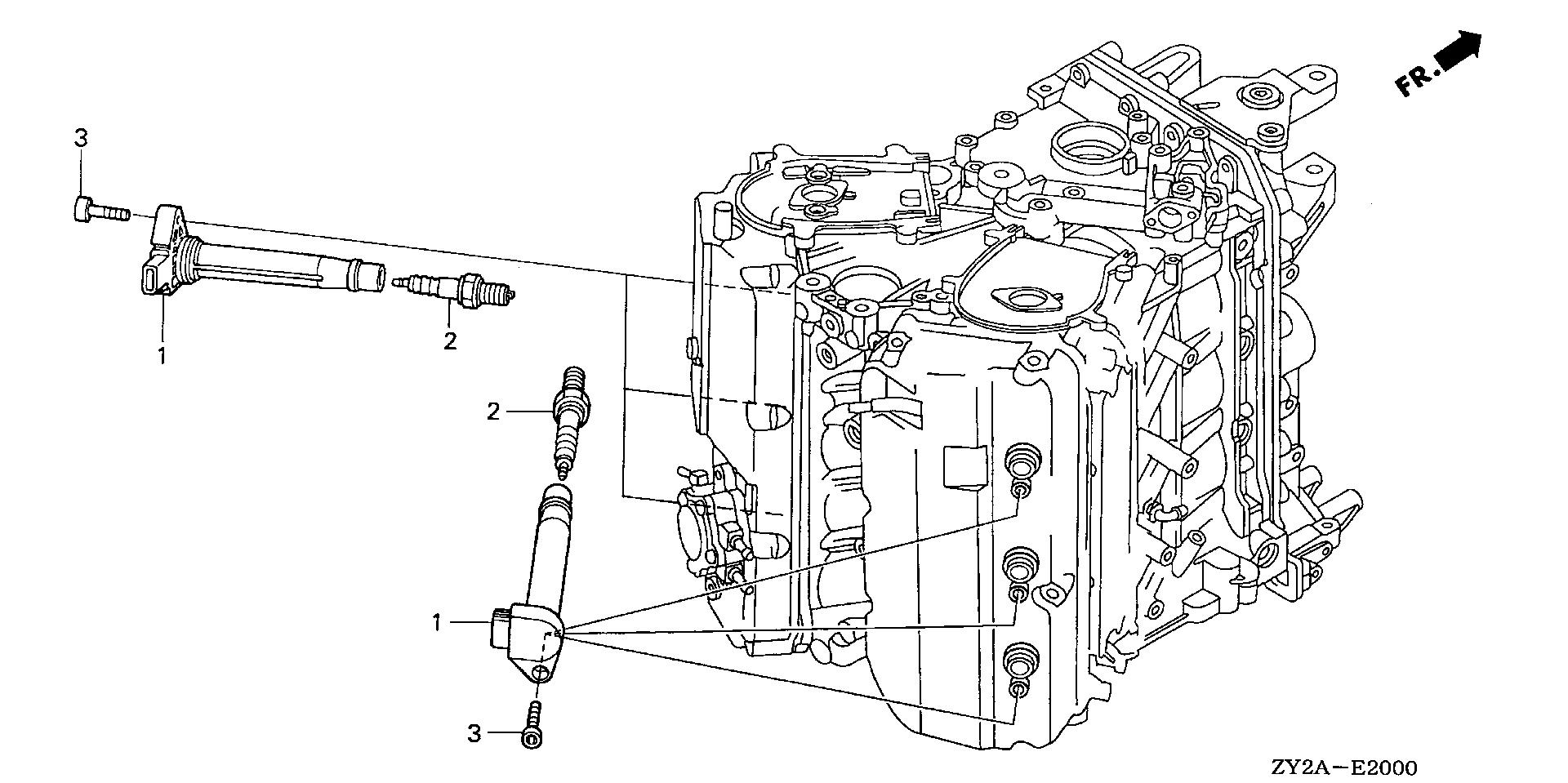

BF225 BF225A6 spark plug exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AE2000
Fits all 5 submodels of this generation.

Parts in this assembly

4 parts
1
30520-ZY3-003Ships in 1 to 2 Daysqty 6 used
$106.07$145.30
2
31916-ZY3-003In Stock
$14.53$19.90
2
31916-ZY3-004Ships in 1 to 2 Daysqty 6 used
$14.97$20.50
3
90084-ZY3-000Ships in 1 to 2 Daysqty 6 used
$5.34$7.32
Diagram

STARTER CABLE

BF225 BF225A6 starter cable exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AF0710C
Fits all 5 submodels of this generation.

Parts in this assembly

46 parts
1
CORD KIT, INDICATOR (3P/6P) (ANALOG) (NOT AVAILABLE)
06321-ZW5-902No Longer Available
$27.23
2
30569-895-000Ships in 1 to 2 Days
$3.24$4.58
3
32108-ZY3-A00Ships in 1 to 2 Days
$70.97$102.08
4
32185-ZY3-010Ships in 1 to 2 Days
$41.48$59.66
5
32410-ZY3-A02Ships in 1 to 2 Days
$548.68$751.62
6
32411-ZY3-003Ships in 1 to 2 Days
$13.29$18.20
7
CABLE ASSY., MAIN FUSE
32415-ZY3-A00No Longer Available
$172.08$235.72
8
32435-ZY3-A00Ships in 1 to 2 Days
$158.29$216.84
9
32901-952-770Ships in 1 to 2 Daysqty 5 used
$2.19$3.00
10
34908-KM1-671Ships in 1 to 2 Daysqty 2 used
$7.14$9.78
11
37206-ZW5-014Ships in 1 to 2 Days
$27.68$39.82
11
37206-ZW5-024Ships in 1 to 2 Days
$24.40$35.08
12
LAMP ASSY., INDICATION (2-BULB)
37210-ZW5-004No Longer Available
$89.56$122.68
13
37581-KR3-008Ships in 1 to 2 Daysqty 2 used
$7.48$10.76
14
37830-PGK-A01Ships in 1 to 2 Days
$121.71$166.72
15
37835-PGK-A01Ships in 1 to 2 Days
$8.60$11.78
16
38201-ZY3-003Ships in 1 to 2 Daysqty 2 used
$14.26$20.12
17
38210-ZY3-A01Ships in 1 to 2 Days
$112.61$154.26
18
38214-ZY3-A00Ships in 1 to 2 Days
$43.58$62.68
19
38216-ZY3-003Ships in 1 to 2 Days
$2.19$3.00
20
38550-ZY3-A01Ships in 1 to 2 Days
$298.25$428.96
21
38551-ZW1-000In Stockqty 6 used
$6.58$9.02
22
06380-ZY3-000Ships in 1 to 2 Days
$70.67$74.19
22
38580-ZY3-003Ships in 1 to 2 Days
$70.67$74.19
23
90011-ZW9-000Ships in 1 to 2 Daysqty 3 used
$1.71$2.34
24
90013-ZW9-000Ships in 1 to 2 Days
$1.47$2.08
25
90103-ZZ0-M01Ships in 1 to 2 Daysqty 2 used
$1.31$1.80
26
90013-ZW1-000Ships in 1 to 2 Daysqty 5 used
$2.48$3.40
26
90025-ZY3-000Ships in 1 to 2 Daysqty 5 used
$1.07$1.54
27
90029-ZY3-000Ships in 1 to 2 Days
$0.61$0.86
28
90107-ZY3-000Ships in 1 to 2 Days
$0.60$0.82
29
90108-ZY3-000Ships in 1 to 2 Daysqty 2 used
$1.01$1.42
30
90203-ZW1-000Ships in 1 to 2 Daysqty 2 used
$2.31$3.16
31
90304-ZY3-000Ships in 1 to 2 Days
$0.89$1.22
32
90405-ZY3-000Ships in 1 to 2 Days
$0.66$0.90
33
90508-ZY3-000Ships in 1 to 2 Daysreplaced by 90508-ZZ5-M01
$2.00$2.74
34
90691-ZB7-003Ships in 1 to 2 Days
$3.07$4.20
35
91553-ZV5-010Ships in 1 to 2 Daysqty 6 used
$2.67$3.66
36
98200-41000Ships in 1 to 2 Daysqty 5 used
$1.21$1.66
37
98200-41500Ships in 1 to 2 Daysqty 3 used
$1.11$1.52
38
98200-43000Ships in 1 to 2 Daysqty 2 used
$1.61$2.20
39
90025-ZY3-000Ships in 1 to 2 Days
$1.07$1.54
39
90030-ZY3-000Ships in 1 to 2 Days
$0.92$1.26
40
38216-ZY3-A01Ships in 1 to 2 Days
$7.67$10.82
41
90105-ZW5-003Ships in 1 to 2 Daysqty 2 used
$2.19$3.08
42
90135-ZY3-003Ships in 1 to 2 Daysqty 2 used
$1.78$2.52
Diagram

STARTER MOTOR

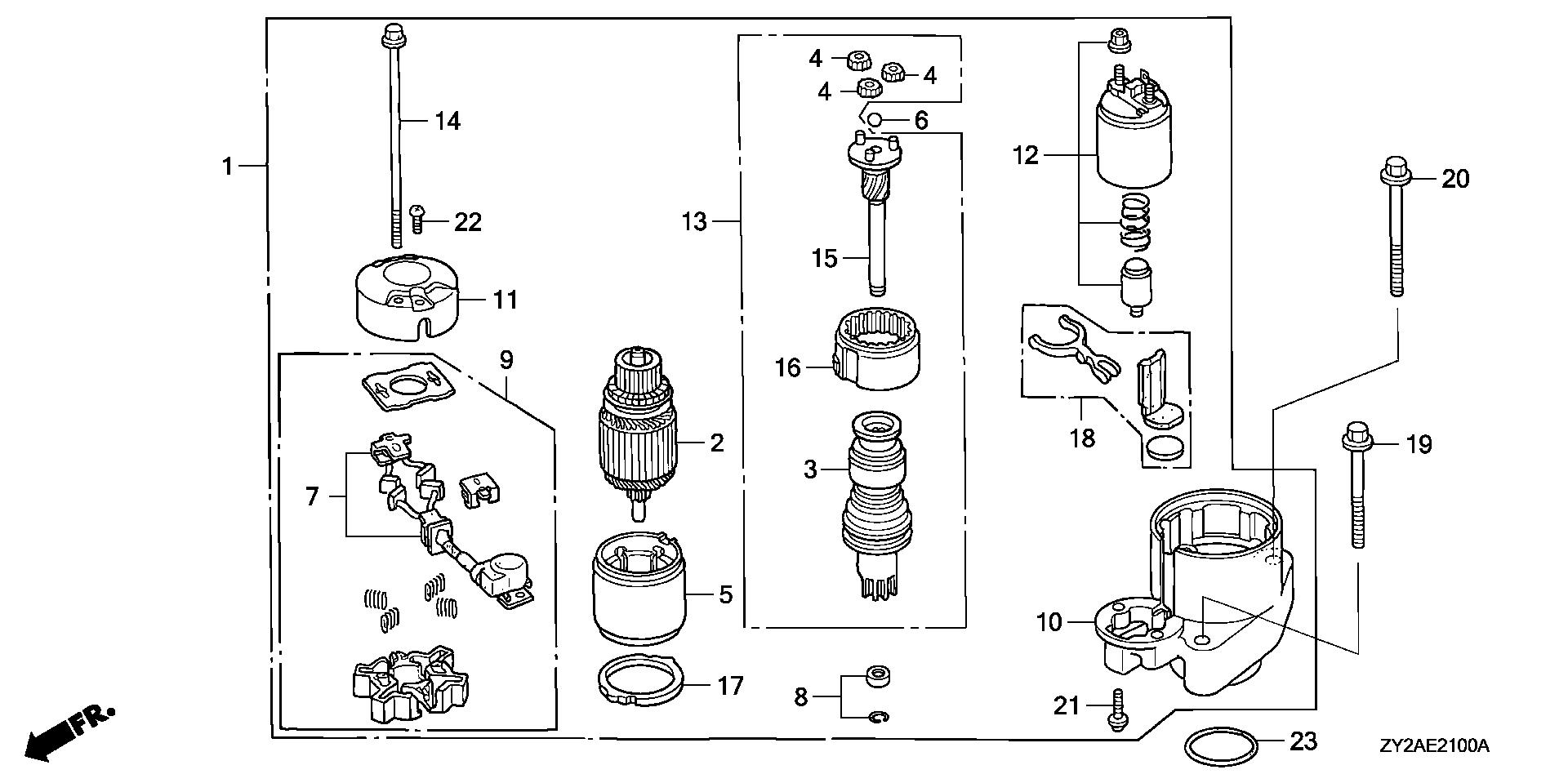

BF225 BF225A6 starter motor exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AE2100A
Fits all 5 submodels of this generation.

Parts in this assembly

23 parts
1
31200-ZY3-003Ships in 1 to 2 Daysreplaced by 31200-ZVL-B11
$727.51
2
31201-P5A-005Ships in 1 to 2 Days
$610.13$835.92
3
31207-ZY3-003Ships in 1 to 2 Days
$224.23$316.38
4
31215-PY3-004Ships in 1 to 2 Daysqty 3 used
$46.68$63.94
5
31216-ZY3-003Ships in 1 to 2 Days
$191.10
6
31218-PY3-004Ships in 1 to 2 Days
$3.20$4.38
7
31226-ZW1-004Ships in 1 to 2 Days
$54.09$74.10
8
31229-ZW1-004Ships in 1 to 2 Days
$21.14$29.82
9
31231-ZW1-004Ships in 1 to 2 Days
$88.26$126.94
10
31235-ZY3-003Ships in 1 to 2 Days
$141.43$193.74
11
31236-ZY3-003Ships in 1 to 2 Days
$35.00$47.94
12
31240-ZY3-003Ships in 1 to 2 Days
$270.36$370.36
13
31242-ZY3-003Ships in 1 to 2 Days
$522.45$751.44
14
31243-P5A-005Ships in 1 to 2 Daysqty 2 used
$10.16$13.92
15
31246-ZY3-003Ships in 1 to 2 Days
$170.76$240.94
16
31247-ZY3-003Ships in 1 to 2 Days
$49.63$71.38
17
31249-ZY3-003Ships in 1 to 2 Days
$7.17$10.32
18
31250-ZY3-003Ships in 1 to 2 Days
$12.03$16.48
19
90003-ZVL-010Ships in 1 to 2 Days
$5.23$7.16
20
90005-ZVL-010Ships in 1 to 2 Days
$3.40$4.66
21
90106-ZW1-004Ships in 1 to 2 Daysqty 2 used
$4.00$5.64
22
90107-ZW1-004Ships in 1 to 2 Daysqty 2 used
$2.44$3.34
23
91303-ZY3-000Ships in 1 to 2 Days
$7.37$10.10
Diagram

STERN BRACKET - SWIVEL CASE

BF225 BF225A6 stern bracket - swivel case exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AF1000F
Fits all 5 submodels of this generation.

Parts in this assembly

86 parts
1
06411-ZW1-020Ships in 1 to 2 Days
$51.97
2
06532-ZY3-U00Ships in 1 to 2 Days
$79.38$108.74
3
24210-ZV1-010Ships in 1 to 2 Days
$10.25$14.04
4
24221-ZV4-010Ships in 1 to 2 Days
$7.30$10.00
5
32161-KM3-003Ships in 1 to 2 Daysqty 3 used
$3.34$4.58
6
35660-ZY3-003Ships in 1 to 2 Days
$174.13$238.54
7
38562-663-920Ships in 1 to 2 Days
$11.18$15.32
8
40219-ZY3-023Ships in 1 to 2 Days
$9.05$12.40
9
41171-ZV5-000Ships in 1 to 2 Days
$6.04$8.28
10
41172-ZV5-000Ships in 1 to 2 Days
$7.65$10.48
11
41173-ZY3-A00Ships in 1 to 2 Days
$18.99$26.02
12
41179-ZY3-A00Ships in 1 to 2 Daysqty 2 used
$9.07$12.80
13
50100-ZVL-000Ships in 1 to 2 Days
$882.79$1,209.30
13
50100-ZY3-A01Ships in 1 to 2 Days
$943.66$1,292.68
14
50109-ZY3-000Ships in 1 to 2 Days
$57.39$59.11
15
50151-ZY3-000Ships in 1 to 2 Daysqty 2 used
$65.55$89.82
16
50153-ZY3-000Ships in 1 to 2 Daysqty 2 used
$6.06$8.30
17
50161-ZY3-610Ships in 1 to 2 Days
$113.57
17
$126.96
18
50166-ZY3-000Ships in 1 to 2 Days
$66.33$93.58
19
50168-ZY3-000Ships in 1 to 2 Days
$12.18$17.18
20
$1,451.91$1,988.92
20
$1,348.28$1,846.96
21
50209-ZY3-A00Ships in 1 to 2 Daysqty 2 used
$6.15$8.42
22
50211-ZY3-000Ships in 1 to 2 Daysqty 2 used
$9.93
23
50214-ZY3-000Ships in 1 to 2 Daysqty 2 used
$10.51$14.40
24
$374.42$528.34
25
$406.52$556.88
26
50331-ZV5-000Ships in 1 to 2 Days
$5.88$8.06
27
50381-ZY3-000Ships in 1 to 2 Days
$106.14$149.78
28
50522-ZY3-000Ships in 1 to 2 Daysqty 2 used
$8.02$10.98
29
50527-ZY3-000Ships in 1 to 2 Days
$10.37$14.20
30
50529-ZVL-000Ships in 1 to 2 Daysqty 2 used
$71.34$97.72
31
56516-ZY3-A00Ships in 1 to 2 Daysqty 2 used
$14.83$20.32
32
56518-ZY3-A00Ships in 1 to 2 Daysqty 2 used
$11.97$16.40
33
56519-ZY3-A00Ships in 1 to 2 Daysqty 2 used
$5.90$8.08
34
56539-ZZ0-C00Ships in 1 to 2 Days
$64.04$90.36
35
90005-ZW9-030Ships in 1 to 2 Daysqty 7 used
$1.85$2.54
36
90102-ZW1-000Ships in 1 to 2 Daysqty 2 used
$7.02$9.62
37
90103-ZW9-010Ships in 1 to 2 Days
$2.04$2.80
38
90103-ZY3-000In Stockqty 3 used
$5.39$7.38
39
90104-ZY3-010Ships in 1 to 2 Daysqty 2 used
$42.15$57.74
40
90108-ZW1-000Ships in 1 to 2 Days
$35.89$50.64
41
90110-881-000Ships in 1 to 2 Days
$2.12$2.90
42
90113-ZV5-000Ships in 1 to 2 Daysqty 2 used
$2.60$3.66
43
90117-ZY3-000Ships in 1 to 2 Days
$3.80$5.20
44
90119-ZV5-000Ships in 1 to 2 Daysqty 3 used
$1.65$2.26
45
90105-ZW9-000Ships in 1 to 2 Daysqty 2 used
$2.88$3.94
45
90124-ZV4-000Ships in 1 to 2 Daysqty 2 used
$2.12$2.90
46
90127-ZV5-003Ships in 1 to 2 Daysqty 2 used
$1.94$2.66
47
90129-ZW1-010Ships in 1 to 2 Daysqty 6 used
$18.88$27.16
48
90205-ZY1-000Ships in 1 to 2 Daysqty 2 used
$4.76$6.52
49
90302-ZW5-003Ships in 1 to 2 Daysqty 2 used
$6.15$8.42
50
90304-ZV5-013Ships in 1 to 2 Days
$17.70$24.24
51
90304-ZW1-013Ships in 1 to 2 Days
$19.68$27.78
52
90306-ZV5-003In Stock
$3.40$4.66
53
90307-ZV5-003Ships in 1 to 2 Daysqty 2 used
$6.47$8.86
54
90308-ZW1-003Ships in 1 to 2 Daysqty 6 used
$10.16$13.92
55
90501-ZV5-000Ships in 1 to 2 Days
$7.30$10.00
56
90501-ZY3-A00Ships in 1 to 2 Daysqty 2 used
$3.78$5.18
57
90502-ZV5-000Ships in 1 to 2 Daysqty 2 used
$8.72$11.94
58
WASHER, WAVE (32MM)
90502-ZW1-000No Longer Available
$5.64$7.72
59
90504-ZV5-000Ships in 1 to 2 Days
$7.30$10.00
60
90504-ZX2-C00Ships in 1 to 2 Daysqty 2 used
$18.76$25.70
61
90504-921-010Ships in 1 to 2 Daysqty 2 used
$1.27$1.74
62
90506-ZV4-000Ships in 1 to 2 Daysqty 2 used
$2.45$3.36
63
90509-ZY3-000Ships in 1 to 2 Days
$1.18$1.62
64
90510-ZY3-000Ships in 1 to 2 Days
$4.69$6.62
65
90512-ZV4-000Ships in 1 to 2 Daysqty 2 used
$3.04$4.16
66
90514-ZV4-000Ships in 1 to 2 Daysqty 3 used
$1.69$2.32
67
90545-ZV5-000Ships in 1 to 2 Days
$2.72$3.84
68
90552-ZV5-000Ships in 1 to 2 Daysqty 6 used
$4.67$6.40
69
90559-ZV5-000Ships in 1 to 2 Daysqty 14 used
$2.95$4.04
70
90563-ZV5-000Ships in 1 to 2 Daysqty 3 used
$2.44$3.34
71
90602-921-000Ships in 1 to 2 Days
$1.39$1.96
72
90651-ZV5-000Ships in 1 to 2 Days
$7.85$10.76
73
90681-763-A01Ships in 1 to 2 Days
$8.06$11.04
74
90951-ZV7-010Ships in 1 to 2 Daysqty 3 used
$1.90$2.60
75
91256-ZV5-003Ships in 1 to 2 Days
$7.80$10.68
76
91352-ZV5-000Ships in 1 to 2 Days
$1.74$2.46
77
91560-ZY3-000Ships in 1 to 2 Days
$3.42$4.68
78
94305-30203Ships in 1 to 2 Daysqty 2 used
$1.18$1.62
79
95005-50003-30MNo Longer Available
$26.56$36.38
80
06411-ZW1-020Ships in 1 to 2 Days
$51.97
81
90009-ZW9-000Ships in 1 to 2 Daysqty 2 used
$2.88$3.94
82
94001-12490-0SShips in 1 to 2 Daysqty 12 used
$1.90$2.60
Diagram

SWIVEL CASE ASSY.

BF225 BF225A6 swivel case assy. exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY24F1001
Fits all 5 submodels of this generation.

Parts in this assembly

2 parts
1
CASE ASSY., SWIVEL (L) (NOT AVAILABLE)
50200-ZY3-405ZANo Longer Available
$2,256.24
1
50200-ZY3-406ZAShips in 1 to 2 Days
$2,474.51
Diagram

THROTTLE BODY

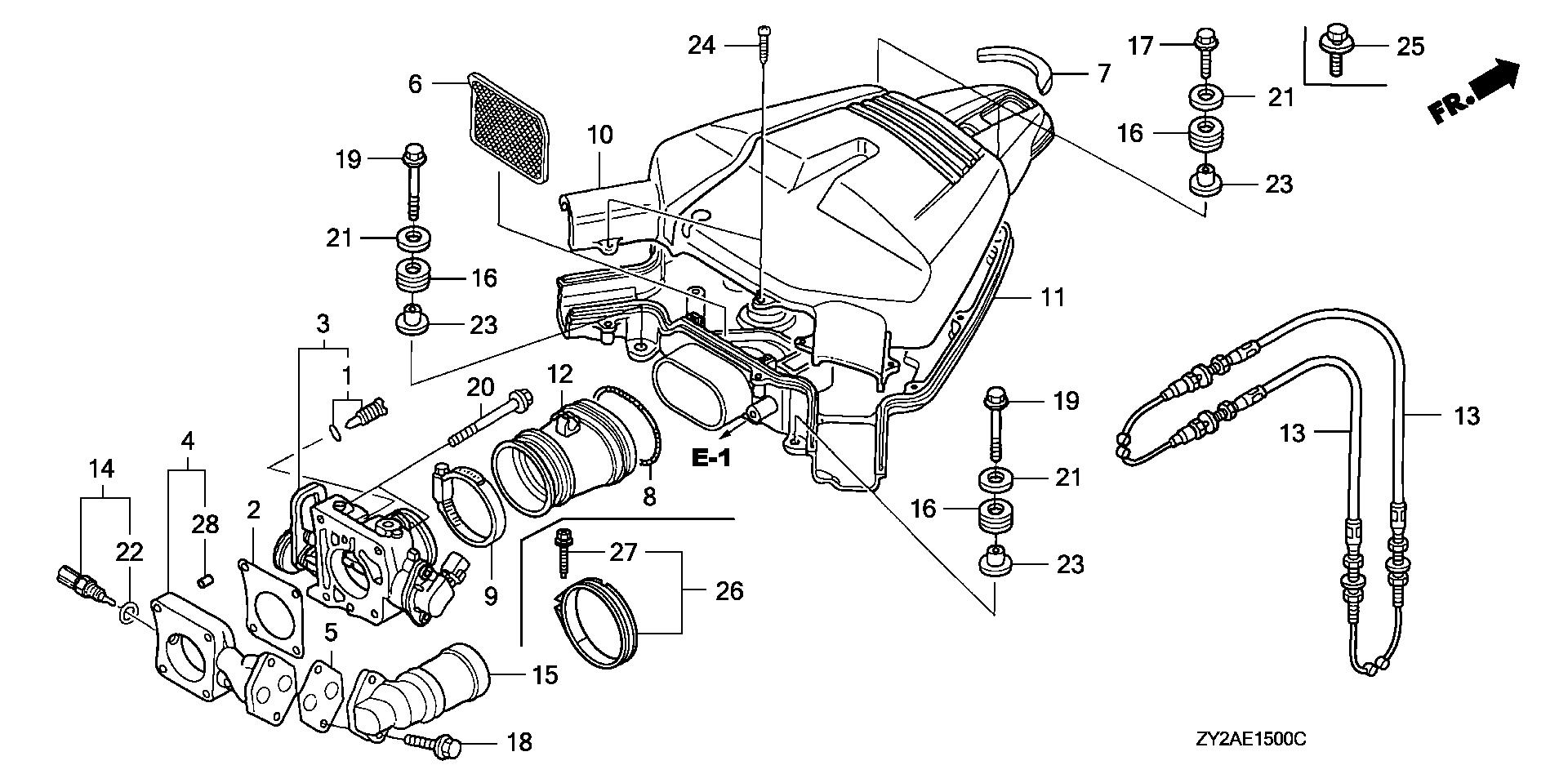

BF225 BF225A6 throttle body exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AE1500C
Fits all 5 submodels of this generation.

Parts in this assembly

29 parts
1
16016-ZY3-003Ships in 1 to 2 Days
$10.03$13.74
2
16176-ZY3-000Ships in 1 to 2 Days
$3.39$4.64
3
16400-ZY3-A03Ships in 1 to 2 Days
$420.40
4
16404-ZY3-000Ships in 1 to 2 Days
$102.73$144.96
5
16405-ZY3-000Ships in 1 to 2 Days
$2.85$3.90
6
17203-ZY3-000Ships in 1 to 2 Days
$33.61$46.04
7
17207-ZY3-300Ships in 1 to 2 Days
$3.15$4.44
8
17249-PY3-000Ships in 1 to 2 Days
$9.43$12.92
9
17315-ZY9-M01Ships in 1 to 2 Days
$11.83$16.20
10
17372-ZY3-000Ships in 1 to 2 Days
$164.97$232.76
11
17373-ZY3-010Ships in 1 to 2 Days
$37.89$53.46
12
17374-ZY3-010Ships in 1 to 2 Days
$23.99$33.84
13
17910-ZY3-013Ships in 1 to 2 Daysqty 2 used
$26.02$36.72
14
35665-ZW5-003Ships in 1 to 2 Days
$19.35$26.50
15
36550-ZY3-003Ships in 1 to 2 Days
$381.07$522.02
16
40102-ZV5-000Ships in 1 to 2 Daysqty 4 used
$2.64$3.62
17
90016-ZW9-000Ships in 1 to 2 Daysreplaced by 90014-ZZ5-M01
$1.87$2.56
18
90025-ZY3-000Ships in 1 to 2 Daysqty 2 used
$1.07$1.54
18
90030-ZY3-000Ships in 1 to 2 Daysqty 2 used
$0.92$1.26
19
90034-ZY3-000Ships in 1 to 2 Daysreplaced by 90034-ZVL-010
$1.04$1.42
20
90037-ZY3-000Ships in 1 to 2 Daysqty 4 used
$1.53$2.16
21
90508-ZY3-000Ships in 1 to 2 Daysreplaced by 90508-ZZ5-M01
$2.00$2.74
22
91303-P0A-A02Ships in 1 to 2 Days
$3.80$5.20
23
91553-ZV5-010Ships in 1 to 2 Daysqty 4 used
$2.67$3.66
24
93903-254G0Ships in 1 to 2 Daysqty 15 used
$3.49$4.78
25
90013-ZW1-000Ships in 1 to 2 Daysqty 2 used
$2.48$3.40
26
17315-ZY9-M01Ships in 1 to 2 Days
$11.83$16.20
27
90017-ZY9-000Ships in 1 to 2 Days
$3.29$4.64
28
94301-06100In Stockqty 2 used
$2.74$3.76
Diagram

TIMING BELT

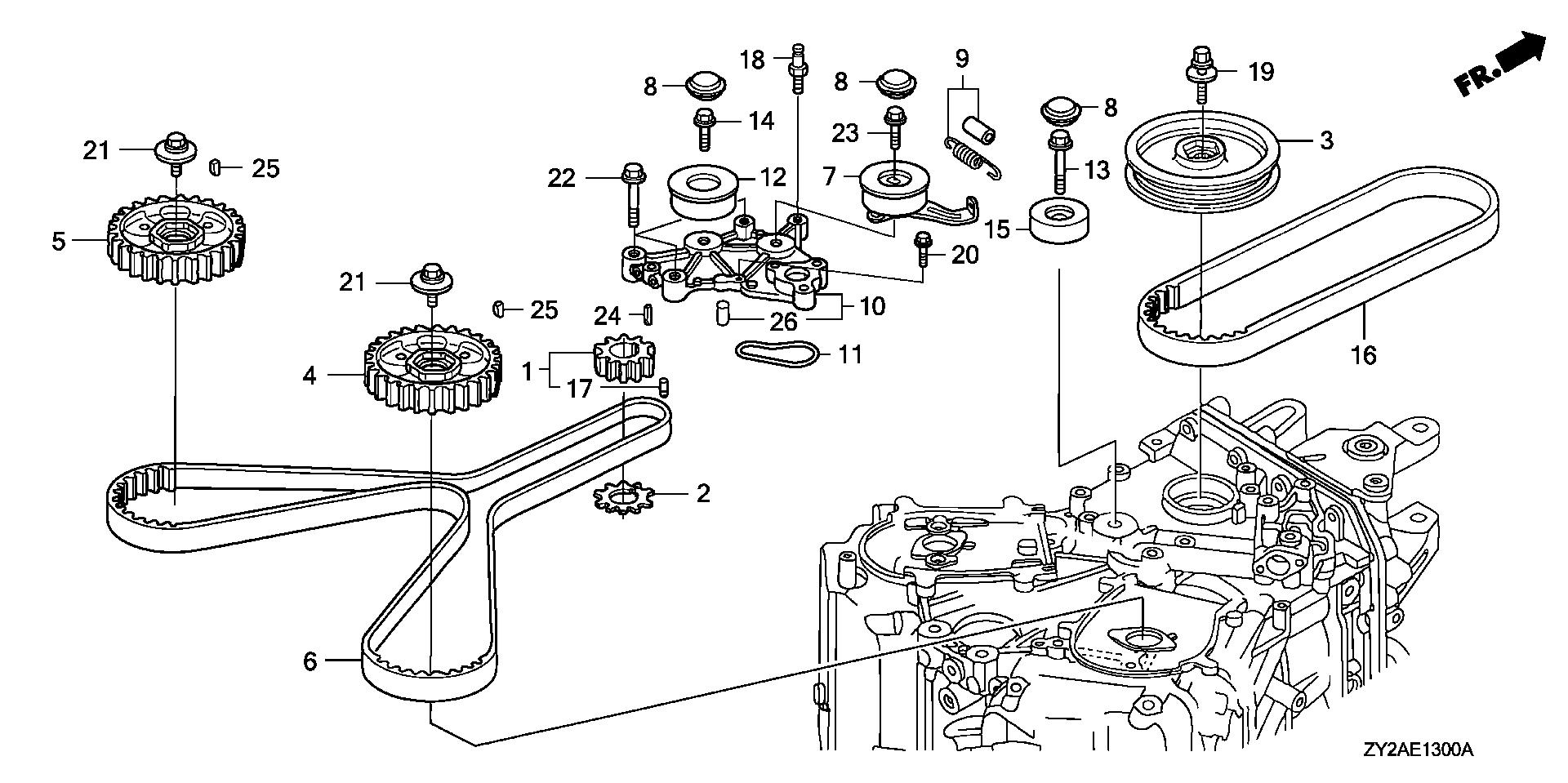

BF225 BF225A6 timing belt exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AE1300A
Fits all 5 submodels of this generation.

Parts in this assembly

26 parts
1
13621-ZY3-A01Ships in 1 to 2 Days
$69.57$100.06
2
13622-ZY3-000Ships in 1 to 2 Days
$50.91$73.22
3
13811-ZY3-A00Ships in 1 to 2 Days
$98.40$138.86
4
PULLEY, R. TIMING BELT DRIVEN (NOT AVAILABLE)
14261-ZY3-A00No Longer Available
—
5
14270-ZY3-A00Ships in 1 to 2 Days
$145.85$209.78
6
14400-P8A-A02Ships in 1 to 2 Days
$155.15$212.54
7
14510-ZY3-013Ships in 1 to 2 Days
$110.08$150.80
8
14515-ZY3-000In Stockqty 3 used
$3.93$5.38
9
14520-ZY3-000Ships in 1 to 2 Days
$4.96$6.80
10
14526-ZY3-405ZAShips in 1 to 2 Days
$135.39$191.02
11
14529-ZY3-000Ships in 1 to 2 Days
$5.23$7.16
12
14550-ZY3-003Ships in 1 to 2 Days
$98.84$135.40
13
14551-P8A-A01Ships in 1 to 2 Days
$13.37$18.32
14
14553-ZVL-023Ships in 1 to 2 Days
$9.01$12.34
15
14555-ZY3-003Ships in 1 to 2 Days
$76.12$104.28
16
31638-ZY3-003Ships in 1 to 2 Days
$30.89$42.32
17
41122-ZV0-000Ships in 1 to 2 Days
$1.36$1.86
18
90012-ZZ5-M02Ships in 1 to 2 Days
$3.72$5.10
19
90017-RJA-003Ships in 1 to 2 Days
$45.39$62.20
20
90030-ZY3-000Ships in 1 to 2 Days
$0.92$1.26
21
90031-P8A-A01Ships in 1 to 2 Daysqty 2 used
$20.98$28.74
22
90039-ZVL-010Ships in 1 to 2 Daysqty 3 used
$1.37$1.88
23
90040-ZVL-010Ships in 1 to 2 Days
$1.59$2.18
24
90704-RCA-A00Ships in 1 to 2 Days
$8.37$11.46
25
90741-ZY3-000Ships in 1 to 2 Daysqty 2 used
$3.40$4.66
26
94301-06100In Stock
$2.74$3.76
Diagram

TIMING BELT COVER

BF225 BF225A6 timing belt cover exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AE1310A
Fits all 5 submodels of this generation.

Parts in this assembly

11 parts
1
11812-P8A-A00Ships in 1 to 2 Daysqty 2 used
$9.08$12.44
2
11820-ZVL-000Ships in 1 to 2 Days
$38.91$53.30
3
11840-ZVL-000Ships in 1 to 2 Days
$43.76$59.94
4
11861-ZY3-000Ships in 1 to 2 Days
$63.93$90.20
5
11871-ZY3-000Ships in 1 to 2 Days
$62.96$86.24
6
35695-ZY3-003Ships in 1 to 2 Days
$214.39$293.68
7
90007-ZVL-010Ships in 1 to 2 Daysqty 4 used
$2.91$3.98
8
90017-P8A-A01Ships in 1 to 2 Daysqty 4 used
$8.38$11.48
9
90018-ZY3-000Ships in 1 to 2 Daysqty 2 used
$0.61$0.86
10
91508-ZY3-000Ships in 1 to 2 Daysqty 2 used
$5.21$7.14
11
91541-S0A-003Ships in 1 to 2 Days
$3.64$4.98
Diagram

TOOLS

BF225 BF225A6 tools exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AF1300
Fits all 5 submodels of this generation.

Parts in this assembly

14 parts
1
38235-S04-003Ships in 1 to 2 Days
$0.93$1.28
2
SPANNER (8MM) (NOT AVAILABLE)
89203-836-000No Longer Available
—
3
89216-SF4-000Ships in 1 to 2 Days
$29.05$39.80
4
89221-371-000Ships in 1 to 2 Days
$4.19$5.74
5
89301-921-010Ships in 1 to 2 Days
$5.87$8.28
6
99001-10120Ships in 1 to 2 Days
$6.26$8.58
7
99001-14170Ships in 1 to 2 Days
$10.54$14.44
8
89210-GBJ-J10Ships in 1 to 2 Days
$19.36$26.52
9
99003-10000Ships in 1 to 2 Days
$3.81$5.22
10
99003-30000Ships in 1 to 2 Days
$3.81$5.22
11
99003-50000Ships in 1 to 2 Days
$4.96$6.80
12
99004-16170Ships in 1 to 2 Days
$3.64$4.98
13
99006-19000Ships in 1 to 2 Days
$4.44$6.08
14
BAG, TOOL (200MM)
99008-02000No Longer Available
—
Diagram

TRIM ADJUST PLATE SET

BF225 BF225A6 trim adjust plate set exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AY1200
Fits all 5 submodels of this generation.

Parts in this assembly

2 parts
1
PLATE SET, TRIM ADJUST (15MM TAPER) (NOT AVAILABLE)
50388-ZY3-U00No Longer Available
—
2
50388-ZY3-U10Ships in 1 to 2 Days
$152.26$208.58
Diagram

VAPOR SEPARATOR ASSY.

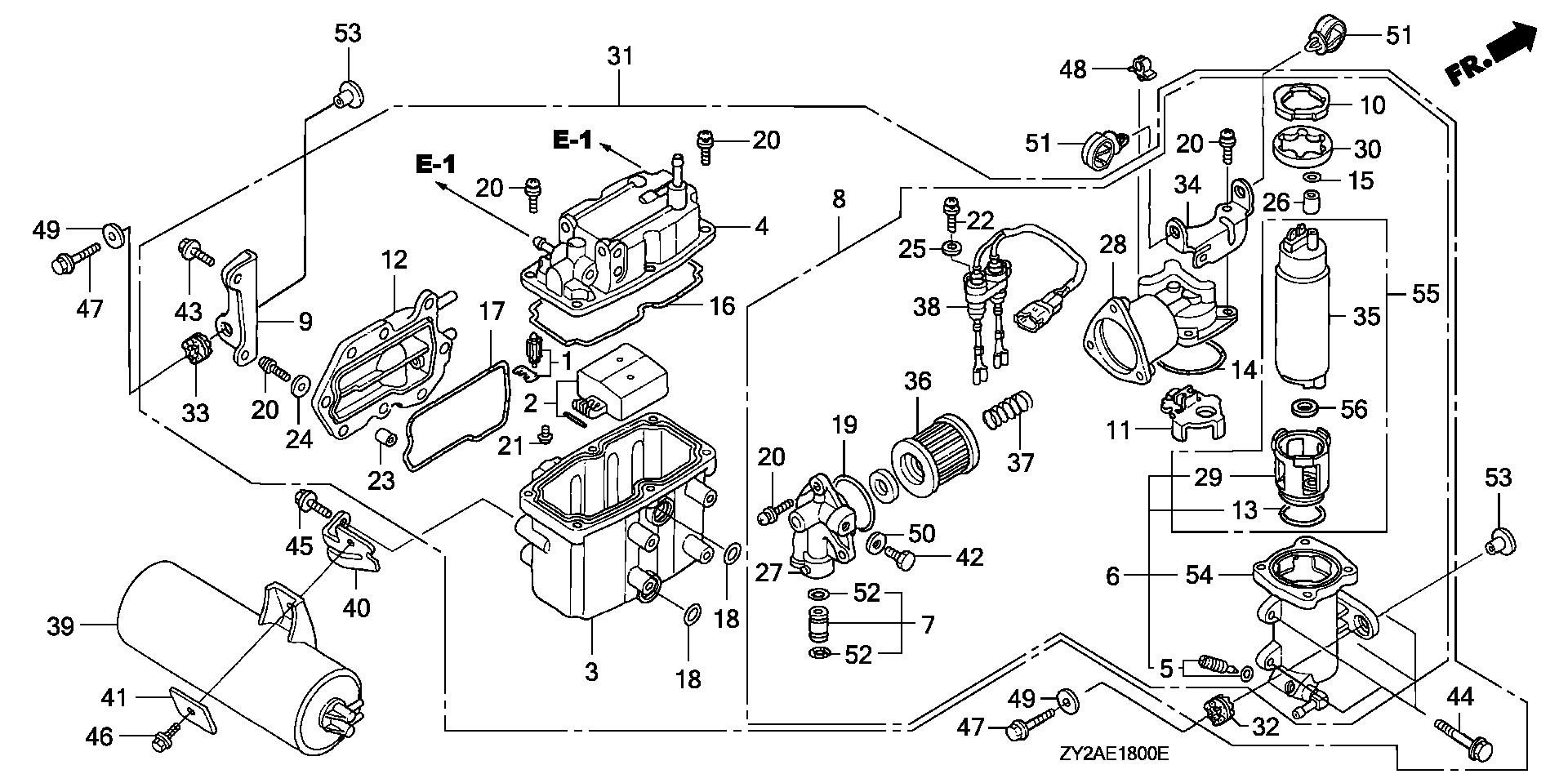

BF225 BF225A6 vapor separator assy. exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AE1800E
Fits all 5 submodels of this generation.

Parts in this assembly

60 parts
1
16011-ZY3-A01Ships in 1 to 2 Days
$42.79$58.62
2
16013-ZY3-000Ships in 1 to 2 Days
$85.70$117.42
3
16015-ZVL-000Ships in 1 to 2 Days
$168.86$231.34
4
16020-ZY3-010Ships in 1 to 2 Days
$247.32$348.98
5
16024-ZY3-000Ships in 1 to 2 Days
$12.18$16.68
6
16030-ZY3-020Ships in 1 to 2 Days
$821.35$1,125.14
7
16026-ZY3-000Ships in 1 to 2 Days
$9.49$13.00
8
16030-ZY3-020Ships in 1 to 2 Days
$821.35$1,125.14
9
16031-ZY3-020Ships in 1 to 2 Days
$29.90$40.96
10
16041-ZY3-000Ships in 1 to 2 Days
$8.02$10.98
11
16042-ZY3-000Ships in 1 to 2 Days
$10.63$14.56
12
16061-ZY3-010Ships in 1 to 2 Days
$29.32$40.16
13
16072-ZY3-000In Stock
$8.42$11.54
14
16073-ZY3-000In Stock
$10.51$14.40
15
91301-P2F-A01In Stock
$3.17$4.34
16
16075-ZY3-000In Stock
$15.91$21.80
17
16076-ZY3-000Ships in 1 to 2 Days
$10.51$14.40
18
16077-ZY3-000Ships in 1 to 2 Daysqty 2 used
$10.51$14.40
19
16078-ZY3-000In Stock
$11.46$15.70
20
16081-ZW5-010In Stockqty 21 used
$4.18$5.72
21
16082-ZY3-000Ships in 1 to 2 Daysqty 2 used
$3.80$5.20
22
16083-ZY3-000Ships in 1 to 2 Days
$3.11$4.26
23
16086-ZW5-000Ships in 1 to 2 Daysqty 8 used
$3.34$4.58
24
16087-ZW5-000Ships in 1 to 2 Daysqty 8 used
$3.69$5.06
25
16087-ZY3-000Ships in 1 to 2 Days
$5.53$7.58
26
16088-ZY3-000Ships in 1 to 2 Days
$4.20$5.76
27
16708-ZY3-000Ships in 1 to 2 Days
$141.61$193.98
28
16715-ZY3-000Ships in 1 to 2 Days
$158.67$223.90
29
16718-ZY3-000Ships in 1 to 2 Days
$33.95$48.82
29
16718-ZY6-013Ships in 1 to 2 Days
$23.11$31.66
30
16721-ZY3-000Ships in 1 to 2 Days
$23.32$31.94
31
16730-ZY3-A11Ships in 1 to 2 Days
$909.51$1,245.90
32
16733-ZW5-000Ships in 1 to 2 Days
$6.64$9.10
33
16733-ZY3-000Ships in 1 to 2 Daysqty 2 used
$6.03$8.26
34
16734-ZY3-000Ships in 1 to 2 Days
$26.03$35.66
35
16735-ZY3-004Ships in 1 to 2 Days
$360.81$494.26
36
16911-ZY3-010In Stock
$50.46$69.12
↳
Sierra alternative ·
18-79908In Stock save $6.64
$43.82
37
16913-ZY3-000Ships in 1 to 2 Days
$6.06$8.30
38
32166-ZY3-000Ships in 1 to 2 Days
$139.23$196.44
39
36361-PR7-A01Ships in 1 to 2 Days
$84.15$118.70
40
36362-ZY3-000Ships in 1 to 2 Days
$11.53$16.28
41
36620-ZY3-000Ships in 1 to 2 Days
$6.70$9.46
42
90009-PP4-E01In Stock
$7.65$10.48
43
90017-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.24$1.70
44
90016-ZW9-000Ships in 1 to 2 Daysreplaced by 90014-ZZ5-M01
$1.87$2.56
45
90021-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.14$1.56
46
90050-ZZ5-M01Ships in 1 to 2 Days
$2.19$3.10
47
90014-ZY9-M01Ships in 1 to 2 Daysqty 3 used
$2.73$3.74
47
90054-ZY9-M01Ships in 1 to 2 Daysqty 3 used
$1.72$2.36
48
90136-SE0-A01Ships in 1 to 2 Days
$7.18$10.14
49
90402-ZY3-000Ships in 1 to 2 Daysqty 3 used
$1.23$1.76
50
90430-PD6-003In Stock
$4.41$6.04
51
90691-ZB7-003Ships in 1 to 2 Daysqty 2 used
$3.07$4.20
52
91301-MJ0-003In Stockqty 2 used
$2.09$2.86
53
91504-ZY9-M03Ships in 1 to 2 Daysqty 3 used
$5.65$7.74
53
91551-ZW1-010Ships in 1 to 2 Daysreplaced by 91504-ZY9-M03
$5.65$7.74
53
91554-ZW1-000Ships in 1 to 2 Daysreplaced by 91504-ZY9-M03
$5.65$7.74
54
16701-ZY3-000Ships in 1 to 2 Days
$164.62$232.28
55
16036-ZY3-003Ships in 1 to 2 Days
$314.83$431.28
56
16723-ZY6-003Ships in 1 to 2 Days
$9.86$13.50
Diagram

WATER PUMP - VERTICAL SHAFT

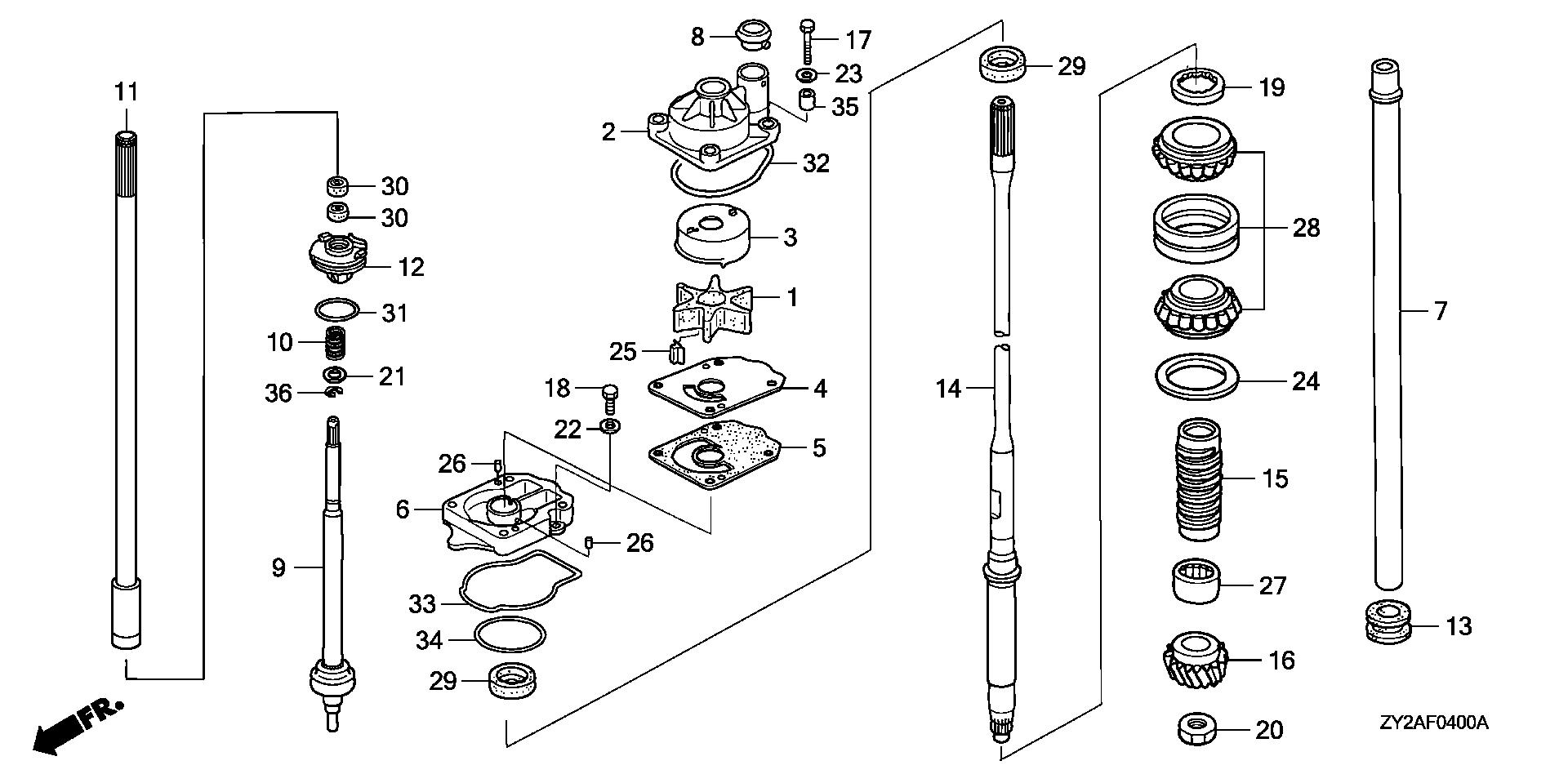

BF225 BF225A6 water pump - vertical shaft exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AF0400A
Fits all 5 submodels of this generation.

Parts in this assembly

47 parts
1
19210-ZY3-003In Stockreplaced by 19210-ZY3-023
$40.22$55.10
1
19210-ZY3-023Ships in 1 to 2 Days
$40.22$55.10
2
19221-ZY3-010Ships in 1 to 2 Days
$46.12$63.18
3
19223-ZY3-000Ships in 1 to 2 Days
$31.49$43.14
4
19231-ZY3-000In Stock
$15.29$20.94
5
19234-ZY3-000Ships in 1 to 2 Days
$5.56$7.84
↳
Sierra alternative ·
18-2499Backorder Now save $2.78
$2.78
6
19241-ZY3-000Ships in 1 to 2 Daysreplaced by 06400-ZY3-000
$76.21$107.52
7
TUBE, WATER (XXL) (NOT AVAILABLE)
19251-ZY3-620No Longer Available
—
7
19251-ZY3-000Ships in 1 to 2 Days
$35.13$48.12
7
TUBE, WATER (XL) (NOT AVAILABLE)
19251-ZY3-610No Longer Available
—
8
19253-ZY3-000Ships in 1 to 2 Days
$6.54$8.96
9
ROD, SHIFT (NOT AVAILABLE)
24310-ZY3-A00No Longer Available
—
9
ROD, SHIFT (COUNTER ROTATION) (NOT AVAILABLE)
24310-ZY3-B00No Longer Available
—
10
24318-ZY3-000Ships in 1 to 2 Days
$2.73$3.74
11
24320-ZY3-A20Ships in 1 to 2 Days
$141.69$194.10
11
24320-ZY6-000Ships in 1 to 2 Days
$85.10$116.58
11
24320-ZY6-610Ships in 1 to 2 Days
$85.10$116.58
12
24343-ZW1-B02Ships in 1 to 2 Days
$16.06$22.00
13
40204-ZY3-000Ships in 1 to 2 Days
$6.34$8.68
14
41112-ZY3-621Ships in 1 to 2 Days
$826.70$1,132.46
14
41112-ZY3-010Ships in 1 to 2 Days
$770.15$1,055.00
14
41112-ZY3-611Ships in 1 to 2 Days
$787.93$1,079.36
15
41116-ZY3-000Ships in 1 to 2 Days
$22.69$31.08
16
41131-ZY3-A00Ships in 1 to 2 Days
$162.61$222.76
17
90116-ZY3-000Ships in 1 to 2 Daysqty 4 used
$1.07$1.50
18
90127-ZV4-000In Stock
$2.12$2.90
19
90242-ZW1-000Ships in 1 to 2 Days
$26.24$35.94
20
90303-ZY3-000Ships in 1 to 2 Days
$10.06$14.20
21
90472-723-000Ships in 1 to 2 Days
$1.43$1.96
22
90506-ZV4-000Ships in 1 to 2 Days
$2.45$3.36
23
90514-921-000Ships in 1 to 2 Daysqty 4 used
$0.99$1.36
24
90518-ZW1-B00Ships in 1 to 2 Days
$7.34$10.06
24
90519-ZW1-B00Ships in 1 to 2 Days
$7.34$10.06
24
90520-ZW1-B00Ships in 1 to 2 Days
$7.34$10.06
24
90521-ZW1-B00Ships in 1 to 2 Days
$7.34$10.06
25
KEY, WOODRUFF (NOT AVAILABLE)
90752-ZY3-003No Longer Available
$18.38$25.18
26
90756-ZV5-000In Stockqty 2 used
$2.64$3.62
27
91053-ZY3-003Ships in 1 to 2 Days
$45.48$64.16
28
91054-ZW1-B31Ships in 1 to 2 Days
$75.60$103.56
29
91251-ZY3-003In Stockqty 2 used
$7.05$9.96
30
91254-ZY3-003Ships in 1 to 2 Daysqty 2 used
$4.53$6.20
31
91308-MJ0-003Ships in 1 to 2 Days
$3.61$4.94
32
91356-ZY3-003Ships in 1 to 2 Days
$7.37$10.10
33
91358-ZY3-003In Stock
$7.83$11.04
34
91359-ZY3-003In Stock
$7.83$11.04
35
91551-ZY3-000Ships in 1 to 2 Daysqty 4 used
$2.12$2.90
36
94540-10019Ships in 1 to 2 Days
$2.83$3.88
Diagram

WATER PUMP IMPELLER SET

BF225 BF225A6 water pump impeller set exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AY0200
Fits all 5 submodels of this generation.

Parts in this assembly

19 parts
1
06192-ZY3-000Ships in 1 to 2 Daysreplaced by 06192-ZY3-020
$68.12$96.12
↳
Sierra alternative ·
18-3285In Stock save $0.09
$68.03
1
06192-ZY3-020Ships in 1 to 2 Days
$68.12$96.12
2
06193-ZY3-000Ships in 1 to 2 Days
$193.13$264.56
2
06193-ZY3-030Ships in 1 to 2 Days
$193.13$264.56
3
19210-ZY3-003In Stockreplaced by 19210-ZY3-023
$40.22$55.10
3
19210-ZY3-023Ships in 1 to 2 Days
$40.22$55.10
4
19221-ZY3-010Ships in 1 to 2 Days
$46.12$63.18
5
19223-ZY3-000Ships in 1 to 2 Days
$31.49$43.14
6
19231-ZY3-000In Stock
$15.29$20.94
7
19234-ZY3-000Ships in 1 to 2 Days
$5.56$7.84
↳
Sierra alternative ·
18-2499Backorder Now save $2.78
$2.78
8
19253-ZY3-000Ships in 1 to 2 Days
$6.54$8.96
9
90116-ZY3-000Ships in 1 to 2 Daysqty 4 used
$1.07$1.50
10
90514-921-000Ships in 1 to 2 Daysqty 4 used
$0.99$1.36
11
90752-ZVL-600Ships in 1 to 2 Days
$18.38$25.18
11
KEY, WOODRUFF (NOT AVAILABLE)
90752-ZY3-003No Longer Available
$18.38$25.18
12
91356-ZY3-003Ships in 1 to 2 Days
$7.37$10.10
13
91358-ZY3-003In Stock
$7.83$11.04
14
91359-ZY3-003In Stock
$7.83$11.04
15
91551-ZY3-000Ships in 1 to 2 Daysqty 4 used
$2.12$2.90
Diagram

WATER SEPARATOR - FUEL STRAINER

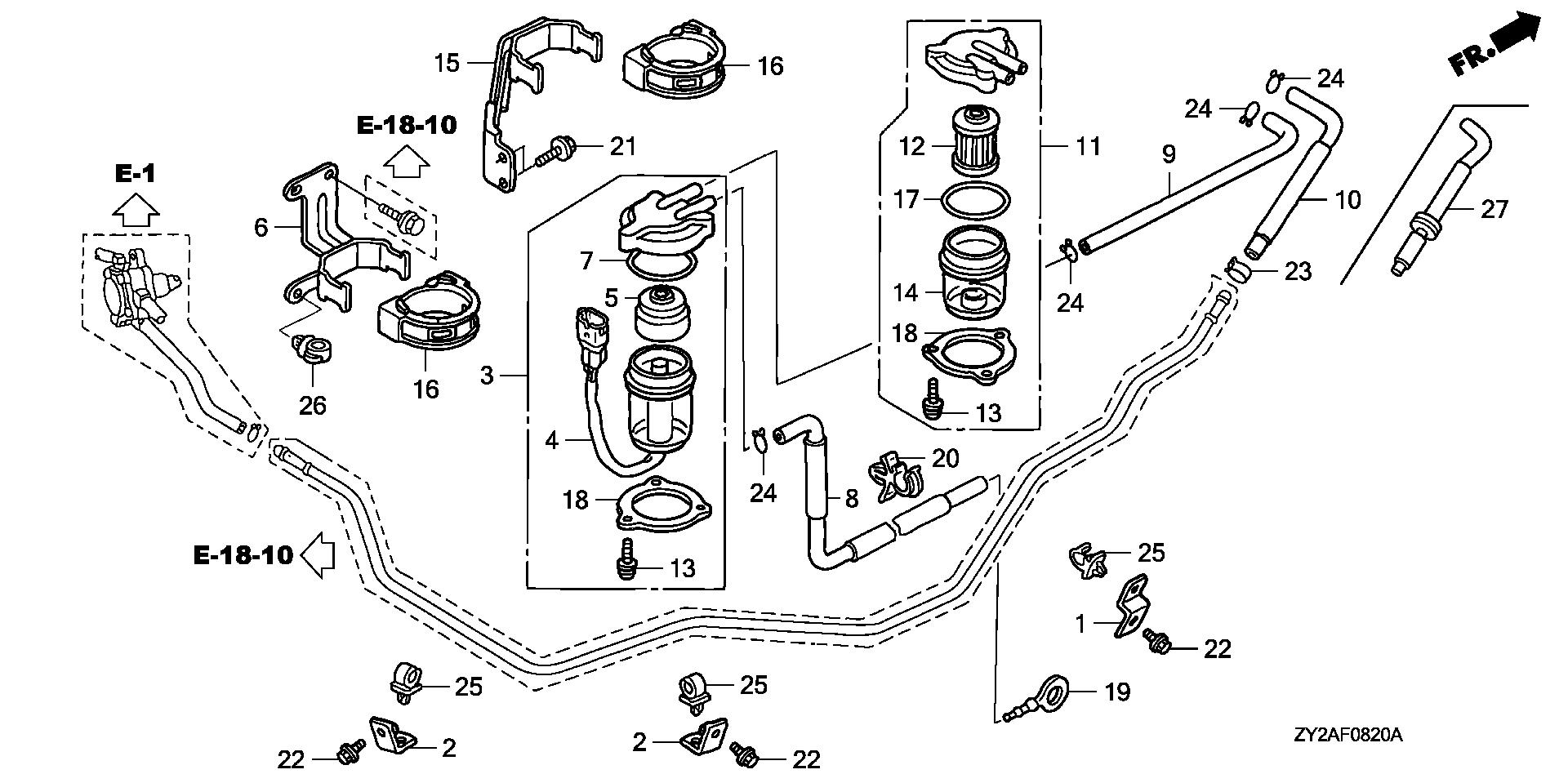

BF225 BF225A6 water separator - fuel strainer exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AF0820A
Fits all 5 submodels of this generation.

Parts in this assembly

30 parts
1
16753-ZY3-000Ships in 1 to 2 Days
$7.74$10.92
2
16754-ZY3-000Ships in 1 to 2 Daysqty 2 used
$6.13$8.66
3
16800-ZY3-003Ships in 1 to 2 Days
$234.90$321.78
4
16805-ZY3-003Ships in 1 to 2 Days
$167.29$236.04
5
16807-ZY3-003Ships in 1 to 2 Days
$44.12$62.26
6
16814-ZY3-000Ships in 1 to 2 Days
$21.45$30.26
6
16814-ZY3-010Ships in 1 to 2 Days
$21.45$30.26
7
16918-ZY3-003In Stock
$6.54$8.96
8
16850-ZY3-A00Ships in 1 to 2 Days
$20.37$29.30
9
16860-ZY3-000Ships in 1 to 2 Days
$5.62$7.94
10
16870-ZY3-010Ships in 1 to 2 Days
$6.03$8.50
11
16900-ZY3-003Ships in 1 to 2 Days
$44.75$63.14
12
16901-ZY3-003In Stock
$14.02$19.20
↳
Sierra alternative ·
18-79909In Stock save $0.98
$13.04
13
16904-ZY3-003Ships in 1 to 2 Daysqty 6 used
$4.20$5.76
14
16912-ZY3-003Ships in 1 to 2 Days
$8.99$12.68
15
16914-ZY3-000Ships in 1 to 2 Days
$24.37$34.38
15
16914-ZY3-010Ships in 1 to 2 Days
$24.37$34.38
16
16915-ZY3-000Ships in 1 to 2 Daysqty 2 used
$12.10$16.58
16
16915-ZY3-010Ships in 1 to 2 Daysqty 2 used
$12.10$16.58
17
16918-ZY3-003In Stock
$6.54$8.96
18
16919-ZY3-003Ships in 1 to 2 Daysqty 2 used
$11.46$15.70
19
17738-ZY3-000Ships in 1 to 2 Days
$9.91$13.58
20
80106-GCF-670Ships in 1 to 2 Days
$0.96$1.32
21
90021-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.14$1.56
22
90056-ZY9-M01Ships in 1 to 2 Daysqty 3 used
$1.10$1.50
23
90602-ZW5-030In Stock
$1.83$2.50
24
90604-ZV0-000Ships in 1 to 2 Daysqty 4 used
$1.37$1.88
25
90659-KG4-000Ships in 1 to 2 Daysqty 3 used
$2.92$4.00
26
90683-SA0-003Ships in 1 to 2 Days
$9.11$12.48
27
16870-ZY3-010Ships in 1 to 2 Days
$6.03$8.50
Diagram

WIRE HARNESS

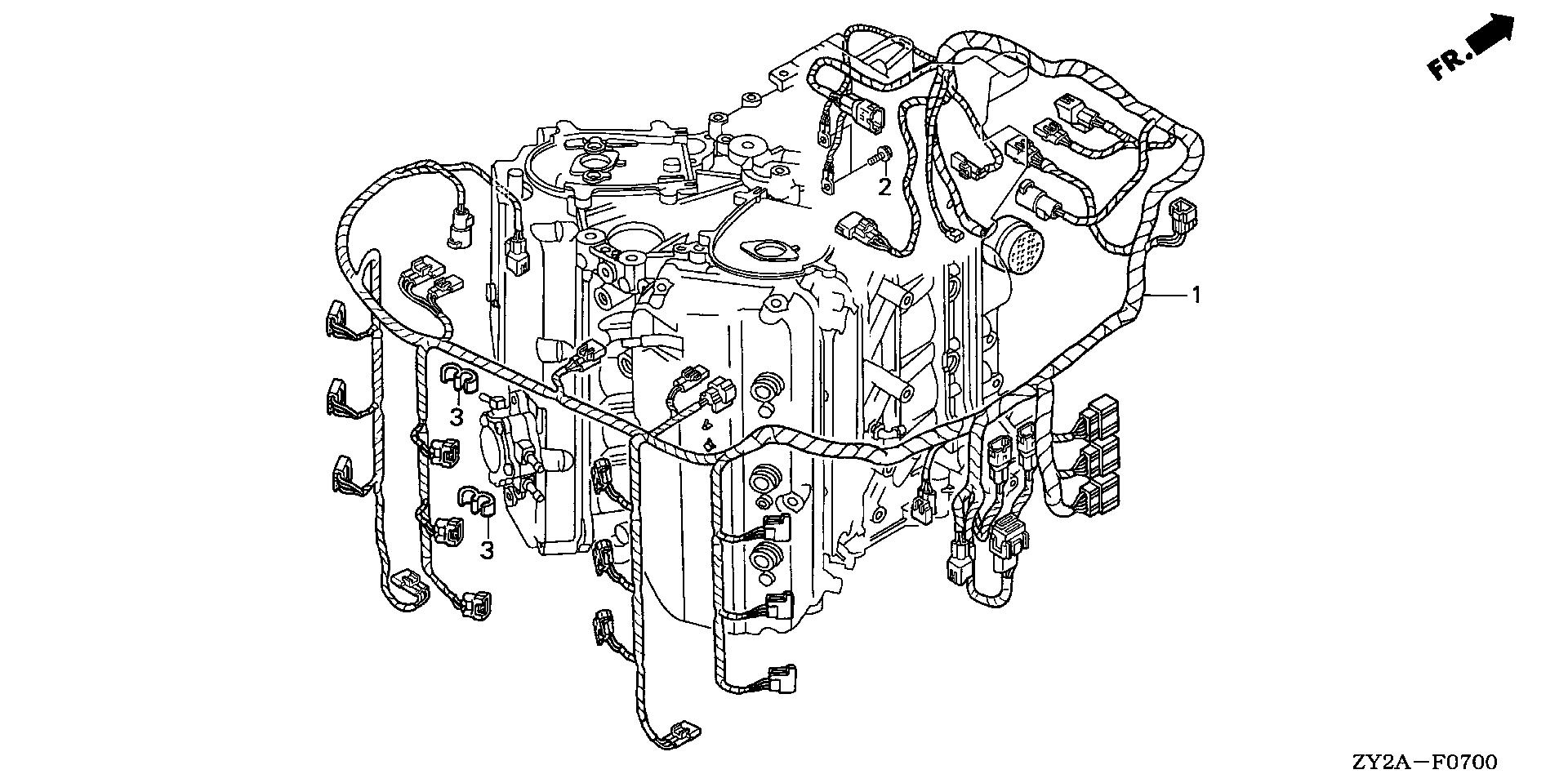

BF225 BF225A6 wire harness exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY2AF0700
Fits all 5 submodels of this generation.

Parts in this assembly

4 parts
1
WIRE HARNESS ASSY., MAIN (NOT AVAILABLE)
32100-ZY2-A00No Longer Available
$906.57$1,241.88
1
WIRE HARNESS ASSY., MAIN
32100-ZY3-A00No Longer Available
$941.20$1,289.32
2
90013-ZW9-000Ships in 1 to 2 Daysqty 2 used
$1.47$2.08
3
90654-ZY3-003Ships in 1 to 2 Daysqty 2 used
$2.19$3.10
Diagrams are Honda's official OEM illustrations, served from Honda's asset host. Prices are our own; where a struck-through figure appears beside one it is Honda's suggested retail. “In Stock” means the part is on our shelf here at Boe Marine. “Ships in 1 to 2 Days” means we order it in from Honda, who still supply it. Parts marked “No Longer Available” are shown so the drawing stays complete, but Honda has discontinued them. Where a Sierra replacement is listed beneath a Honda part, Sierra ships it direct to you; “Backorder Now” on one of those means Sierra has none at the moment and will ship it once restocked.
