BF20 — Parts Diagrams

Generation BF20D3  ·  16 submodels

Assemblies (44)

Diagram

CAMSHAFT - VALVE

BF20 BF20D3 camshaft - valve exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY04E0900
Fits all 16 submodels of this generation.

Parts in this assembly

14 parts
1
12209-GB4-682Ships in 1 to 2 Daysqty 4 used
$6.63$9.08
2
14110-ZY0-000Ships in 1 to 2 Days
$147.74$212.48
3
14431-ZW9-000Ships in 1 to 2 Daysqty 4 used
$22.09$31.78
4
14436-ZW9-003Ships in 1 to 2 Days
$19.86$28.56
5
14461-ZW9-000Ships in 1 to 2 Days
$15.36$22.08
6
14481-ZW9-000Ships in 1 to 2 Days
$4.12$5.92
7
14711-ZY1-000Ships in 1 to 2 Daysqty 2 used
$21.56$31.02
8
14721-ZY1-000Ships in 1 to 2 Daysqty 2 used
$29.46$42.38
9
14751-ZY1-000Ships in 1 to 2 Daysqty 4 used
$4.47$6.42
10
14765-P08-000Ships in 1 to 2 Daysqty 4 used
$7.07$9.96
11
14775-ZW9-000Ships in 1 to 2 Daysqty 4 used
$1.83$2.62
12
14781-MA6-000Ships in 1 to 2 Days
$2.93$4.02
13
90012-333-000Ships in 1 to 2 Daysqty 4 used
$2.64$3.62
14
90206-001-000Ships in 1 to 2 Daysqty 4 used
$1.59$2.18
Diagram

CARBURETOR (AUTO)

BF20 BF20D3 carburetor (auto) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY04E1401B
Fits only BF20D3-LHGA, BF20D3-LHSA, BF20D3-LHTA, BF20D3-LRA, BF20D3-LRTA, BF20D3-SHGA, BF20D3-SHSA, BF20D3-SHTA, BF20D3-SRA, BF20D3-SRTA, BF20D3-XHGA, BF20D3-XHSA, BF20D3-XHTA — not every submodel of this generation.

Parts in this assembly

38 parts
1
16010-ZW9-003Ships in 1 to 2 Days
$13.86$19.94
↳
Sierra alternative ·
18-2481In Stock
$14.48
2
16011-ZV4-005Ships in 1 to 2 Days
$29.68$41.88
↳
Sierra alternative ·
18-7047In Stock
$37.88
3
16013-ZW9-003Ships in 1 to 2 Days
$25.21$36.26
4
16016-ZY1-711Ships in 1 to 2 Days
$9.65$13.88
5
16023-ZY0-811Ships in 1 to 2 Days
$48.90$70.34
5
16023-ZY1-801Ships in 1 to 2 Days
$51.60$74.22
6
16024-ZY3-000Ships in 1 to 2 Days
$12.18$16.68
7
16028-ZV4-650Ships in 1 to 2 Days
$9.84$14.16
8
16071-ZV4-005Ships in 1 to 2 Days
$6.26$8.84
9
16077-KG8-901Ships in 1 to 2 Days
$2.73$3.74
10
16081-ZV4-650Ships in 1 to 2 Daysqty 4 used
$3.21$4.54
11
16100-ZY0-813Ships in 1 to 2 Days
$302.88
11
16100-ZY0-814Ships in 1 to 2 Days
$286.35
11
16100-ZY1-813Ships in 1 to 2 Days
$295.49
12
16121-ZW9-003Ships in 1 to 2 Days
$0.92$1.32
13
16130-ZY0-811Ships in 1 to 2 Days
$34.36$36.07
13
16130-ZY1-801Ships in 1 to 2 Days
$52.46$75.44
14
16131-ZW9-801Ships in 1 to 2 Days
$3.01$4.12
15
16132-ZW9-801Ships in 1 to 2 Days
$1.42$2.00
16
16150-ZY0-003Ships in 1 to 2 Days
$26.18$37.66
16
16150-ZY1-003Ships in 1 to 2 Days
$26.18$37.66
17
16166-ZY0-003Ships in 1 to 2 Days
$23.83$34.28
17
16166-ZY1-003Ships in 1 to 2 Days
$18.25$26.26
18
16211-ZY1-000Ships in 1 to 2 Days
$8.94$12.86
19
16221-ZY1-000In Stockqty 2 used
$8.92$12.84
20
91558-SM4-003Ships in 1 to 2 Days
$6.34$8.68
21
95003-07008-60MShips in 1 to 2 Days
$35.11$50.50
22
99101-ZV5-0980Ships in 1 to 2 Days
$5.45$7.68
22
99101-ZV5-1000Ships in 1 to 2 Days
$4.92$6.94
22
99101-ZV5-1020Ships in 1 to 2 Days
$6.82$9.62
22
99101-ZV5-1050Ships in 1 to 2 Days
$5.31$7.50
22
99101-ZV5-1200Ships in 1 to 2 Days
$6.35$9.14
22
99101-ZV5-1220Ships in 1 to 2 Days
$7.01$10.08
22
99101-ZV5-1250Ships in 1 to 2 Days
$5.65$8.12
23
16119-ZW9-013Ships in 1 to 2 Days
$10.91$15.68
24
16123-ZY0-013Ships in 1 to 2 Days
$19.24$27.68
24
16123-ZY1-013Ships in 1 to 2 Days
$10.76$11.30
25
16163-GHB-600Ships in 1 to 2 Days
$1.90$2.60
Diagram

CARBURETOR (MANUAL)

BF20 BF20D3 carburetor (manual) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY04E1400C
Fits only BF20D3-LGA, BF20D3-LHA, BF20D3-SHA — not every submodel of this generation.

Parts in this assembly

36 parts
1
16010-ZW9-003Ships in 1 to 2 Days
$13.86$19.94
↳
Sierra alternative ·
18-2481In Stock
$14.48
2
16011-ZV4-005Ships in 1 to 2 Days
$29.68$41.88
↳
Sierra alternative ·
18-7047In Stock
$37.88
3
16013-ZW9-003Ships in 1 to 2 Days
$25.21$36.26
4
16016-ZY1-711Ships in 1 to 2 Days
$9.65$13.88
5
16023-ZY0-711Ships in 1 to 2 Days
$48.90$70.34
5
16023-ZY1-003Ships in 1 to 2 Days
$51.60$74.22
6
16024-ZY3-000Ships in 1 to 2 Days
$12.18$16.68
7
16028-ZV4-650Ships in 1 to 2 Days
$9.84$14.16
8
16071-ZV4-005Ships in 1 to 2 Days
$6.26$8.84
9
16081-ZV4-650Ships in 1 to 2 Daysqty 4 used
$3.21$4.54
10
16100-ZY0-713Ships in 1 to 2 Days
$266.82
10
16100-ZY0-714Ships in 1 to 2 Days
$258.55$271.49
10
16100-ZY1-713Ships in 1 to 2 Days
$265.25
10
16100-ZY1-714Ships in 1 to 2 Days
$258.55$271.49
11
16120-ZY1-003Ships in 1 to 2 Days
$27.52$39.58
12
16121-ZW9-003Ships in 1 to 2 Days
$0.92$1.32
13
16150-ZY0-003Ships in 1 to 2 Days
$26.18$37.66
13
16150-ZY1-003Ships in 1 to 2 Days
$26.18$37.66
14
16166-ZY0-003Ships in 1 to 2 Days
$23.83$34.28
14
16166-ZY1-003Ships in 1 to 2 Days
$18.25$26.26
15
16211-ZY1-000Ships in 1 to 2 Days
$8.94$12.86
16
16221-ZY1-000In Stockqty 2 used
$8.92$12.84
17
17950-ZY1-003Ships in 1 to 2 Days
$22.94$33.00
18
95003-07008-60MShips in 1 to 2 Days
$35.11$50.50
19
99101-ZV5-0980Ships in 1 to 2 Days
$5.45$7.68
19
99101-ZV5-1000Ships in 1 to 2 Days
$4.92$6.94
19
99101-ZV5-1020Ships in 1 to 2 Days
$6.82$9.62
19
99101-ZV5-1050Ships in 1 to 2 Days
$5.31$7.50
19
99101-ZV5-1200Ships in 1 to 2 Days
$6.35$9.14
19
99101-ZV5-1220Ships in 1 to 2 Days
$7.01$10.08
19
99101-ZV5-1250Ships in 1 to 2 Days
$5.65$8.12
19
99101-ZV5-1280Ships in 1 to 2 Days
$5.65$8.12
20
16119-ZW9-013Ships in 1 to 2 Days
$10.91$15.68
21
16123-ZY0-013Ships in 1 to 2 Days
$19.24$27.68
21
16123-ZY1-013Ships in 1 to 2 Days
$10.76$11.30
22
16163-GHB-600Ships in 1 to 2 Days
$1.90$2.60
Diagram

CRANKSHAFT - PISTON

BF20 BF20D3 crankshaft - piston exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY04E0700
Fits all 16 submodels of this generation.

Parts in this assembly

8 parts
1
13010-ZY1-003Ships in 1 to 2 Daysqty 2 used
$23.96$34.46
2
13101-ZY1-000Ships in 1 to 2 Daysqty 2 used
$39.24$56.44
3
13111-ZW9-000Ships in 1 to 2 Daysqty 2 used
$9.42$13.54
4
13210-ZY1-013Ships in 1 to 2 Daysqty 2 used
$74.87$107.70
5
13311-ZY1-000Ships in 1 to 2 Days
$413.27
6
90001-ZW9-000Ships in 1 to 2 Daysqty 4 used
$1.93$2.78
7
90741-ZW9-000Ships in 1 to 2 Daysqty 2 used
$3.04$4.36
8
94601-16000Ships in 1 to 2 Daysqty 4 used
$0.55$0.76
Diagram

CYLINDER BLOCK

BF20 BF20D3 cylinder block exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY04E0300B
Fits all 16 submodels of this generation.

Parts in this assembly

21 parts
1
11300-ZY1-405Ships in 1 to 2 Days
$139.12$200.08
2
11340-ZY1-000Ships in 1 to 2 Days
$18.47$26.56
3
11342-ZW9-000Ships in 1 to 2 Days
$12.96$18.66
4
12000-ZY1-405ZAShips in 1 to 2 Daysreplaced by 12000-ZY1-415ZA
$830.72$872.36
4
12000-ZY1-415ZAShips in 1 to 2 Days
$830.72$872.36
5
12166-ZW9-030Ships in 1 to 2 Days
$5.18$7.10
6
15400-PFB-014Ships in 1 to 2 Daysreplaced by 15400-ZZ3-003
$16.47$22.56
↳
Sierra alternative ·
18-7913In Stock save $6.31
$10.16
6
15400-ZZ3-003In Stock
$16.47$22.56
↳
Sierra alternative ·
18-7913In Stock save $6.31
$10.16
7
15655-ZW9-000Ships in 1 to 2 Days
$14.34$20.62
8
32114-ZVL-000Ships in 1 to 2 Days
$2.89$3.96
9
35490-ZW9-003Ships in 1 to 2 Days
$31.45$44.38
10
90004-ZW9-000Ships in 1 to 2 Daysqty 9 used
$2.09$2.94
11
90011-ZW9-000Ships in 1 to 2 Days
$1.71$2.34
12
90012-ZW9-030Ships in 1 to 2 Daysqty 4 used
$1.90$2.68
13
90018-PN3-000Ships in 1 to 2 Days
$7.04$9.64
14
90705-PG2-000Ships in 1 to 2 Days
$7.61$10.42
15
91203-ZY1-003Ships in 1 to 2 Days
$7.91$11.38
16
91213-PL2-003Ships in 1 to 2 Days
$18.97$27.28
17
94301-10120Ships in 1 to 2 Daysqty 2 used
$3.01$4.12
18
94302-08140Ships in 1 to 2 Days
$2.74$3.76
19
BULK HOSE, VACUUM (11X1000) (11X20)
95005-11001-30MShips in 1 to 2 Daysqty 2 used
$30.40$41.64
Diagram

CYLINDER HEAD

BF20 BF20D3 cylinder head exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY04E0200A
Fits all 16 submodels of this generation.

Parts in this assembly

20 parts
1
12166-ZW9-030Ships in 1 to 2 Days
$5.18$7.10
2
12210-ZY1-405ZAShips in 1 to 2 Days
$544.65
3
12251-ZY1-003Ships in 1 to 2 Days
$53.96$77.62
4
12310-ZW9-030Ships in 1 to 2 Days
$76.46$109.96
5
12312-ZW9-000Ships in 1 to 2 Days
$14.99$21.58
6
15611-921-000Ships in 1 to 2 Days
$10.13$13.88
7
HOLDER, CABLE
16617-ZW9-000Ships in 1 to 2 Days
$3.49$4.78
7
HOLDER, CABLE (NOT AVAILABLE)
16617-ZW9-010No Longer Available
—
8
35673-ZW5-003Ships in 1 to 2 Days
$19.18$26.28
9
90003-ZY9-M01Ships in 1 to 2 Daysqty 4 used
$1.93$2.64
10
90007-ZW9-003Ships in 1 to 2 Daysqty 6 used
$6.99$10.06
11
90011-ZW9-000Ships in 1 to 2 Days
$1.71$2.34
12
90055-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.87$2.56
13
91202-KJ9-003Ships in 1 to 2 Days
$4.80$6.58
14
91301-805-000Ships in 1 to 2 Days
$3.65$5.00
15
91307-PK2-005Ships in 1 to 2 Days
$2.35$3.22
16
91601-ZW9-003Ships in 1 to 2 Days
$1.12$1.62
17
98059-55916In Stock
$7.37$10.10
17
98059-55926Ships in 1 to 2 Daysqty 2 used
$8.64$11.84
18
90204-ZW9-310Ships in 1 to 2 Days
$4.77$6.86
Diagram

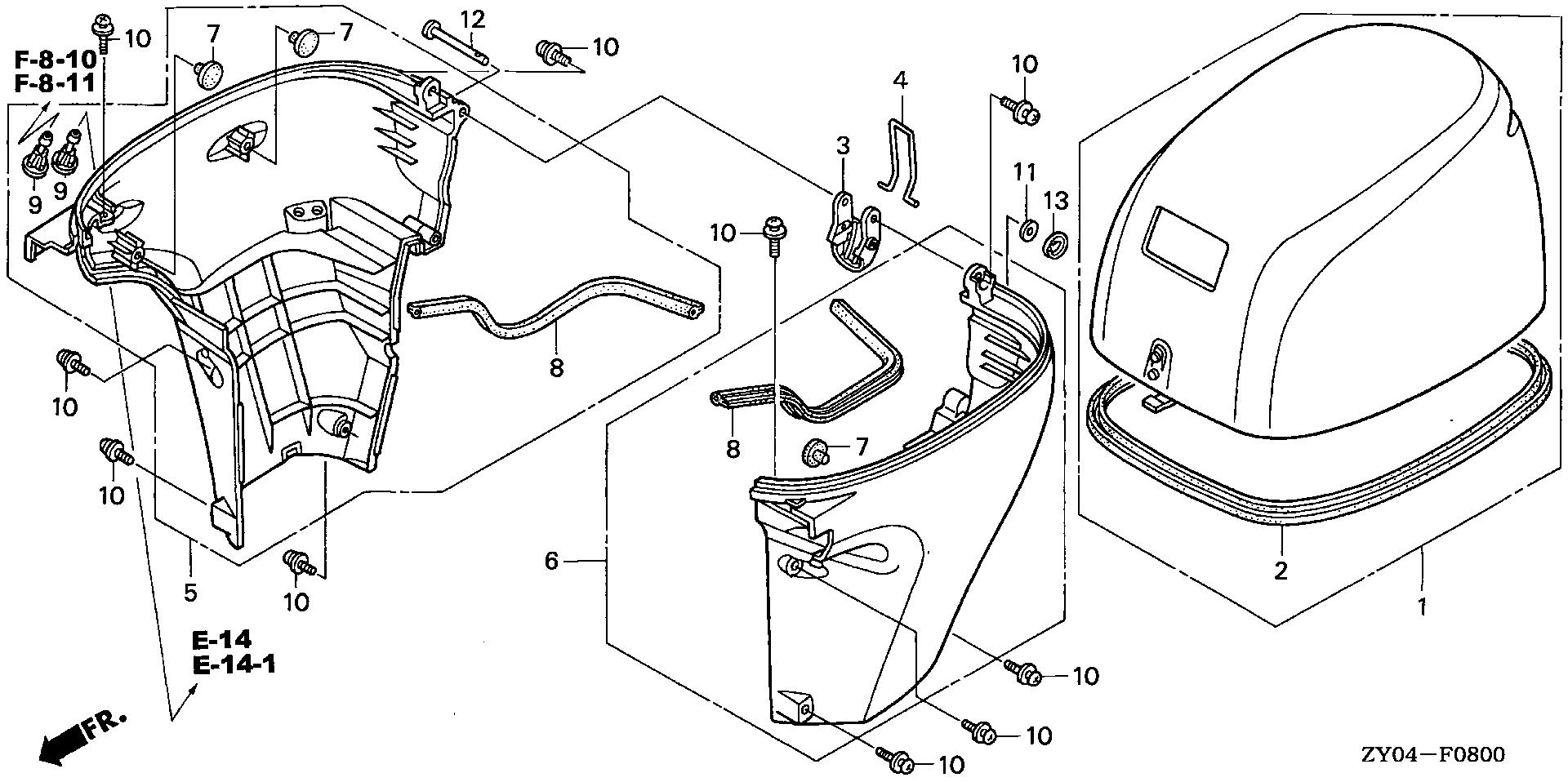

ENGINE COVER (1)

BF20 BF20D3 engine cover (1) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY04F0800
Fits all 16 submodels of this generation.

Parts in this assembly

13 parts
1
63100-ZY1-010ZAShips in 1 to 2 Days
$340.17
2
63102-ZY1-300Ships in 1 to 2 Days
$28.31$40.72
3
63232-ZW9-010Ships in 1 to 2 Days
$10.29$14.80
4
63236-ZW9-010Ships in 1 to 2 Days
$3.64$5.22
5
COVER, R. ENGINE (LOWER) *NH282MU* (OYSTER SILVER METALLIC-U)
63710-ZY1-000ZANo Longer Available
—
6
COVER, L. ENGINE (LOWER) *NH282MU* (OYSTER SILVER METALLIC-U)
63715-ZY1-000ZANo Longer Available
—
7
63718-ZW9-000Ships in 1 to 2 Daysqty 3 used
$2.12$2.90
8
63719-ZW9-000Ships in 1 to 2 Daysqty 2 used
$8.57$12.32
9
82873-ZV5-003Ships in 1 to 2 Daysqty 2 used
$5.71$8.06
10
90181-ZW9-010Ships in 1 to 2 Daysqty 10 used
$3.94$5.66
11
90502-ZV4-000Ships in 1 to 2 Days
$2.73$3.74
12
90754-ZW9-000Ships in 1 to 2 Days
$3.83$5.50
13
91452-ZW9-000Ships in 1 to 2 Days
$1.74$2.50
Diagram

EXHAUST CHAMBER COVER

BF20 BF20D3 exhaust chamber cover exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY04E1600A
Fits all 16 submodels of this generation.

Parts in this assembly

3 parts
1
18231-ZY1-000Ships in 1 to 2 Days
$28.95$41.64
2
18233-ZW9-003Ships in 1 to 2 Days
$12.10$17.42
3
90009-ZW9-000Ships in 1 to 2 Daysqty 6 used
$2.88$3.94
Diagram

FLYWHEEL

BF20 BF20D3 flywheel exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY04E1900A
Fits all 16 submodels of this generation.

Parts in this assembly

9 parts
1
28451-ZW9-003Ships in 1 to 2 Days
$20.79$29.90
2
30595-ZY1-003Ships in 1 to 2 Days
$107.05$153.98
3
31110-ZY1-000ZAShips in 1 to 2 Days
$206.99
4
31630-ZY1-003Ships in 1 to 2 Days
$207.69$284.50
5
31630-ZY1-901Ships in 1 to 2 Days
$70.94$102.06
6
90002-ZW9-030Ships in 1 to 2 Days
$2.26$3.26
7
90006-ZW9-030Ships in 1 to 2 Daysqty 4 used
$2.15$3.08
8
90202-ZY1-000Ships in 1 to 2 Days
$7.50$10.80
9
95701-06010-08Ships in 1 to 2 Daysqty 3 used
$1.61$2.20
Diagram

FUEL PUMP (1)

BF20 BF20D3 fuel pump (1) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY04E1800
Fits all 16 submodels of this generation.

Parts in this assembly

18 parts
1
16700-ZW9-003Ships in 1 to 2 Days
$122.07$167.22
2
06167-ZY1-315Ships in 1 to 2 Days
$30.18$43.40
3
STAY, FUEL CHAMBER (NOT AVAILABLE)
16792-ZY1-000No Longer Available
—
4
16793-ZY1-000Ships in 1 to 2 Days
$12.79$18.40
4
16793-ZY1-020Ships in 1 to 2 Days
$12.79$18.40
5
16861-ZY1-000Ships in 1 to 2 Days
$10.70$15.40
5
16861-ZY1-010Ships in 1 to 2 Days
$10.70$15.40
6
16910-ZV4-015In Stock
$13.99$19.16
7
16915-ZV4-000Ships in 1 to 2 Days
$6.41$8.78
8
17439-PY3-A01Ships in 1 to 2 Days
$5.42$7.42
9
17701-ZY1-000Ships in 1 to 2 Days
$2.86$4.12
9
17701-ZY1-020Ships in 1 to 2 Days
$2.86$4.12
10
17702-ZY1-000Ships in 1 to 2 Days
$12.12$17.42
10
17702-ZY1-010Ships in 1 to 2 Days
$12.12$17.42
11
90003-ZY9-M01Ships in 1 to 2 Daysqty 2 used
$1.93$2.64
12
90603-ZV4-000Ships in 1 to 2 Daysqty 2 used
$1.42$1.94
13
90604-ZV0-000Ships in 1 to 2 Daysqty 4 used
$1.37$1.88
14
91303-ZW9-000In Stock
$2.88$3.94
Diagram

FUEL PUMP (2)

BF20 BF20D3 fuel pump (2) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY04E1801
Fits all 16 submodels of this generation.

Parts in this assembly

17 parts
1
16700-ZW9-003Ships in 1 to 2 Days
$122.07$167.22
2
06167-ZY1-315Ships in 1 to 2 Days
$30.18$43.40
3
16793-ZY1-000Ships in 1 to 2 Days
$12.79$18.40
3
16793-ZY1-020Ships in 1 to 2 Days
$12.79$18.40
4
16793-ZY1-020Ships in 1 to 2 Days
$12.79$18.40
5
16861-ZY1-010Ships in 1 to 2 Days
$10.70$15.40
6
16910-ZV4-015In Stock
$13.99$19.16
7
16915-ZV4-000Ships in 1 to 2 Days
$6.41$8.78
8
17439-PY3-A01Ships in 1 to 2 Days
$5.42$7.42
9
17701-ZY1-020Ships in 1 to 2 Days
$2.86$4.12
10
17702-ZY1-010Ships in 1 to 2 Days
$12.12$17.42
11
90003-ZY9-M01Ships in 1 to 2 Daysqty 2 used
$1.93$2.64
12
WASHER, PLAIN (6X13X1.5) (NOT AVAILABLE)
90503-ZV4-000No Longer Available
—
13
90603-ZV4-000Ships in 1 to 2 Daysqty 2 used
$1.42$1.94
14
90604-ZV0-000Ships in 1 to 2 Daysqty 4 used
$1.37$1.88
15
90679-SG9-E01Ships in 1 to 2 Days
$3.42$4.68
16
91303-ZW9-000In Stock
$2.88$3.94
Diagram

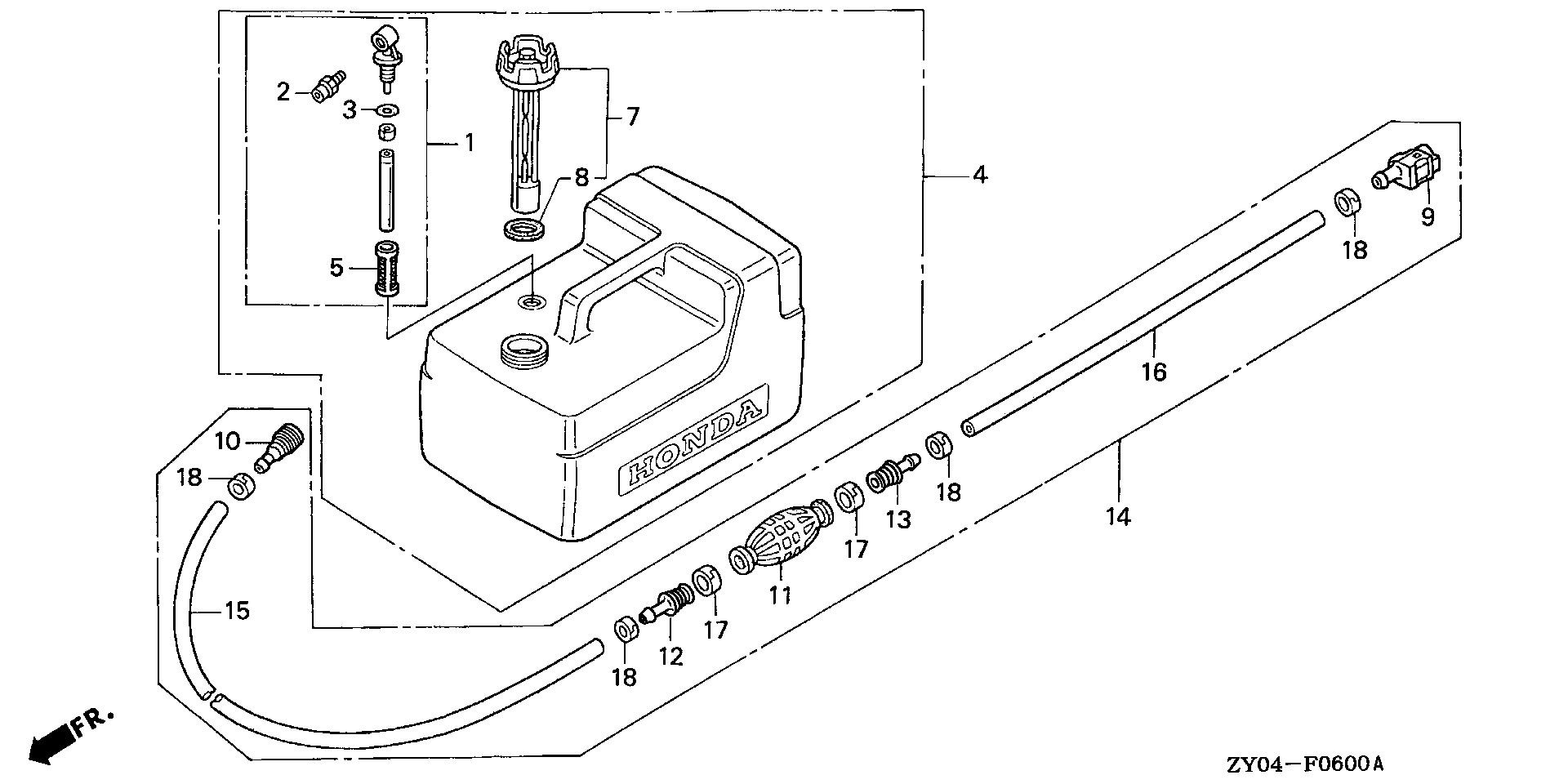

FUEL TANK

BF20 BF20D3 fuel tank exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY04F0600A
Fits all 16 submodels of this generation.

Parts in this assembly

23 parts
1
16900-ZV4-A22Ships in 1 to 2 Days
$26.92$36.88
2
16977-ZV5-A00Ships in 1 to 2 Days
$14.60$20.00
↳
Sierra alternative ·
18-80400In Stock save $3.72
$10.88
3
16979-ZV5-900Ships in 1 to 2 Days
$0.60$0.82
3
16979-ZV5-901Ships in 1 to 2 Days
$0.60$0.82
4
17500-ZV4-A21Ships in 1 to 2 Daysreplaced by 17500-ZZ5-003
$167.65$229.66
4
17500-ZV4-A22Ships in 1 to 2 Daysreplaced by 17500-ZZ5-003
$167.65$229.66
4
17500-ZZ5-003Ships in 1 to 2 Days
$167.65$229.66
5
17583-ZV5-901In Stock
$1.90$2.60
7
CAP, FUEL FILLER
17620-ZV4-A21Ships in 1 to 2 Daysreplaced by 17620-ZV4-A23
$13.40$18.36
7
CAP, FUEL FILLER
17620-ZV4-A22No Longer Available
—
8
17624-ZV5-901Ships in 1 to 2 Days
$6.37$9.16
8
17624-ZV5-902Ships in 1 to 2 Days
$6.63$9.08
9
17650-ZW9-023Ships in 1 to 2 Days
$34.67$47.50
↳
Sierra alternative ·
18-80408In Stock save $20.37
$14.30
10
17660-ZW9-003Ships in 1 to 2 Days
$32.18$44.08
11
17661-921-010Ships in 1 to 2 Days
$12.99$17.80
12
17665-ZV5-000Ships in 1 to 2 Days
$12.13$16.62
13
17680-ZV4-000Ships in 1 to 2 Days
$12.13$16.62
14
17700-ZW9-030Ships in 1 to 2 Days
$65.67$89.96
15
17701-ZV5-000Ships in 1 to 2 Days
$46.09$63.14
16
TUBE, FUEL SHORT (6.3X500) (NOT AVAILABLE)
17702-ZV4-000No Longer Available
$9.75$13.36
17
17703-921-000Ships in 1 to 2 Daysqty 2 used
$3.53$4.84
17
17703-921-010Ships in 1 to 2 Daysqty 2 used
$3.53$4.84
18
17704-ZV4-010Ships in 1 to 2 Daysqty 4 used
$2.18$2.98
Diagram

GEAR CASE - EXTENSION CASE

BF20 BF20D3 gear case - extension case exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY04F0300
Fits all 16 submodels of this generation.

Parts in this assembly

29 parts
1
19243-ZW9-000Ships in 1 to 2 Days
$6.47$9.30
2
$379.94$520.46
2
$437.18$598.88
2
$379.94$520.46
3
$396.32$570.08
4
40210-ZW9-A30Ships in 1 to 2 Days
$16.91$24.32
5
41101-ZY1-C00ZAShips in 1 to 2 Days
$409.64
6
41104-ZV5-000Ships in 1 to 2 Days
$7.65$11.00
7
41105-ZV5-000Ships in 1 to 2 Days
$7.65$11.00
8
41106-ZW9-000In Stockqty 2 used
$8.72$12.30
9
$46.40$48.72
10
63702-ZW9-000Ships in 1 to 2 Days
$6.29$9.04
11
90008-ZW9-000Ships in 1 to 2 Daysqty 4 used
$4.31$6.08
12
90009-ZW9-000Ships in 1 to 2 Daysqty 4 used
$2.88$3.94
13
90101-ZW9-003In Stockqty 2 used
$2.80$3.84
14
90105-ZW9-000Ships in 1 to 2 Daysqty 4 used
$2.88$3.94
15
90107-ZW9-000Ships in 1 to 2 Days
$4.69$6.42
16
90113-ZV5-000Ships in 1 to 2 Days
$2.60$3.66
17
90124-ZW9-A30Ships in 1 to 2 Days
$6.31$9.08
18
90125-ZW9-A30Ships in 1 to 2 Daysqty 4 used
$5.23$7.52
19
90205-PP9-020Ships in 1 to 2 Days
$8.86$12.74
19
90205-ZY1-000Ships in 1 to 2 Days
$4.76$6.52
20
90302-ZV4-000Ships in 1 to 2 Days
$4.91$6.72
21
90501-ZV5-A10Ships in 1 to 2 Days
$2.89$4.08
22
90651-ZV5-A10Ships in 1 to 2 Days
$8.29$11.70
23
90756-ZV5-000In Stockqty 4 used
$2.64$3.62
24
91052-ZY1-003Ships in 1 to 2 Days
$7.69$11.06
25
91301-216-000In Stockqty 2 used
$2.29$3.14
26
93700-05028-4JShips in 1 to 2 Days
$2.50$3.52
Diagram

GEAR CASE ASSY.

BF20 BF20D3 gear case assy. exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY04F0310
Fits all 16 submodels of this generation.

Parts in this assembly

3 parts
1
$1,201.27
1
$1,169.37
1
$1,234.86
Diagram

HANDLEBAR

BF20 BF20D3 handlebar exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY04F0100A
Fits only BF20D3-LGA, BF20D3-LHA, BF20D3-LHGA, BF20D3-LHSA, BF20D3-LHTA, BF20D3-SHA, BF20D3-SHGA, BF20D3-SHSA, BF20D3-SHTA, BF20D3-XHGA, BF20D3-XHSA, BF20D3-XHTA — not every submodel of this generation.

Parts in this assembly

33 parts
1
17838-ZW9-000Ships in 1 to 2 Days
$7.07$10.16
2
17910-ZY1-013Ships in 1 to 2 Days
$32.47$46.70
3
17917-ZW9-000Ships in 1 to 2 Days
$6.82$9.62
4
24625-ZV5-010Ships in 1 to 2 Days
$2.25$3.18
5
31127-ZW9-730Ships in 1 to 2 Days
$13.84$19.90
6
35150-ZY1-731Ships in 1 to 2 Days
$30.18$43.40
7
35156-ZY1-B60Ships in 1 to 2 Days
$13.56$19.50
8
35180-ZY1-023Ships in 1 to 2 Days
$63.22$90.94
9
35640-ZY1-C71Ships in 1 to 2 Days
$58.39$83.98
10
35645-ZY3-000Ships in 1 to 2 Days
$9.68$13.66
11
36105-ZW9-003Ships in 1 to 2 Days
$4.77$6.54
12
36182-ZV4-651In Stock
$18.45$25.28
13
40105-ZV4-000Ships in 1 to 2 Days
$17.05$24.52
14
53103-ZW9-000Ships in 1 to 2 Days
$2.80$3.96
15
53110-ZW9-010ZAShips in 1 to 2 Days
$120.49$173.32
16
53131-ZW9-C00ZAShips in 1 to 2 Days
$76.64$110.22
16
53131-ZW9-C10ZAShips in 1 to 2 Days
$76.65$110.26
17
53130-ZW9-000Ships in 1 to 2 Days
$21.70$29.72
18
53133-ZW9-000Ships in 1 to 2 Days
$6.39$8.76
19
53130-ZW9-000Ships in 1 to 2 Days
$21.70$29.72
20
53141-ZW9-000Ships in 1 to 2 Days
$28.53$41.04
21
53165-ZW9-000Ships in 1 to 2 Days
$11.20$15.80
22
53171-ZW9-000Ships in 1 to 2 Days
$8.07$11.62
23
90002-SB2-000Ships in 1 to 2 Days
$6.10$8.78
24
90102-ZW9-000Ships in 1 to 2 Days
$2.12$2.90
25
90165-ZW9-000Ships in 1 to 2 Daysqty 2 used
$10.18$14.64
26
90302-921-000In Stock
$4.10$5.62
27
90305-ZV4-000Ships in 1 to 2 Days
$6.02$8.24
28
90514-921-000Ships in 1 to 2 Days
$0.99$1.36
29
91475-SB6-000Ships in 1 to 2 Days
$7.72$10.58
30
SCREW, TAPPING (4X12)
93903-243J0Ships in 1 to 2 Daysqty 2 used
$1.69$2.32
31
SCREW, TAPPING (4X12)
93903-243J0Ships in 1 to 2 Daysqty 4 used
$1.69$2.32
32
53130-ZW9-000Ships in 1 to 2 Days
$21.70$29.72
Diagram

IGNITION COIL - C.D.I. UNIT

BF20 BF20D3 ignition coil - c.d.i. unit exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY04E2000
Fits all 16 submodels of this generation.

Parts in this assembly

17 parts
1
30310-ZY1-003Ships in 1 to 2 Days
$48.66$70.00
2
30400-ZY0-003Ships in 1 to 2 Days
$225.40
2
30400-ZY1-003Ships in 1 to 2 Days
$225.40
3
30417-ZY1-900Ships in 1 to 2 Days
$56.25$79.36
3
30418-ZY1-010Ships in 1 to 2 Days
$16.98$24.42
4
COIL ASSY., IGNITION
30500-ZY1-003No Longer Available
—
5
30506-ML4-003Ships in 1 to 2 Days
$5.62$8.08
6
30515-ZW9-000Ships in 1 to 2 Days
$7.94$10.88
6
BRACKET, IGNITION COIL
30515-ZW9-010No Longer Available
—
7
32108-ZY1-010Ships in 1 to 2 Days
$13.78$19.82
8
32109-ZY1-000Ships in 1 to 2 Days
$14.12$20.30
9
90011-ZW9-000Ships in 1 to 2 Daysqty 5 used
$1.71$2.34
10
90014-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.87$2.56
11
90018-ZW9-000Ships in 1 to 2 Daysqty 2 used
$1.30$1.86
12
90684-SB3-003Ships in 1 to 2 Days
$5.80$7.94
13
91501-SM4-003Ships in 1 to 2 Daysqty 2 used
$4.12$5.80
14
91540-S30-003Ships in 1 to 2 Daysqty 2 used
$3.14$4.30
Diagram

LABELS

BF20 BF20D3 labels exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY04F1200C
Fits all 16 submodels of this generation.

Parts in this assembly

22 parts
1
87121-ZV4-G00Ships in 1 to 2 Days
$11.04$15.88
2
87121-ZV9-800Ships in 1 to 2 Days
$18.03$25.94
3
MARK, EMERGENCY SWITCH INDICATION (NOT AVAILABLE)
87124-ZW6-000No Longer Available
$2.23$3.06
4
87125-ZV4-A20Ships in 1 to 2 Days
$4.96$7.00
5
87125-ZW9-740Ships in 1 to 2 Days
$5.39$7.74
6
87131-ZW9-S00Ships in 1 to 2 Daysqty 2 used
$11.94$17.18
7
87132-ZV4-G00Ships in 1 to 2 Daysqty 2 used
$8.91$12.80
8
87133-ZW9-S00Ships in 1 to 2 Days
$8.73$12.32
9
MARK (E-SPEC) (NOT AVAILABLE)
87135-ZW5-000No Longer Available
—
10
87152-ZY0-G00Ships in 1 to 2 Days
$4.38$6.30
10
LABEL, SPEC (BF20) (NMMA) (NOT AVAILABLE)
87152-ZY1-G00No Longer Available
—
11
MARK, ASSIST TILT (NOT AVAILABLE)
87214-ZY1-640No Longer Available
—
12
87215-ZY1-870Ships in 1 to 2 Days
$8.13$11.70
13
87227-ZV7-000Ships in 1 to 2 Days
$5.80$8.34
14
87511-ZW9-000Ships in 1 to 2 Days
$4.56$6.42
15
87531-ZW9-640Ships in 1 to 2 Days
$4.82$6.92
16
87532-ZW9-640Ships in 1 to 2 Days
$4.56$6.42
17
87535-ZV5-620Ships in 1 to 2 Days
$3.87$5.46
18
87538-ZW1-740Ships in 1 to 2 Days
$9.34$13.18
19
87541-ZV5-621Ships in 1 to 2 Days
$4.89$6.90
20
87546-ZW9-640Ships in 1 to 2 Days
$8.89$12.78
21
87512-ZV4-A21Ships in 1 to 2 Days
$3.42$4.92
Diagram

METER - METER HARNESS

BF20 BF20D3 meter - meter harness exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY04Y0100
Fits only BF20D3-LRA, BF20D3-LRTA, BF20D3-SRA, BF20D3-SRTA — not every submodel of this generation.

Parts in this assembly

12 parts
1
32161-404-000Ships in 1 to 2 Days
$2.15$2.94
2
32540-ZV5-911Ships in 1 to 2 Daysreplaced by 32540-ZZ3-010
$97.12$133.04
2
32540-ZZ3-010Ships in 1 to 2 Days
$97.12$133.04
3
32550-ZV5-910Ships in 1 to 2 Days
$17.67
4
34908-MB9-871Ships in 1 to 2 Days
$2.67$3.66
5
TACHOMETER ASSY.
37250-ZW9-901No Longer Available
—
6
37253-ZV5-821Ships in 1 to 2 Days
$4.12$5.64
7
37256-ZV5-821Ships in 1 to 2 Days
$21.83$29.90
8
37258-ZV5-821Ships in 1 to 2 Days
$16.09$22.04
9
METER ASSY., VOLT
37450-ZV5-910No Longer Available
—
10
39700-ZV5-800AHShips in 1 to 2 Days
$47.13
11
98200-11000Ships in 1 to 2 Days
$1.61$2.20
Diagram

MUFFLER COVER

BF20 BF20D3 muffler cover exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY04E1420
Fits all 16 submodels of this generation.

Parts in this assembly

10 parts
1
17203-ZY1-000Ships in 1 to 2 Days
$11.84$16.22
2
17380-ZY1-010Ships in 1 to 2 Days
$41.41$59.56
3
17384-ZY1-000Ships in 1 to 2 Days
$4.92$7.08
4
17390-ZY1-000Ships in 1 to 2 Days
$30.92$44.48
5
17394-ZY1-000Ships in 1 to 2 Days
$1.39$2.00
6
17532-ZM3-010Ships in 1 to 2 Days
$1.78$2.56
7
90003-ZY9-M01Ships in 1 to 2 Daysqty 2 used
$1.93$2.64
8
90010-ZY1-030Ships in 1 to 2 Daysqty 2 used
$4.86$7.00
9
91401-ZW9-000Ships in 1 to 2 Days
$11.99$17.24
10
95003-07008-60MShips in 1 to 2 Days
$35.11$50.50
Diagram

OIL CASE - OIL PAN GASKET

BF20 BF20D3 oil case - oil pan gasket exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY04E0320A
Fits all 16 submodels of this generation.

Parts in this assembly

5 parts
1
11381-ZW9-003Ships in 1 to 2 Days
$19.23$27.66
2
19252-ZW9-000Ships in 1 to 2 Days
$5.23$7.52
3
90008-ZW9-000Ships in 1 to 2 Daysqty 9 used
$4.31$6.08
4
94301-06100In Stockqty 2 used
$2.74$3.76
5
11321-ZY1-425ZAShips in 1 to 2 Days
$340.62$466.60
Diagram

OIL CASE - SHIFT SHAFT (HANDLE SPECIFICATION)

BF20 BF20D3 oil case - shift shaft (handle specification) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY04F0810
Fits only BF20D3-LGA, BF20D3-LHA, BF20D3-LHGA, BF20D3-LHSA, BF20D3-LHTA, BF20D3-SHA, BF20D3-SHGA, BF20D3-SHSA, BF20D3-SHTA, BF20D3-XHGA, BF20D3-XHSA, BF20D3-XHTA — not every submodel of this generation.

Parts in this assembly

37 parts
1
11321-ZY1-405ZAShips in 1 to 2 Days
$340.62$466.60
1
11321-ZY1-425ZAShips in 1 to 2 Days
$340.62$466.60
2
TUBE A, FUEL (NOT AVAILABLE)
16851-ZW9-000No Longer Available
$7.43$10.18
3
17710-ZW9-033Ships in 1 to 2 Days
$46.08$65.02
↳
Sierra alternative ·
18-80407In Stock save $0.01
$46.07
4
17936-921-000Ships in 1 to 2 Daysqty 2 used
$1.20$1.64
5
24218-ZW9-000Ships in 1 to 2 Days
$7.87$11.32
6
24221-ZW9-010Ships in 1 to 2 Daysqty 2 used
$8.04$11.58
7
24611-ZW9-010Ships in 1 to 2 Days
$15.34$22.06
8
24613-ZW9-000Ships in 1 to 2 Days
$9.10$13.08
9
24614-ZW9-020Ships in 1 to 2 Days
$21.35$30.70
10
24626-ZW9-010Ships in 1 to 2 Daysqty 2 used
$2.31$3.32
11
04302-ZY1-020Ships in 1 to 2 Days
$27.64$28.47
12
35476-ZW9-731Ships in 1 to 2 Days
$6.07$8.74
13
35618-ZW9-020Ships in 1 to 2 Days
$4.69$6.62
14
37210-ZY1-003Ships in 1 to 2 Days
$41.46$56.80
15
40105-ZW9-020Ships in 1 to 2 Days
$4.28$6.16
16
40106-ZW9-630Ships in 1 to 2 Days
$8.45$12.16
17
40106-ZW9-730Ships in 1 to 2 Days
$7.65$11.00
18
40107-ZW9-720Ships in 1 to 2 Days
$4.28$6.16
19
40108-ZW9-000Ships in 1 to 2 Days
$5.61$8.06
20
40109-ZW9-000Ships in 1 to 2 Days
$6.29$9.04
21
46391-VM0-003Ships in 1 to 2 Days
$2.35$3.22
22
90101-ZW9-003In Stock
$2.80$3.84
23
90105-ZV1-000Ships in 1 to 2 Days
$6.12$8.80
24
90112-ZY1-000In Stock
$3.08$4.22
25
90113-ZW9-000Ships in 1 to 2 Daysreplaced by 90113-ZW9-030
$0.96$1.38
25
90113-ZW9-030Ships in 1 to 2 Daysqty 5 used
$0.96$1.38
26
90302-ZV5-003Ships in 1 to 2 Days
$5.27$7.22
27
90452-GK4-600In Stock
$1.28$1.82
28
90506-ZW9-000Ships in 1 to 2 Days
$1.23$1.74
29
90511-ZW9-000Ships in 1 to 2 Daysqty 2 used
$4.09$5.88
30
90603-ZV4-000Ships in 1 to 2 Days
$1.42$1.94
31
90604-ZV0-000Ships in 1 to 2 Daysqty 2 used
$1.37$1.88
32
90759-ZV1-000In Stock
$1.42$1.94
33
91202-ZY1-013Ships in 1 to 2 Days
$9.61$13.82
34
91301-216-000In Stock
$2.29$3.14
35
91402-ZW9-010Ships in 1 to 2 Days
$4.35$6.26
Diagram

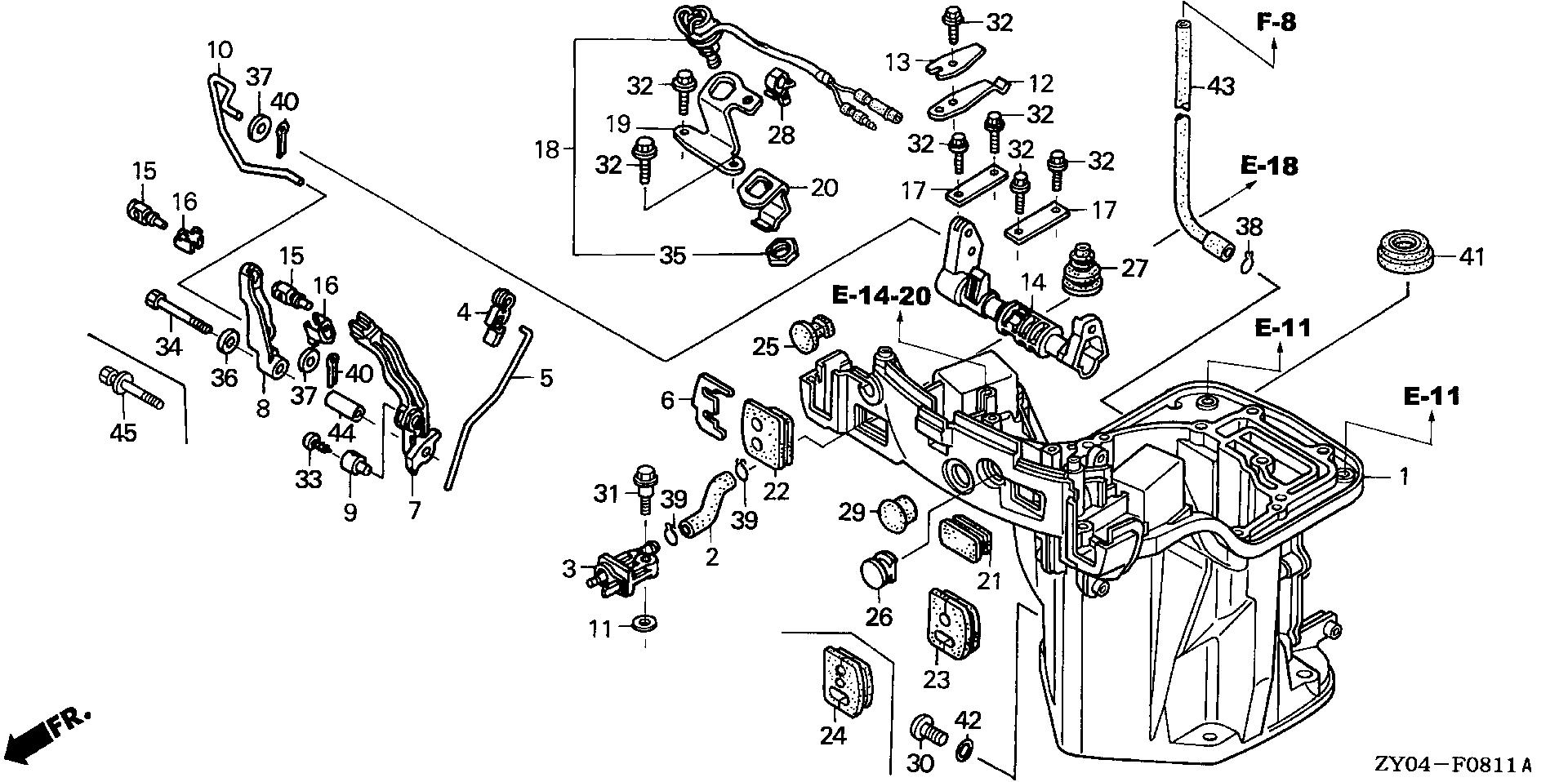

OIL CASE - SHIFT SHAFT (REMOTE SPECIFICATION)

BF20 BF20D3 oil case - shift shaft (remote specification) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY04F0811A
Fits only BF20D3-LRA, BF20D3-LRTA, BF20D3-SRA, BF20D3-SRTA — not every submodel of this generation.

Parts in this assembly

47 parts
1
11321-ZY1-405ZAShips in 1 to 2 Days
$340.62$466.60
1
11321-ZY1-425ZAShips in 1 to 2 Days
$340.62$466.60
2
TUBE A, FUEL (NOT AVAILABLE)
16851-ZW9-000No Longer Available
$7.43$10.18
3
17710-ZW9-033Ships in 1 to 2 Days
$46.08$65.02
↳
Sierra alternative ·
18-80407In Stock save $0.01
$46.07
4
17838-ZW9-000Ships in 1 to 2 Days
$7.07$10.16
5
17841-ZY1-810Ships in 1 to 2 Days
$4.23$6.10
6
17877-ZW9-831Ships in 1 to 2 Days
$6.31$9.08
7
17931-ZW9-830Ships in 1 to 2 Days
$14.29$20.56
8
17932-ZW9-830Ships in 1 to 2 Days
$13.46$19.36
9
17933-ZV4-000Ships in 1 to 2 Days
$9.83$14.14
10
17933-ZW9-831Ships in 1 to 2 Days
$16.32$23.48
11
17936-921-000Ships in 1 to 2 Days
$1.20$1.64
12
24218-ZW9-000Ships in 1 to 2 Days
$7.87$11.32
13
24221-ZW9-010Ships in 1 to 2 Days
$8.04$11.58
14
24611-ZW9-010Ships in 1 to 2 Days
$15.34$22.06
15
24618-ZW9-830Ships in 1 to 2 Daysqty 2 used
$12.45$17.92
16
24619-ZW9-830Ships in 1 to 2 Daysqty 2 used
$9.42$13.54
17
24626-ZW9-010Ships in 1 to 2 Daysqty 2 used
$2.31$3.32
18
04302-ZY1-020Ships in 1 to 2 Days
$27.64$28.47
19
35476-ZW9-731Ships in 1 to 2 Days
$6.07$8.74
20
35618-ZW9-020Ships in 1 to 2 Days
$4.69$6.62
21
40104-ZW9-830Ships in 1 to 2 Days
$6.29$9.04
22
40105-ZW9-832Ships in 1 to 2 Days
$8.48$12.20
23
40106-ZW9-830Ships in 1 to 2 Days
$8.09$11.64
24
40106-ZY1-870Ships in 1 to 2 Days
$6.73$9.68
25
40107-ZW9-720Ships in 1 to 2 Days
$4.28$6.16
26
40108-ZW9-830Ships in 1 to 2 Days
$4.44$6.38
27
40109-ZW9-000Ships in 1 to 2 Days
$6.29$9.04
28
46391-VM0-003Ships in 1 to 2 Days
$2.35$3.22
29
53115-732-000Ships in 1 to 2 Days
$3.20$4.52
30
90101-ZW9-003In Stock
$2.80$3.84
31
90112-ZY1-000In Stock
$3.08$4.22
32
90113-ZW9-000Ships in 1 to 2 Daysreplaced by 90113-ZW9-030
$0.96$1.38
32
90113-ZW9-030Ships in 1 to 2 Daysqty 7 used
$0.96$1.38
33
90116-ZV1-000Ships in 1 to 2 Days
$1.84$2.64
34
90120-ZV4-010Ships in 1 to 2 Days
$2.44$3.50
35
90302-ZV5-003Ships in 1 to 2 Days
$5.27$7.22
36
90512-921-010In Stock
$1.07$1.46
37
90518-ZW9-830Ships in 1 to 2 Daysqty 2 used
$3.53$5.08
38
90603-ZV4-000Ships in 1 to 2 Days
$1.42$1.94
39
90604-ZV0-000Ships in 1 to 2 Daysqty 2 used
$1.37$1.88
40
90759-ZV1-000In Stockqty 2 used
$1.42$1.94
41
91202-ZY1-013Ships in 1 to 2 Days
$9.61$13.82
42
91301-216-000In Stock
$2.29$3.14
43
91402-ZW9-010Ships in 1 to 2 Days
$4.35$6.26
44
91552-ZW9-830Ships in 1 to 2 Days
$9.64$13.86
45
90103-ZY1-000Ships in 1 to 2 Days
$5.84$8.24
Diagram

OIL PUMP

BF20 BF20D3 oil pump exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY04E0500
Fits all 16 submodels of this generation.

Parts in this assembly

20 parts
1
15100-ZW9-030Ships in 1 to 2 Days
$89.38$128.56
2
15121-ZW9-000Ships in 1 to 2 Days
$5.31$7.64
3
15131-414-000Ships in 1 to 2 Days
$20.00$27.40
4
15133-414-000Ships in 1 to 2 Days
$15.90$21.78
5
15136-ZW9-000Ships in 1 to 2 Days
$10.45$15.04
6
15211-ZW9-010Ships in 1 to 2 Days
$31.26$44.96
7
15212-ZW9-000Ships in 1 to 2 Days
$4.77$6.86
8
15220-ZW9-003Ships in 1 to 2 Days
$11.93$17.16
9
15422-ZW9-000Ships in 1 to 2 Days
$9.86$14.18
10
15473-881-000Ships in 1 to 2 Days
$9.11$13.10
11
15474-ZW9-000Ships in 1 to 2 Days
$3.81$5.48
12
90019-ZW9-000Ships in 1 to 2 Daysreplaced by 90019-ZZ5-M01
$2.25$3.08
13
90113-ZW9-000Ships in 1 to 2 Daysreplaced by 90113-ZW9-030
$0.96$1.38
13
90113-ZW9-030Ships in 1 to 2 Daysqty 2 used
$0.96$1.38
14
90456-333-000Ships in 1 to 2 Days
$2.44$3.34
15
91301-ZW9-000Ships in 1 to 2 Days
$3.64$5.22
16
91302-ZW9-000Ships in 1 to 2 Days
$3.36$4.82
17
91406-ZW9-003Ships in 1 to 2 Daysqty 2 used
$2.06$2.96
18
96220-40158Ships in 1 to 2 Days
$0.41$0.56
19
96300-06022-09Ships in 1 to 2 Daysqty 2 used
$1.30$1.78
Diagram

OUTBOARD INSTALLATION KIT

BF20 BF20D3 outboard installation kit exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY04Y0200
Fits only BF20D3-LGA, BF20D3-LHA, BF20D3-LHGA, BF20D3-LHSA, BF20D3-LHTA, BF20D3-LRA, BF20D3-LRTA, BF20D3-SHGA, BF20D3-SHTA, BF20D3-SRA, BF20D3-SRTA, BF20D3-XHGA, BF20D3-XHSA, BF20D3-XHTA — not every submodel of this generation.

Parts in this assembly

5 parts
1
06413-ZV7-000Ships in 1 to 2 Days
$44.15
2
90129-ZV7-000Ships in 1 to 2 Daysqty 4 used
$18.32$25.86
3
90306-ZV5-003In Stockqty 4 used
$3.40$4.66
4
90552-ZV7-000Ships in 1 to 2 Daysqty 4 used
$8.09$11.42
5
90563-ZV5-000Ships in 1 to 2 Daysqty 8 used
$2.44$3.34
Diagram

POWER TRIM-TILT

BF20 BF20D3 power trim-tilt exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY04F1120C
Fits only BF20D3-LHTA, BF20D3-LRTA, BF20D3-SHTA, BF20D3-SRTA, BF20D3-XHTA — not every submodel of this generation.

Parts in this assembly

52 parts
1
17735-ZY1-870Ships in 1 to 2 Days
$1.68$2.42
2
35701-MG9-950Ships in 1 to 2 Days
$1.83$2.50
3
36105-ZW9-003Ships in 1 to 2 Days
$4.77$6.54
4
36105-ZY1-871Ships in 1 to 2 Days
$6.22$8.94
5
36120-ZY1-871Ships in 1 to 2 Days
$466.16
6
36122-ZY1-872Ships in 1 to 2 Days
$377.78$517.50
7
36129-V15-003Ships in 1 to 2 Days
$40.67
8
36136-V15-013Ships in 1 to 2 Daysqty 2 used
$4.41$6.04
9
56000-ZY1-871Ships in 1 to 2 Days
$1,404.54
9
56000-ZY1-874Ships in 1 to 2 Days
$1,404.54
10
56113-ZW1-701Ships in 1 to 2 Days
$16.41$22.48
11
56140-ZV5-822Ships in 1 to 2 Daysqty 2 used
$108.67$156.28
12
90115-ZV5-821Ships in 1 to 2 Days
$16.38$22.44
13
90134-V15-003Ships in 1 to 2 Daysqty 2 used
$3.24$4.44
14
90402-V15-003Ships in 1 to 2 Days
$4.37$5.98
14
90402-ZV5-821Ships in 1 to 2 Daysreplaced by 90402-V15-003
$4.37$5.98
15
91203-ZV5-821Ships in 1 to 2 Days
$30.78$42.16
16
91304-ZV5-821Ships in 1 to 2 Daysqty 2 used
$3.43$4.70
17
91311-ZV5-822Ships in 1 to 2 Days
$2.41$3.30
18
91318-V15-003Ships in 1 to 2 Days
$4.38$6.00
19
91541-S0A-003Ships in 1 to 2 Days
$3.64$4.98
20
53549-ZY1-871Ships in 1 to 2 Days
$2.20$3.02
21
56110-ZY1-871Ships in 1 to 2 Days
$108.64$156.28
22
56114-ZY1-871Ships in 1 to 2 Days
$224.78$323.34
23
56123-ZY1-871Ships in 1 to 2 Days
$18.82$27.08
24
56130-ZY1-871Ships in 1 to 2 Days
$64.11$87.82
25
56150-ZY1-871Ships in 1 to 2 Days
$34.30$49.34
26
56151-ZY1-871Ships in 1 to 2 Days
$7.87$11.32
27
56160-V15-003Ships in 1 to 2 Days
$9.14$12.52
28
56161-ZY1-871Ships in 1 to 2 Days
$41.74$57.18
29
56163-ZY1-871Ships in 1 to 2 Days
$25.81$36.42
30
56170-ZY1-872Ships in 1 to 2 Days
$102.40$147.28
31
56191-ZY1-871Ships in 1 to 2 Days
$30.00$43.16
32
56511-ZY1-871Ships in 1 to 2 Days
$214.08$307.94
33
56517-ZY1-871Ships in 1 to 2 Days
$21.83$31.40
34
56518-ZY1-872Ships in 1 to 2 Days
$8.73$12.56
35
56632-ZY1-871Ships in 1 to 2 Days
$6.41$9.22
36
56764-ZY1-871Ships in 1 to 2 Days
$2.03$2.92
37
56851-V15-003Ships in 1 to 2 Days
$36.51$50.02
38
90103-ZY1-871Ships in 1 to 2 Daysqty 2 used
$2.85$4.10
39
90104-ZY1-871Ships in 1 to 2 Daysqty 2 used
$4.93$7.10
40
90105-ZY1-871Ships in 1 to 2 Days
$7.52$10.82
41
90921-766-801Ships in 1 to 2 Days
$2.34$3.20
42
91351-V15-003Ships in 1 to 2 Days
$8.07$11.06
43
91351-ZY1-871Ships in 1 to 2 Days
$4.50$6.46
44
91352-V15-003Ships in 1 to 2 Days
$6.06$8.30
45
91352-ZY1-871Ships in 1 to 2 Days
$5.64$8.10
46
91353-ZY1-871Ships in 1 to 2 Days
$5.64$8.10
47
91354-ZY1-871Ships in 1 to 2 Days
$5.64$8.10
48
90301-ZY1-871Ships in 1 to 2 Days
$5.80$8.34
49
56113-ZY1-871Ships in 1 to 2 Days
$68.49$93.82
50
36123-ZY1-871Ships in 1 to 2 Days
$196.98
Diagram

PROPELLER SHAFT - PROPELLER

BF20 BF20D3 propeller shaft - propeller exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY04F0500A
Fits all 16 submodels of this generation.

Parts in this assembly

32 parts
1
24101-ZW9-000Ships in 1 to 2 Days
$53.00$76.22
2
24102-ZW9-000Ships in 1 to 2 Days
$2.70$3.88
3
24103-ZV7-000Ships in 1 to 2 Days
$1.78$2.52
4
24122-ZW9-000Ships in 1 to 2 Days
$7.87$11.32
5
24123-ZV1-300Ships in 1 to 2 Days
$4.66$6.70
6
41140-ZY1-000Ships in 1 to 2 Days
$119.08$171.30
7
41146-ZW9-000Ships in 1 to 2 Days
$3.15$4.54
7
41147-ZW9-000Ships in 1 to 2 Days
$3.15$4.54
7
41148-ZW9-000Ships in 1 to 2 Days
$3.15$4.54
7
41149-ZW9-000Ships in 1 to 2 Days
$3.15$4.54
8
41151-ZY1-000Ships in 1 to 2 Days
$119.08$171.30
9
$212.77$291.46
10
$79.51$108.92
11
58130-ZW9-V02ZAShips in 1 to 2 Days
$151.90
11
58130-ZW9-V12ZAShips in 1 to 2 Days
$151.90
11
58130-ZW9-V22ZAShips in 1 to 2 Days
$151.90
11
$151.90
11
PROPELLER, FOUR BLADES (9-1/4X11) *NH283* (STIN GRAY)
58130-ZW9-V41ZANo Longer Available
—
11
$156.46
12
90105-ZW9-000Ships in 1 to 2 Daysqty 2 used
$2.88$3.94
13
90301-ZV4-000Ships in 1 to 2 Days
$5.39$7.74
14
90501-ZW9-000Ships in 1 to 2 Days
$19.58$28.16
15
90503-ZW9-000Ships in 1 to 2 Days
$5.53$7.96
16
90513-921-000Ships in 1 to 2 Days
$1.96$2.82
17
90758-ZV4-000In Stock
$1.46$2.10
18
91054-ZV5-003Ships in 1 to 2 Days
$31.05$42.54
19
91072-KT7-003Ships in 1 to 2 Days
$19.65$26.92
20
91251-935-004Ships in 1 to 2 Daysreplaced by 91252-ZW9-003
$12.44$17.90
20
91252-ZW9-003Ships in 1 to 2 Days
$12.44$17.90
21
91352-ZW9-003Ships in 1 to 2 Days
$3.42$4.92
22
BEARING, RADIAL BALL (6005)
96100-60050-00Ships in 1 to 2 Days
$10.95$15.00
23
$212.77$291.46
Diagram

RECOIL STARTER

BF20 BF20D3 recoil starter exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY04E1100B
Fits all 16 submodels of this generation.

Parts in this assembly

33 parts
1
28400-ZY1-023Ships in 1 to 2 Daysreplaced by 28400-ZY1-033
$85.94$90.24
1
28400-ZY1-033Ships in 1 to 2 Days
$85.94$90.24
2
CASE, RECOIL STARTER (NOT AVAILABLE)
28401-ZW9-003No Longer Available
$110.11$150.84
3
28414-ZY1-000Ships in 1 to 2 Days
$32.72$47.06
4
28418-ZW9-003Ships in 1 to 2 Days
$3.15$4.54
5
28421-ZW9-003Ships in 1 to 2 Days
$34.98$50.32
6
04284-ZY1-000Ships in 1 to 2 Days
$5.76$6.05
6
28422-ZW9-003Ships in 1 to 2 Days
$5.76$6.05
7
04284-ZY1-000Ships in 1 to 2 Days
$5.76$6.05
7
28428-ZW9-003Ships in 1 to 2 Days
$5.76$6.05
8
28431-ZW9-003Ships in 1 to 2 Days
$4.45$6.40
9
28432-ZV4-003Ships in 1 to 2 Days
$3.15$4.44
10
28433-ZV7-003Ships in 1 to 2 Days
$4.45$6.40
11
28435-ZV4-003Ships in 1 to 2 Days
$5.17$7.30
12
28436-ZV4-003Ships in 1 to 2 Days
$3.43$4.84
13
28437-ZV4-003Ships in 1 to 2 Days
$2.31$3.32
14
28438-ZV4-003Ships in 1 to 2 Days
$2.26$3.20
15
28441-ZW9-003Ships in 1 to 2 Days
$4.44$6.38
16
28442-ZW9-003Ships in 1 to 2 Days
$24.98$35.94
17
28443-ZW9-003Ships in 1 to 2 Days
$2.50$3.60
18
28455-ZY1-000Ships in 1 to 2 Days
$13.08$18.82
19
28461-ZV4-013Ships in 1 to 2 Days
$8.38$11.82
20
ROPE, RECOIL STARTER (N/A: USE P/N 08550-ZG921-11)
28462-ZV4-003No Longer Available
—
21
28466-ZW9-003Ships in 1 to 2 Days
$1.91$2.70
22
28471-ZV7-003Ships in 1 to 2 Days
$11.80$16.98
23
28476-ZV7-003Ships in 1 to 2 Days
$4.41$6.34
24
80103-GJ5-000Ships in 1 to 2 Daysqty 2 used
$1.99$2.80
25
90003-ZY9-M01Ships in 1 to 2 Daysqty 3 used
$1.93$2.64
26
90021-ZV4-003Ships in 1 to 2 Days
$2.42$3.48
27
90022-ZV4-003Ships in 1 to 2 Days
$1.96$2.82
28
91403-ZW9-000Ships in 1 to 2 Days
$7.87$11.32
29
BULK HOSE, VACUUM (8X1000) (8X240)
95005-80001-30MShips in 1 to 2 Days
$13.36$18.30
30
04284-ZY1-000Ships in 1 to 2 Days
$5.76$6.05
Diagram

REMOTE CONTROL (HI-LEX) (HANDLE CAP = GRAY)

BF20 BF20D3 remote control (hi-lex) (handle cap = gray) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY04F1500
Fits only BF20D3-LHTA, BF20D3-LRA, BF20D3-LRTA, BF20D3-SHTA, BF20D3-SRA, BF20D3-SRTA, BF20D3-XHTA — not every submodel of this generation.

Parts in this assembly

82 parts
1
24800-ZW9-A02Ships in 1 to 2 Days
$279.99
1
24800-ZW9-A03Ships in 1 to 2 Days
$279.99
1
24800-ZW9-A11Ships in 1 to 2 Daysreplaced by 24800-ZW9-A12
$257.90
2
24811-ZV5-010Ships in 1 to 2 Days
$115.09$162.38
3
LEVER, HANDLE LOCK (NOT AVAILABLE)
24812-ZV5-000No Longer Available
—
4
24813-ZV5-000Ships in 1 to 2 Days
$39.73$56.04
5
24814-ZV5-010Ships in 1 to 2 Days
$8.23$11.62
6
24815-ZV5-000Ships in 1 to 2 Daysreplaced by 24815-ZV5-010
$8.04$11.36
7
24816-ZV5-000Ships in 1 to 2 Days
$4.07$5.74
8
24817-ZV5-000Ships in 1 to 2 Days
$3.81$5.38
9
24818-ZV5-003Ships in 1 to 2 Days
$1.33$1.88
10
24819-ZV5-000Ships in 1 to 2 Days
$5.62$8.08
11
24820-ZV5-010Ships in 1 to 2 Days
$102.08$144.04
12
24830-ZV5-010Ships in 1 to 2 Days
$54.08$76.32
13
24836-ZV5-000Ships in 1 to 2 Days
$33.64$47.46
14
24841-ZV5-000Ships in 1 to 2 Days
$57.93$81.74
15
24845-ZV5-000Ships in 1 to 2 Days
$39.52$55.76
16
24850-ZV5-000Ships in 1 to 2 Days
$46.76$65.98
17
24854-ZV5-000Ships in 1 to 2 Days
$8.10$11.44
18
24855-ZV5-000Ships in 1 to 2 Daysqty 2 used
$8.10$11.44
19
24860-ZV5-000Ships in 1 to 2 Days
$37.81$53.36
20
24865-ZV5-000Ships in 1 to 2 Days
$17.32$24.44
21
24875-ZV5-000Ships in 1 to 2 Days
$22.41$31.62
22
24876-ZV5-000Ships in 1 to 2 Days
$4.07$5.74
23
24878-ZV5-000Ships in 1 to 2 Days
$51.83$73.12
24
24881-ZV5-000Ships in 1 to 2 Daysqty 2 used
$3.81$5.38
25
24883-ZV5-000Ships in 1 to 2 Days
$3.90$5.50
26
24884-ZV5-000Ships in 1 to 2 Days
$3.90$5.50
27
24885-ZV5-000Ships in 1 to 2 Days
$69.85$98.54
28
24887-ZV5-000Ships in 1 to 2 Days
$4.63$6.52
29
24891-ZV5-000Ships in 1 to 2 Days
$7.84$11.06
30
24892-ZV5-000Ships in 1 to 2 Days
$15.26$21.52
31
24894-ZV5-000Ships in 1 to 2 Days
$6.31$8.90
32
24895-ZV5-000Ships in 1 to 2 Days
$6.32$8.92
33
24897-ZV5-000Ships in 1 to 2 Days
$4.96$7.00
34
24898-ZV5-000Ships in 1 to 2 Days
$4.85$6.84
35
32530-ZY1-812Ships in 1 to 2 Days
$203.28$286.84
36
CABLE ASSY., REMOTE CONTROL EXTENSION (4P+6P) (NOT AVAILABLE)
32570-ZY1-900No Longer Available
—
37
32901-952-770Ships in 1 to 2 Daysqty 2 used
$2.19$3.00
38
35100-ZV5-003Ships in 1 to 2 Days
$137.02$187.70
39
35110-ZV5-003Ships in 1 to 2 Daysqty 2 used
$7.99$11.48
40
35370-ZV5-823Ships in 1 to 2 Days
$63.90$90.18
41
35701-MG9-950Ships in 1 to 2 Days
$1.83$2.50
42
36180-ZV5-033In Stock
$56.84$77.86
43
36182-ZV4-651In Stock
$18.45$25.28
44
36187-ZV4-652Ships in 1 to 2 Days
$4.18$5.72
45
37210-ZW9-832Ships in 1 to 2 Days
$79.50$114.34
46
38403-341-672Ships in 1 to 2 Days
$4.66$6.38
47
38410-ZV5-003Ships in 1 to 2 Days
$56.17$76.94
48
PLATE, REMOTE CONTROL (CAUTION PICT=SILVER)
87701-ZV5-000No Longer Available
—
48
PLATE, REMOTE CONTROL (CAUTION PICT=SILVER) (NOT AVAILABLE)
87701-ZV5-010No Longer Available
$53.83$73.74
49
87702-ZW9-800Ships in 1 to 2 Days
$6.45$9.10
50
90009-ZV5-000Ships in 1 to 2 Days
$4.16$5.88
51
90105-MM4-000Ships in 1 to 2 Days
$2.03$2.78
52
90125-ZV5-000Ships in 1 to 2 Daysqty 3 used
$6.91$9.74
53
90302-921-000In Stock
$4.10$5.62
54
90304-ZV4-000Ships in 1 to 2 Daysqty 3 used
$2.12$2.90
55
90502-ZV4-000Ships in 1 to 2 Days
$2.73$3.74
56
90506-ZV4-000Ships in 1 to 2 Daysqty 5 used
$2.45$3.36
57
90507-ZV4-000Ships in 1 to 2 Daysqty 2 used
$2.20$3.02
58
90512-921-010In Stockqty 6 used
$1.07$1.46
59
90557-ZV5-000Ships in 1 to 2 Days
$2.99$4.22
60
WASHER, PLAIN (4MM) (NOT AVAILABLE)
90561-ZV5-000No Longer Available
$1.62$2.22
61
90751-ZV5-000Ships in 1 to 2 Daysqty 2 used
$3.29$4.50
62
90772-ZV5-000Ships in 1 to 2 Days
$3.99$5.62
63
91151-ZV5-000Ships in 1 to 2 Days
$3.45$4.86
64
91475-SB6-000Ships in 1 to 2 Days
$7.72$10.58
65
91567-ZV5-000Ships in 1 to 2 Daysqty 2 used
$2.76$3.90
66
91570-ZV5-000Ships in 1 to 2 Daysqty 3 used
$8.10$11.44
67
92101-05016-4JShips in 1 to 2 Days
$1.21$1.66
68
93500-05010-4JShips in 1 to 2 Daysqty 2 used
$1.23$1.74
69
93700-05012-4JShips in 1 to 2 Daysqty 2 used
$1.69$2.44
70
93901-250J0Ships in 1 to 2 Daysqty 2 used
$1.64$2.30
71
93901-251J0Ships in 1 to 2 Daysqty 3 used
$0.58$0.82
72
93901-252J0Ships in 1 to 2 Days
$1.53$2.16
73
93903-262J0Ships in 1 to 2 Daysqty 2 used
$2.37$3.34
74
93905-255J0Ships in 1 to 2 Daysqty 7 used
$2.37$3.34
75
94001-06490-0SShips in 1 to 2 Days
$2.15$2.94
76
94002-05490-0SShips in 1 to 2 Days
$0.96$1.36
77
94540-03029Ships in 1 to 2 Days
$1.34$1.90
78
94540-04029Ships in 1 to 2 Days
$5.23$7.16
79
94540-07029Ships in 1 to 2 Days
$4.38$6.00
Diagram

REMOTE CONTROL (NHK MEC) (HANDLE CAP = CHROME)

BF20 BF20D3 remote control (nhk mec) (handle cap = chrome) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY04F1501
Fits only BF20D3-LRTA, BF20D3-SRTA — not every submodel of this generation.

Parts in this assembly

74 parts
1
24800-ZW9-A02Ships in 1 to 2 Days
$279.99
1
24800-ZW9-A03Ships in 1 to 2 Days
$279.99
2
24810-ZZ5-D01Ships in 1 to 2 Days
$48.17$65.98
3
24811-ZZ5-D01Ships in 1 to 2 Days
$102.07$139.84
4
24812-ZZ5-D01Ships in 1 to 2 Days
$9.34$12.80
5
24813-ZZ5-D01Ships in 1 to 2 Days
$25.13$34.42
6
24814-ZZ5-D01Ships in 1 to 2 Days
$56.34$77.18
7
24815-ZZ5-D01Ships in 1 to 2 Days
$15.87$21.74
8
24816-ZZ5-D01Ships in 1 to 2 Days
$2.07$2.84
9
24817-ZZ5-D01Ships in 1 to 2 Days
$2.10$2.88
10
24818-ZZ5-D01Ships in 1 to 2 Days
$2.82$3.86
11
24819-ZZ5-D01Ships in 1 to 2 Days
$2.01$2.76
12
24821-ZZ5-D01Ships in 1 to 2 Days
$131.39$179.98
13
24822-ZZ5-D01Ships in 1 to 2 Days
$47.76$65.42
14
24823-ZZ5-D01Ships in 1 to 2 Days
$34.50$47.26
15
24824-ZZ5-D01Ships in 1 to 2 Days
$2.28$3.12
16
24826-ZZ5-D01Ships in 1 to 2 Days
$4.89$6.70
17
24827-ZZ5-D01Ships in 1 to 2 Days
$14.73$20.18
18
24828-ZZ5-D01Ships in 1 to 2 Days
$3.31$4.54
19
24828-ZZ5-D01Ships in 1 to 2 Days
$3.31$4.54
20
24829-ZZ5-D01Ships in 1 to 2 Days
$7.23$9.90
21
24831-ZZ5-D01Ships in 1 to 2 Days
$6.39$8.76
22
24832-ZZ5-D01Ships in 1 to 2 Days
$5.02$6.88
23
24833-ZZ5-D01Ships in 1 to 2 Days
$5.24$7.18
24
24845-ZZ5-D01Ships in 1 to 2 Days
$26.12$35.78
25
24850-ZZ5-D01Ships in 1 to 2 Days
$38.08$52.16
26
24855-ZZ5-D01Ships in 1 to 2 Daysqty 2 used
$3.72$5.10
27
24875-ZZ5-D01Ships in 1 to 2 Days
$14.34$19.64
28
24876-ZZ5-D01Ships in 1 to 2 Days
$1.65$2.26
29
24878-ZZ5-D01Ships in 1 to 2 Days
$27.11$37.14
30
24883-ZZ5-D01Ships in 1 to 2 Daysqty 5 used
$2.07$2.84
31
32530-ZW9-D01Ships in 1 to 2 Days
$185.55$266.86
32
32823-ZV5-003Ships in 1 to 2 Daysqty 3 used
$2.95$4.04
33
35100-ZV5-013Ships in 1 to 2 Days
$85.13$116.62
34
35370-ZZ5-D02Ships in 1 to 2 Days
$45.01$61.66
35
35645-ZZ3-A41Ships in 1 to 2 Days
$10.12$13.86
36
35701-ZZ5-D01Ships in 1 to 2 Days
$2.13$2.92
37
36180-ZV5-033In Stock
$56.84$77.86
38
36182-ZV4-651In Stock
$18.45$25.28
39
37210-ZW9-832Ships in 1 to 2 Days
$79.50$114.34
40
38403-341-672Ships in 1 to 2 Days
$4.66$6.38
41
38410-ZV5-003Ships in 1 to 2 Days
$56.17$76.94
42
87701-ZZ5-D00Ships in 1 to 2 Days
$4.34$5.94
43
87702-ZZ5-A00Ships in 1 to 2 Days
$5.05$6.92
44
87702-ZZ5-A00Ships in 1 to 2 Days
$5.05$6.92
46
87703-ZZ5-D00Ships in 1 to 2 Days
$15.90$21.78
47
87704-ZZ5-D01Ships in 1 to 2 Days
$5.69$7.80
48
90101-ZZ5-D01Ships in 1 to 2 Daysqty 7 used
$2.69$3.68
49
90102-ZZ5-D01Ships in 1 to 2 Daysqty 2 used
$1.58$2.16
50
90103-ZZ5-D01Ships in 1 to 2 Days
$2.01$2.76
51
90104-ZZ5-D01Ships in 1 to 2 Daysqty 2 used
$1.93$2.64
52
90106-ZZ5-D01Ships in 1 to 2 Daysqty 2 used
$2.07$2.84
53
90107-ZZ5-D01Ships in 1 to 2 Daysqty 3 used
$3.72$5.10
54
90108-ZZ5-D01Ships in 1 to 2 Days
$3.66$5.02
55
90109-ZZ5-D01Ships in 1 to 2 Days
$2.88$3.94
56
90301-ZZ5-D01Ships in 1 to 2 Daysqty 3 used
$1.37$1.88
57
90302-ZZ5-D01Ships in 1 to 2 Days
$0.92$1.26
58
90302-921-000In Stock
$4.10$5.62
59
90501-ZZ5-D01Ships in 1 to 2 Days
$3.34$4.58
60
90502-ZZ5-D01Ships in 1 to 2 Days
$2.04$2.80
61
90503-ZZ5-D01Ships in 1 to 2 Daysqty 2 used
$2.91$3.98
62
90504-ZZ5-D01Ships in 1 to 2 Days
$2.91$3.98
63
90506-ZZ5-D01Ships in 1 to 2 Days
$2.69$3.68
64
90507-ZZ5-D01Ships in 1 to 2 Daysqty 3 used
$3.84$5.26
65
90508-ZZ5-D01Ships in 1 to 2 Days
$3.20$4.38
66
90509-ZZ5-D01Ships in 1 to 2 Daysqty 3 used
$3.61$4.94
67
90651-ZZ5-D01Ships in 1 to 2 Daysqty 2 used
$2.98$4.08
68
91151-ZZ5-D01Ships in 1 to 2 Days
$2.19$3.00
69
91152-ZZ5-D01Ships in 1 to 2 Days
$1.99$2.72
70
91153-ZZ5-D01Ships in 1 to 2 Days
$2.61$3.58
71
91154-ZZ5-D01Ships in 1 to 2 Daysqty 2 used
$3.30$4.52
72
91156-ZZ5-D01Ships in 1 to 2 Days
$1.85$2.54
73
91157-ZZ5-D01Ships in 1 to 2 Days
$3.18$4.36
74
CABLE ASSY., REMOTE CONTROL EXTENSION (4P+6P) (NOT AVAILABLE)
32570-ZY1-900No Longer Available
—
Diagram

SHOCK ABSORBER

BF20 BF20D3 shock absorber exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY04F1110B
Fits only BF20D3-LGA, BF20D3-LHGA, BF20D3-SHGA, BF20D3-XHGA — not every submodel of this generation.

Parts in this assembly

5 parts
1
LEVER, TILT (NOT AVAILABLE)
50517-ZY1-640No Longer Available
—
2
SHOCK ABSORBER ASSY., GAS
51601-ZY1-641No Longer Available
—
2
SHOCK ABSORBER ASSY., GAS (NOT AVAILABLE)
51601-ZY1-731No Longer Available
—
3
90205-PP9-020Ships in 1 to 2 Days
$8.86$12.74
3
90205-ZY1-000Ships in 1 to 2 Days
$4.76$6.52
Diagram

STARTER MOTOR

BF20 BF20D3 starter motor exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY04E2100
Fits only BF20D3-LHGA, BF20D3-LHSA, BF20D3-LHTA, BF20D3-LRA, BF20D3-LRTA, BF20D3-SHGA, BF20D3-SHSA, BF20D3-SHTA, BF20D3-SRA, BF20D3-SRTA, BF20D3-XHGA, BF20D3-XHSA, BF20D3-XHTA — not every submodel of this generation.

Parts in this assembly

29 parts
1
31200-ZY1-803Ships in 1 to 2 Days
$603.68
2
31204-KS5-901Ships in 1 to 2 Daysqty 2 used
$2.85$4.02
3
31207-KS5-901Ships in 1 to 2 Days
$3.14$4.30
4
31210-ZY1-801Ships in 1 to 2 Days
$430.01
5
31214-ZV7-751Ships in 1 to 2 Days
$178.06$251.24
6
31216-ZV4-811Ships in 1 to 2 Days
$203.44$213.61
7
31217-ZV4-812Ships in 1 to 2 Days
$187.39$196.77
8
31221-ZV4-811Ships in 1 to 2 Days
$12.64$17.84
9
31223-ZV4-811Ships in 1 to 2 Days
$5.39$7.74
10
31231-ZV4-811Ships in 1 to 2 Days
$52.91$74.66
11
31233-ZV4-811Ships in 1 to 2 Days
$6.95$9.80
12
31235-ZW9-801Ships in 1 to 2 Days
$133.09$191.46
13
31236-ZV4-811Ships in 1 to 2 Days
$96.62$136.34
14
31238-ZV4-812Ships in 1 to 2 Days
$23.56$33.24
15
31258-ZY1-000Ships in 1 to 2 Days
$7.93$11.40
16
32402-ZY1-801Ships in 1 to 2 Days
$11.56$16.64
17
32411-ZV4-811Ships in 1 to 2 Days
$5.37$7.36
18
35850-ZY1-801Ships in 1 to 2 Days
$72.72$99.62
19
90002-ZY1-000Ships in 1 to 2 Daysqty 2 used
$1.27$1.80
20
90012-ZV4-812Ships in 1 to 2 Days
$5.04$7.24
21
90022-ZW9-000Ships in 1 to 2 Daysqty 2 used
$2.69$3.86
22
90203-ZV4-811Ships in 1 to 2 Days
$2.72$3.84
23
90203-ZY1-801Ships in 1 to 2 Days
$3.88$5.48
24
90204-ZY1-003Ships in 1 to 2 Days
$4.00$5.76
25
90405-ZV4-811Ships in 1 to 2 Days
$2.51$3.54
26
90602-ZV4-811Ships in 1 to 2 Days
$1.69$2.38
27
91320-MB0-000Ships in 1 to 2 Daysqty 3 used
$2.22$3.04
28
91401-ZV4-811Ships in 1 to 2 Days
$3.02$4.26
29
94301-10120Ships in 1 to 2 Daysqty 2 used
$3.01$4.12
Diagram

STERN BRACKET (1)

BF20 BF20D3 stern bracket (1) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY04F1000B
Fits only BF20D3-LHA, BF20D3-LHSA, BF20D3-LRA, BF20D3-SHA, BF20D3-SHSA, BF20D3-SRA, BF20D3-XHSA — not every submodel of this generation.

Parts in this assembly

45 parts
1
50122-935-010Ships in 1 to 2 Daysqty 2 used
$5.37$7.58
2
$171.11$246.10
2
$171.11$246.10
3
$156.83$225.58
3
BRACKET, L. STERN *NH282MU* (OYSTER SILVER METALLIC-U)
50310-ZW9-020ZANo Longer Available
—
4
50323-ZW9-300Ships in 1 to 2 Daysqty 2 used
$7.36$10.38
5
50325-ZW9-830Ships in 1 to 2 Daysqty 2 used
$15.84$22.34
5
50325-ZW9-010Ships in 1 to 2 Daysqty 2 used
$17.83$25.64
6
50331-ZV5-000Ships in 1 to 2 Days
$5.88$8.06
7
50333-ZW9-010Ships in 1 to 2 Days
$6.53$9.38
7
SPRING, TILT (NOT AVAILABLE)
50333-921-003No Longer Available
—
8
50335-ZV5-000Ships in 1 to 2 Days
$8.73$12.32
9
50340-ZV4-010Ships in 1 to 2 Days
$28.60$41.14
9
50340-ZV7-010Ships in 1 to 2 Days
$47.93$68.94
10
50341-ZV4-310Ships in 1 to 2 Days
$22.13$31.84
10
50341-ZV7-310Ships in 1 to 2 Days
$29.48$42.40
11
50342-ZV5-300Ships in 1 to 2 Days
$5.17$7.08
11
50342-ZV4-300Ships in 1 to 2 Days
$5.30$7.62
12
50343-ZV7-300Ships in 1 to 2 Days
$3.78$5.44
12
50343-921-300Ships in 1 to 2 Days
$3.21$4.40
13
50381-ZV5-000Ships in 1 to 2 Days
$76.85$108.42
13
50381-ZZ5-000Ships in 1 to 2 Days
$76.85$108.42
14
68111-ZW9-831Ships in 1 to 2 Days
$26.35$37.90
14
68111-ZW9-010Ships in 1 to 2 Days
$23.26$33.46
14
68111-ZW2-F00Ships in 1 to 2 Days
$19.75$27.88
15
90106-921-010Ships in 1 to 2 Days
$20.92$30.10
16
90108-ZV7-000Ships in 1 to 2 Days
$14.63$21.04
16
BOLT, HEX. (6X160) (NOT AVAILABLE)
92101-06160-4JNo Longer Available
$8.07$11.06
17
90304-ZV4-000Ships in 1 to 2 Days
$2.12$2.90
18
90304-ZV5-003Ships in 1 to 2 Daysqty 2 used
$17.70$24.24
18
90304-ZV5-013Ships in 1 to 2 Daysqty 2 used
$17.70$24.24
19
90305-ZV4-000Ships in 1 to 2 Days
$6.02$8.24
20
90507-ZV4-000Ships in 1 to 2 Days
$2.20$3.02
20
90506-ZV4-000Ships in 1 to 2 Days
$2.45$3.36
21
90511-921-000Ships in 1 to 2 Days
$0.86$1.18
22
90517-ZV5-000Ships in 1 to 2 Daysqty 2 used
$5.50$7.76
22
90513-921-000Ships in 1 to 2 Daysqty 2 used
$1.96$2.82
23
90514-921-000Ships in 1 to 2 Days
$0.99$1.36
24
90855-ZW9-300Ships in 1 to 2 Daysqty 2 used
$11.75$16.58
25
91352-ZV5-000Ships in 1 to 2 Days
$1.74$2.46
26
91501-ZV7-000Ships in 1 to 2 Days
$30.82$44.34
26
91501-ZV4-000Ships in 1 to 2 Days
$20.35$29.28
27
94305-25083Ships in 1 to 2 Days
$1.18$1.66
27
PIN, SPRING (2X8)
94305-20083Ships in 1 to 2 Days
$0.72$0.98
28
50331-ZV5-000Ships in 1 to 2 Days
$5.88$8.06
Diagram

STERN BRACKET (2)

BF20 BF20D3 stern bracket (2) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY04F1001AA
Fits only BF20D3-LGA, BF20D3-LHGA, BF20D3-LHTA, BF20D3-LRTA, BF20D3-SHGA, BF20D3-SHTA, BF20D3-SRTA, BF20D3-XHGA, BF20D3-XHTA — not every submodel of this generation.

Parts in this assembly

37 parts
1
40219-ZY1-013Ships in 1 to 2 Daysreplaced by 40219-ZY1-023
$9.61$13.16
1
40219-ZY1-023Ships in 1 to 2 Days
$9.61$13.16
1
40219-ZY3-013Ships in 1 to 2 Daysreplaced by 40219-ZY3-023
$9.05$12.40
1
40219-ZY3-023Ships in 1 to 2 Days
$9.05$12.40
2
50122-935-010Ships in 1 to 2 Daysqty 2 used
$5.37$7.58
3
$274.41$375.90
3
$274.41$375.90
3
$282.47$386.94
4
$259.33$355.24
4
$259.33$355.24
5
50323-ZW9-300Ships in 1 to 2 Daysqty 2 used
$7.36$10.38
6
50325-ZW9-830Ships in 1 to 2 Daysqty 2 used
$15.84$22.34
7
50331-ZV5-000Ships in 1 to 2 Daysqty 2 used
$5.88$8.06
8
50335-ZV5-000Ships in 1 to 2 Days
$8.73$12.32
9
50340-ZY1-871Ships in 1 to 2 Days
$25.52$36.00
10
50342-ZV5-300Ships in 1 to 2 Days
$5.17$7.08
11
50343-921-300Ships in 1 to 2 Days
$3.21$4.40
12
50381-ZV5-000Ships in 1 to 2 Days
$76.85$108.42
12
50381-ZZ5-000Ships in 1 to 2 Days
$76.85$108.42
13
56118-ZV5-820Ships in 1 to 2 Days
$8.56$11.72
14
56513-ZV5-000Ships in 1 to 2 Daysqty 2 used
$3.77$5.16
15
56539-ZY1-870Ships in 1 to 2 Days
$61.19$86.34
16
68111-ZW9-831Ships in 1 to 2 Days
$26.35$37.90
16
68111-ZW2-F00Ships in 1 to 2 Days
$19.75$27.88
17
90108-ZY1-870Ships in 1 to 2 Days
$9.18$12.96
18
90119-ZV5-000Ships in 1 to 2 Daysqty 2 used
$1.65$2.26
19
90304-ZV5-003Ships in 1 to 2 Daysqty 2 used
$17.70$24.24
19
90304-ZV5-013Ships in 1 to 2 Daysqty 2 used
$17.70$24.24
20
90305-ZV4-000Ships in 1 to 2 Days
$6.02$8.24
21
90507-ZV4-000Ships in 1 to 2 Days
$2.20$3.02
22
90517-ZV5-000Ships in 1 to 2 Daysqty 2 used
$5.50$7.76
23
90855-ZW9-300Ships in 1 to 2 Daysqty 2 used
$11.75$16.58
24
91352-ZV5-000Ships in 1 to 2 Days
$1.74$2.46
25
91599-ZY1-870Ships in 1 to 2 Days
$6.51$9.36
26
94305-25083Ships in 1 to 2 Days
$1.18$1.66
27
41106-ZW9-000In Stock
$8.72$12.30
28
90102-ZW9-000Ships in 1 to 2 Days
$2.12$2.90
Diagram

SWIVEL CASE (1)

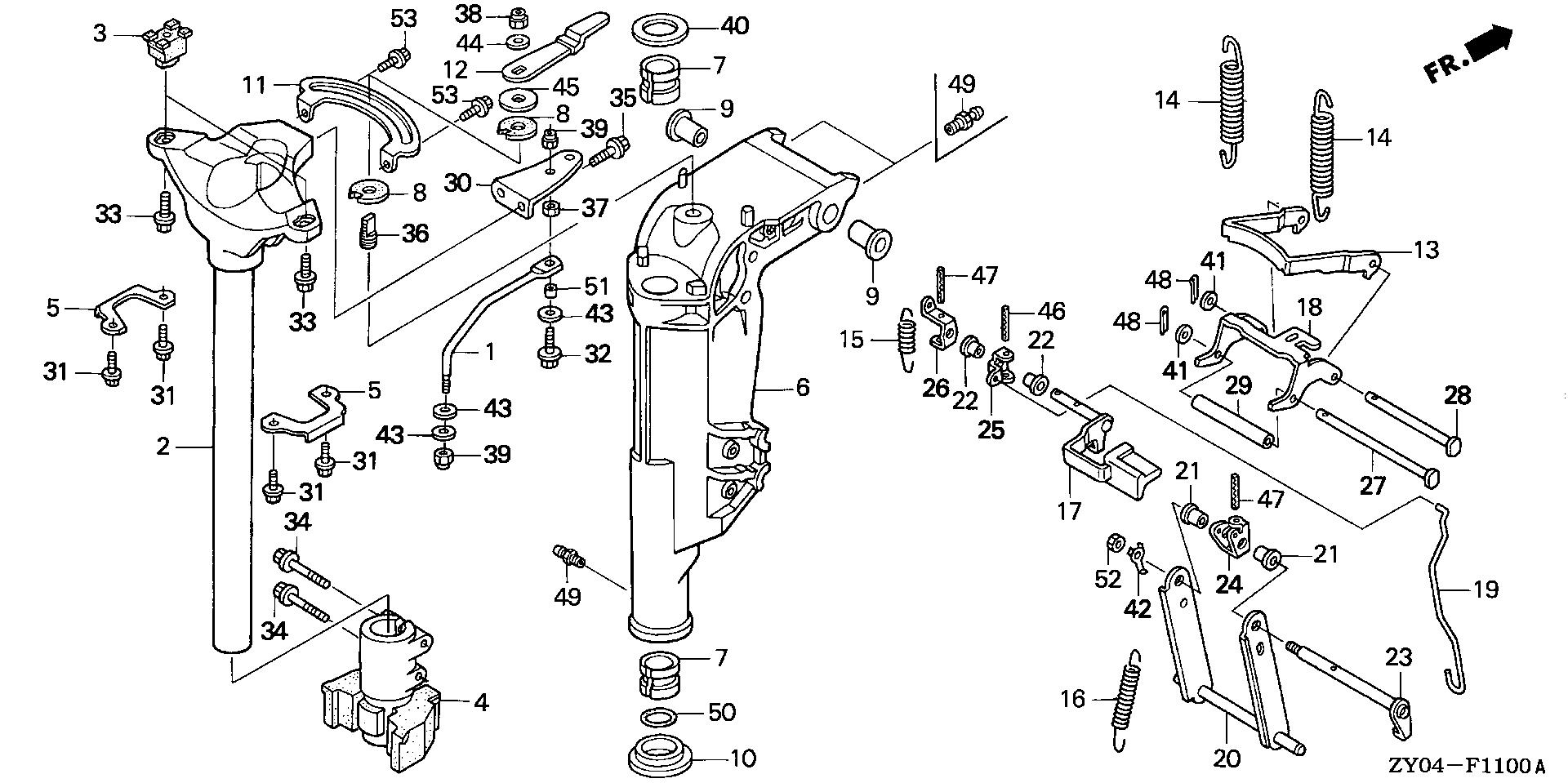

BF20 BF20D3 swivel case (1) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY04F1100A
Fits only BF20D3-LHA, BF20D3-LHSA, BF20D3-LRA, BF20D3-SHA, BF20D3-SHSA, BF20D3-SRA, BF20D3-XHSA — not every submodel of this generation.

Parts in this assembly

61 parts
1
17853-ZV5-000Ships in 1 to 2 Days
$80.01$112.90
2
50100-ZW9-010Ships in 1 to 2 Days
$180.19$259.20
2
50100-ZW9-631Ships in 1 to 2 Days
$192.44$263.62
3
50150-ZY1-000Ships in 1 to 2 Daysqty 2 used
$20.05$28.82
4
50152-ZW9-000Ships in 1 to 2 Days
$80.40$115.64
5
50153-ZW9-000Ships in 1 to 2 Daysqty 2 used
$7.31$10.52
6
CASE, SWIVEL *NH282MU* (L) (OYSTER SILVER METALLIC-U)
50201-ZY1-610ZANo Longer Available
—
6
CASE, SWIVEL *NH282MU* (S) (OYSTER SILVER METALLIC-U)
50201-ZW9-000ZANo Longer Available
—
6
$209.44
7
50211-ZW9-000Ships in 1 to 2 Daysqty 2 used
$5.36$5.63
8
50212-ZW9-003Ships in 1 to 2 Daysqty 2 used
$10.86$14.88
9
50214-ZV5-003Ships in 1 to 2 Daysqty 2 used
$7.65$10.48
9
50214-ZV4-003Ships in 1 to 2 Daysqty 2 used
$6.31$9.08
10
50215-ZW9-000Ships in 1 to 2 Days
$4.76$6.84
11
50218-ZW9-010Ships in 1 to 2 Days
$9.39$13.50
12
50219-ZW9-010Ships in 1 to 2 Days
$7.84$10.74
13
50512-ZW9-010Ships in 1 to 2 Days
$18.21$26.20
14
50514-ZW9-A30Ships in 1 to 2 Daysqty 2 used
$17.86$25.68
14
50514-ZW9-000Ships in 1 to 2 Daysqty 2 used
$10.53$15.14
15
50515-ZW9-300Ships in 1 to 2 Days
$3.78$5.44
16
50516-ZV4-300Ships in 1 to 2 Days
$4.66$6.70
17
50517-ZW9-A32Ships in 1 to 2 Days
$36.51$52.52
17
50517-ZW9-010Ships in 1 to 2 Days
$31.38$45.12
18
50518-ZW9-000Ships in 1 to 2 Days
$20.75$29.84
19
50519-ZW9-A30Ships in 1 to 2 Days
$8.57$12.32
19
50519-ZW9-010Ships in 1 to 2 Days
$6.32$9.10
20
50520-ZV4-010Ships in 1 to 2 Days
$58.49$84.12
20
50520-ZW9-A31Ships in 1 to 2 Days
$73.91$106.28
21
50521-ZV1-000Ships in 1 to 2 Daysqty 2 used
$5.88$8.30
22
50522-ZV4-000Ships in 1 to 2 Daysqty 2 used
$5.01$7.20
23
50525-ZV4-010Ships in 1 to 2 Days
$22.15$31.86
24
50526-ZV4-000Ships in 1 to 2 Days
$8.61$12.40
25
50527-ZV4-010Ships in 1 to 2 Days
$4.98$7.16
26
50528-ZV4-010Ships in 1 to 2 Days
$4.98$7.16
27
50531-ZV7-000Ships in 1 to 2 Days
$9.34$13.44
28
50532-ZV4-000Ships in 1 to 2 Days
$6.77$9.74
29
50533-ZW9-000Ships in 1 to 2 Days
$10.34$14.86
30
53234-ZW9-830Ships in 1 to 2 Days
$33.68$48.46
31
90102-ZW9-000Ships in 1 to 2 Daysqty 4 used
$2.12$2.90
32
90105-ZV5-000Ships in 1 to 2 Days
$6.91$9.74
33
90154-ZW9-000Ships in 1 to 2 Daysqty 2 used
$3.07$4.32
34
90159-ZW9-000Ships in 1 to 2 Daysqty 2 used
$3.66$5.28
35
90161-ZW9-830Ships in 1 to 2 Daysqty 2 used
$3.23$4.56
36
90162-ZW9-000Ships in 1 to 2 Days
$4.80$6.58
37
90302-ZV5-000Ships in 1 to 2 Days
$8.66$12.22
38
90305-ZW9-000Ships in 1 to 2 Days
$4.91$6.72
39
90307-ZV5-003Ships in 1 to 2 Daysqty 2 used
$6.47$8.86
40
90454-881-000Ships in 1 to 2 Days
$2.82$4.06
41
90504-921-010Ships in 1 to 2 Daysqty 2 used
$1.27$1.74
42
90505-ZV4-000Ships in 1 to 2 Days
$2.98$4.08
43
90514-ZV4-000Ships in 1 to 2 Daysqty 3 used
$1.69$2.32
44
90514-921-000Ships in 1 to 2 Days
$0.99$1.36
45
90517-ZW9-000Ships in 1 to 2 Days
$1.42$1.94
46
90751-ZV4-C21In Stock
$2.70$3.88
47
90752-ZV4-C21In Stockqty 2 used
$2.70$3.88
48
90759-ZV1-000In Stockqty 2 used
$1.42$1.94
49
90951-ZV7-010Ships in 1 to 2 Daysqty 3 used
$1.90$2.60
50
91361-VD6-003Ships in 1 to 2 Days
$2.31$3.32
51
91560-ZV5-000Ships in 1 to 2 Days
$3.07$4.20
52
94002-06490-0SShips in 1 to 2 Days
$2.58$3.54
53
90103-ZW9-010Ships in 1 to 2 Daysqty 2 used
$2.04$2.80
Diagram

SWIVEL CASE (2)

BF20 BF20D3 swivel case (2) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY04F1101B
Fits only BF20D3-LGA, BF20D3-LHGA, BF20D3-LHTA, BF20D3-LRTA, BF20D3-SHGA, BF20D3-SHTA, BF20D3-SRTA, BF20D3-XHGA, BF20D3-XHTA — not every submodel of this generation.

Parts in this assembly

41 parts
1
17853-ZV5-000Ships in 1 to 2 Days
$80.01$112.90
2
24210-ZV1-010Ships in 1 to 2 Days
$10.25$14.04
3
50100-ZW9-631Ships in 1 to 2 Days
$192.44$263.62
3
50100-ZW9-010Ships in 1 to 2 Days
$180.19$259.20
4
50150-ZY1-000Ships in 1 to 2 Daysqty 2 used
$20.05$28.82
5
50152-ZW9-000Ships in 1 to 2 Days
$80.40$115.64
6
50153-ZW9-000Ships in 1 to 2 Daysqty 2 used
$7.31$10.52
7
50153-ZY1-870Ships in 1 to 2 Days
$6.42$9.24
8
$344.52$471.94
8
CASE, SWIVEL *NH282MU* (S)(PT) (OYSTER SILVER METALLIC-U) (NOT AVAILABLE)
50201-ZY1-730ZANo Longer Available
—
9
50211-ZW9-000Ships in 1 to 2 Daysqty 2 used
$5.36$5.63
10
50212-ZW9-003Ships in 1 to 2 Daysqty 2 used
$10.86$14.88
11
50214-ZV5-003Ships in 1 to 2 Daysqty 2 used
$7.65$10.48
12
50215-ZW9-000Ships in 1 to 2 Days
$4.76$6.84
13
50218-ZW9-010Ships in 1 to 2 Days
$9.39$13.50
14
50219-ZW9-010Ships in 1 to 2 Days
$7.84$10.74
15
50522-ZV5-000Ships in 1 to 2 Daysqty 2 used
$5.71$7.82
16
50527-ZY1-870Ships in 1 to 2 Days
$13.93$19.66
17
50529-ZY1-870Ships in 1 to 2 Daysqty 2 used
$40.75$57.50
18
53234-ZW9-830Ships in 1 to 2 Days
$33.68$48.46
19
56513-ZV5-000Ships in 1 to 2 Daysqty 2 used
$3.77$5.16
20
56532-ZY1-870Ships in 1 to 2 Days
$18.99$26.80
21
90102-ZW9-000Ships in 1 to 2 Daysqty 5 used
$2.12$2.90
22
90105-ZV5-000Ships in 1 to 2 Days
$6.91$9.74
23
90154-ZW9-000Ships in 1 to 2 Daysqty 2 used
$3.07$4.32
24
90159-ZW9-000Ships in 1 to 2 Daysqty 2 used
$3.66$5.28
25
90161-ZW9-830Ships in 1 to 2 Daysqty 2 used
$3.23$4.56
26
90162-ZW9-000Ships in 1 to 2 Days
$4.80$6.58
27
90302-ZV5-000Ships in 1 to 2 Days
$8.66$12.22
28
90305-ZW9-000Ships in 1 to 2 Days
$4.91$6.72
29
90307-ZV5-003Ships in 1 to 2 Daysqty 2 used
$6.47$8.86
30
90454-881-000Ships in 1 to 2 Days
$2.82$4.06
31
90514-ZV4-000Ships in 1 to 2 Daysqty 3 used
$1.69$2.32
32
90514-921-000Ships in 1 to 2 Days
$0.99$1.36
33
90517-ZW9-000Ships in 1 to 2 Days
$1.42$1.94
34
90951-ZV7-010Ships in 1 to 2 Daysqty 3 used
$1.90$2.60
35
91361-VD6-003Ships in 1 to 2 Days
$2.31$3.32
36
91560-ZV5-000Ships in 1 to 2 Days
$3.07$4.20
37
94305-25203Ships in 1 to 2 Daysqty 2 used
$1.37$1.88
38
94540-15029Ships in 1 to 2 Days
$8.02$10.98
39
90103-ZW9-010Ships in 1 to 2 Daysqty 2 used
$2.04$2.80
Diagram

THERMOSTAT

BF20 BF20D3 thermostat exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY04E0400A
Fits all 16 submodels of this generation.

Parts in this assembly

15 parts
1
12155-ZV4-A00Ships in 1 to 2 Daysreplaced by 12155-ZV4-A01
$10.91$14.94
1
12155-ZV4-A01Ships in 1 to 2 Days
$10.91$14.94
2
19279-ZW9-010Ships in 1 to 2 Days
$1.58$2.16
3
19291-ZW9-000Ships in 1 to 2 Days
$5.90$8.08
4
19297-ZW9-000Ships in 1 to 2 Daysreplaced by 19297-ZW9-010
$1.53$2.10
4
19297-ZW9-010Ships in 1 to 2 Days
$1.53$2.10
5
19300-ZW9-003In Stock
$43.00$58.90
↳
Sierra alternative ·
18-3628-1In Stock save $0.08
$42.92
6
19315-ZW9-000Ships in 1 to 2 Days
$10.96$15.02
7
19317-ZW9-000Ships in 1 to 2 Days
$5.15$7.06
8
19361-ZW9-405Ships in 1 to 2 Days
$52.46$75.44
9
19371-ZW9-000Ships in 1 to 2 Days
$10.95$15.76
10
90002-ZW9-030Ships in 1 to 2 Daysqty 2 used
$2.26$3.26
11
90012-ZW9-030Ships in 1 to 2 Daysqty 6 used
$1.90$2.68
12
93500-05020-4JShips in 1 to 2 Days
$0.86$1.18
13
19303-ZW9-003In Stock
$5.30$7.26
Diagram

TIMING BELT

BF20 BF20D3 timing belt exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY04E1300
Fits all 16 submodels of this generation.

Parts in this assembly

5 parts
1
14315-ZY1-000Ships in 1 to 2 Days
$39.22$56.42
2
14316-ZY1-000Ships in 1 to 2 Daysqty 2 used
$6.39$9.20
3
14321-ZW9-003Ships in 1 to 2 Days
$75.25$108.22
4
14400-ZY1-013Ships in 1 to 2 Days
$41.45$59.62
5
90201-ZY1-000Ships in 1 to 2 Days
$8.72$12.54
Diagram

TOOLS

BF20 BF20D3 tools exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY04F1300
Fits all 16 submodels of this generation.

Parts in this assembly

13 parts
1
28461-ZH8-013Ships in 1 to 2 Days
$1.69$2.32
2
28462-ZW9-003Ships in 1 to 2 Days
$9.75$13.36
3
36187-ZV4-652Ships in 1 to 2 Days
$4.18$5.72
4
SPANNER (8MM) (NOT AVAILABLE)
89203-836-000No Longer Available
—
5
89216-130-690Ships in 1 to 2 Days
$7.21$9.88
6
89217-355-000Ships in 1 to 2 Days
$9.83$13.46
7
89301-921-010Ships in 1 to 2 Days
$5.87$8.28
8
99001-10120Ships in 1 to 2 Days
$6.26$8.58
9
89210-GBJ-J10Ships in 1 to 2 Days
$19.36$26.52
10
99003-10000Ships in 1 to 2 Days
$3.81$5.22
11
99003-30000Ships in 1 to 2 Days
$3.81$5.22
12
99003-50000Ships in 1 to 2 Days
$4.96$6.80
13
99008-01600Ships in 1 to 2 Days
$2.13$2.92
Diagram

WATER HOSE JOINT KIT

BF20 BF20D3 water hose joint kit exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY04X0200
Fits all 16 submodels of this generation.

Parts in this assembly

5 parts
1
06190-ZV1-860Ships in 1 to 2 Days
$12.10$16.58
2
19270-881-812Ships in 1 to 2 Days
$10.42$14.70
3
19271-ZV1-810Ships in 1 to 2 Days
$13.20$18.62
4
19271-ZV1-810Ships in 1 to 2 Days
$13.20$18.62
5
19272-881-810Ships in 1 to 2 Days
$2.45$3.46
Diagram

WATER PUMP - VERTICAL SHAFT (1)

BF20 BF20D3 water pump - vertical shaft (1) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY04F0400
Fits only BF20D3-LGA, BF20D3-LHA, BF20D3-LHGA, BF20D3-LHSA, BF20D3-LHTA, BF20D3-LRA, BF20D3-LRTA, BF20D3-SHA, BF20D3-SHGA, BF20D3-SHSA, BF20D3-SHTA, BF20D3-SRA, BF20D3-SRTA — not every submodel of this generation.

Parts in this assembly

37 parts
1
12216-ZE2-300Ships in 1 to 2 Days
$1.72$2.36
2
15332-ZY1-000Ships in 1 to 2 Days
$7.67$11.02
3
19210-ZW9-A32Ships in 1 to 2 Days
$15.70$22.58
↳
Sierra alternative ·
18-32455In Stock
$25.19
4
19215-ZW9-020Ships in 1 to 2 Days
$48.56$69.86
5
19231-ZW9-000Ships in 1 to 2 Days
$8.47$12.18
6
19232-ZW9-000Ships in 1 to 2 Days
$2.15$3.08
7
19240-ZY1-C00Ships in 1 to 2 Days
$103.88$149.44
8
19243-ZW9-000Ships in 1 to 2 Days
$6.47$9.30
9
19251-ZW9-000Ships in 1 to 2 Days
$37.23$53.54
9
19251-ZW9-630Ships in 1 to 2 Days
$41.51$59.70
10
19253-ZW9-000Ships in 1 to 2 Days
$3.83$5.50
11
24311-ZY1-C00Ships in 1 to 2 Days
$23.18$33.34
11
24311-ZY1-C10Ships in 1 to 2 Days
$23.18$33.34
12
24312-ZV7-000Ships in 1 to 2 Days
$14.40$20.30
13
24320-ZW9-000Ships in 1 to 2 Days
$22.60$32.52
13
24320-ZW9-630Ships in 1 to 2 Days
$25.49$36.66
14
24341-ZY1-C00Ships in 1 to 2 Days
$19.80$28.48
15
41112-ZY1-C00Ships in 1 to 2 Days
$248.90$358.00
15
41112-ZY1-C10Ships in 1 to 2 Days
$286.23$392.10
16
41116-ZW9-A30Ships in 1 to 2 Days
$11.40$16.40
17
41131-ZY1-000Ships in 1 to 2 Days
$50.63$72.82
18
41135-ZY1-000Ships in 1 to 2 Days
$7.11$10.22
19
41136-ZY1-010Ships in 1 to 2 Days
$6.45$9.28
19
41137-ZY1-010Ships in 1 to 2 Days
$6.45$9.28
20
90102-ZW9-000Ships in 1 to 2 Days
$2.12$2.90
21
90105-ZW9-000Ships in 1 to 2 Daysqty 3 used
$2.88$3.94
22
90121-ZW9-000Ships in 1 to 2 Daysqty 4 used
$3.05$4.38
23
90515-ZW9-000Ships in 1 to 2 Days
$3.36$4.84
24
90752-ZW9-A30Ships in 1 to 2 Days
$2.29$3.30
↳
Sierra alternative ·
18-3025In Stock save $0.12
$2.17
25
91052-ZV4-003Ships in 1 to 2 Days
$11.17$16.06
26
91251-ZW9-003Ships in 1 to 2 Daysqty 2 used
$4.77$6.86
27
91253-ZW9-003Ships in 1 to 2 Days
$8.51$12.00
28
91301-ZG3-000Ships in 1 to 2 Days
$2.26$3.20
29
91351-ZW9-000Ships in 1 to 2 Days
$7.07$10.16
30
94001-06490-0SShips in 1 to 2 Days
$2.15$2.94
31
E-RING (8MM)
94540-08018Ships in 1 to 2 Days
$5.43$7.44
32
96220-25118Ships in 1 to 2 Daysqty 2 used
$0.61$0.84
Diagram

WATER PUMP - VERTICAL SHAFT (2)

BF20 BF20D3 water pump - vertical shaft (2) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY04F0401
Fits only BF20D3-XHGA, BF20D3-XHSA, BF20D3-XHTA — not every submodel of this generation.

Parts in this assembly

33 parts
1
12216-ZE2-300Ships in 1 to 2 Days
$1.72$2.36
2
15332-ZW9-A30Ships in 1 to 2 Days
$8.07$11.62
3
19210-ZW9-A32Ships in 1 to 2 Days
$15.70$22.58
↳
Sierra alternative ·
18-32455In Stock
$25.19
4
19215-ZW9-020Ships in 1 to 2 Days
$48.56$69.86
5
19231-ZW9-000Ships in 1 to 2 Days
$8.47$12.18
6
19232-ZW9-000Ships in 1 to 2 Days
$2.15$3.08
7
19240-ZY1-C20Ships in 1 to 2 Days
$118.01$169.72
8
19243-ZW9-000Ships in 1 to 2 Days
$6.47$9.30
9
19251-ZW9-A30Ships in 1 to 2 Days
$42.82$61.60
10
19253-ZW9-000Ships in 1 to 2 Days
$3.83$5.50
11
24311-ZY1-C20Ships in 1 to 2 Days
$27.36$39.36
12
24312-ZV7-000Ships in 1 to 2 Days
$14.40$20.30
13
24320-ZW9-630Ships in 1 to 2 Days
$25.49$36.66
14
24341-ZY1-C00Ships in 1 to 2 Days
$19.80$28.48
15
41112-ZY1-C20Ships in 1 to 2 Days
$285.36$390.90
16
41116-ZW9-A30Ships in 1 to 2 Days
$11.40$16.40
17
41131-ZY1-000Ships in 1 to 2 Days
$50.63$72.82
18
41135-ZY1-000Ships in 1 to 2 Days
$7.11$10.22
19
41136-ZY1-010Ships in 1 to 2 Days
$6.45$9.28
19
41137-ZY1-010Ships in 1 to 2 Days
$6.45$9.28
20
90102-ZW9-000Ships in 1 to 2 Days
$2.12$2.90
21
90105-ZW9-000Ships in 1 to 2 Daysqty 3 used
$2.88$3.94
22
90122-ZW9-000Ships in 1 to 2 Daysqty 4 used
$3.83$5.50
23
90515-ZW9-000Ships in 1 to 2 Days
$3.36$4.84
24
90752-ZW9-A30Ships in 1 to 2 Days
$2.29$3.30
↳
Sierra alternative ·
18-3025In Stock save $0.12
$2.17
25
91052-ZV4-003Ships in 1 to 2 Days
$11.17$16.06
26
91251-ZW9-003Ships in 1 to 2 Daysqty 2 used
$4.77$6.86
27
91253-ZW9-003Ships in 1 to 2 Days
$8.51$12.00
28
91301-ZG3-000Ships in 1 to 2 Days
$2.26$3.20
29
91351-ZW9-000Ships in 1 to 2 Days
$7.07$10.16
30
94001-06490-0SShips in 1 to 2 Days
$2.15$2.94
31
E-RING (8MM)
94540-08018Ships in 1 to 2 Days
$5.43$7.44
32
96220-25118Ships in 1 to 2 Daysqty 2 used
$0.61$0.84
Diagram

WATER PUMP IMPELLER KIT

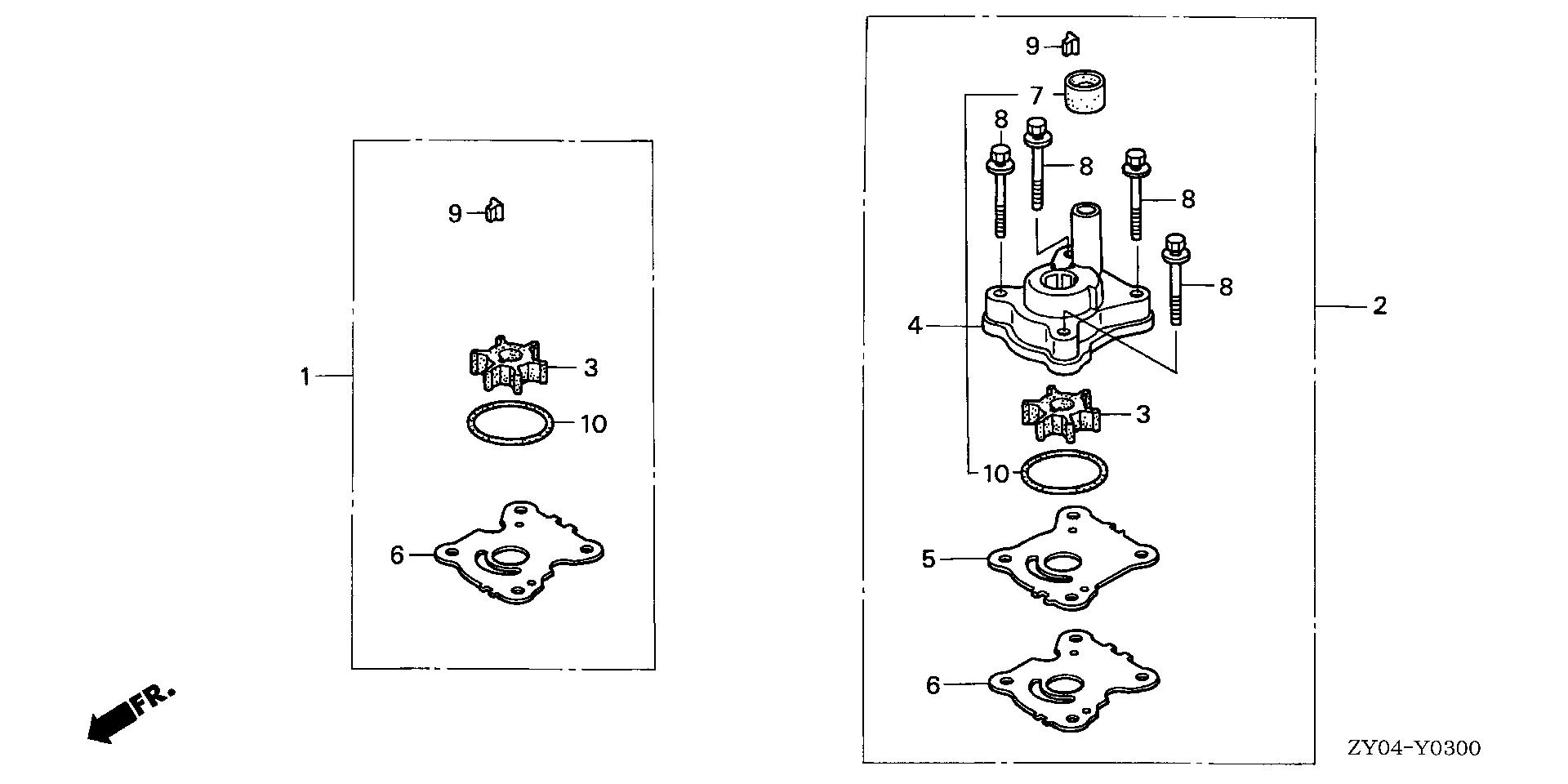

BF20 BF20D3 water pump impeller kit exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY04Y0300
Fits all 16 submodels of this generation.

Parts in this assembly

12 parts
1
06192-ZW9-A31Ships in 1 to 2 Daysreplaced by 06192-ZW9-A32
$27.93$40.18
1
06192-ZW9-A32Ships in 1 to 2 Days
$27.93$40.18
2
06193-ZW9-A32Ships in 1 to 2 Daysreplaced by 06193-ZW9-A34
$44.40$63.86
2
06193-ZY1-030Ships in 1 to 2 Days
$42.52$61.16
3
19210-ZW9-A32Ships in 1 to 2 Days
$15.70$22.58
↳
Sierra alternative ·
18-32455In Stock
$25.19
4
19215-ZW9-020Ships in 1 to 2 Days
$48.56$69.86
5
19231-ZW9-000Ships in 1 to 2 Days
$8.47$12.18
6
19232-ZW9-000Ships in 1 to 2 Days
$2.15$3.08
7
19253-ZW9-000Ships in 1 to 2 Days
$3.83$5.50
8
90121-ZW9-000Ships in 1 to 2 Daysqty 4 used
$3.05$4.38
9
90752-ZW9-A30Ships in 1 to 2 Days
$2.29$3.30
↳
Sierra alternative ·
18-3025In Stock save $0.12
$2.17
10
91301-ZG3-000Ships in 1 to 2 Days
$2.26$3.20
Diagram

WIRE HARNESS - REGULATOR - STARTER CABLE (1)

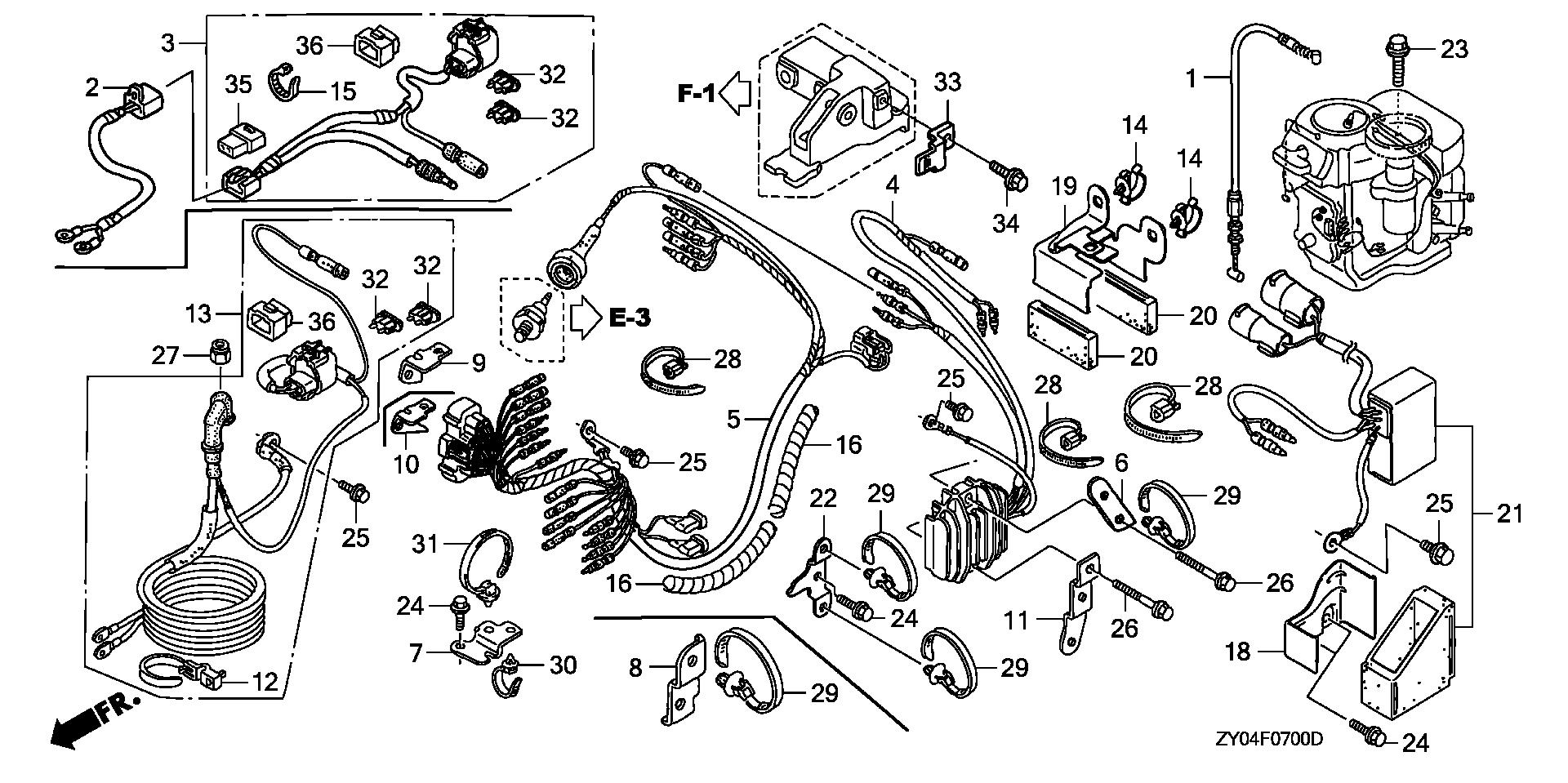

BF20 BF20D3 wire harness - regulator - starter cable (1) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY04F0700D
Fits only BF20D3-LGA, BF20D3-LHA, BF20D3-LHGA, BF20D3-LHSA, BF20D3-LHTA, BF20D3-SHA, BF20D3-SHGA, BF20D3-SHSA, BF20D3-SHTA, BF20D3-XHGA, BF20D3-XHSA, BF20D3-XHTA — not every submodel of this generation.

Parts in this assembly

39 parts
1
17940-ZW9-010Ships in 1 to 2 Days
$12.54$18.04
2
31575-ZW9-000Ships in 1 to 2 Days
$59.71$85.88
3
31650-ZY1-000Ships in 1 to 2 Days
$31.84$45.80
4
31750-ZY1-003Ships in 1 to 2 Days
$86.18$123.98
4
31750-ZY1-732Ships in 1 to 2 Days
$97.00$139.54
5
32100-ZY1-000Ships in 1 to 2 Days
$154.70$222.54
5
32100-ZY1-700Ships in 1 to 2 Days
$154.70$222.54
6
32103-ZW9-020Ships in 1 to 2 Days
$1.43$2.06
7
32112-ZW9-010Ships in 1 to 2 Days
$4.18$6.00
8
32114-ZVL-000Ships in 1 to 2 Days
$2.89$3.96
9
32115-ZW9-010Ships in 1 to 2 Days
$3.80$5.46
10
32115-ZY1-870Ships in 1 to 2 Daysreplaced by 32115-ZY1-871
$3.33$4.78
10
32115-ZY1-871Ships in 1 to 2 Days
$3.33$4.78
11
32118-ZW9-731Ships in 1 to 2 Days
$4.53$6.52
12
32121-HA0-003No Longer Available
$7.81$10.70
13
32410-ZY1-730Ships in 1 to 2 Days
$174.63$239.22
13
32410-ZY1-870Ships in 1 to 2 Days
$174.63$239.22
14
32660-MJ6-710Ships in 1 to 2 Daysqty 2 used
$3.43$4.70
15
32901-952-770Ships in 1 to 2 Days
$2.19$3.00
16
36104-ZW9-003Ships in 1 to 2 Daysqty 2 used
$7.65$11.00
18
38552-ZY1-871Ships in 1 to 2 Days
$31.54$44.50
19
38553-ZY1-870Ships in 1 to 2 Days
$15.39$22.14
20
38554-ZY1-870Ships in 1 to 2 Daysqty 2 used
$1.97$2.84
21
38555-ZY1-871Ships in 1 to 2 Days
$211.69$298.70
22
38556-ZY1-871Ships in 1 to 2 Days
$4.92$7.08
23
90005-ZW9-030Ships in 1 to 2 Days
$1.85$2.54
24
90011-ZW9-000Ships in 1 to 2 Daysqty 2 used
$1.71$2.34
25
90013-ZW9-000Ships in 1 to 2 Days
$1.47$2.08
26
90114-ZW9-030Ships in 1 to 2 Daysqty 2 used
$1.96$2.82
27
90204-ZY1-003Ships in 1 to 2 Days
$4.00$5.76
28
90650-ZY1-003Ships in 1 to 2 Days
$3.40$4.66
29
91540-S30-003Ships in 1 to 2 Daysqty 3 used
$3.14$4.30
30
91547-SF4-003Ships in 1 to 2 Days
$7.55$10.86
31
91567-SE0-003Ships in 1 to 2 Days
$9.42$12.90
32
98200-32000Ships in 1 to 2 Daysqty 2 used
$1.20$1.64
33
32117-ZW9-000Ships in 1 to 2 Days
$7.07$9.68
34
90102-ZW9-000Ships in 1 to 2 Days
$2.12$2.90
35
32521-ZW9-000Ships in 1 to 2 Days
$4.18$6.00
36
38218-ZW9-003Ships in 1 to 2 Days
$6.53$9.38
Diagram

WIRE HARNESS - REGULATOR - STARTER CABLE (2)

BF20 BF20D3 wire harness - regulator - starter cable (2) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY04F0701C
Fits only BF20D3-LRA, BF20D3-LRTA, BF20D3-SRA, BF20D3-SRTA — not every submodel of this generation.

Parts in this assembly

32 parts
1
17940-ZW9-010Ships in 1 to 2 Days
$12.54$18.04
2
31750-ZY1-732Ships in 1 to 2 Days
$97.00$139.54
3
32100-ZY1-810Ships in 1 to 2 Days
$154.70$222.54
3
32100-ZY1-870Ships in 1 to 2 Days
$154.70$222.54
4
32103-ZW9-020Ships in 1 to 2 Days
$1.43$2.06
5
32112-ZW9-010Ships in 1 to 2 Days
$4.18$6.00
6
32114-ZVL-000Ships in 1 to 2 Days
$2.89$3.96
7
32115-ZW9-010Ships in 1 to 2 Days
$3.80$5.46
8
32115-ZY1-870Ships in 1 to 2 Daysreplaced by 32115-ZY1-871
$3.33$4.78
8
32115-ZY1-871Ships in 1 to 2 Days
$3.33$4.78
9
32118-ZW9-731Ships in 1 to 2 Days
$4.53$6.52
10
32121-HA0-003No Longer Available
$7.81$10.70
11
32410-ZY1-730Ships in 1 to 2 Days
$174.63$239.22
11
32410-ZY1-870Ships in 1 to 2 Days
$174.63$239.22
12
32660-MJ6-710Ships in 1 to 2 Daysqty 2 used
$3.43$4.70
13
36104-ZW9-003Ships in 1 to 2 Daysqty 2 used
$7.65$11.00
15
38552-ZY1-871Ships in 1 to 2 Days
$31.54$44.50
16
38553-ZY1-870Ships in 1 to 2 Days
$15.39$22.14
17
38554-ZY1-870Ships in 1 to 2 Daysqty 2 used
$1.97$2.84
18
38555-ZY1-871Ships in 1 to 2 Days
$211.69$298.70
19
38556-ZY1-871Ships in 1 to 2 Days
$4.92$7.08
20
90005-ZW9-030Ships in 1 to 2 Days
$1.85$2.54
21
90011-ZW9-000Ships in 1 to 2 Daysqty 2 used
$1.71$2.34
22
90013-ZW9-000Ships in 1 to 2 Daysqty 3 used
$1.47$2.08
23
90114-ZW9-030Ships in 1 to 2 Daysqty 2 used
$1.96$2.82
24
90204-ZY1-003Ships in 1 to 2 Days
$4.00$5.76
25
90650-ZY1-003Ships in 1 to 2 Daysqty 2 used
$3.40$4.66
26
91540-S30-003Ships in 1 to 2 Daysqty 3 used
$3.14$4.30
27
91547-SF4-003Ships in 1 to 2 Days
$7.55$10.86
28
91567-SE0-003Ships in 1 to 2 Days
$9.42$12.90
29
98200-32000Ships in 1 to 2 Daysqty 2 used
$1.20$1.64
30
90691-ZB7-003Ships in 1 to 2 Days
$3.07$4.20
Diagrams are Honda's official OEM illustrations, served from Honda's asset host. Prices are our own; where a struck-through figure appears beside one it is Honda's suggested retail. “In Stock” means the part is on our shelf here at Boe Marine. “Ships in 1 to 2 Days” means we order it in from Honda, who still supply it. Parts marked “No Longer Available” are shown so the drawing stays complete, but Honda has discontinued them. Where a Sierra replacement is listed beneath a Honda part, Sierra ships it direct to you; “Backorder Now” on one of those means Sierra has none at the moment and will ship it once restocked.
