BF15 — Parts Diagrams

Generation BF15DK3  ·  7 submodels

Assemblies (41)

Diagram

CAMSHAFT - VALVE

BF15 BF15DK3 camshaft - valve exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY0CE0900
Fits all 7 submodels of this generation.

Parts in this assembly

15 parts
1
12209-GB4-682Ships in 1 to 2 Daysqty 4 used
$6.63$9.08
2
14110-ZY0-000Ships in 1 to 2 Days
$147.74$212.48
2
14110-ZY1-000Ships in 1 to 2 Days
$203.31$292.42
3
14431-ZW9-000Ships in 1 to 2 Daysqty 4 used
$22.09$31.78
4
14436-ZW9-003Ships in 1 to 2 Days
$19.86$28.56
5
14461-ZW9-000Ships in 1 to 2 Days
$15.36$22.08
6
14481-ZW9-000Ships in 1 to 2 Days
$4.12$5.92
7
14711-ZY1-000Ships in 1 to 2 Daysqty 2 used
$21.56$31.02
8
14721-ZY1-000Ships in 1 to 2 Daysqty 2 used
$29.46$42.38
9
14751-ZY1-000Ships in 1 to 2 Daysqty 4 used
$4.47$6.42
10
14765-P08-000Ships in 1 to 2 Daysqty 4 used
$7.07$9.96
11
14775-ZW9-000Ships in 1 to 2 Daysqty 4 used
$1.83$2.62
12
14781-MA6-000Ships in 1 to 2 Days
$2.93$4.02
13
90012-333-000Ships in 1 to 2 Daysqty 4 used
$2.64$3.62
14
90206-001-000Ships in 1 to 2 Daysqty 4 used
$1.59$2.18
Diagram

CARBURETOR (AUTO)

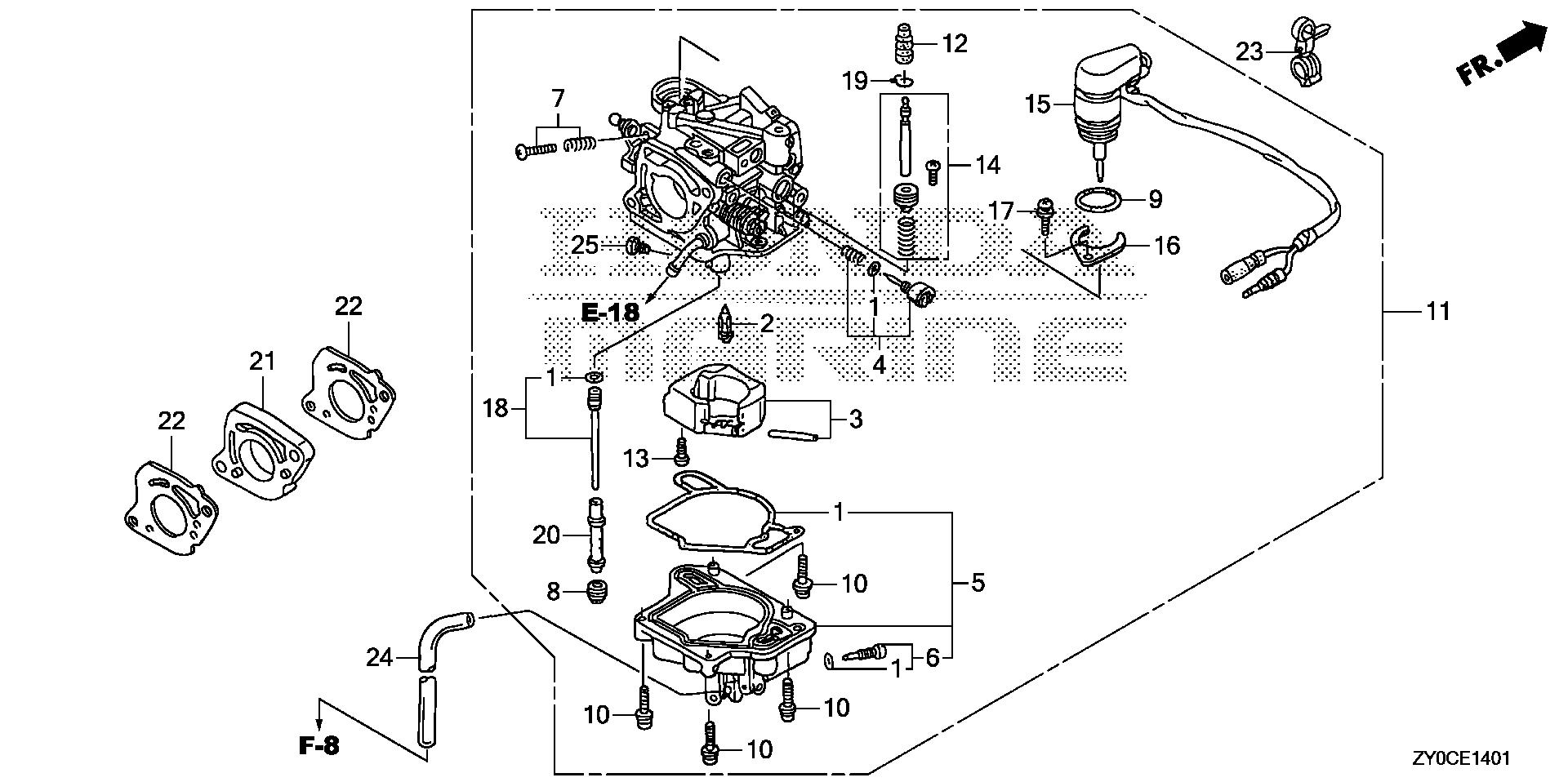

BF15 BF15DK3 carburetor (auto) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY0CE1401
Fits only BF15DK3-LHSA, BF15DK3-LHTA, BF15DK3-LRTA, BF15DK3-SHSA, BF15DK3-SHTA — not every submodel of this generation.

Parts in this assembly

40 parts
1
16010-ZW9-003Ships in 1 to 2 Days
$13.86$19.94
↳
Sierra alternative ·
18-2481In Stock
$14.48
2
16011-ZV4-005Ships in 1 to 2 Days
$29.68$41.88
↳
Sierra alternative ·
18-7047In Stock
$37.88
3
16013-ZW9-003Ships in 1 to 2 Days
$25.21$36.26
4
16016-ZY1-711Ships in 1 to 2 Days
$9.65$13.88
5
16023-ZY0-811Ships in 1 to 2 Days
$48.90$70.34
5
16023-ZY1-801Ships in 1 to 2 Days
$51.60$74.22
6
16024-ZY3-000Ships in 1 to 2 Days
$12.18$16.68
7
16028-ZV4-650Ships in 1 to 2 Days
$9.84$14.16
8
16071-ZV4-005Ships in 1 to 2 Days
$6.26$8.84
9
16077-KG8-901Ships in 1 to 2 Days
$2.73$3.74
10
16081-ZV4-650Ships in 1 to 2 Daysqty 4 used
$3.21$4.54
11
16100-ZY0-813Ships in 1 to 2 Days
$302.88
11
16100-ZY0-814Ships in 1 to 2 Days
$286.35
11
16100-ZY1-813Ships in 1 to 2 Days
$295.49
11
16100-ZY1-814Ships in 1 to 2 Days
$286.35
12
16119-ZW9-013Ships in 1 to 2 Days
$10.91$15.68
13
16121-ZW9-003Ships in 1 to 2 Days
$0.92$1.32
14
16123-ZY0-013Ships in 1 to 2 Days
$19.24$27.68
14
16123-ZY1-013Ships in 1 to 2 Days
$10.76$11.30
15
16130-ZY0-811Ships in 1 to 2 Days
$34.36$36.07
15
16130-ZY1-801Ships in 1 to 2 Days
$52.46$75.44
16
16131-ZW9-801Ships in 1 to 2 Days
$3.01$4.12
17
16132-ZW9-801Ships in 1 to 2 Days
$1.42$2.00
18
16150-ZY0-003Ships in 1 to 2 Days
$26.18$37.66
18
16150-ZY1-003Ships in 1 to 2 Days
$26.18$37.66
19
16163-GHB-600Ships in 1 to 2 Days
$1.90$2.60
20
16166-ZY0-003Ships in 1 to 2 Days
$23.83$34.28
20
16166-ZY1-003Ships in 1 to 2 Days
$18.25$26.26
21
16211-ZY1-000Ships in 1 to 2 Days
$8.94$12.86
22
16221-ZY1-000In Stockqty 2 used
$8.92$12.84
23
91558-SM4-003Ships in 1 to 2 Days
$6.34$8.68
24
95003-07008-60MShips in 1 to 2 Days
$35.11$50.50
25
99101-ZV5-0980Ships in 1 to 2 Days
$5.45$7.68
25
99101-ZV5-1000Ships in 1 to 2 Days
$4.92$6.94
25
99101-ZV5-1020Ships in 1 to 2 Days
$6.82$9.62
25
99101-ZV5-1050Ships in 1 to 2 Days
$5.31$7.50
25
99101-ZV5-1200Ships in 1 to 2 Days
$6.35$9.14
25
99101-ZV5-1220Ships in 1 to 2 Days
$7.01$10.08
25
99101-ZV5-1250Ships in 1 to 2 Days
$5.65$8.12
25
99101-ZV5-1280Ships in 1 to 2 Days
$5.65$8.12
Diagram

CARBURETOR (MANUAL)

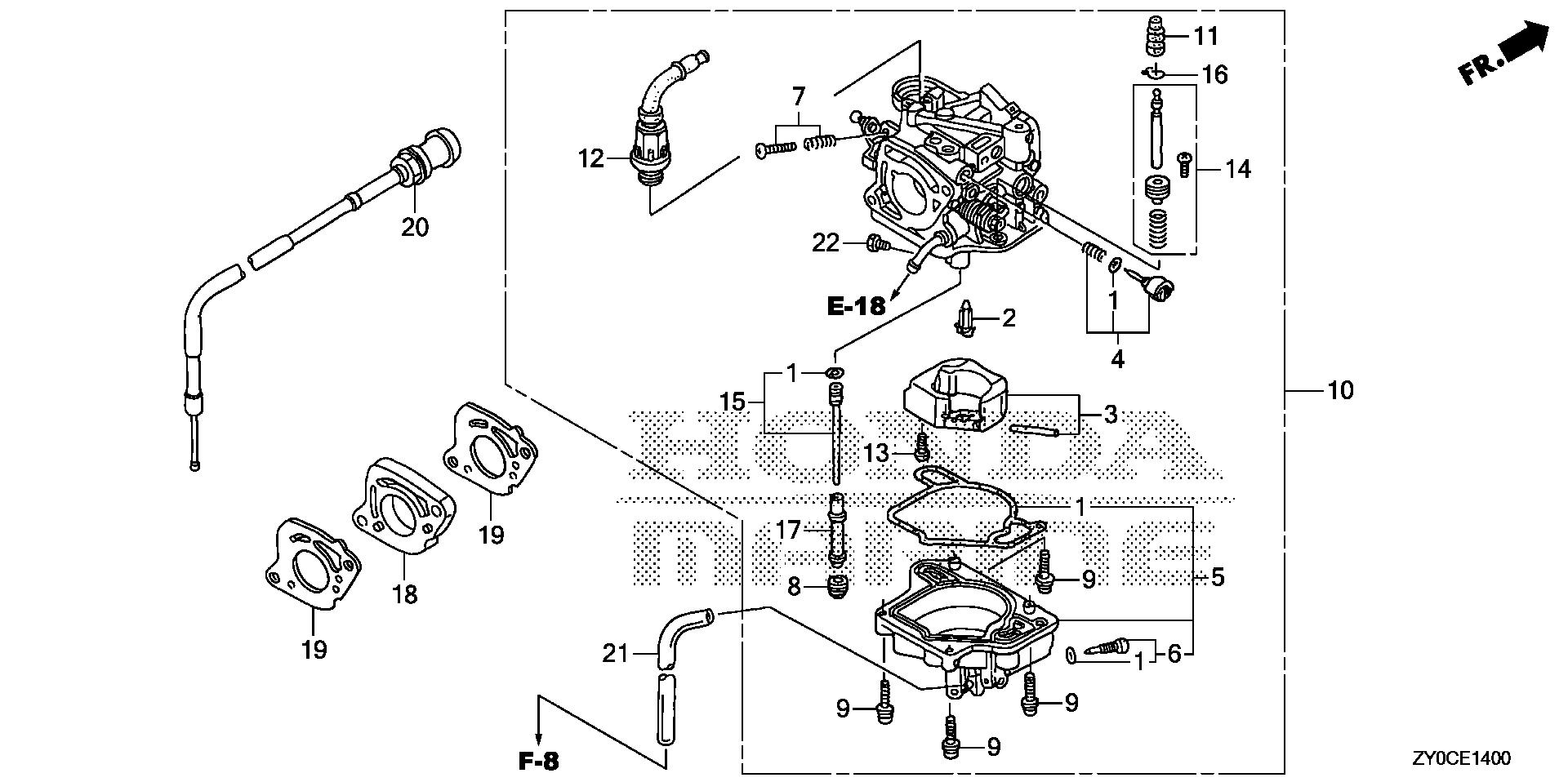

BF15 BF15DK3 carburetor (manual) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY0CE1400
Fits only BF15DK3-LHA, BF15DK3-SHA — not every submodel of this generation.

Parts in this assembly

36 parts
1
16010-ZW9-003Ships in 1 to 2 Days
$13.86$19.94
↳
Sierra alternative ·
18-2481In Stock
$14.48
2
16011-ZV4-005Ships in 1 to 2 Days
$29.68$41.88
↳
Sierra alternative ·
18-7047In Stock
$37.88
3
16013-ZW9-003Ships in 1 to 2 Days
$25.21$36.26
4
16016-ZY1-711Ships in 1 to 2 Days
$9.65$13.88
5
16023-ZY0-711Ships in 1 to 2 Days
$48.90$70.34
5
16023-ZY1-003Ships in 1 to 2 Days
$51.60$74.22
6
16024-ZY3-000Ships in 1 to 2 Days
$12.18$16.68
7
16028-ZV4-650Ships in 1 to 2 Days
$9.84$14.16
8
16071-ZV4-005Ships in 1 to 2 Days
$6.26$8.84
9
16081-ZV4-650Ships in 1 to 2 Daysqty 4 used
$3.21$4.54
10
16100-ZY0-713Ships in 1 to 2 Days
$266.82
10
16100-ZY0-714Ships in 1 to 2 Days
$258.55$271.49
10
16100-ZY1-713Ships in 1 to 2 Days
$265.25
10
16100-ZY1-714Ships in 1 to 2 Days
$258.55$271.49
11
16119-ZW9-013Ships in 1 to 2 Days
$10.91$15.68
12
16120-ZY1-003Ships in 1 to 2 Days
$27.52$39.58
13
16121-ZW9-003Ships in 1 to 2 Days
$0.92$1.32
14
16123-ZY0-013Ships in 1 to 2 Days
$19.24$27.68
14
16123-ZY1-013Ships in 1 to 2 Days
$10.76$11.30
15
16150-ZY0-003Ships in 1 to 2 Days
$26.18$37.66
15
16150-ZY1-003Ships in 1 to 2 Days
$26.18$37.66
16
16163-GHB-600Ships in 1 to 2 Days
$1.90$2.60
17
16166-ZY0-003Ships in 1 to 2 Days
$23.83$34.28
17
16166-ZY1-003Ships in 1 to 2 Days
$18.25$26.26
18
16211-ZY1-000Ships in 1 to 2 Days
$8.94$12.86
19
16221-ZY1-000In Stockqty 2 used
$8.92$12.84
20
17950-ZY1-003Ships in 1 to 2 Days
$22.94$33.00
21
95003-07008-60MShips in 1 to 2 Days
$35.11$50.50
22
99101-ZV5-0980Ships in 1 to 2 Days
$5.45$7.68
22
99101-ZV5-1000Ships in 1 to 2 Days
$4.92$6.94
22
99101-ZV5-1020Ships in 1 to 2 Days
$6.82$9.62
22
99101-ZV5-1050Ships in 1 to 2 Days
$5.31$7.50
22
99101-ZV5-1200Ships in 1 to 2 Days
$6.35$9.14
22
99101-ZV5-1220Ships in 1 to 2 Days
$7.01$10.08
22
99101-ZV5-1250Ships in 1 to 2 Days
$5.65$8.12
22
99101-ZV5-1280Ships in 1 to 2 Days
$5.65$8.12
Diagram

CRANKSHAFT - PISTON

BF15 BF15DK3 crankshaft - piston exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY0CE0700
Fits all 7 submodels of this generation.

Parts in this assembly

8 parts
1
13010-ZY1-003Ships in 1 to 2 Daysqty 2 used
$23.96$34.46
2
13101-ZY1-000Ships in 1 to 2 Daysqty 2 used
$39.24$56.44
3
13111-ZW9-000Ships in 1 to 2 Daysqty 2 used
$9.42$13.54
4
13210-ZY1-013Ships in 1 to 2 Daysqty 2 used
$74.87$107.70
5
13311-ZY1-000Ships in 1 to 2 Days
$413.27
6
90001-ZW9-000Ships in 1 to 2 Daysqty 4 used
$1.93$2.78
7
90741-ZW9-000Ships in 1 to 2 Daysqty 2 used
$3.04$4.36
8
94601-16000Ships in 1 to 2 Daysqty 4 used
$0.55$0.76
Diagram

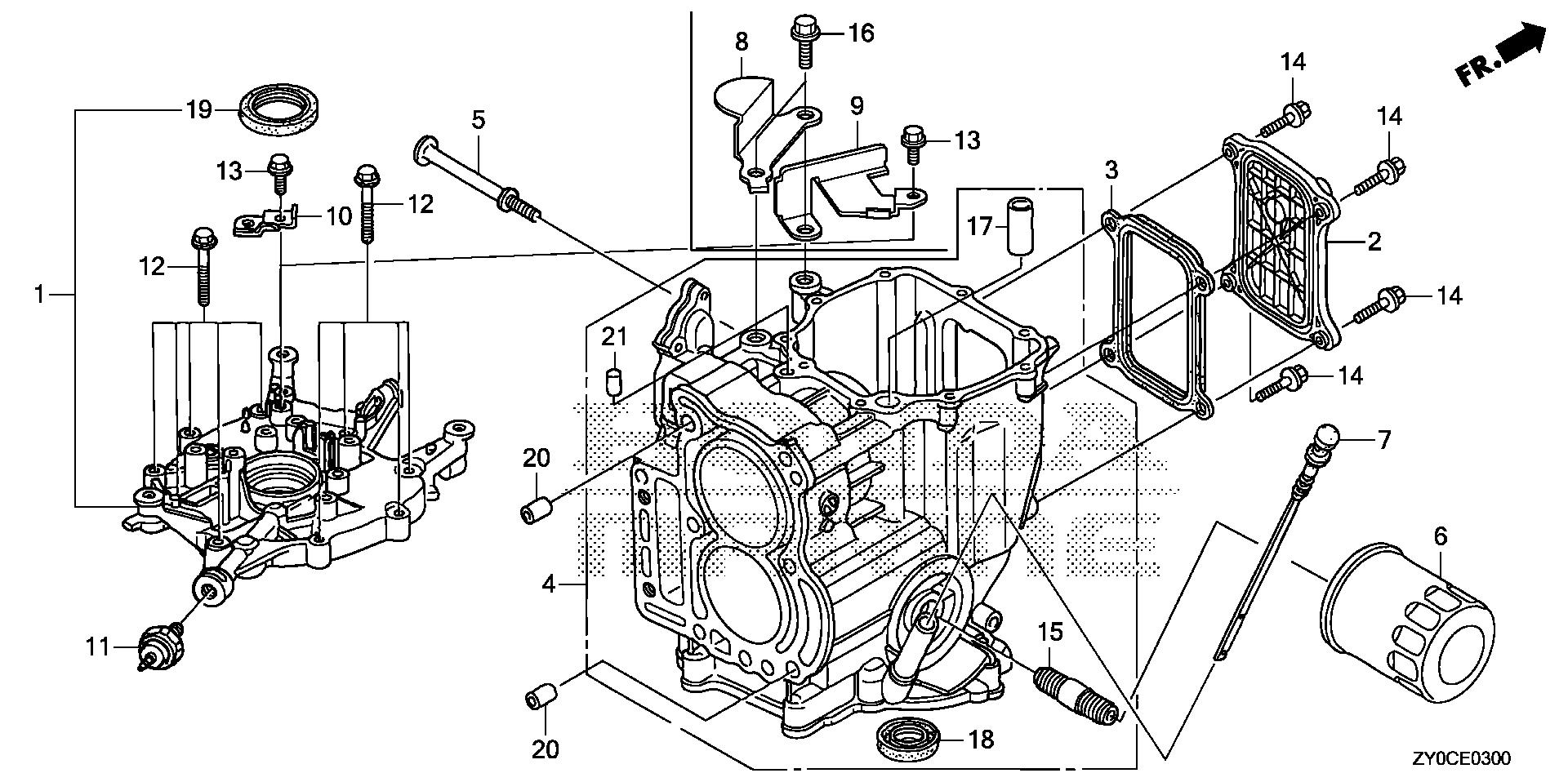

CYLINDER BLOCK

BF15 BF15DK3 cylinder block exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY0CE0300
Fits all 7 submodels of this generation.

Parts in this assembly

24 parts
1
11300-ZY1-406Ships in 1 to 2 Days
$133.11$191.44
1
11300-ZY1-405Ships in 1 to 2 Days
$139.12$200.08
2
11340-ZY1-000Ships in 1 to 2 Days
$18.47$26.56
3
11342-ZW9-000Ships in 1 to 2 Days
$12.96$18.66
4
12000-ZY1-405ZAShips in 1 to 2 Daysreplaced by 12000-ZY1-415ZA
$830.72$872.36
4
12000-ZY1-415ZAShips in 1 to 2 Days
$830.72$872.36
5
12166-ZW9-030Ships in 1 to 2 Days
$5.18$7.10
6
15400-PFB-014Ships in 1 to 2 Daysreplaced by 15400-ZZ3-003
$16.47$22.56
↳
Sierra alternative ·
18-7913In Stock save $6.31
$10.16
6
15400-ZZ3-003In Stock
$16.47$22.56
↳
Sierra alternative ·
18-7913In Stock save $6.31
$10.16
7
15655-ZW9-000Ships in 1 to 2 Days
$14.34$20.62
8
31147-ZW9-000Ships in 1 to 2 Days
$13.43$19.32
9
31148-ZY1-010Ships in 1 to 2 Days
$10.40$14.96
10
32114-ZVL-000Ships in 1 to 2 Days
$2.89$3.96
11
35490-ZW9-003Ships in 1 to 2 Days
$31.45$44.38
12
90004-ZW9-000Ships in 1 to 2 Daysqty 9 used
$2.09$2.94
13
90011-ZW9-000Ships in 1 to 2 Days
$1.71$2.34
14
90012-ZW9-030Ships in 1 to 2 Daysqty 4 used
$1.90$2.68
15
90018-PN3-000Ships in 1 to 2 Days
$7.04$9.64
16
90151-ZZ0-M01Ships in 1 to 2 Daysqty 2 used
$1.66$2.28
17
90705-PG2-000Ships in 1 to 2 Days
$7.61$10.42
18
91203-ZY1-003Ships in 1 to 2 Days
$7.91$11.38
19
91213-PL2-003Ships in 1 to 2 Days
$18.97$27.28
20
94301-10120Ships in 1 to 2 Daysqty 2 used
$3.01$4.12
21
94302-08140Ships in 1 to 2 Days
$2.74$3.76
Diagram

CYLINDER HEAD

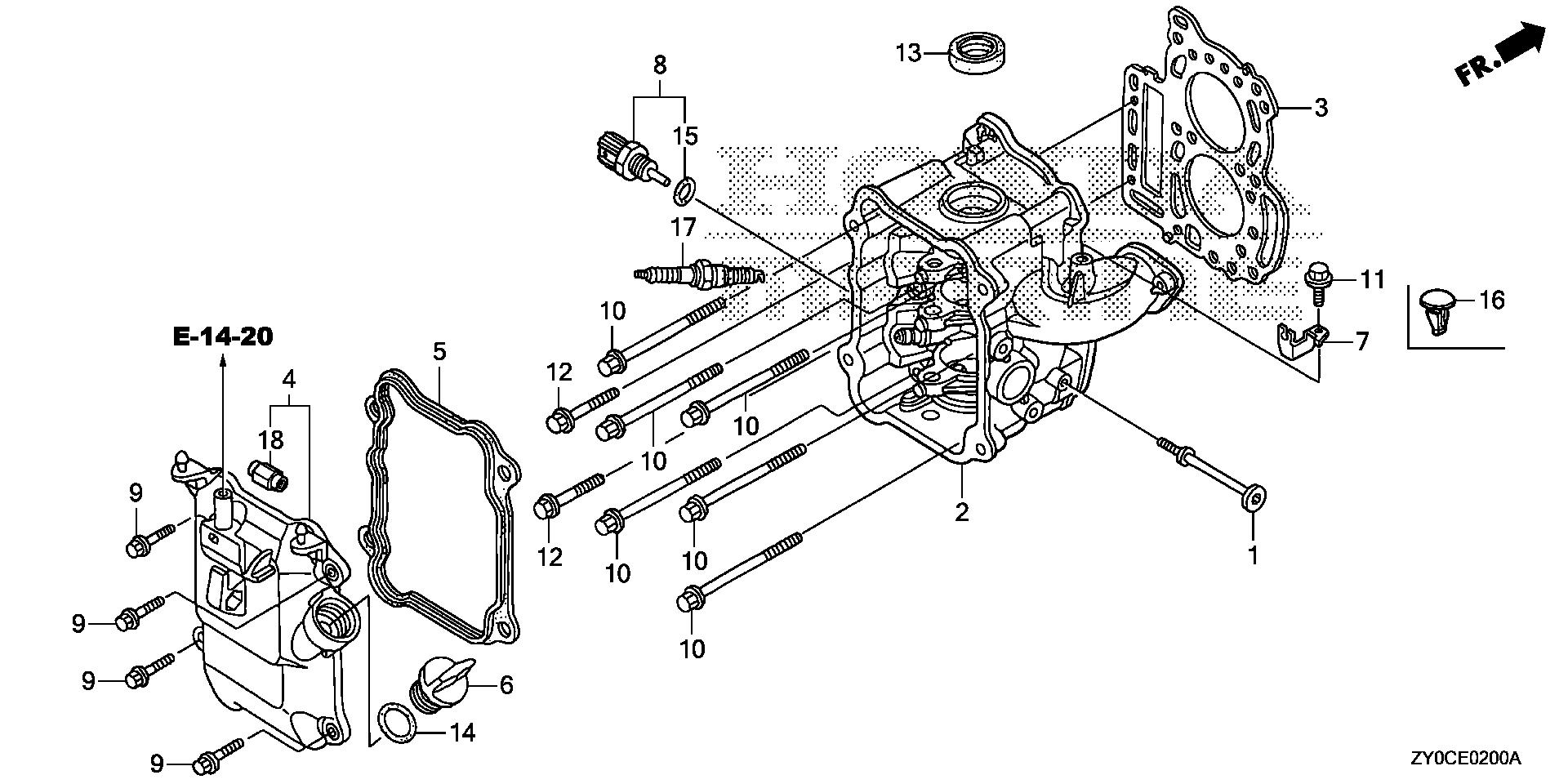

BF15 BF15DK3 cylinder head exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY0CE0200A
Fits all 7 submodels of this generation.

Parts in this assembly

19 parts
1
12166-ZW9-030Ships in 1 to 2 Days
$5.18$7.10
2
12210-ZY1-405ZAShips in 1 to 2 Days
$544.65
3
12251-ZY1-003Ships in 1 to 2 Days
$53.96$77.62
4
12310-ZW9-030Ships in 1 to 2 Days
$76.46$109.96
5
12312-ZW9-000Ships in 1 to 2 Days
$14.99$21.58
6
15611-921-000Ships in 1 to 2 Days
$10.13$13.88
7
16617-ZW9-030Ships in 1 to 2 Days
$3.80$5.46
8
35673-ZW5-003Ships in 1 to 2 Days
$19.18$26.28
9
90003-ZY9-M01Ships in 1 to 2 Daysqty 4 used
$1.93$2.64
10
90007-ZW9-003Ships in 1 to 2 Daysqty 6 used
$6.99$10.06
11
90011-ZW9-000Ships in 1 to 2 Days
$1.71$2.34
12
90055-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.87$2.56
13
91202-KJ9-003Ships in 1 to 2 Days
$4.80$6.58
14
91301-805-000Ships in 1 to 2 Days
$3.65$5.00
15
91307-PK2-005Ships in 1 to 2 Days
$2.35$3.22
16
91601-ZW9-003Ships in 1 to 2 Days
$1.12$1.62
17
98059-55916In Stock
$7.37$10.10
17
98059-55926Ships in 1 to 2 Daysqty 2 used
$8.64$11.84
18
90204-ZW9-310Ships in 1 to 2 Days
$4.77$6.86
Diagram

ENGINE COVER

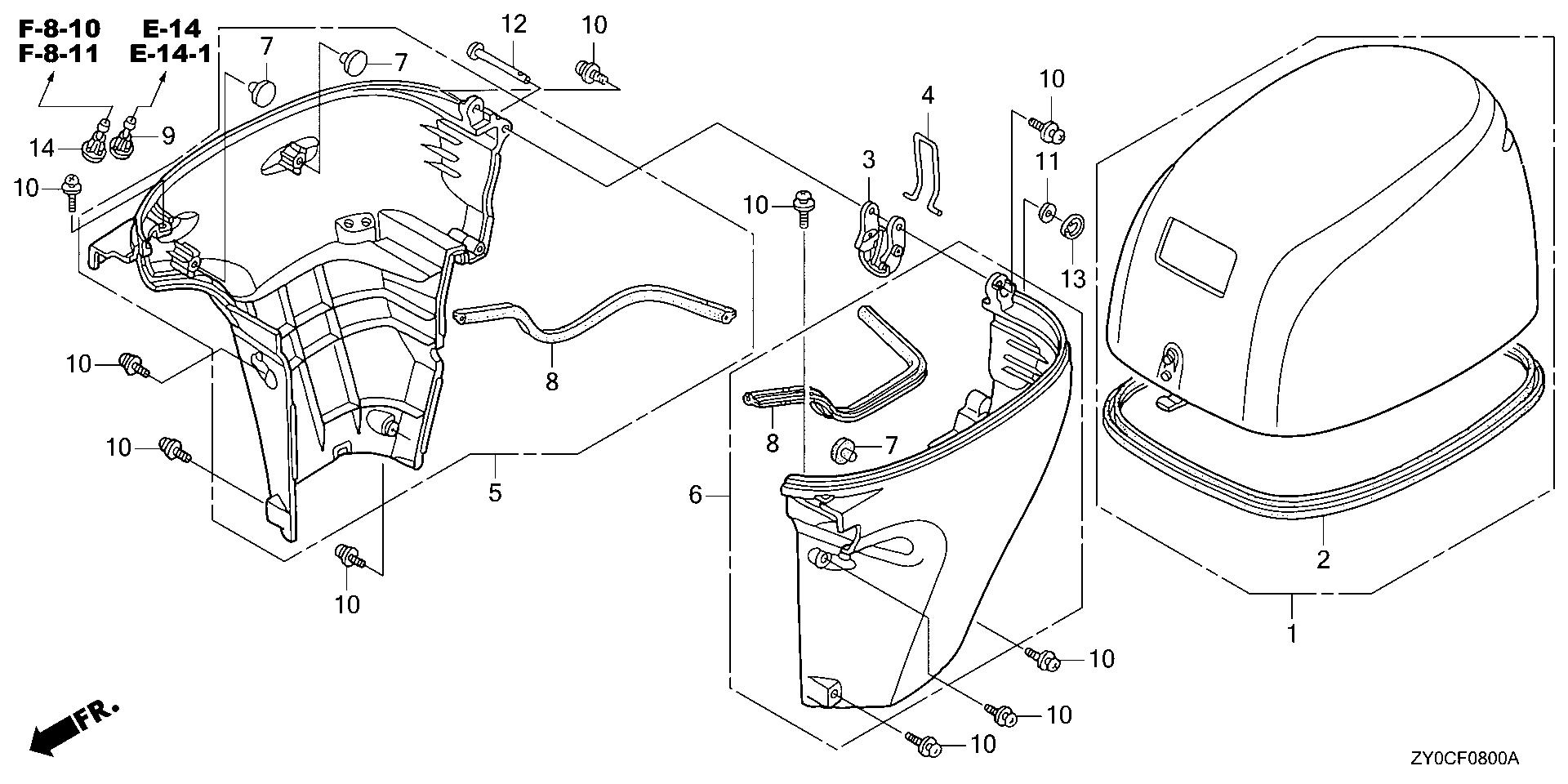

BF15 BF15DK3 engine cover exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY0CF0800A
Fits all 7 submodels of this generation.

Parts in this assembly

15 parts
1
63100-ZY1-020ZBShips in 1 to 2 Days
$400.52$548.66
2
63102-ZY1-300Ships in 1 to 2 Days
$28.31$40.72
3
63232-ZW9-020Ships in 1 to 2 Days
$8.69$12.50
4
63236-ZW9-010Ships in 1 to 2 Days
$3.64$5.22
5
$159.20$229.00
6
$159.20$229.00
7
63718-ZW9-000Ships in 1 to 2 Daysqty 3 used
$2.12$2.90
8
63719-ZW9-000Ships in 1 to 2 Daysqty 2 used
$8.57$12.32
9
82873-ZV5-003Ships in 1 to 2 Days
$5.71$8.06
10
90181-ZW9-010Ships in 1 to 2 Daysqty 10 used
$3.94$5.66
11
90452-GK4-600In Stock
$1.28$1.82
12
90754-ZW9-000Ships in 1 to 2 Days
$3.83$5.50
13
91452-ZW9-000Ships in 1 to 2 Days
$1.74$2.50
14
82873-ZV5-003Ships in 1 to 2 Days
$5.71$8.06
14
82873-ZY1-003Ships in 1 to 2 Days
$5.72$8.24
Diagram

EXHAUST CHAMBER COVER

BF15 BF15DK3 exhaust chamber cover exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY0CE1600
Fits all 7 submodels of this generation.

Parts in this assembly

3 parts
1
18231-ZY1-000Ships in 1 to 2 Days
$28.95$41.64
2
18233-ZW9-003Ships in 1 to 2 Days
$12.10$17.42
3
90009-ZW9-000Ships in 1 to 2 Daysqty 6 used
$2.88$3.94
Diagram

FLYWHEEL

BF15 BF15DK3 flywheel exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY0CE1900
Fits all 7 submodels of this generation.

Parts in this assembly

10 parts
1
28451-ZW9-003Ships in 1 to 2 Days
$20.79$29.90
2
30595-ZY1-003Ships in 1 to 2 Days
$107.05$153.98
3
31110-ZY1-800ZAShips in 1 to 2 Days
$244.89
3
31110-ZY1-000ZAShips in 1 to 2 Days
$206.99
4
31630-ZY1-003Ships in 1 to 2 Days
$207.69$284.50
5
31630-ZY1-901Ships in 1 to 2 Days
$70.94$102.06
6
90002-ZW9-030Ships in 1 to 2 Days
$2.26$3.26
7
90006-ZW9-030Ships in 1 to 2 Daysqty 4 used
$2.15$3.08
8
90202-ZY1-000Ships in 1 to 2 Days
$7.50$10.80
9
95701-06010-08Ships in 1 to 2 Daysqty 3 used
$1.61$2.20
Diagram

FUEL PUMP

BF15 BF15DK3 fuel pump exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY0CE1800
Fits all 7 submodels of this generation.

Parts in this assembly

13 parts
1
16163-GHB-610Ships in 1 to 2 Daysqty 4 used
$1.66$2.28
2
16700-ZW9-003Ships in 1 to 2 Days
$122.07$167.22
3
16790-ZY1-023Ships in 1 to 2 Days
$26.18$37.66
4
16793-ZY1-020Ships in 1 to 2 Days
$12.79$18.40
5
16861-ZY1-900Ships in 1 to 2 Days
$22.06$31.74
6
16910-ZV4-015In Stock
$13.99$19.16
7
16915-ZV4-000Ships in 1 to 2 Days
$6.41$8.78
8
17439-PY3-A01Ships in 1 to 2 Days
$5.42$7.42
9
17701-ZY1-900Ships in 1 to 2 Days
$7.55$10.86
10
17702-ZY1-900Ships in 1 to 2 Days
$18.86$27.12
11
90003-ZY9-M01Ships in 1 to 2 Daysqty 2 used
$1.93$2.64
12
90603-ZV4-000Ships in 1 to 2 Daysqty 2 used
$1.42$1.94
13
91303-ZW9-000In Stock
$2.88$3.94
Diagram

FUEL TANK

BF15 BF15DK3 fuel tank exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY0CF0600A
Fits all 7 submodels of this generation.

Parts in this assembly

20 parts
1
16897-ZW9-003Ships in 1 to 2 Daysqty 4 used
$5.08$6.96
2
16977-ZV5-A00Ships in 1 to 2 Days
$14.60$20.00
↳
Sierra alternative ·
18-80400In Stock save $3.72
$10.88
3
17500-ZZ5-013Ships in 1 to 2 Days
$161.15$220.76
4
17580-ZZ5-003Ships in 1 to 2 Days
$30.38$41.62
6
17624-ZZ5-003Ships in 1 to 2 Days
$2.86$3.92
7
17625-ZZ5-003Ships in 1 to 2 Days
$1.39$1.90
8
17650-ZW9-023Ships in 1 to 2 Days
$34.67$47.50
↳
Sierra alternative ·
18-80408In Stock save $20.37
$14.30
9
17660-ZW9-003Ships in 1 to 2 Days
$32.18$44.08
10
17661-ZW9-900Ships in 1 to 2 Days
$46.82$64.14
11
17665-ZV5-000Ships in 1 to 2 Days
$12.13$16.62
12
17680-ZV4-000Ships in 1 to 2 Days
$12.13$16.62
13
17700-ZW9-904Ships in 1 to 2 Days
$127.52$174.68
14
17701-ZY9-E04Ships in 1 to 2 Days
$94.21$129.06
15
17702-ZW9-904Ships in 1 to 2 Days
$20.89$28.62
16
17703-921-010Ships in 1 to 2 Daysqty 2 used
$3.53$4.84
17
17742-ZZ5-003Ships in 1 to 2 Days
$4.22$5.78
18
17743-ZZ5-003Ships in 1 to 2 Daysqty 4 used
$2.93$4.02
19
16900-ZV4-A22Ships in 1 to 2 Days
$26.92$36.88
20
16979-ZV5-901Ships in 1 to 2 Days
$0.60$0.82
21
17583-ZV5-901In Stock
$1.90$2.60
Diagram

GEAR CASE - EXTENSION CASE

BF15 BF15DK3 gear case - extension case exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY0CF0300
Fits all 7 submodels of this generation.

Parts in this assembly

30 parts
1
19286-ZY1-000Ships in 1 to 2 Days
$2.77$4.00
2
$347.55$499.88
2
$454.09$653.10
2
$393.07
2
$465.37$488.67
3
$366.27$501.74
4
40210-ZW9-A30Ships in 1 to 2 Days
$16.91$24.32
5
41101-ZY1-C00ZBShips in 1 to 2 Days
$402.13$422.23
6
41102-ZY1-000Ships in 1 to 2 Days
$5.65$8.12
7
41104-ZV5-010Ships in 1 to 2 Days
$5.83$8.22
8
41105-ZV5-010Ships in 1 to 2 Days
$5.83$8.22
9
41106-ZW9-000In Stockqty 2 used
$8.72$12.30
10
$47.48$68.30
11
63702-ZW9-000Ships in 1 to 2 Days
$6.29$9.04
12
90008-ZW9-000Ships in 1 to 2 Daysqty 4 used
$4.31$6.08
13
90009-ZW9-000Ships in 1 to 2 Daysqty 4 used
$2.88$3.94
14
90101-ZW9-003In Stockqty 2 used
$2.80$3.84
15
90105-ZW9-000Ships in 1 to 2 Daysqty 4 used
$2.88$3.94
16
90107-ZW9-000Ships in 1 to 2 Days
$4.69$6.42
17
90113-ZV5-000Ships in 1 to 2 Days
$2.60$3.66
18
90124-ZW9-A30Ships in 1 to 2 Days
$6.31$9.08
19
90125-ZW9-A30Ships in 1 to 2 Daysqty 4 used
$5.23$7.52
20
90205-ZY1-000Ships in 1 to 2 Days
$4.76$6.52
21
90302-ZV4-000Ships in 1 to 2 Days
$4.91$6.72
22
90501-ZV5-A10Ships in 1 to 2 Days
$2.89$4.08
23
90651-ZV5-A10Ships in 1 to 2 Days
$8.29$11.70
24
90756-ZV5-000In Stockqty 4 used
$2.64$3.62
25
91052-ZY1-003Ships in 1 to 2 Days
$7.69$11.06
26
91301-ZW4-003In Stockqty 2 used
$0.99$1.36
27
93700-05028-4JShips in 1 to 2 Days
$2.50$3.52
Diagram

GEAR CASE ASSY.

BF15 BF15DK3 gear case assy. exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY0CF0310
Fits all 7 submodels of this generation.

Parts in this assembly

3 parts
1
$1,260.95
1
$1,295.90
1
$1,295.90
Diagram

HANDLEBAR

BF15 BF15DK3 handlebar exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY0CF0100
Fits only BF15DK3-LHA, BF15DK3-LHSA, BF15DK3-LHTA, BF15DK3-SHA, BF15DK3-SHSA, BF15DK3-SHTA — not every submodel of this generation.

Parts in this assembly

30 parts
1
17838-ZW9-000Ships in 1 to 2 Days
$7.07$10.16
2
17910-ZY1-033Ships in 1 to 2 Days
$30.46$43.80
3
17917-ZW9-000Ships in 1 to 2 Days
$6.82$9.62
4
24625-ZV5-010Ships in 1 to 2 Days
$2.25$3.18
5
31127-ZW9-730Ships in 1 to 2 Days
$13.84$19.90
6
35150-ZY1-731Ships in 1 to 2 Days
$30.18$43.40
7
35156-ZY1-B60Ships in 1 to 2 Days
$13.56$19.50
8
35180-ZY1-023Ships in 1 to 2 Days
$63.22$90.94
9
35640-ZY1-C71Ships in 1 to 2 Days
$58.39$83.98
10
35645-ZY3-000Ships in 1 to 2 Days
$9.68$13.66
11
36105-ZW9-003Ships in 1 to 2 Days
$4.77$6.54
12
36182-ZV4-651In Stock
$18.45$25.28
13
40105-ZV4-000Ships in 1 to 2 Days
$17.05$24.52
14
53103-ZW9-000Ships in 1 to 2 Days
$2.80$3.96
15
53110-ZW9-010ZAShips in 1 to 2 Days
$120.49$173.32
16
53130-ZW9-000Ships in 1 to 2 Days
$21.70$29.72
17
53131-ZW9-C00ZAShips in 1 to 2 Days
$76.64$110.22
17
53131-ZW9-C10ZAShips in 1 to 2 Days
$76.65$110.26
18
53133-ZW9-000Ships in 1 to 2 Days
$6.39$8.76
19
53141-ZW9-000Ships in 1 to 2 Days
$28.53$41.04
20
53165-ZW9-000Ships in 1 to 2 Days
$11.20$15.80
21
53171-ZW9-000Ships in 1 to 2 Days
$8.07$11.62
22
90002-SB2-000Ships in 1 to 2 Days
$6.10$8.78
23
90102-ZW9-000Ships in 1 to 2 Days
$2.12$2.90
24
90165-ZW9-000Ships in 1 to 2 Daysqty 2 used
$10.18$14.64
25
90302-921-000In Stock
$4.10$5.62
26
90305-ZV4-000Ships in 1 to 2 Days
$6.02$8.24
27
90514-921-000Ships in 1 to 2 Days
$0.99$1.36
28
91475-SB6-000Ships in 1 to 2 Days
$7.72$10.58
29
SCREW, TAPPING (4X12)
93903-243J0Ships in 1 to 2 Daysqty 2 used
$1.69$2.32
Diagram

IGNITION COIL - C.D.I. UNIT

BF15 BF15DK3 ignition coil - c.d.i. unit exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY0CE2000
Fits all 7 submodels of this generation.

Parts in this assembly

16 parts
1
30310-ZY1-003Ships in 1 to 2 Days
$48.66$70.00
2
30400-ZY0-003Ships in 1 to 2 Days
$225.40
2
30400-ZY1-003Ships in 1 to 2 Days
$225.40
3
30417-ZY1-900Ships in 1 to 2 Days
$56.25$79.36
3
30417-ZY1-901Ships in 1 to 2 Days
$53.26$76.60
3
30418-ZY1-010Ships in 1 to 2 Days
$16.98$24.42
4
30500-ZY1-013Ships in 1 to 2 Days
$93.97$98.68
5
30506-ZW9-003Ships in 1 to 2 Days
$5.85$8.42
6
30515-ZW9-652Ships in 1 to 2 Days
$9.13$13.12
7
32108-ZY1-010Ships in 1 to 2 Days
$13.78$19.82
8
32109-ZY1-000Ships in 1 to 2 Days
$14.12$20.30
9
90011-ZW9-000Ships in 1 to 2 Daysqty 5 used
$1.71$2.34
10
90014-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.87$2.56
11
90018-ZW9-000Ships in 1 to 2 Daysqty 2 used
$1.30$1.86
12
91501-ZY1-003Ships in 1 to 2 Daysqty 2 used
$2.01$2.90
13
91540-S30-003Ships in 1 to 2 Daysqty 2 used
$3.14$4.30
Diagram

LABEL

BF15 BF15DK3 label exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY0CF1200
Fits all 7 submodels of this generation.

Parts in this assembly

15 parts
1
87121-ZV4-G01Ships in 1 to 2 Days
$13.74$19.76
2
87121-ZV9-801Ships in 1 to 2 Days
$22.12$31.82
3
87124-ZW6-U80Ships in 1 to 2 Days
$1.93$2.64
4
87125-ZW9-740Ships in 1 to 2 Days
$5.39$7.74
5
87132-ZV4-G00Ships in 1 to 2 Daysqty 2 used
$8.91$12.80
6
87133-ZW9-S00Ships in 1 to 2 Days
$8.73$12.32
8
87215-ZY1-870Ships in 1 to 2 Days
$8.13$11.70
9
87227-ZV7-000Ships in 1 to 2 Days
$5.80$8.34
10
87511-ZW9-000Ships in 1 to 2 Days
$4.56$6.42
11
87512-ZV4-A21Ships in 1 to 2 Days
$3.42$4.92
13
87531-ZW9-640Ships in 1 to 2 Days
$4.82$6.92
14
87532-ZW9-640Ships in 1 to 2 Days
$4.56$6.42
15
87535-ZV5-620Ships in 1 to 2 Days
$3.87$5.46
16
87538-ZW1-740Ships in 1 to 2 Days
$9.34$13.18
18
87546-ZW9-640Ships in 1 to 2 Days
$8.89$12.78
Diagram

METER - METER HARNESS

BF15 BF15DK3 meter - meter harness exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY0CY0100B
Fits only BF15DK3-LRTA — not every submodel of this generation.

Parts in this assembly

18 parts
1
32161-404-000Ships in 1 to 2 Days
$2.15$2.94
2
32540-ZZ3-010Ships in 1 to 2 Days
$97.12$133.04
3
32550-ZV5-910Ships in 1 to 2 Days
$17.67
4
34908-MB9-871Ships in 1 to 2 Days
$2.67$3.66
5
TACHOMETER ASSY.
37250-ZW9-902No Longer Available
—
5
TACHOMETER ASSY. (NOT AVAILABLE)
37250-ZW9-903No Longer Available
$150.00$205.48
6
37253-ZV5-821Ships in 1 to 2 Days
$4.12$5.64
7
37256-ZV5-821Ships in 1 to 2 Days
$21.83$29.90
8
37258-ZV5-821Ships in 1 to 2 Days
$16.09$22.04
9
METER ASSY., VOLT
37450-ZV5-910No Longer Available
—
10
39700-ZV5-800AHShips in 1 to 2 Days
$47.13
11
90309-ZV5-821Ships in 1 to 2 Daysqty 2 used
$1.42$1.94
12
90550-ZV5-821Ships in 1 to 2 Daysqty 2 used
$1.18$1.62
13
98200-11000Ships in 1 to 2 Days
$1.61$2.20
14
38216-Z2E-003Ships in 1 to 2 Days
$5.85$8.02
15
87116-ZZ3-000Ships in 1 to 2 Days
$1.37$1.88
16
91531-SR3-003Ships in 1 to 2 Days
$7.75$10.62
17
98200-41000Ships in 1 to 2 Days
$1.21$1.66
Diagram

MUFFLER COVER

BF15 BF15DK3 muffler cover exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY0CE1420
Fits all 7 submodels of this generation.

Parts in this assembly

10 parts
1
17203-ZY1-000Ships in 1 to 2 Days
$11.84$16.22
2
17380-ZY1-010Ships in 1 to 2 Days
$41.41$59.56
3
17384-ZY1-000Ships in 1 to 2 Days
$4.92$7.08
4
17390-ZY1-000Ships in 1 to 2 Days
$30.92$44.48
5
17394-ZY1-000Ships in 1 to 2 Days
$1.39$2.00
6
17532-ZM3-010Ships in 1 to 2 Days
$1.78$2.56
7
90003-ZY9-M01Ships in 1 to 2 Daysqty 2 used
$1.93$2.64
8
90010-ZY1-030Ships in 1 to 2 Daysqty 2 used
$4.86$7.00
9
91401-ZW9-000Ships in 1 to 2 Days
$11.99$17.24
10
95003-07008-60MShips in 1 to 2 Days
$35.11$50.50
Diagram

OIL CASE - OIL PAN GASKET

BF15 BF15DK3 oil case - oil pan gasket exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY0CE0320
Fits all 7 submodels of this generation.

Parts in this assembly

5 parts
1
11321-ZY1-425ZBShips in 1 to 2 Days
$407.49$586.10
2
11381-ZW9-003Ships in 1 to 2 Days
$19.23$27.66
3
19252-ZW9-000Ships in 1 to 2 Days
$5.23$7.52
4
90008-ZW9-000Ships in 1 to 2 Daysqty 9 used
$4.31$6.08
5
94301-06100In Stockqty 2 used
$2.74$3.76
Diagram

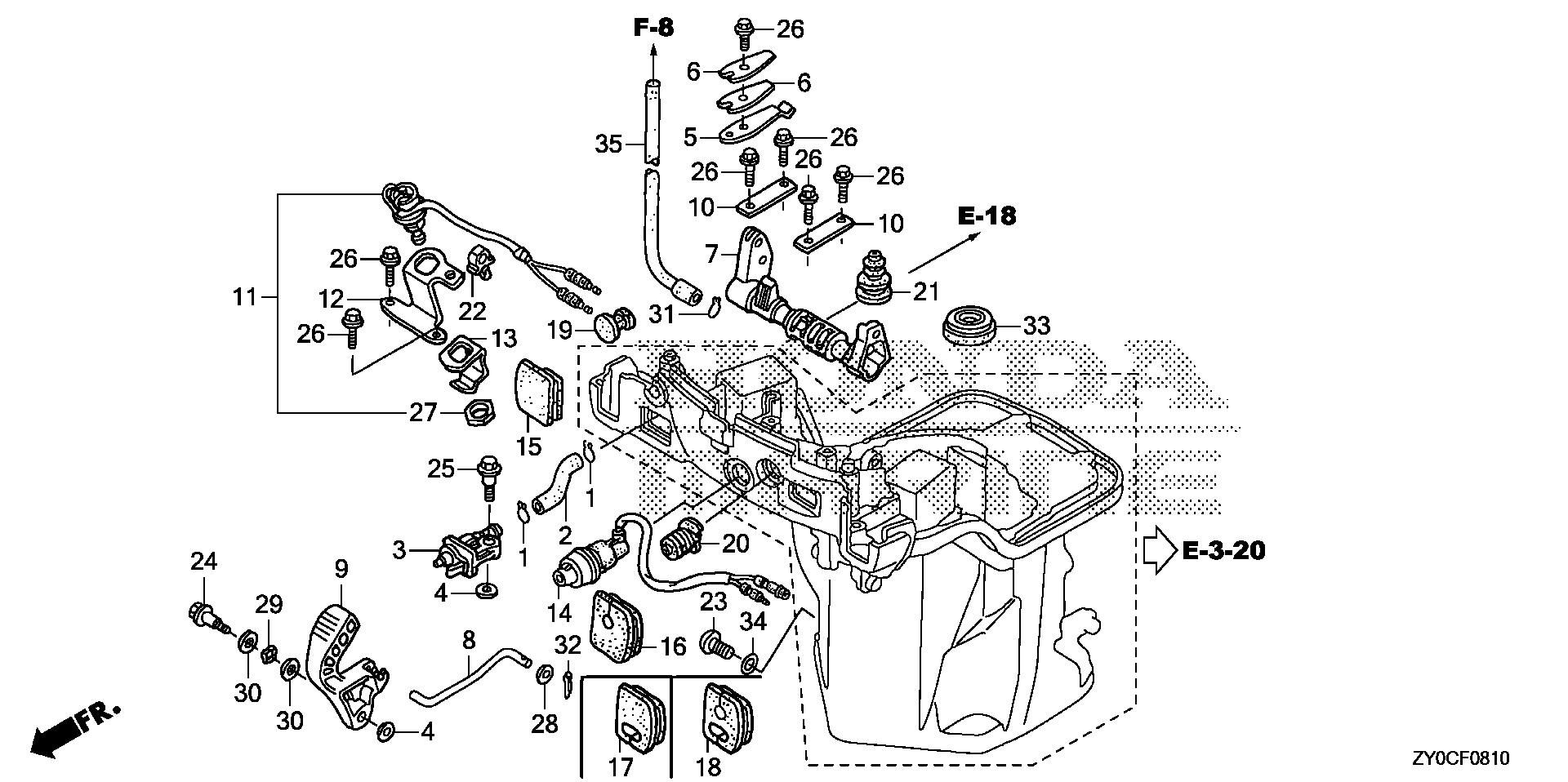

OIL CASE - SHIFT SHAFT (HANDLE SPECIFICATION)

BF15 BF15DK3 oil case - shift shaft (handle specification) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY0CF0810
Fits only BF15DK3-LHA, BF15DK3-LHSA, BF15DK3-LHTA, BF15DK3-SHA, BF15DK3-SHSA, BF15DK3-SHTA — not every submodel of this generation.

Parts in this assembly

37 parts
1
16163-GHB-610Ships in 1 to 2 Daysqty 2 used
$1.66$2.28
2
16851-ZW9-900Ships in 1 to 2 Days
$7.48$10.76
3
17710-ZW9-033Ships in 1 to 2 Days
$46.08$65.02
↳
Sierra alternative ·
18-80407In Stock save $0.01
$46.07
4
17936-921-000Ships in 1 to 2 Daysqty 2 used
$1.20$1.64
5
24218-ZW9-000Ships in 1 to 2 Days
$7.87$11.32
6
24221-ZW9-010Ships in 1 to 2 Daysqty 2 used
$8.04$11.58
7
24611-ZW9-010Ships in 1 to 2 Days
$15.34$22.06
8
24613-ZW9-000Ships in 1 to 2 Days
$9.10$13.08
9
24614-ZW9-030Ships in 1 to 2 Days
$25.37$36.50
10
24626-ZW9-010Ships in 1 to 2 Daysqty 2 used
$2.31$3.32
11
35470-ZY1-733Ships in 1 to 2 Days
$50.97$73.32
12
35476-ZW9-731Ships in 1 to 2 Days
$6.07$8.74
13
35618-ZW9-020Ships in 1 to 2 Days
$4.69$6.62
14
37210-ZY1-003Ships in 1 to 2 Days
$41.46$56.80
15
40105-ZW9-020Ships in 1 to 2 Days
$4.28$6.16
16
40106-ZW9-630Ships in 1 to 2 Days
$8.45$12.16
17
40106-ZW9-730Ships in 1 to 2 Days
$7.65$11.00
18
40106-ZW9-830Ships in 1 to 2 Days
$8.09$11.64
19
40107-ZW9-720Ships in 1 to 2 Days
$4.28$6.16
20
40108-ZW9-000Ships in 1 to 2 Days
$5.61$8.06
21
40109-ZW9-000Ships in 1 to 2 Days
$6.29$9.04
22
46391-VM0-003Ships in 1 to 2 Days
$2.35$3.22
23
90101-ZW9-003In Stock
$2.80$3.84
24
90105-ZV1-000Ships in 1 to 2 Days
$6.12$8.80
25
90112-ZY1-000In Stock
$3.08$4.22
25
90112-ZZ5-M01Ships in 1 to 2 Days
$1.69$2.38
26
90113-ZW9-000Ships in 1 to 2 Daysreplaced by 90113-ZW9-030
$0.96$1.38
26
90113-ZW9-030Ships in 1 to 2 Daysqty 5 used
$0.96$1.38
27
90302-ZV5-003Ships in 1 to 2 Days
$5.27$7.22
28
90452-GK4-600In Stock
$1.28$1.82
29
90506-ZW9-000Ships in 1 to 2 Days
$1.23$1.74
30
90511-ZW9-000Ships in 1 to 2 Daysqty 2 used
$4.09$5.88
31
90603-ZV4-000Ships in 1 to 2 Days
$1.42$1.94
32
90759-ZV1-000In Stock
$1.42$1.94
33
91202-ZY1-013Ships in 1 to 2 Days
$9.61$13.82
34
91301-ZW4-003In Stock
$0.99$1.36
35
91402-ZW9-010Ships in 1 to 2 Days
$4.35$6.26
Diagram

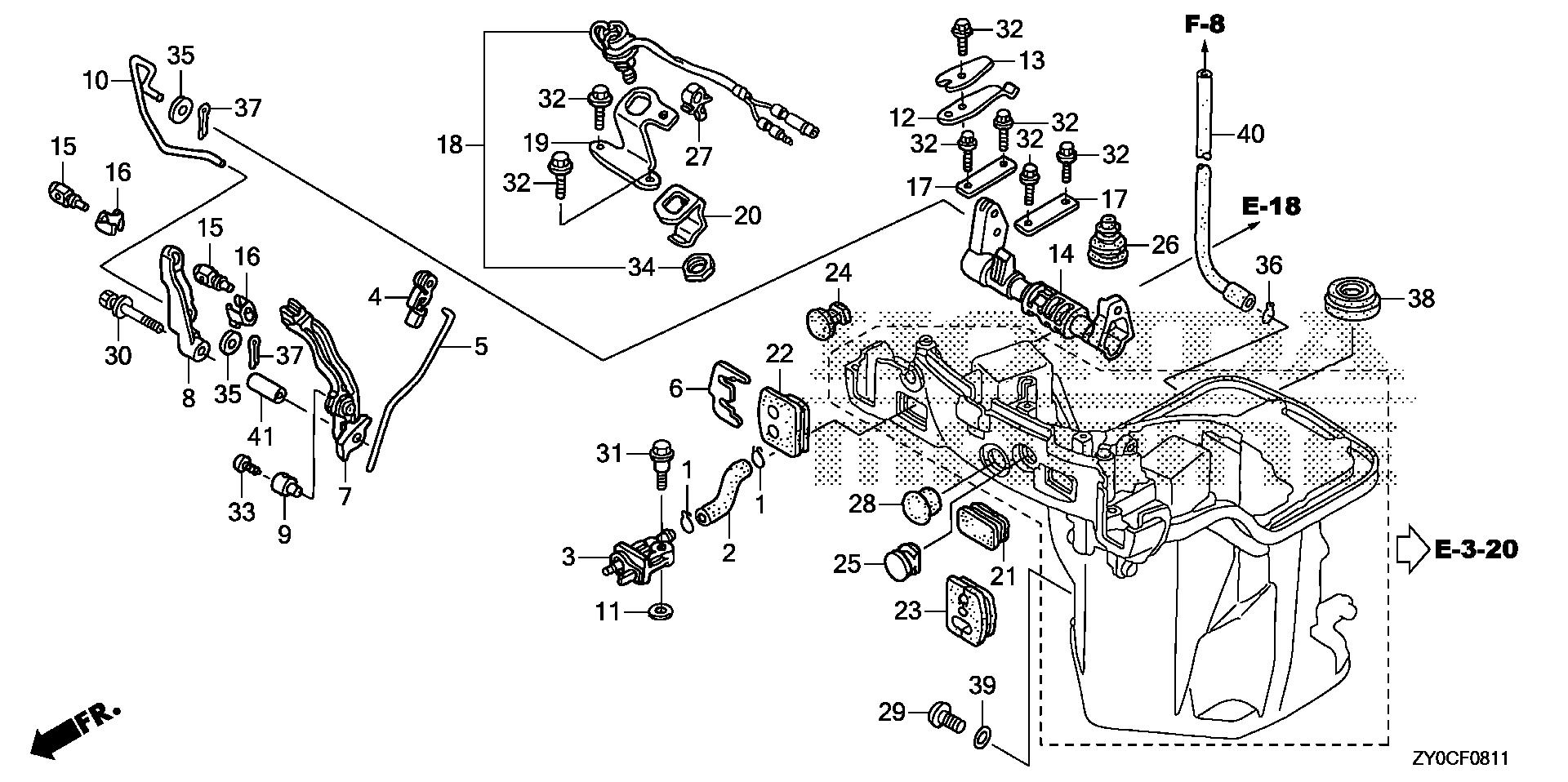

OIL CASE - SHIFT SHAFT (REMOTE SPECIFICATION)

BF15 BF15DK3 oil case - shift shaft (remote specification) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY0CF0811
Fits only BF15DK3-LRTA — not every submodel of this generation.

Parts in this assembly

43 parts
1
16163-GHB-610Ships in 1 to 2 Daysqty 2 used
$1.66$2.28
2
16851-ZW9-900Ships in 1 to 2 Days
$7.48$10.76
3
17710-ZW9-033Ships in 1 to 2 Days
$46.08$65.02
↳
Sierra alternative ·
18-80407In Stock save $0.01
$46.07
4
17838-ZW9-000Ships in 1 to 2 Days
$7.07$10.16
5
17841-ZY1-810Ships in 1 to 2 Days
$4.23$6.10
6
17877-ZW9-831Ships in 1 to 2 Days
$6.31$9.08
7
17931-ZW9-830Ships in 1 to 2 Days
$14.29$20.56
8
17932-ZW9-830Ships in 1 to 2 Days
$13.46$19.36
9
17933-ZV4-000Ships in 1 to 2 Days
$9.83$14.14
10
17933-ZW9-831Ships in 1 to 2 Days
$16.32$23.48
11
17936-921-000Ships in 1 to 2 Days
$1.20$1.64
12
24218-ZW9-000Ships in 1 to 2 Days
$7.87$11.32
13
24221-ZW9-010Ships in 1 to 2 Days
$8.04$11.58
14
24611-ZW9-010Ships in 1 to 2 Days
$15.34$22.06
15
24618-ZW9-830Ships in 1 to 2 Daysqty 2 used
$12.45$17.92
16
24619-ZW9-830Ships in 1 to 2 Daysqty 2 used
$9.42$13.54
17
24626-ZW9-010Ships in 1 to 2 Daysqty 2 used
$2.31$3.32
18
35470-ZY1-733Ships in 1 to 2 Days
$50.97$73.32
19
35476-ZW9-731Ships in 1 to 2 Days
$6.07$8.74
20
35618-ZW9-020Ships in 1 to 2 Days
$4.69$6.62
21
40104-ZW9-830Ships in 1 to 2 Days
$6.29$9.04
22
40105-ZW9-832Ships in 1 to 2 Days
$8.48$12.20
23
40106-ZY1-870Ships in 1 to 2 Days
$6.73$9.68
24
40107-ZW9-720Ships in 1 to 2 Days
$4.28$6.16
25
40108-ZW9-830Ships in 1 to 2 Days
$4.44$6.38
26
40109-ZW9-000Ships in 1 to 2 Days
$6.29$9.04
27
46391-VM0-003Ships in 1 to 2 Days
$2.35$3.22
28
53115-732-000Ships in 1 to 2 Days
$3.20$4.52
29
90101-ZW9-003In Stock
$2.80$3.84
30
90103-ZY1-000Ships in 1 to 2 Days
$5.84$8.24
31
90112-ZY1-000In Stock
$3.08$4.22
31
90112-ZZ5-M01Ships in 1 to 2 Days
$1.69$2.38
32
90113-ZW9-000Ships in 1 to 2 Daysreplaced by 90113-ZW9-030
$0.96$1.38
32
90113-ZW9-030Ships in 1 to 2 Daysqty 7 used
$0.96$1.38
33
90116-ZV1-000Ships in 1 to 2 Days
$1.84$2.64
34
90302-ZV5-003Ships in 1 to 2 Days
$5.27$7.22
35
90518-ZW9-830Ships in 1 to 2 Daysqty 2 used
$3.53$5.08
36
90603-ZV4-000Ships in 1 to 2 Days
$1.42$1.94
37
90759-ZV1-000In Stockqty 2 used
$1.42$1.94
38
91202-ZY1-013Ships in 1 to 2 Days
$9.61$13.82
39
91301-ZW4-003In Stock
$0.99$1.36
40
91402-ZW9-010Ships in 1 to 2 Days
$4.35$6.26
41
91552-ZW9-830Ships in 1 to 2 Days
$9.64$13.86
Diagram

OIL PUMP

BF15 BF15DK3 oil pump exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY0CE0500
Fits all 7 submodels of this generation.

Parts in this assembly

20 parts
1
15100-ZW9-030Ships in 1 to 2 Days
$89.38$128.56
2
15121-ZW9-000Ships in 1 to 2 Days
$5.31$7.64
3
15131-414-000Ships in 1 to 2 Days
$20.00$27.40
4
15133-414-000Ships in 1 to 2 Days
$15.90$21.78
5
15136-ZW9-000Ships in 1 to 2 Days
$10.45$15.04
6
15211-ZW9-010Ships in 1 to 2 Days
$31.26$44.96
7
15212-ZW9-000Ships in 1 to 2 Days
$4.77$6.86
8
15220-ZW9-003Ships in 1 to 2 Days
$11.93$17.16
9
15422-ZW9-000Ships in 1 to 2 Days
$9.86$14.18
10
15473-881-000Ships in 1 to 2 Days
$9.11$13.10
11
15474-ZW9-000Ships in 1 to 2 Days
$3.81$5.48
12
90019-ZW9-000Ships in 1 to 2 Daysreplaced by 90019-ZZ5-M01
$2.25$3.08
13
90113-ZW9-000Ships in 1 to 2 Daysreplaced by 90113-ZW9-030
$0.96$1.38
13
90113-ZW9-030Ships in 1 to 2 Daysqty 2 used
$0.96$1.38
14
90456-333-000Ships in 1 to 2 Days
$2.44$3.34
15
91301-ZW9-000Ships in 1 to 2 Days
$3.64$5.22
16
91302-ZW9-000Ships in 1 to 2 Days
$3.36$4.82
17
91406-ZW9-003Ships in 1 to 2 Daysqty 2 used
$2.06$2.96
18
96220-40158Ships in 1 to 2 Days
$0.41$0.56
19
96300-06022-09Ships in 1 to 2 Daysqty 2 used
$1.30$1.78
Diagram

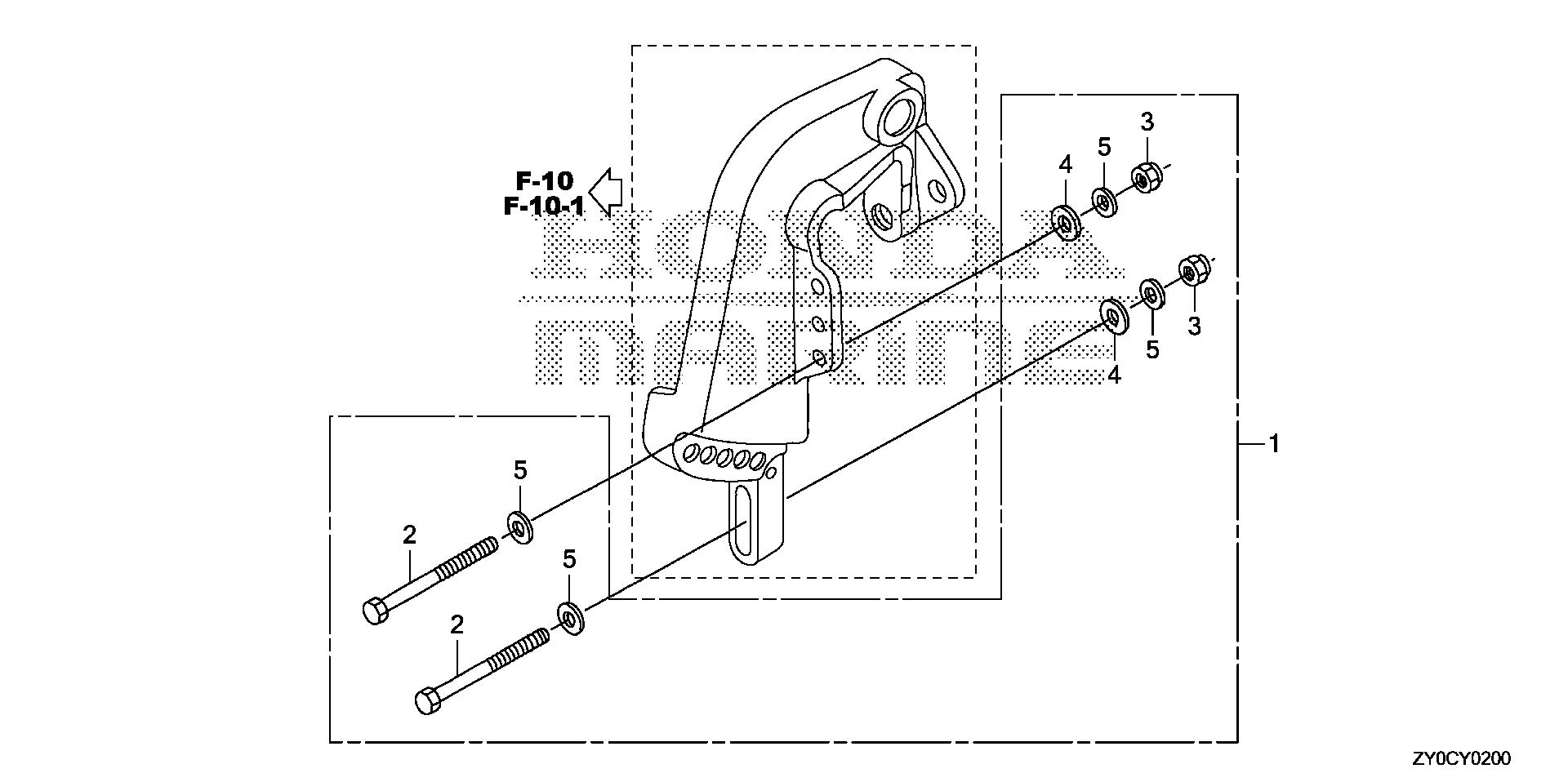

OUTBOARD INSTALLATION KIT

BF15 BF15DK3 outboard installation kit exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY0CY0200
Fits only BF15DK3-LHA, BF15DK3-LHSA, BF15DK3-LHTA, BF15DK3-LRTA, BF15DK3-SHTA — not every submodel of this generation.

Parts in this assembly

5 parts
1
06413-ZV7-000Ships in 1 to 2 Days
$44.15
2
90129-ZV7-000Ships in 1 to 2 Daysqty 4 used
$18.32$25.86
3
90306-ZV5-003In Stockqty 4 used
$3.40$4.66
4
90552-ZV7-000Ships in 1 to 2 Daysqty 4 used
$8.09$11.42
5
90563-ZV5-000Ships in 1 to 2 Daysqty 8 used
$2.44$3.34
Diagram

POWER TRIM-TILT

BF15 BF15DK3 power trim-tilt exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY0CF1120A
Fits only BF15DK3-LHTA, BF15DK3-LRTA, BF15DK3-SHTA — not every submodel of this generation.

Parts in this assembly

52 parts
1
17735-ZY1-870Ships in 1 to 2 Days
$1.68$2.42
2
35701-MG9-950Ships in 1 to 2 Days
$1.83$2.50
3
36105-ZW9-003Ships in 1 to 2 Days
$4.77$6.54
4
36105-ZY1-871Ships in 1 to 2 Days
$6.22$8.94
5
36120-ZY1-871Ships in 1 to 2 Days
$466.16
6
36122-ZY1-872Ships in 1 to 2 Days
$377.78$517.50
7
36123-ZY1-871Ships in 1 to 2 Days
$196.98
8
36129-V15-003Ships in 1 to 2 Days
$40.67
9
36136-V15-013Ships in 1 to 2 Daysqty 2 used
$4.41$6.04
10
53549-ZY1-871Ships in 1 to 2 Days
$2.20$3.02
11
56000-ZY1-874Ships in 1 to 2 Days
$1,404.54
12
56110-ZY1-871Ships in 1 to 2 Days
$108.64$156.28
13
56113-ZW1-701Ships in 1 to 2 Days
$16.41$22.48
14
56113-ZY1-871Ships in 1 to 2 Days
$68.49$93.82
15
56114-ZY1-871Ships in 1 to 2 Days
$224.78$323.34
16
56123-ZY1-871Ships in 1 to 2 Days
$18.82$27.08
17
56130-ZY1-871Ships in 1 to 2 Days
$64.11$87.82
18
56140-ZV5-822Ships in 1 to 2 Daysqty 2 used
$108.67$156.28
19
56150-ZY1-871Ships in 1 to 2 Days
$34.30$49.34
20
56151-ZY1-871Ships in 1 to 2 Days
$7.87$11.32
21
56160-V15-003Ships in 1 to 2 Days
$9.14$12.52
22
56161-ZY1-871Ships in 1 to 2 Days
$41.74$57.18
23
56163-ZY1-871Ships in 1 to 2 Days
$25.81$36.42
24
56170-ZY1-872Ships in 1 to 2 Days
$102.40$147.28
25
56191-ZY1-871Ships in 1 to 2 Days
$30.00$43.16
26
56511-ZY1-871Ships in 1 to 2 Days
$214.08$307.94
27
56517-ZY1-871Ships in 1 to 2 Days
$21.83$31.40
28
56518-ZY1-872Ships in 1 to 2 Days
$8.73$12.56
29
56632-ZY1-871Ships in 1 to 2 Days
$6.41$9.22
30
56764-ZY1-871Ships in 1 to 2 Days
$2.03$2.92
31
56851-V15-003Ships in 1 to 2 Days
$36.51$50.02
32
90103-ZY1-871Ships in 1 to 2 Daysqty 2 used
$2.85$4.10
33
90104-ZY1-871Ships in 1 to 2 Daysqty 2 used
$4.93$7.10
34
90105-ZY1-871Ships in 1 to 2 Days
$7.52$10.82
35
90115-ZV5-821Ships in 1 to 2 Days
$16.38$22.44
36
90134-V15-003Ships in 1 to 2 Daysqty 2 used
$3.24$4.44
37
90301-ZY1-871Ships in 1 to 2 Days
$5.80$8.34
38
90402-V15-003Ships in 1 to 2 Days
$4.37$5.98
39
90501-ZY1-000Ships in 1 to 2 Days
$8.96$12.90
40
90921-766-801Ships in 1 to 2 Days
$2.34$3.20
41
91203-ZV5-821Ships in 1 to 2 Days
$30.78$42.16
42
91304-ZV5-821Ships in 1 to 2 Daysqty 2 used
$3.43$4.70
43
91311-ZV5-822Ships in 1 to 2 Days
$2.41$3.30
44
91318-V15-003Ships in 1 to 2 Days
$4.38$6.00
45
91351-V15-003Ships in 1 to 2 Days
$8.07$11.06
46
91351-ZY1-871Ships in 1 to 2 Days
$4.50$6.46
47
91352-V15-003Ships in 1 to 2 Days
$6.06$8.30
48
91352-ZY1-871Ships in 1 to 2 Days
$5.64$8.10
49
91353-ZY1-871Ships in 1 to 2 Days
$5.64$8.10
50
91354-ZY1-871Ships in 1 to 2 Days
$5.64$8.10
51
91541-S0A-003Ships in 1 to 2 Days
$3.64$4.98
52
91353-V15-003Ships in 1 to 2 Days
$2.42$3.32
Diagram

PROPELLER SHAFT - PROPELLER

BF15 BF15DK3 propeller shaft - propeller exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY0CF0500
Fits all 7 submodels of this generation.

Parts in this assembly

30 parts
1
14126-Z0H-003Ships in 1 to 2 Days
$0.89$1.22
2
24101-ZW9-000Ships in 1 to 2 Days
$53.00$76.22
3
24103-ZV7-000Ships in 1 to 2 Days
$1.78$2.52
4
24122-ZW9-000Ships in 1 to 2 Days
$7.87$11.32
5
24123-ZV1-300Ships in 1 to 2 Days
$4.66$6.70
6
41140-ZY1-000Ships in 1 to 2 Days
$119.08$171.30
7
41146-ZW9-000Ships in 1 to 2 Days
$3.15$4.54
7
41147-ZW9-000Ships in 1 to 2 Days
$3.15$4.54
7
41148-ZW9-000Ships in 1 to 2 Days
$3.15$4.54
7
41149-ZW9-000Ships in 1 to 2 Days
$3.15$4.54
8
41151-ZY1-000Ships in 1 to 2 Days
$119.08$171.30
9
41161-ZW9-010Ships in 1 to 2 Days
$171.92$235.50
10
$79.51$114.36
11
58130-ZW9-V02ZAShips in 1 to 2 Days
$151.90
11
58130-ZW9-V12ZAShips in 1 to 2 Days
$151.90
11
58130-ZW9-V22ZAShips in 1 to 2 Days
$151.90
11
$151.90
11
$156.46
12
90105-ZW9-000Ships in 1 to 2 Daysqty 2 used
$2.88$3.94
13
90301-ZV4-000Ships in 1 to 2 Days
$5.39$7.74
14
90501-ZW9-C00Ships in 1 to 2 Days
$18.57$26.70
14
90501-ZW9-010Ships in 1 to 2 Daysreplaced by 90501-ZW9-C00
$18.57$26.70
15
90503-ZW9-000Ships in 1 to 2 Days
$5.53$7.96
16
90513-921-000Ships in 1 to 2 Days
$1.96$2.82
17
90758-ZV4-000In Stock
$1.46$2.10
18
91051-ZY1-C01Ships in 1 to 2 Days
$12.00$17.26
19
91054-ZV5-003Ships in 1 to 2 Days
$31.05$42.54
20
91072-KT7-003Ships in 1 to 2 Days
$19.65$26.92
21
91252-ZW9-003Ships in 1 to 2 Days
$12.44$17.90
22
91352-ZW9-003Ships in 1 to 2 Days
$3.42$4.92
Diagram

RECOIL STARTER

BF15 BF15DK3 recoil starter exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY0CE1100A
Fits all 7 submodels of this generation.

Parts in this assembly

31 parts
1
28400-ZY1-023Ships in 1 to 2 Daysreplaced by 28400-ZY1-033
$85.94$90.24
1
28400-ZY1-033Ships in 1 to 2 Days
$85.94$90.24
2
CASE, RECOIL STARTER (NOT AVAILABLE)
28401-ZW9-003No Longer Available
$110.11$150.84
3
28414-ZY1-000Ships in 1 to 2 Days
$32.72$47.06
4
28418-ZW9-003Ships in 1 to 2 Days
$3.15$4.54
5
28421-ZW9-003Ships in 1 to 2 Days
$34.98$50.32
6
28422-ZY1-003Ships in 1 to 2 Days
$7.39$10.62
7
28431-ZW9-003Ships in 1 to 2 Days
$4.45$6.40
8
28432-ZV4-003Ships in 1 to 2 Days
$3.15$4.44
9
28433-ZV7-003Ships in 1 to 2 Days
$4.45$6.40
10
28435-ZV4-003Ships in 1 to 2 Days
$5.17$7.30
11
28436-ZV4-003Ships in 1 to 2 Days
$3.43$4.84
12
28437-ZV4-003Ships in 1 to 2 Days
$2.31$3.32
13
28438-ZV4-003Ships in 1 to 2 Days
$2.26$3.20
14
28441-ZW9-003Ships in 1 to 2 Days
$4.44$6.38
15
28442-ZW9-003Ships in 1 to 2 Days
$24.98$35.94
16
28443-ZW9-003Ships in 1 to 2 Days
$2.50$3.60
17
28455-ZY1-000Ships in 1 to 2 Days
$13.08$18.82
18
28461-ZV4-013Ships in 1 to 2 Days
$8.38$11.82
19
ROPE, RECOIL STARTER (N/A: USE P/N 08550-ZG921-11)
28462-ZV4-003No Longer Available
—
20
28466-ZW9-003Ships in 1 to 2 Days
$1.91$2.70
21
28471-ZV7-003Ships in 1 to 2 Days
$11.80$16.98
22
28476-ZV7-003Ships in 1 to 2 Days
$4.41$6.34
23
80103-GJ5-000Ships in 1 to 2 Daysqty 2 used
$1.99$2.80
24
90003-ZY9-M01Ships in 1 to 2 Daysqty 3 used
$1.93$2.64
25
90004-ZY1-003Ships in 1 to 2 Days
$3.59$5.16
26
90021-ZV4-003Ships in 1 to 2 Days
$2.42$3.48
27
90022-ZV4-003Ships in 1 to 2 Days
$1.96$2.82
28
91403-ZW9-000Ships in 1 to 2 Days
$7.87$11.32
29
91505-ZW9-003Ships in 1 to 2 Daysqty 3 used
$2.18$3.12
30
BULK HOSE, VACUUM (8X1000) (8X240)
95005-80001-30MShips in 1 to 2 Days
$13.36$18.30
Diagram

REMOTE CONTROL

BF15 BF15DK3 remote control exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY0CF1500
Fits only BF15DK3-LRTA — not every submodel of this generation.

Parts in this assembly

80 parts
1
24800-ZW9-A02Ships in 1 to 2 Days
$279.99
1
24800-ZW9-A03Ships in 1 to 2 Days
$279.99
2
24811-ZV5-010Ships in 1 to 2 Days
$115.09$162.38
3
LEVER, HANDLE LOCK (NOT AVAILABLE)
24812-ZV5-000No Longer Available
—
4
24813-ZV5-000Ships in 1 to 2 Days
$39.73$56.04
5
24814-ZV5-010Ships in 1 to 2 Days
$8.23$11.62
6
24815-ZV5-010Ships in 1 to 2 Days
$8.04$11.36
7
24816-ZV5-000Ships in 1 to 2 Days
$4.07$5.74
8
24817-ZV5-000Ships in 1 to 2 Days
$3.81$5.38
9
24818-ZV5-003Ships in 1 to 2 Days
$1.33$1.88
10
24820-ZV5-010Ships in 1 to 2 Days
$102.08$144.04
11
24830-ZV5-010Ships in 1 to 2 Days
$54.08$76.32
12
24836-ZV5-000Ships in 1 to 2 Days
$33.64$47.46
13
24841-ZV5-000Ships in 1 to 2 Days
$57.93$81.74
14
24845-ZV5-000Ships in 1 to 2 Days
$39.52$55.76
15
24850-ZV5-000Ships in 1 to 2 Days
$46.76$65.98
16
24854-ZV5-000Ships in 1 to 2 Days
$8.10$11.44
17
24855-ZV5-000Ships in 1 to 2 Daysqty 2 used
$8.10$11.44
18
24860-ZV5-000Ships in 1 to 2 Days
$37.81$53.36
19
24865-ZV5-000Ships in 1 to 2 Days
$17.32$24.44
20
24875-ZV5-000Ships in 1 to 2 Days
$22.41$31.62
21
24876-ZV5-000Ships in 1 to 2 Days
$4.07$5.74
22
24878-ZV5-000Ships in 1 to 2 Days
$51.83$73.12
23
24881-ZV5-000Ships in 1 to 2 Daysqty 2 used
$3.81$5.38
24
24883-ZV5-000Ships in 1 to 2 Days
$3.90$5.50
25
24884-ZV5-000Ships in 1 to 2 Days
$3.90$5.50
26
24885-ZV5-000Ships in 1 to 2 Days
$69.85$98.54
27
24887-ZV5-000Ships in 1 to 2 Days
$4.63$6.52
28
24891-ZV5-000Ships in 1 to 2 Days
$7.84$11.06
29
24892-ZV5-000Ships in 1 to 2 Days
$15.26$21.52
30
24894-ZV5-000Ships in 1 to 2 Days
$6.31$8.90
31
24895-ZV5-000Ships in 1 to 2 Days
$6.32$8.92
32
24897-ZV5-000Ships in 1 to 2 Days
$4.96$7.00
33
24898-ZV5-000Ships in 1 to 2 Days
$4.85$6.84
34
32530-ZY1-812Ships in 1 to 2 Days
$203.28$286.84
35
CABLE ASSY., REMOTE CONTROL EXTENSION (4P+6P) (NOT AVAILABLE)
32570-ZY1-900No Longer Available
—
36
32901-952-770Ships in 1 to 2 Daysqty 3 used
$2.19$3.00
37
32901-952-770Ships in 1 to 2 Days
$2.19$3.00
38
35100-ZV5-013Ships in 1 to 2 Days
$85.13$116.62
39
35370-ZV5-823Ships in 1 to 2 Days
$63.90$90.18
40
35701-MG9-950Ships in 1 to 2 Days
$1.83$2.50
41
36180-ZV5-033In Stock
$56.84$77.86
42
36182-ZV4-651In Stock
$18.45$25.28
43
36187-ZV4-652Ships in 1 to 2 Days
$4.18$5.72
44
37210-ZW9-832Ships in 1 to 2 Days
$79.50$114.34
45
38403-341-672Ships in 1 to 2 Days
$4.66$6.38
46
38410-ZV5-003Ships in 1 to 2 Days
$56.17$76.94
47
$50.03$70.60
48
87702-ZW9-800Ships in 1 to 2 Days
$6.45$9.10
49
90008-ZW9-000Ships in 1 to 2 Days
$4.31$6.08
50
90105-MM4-000Ships in 1 to 2 Days
$2.03$2.78
51
90108-ZW4-000Ships in 1 to 2 Daysqty 2 used
$1.27$1.80
52
90125-ZV5-000Ships in 1 to 2 Daysqty 3 used
$6.91$9.74
53
90302-921-000In Stock
$4.10$5.62
54
90304-ZV4-000Ships in 1 to 2 Daysqty 3 used
$2.12$2.90
55
90401-ZW4-000Ships in 1 to 2 Daysqty 2 used
$1.24$1.70
56
90402-ZW4-000Ships in 1 to 2 Daysqty 2 used
$1.85$2.62
57
90502-ZV4-000Ships in 1 to 2 Days
$2.73$3.74
58
90504-921-010Ships in 1 to 2 Daysqty 5 used
$1.27$1.74
59
90512-921-010In Stockqty 6 used
$1.07$1.46
60
90518-921-000Ships in 1 to 2 Days
$1.20$1.64
61
90557-ZV5-000Ships in 1 to 2 Days
$2.99$4.22
62
90751-ZV5-000Ships in 1 to 2 Daysqty 2 used
$3.29$4.50
63
90772-ZV5-000Ships in 1 to 2 Days
$3.99$5.62
64
91151-ZV5-000Ships in 1 to 2 Days
$3.45$4.86
65
91475-SB6-000Ships in 1 to 2 Days
$7.72$10.58
66
91567-ZV5-000Ships in 1 to 2 Daysqty 2 used
$2.76$3.90
67
91570-ZV5-000Ships in 1 to 2 Daysqty 3 used
$8.10$11.44
68
92101-05016-4JShips in 1 to 2 Days
$1.21$1.66
69
93500-05010-4JShips in 1 to 2 Daysqty 2 used
$1.23$1.74
70
93901-250J0Ships in 1 to 2 Daysqty 2 used
$1.64$2.30
71
93901-251J0Ships in 1 to 2 Daysqty 3 used
$0.58$0.82
72
93901-252J0Ships in 1 to 2 Days
$1.53$2.16
73
93903-262J0Ships in 1 to 2 Daysqty 2 used
$2.37$3.34
74
93905-255J0Ships in 1 to 2 Daysqty 7 used
$2.37$3.34
75
94001-06490-0SShips in 1 to 2 Days
$2.15$2.94
76
94002-05490-0SShips in 1 to 2 Days
$0.96$1.36
77
94540-03029Ships in 1 to 2 Days
$1.34$1.90
78
94540-04029Ships in 1 to 2 Days
$5.23$7.16
79
94540-07029Ships in 1 to 2 Days
$4.38$6.00
Diagram

REMOTE CONTROL (NHK MEC) (HANDLE CAP = CHROME)

BF15 BF15DK3 remote control (nhk mec) (handle cap = chrome) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY0CF1501B
Fits only BF15DK3-LRTA — not every submodel of this generation.

Parts in this assembly

75 parts
1
24800-ZW9-A02Ships in 1 to 2 Days
$279.99
1
24800-ZW9-A03Ships in 1 to 2 Days
$279.99
2
24810-ZZ5-D01Ships in 1 to 2 Days
$48.17$65.98
3
24811-ZZ5-D01Ships in 1 to 2 Days
$102.07$139.84
4
24812-ZZ5-D01Ships in 1 to 2 Days
$9.34$12.80
5
24813-ZZ5-D01Ships in 1 to 2 Days
$25.13$34.42
6
24814-ZZ5-D01Ships in 1 to 2 Days
$56.34$77.18
7
24815-ZZ5-D01Ships in 1 to 2 Days
$15.87$21.74
8
24816-ZZ5-D01Ships in 1 to 2 Days
$2.07$2.84
9
24817-ZZ5-D01Ships in 1 to 2 Days
$2.10$2.88
10
24818-ZZ5-D01Ships in 1 to 2 Days
$2.82$3.86
11
24819-ZZ5-D01Ships in 1 to 2 Days
$2.01$2.76
12
24821-ZZ5-D01Ships in 1 to 2 Days
$131.39$179.98
13
24822-ZZ5-D01Ships in 1 to 2 Days
$47.76$65.42
14
24823-ZZ5-D01Ships in 1 to 2 Days
$34.50$47.26
15
24824-ZZ5-D01Ships in 1 to 2 Days
$2.28$3.12
16
24826-ZZ5-D01Ships in 1 to 2 Days
$4.89$6.70
17
24827-ZZ5-D01Ships in 1 to 2 Days
$14.73$20.18
18
24828-ZZ5-D01Ships in 1 to 2 Days
$3.31$4.54
19
24829-ZZ5-D01Ships in 1 to 2 Days
$7.23$9.90
20
24831-ZZ5-D01Ships in 1 to 2 Days
$6.39$8.76
21
24832-ZZ5-D01Ships in 1 to 2 Days
$5.02$6.88
22
24833-ZZ5-D01Ships in 1 to 2 Days
$5.24$7.18
23
24845-ZZ5-D01Ships in 1 to 2 Days
$26.12$35.78
24
24850-ZZ5-D01Ships in 1 to 2 Days
$38.08$52.16
25
24855-ZZ5-D01Ships in 1 to 2 Daysqty 2 used
$3.72$5.10
26
24875-ZZ5-D01Ships in 1 to 2 Days
$14.34$19.64
27
24876-ZZ5-D01Ships in 1 to 2 Days
$1.65$2.26
28
24878-ZZ5-D01Ships in 1 to 2 Days
$27.11$37.14
29
24883-ZZ5-D01Ships in 1 to 2 Daysqty 5 used
$2.07$2.84
30
32530-ZW9-D01Ships in 1 to 2 Days
$185.55$266.86
31
$119.43
32
32823-ZV5-003Ships in 1 to 2 Daysqty 3 used
$2.95$4.04
33
35100-ZV5-013Ships in 1 to 2 Days
$85.13$116.62
34
35370-ZZ5-D02Ships in 1 to 2 Days
$45.01$61.66
35
35645-ZZ3-A41Ships in 1 to 2 Days
$10.12$13.86
36
35701-ZZ5-D01Ships in 1 to 2 Days
$2.13$2.92
37
36180-ZV5-033In Stock
$56.84$77.86
38
36182-ZV4-651In Stock
$18.45$25.28
39
37210-ZW9-832Ships in 1 to 2 Days
$79.50$114.34
40
38403-341-672Ships in 1 to 2 Days
$4.66$6.38
41
38410-ZV5-003Ships in 1 to 2 Days
$56.17$76.94
42
87701-ZZ5-D00Ships in 1 to 2 Days
$4.34$5.94
43
87702-ZZ5-A00Ships in 1 to 2 Days
$5.05$6.92
44
87702-ZZ5-A00Ships in 1 to 2 Days
$5.05$6.92
45
87703-ZZ5-D00Ships in 1 to 2 Days
$15.90$21.78
46
87704-ZZ5-D01Ships in 1 to 2 Days
$5.69$7.80
47
90101-ZZ5-D01Ships in 1 to 2 Daysqty 5 used
$2.69$3.68
48
90102-ZZ5-D01Ships in 1 to 2 Daysqty 2 used
$1.58$2.16
49
90103-ZZ5-D01Ships in 1 to 2 Days
$2.01$2.76
50
90104-ZZ5-D01Ships in 1 to 2 Daysqty 2 used
$1.93$2.64
51
90106-ZZ5-D01Ships in 1 to 2 Daysqty 2 used
$2.07$2.84
52
90107-ZZ5-D01Ships in 1 to 2 Daysqty 3 used
$3.72$5.10
53
90108-ZZ5-D01Ships in 1 to 2 Days
$3.66$5.02
54
90109-ZZ5-D01Ships in 1 to 2 Days
$2.88$3.94
55
90301-ZZ5-D01Ships in 1 to 2 Daysqty 3 used
$1.37$1.88
56
90302-921-000In Stock
$4.10$5.62
57
90302-ZZ5-D01Ships in 1 to 2 Days
$0.92$1.26
58
90501-ZZ5-D01Ships in 1 to 2 Days
$3.34$4.58
59
90502-ZZ5-D01Ships in 1 to 2 Days
$2.04$2.80
60
90503-ZZ5-D01Ships in 1 to 2 Daysqty 2 used
$2.91$3.98
61
90504-ZZ5-D01Ships in 1 to 2 Days
$2.91$3.98
62
90506-ZZ5-D01Ships in 1 to 2 Days
$2.69$3.68
63
90507-ZZ5-D01Ships in 1 to 2 Daysqty 3 used
$3.84$5.26
64
90508-ZZ5-D01Ships in 1 to 2 Days
$3.20$4.38
65
90509-ZZ5-D01Ships in 1 to 2 Daysqty 3 used
$3.61$4.94
66
90651-ZZ5-D01Ships in 1 to 2 Daysqty 2 used
$2.98$4.08
67
91151-ZZ5-D01Ships in 1 to 2 Days
$2.19$3.00
68
91152-ZZ5-D01Ships in 1 to 2 Days
$1.99$2.72
69
91153-ZZ5-D01Ships in 1 to 2 Days
$2.61$3.58
70
91154-ZZ5-D01Ships in 1 to 2 Daysqty 2 used
$3.30$4.52
71
91156-ZZ5-D01Ships in 1 to 2 Days
$1.85$2.54
72
91157-ZZ5-D01Ships in 1 to 2 Days
$3.18$4.36
73
24828-ZZ5-D01Ships in 1 to 2 Days
$3.31$4.54
75
90111-ZZ5-D01Ships in 1 to 2 Daysqty 2 used
$1.05$1.44
Diagram

STARTER MOTOR

BF15 BF15DK3 starter motor exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY0CE2100
Fits only BF15DK3-LHSA, BF15DK3-LHTA, BF15DK3-LRTA, BF15DK3-SHSA, BF15DK3-SHTA — not every submodel of this generation.

Parts in this assembly

31 parts
1
31200-ZY1-803Ships in 1 to 2 Days
$603.68
2
31204-KS5-901Ships in 1 to 2 Daysqty 2 used
$2.85$4.02
3
31207-KS5-901Ships in 1 to 2 Days
$3.14$4.30
4
31210-ZY1-801Ships in 1 to 2 Days
$430.01
5
31214-ZV7-751Ships in 1 to 2 Days
$178.06$251.24
6
31216-ZV4-811Ships in 1 to 2 Days
$203.44$213.61
7
31217-ZV4-812Ships in 1 to 2 Days
$187.39$196.77
8
31221-ZV4-811Ships in 1 to 2 Days
$12.64$17.84
9
31223-ZV4-811Ships in 1 to 2 Days
$5.39$7.74
10
31231-ZV4-811Ships in 1 to 2 Days
$52.91$74.66
11
31233-ZV4-811Ships in 1 to 2 Days
$6.95$9.80
12
31235-ZW9-801Ships in 1 to 2 Days
$133.09$191.46
13
31236-ZV4-811Ships in 1 to 2 Days
$96.62$136.34
14
31238-ZV4-812Ships in 1 to 2 Days
$23.56$33.24
15
31258-ZY1-000Ships in 1 to 2 Days
$7.93$11.40
16
32402-ZY1-801Ships in 1 to 2 Days
$11.56$16.64
17
32411-ZV4-811Ships in 1 to 2 Days
$5.37$7.36
18
32412-ZY1-801Ships in 1 to 2 Days
$4.10$5.90
19
35850-ZY1-801Ships in 1 to 2 Days
$72.72$99.62
20
90002-ZY1-000Ships in 1 to 2 Daysqty 2 used
$1.27$1.80
20
90002-ZY1-010Ships in 1 to 2 Daysqty 2 used
$1.56$2.24
21
90012-ZV4-812Ships in 1 to 2 Days
$5.04$7.24
22
90022-ZW9-000Ships in 1 to 2 Daysqty 2 used
$2.69$3.86
23
90203-ZV4-811Ships in 1 to 2 Days
$2.72$3.84
24
90203-ZY1-801Ships in 1 to 2 Days
$3.88$5.48
25
90204-ZY1-003Ships in 1 to 2 Days
$4.00$5.76
26
90405-ZV4-811Ships in 1 to 2 Days
$2.51$3.54
27
90602-ZV4-811Ships in 1 to 2 Days
$1.69$2.38
28
91320-MB0-000Ships in 1 to 2 Daysqty 3 used
$2.22$3.04
29
91401-ZV4-811Ships in 1 to 2 Days
$3.02$4.26
30
94301-10120Ships in 1 to 2 Daysqty 2 used
$3.01$4.12
Diagram

STERN BRACKET (1)

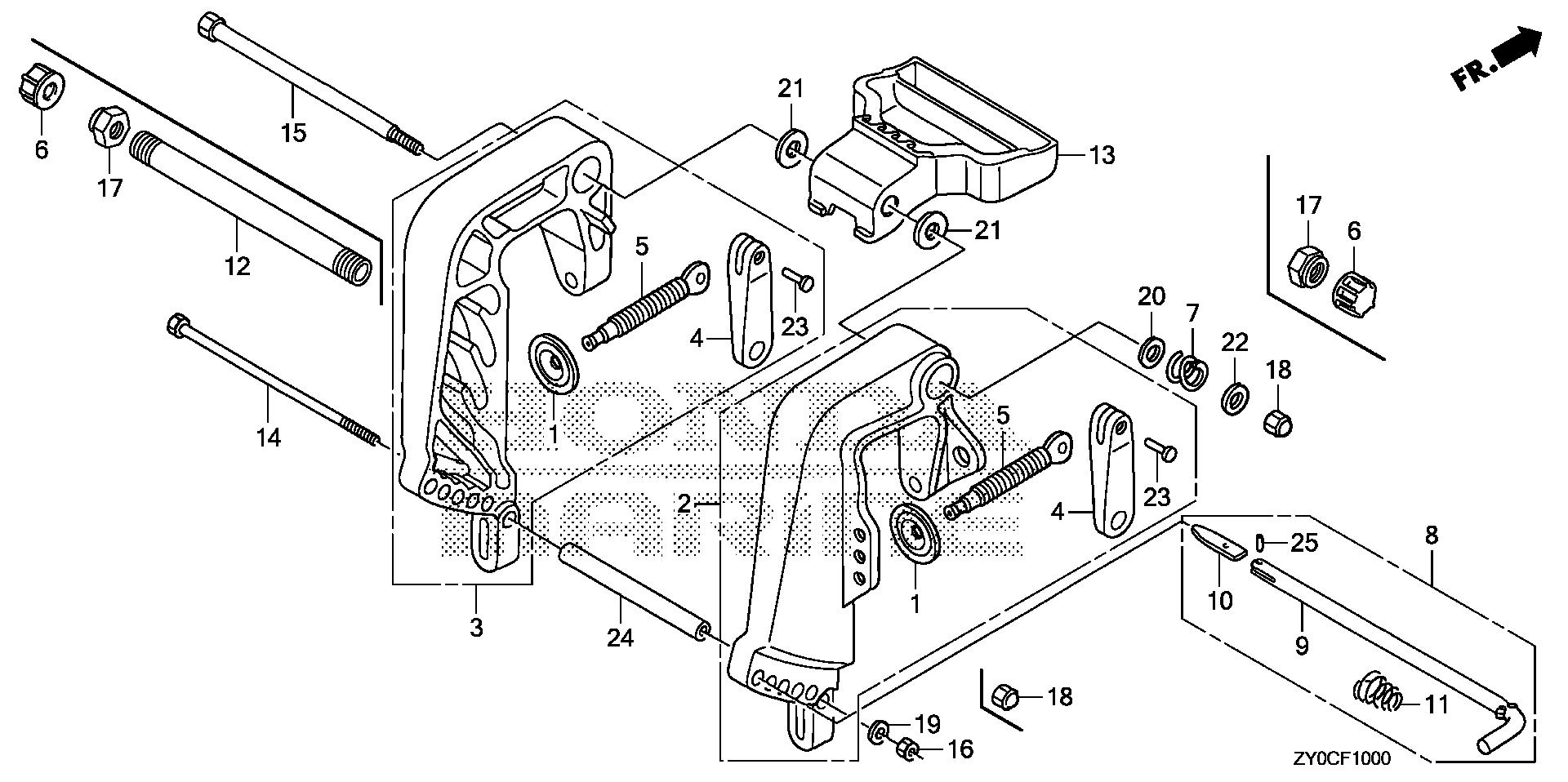

BF15 BF15DK3 stern bracket (1) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY0CF1000
Fits only BF15DK3-LHA, BF15DK3-LHSA, BF15DK3-SHA, BF15DK3-SHSA — not every submodel of this generation.

Parts in this assembly

38 parts
1
50122-935-010Ships in 1 to 2 Daysqty 2 used
$5.37$7.58
2
$169.77$232.56
2
$162.41$222.48
3
$169.77$232.56
3
$162.41$222.48
4
50323-ZW9-300Ships in 1 to 2 Daysqty 2 used
$7.36$10.38
5
50325-ZW9-010Ships in 1 to 2 Daysqty 2 used
$17.83$25.64
5
50325-ZW9-830Ships in 1 to 2 Daysqty 2 used
$15.84$22.34
6
50331-ZV5-000Ships in 1 to 2 Daysqty 2 used
$5.88$8.06
7
50333-ZW9-010Ships in 1 to 2 Days
$6.53$9.38
8
50340-ZV4-010Ships in 1 to 2 Days
$28.60$41.14
8
50340-ZV7-010Ships in 1 to 2 Days
$47.93$68.94
9
50341-ZV4-310Ships in 1 to 2 Days
$22.13$31.84
9
50341-ZV7-310Ships in 1 to 2 Days
$29.48$42.40
10
50342-ZV4-300Ships in 1 to 2 Days
$5.30$7.62
10
50342-ZV5-300Ships in 1 to 2 Days
$5.17$7.08
11
50343-ZV7-300Ships in 1 to 2 Days
$3.78$5.44
11
50343-921-300Ships in 1 to 2 Days
$3.21$4.40
12
50381-ZZ5-000Ships in 1 to 2 Days
$76.85$108.42
13
68111-ZW9-010Ships in 1 to 2 Days
$23.26$33.46
13
68111-ZW9-831Ships in 1 to 2 Days
$26.35$37.90
14
90104-ZW9-000Ships in 1 to 2 Days
$5.64$8.10
14
90108-ZV7-000Ships in 1 to 2 Days
$14.63$21.04
15
90106-921-010Ships in 1 to 2 Days
$20.92$30.10
16
90304-ZV4-000Ships in 1 to 2 Days
$2.12$2.90
17
90304-ZV5-013Ships in 1 to 2 Daysqty 2 used
$17.70$24.24
18
90305-ZV4-000Ships in 1 to 2 Days
$6.02$8.24
19
90506-ZV4-000Ships in 1 to 2 Days
$2.45$3.36
19
90507-ZV4-000Ships in 1 to 2 Days
$2.20$3.02
20
90511-921-000Ships in 1 to 2 Days
$0.86$1.18
21
90513-921-000Ships in 1 to 2 Daysqty 2 used
$1.96$2.82
21
90517-ZV5-000Ships in 1 to 2 Daysqty 2 used
$5.50$7.76
22
90514-921-000Ships in 1 to 2 Days
$0.99$1.36
23
90855-ZW9-300Ships in 1 to 2 Daysqty 2 used
$11.75$16.58
24
91501-ZV4-000Ships in 1 to 2 Days
$20.35$29.28
24
91501-ZV7-000Ships in 1 to 2 Days
$30.82$44.34
25
PIN, SPRING (2X8)
94305-20083Ships in 1 to 2 Days
$0.72$0.98
25
94305-25083Ships in 1 to 2 Days
$1.18$1.66
Diagram

STERN BRACKET (2)

BF15 BF15DK3 stern bracket (2) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY0CF1001
Fits only BF15DK3-LHTA, BF15DK3-LRTA, BF15DK3-SHTA — not every submodel of this generation.

Parts in this assembly

32 parts
1
40219-ZY1-013Ships in 1 to 2 Daysreplaced by 40219-ZY1-023
$9.61$13.16
1
40219-ZY1-023Ships in 1 to 2 Days
$9.61$13.16
2
41106-ZW9-000In Stock
$8.72$12.30
3
50122-935-010Ships in 1 to 2 Daysqty 2 used
$5.37$7.58
4
$283.72$400.32
5
$260.43$356.76
6
$283.72$400.32
7
$260.43$356.76
8
50323-ZW9-300Ships in 1 to 2 Daysqty 2 used
$7.36$10.38
9
50325-ZW9-830Ships in 1 to 2 Daysqty 2 used
$15.84$22.34
10
50331-ZV5-000Ships in 1 to 2 Daysqty 2 used
$5.88$8.06
11
50335-ZV5-000Ships in 1 to 2 Daysqty 2 used
$8.73$12.32
12
50340-ZY1-871Ships in 1 to 2 Days
$25.52$36.00
13
50342-ZV5-300Ships in 1 to 2 Days
$5.17$7.08
14
50343-921-300Ships in 1 to 2 Days
$3.21$4.40
15
50381-ZZ5-000Ships in 1 to 2 Days
$76.85$108.42
16
56118-ZV5-820Ships in 1 to 2 Days
$8.56$11.72
17
56513-ZV5-000Ships in 1 to 2 Daysqty 2 used
$3.77$5.16
18
56539-ZY1-870Ships in 1 to 2 Days
$61.19$86.34
19
68111-ZW9-831Ships in 1 to 2 Days
$26.35$37.90
20
90102-ZW9-000Ships in 1 to 2 Days
$2.12$2.90
21
90108-ZY1-870Ships in 1 to 2 Days
$9.18$12.96
22
90119-ZV5-000Ships in 1 to 2 Daysqty 2 used
$1.65$2.26
23
90304-ZV5-013Ships in 1 to 2 Daysqty 2 used
$17.70$24.24
24
90305-ZV4-000Ships in 1 to 2 Days
$6.02$8.24
25
90507-ZV4-000Ships in 1 to 2 Days
$2.20$3.02
26
90517-ZV5-000Ships in 1 to 2 Daysqty 2 used
$5.50$7.76
27
90855-ZW9-300Ships in 1 to 2 Daysqty 2 used
$11.75$16.58
28
91352-ZV5-000Ships in 1 to 2 Daysqty 2 used
$1.74$2.46
29
91541-S0A-003Ships in 1 to 2 Days
$3.64$4.98
30
91599-ZY1-870Ships in 1 to 2 Days
$6.51$9.36
31
94305-25083Ships in 1 to 2 Days
$1.18$1.66
Diagram

SWIVEL CASE (1)

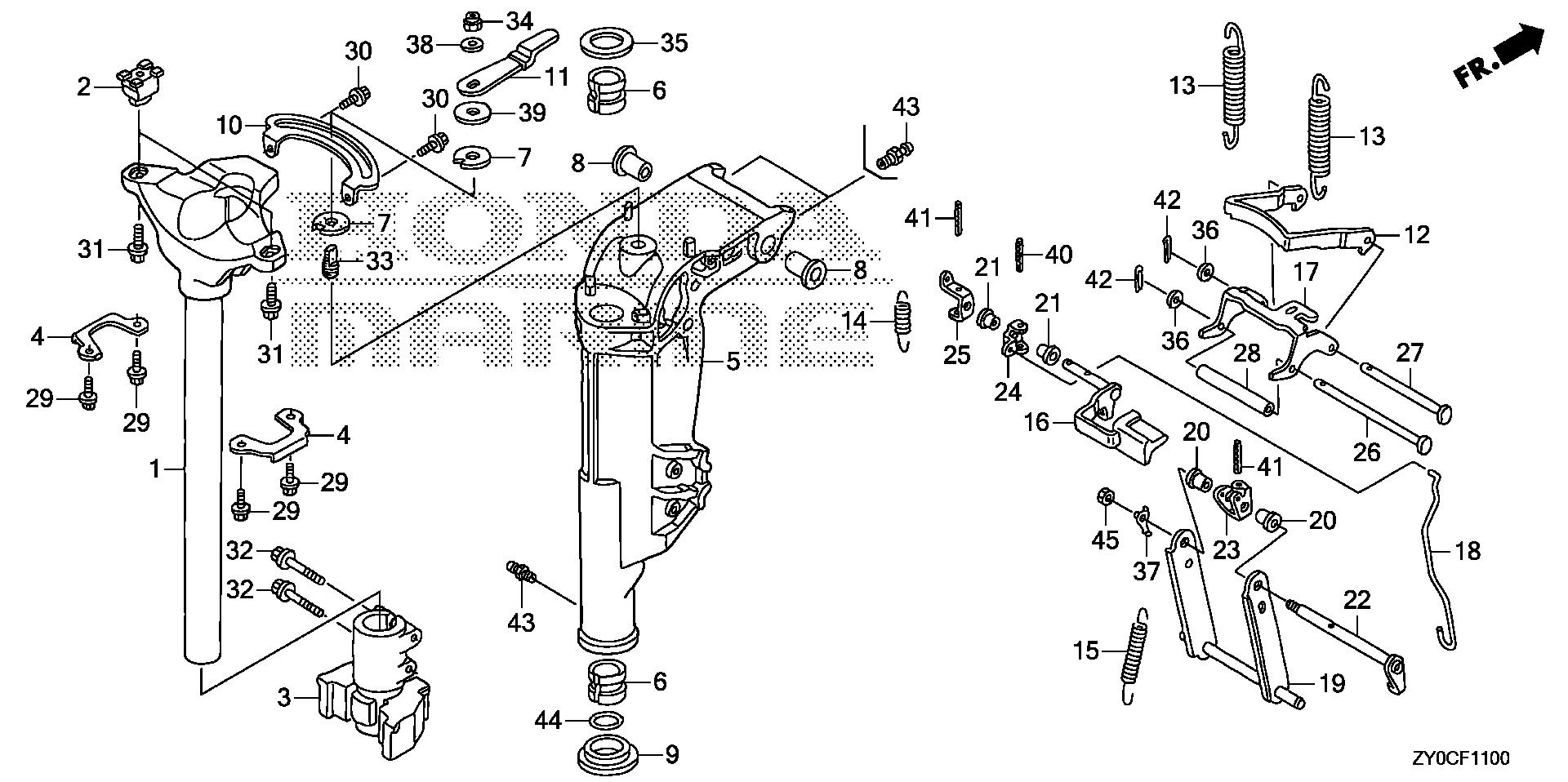

BF15 BF15DK3 swivel case (1) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY0CF1100
Fits only BF15DK3-LHA, BF15DK3-LHSA, BF15DK3-SHA, BF15DK3-SHSA — not every submodel of this generation.

Parts in this assembly

52 parts
1
50100-ZW9-010Ships in 1 to 2 Days
$180.19$259.20
1
50100-ZW9-631Ships in 1 to 2 Days
$192.44$263.62
2
50150-ZY1-000Ships in 1 to 2 Daysqty 2 used
$20.05$28.82
3
50152-ZW9-000Ships in 1 to 2 Days
$80.40$115.64
4
50153-ZW9-000Ships in 1 to 2 Daysqty 2 used
$7.31$10.52
5
$193.97
5
$231.71$243.33
6
50211-ZW9-000Ships in 1 to 2 Daysqty 2 used
$5.36$5.63
7
50212-ZW9-003Ships in 1 to 2 Daysqty 2 used
$10.86$14.88
8
50214-ZV4-003Ships in 1 to 2 Daysqty 2 used
$6.31$9.08
8
50214-ZV5-003Ships in 1 to 2 Daysqty 2 used
$7.65$10.48
9
50215-ZW9-000Ships in 1 to 2 Days
$4.76$6.84
10
50218-ZW9-010Ships in 1 to 2 Days
$9.39$13.50
11
50219-ZW9-010Ships in 1 to 2 Days
$7.84$10.74
12
50512-ZW9-010Ships in 1 to 2 Days
$18.21$26.20
13
50514-ZW9-A30Ships in 1 to 2 Daysqty 2 used
$17.86$25.68
13
50514-ZW9-000Ships in 1 to 2 Daysqty 2 used
$10.53$15.14
14
50515-ZW9-300Ships in 1 to 2 Days
$3.78$5.44
15
50516-ZV4-300Ships in 1 to 2 Days
$4.66$6.70
16
50517-ZW9-A32Ships in 1 to 2 Days
$36.51$52.52
16
50517-ZW9-010Ships in 1 to 2 Days
$31.38$45.12
17
50518-ZW9-000Ships in 1 to 2 Days
$20.75$29.84
18
50519-ZW9-A30Ships in 1 to 2 Days
$8.57$12.32
18
50519-ZW9-010Ships in 1 to 2 Days
$6.32$9.10
19
50520-ZV4-010Ships in 1 to 2 Days
$58.49$84.12
19
50520-ZW9-A31Ships in 1 to 2 Days
$73.91$106.28
20
50521-ZV1-000Ships in 1 to 2 Daysqty 2 used
$5.88$8.30
21
50522-ZV4-000Ships in 1 to 2 Daysqty 2 used
$5.01$7.20
22
50525-ZV4-010Ships in 1 to 2 Days
$22.15$31.86
23
50526-ZV4-000Ships in 1 to 2 Days
$8.61$12.40
24
50527-ZV4-010Ships in 1 to 2 Days
$4.98$7.16
25
50528-ZV4-010Ships in 1 to 2 Days
$4.98$7.16
26
50531-ZV7-000Ships in 1 to 2 Days
$9.34$13.44
27
50532-ZV4-000Ships in 1 to 2 Days
$6.77$9.74
28
50533-ZW9-000Ships in 1 to 2 Days
$10.34$14.86
29
90102-ZW9-000Ships in 1 to 2 Daysqty 4 used
$2.12$2.90
30
90103-ZW9-010Ships in 1 to 2 Daysqty 2 used
$2.04$2.80
31
90154-ZW9-000Ships in 1 to 2 Daysqty 2 used
$3.07$4.32
32
90159-ZW9-000Ships in 1 to 2 Daysqty 2 used
$3.66$5.28
33
90162-ZW9-000Ships in 1 to 2 Days
$4.80$6.58
34
90305-ZW9-000Ships in 1 to 2 Days
$4.91$6.72
35
90454-881-000Ships in 1 to 2 Days
$2.82$4.06
36
90504-921-010Ships in 1 to 2 Daysqty 2 used
$1.27$1.74
37
90505-ZV4-000Ships in 1 to 2 Days
$2.98$4.08
38
90514-921-000Ships in 1 to 2 Days
$0.99$1.36
39
90517-ZW9-000Ships in 1 to 2 Days
$1.42$1.94
40
90751-ZV4-C21In Stock
$2.70$3.88
41
90752-ZV4-C21In Stockqty 2 used
$2.70$3.88
42
90759-ZV1-000In Stockqty 2 used
$1.42$1.94
43
90951-ZV7-010Ships in 1 to 2 Daysqty 3 used
$1.90$2.60
44
91361-VD6-003Ships in 1 to 2 Days
$2.31$3.32
45
94002-06490-0SShips in 1 to 2 Days
$2.58$3.54
Diagram

SWIVEL CASE (2)

BF15 BF15DK3 swivel case (2) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY0CF1101
Fits only BF15DK3-LHTA, BF15DK3-LRTA, BF15DK3-SHTA — not every submodel of this generation.

Parts in this assembly

43 parts
1
17853-ZV5-000Ships in 1 to 2 Days
$80.01$112.90
2
24210-ZV1-010Ships in 1 to 2 Days
$10.25$14.04
3
50100-ZW9-010Ships in 1 to 2 Days
$180.19$259.20
3
50100-ZW9-631Ships in 1 to 2 Days
$192.44$263.62
4
50150-ZY1-000Ships in 1 to 2 Daysqty 2 used
$20.05$28.82
5
50152-ZW9-000Ships in 1 to 2 Days
$80.40$115.64
6
50153-ZW9-000Ships in 1 to 2 Days
$7.31$10.52
7
50153-ZY1-870Ships in 1 to 2 Days
$6.42$9.24
8
$394.71$414.45
8
$350.61
8
$444.31
9
50211-ZW9-000Ships in 1 to 2 Daysqty 2 used
$5.36$5.63
10
50212-ZW9-003Ships in 1 to 2 Daysqty 2 used
$10.86$14.88
11
50214-ZV5-003Ships in 1 to 2 Daysqty 2 used
$7.65$10.48
12
50215-ZW9-000Ships in 1 to 2 Days
$4.76$6.84
13
50218-ZW9-010Ships in 1 to 2 Days
$9.39$13.50
14
50219-ZW9-010Ships in 1 to 2 Days
$7.84$10.74
15
50522-ZV5-000Ships in 1 to 2 Daysqty 2 used
$5.71$7.82
16
50527-ZY1-870Ships in 1 to 2 Days
$13.93$19.66
17
50529-ZY1-870Ships in 1 to 2 Daysqty 2 used
$40.75$57.50
18
53234-ZW9-830Ships in 1 to 2 Days
$33.68$48.46
19
56513-ZV5-000Ships in 1 to 2 Daysqty 2 used
$3.77$5.16
20
56532-ZY1-870Ships in 1 to 2 Days
$18.99$26.80
21
90102-ZW9-000Ships in 1 to 2 Daysqty 5 used
$2.12$2.90
22
90103-ZW9-010Ships in 1 to 2 Daysqty 2 used
$2.04$2.80
23
90105-ZV5-000Ships in 1 to 2 Days
$6.91$9.74
24
90154-ZW9-000Ships in 1 to 2 Daysqty 2 used
$3.07$4.32
25
90159-ZW9-000Ships in 1 to 2 Daysqty 2 used
$3.66$5.28
26
90161-ZW9-830Ships in 1 to 2 Daysqty 2 used
$3.23$4.56
27
90162-ZW9-000Ships in 1 to 2 Days
$4.80$6.58
28
90302-ZV5-000Ships in 1 to 2 Days
$8.66$12.22
29
90305-ZW9-000Ships in 1 to 2 Days
$4.91$6.72
30
90307-ZV5-003Ships in 1 to 2 Daysqty 2 used
$6.47$8.86
31
90454-881-000Ships in 1 to 2 Days
$2.82$4.06
32
90514-921-000Ships in 1 to 2 Days
$0.99$1.36
33
90514-ZV4-000Ships in 1 to 2 Daysqty 3 used
$1.69$2.32
34
90517-ZW9-000Ships in 1 to 2 Days
$1.42$1.94
35
90951-ZV7-010Ships in 1 to 2 Daysqty 3 used
$1.90$2.60
36
91361-VD6-003Ships in 1 to 2 Days
$2.31$3.32
37
91560-ZV5-000Ships in 1 to 2 Days
$3.07$4.20
38
90752-ZW6-000Ships in 1 to 2 Daysqty 2 used
$2.31$3.16
38
94305-25203Ships in 1 to 2 Daysqty 2 used
$1.37$1.88
39
94540-15029Ships in 1 to 2 Days
$8.02$10.98
Diagram

THERMOSTAT

BF15 BF15DK3 thermostat exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY0CE0400B
Fits all 7 submodels of this generation.

Parts in this assembly

18 parts
1
12155-ZV4-A00Ships in 1 to 2 Daysreplaced by 12155-ZV4-A01
$10.91$14.94
1
12155-ZV4-A01Ships in 1 to 2 Days
$10.91$14.94
2
19279-ZW9-010Ships in 1 to 2 Days
$1.58$2.16
3
19291-ZW9-000Ships in 1 to 2 Days
$5.90$8.08
4
19297-ZW9-000Ships in 1 to 2 Daysreplaced by 19297-ZW9-010
$1.53$2.10
4
19297-ZW9-010Ships in 1 to 2 Days
$1.53$2.10
5
19300-ZW9-003In Stock
$43.00$58.90
↳
Sierra alternative ·
18-3628-1In Stock save $0.08
$42.92
6
19315-ZW9-000Ships in 1 to 2 Days
$10.96$15.02
7
19317-ZW9-000Ships in 1 to 2 Days
$5.15$7.06
8
19361-ZW9-405Ships in 1 to 2 Days
$52.46$75.44
9
19371-ZW9-000Ships in 1 to 2 Days
$10.95$15.76
10
90002-ZW9-030Ships in 1 to 2 Daysqty 2 used
$2.26$3.26
11
90012-ZW9-030Ships in 1 to 2 Daysqty 6 used
$1.90$2.68
12
90003-ZX2-000Ships in 1 to 2 Days
$1.88$2.58
12
93500-05020-4JShips in 1 to 2 Days
$0.86$1.18
13
19303-ZW9-003In Stock
$5.30$7.26
14
90024-ZW9-030Ships in 1 to 2 Days
$3.34$4.80
15
90471-580-000Ships in 1 to 2 Days
$2.98$4.08
Diagram

TIMING BELT

BF15 BF15DK3 timing belt exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY0CE1300
Fits all 7 submodels of this generation.

Parts in this assembly

5 parts
1
14315-ZY1-000Ships in 1 to 2 Days
$39.22$56.42
2
14316-ZY1-000Ships in 1 to 2 Daysqty 2 used
$6.39$9.20
3
14321-ZW9-003Ships in 1 to 2 Days
$75.25$108.22
4
14400-ZY1-013Ships in 1 to 2 Days
$41.45$59.62
5
90201-ZY1-000Ships in 1 to 2 Days
$8.72$12.54
Diagram

TOOL

BF15 BF15DK3 tool exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY0CF1300A
Fits all 7 submodels of this generation.

Parts in this assembly

14 parts
1
28461-ZH8-013Ships in 1 to 2 Days
$1.69$2.32
2
28462-ZW9-003Ships in 1 to 2 Days
$9.75$13.36
3
36187-ZV4-652Ships in 1 to 2 Days
$4.18$5.72
5
89210-GBJ-J00Ships in 1 to 2 Days
$8.60$11.78
6
89216-130-690Ships in 1 to 2 Days
$7.21$9.88
7
89217-355-000Ships in 1 to 2 Days
$9.83$13.46
8
89221-KW3-000Ships in 1 to 2 Days
$5.50$7.54
9
89301-921-010Ships in 1 to 2 Days
$5.87$8.28
10
99001-10120Ships in 1 to 2 Days
$6.26$8.58
11
99003-10000Ships in 1 to 2 Days
$3.81$5.22
12
99003-30000Ships in 1 to 2 Days
$3.81$5.22
13
99003-50000Ships in 1 to 2 Days
$4.96$6.80
14
99008-01600Ships in 1 to 2 Days
$2.13$2.92
15
89211-170-000Ships in 1 to 2 Days
$2.38$3.26
Diagram

WATER HOSE JOINT KIT

BF15 BF15DK3 water hose joint kit exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY0CX0200
Fits all 7 submodels of this generation.

Parts in this assembly

5 parts
1
06190-ZV1-860Ships in 1 to 2 Days
$12.10$16.58
2
19270-881-812Ships in 1 to 2 Days
$10.42$14.70
3
19271-ZV1-810Ships in 1 to 2 Days
$13.20$18.62
4
19271-ZV1-810Ships in 1 to 2 Days
$13.20$18.62
5
19272-881-810Ships in 1 to 2 Days
$2.45$3.46
Diagram

WATER PUMP - VERTICAL SHAFT (S,L)

BF15 BF15DK3 water pump - vertical shaft (s,l) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY0CF0400A
Fits all 7 submodels of this generation.

Parts in this assembly

38 parts
1
12216-ZE2-300Ships in 1 to 2 Days
$1.72$2.36
2
15332-ZY1-000Ships in 1 to 2 Days
$7.67$11.02
3
19210-ZW9-A32Ships in 1 to 2 Days
$15.70$22.58
↳
Sierra alternative ·
18-32455In Stock
$25.19
4
19215-ZW9-020Ships in 1 to 2 Days
$48.56$69.86
5
19231-ZW9-000Ships in 1 to 2 Days
$8.47$12.18
6
19232-ZW9-000Ships in 1 to 2 Days
$2.15$3.08
7
19240-ZY1-C00Ships in 1 to 2 Days
$103.88$149.44
8
19251-ZW9-000Ships in 1 to 2 Days
$37.23$53.54
8
19251-ZW9-630Ships in 1 to 2 Days
$41.51$59.70
9
19253-ZW9-000Ships in 1 to 2 Days
$3.83$5.50
10
24311-ZY1-C00Ships in 1 to 2 Days
$23.18$33.34
10
24311-ZY1-C10Ships in 1 to 2 Days
$23.18$33.34
11
24312-ZV7-000Ships in 1 to 2 Days
$14.40$20.30
12
24320-ZW9-000Ships in 1 to 2 Days
$22.60$32.52
12
24320-ZW9-630Ships in 1 to 2 Days
$25.49$36.66
13
24341-ZY1-C00Ships in 1 to 2 Days
$19.80$28.48
14
41112-ZY1-C00Ships in 1 to 2 Days
$248.90$358.00
14
41112-ZY1-C10Ships in 1 to 2 Days
$286.23$392.10
15
41116-ZW9-A30Ships in 1 to 2 Days
$11.40$16.40
16
41131-ZY1-000Ships in 1 to 2 Days
$50.63$72.82
17
41135-ZY1-000Ships in 1 to 2 Days
$7.11$10.22
18
41136-ZY1-010Ships in 1 to 2 Days
$6.45$9.28
18
41137-ZY1-010Ships in 1 to 2 Days
$6.45$9.28
19
90102-ZW9-000Ships in 1 to 2 Days
$2.12$2.90
20
90105-ZW9-000Ships in 1 to 2 Daysqty 3 used
$2.88$3.94
21
90121-ZW9-000Ships in 1 to 2 Daysqty 4 used
$3.05$4.38
22
90515-ZW9-000Ships in 1 to 2 Days
$3.36$4.84
23
90752-ZW9-A30Ships in 1 to 2 Days
$2.29$3.30
↳
Sierra alternative ·
18-3025In Stock save $0.12
$2.17
24
91052-ZV4-003Ships in 1 to 2 Days
$11.17$16.06
25
91251-ZW9-003Ships in 1 to 2 Daysqty 2 used
$4.77$6.86
26
91253-ZW9-003Ships in 1 to 2 Days
$8.51$12.00
27
91301-ZG3-000Ships in 1 to 2 Days
$2.26$3.20
28
91351-ZW9-000Ships in 1 to 2 Days
$7.07$10.16
29
94001-06490-0SShips in 1 to 2 Days
$2.15$2.94
30
E-RING (8MM)
94540-08018Ships in 1 to 2 Days
$5.43$7.44
31
91151-VD6-851Ships in 1 to 2 Daysqty 2 used
$1.30$1.84
31
96220-25118Ships in 1 to 2 Daysqty 2 used
$0.61$0.84
32
19223-ZW9-310Ships in 1 to 2 Days
$7.67$11.02
Diagram

WATER PUMP IMPELLER KIT

BF15 BF15DK3 water pump impeller kit exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY0CY0300C
Fits all 7 submodels of this generation.

Parts in this assembly

19 parts
1
06192-ZW9-A31Ships in 1 to 2 Daysreplaced by 06192-ZW9-A32
$27.93$40.18
1
06192-ZW9-A32Ships in 1 to 2 Days
$27.93$40.18
2
06193-ZY1-030Ships in 1 to 2 Days
$42.52$61.16
2
06193-ZW9-A32Ships in 1 to 2 Daysreplaced by 06193-ZW9-A34
$44.40$63.86
3
19210-ZW9-A32Ships in 1 to 2 Days
$15.70$22.58
↳
Sierra alternative ·
18-32455In Stock
$25.19
4
19215-ZW9-020Ships in 1 to 2 Days
$48.56$69.86
5
19231-ZW9-000Ships in 1 to 2 Days
$8.47$12.18
6
19232-ZW9-000Ships in 1 to 2 Days
$2.15$3.08
7
19253-ZW9-000Ships in 1 to 2 Days
$3.83$5.50
8
90121-ZW9-000Ships in 1 to 2 Daysqty 4 used
$3.05$4.38
8
90122-ZW9-000Ships in 1 to 2 Daysqty 4 used
$3.83$5.50
9
90752-ZW9-A30Ships in 1 to 2 Days
$2.29$3.30
↳
Sierra alternative ·
18-3025In Stock save $0.12
$2.17
10
91301-ZG3-000Ships in 1 to 2 Days
$2.26$3.20
11
19223-ZW9-310Ships in 1 to 2 Days
$7.67$11.02
12
06192-ZW9-A31Ships in 1 to 2 Daysreplaced by 06192-ZW9-A32
$27.93$40.18
12
06192-ZW9-A32Ships in 1 to 2 Days
$27.93$40.18
13
06193-ZY1-030Ships in 1 to 2 Days
$42.52$61.16
13
06193-ZW9-A34Ships in 1 to 2 Days
$44.40$63.86
14
90756-ZV5-000In Stockqty 2 used
$2.64$3.62
Diagram

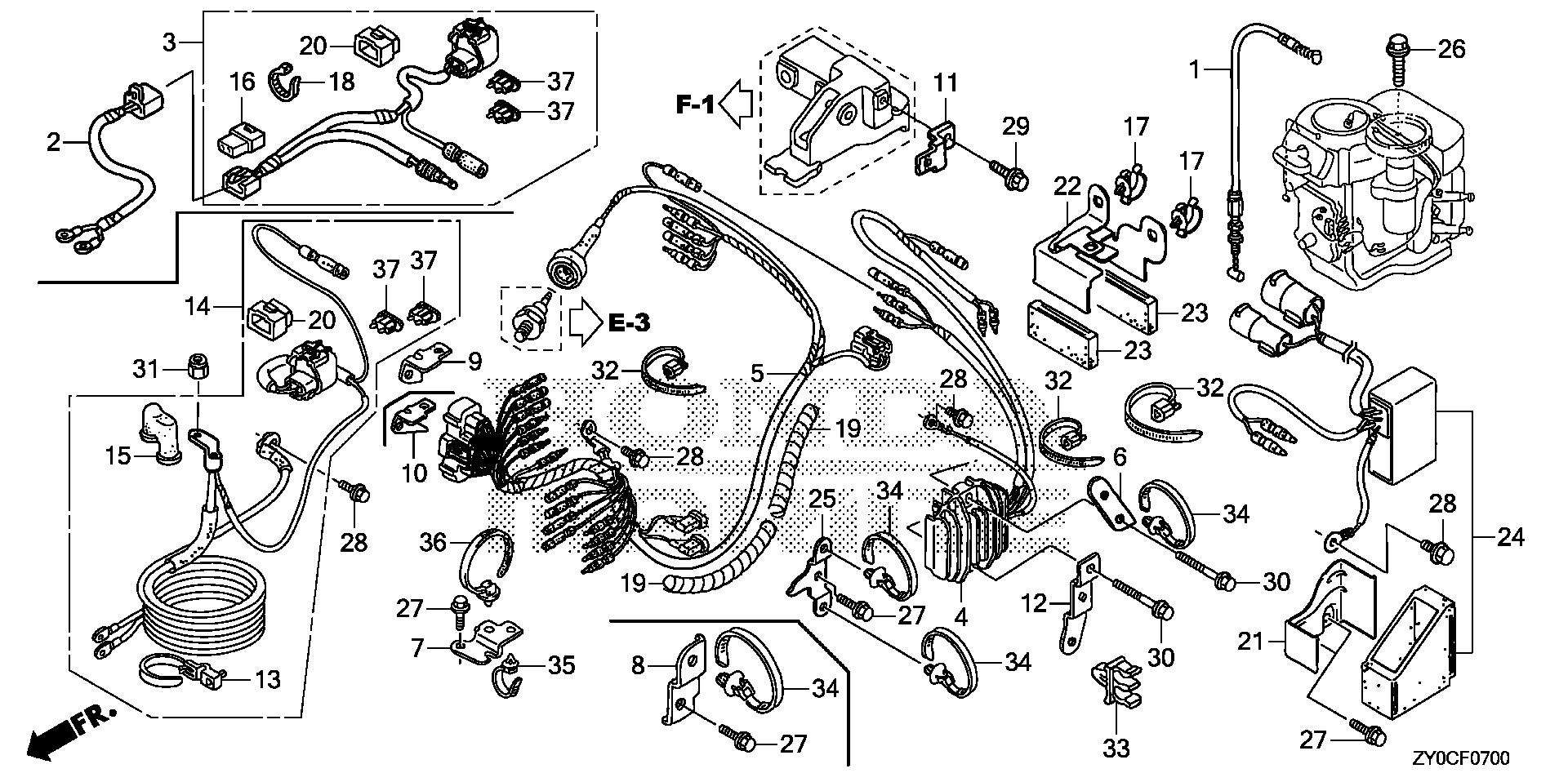

WIRE HARNESS - REGULATOR - STARTER CABLE (1)

BF15 BF15DK3 wire harness - regulator - starter cable (1) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY0CF0700
Fits only BF15DK3-LHA, BF15DK3-LHSA, BF15DK3-LHTA, BF15DK3-SHA, BF15DK3-SHSA, BF15DK3-SHTA — not every submodel of this generation.

Parts in this assembly

44 parts
1
17940-ZW9-010Ships in 1 to 2 Days
$12.54$18.04
2
31575-ZW9-000Ships in 1 to 2 Days
$59.71$85.88
3
31650-ZY1-000Ships in 1 to 2 Days
$31.84$45.80
4
31750-ZY1-732Ships in 1 to 2 Days
$97.00$139.54
4
31750-ZY1-003Ships in 1 to 2 Days
$86.18$123.98
5
32100-ZY1-700Ships in 1 to 2 Days
$154.70$222.54
5
32100-ZY1-000Ships in 1 to 2 Days
$154.70$222.54
6
32103-ZW9-020Ships in 1 to 2 Days
$1.43$2.06
7
32112-ZW9-010Ships in 1 to 2 Days
$4.18$6.00
8
32114-ZVL-000Ships in 1 to 2 Days
$2.89$3.96
9
32115-ZW9-010Ships in 1 to 2 Days
$3.80$5.46
10
32115-ZY1-870Ships in 1 to 2 Daysreplaced by 32115-ZY1-871
$3.33$4.78
10
32115-ZY1-871Ships in 1 to 2 Days
$3.33$4.78
11
32117-ZW9-000Ships in 1 to 2 Days
$7.07$9.68
12
32118-ZW9-731Ships in 1 to 2 Days
$4.53$6.52
13
32121-HA0-003No Longer Available
$7.81$10.70
13
90651-KV6-003Ships in 1 to 2 Days
$4.12$5.64
14
32410-ZY1-730Ships in 1 to 2 Days
$174.63$239.22
14
32410-ZY1-870Ships in 1 to 2 Days
$174.63$239.22
15
32412-ZY1-801Ships in 1 to 2 Days
$4.10$5.90
16
32521-ZW9-000Ships in 1 to 2 Days
$4.18$6.00
17
32660-MJ6-710Ships in 1 to 2 Daysqty 2 used
$3.43$4.70
18
32901-952-770Ships in 1 to 2 Days
$2.19$3.00
19
36104-ZW9-003Ships in 1 to 2 Daysqty 2 used
$7.65$11.00
20
38218-ZW9-003Ships in 1 to 2 Days
$6.53$9.38
21
38552-ZY1-871Ships in 1 to 2 Days
$31.54$44.50
21
38552-ZY1-872Ships in 1 to 2 Days
$32.02$46.06
22
38553-ZY1-870Ships in 1 to 2 Days
$15.39$22.14
23
38554-ZY1-870Ships in 1 to 2 Daysqty 2 used
$1.97$2.84
24
38555-ZY1-871Ships in 1 to 2 Days
$211.69$298.70
25
38556-ZY1-871Ships in 1 to 2 Days
$4.92$7.08
26
90005-ZW9-030Ships in 1 to 2 Days
$1.85$2.54
27
90011-ZW9-000Ships in 1 to 2 Daysqty 2 used
$1.71$2.34
27
90011-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.18$1.62
28
90013-ZW9-000Ships in 1 to 2 Days
$1.47$2.08
29
90102-ZW9-000Ships in 1 to 2 Days
$2.12$2.90
30
90114-ZW9-030Ships in 1 to 2 Daysqty 2 used
$1.96$2.82
31
90204-ZY1-003Ships in 1 to 2 Days
$4.00$5.76
32
90650-ZY1-003Ships in 1 to 2 Days
$3.40$4.66
33
90684-SB3-003Ships in 1 to 2 Days
$5.80$7.94
34
91540-S30-003Ships in 1 to 2 Daysqty 2 used
$3.14$4.30
35
91547-SF4-003Ships in 1 to 2 Days
$7.55$10.86
36
91567-SE0-003Ships in 1 to 2 Days
$9.42$12.90
37
98200-32000Ships in 1 to 2 Daysqty 2 used
$1.20$1.64
Diagram

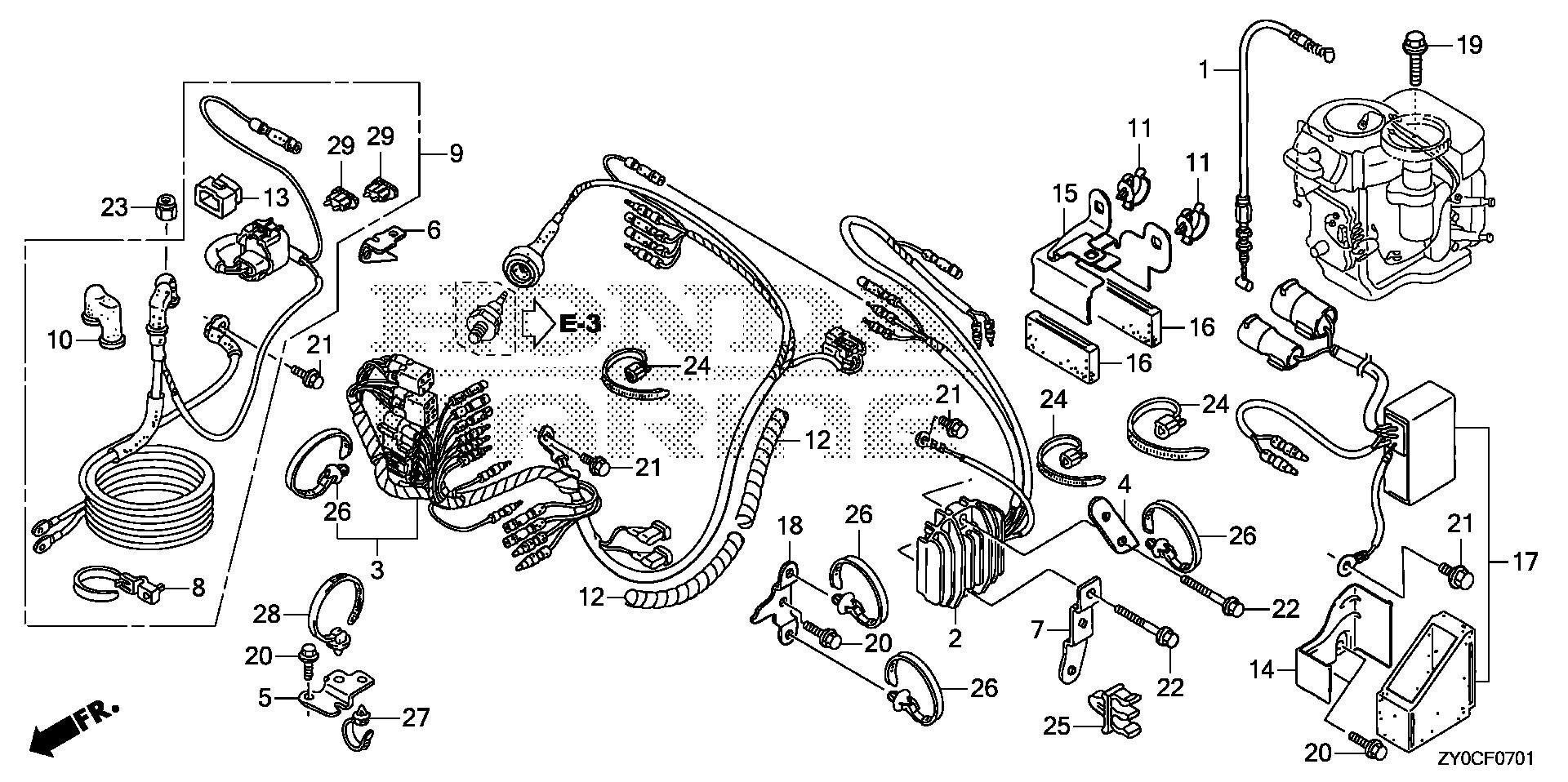

WIRE HARNESS - REGULATOR - STARTER CABLE (2)

BF15 BF15DK3 wire harness - regulator - starter cable (2) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZY0CF0701
Fits only BF15DK3-LRTA — not every submodel of this generation.

Parts in this assembly

33 parts
1
17940-ZW9-010Ships in 1 to 2 Days
$12.54$18.04
2
31750-ZY1-732Ships in 1 to 2 Days
$97.00$139.54
3
32100-ZY1-870Ships in 1 to 2 Days
$154.70$222.54
4
32103-ZW9-020Ships in 1 to 2 Days
$1.43$2.06
5
32112-ZW9-010Ships in 1 to 2 Days
$4.18$6.00
6
32115-ZY1-870Ships in 1 to 2 Daysreplaced by 32115-ZY1-871
$3.33$4.78
6
32115-ZY1-871Ships in 1 to 2 Days
$3.33$4.78
7
32118-ZW9-731Ships in 1 to 2 Days
$4.53$6.52
8
32121-HA0-003No Longer Available
$7.81$10.70
8
90651-KV6-003Ships in 1 to 2 Days
$4.12$5.64
9
32410-ZY1-870Ships in 1 to 2 Days
$174.63$239.22
10
32412-ZY1-801Ships in 1 to 2 Days
$4.10$5.90
11
32660-MJ6-710Ships in 1 to 2 Daysqty 2 used
$3.43$4.70
12
36104-ZW9-003Ships in 1 to 2 Daysqty 2 used
$7.65$11.00
13
38218-ZW9-003Ships in 1 to 2 Days
$6.53$9.38
14
38552-ZY1-871Ships in 1 to 2 Days
$31.54$44.50
14
38552-ZY1-872Ships in 1 to 2 Days
$32.02$46.06
15
38553-ZY1-870Ships in 1 to 2 Days
$15.39$22.14
16
38554-ZY1-870Ships in 1 to 2 Daysqty 2 used
$1.97$2.84
17
38555-ZY1-871Ships in 1 to 2 Days
$211.69$298.70
18
38556-ZY1-871Ships in 1 to 2 Days
$4.92$7.08
19
90005-ZW9-030Ships in 1 to 2 Days
$1.85$2.54
20
90011-ZW9-000Ships in 1 to 2 Daysqty 4 used
$1.71$2.34
20
90011-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$1.18$1.62
21
90013-ZW9-000Ships in 1 to 2 Daysqty 4 used
$1.47$2.08
22
90114-ZW9-030Ships in 1 to 2 Daysqty 2 used
$1.96$2.82
23
90204-ZY1-003Ships in 1 to 2 Days
$4.00$5.76
24
90650-ZY1-003Ships in 1 to 2 Daysqty 3 used
$3.40$4.66
25
90684-SB3-003Ships in 1 to 2 Days
$5.80$7.94
26
91540-S30-003Ships in 1 to 2 Daysqty 4 used
$3.14$4.30
27
91547-SF4-003Ships in 1 to 2 Days
$7.55$10.86
28
91567-SE0-003Ships in 1 to 2 Days
$9.42$12.90
29
98200-32000Ships in 1 to 2 Daysqty 2 used
$1.20$1.64
Diagrams are Honda's official OEM illustrations, served from Honda's asset host. Prices are our own; where a struck-through figure appears beside one it is Honda's suggested retail. “In Stock” means the part is on our shelf here at Boe Marine. “Ships in 1 to 2 Days” means we order it in from Honda, who still supply it. Parts marked “No Longer Available” are shown so the drawing stays complete, but Honda has discontinued them. Where a Sierra replacement is listed beneath a Honda part, Sierra ships it direct to you; “Backorder Now” on one of those means Sierra has none at the moment and will ship it once restocked.
