BF115 — Parts Diagrams

Generation BF115AK0  ·  2 submodels

Assemblies (54)

Diagram

ALTERNATOR

BF115 BF115AK0 alternator exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW5AE1900
Fits all 2 submodels of this generation.

Parts in this assembly

30 parts
1
31105-PZ1-003Ships in 1 to 2 Days
$51.49$70.56
2
31111-PJ7-013Ships in 1 to 2 Days
$17.20$23.56
3
31114-PJ7-013Ships in 1 to 2 Days
$32.88$45.04
4
31138-PD1-004Ships in 1 to 2 Days
$10.16$13.92
5
31141-P64-003Ships in 1 to 2 Days
$44.47$60.92
6
31142-PD1-004Ships in 1 to 2 Days
$8.09$11.08
7
31145-PE9-941Ships in 1 to 2 Daysqty 2 used
$5.74$7.86
8
31146-PJ7-003Ships in 1 to 2 Daysqty 4 used
$1.71$2.34
9
31147-PT0-003Ships in 1 to 2 Daysqty 6 used
$4.00$5.48
10
31148-PD1-004Ships in 1 to 2 Daysqty 2 used
$3.14$4.30
11
31149-PZ1-003Ships in 1 to 2 Days
$1.78$2.44
12
31152-PE9-942Ships in 1 to 2 Daysqty 2 used
$3.11$4.26
13
31153-PZ1-003Ships in 1 to 2 Daysqty 3 used
$1.93$2.64
14
ALTERNATOR ASSY. (NOT AVAILABLE)
31630-ZW5-003No Longer Available
$881.99
↳
Sierra alternative ·
18-6475Backorder Now save $590.94
$291.05
15
31631-ZW5-003Ships in 1 to 2 Days
$243.37
16
31633-ZW5-003Ships in 1 to 2 Days
$6.66$9.58
17
BRACKET, ALTERNATOR (NOT AVAILABLE)
31636-ZW5-000No Longer Available
$129.02$176.74
18
STAY, ALTERNATOR (NOT AVAILABLE)
31637-ZW5-010No Longer Available
$5.68$7.78
19
31639-ZW5-003Ships in 1 to 2 Days
$122.99
20
BUSH, INSULATION (NOT AVAILABLE)
31644-ZW5-003No Longer Available
$14.29$19.58
21
RECTIFIER ASSY. (NOT AVAILABLE)
31710-ZW5-003No Longer Available
$142.74$195.54
22
31750-ZY6-003Ships in 1 to 2 Days
$132.60$181.64
23
90011-ZVL-010Ships in 1 to 2 Days
$5.56$7.62
24
90021-ZZ5-M01Ships in 1 to 2 Days
$1.14$1.56
25
90031-ZW5-010No Longer Available
$11.77$16.12
26
90162-ZW4-030Ships in 1 to 2 Daysqty 3 used
$2.18$2.98
27
90163-ZW4-010Ships in 1 to 2 Days
$2.07$2.84
28
90203-ZVL-010Ships in 1 to 2 Days
$1.72$2.36
29
90231-PD1-014Ships in 1 to 2 Daysqty 2 used
$4.31$5.90
30
94001-06080-0SShips in 1 to 2 Days
$1.30$1.78
Diagram

BALANCER SHAFT

BF115 BF115AK0 balancer shaft exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW5AE1000
Fits all 2 submodels of this generation.

Parts in this assembly

27 parts
1
13400-PT3-010No Longer Available
$293.85$402.54
2
SHAFT, FR. BALANCER (NOT AVAILABLE)
13401-P5M-000No Longer Available
$213.32$292.22
3
13402-ZW5-003Ships in 1 to 2 Days
$69.17$99.50
4
PULLEY, BALANCER BELT DRIVEN (RR) (NOT AVAILABLE)
13403-ZW5-000No Longer Available
—
5
13406-PT0-003Ships in 1 to 2 Days
$7.12$10.24
6
13421-ZW5-000Ships in 1 to 2 Days
$39.78$57.22
7
O-RING, BALANCER COVER (NOT AVAILABLE)
13422-ZW5-000No Longer Available
$7.36$10.08
8
CASE, BALANCER GEAR (NOT AVAILABLE)
13500-ZW5-000No Longer Available
$174.03
9
CASE, BALANCER GEAR (NOT AVAILABLE)
13501-ZW5-000No Longer Available
$88.72
10
GEAR, BALANCER DRIVE (NOT AVAILABLE)
13510-ZW5-000No Longer Available
—
11
GEAR, BALANCER DRIVEN (NOT AVAILABLE)
13511-ZW5-000No Longer Available
$39.71$54.40
12
13512-PT0-020Ships in 1 to 2 Days
$18.29$26.32
13
SPACER, GEAR CASE (NOT AVAILABLE)
13520-ZW5-000No Longer Available
$77.70$106.44
14
O-RING, GEAR CASE SPACER (NOT AVAILABLE)
13522-ZW5-000No Longer Available
$7.99$10.94
15
15114-PT0-003Ships in 1 to 2 Days
$13.75$19.78
16
90019-PT0-000Ships in 1 to 2 Daysqty 2 used
$5.17$7.44
17
90019-ZW9-000Ships in 1 to 2 Daysreplaced by 90019-ZZ5-M01
$2.25$3.08
17
90019-ZZ5-M01In Stockqty 5 used
$2.25$3.08
18
BOLT-WASHER (8X33)
90023-PT0-003No Longer Available
$10.85$14.86
19
90032-ZW5-003Ships in 1 to 2 Days
$6.41$9.22
20
90151-ZZ0-M01Ships in 1 to 2 Days
$1.66$2.28
21
90157-ZW4-000Ships in 1 to 2 Daysqty 3 used
$1.90$2.74
22
90703-PT0-000Ships in 1 to 2 Days
$10.38$14.92
23
91233-PV0-003Ships in 1 to 2 Days
$9.33$13.42
24
91234-ZW5-003Ships in 1 to 2 Days
$8.21$11.80
25
94301-08140Ships in 1 to 2 Daysqty 2 used
$2.74$3.76
26
94301-10120Ships in 1 to 2 Daysqty 3 used
$3.01$4.12
Diagram

BOLT KIT

BF115 BF115AK0 bolt kit exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW5AY0700
Fits all 2 submodels of this generation.

Parts in this assembly

5 parts
1
06900-ZW5-U00Ships in 1 to 2 Days
$82.88$113.54
2
90021-ZW5-U00Ships in 1 to 2 Daysqty 3 used
$13.11$17.96
3
90511-ZW5-U00Ships in 1 to 2 Daysqty 3 used
$3.97$5.44
4
90512-ZW5-U00Ships in 1 to 2 Daysqty 3 used
$6.63$9.08
5
94001-06490-0SShips in 1 to 2 Daysqty 3 used
$2.15$2.94
Diagram

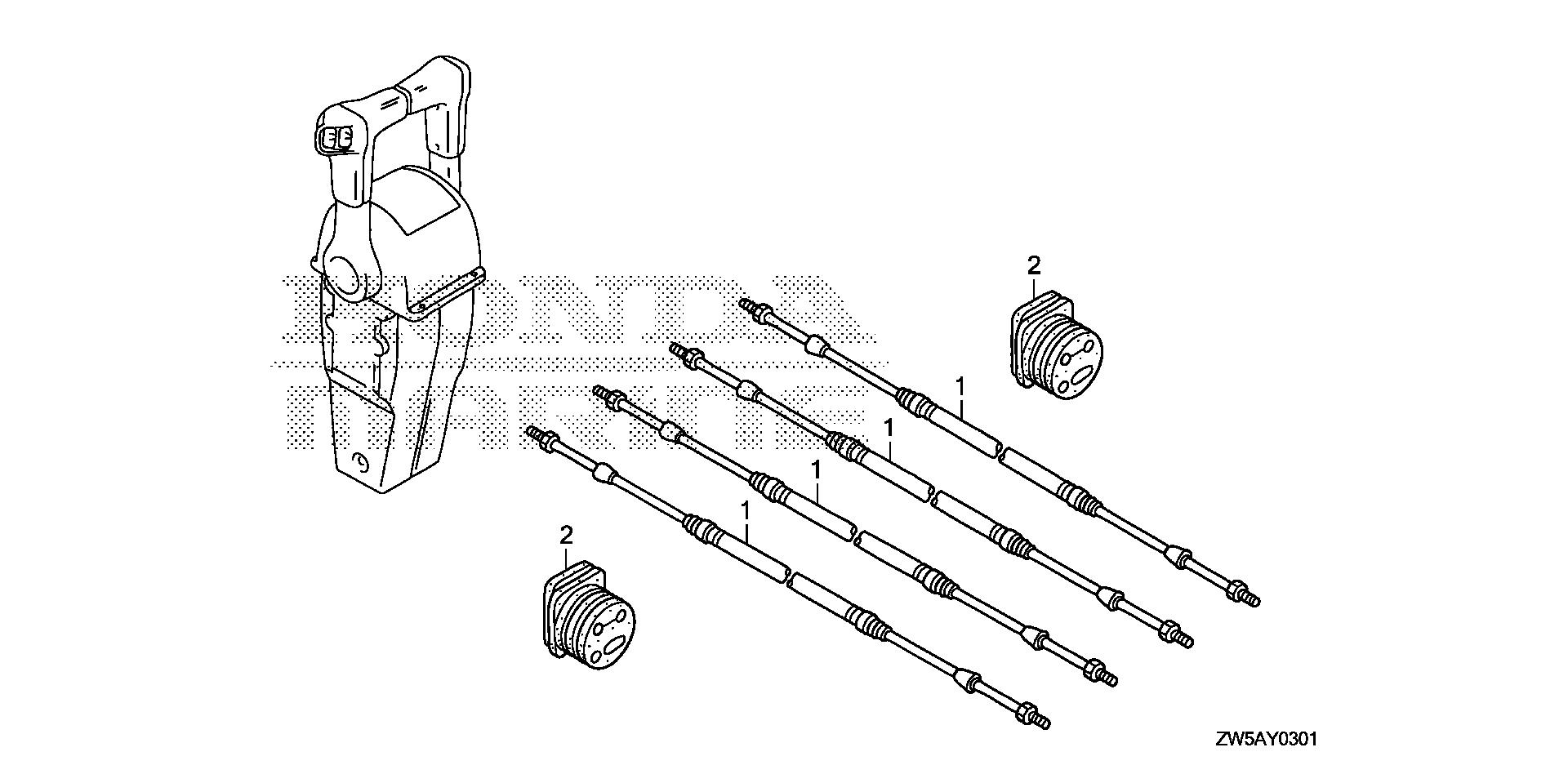

CABLE (DUAL)

BF115 BF115AK0 cable (dual) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW5AY0301
Fits all 2 submodels of this generation.

Parts in this assembly

57 parts
1
24907-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$121.63$166.62
1
24908-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$96.59$132.32
1
24909-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$133.11$182.34
1
24910-ZY3-003Ships in 1 to 2 Daysqty 4 used
$60.42
1
24910-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$102.89$140.94
1
24911-ZW7-U01Ships in 1 to 2 Daysqty 4 used
$113.43$155.38
1
24911-ZY3-003Ships in 1 to 2 Daysqty 4 used
$58.54
1
24912-ZW7-U01Ships in 1 to 2 Daysqty 4 used
$122.73$168.12
1
24912-ZY3-003Ships in 1 to 2 Daysqty 4 used
$64.99
1
24912-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$150.95$206.78
1
24913-ZY3-003Ships in 1 to 2 Daysqty 4 used
$64.06
1
24913-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$156.28$214.08
1
24914-ZY3-003Ships in 1 to 2 Daysqty 4 used
$66.26
1
24914-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$118.73$162.64
1
24915-ZY3-003Ships in 1 to 2 Daysqty 4 used
$63.91
1
24915-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$122.65$168.02
1
CABLE, REMOTE CONTROL (16') (LOW FRICTION) (NOT AVAILABLE)
24916-ZY3-003No Longer Available
—
1
24916-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$126.70$173.56
1
24917-ZW7-U01Ships in 1 to 2 Daysqty 4 used
$145.49$199.30
1
24917-ZY3-003Ships in 1 to 2 Daysqty 4 used
$73.32
1
24917-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$131.44$180.06
1
CABLE, REMOTE CONTROL (18') (LOW FRICTION) (NOT AVAILABLE)
24918-ZY3-003No Longer Available
—
1
24918-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$136.19$186.56
1
24919-ZY3-003Ships in 1 to 2 Daysqty 4 used
$78.63
1
24919-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$140.89$193.00
1
CABLE, REMOTE CONTROL (20') (LOW FRICTION) (NOT AVAILABLE)
24920-ZY3-003No Longer Available
—
1
24920-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$145.68$199.56
1
24921-ZY3-003Ships in 1 to 2 Daysqty 4 used
$85.70
1
24921-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$153.56$210.36
1
CABLE, REMOTE CONTROL (22') (LOW FRICTION) (NOT AVAILABLE)
24922-ZY3-003No Longer Available
—
1
24922-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$161.53$221.28
1
24923-ZY3-003Ships in 1 to 2 Daysqty 4 used
$94.55
1
CABLE, REMOTE CONTROL (24') (LOW FRICTION) (NOT AVAILABLE)
24924-ZY3-003No Longer Available
—
1
24925-ZY3-003Ships in 1 to 2 Daysqty 4 used
$103.36
1
24925-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$185.22$253.72
1
24926-ZY3-003Ships in 1 to 2 Daysqty 4 used
$109.53
1
24926-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$248.36$340.22
1
24927-ZY3-003Ships in 1 to 2 Daysqty 4 used
$115.72
1
CABLE, REMOTE CONTROL (28') (LOW FRICTION) (NOT AVAILABLE)
24928-ZY3-003No Longer Available
—
1
24929-ZW7-U01Ships in 1 to 2 Daysqty 4 used
$220.69$302.32
1
24929-ZY3-003Ships in 1 to 2 Daysqty 4 used
$128.09
1
24929-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$219.69$300.94
1
24930-ZW7-U01Ships in 1 to 2 Daysqty 4 used
$231.05$316.50
1
CABLE, REMOTE CONTROL (30') (LOW FRICTION) (NOT AVAILABLE)
24930-ZY3-003No Longer Available
—
1
24930-ZY6-A01Ships in 1 to 2 Daysqty 4 used
$233.63$320.04
1
24931-ZY3-003Ships in 1 to 2 Daysqty 4 used
$141.35
1
CABLE, REMOTE CONTROL (32') (LOW FRICTION) (NOT AVAILABLE)
24932-ZY3-003No Longer Available
—
1
24933-ZW7-U01Ships in 1 to 2 Daysqty 4 used
$282.33$386.76
1
CABLE, REMOTE CONTROL (33') (LOW FRICTION)
24933-ZY3-003No Longer Available
—
1
24934-ZW7-U01Ships in 1 to 2 Daysqty 4 used
$284.66$389.94
1
CABLE, REMOTE CONTROL (34') (LOW FRICTION) (NOT AVAILABLE)
24934-ZY3-003No Longer Available
—
1
24935-ZW7-U01Ships in 1 to 2 Daysreplaced by 24929-ZY6-A01
$219.69$300.94
1
24935-ZY3-003Ships in 1 to 2 Daysqty 4 used
$169.60
1
24936-ZW7-U01Ships in 1 to 2 Daysreplaced by 24930-ZY6-A01
$233.63$320.04
1
24937-ZW7-U01Ships in 1 to 2 Daysqty 4 used
$314.16$430.36
1
24938-ZW7-U01Ships in 1 to 2 Daysqty 4 used
$329.84$451.84
2
GROMMET, CASE (LOWER) (B) (NOT AVAILABLE)
40106-ZW7-U00No Longer Available
$32.95$45.14
Diagram

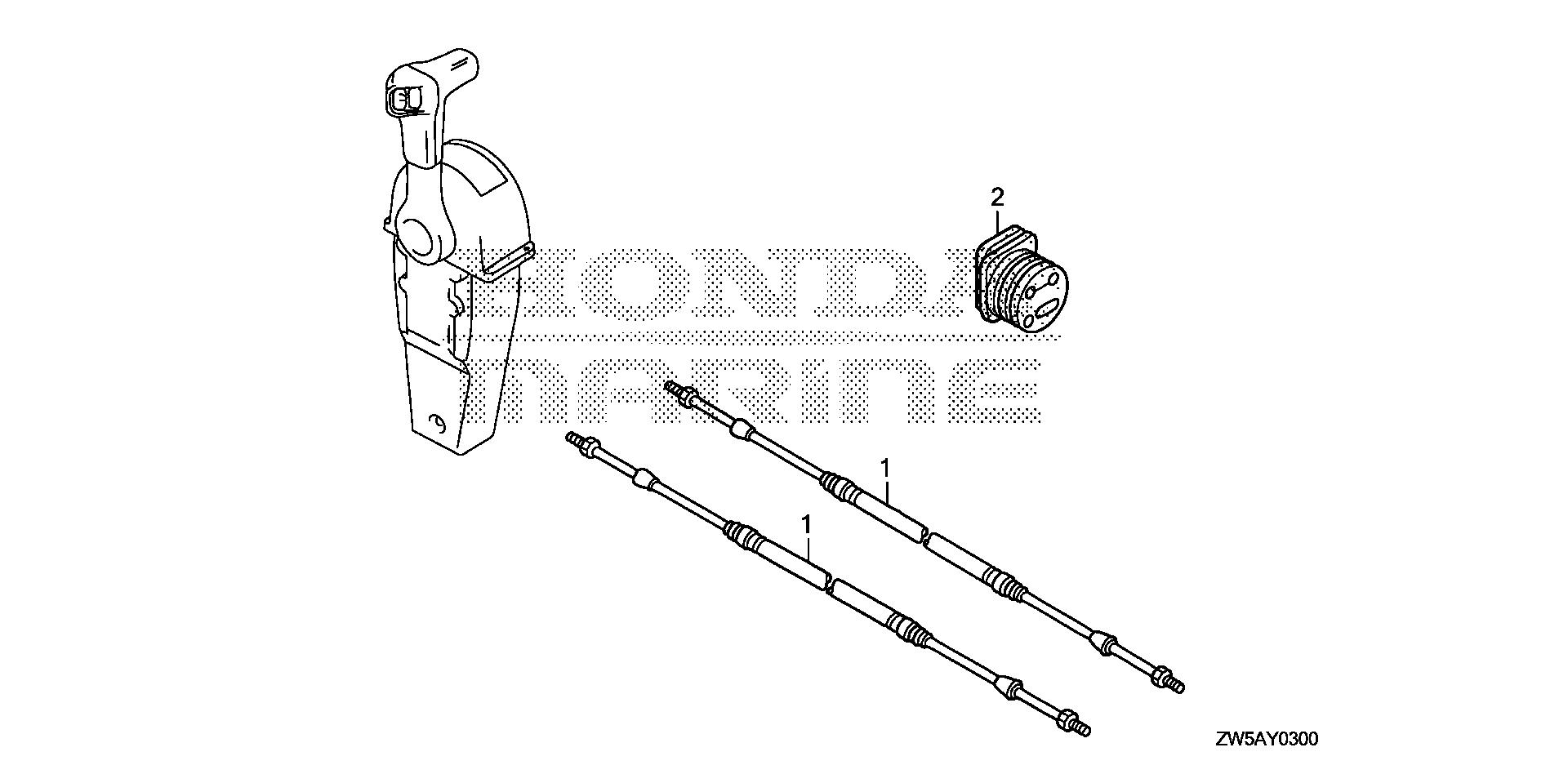

CABLE (SINGLE)

BF115 BF115AK0 cable (single) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW5AY0300
Fits all 2 submodels of this generation.

Parts in this assembly

57 parts
1
24907-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$121.63$166.62
1
24908-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$96.59$132.32
1
24909-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$133.11$182.34
1
24910-ZY3-003Ships in 1 to 2 Daysqty 2 used
$60.42
1
24910-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$102.89$140.94
1
24911-ZW7-U01Ships in 1 to 2 Daysqty 2 used
$113.43$155.38
1
24911-ZY3-003Ships in 1 to 2 Daysqty 2 used
$58.54
1
24912-ZW7-U01Ships in 1 to 2 Daysqty 2 used
$122.73$168.12
1
24912-ZY3-003Ships in 1 to 2 Daysqty 2 used
$64.99
1
24912-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$150.95$206.78
1
24913-ZY3-003Ships in 1 to 2 Daysqty 2 used
$64.06
1
24913-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$156.28$214.08
1
24914-ZY3-003Ships in 1 to 2 Daysqty 2 used
$66.26
1
24914-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$118.73$162.64
1
24915-ZY3-003Ships in 1 to 2 Daysqty 2 used
$63.91
1
24915-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$122.65$168.02
1
CABLE, REMOTE CONTROL (16') (LOW FRICTION) (NOT AVAILABLE)
24916-ZY3-003No Longer Available
—
1
24916-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$126.70$173.56
1
24917-ZW7-U01Ships in 1 to 2 Daysqty 2 used
$145.49$199.30
1
24917-ZY3-003Ships in 1 to 2 Daysqty 2 used
$73.32
1
24917-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$131.44$180.06
1
CABLE, REMOTE CONTROL (18') (LOW FRICTION) (NOT AVAILABLE)
24918-ZY3-003No Longer Available
—
1
24918-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$136.19$186.56
1
24919-ZY3-003Ships in 1 to 2 Daysqty 2 used
$78.63
1
24919-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$140.89$193.00
1
CABLE, REMOTE CONTROL (20') (LOW FRICTION) (NOT AVAILABLE)
24920-ZY3-003No Longer Available
—
1
24920-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$145.68$199.56
1
24921-ZY3-003Ships in 1 to 2 Daysqty 2 used
$85.70
1
24921-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$153.56$210.36
1
CABLE, REMOTE CONTROL (22') (LOW FRICTION) (NOT AVAILABLE)
24922-ZY3-003No Longer Available
—
1
24922-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$161.53$221.28
1
24923-ZY3-003Ships in 1 to 2 Daysqty 2 used
$94.55
1
CABLE, REMOTE CONTROL (24') (LOW FRICTION) (NOT AVAILABLE)
24924-ZY3-003No Longer Available
—
1
24925-ZY3-003Ships in 1 to 2 Daysqty 2 used
$103.36
1
24925-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$185.22$253.72
1
24926-ZY3-003Ships in 1 to 2 Daysqty 2 used
$109.53
1
24926-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$248.36$340.22
1
24927-ZY3-003Ships in 1 to 2 Daysqty 2 used
$115.72
1
CABLE, REMOTE CONTROL (28') (LOW FRICTION) (NOT AVAILABLE)
24928-ZY3-003No Longer Available
—
1
24929-ZW7-U01Ships in 1 to 2 Daysqty 2 used
$220.69$302.32
1
24929-ZY3-003Ships in 1 to 2 Daysqty 2 used
$128.09
1
24929-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$219.69$300.94
1
24930-ZW7-U01Ships in 1 to 2 Daysqty 2 used
$231.05$316.50
1
CABLE, REMOTE CONTROL (30') (LOW FRICTION) (NOT AVAILABLE)
24930-ZY3-003No Longer Available
—
1
24930-ZY6-A01Ships in 1 to 2 Daysqty 2 used
$233.63$320.04
1
24931-ZY3-003Ships in 1 to 2 Daysqty 2 used
$141.35
1
CABLE, REMOTE CONTROL (32') (LOW FRICTION) (NOT AVAILABLE)
24932-ZY3-003No Longer Available
—
1
24933-ZW7-U01Ships in 1 to 2 Daysqty 2 used
$282.33$386.76
1
CABLE, REMOTE CONTROL (33') (LOW FRICTION)
24933-ZY3-003No Longer Available
—
1
24934-ZW7-U01Ships in 1 to 2 Daysqty 2 used
$284.66$389.94
1
CABLE, REMOTE CONTROL (34') (LOW FRICTION) (NOT AVAILABLE)
24934-ZY3-003No Longer Available
—
1
24935-ZW7-U01Ships in 1 to 2 Daysreplaced by 24929-ZY6-A01
$219.69$300.94
1
24935-ZY3-003Ships in 1 to 2 Daysqty 2 used
$169.60
1
24936-ZW7-U01Ships in 1 to 2 Daysreplaced by 24930-ZY6-A01
$233.63$320.04
1
24937-ZW7-U01Ships in 1 to 2 Daysqty 2 used
$314.16$430.36
1
24938-ZW7-U01Ships in 1 to 2 Daysqty 2 used
$329.84$451.84
2
GROMMET, CASE (LOWER) (B) (NOT AVAILABLE)
40106-ZW7-U00No Longer Available
$32.95$45.14
Diagram

CAMSHAFT - CYLINDER HEAD

BF115 BF115AK0 camshaft - cylinder head exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW5AE0900
Fits all 2 submodels of this generation.

Parts in this assembly

33 parts
1
CYLINDER HEAD SUB-ASSY. *NH8* (DARK GRAY) (NOT AVAILABLE)
12201-ZW5-020ZANo Longer Available
$836.56
2
12204-PJ7-305Ships in 1 to 2 Days
$15.58$21.34
3
GUIDE, EX. VALVE (OVER SIZE) (NOT AVAILABLE)
12205-PJ7-305No Longer Available
$18.75$25.68
4
12210-PZ1-004Ships in 1 to 2 Days
$4.45$6.10
5
12211-PZ1-004Ships in 1 to 2 Days
$4.45$6.10
6
12513-P30-000Ships in 1 to 2 Days
$15.68$22.56
7
CAMSHAFT (NOT AVAILABLE)
14111-ZW5-000No Longer Available
$497.63$681.68
8
ARM A, IN. ROCKER (NOT AVAILABLE)
14431-ZW5-000No Longer Available
$38.73$53.06
9
ARM B, IN. ROCKER (NOT AVAILABLE)
14432-ZW5-000No Longer Available
$38.73$53.06
10
ARM, FUEL PUMP ROCKER (NOT AVAILABLE)
14436-ZW5-000No Longer Available
$33.61$46.04
11
ARM A, EX. ROCKER (NOT AVAILABLE)
14441-ZW5-000No Longer Available
$38.73$53.06
12
14442-ZW5-000Ships in 1 to 2 Daysqty 4 used
$38.73$55.70
13
14461-ZW5-000Ships in 1 to 2 Days
$48.66$70.00
14
SHAFT, EX. ROCKER ARM (NOT AVAILABLE)
14471-ZW5-000No Longer Available
—
15
14635-ZW5-000Ships in 1 to 2 Daysqty 4 used
$4.29$6.18
16
14636-ZW5-000Ships in 1 to 2 Daysqty 3 used
$3.12$4.50
17
14647-PT0-000No Longer Availableqty 4 used
$5.87$8.04
18
14647-PY3-000Ships in 1 to 2 Daysqty 4 used
$4.60$6.30
19
COLLAR A, IN. ROCKER (NOT AVAILABLE)
14651-PAB-A00No Longer Available
—
20
14711-P0A-000Ships in 1 to 2 Daysqty 8 used
$63.39$91.20
21
14721-P0A-000Ships in 1 to 2 Daysqty 8 used
$95.81$137.82
22
14744-PT0-004Ships in 1 to 2 Daysqty 16 used
$8.92$12.22
23
SPRING, IN. VALVE (ORANGE) (NHK SPRING) (NOT AVAILABLE)
14761-PAB-A01No Longer Available
$13.83$18.94
24
SPRING, EX. VALVE (VIOLET) (NIPPON HATSUJO)
14762-P0A-003No Longer Available
—
25
14765-PJ7-000Ships in 1 to 2 Daysqty 16 used
$7.46$10.22
26
14775-PM3-000Ships in 1 to 2 Daysqty 16 used
$8.19$11.22
27
14781-PJ7-003Ships in 1 to 2 Daysqty 32 used
$5.91$8.34
28
BOLT, FLANGE (8X76) (NOT AVAILABLE)
90017-ZW5-000No Longer Available
$4.04$5.54
29
90045-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.71$2.42
29
90145-ZW4-000Ships in 1 to 2 Daysreplaced by 90045-ZZ5-M01
$1.71$2.42
30
90206-PT0-004Ships in 1 to 2 Daysqty 16 used
$3.50$4.80
31
91213-PL2-003Ships in 1 to 2 Days
$18.97$27.28
32
94301-10160Ships in 1 to 2 Daysqty 10 used
$3.01$4.12
Diagram

CLAMP (FUSE SIDE)

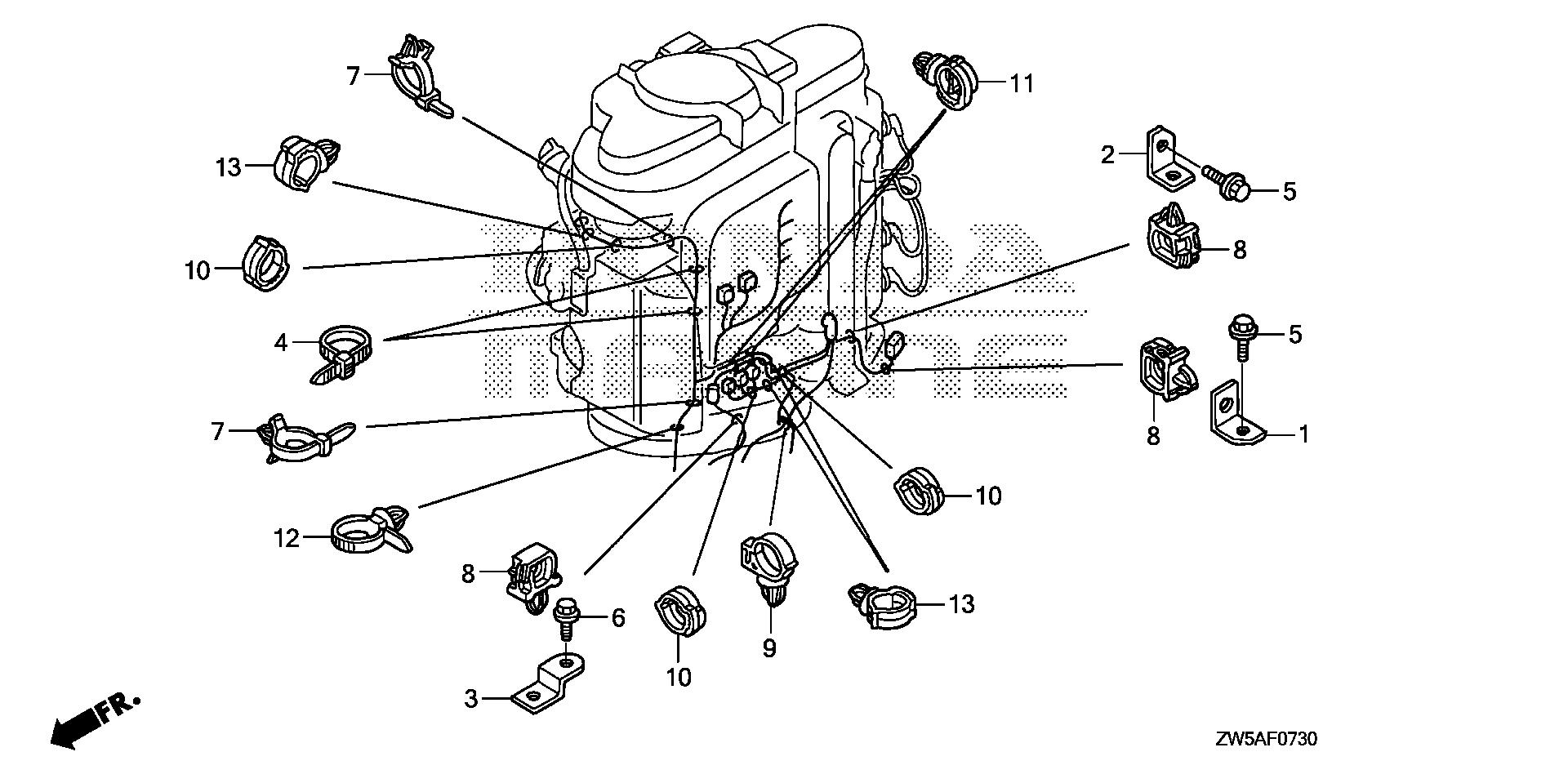

BF115 BF115AK0 clamp (fuse side) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW5AF0730
Fits all 2 submodels of this generation.

Parts in this assembly

13 parts
1
32114-ZW5-010Ships in 1 to 2 Days
$4.09$5.88
2
BRACKET, CLIP (D) (NOT AVAILABLE)
32115-ZW5-010No Longer Available
$3.91$5.36
3
32119-ZW5-010Ships in 1 to 2 Days
$5.75$8.12
4
35701-MG9-950Ships in 1 to 2 Daysqty 2 used
$1.83$2.50
5
90013-ZV0-010Ships in 1 to 2 Daysqty 2 used
$1.80$2.46
6
90021-ZZ5-M01Ships in 1 to 2 Days
$1.14$1.56
7
90649-SC2-003Ships in 1 to 2 Daysqty 2 used
$8.29$11.36
8
90650-SB2-003Ships in 1 to 2 Daysqty 3 used
$6.34$8.68
9
90652-HC4-003Ships in 1 to 2 Days
$6.54$8.96
10
90683-KJ2-003Ships in 1 to 2 Daysqty 3 used
$3.59$4.92
11
90691-ZB7-003Ships in 1 to 2 Daysqty 2 used
$3.07$4.20
12
91547-SF4-003Ships in 1 to 2 Days
$7.55$10.86
13
91558-SD5-003Ships in 1 to 2 Daysqty 3 used
$8.32$11.40
Diagram

CLAMP (HOSE SIDE)

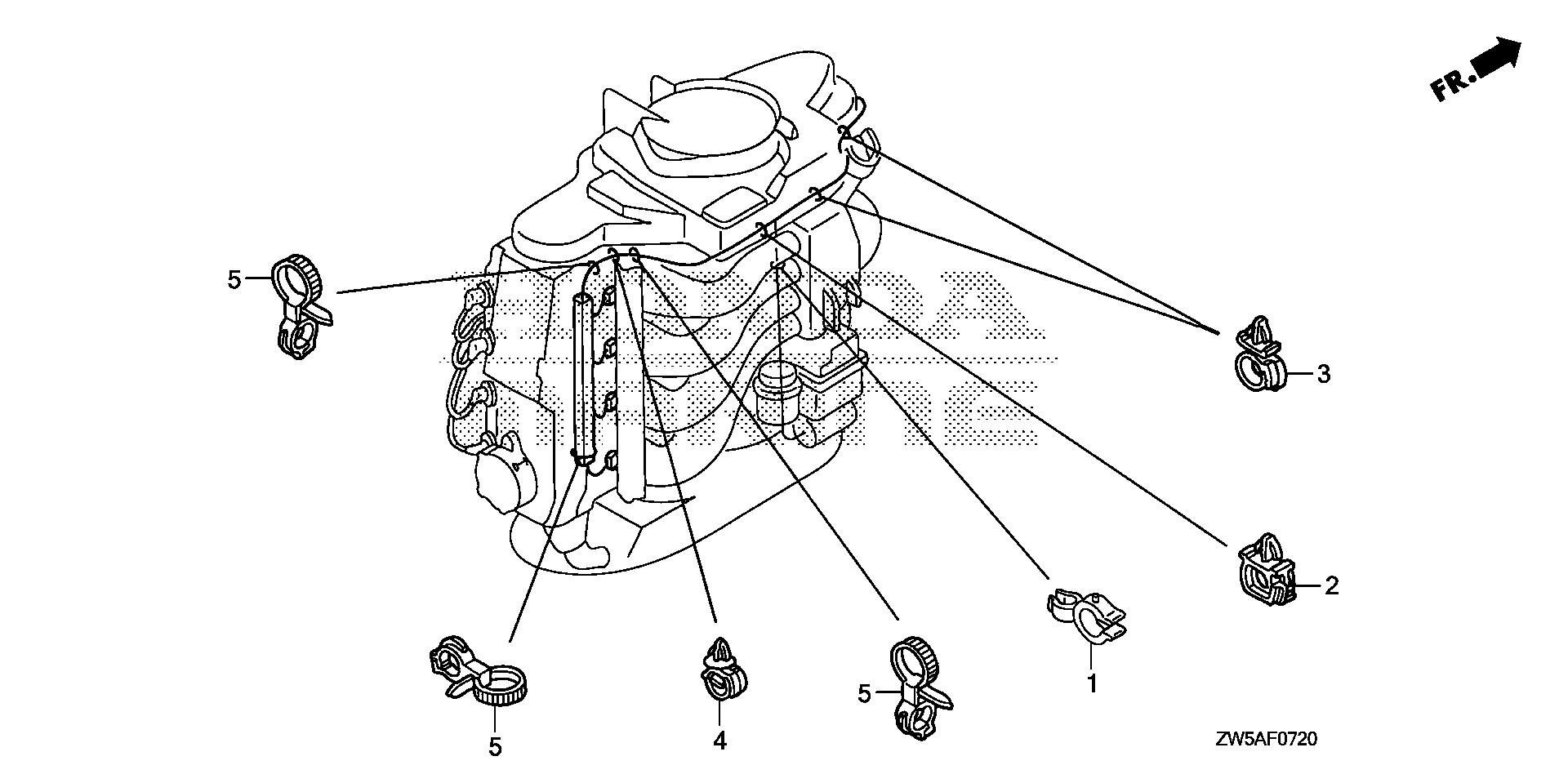

BF115 BF115AK0 clamp (hose side) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW5AF0720
Fits all 2 submodels of this generation.

Parts in this assembly

5 parts
1
54316-SD9-013Ships in 1 to 2 Days
$9.77$13.78
2
90650-SB2-003Ships in 1 to 2 Days
$6.34$8.68
3
90684-ZA0-601Ships in 1 to 2 Daysqty 2 used
$3.21$4.40
4
90691-ZB7-003Ships in 1 to 2 Days
$3.07$4.20
5
91558-SM4-003Ships in 1 to 2 Daysqty 3 used
$6.34$8.68

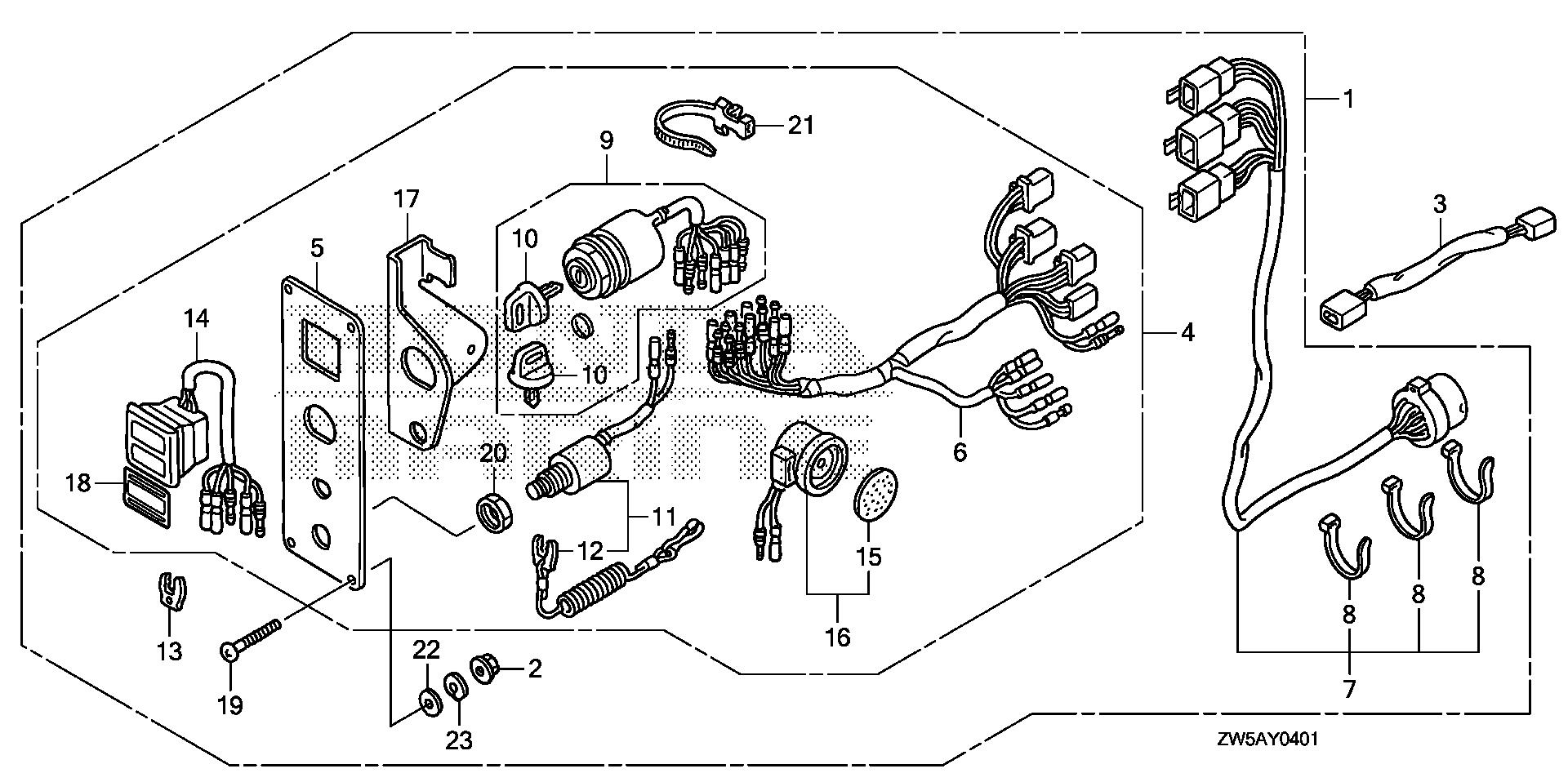

Diagram

CONTROL PANEL KIT

BF115 BF115AK0 control panel kit exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW5AY0400B
Fits all 2 submodels of this generation.

Parts in this assembly

31 parts
2
06325-ZW5-U00Ships in 1 to 2 Days
$259.43$373.12
3
18334-MT8-770Ships in 1 to 2 Daysqty 16 used
$1.53$2.16
4
32530-ZW7-U00Ships in 1 to 2 Days
$25.87$35.44
5
32545-ZW1-V03Ships in 1 to 2 Days
$104.29$147.12
6
32570-ZW5-U00Ships in 1 to 2 Days
$54.20$77.96
7
32570-ZW5-U10Ships in 1 to 2 Days
$91.86$132.12
8
32570-ZW5-U20Ships in 1 to 2 Days
$204.33$279.90
9
32823-ZV5-003Ships in 1 to 2 Days
$2.95$4.04
10
32824-ZV5-003Ships in 1 to 2 Days
$3.11$4.26
11
32901-952-770Ships in 1 to 2 Daysqty 6 used
$2.19$3.00
12
35100-ZV5-003Ships in 1 to 2 Days
$137.02$187.70
12
35100-ZV5-013Ships in 1 to 2 Days
$85.13$116.62
13
35110-ZV5-003Ships in 1 to 2 Daysqty 2 used
$7.99$11.48
14
35118-ZW5-U02Ships in 1 to 2 Days
$10.69$15.08
15
35180-ZV7-033Ships in 1 to 2 Days
$58.56$82.64
16
35184-ZW5-U03Ships in 1 to 2 Days
$12.53$17.68
17
35630-ZW5-U11Ships in 1 to 2 Days
$54.55$76.96
18
35634-ZW5-U12Ships in 1 to 2 Days
$10.69$15.08
19
36182-ZV4-651In Stock
$18.45$25.28
20
37210-ZW5-U01Ships in 1 to 2 Days
$72.53$102.34
21
37214-ZW5-U02Ships in 1 to 2 Days
$10.69$15.08
22
38410-ZW5-U01Ships in 1 to 2 Days
$54.33$76.66
23
90109-ZW5-000Ships in 1 to 2 Daysqty 16 used
$1.20$1.64
24
90302-921-000In Stock
$4.10$5.62
25
90305-ZW1-V01Ships in 1 to 2 Days
$4.01$5.66
26
90649-SC2-003Ships in 1 to 2 Days
$8.29$11.36
27
94103-05400Ships in 1 to 2 Daysqty 16 used
$0.92$1.26
28
94111-05400Ships in 1 to 2 Daysqty 16 used
$0.86$1.22
29
38414-ZW5-U00Ships in 1 to 2 Days
$15.88$22.42
30
32340-ZW5-U06Ships in 1 to 2 Days
$284.69$389.98
30
32340-ZW5-U07Ships in 1 to 2 Days
$310.34$425.12
Diagram

CRANKSHAFT - PISTON

BF115 BF115AK0 crankshaft - piston exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW5AE0700
Fits all 2 submodels of this generation.

Parts in this assembly

23 parts
1
13010-ZW5-000Ships in 1 to 2 Daysqty 4 used
$55.00$79.12
2
WASHER SET, THRUST (DAIDO) (NOT AVAILABLE)
13014-PAA-800No Longer Available
$26.44$36.22
3
PISTON
13101-ZW5-000No Longer Available
—
3
PISTON (NOT AVAILABLE)
13101-ZW5-010No Longer Available
—
4
13111-PEA-000Ships in 1 to 2 Daysqty 4 used
$34.18$46.82
5
13115-P5A-000Ships in 1 to 2 Daysqty 8 used
$3.94$5.40
6
13204-P8A-A01Ships in 1 to 2 Days
$8.23$11.28
7
ROD, CONNECTING (NOT AVAILABLE)
13210-PAA-A00No Longer Available
$189.35$259.38
8
13211-PAH-T01Ships in 1 to 2 Daysqty 8 used
$21.30$30.64
8
13212-PAH-T01Ships in 1 to 2 Daysqty 8 used
$17.13$24.64
8
13213-PAH-T01Ships in 1 to 2 Daysqty 8 used
$21.30$30.64
8
13214-PAH-T01Ships in 1 to 2 Daysqty 8 used
$21.30$30.64
8
13215-PAH-T01Ships in 1 to 2 Daysqty 8 used
$21.30$30.64
8
13216-PAH-T01Ships in 1 to 2 Daysqty 8 used
$21.30$30.64
8
13217-PAH-T01Ships in 1 to 2 Daysqty 8 used
$17.40$25.04
9
13310-ZW5-000Ships in 1 to 2 Days
$1,676.66$2,296.80
10
BEARING A, MAIN (BLUE) (DAIDO)
13321-PCA-003No Longer Available
—
10
BEARING B, MAIN (BLACK) (DAIDO)
13322-PCA-003No Longer Available
—
10
13323-PCA-004Ships in 1 to 2 Daysqty 10 used
$28.88$41.54
10
BEARING D, MAIN (GREEN) (DAIDO)
13324-PCA-003No Longer Available
—
10
13325-PCA-004Ships in 1 to 2 Daysqty 10 used
$21.49$29.44
10
13326-PCA-004Ships in 1 to 2 Daysqty 10 used
$27.38$39.38
11
94301-10120Ships in 1 to 2 Daysqty 8 used
$3.01$4.12

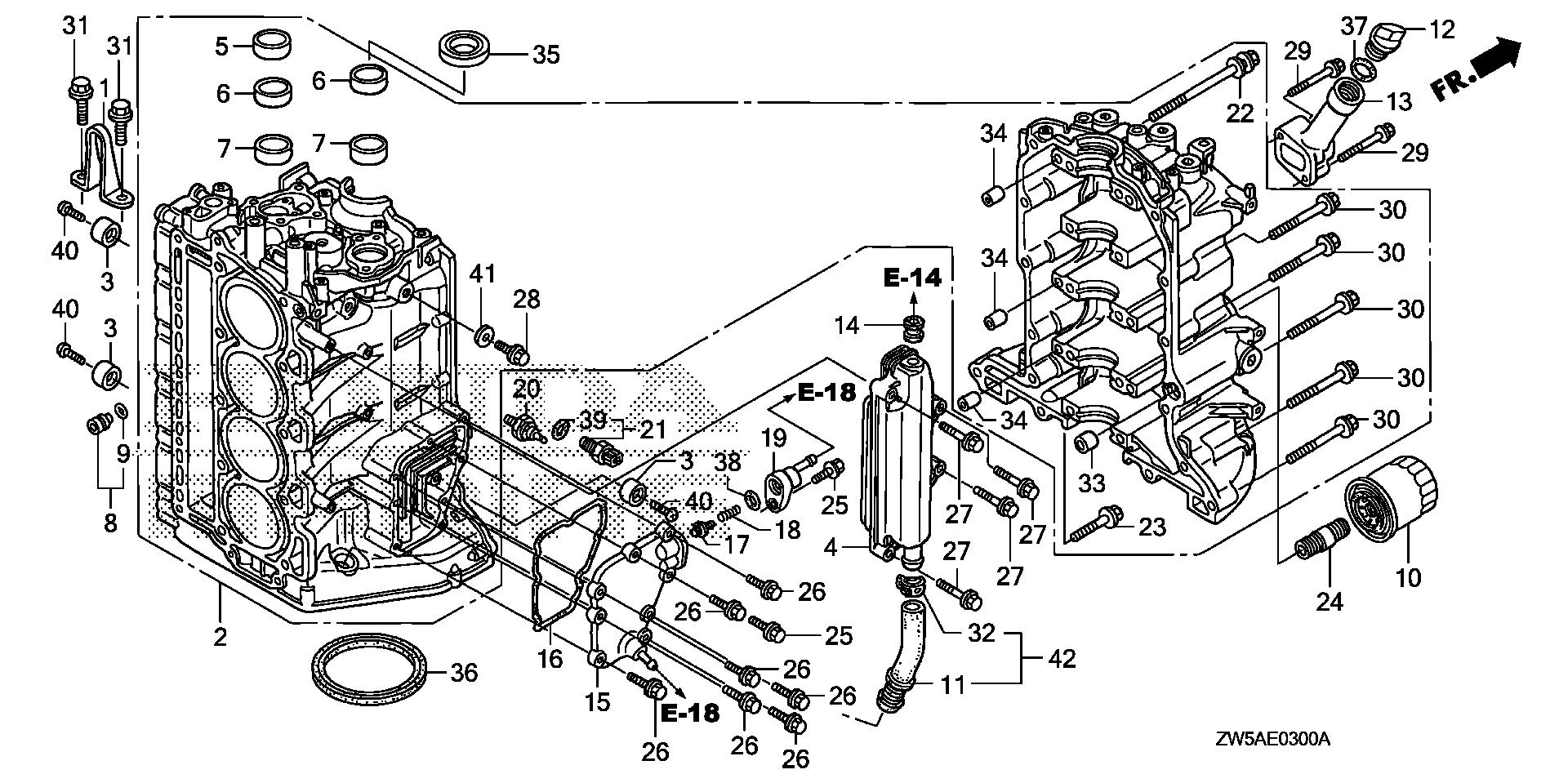

Diagram

CYLINDER BLOCK

BF115 BF115AK0 cylinder block exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW5AE0300A
Fits all 2 submodels of this generation.

Parts in this assembly

50 parts
1
11911-ZW5-010Ships in 1 to 2 Days
$16.57$23.84
2
12000-ZW5-020ZAShips in 1 to 2 Days
$2,994.24
3
12155-ZV5-000Ships in 1 to 2 Daysreplaced by 12155-ZV5-010
$9.53$13.06
3
12155-ZV5-010Ships in 1 to 2 Daysqty 3 used
$9.53$13.06
4
CHAMBER, PCV (NOT AVAILABLE)
12340-ZW5-000No Longer Available
$14.56
5
METAL, BALANCER SHAFT (NO.1) (DAIDO) (NOT AVAILABLE)
13421-PT0-003No Longer Available
$39.42$54.00
6
13422-PT0-013Ships in 1 to 2 Daysqty 2 used
$40.82$58.72
7
13423-PT0-003Ships in 1 to 2 Daysqty 2 used
$40.82$58.72
8
15140-PH3-000No Longer Available
$17.39$23.82
9
15142-PH3-003Ships in 1 to 2 Days
$2.83$4.00
10
15400-PLM-A01Ships in 1 to 2 Daysreplaced by 15400-PLM-A02
$8.50$11.64
10
$8.50$11.64
10
15400-PLM-A02PEIn Stock
$9.07$12.42
10
15400-ZJ1-004Ships in 1 to 2 Daysreplaced by 15400-PLM-A02PE
$9.07$12.42
↳
Sierra alternative ·
18-7909In Stock
$9.53
11
TUBE, OIL (NOT AVAILABLE)
15422-ZW5-010No Longer Available
$12.13$16.62
12
15611-921-000Ships in 1 to 2 Days
$10.13$13.88
13
EXTENSION, OIL FILLER (NOT AVAILABLE)
15631-ZW5-000No Longer Available
$49.32$67.56
13
EXTENSION, OIL FILLER *NH8* (DARK GRAY)
15631-ZW5-000ZANo Longer Available
—
14
17139-PK1-000Ships in 1 to 2 Days
$4.96$7.14
15
COVER, OIL WATER JACKET *NH8* (DARK GRAY) (NOT AVAILABLE)
19380-ZW5-000ZANo Longer Available
$87.86$120.36
16
GASKET, OIL WATER JACKET COVER (NOT AVAILABLE)
19382-ZW5-000No Longer Available
$11.71$16.04
17
VALVE, OIL WATER JACKET PRESSURE (NOT AVAILABLE)
19391-ZW5-000No Longer Available
$6.92$9.48
18
SPRING, OIL WATER JACKET PRESSURE VALVE (NOT AVAILABLE)
19392-ZW5-000No Longer Available
$1.84$2.52
19
HOLDER, OIL WATER JACKET PRESSURE VALVE (NOT AVAILABLE)
19393-ZW5-000No Longer Available
—
20
35490-ZW5-003Ships in 1 to 2 Days
$30.30$42.74
21
35673-ZW5-003Ships in 1 to 2 Days
$19.18$26.28
22
90001-ZW5-013Ships in 1 to 2 Daysqty 10 used
$8.69$12.50
23
90012-ZW5-010Ships in 1 to 2 Daysqty 2 used
$7.52$10.82
24
90015-PH1-013Ships in 1 to 2 Days
$9.97$13.66
25
90014-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.87$2.56
25
90016-ZW9-000Ships in 1 to 2 Daysreplaced by 90014-ZZ5-M01
$1.87$2.56
26
90018-ZW5-000Ships in 1 to 2 Daysqty 7 used
$1.64$2.24
27
90019-ZW9-000Ships in 1 to 2 Daysreplaced by 90019-ZZ5-M01
$2.25$3.08
27
90019-ZZ5-M01In Stockqty 4 used
$2.25$3.08
28
90061-PT0-000No Longer Available
$11.74$16.08
29
90045-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.71$2.42
29
90145-ZW4-000Ships in 1 to 2 Daysreplaced by 90045-ZZ5-M01
$1.71$2.42
30
90161-ZW4-000Ships in 1 to 2 Daysqty 12 used
$1.90$2.74
31
90165-ZW4-000Ships in 1 to 2 Daysqty 2 used
$1.81$2.60
32
90606-ZW5-030Ships in 1 to 2 Days
$3.33$4.56
33
90703-PE0-000Ships in 1 to 2 Days
$12.75$17.46
34
90715-PC6-000Ships in 1 to 2 Daysqty 10 used
$7.85$10.76
35
91212-ZW5-003Ships in 1 to 2 Days
$12.61$18.14
36
91214-PL2-003Ships in 1 to 2 Days
$35.74$51.42
37
91301-805-000Ships in 1 to 2 Days
$3.65$5.00
38
91305-KC1-850Ships in 1 to 2 Days
$1.80$2.46
39
91307-PK2-005Ships in 1 to 2 Days
$2.35$3.22
40
93500-06018-4JShips in 1 to 2 Daysqty 3 used
$1.49$2.10
41
94109-12000Ships in 1 to 2 Days
$1.12$1.54
42
TUBE SET, OIL (NOT AVAILABLE)
06154-ZW5-000No Longer Available
—
Diagram

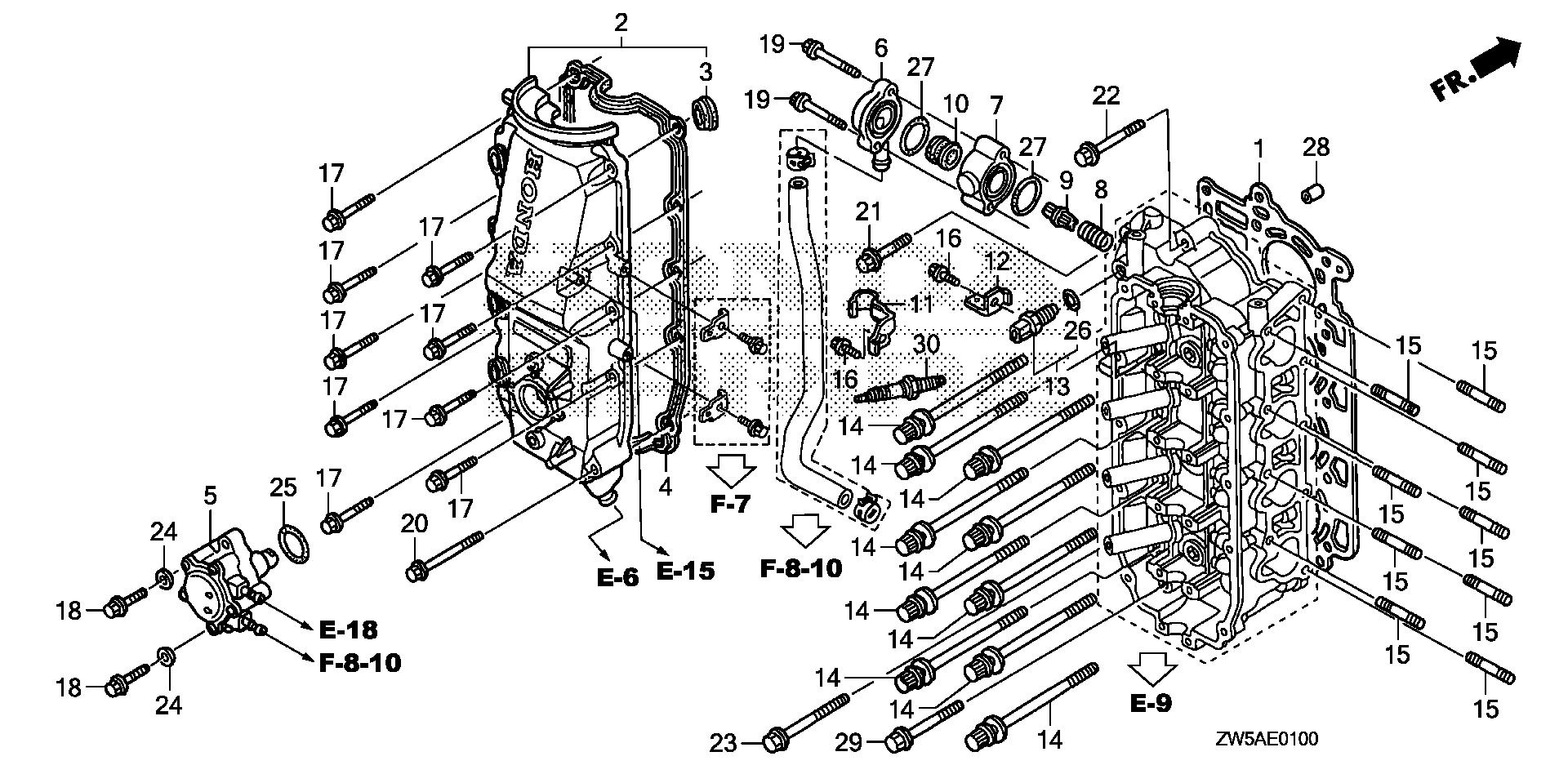

CYLINDER HEAD COVER

BF115 BF115AK0 cylinder head cover exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW5AE0100
Fits all 2 submodels of this generation.

Parts in this assembly

34 parts
1
12251-ZW5-023Ships in 1 to 2 Days
$157.75$226.90
2
12310-ZW5-010ZAShips in 1 to 2 Days
$281.69$405.20
3
12342-P2F-A01Ships in 1 to 2 Daysreplaced by 12342-RYE-004
$5.80$7.94
3
12342-RYE-004Ships in 1 to 2 Daysqty 4 used
$5.80$7.94
4
12391-ZW5-010Ships in 1 to 2 Days
$39.45$56.74
5
16700-ZW5-004Ships in 1 to 2 Days
$251.73$344.84
6
19277-ZW1-000In Stock
$45.44$65.36
7
19278-ZW1-000ZAShips in 1 to 2 Days
$63.60$91.48
8
19279-ZW1-000Ships in 1 to 2 Days
$5.08$7.30
9
19291-ZW1-000In Stock
$8.57$12.32
10
19297-ZW1-000In Stock
$7.68$11.04
11
19416-ZW1-000Ships in 1 to 2 Daysqty 2 used
$10.18$14.36
12
STAY A, IGNITION WIRE CLAMP (NOT AVAILABLE)
30526-ZW5-000No Longer Available
—
13
35673-ZW5-003Ships in 1 to 2 Days
$19.18$26.28
14
90005-PAA-A01Ships in 1 to 2 Days
$9.11$12.48
15
90006-ZW5-010Ships in 1 to 2 Daysqty 9 used
$2.15$3.08
16
90013-ZV0-010Ships in 1 to 2 Daysqty 3 used
$1.80$2.46
17
90019-ZW9-000Ships in 1 to 2 Daysreplaced by 90019-ZZ5-M01
$2.25$3.08
17
90019-ZZ5-M01In Stockqty 9 used
$2.25$3.08
18
90036-ZY3-030Ships in 1 to 2 Daysqty 2 used
$0.95$1.30
19
90047-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.96$2.68
19
90147-ZW4-000Ships in 1 to 2 Daysreplaced by 90047-ZZ5-M01
$1.96$2.68
20
90148-ZW4-000Ships in 1 to 2 Days
$1.56$2.24
21
90020-ZVL-010Ships in 1 to 2 Days
$1.24$1.70
22
90162-ZW4-030Ships in 1 to 2 Days
$2.18$2.98
23
90164-ZW4-010Ships in 1 to 2 Daysqty 4 used
$2.73$3.74
24
90406-ZY3-000Ships in 1 to 2 Daysqty 2 used
$0.67$0.94
25
91305-KT7-003Ships in 1 to 2 Days
$2.66$3.64
26
91307-PK2-005Ships in 1 to 2 Days
$2.35$3.22
27
91356-SD4-952Ships in 1 to 2 Daysqty 2 used
$3.47$4.76
28
94301-14200Ships in 1 to 2 Daysqty 2 used
$3.01$4.12
29
95701-08080-09Ships in 1 to 2 Daysqty 2 used
$1.20$1.64
30
98079-5785GIn Stockqty 4 used
$3.01$4.12
30
98079-5787GIn Stockqty 4 used
$3.01$4.12
Diagram

ENGINE COVER

BF115 BF115AK0 engine cover exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW5AF0800
Fits all 2 submodels of this generation.

Parts in this assembly

5 parts
1
$1,090.50$1,493.84
2
63102-ZW5-300Ships in 1 to 2 Days
$61.13$87.94
3
HOOK, ENGINE COVER (NOT AVAILABLE)
63103-ZW5-000No Longer Available
—
4
63108-ZW1-000Ships in 1 to 2 Daysqty 4 used
$6.56$9.42
5
90128-KBH-000Ships in 1 to 2 Daysqty 3 used
$3.34$4.72
Diagram

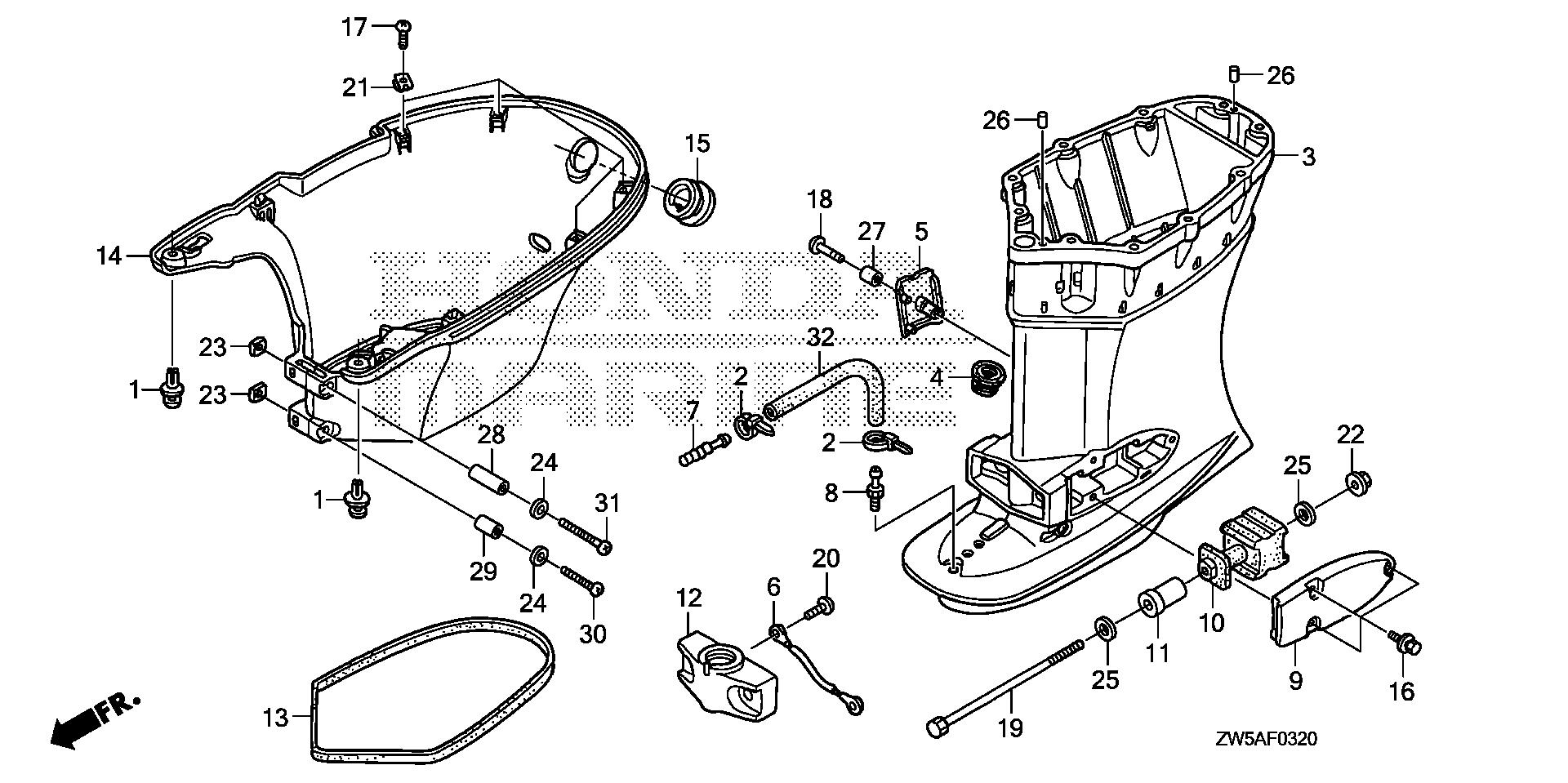

EXTENSION CASE

BF115 BF115AK0 extension case exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW5AF0320
Fits all 2 submodels of this generation.

Parts in this assembly

35 parts
1
17738-SP0-003No Longer Availableqty 2 used
$8.15$11.16
2
32161-KM3-003Ships in 1 to 2 Daysqty 2 used
$3.34$4.58
3
$1,171.40
4
40209-ZW1-000Ships in 1 to 2 Days
$14.94$21.08
5
COVER, DRAIN PLUG *NH282MU* (OYSTER SILVER METALLIC-U)
40212-ZW1-000ZANo Longer Available
—
5
COVER, DRAIN PLUG *NH282MU* (OYSTER SILVER METALLIC-U) (NOT AVAILABLE)
40212-ZW1-010ZANo Longer Available
$19.46$26.66
6
40219-ZY3-023Ships in 1 to 2 Days
$9.05$12.40
7
41171-ZV5-000Ships in 1 to 2 Days
$6.04$8.28
8
41172-ZV5-000Ships in 1 to 2 Days
$7.65$10.48
9
50111-ZW1-010ZAShips in 1 to 2 Daysqty 2 used
$73.31$76.98
10
50155-ZW5-000Ships in 1 to 2 Daysqty 2 used
$87.34$119.64
11
COLLAR, MOUNTING (LOWER)
50156-ZW5-010No Longer Available
$21.07$28.86
12
$154.38$162.09
13
63719-ZW5-000Ships in 1 to 2 Days
$9.52$13.70
14
63711-ZW5-010ZAShips in 1 to 2 Days
$216.30$296.30
15
63719-ZW1-000Ships in 1 to 2 Days
$13.23$19.02
15
63719-ZW5-000Ships in 1 to 2 Days
$9.52$13.70
16
90105-ZY6-000Ships in 1 to 2 Daysqty 6 used
$5.96$8.16
17
90110-GAH-000Ships in 1 to 2 Daysqty 4 used
$2.53$3.56
17
90110-GW0-000Ships in 1 to 2 Daysreplaced by 90110-GAH-000
$2.53$3.56
18
90110-ZV5-000Ships in 1 to 2 Days
$3.36$4.74
19
BOLT, HEX. (12X232) (NOT AVAILABLE)
90118-ZW5-003No Longer Available
$54.02$74.00
20
90119-ZV5-000Ships in 1 to 2 Daysqty 2 used
$1.65$2.26
21
90301-ZW5-003Ships in 1 to 2 Daysqty 4 used
$2.01$2.90
22
90302-ZW5-003Ships in 1 to 2 Daysqty 2 used
$6.15$8.42
23
90311-ZV5-000Ships in 1 to 2 Daysqty 2 used
$7.65$10.80
24
90452-GK4-600In Stockqty 2 used
$1.28$1.82
25
90559-ZW1-000Ships in 1 to 2 Daysqty 4 used
$5.65$7.74
26
90756-ZV5-000In Stockqty 2 used
$2.64$3.62
27
91563-ZV5-000Ships in 1 to 2 Days
$6.23$8.80
28
91568-ZV5-000In Stock
$3.88$5.48
29
91569-ZV5-000In Stock
$4.83$6.82
30
93500-05030-4JShips in 1 to 2 Days
$2.18$3.06
31
93500-05045-4JShips in 1 to 2 Days
$2.50$3.52
32
95005-50003-30MNo Longer Available
$26.56$36.38
Diagram

FUEL PIPE

BF115 BF115AK0 fuel pipe exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW5AE1800A
Fits all 2 submodels of this generation.

Parts in this assembly

42 parts
1
16163-GHB-610Ships in 1 to 2 Daysqty 12 used
$1.66$2.28
2
TUBE B, AIR VENT (NOT AVAILABLE)
16198-ZW5-000No Longer Available
—
3
HOSE, FUEL (NOT AVAILABLE)
16755-ZW5-013No Longer Available
$74.21$101.66
4
16800-ZW5-003Ships in 1 to 2 Days
$113.24$162.86
5
16805-ZW5-003Ships in 1 to 2 Days
$37.10$53.36
6
FLOAT (NOT AVAILABLE)
16806-ZW5-003No Longer Available
$4.96$6.80
7
16807-ZY3-003Ships in 1 to 2 Days
$44.12$62.26
8
16814-ZW5-010Ships in 1 to 2 Days
$20.89$30.06
9
16818-ZY3-003Ships in 1 to 2 Days
$2.48$3.40
10
16880-ZW5-010Ships in 1 to 2 Days
$10.42$15.00
11
TUBE E, FUEL (NOT AVAILABLE)
16891-ZW5-000No Longer Available
$3.42$4.68
12
16904-ZY3-003Ships in 1 to 2 Daysqty 3 used
$4.20$5.76
13
16911-759-003Ships in 1 to 2 Days
$31.54$43.20
14
16915-ZW5-000In Stock
$11.68$16.00
15
16915-ZY3-010Ships in 1 to 2 Days
$12.10$16.58
16
16918-ZY3-003In Stock
$6.54$8.96
17
16919-ZY3-003Ships in 1 to 2 Days
$11.46$15.70
18
16952-MZ5-000Ships in 1 to 2 Days
$1.69$2.32
19
16965-VM0-771Ships in 1 to 2 Daysqty 4 used
$2.72$3.72
20
HOSE, PRESSURE REGULATOR RETURN (NOT AVAILABLE)
17723-ZW5-000No Longer Available
—
21
TUBE A, WATER (NOT AVAILABLE)
19255-ZW5-000No Longer Available
—
22
TUBE B, WATER
19256-ZW5-010No Longer Available
$2.50$3.42
23
19257-ZW5-010Ships in 1 to 2 Days
$2.66$3.82
24
19258-ZW5-010Ships in 1 to 2 Days
$1.77$2.54
25
T-JOINT (NOT AVAILABLE)
19269-ZW5-010No Longer Available
$8.04$11.02
26
19518-MN5-010Ships in 1 to 2 Daysqty 2 used
$8.69$11.90
27
53740-SE0-953Ships in 1 to 2 Days
$3.01$4.12
28
90014-ZY9-M01Ships in 1 to 2 Daysqty 3 used
$2.73$3.74
29
90014-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.87$2.56
29
90016-ZW9-000Ships in 1 to 2 Daysreplaced by 90014-ZZ5-M01
$1.87$2.56
30
90601-ZW5-030Ships in 1 to 2 Daysqty 2 used
$1.83$2.50
31
90603-ZV4-000Ships in 1 to 2 Days
$1.42$1.94
32
90604-ZV0-000Ships in 1 to 2 Daysqty 6 used
$1.37$1.88
33
90651-MAH-000Ships in 1 to 2 Days
$2.61$3.76
34
90652-ZW5-003Ships in 1 to 2 Days
$1.96$2.68
35
TUBE, WATER CHECK (NOT AVAILABLE)
91404-ZW5-000No Longer Available
$4.41$6.04
36
91504-ZY9-M03Ships in 1 to 2 Daysqty 3 used
$5.65$7.74
37
91558-SM4-003Ships in 1 to 2 Days
$6.34$8.68
38
95005-70003-30MShips in 1 to 2 Days
$29.78$42.84
39
95005-70003-30MShips in 1 to 2 Days
$29.78$42.84
40
95005-70003-30MShips in 1 to 2 Days
$29.78$42.84
41
17723-ZW5-010Ships in 1 to 2 Days
$21.08$30.32
Diagram

FUEL TANK - FUEL TUBE

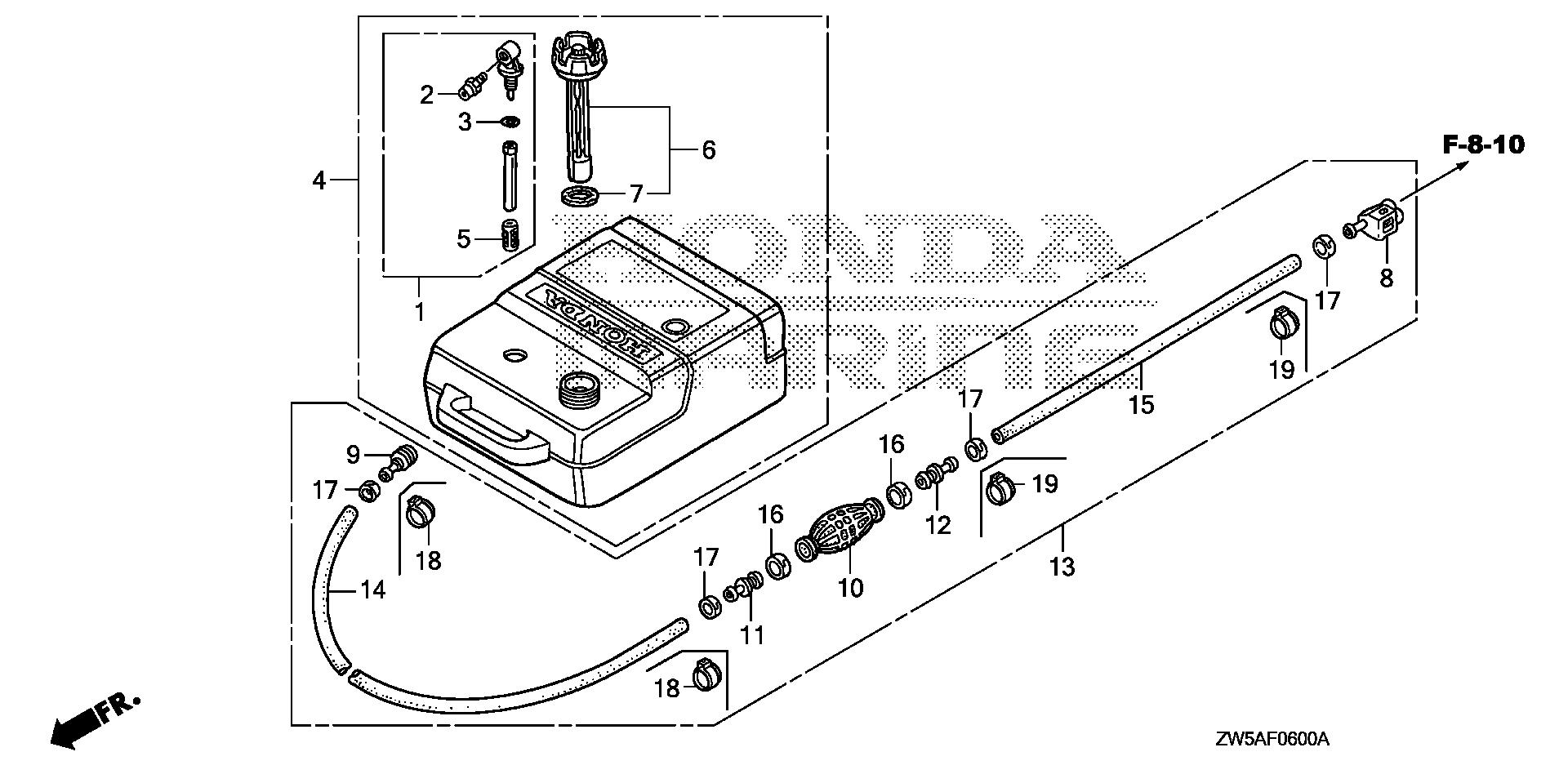

BF115 BF115AK0 fuel tank - fuel tube exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW5AF0600A
Fits all 2 submodels of this generation.

Parts in this assembly

24 parts
1
16900-ZV5-902Ships in 1 to 2 Days
$27.02$37.02
2
16977-ZV5-A00Ships in 1 to 2 Days
$14.60$20.00
↳
Sierra alternative ·
18-80400In Stock save $3.72
$10.88
3
16979-ZV5-901Ships in 1 to 2 Days
$0.60$0.82
4
17500-ZV5-904Ships in 1 to 2 Daysreplaced by 17500-ZZ5-711
$177.42$243.04
4
17500-ZZ5-711Ships in 1 to 2 Days
$177.42$243.04
5
17583-ZV5-901In Stock
$1.90$2.60
6
CAP, FUEL FILLER
17620-ZV5-902No Longer Available
—
6
CAP, FUEL FILLER (NA USE ALT:17620-ZZ5-003)
17620-ZV5-903No Longer Available
$26.24$35.94
7
17624-ZV5-902Ships in 1 to 2 Days
$6.63$9.08
8
17650-ZW9-023Ships in 1 to 2 Days
$34.67$47.50
↳
Sierra alternative ·
18-80408In Stock save $20.37
$14.30
9
17660-ZW9-003Ships in 1 to 2 Days
$32.18$44.08
10
17661-921-010Ships in 1 to 2 Days
$12.99$17.80
11
17665-ZV5-000Ships in 1 to 2 Days
$12.13$16.62
12
17680-ZV4-000Ships in 1 to 2 Days
$12.13$16.62
13
17700-ZW9-030Ships in 1 to 2 Days
$65.67$89.96
13
17700-ZW9-904Ships in 1 to 2 Days
$127.52$174.68
14
17701-ZV5-000Ships in 1 to 2 Days
$46.09$63.14
14
17701-ZY9-E04Ships in 1 to 2 Days
$94.21$129.06
15
TUBE, FUEL SHORT (6.3X500) (NOT AVAILABLE)
17702-ZV4-000No Longer Available
$9.75$13.36
15
17702-ZW9-904Ships in 1 to 2 Days
$20.89$28.62
16
17703-921-010Ships in 1 to 2 Daysqty 2 used
$3.53$4.84
17
17704-ZV4-010Ships in 1 to 2 Daysqty 4 used
$2.18$2.98
18
16895-ZW9-900Ships in 1 to 2 Daysqty 2 used
$3.64$5.22
19
16896-ZW9-900Ships in 1 to 2 Daysqty 2 used
$3.64$5.22
Diagram

GASKET KIT

Honda publishes no exploded diagram for this assembly. The parts list below is complete.
Ref numbers on the diagram match the badges belowNOILL
Fits all 2 submodels of this generation.

Parts in this assembly

1 parts
1
06111-ZW7-040Ships in 1 to 2 Days
$422.16$607.20
Diagram

GEAR CASE

BF115 BF115AK0 gear case exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW5AF0300
Fits all 2 submodels of this generation.

Parts in this assembly

28 parts
1
19286-ZW1-B00Ships in 1 to 2 Days
$6.28$8.60
2
SEPARATOR, EXTENSION *NH282MU* (OYSTER SILVER METALLIC-U) (NOT AVAILABLE)
40202-ZW1-710ZANo Longer Available
$1,337.02$1,831.54
3
40210-ZW1-710Ships in 1 to 2 Days
$27.89$38.20
4
41101-ZW1-B06ZAShips in 1 to 2 Days
$1,117.61
5
41102-ZW1-B00Ships in 1 to 2 Days
$6.29$8.62
6
41104-ZV5-000Ships in 1 to 2 Days
$7.65$11.00
7
41105-ZV5-000Ships in 1 to 2 Days
$7.65$11.00
8
TAB, TRIM *NH282MU* (OYSTER SILVER METALLIC-U) (NOT AVAILABLE)
41107-ZW1-B01ZANo Longer Available
$50.36
9
41109-ZW1-B00In Stock
$18.12$24.82
10
90101-ZW9-003In Stockqty 2 used
$2.80$3.84
11
BOLT, HEX. (10X80) (NOT AVAILABLE)
90104-ZW5-000No Longer Available
$15.23$20.86
12
90111-881-000Ships in 1 to 2 Days
$2.91$4.10
13
90115-ZV5-000Ships in 1 to 2 Days
$3.83$5.40
14
90120-ZY3-000In Stock
$14.35$19.66
15
90123-ZV5-010Ships in 1 to 2 Daysqty 4 used
$6.51$9.36
16
90124-ZW1-910Ships in 1 to 2 Days
$30.54$43.10
17
90125-ZW1-910Ships in 1 to 2 Daysqty 4 used
$27.54$38.84
18
90205-PP9-020Ships in 1 to 2 Days
$8.86$12.74
18
90205-ZY1-000Ships in 1 to 2 Days
$4.76$6.52
19
90302-ZV4-000Ships in 1 to 2 Days
$4.91$6.72
20
90306-ZV5-003In Stockqty 5 used
$3.40$4.66
21
90401-ZW1-000Ships in 1 to 2 Days
$2.23$3.06
22
90501-ZW1-710Ships in 1 to 2 Days
$18.59$25.46
23
90563-ZV5-000Ships in 1 to 2 Daysqty 5 used
$2.44$3.34
24
90651-ZW1-710Ships in 1 to 2 Days
$11.40$15.62
25
90756-ZV5-000In Stockqty 2 used
$2.64$3.62
26
91301-ZW4-003In Stockqty 3 used
$0.99$1.36
27
SCREW, OVAL (5X45)
93700-05045-4JShips in 1 to 2 Days
$1.96$2.68
Diagram

GEAR CASE ASSY.

BF115 BF115AK0 gear case assy. exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW5AF0310
Fits all 2 submodels of this generation.

Parts in this assembly

4 parts
1
CASE ASSY., GEAR *NH282MU* (OYSTER SILVER METALLIC-U)
41100-ZW5-080ZANo Longer Available
—
1
CASE ASSY., GEAR *NH282MU* (OYSTER SILVER METALLIC-U)
41100-ZW5-090ZANo Longer Available
—
1
CASE ASSY., GEAR *NH282MU* (OYSTER SILVER METALLIC-U) (NOT AVAILABLE)
41100-ZW5-100ZANo Longer Available
$3,085.90
1
$3,169.25
Diagram

IGNITION COIL - C.D.I. UNIT

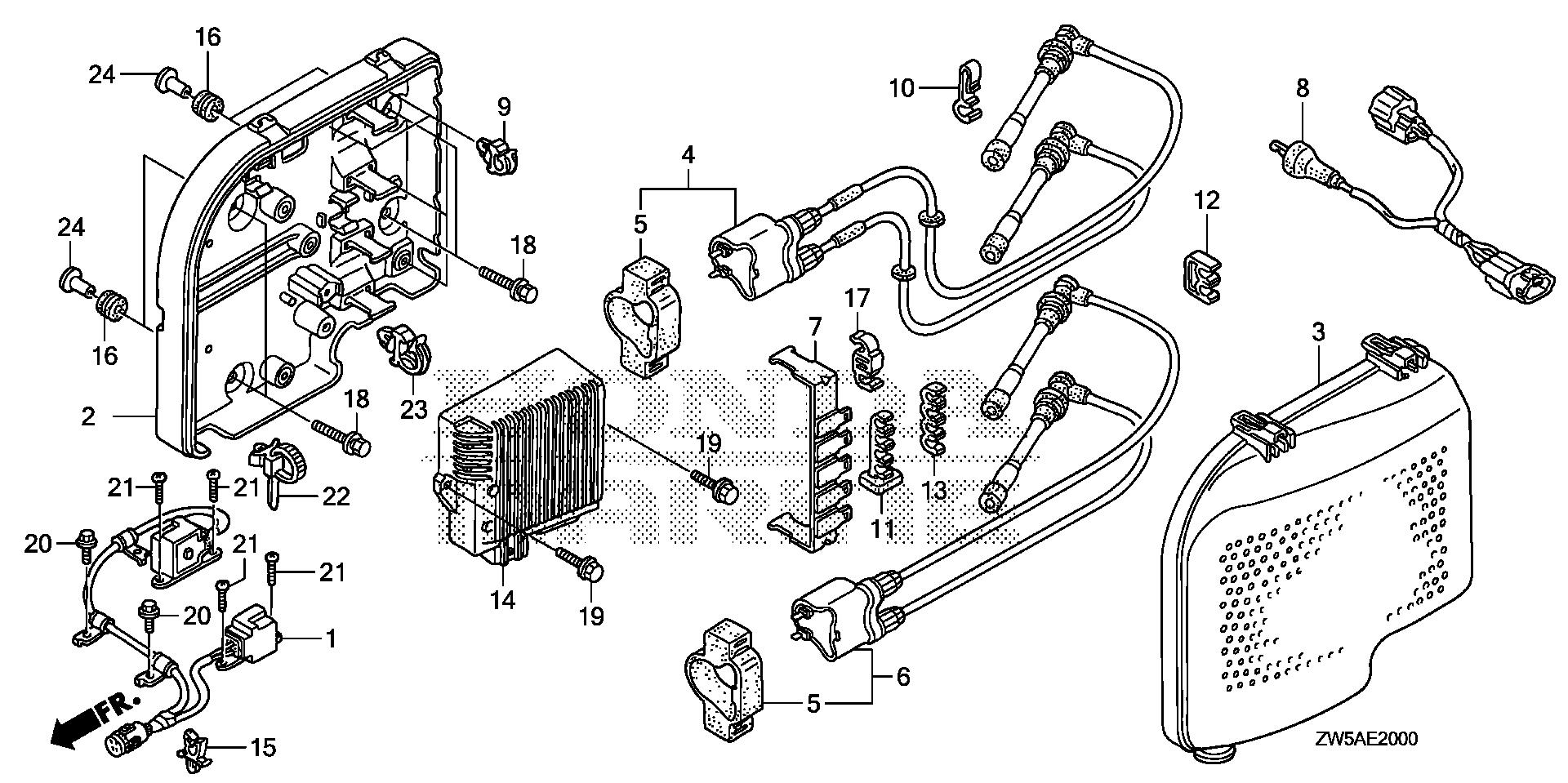

BF115 BF115AK0 ignition coil - c.d.i. unit exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW5AE2000
Fits all 2 submodels of this generation.

Parts in this assembly

24 parts
1
COIL ASSY., PULSER (NOT AVAILABLE)
30310-ZW5-003No Longer Available
$106.11$145.36
2
30416-ZW5-000Ships in 1 to 2 Days
$61.91$65.00
3
COVER, IGNITION CONTROL MODULE (CDI) (NOT AVAILABLE)
30421-ZW1-000No Longer Available
—
4
COIL ASSY., IGNITION (1,4) (NOT AVAILABLE)
30500-ZW5-003No Longer Available
$159.08
5
30516-ZW5-003Ships in 1 to 2 Daysqty 2 used
$14.00$20.14
6
30550-ZW5-003No Longer Available
$159.08$167.03
7
32116-ZW5-010Ships in 1 to 2 Days
$16.57$23.84
8
32193-ZW5-000Ships in 1 to 2 Days
$24.97$35.90
9
32660-MJ6-710Ships in 1 to 2 Daysqty 4 used
$3.43$4.70
10
32763-PA0-000Ships in 1 to 2 Daysqty 3 used
$10.34$14.16
11
32765-P07-000Ships in 1 to 2 Daysqty 2 used
$9.56$13.76
12
CLAMP B, IGNITION WIRE (NOT AVAILABLE)
32766-P07-000No Longer Available
—
13
CLAMP, IGNITION WIRE
32777-695-000No Longer Available
—
14
CONTROL UNIT, ELECTRONIC (NOT AVAILABLE)
34750-ZW5-G01No Longer Available
—
15
37304-PE1-661Ships in 1 to 2 Days
$7.12$10.06
16
40102-ZV5-000Ships in 1 to 2 Daysqty 4 used
$2.64$3.62
17
80385-SM4-940Ships in 1 to 2 Days
$3.31$4.76
18
90003-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$2.55$3.50
19
90017-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.24$1.70
20
90056-ZY9-M01Ships in 1 to 2 Daysqty 2 used
$1.10$1.50
21
90182-ZW4-000Ships in 1 to 2 Daysqty 4 used
$0.85$1.22
22
90672-SA0-003Ships in 1 to 2 Days
$7.17$9.82
23
90682-ZV5-003Ships in 1 to 2 Daysqty 2 used
$1.66$2.34
24
91553-ZV5-010Ships in 1 to 2 Daysqty 4 used
$2.67$3.66
Diagram

INTAKE MANIFOLD

BF115 BF115AK0 intake manifold exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW5AE1400
Fits all 2 submodels of this generation.

Parts in this assembly

49 parts
1
12155-ZV5-000Ships in 1 to 2 Daysreplaced by 12155-ZV5-010
$9.53$13.06
1
12155-ZV5-010Ships in 1 to 2 Daysqty 2 used
$9.53$13.06
2
16406-ZW5-000Ships in 1 to 2 Daysqty 4 used
$153.73
3
16472-P0H-A01Ships in 1 to 2 Daysqty 4 used
$31.07$42.56
4
16473-PD6-000Ships in 1 to 2 Daysreplaced by 16473-P10-A01
$7.99$10.94
4
16473-P10-A01Ships in 1 to 2 Daysqty 4 used
$7.99$10.94
5
16614-P5G-003Ships in 1 to 2 Days
$13.02$17.84
6
16620-ZW5-020Ships in 1 to 2 Days
$154.79$212.04
7
16638-PH3-S00Ships in 1 to 2 Daysqty 3 used
$6.53$8.94
8
16731-ZE2-003Ships in 1 to 2 Days
$2.19$3.00
9
REGULATOR ASSY., PRESSURE
16740-ZW5-003No Longer Available
$95.25$130.48
10
16741-PG7-005Ships in 1 to 2 Days
$3.83$5.24
11
16752-ZY3-000Ships in 1 to 2 Days
$7.36$10.08
12
16816-ZW5-010Ships in 1 to 2 Days
$8.58$12.34
13
16817-ZW5-010Ships in 1 to 2 Days
$4.89$7.04
14
16818-ZW5-010Ships in 1 to 2 Days
$4.89$7.04
15
MANIFOLD ASSY., IN. *NH8* (DARK GRAY)
17100-ZW5-020ZANo Longer Available
—
16
17130-PK1-003Ships in 1 to 2 Days
$44.06$63.38
17
17151-ZW5-000Ships in 1 to 2 Days
$13.90$20.00
18
17161-ZW5-010Ships in 1 to 2 Daysqty 2 used
$9.17$13.18
19
17439-PY3-A01Ships in 1 to 2 Daysqty 2 used
$5.42$7.42
20
32112-ZW5-010Ships in 1 to 2 Days
$4.28$6.16
21
32118-ZW5-010Ships in 1 to 2 Days
$3.21$4.62
22
32660-MJ6-710Ships in 1 to 2 Days
$3.43$4.70
23
35665-ZW5-003Ships in 1 to 2 Days
$19.35$26.50
24
36454-PS4-003Ships in 1 to 2 Days
$10.92$14.96
25
36455-PV0-000Ships in 1 to 2 Days
$6.38$9.18
26
VALVE ASSY., ELECTRONIC AIR CONTROL (NOT AVAILABLE)
36550-ZW5-003No Longer Available
$247.06$338.44
27
90003-ZW5-010Ships in 1 to 2 Daysqty 3 used
$3.77$5.16
28
90004-ZW5-010Ships in 1 to 2 Daysqty 2 used
$8.38$12.06
29
90005-ZW5-010Ships in 1 to 2 Daysqty 2 used
$1.96$2.82
30
90021-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.14$1.56
31
90056-ZY9-M01Ships in 1 to 2 Daysqty 4 used
$1.10$1.50
32
90026-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.87$2.56
33
90051-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.36$1.86
33
90150-ZW4-000Ships in 1 to 2 Daysreplaced by 90051-ZZ5-M01
$1.36$1.86
34
90201-HA0-000Ships in 1 to 2 Days
$6.50$8.90
35
90201-ZZ5-M01Ships in 1 to 2 Daysqty 3 used
$1.04$1.42
36
90403-ZW5-010Ships in 1 to 2 Daysqty 2 used
$7.01$10.08
37
90602-ZW5-030In Stockqty 2 used
$1.83$2.50
38
90691-ZB7-003Ships in 1 to 2 Days
$3.07$4.20
39
91301-MJ0-003In Stockqty 2 used
$2.09$2.86
40
91301-PM7-003Ships in 1 to 2 Daysreplaced by 91301-P2F-A01
$3.17$4.34
40
91301-P2F-A01In Stockqty 4 used
$3.17$4.34
41
91303-P0A-A02Ships in 1 to 2 Days
$3.80$5.20
42
91594-SR3-911Ships in 1 to 2 Daysqty 2 used
$8.03$11.34
43
93500-06018-4JShips in 1 to 2 Daysqty 2 used
$1.49$2.10
44
95001-35003-60MShips in 1 to 2 Days
$27.23$39.16
45
BULK HOSE, VACUUM (7.3X1000) (7.3X370)
95005-75001-20MNo Longer Available
$31.73$43.46
Diagram

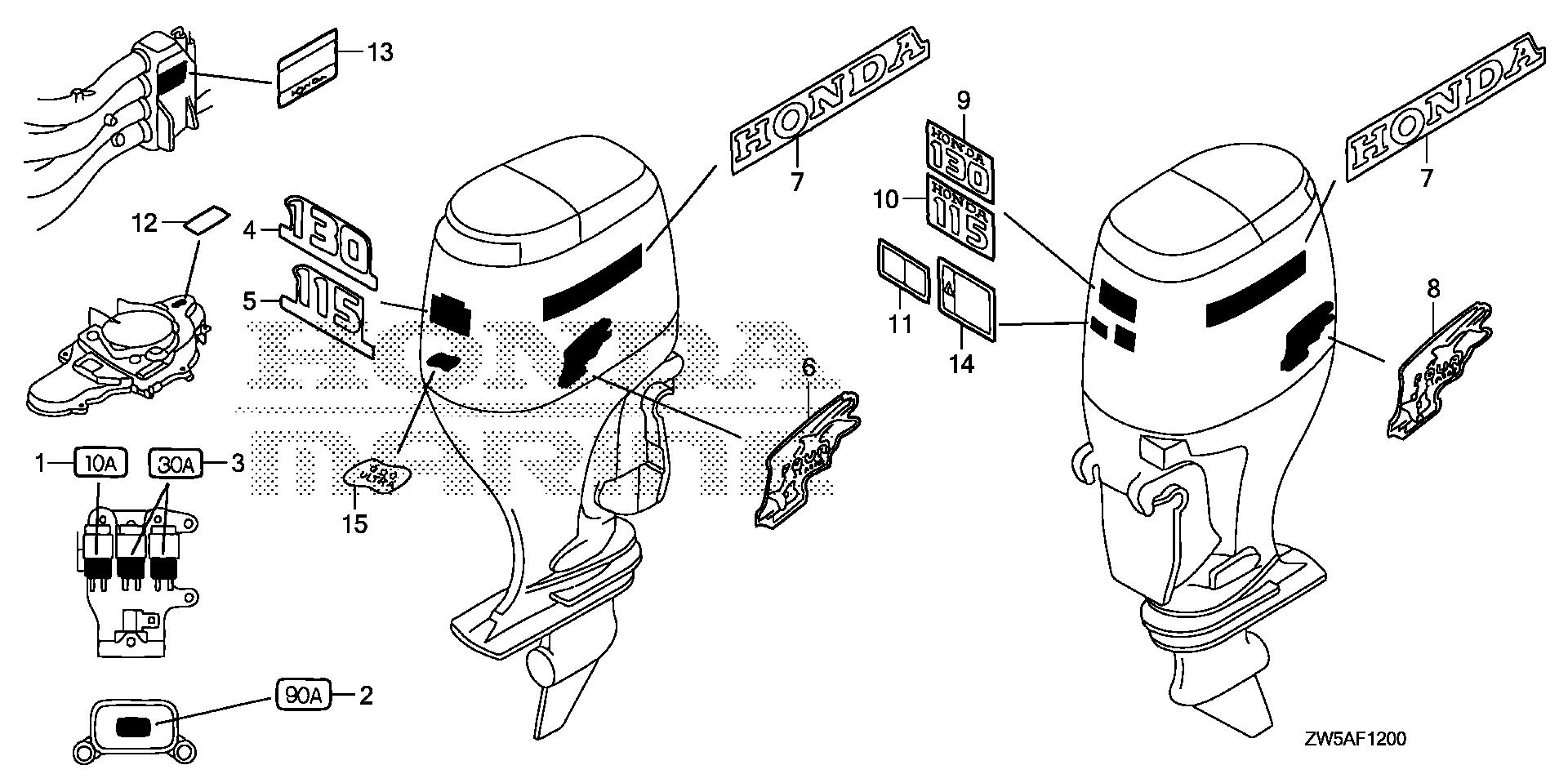

LABELS

BF115 BF115AK0 labels exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW5AF1200
Fits all 2 submodels of this generation.

Parts in this assembly

11 parts
1
87117-ZW5-000Ships in 1 to 2 Days
$3.07$4.40
2
87118-ZW5-000Ships in 1 to 2 Days
$3.10$4.46
3
87119-ZW5-000No Longer Availableqty 2 used
$3.10$4.24
5
87121-ZW7-900Ships in 1 to 2 Days
$36.14$51.98
6
87131-ZW5-A00Ships in 1 to 2 Days
$78.17$112.42
7
87132-ZY3-000Ships in 1 to 2 Daysqty 2 used
$47.39$66.86
8
87131-ZY3-000Ships in 1 to 2 Days
$83.85$120.60
10
87301-ZW7-900Ships in 1 to 2 Days
$38.69$55.66
12
LABEL, OIL CAUTION (ENGLISH) (NOT AVAILABLE)
87531-ZW5-640No Longer Available
$7.65$10.48
13
87533-ZW5-010Ships in 1 to 2 Days
$9.78$14.08
14
87538-ZV1-C23Ships in 1 to 2 Days
$4.70$6.44
Diagram

LOWER CASE

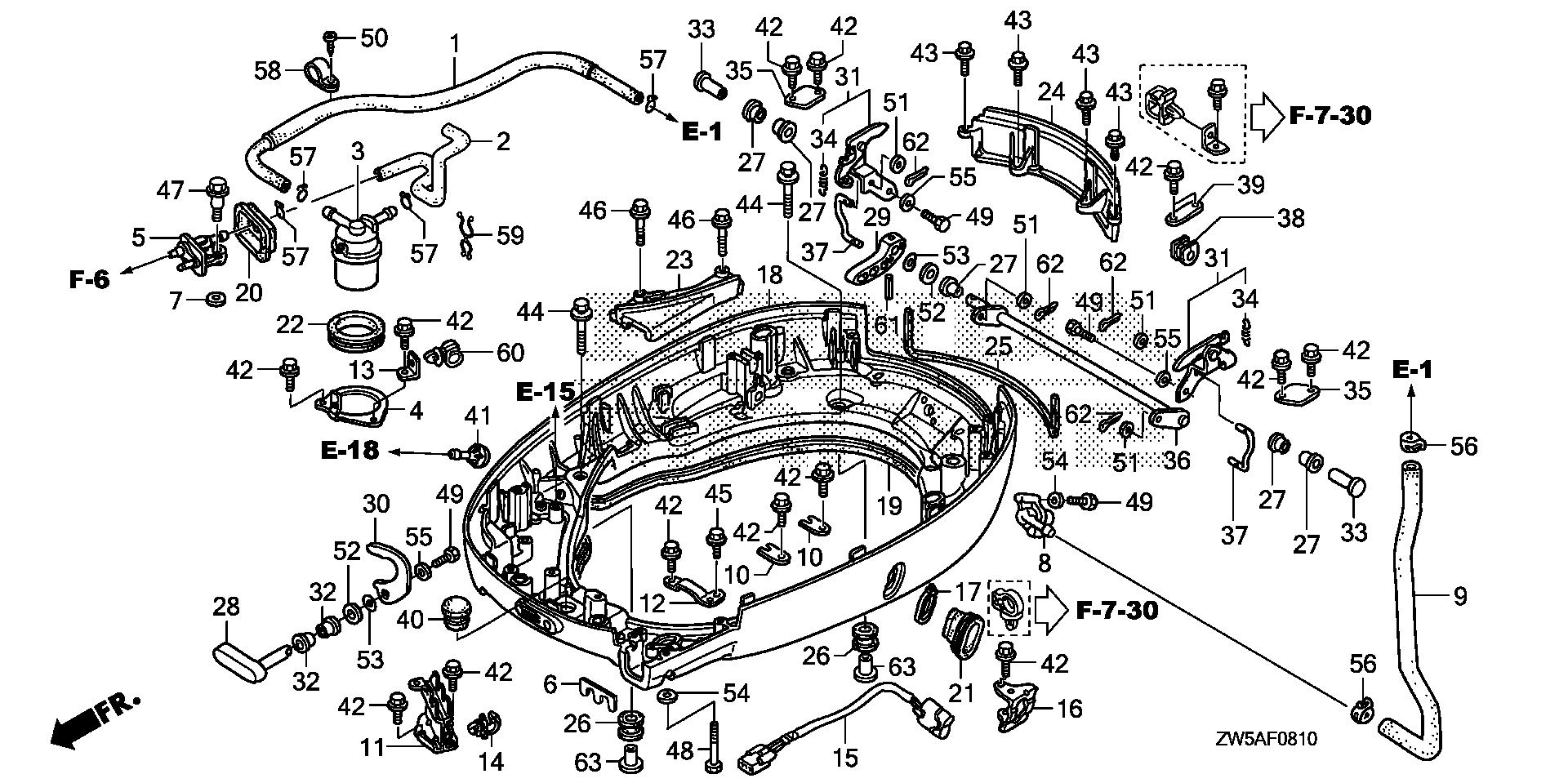

BF115 BF115AK0 lower case exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW5AF0810
Fits all 2 submodels of this generation.

Parts in this assembly

66 parts
1
TUBE, FUEL (NOT AVAILABLE)
16850-ZW5-000No Longer Available
—
2
TUBE B, FUEL (NOT AVAILABLE)
16861-ZW5-010No Longer Available
$7.88$10.80
3
16900-SR3-004Ships in 1 to 2 Days
$22.50$32.36
↳
Sierra alternative ·
18-7720In Stock save $1.72
$20.78
4
STAY, FUEL STRAINER (NOT AVAILABLE)
16914-ZW1-000No Longer Available
$18.26$25.02
5
17710-ZW9-033Ships in 1 to 2 Days
$46.08$65.02
↳
Sierra alternative ·
18-80407In Stock save $0.01
$46.07
6
17877-ZW1-000Ships in 1 to 2 Days
$9.87$14.20
7
17936-921-000Ships in 1 to 2 Days
$1.20$1.64
8
JOINT, WATER INLET (NOT AVAILABLE)
19266-ZW1-010No Longer Available
$50.52$69.20
9
19274-ZW5-000Ships in 1 to 2 Days
$17.48$25.14
10
24626-ZV5-010In Stockqty 2 used
$2.25$3.18
11
BRACKET, CONNECTOR (B) (NOT AVAILABLE)
32109-ZW5-010No Longer Available
$21.05$28.84
12
BRACKET, CABLE CLIP (S) (NOT AVAILABLE)
32112-ZV7-751No Longer Available
—
12
BRACKET, CABLE CLIP
32113-ZW5-000No Longer Available
—
13
32114-ZW5-010Ships in 1 to 2 Days
$4.09$5.88
14
32660-MJ6-710Ships in 1 to 2 Days
$3.43$4.70
15
SWITCH ASSY., POWER TRIM-TILT (NOT AVAILABLE)
35640-ZW1-023No Longer Available
$61.26$83.92
16
35645-ZW1-000Ships in 1 to 2 Days
$13.65$19.64
17
35701-MG9-950Ships in 1 to 2 Days
$1.83$2.50
18
CASE, ENGINE (LOWER) *NH282MU* (OYSTER SILVER METALLIC-U) (NOT AVAILABLE)
40101-ZW5-405ZANo Longer Available
$1,490.12$2,041.26
19
40103-ZW5-000Ships in 1 to 2 Days
$29.80$42.86
20
40106-ZV5-000Ships in 1 to 2 Days
$7.88$11.12
21
40114-ZV5-821Ships in 1 to 2 Days
$10.23$14.44
22
GROMMET, FUEL STRAINER (NOT AVAILABLE)
40146-ZV5-000No Longer Available
$8.07$11.06
23
40151-ZW5-000ZAShips in 1 to 2 Days
$64.73$67.96
24
$137.58
25
40159-ZW5-000No Longer Available
$6.70$9.18
26
51640-121-730Ships in 1 to 2 Daysqty 4 used
$3.68$5.04
27
57264-759-003No Longer Availableqty 5 used
$5.56$7.62
28
$59.29$85.28
29
63201-ZW5-000Ships in 1 to 2 Days
$24.38$35.06
30
63202-ZW1-000Ships in 1 to 2 Days
$12.25$17.62
31
63202-ZW5-000Ships in 1 to 2 Daysqty 2 used
$40.31$57.98
32
63205-920-000Ships in 1 to 2 Daysqty 2 used
$4.53$6.20
33
SHAFT, COVER B LOCK (NOT AVAILABLE)
63208-ZW5-000No Longer Available
$28.67$39.28
34
SPRING, COVER LOCK HOOK
63212-ZW5-000No Longer Available
$12.66$17.34
35
63213-ZW5-010Ships in 1 to 2 Daysqty 2 used
$3.12$4.50
36
SHAFT, COVER LOCK (NOT AVAILABLE)
63214-ZW5-000No Longer Available
—
37
ROD, COVER LOCK
63216-ZW5-000No Longer Available
$20.15$27.60
38
63217-ZW5-000Ships in 1 to 2 Daysqty 2 used
$4.04$5.82
39
63219-ZW5-010Ships in 1 to 2 Days
$2.03$2.92
40
63515-ZC0-700Ships in 1 to 2 Days
$5.80$7.94
41
82873-ZV5-000Ships in 1 to 2 Daysreplaced by 82873-ZV5-003
$5.71$8.06
41
82873-ZV5-003Ships in 1 to 2 Days
$5.71$8.06
42
90013-ZV0-010Ships in 1 to 2 Daysqty 14 used
$1.80$2.46
43
90013-ZV4-010Ships in 1 to 2 Daysqty 4 used
$1.36$1.92
44
90014-ZY9-M01Ships in 1 to 2 Daysqty 4 used
$2.73$3.74
45
90019-ZV1-010Ships in 1 to 2 Days
$1.36$1.86
46
90002-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.46$2.00
47
90112-ZY1-000In Stock
$3.08$4.22
48
90114-881-000Ships in 1 to 2 Days
$3.26$4.46
48
90120-ZV4-010Ships in 1 to 2 Days
$2.44$3.50
49
90127-ZV4-000In Stockqty 5 used
$2.12$2.90
50
90127-ZV5-003Ships in 1 to 2 Days
$1.94$2.66
51
90452-GK4-600In Stockqty 4 used
$1.28$1.82
52
90505-ZV1-000In Stockqty 2 used
$2.44$3.34
53
90506-ZV1-000In Stockqty 2 used
$2.44$3.34
54
90506-ZV4-000Ships in 1 to 2 Daysqty 3 used
$2.45$3.36
55
90512-921-010In Stockqty 3 used
$1.07$1.46
56
90602-ZV3-030In Stockqty 2 used
$3.37$4.76
57
90604-ZV0-000Ships in 1 to 2 Daysqty 4 used
$1.37$1.88
58
90628-750-000Ships in 1 to 2 Days
$2.12$2.90
59
90630-ZW1-003Ships in 1 to 2 Days
$2.55$3.68
60
90691-ZB7-003Ships in 1 to 2 Days
$3.07$4.20
61
90751-ZW5-000Ships in 1 to 2 Days
$1.30$1.86
62
90759-ZV1-000In Stockqty 4 used
$1.42$1.94
63
91504-ZY9-M03Ships in 1 to 2 Daysqty 4 used
$5.65$7.74
Diagram

METER - HOSE JOINT

BF115 BF115AK0 meter - hose joint exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW5AY0501
Fits all 2 submodels of this generation.

Parts in this assembly

16 parts
1
SPEEDOMETER KIT
06372-ZV5-910No Longer Available
—
2
91302-ZE9-003Ships in 1 to 2 Days
$2.35$3.22
3
19270-ZW1-740Ships in 1 to 2 Days
$43.40
4
19270-881-812Ships in 1 to 2 Days
$10.42$14.70
5
19270-ZW1-740Ships in 1 to 2 Days
$43.40
6
19272-881-810Ships in 1 to 2 Days
$2.45$3.46
7
32550-ZV5-910Ships in 1 to 2 Days
$17.67
8
34908-MB9-871Ships in 1 to 2 Days
$2.67$3.66
9
37250-ZV7-913Ships in 1 to 2 Days
$224.97$308.18
10
37253-ZV5-821Ships in 1 to 2 Days
$4.12$5.64
11
37256-ZV5-821Ships in 1 to 2 Days
$21.83$29.90
12
37258-ZV5-821Ships in 1 to 2 Days
$16.09$22.04
13
METER ASSY., VOLT (NOT AVAILABLE: USE 37453-ZW5-000ZA)
37450-ZV5-911No Longer Available
—
14
39700-ZV5-800AHShips in 1 to 2 Days
$47.13
15
90309-ZV5-821Ships in 1 to 2 Daysqty 2 used
$1.42$1.94
16
90550-ZV5-821Ships in 1 to 2 Daysqty 2 used
$1.18$1.62
Diagram

METER KIT - METER HARNESS

BF115 BF115AK0 meter kit - meter harness exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW5AY0500
Fits all 2 submodels of this generation.

Parts in this assembly

26 parts
1
06372-ZW5-U02Ships in 1 to 2 Days
$95.91
1
06372-ZW5-U12Ships in 1 to 2 Days
$185.23$253.74
2
06373-ZW5-U01Ships in 1 to 2 Days
$217.38$297.78
2
06373-ZW5-U11Ships in 1 to 2 Days
$207.98$284.90
3
06374-ZW5-U01Ships in 1 to 2 Days
$63.33
3
06374-ZW5-U10Ships in 1 to 2 Days
$57.08
4
06375-ZW5-U01Ships in 1 to 2 Days
$185.48$254.08
4
06375-ZW5-U11Ships in 1 to 2 Days
$172.19$235.88
5
METER KIT, HOUR (WHITE) (NA USE ALT:39700-ZW5-000ZA)
06397-ZW5-U00No Longer Available
—
5
METER KIT, HOUR (B) (NA USE ALT:39700-ZW5-000ZA)
06397-ZW5-U10No Longer Available
—
6
32550-ZW5-U00Ships in 1 to 2 Days
$33.11$45.36
7
34908-MB9-871Ships in 1 to 2 Daysqty 2 used
$2.67$3.66
8
34908-MG9-951Ships in 1 to 2 Daysqty 3 used
$2.23$3.06
9
37202-ZW5-U01Ships in 1 to 2 Days
$30.97$42.42
10
37215-KM1-670Ships in 1 to 2 Days
$1.81$2.48
11
37226-MZ5-008Ships in 1 to 2 Daysqty 2 used
$2.86$3.92
12
37258-ZV5-U01Ships in 1 to 2 Daysqty 2 used
$13.18$18.06
13
37258-ZW5-U01Ships in 1 to 2 Daysqty 3 used
$13.18$18.06
14
37263-ZV5-821Ships in 1 to 2 Days
$3.45$4.72
15
37264-ZV5-821Ships in 1 to 2 Daysqty 2 used
$2.77$3.80
16
37266-ZV5-821Ships in 1 to 2 Daysqty 2 used
$16.16$22.14
17
37305-KE5-008Ships in 1 to 2 Daysqty 2 used
$2.64$3.62
18
90309-ZV5-821Ships in 1 to 2 Daysqty 4 used
$1.42$1.94
19
90310-ZV5-821Ships in 1 to 2 Daysqty 6 used
$1.27$1.74
20
90550-ZV5-821Ships in 1 to 2 Daysqty 4 used
$1.18$1.62
21
90560-ZV5-821Ships in 1 to 2 Daysqty 5 used
$1.24$1.70
Diagram

MOUNT CASE

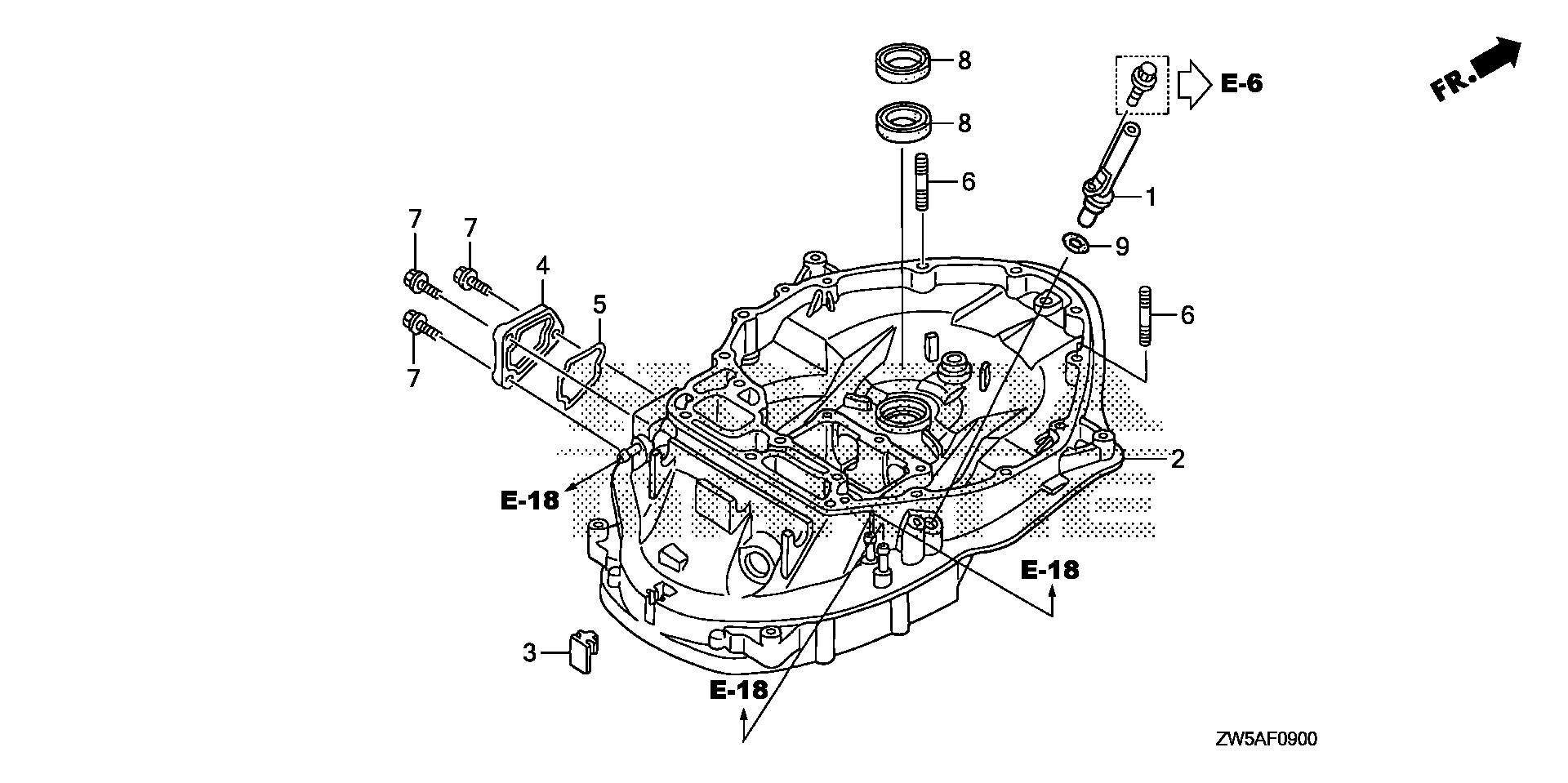

BF115 BF115AK0 mount case exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW5AF0900
Fits all 2 submodels of this generation.

Parts in this assembly

10 parts
1
15665-ZW1-030Ships in 1 to 2 Days
$12.61$17.80
2
CASE, MOUNT *NH8* (DARK GRAY) (NOT AVAILABLE)
23170-ZW5-000ZANo Longer Available
$773.59
3
23173-ZW5-000Ships in 1 to 2 Days
$4.20$5.94
4
23175-ZW5-000Ships in 1 to 2 Days
$24.53$35.28
4
COVER, MOUNT CASE *NH8* (DARK GRAY) (NOT AVAILABLE)
23175-ZW5-000ZANo Longer Available
—
5
23176-ZW5-003Ships in 1 to 2 Days
$7.91$11.38
6
90009-ZW5-010Ships in 1 to 2 Daysqty 2 used
$2.06$2.96
7
90018-ZW5-000Ships in 1 to 2 Daysqty 3 used
$1.64$2.24
8
91202-ZW5-003Ships in 1 to 2 Daysqty 2 used
$12.18$16.68
9
91309-PJ7-010Ships in 1 to 2 Days
$3.05$4.30
Diagram

OIL PAN

BF115 BF115AK0 oil pan exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW5AE0600A
Fits all 2 submodels of this generation.

Parts in this assembly

28 parts
1
11311-ZW5-010ZANo Longer Available
$231.31$316.86
2
11381-ZW5-003Ships in 1 to 2 Days
$83.51$120.12
3
15113-ZW5-000Ships in 1 to 2 Days
$8.26$11.32
4
TUBE, OIL (NOT AVAILABLE)
15422-ZW5-010No Longer Available
$12.13$16.62
5
DIPSTICK, OIL
15655-ZW5-000No Longer Available
$19.86$27.20
6
PIPE, EX. (NOT AVAILABLE)
18330-ZW5-000No Longer Available
$214.62$294.00
7
18333-ZW1-000Ships in 1 to 2 Days
$9.87$14.20
8
19252-ZW1-000Ships in 1 to 2 Days
$7.43$10.18
9
23172-ZW5-013Ships in 1 to 2 Days
$132.95$191.24
10
90007-ZW5-000Ships in 1 to 2 Daysqty 2 used
$10.31$14.82
11
90009-ZV5-000Ships in 1 to 2 Daysqty 10 used
$4.16$5.88
12
90010-ZV5-000Ships in 1 to 2 Daysqty 2 used
$4.69$6.62
13
90010-ZW1-020Ships in 1 to 2 Daysqty 2 used
$6.82$9.80
13
90126-ZY3-000Ships in 1 to 2 Daysqty 2 used
$7.49$10.26
14
90011-ZW1-010Ships in 1 to 2 Daysqty 4 used
$11.72$16.86
15
90056-ZY9-M01Ships in 1 to 2 Days
$1.10$1.50
16
90115-ZV5-000Ships in 1 to 2 Daysqty 2 used
$3.83$5.40
17
90122-ZV5-000Ships in 1 to 2 Days
$6.13$8.66
18
90131-ZV5-000Ships in 1 to 2 Days
$7.43$10.18
19
90170-ZW4-030Ships in 1 to 2 Daysqty 2 used
$1.90$2.60
20
90201-HA0-000Ships in 1 to 2 Days
$6.50$8.90
21
90401-ZW1-000Ships in 1 to 2 Daysqty 15 used
$2.23$3.06
22
90563-ZV5-000Ships in 1 to 2 Daysqty 8 used
$2.44$3.34
23
90601-ZE2-000In Stock
$2.38$3.26
24
90606-ZW5-030Ships in 1 to 2 Days
$3.33$4.56
25
90756-ZV5-000In Stockqty 2 used
$2.64$3.62
26
95701-10130-09Ships in 1 to 2 Daysqty 4 used
$3.01$4.12
27
TUBE SET, OIL (NOT AVAILABLE)
06154-ZW5-000No Longer Available
—
Diagram

OIL PUMP - EXHAUST PIPE

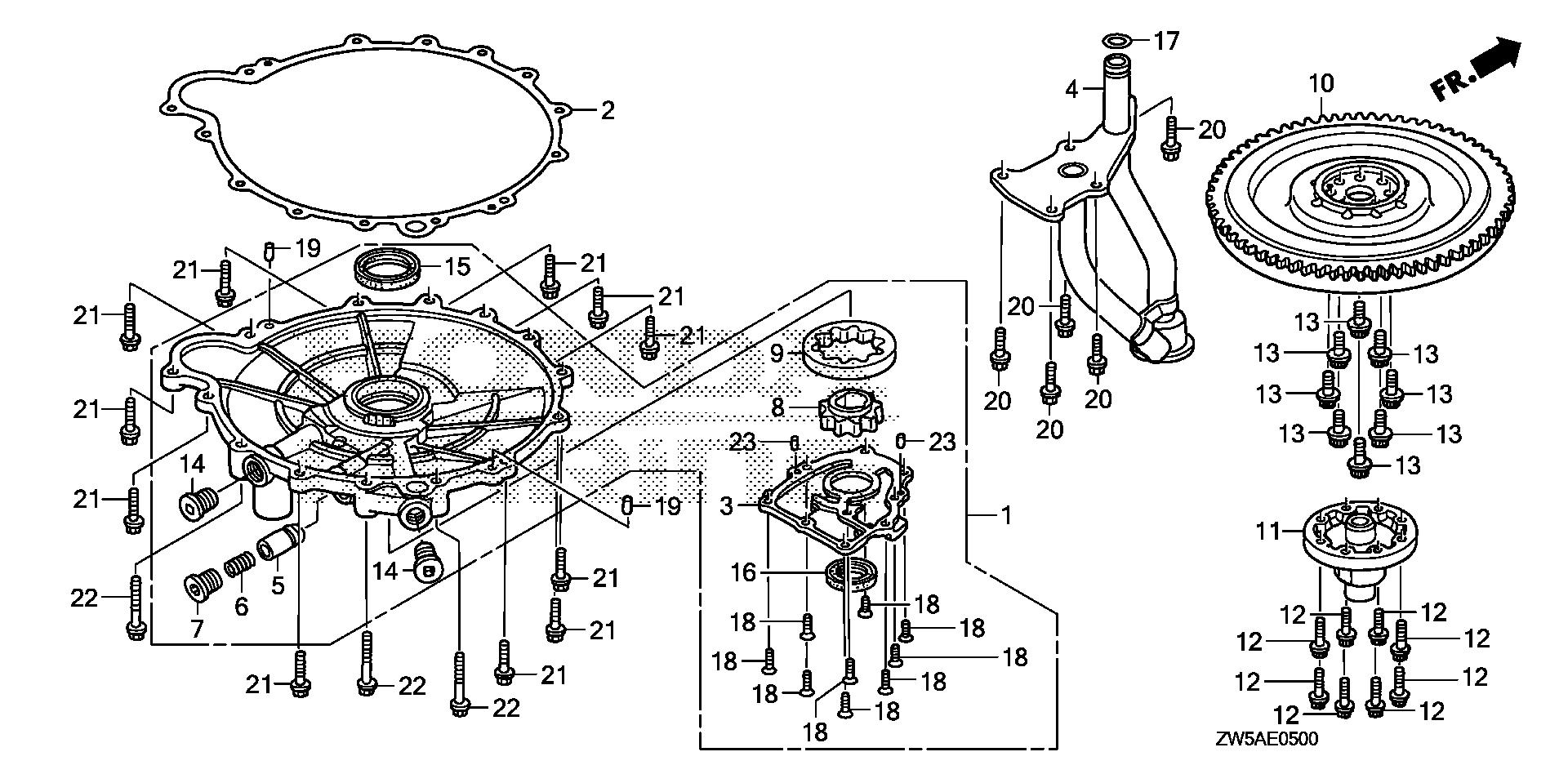

BF115 BF115AK0 oil pump - exhaust pipe exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW5AE0500
Fits all 2 submodels of this generation.

Parts in this assembly

24 parts
1
PUMP ASSY., OIL (NOT AVAILABLE)
15100-ZW5-000No Longer Available
$470.73$644.84
2
15112-ZW5-003No Longer Available
$37.61$51.52
3
15121-ZW5-000Ships in 1 to 2 Days
$60.71$87.32
4
STRAINER, OIL (NOT AVAILABLE)
15220-ZW5-000No Longer Available
$98.43$134.84
5
15231-PE0-000Ships in 1 to 2 Days
$18.48$25.32
6
15232-PG6-000Ships in 1 to 2 Days
$7.74$10.60
7
15233-PC6-000Ships in 1 to 2 Days
$9.07$12.42
8
15331-ZW5-003Ships in 1 to 2 Days
$41.62$57.02
9
15341-ZW5-003Ships in 1 to 2 Days
$34.76$47.62
10
FLYWHEEL *TBLACK* (BLACK) (NOT AVAILABLE)
31110-ZW5-000ZANo Longer Available
$579.04
11
31116-ZW5-000Ships in 1 to 2 Days
$174.85$251.48
12
90002-ZW5-013Ships in 1 to 2 Daysqty 8 used
$2.39$3.28
13
90011-PM0-000Ships in 1 to 2 Daysqty 8 used
$9.67$13.24
14
90081-PH7-000Ships in 1 to 2 Daysqty 2 used
$9.74$13.34
14
90081-ZV5-010Ships in 1 to 2 Daysqty 2 used
$4.51$6.18
15
91201-ZW5-003Ships in 1 to 2 Days
$12.18$16.68
16
91212-P01-003Ships in 1 to 2 Days
$11.10$15.20
17
91324-PC6-000Ships in 1 to 2 Days
$2.99$4.10
18
93600-06016-0AShips in 1 to 2 Daysqty 9 used
$0.96$1.32
19
94303-06100Ships in 1 to 2 Daysqty 2 used
$2.74$3.76
20
95701-08020-09Ships in 1 to 2 Daysqty 5 used
$1.12$1.54
21
95701-08030-09Ships in 1 to 2 Daysqty 11 used
$1.21$1.66
22
95701-08050-00Ships in 1 to 2 Daysqty 3 used
$3.17$4.34
23
96220-50080Ships in 1 to 2 Daysqty 2 used
$0.47$0.64
Diagram

POWER TRIM-TILT

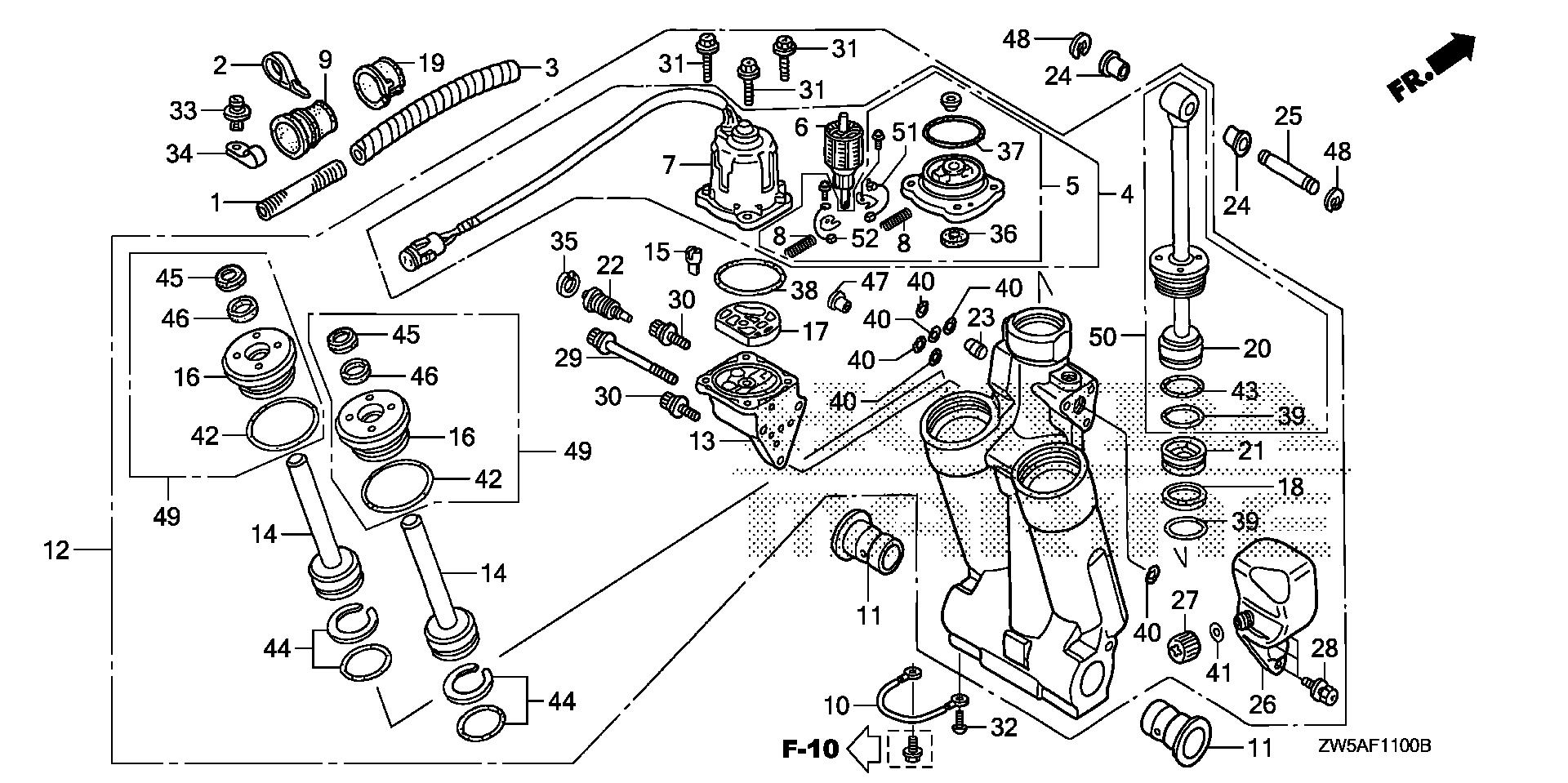

BF115 BF115AK0 power trim-tilt exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW5AF1100B
Fits all 2 submodels of this generation.

Parts in this assembly

55 parts
1
17735-ZW5-000Ships in 1 to 2 Days
$1.84$2.64
2
35701-MG9-950Ships in 1 to 2 Days
$1.83$2.50
3
36104-ZW1-003Ships in 1 to 2 Days
$7.91$11.16
4
36120-ZW1-704Ships in 1 to 2 Days
$511.38$735.46
5
36122-ZX2-023Ships in 1 to 2 Days
$338.02$463.04
6
36123-ZW1-013Ships in 1 to 2 Days
$172.01
7
36129-ZW1-023Ships in 1 to 2 Days
$219.44$300.60
8
36136-ZV5-821Ships in 1 to 2 Daysqty 2 used
$7.21$9.88
9
40107-ZW1-700Ships in 1 to 2 Days
$14.99$20.54
10
40219-ZY3-023Ships in 1 to 2 Days
$9.05$12.40
11
50214-ZV5-003Ships in 1 to 2 Daysqty 2 used
$7.65$10.48
12
56000-ZW1-713Ships in 1 to 2 Days
$2,845.83
13
PUMP ASSY.
56100-ZW1-703No Longer Available
—
13
PUMP ASSY.
56100-ZY9-003No Longer Available
—
14
56110-ZW1-701Ships in 1 to 2 Daysqty 2 used
$114.96$157.48
15
56113-ZW1-701Ships in 1 to 2 Days
$16.41$22.48
16
56115-ZW1-703Ships in 1 to 2 Daysqty 2 used
$95.03$136.68
16
56115-ZY9-023Ships in 1 to 2 Daysqty 2 used
$96.91$132.78
17
56116-ZW1-701Ships in 1 to 2 Days
$14.56$19.94
18
56117-ZV5-821Ships in 1 to 2 Days
$8.47$11.60
19
56118-ZV5-820Ships in 1 to 2 Days
$8.56$11.72
20
56120-ZY9-013Ships in 1 to 2 Days
$426.01$583.58
21
56130-ZW1-702Ships in 1 to 2 Days
$64.34$88.16
22
56170-ZY9-013Ships in 1 to 2 Days
$114.11$161.00
23
56180-ZW1-701Ships in 1 to 2 Days
$80.62$110.44
24
56513-ZV5-000Ships in 1 to 2 Daysqty 2 used
$3.77$5.16
25
56532-ZZ0-C00Ships in 1 to 2 Days
$23.11$31.66
26
56851-ZW1-703Ships in 1 to 2 Days
$18.50$25.34
27
56860-ZW1-701Ships in 1 to 2 Days
$13.46$18.44
28
90113-ZW1-702Ships in 1 to 2 Daysqty 3 used
$3.11$4.26
29
90114-ZW1-702Ships in 1 to 2 Days
$14.00$19.18
30
90115-ZW1-702Ships in 1 to 2 Daysqty 2 used
$10.82$14.82
31
90116-ZW1-702Ships in 1 to 2 Daysqty 4 used
$5.90$8.08
32
90119-ZV5-000Ships in 1 to 2 Days
$1.65$2.26
33
90127-ZV5-003Ships in 1 to 2 Days
$1.94$2.66
34
90602-SB0-003Ships in 1 to 2 Days
$4.04$5.54
35
90652-ZW1-702Ships in 1 to 2 Days
$6.50$8.90
36
91203-ZV5-821Ships in 1 to 2 Days
$30.78$42.16
37
91207-ZW1-013In Stock
$5.71$7.82
38
91302-ZV5-821In Stock
$5.10$6.98
39
91316-ZV5-821Ships in 1 to 2 Daysqty 2 used
$3.34$4.58
40
91352-ZW1-702Ships in 1 to 2 Daysreplaced by 91352-ZX2-003
$2.13$2.92
40
91352-ZX2-003Ships in 1 to 2 Daysqty 6 used
$2.13$2.92
41
91353-ZW1-703Ships in 1 to 2 Days
$5.90$8.08
42
91354-ZW1-701Ships in 1 to 2 Daysqty 2 used
$8.25$11.30
43
91355-ZW1-701Ships in 1 to 2 Days
$13.01$17.82
44
91357-ZW1-701Ships in 1 to 2 Daysqty 2 used
$11.71$16.04
45
91358-ZW1-701Ships in 1 to 2 Daysqty 2 used
$8.26$11.32
46
91361-ZW1-701Ships in 1 to 2 Daysqty 2 used
$6.60$9.04
47
91557-ZW1-701Ships in 1 to 2 Days
$10.25$14.04
48
94540-15029Ships in 1 to 2 Daysqty 2 used
$8.02$10.98
49
56115-ZW1-315In Stockqty 2 used
$80.33$110.04
50
56120-ZW1-305Ships in 1 to 2 Days
$370.10$522.16
51
30280-ZX2-013Ships in 1 to 2 Days
$31.46$43.10
52
31106-ZY3-003Ships in 1 to 2 Days
$33.08$45.32
Diagram

PROPELLER

BF115 BF115AK0 propeller exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW5AY0600
Fits all 2 submodels of this generation.

Parts in this assembly

14 parts
1
58130-ZW1-V03Ships in 1 to 2 Days
$1,132.42
1
58130-ZW1-V13Ships in 1 to 2 Days
$1,318.34
1
$181.62
1
$170.89
1
$170.89
1
$283.21
1
58130-ZW1-W63Ships in 1 to 2 Daysreplaced by 58130-ZW1-W64ZA
$259.43
1
$259.43
1
58130-ZW1-W93Ships in 1 to 2 Days
$1,318.34
1
$156.26
1
PROPELLER, THREE-BLADE (13-1/4X15) (SUS/HAC) (NOT AVAILABLE)
58130-ZW7-U02No Longer Available
—
1
PROPELLER, THREE-BLADE (13-1/4X17) (SUS/HAC) (NOT AVAILABLE)
58130-ZW7-U12No Longer Available
$1,218.78
1
58130-ZW7-U22Ships in 1 to 2 Days
$1,311.99
1
58130-ZW7-U32Ships in 1 to 2 Days
$1,311.99
Diagram

PROPELLER SHAFT

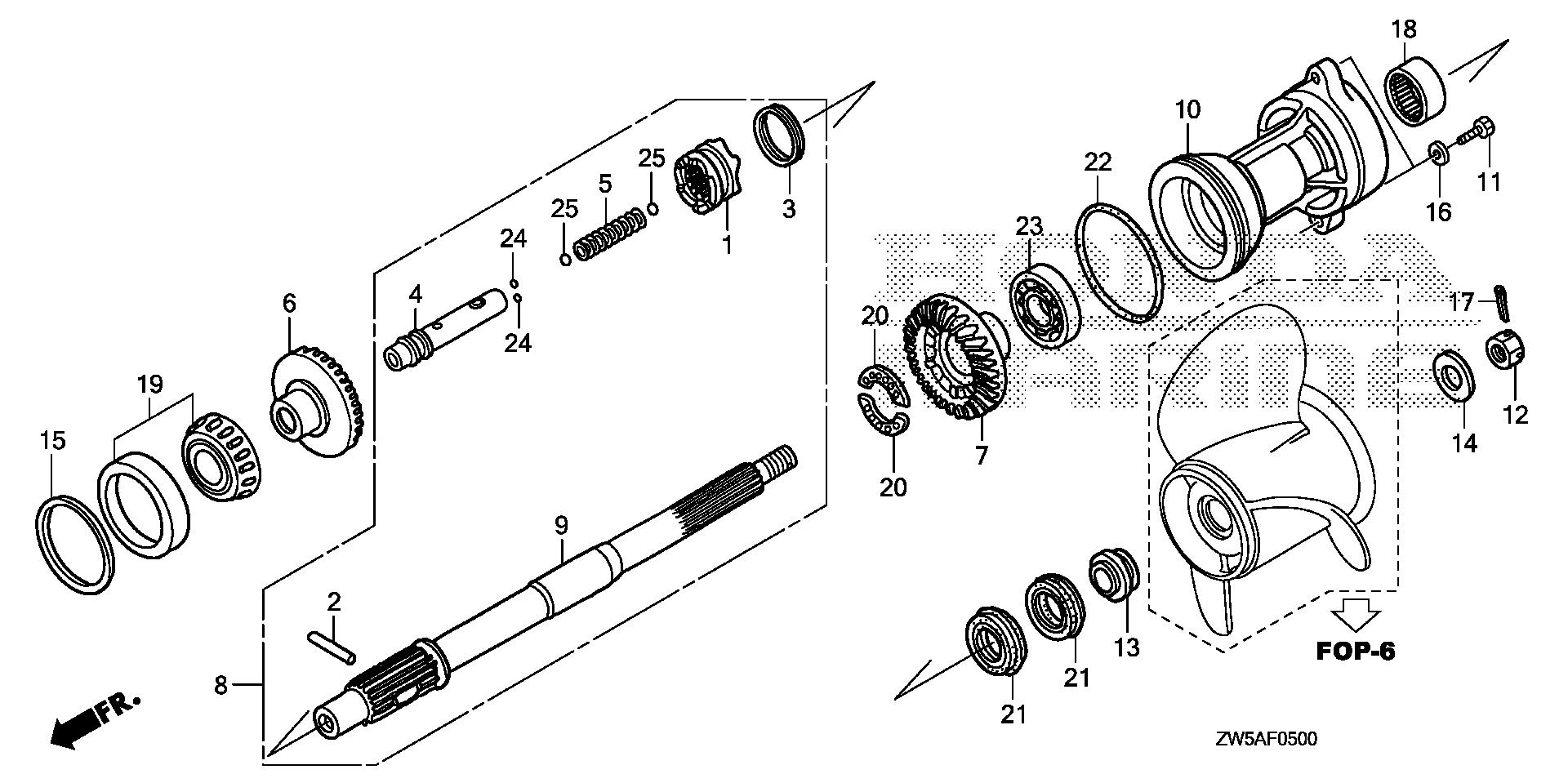

BF115 BF115AK0 propeller shaft exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW5AF0500
Fits all 2 submodels of this generation.

Parts in this assembly

28 parts
1
SHIFTER, CLUTCH (NOT AVAILABLE)
24101-ZW5-010No Longer Available
$113.75$155.82
2
24102-ZW1-B00Ships in 1 to 2 Days
$3.40$4.66
3
24103-ZW1-B00Ships in 1 to 2 Days
$2.48$3.40
4
24113-ZW5-000Ships in 1 to 2 Days
$94.27$135.60
5
24123-ZW1-B00No Longer Available
$2.92$4.00
6
GEAR, BEVEL (F) (NOT AVAILABLE)
41140-ZW5-000No Longer Available
—
7
GEAR, BEVEL (R) (NOT AVAILABLE)
41151-ZW5-010No Longer Available
$212.31$290.84
8
SHAFT ASSY., PROPELLER (NOT AVAILABLE)
41160-ZW5-020No Longer Available
$479.45$656.78
9
41161-ZW5-010No Longer Available
$382.02$523.32
10
$126.92$173.86
11
90123-ZV5-010Ships in 1 to 2 Daysqty 2 used
$6.51$9.36
12
90301-ZW1-B00Ships in 1 to 2 Days
$11.32$15.50
13
90506-ZZ0-C00Ships in 1 to 2 Days
$51.83$73.14
14
90508-ZW1-B00Ships in 1 to 2 Days
$11.07$15.16
15
90528-ZW1-B00Ships in 1 to 2 Days
$15.05$21.24
15
90529-ZW1-B00Ships in 1 to 2 Days
$15.05$21.24
15
90530-ZW1-B00Ships in 1 to 2 Days
$16.18$22.82
15
90531-ZW1-B00Ships in 1 to 2 Days
$17.23$24.30
16
90563-ZV5-000Ships in 1 to 2 Daysqty 2 used
$2.44$3.34
17
90758-ZW1-B00In Stock
$1.87$2.56
18
91053-ZY6-003Ships in 1 to 2 Days
$28.35$38.84
19
91051-ZW5-003Ships in 1 to 2 Days
$74.81$107.62
20
91054-ZW5-003Ships in 1 to 2 Daysqty 2 used
$25.55$36.04
21
91252-ZY3-003Ships in 1 to 2 Daysqty 2 used
$7.36$10.58
22
91351-ZW1-B02Ships in 1 to 2 Days
$6.47$9.12
23
96100-62080-00Ships in 1 to 2 Days
$28.43$38.94
24
BALL, STEEL (#6) (3/16)
96211-06000Ships in 1 to 2 Daysqty 2 used
$0.53$0.72
25
96211-11000Ships in 1 to 2 Daysqty 2 used
$1.18$1.62
Diagram

REMOTE CONTROL (FLUSH MOUNT TYPE) (L.)

BF115 BF115AK0 remote control (flush mount type) (l.) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW5AY0205
Fits all 2 submodels of this generation.

Parts in this assembly

28 parts
1
06240-ZW7-U10Ships in 1 to 2 Days
$300.05
2
24810-ZW7-U11Ships in 1 to 2 Days
$428.07$586.40
3
24811-ZW7-U01Ships in 1 to 2 Days
$114.23$156.50
4
24812-ZW7-U01Ships in 1 to 2 Days
$14.41$19.74
5
24813-ZW7-U01Ships in 1 to 2 Days
$15.93$21.82
6
24814-ZW7-U01Ships in 1 to 2 Days
$3.61$4.94
7
24815-ZW7-U01Ships in 1 to 2 Days
$8.85$12.12
8
24816-ZW5-U01Ships in 1 to 2 Days
$7.72$10.58
9
24817-ZW7-U01Ships in 1 to 2 Days
$6.69$9.16
10
24826-ZW5-U01Ships in 1 to 2 Days
$13.81$18.92
11
24830-ZW7-U01Ships in 1 to 2 Days
$24.35$33.36
12
24831-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$8.45$11.58
13
24832-ZW5-U01Ships in 1 to 2 Days
$3.74$5.12
14
24832-ZW7-U01Ships in 1 to 2 Days
$14.88$20.38
15
24833-ZW7-U01Ships in 1 to 2 Days
$30.98$42.44
16
32530-ZW7-U20Ships in 1 to 2 Days
$14.76$20.22
17
35370-ZW7-U02Ships in 1 to 2 Days
$52.93$72.50
18
87701-ZW7-U01Ships in 1 to 2 Days
$6.19$8.48
19
87703-ZW7-U00Ships in 1 to 2 Days
$4.58$6.28
20
90101-ZW7-U01Ships in 1 to 2 Days
$2.31$3.16
21
90101-ZW5-U00Ships in 1 to 2 Days
$2.60$3.56
22
90102-ZW7-U01Ships in 1 to 2 Daysqty 4 used
$2.98$4.08
23
90103-ZW7-U01Ships in 1 to 2 Daysqty 3 used
$1.24$1.70
24
90104-ZW7-U01Ships in 1 to 2 Daysqty 3 used
$1.24$1.70
25
90301-ZW7-U01Ships in 1 to 2 Daysqty 3 used
$1.17$1.60
26
90501-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.85$1.16
27
90502-ZW7-U00Ships in 1 to 2 Daysqty 3 used
$1.34$1.84
28
94540-06029Ships in 1 to 2 Daysqty 2 used
$3.50$4.80
Diagram

REMOTE CONTROL (FLUSH MOUNT TYPE) (R.)

BF115 BF115AK0 remote control (flush mount type) (r.) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW5AY0204
Fits all 2 submodels of this generation.

Parts in this assembly

28 parts
1
06240-ZW7-U00Ships in 1 to 2 Days
$300.05
2
24810-ZW7-U01Ships in 1 to 2 Days
$428.07$586.40
3
24811-ZW7-U01Ships in 1 to 2 Days
$114.23$156.50
4
24812-ZW7-U01Ships in 1 to 2 Days
$14.41$19.74
5
24813-ZW7-U01Ships in 1 to 2 Days
$15.93$21.82
6
24814-ZW7-U01Ships in 1 to 2 Days
$3.61$4.94
7
24815-ZW7-U01Ships in 1 to 2 Days
$8.85$12.12
8
24816-ZW5-U01Ships in 1 to 2 Days
$7.72$10.58
9
24817-ZW7-U01Ships in 1 to 2 Days
$6.69$9.16
10
24826-ZW5-U01Ships in 1 to 2 Days
$13.81$18.92
11
24830-ZW7-U01Ships in 1 to 2 Days
$24.35$33.36
12
24831-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$8.45$11.58
13
24832-ZW5-U01Ships in 1 to 2 Days
$3.74$5.12
14
24832-ZW7-U01Ships in 1 to 2 Days
$14.88$20.38
15
24833-ZW7-U01Ships in 1 to 2 Days
$30.98$42.44
16
32530-ZW7-U20Ships in 1 to 2 Days
$14.76$20.22
17
35370-ZW7-U02Ships in 1 to 2 Days
$52.93$72.50
18
87701-ZW7-U01Ships in 1 to 2 Days
$6.19$8.48
19
87703-ZW7-U00Ships in 1 to 2 Days
$4.58$6.28
20
90101-ZW7-U01Ships in 1 to 2 Days
$2.31$3.16
21
90101-ZW5-U00Ships in 1 to 2 Days
$2.60$3.56
22
90102-ZW7-U01Ships in 1 to 2 Daysqty 4 used
$2.98$4.08
23
90103-ZW7-U01Ships in 1 to 2 Daysqty 3 used
$1.24$1.70
24
90104-ZW7-U01Ships in 1 to 2 Daysqty 3 used
$1.24$1.70
25
90301-ZW7-U01Ships in 1 to 2 Daysqty 3 used
$1.17$1.60
26
90501-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.85$1.16
27
90502-ZW7-U00Ships in 1 to 2 Daysqty 3 used
$1.34$1.84
28
94540-06029Ships in 1 to 2 Daysqty 2 used
$3.50$4.80
Diagram

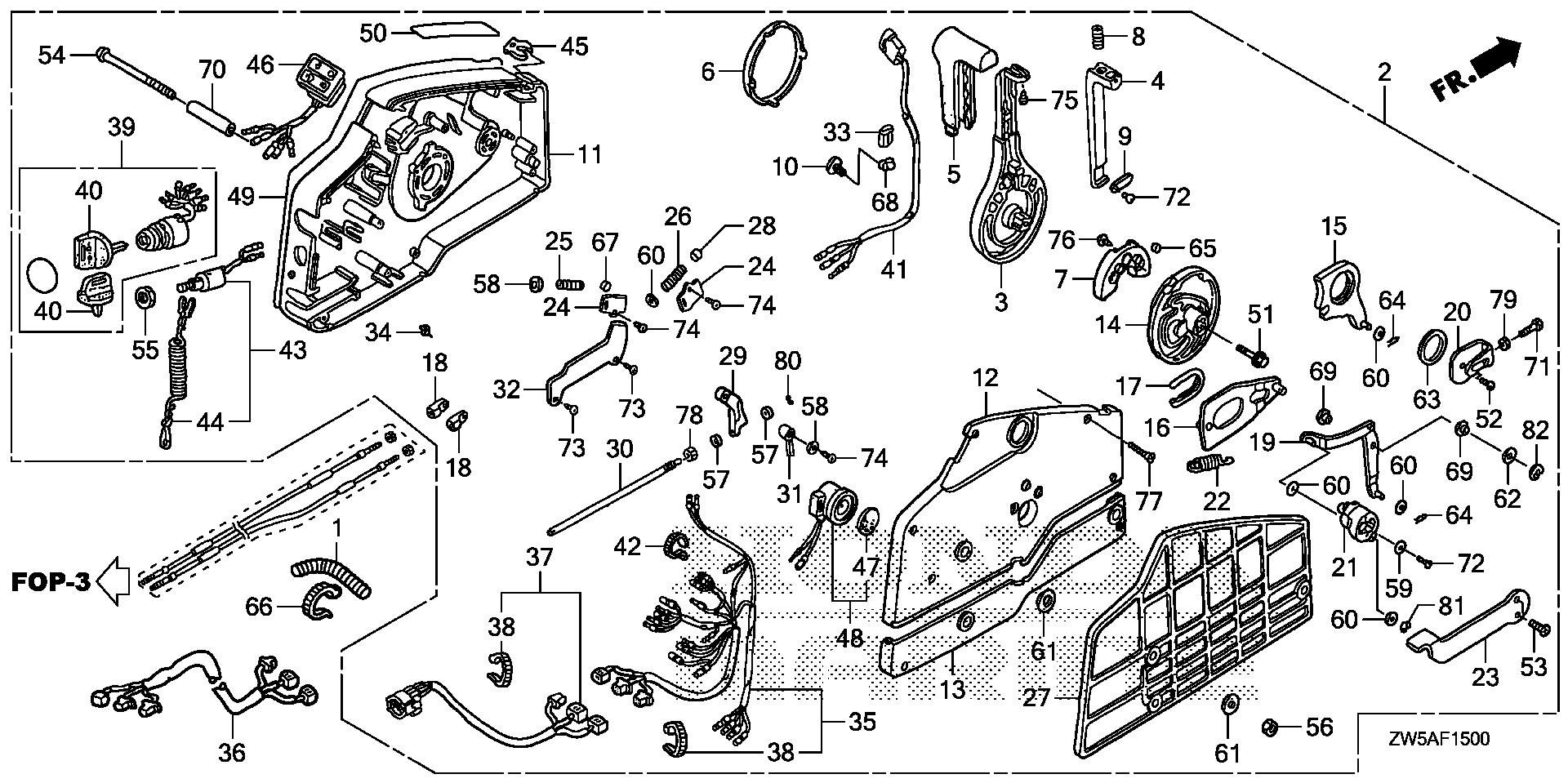

REMOTE CONTROL (HI-LEX) (HANDLE CAP = GRAY)

BF115 BF115AK0 remote control (hi-lex) (handle cap = gray) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW5AF1500
Fits all 2 submodels of this generation.

Parts in this assembly

86 parts
1
17736-ZW1-000Ships in 1 to 2 Days
$3.94$5.40
2
24800-ZW2-A02Ships in 1 to 2 Daysreplaced by 24800-ZW2-A03
$403.62
2
24800-ZW2-A03Ships in 1 to 2 Days
$435.35
3
24811-ZV5-010Ships in 1 to 2 Days
$115.09$162.38
4
LEVER, HANDLE LOCK (NOT AVAILABLE)
24812-ZV5-000No Longer Available
—
5
24813-ZV5-000Ships in 1 to 2 Days
$39.73$56.04
6
24814-ZV5-010Ships in 1 to 2 Days
$8.23$11.62
7
24815-ZV5-000Ships in 1 to 2 Daysreplaced by 24815-ZV5-010
$8.04$11.36
7
24815-ZV5-010Ships in 1 to 2 Days
$8.04$11.36
8
24816-ZV5-000Ships in 1 to 2 Days
$4.07$5.74
9
24817-ZV5-000Ships in 1 to 2 Days
$3.81$5.38
10
24818-ZV5-003Ships in 1 to 2 Days
$1.33$1.88
11
24820-ZV5-010Ships in 1 to 2 Days
$102.08$144.04
12
24830-ZV5-010Ships in 1 to 2 Days
$54.08$76.32
13
24836-ZV5-000Ships in 1 to 2 Days
$33.64$47.46
14
24841-ZV5-000Ships in 1 to 2 Days
$57.93$81.74
15
24845-ZV5-000Ships in 1 to 2 Days
$39.52$55.76
16
24850-ZV5-000Ships in 1 to 2 Days
$46.76$65.98
17
24854-ZV5-000Ships in 1 to 2 Days
$8.10$11.44
18
24855-ZV5-000Ships in 1 to 2 Daysqty 2 used
$8.10$11.44
19
24860-ZV5-000Ships in 1 to 2 Days
$37.81$53.36
20
24865-ZV5-000Ships in 1 to 2 Days
$17.32$24.44
21
24875-ZV5-000Ships in 1 to 2 Days
$22.41$31.62
22
24876-ZV5-000Ships in 1 to 2 Days
$4.07$5.74
23
24878-ZV5-000Ships in 1 to 2 Days
$51.83$73.12
24
24881-ZV5-000Ships in 1 to 2 Daysqty 2 used
$3.81$5.38
25
24883-ZV5-000Ships in 1 to 2 Days
$3.90$5.50
26
24884-ZV5-000Ships in 1 to 2 Days
$3.90$5.50
27
24885-ZV5-000Ships in 1 to 2 Days
$69.85$98.54
28
24887-ZV5-000Ships in 1 to 2 Days
$4.63$6.52
29
24891-ZV5-000Ships in 1 to 2 Days
$7.84$11.06
30
24892-ZV5-000Ships in 1 to 2 Days
$15.26$21.52
31
24894-ZV5-000Ships in 1 to 2 Days
$6.31$8.90
32
24895-ZV5-000Ships in 1 to 2 Days
$6.32$8.92
33
24897-ZV5-000Ships in 1 to 2 Days
$4.96$7.00
34
24898-ZV5-000Ships in 1 to 2 Days
$4.85$6.84
35
32530-ZY3-010Ships in 1 to 2 Days
$279.60$394.54
36
CABLE ASSY., REMOTE CONTROL EXTENSION (NOT AVAILABLE)
32570-ZY3-900No Longer Available
$158.40$216.98
37
32580-ZW2-D01Ships in 1 to 2 Days
$200.34$288.12
38
32901-952-770Ships in 1 to 2 Daysqty 4 used
$2.19$3.00
39
35100-ZV5-003Ships in 1 to 2 Days
$137.02$187.70
39
35100-ZV5-013Ships in 1 to 2 Days
$85.13$116.62
40
35110-ZV5-003Ships in 1 to 2 Daysqty 2 used
$7.99$11.48
41
35370-ZV5-823Ships in 1 to 2 Days
$63.90$90.18
42
35701-MG9-950Ships in 1 to 2 Days
$1.83$2.50
43
36180-ZV5-033In Stock
$56.84$77.86
44
36182-ZV4-651In Stock
$18.45$25.28
45
36187-ZV4-652Ships in 1 to 2 Days
$4.18$5.72
46
37210-ZV5-013Ships in 1 to 2 Days
$127.69$174.92
47
38403-341-672Ships in 1 to 2 Days
$4.66$6.38
48
38410-ZV5-003Ships in 1 to 2 Days
$56.17$76.94
49
PLATE, REMOTE CONTROL (CAUTION PICT=SILVER) (NOT AVAILABLE)
87701-ZV5-010No Longer Available
$53.83$73.74
49
$50.03$70.60
50
87702-ZW9-800Ships in 1 to 2 Days
$6.45$9.10
51
90008-ZW9-000Ships in 1 to 2 Days
$4.31$6.08
52
90105-MM4-000Ships in 1 to 2 Days
$2.03$2.78
53
90108-ZW4-000Ships in 1 to 2 Daysqty 2 used
$1.27$1.80
54
90125-ZV5-000Ships in 1 to 2 Daysqty 3 used
$6.91$9.74
55
90302-921-000In Stock
$4.10$5.62
56
90304-ZV4-000Ships in 1 to 2 Daysqty 3 used
$2.12$2.90
57
90401-ZW4-000Ships in 1 to 2 Daysqty 2 used
$1.24$1.70
58
90402-ZW4-000Ships in 1 to 2 Daysqty 2 used
$1.85$2.62
59
90502-ZV4-000Ships in 1 to 2 Days
$2.73$3.74
60
90504-921-010Ships in 1 to 2 Daysqty 5 used
$1.27$1.74
61
90512-921-010In Stockqty 6 used
$1.07$1.46
62
90518-921-000Ships in 1 to 2 Days
$1.20$1.64
63
90557-ZV5-000Ships in 1 to 2 Days
$2.99$4.22
64
90751-ZV5-000Ships in 1 to 2 Daysqty 2 used
$3.29$4.50
65
90772-ZV5-000Ships in 1 to 2 Days
$3.99$5.62
66
91058-MG9-681Ships in 1 to 2 Daysqty 2 used
$2.03$2.78
67
91151-ZV5-000Ships in 1 to 2 Days
$3.45$4.86
68
91475-SB6-000Ships in 1 to 2 Days
$7.72$10.58
69
91567-ZV5-000Ships in 1 to 2 Daysqty 2 used
$2.76$3.90
70
91570-ZV5-000Ships in 1 to 2 Daysqty 3 used
$8.10$11.44
71
92101-05016-4JShips in 1 to 2 Days
$1.21$1.66
72
93500-05010-4JShips in 1 to 2 Daysqty 2 used
$1.23$1.74
73
93901-250J0Ships in 1 to 2 Daysqty 2 used
$1.64$2.30
74
93901-251J0Ships in 1 to 2 Daysqty 3 used
$0.58$0.82
75
93901-252J0Ships in 1 to 2 Days
$1.53$2.16
76
93903-262J0Ships in 1 to 2 Daysqty 2 used
$2.37$3.34
77
93905-255J0Ships in 1 to 2 Daysqty 7 used
$2.37$3.34
78
94001-06490-0SShips in 1 to 2 Days
$2.15$2.94
79
94002-05490-0SShips in 1 to 2 Days
$0.96$1.36
80
94540-03029Ships in 1 to 2 Days
$1.34$1.90
81
94540-04029Ships in 1 to 2 Days
$5.23$7.16
82
94540-07029Ships in 1 to 2 Days
$4.38$6.00
Diagram

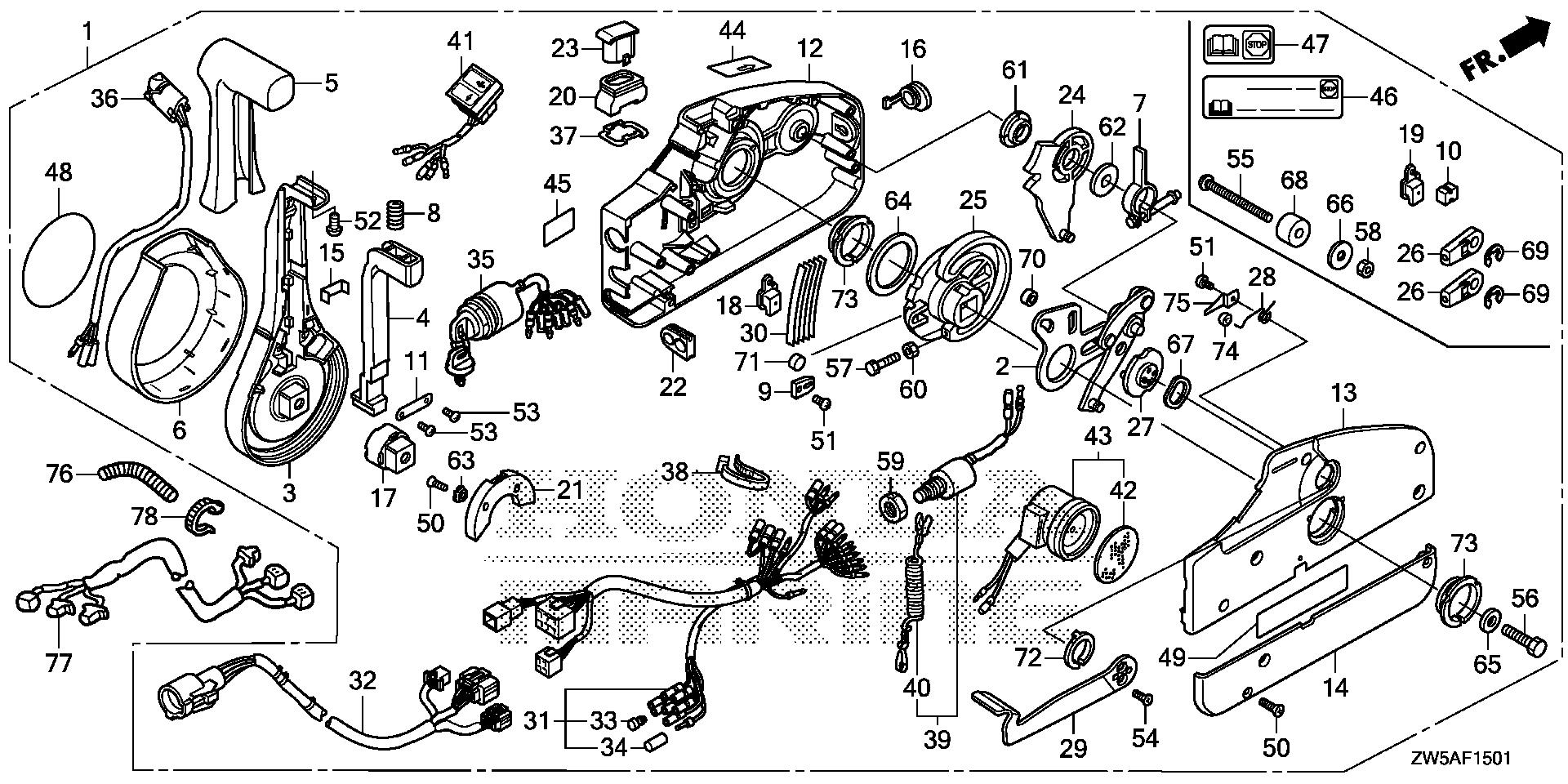

REMOTE CONTROL (NHK MEC) (HANDLE CAP = CHROME)

BF115 BF115AK0 remote control (nhk mec) (handle cap = chrome) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW5AF1501
Fits all 2 submodels of this generation.

Parts in this assembly

78 parts
1
24800-ZW2-A02Ships in 1 to 2 Daysreplaced by 24800-ZW2-A03
$403.62
1
24800-ZW2-A03Ships in 1 to 2 Days
$435.35
2
24810-ZZ5-D01Ships in 1 to 2 Days
$48.17$65.98
3
24811-ZZ5-D01Ships in 1 to 2 Days
$102.07$139.84
4
24812-ZZ5-D01Ships in 1 to 2 Days
$9.34$12.80
5
24813-ZZ5-D01Ships in 1 to 2 Days
$25.13$34.42
6
24814-ZZ5-D01Ships in 1 to 2 Days
$56.34$77.18
7
24815-ZZ5-D01Ships in 1 to 2 Days
$15.87$21.74
8
24816-ZZ5-D01Ships in 1 to 2 Days
$2.07$2.84
9
24817-ZZ5-D01Ships in 1 to 2 Days
$2.10$2.88
10
24818-ZZ5-D01Ships in 1 to 2 Days
$2.82$3.86
11
24819-ZZ5-D01Ships in 1 to 2 Days
$2.01$2.76
12
24821-ZZ5-D01Ships in 1 to 2 Days
$131.39$179.98
13
24822-ZZ5-D01Ships in 1 to 2 Days
$47.76$65.42
14
24823-ZZ5-D01Ships in 1 to 2 Days
$34.50$47.26
15
24824-ZZ5-D01Ships in 1 to 2 Days
$2.28$3.12
16
24826-ZZ5-D01Ships in 1 to 2 Days
$4.89$6.70
17
24827-ZZ5-D01Ships in 1 to 2 Days
$14.73$20.18
18
24828-ZZ5-D01Ships in 1 to 2 Days
$3.31$4.54
19
24828-ZZ5-D01Ships in 1 to 2 Days
$3.31$4.54
20
24829-ZZ5-D01Ships in 1 to 2 Days
$7.23$9.90
21
24831-ZZ5-D01Ships in 1 to 2 Days
$6.39$8.76
22
24832-ZZ5-D01Ships in 1 to 2 Days
$5.02$6.88
23
24833-ZZ5-D01Ships in 1 to 2 Days
$5.24$7.18
24
24845-ZZ5-D01Ships in 1 to 2 Days
$26.12$35.78
25
24850-ZZ5-D01Ships in 1 to 2 Days
$38.08$52.16
26
24855-ZZ5-D01Ships in 1 to 2 Daysqty 2 used
$3.72$5.10
27
24875-ZZ5-D01Ships in 1 to 2 Days
$14.34$19.64
28
24876-ZZ5-D01Ships in 1 to 2 Days
$1.65$2.26
29
24878-ZZ5-D01Ships in 1 to 2 Days
$27.11$37.14
30
24883-ZZ5-D01Ships in 1 to 2 Daysqty 5 used
$2.07$2.84
31
32530-ZW2-D01Ships in 1 to 2 Days
$177.54$255.38
32
32580-ZW2-D01Ships in 1 to 2 Days
$200.34$288.12
33
32823-ZV5-003Ships in 1 to 2 Daysqty 7 used
$2.95$4.04
34
32824-ZV5-003Ships in 1 to 2 Daysqty 2 used
$3.11$4.26
35
35100-ZV5-013Ships in 1 to 2 Days
$85.13$116.62
36
35370-ZZ5-D02Ships in 1 to 2 Days
$45.01$61.66
37
35645-ZZ3-A41Ships in 1 to 2 Days
$10.12$13.86
38
35701-ZZ5-D01Ships in 1 to 2 Days
$2.13$2.92
39
36180-ZV5-033In Stock
$56.84$77.86
40
36182-ZV4-651In Stock
$18.45$25.28
41
37210-ZV5-013Ships in 1 to 2 Days
$127.69$174.92
42
38403-341-672Ships in 1 to 2 Days
$4.66$6.38
43
38410-ZV5-003Ships in 1 to 2 Days
$56.17$76.94
44
87701-ZZ5-D00Ships in 1 to 2 Days
$4.34$5.94
45
87702-ZZ5-A00Ships in 1 to 2 Days
$5.05$6.92
46
87702-ZZ5-A00Ships in 1 to 2 Days
$5.05$6.92
48
87703-ZZ5-D00Ships in 1 to 2 Days
$15.90$21.78
49
87704-ZZ5-D01Ships in 1 to 2 Days
$5.69$7.80
50
90101-ZZ5-D01Ships in 1 to 2 Daysqty 7 used
$2.69$3.68
51
90102-ZZ5-D01Ships in 1 to 2 Daysqty 2 used
$1.58$2.16
52
90103-ZZ5-D01Ships in 1 to 2 Days
$2.01$2.76
53
90104-ZZ5-D01Ships in 1 to 2 Daysqty 2 used
$1.93$2.64
54
90106-ZZ5-D01Ships in 1 to 2 Daysqty 2 used
$2.07$2.84
55
90107-ZZ5-D01Ships in 1 to 2 Daysqty 3 used
$3.72$5.10
56
90108-ZZ5-D01Ships in 1 to 2 Days
$3.66$5.02
57
90109-ZZ5-D01Ships in 1 to 2 Days
$2.88$3.94
58
90301-ZZ5-D01Ships in 1 to 2 Daysqty 3 used
$1.37$1.88
59
90302-921-000In Stock
$4.10$5.62
60
90302-ZZ5-D01Ships in 1 to 2 Days
$0.92$1.26
61
90501-ZZ5-D01Ships in 1 to 2 Days
$3.34$4.58
62
90502-ZZ5-D01Ships in 1 to 2 Days
$2.04$2.80
63
90503-ZZ5-D01Ships in 1 to 2 Daysqty 2 used
$2.91$3.98
64
90504-ZZ5-D01Ships in 1 to 2 Days
$2.91$3.98
65
90506-ZZ5-D01Ships in 1 to 2 Days
$2.69$3.68
66
90507-ZZ5-D01Ships in 1 to 2 Daysqty 3 used
$3.84$5.26
67
90508-ZZ5-D01Ships in 1 to 2 Days
$3.20$4.38
68
90509-ZZ5-D01Ships in 1 to 2 Daysqty 3 used
$3.61$4.94
69
90651-ZZ5-D01Ships in 1 to 2 Daysqty 2 used
$2.98$4.08
70
91151-ZZ5-D01Ships in 1 to 2 Days
$2.19$3.00
71
91152-ZZ5-D01Ships in 1 to 2 Days
$1.99$2.72
72
91153-ZZ5-D01Ships in 1 to 2 Days
$2.61$3.58
73
91154-ZZ5-D01Ships in 1 to 2 Daysqty 2 used
$3.30$4.52
74
91156-ZZ5-D01Ships in 1 to 2 Days
$1.85$2.54
75
91157-ZZ5-D01Ships in 1 to 2 Days
$3.18$4.36
76
17736-ZW1-000Ships in 1 to 2 Days
$3.94$5.40
77
CABLE ASSY., REMOTE CONTROL EXTENSION (NOT AVAILABLE)
32570-ZY3-900No Longer Available
$158.40$216.98
78
91058-MG9-681Ships in 1 to 2 Daysqty 2 used
$2.03$2.78
Diagram

REMOTE CONTROL (PANEL MOUNT)

BF115 BF115AK0 remote control (panel mount) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW5AY0206
Fits all 2 submodels of this generation.

Parts in this assembly

56 parts
1
BOX ASSY., REMOTE CONTROL (PANEL MOUNT) (NA USE ALT:06240-ZW7-U00)
24800-ZW1-V21No Longer Available
—
2
24811-ZW1-V21Ships in 1 to 2 Days
$74.27$101.74
3
24812-ZW1-V21Ships in 1 to 2 Days
$5.46$7.48
4
24813-ZW1-V21Ships in 1 to 2 Days
$19.13$26.20
5
24816-ZW1-V21Ships in 1 to 2 Days
$1.56$2.14
6
24819-ZW1-V21Ships in 1 to 2 Days
$2.93$4.02
7
24820-ZW1-V21Ships in 1 to 2 Days
$14.25$19.52
8
24821-ZW1-003Ships in 1 to 2 Days
$2.37$3.24
9
24822-ZW1-V21Ships in 1 to 2 Days
$13.26$18.16
10
24825-ZW1-V01Ships in 1 to 2 Days
$9.37$12.84
11
24829-ZW1-003Ships in 1 to 2 Days
$0.16$0.22
12
24830-ZW1-V21Ships in 1 to 2 Days
$7.43$10.18
13
24834-ZW1-003Ships in 1 to 2 Days
$2.51$3.44
14
24836-ZW1-V21Ships in 1 to 2 Days
$10.88$14.90
15
24839-ZW1-V01Ships in 1 to 2 Daysqty 2 used
$3.65$5.00
16
24841-ZW1-V01Ships in 1 to 2 Days
$30.46$41.72
17
SHAFT, HANDLE (NOT AVAILABLE)
24843-ZW1-V01No Longer Available
—
18
24845-ZW1-V01Ships in 1 to 2 Days
$37.43$51.28
19
SHAFT, GEARSHIFT (NOT AVAILABLE)
24847-ZW1-V01No Longer Available
—
20
24848-ZW1-V01Ships in 1 to 2 Days
$1.02$1.40
21
24865-ZW1-V01Ships in 1 to 2 Days
$10.69$14.64
22
24870-ZW1-V21Ships in 1 to 2 Days
$150.09$205.60
23
24873-ZW1-V01Ships in 1 to 2 Days
$4.56$6.24
24
24833-ZW1-V01Ships in 1 to 2 Daysqty 5 used
$1.93$2.64
25
24911-ZW1-003Ships in 1 to 2 Daysqty 2 used
$22.24$30.46
25
CABLE, REMOTE CONTROL (11') (BRUNSWICK) (NOT AVAILABLE)
24912-ZW1-003No Longer Available
—
25
CABLE, REMOTE CONTROL (12') (BRUNSWICK) (NOT AVAILABLE)
24913-ZW1-003No Longer Available
—
25
CABLE, REMOTE CONTROL (13') (BRUNSWICK) (NOT AVAILABLE)
24914-ZW1-003No Longer Available
—
25
CABLE, REMOTE CONTROL (14') (BRUNSWICK) (NOT AVAILABLE)
24915-ZW1-003No Longer Available
—
25
CABLE, REMOTE CONTROL (15') (BRUNSWICK) (NOT AVAILABLE)
24916-ZW1-003No Longer Available
—
25
CABLE, REMOTE CONTROL (16') (BRUNSWICK) (NOT AVAILABLE)
24917-ZW1-003No Longer Available
—
25
CABLE, REMOTE CONTROL (17') (BRUNSWICK) (NOT AVAILABLE)
24918-ZW1-003No Longer Available
—
25
CABLE, REMOTE CONTROL (18') (BRUNSWICK) (NOT AVAILABLE)
24919-ZW1-003No Longer Available
—
25
CABLE, REMOTE CONTROL (19') (BRUNSWICK) (NOT AVAILABLE)
24920-ZW1-003No Longer Available
—
25
CABLE, REMOTE CONTROL (20') (BRUNSWICK) (NOT AVAILABLE) (ALT. PNO: 24920-ZW1-003AH)
24921-ZW1-003No Longer Available
—
26
SWITCH ASSY., EMERGENCY STOP (NOT AVAILABLE)
35180-ZW1-003No Longer Available
—
27
35182-ZW1-003Ships in 1 to 2 Days
$19.10$26.16
28
35370-ZW1-V01Ships in 1 to 2 Days
$93.60$128.22
29
87705-ZW1-003Ships in 1 to 2 Days
$4.41$6.04
30
87706-ZW1-003Ships in 1 to 2 Days
$6.41$8.78
30
87707-ZW1-003Ships in 1 to 2 Days
$7.24$9.92
31
SCREW A (NOT AVAILABLE)
90136-ZW1-003No Longer Available
—
32
90137-ZW1-003Ships in 1 to 2 Daysqty 3 used
$1.34$1.84
33
SCREW C (NOT AVAILABLE)
90138-ZW1-003No Longer Available
—
34
90131-ZW1-003Ships in 1 to 2 Days
$0.96$1.32
35
90140-ZW1-003Ships in 1 to 2 Days
$3.96$5.42
36
90142-ZW1-003Ships in 1 to 2 Daysqty 2 used
$1.23$1.68
37
90145-ZW1-003Ships in 1 to 2 Daysqty 4 used
$0.92$1.26
38
90145-ZW1-003Ships in 1 to 2 Daysqty 3 used
$0.92$1.26
39
NUT (1/4X20) (NOT AVAILABLE)
90314-ZW1-003No Longer Available
—
40
90551-ZW1-003Ships in 1 to 2 Daysqty 3 used
$1.08$1.48
41
90550-ZW1-003Ships in 1 to 2 Days
$0.93$1.28
42
90653-ZW1-003Ships in 1 to 2 Days
$0.79$1.08
43
90753-ZW1-003Ships in 1 to 2 Days
$1.34$1.84
44
90953-ZW1-003Ships in 1 to 2 Daysqty 2 used
$1.33$1.82
45
91553-ZW1-003Ships in 1 to 2 Days
$0.82$1.12
Diagram

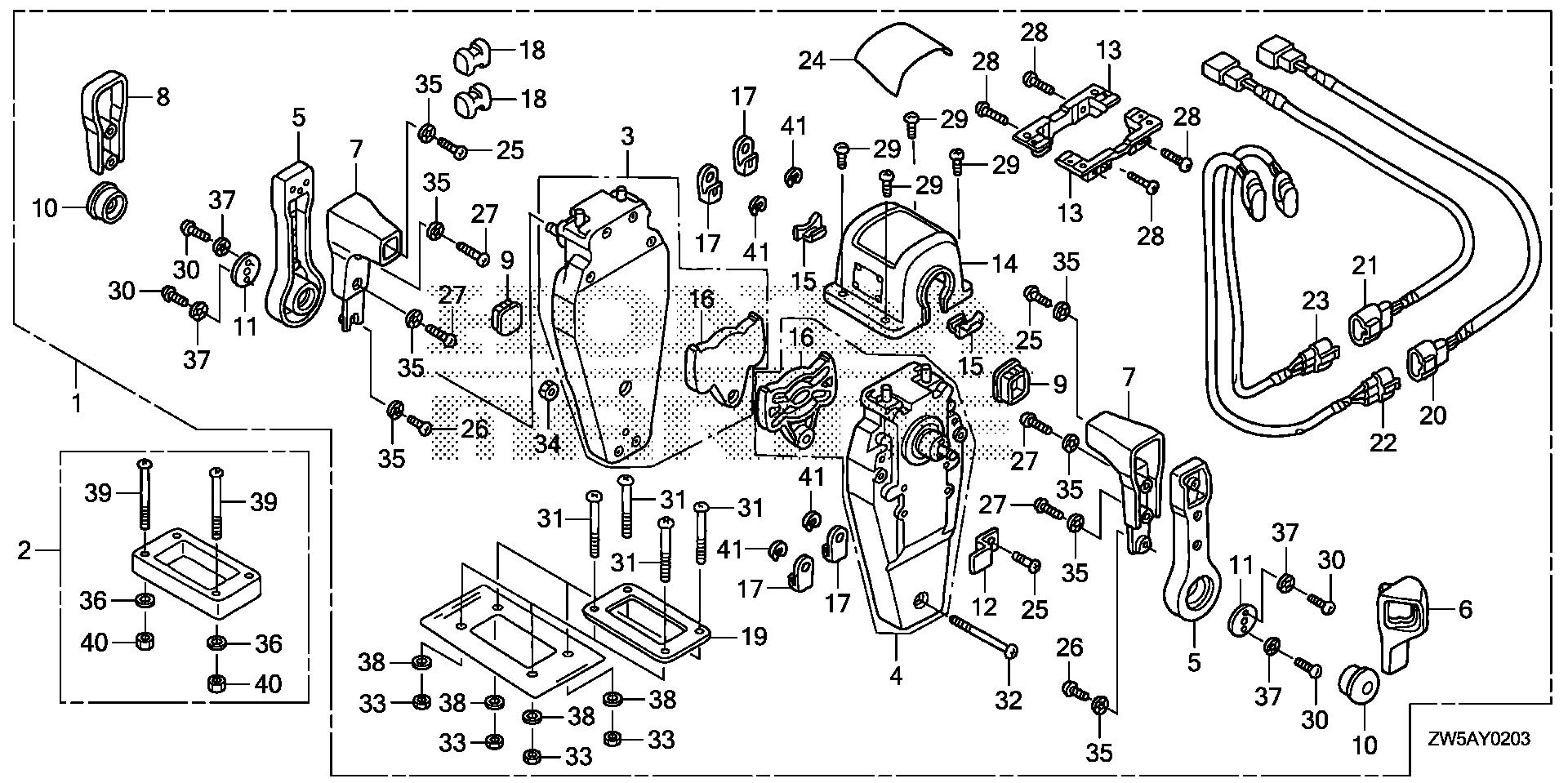

REMOTE CONTROL (TOP MOUNT DUAL TYPE) (L.)

BF115 BF115AK0 remote control (top mount dual type) (l.) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW5AY0203
Fits all 2 submodels of this generation.

Parts in this assembly

41 parts
1
BOX KIT, REMOTE CONTROL (TOP MOUNT DUAL)(L) (NOT AVAILABLE)
06240-ZW5-U70No Longer Available
—
2
06241-ZW5-U10Ships in 1 to 2 Days
$33.81$46.32
3
24810-ZW5-U01Ships in 1 to 2 Days
$398.40$545.76
4
24810-ZW5-U11Ships in 1 to 2 Days
$398.40$545.76
5
24811-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$95.56$134.82
6
24812-ZW5-U11Ships in 1 to 2 Days
$13.83$19.50
7
24813-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$12.89$18.18
8
24813-ZW5-U21Ships in 1 to 2 Days
$5.45$7.68
9
24814-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$3.69$5.22
10
24816-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$7.72$10.58
11
24817-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$31.68$43.40
12
24818-ZW5-U01Ships in 1 to 2 Days
$7.11$9.74
13
24819-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$10.77$15.20
14
24820-ZW5-U21Ships in 1 to 2 Days
$30.50$43.04
15
24825-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$2.91$4.10
16
24826-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$13.81$18.92
17
24831-ZW5-U01Ships in 1 to 2 Daysqty 4 used
$8.45$11.58
18
24832-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$3.74$5.12
19
24834-ZW5-U21Ships in 1 to 2 Days
$8.82$12.08
20
32530-ZW7-U00Ships in 1 to 2 Days
$25.87$35.44
21
32530-ZW7-U10Ships in 1 to 2 Days
$26.46$36.24
22
35370-ZW5-U02Ships in 1 to 2 Days
$54.55$76.96
23
35370-ZW5-U12Ships in 1 to 2 Days
$54.55$76.96
24
87703-ZW5-U22Ships in 1 to 2 Days
$9.52$13.44
25
90101-ZW5-U00Ships in 1 to 2 Daysqty 3 used
$2.60$3.56
26
90102-ZW5-U00Ships in 1 to 2 Daysqty 2 used
$2.38$3.36
27
90103-ZW5-U01Ships in 1 to 2 Daysqty 4 used
$3.20$4.52
28
90104-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$1.14$1.56
29
90105-ZW5-U01Ships in 1 to 2 Daysqty 4 used
$2.38$3.36
30
90106-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$2.60$3.56
31
90107-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.93$1.28
32
90108-ZW5-U00Ships in 1 to 2 Days
$1.31$1.80
33
90301-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$1.18$1.62
34
90302-ZW5-U21Ships in 1 to 2 Days
$1.18$1.62
35
90501-ZW5-U00Ships in 1 to 2 Daysqty 8 used
$0.85$1.16
36
90502-ZV4-000Ships in 1 to 2 Daysqty 4 used
$2.73$3.74
37
90502-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$1.69$2.32
38
90503-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.66$0.90
39
93500-05065-4JShips in 1 to 2 Daysqty 4 used
$2.50$3.42
40
94001-05490-0SShips in 1 to 2 Daysqty 4 used
$0.92$1.26
41
94540-06029Ships in 1 to 2 Daysqty 4 used
$3.50$4.80
Diagram

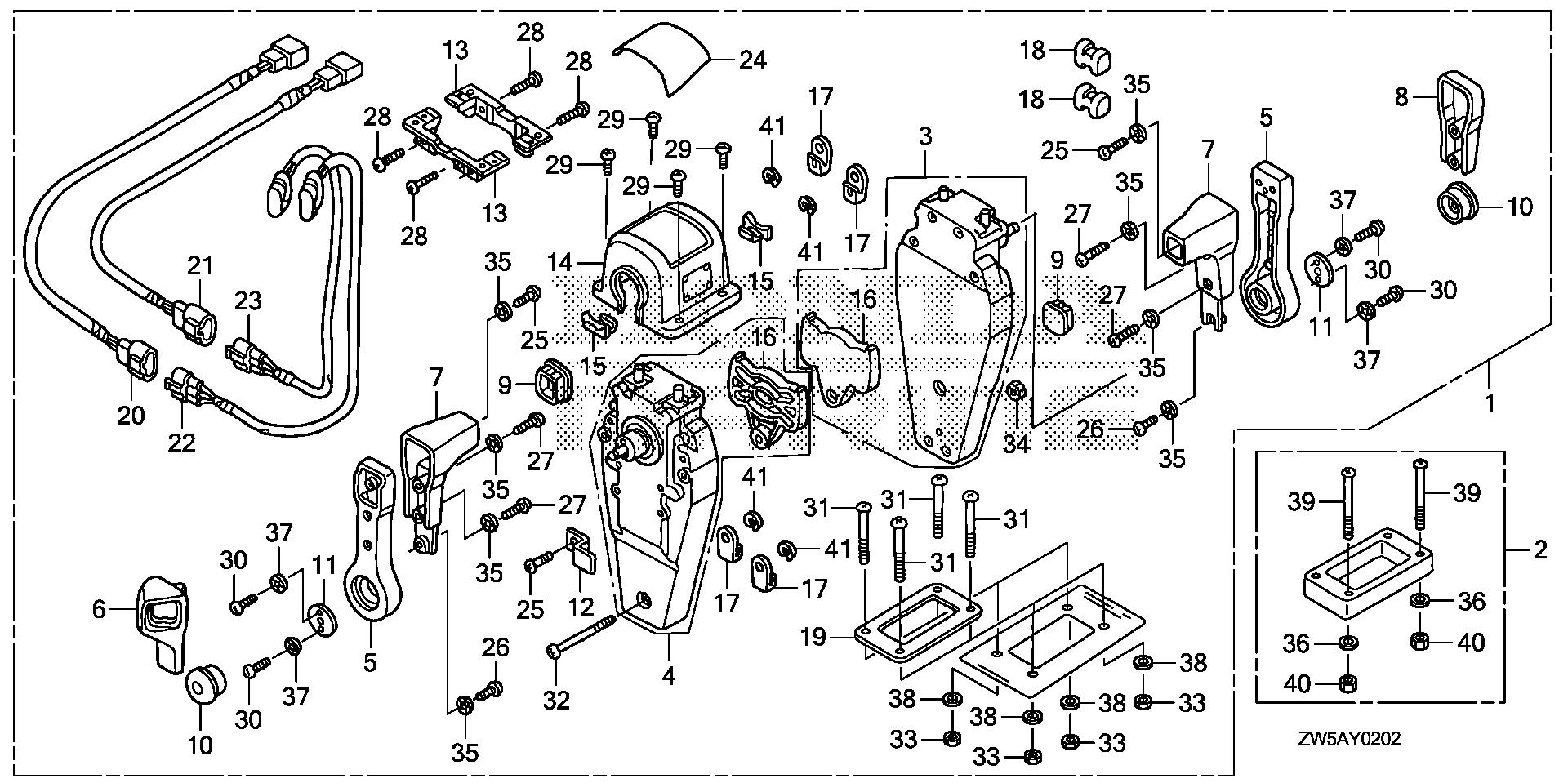

REMOTE CONTROL (TOP MOUNT DUAL TYPE) (R.)

BF115 BF115AK0 remote control (top mount dual type) (r.) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW5AY0202
Fits all 2 submodels of this generation.

Parts in this assembly

41 parts
1
06240-ZY6-V92Ships in 1 to 2 Days
$629.99
2
06241-ZW5-U10Ships in 1 to 2 Days
$33.81$46.32
3
24810-ZW5-U01Ships in 1 to 2 Days
$398.40$545.76
4
24810-ZW5-U11Ships in 1 to 2 Days
$398.40$545.76
5
24811-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$95.56$134.82
6
24812-ZW5-U01Ships in 1 to 2 Days
$12.56$17.72
7
24813-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$12.89$18.18
8
24813-ZW5-U21Ships in 1 to 2 Days
$5.45$7.68
9
24814-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$3.69$5.22
10
24816-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$7.72$10.58
11
24817-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$31.68$43.40
12
24818-ZW5-U01Ships in 1 to 2 Days
$7.11$9.74
13
24819-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$10.77$15.20
14
24820-ZW5-U21Ships in 1 to 2 Days
$30.50$43.04
15
24825-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$2.91$4.10
16
24826-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$13.81$18.92
17
24831-ZW5-U01Ships in 1 to 2 Daysqty 4 used
$8.45$11.58
18
24832-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$3.74$5.12
19
24834-ZW5-U21Ships in 1 to 2 Days
$8.82$12.08
20
32530-ZW7-U00Ships in 1 to 2 Days
$25.87$35.44
21
32530-ZW7-U10Ships in 1 to 2 Days
$26.46$36.24
22
35370-ZW5-U02Ships in 1 to 2 Days
$54.55$76.96
23
35370-ZW5-U12Ships in 1 to 2 Days
$54.55$76.96
24
87703-ZW5-U22Ships in 1 to 2 Days
$9.52$13.44
25
90101-ZW5-U00Ships in 1 to 2 Daysqty 3 used
$2.60$3.56
26
90102-ZW5-U00Ships in 1 to 2 Daysqty 2 used
$2.38$3.36
27
90103-ZW5-U01Ships in 1 to 2 Daysqty 4 used
$3.20$4.52
28
90104-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$1.14$1.56
29
90105-ZW5-U01Ships in 1 to 2 Daysqty 4 used
$2.38$3.36
30
90106-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$2.60$3.56
31
90107-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.93$1.28
32
90108-ZW5-U00Ships in 1 to 2 Days
$1.31$1.80
33
90301-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$1.18$1.62
34
90302-ZW5-U21Ships in 1 to 2 Days
$1.18$1.62
35
90501-ZW5-U00Ships in 1 to 2 Daysqty 8 used
$0.85$1.16
36
90502-ZV4-000Ships in 1 to 2 Daysqty 4 used
$2.73$3.74
37
90502-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$1.69$2.32
38
90503-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.66$0.90
39
93500-05065-4JShips in 1 to 2 Daysqty 4 used
$2.50$3.42
40
94001-05490-0SShips in 1 to 2 Daysqty 4 used
$0.92$1.26
41
94540-06029Ships in 1 to 2 Daysqty 4 used
$3.50$4.80
Diagram

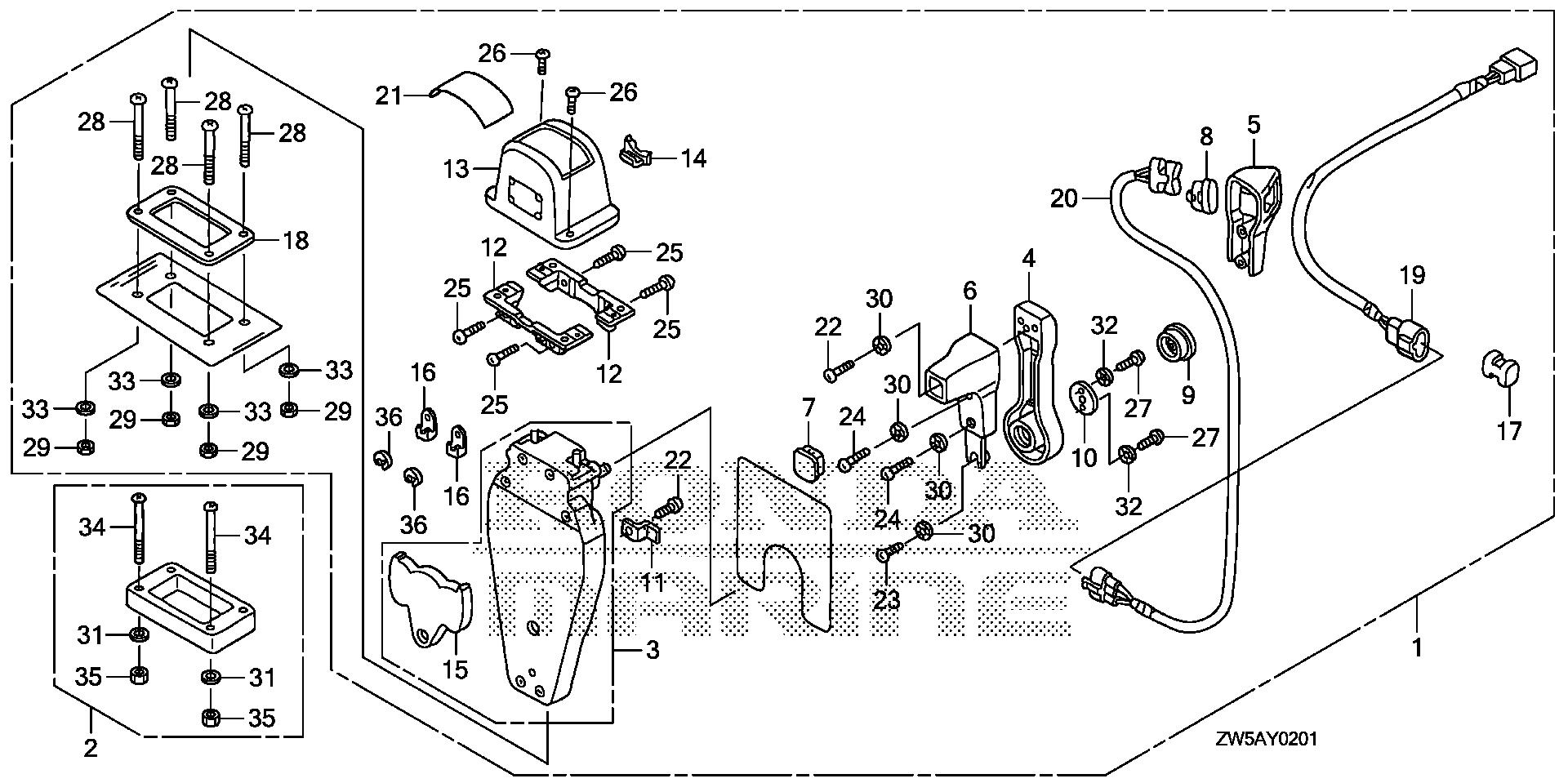

REMOTE CONTROL (TOP MOUNT SINGLE TYPE) (L.)

BF115 BF115AK0 remote control (top mount single type) (l.) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW5AY0201
Fits all 2 submodels of this generation.

Parts in this assembly

36 parts
1
BOX KIT, REMOTE CONTROL (TOP MOUNT SINGLE)(L) (NOT AVAILABLE)
06240-ZW5-U50No Longer Available
—
2
06241-ZW5-U00Ships in 1 to 2 Days
$31.45$43.08
3
24810-ZW5-U11Ships in 1 to 2 Days
$398.40$545.76
4
24811-ZW5-U01Ships in 1 to 2 Days
$95.56$134.82
5
24812-ZW5-U11Ships in 1 to 2 Days
$13.83$19.50
6
24813-ZW5-U01Ships in 1 to 2 Days
$12.89$18.18
7
24814-ZW5-U01Ships in 1 to 2 Days
$3.69$5.22
8
24815-ZW5-U01Ships in 1 to 2 Days
$5.66$8.00
9
24816-ZW5-U01Ships in 1 to 2 Days
$7.72$10.58
10
24817-ZW5-U01Ships in 1 to 2 Days
$31.68$43.40
11
24818-ZW5-U01Ships in 1 to 2 Days
$7.11$9.74
12
24819-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$10.77$15.20
13
24820-ZW5-U01Ships in 1 to 2 Days
$27.23$38.42
14
24825-ZW5-U01Ships in 1 to 2 Days
$2.91$4.10
15
24826-ZW5-U01Ships in 1 to 2 Days
$13.81$18.92
16
24831-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$8.45$11.58
17
24832-ZW5-U01Ships in 1 to 2 Days
$3.74$5.12
18
24834-ZW5-U01Ships in 1 to 2 Days
$4.42$6.06
19
32530-ZW7-U10Ships in 1 to 2 Days
$26.46$36.24
20
35370-ZW5-U12Ships in 1 to 2 Days
$54.55$76.96
21
87703-ZW5-U02Ships in 1 to 2 Days
$7.08$10.00
22
90101-ZW5-U00Ships in 1 to 2 Daysqty 2 used
$2.60$3.56
23
90102-ZW5-U00Ships in 1 to 2 Days
$2.38$3.36
24
90103-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$3.20$4.52
25
90104-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$1.14$1.56
26
90105-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$2.38$3.36
27
90106-ZW5-U00Ships in 1 to 2 Daysqty 2 used
$2.60$3.56
28
90107-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.93$1.28
29
90301-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$1.18$1.62
30
90501-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.85$1.16
31
90502-ZV4-000Ships in 1 to 2 Daysqty 4 used
$2.73$3.74
32
90502-ZW5-U00Ships in 1 to 2 Daysqty 2 used
$1.69$2.32
33
90503-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.66$0.90
34
93500-05065-4JShips in 1 to 2 Daysqty 4 used
$2.50$3.42
35
94001-05490-0SShips in 1 to 2 Daysqty 4 used
$0.92$1.26
36
94540-06029Ships in 1 to 2 Daysqty 2 used
$3.50$4.80
Diagram

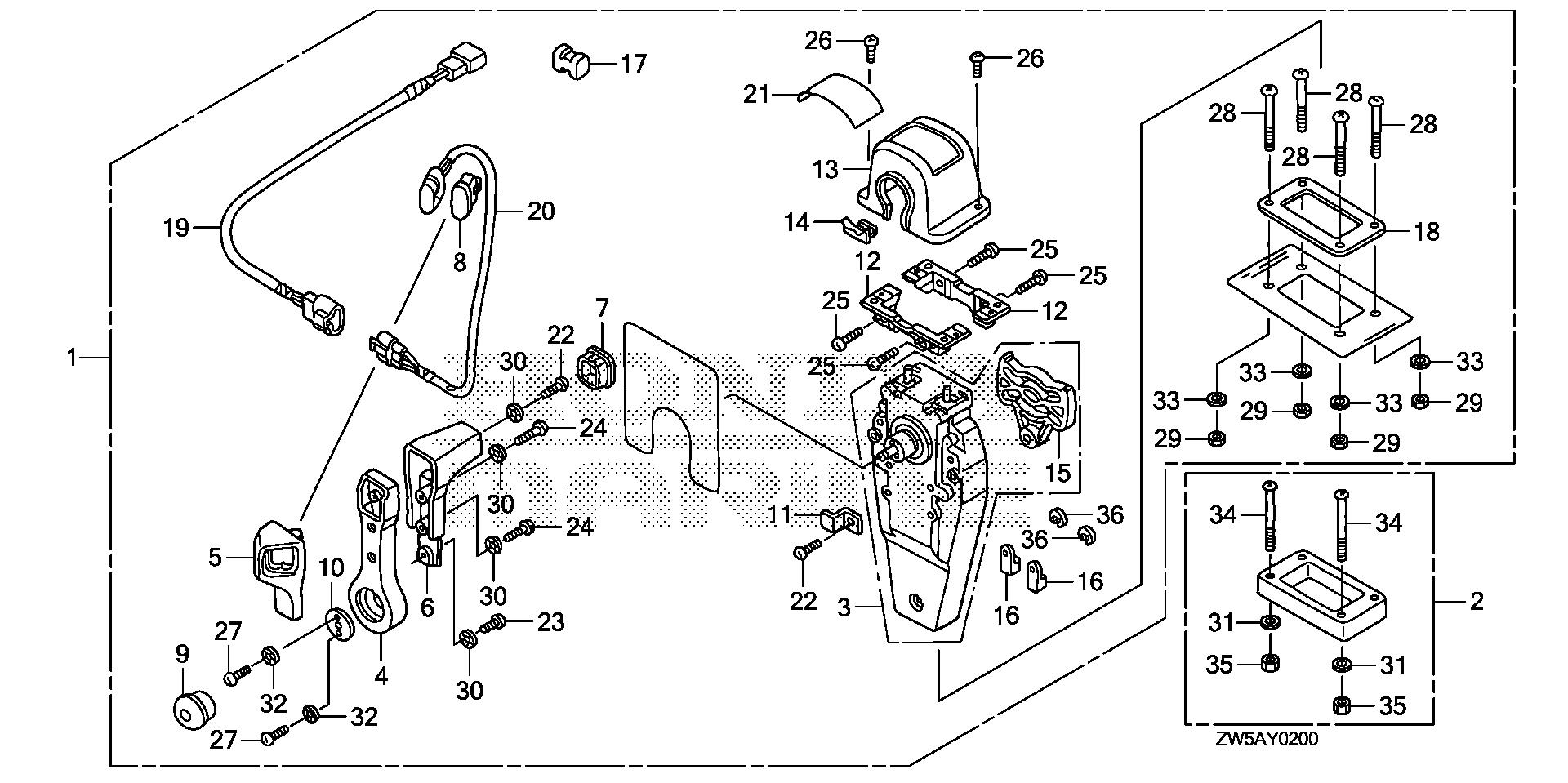

REMOTE CONTROL (TOP MOUNT SINGLE TYPE) (R.)

BF115 BF115AK0 remote control (top mount single type) (r.) exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW5AY0200
Fits all 2 submodels of this generation.

Parts in this assembly

36 parts
1
BOX KIT, REMOTE CONTROL (TOP MOUNT SINGLE)(R) (NOT AVAILABLE)
06240-ZW5-U40No Longer Available
$261.37
2
06241-ZW5-U00Ships in 1 to 2 Days
$31.45$43.08
3
24810-ZW5-U01Ships in 1 to 2 Days
$398.40$545.76
4
24811-ZW5-U01Ships in 1 to 2 Days
$95.56$134.82
5
24812-ZW5-U01Ships in 1 to 2 Days
$12.56$17.72
6
24813-ZW5-U01Ships in 1 to 2 Days
$12.89$18.18
7
24814-ZW5-U01Ships in 1 to 2 Days
$3.69$5.22
8
24815-ZW5-U01Ships in 1 to 2 Days
$5.66$8.00
9
24816-ZW5-U01Ships in 1 to 2 Days
$7.72$10.58
10
24817-ZW5-U01Ships in 1 to 2 Days
$31.68$43.40
11
24818-ZW5-U01Ships in 1 to 2 Days
$7.11$9.74
12
24819-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$10.77$15.20
13
24820-ZW5-U01Ships in 1 to 2 Days
$27.23$38.42
14
24825-ZW5-U01Ships in 1 to 2 Days
$2.91$4.10
15
24826-ZW5-U01Ships in 1 to 2 Days
$13.81$18.92
16
24831-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$8.45$11.58
17
24832-ZW5-U01Ships in 1 to 2 Days
$3.74$5.12
18
24834-ZW5-U01Ships in 1 to 2 Days
$4.42$6.06
19
32530-ZW7-U00Ships in 1 to 2 Days
$25.87$35.44
20
35370-ZW5-U02Ships in 1 to 2 Days
$54.55$76.96
21
87703-ZW5-U02Ships in 1 to 2 Days
$7.08$10.00
22
90101-ZW5-U00Ships in 1 to 2 Daysqty 2 used
$2.60$3.56
23
90102-ZW5-U00Ships in 1 to 2 Days
$2.38$3.36
24
90103-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$3.20$4.52
25
90104-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$1.14$1.56
26
90105-ZW5-U01Ships in 1 to 2 Daysqty 2 used
$2.38$3.36
27
90106-ZW5-U00Ships in 1 to 2 Daysqty 2 used
$2.60$3.56
28
90107-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.93$1.28
29
90301-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$1.18$1.62
30
90501-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.85$1.16
31
90502-ZV4-000Ships in 1 to 2 Daysqty 4 used
$2.73$3.74
32
90502-ZW5-U00Ships in 1 to 2 Daysqty 2 used
$1.69$2.32
33
90503-ZW5-U00Ships in 1 to 2 Daysqty 4 used
$0.66$0.90
34
93500-05065-4JShips in 1 to 2 Daysqty 4 used
$2.50$3.42
35
94001-05490-0SShips in 1 to 2 Daysqty 4 used
$0.92$1.26
36
94540-06029Ships in 1 to 2 Daysqty 2 used
$3.50$4.80
Diagram

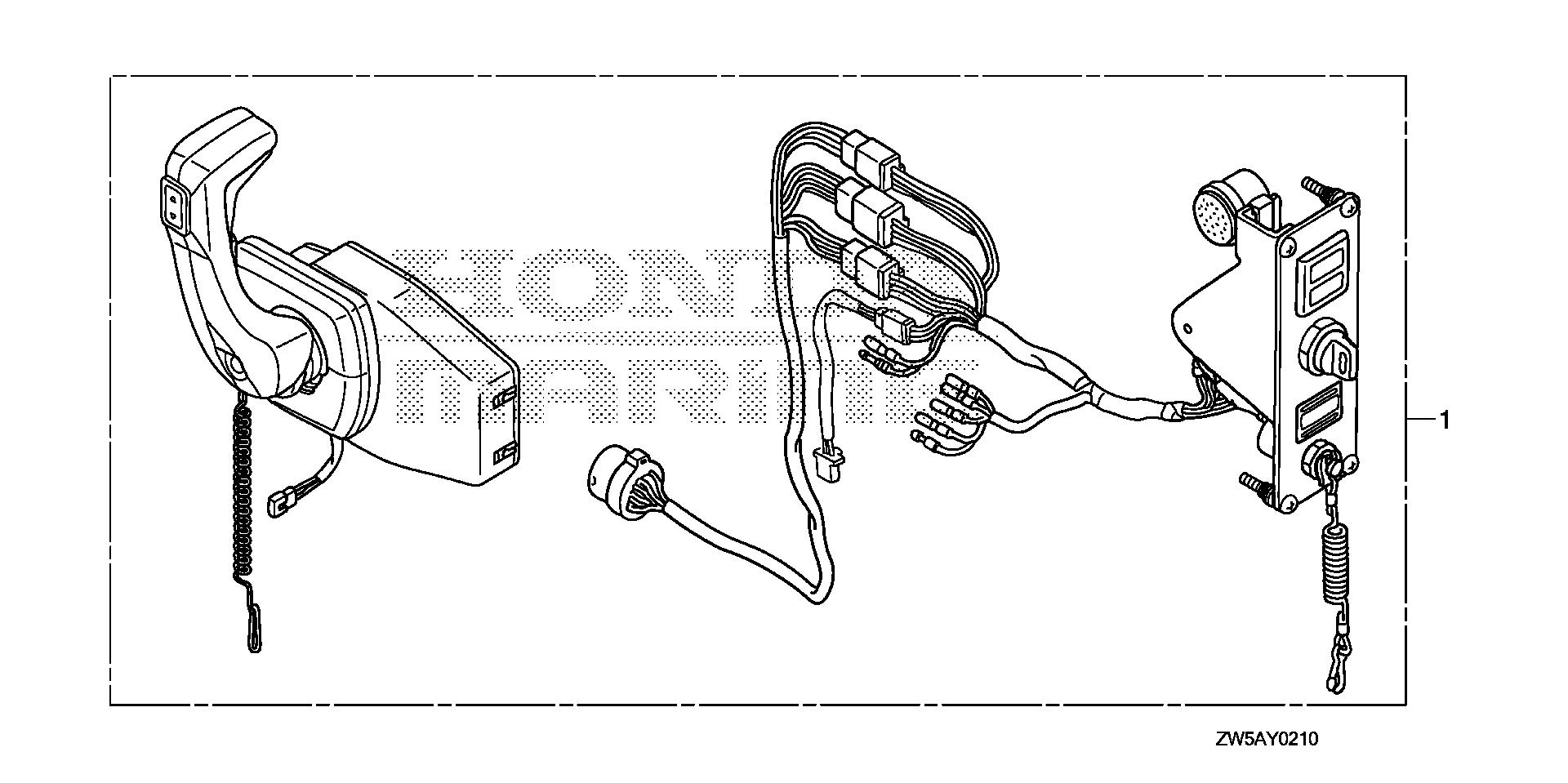

REMOTE CONTROL BOX KIT

BF115 BF115AK0 remote control box kit exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW5AY0210
Fits all 2 submodels of this generation.

Parts in this assembly

3 parts
1
BOX KIT, REMOTE CONTROL (NOT AVAILABLE)
06248-ZW5-654No Longer Available
—
1
BOX KIT, REMOTE CONTROL (NOT AVAILABLE)
06248-ZW5-655No Longer Available
—
1
BOX KIT, REMOTE CONTROL (NOT AVAILABLE)
06248-ZW5-657No Longer Available
—
Diagram

REMOTE CONTROL CABLE

BF115 BF115AK0 remote control cable exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW5AF0700
Fits all 2 submodels of this generation.

Parts in this assembly

7 parts
1
32117-ZW5-010Ships in 1 to 2 Daysqty 2 used
$5.50$7.92
2
HOLDER A, HARNESS (NOT AVAILABLE)
32127-P0A-A00No Longer Available
—
3
32411-KB9-930Ships in 1 to 2 Days
$4.04$5.54
4
CABLE ASSY., REMOTE CONTROL (A) (NOT AVAILABLE)
32520-ZW5-010No Longer Available
—
5
90013-ZV0-010Ships in 1 to 2 Daysqty 2 used
$1.80$2.46
6
90014-ZW4-000Ships in 1 to 2 Daysqty 2 used
$1.17$1.68
7
90203-ZV5-000Ships in 1 to 2 Days
$1.53$2.16
Diagram

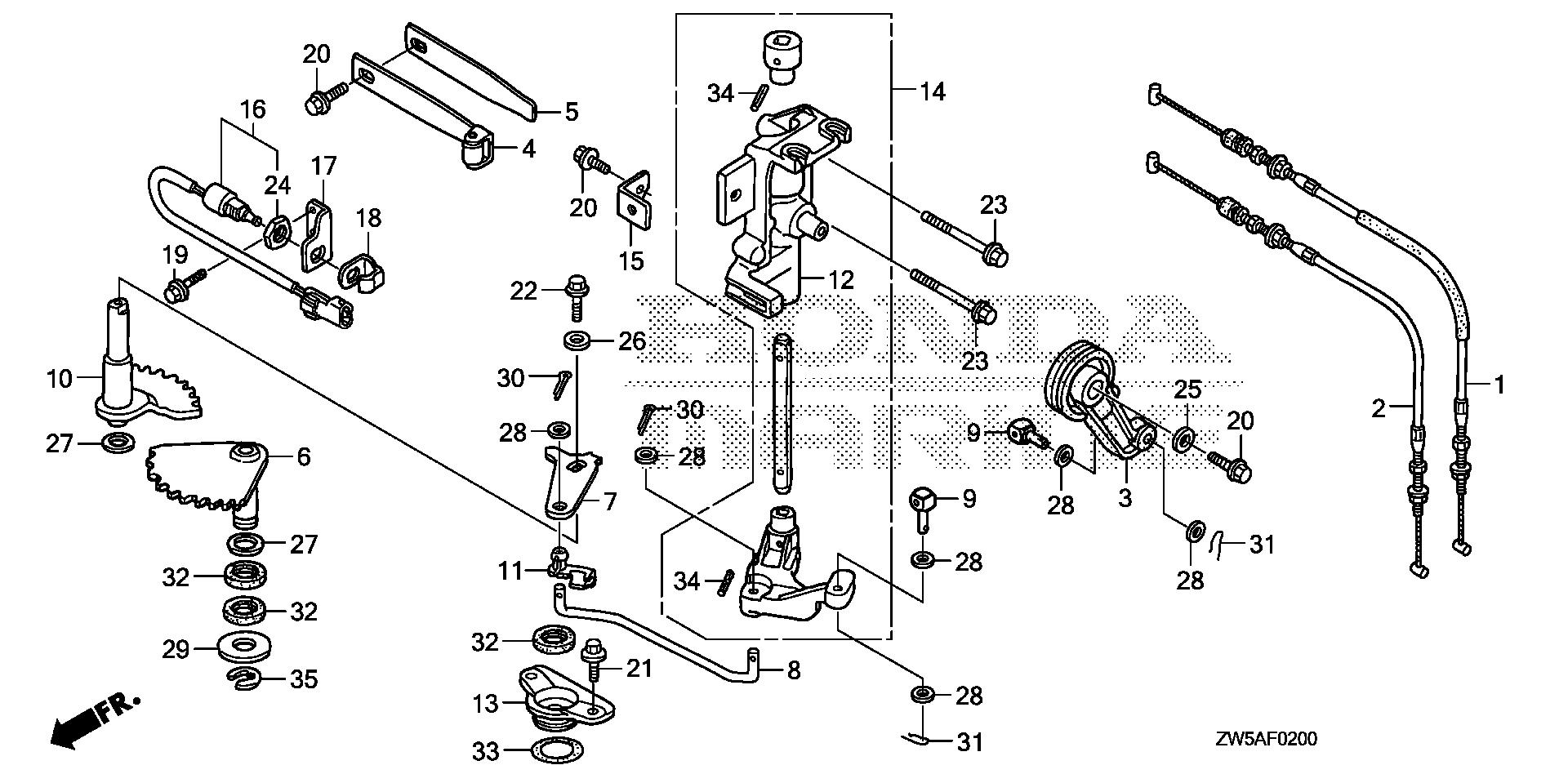

SHIFT SHAFT

BF115 BF115AK0 shift shaft exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW5AF0200
Fits all 2 submodels of this generation.

Parts in this assembly

37 parts
1
17910-ZW5-003No Longer Available
$21.04$28.82
2
17920-ZW5-003No Longer Available
$21.04$28.82
3
17931-ZW5-000Ships in 1 to 2 Days
$21.13$30.38
4
24210-ZW1-010Ships in 1 to 2 Days
$10.02$13.72
5
SPRING, CLICK ASSIST (NOT AVAILABLE)
24221-ZW1-010No Longer Available
—
6
24610-ZW5-010Ships in 1 to 2 Days
$90.43$130.08
7
24612-ZW1-010No Longer Available
$18.54$25.40
8
24613-ZW5-000Ships in 1 to 2 Days
$19.10$27.46
9
24618-ZV5-000Ships in 1 to 2 Daysqty 2 used
$14.05$19.82
10
24620-ZW5-000Ships in 1 to 2 Days
$87.35$125.62
11
24621-ZW5-000Ships in 1 to 2 Days
$12.41$17.86
12
BRACKET, SHIFT LINK (NOT AVAILABLE)
24628-ZW5-000No Longer Available
$57.39$78.62
12
BRACKET, SHIFT LINK *NH8* (DARK GRAY)
24628-ZW5-000ZANo Longer Available
—
13
24629-ZW1-000Ships in 1 to 2 Days
$21.39$29.30
14
LINK, SHIFT (NOT AVAILABLE)
24630-ZW5-000No Longer Available
—
14
LINK, SHIFT *NH8* (DARK GRAY)
24630-ZW5-000ZANo Longer Available
—
15
BRACKET, CLIP (D) (NOT AVAILABLE)
32115-ZW5-010No Longer Available
$3.91$5.36
16
SWITCH ASSY., NEUTRAL
04302-ZW5-020No Longer Available
$41.09
17
35476-ZW1-010Ships in 1 to 2 Days
$10.67$15.36
18
35618-ZW9-020Ships in 1 to 2 Days
$4.69$6.62
19
90011-ZW9-000Ships in 1 to 2 Days
$1.71$2.34
20
90013-ZV0-010Ships in 1 to 2 Daysqty 3 used
$1.80$2.46
21
90101-ZZ0-M01Ships in 1 to 2 Daysqty 2 used
$1.77$2.42
22
90056-ZY9-M01Ships in 1 to 2 Days
$1.10$1.50
23
90125-ZV1-010Ships in 1 to 2 Daysqty 2 used
$1.87$2.64
24
90302-ZV5-003Ships in 1 to 2 Days
$5.27$7.22
25
90403-ZW1-000Ships in 1 to 2 Days
$1.71$2.34
26
90406-KV3-780Ships in 1 to 2 Days
$2.22$3.14
27
90501-ZW5-000Ships in 1 to 2 Daysqty 2 used
$7.33$10.04
28
90504-921-010Ships in 1 to 2 Daysqty 6 used
$1.27$1.74
29
90508-ZV7-000Ships in 1 to 2 Days
$6.60$9.04
30
90759-ZV1-000In Stockqty 2 used
$1.42$1.94
31
90765-ZW1-000Ships in 1 to 2 Daysqty 2 used
$2.10$2.96
32
91251-ZW5-003Ships in 1 to 2 Days
$3.85$5.28
33
91302-PF0-003Ships in 1 to 2 Days
$3.14$4.30
34
94305-30183Ships in 1 to 2 Daysqty 2 used
$1.59$2.18
35
94540-12029In Stock
$8.02$10.98
Diagram

STARTER CABLE

BF115 BF115AK0 starter cable exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW5AF0710
Fits all 2 submodels of this generation.

Parts in this assembly

33 parts
1
CORD KIT, INDICATOR (3P/6P) (ANALOG) (NOT AVAILABLE)
06321-ZW5-902No Longer Available
$27.23
2
30569-895-000Ships in 1 to 2 Days
$3.24$4.58
3
32185-ZY3-010Ships in 1 to 2 Days
$41.48$59.66
4
CABLE ASSY., STARTER (NOT AVAILABLE)
32410-ZW5-000No Longer Available
$445.72$610.58
5
32411-ZW5-003Ships in 1 to 2 Days
$8.83$12.70
6
32415-425-000Ships in 1 to 2 Days
$3.17$4.34
7
32901-952-770Ships in 1 to 2 Daysqty 2 used
$2.19$3.00
8
32901-952-770Ships in 1 to 2 Daysqty 5 used
$2.19$3.00
13
38201-ZW5-003In Stockqty 2 used
$11.02$15.86
14
BOX ASSY., FUSE (90A) (NOT AVAILABLE)
38210-ZW5-003No Longer Available
$78.53$107.58
15
38216-ZW1-003Ships in 1 to 2 Daysqty 2 used
$5.97$8.58
16
38216-ZW5-003Ships in 1 to 2 Days
$7.87$11.32
17
38218-ZW5-004Ships in 1 to 2 Days
$5.69$8.04
18
38550-ZW5-003No Longer Available
$299.40$410.14
19
38551-ZW1-000In Stockqty 6 used
$6.58$9.02
20
38552-ZW5-010Ships in 1 to 2 Days
$40.91$58.84
21
38553-ZW5-000Ships in 1 to 2 Days
$6.10$8.78
22
06380-ZW5-000Ships in 1 to 2 Days
$58.27$61.18
23
40105-ZW5-000Ships in 1 to 2 Days
$7.71
24
64417-298-810Ships in 1 to 2 Days
$3.45$4.96
25
90003-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$2.55$3.50
26
90013-ZW4-000Ships in 1 to 2 Days
$2.45$3.46
27
90106-ZW5-000Ships in 1 to 2 Daysqty 2 used
$1.99$2.80
28
90107-ZY3-000Ships in 1 to 2 Days
$0.60$0.82
29
90121-ZV0-010Ships in 1 to 2 Daysqty 2 used
$2.29$3.30
30
90153-SB2-003Ships in 1 to 2 Daysqty 2 used
$7.11$9.74
31
90203-ZV5-000Ships in 1 to 2 Daysqty 2 used
$1.53$2.16
32
90203-ZW1-000Ships in 1 to 2 Days
$2.31$3.16
33
90620-SB2-003Ships in 1 to 2 Days
$25.65$35.14
34
91553-ZV5-010Ships in 1 to 2 Daysqty 6 used
$2.67$3.66
35
91558-SD5-003Ships in 1 to 2 Days
$8.32$11.40
36
98200-31000Ships in 1 to 2 Daysqty 2 used
$1.20$1.64
37
98200-33000Ships in 1 to 2 Daysqty 4 used
$1.20$1.64
Diagram

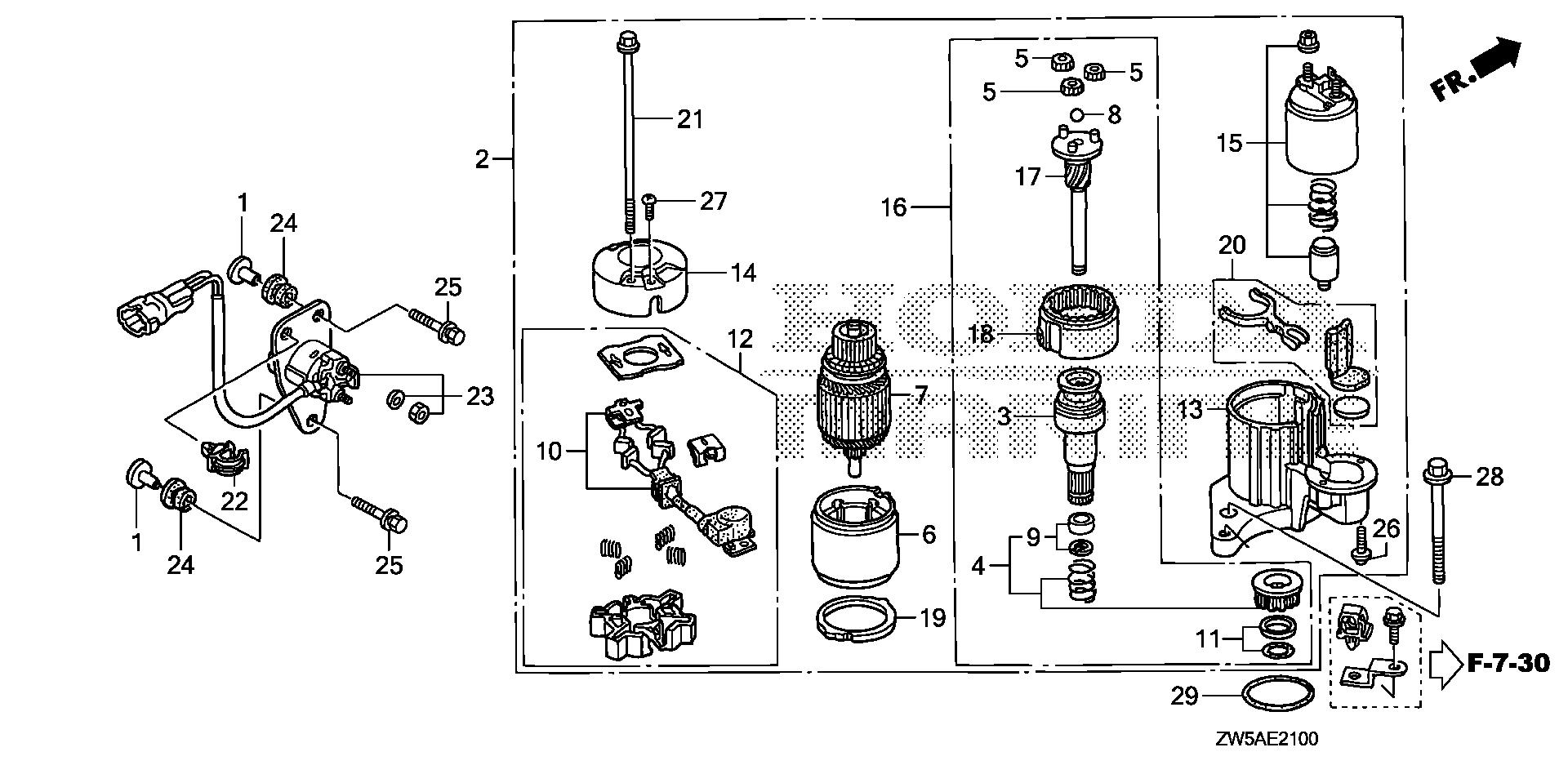

STARTER MOTOR

BF115 BF115AK0 starter motor exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW5AE2100
Fits all 2 submodels of this generation.

Parts in this assembly

29 parts
1
17612-KR3-600Ships in 1 to 2 Daysqty 2 used
$6.26$8.84
2
31200-ZW5-003Ships in 1 to 2 Days
$1,048.43
3
CLUTCH, OVERRUNNING (NOT AVAILABLE)
31207-ZW1-004No Longer Available
$272.89$373.82
4
31213-ZW1-004Ships in 1 to 2 Days
$68.14$98.02
5
31215-PY3-004Ships in 1 to 2 Daysqty 3 used
$46.68$63.94
6
31216-ZW5-003Ships in 1 to 2 Days
$221.10
7
31217-ZW5-003Ships in 1 to 2 Days
$392.14
8
31218-PY3-004Ships in 1 to 2 Days
$3.20$4.38
9
31225-ZW1-004Ships in 1 to 2 Days
$8.69$12.50
10
31226-ZW1-004Ships in 1 to 2 Days
$54.09$74.10
11
31229-ZW1-004Ships in 1 to 2 Days
$21.14$29.82
12
31231-ZW1-004Ships in 1 to 2 Days
$88.26$126.94
13
31235-ZW5-003Ships in 1 to 2 Days
$160.40$230.72
14
BRACKET, RR. (NOT AVAILABLE)
31236-ZW1-004No Longer Available
$52.59$72.04
15
31240-ZW1-004Ships in 1 to 2 Days
$308.09$422.04
16
SHAFT ASSY., CLUTCH (NOT AVAILABLE)
31242-ZW5-003No Longer Available
$557.91$764.26
17
31246-ZW5-003Ships in 1 to 2 Days
$191.49$275.44
18
31247-ZW1-004Ships in 1 to 2 Days
$67.41$95.10
19
31249-ZW1-004Ships in 1 to 2 Days
$10.76$15.18
20
31250-ZW1-004Ships in 1 to 2 Days
$13.55$19.12
21
31261-ZW1-004Ships in 1 to 2 Daysqty 2 used
$4.34$6.12
22
32660-MJ6-710Ships in 1 to 2 Days
$3.43$4.70
23
SWITCH ASSY., STARTER MAGNETIC (NOT AVAILABLE)
35850-ZW5-003No Longer Available
$73.41$100.56
24
84905-459-670Ships in 1 to 2 Daysqty 2 used
$3.61$5.08
25
90003-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$2.55$3.50
26
90106-ZW1-004Ships in 1 to 2 Daysqty 2 used
$4.00$5.64
27
90107-ZW1-004Ships in 1 to 2 Daysqty 2 used
$2.44$3.34
28
90059-ZY9-M00Ships in 1 to 2 Daysqty 2 usedreplaced by 90059-ZY9-M01
$2.00$2.82
29
O-RING (54.4X3.1) (NOT AVAILABLE)
91303-ZW1-003No Longer Available
$10.56$14.46
Diagram

STERN BRACKET - SWIVEL CASE

BF115 BF115AK0 stern bracket - swivel case exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW5AF1000B
Fits all 2 submodels of this generation.

Parts in this assembly

60 parts
1
06411-ZW1-020Ships in 1 to 2 Days
$51.97
2
24210-ZV1-010Ships in 1 to 2 Days
$10.25$14.04
3
24221-ZV4-010Ships in 1 to 2 Days
$7.30$10.00
4
35660-ZW5-013No Longer Available
$189.00$258.90
5
FRAME, MOUNTING
50100-ZW5-020No Longer Available
$470.21$644.12
6
50151-ZW5-000Ships in 1 to 2 Days
$103.31$141.54
7
50167-ZY6-000Ships in 1 to 2 Days
$81.12$111.14
8
50168-ZY6-003Ships in 1 to 2 Days
$12.79$17.52
9
50201-ZW1-020ZAShips in 1 to 2 Days
$762.77
9
50201-ZW1-040ZAShips in 1 to 2 Days
$762.77
10
50211-ZV5-003Ships in 1 to 2 Daysqty 2 used
$11.40$11.97
11
50214-ZW1-000Ships in 1 to 2 Daysqty 2 used
$13.17
12
$356.71$488.64
13
$365.44$500.60
14
50331-ZV5-000Ships in 1 to 2 Days
$5.88$8.06
15
50341-ZW5-010Ships in 1 to 2 Days
$51.63$72.86
16
50381-ZY9-000Ships in 1 to 2 Days
$167.75$236.68
17
50522-ZV5-000Ships in 1 to 2 Daysqty 2 used
$5.71$7.82
18
BRACKET, TILTING (NA USE ALT:04606-ZW1-000)
50527-ZW1-000No Longer Available
—
19
STOPPER, TILT (NA USE ALT:04606-ZW1-000)
50529-ZW1-000No Longer Available
—
20
53234-ZW5-010Ships in 1 to 2 Days
$32.94$46.48
21
53238-ZW1-010Ships in 1 to 2 Days
$63.38$86.84
22
56516-ZW1-000Ships in 1 to 2 Daysqty 2 used
$18.79$25.74
23
56539-ZZ0-C00Ships in 1 to 2 Days
$64.04$90.36
24
90009-ZW9-000Ships in 1 to 2 Daysqty 2 used
$2.88$3.94
25
90101-ZW5-000Ships in 1 to 2 Daysqty 2 used
$35.97$50.76
26
90102-ZW1-000Ships in 1 to 2 Daysqty 2 used
$7.02$9.62
27
90105-ZW1-000Ships in 1 to 2 Days
$7.48$10.24
28
90105-ZW9-000Ships in 1 to 2 Daysqty 2 used
$2.88$3.94
29
90108-ZW1-000Ships in 1 to 2 Days
$35.89$50.64
30
90109-ZV5-000Ships in 1 to 2 Daysqty 2 used
$6.39$9.20
31
90110-881-000Ships in 1 to 2 Days
$2.12$2.90
32
90129-ZW1-010Ships in 1 to 2 Daysqty 4 used
$18.88$27.16
32
90129-ZZ3-000Ships in 1 to 2 Daysqty 4 used
$13.15$18.02
33
90302-ZW5-003Ships in 1 to 2 Daysqty 2 used
$6.15$8.42
34
90304-ZV5-013Ships in 1 to 2 Days
$17.70$24.24
35
90304-ZW1-013Ships in 1 to 2 Days
$19.68$27.78
36
90304-ZW5-000Ships in 1 to 2 Days
$20.03$28.26
37
90306-ZV5-003In Stockqty 3 used
$3.40$4.66
38
90306-ZV5-003In Stockqty 2 used
$3.40$4.66
39
90307-ZV5-003Ships in 1 to 2 Daysqty 2 used
$6.47$8.86
40
90308-ZW1-003Ships in 1 to 2 Daysqty 4 used
$10.16$13.92
41
90501-ZV5-000Ships in 1 to 2 Days
$7.30$10.00
42
90502-ZV5-000Ships in 1 to 2 Daysqty 2 used
$8.72$11.94
43
90504-ZV5-000Ships in 1 to 2 Days
$7.30$10.00
44
90514-ZV4-000Ships in 1 to 2 Daysqty 3 used
$1.69$2.32
45
90545-ZV5-000Ships in 1 to 2 Days
$2.72$3.84
46
90552-ZV5-000Ships in 1 to 2 Daysqty 4 used
$4.67$6.40
47
90559-ZV5-000Ships in 1 to 2 Daysqty 9 used
$2.95$4.04
48
90563-ZV5-000Ships in 1 to 2 Daysqty 2 used
$2.44$3.34
49
90651-ZW4-000Ships in 1 to 2 Days
$5.30$7.26
50
90681-763-A01Ships in 1 to 2 Days
$8.06$11.04
51
90951-ZV7-010Ships in 1 to 2 Daysqty 3 used
$1.90$2.60
52
91256-ZV5-003Ships in 1 to 2 Days
$7.80$10.68
53
91352-ZV5-000Ships in 1 to 2 Days
$1.74$2.46
54
91560-ZV5-000Ships in 1 to 2 Days
$3.07$4.20
55
94305-25203Ships in 1 to 2 Daysqty 2 used
$1.37$1.88
56
95801-08035-09Ships in 1 to 2 Daysqty 6 used
$1.24$1.70
57
94001-12490-0SShips in 1 to 2 Daysqty 8 used
$1.90$2.60
58
04606-ZW1-000Ships in 1 to 2 Days
$133.91$183.44
Diagram

SWITCH PANEL KIT

BF115 BF115AK0 switch panel kit exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW5AY0401
Fits all 2 submodels of this generation.

Parts in this assembly

28 parts
1
PANEL KIT, SWITCH (SINGLE) (NOT AVAILABLE)
06323-ZW5-644No Longer Available
—
1
06323-ZW5-647Ships in 1 to 2 Days
$638.71$874.94
1
PANEL KIT, SWITCH (DUAL) (NOT AVAILABLE)
06323-ZW5-754No Longer Available
—
1
06323-ZW5-755Ships in 1 to 2 Days
$1,224.56$1,677.48
1
06323-ZW5-757Ships in 1 to 2 Days
$1,295.87$1,775.16
2
18334-MT8-770Ships in 1 to 2 Daysqty 4 used
$1.53$2.16
3
$22.13$30.32
4
32340-ZW5-506In Stock
$185.19$253.68
5
32346-ZW1-505No Longer Available
$23.81$32.62
6
$104.29$147.12
7
32580-ZW2-D01Ships in 1 to 2 Days
$200.34$288.12
8
32901-952-770Ships in 1 to 2 Daysqty 3 used
$2.19$3.00
9
35100-ZV5-003Ships in 1 to 2 Days
$137.02$187.70
9
35100-ZV5-013Ships in 1 to 2 Days
$85.13$116.62
10
$7.99$11.48
11
36180-ZV5-033In Stock
$56.84$77.86
12
36182-ZV4-651In Stock
$18.45$25.28
13
36187-ZV4-652Ships in 1 to 2 Days
$4.18$5.72
14
$119.31$163.44
15
38403-341-672Ships in 1 to 2 Days
$4.66$6.38
16
38410-ZV5-003Ships in 1 to 2 Days
$56.17$76.94
17
38414-ZW1-V02Ships in 1 to 2 Days
$30.70$44.16
18
87120-ZW5-010Ships in 1 to 2 Days
$16.37$23.54
19
90109-ZW5-000Ships in 1 to 2 Daysqty 4 used
$1.20$1.64
20
$4.10$5.62
21
$8.29$11.36
22
94103-05400Ships in 1 to 2 Daysqty 4 used
$0.92$1.26
23
94111-05400Ships in 1 to 2 Daysqty 4 used
$0.86$1.22
Diagram

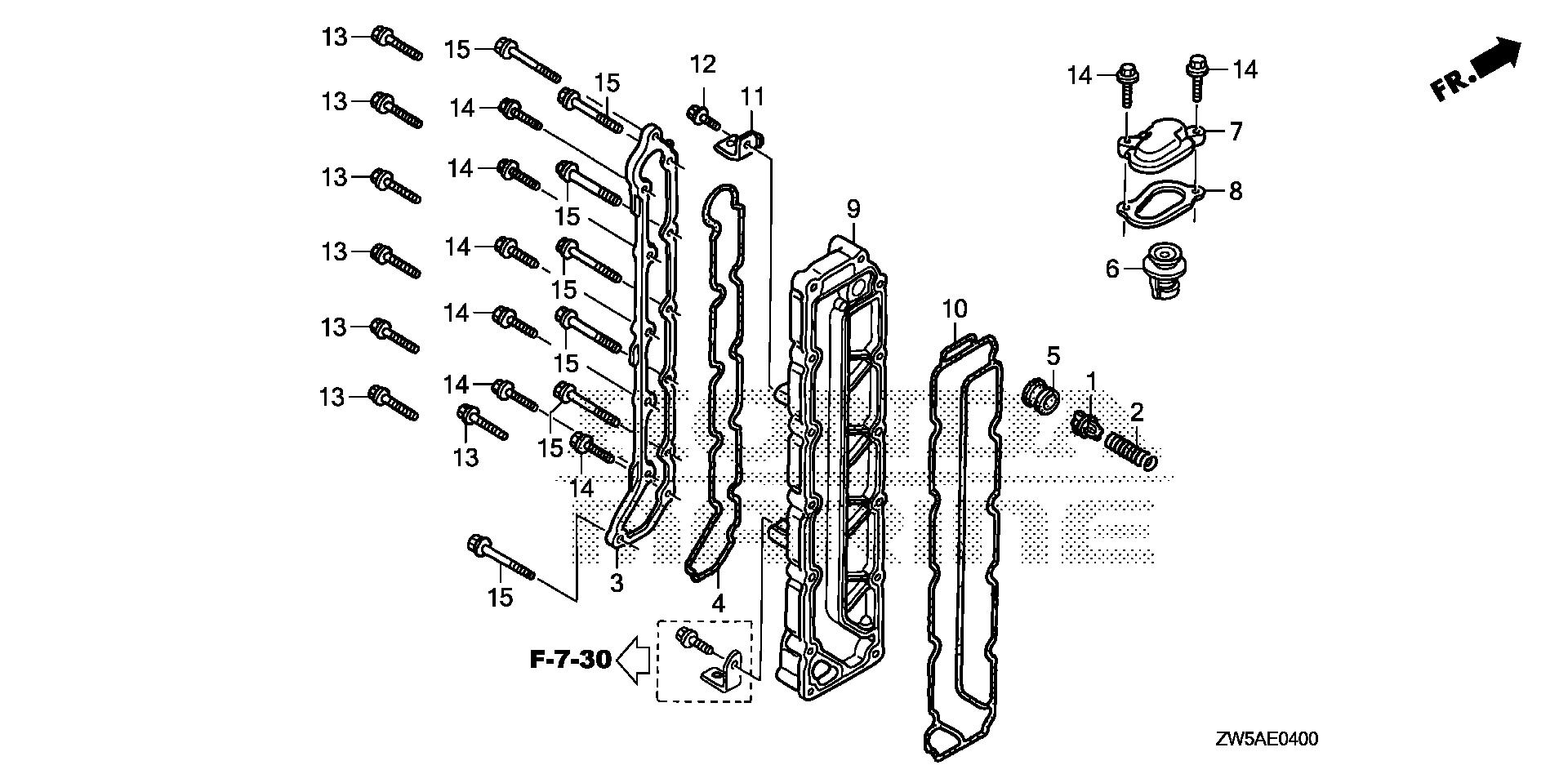

THERMOSTAT

BF115 BF115AK0 thermostat exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW5AE0400
Fits all 2 submodels of this generation.

Parts in this assembly

18 parts
1
19291-ZW5-000Ships in 1 to 2 Days
$7.34$10.06
2
19292-ZW5-000Ships in 1 to 2 Days
$4.19$5.74
3
COVER, RELIEF VALVE (NOT AVAILABLE)
19295-ZW5-000No Longer Available
$95.09$130.26
3
COVER, RELIEF VALVE *NH8* (DARK GRAY)
19295-ZW5-000ZANo Longer Available
—
4
19296-ZW5-000Ships in 1 to 2 Days
$20.97$30.16
5
19297-ZW5-000Ships in 1 to 2 Days
$6.29$8.62
6
19300-ZY3-023In Stock
$36.85$50.48
7
COVER, THERMOSTAT (NOT AVAILABLE)
19315-ZW5-000No Longer Available
$24.78$33.94
7
COVER, THERMOSTAT *NH8* (DARK GRAY)
19315-ZW5-000ZANo Longer Available
—
8
19351-ZV5-000In Stock
$2.98$4.20
9
COVER, WATER JACKET *NH8* (DARK GRAY) (NOT AVAILABLE)
19361-ZW5-000ZANo Longer Available
$175.61$240.56
10
19371-ZW5-000Ships in 1 to 2 Days
$27.94$40.20
11
STAY A, IGNITION WIRE CLAMP (NOT AVAILABLE)
30526-ZW5-000No Longer Available
—
12
90013-ZV0-010Ships in 1 to 2 Days
$1.80$2.46
13
90014-ZZ5-M01Ships in 1 to 2 Daysqty 7 used
$1.87$2.56
13
90016-ZW9-000Ships in 1 to 2 Daysreplaced by 90014-ZZ5-M01
$1.87$2.56
14
90018-ZW5-000Ships in 1 to 2 Daysqty 8 used
$1.64$2.24
15
90020-ZW5-000Ships in 1 to 2 Daysqty 7 usedreplaced by 90020-ZY9-M01
$1.93$2.72
Diagram

THROTTLE BODY

BF115 BF115AK0 throttle body exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW5AE1500
Fits all 2 submodels of this generation.

Parts in this assembly

32 parts
1
16016-PM6-005Ships in 1 to 2 Days
$22.89$32.92
2
16075-P07-000Ships in 1 to 2 Days
$4.26$6.14
3
16176-P0A-004Ships in 1 to 2 Days
$11.20$16.10
4
BODY ASSY., THROTTLE (NOT AVAILABLE)
16400-ZW7-013No Longer Available
—
5
17201-MG9-000Ships in 1 to 2 Days
$15.51$21.24
6
17249-PS4-000Ships in 1 to 2 Days
$11.55$16.60
7
GASKET, BREATHER (NOT AVAILABLE)
17272-PM3-000No Longer Available
$5.23$7.16
8
17274-PM3-000Ships in 1 to 2 Daysqty 2 used
$3.91$5.62
9
COVER, BREATHER ELEMENT (NOT AVAILABLE)
17275-ZW5-000No Longer Available
$22.70$31.10
10
CLAMP, AIR FLOW (70) (NOT AVAILABLE)
17316-ZW5-003No Longer Available
$10.88$14.90
11
17359-419-670Ships in 1 to 2 Days
$1.88$2.58
12
17371-ZW5-000Ships in 1 to 2 Days
$199.16$272.82
13
17374-ZW5-000Ships in 1 to 2 Days
$24.92$35.84
14
SENSOR ASSY., MAP (NOT AVAILABLE)
35675-ZW5-004No Longer Available
$141.34$193.62
15
40102-ZV5-000Ships in 1 to 2 Daysqty 3 used
$2.64$3.62
16
90003-ZZ5-M01Ships in 1 to 2 Daysqty 3 used
$2.55$3.50
17
90010-ZW5-003Ships in 1 to 2 Daysqty 2 used
$3.12$4.50
18
90146-ZW4-000Ships in 1 to 2 Days
$1.90$2.60
19
90055-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.87$2.56
20
90208-438-000Ships in 1 to 2 Daysqty 2 used
$4.10$5.62
21
90603-ZW5-020Ships in 1 to 2 Days
$1.96$2.82
21
90603-ZW5-030In Stock
$1.90$2.72
22
90604-ZW5-020Ships in 1 to 2 Days
$2.48$3.56
22
90604-ZW5-030Ships in 1 to 2 Days
$2.44$3.50
23
90605-ZV4-000Ships in 1 to 2 Daysqty 2 used
$1.37$1.88
24
90607-ZW5-003Ships in 1 to 2 Days
$1.64$2.36
25
90679-679-004Ships in 1 to 2 Days
$8.82$12.44
26
91402-ZW5-000Ships in 1 to 2 Days
$8.48$12.20
27
91403-ZW5-000Ships in 1 to 2 Days
$18.41$26.48
28
91553-ZV5-010Ships in 1 to 2 Daysqty 3 used
$2.67$3.66
29
95003-05008-60MShips in 1 to 2 Days
$26.65$38.34
30
95003-05008-60MShips in 1 to 2 Days
$26.65$38.34
Diagram

TIMING BELT

BF115 BF115AK0 timing belt exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW5AE1300
Fits all 2 submodels of this generation.

Parts in this assembly

28 parts
1
13404-ZW5-003No Longer Available
$94.40$129.32
2
13405-PT0-004Ships in 1 to 2 Days
$111.81$160.84
3
SPRING, BALANCER BELT ADJUSTER (NOT AVAILABLE)
13407-ZW5-000No Longer Available
$2.99$4.10
4
PULLEY, BALANCER BELT DRIVE (NOT AVAILABLE)
13408-ZW5-003No Longer Available
$183.13$250.86
5
BRACKET, B. BELT ADJUST (NOT AVAILABLE)
13415-ZW5-000No Longer Available
—
6
13621-ZW5-003Ships in 1 to 2 Days
$68.81$98.98
7
PLATE, TIMING BELT GUIDE
13622-ZW5-000No Longer Available
$28.86$39.54
8
PULLEY, CRANKSHAFT (NOT AVAILABLE)
13811-ZW5-000No Longer Available
$72.53$99.36
9
PULLEY, TIMING BELT DRIVEN (NOT AVAILABLE)
14210-ZW5-000No Longer Available
$156.70$214.66
10
14400-ZW5-004Ships in 1 to 2 Days
$105.22$151.36
11
TENSIONER, TIMING BELT (NOT AVAILABLE)
14510-ZW5-003No Longer Available
$106.10$145.34
12
SPRING, TIMING BELT ADJUSTER (NOT AVAILABLE)
14514-ZW5-010No Longer Available
$4.45$6.10
13
SPRING, TIMING BELT ADJUSTER (NOT AVAILABLE)
14516-ZW5-010No Longer Available
—
14
FAN, COOLING (NOT AVAILABLE)
19510-ZW5-000No Longer Available
$33.05$45.28
15
31638-ZW5-004Ships in 1 to 2 Days
$24.00$34.52
16
41122-ZV0-000Ships in 1 to 2 Days
$1.36$1.86
17
90012-ZZ5-M02Ships in 1 to 2 Daysqty 2 used
$3.72$5.10
18
90013-ZW5-010Ships in 1 to 2 Days
$8.91$12.82
19
BOLT, BALANCER BELT ADJUSTER BRACKET (NOT AVAILABLE)
90016-ZW5-010No Longer Available
—
20
90017-RJA-003Ships in 1 to 2 Days
$45.39$62.20
21
90017-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$1.24$1.70
22
90190-S04-000Ships in 1 to 2 Days
$2.53$3.46
23
90201-ZW5-010Ships in 1 to 2 Days
$5.90$8.48
24
90401-ZW5-000Ships in 1 to 2 Days
$8.35$12.02
25
90402-PC6-000Ships in 1 to 2 Days
$20.40$27.94
26
90501-MB7-610Ships in 1 to 2 Days
$6.47$9.30
27
90704-PT0-000Ships in 1 to 2 Days
$8.29$11.36
28
96220-40100Ships in 1 to 2 Days
$0.45$0.62
Diagram

TIMING BELT COVER

BF115 BF115AK0 timing belt cover exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW5AE1310
Fits all 2 submodels of this generation.

Parts in this assembly

7 parts
1
11810-ZW5-000Ships in 1 to 2 Days
$105.37$151.58
2
COVER, TIMING BELT (UPPER) (NOT AVAILABLE)
11820-ZW5-010No Longer Available
—
3
11831-ZW5-000Ships in 1 to 2 Days
$3.42$4.92
4
40102-ZV5-000Ships in 1 to 2 Daysqty 8 used
$2.64$3.62
5
90003-ZZ5-M01Ships in 1 to 2 Daysqty 6 used
$2.55$3.50
6
90013-ZW1-000Ships in 1 to 2 Daysqty 6 used
$2.48$3.40
7
91553-ZV5-010Ships in 1 to 2 Daysqty 8 used
$2.67$3.66
Diagram

VAPOR SEPARATOR

BF115 BF115AK0 vapor separator exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW5AE1810
Fits all 2 submodels of this generation.

Parts in this assembly

57 parts
1
16011-ZY3-A01Ships in 1 to 2 Days
$42.79$58.62
2
16013-ZY3-000Ships in 1 to 2 Days
$85.70$117.42
3
BODY, CHAMBER (NOT AVAILABLE)
16015-ZW5-010No Longer Available
—
4
COVER (NOT AVAILABLE)
16020-ZW5-010No Longer Available
—
4
COVER
16020-ZW5-020No Longer Available
—
4
COVER (NOT AVAILABLE)
16020-ZW5-030No Longer Available
$137.71$188.64
5
16024-ZY3-000Ships in 1 to 2 Days
$12.18$16.68
6
16026-ZY3-000Ships in 1 to 2 Days
$9.49$13.00
7
PUMP UNIT SET A, FUEL
16030-ZW5-013No Longer Available
—
7
PUMP UNIT SET A, FUEL (NOT AVAILABLE) (MSDS)
16030-ZW5-023No Longer Available
—
7
PUMP UNIT SET A, FUEL (NOT AVAILABLE) (MSDS)
16030-ZW5-043No Longer Available
—
8
16031-ZW5-003Ships in 1 to 2 Days
$26.59$38.24
9
STAY, PLATE (B)
16032-ZW5-003No Longer Available
$19.56$26.80
10
16036-ZY6-003Ships in 1 to 2 Days
$344.06$471.32
11
16041-ZY3-000Ships in 1 to 2 Days
$8.02$10.98
12
16042-ZY3-000Ships in 1 to 2 Days
$10.63$14.56
13
16061-ZY3-010Ships in 1 to 2 Days
$29.32$40.16
14
16072-ZY3-000In Stock
$8.42$11.54
15
16073-ZY3-000In Stock
$10.51$14.40
16
91301-P2F-A01In Stock
$3.17$4.34
17
16075-ZY3-000In Stock
$15.91$21.80
18
16076-ZY3-000Ships in 1 to 2 Days
$10.51$14.40
19
16077-ZY3-000Ships in 1 to 2 Daysqty 2 used
$10.51$14.40
20
16078-ZY3-000In Stock
$11.46$15.70
21
16081-ZW5-010In Stockqty 21 used
$4.18$5.72
22
16082-ZY3-000Ships in 1 to 2 Daysqty 2 used
$3.80$5.20
23
16083-ZY3-000Ships in 1 to 2 Days
$3.11$4.26
24
16084-ZW5-013No Longer Availableqty 2 used
$3.07$4.20
25
16086-ZW5-000Ships in 1 to 2 Daysqty 8 used
$3.34$4.58
26
16087-ZW5-000Ships in 1 to 2 Daysqty 8 used
$3.69$5.06
27
16087-ZY3-000Ships in 1 to 2 Days
$5.53$7.58
28
16088-ZY3-000Ships in 1 to 2 Days
$4.20$5.76
29
CASE, PUMP (NOT AVAILABLE)
16701-ZW5-003No Longer Available
—
30
16708-ZW5-003Ships in 1 to 2 Days
$130.13$178.26
31
COVER, PUMP (A) (NOT AVAILABLE)
16715-ZW5-003No Longer Available
—
31
16715-ZW5-023Ships in 1 to 2 Days
$133.05$182.28
32
16718-ZY6-013Ships in 1 to 2 Days
$23.11$31.66
33
16721-ZY3-000Ships in 1 to 2 Days
$23.32$31.94
34
16723-ZY6-003Ships in 1 to 2 Days
$9.86$13.50
35
SEPARATOR ASSY., VAPOR
16730-ZW5-023No Longer Available
—
35
SEPARATOR ASSY., VAPOR (NOT AVAILABLE)
16730-ZW5-033No Longer Available
—
35
SEPARATOR ASSY., VAPOR (NOT AVAILABLE)
16730-ZW5-053No Longer Available
—
35
SEPARATOR ASSY., VAPOR (NOT AVAILABLE)
16730-ZW5-063No Longer Available
$1,213.68$1,662.58
36
16733-ZW5-000Ships in 1 to 2 Daysqty 2 used
$6.64$9.10
37
16733-ZY3-000Ships in 1 to 2 Days
$6.03$8.26
38
16752-ZY3-000Ships in 1 to 2 Days
$7.36$10.08
39
16911-ZY3-010In Stock
$50.46$69.12
↳
Sierra alternative ·
18-79908In Stock save $6.64
$43.82
40
16913-ZY3-000Ships in 1 to 2 Days
$6.06$8.30
41
TUBE, CORRUGATE (7MM) (NOT AVAILABLE)
17736-ZW5-000No Longer Available
$1.84$2.52
42
HARNESS (NOT AVAILABLE)
32166-ZW5-003No Longer Available
—
43
32168-ZW5-003Ships in 1 to 2 Days
$1.53$2.10
44
90009-PP4-E01In Stock
$7.65$10.48
45
90014-ZZ5-M01Ships in 1 to 2 Daysqty 4 used
$1.87$2.56
45
90016-ZW9-000Ships in 1 to 2 Daysreplaced by 90014-ZZ5-M01
$1.87$2.56
46
90017-ZZ5-M01Ships in 1 to 2 Daysqty 2 used
$1.24$1.70
47
90430-PD6-003In Stock
$4.41$6.04
48
91301-MJ0-003In Stockqty 2 used
$2.09$2.86
Diagram

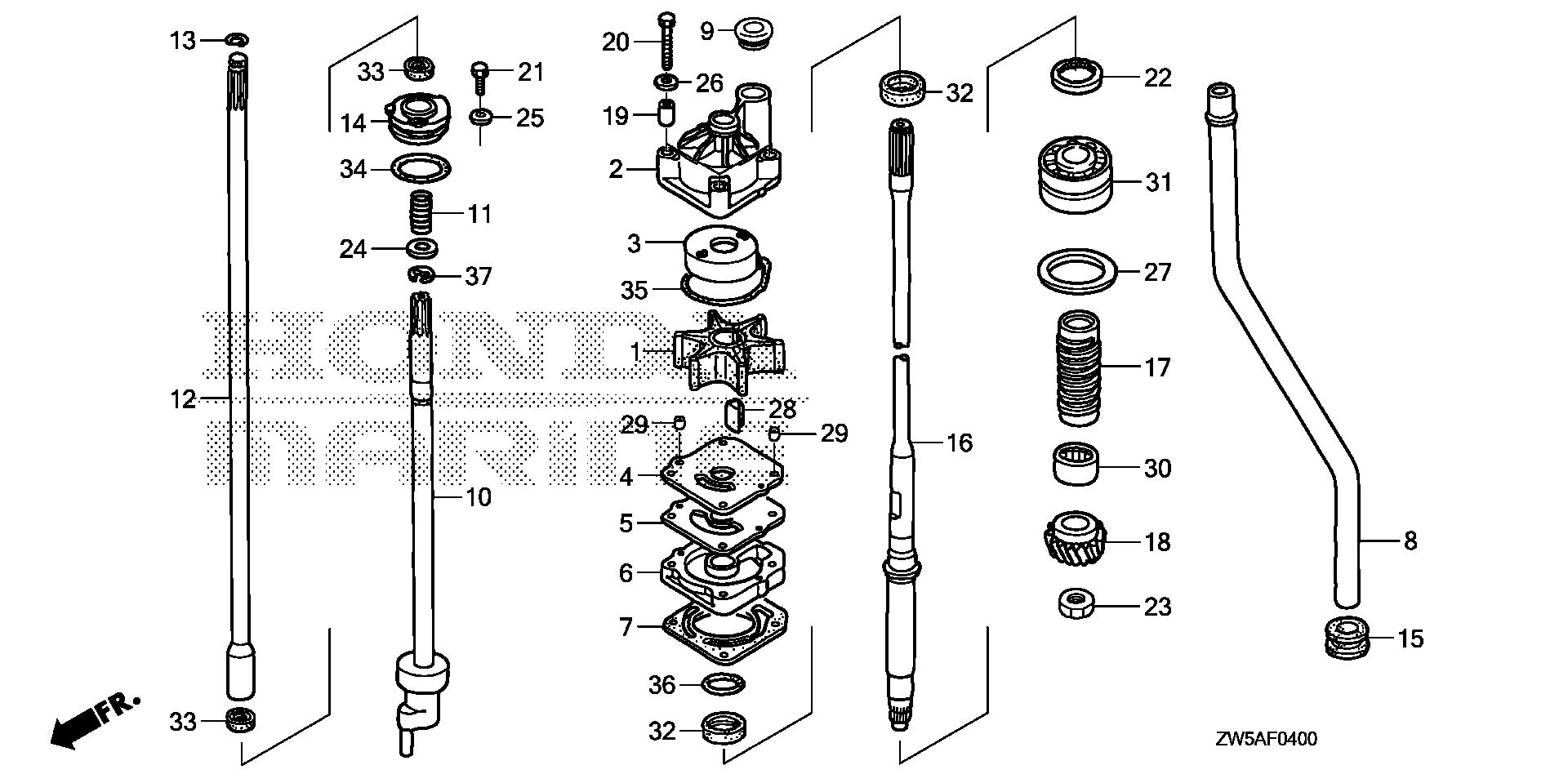

WATER PUMP - VERTICAL SHAFT

BF115 BF115AK0 water pump - vertical shaft exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW5AF0400
Fits all 2 submodels of this generation.

Parts in this assembly

44 parts
1
19210-ZW1-B04In Stock
$39.30$53.84
2
19221-ZW1-B01Ships in 1 to 2 Days
$37.78$54.36
3
19223-ZW1-B00Ships in 1 to 2 Days
$30.44$41.70
4
19231-ZW5-000Ships in 1 to 2 Days
$17.93$25.80
5
19234-ZW1-B00Ships in 1 to 2 Days
$9.39$13.24
6
19241-ZW1-B02Ships in 1 to 2 Days
$44.47$63.96
7
19242-ZW1-B00In Stock
$9.39$13.24
8
19251-ZW1-900No Longer Available
$59.25$81.16
8
19251-ZW1-910Ships in 1 to 2 Days
$67.74$97.44
9
19253-ZW1-B01Ships in 1 to 2 Days
$5.83$7.98
10
ROD, SHIFT (L) (NOT AVAILABLE)
24310-ZW1-B01No Longer Available
—
10
ROD, SHIFT (UL) (NOT AVAILABLE)
24310-ZW1-B31No Longer Available
$144.00$197.26
11
24318-ZY3-000Ships in 1 to 2 Days
$2.73$3.74
12
24320-ZW1-B00Ships in 1 to 2 Days
$70.17$96.12
13
24327-ZW1-000In Stock
$1.69$2.32
14
24343-ZW1-B02Ships in 1 to 2 Days
$16.06$22.00
15
40204-ZW1-000Ships in 1 to 2 Days
$7.43$10.18
16
SHAFT, VERTICAL
41112-ZW5-020No Longer Available
$570.28$781.20
16
SHAFT, VERTICAL
41112-ZW5-611No Longer Available
—
16
SHAFT, VERTICAL (NOT AVAILABLE)
41112-ZW5-612No Longer Available
$605.96$830.08
17
41116-ZW1-B00Ships in 1 to 2 Days
$13.61$18.64
18
GEAR, PINION (NOT AVAILABLE)
41131-ZW5-000No Longer Available
$120.19$164.64
19
COLLAR, DISTANCE (NOT AVAILABLE)
53109-ZV0-000No Longer Available
$6.69$9.16
20
90010-ZV5-000Ships in 1 to 2 Daysqty 4 used
$4.69$6.62
21
90105-881-000Ships in 1 to 2 Days
$2.12$2.90
22
90242-ZW1-000Ships in 1 to 2 Days
$26.24$35.94
23
90303-ZW5-000Ships in 1 to 2 Days
$18.43$25.24
24
90472-723-000Ships in 1 to 2 Days
$1.43$1.96
25
90511-ZV4-000Ships in 1 to 2 Days
$2.20$3.02
26
90514-921-000Ships in 1 to 2 Daysqty 4 used
$0.99$1.36
27
90518-ZW1-B00Ships in 1 to 2 Days
$7.34$10.06
27
90519-ZW1-B00Ships in 1 to 2 Days
$7.34$10.06
27
90520-ZW1-B00Ships in 1 to 2 Days
$7.34$10.06
27
90521-ZW1-B00Ships in 1 to 2 Days
$7.34$10.06
28
90752-ZW1-B02Ships in 1 to 2 Days
$12.96$18.30
↳
Sierra alternative ·
18-3271Backorder Now save $9.91
$3.05
29
90756-ZV5-000In Stockqty 2 used
$2.64$3.62
30
91052-ZW5-003Ships in 1 to 2 Days
$58.81$84.58
31
91054-ZW1-B31Ships in 1 to 2 Days
$75.60$103.56
32
91251-ZW1-B04In Stockqty 2 used
$8.19$11.78
33
91254-ZY3-003Ships in 1 to 2 Daysqty 2 used
$4.53$6.20
34
91308-MJ0-003Ships in 1 to 2 Days
$3.61$4.94
35
91356-ZW1-B00Ships in 1 to 2 Days
$8.18$11.20
36
91359-MB0-000Ships in 1 to 2 Days
$5.30$7.26
37
94540-10019Ships in 1 to 2 Days
$2.83$3.88
Diagram

WATER PUMP IMPELLER KIT

BF115 BF115AK0 water pump impeller kit exploded parts diagram with numbered part references
Ref numbers on the diagram match the badges belowZW5AY0100
Fits all 2 submodels of this generation.

Parts in this assembly

18 parts
1
06192-ZW1-000Ships in 1 to 2 Days
$58.71$84.46
↳
Sierra alternative ·
18-3283In Stock
$60.83
2
06193-ZW5-030Ships in 1 to 2 Daysreplaced by 06193-ZW5-050
$168.79$242.78
2
06193-ZW5-040Ships in 1 to 2 Daysreplaced by 06193-ZW5-050
$168.79$242.78
2
06193-ZW5-050Ships in 1 to 2 Days
$168.79$242.78
3
19210-ZW1-B04In Stock
$39.30$53.84
3
19210-ZW1-B05Ships in 1 to 2 Days
$39.30$53.84
4
19221-ZW1-B01Ships in 1 to 2 Days
$37.78$54.36
5
19223-ZW1-B00Ships in 1 to 2 Days
$30.44$41.70
6
19231-ZW5-000Ships in 1 to 2 Days
$17.93$25.80
7
19234-ZW1-B00Ships in 1 to 2 Days
$9.39$13.24
8
19242-ZW1-B00In Stock
$9.39$13.24
9
19253-ZW1-B01Ships in 1 to 2 Days
$5.83$7.98
10
COLLAR, DISTANCE (NOT AVAILABLE)
53109-ZV0-000No Longer Available
$6.69$9.16
11
90010-ZV5-000Ships in 1 to 2 Daysqty 4 used
$4.69$6.62
12
90514-921-000Ships in 1 to 2 Daysqty 4 used
$0.99$1.36
13
90752-ZVT-000Ships in 1 to 2 Days
$17.68$24.22
13
90752-ZW1-B02Ships in 1 to 2 Days
$12.96$18.30
↳
Sierra alternative ·
18-3271Backorder Now save $9.91
$3.05
14
91356-ZW1-B00Ships in 1 to 2 Days
$8.18$11.20
Diagrams are Honda's official OEM illustrations, served from Honda's asset host. Prices are our own; where a struck-through figure appears beside one it is Honda's suggested retail. “In Stock” means the part is on our shelf here at Boe Marine. “Ships in 1 to 2 Days” means we order it in from Honda, who still supply it. Parts marked “No Longer Available” are shown so the drawing stays complete, but Honda has discontinued them. Where a Sierra replacement is listed beneath a Honda part, Sierra ships it direct to you; “Backorder Now” on one of those means Sierra has none at the moment and will ship it once restocked.
